IEEE ICIP 2013 Feature Normalization for Part-Based Image Classification Speaker: Lingxi Xie Authors: Lingxi Xie, Qi Tian, Bo Zhang State Key Laboratory of Intelligent Technology and Systems Department of Computer Science and Technology Tsinghua University http://www.tsinghua.edu.cn
Outline Image Classification The Part-Based Classification Models Feature Normalization Global Normalization Separate Normalization Hierarchical Normalization Experimental Results Conclusions 6/11/2025 ICIP 2013 - Oral Presentation 2

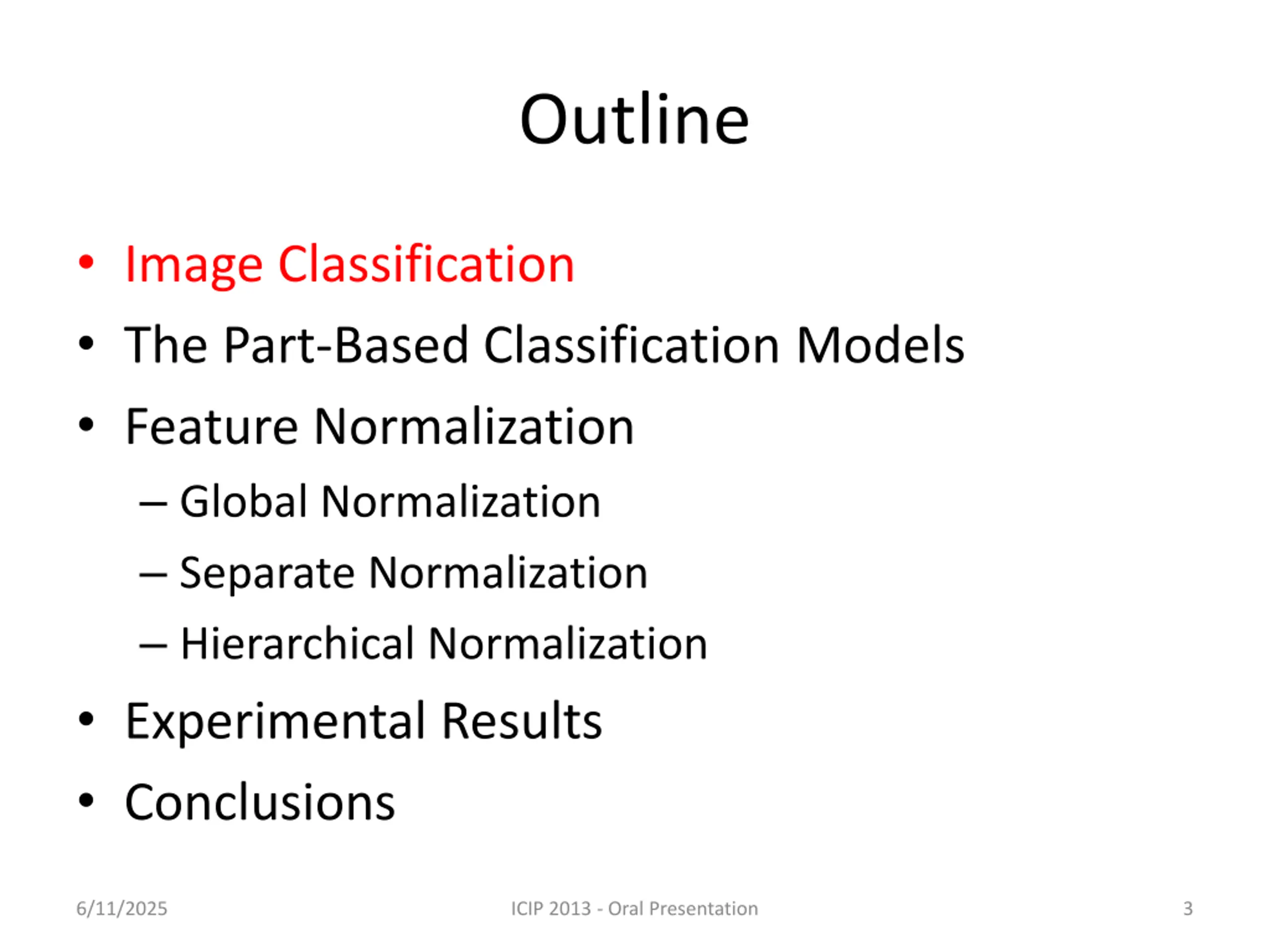

Outline Image Classification The Part-Based Classification Models Feature Normalization Global Normalization Separate Normalization Hierarchical Normalization Experimental Results Conclusions 6/11/2025 ICIP 2013 - Oral Presentation 3
Image Classification A basic task towards image understanding General vs. Fine-Grained 6/11/2025 ICIP 2013 - Oral Presentation 4

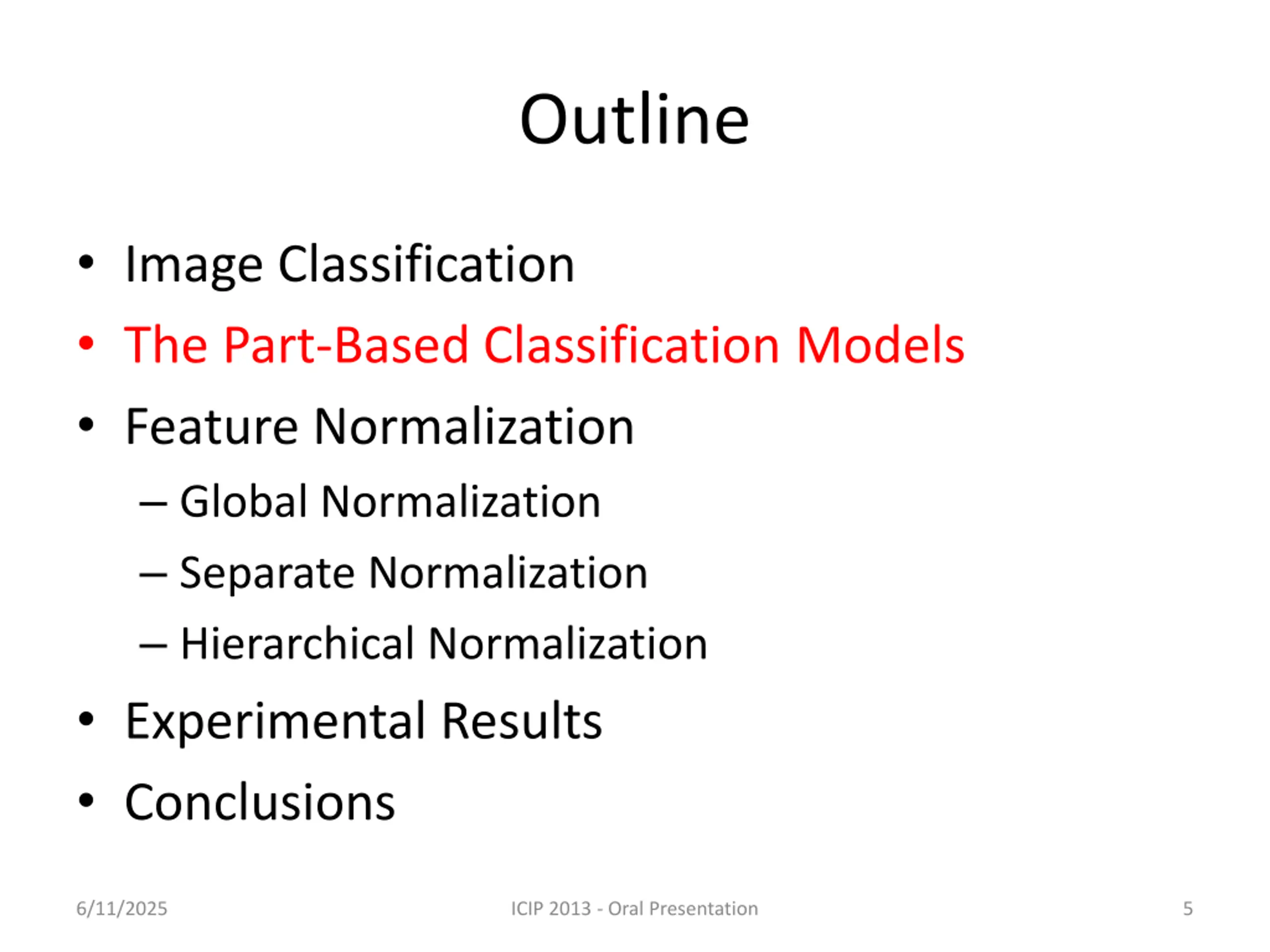

Outline Image Classification The Part-Based Classification Models Feature Normalization Global Normalization Separate Normalization Hierarchical Normalization Experimental Results Conclusions 6/11/2025 ICIP 2013 - Oral Presentation 5

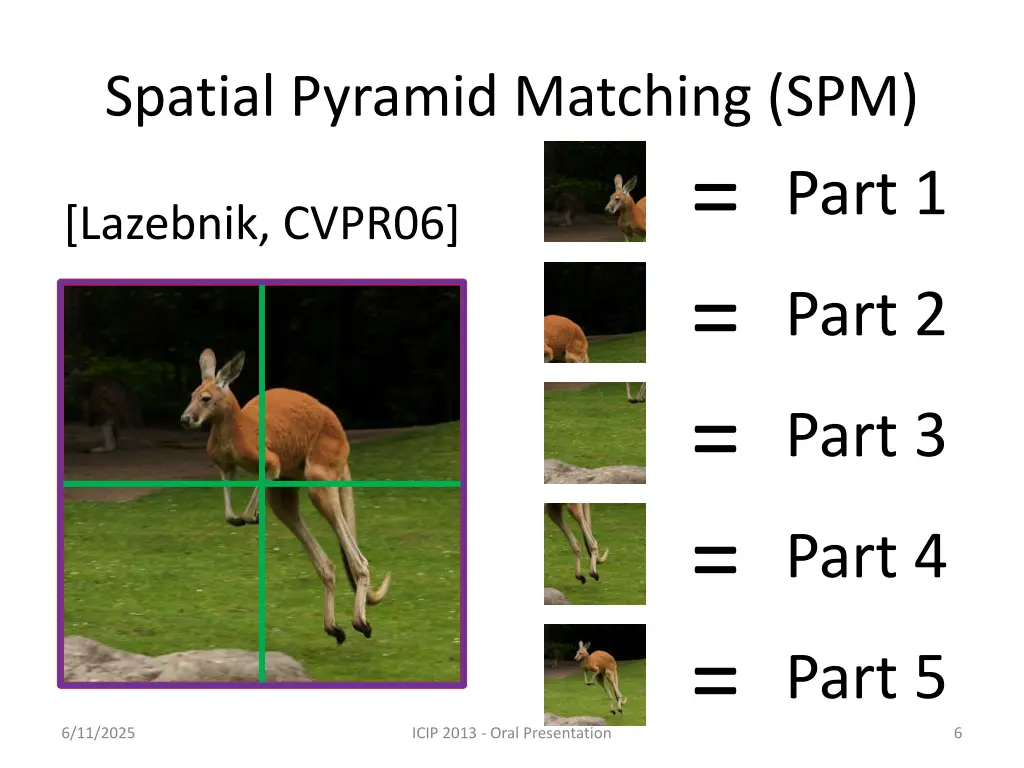

Spatial Pyramid Matching (SPM) = = = = = Part 1 [Lazebnik, CVPR06] Part 2 Part 3 Part 4 Part 5 6/11/2025 ICIP 2013 - Oral Presentation 6

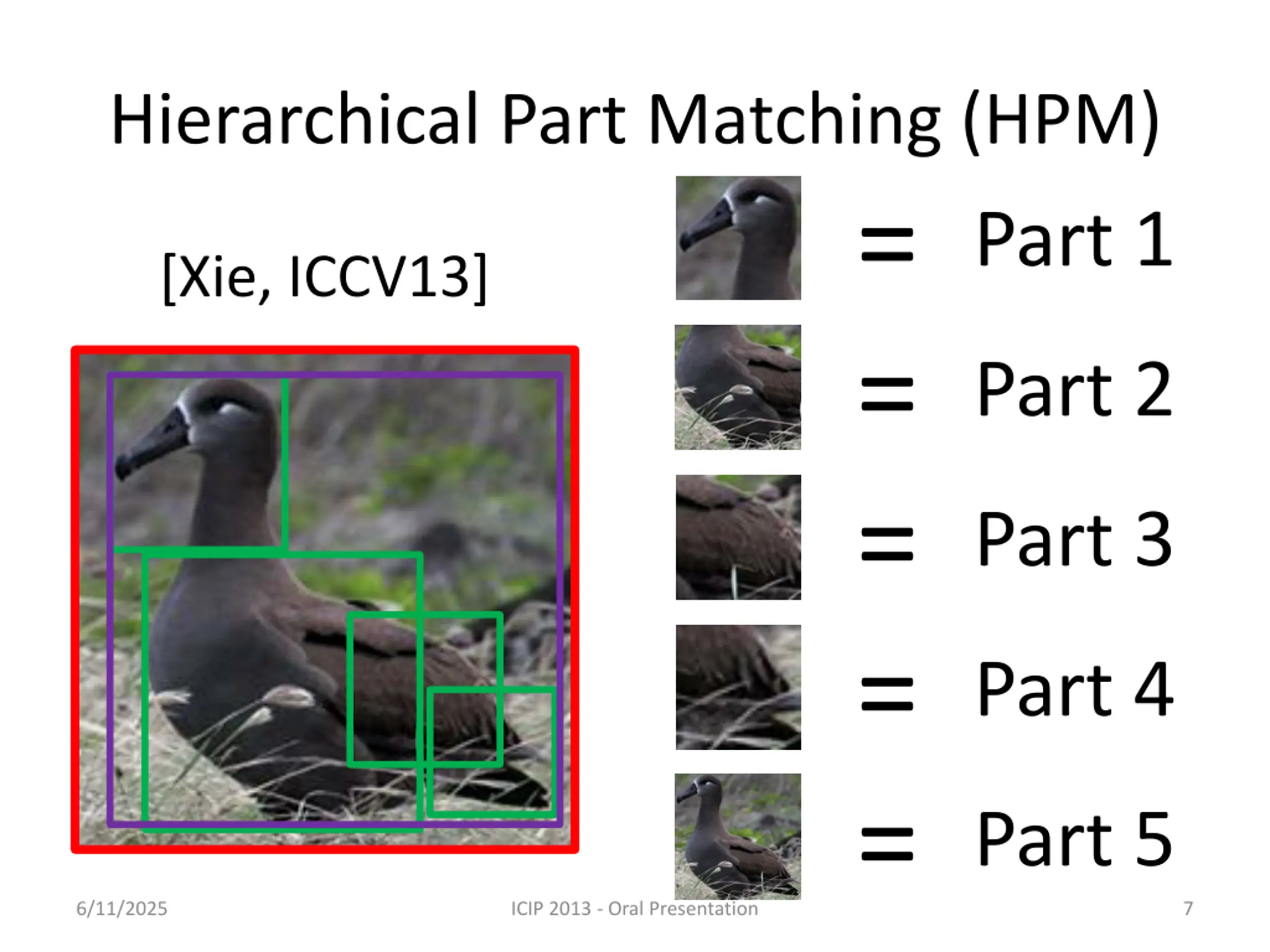

Hierarchical Part Matching (HPM) = = = = = Part 1 [Xie, ICCV13] Part 2 Part 3 Part 4 Part 5 6/11/2025 ICIP 2013 - Oral Presentation 7

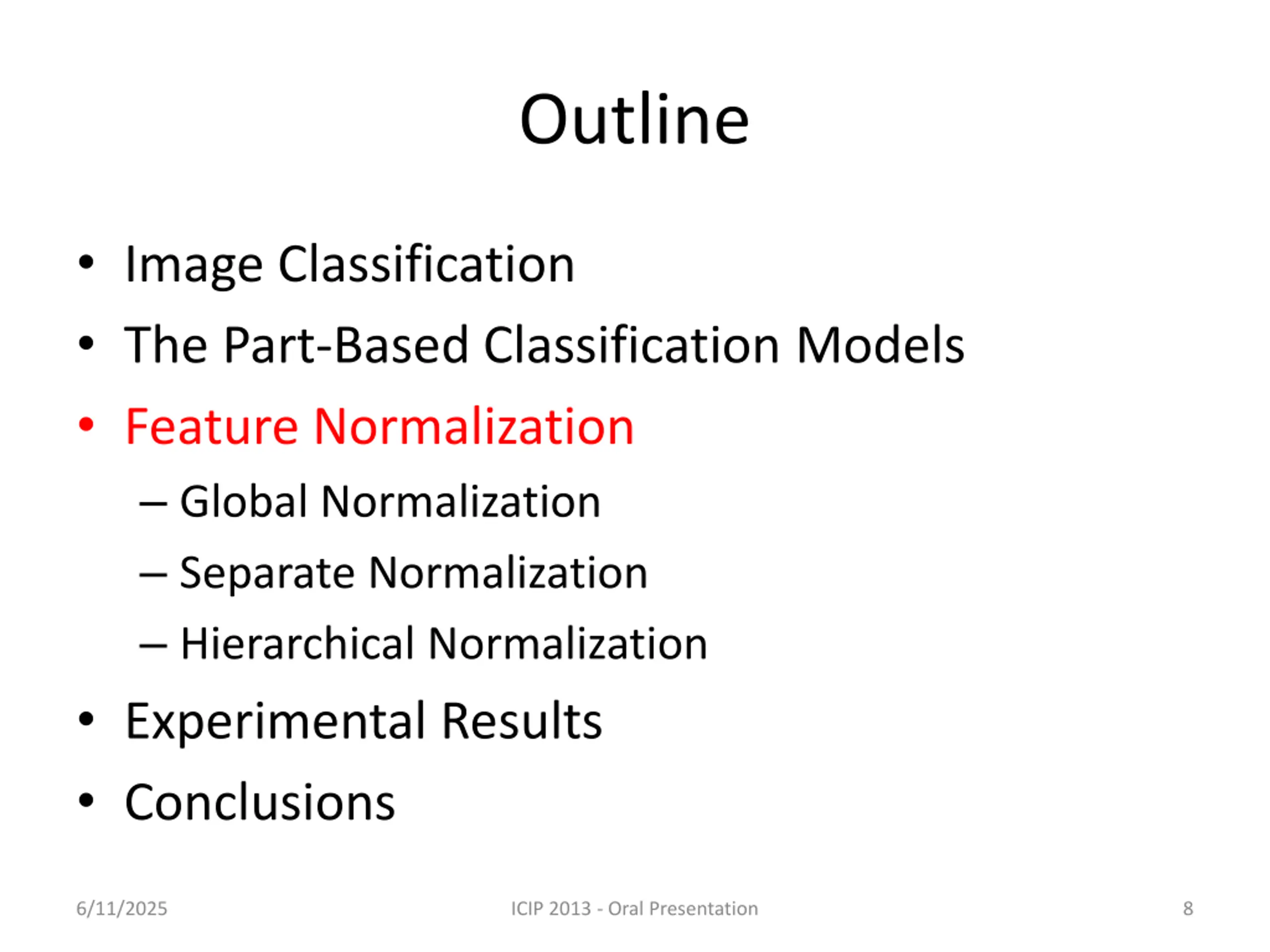

Outline Image Classification The Part-Based Classification Models Feature Normalization Global Normalization Separate Normalization Hierarchical Normalization Experimental Results Conclusions 6/11/2025 ICIP 2013 - Oral Presentation 8

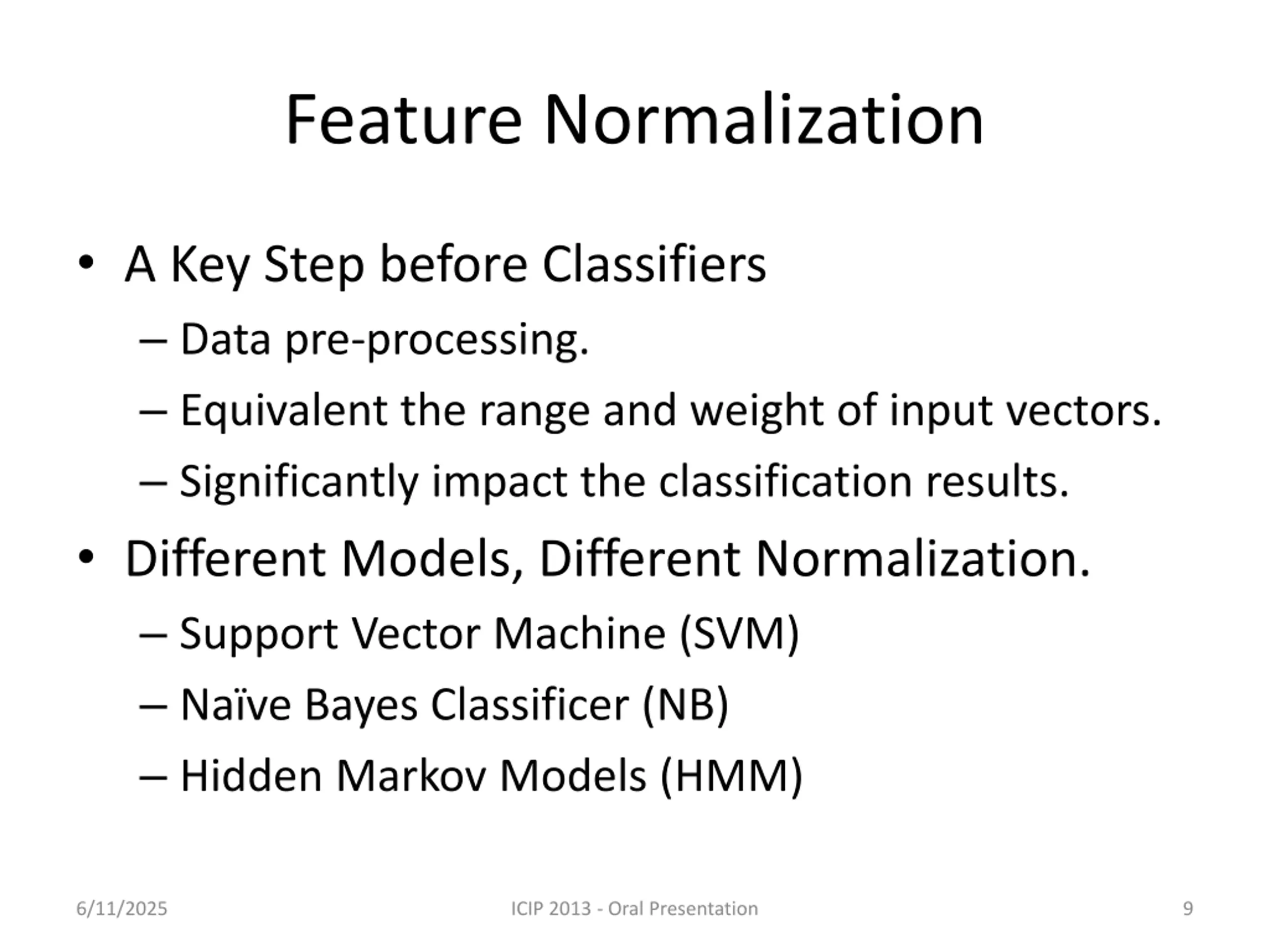

Feature Normalization A Key Step before Classifiers Data pre-processing. Equivalent the range and weight of input vectors. Significantly impact the classification results. Different Models, Different Normalization. Support Vector Machine (SVM) Na ve Bayes Classificer (NB) Hidden Markov Models (HMM) 6/11/2025 ICIP 2013 - Oral Presentation 9

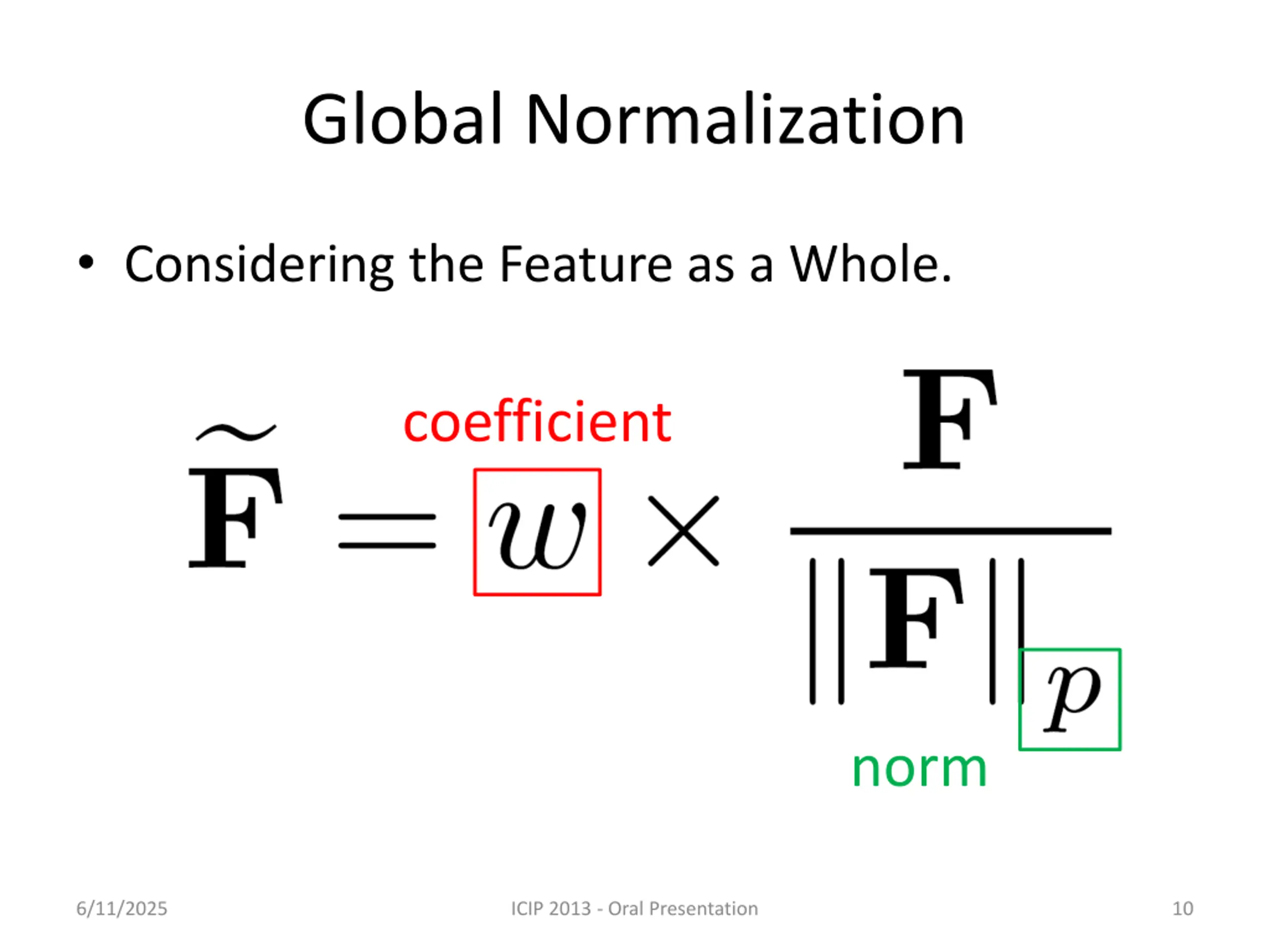

Global Normalization Considering the Feature as a Whole. coefficient norm 6/11/2025 ICIP 2013 - Oral Presentation 10

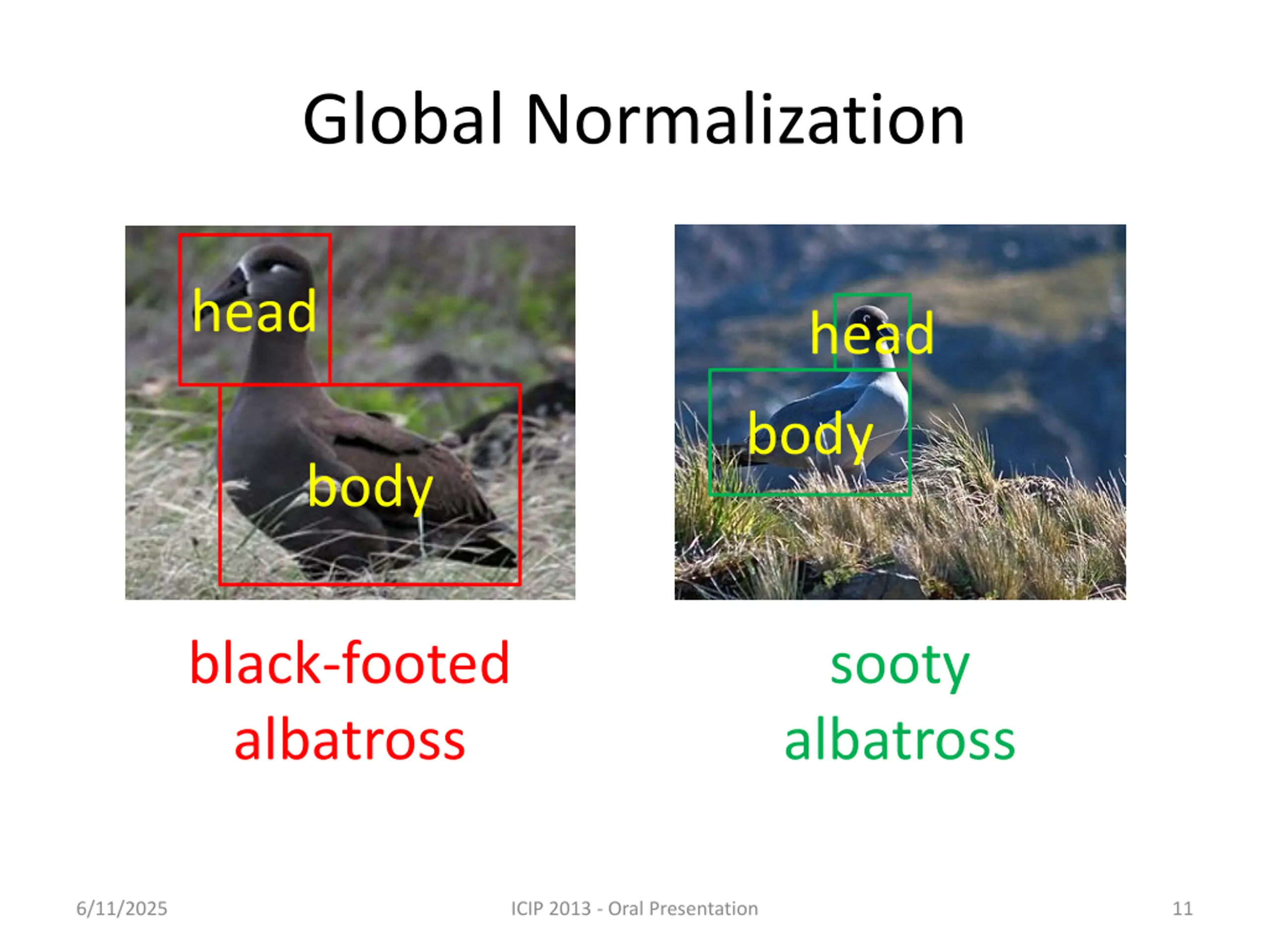

Global Normalization head head body body black-footed albatross sooty albatross 6/11/2025 ICIP 2013 - Oral Presentation 11

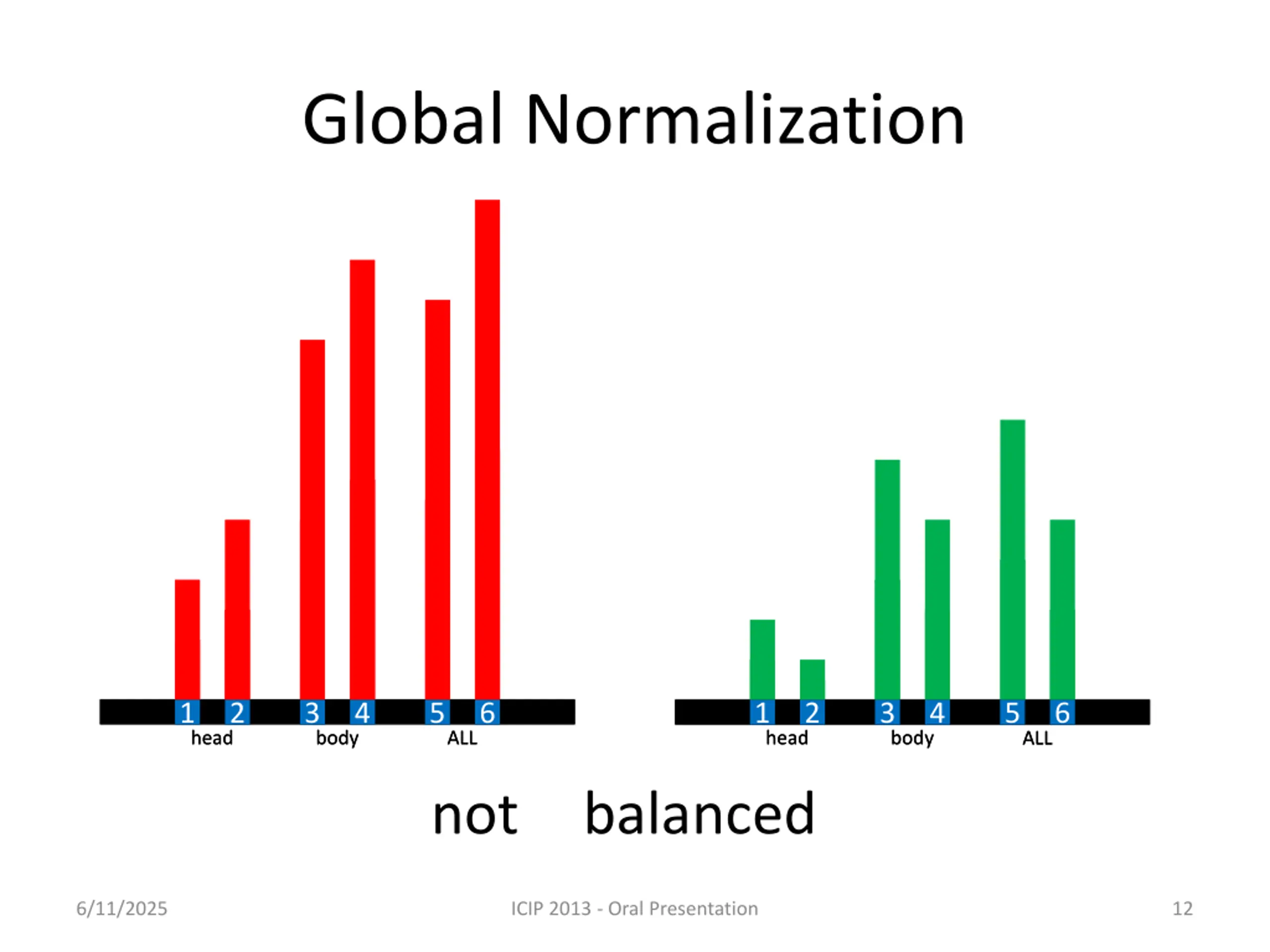

Global Normalization 1 1 2 2 3 3 4 4 5 5 6 6 1 1 2 2 3 3 4 4 5 5 6 6 head head body body ALL ALL head head body body ALL ALL not balanced 6/11/2025 ICIP 2013 - Oral Presentation 12

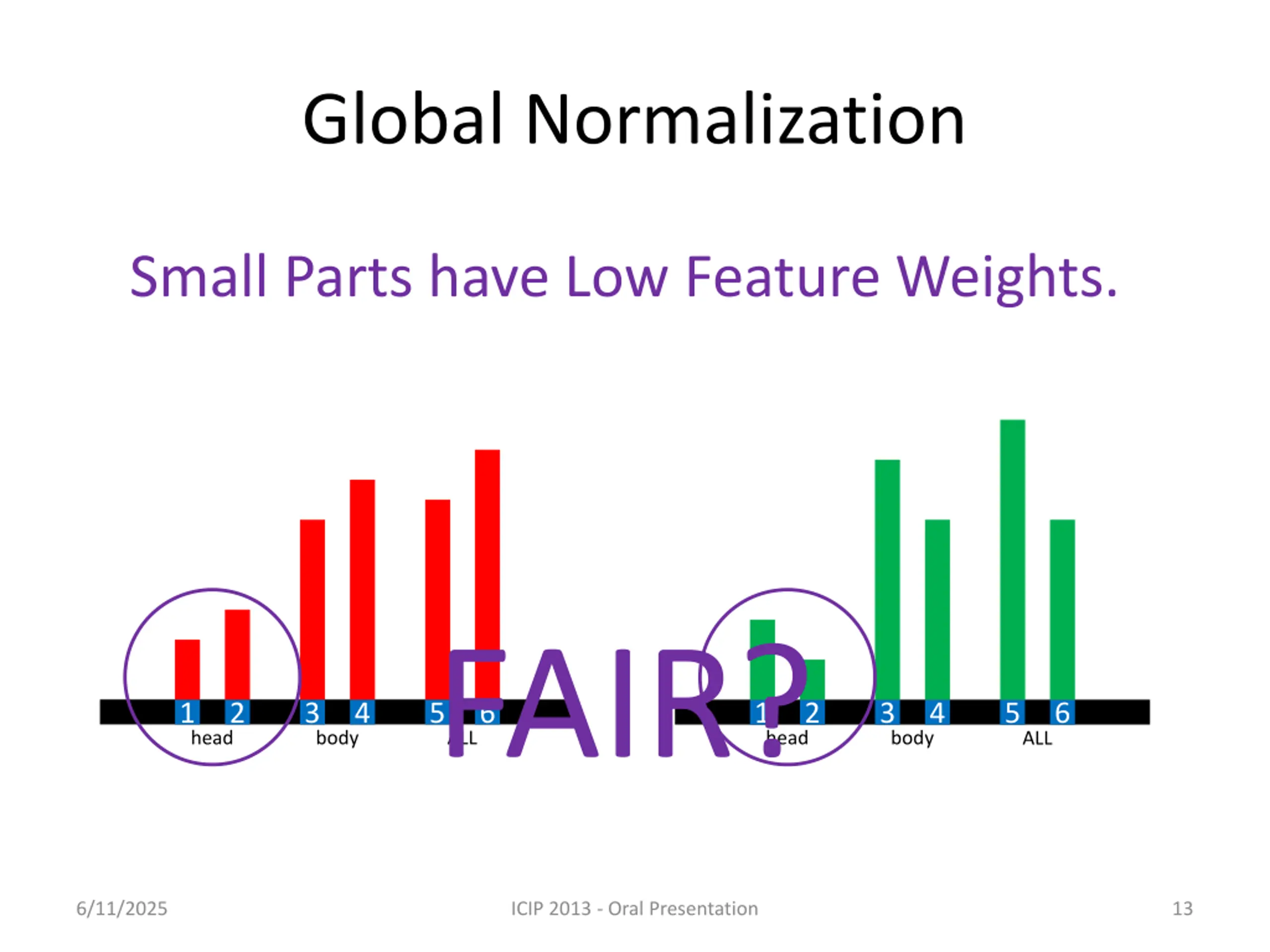

Global Normalization Small Parts have Low Feature Weights. 5 FAIR? 1 2 3 4 6 1 2 3 4 5 6 head body ALL head body ALL 6/11/2025 ICIP 2013 - Oral Presentation 13
Global Normalization However, Small Parts are also Important. groove billed ani common raven red winged blackbird rusty blackbird beak wing 6/11/2025 ICIP 2013 - Oral Presentation 14

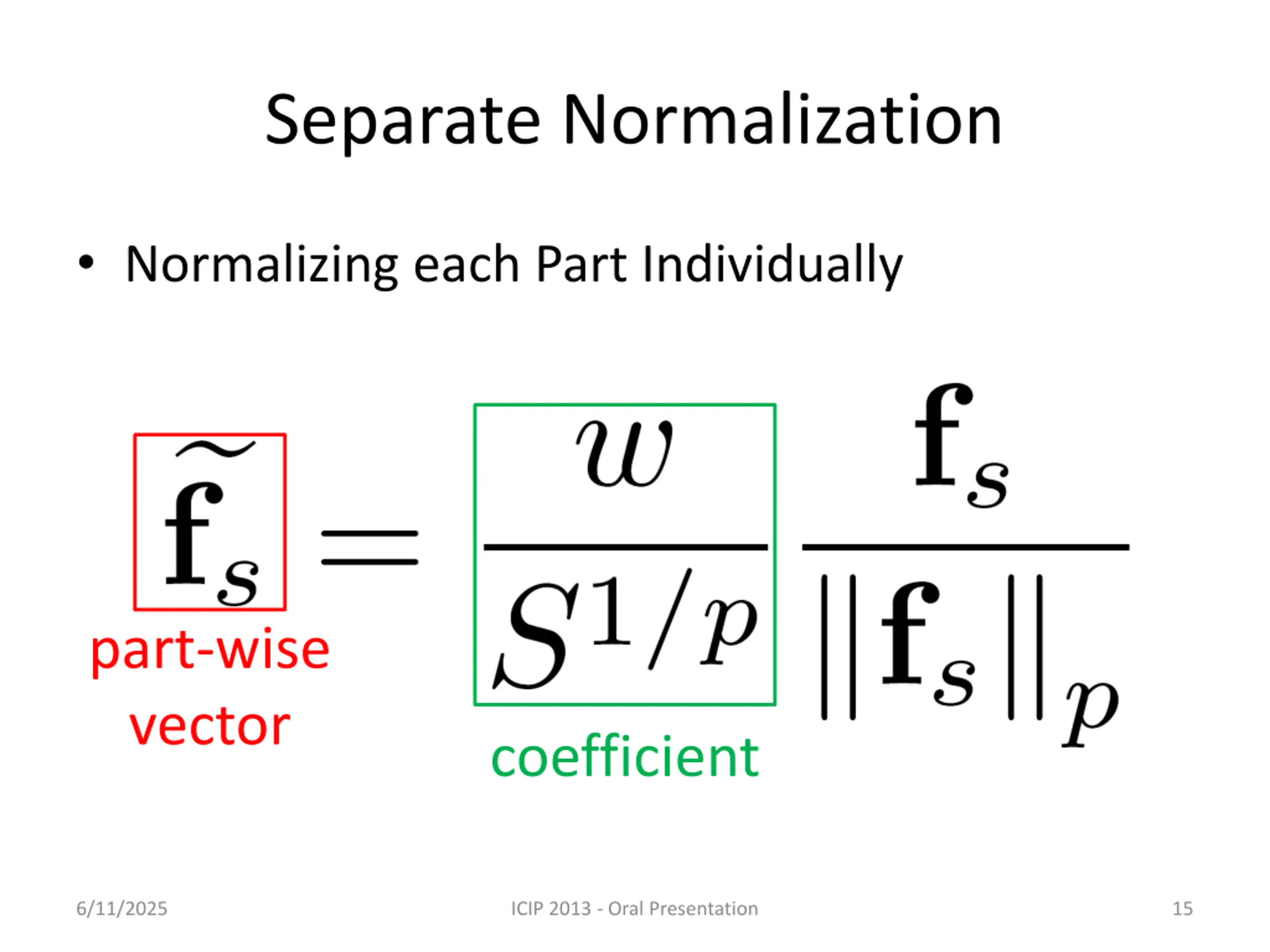

Separate Normalization Normalizing each Part Individually part-wise vector coefficient 6/11/2025 ICIP 2013 - Oral Presentation 15

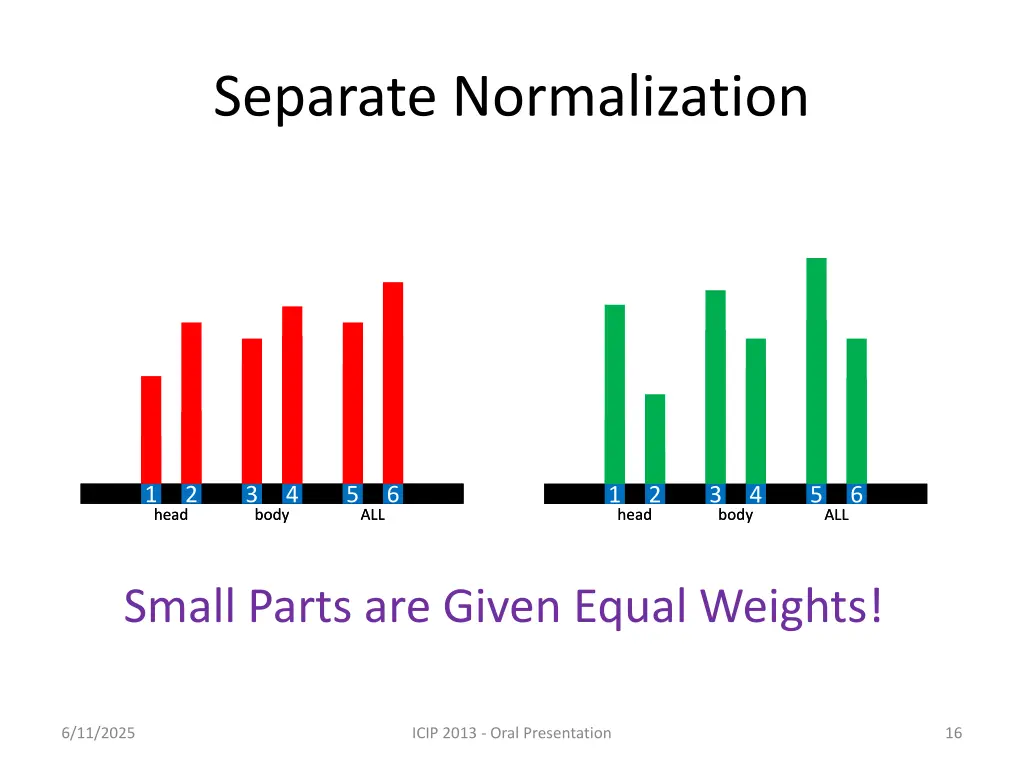

Separate Normalization 1 1 2 2 3 3 4 4 5 5 6 6 1 1 2 2 3 3 4 4 5 5 6 6 head head body body ALL ALL head head body body ALL ALL Small Parts are Given Equal Weights! 6/11/2025 ICIP 2013 - Oral Presentation 16

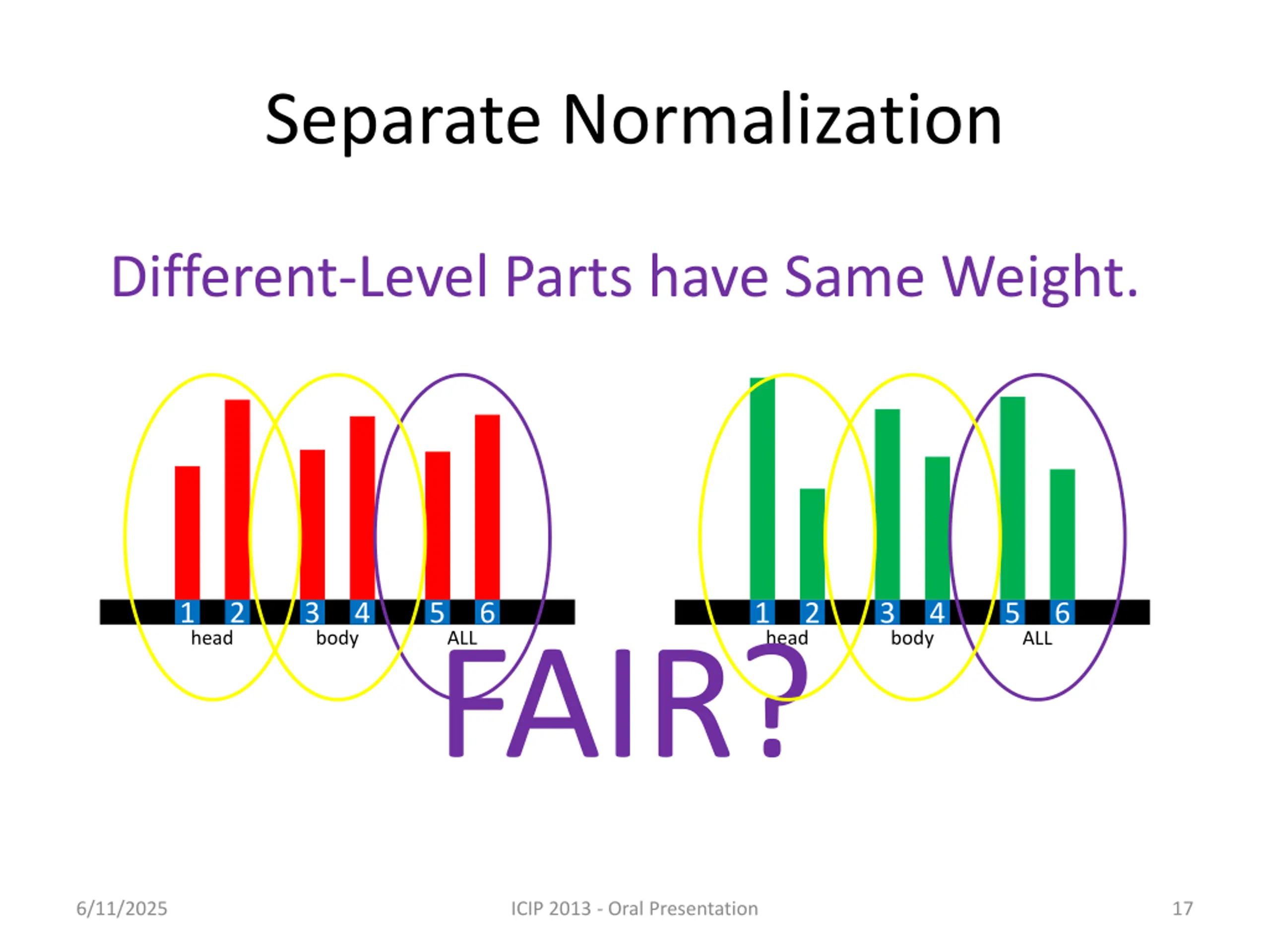

Separate Normalization Different-Level Parts have Same Weight. 1 2 3 4 5 FAIR? 6 1 2 3 4 5 6 head body ALL head body ALL 6/11/2025 ICIP 2013 - Oral Presentation 17

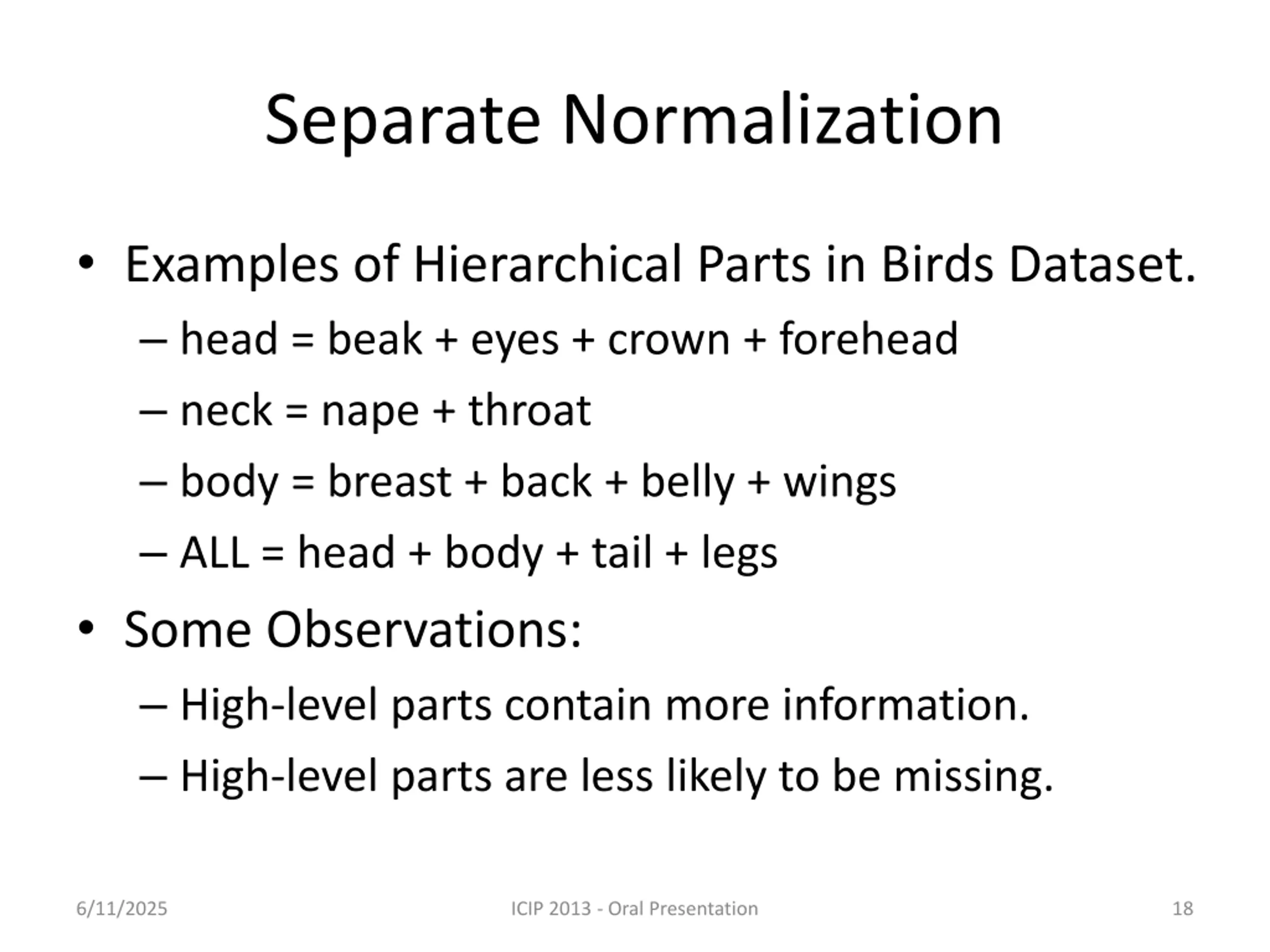

Separate Normalization Examples of Hierarchical Parts in Birds Dataset. head = beak + eyes + crown + forehead neck = nape + throat body = breast + back + belly + wings ALL = head + body + tail + legs Some Observations: High-level parts contain more information. High-level parts are less likely to be missing. 6/11/2025 ICIP 2013 - Oral Presentation 18

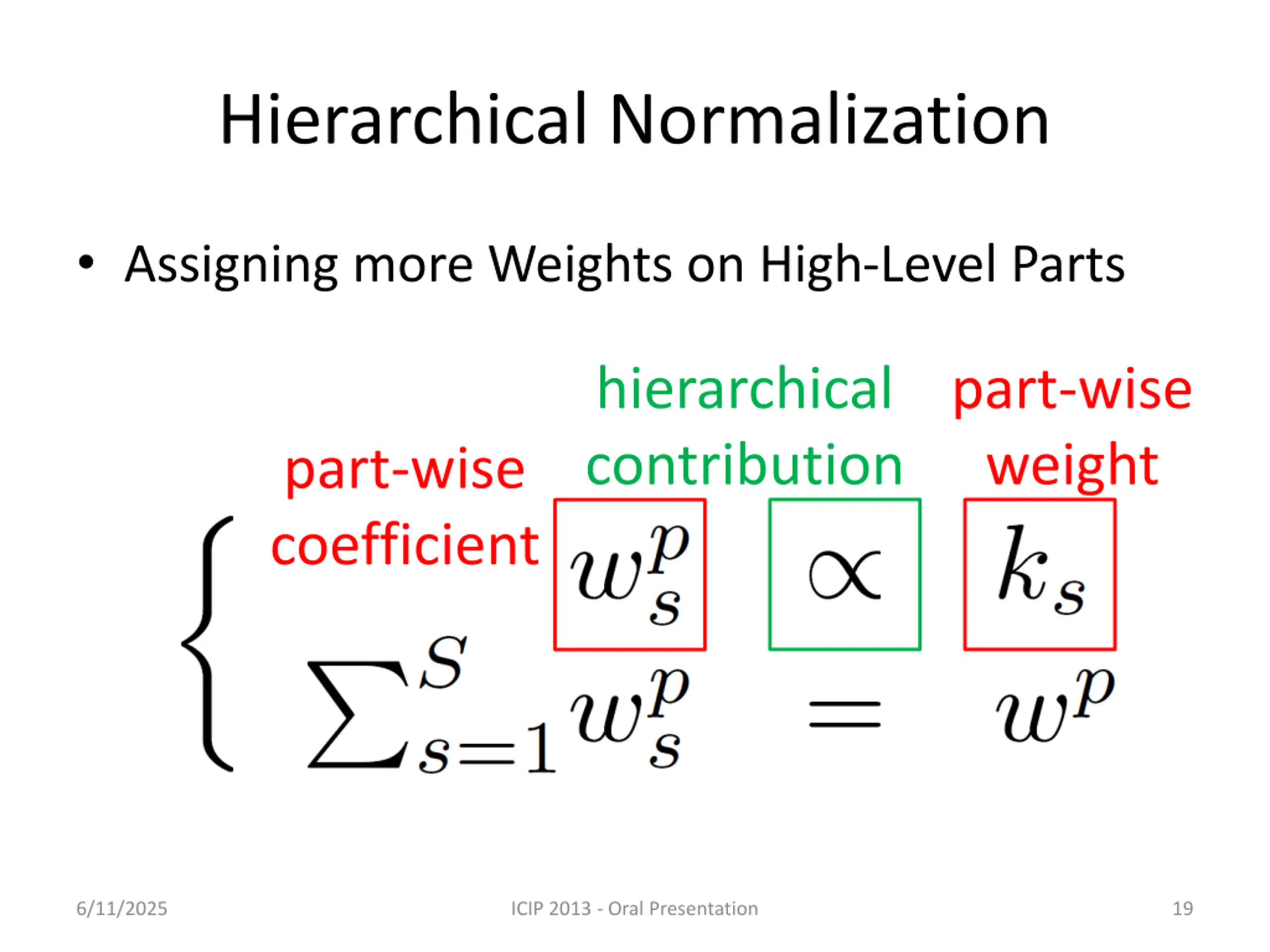

Hierarchical Normalization Assigning more Weights on High-Level Parts hierarchical contribution part-wise weight part-wise coefficient 6/11/2025 ICIP 2013 - Oral Presentation 19

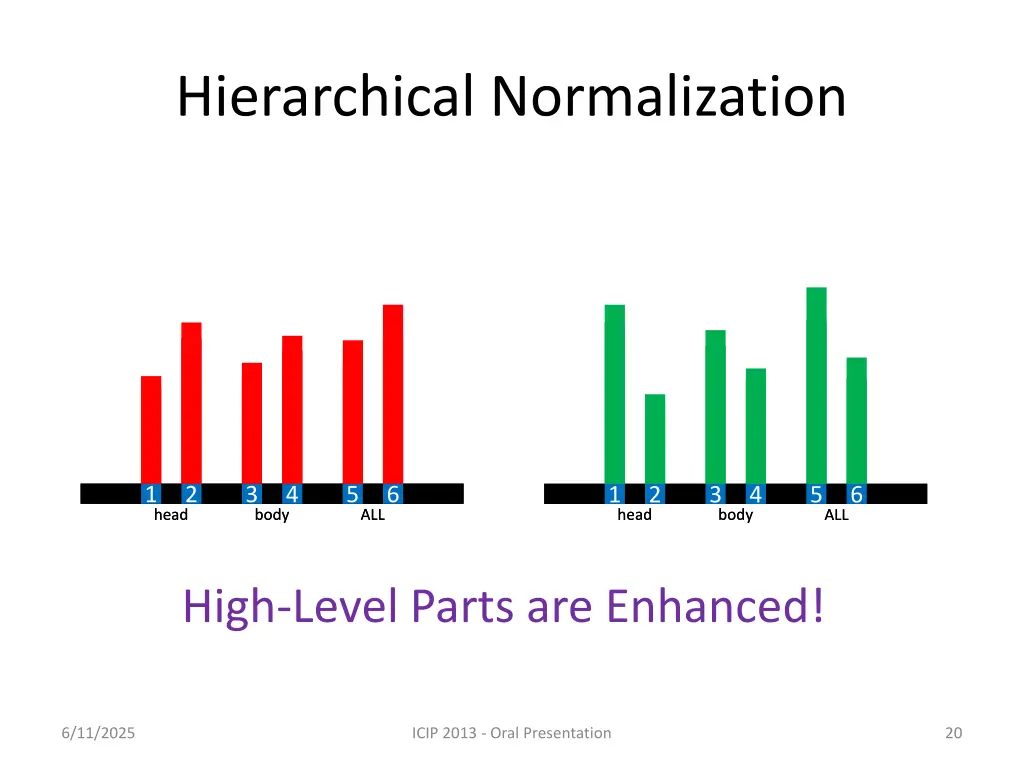

Hierarchical Normalization 1 1 2 2 3 3 4 4 5 5 6 6 1 1 2 2 3 3 4 4 5 5 6 6 head head body body ALL ALL head head body body ALL ALL High-Level Parts are Enhanced! 6/11/2025 ICIP 2013 - Oral Presentation 20

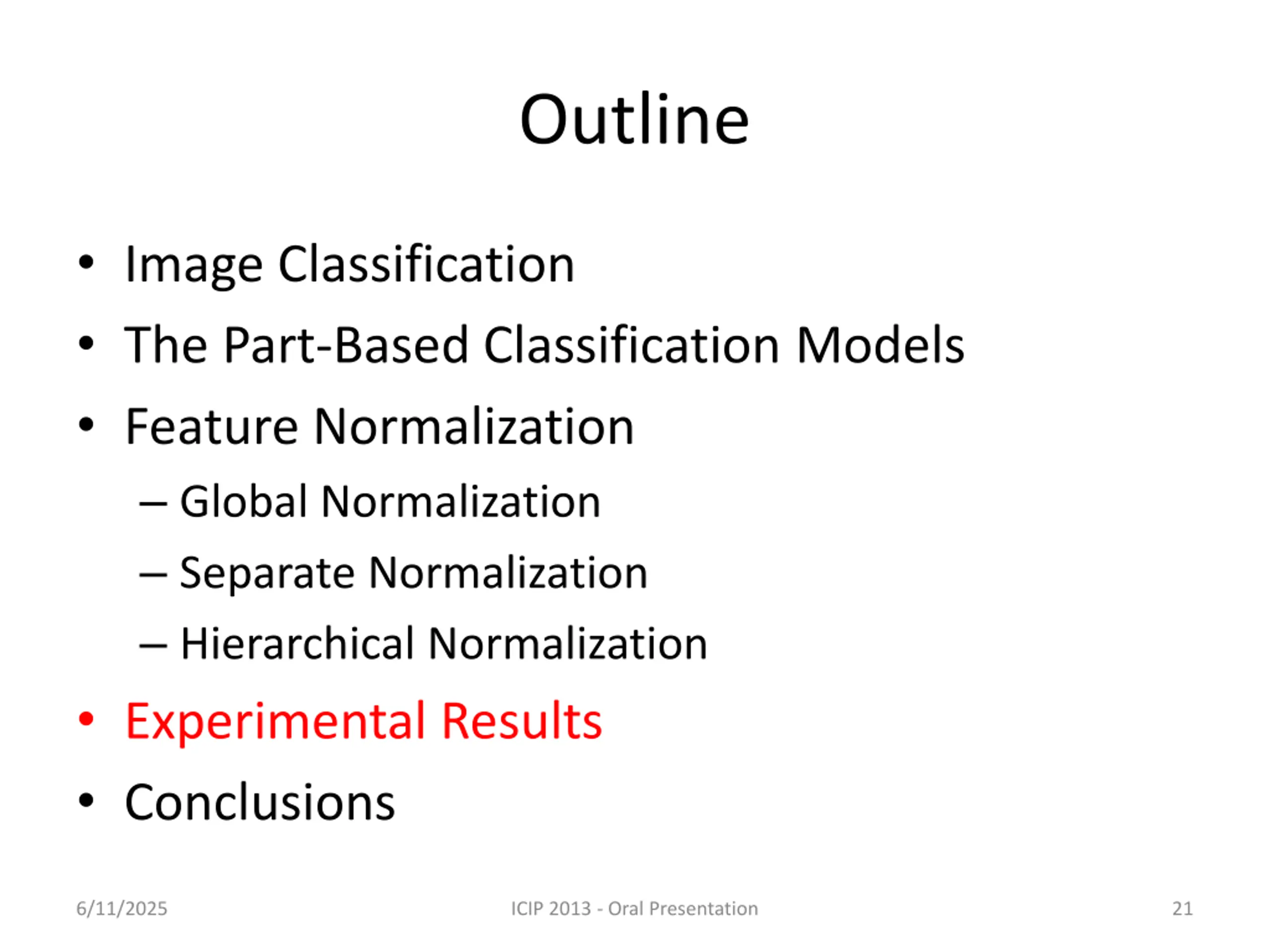

Outline Image Classification The Part-Based Classification Models Feature Normalization Global Normalization Separate Normalization Hierarchical Normalization Experimental Results Conclusions 6/11/2025 ICIP 2013 - Oral Presentation 21

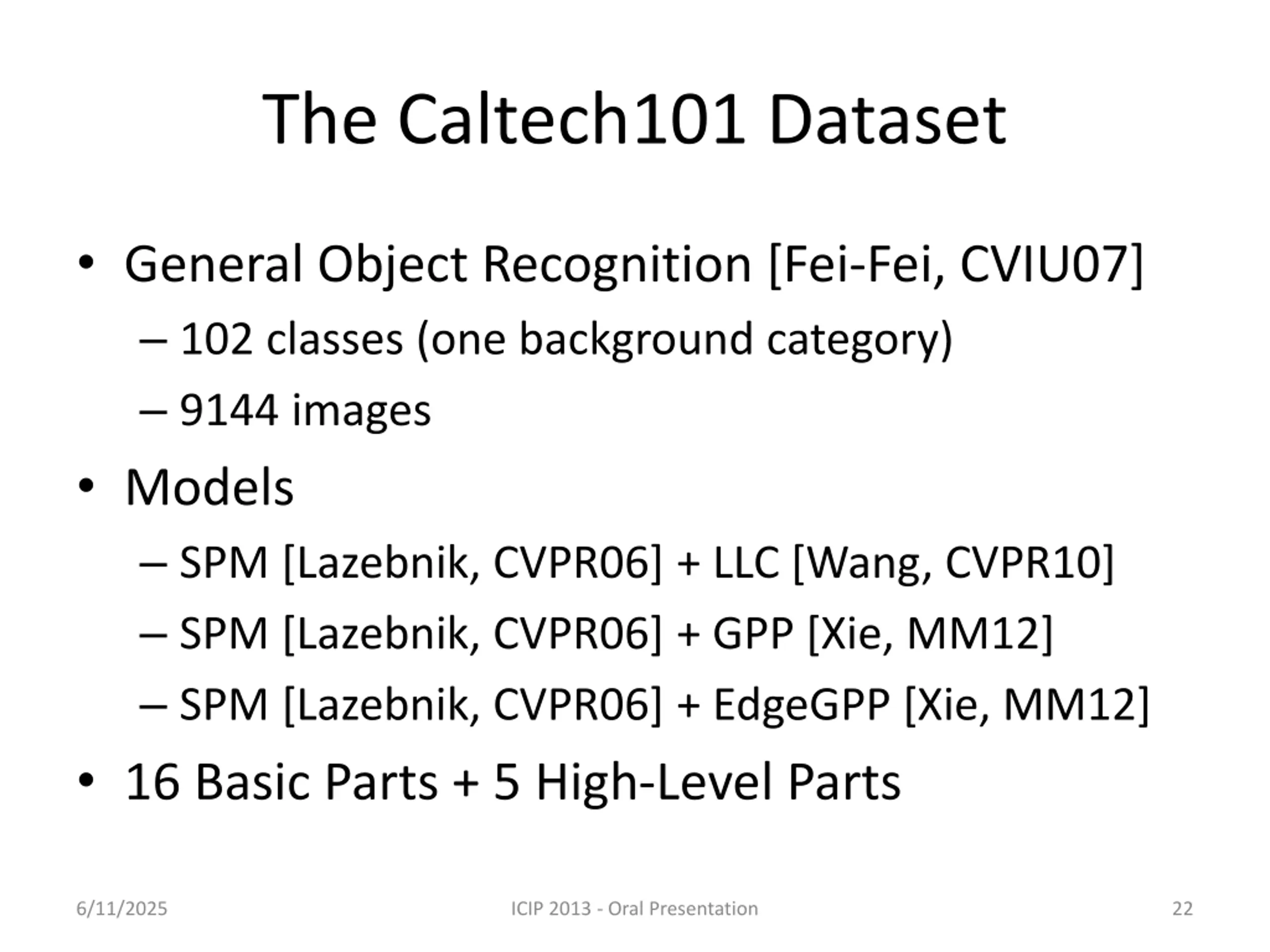

The Caltech101 Dataset General Object Recognition [Fei-Fei, CVIU07] 102 classes (one background category) 9144 images Models SPM [Lazebnik, CVPR06] + LLC [Wang, CVPR10] SPM [Lazebnik, CVPR06] + GPP [Xie, MM12] SPM [Lazebnik, CVPR06] + EdgeGPP [Xie, MM12] 16 Basic Parts + 5 High-Level Parts 6/11/2025 ICIP 2013 - Oral Presentation 22

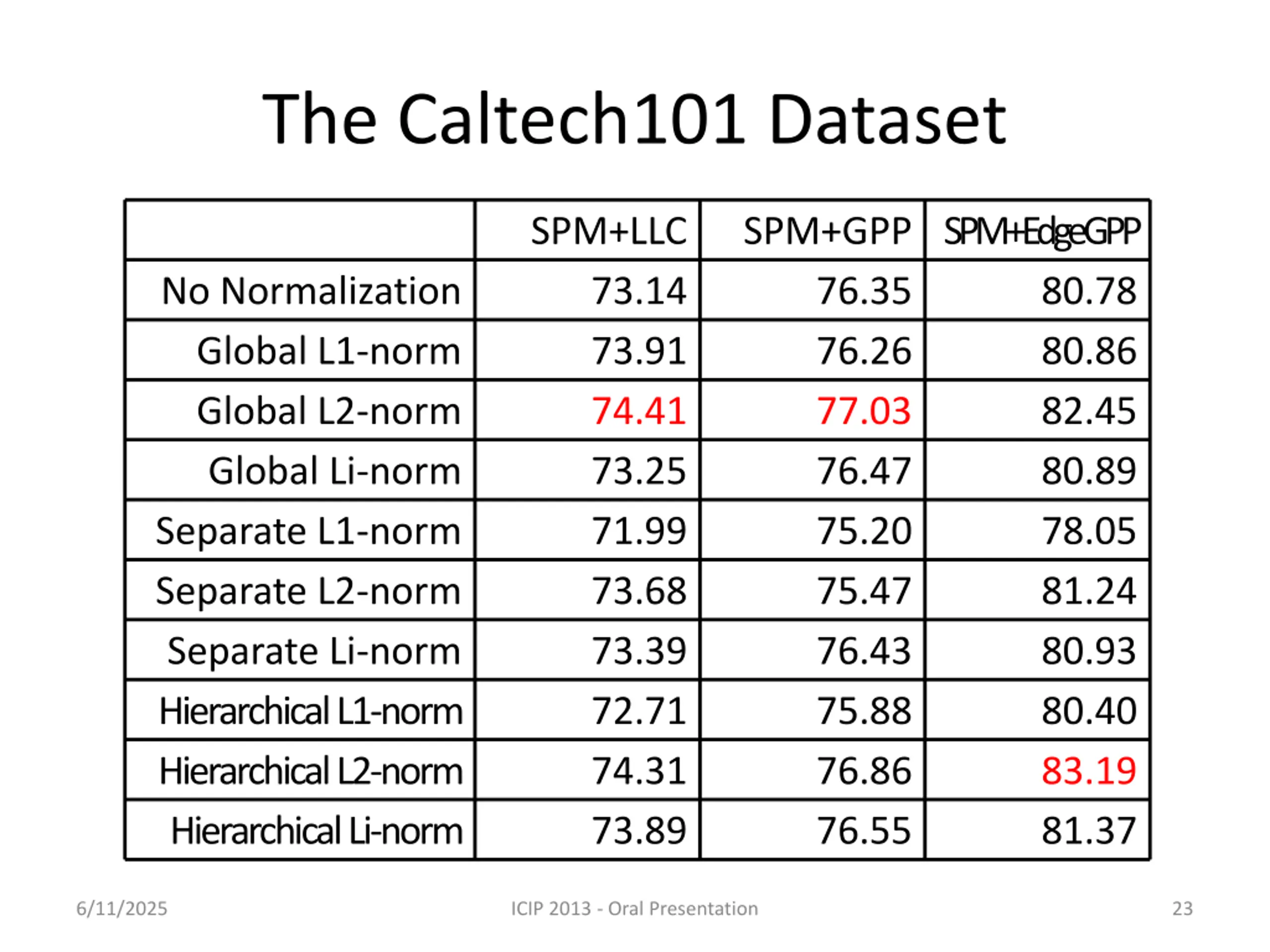

The Caltech101 Dataset SPM+LLC 73.14 73.91 74.41 73.25 71.99 73.68 73.39 72.71 74.31 73.89 SPM+GPP 76.35 76.26 77.03 76.47 75.20 75.47 76.43 75.88 76.86 76.55 SPM+EdgeGPP 80.78 80.86 82.45 80.89 78.05 81.24 80.93 80.40 83.19 81.37 No Normalization Global L1-norm Global L2-norm Global Li-norm Separate L1-norm Separate L2-norm Separate Li-norm Hierarchical L1-norm Hierarchical L2-norm Hierarchical Li-norm 6/11/2025 ICIP 2013 - Oral Presentation 23

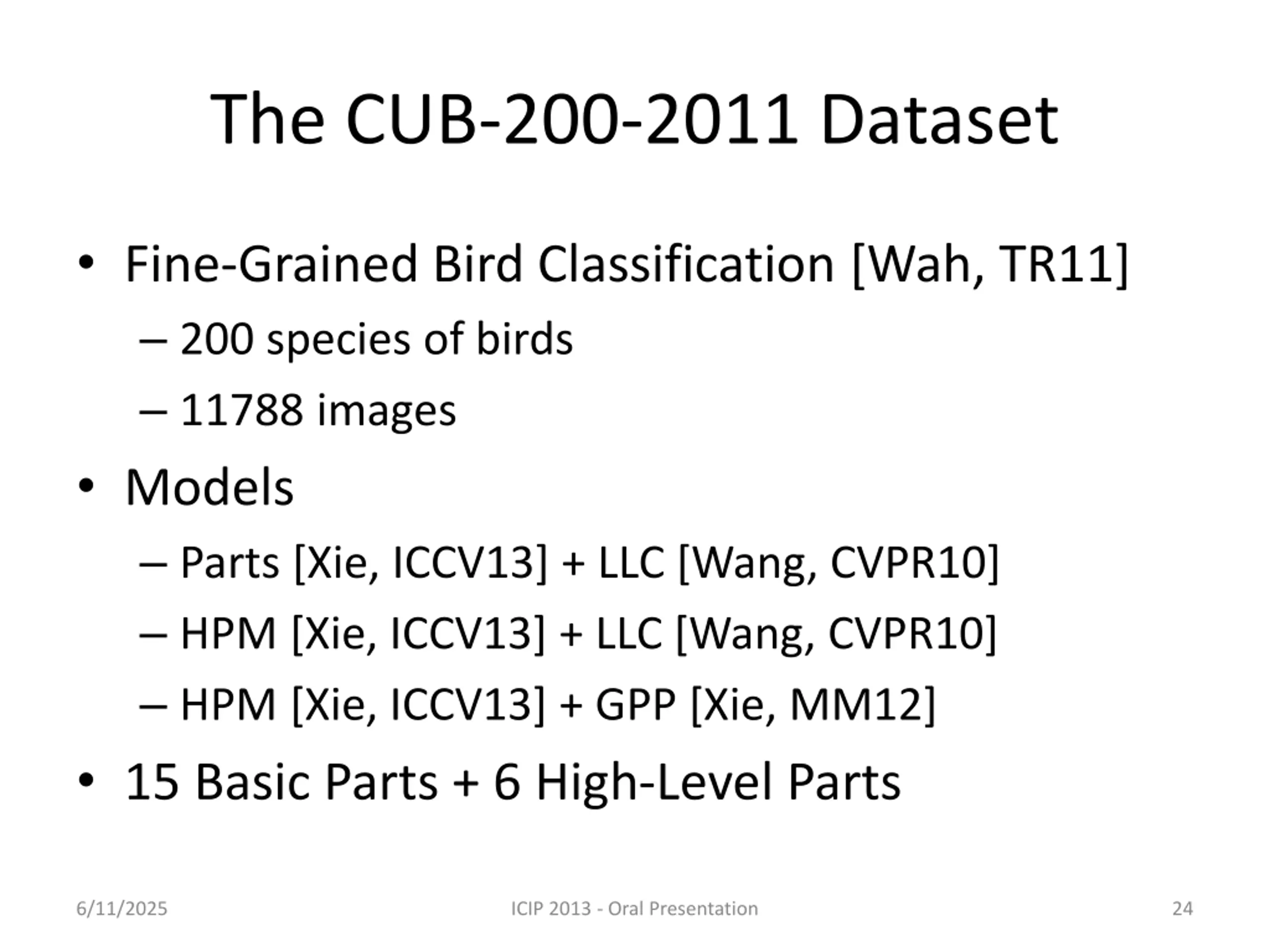

The CUB-200-2011 Dataset Fine-Grained Bird Classification [Wah, TR11] 200 species of birds 11788 images Models Parts [Xie, ICCV13] + LLC [Wang, CVPR10] HPM [Xie, ICCV13] + LLC [Wang, CVPR10] HPM [Xie, ICCV13] + GPP [Xie, MM12] 15 Basic Parts + 6 High-Level Parts 6/11/2025 ICIP 2013 - Oral Presentation 24

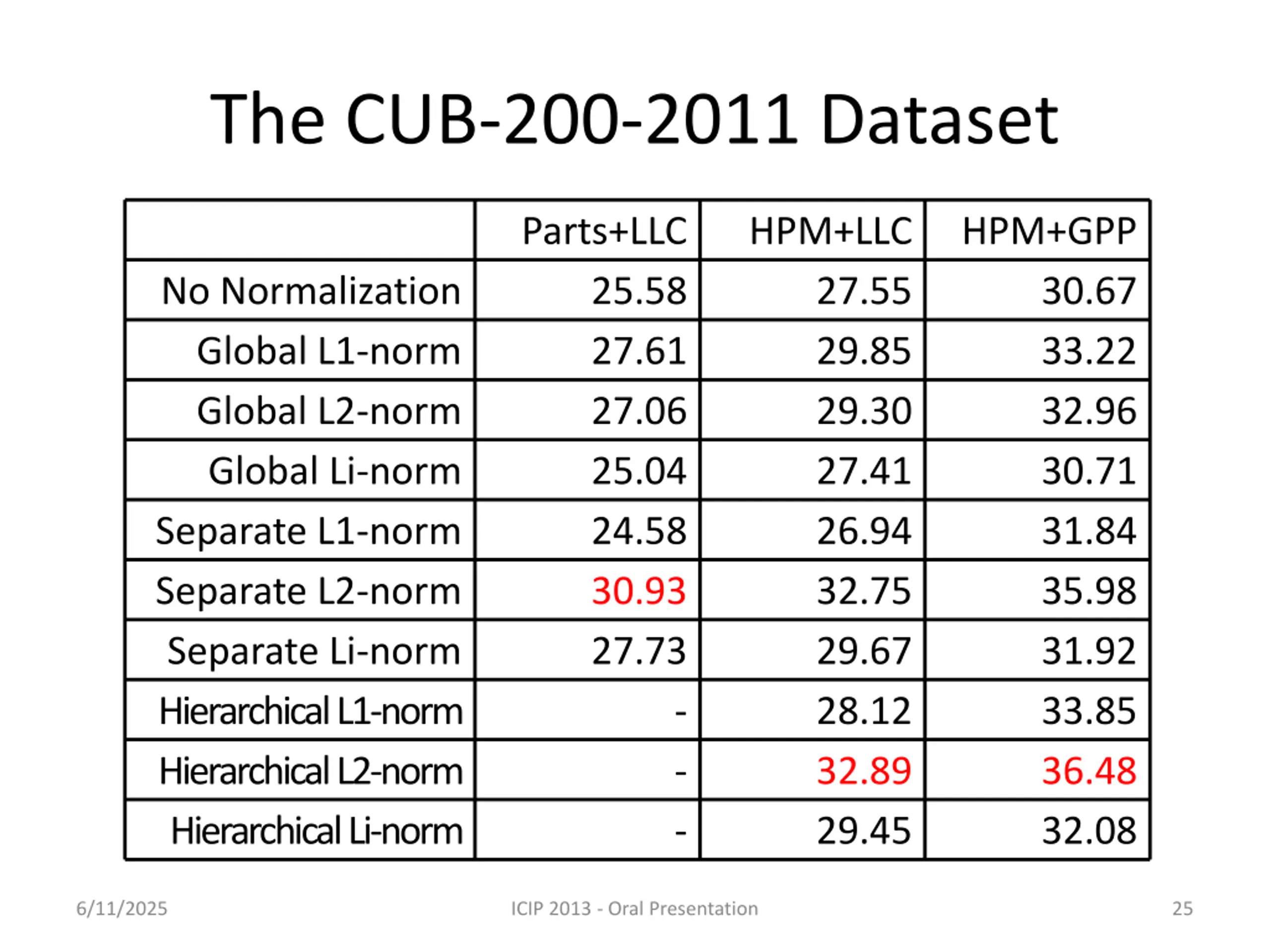

The CUB-200-2011 Dataset Parts+LLC 25.58 27.61 27.06 25.04 24.58 30.93 27.73 HPM+LLC 27.55 29.85 29.30 27.41 26.94 32.75 29.67 28.12 32.89 29.45 HPM+GPP 30.67 33.22 32.96 30.71 31.84 35.98 31.92 33.85 36.48 32.08 No Normalization Global L1-norm Global L2-norm Global Li-norm Separate L1-norm Separate L2-norm Separate Li-norm Hierarchical L1-norm Hierarchical L2-norm Hierarchical Li-norm - - - 6/11/2025 ICIP 2013 - Oral Presentation 25

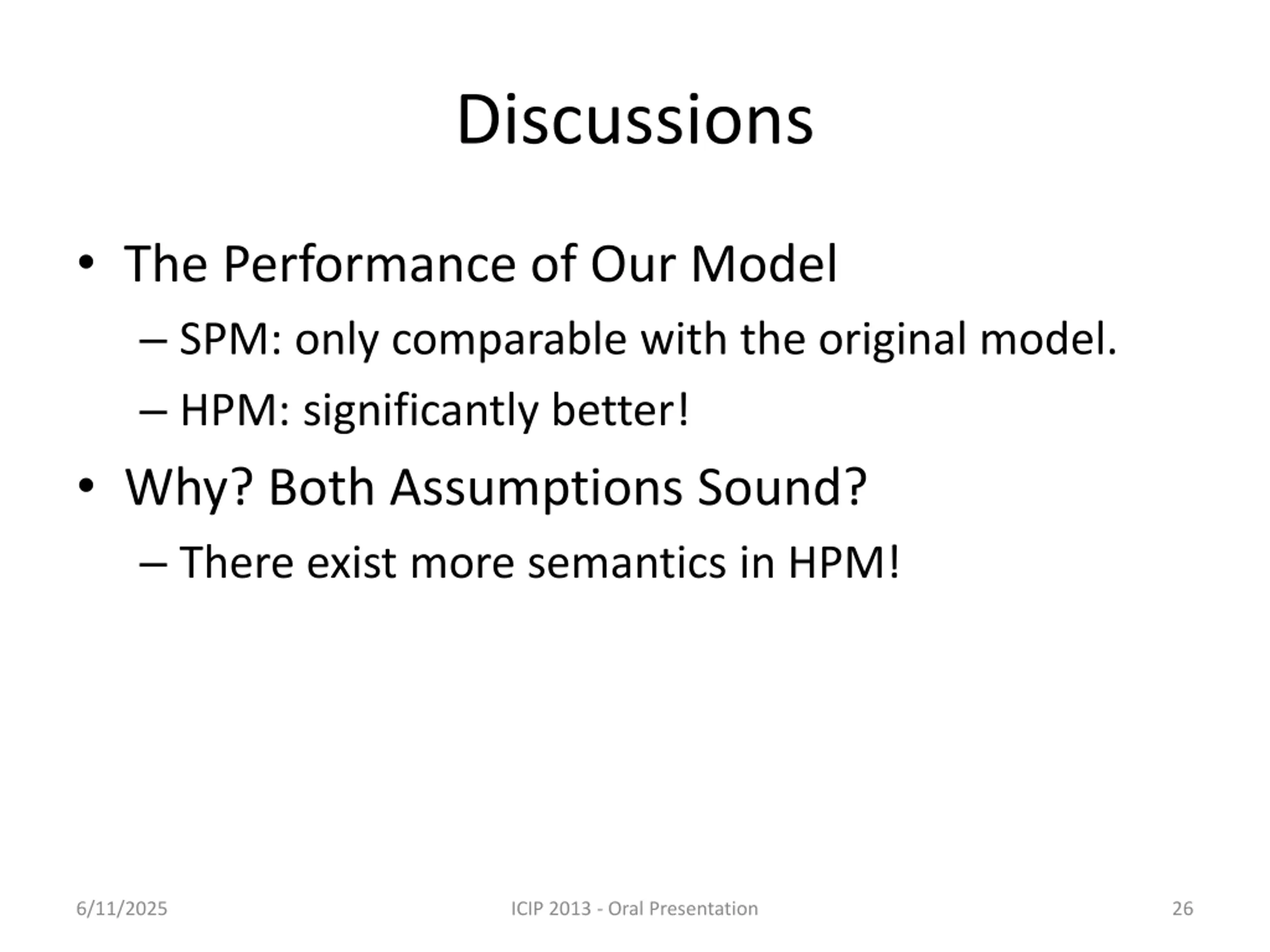

Discussions The Performance of Our Model SPM: only comparable with the original model. HPM: significantly better! Why? Both Assumptions Sound? There exist more semantics in HPM! 6/11/2025 ICIP 2013 - Oral Presentation 26

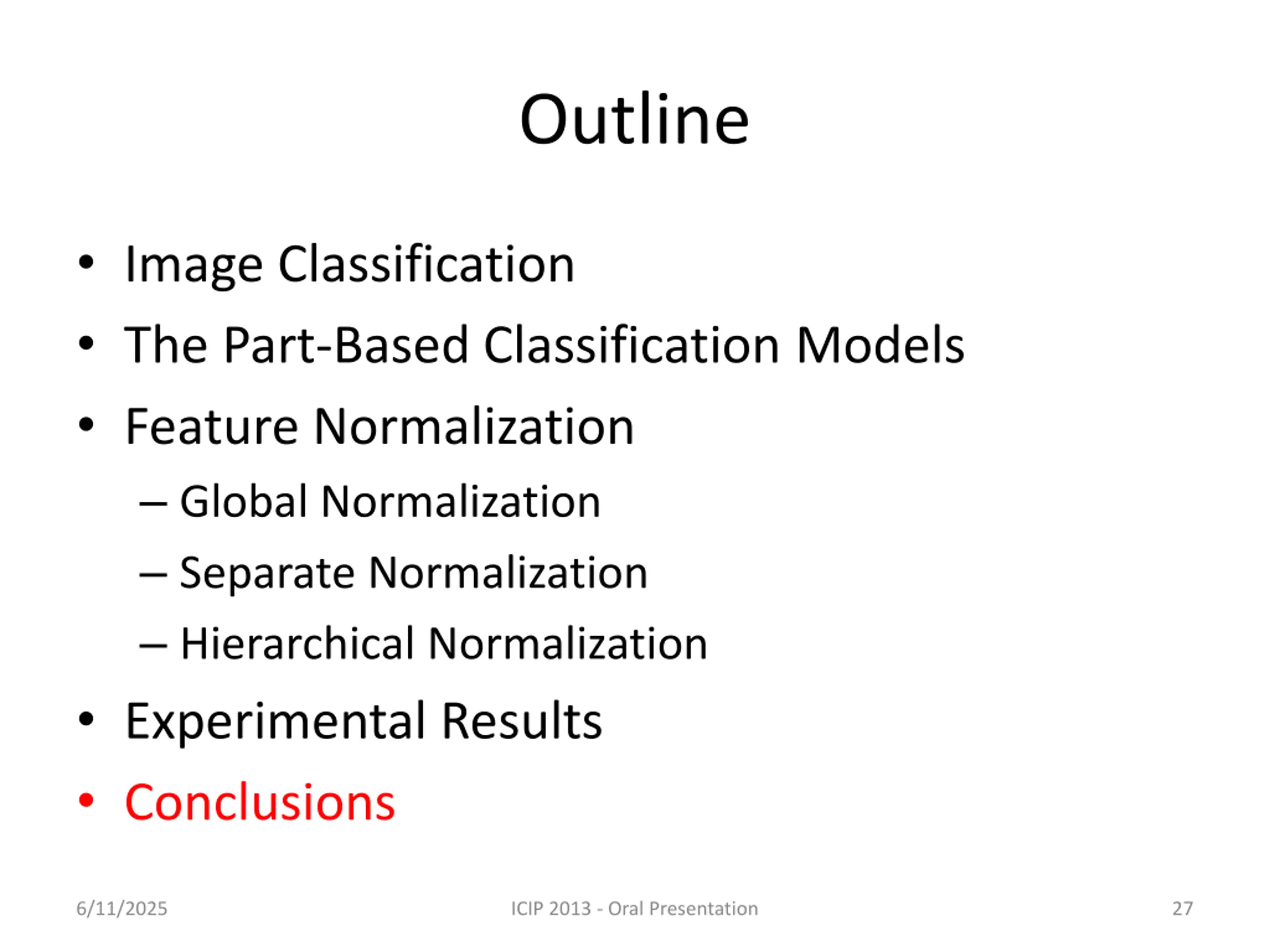

Outline Image Classification The Part-Based Classification Models Feature Normalization Global Normalization Separate Normalization Hierarchical Normalization Experimental Results Conclusions 6/11/2025 ICIP 2013 - Oral Presentation 27

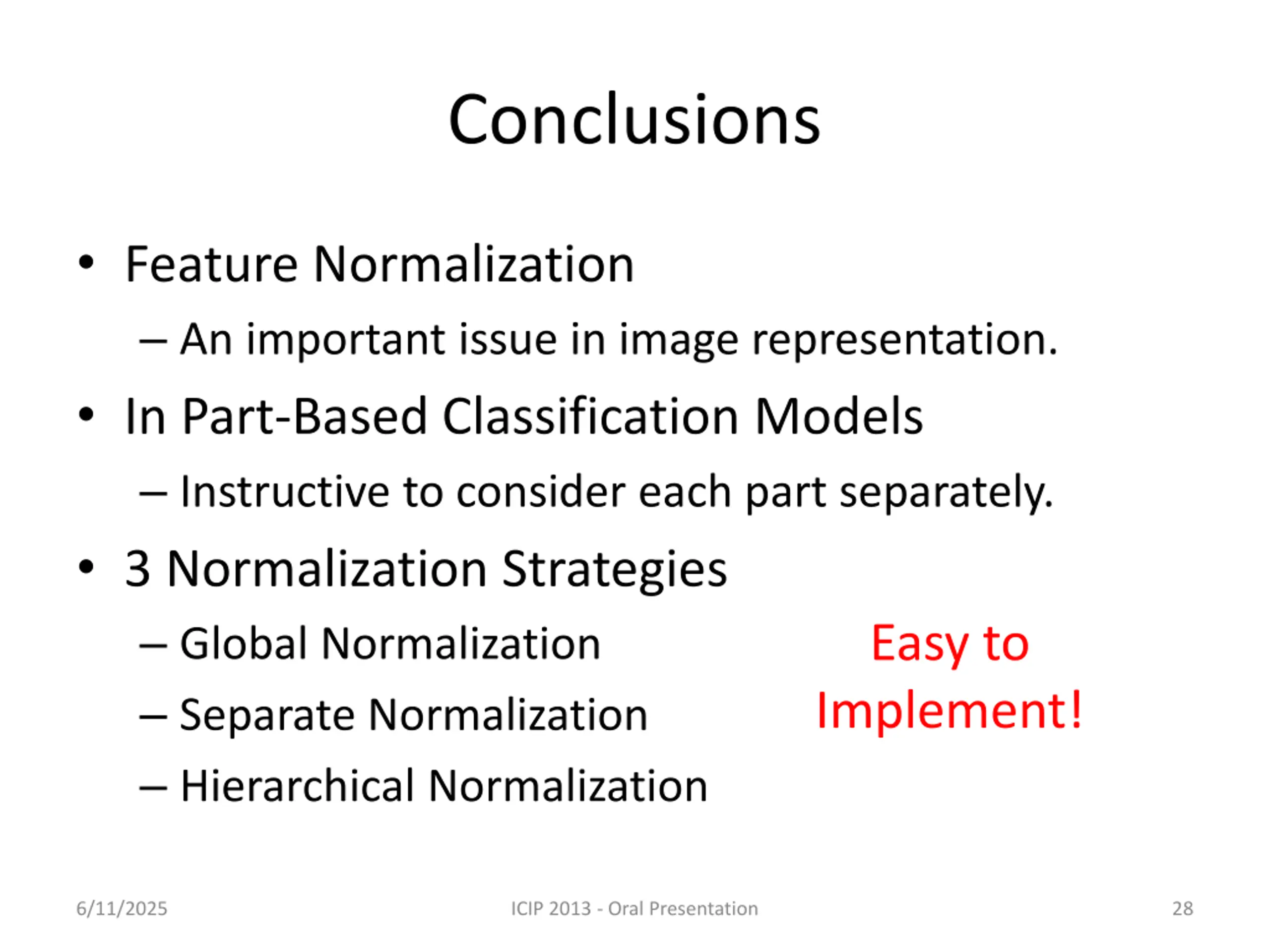

Conclusions Feature Normalization An important issue in image representation. In Part-Based Classification Models Instructive to consider each part separately. 3 Normalization Strategies Global Normalization Separate Normalization Hierarchical Normalization Easy to Implement! 6/11/2025 ICIP 2013 - Oral Presentation 28
Thank you! Questions please? 6/11/2025 ICIP 2013 - Oral Presentation 29
