FETAL MRI DR VARUN BANSAL DEPTT OF RADIODIAGNOSIS

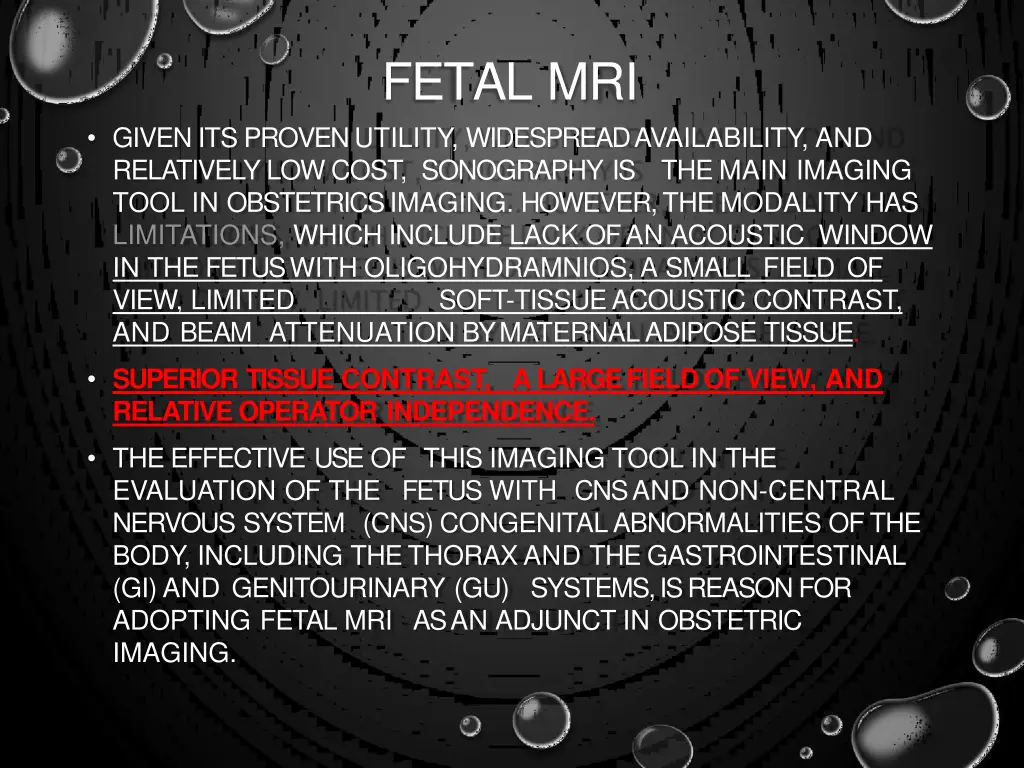

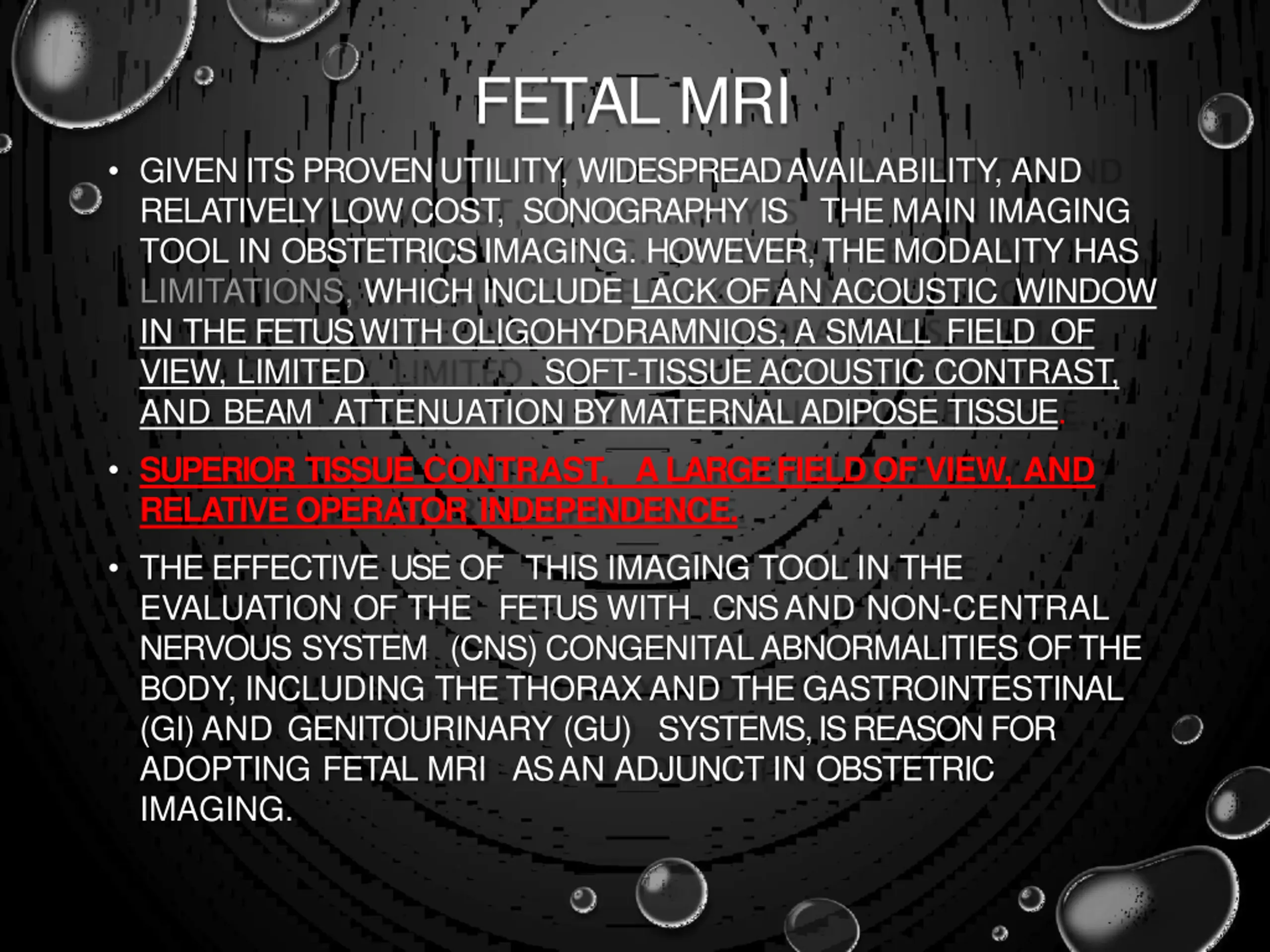

FETAL MRI GIVEN ITS PROVEN UTILITY, WIDESPREAD AVAILABILITY, AND RELATIVELY LOW COST, SONOGRAPHY IS THE MAIN IMAGING TOOL IN OBSTETRICS IMAGING. HOWEVER, THE MODALITY HAS LIMITATIONS, WHICH INCLUDE LACK OF AN ACOUSTIC WINDOW IN THE FETUS WITH OLIGOHYDRAMNIOS, A SMALL FIELD OF VIEW, LIMITED SOFT-TISSUE ACOUSTIC CONTRAST, AND BEAM ATTENUATION BY MATERNAL ADIPOSE TISSUE. SUPERIOR TISSUE CONTRAST, A LARGE FIELD OF VIEW, AND RELATIVE OPERATOR INDEPENDENCE. THE EFFECTIVE USE OF THIS IMAGING TOOL IN THE EVALUATION OF THE FETUS WITH CNS AND NON-CENTRAL NERVOUS SYSTEM (CNS) CONGENITAL ABNORMALITIES OF THE BODY, INCLUDING THE THORAX AND THE GASTROINTESTINAL (GI) AND GENITOURINARY (GU) SYSTEMS, IS REASON FOR ADOPTING FETAL MRI AS AN ADJUNCT IN OBSTETRIC IMAGING.

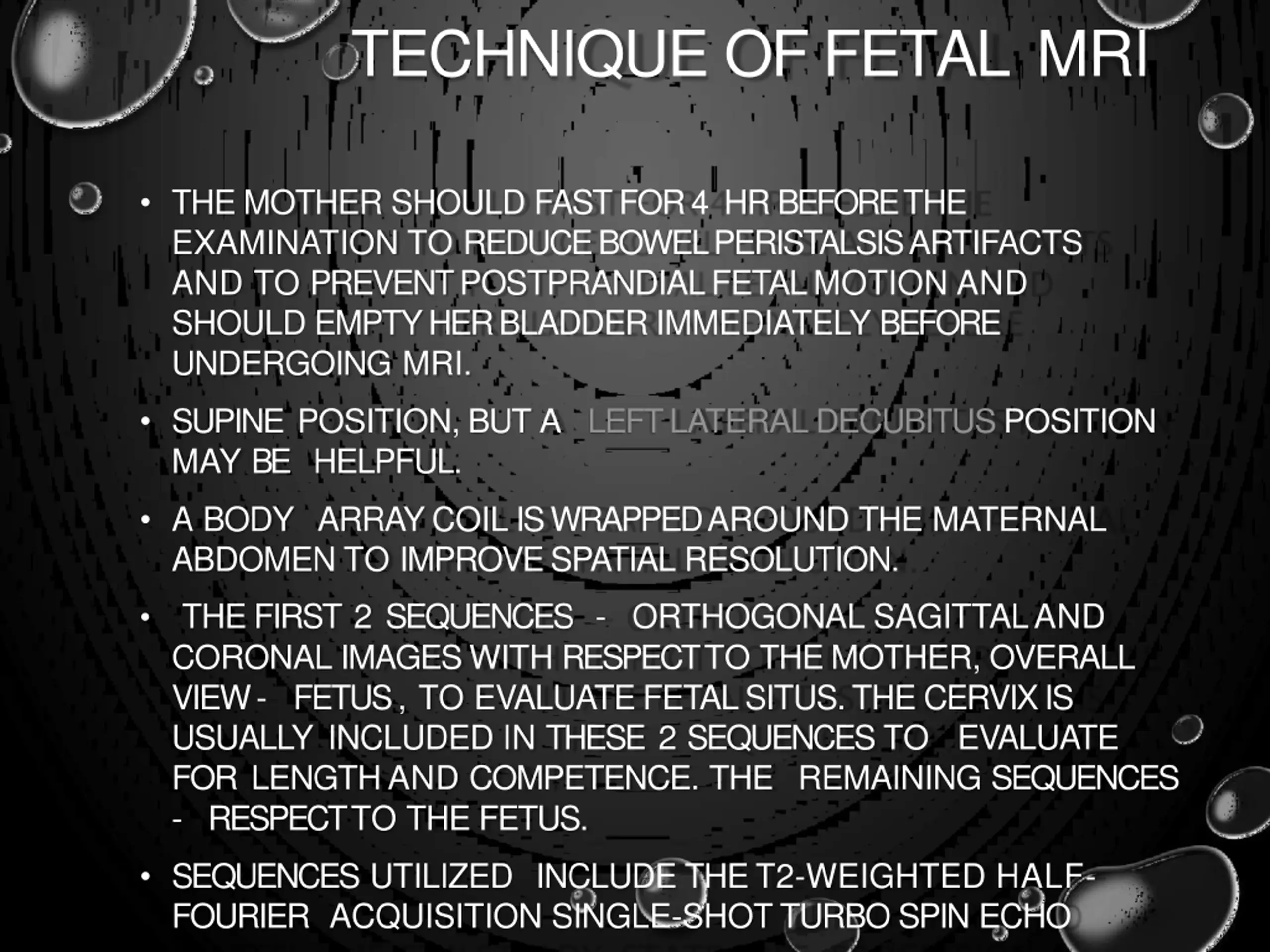

TECHNIQUE OF FETAL MRI THE MOTHER SHOULD FAST FOR 4 HR BEFORE THE EXAMINATION TO REDUCE BOWEL PERISTALSIS ARTIFACTS AND TO PREVENT POSTPRANDIAL FETAL MOTION AND SHOULD EMPTY HER BLADDER IMMEDIATELY BEFORE UNDERGOING MRI. SUPINE POSITION, BUT A LEFT LATERAL DECUBITUS POSITION MAY BE HELPFUL. A BODY ARRAY COIL IS WRAPPED AROUND THE MATERNAL ABDOMEN TO IMPROVE SPATIAL RESOLUTION. THE FIRST 2 SEQUENCES - ORTHOGONAL SAGITTAL AND CORONAL IMAGES WITH RESPECT TO THE MOTHER, OVERALL VIEW - FETUS , TO EVALUATE FETAL SITUS. THE CERVIX IS USUALLY INCLUDED IN THESE 2 SEQUENCES TO EVALUATE FOR LENGTH AND COMPETENCE. THE REMAINING SEQUENCES - RESPECT TO THE FETUS. SEQUENCES UTILIZED INCLUDE THE T2-WEIGHTED HALF- FOURIER ACQUISITION SINGLE-SHOT TURBO SPIN ECHO

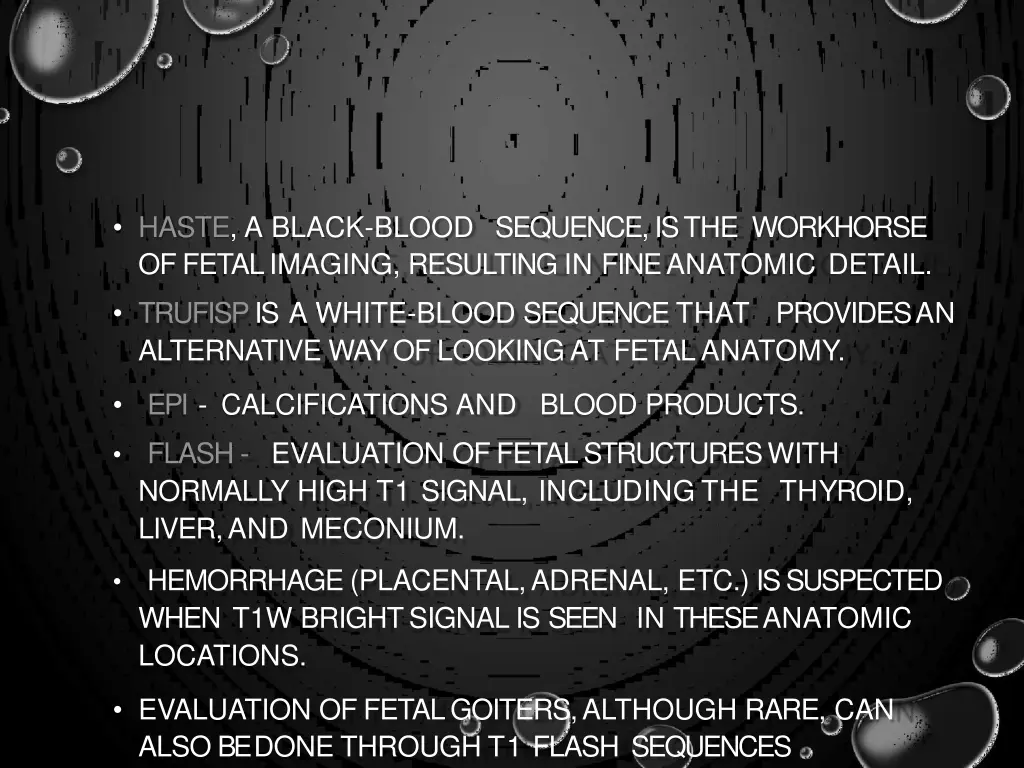

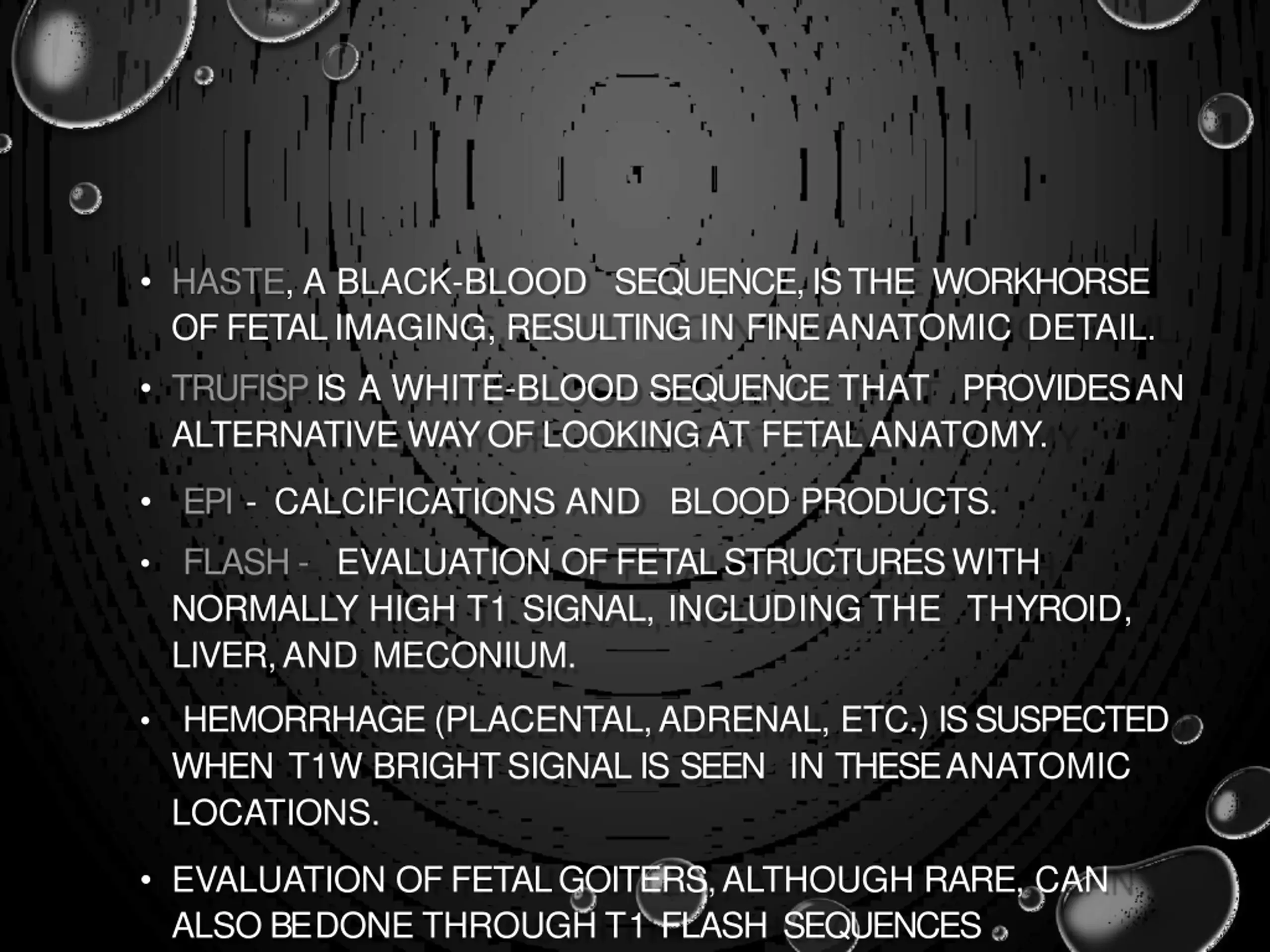

HASTE, A BLACK-BLOOD SEQUENCE, IS THE WORKHORSE OF FETAL IMAGING, RESULTING IN FINE ANATOMIC DETAIL. TRUFISP IS A WHITE-BLOOD SEQUENCE THAT PROVIDES AN ALTERNATIVE WAY OF LOOKING AT FETAL ANATOMY. EPI - CALCIFICATIONS AND BLOOD PRODUCTS. FLASH - EVALUATION OF FETAL STRUCTURES WITH NORMALLY HIGH T1 SIGNAL, INCLUDING THE THYROID, LIVER, AND MECONIUM. HEMORRHAGE (PLACENTAL, ADRENAL, ETC.) IS SUSPECTED WHEN T1W BRIGHT SIGNAL IS SEEN IN THESE ANATOMIC LOCATIONS. EVALUATION OF FETAL GOITERS, ALTHOUGH RARE, CAN ALSO BE DONE THROUGH T1 FLASH SEQUENCES

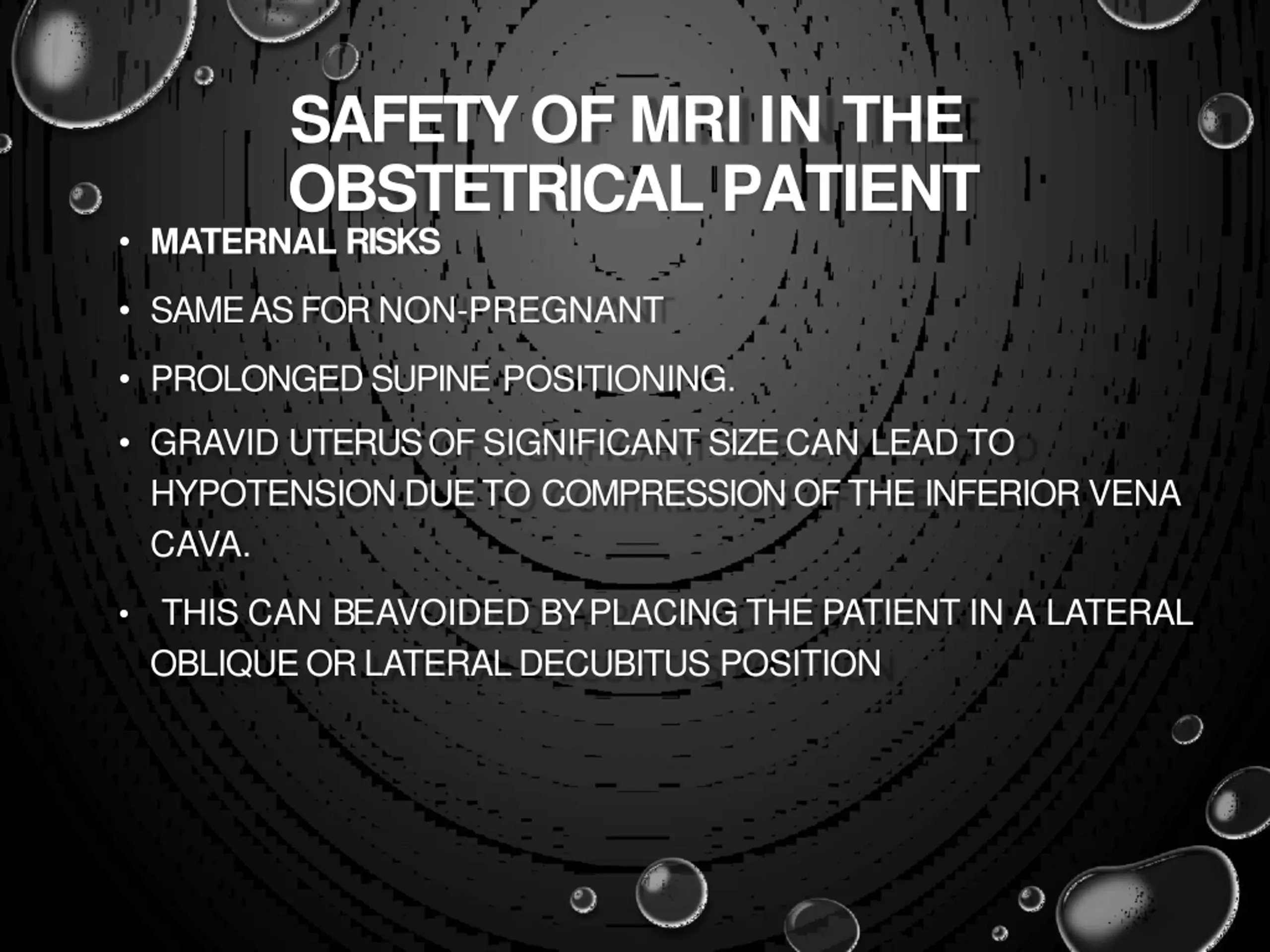

SAFETY OF MRI IN THE OBSTETRICAL PATIENT MATERNAL RISKS SAME AS FOR NON-PREGNANT PROLONGED SUPINE POSITIONING. GRAVID UTERUS OF SIGNIFICANT SIZE CAN LEAD TO HYPOTENSION DUE TO COMPRESSION OF THE INFERIOR VENA CAVA. THIS CAN BE AVOIDED BY PLACING THE PATIENT IN A LATERAL OBLIQUE OR LATERAL DECUBITUS POSITION

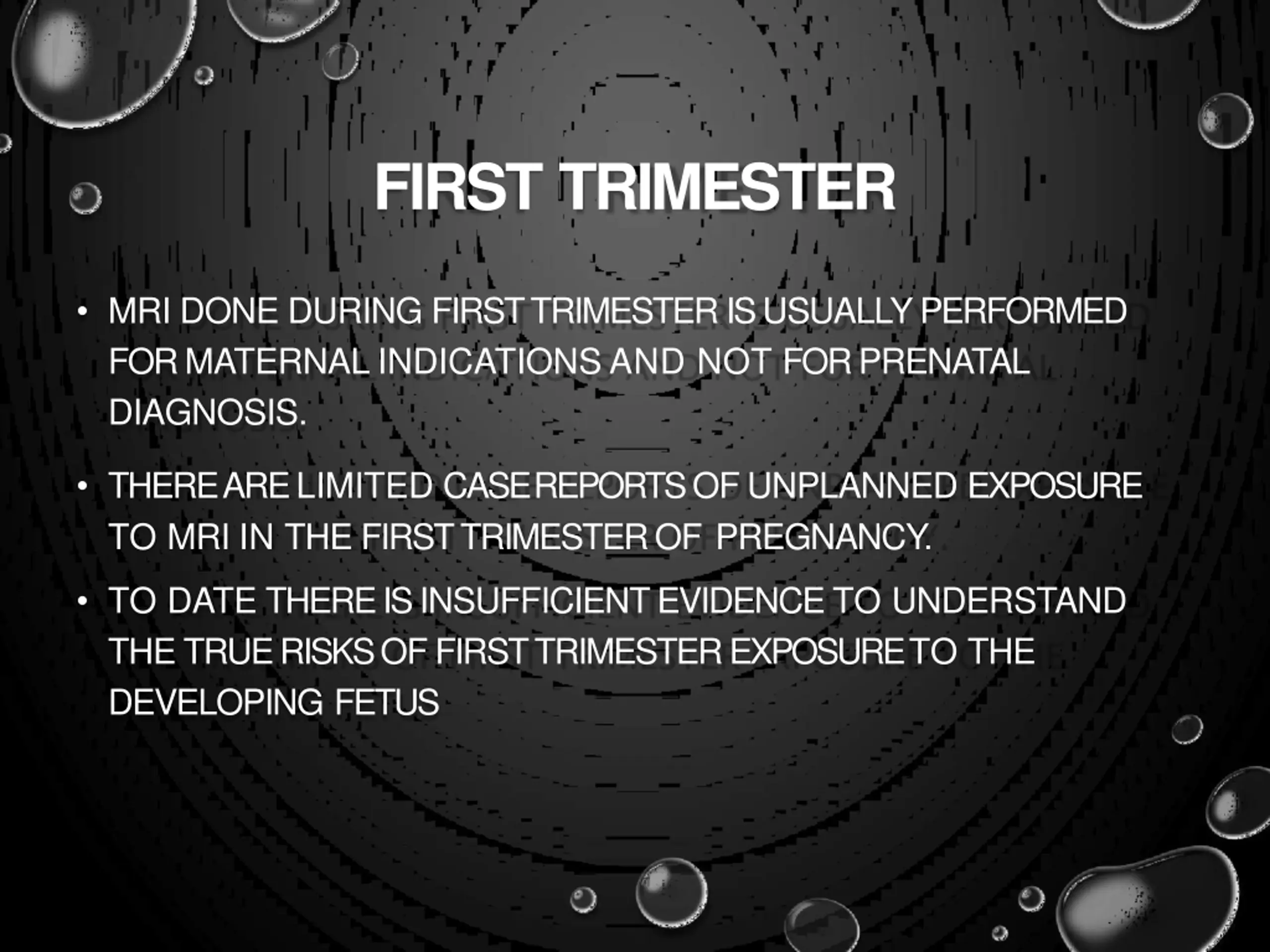

FIRST TRIMESTER MRI DONE DURING FIRST TRIMESTER IS USUALLY PERFORMED FOR MATERNAL INDICATIONS AND NOT FOR PRENATAL DIAGNOSIS. THERE ARE LIMITED CASE REPORTS OF UNPLANNED EXPOSURE TO MRI IN THE FIRST TRIMESTER OF PREGNANCY. TO DATE THERE IS INSUFFICIENT EVIDENCE TO UNDERSTAND THE TRUE RISKS OF FIRST TRIMESTER EXPOSURE TO THE DEVELOPING FETUS

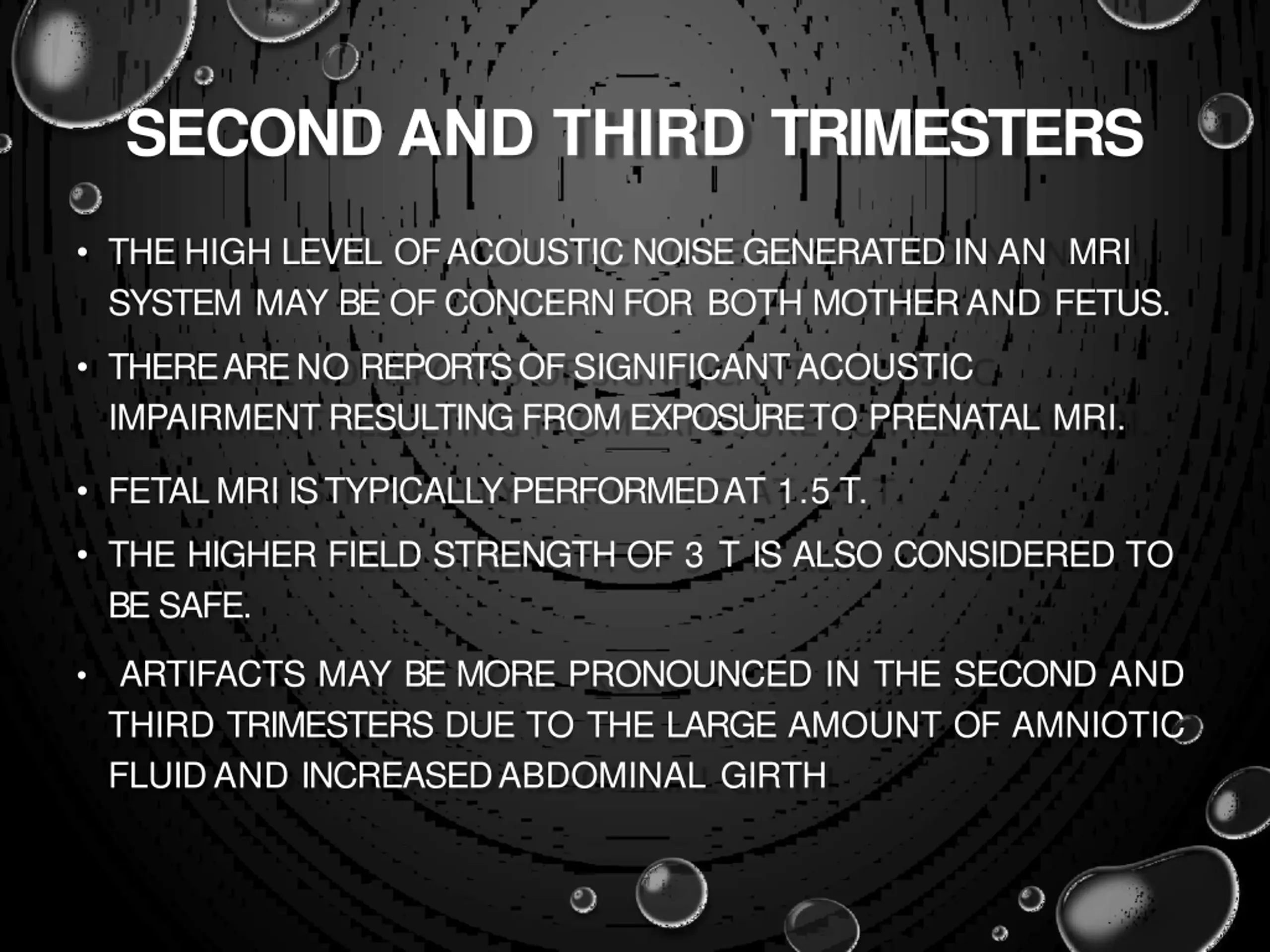

SECOND AND THIRD TRIMESTERS THE HIGH LEVEL OF ACOUSTIC NOISE GENERATED IN AN MRI SYSTEM MAY BE OF CONCERN FOR BOTH MOTHER AND FETUS. THERE ARE NO REPORTS OF SIGNIFICANT ACOUSTIC IMPAIRMENT RESULTING FROM EXPOSURE TO PRENATAL MRI. FETAL MRI IS TYPICALLY PERFORMED AT 1.5 T. THE HIGHER FIELD STRENGTH OF 3 T IS ALSO CONSIDERED TO BE SAFE. ARTIFACTS MAY BE MORE PRONOUNCED IN THE SECOND AND THIRD TRIMESTERS DUE TO THE LARGE AMOUNT OF AMNIOTIC FLUID AND INCREASED ABDOMINAL GIRTH

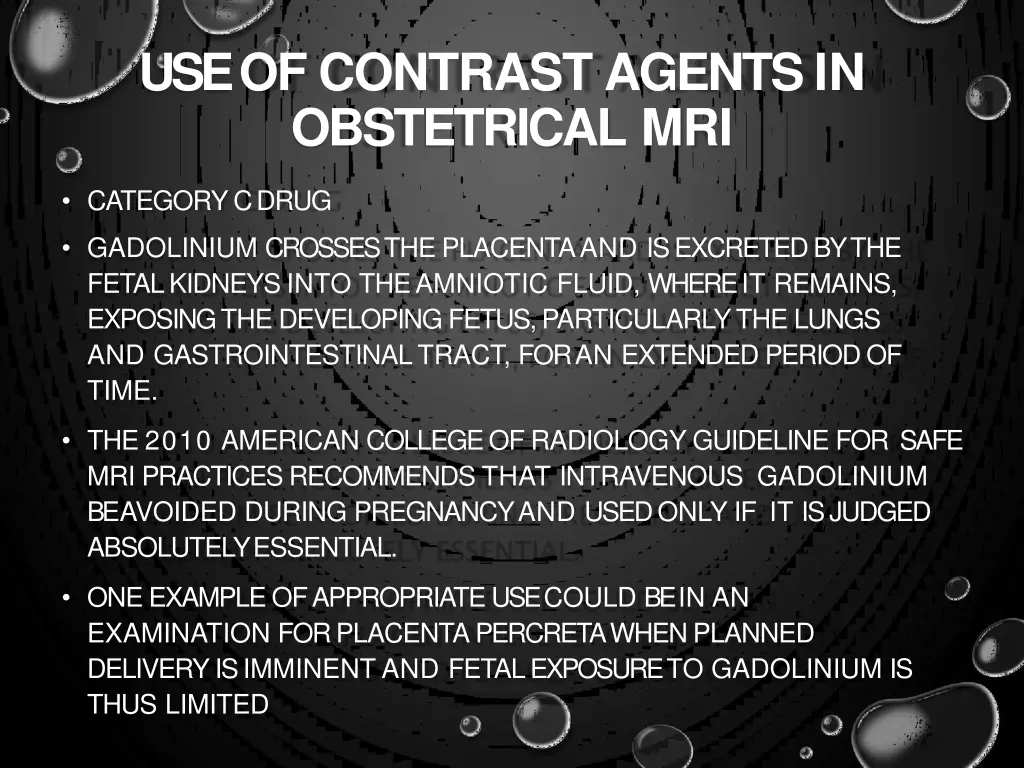

USE OF CONTRAST AGENTS IN OBSTETRICAL MRI CATEGORY C DRUG GADOLINIUM CROSSES THE PLACENTA AND IS EXCRETED BY THE FETAL KIDNEYS INTO THE AMNIOTIC FLUID, WHERE IT REMAINS, EXPOSING THE DEVELOPING FETUS, PARTICULARLY THE LUNGS AND GASTROINTESTINAL TRACT, FOR AN EXTENDED PERIOD OF TIME. THE 2010 AMERICAN COLLEGE OF RADIOLOGY GUIDELINE FOR SAFE MRI PRACTICES RECOMMENDS THAT INTRAVENOUS GADOLINIUM BE AVOIDED DURING PREGNANCY AND USED ONLY IF IT IS JUDGED ABSOLUTELY ESSENTIAL. ONE EXAMPLE OF APPROPRIATE USE COULD BE IN AN EXAMINATION FOR PLACENTA PERCRETA WHEN PLANNED DELIVERY IS IMMINENT AND FETAL EXPOSURE TO GADOLINIUM IS THUS LIMITED

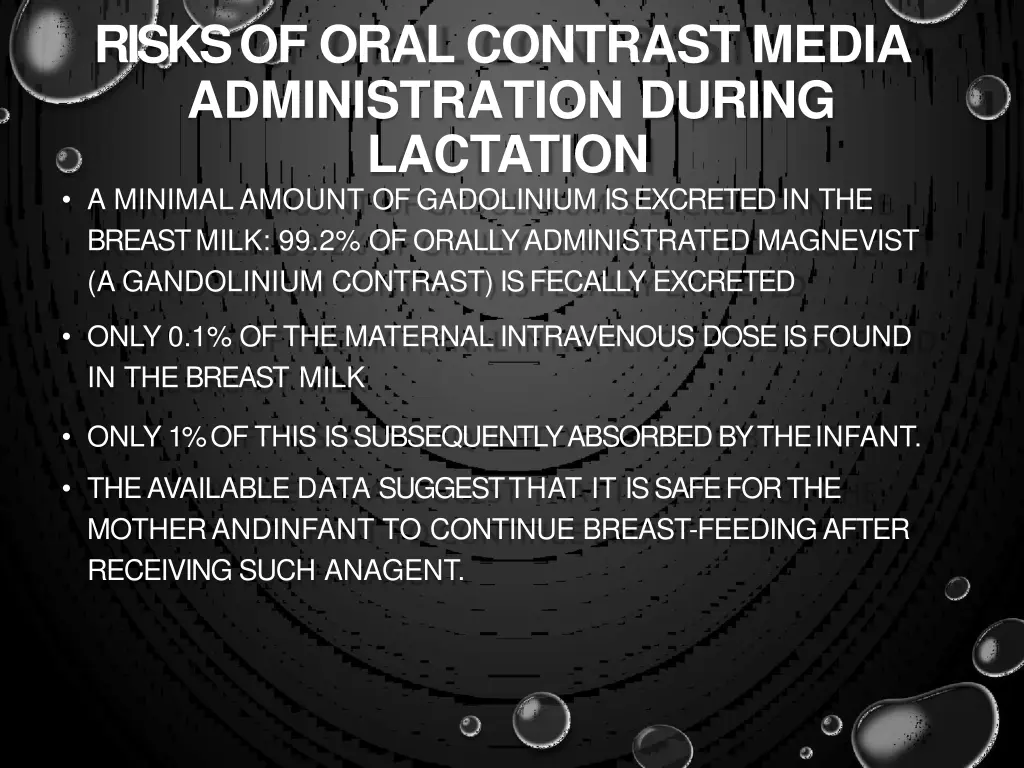

RISKS OF ORAL CONTRAST MEDIA ADMINISTRATION DURING LACTATION A MINIMAL AMOUNT OF GADOLINIUM IS EXCRETED IN THE BREAST MILK: 99.2% OF ORALLY ADMINISTRATED MAGNEVIST (A GANDOLINIUM CONTRAST) IS FECALLY EXCRETED ONLY 0.1% OF THE MATERNAL INTRAVENOUS DOSE IS FOUND IN THE BREAST MILK ONLY 1% OF THIS IS SUBSEQUENTLY ABSORBED BY THE INFANT. THE AVAILABLE DATA SUGGEST THAT IT IS SAFE FOR THE MOTHER ANDINFANT TO CONTINUE BREAST-FEEDING AFTER RECEIVING SUCH ANAGENT.

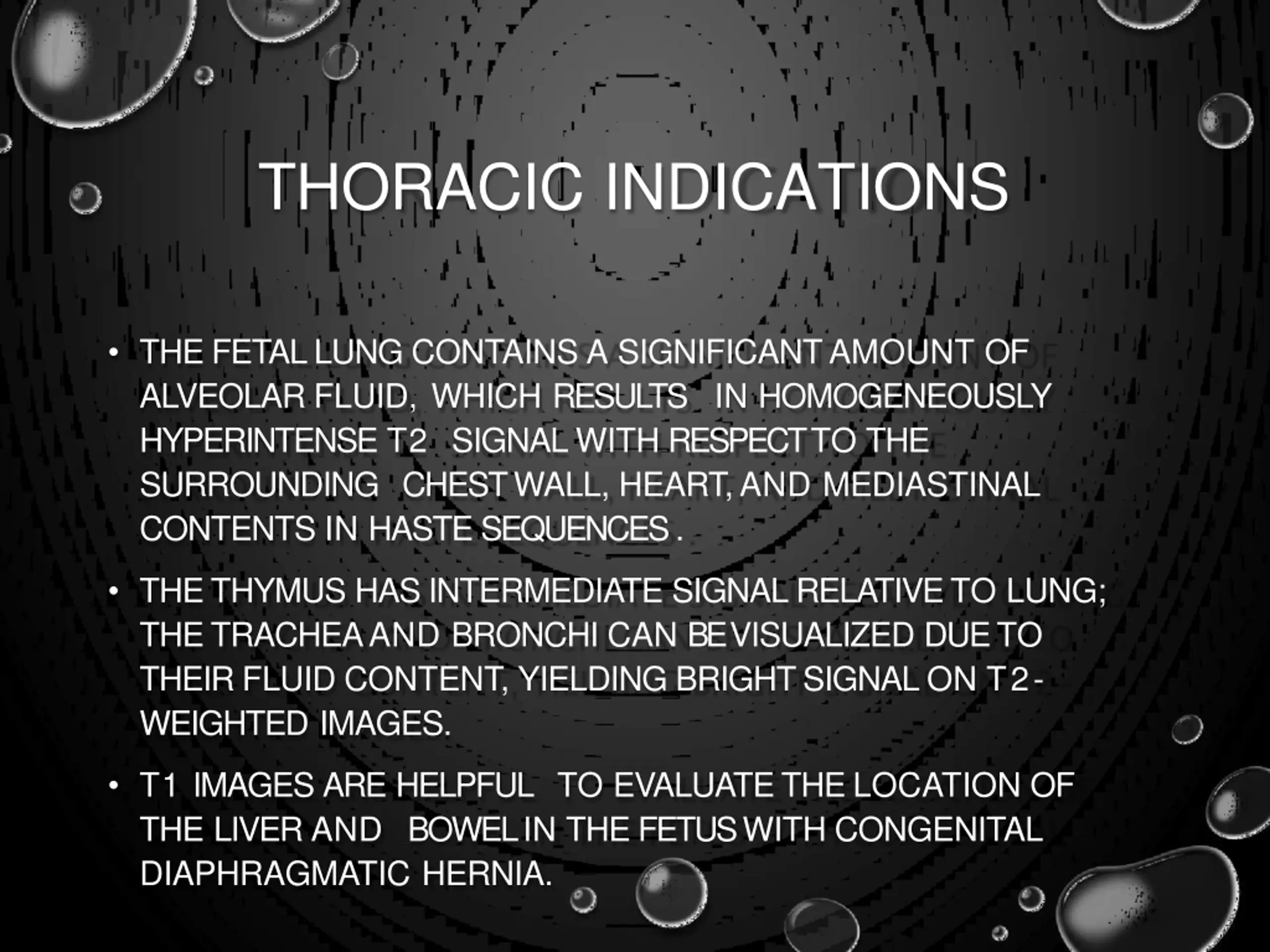

THORACIC INDICATIONS THE FETAL LUNG CONTAINS A SIGNIFICANT AMOUNT OF ALVEOLAR FLUID, WHICH RESULTS IN HOMOGENEOUSLY HYPERINTENSE T2 SIGNAL WITH RESPECT TO THE SURROUNDING CHEST WALL, HEART, AND MEDIASTINAL CONTENTS IN HASTE SEQUENCES . THE THYMUS HAS INTERMEDIATE SIGNAL RELATIVE TO LUNG; THE TRACHEA AND BRONCHI CAN BE VISUALIZED DUE TO THEIR FLUID CONTENT, YIELDING BRIGHT SIGNAL ON T2- WEIGHTED IMAGES. T1 IMAGES ARE HELPFUL TO EVALUATE THE LOCATION OF THE LIVER AND BOWEL IN THE FETUS WITH CONGENITAL DIAPHRAGMATIC HERNIA.

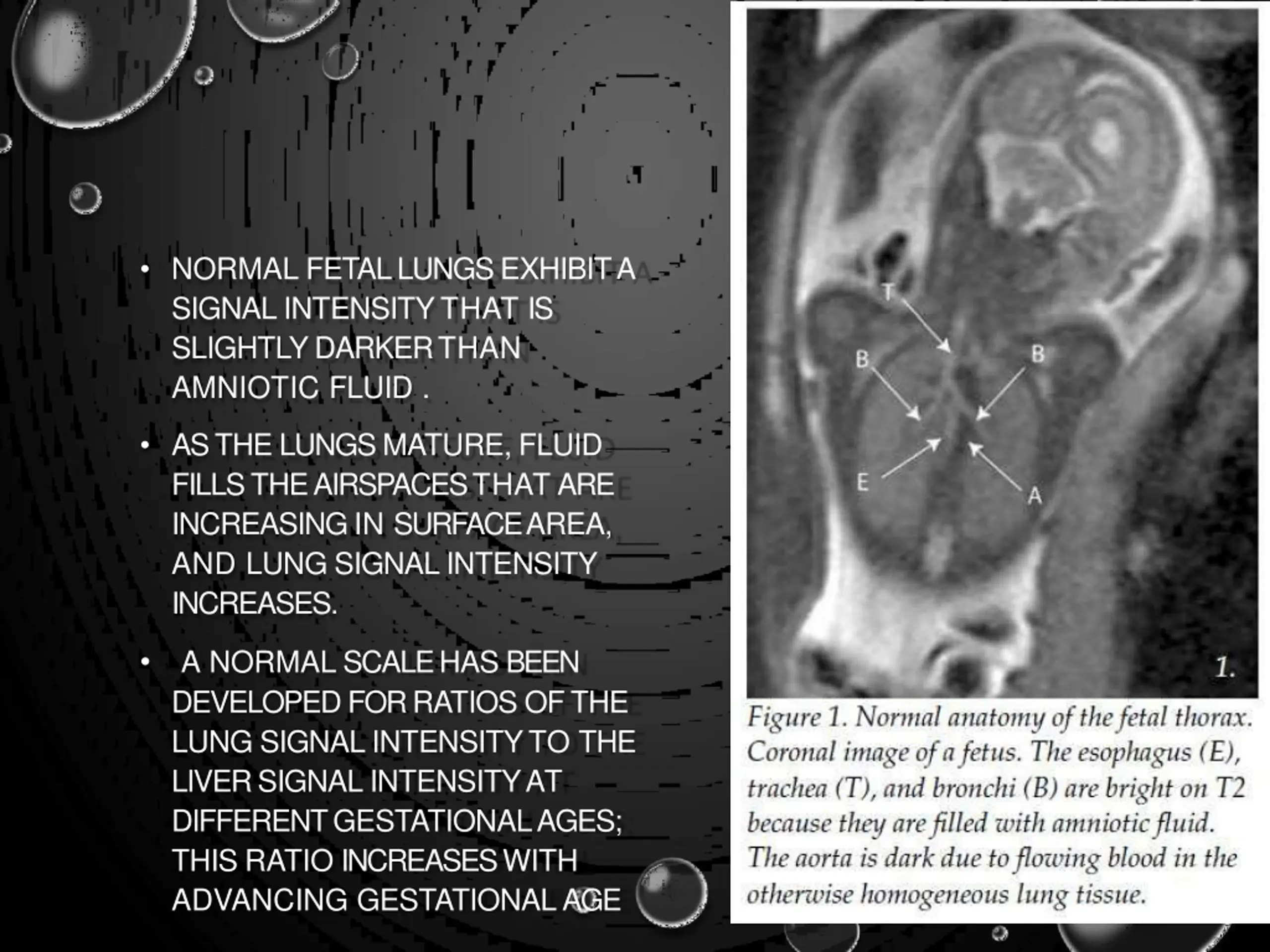

NORMAL FETAL LUNGS EXHIBIT A SIGNAL INTENSITY THAT IS SLIGHTLY DARKER THAN AMNIOTIC FLUID . AS THE LUNGS MATURE, FLUID FILLS THE AIRSPACES THAT ARE INCREASING IN SURFACE AREA, AND LUNG SIGNAL INTENSITY INCREASES. A NORMAL SCALE HAS BEEN DEVELOPED FOR RATIOS OF THE LUNG SIGNAL INTENSITY TO THE LIVER SIGNAL INTENSITY AT DIFFERENT GESTATIONAL AGES; THIS RATIO INCREASES WITH ADVANCING GESTATIONAL AGE

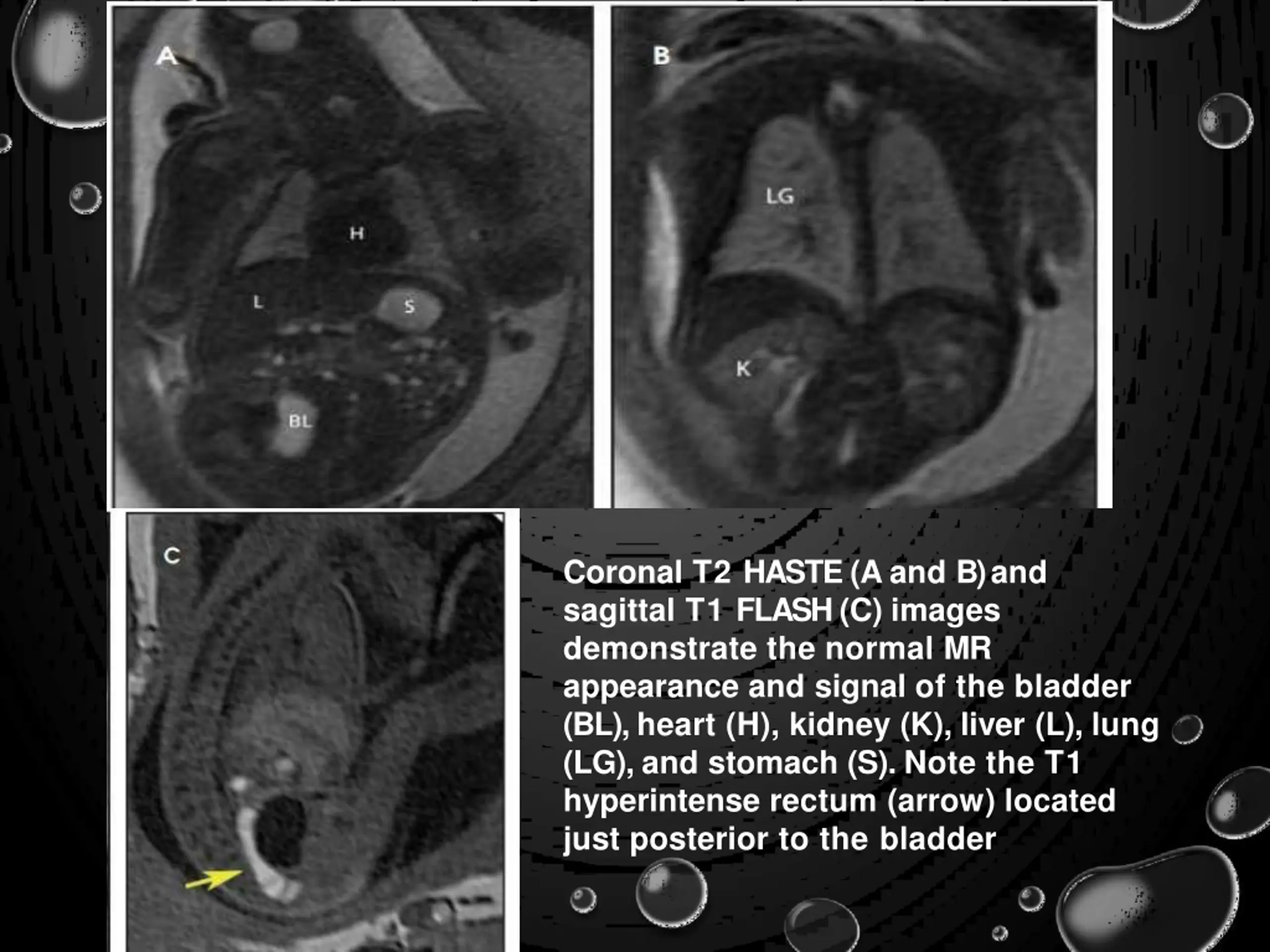

Coronal T2 HASTE (A and B) and sagittal T1 FLASH (C) images demonstrate the normal MR appearance and signal of the bladder (BL), heart (H), kidney (K), liver (L), lung (LG), and stomach (S). Note the T1 hyperintense rectum (arrow) located just posterior to the bladder

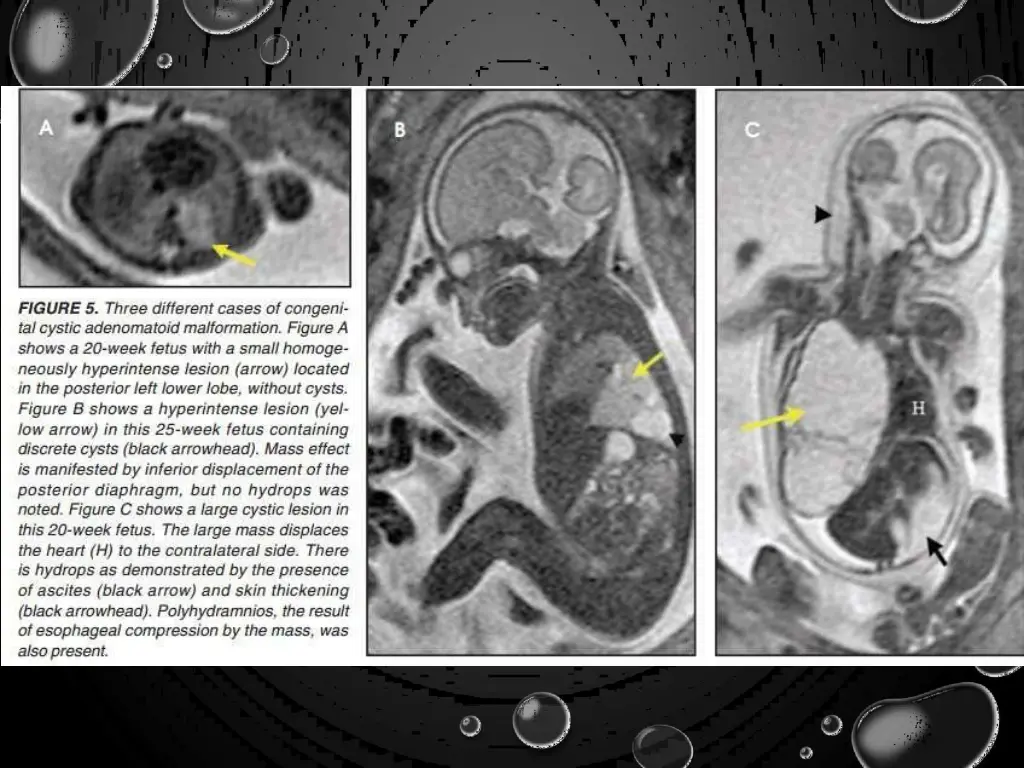

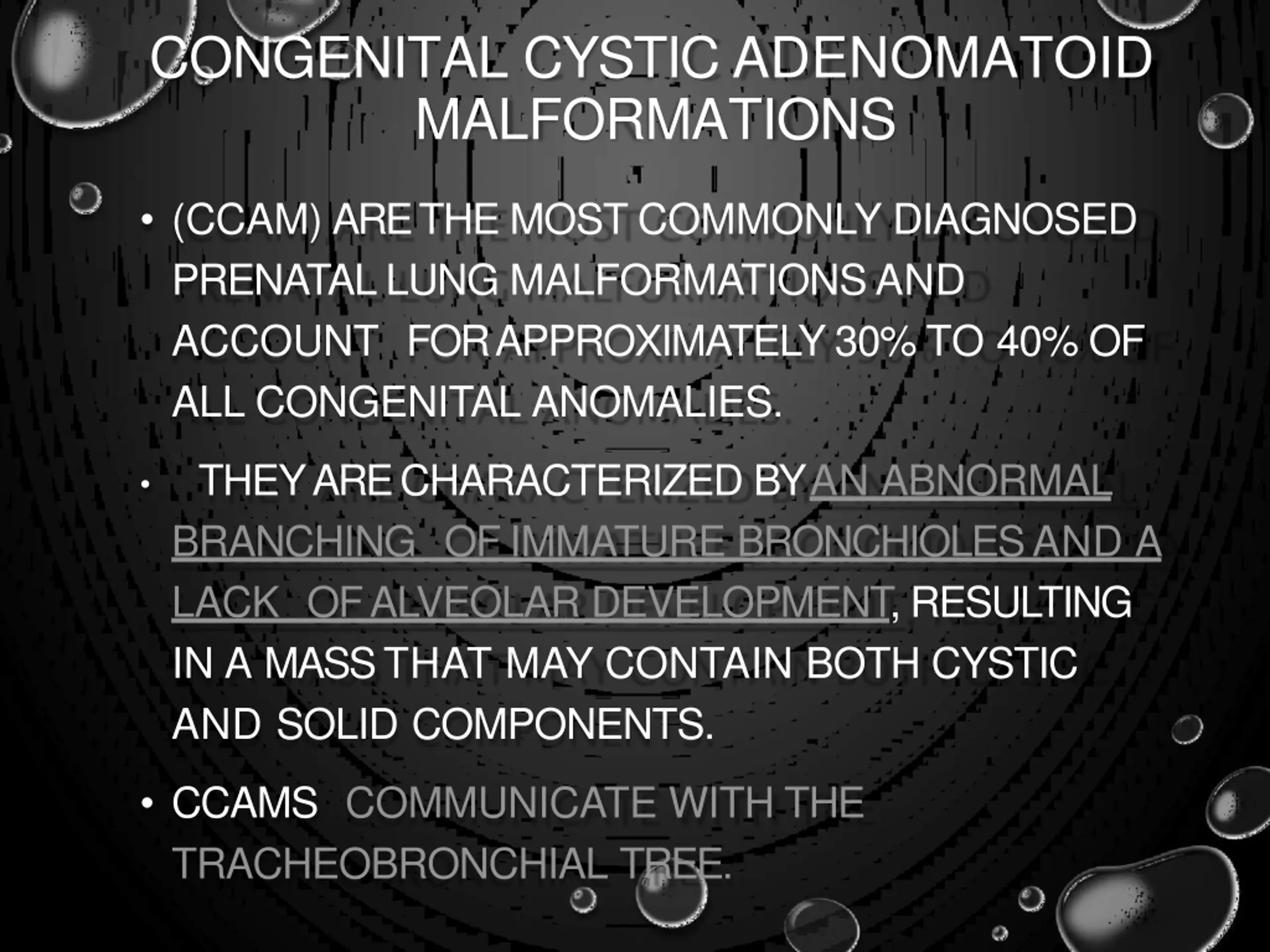

CONGENITAL CYSTIC ADENOMATOID MALFORMATIONS (CCAM) ARE THE MOST COMMONLY DIAGNOSED PRENATAL LUNG MALFORMATIONS AND ACCOUNT FOR APPROXIMATELY 30% TO 40% OF ALL CONGENITAL ANOMALIES. THEY ARE CHARACTERIZED BY AN ABNORMAL BRANCHING OF IMMATURE BRONCHIOLES AND A LACK OF ALVEOLAR DEVELOPMENT, RESULTING IN A MASS THAT MAY CONTAIN BOTH CYSTIC AND SOLID COMPONENTS. CCAMS COMMUNICATE WITH THE TRACHEOBRONCHIAL TREE.

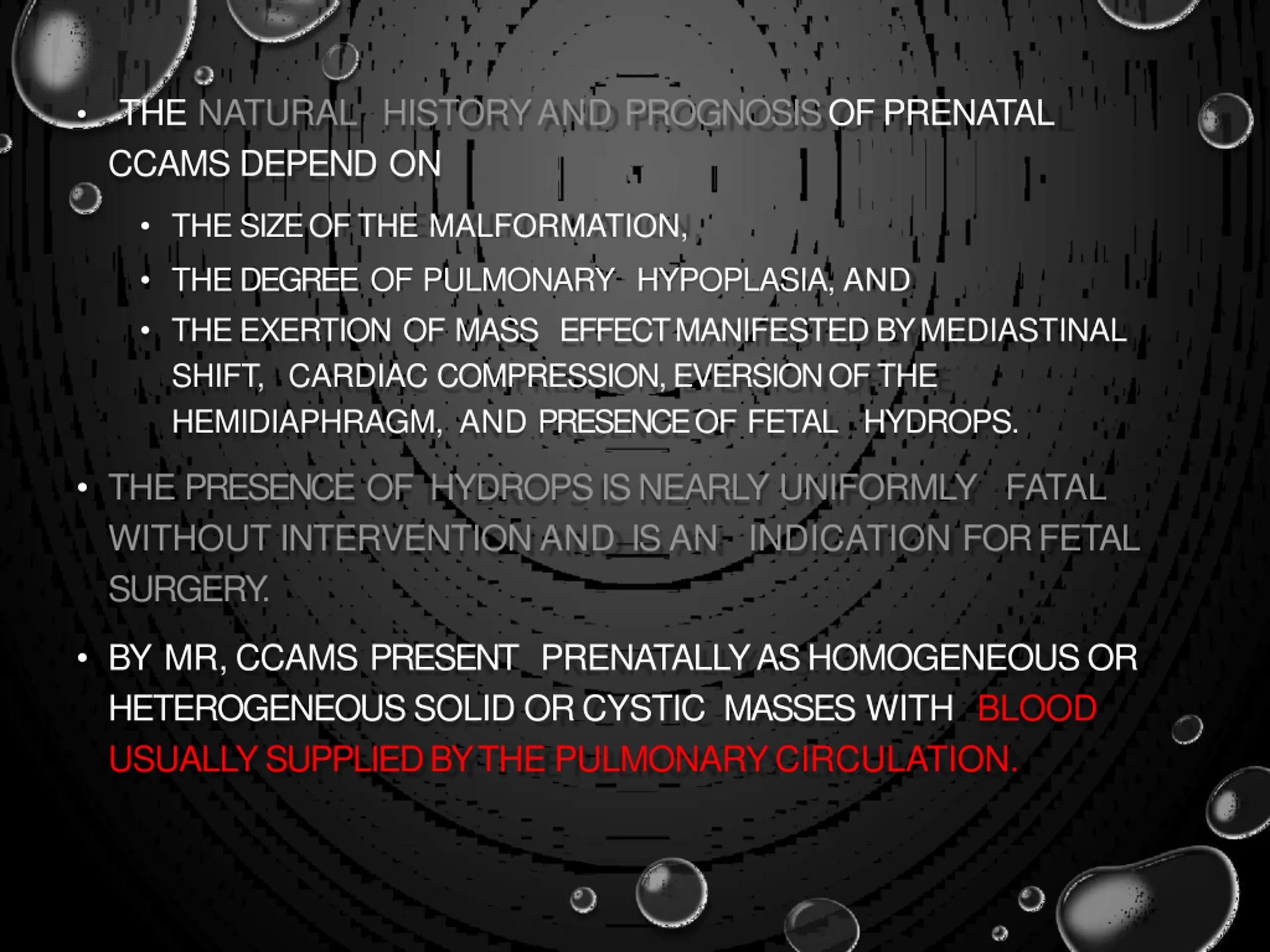

THE NATURAL HISTORY AND PROGNOSIS OF PRENATAL CCAMS DEPEND ON THE SIZE OF THE MALFORMATION, THE DEGREE OF PULMONARY HYPOPLASIA, AND THE EXERTION OF MASS EFFECT MANIFESTED BY MEDIASTINAL SHIFT, CARDIAC COMPRESSION, EVERSION OF THE HEMIDIAPHRAGM, AND PRESENCE OF FETAL HYDROPS. THE PRESENCE OF HYDROPS IS NEARLY UNIFORMLY FATAL WITHOUT INTERVENTION AND IS AN INDICATION FOR FETAL SURGERY. BY MR, CCAMS PRESENT PRENATALLY AS HOMOGENEOUS OR HETEROGENEOUS SOLID OR CYSTIC MASSES WITH BLOOD USUALLY SUPPLIED BY THE PULMONARY CIRCULATION.

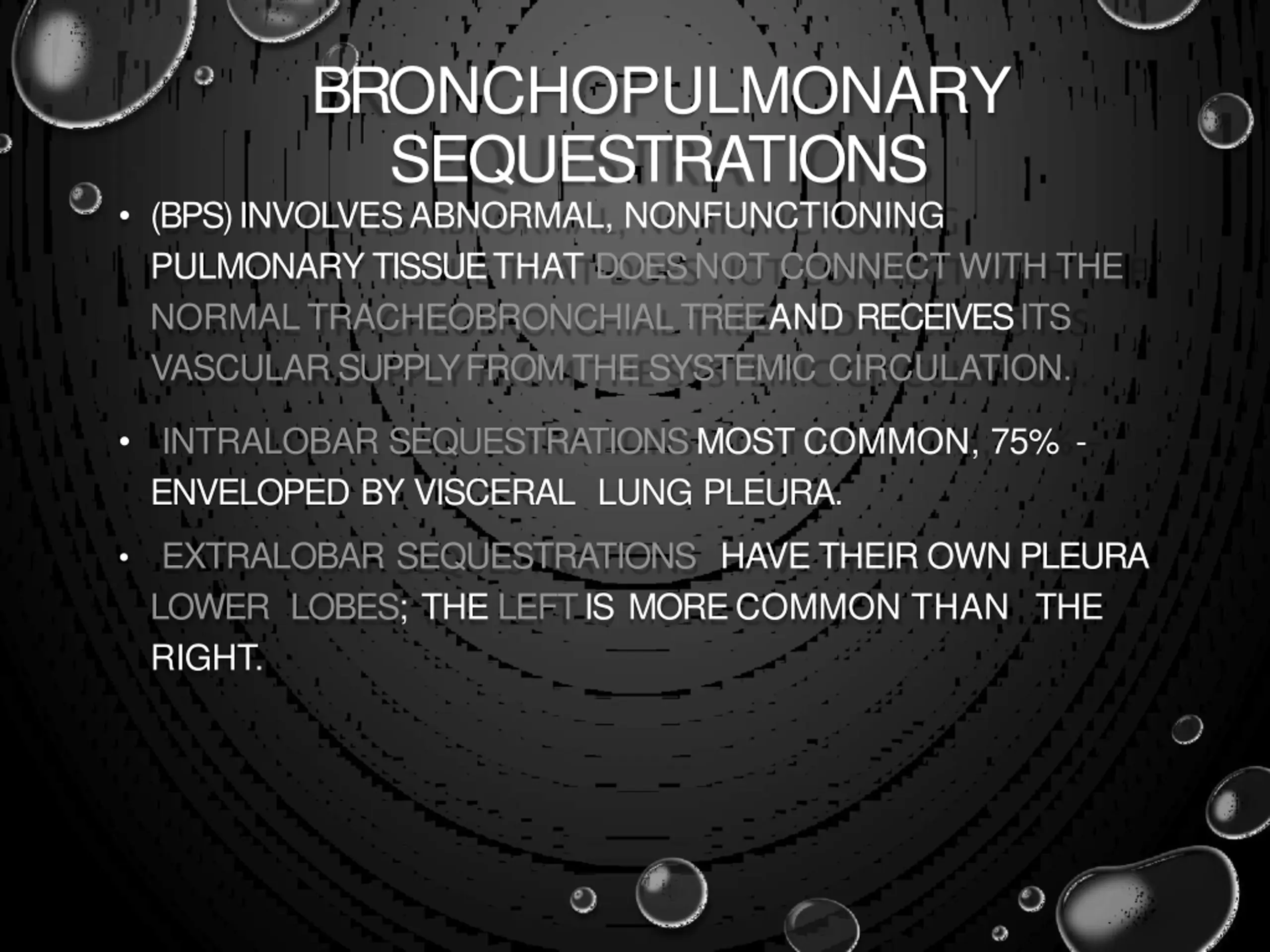

BRONCHOPULMONARY SEQUESTRATIONS (BPS) INVOLVES ABNORMAL, NONFUNCTIONING PULMONARY TISSUE THAT DOES NOT CONNECT WITH THE NORMAL TRACHEOBRONCHIAL TREE AND RECEIVES ITS VASCULAR SUPPLY FROM THE SYSTEMIC CIRCULATION. INTRALOBAR SEQUESTRATIONS MOST COMMON, 75% - ENVELOPED BY VISCERAL LUNG PLEURA. EXTRALOBAR SEQUESTRATIONS HAVE THEIR OWN PLEURA LOWER LOBES; THE LEFT IS MORE COMMON THAN THE RIGHT.

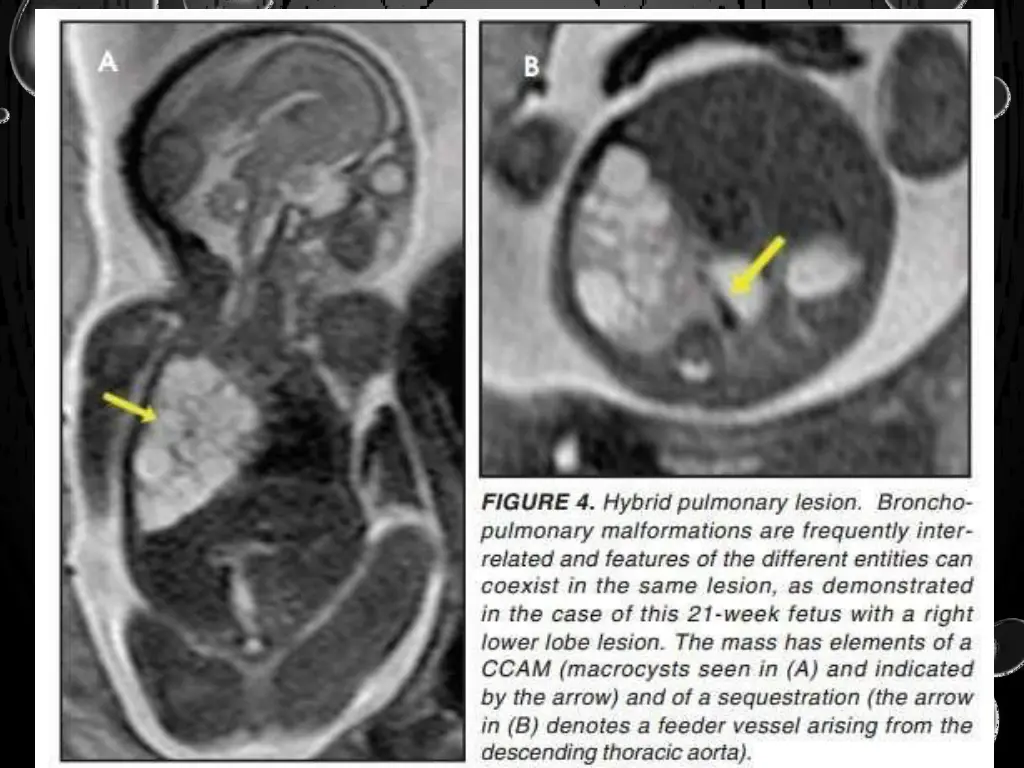

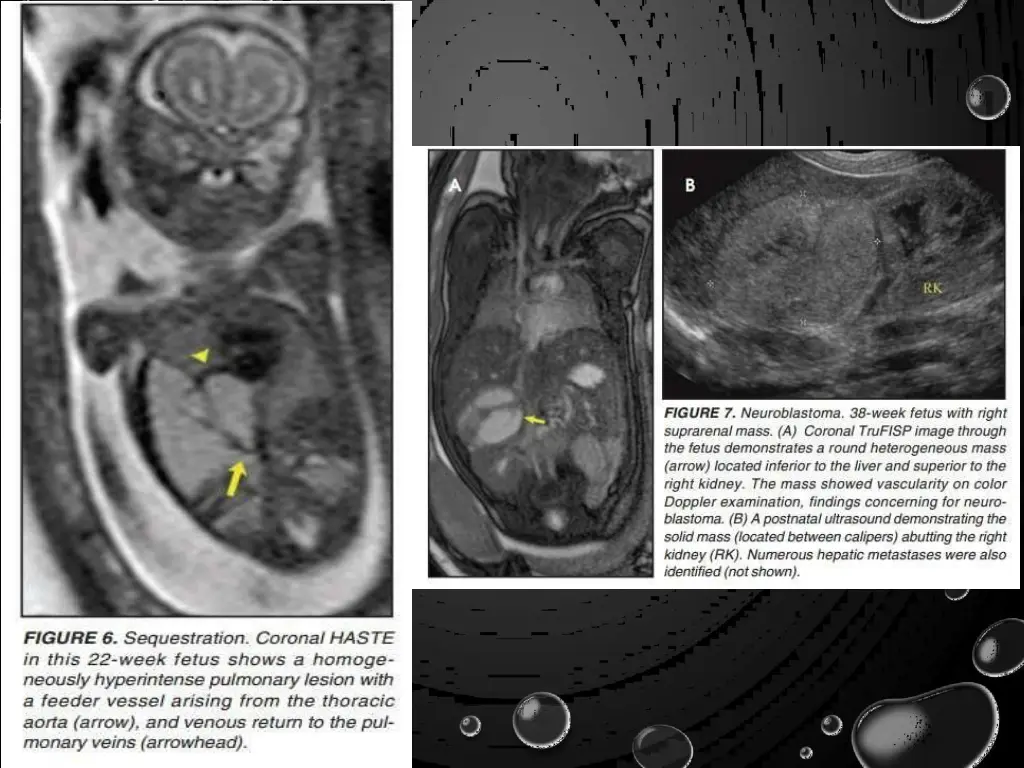

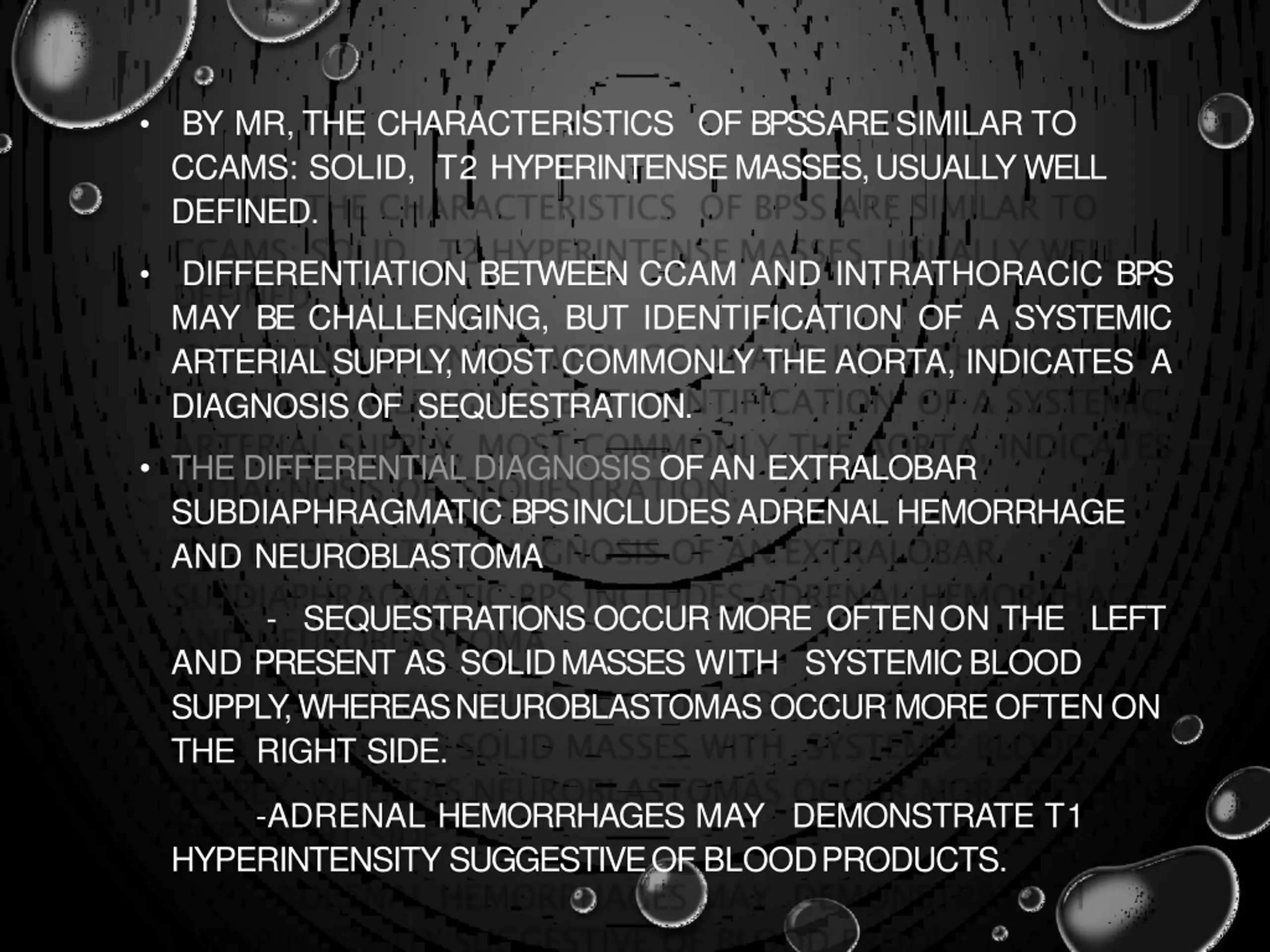

BY MR, THE CHARACTERISTICS OF BPSS ARE SIMILAR TO CCAMS: SOLID, T2 HYPERINTENSE MASSES, USUALLY WELL DEFINED. DIFFERENTIATION BETWEEN CCAM AND INTRATHORACIC BPS MAY BE CHALLENGING, BUT IDENTIFICATION OF A SYSTEMIC ARTERIAL SUPPLY, MOST COMMONLY THE AORTA, INDICATES A DIAGNOSIS OF SEQUESTRATION. THE DIFFERENTIAL DIAGNOSIS OF AN EXTRALOBAR SUBDIAPHRAGMATIC BPS INCLUDES ADRENAL HEMORRHAGE AND NEUROBLASTOMA - SEQUESTRATIONS OCCUR MORE OFTEN ON THE LEFT AND PRESENT AS SOLID MASSES WITH SYSTEMIC BLOOD SUPPLY, WHEREAS NEUROBLASTOMAS OCCUR MORE OFTEN ON THE RIGHT SIDE. -ADRENAL HEMORRHAGES MAY DEMONSTRATE T1 HYPERINTENSITY SUGGESTIVE OF BLOOD PRODUCTS.

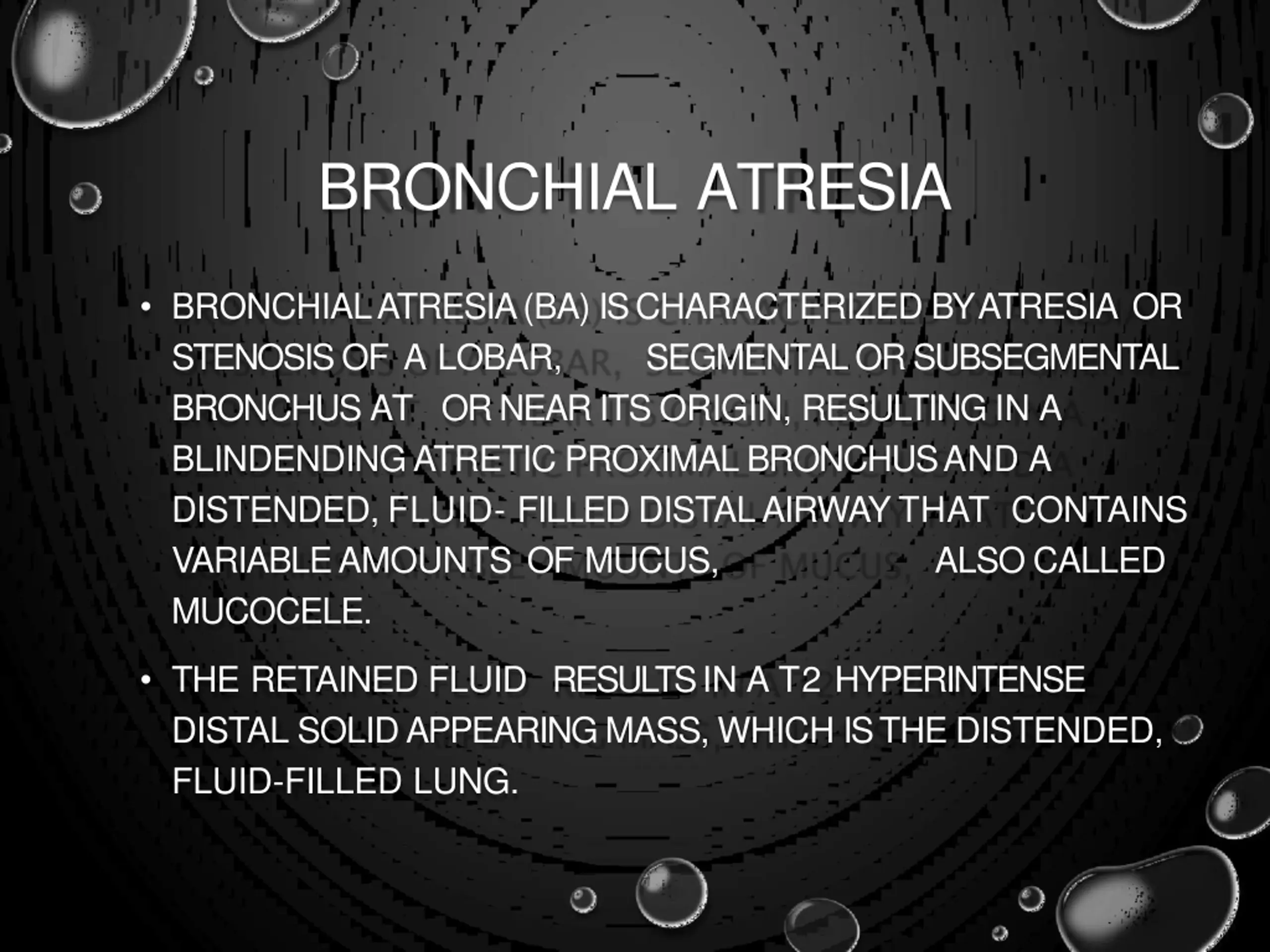

BRONCHIAL ATRESIA BRONCHIAL ATRESIA (BA) IS CHARACTERIZED BY ATRESIA OR STENOSIS OF A LOBAR, SEGMENTAL OR SUBSEGMENTAL BRONCHUS AT OR NEAR ITS ORIGIN, RESULTING IN A BLINDENDING ATRETIC PROXIMAL BRONCHUS AND A DISTENDED, FLUID- FILLED DISTAL AIRWAY THAT CONTAINS VARIABLE AMOUNTS OF MUCUS, MUCOCELE. ALSO CALLED THE RETAINED FLUID RESULTS IN A T2 HYPERINTENSE DISTAL SOLID APPEARING MASS, WHICH IS THE DISTENDED, FLUID-FILLED LUNG.

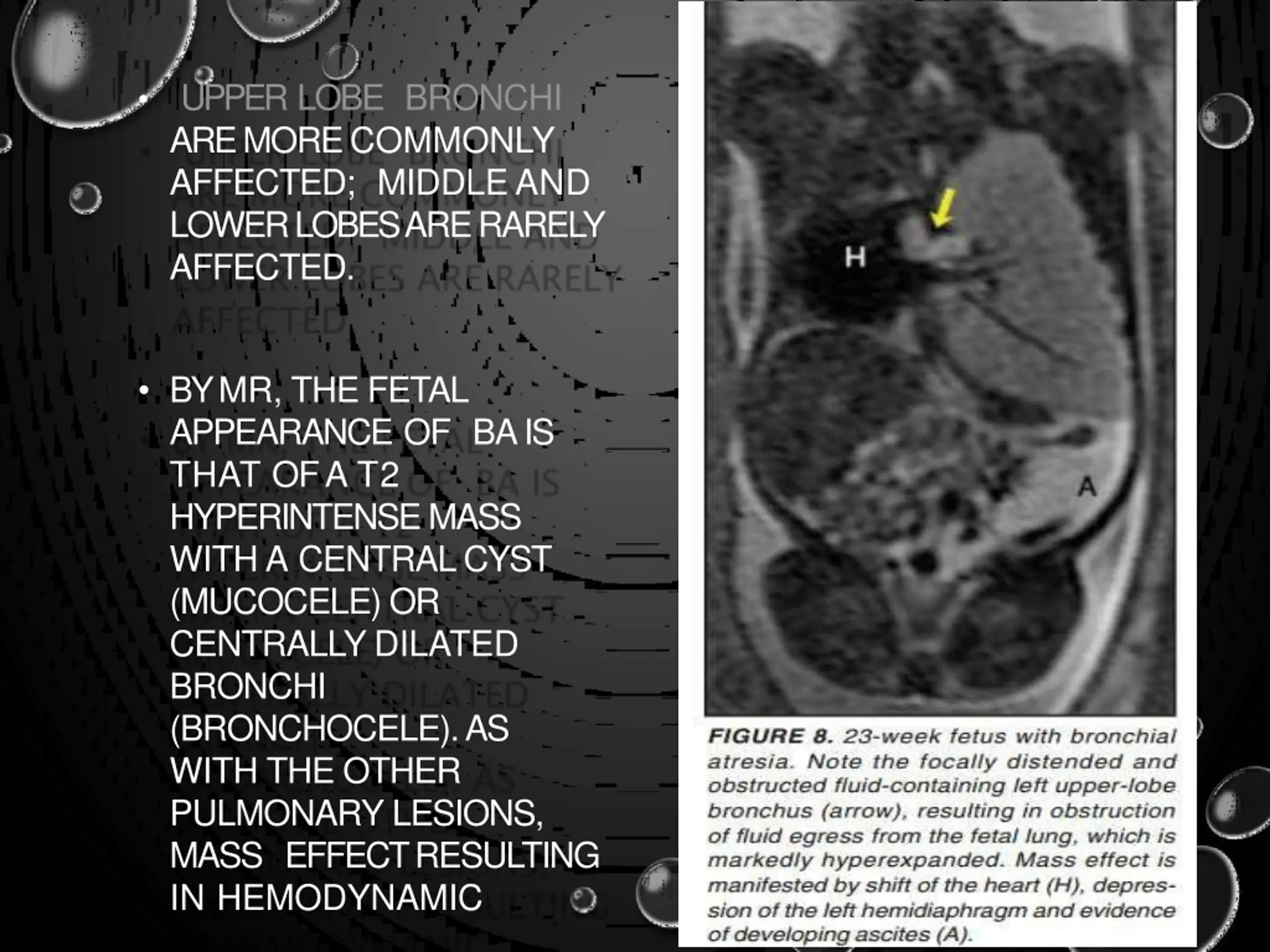

UPPER LOBE BRONCHI ARE MORE COMMONLY AFFECTED; MIDDLE AND LOWER LOBES ARE RARELY AFFECTED. BY MR, THE FETAL APPEARANCE OF BA IS THAT OF A T2 HYPERINTENSE MASS WITH A CENTRAL CYST (MUCOCELE) OR CENTRALLY DILATED BRONCHI (BRONCHOCELE). AS WITH THE OTHER PULMONARY LESIONS, MASS EFFECT RESULTING IN HEMODYNAMIC

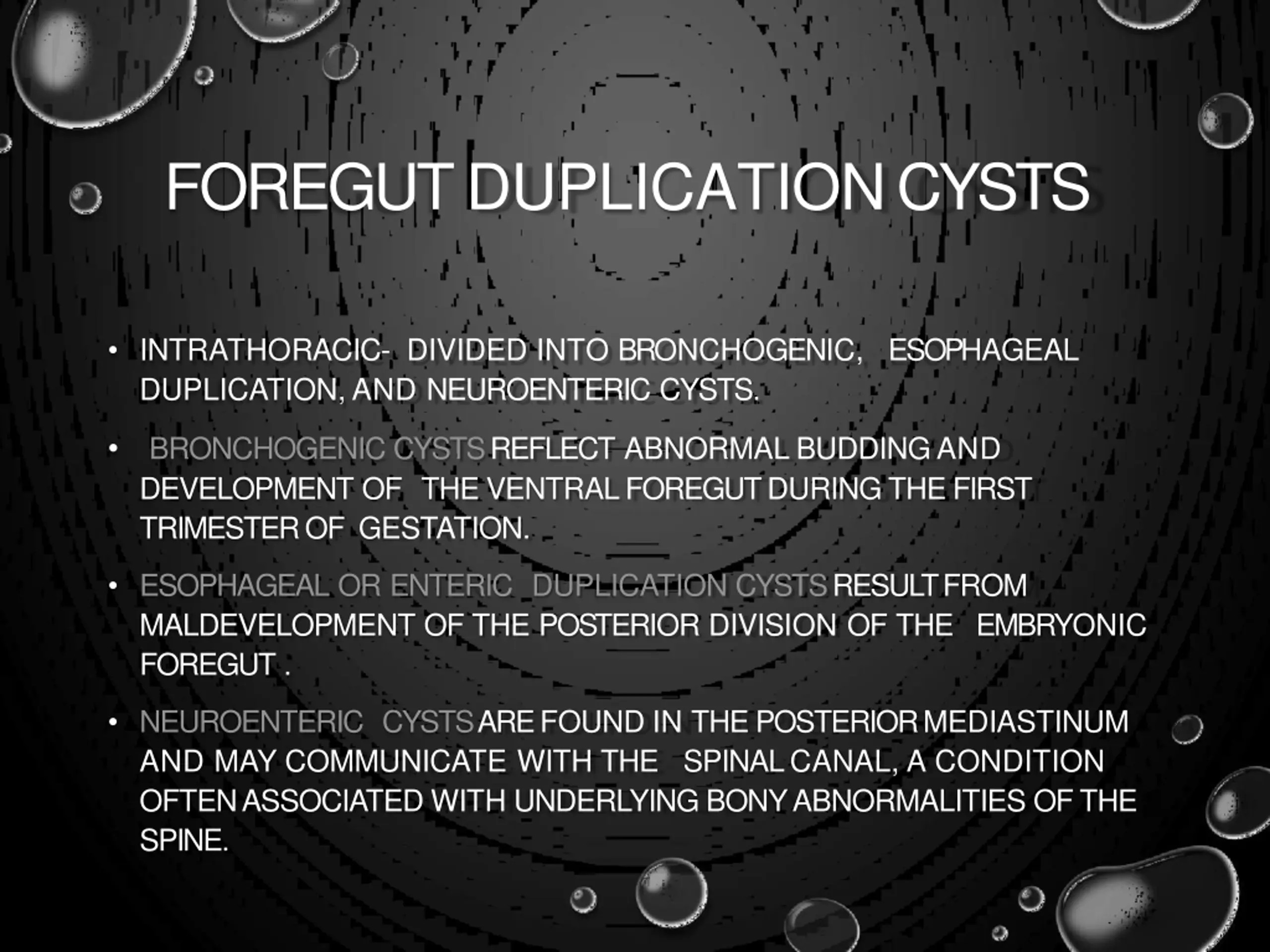

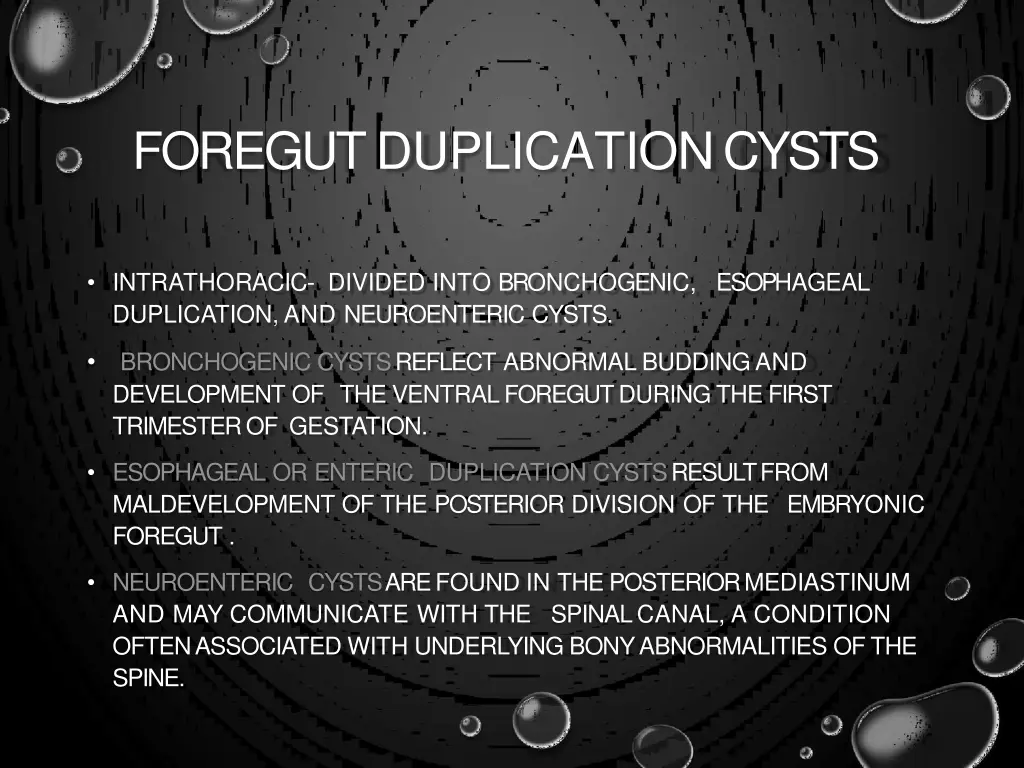

FOREGUT DUPLICATION CYSTS INTRATHORACIC- DIVIDED INTO BRONCHOGENIC, ESOPHAGEAL DUPLICATION, AND NEUROENTERIC CYSTS. BRONCHOGENIC CYSTS REFLECT ABNORMAL BUDDING AND DEVELOPMENT OF THE VENTRAL FOREGUT DURING THE FIRST TRIMESTER OF GESTATION. ESOPHAGEAL OR ENTERIC DUPLICATION CYSTS RESULT FROM MALDEVELOPMENT OF THE POSTERIOR DIVISION OF THE EMBRYONIC FOREGUT . NEUROENTERIC CYSTS ARE FOUND IN THE POSTERIOR MEDIASTINUM AND MAY COMMUNICATE WITH THE SPINAL CANAL, A CONDITION OFTEN ASSOCIATED WITH UNDERLYING BONY ABNORMALITIES OF THE SPINE.

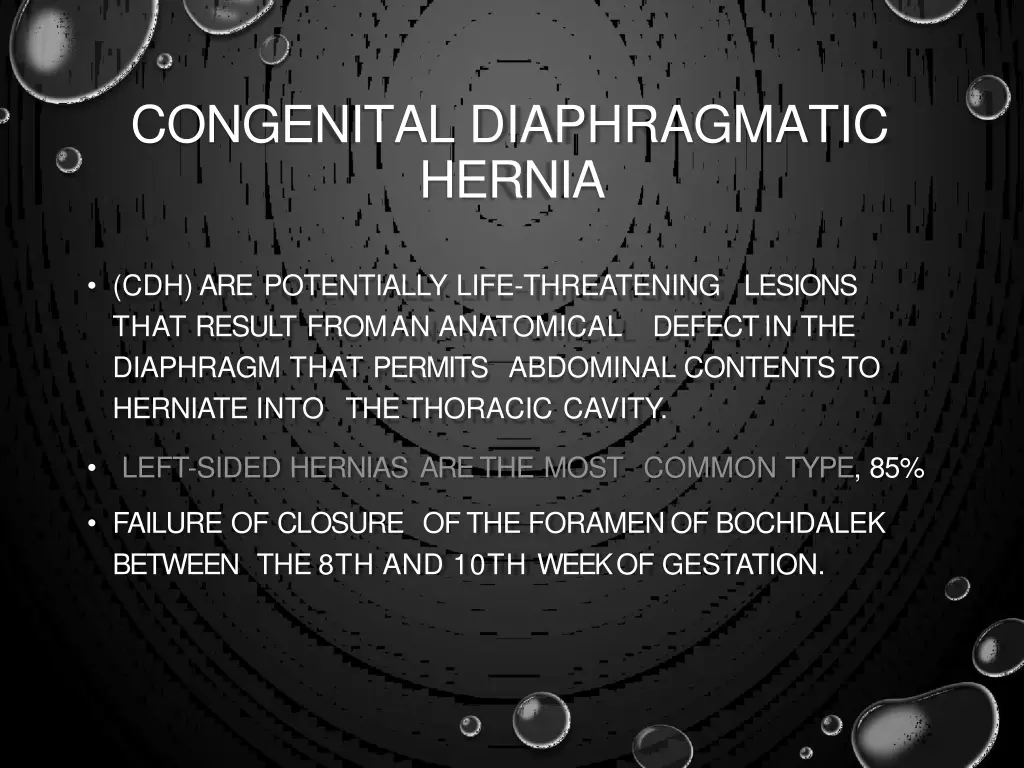

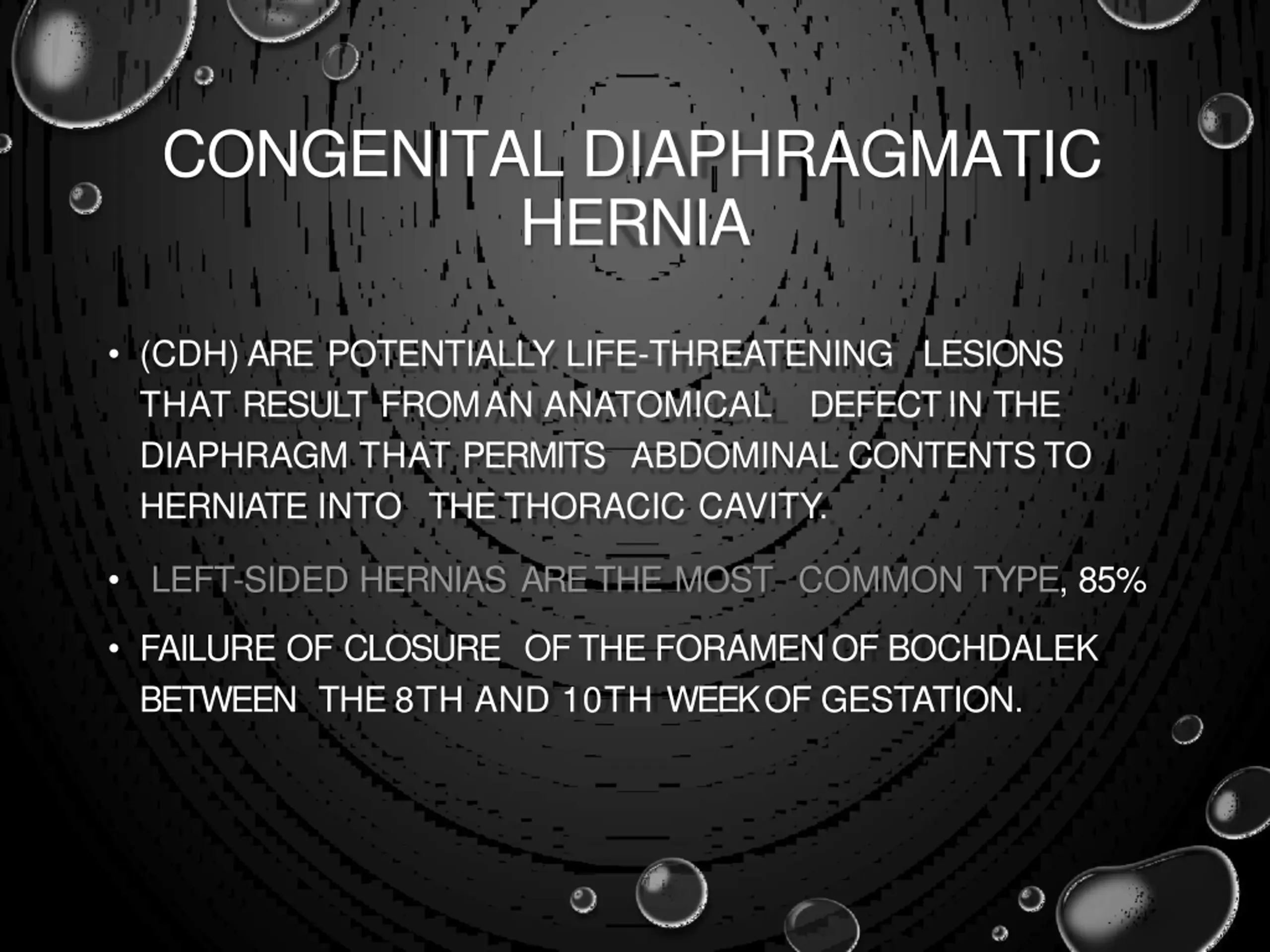

CONGENITAL DIAPHRAGMATIC HERNIA (CDH) ARE POTENTIALLY LIFE-THREATENING LESIONS THAT RESULT FROM AN ANATOMICAL DEFECT IN THE DIAPHRAGM THAT PERMITS ABDOMINAL CONTENTS TO HERNIATE INTO THE THORACIC CAVITY. LEFT-SIDED HERNIAS ARE THE MOST COMMON TYPE, 85% FAILURE OF CLOSURE OF THE FORAMEN OF BOCHDALEK BETWEEN THE 8TH AND 10TH WEEK OF GESTATION.

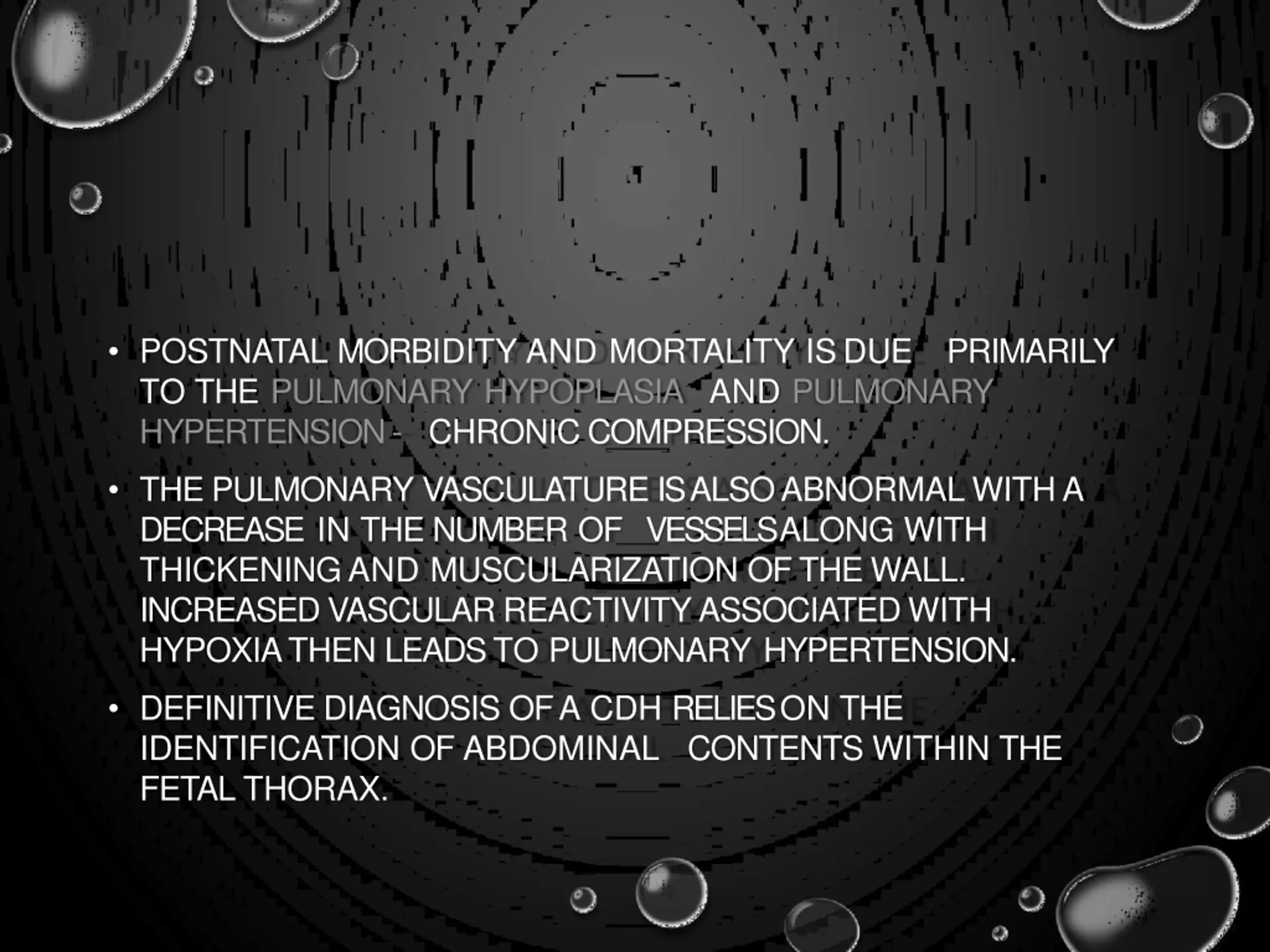

POSTNATAL MORBIDITY AND MORTALITY IS DUE PRIMARILY TO THE PULMONARY HYPOPLASIA AND PULMONARY HYPERTENSION - CHRONIC COMPRESSION. THE PULMONARY VASCULATURE IS ALSO ABNORMAL WITH A DECREASE IN THE NUMBER OF VESSELS ALONG WITH THICKENING AND MUSCULARIZATION OF THE WALL. INCREASED VASCULAR REACTIVITY ASSOCIATED WITH HYPOXIA THEN LEADS TO PULMONARY HYPERTENSION. DEFINITIVE DIAGNOSIS OF A CDH RELIES ON THE IDENTIFICATION OF ABDOMINAL CONTENTS WITHIN THE FETAL THORAX.

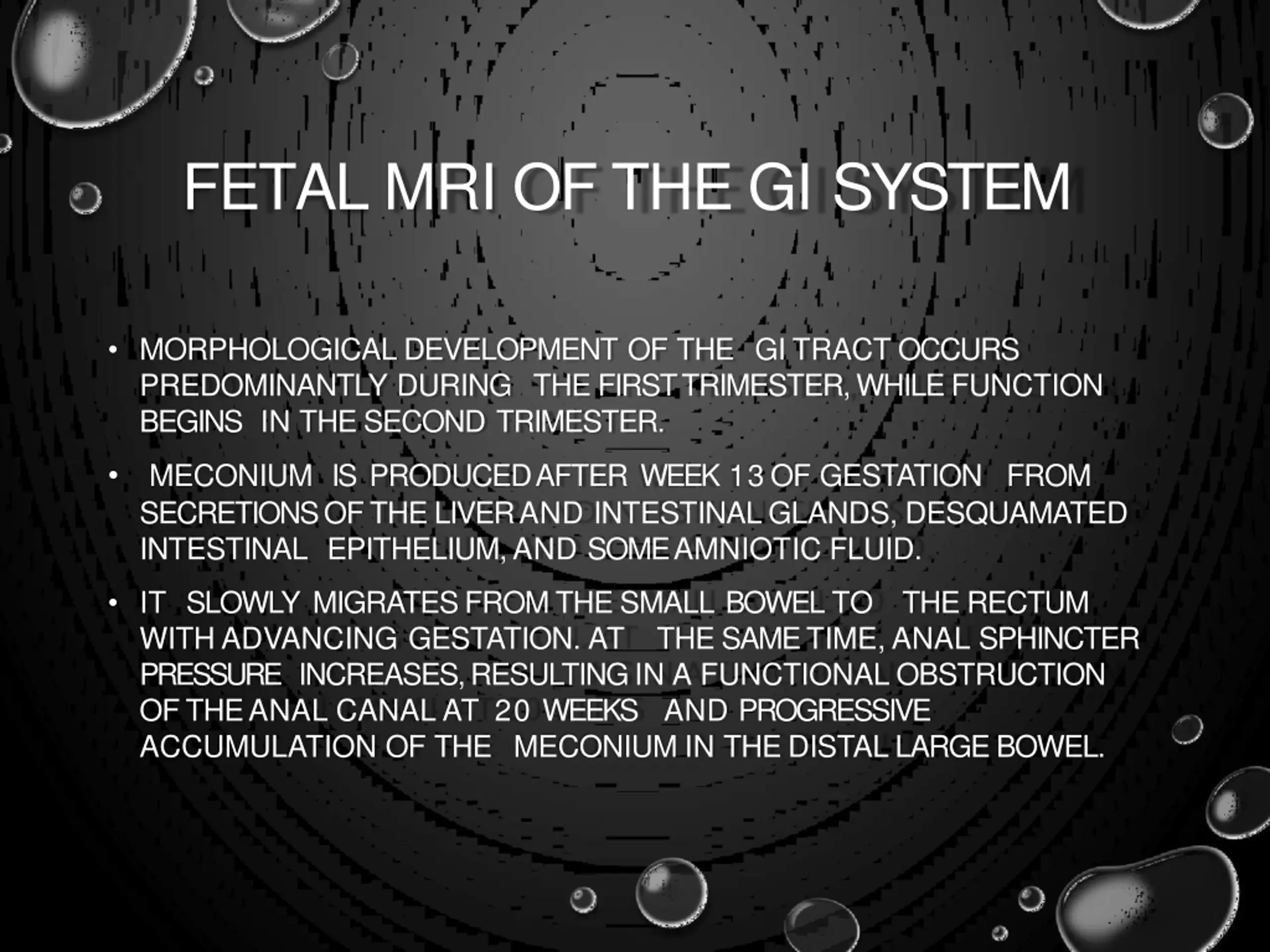

FETAL MRI OF THE GI SYSTEM MORPHOLOGICAL DEVELOPMENT OF THE GI TRACT OCCURS PREDOMINANTLY DURING THE FIRST TRIMESTER, WHILE FUNCTION BEGINS IN THE SECOND TRIMESTER. MECONIUM IS PRODUCED AFTER WEEK 13 OF GESTATION FROM SECRETIONS OF THE LIVER AND INTESTINAL GLANDS, DESQUAMATED INTESTINAL EPITHELIUM, AND SOME AMNIOTIC FLUID. IT SLOWLY MIGRATES FROM THE SMALL BOWEL TO THE RECTUM WITH ADVANCING GESTATION. AT THE SAME TIME, ANAL SPHINCTER PRESSURE INCREASES, RESULTING IN A FUNCTIONAL OBSTRUCTION OF THE ANAL CANAL AT 20 WEEKS AND PROGRESSIVE ACCUMULATION OF THE MECONIUM IN THE DISTAL LARGE BOWEL.

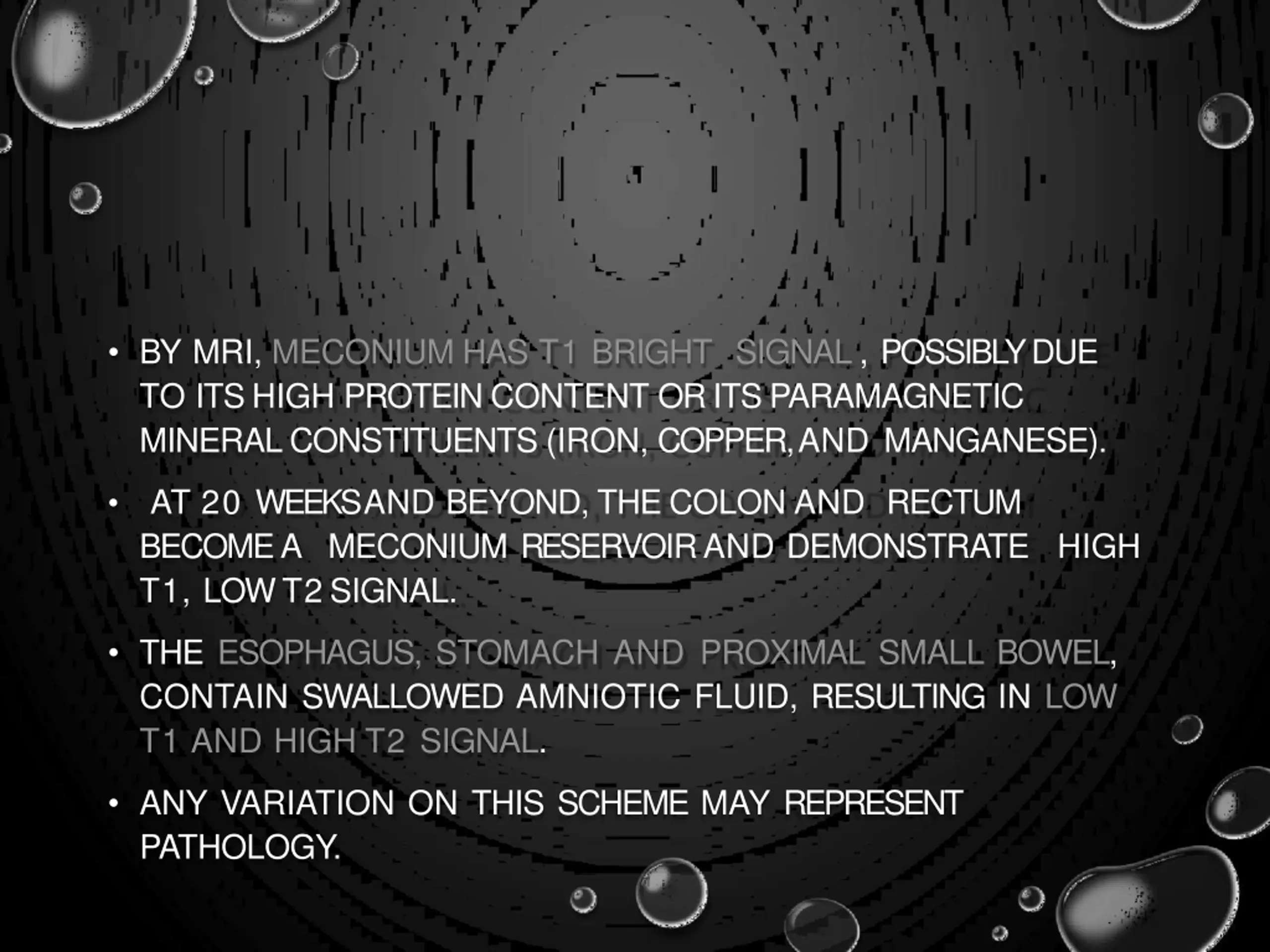

BY MRI, MECONIUM HAS T1 BRIGHT SIGNAL , POSSIBLY DUE TO ITS HIGH PROTEIN CONTENT OR ITS PARAMAGNETIC MINERAL CONSTITUENTS (IRON, COPPER, AND MANGANESE). AT 20 WEEKS AND BEYOND, THE COLON AND RECTUM BECOME A MECONIUM RESERVOIR AND DEMONSTRATE HIGH T1, LOW T2 SIGNAL. THE ESOPHAGUS, STOMACH AND PROXIMAL SMALL BOWEL, CONTAIN SWALLOWED AMNIOTIC FLUID, RESULTING IN LOW T1 AND HIGH T2 SIGNAL. ANY VARIATION ON THIS SCHEME MAY REPRESENT PATHOLOGY.

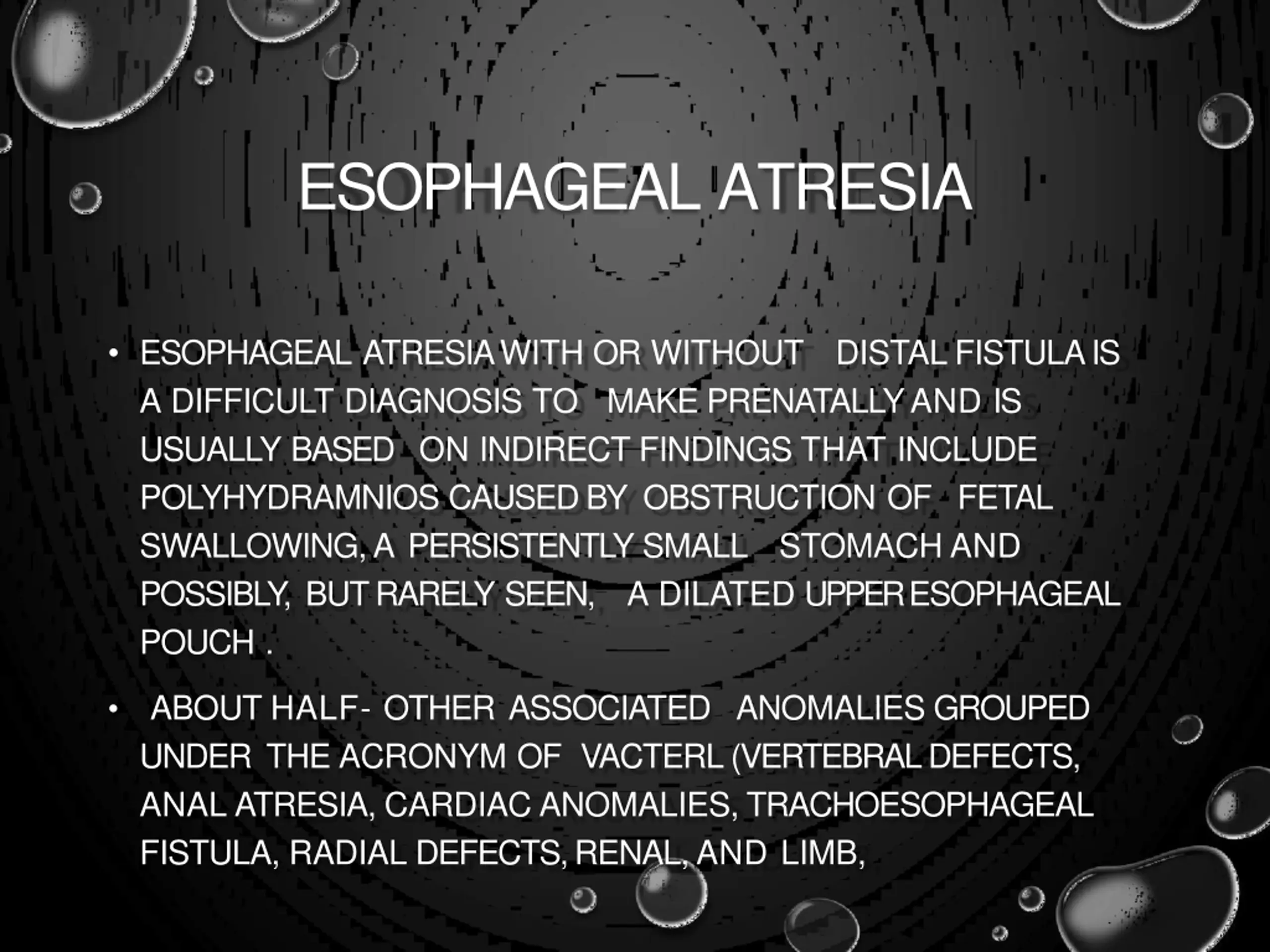

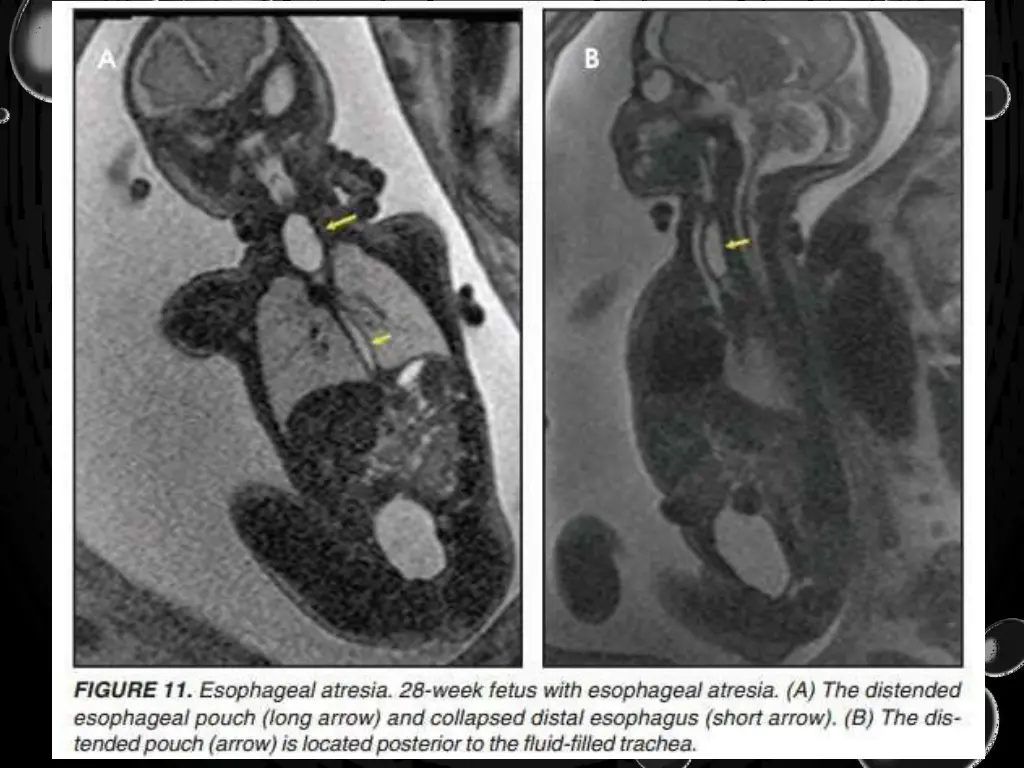

ESOPHAGEAL ATRESIA ESOPHAGEAL ATRESIA WITH OR WITHOUT DISTAL FISTULA IS A DIFFICULT DIAGNOSIS TO MAKE PRENATALLY AND IS USUALLY BASED ON INDIRECT FINDINGS THAT INCLUDE POLYHYDRAMNIOS CAUSED BY OBSTRUCTION OF FETAL SWALLOWING, A PERSISTENTLY SMALL STOMACH AND POSSIBLY, BUT RARELY SEEN, A DILATED UPPER ESOPHAGEAL POUCH . ABOUT HALF- OTHER ASSOCIATED ANOMALIES GROUPED UNDER THE ACRONYM OF VACTERL (VERTEBRAL DEFECTS, ANAL ATRESIA, CARDIAC ANOMALIES, TRACHOESOPHAGEAL FISTULA, RADIAL DEFECTS, RENAL, AND LIMB,

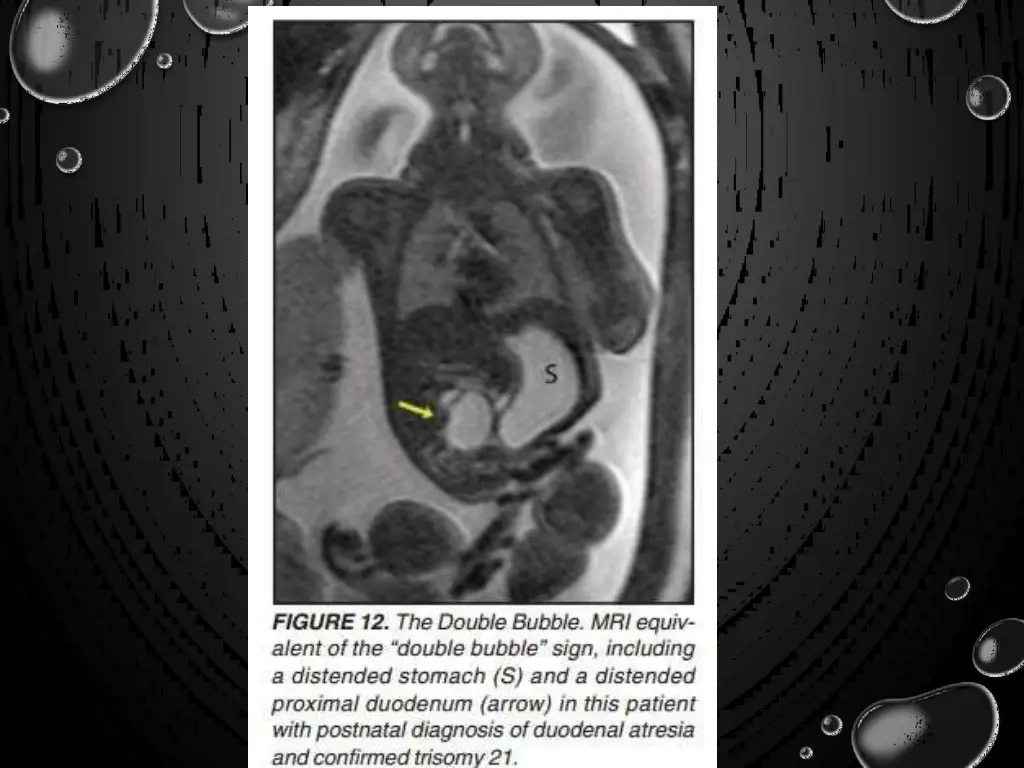

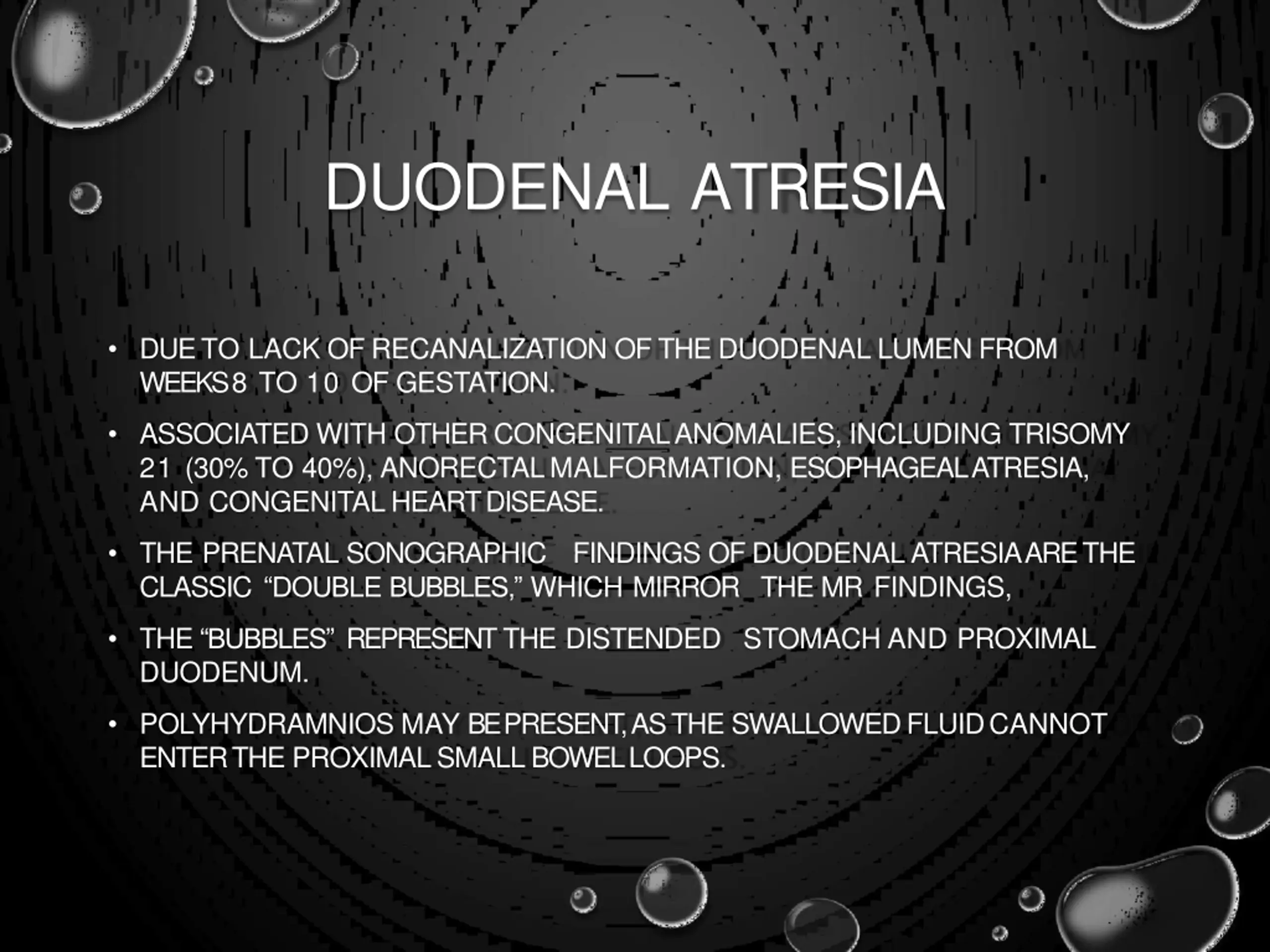

DUODENAL ATRESIA DUE TO LACK OF RECANALIZATION OF THE DUODENAL LUMEN FROM WEEKS 8 TO 10 OF GESTATION. ASSOCIATED WITH OTHER CONGENITAL ANOMALIES, INCLUDING TRISOMY 21 (30% TO 40%), ANORECTAL MALFORMATION, ESOPHAGEAL ATRESIA, AND CONGENITAL HEART DISEASE. THE PRENATAL SONOGRAPHIC FINDINGS OF DUODENAL ATRESIA ARE THE CLASSIC DOUBLE BUBBLES, WHICH MIRROR THE MR FINDINGS, THE BUBBLES REPRESENT THE DISTENDED STOMACH AND PROXIMAL DUODENUM. POLYHYDRAMNIOS MAY BE PRESENT, AS THE SWALLOWED FLUID CANNOT ENTER THE PROXIMAL SMALL BOWEL LOOPS.

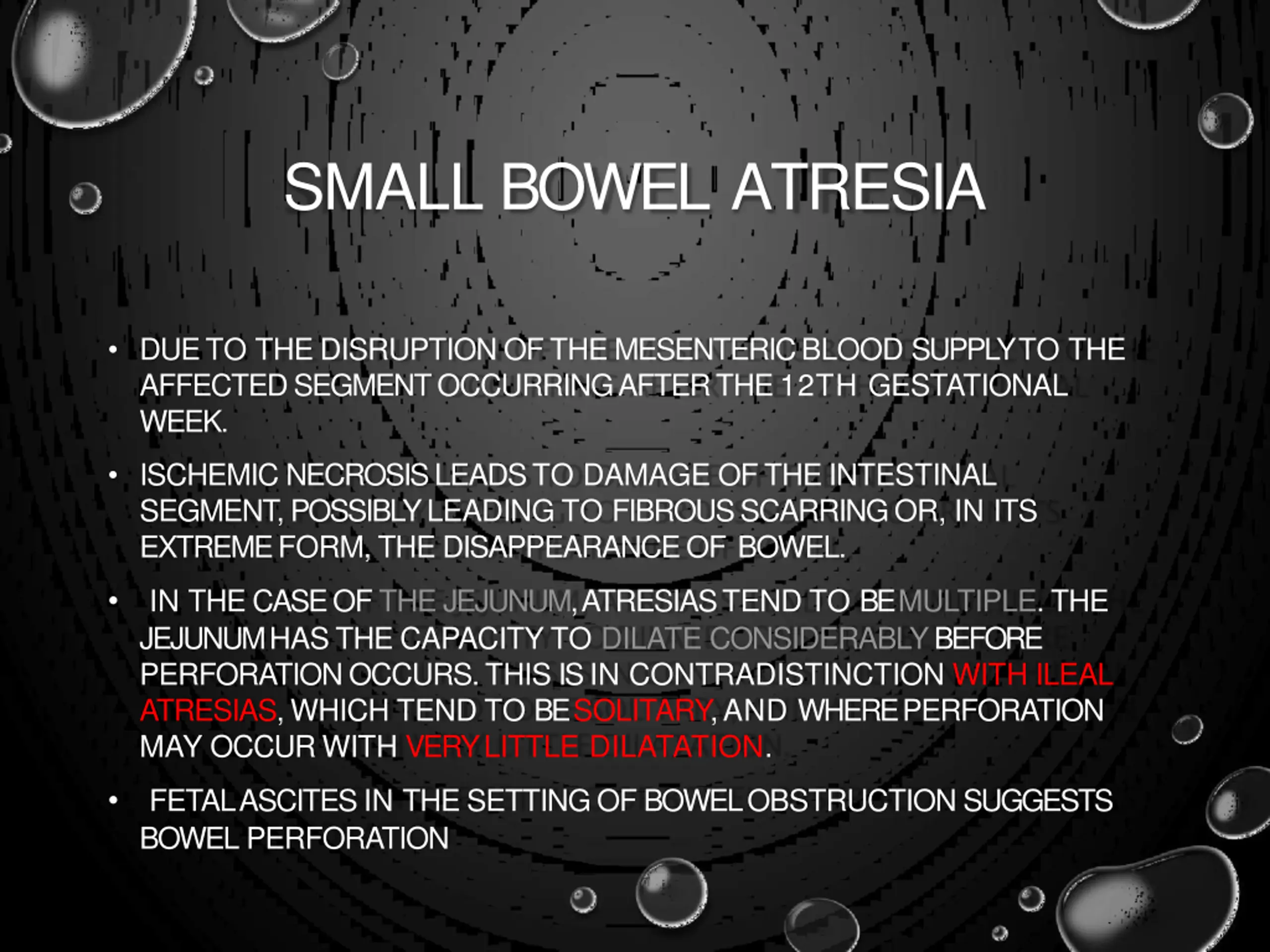

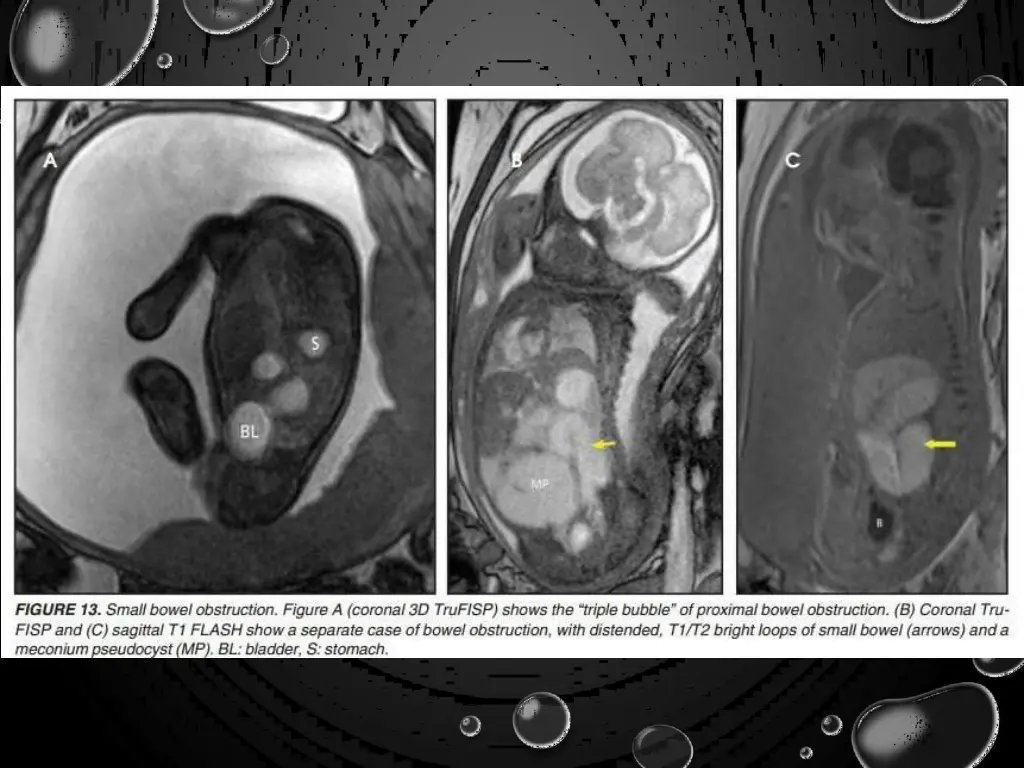

SMALL BOWEL ATRESIA DUE TO THE DISRUPTION OF THE MESENTERIC BLOOD SUPPLY TO THE AFFECTED SEGMENT OCCURRING AFTER THE 12TH GESTATIONAL WEEK. ISCHEMIC NECROSIS LEADS TO DAMAGE OF THE INTESTINAL SEGMENT, POSSIBLY LEADING TO FIBROUS SCARRING OR, IN ITS EXTREME FORM, THE DISAPPEARANCE OF BOWEL. IN THE CASE OF THE JEJUNUM, ATRESIAS TEND TO BE MULTIPLE. THE JEJUNUM HAS THE CAPACITY TO DILATE CONSIDERABLY BEFORE PERFORATION OCCURS. THIS IS IN CONTRADISTINCTION WITH ILEAL ATRESIAS, WHICH TEND TO BE SOLITARY, AND WHERE PERFORATION MAY OCCUR WITH VERY LITTLE DILATATION. FETAL ASCITES IN THE SETTING OF BOWEL OBSTRUCTION SUGGESTS BOWEL PERFORATION

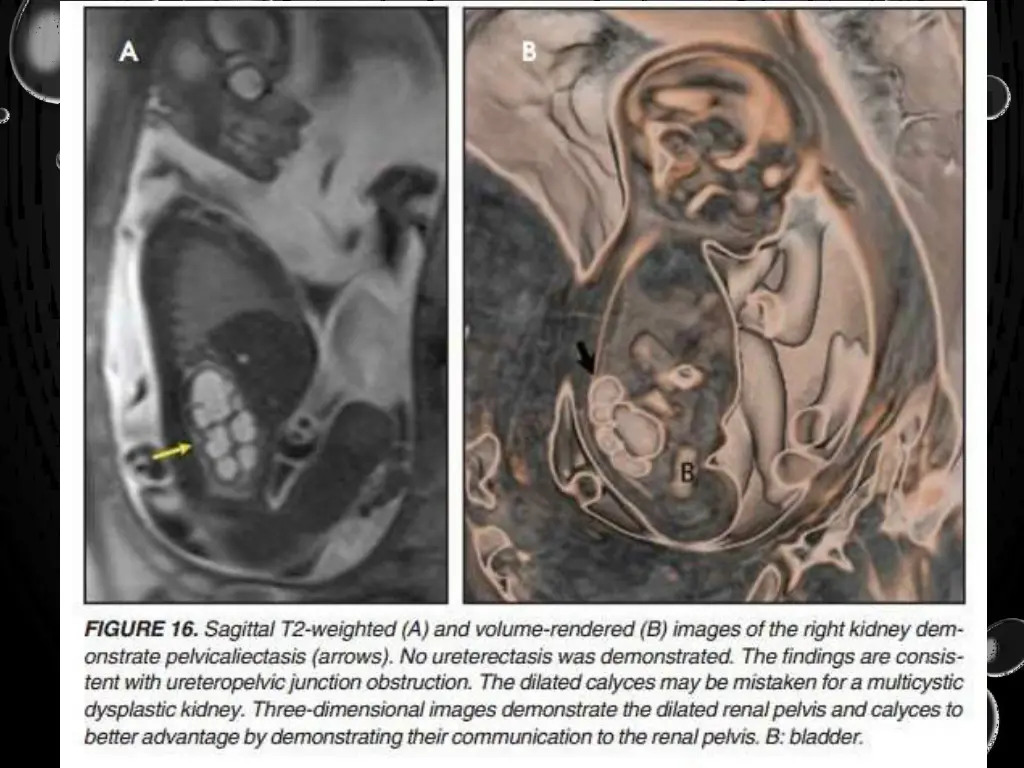

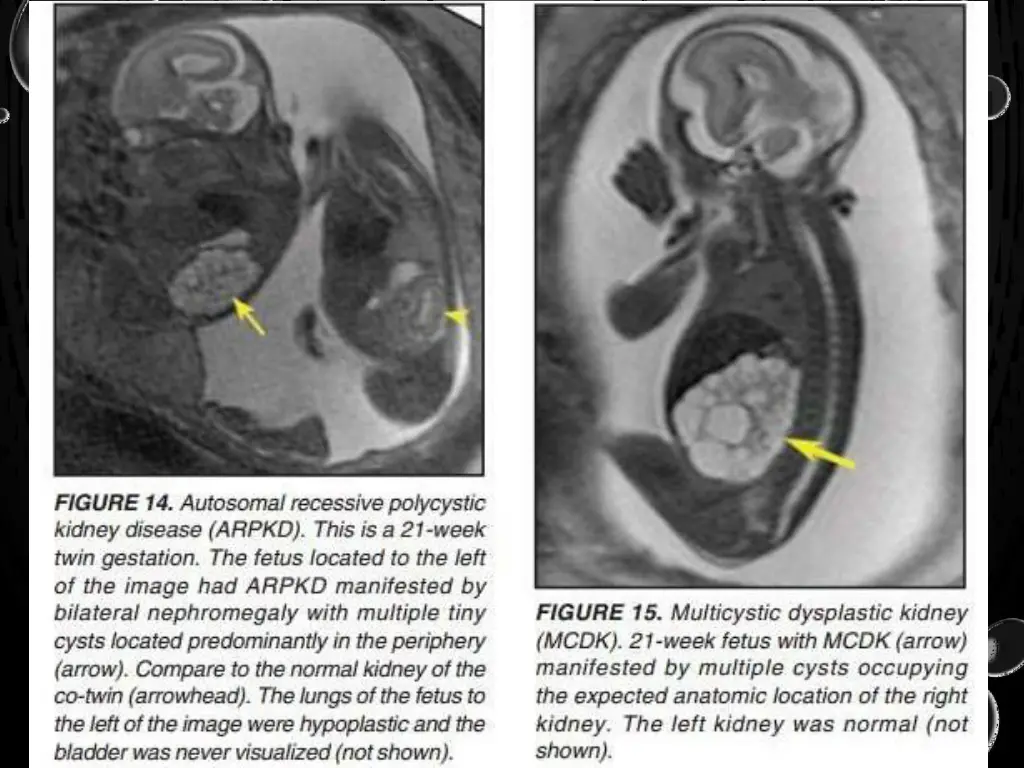

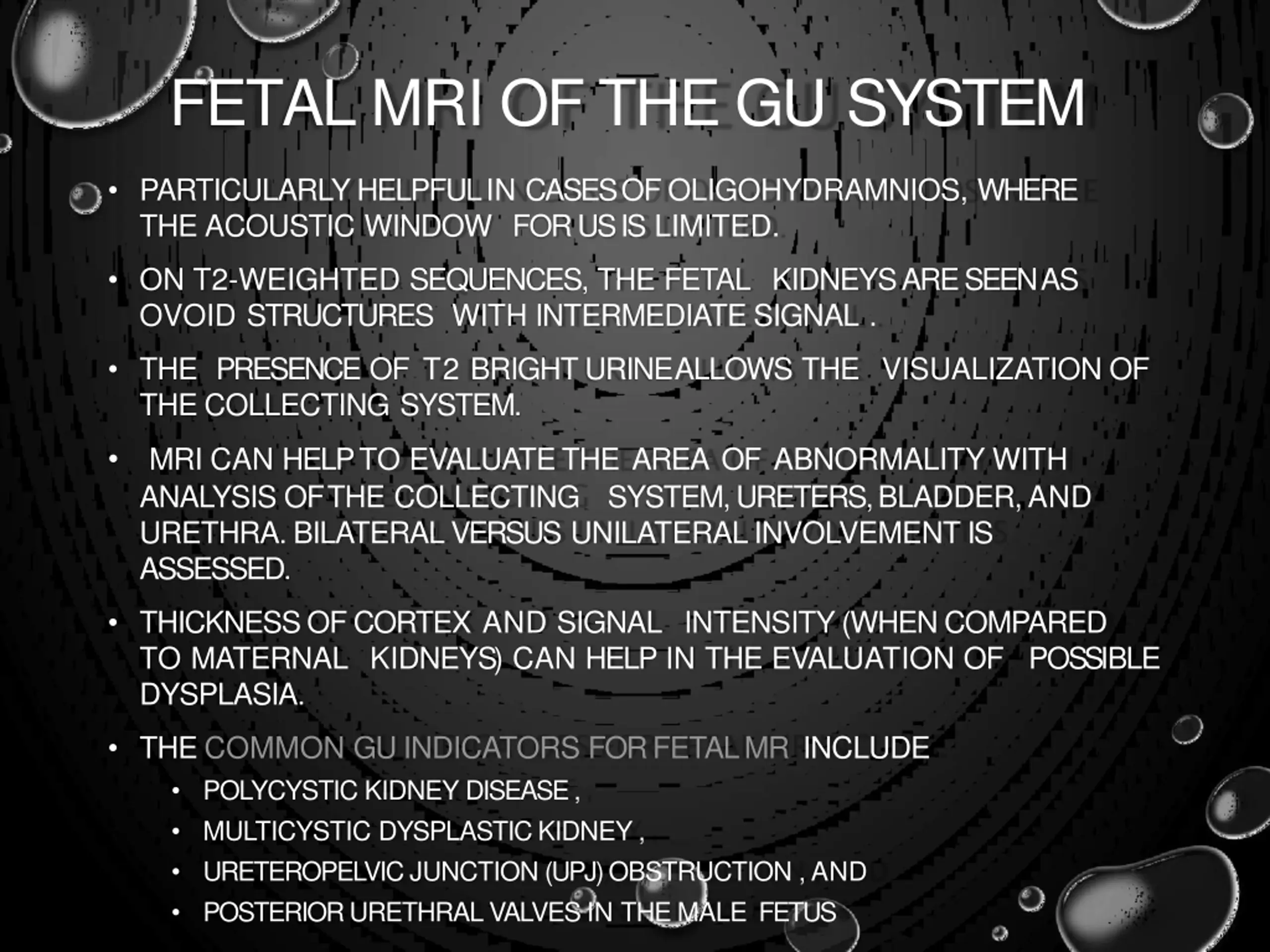

FETAL MRI OF THE GU SYSTEM PARTICULARLY HELPFUL IN CASES OF OLIGOHYDRAMNIOS, WHERE THE ACOUSTIC WINDOW FOR US IS LIMITED. ON T2-WEIGHTED SEQUENCES, THE FETAL KIDNEYS ARE SEEN AS OVOID STRUCTURES WITH INTERMEDIATE SIGNAL . THE PRESENCE OF T2 BRIGHT URINE ALLOWS THE VISUALIZATION OF THE COLLECTING SYSTEM. MRI CAN HELP TO EVALUATE THE AREA OF ABNORMALITY WITH ANALYSIS OF THE COLLECTING SYSTEM, URETERS, BLADDER, AND URETHRA. BILATERAL VERSUS UNILATERAL INVOLVEMENT IS ASSESSED. THICKNESS OF CORTEX AND SIGNAL INTENSITY (WHEN COMPARED TO MATERNAL KIDNEYS) CAN HELP IN THE EVALUATION OF POSSIBLE DYSPLASIA. THE COMMON GU INDICATORS FOR FETAL MR INCLUDE POLYCYSTIC KIDNEY DISEASE , MULTICYSTIC DYSPLASTIC KIDNEY , URETEROPELVIC JUNCTION (UPJ) OBSTRUCTION , AND POSTERIOR URETHRAL VALVES IN THE MALE FETUS

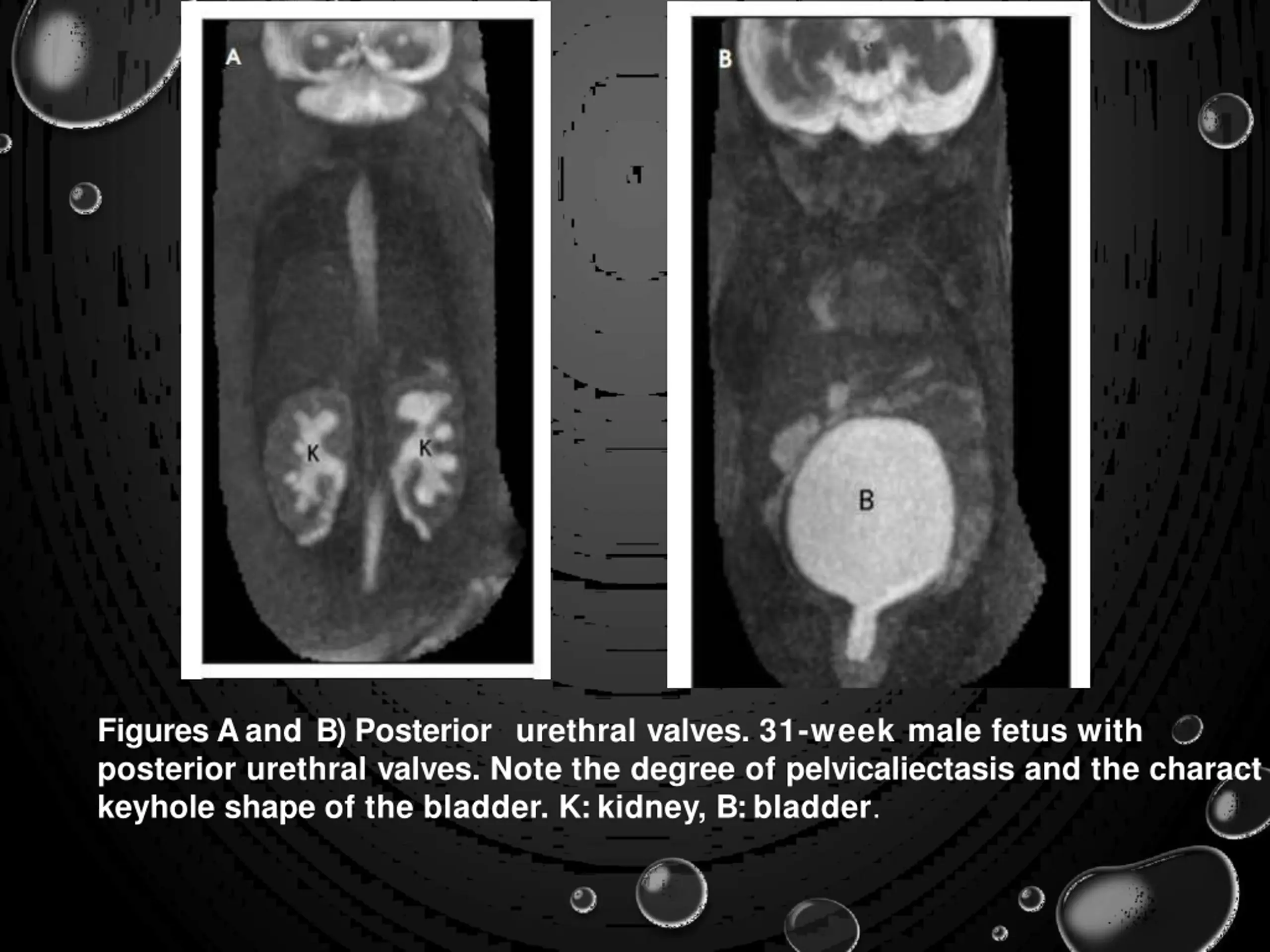

Figures A and B) Posterior urethral valves. 31-week male fetus with posterior urethral valves. Note the degree of pelvicaliectasis and the charact keyhole shape of the bladder. K: kidney, B: bladder.

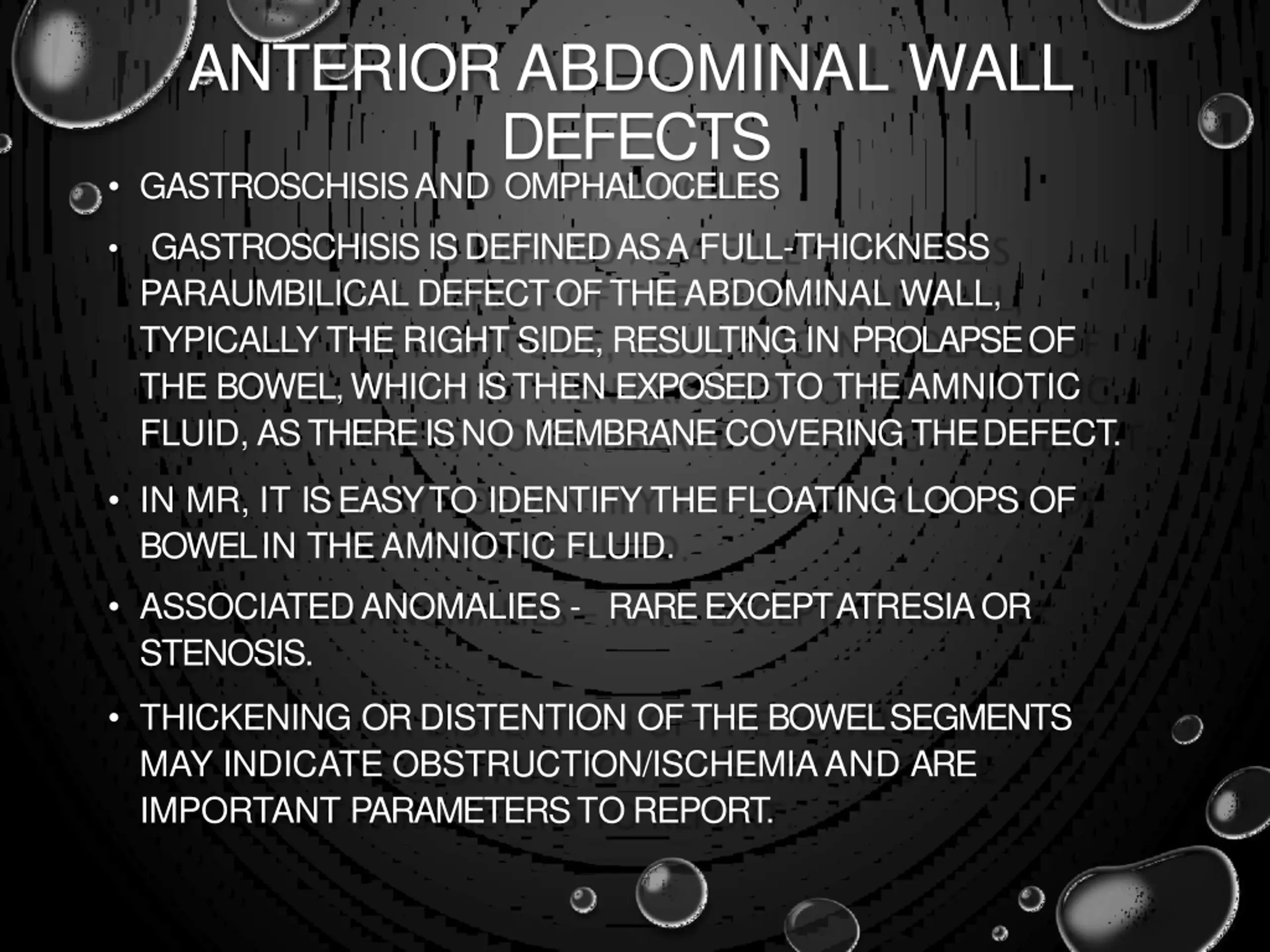

ANTERIOR ABDOMINAL WALL DEFECTS GASTROSCHISIS AND OMPHALOCELES GASTROSCHISIS IS DEFINED AS A FULL-THICKNESS PARAUMBILICAL DEFECT OF THE ABDOMINAL WALL, TYPICALLY THE RIGHT SIDE, RESULTING IN PROLAPSE OF THE BOWEL, WHICH IS THEN EXPOSED TO THE AMNIOTIC FLUID, AS THERE IS NO MEMBRANE COVERING THE DEFECT. IN MR, IT IS EASY TO IDENTIFY THE FLOATING LOOPS OF BOWEL IN THE AMNIOTIC FLUID. ASSOCIATED ANOMALIES - RARE EXCEPT ATRESIA OR STENOSIS. THICKENING OR DISTENTION OF THE BOWEL SEGMENTS MAY INDICATE OBSTRUCTION/ISCHEMIA AND ARE IMPORTANT PARAMETERS TO REPORT.

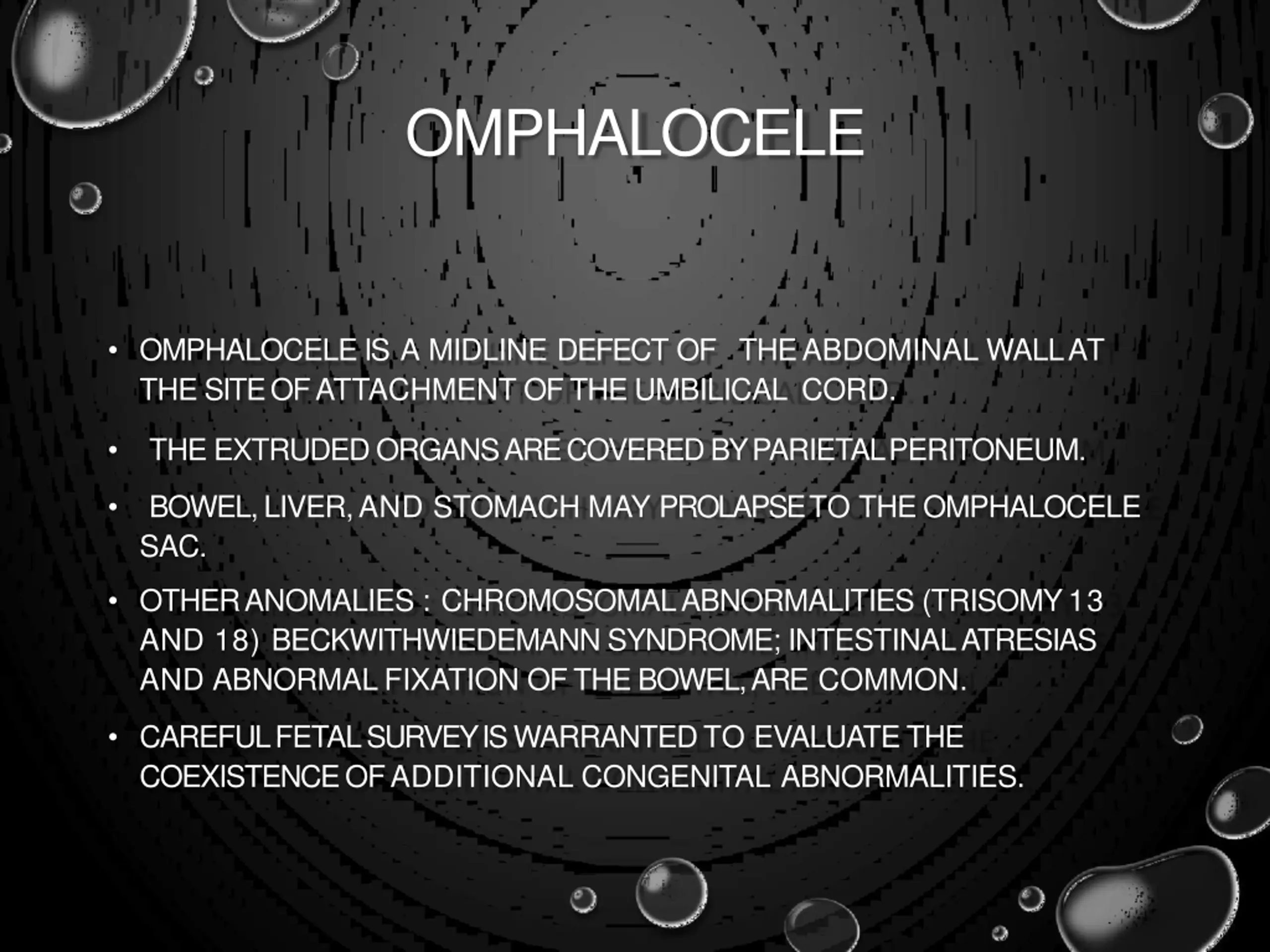

OMPHALOCELE OMPHALOCELE IS A MIDLINE DEFECT OF THE ABDOMINAL WALL AT THE SITE OF ATTACHMENT OF THE UMBILICAL CORD. THE EXTRUDED ORGANS ARE COVERED BY PARIETAL PERITONEUM. BOWEL, LIVER, AND STOMACH MAY PROLAPSE TO THE OMPHALOCELE SAC. OTHER ANOMALIES : CHROMOSOMAL ABNORMALITIES (TRISOMY 13 AND 18) BECKWITHWIEDEMANN SYNDROME; INTESTINAL ATRESIAS AND ABNORMAL FIXATION OF THE BOWEL, ARE COMMON. CAREFUL FETAL SURVEY IS WARRANTED TO EVALUATE THE COEXISTENCE OF ADDITIONAL CONGENITAL ABNORMALITIES.

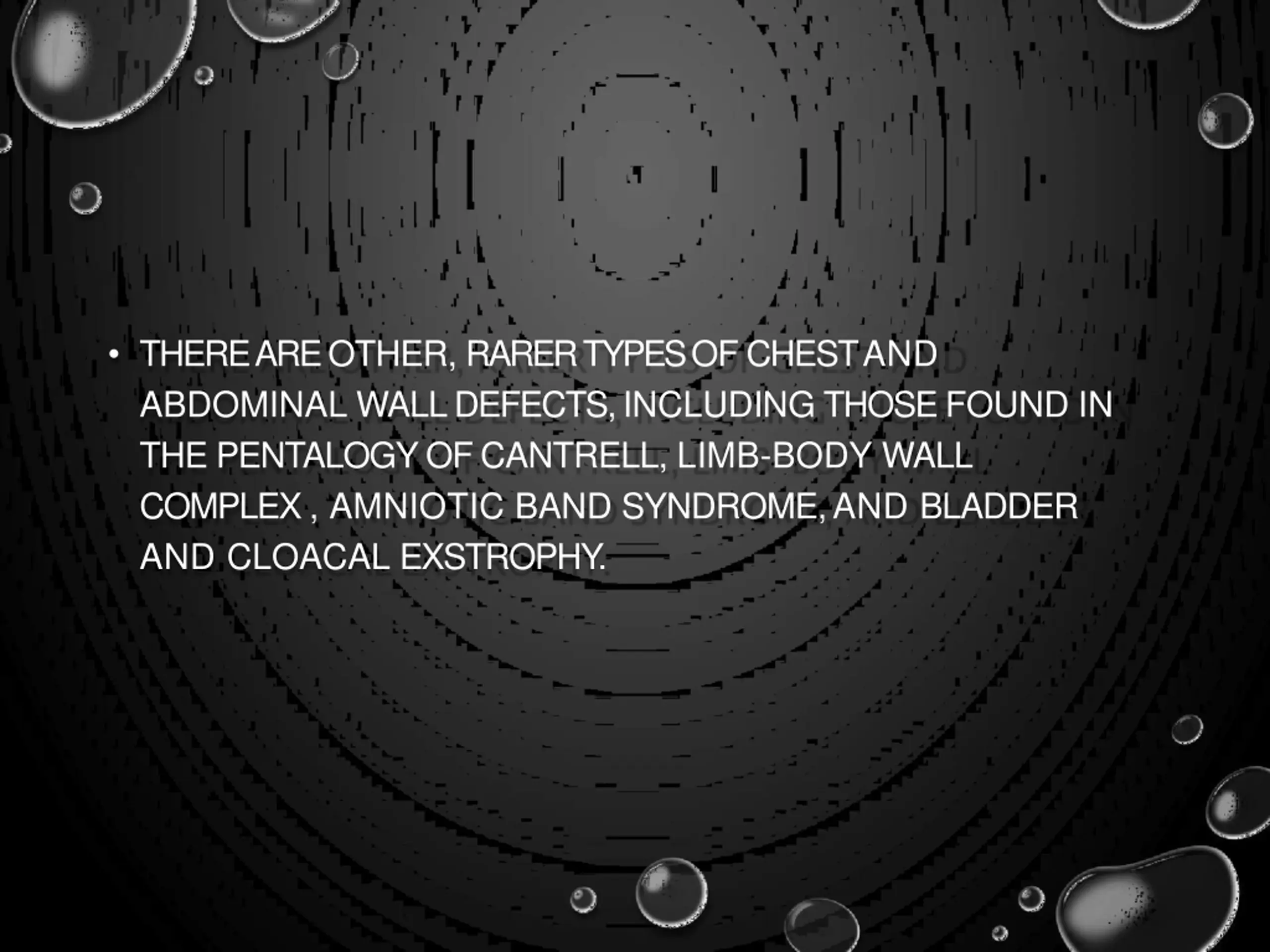

THERE ARE OTHER, RARER TYPES OF CHEST AND ABDOMINAL WALL DEFECTS, INCLUDING THOSE FOUND IN THE PENTALOGY OF CANTRELL, LIMB-BODY WALL COMPLEX , AMNIOTIC BAND SYNDROME, AND BLADDER AND CLOACAL EXSTROPHY.

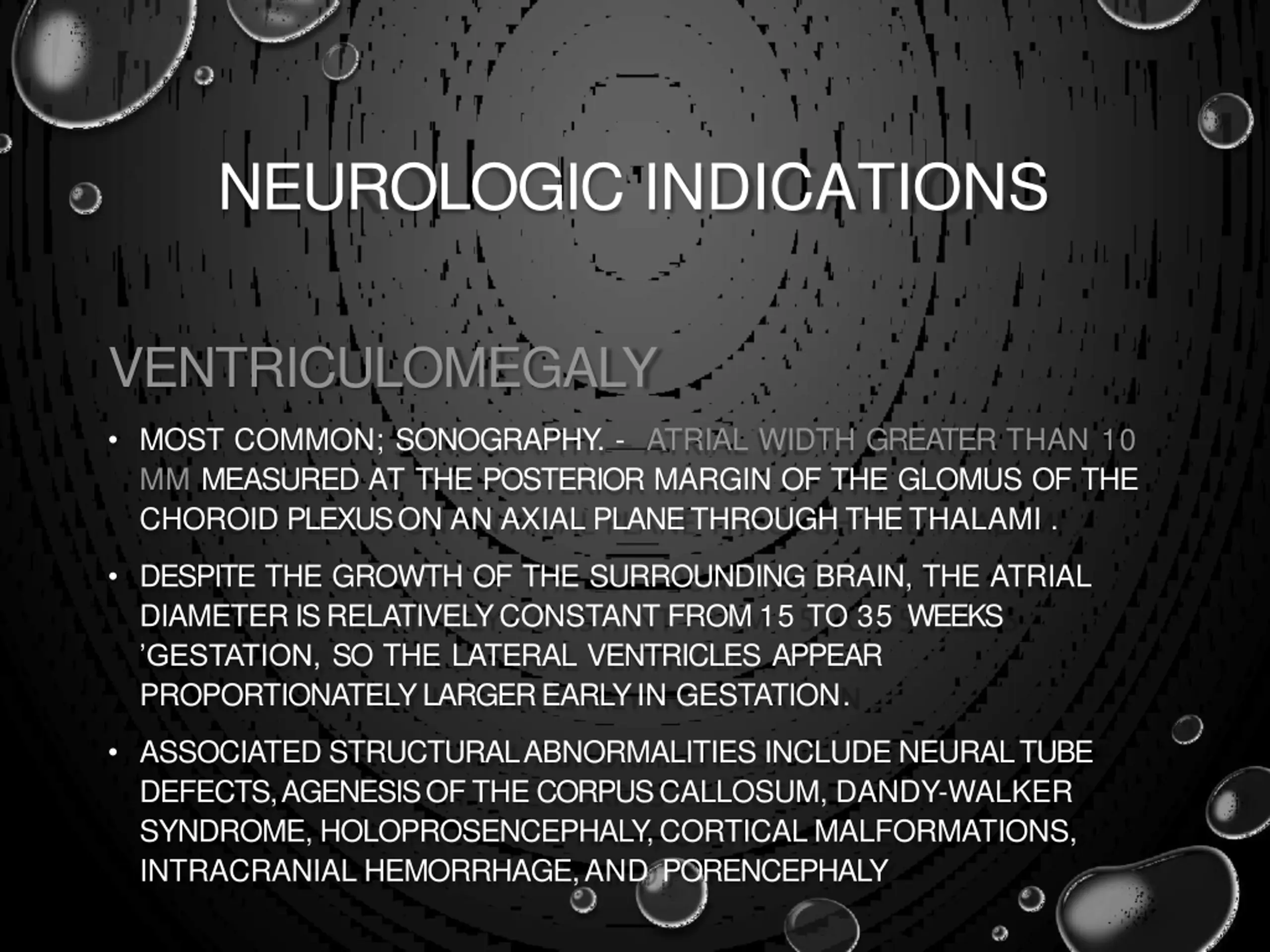

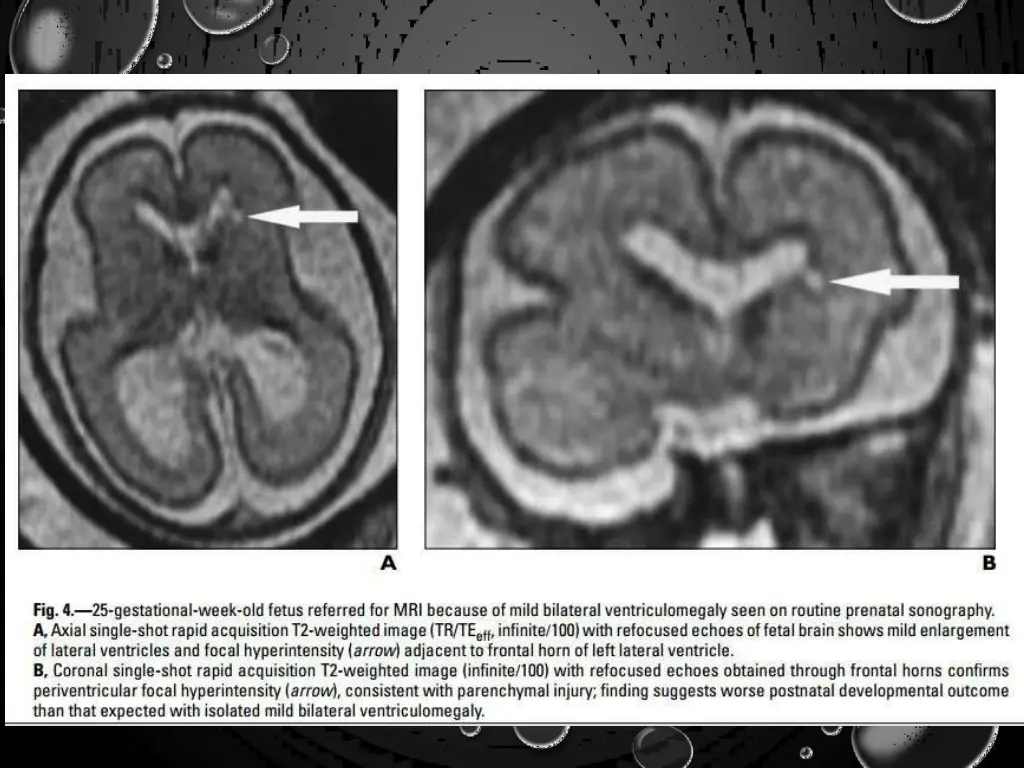

NEUROLOGIC INDICATIONS VENTRICULOMEGALY MOST COMMON; SONOGRAPHY. - ATRIAL WIDTH GREATER THAN 10 MM MEASURED AT THE POSTERIOR MARGIN OF THE GLOMUS OF THE CHOROID PLEXUS ON AN AXIAL PLANE THROUGH THE THALAMI . DESPITE THE GROWTH OF THE SURROUNDING BRAIN, THE ATRIAL DIAMETER IS RELATIVELY CONSTANT FROM 15 TO 35 WEEKS GESTATION, SO THE LATERAL VENTRICLES APPEAR PROPORTIONATELY LARGER EARLY IN GESTATION . ASSOCIATED STRUCTURAL ABNORMALITIES INCLUDE NEURAL TUBE DEFECTS, AGENESIS OF THE CORPUS CALLOSUM, DANDY-WALKER SYNDROME, HOLOPROSENCEPHALY, CORTICAL MALFORMATIONS, INTRACRANIAL HEMORRHAGE, AND PORENCEPHALY

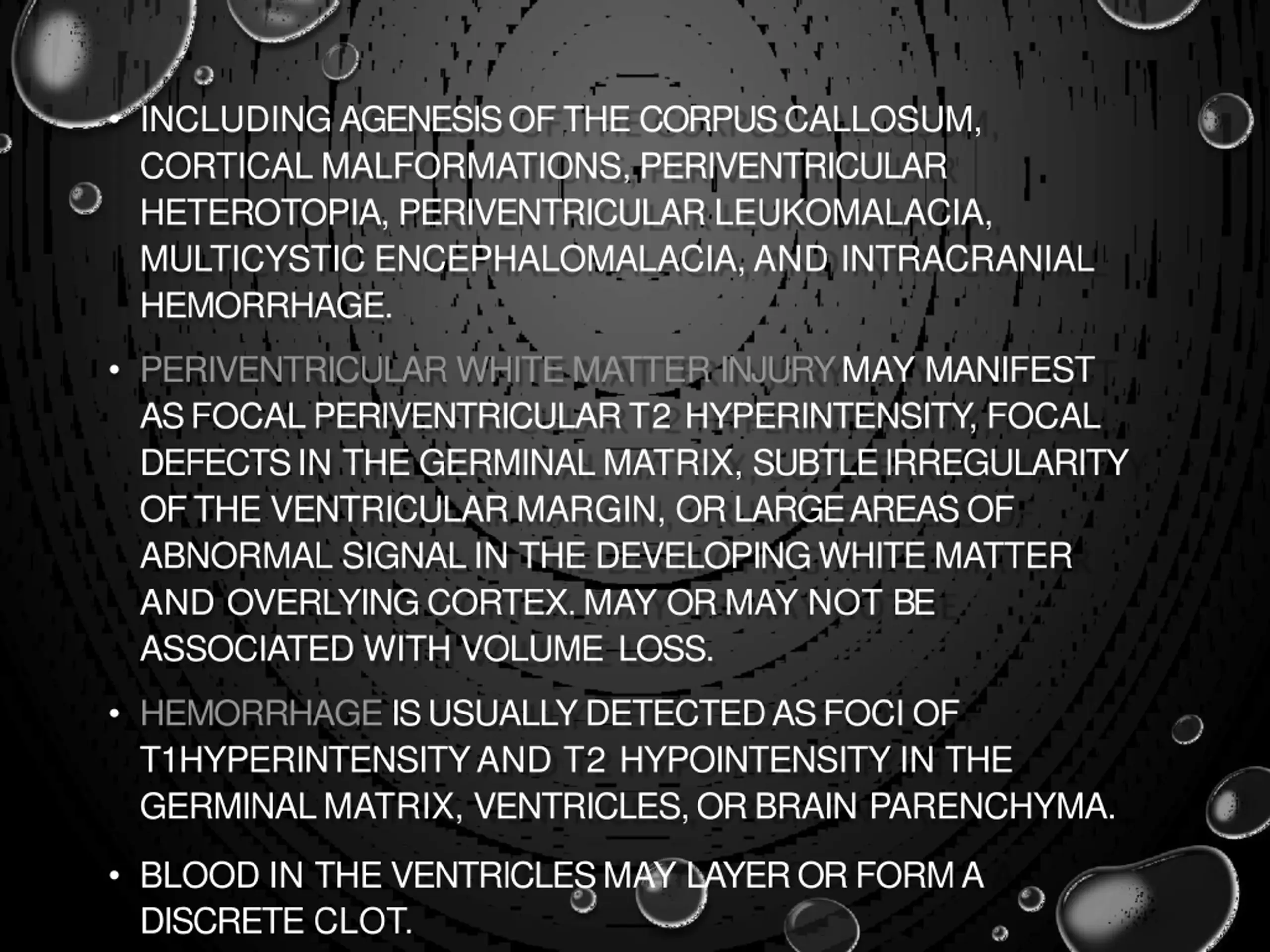

INCLUDING AGENESIS OF THE CORPUS CALLOSUM, CORTICAL MALFORMATIONS, PERIVENTRICULAR HETEROTOPIA, PERIVENTRICULAR LEUKOMALACIA, MULTICYSTIC ENCEPHALOMALACIA, AND INTRACRANIAL HEMORRHAGE. PERIVENTRICULAR WHITE MATTER INJURY MAY MANIFEST AS FOCAL PERIVENTRICULAR T2 HYPERINTENSITY, FOCAL DEFECTS IN THE GERMINAL MATRIX, SUBTLE IRREGULARITY OF THE VENTRICULAR MARGIN, OR LARGE AREAS OF ABNORMAL SIGNAL IN THE DEVELOPING WHITE MATTER AND OVERLYING CORTEX. MAY OR MAY NOT BE ASSOCIATED WITH VOLUME LOSS. HEMORRHAGE IS USUALLY DETECTED AS FOCI OF T1HYPERINTENSITY AND T2 HYPOINTENSITY IN THE GERMINAL MATRIX, VENTRICLES, OR BRAIN PARENCHYMA. BLOOD IN THE VENTRICLES MAY LAYER OR FORM A DISCRETE CLOT.

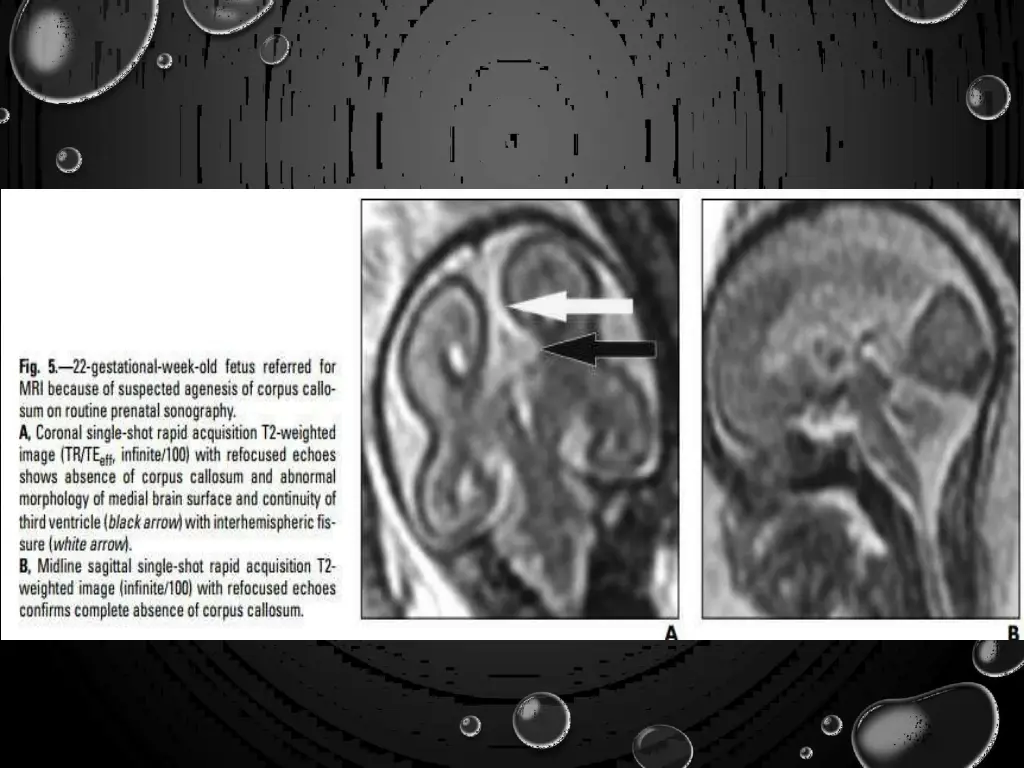

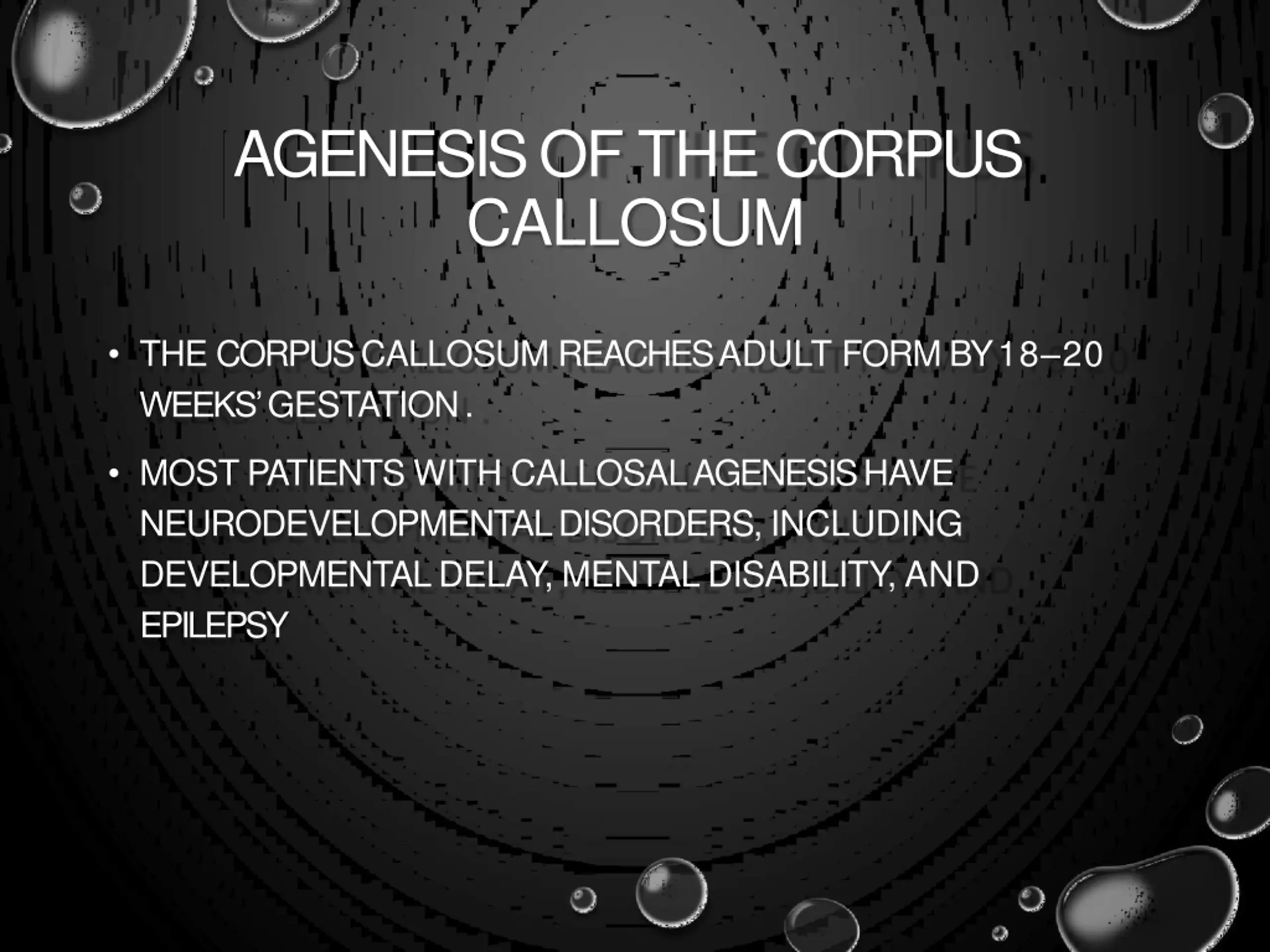

AGENESIS OF THE CORPUS CALLOSUM THE CORPUS CALLOSUM REACHES ADULT FORM BY 18 20 WEEKS GESTATION . MOST PATIENTS WITH CALLOSAL AGENESIS HAVE NEURODEVELOPMENTAL DISORDERS, INCLUDING DEVELOPMENTAL DELAY, MENTAL DISABILITY, AND EPILEPSY

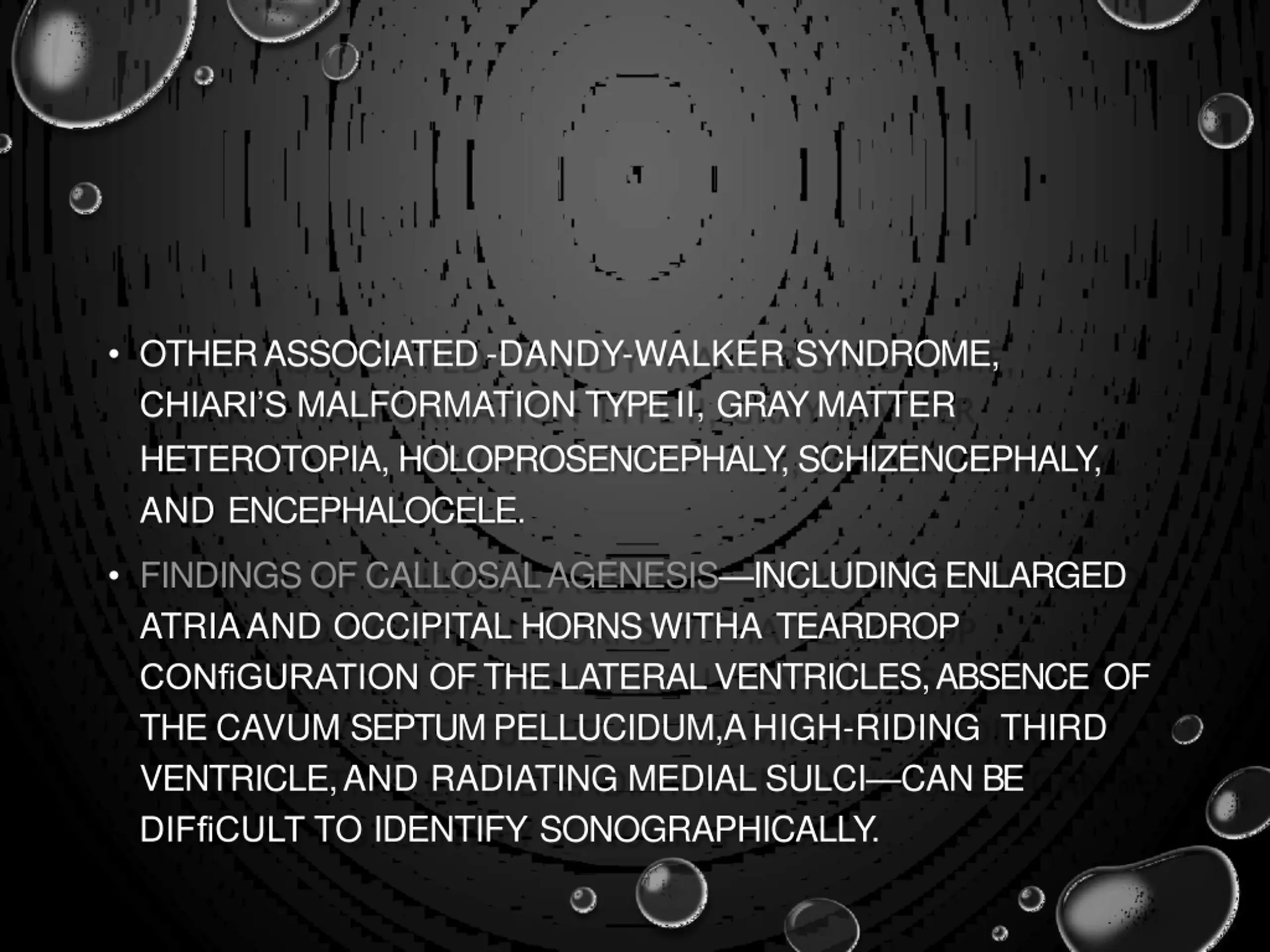

OTHER ASSOCIATED -DANDY-WALKER SYNDROME, CHIARI S MALFORMATION TYPE II, GRAY MATTER HETEROTOPIA, HOLOPROSENCEPHALY, SCHIZENCEPHALY, AND ENCEPHALOCELE. FINDINGS OF CALLOSAL AGENESIS INCLUDING ENLARGED ATRIA AND OCCIPITAL HORNS WITHA TEARDROP CONfiGURATION OF THE LATERAL VENTRICLES, ABSENCE OF THE CAVUM SEPTUM PELLUCIDUM,A HIGH-RIDING THIRD VENTRICLE, AND RADIATING MEDIAL SULCI CAN BE DIFfiCULT TO IDENTIFY SONOGRAPHICALLY.

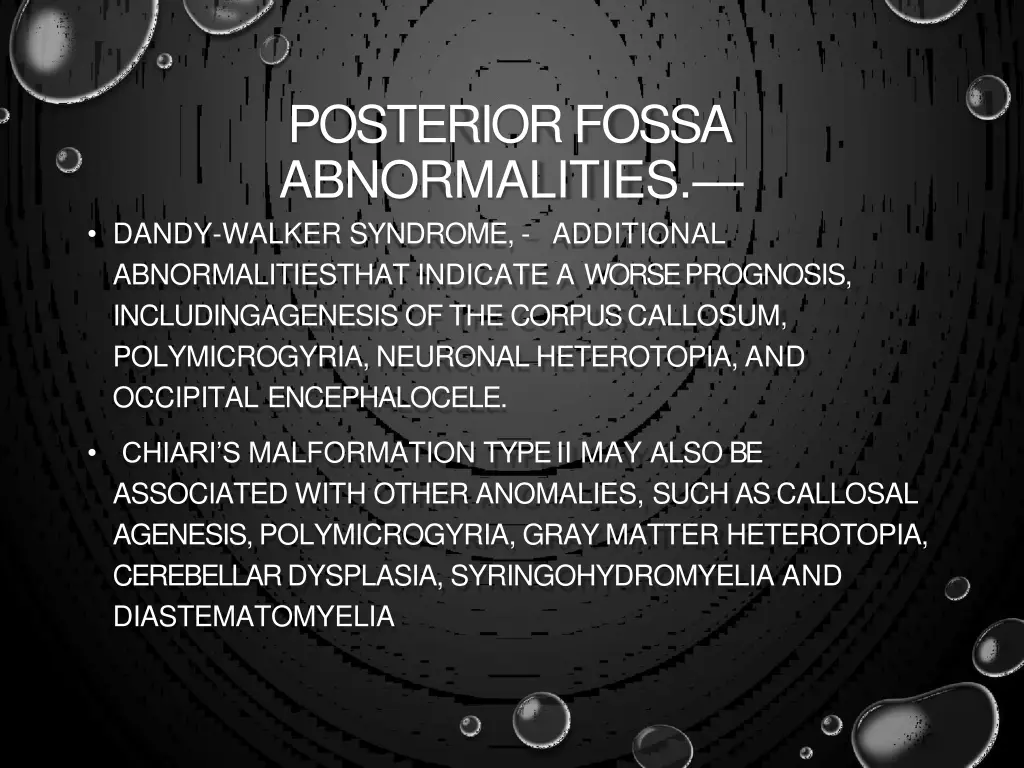

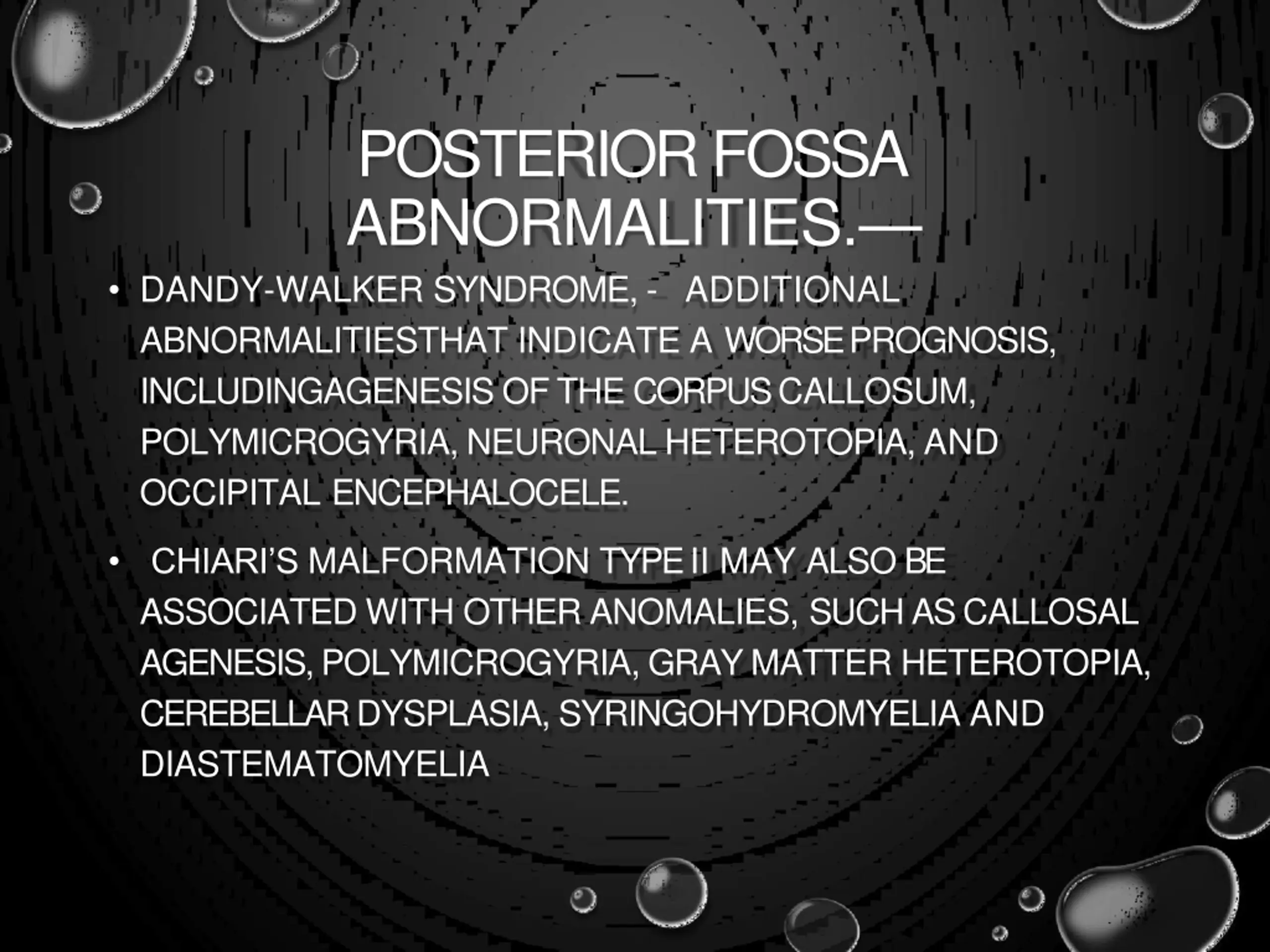

POSTERIOR FOSSA ABNORMALITIES. DANDY-WALKER SYNDROME, - ADDITIONAL ABNORMALITIESTHAT INDICATE A WORSE PROGNOSIS, INCLUDINGAGENESIS OF THE CORPUS CALLOSUM, POLYMICROGYRIA, NEURONAL HETEROTOPIA, AND OCCIPITAL ENCEPHALOCELE. CHIARI S MALFORMATION TYPE II MAY ALSO BE ASSOCIATED WITH OTHER ANOMALIES, SUCH AS CALLOSAL AGENESIS, POLYMICROGYRIA, GRAY MATTER HETEROTOPIA, CEREBELLAR DYSPLASIA, SYRINGOHYDROMYELIA AND DIASTEMATOMYELIA
