File Systems David Ferry CSCI 3500 Operating Systems Saint Louis University St. Louis, MO 63103 1

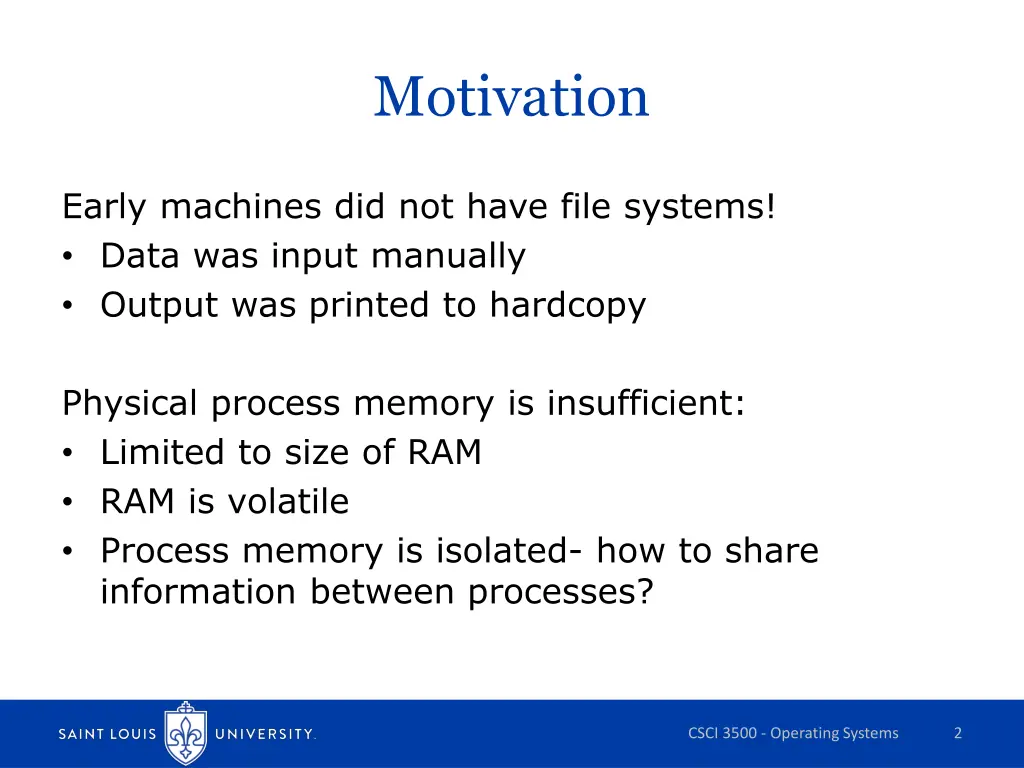

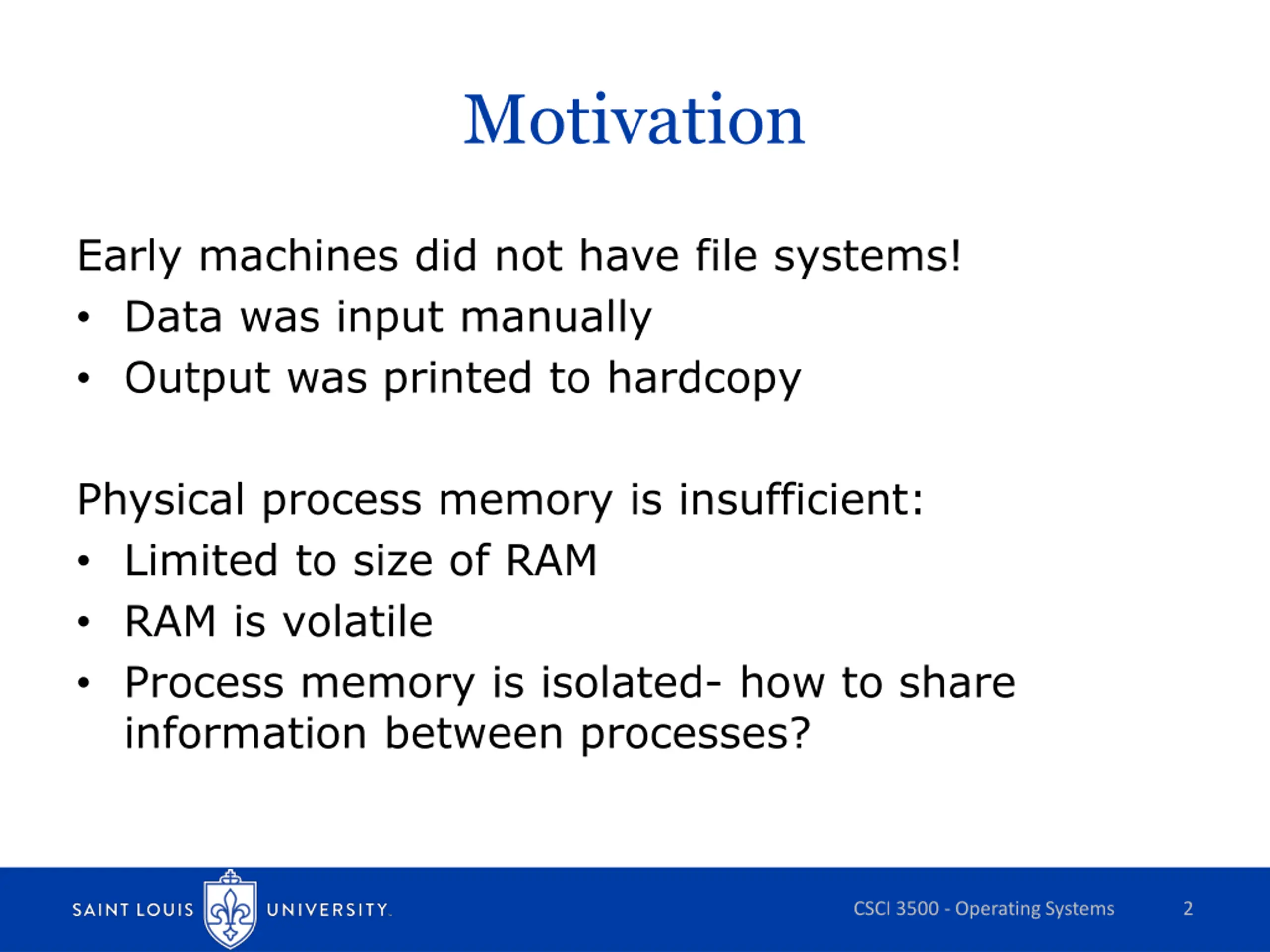

Motivation Early machines did not have file systems! Data was input manually Output was printed to hardcopy Physical process memory is insufficient: Limited to size of RAM RAM is volatile Process memory is isolated- how to share information between processes? CSCI 3500 - Operating Systems 2

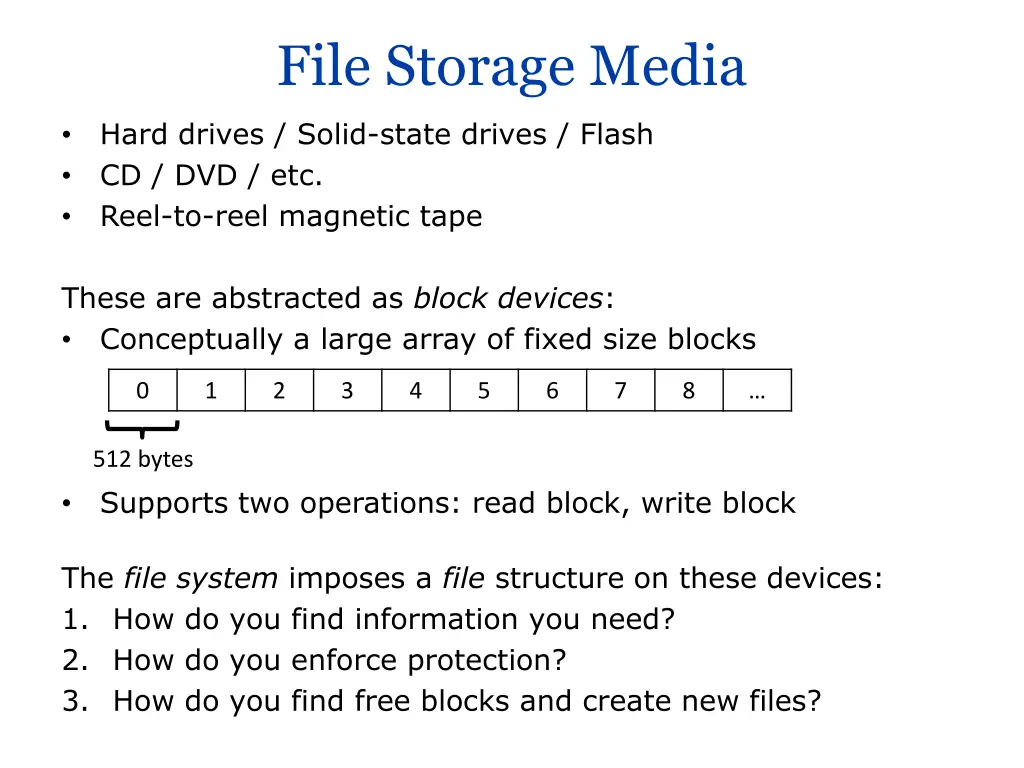

File Storage Media Hard drives / Solid-state drives / Flash CD / DVD / etc. Reel-to-reel magnetic tape These are abstracted as block devices: Conceptually a large array of fixed size blocks 0 1 2 3 4 5 6 7 8 512 bytes Supports two operations: read block, write block The file system imposes a file structure on these devices: 1. How do you find information you need? 2. How do you enforce protection? 3. How do you find free blocks and create new files?

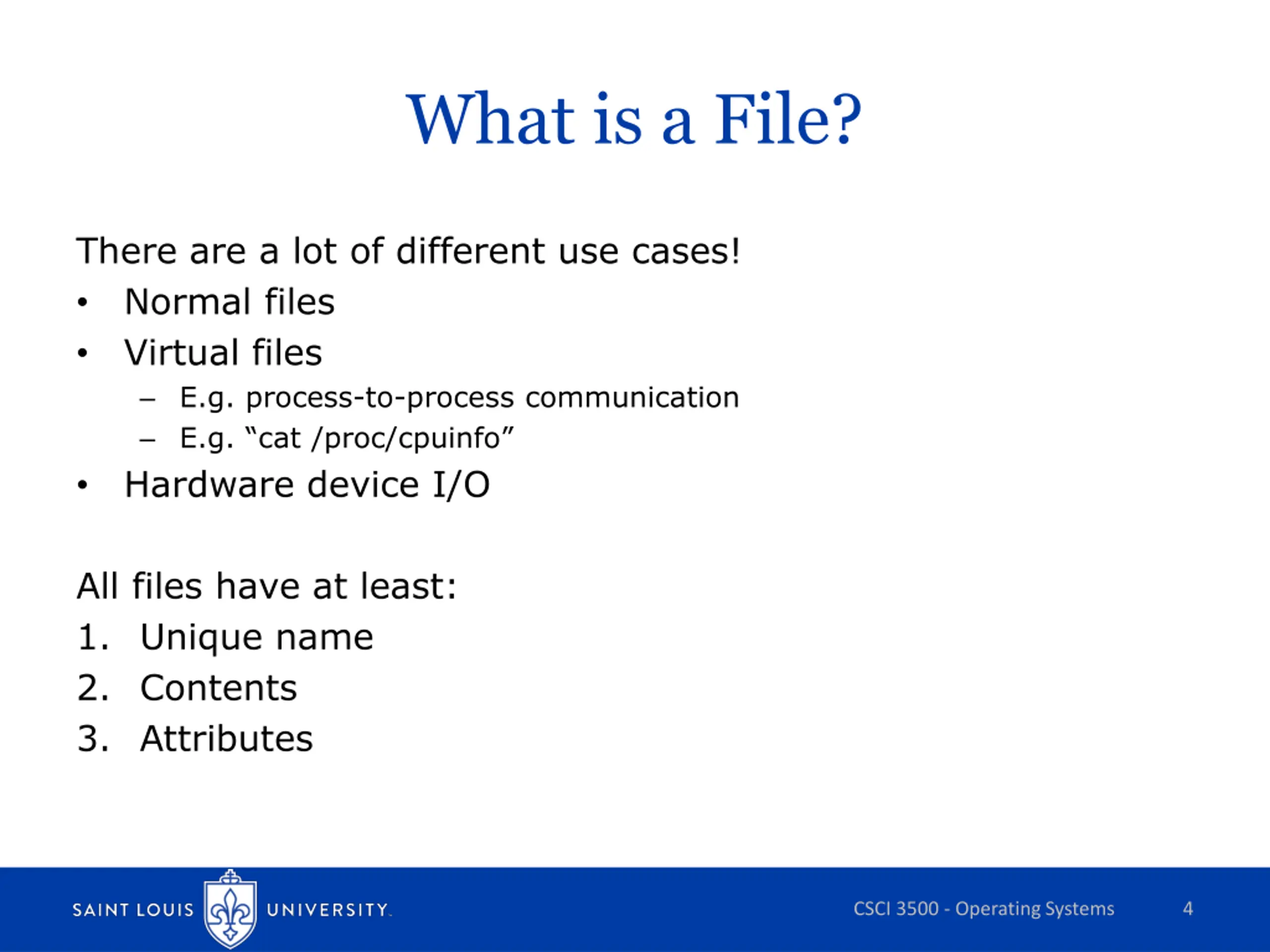

What is a File? There are a lot of different use cases! Normal files Virtual files E.g. process-to-process communication E.g. cat /proc/cpuinfo Hardware device I/O All files have at least: 1. Unique name 2. Contents 3. Attributes CSCI 3500 - Operating Systems 4

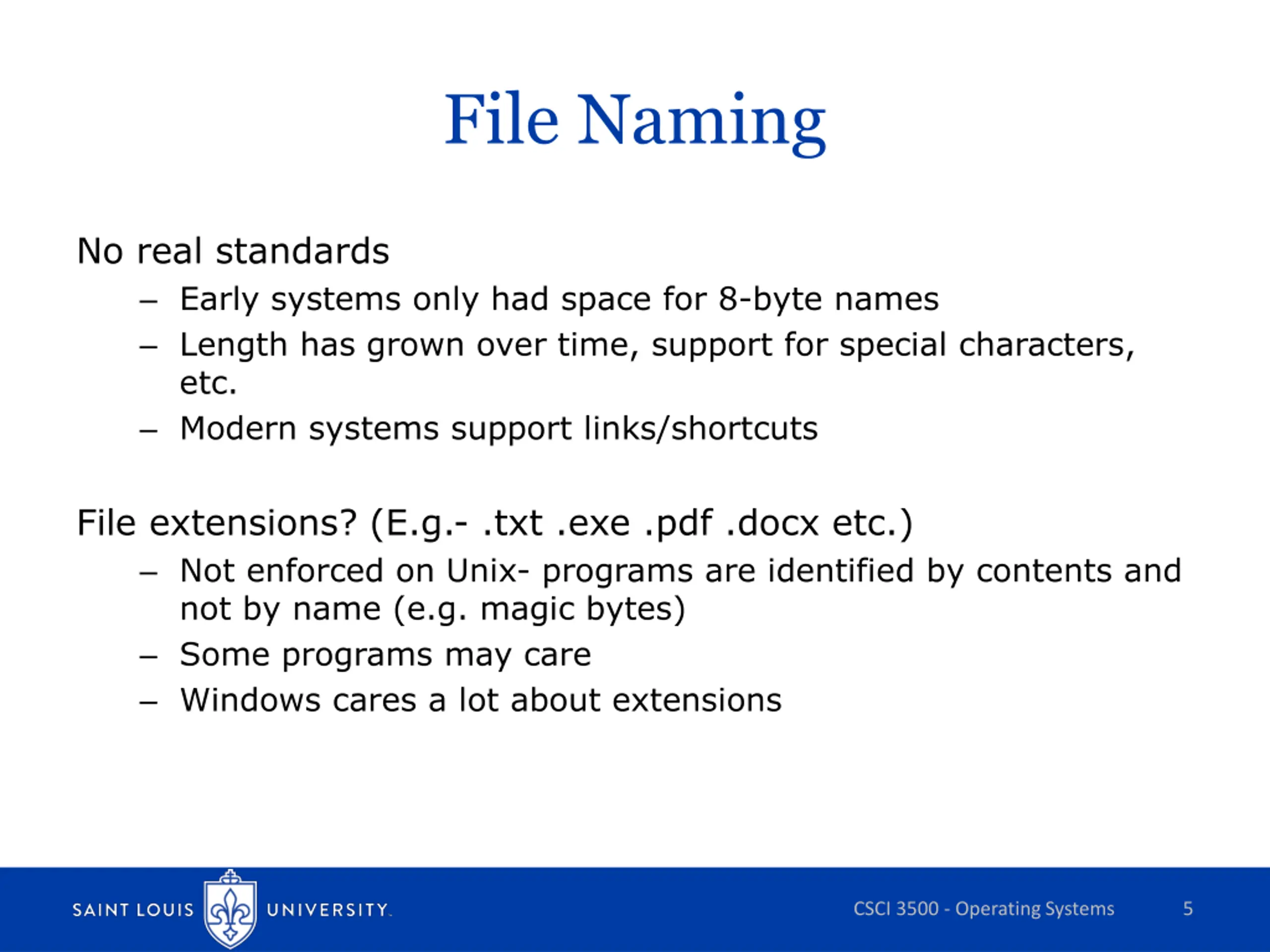

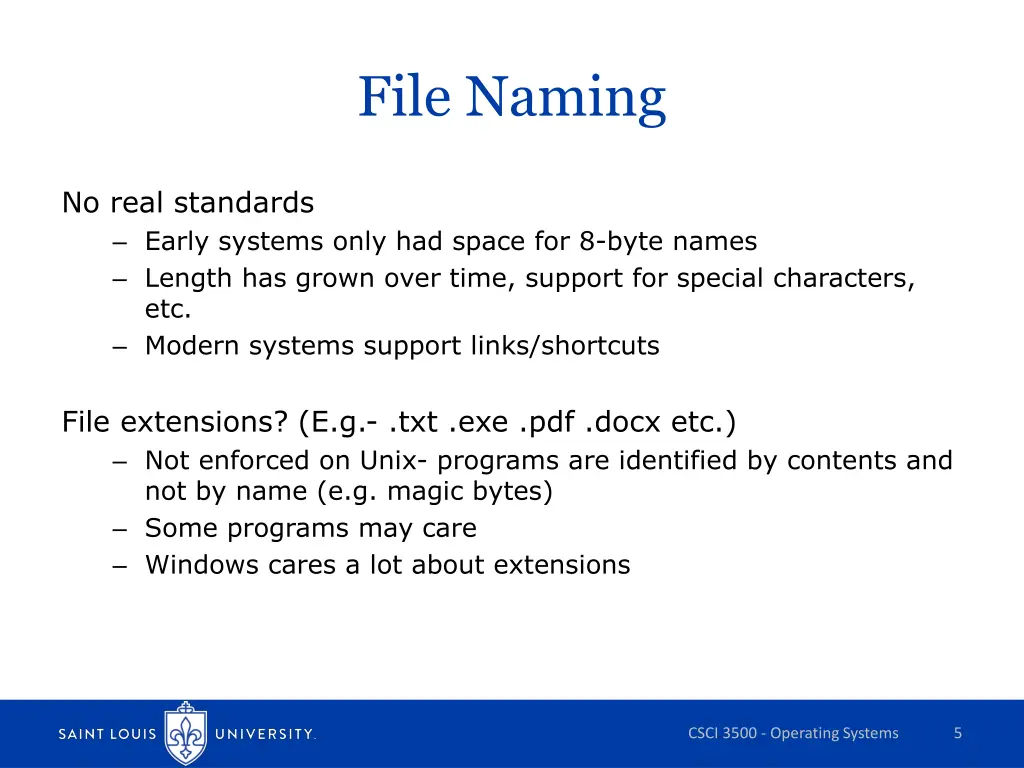

File Naming No real standards Early systems only had space for 8-byte names Length has grown over time, support for special characters, etc. Modern systems support links/shortcuts File extensions? (E.g.- .txt .exe .pdf .docx etc.) Not enforced on Unix- programs are identified by contents and not by name (e.g. magic bytes) Some programs may care Windows cares a lot about extensions CSCI 3500 - Operating Systems 5

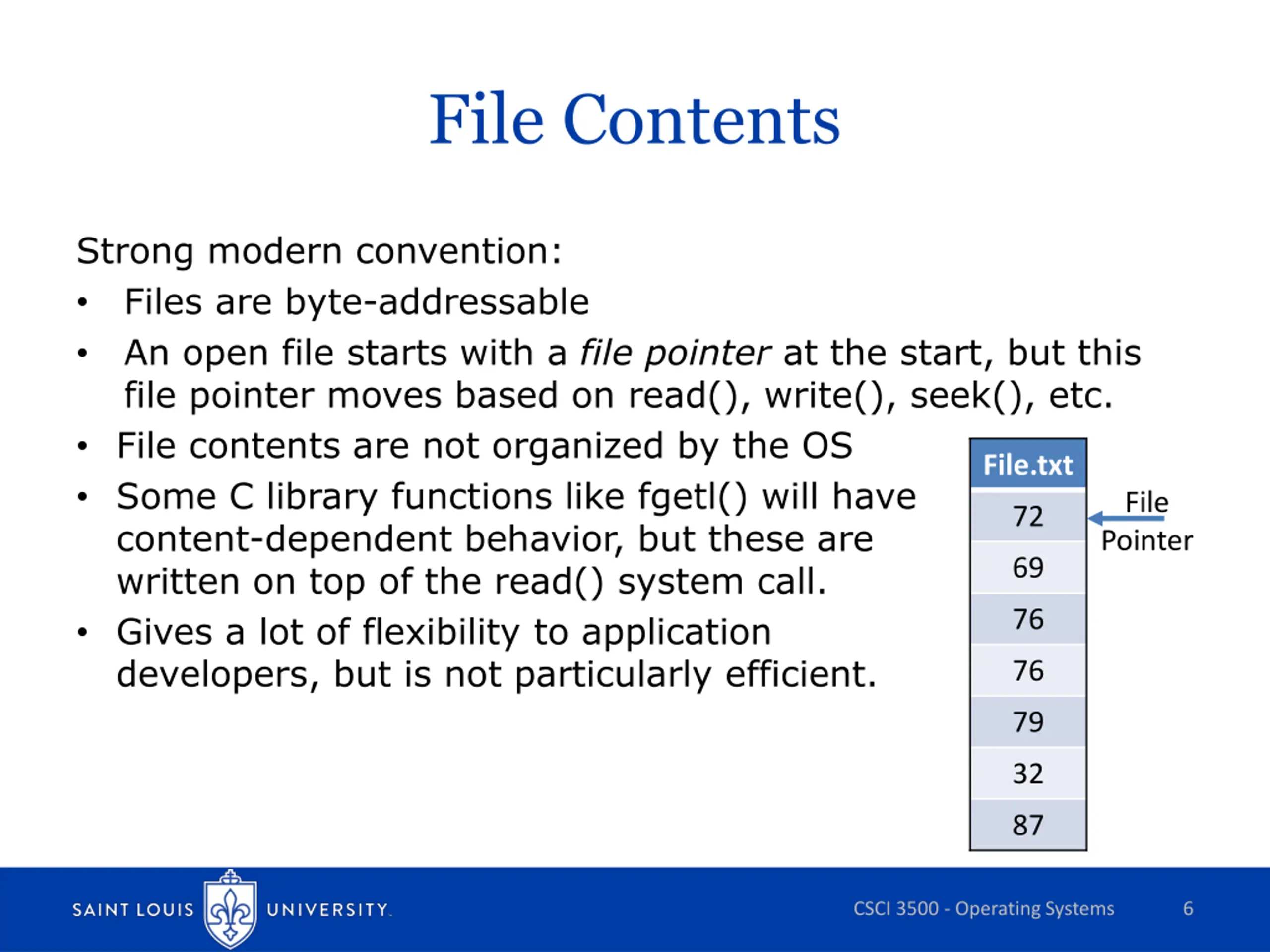

File Contents Strong modern convention: Files are byte-addressable An open file starts with a file pointer at the start, but this file pointer moves based on read(), write(), seek(), etc. File contents are not organized by the OS Some C library functions like fgetl() will have content-dependent behavior, but these are written on top of the read() system call. Gives a lot of flexibility to application developers, but is not particularly efficient. File.txt File 72 Pointer 69 76 76 79 32 87 CSCI 3500 - Operating Systems 6

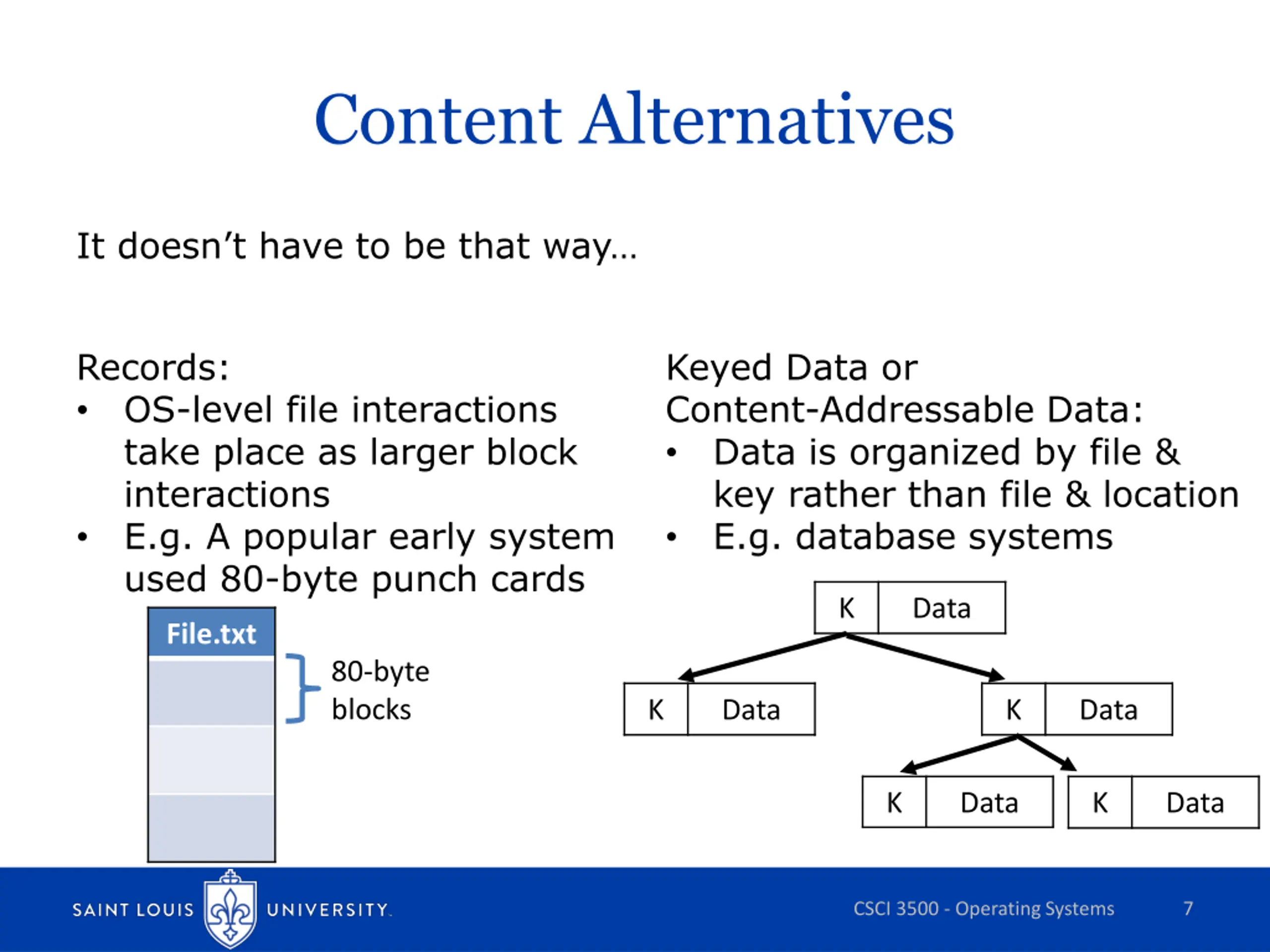

Content Alternatives It doesn t have to be that way Records: OS-level file interactions take place as larger block interactions E.g. A popular early system used 80-byte punch cards Keyed Data or Content-Addressable Data: Data is organized by file & key rather than file & location E.g. database systems K Data File.txt 80-byte blocks K Data K Data K Data K Data CSCI 3500 - Operating Systems 7

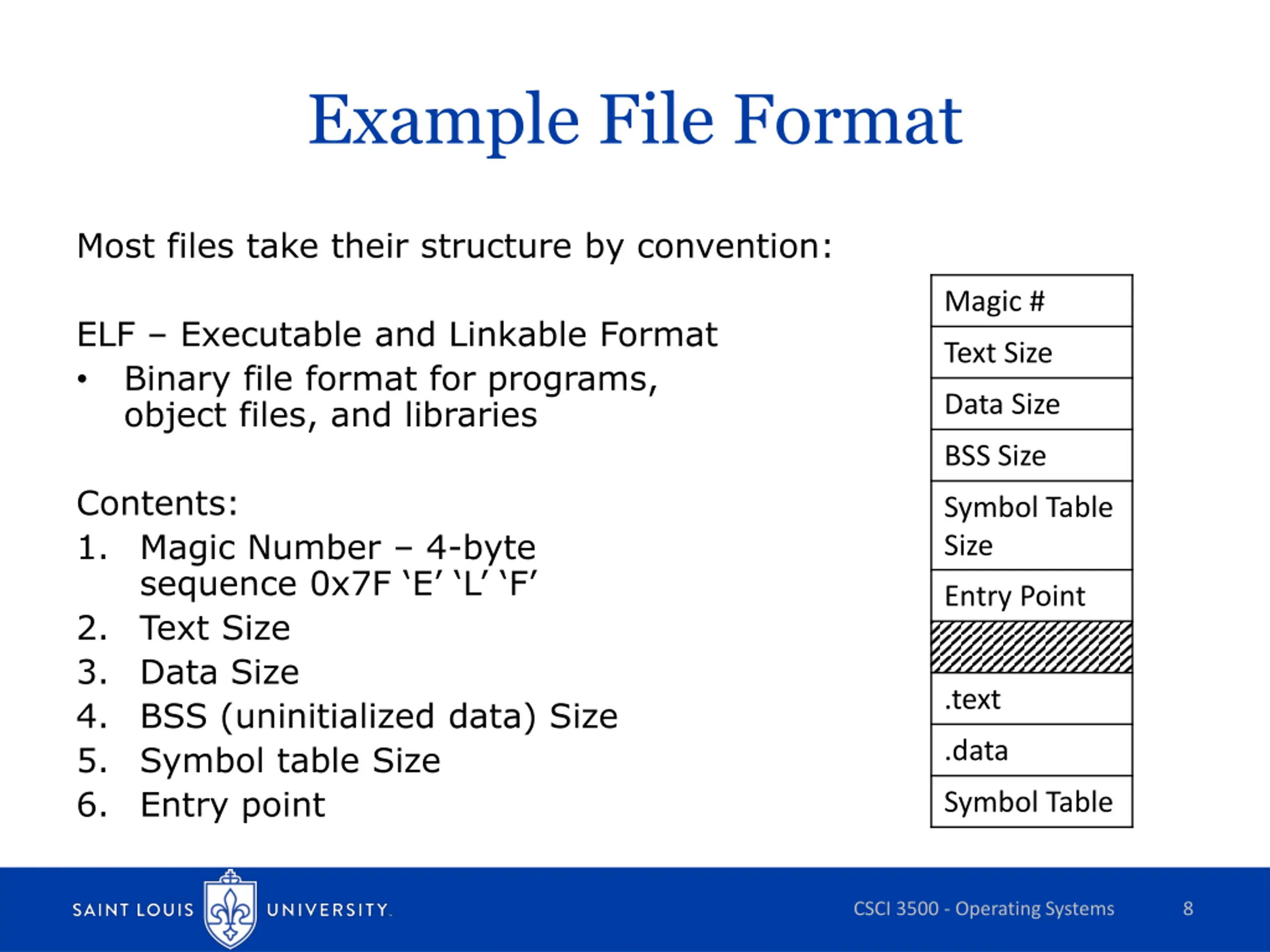

Example File Format Most files take their structure by convention: Magic # ELF Executable and Linkable Format Binary file format for programs, object files, and libraries Text Size Data Size BSS Size Contents: 1. Magic Number 4-byte sequence 0x7F E L F 2. Text Size 3. Data Size 4. BSS (uninitialized data) Size 5. Symbol table Size 6. Entry point Symbol Table Size Entry Point .text .data Symbol Table CSCI 3500 - Operating Systems 8

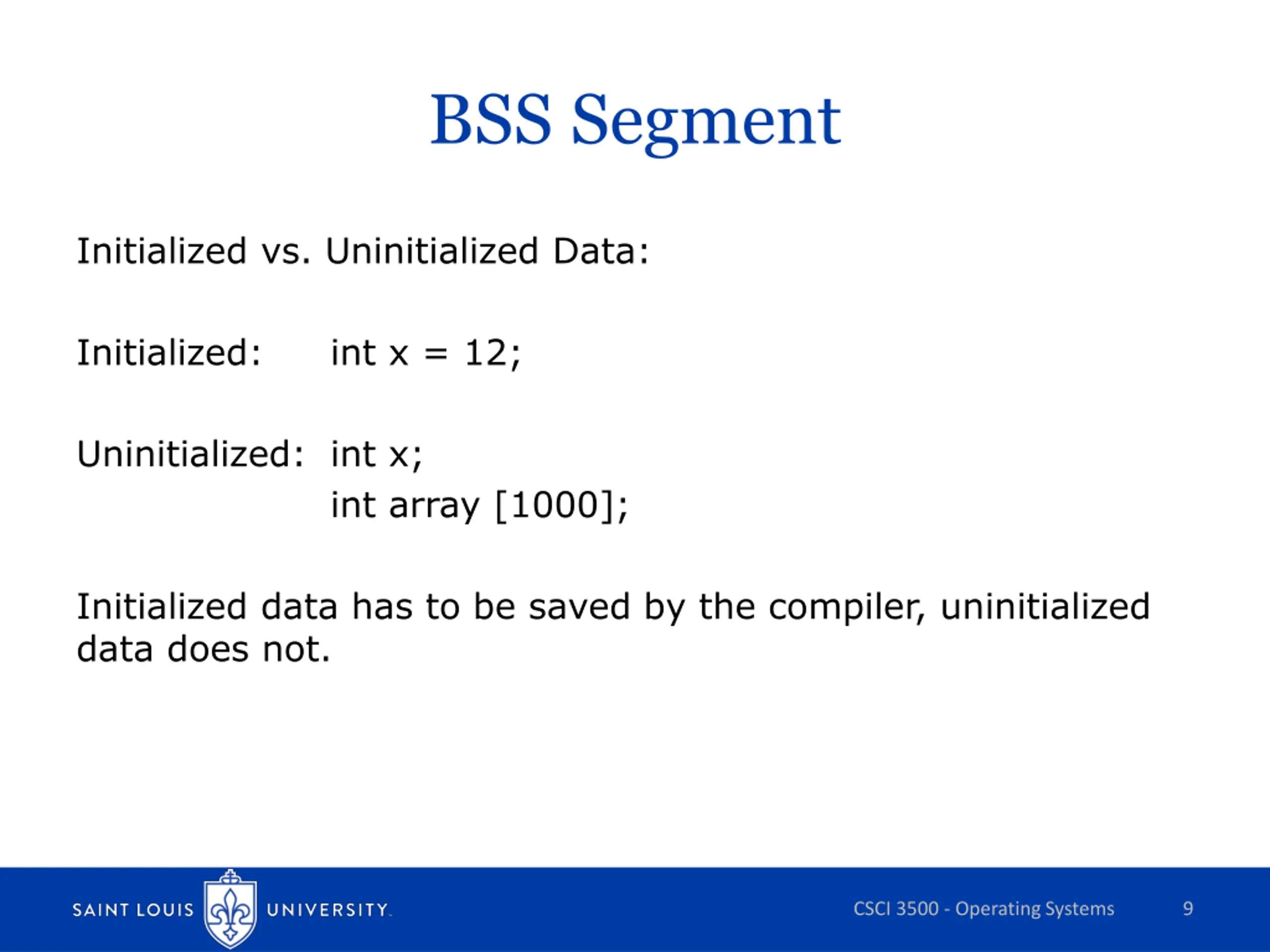

BSS Segment Initialized vs. Uninitialized Data: Initialized: int x = 12; Uninitialized: int x; int array [1000]; Initialized data has to be saved by the compiler, uninitialized data does not. CSCI 3500 - Operating Systems 9

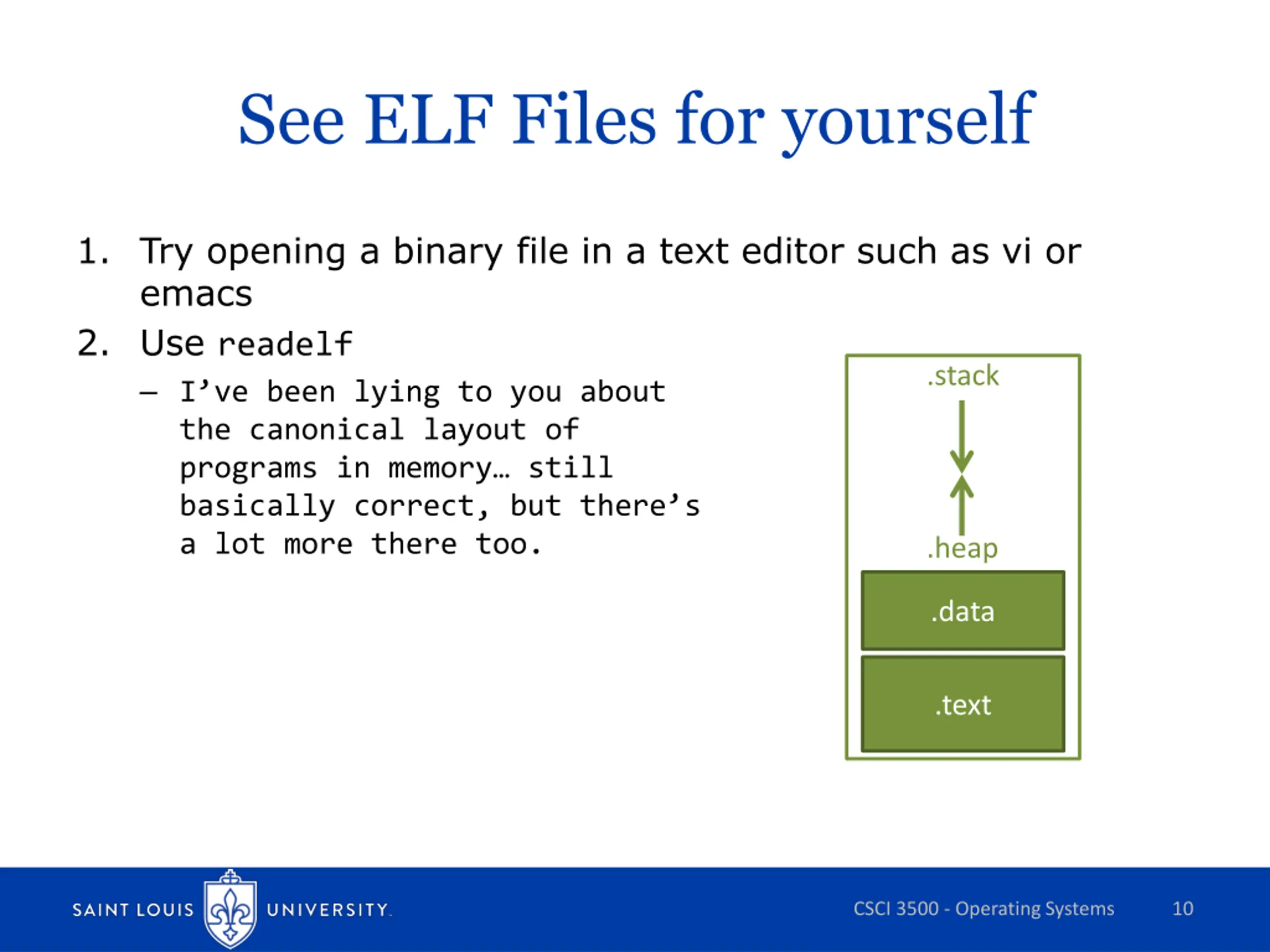

See ELF Files for yourself 1. Try opening a binary file in a text editor such as vi or emacs 2. Use readelf I ve been lying to you about the canonical layout of programs in memory still basically correct, but there s a lot more there too. .stack .heap .data .text CSCI 3500 - Operating Systems 10
