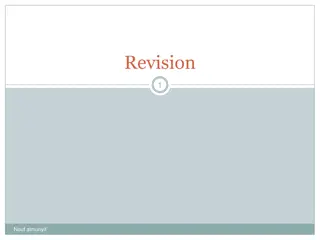

Revision 1 Nouf almunyif

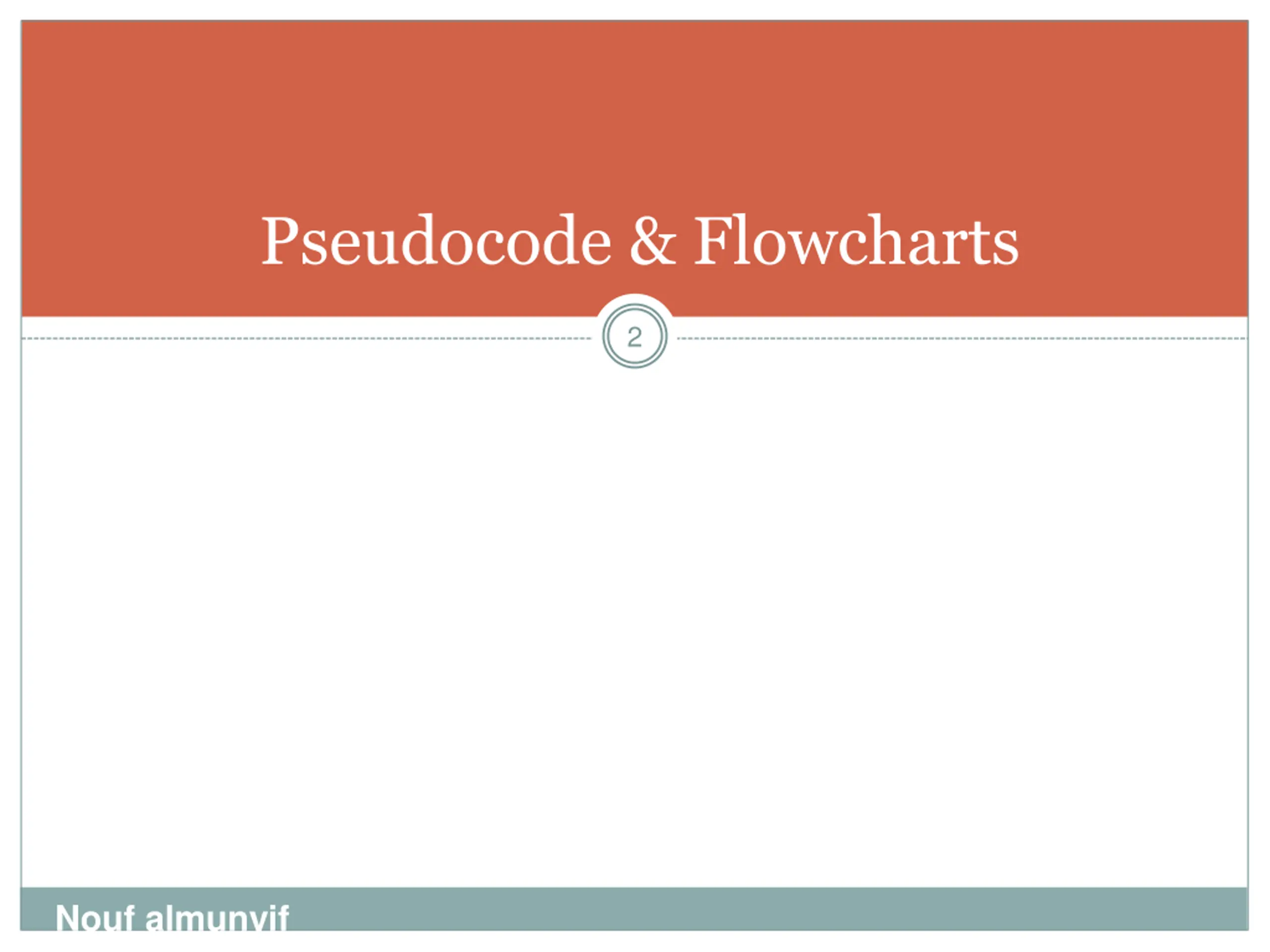

Pseudocode & Flowcharts 2 Nouf almunyif

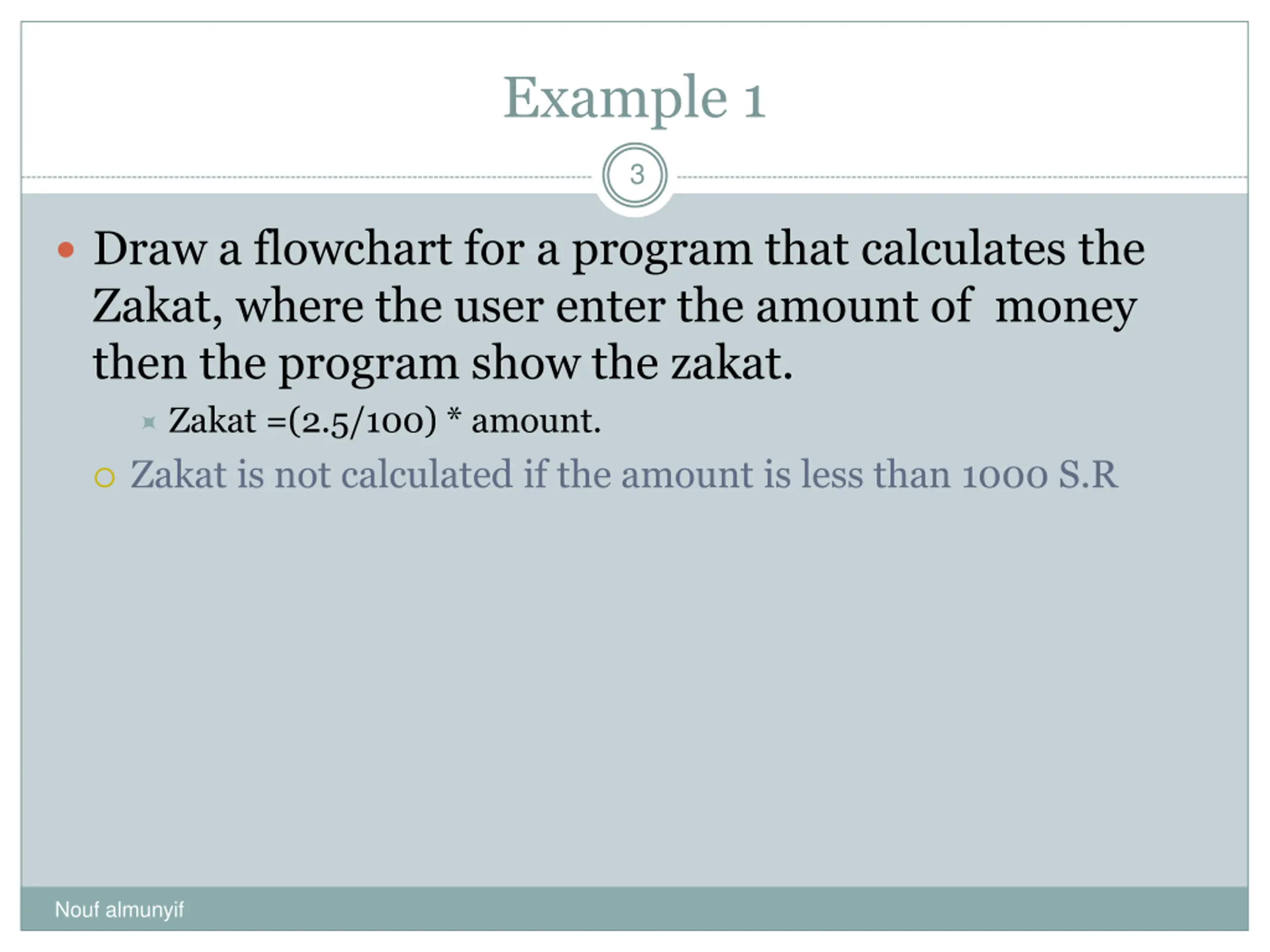

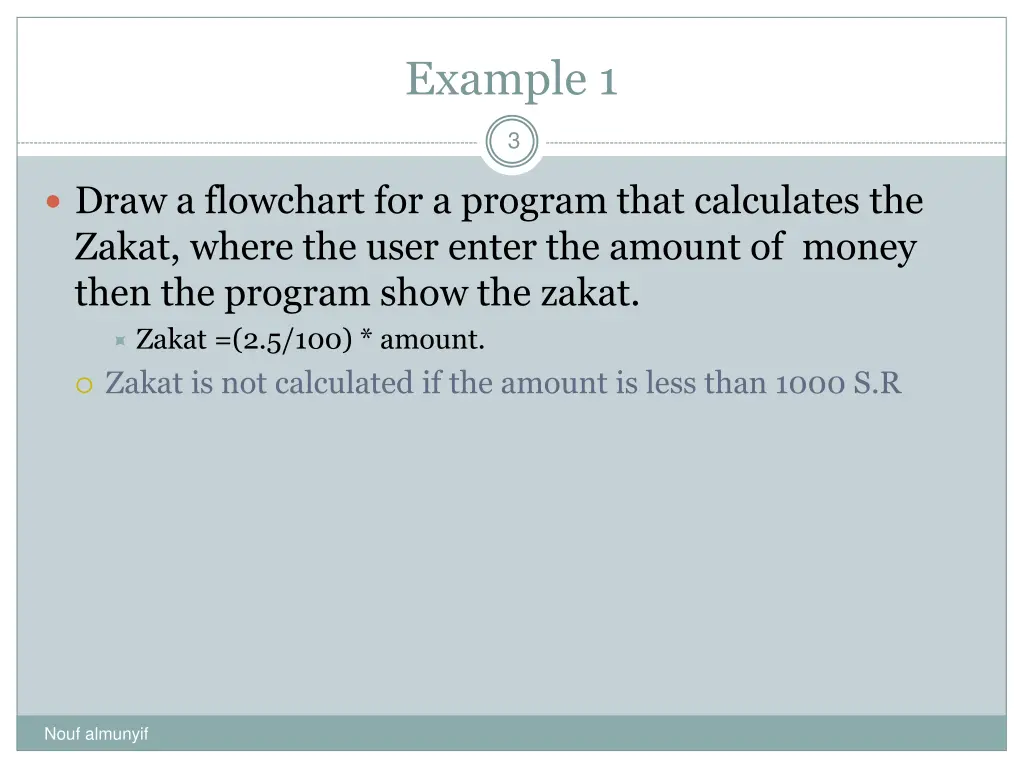

Example 1 3 Draw a flowchart for a program that calculates the Zakat, where the user enter the amount of money then the program show the zakat. Zakat =(2.5/100) * amount. Zakat is not calculated if the amount is less than 1000 S.R Nouf almunyif

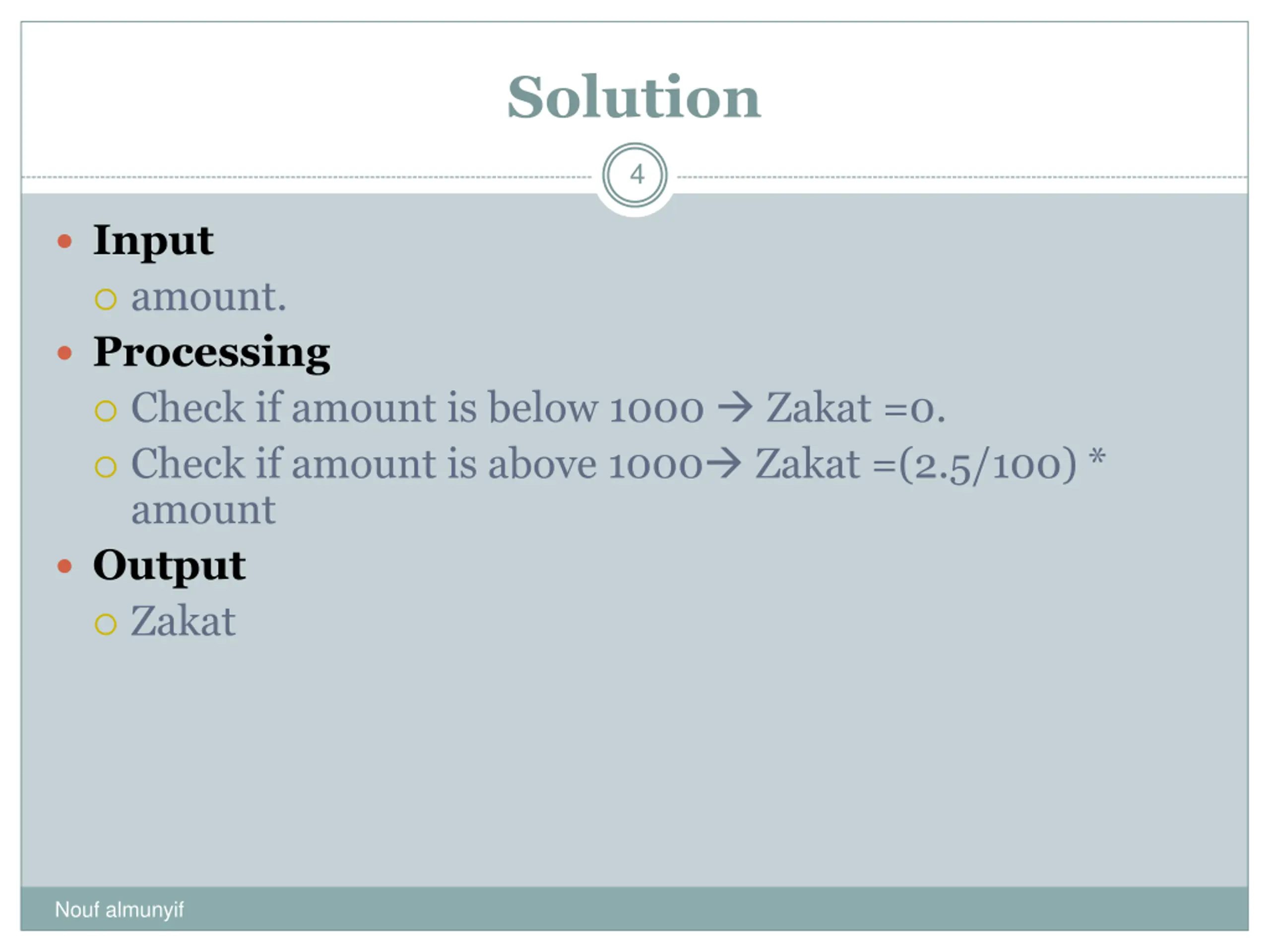

Solution 4 Input amount. Processing Check if amount is below 1000 Zakat =0. Check if amount is above 1000 Zakat =(2.5/100) * amount Output Zakat Nouf almunyif

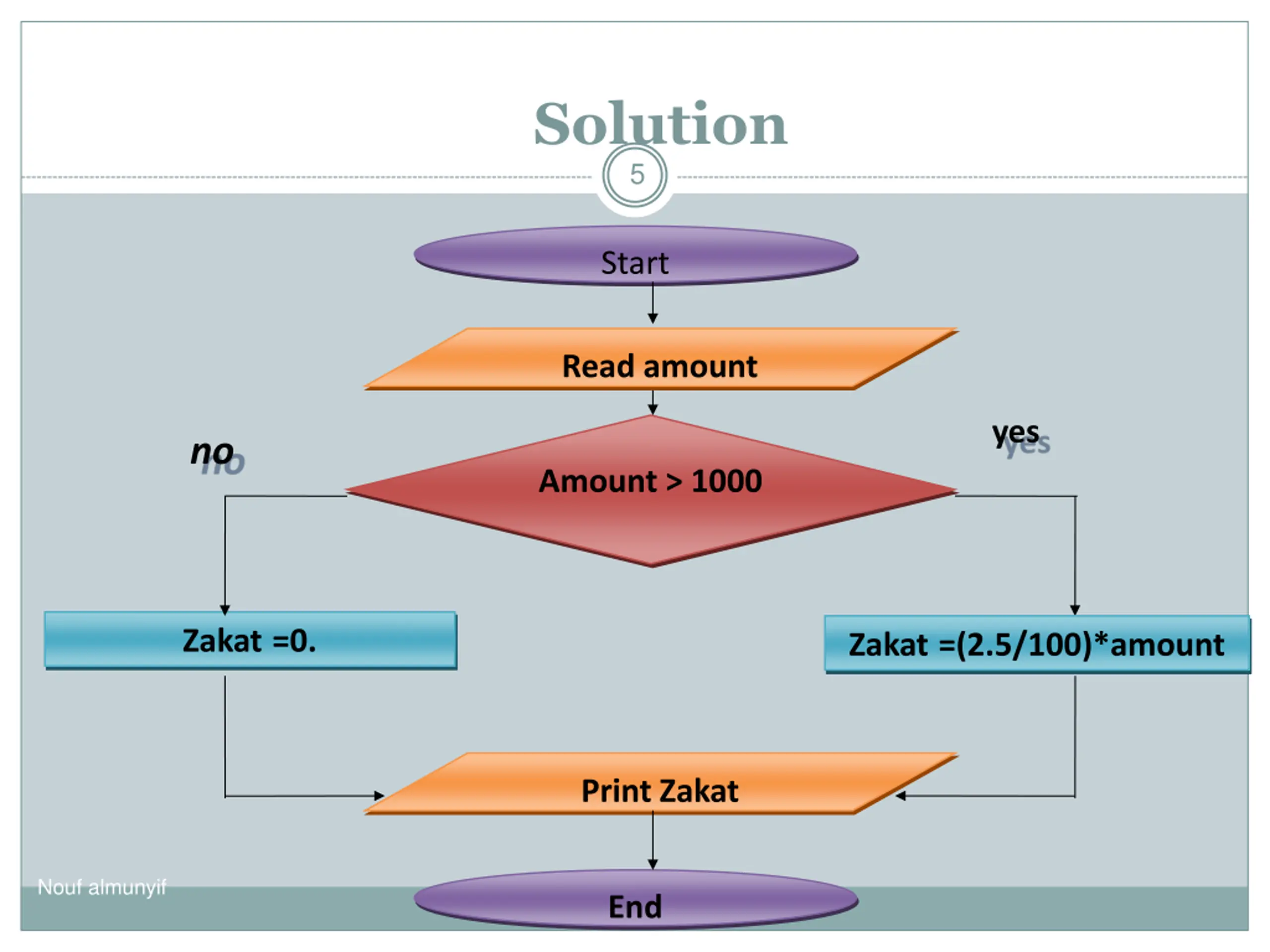

Solution 5 Start Read amount yes no Amount > 1000 Zakat=0. Zakat=(2.5/100)*amount Print Zakat Nouf almunyif End

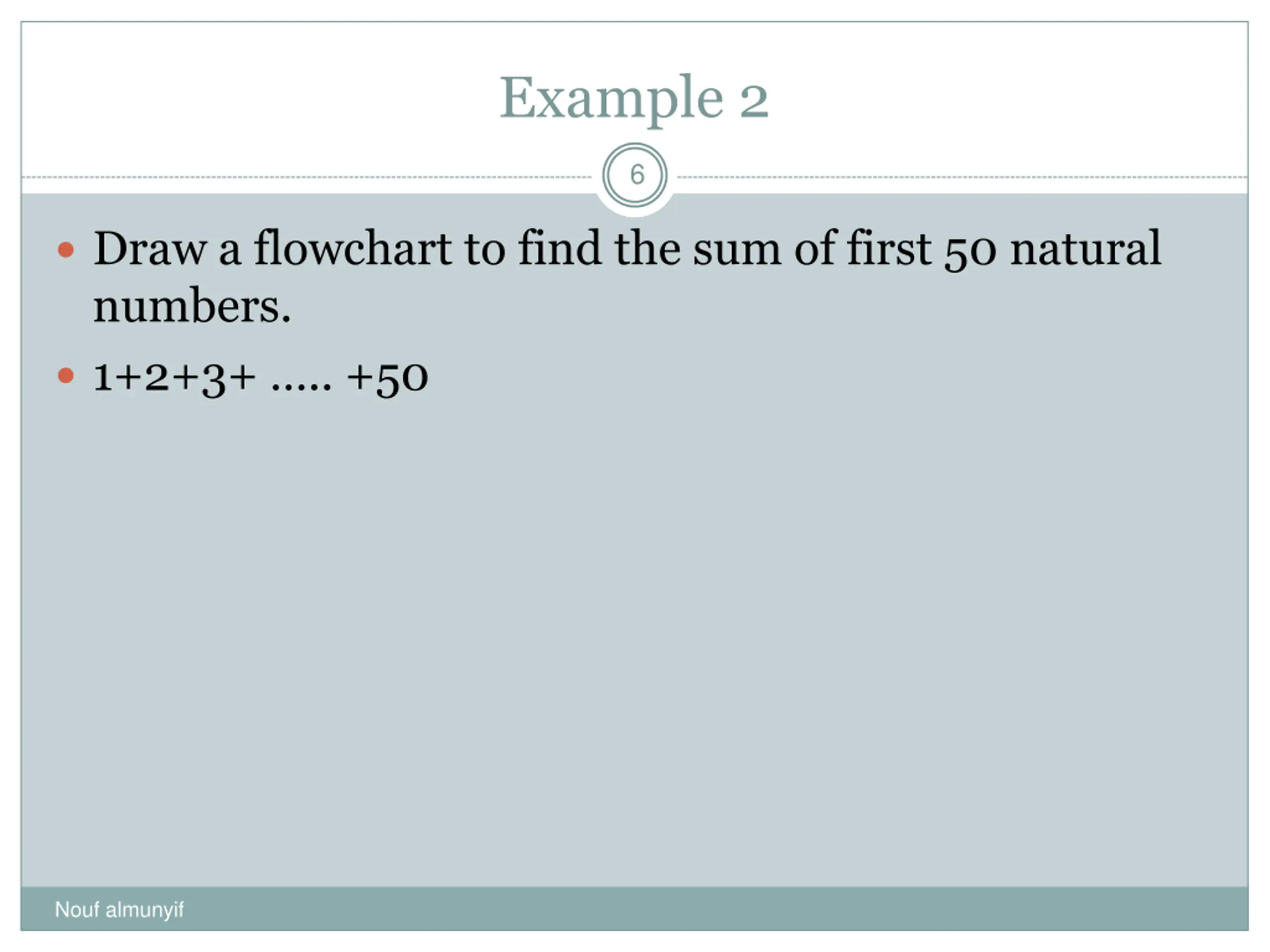

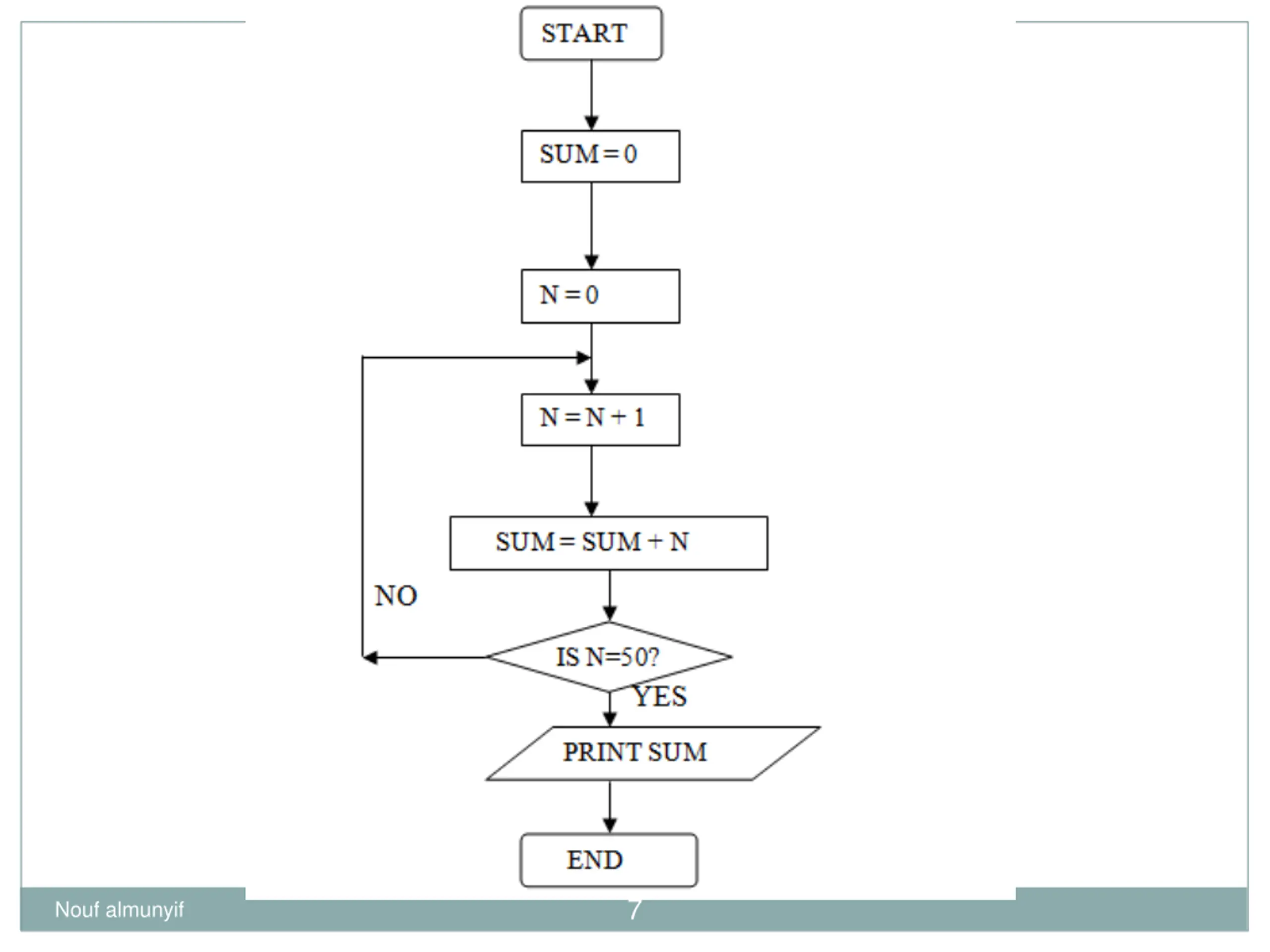

Example 2 6 Draw a flowchart to find the sum of first 50 natural numbers. 1+2+3+ .. +50 Nouf almunyif
7 Nouf almunyif

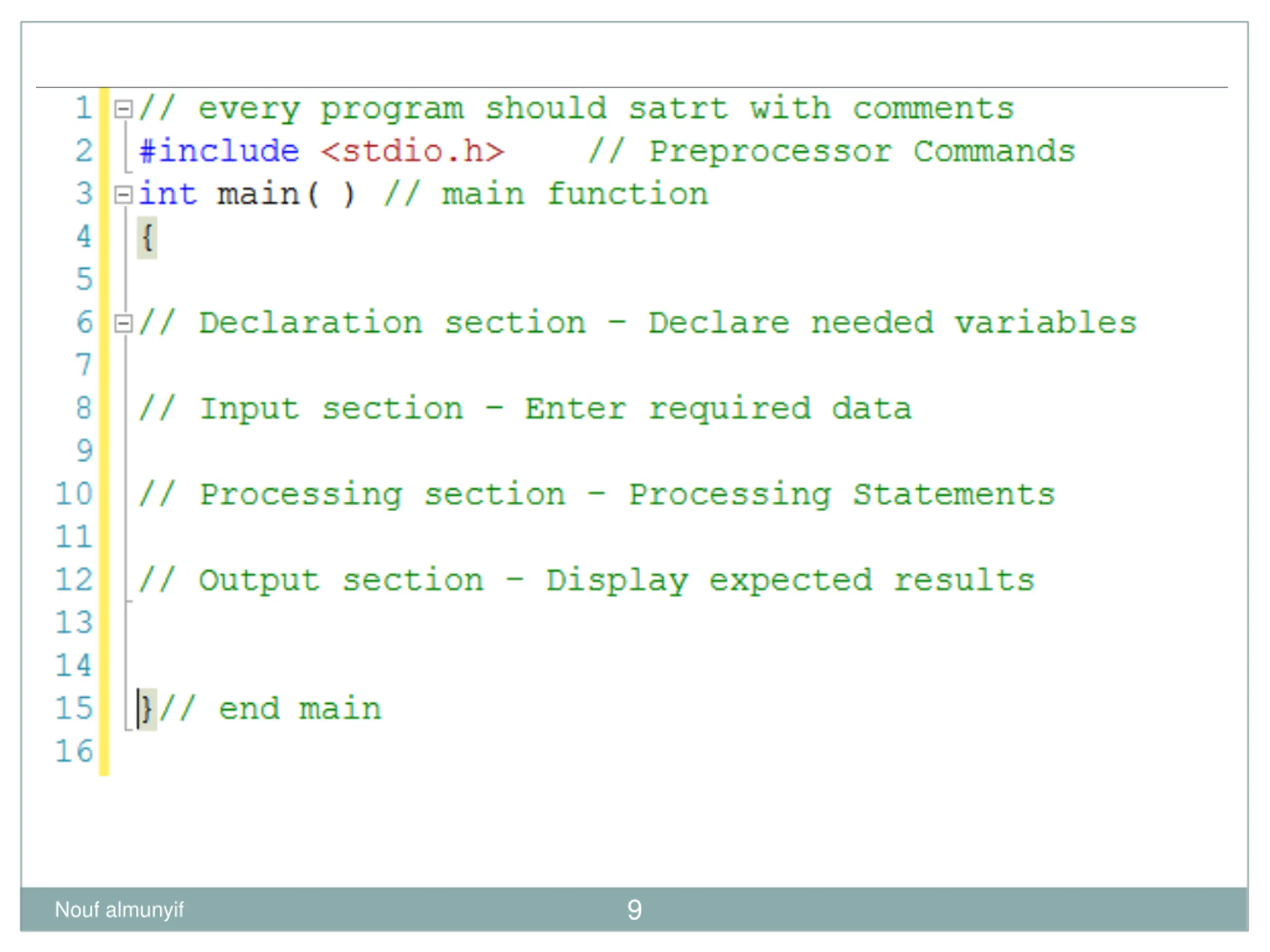

Structure of a .c file 8 Nouf almunyif
9 Nouf almunyif

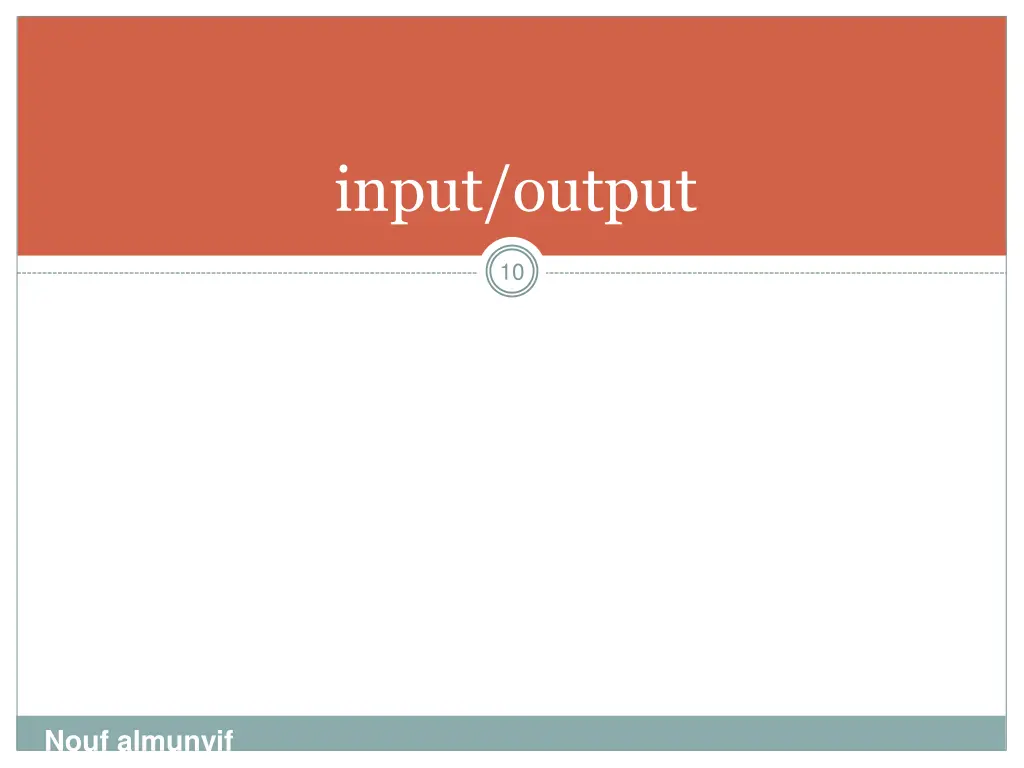

input/output 10 Nouf almunyif

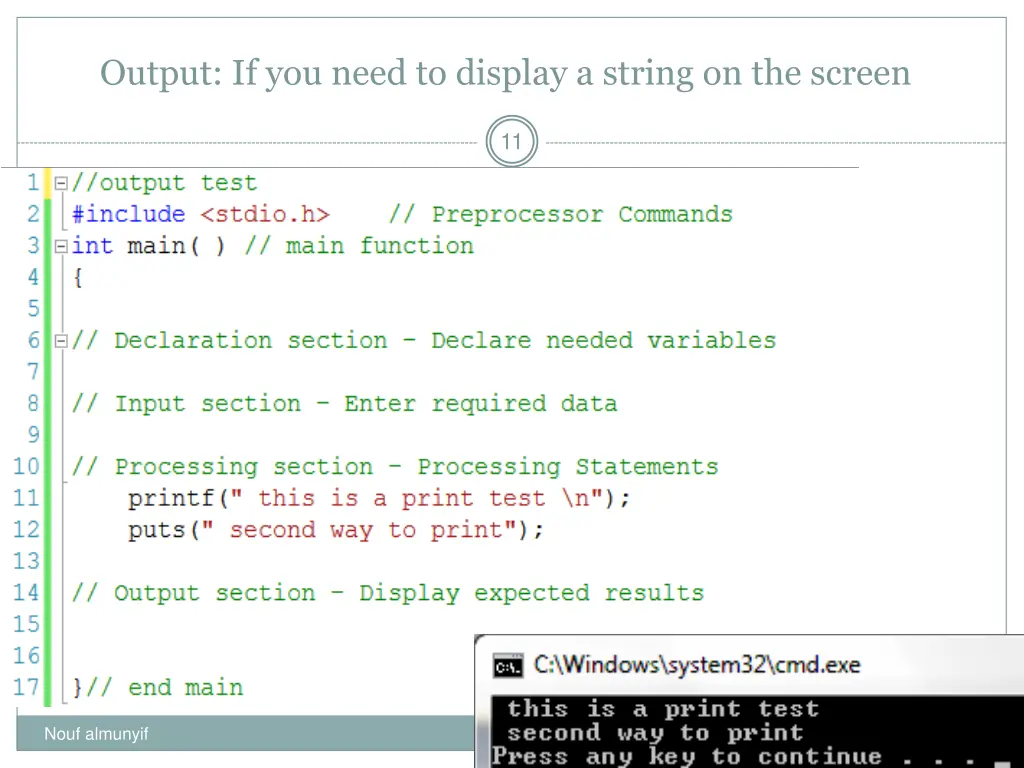

Output: If you need to display a string on the screen 11 Nouf almunyif

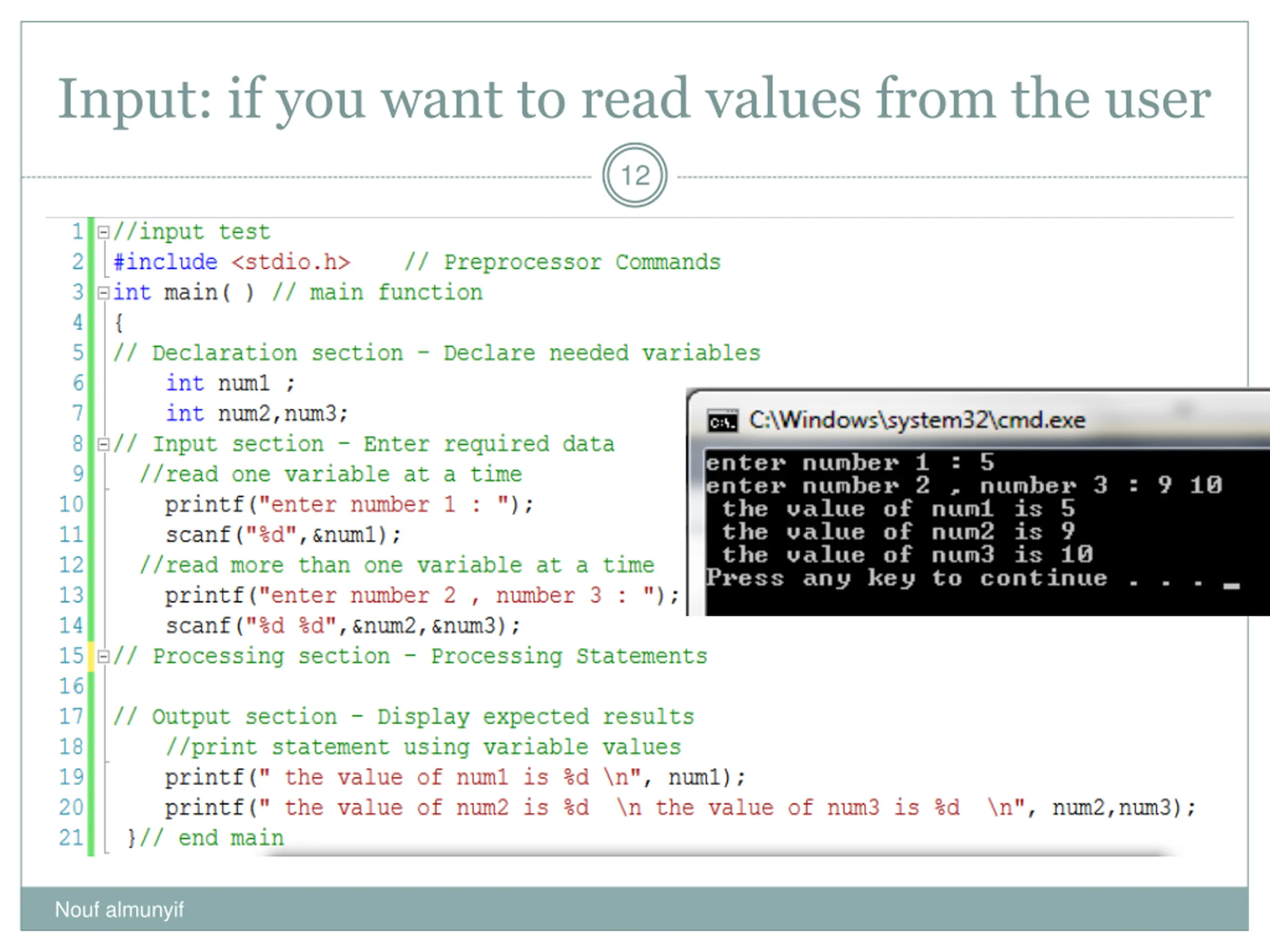

Input: if you want to read values from the user 12 Nouf almunyif
Data types 13 Nouf almunyif

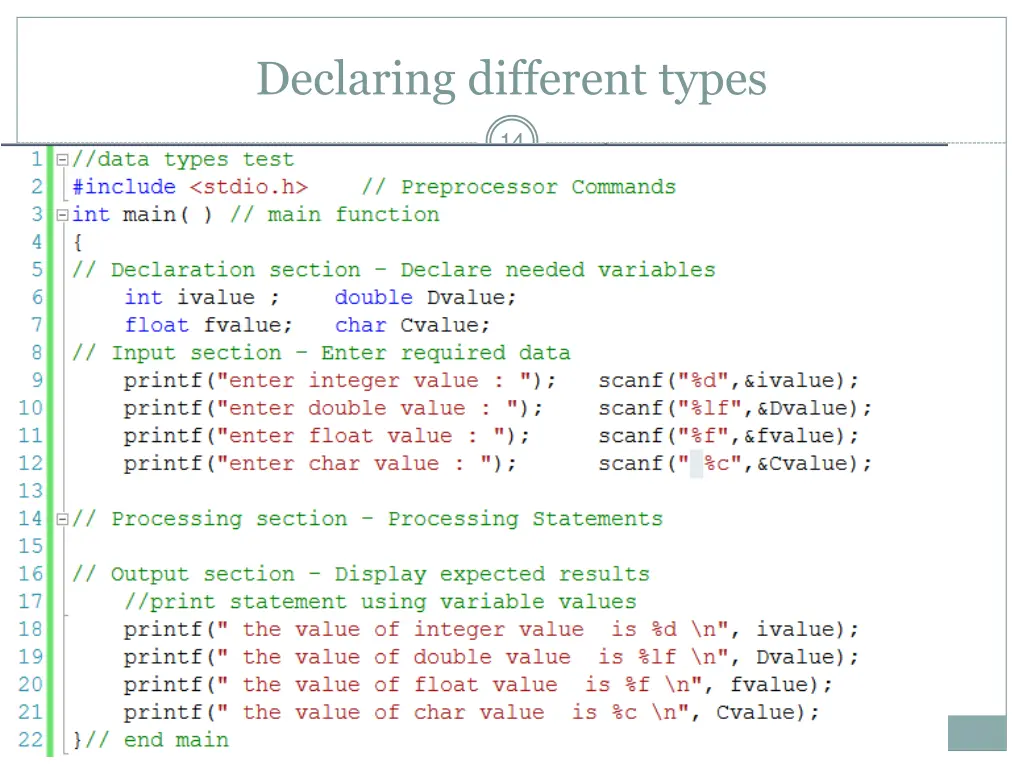

Declaring different types 14 Nouf almunyif

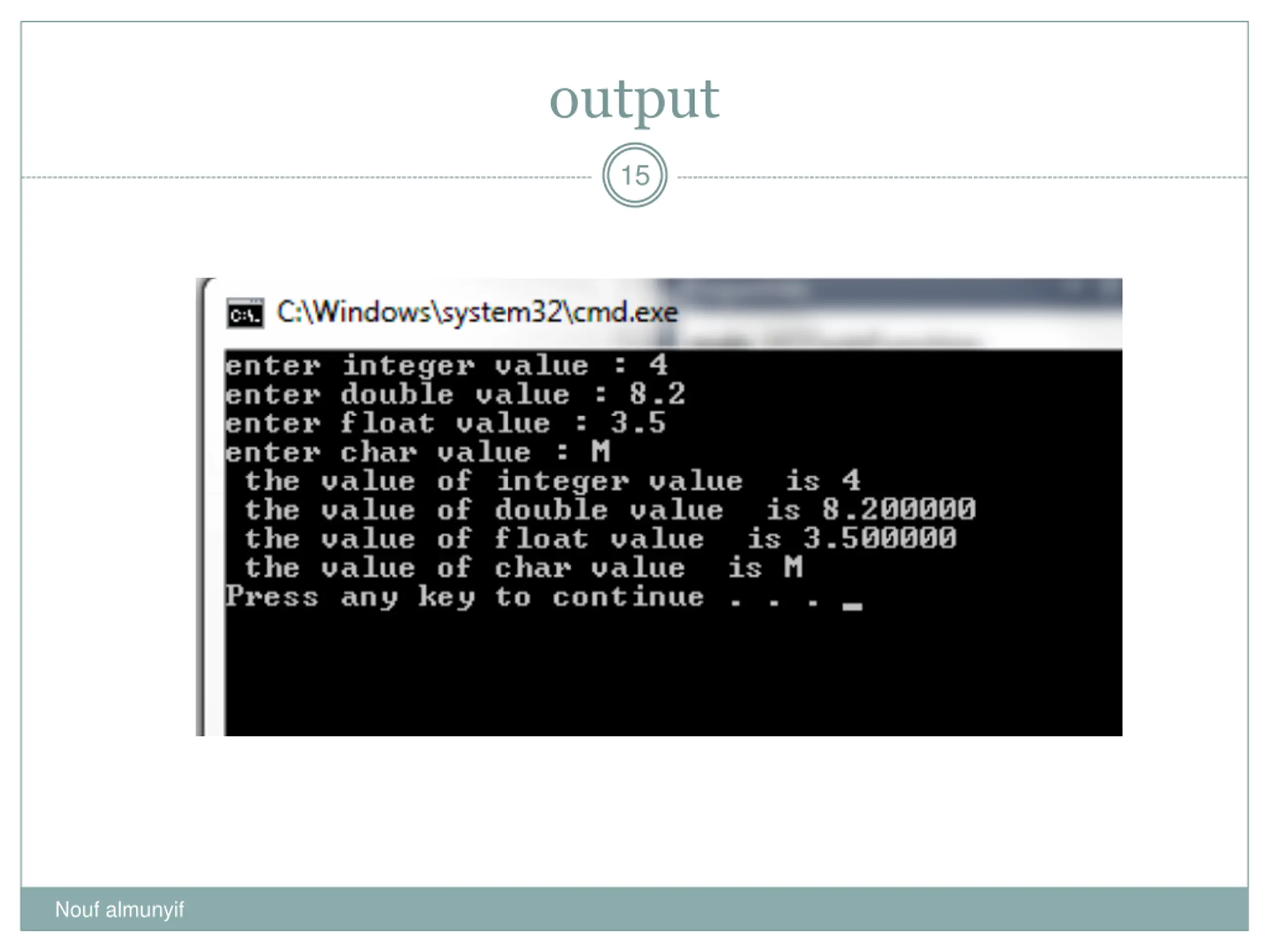

output 15 Nouf almunyif

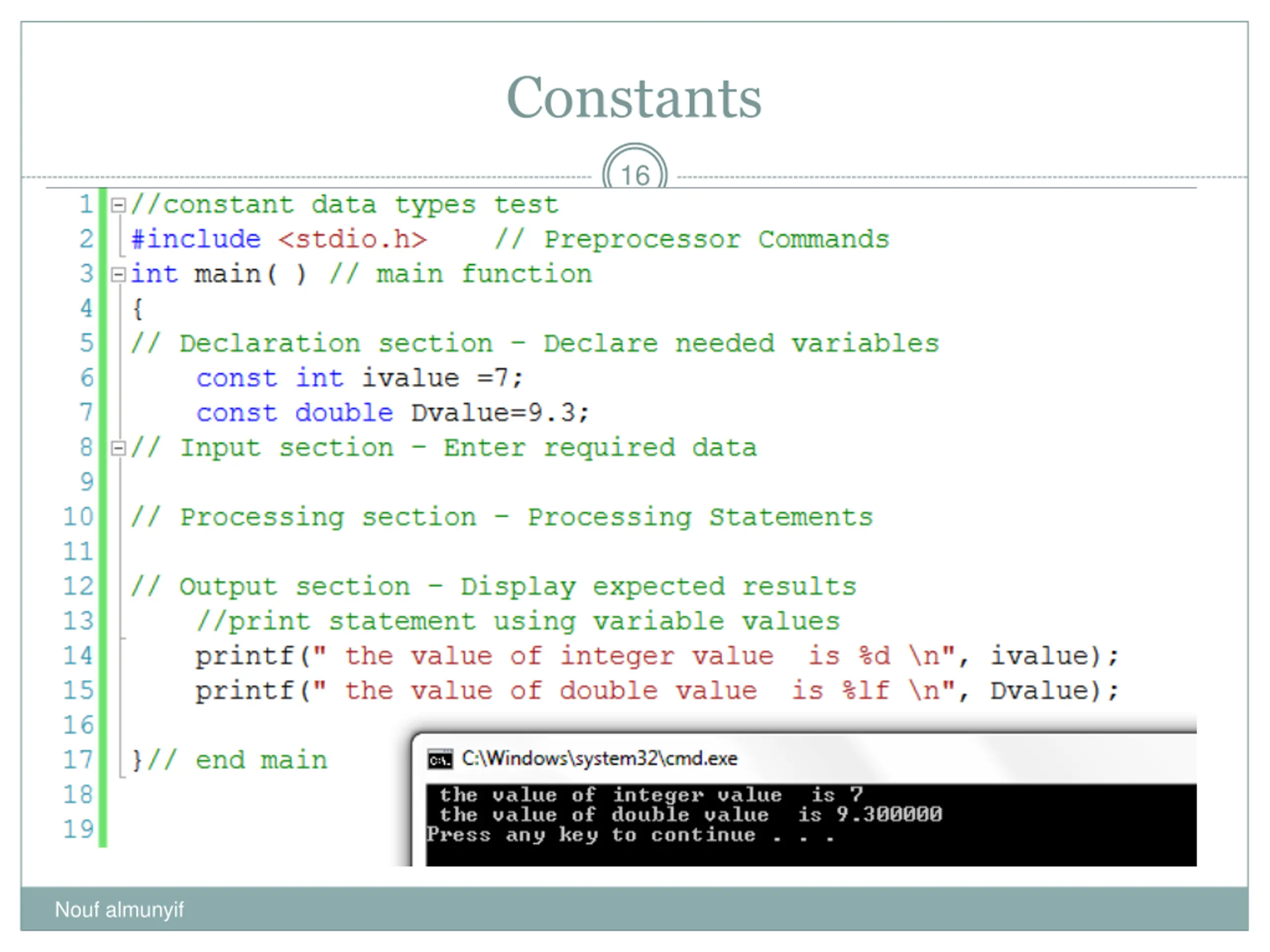

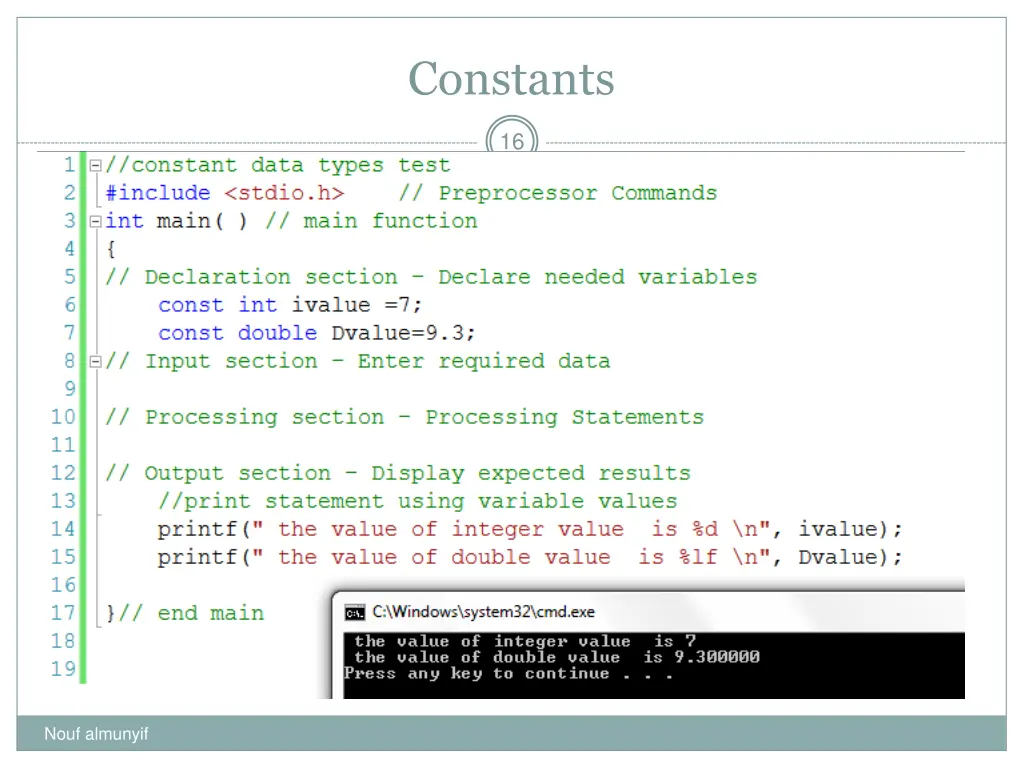

Constants 16 Nouf almunyif

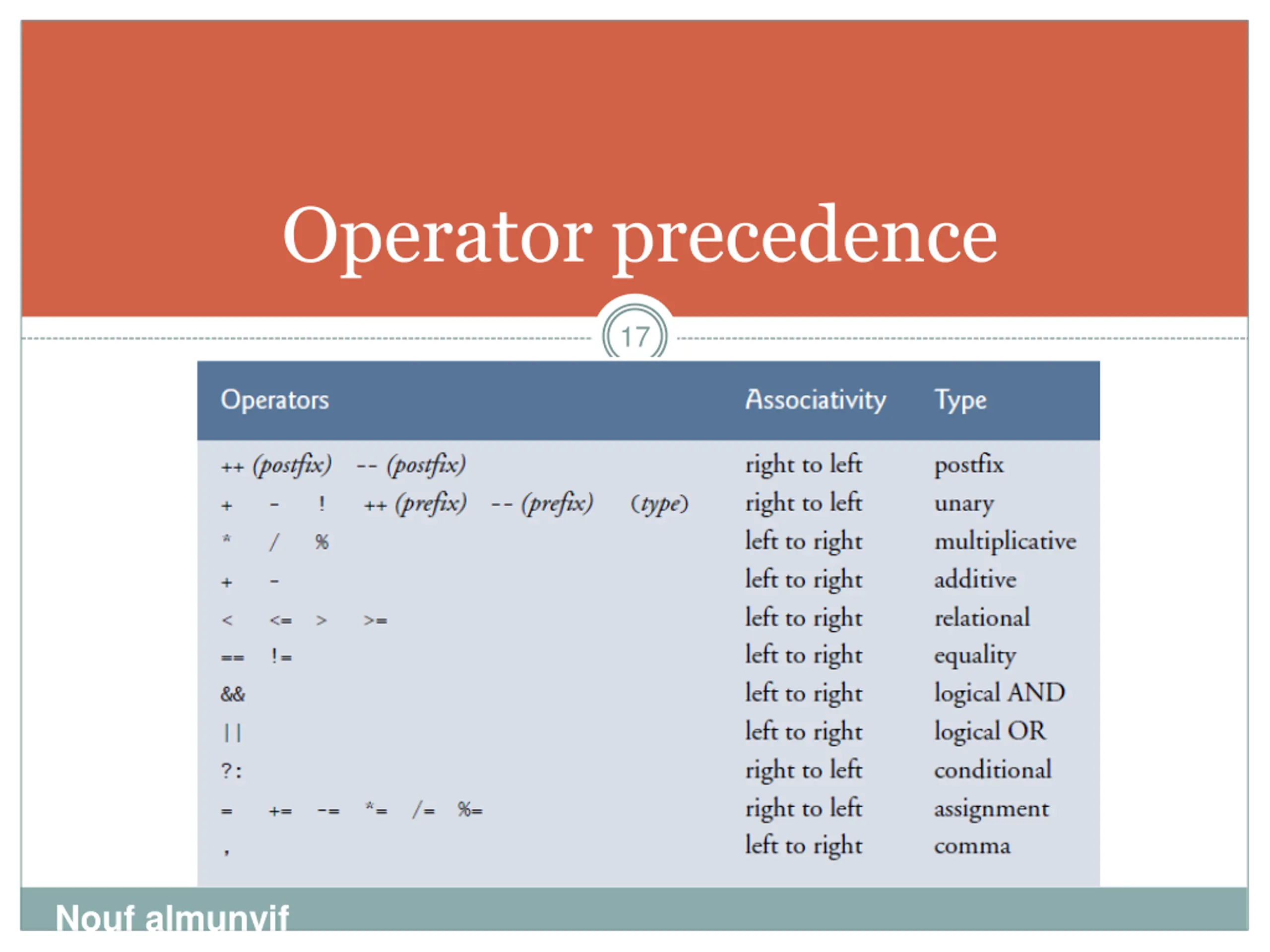

Operator precedence 17 Nouf almunyif
Branching if syntax 18 Nouf almunyif

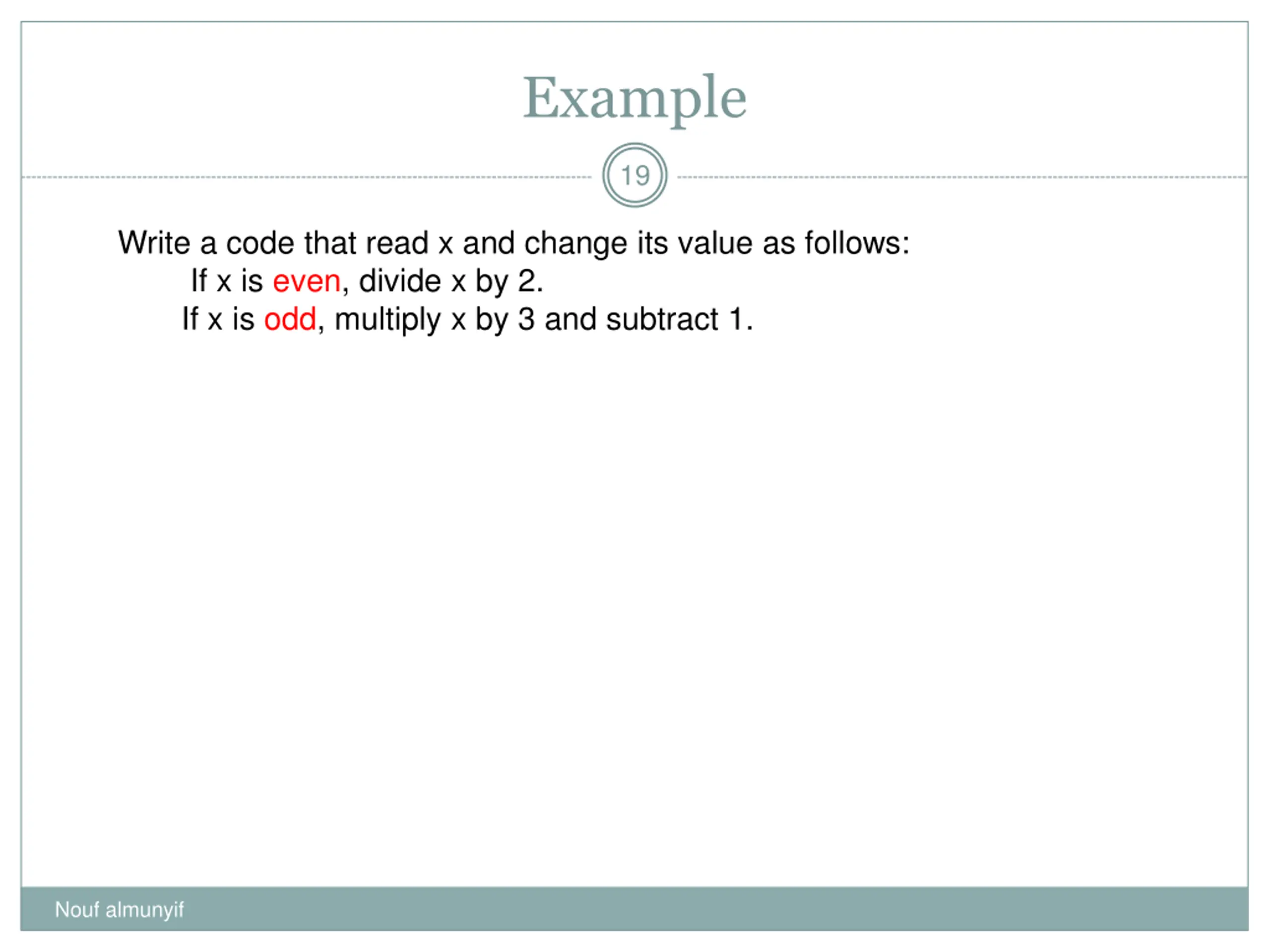

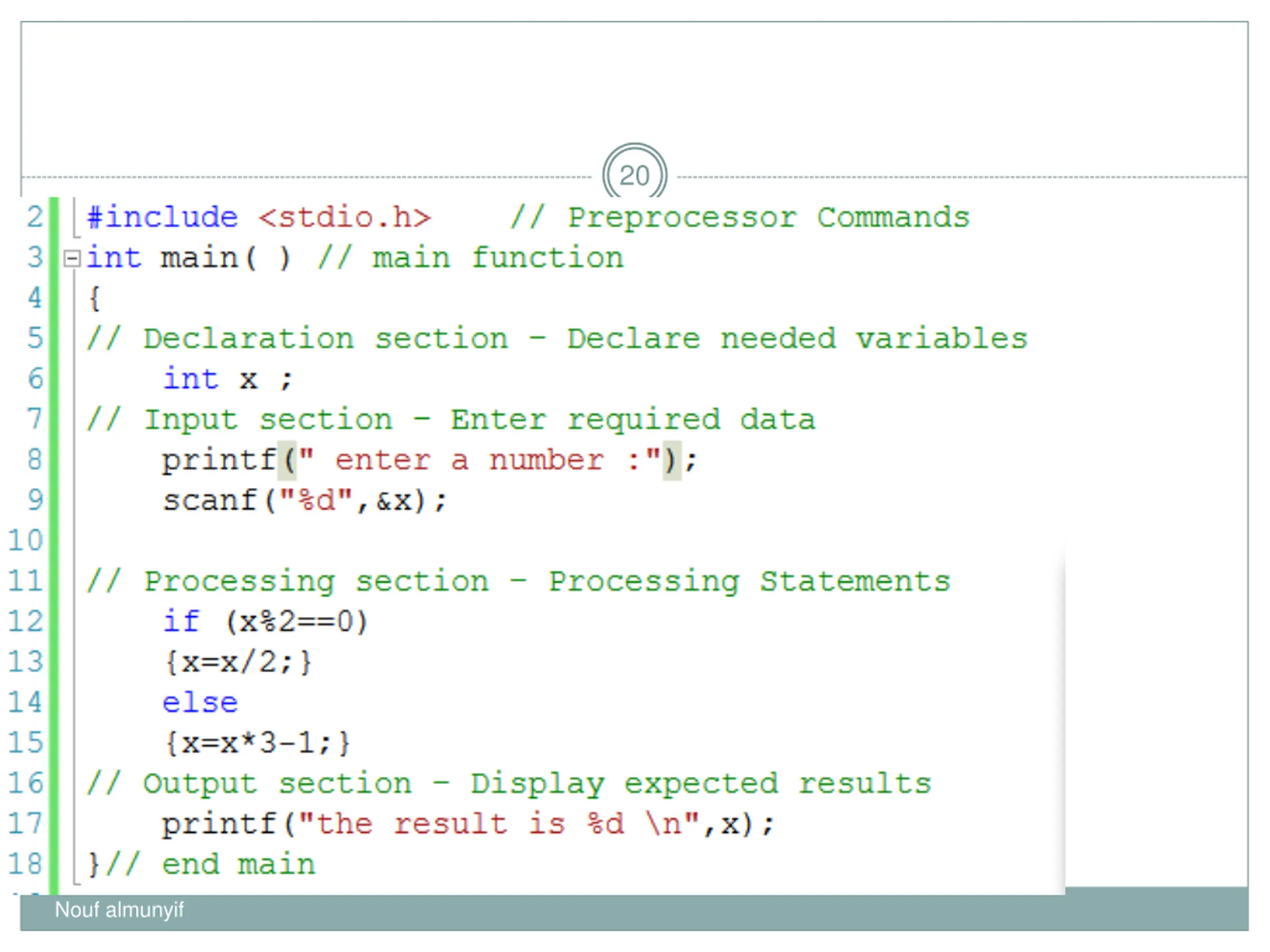

Example 19 Write a code that read x and change its value as follows: If x is even, divide x by 2. If x is odd, multiply x by 3 and subtract 1. Nouf almunyif
20 Nouf almunyif

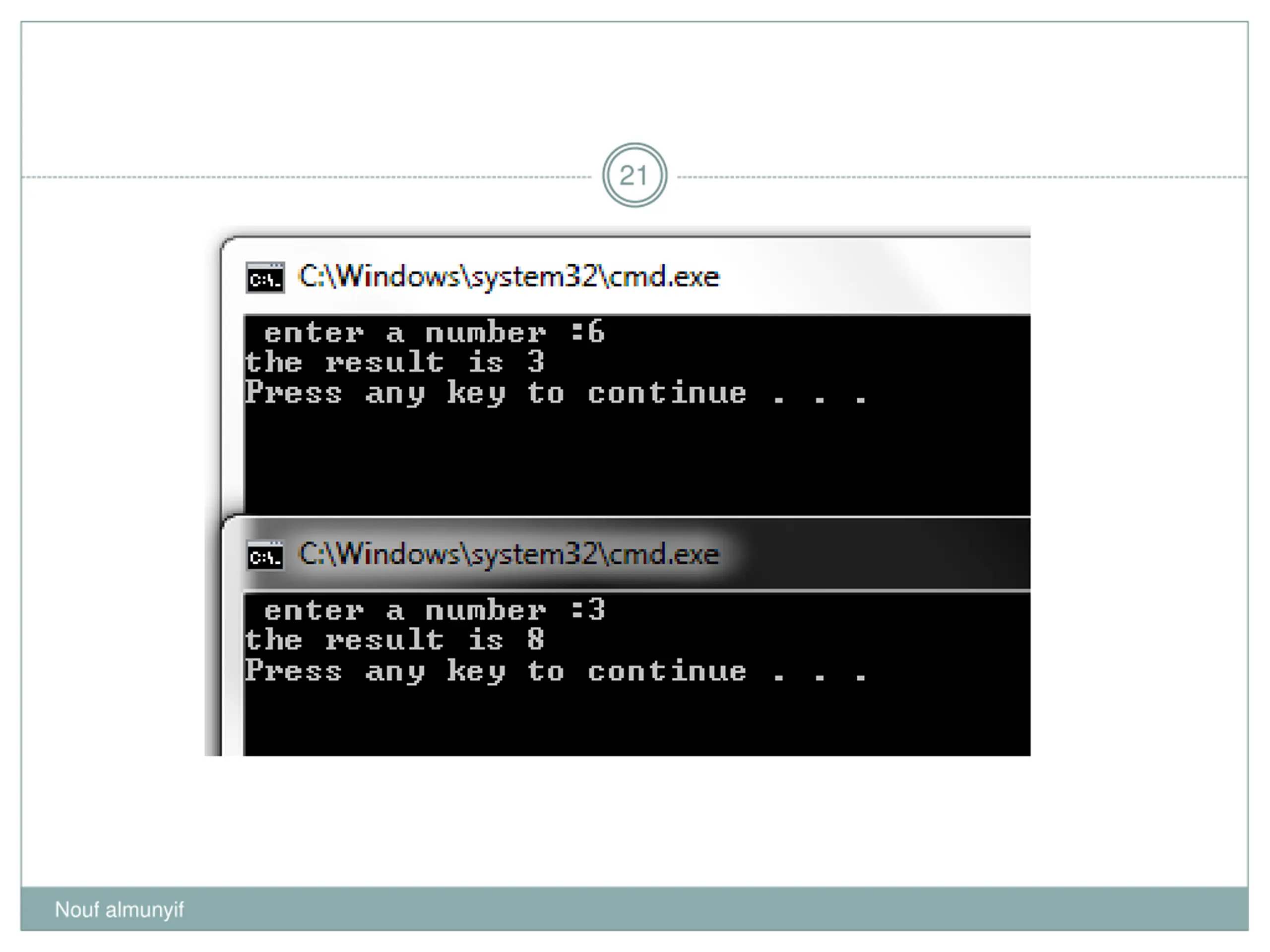

21 Nouf almunyif

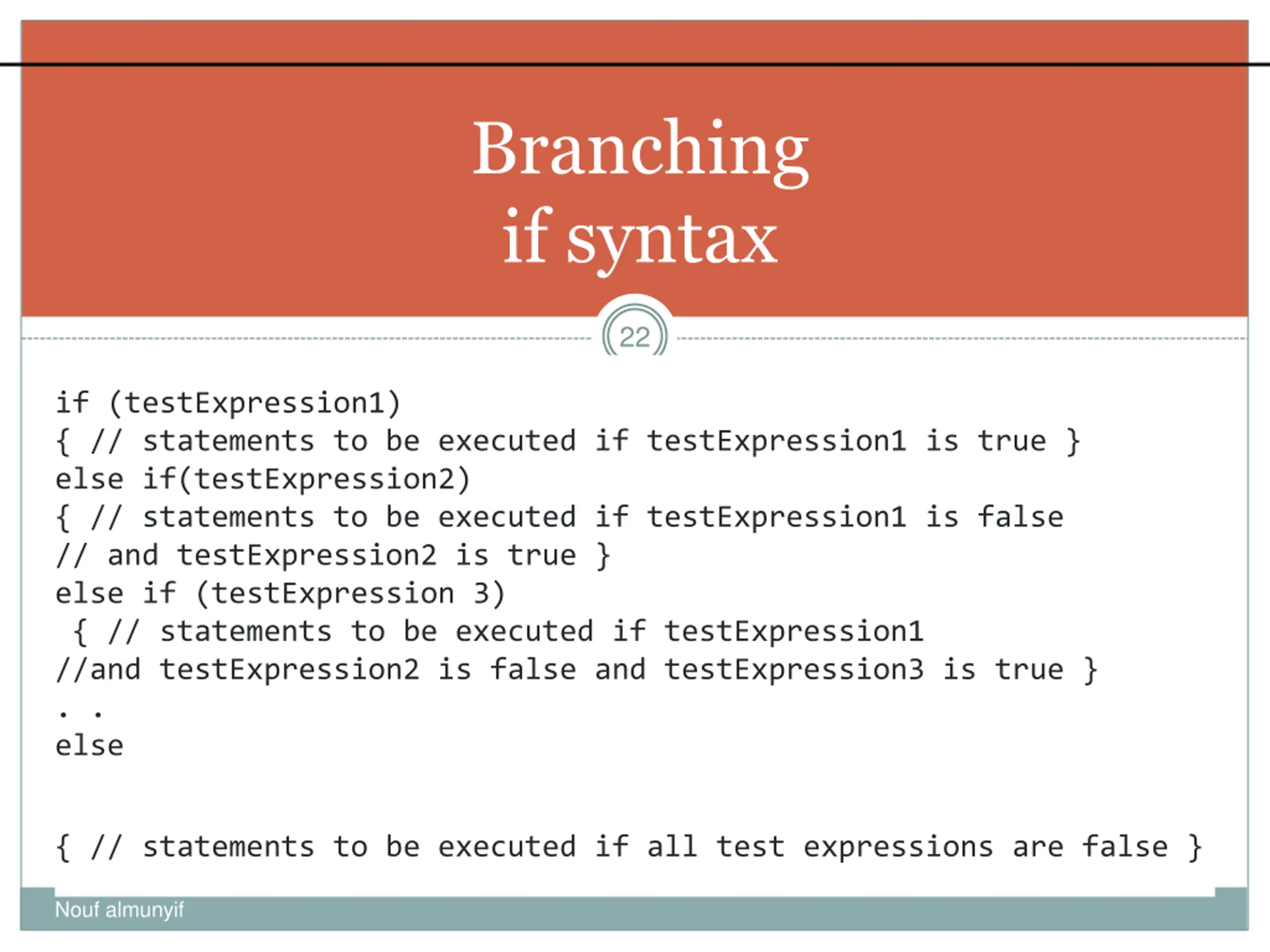

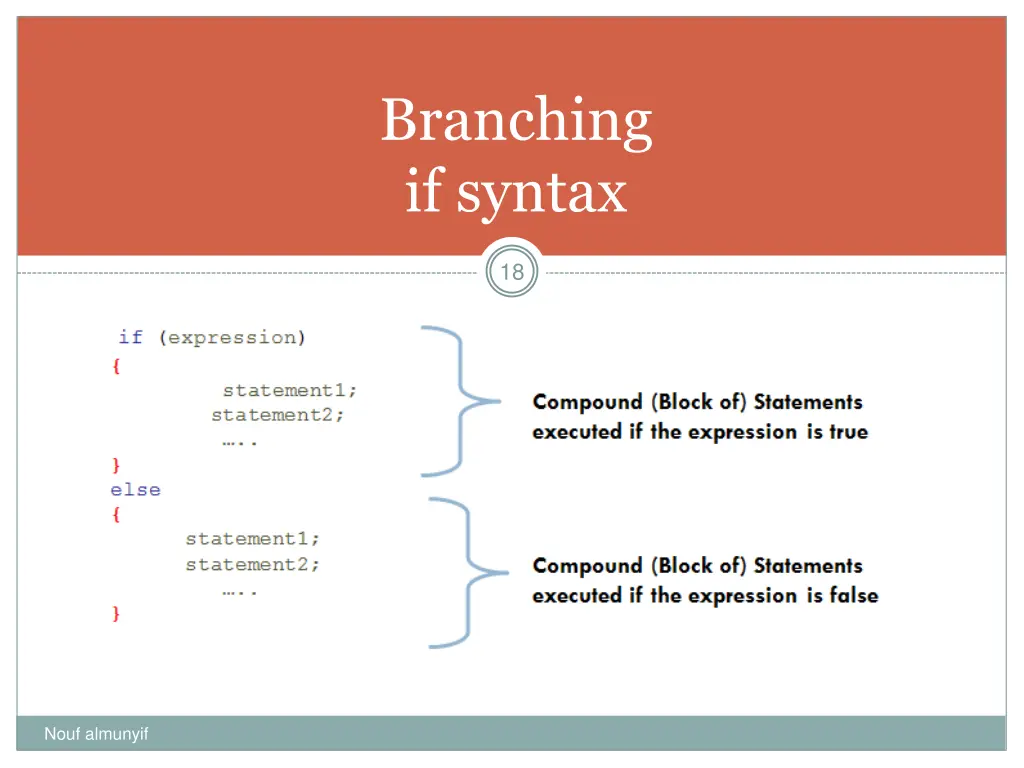

Branching if syntax 22 if (testExpression1) { // statements to be executed if testExpression1 is true } else if(testExpression2) { // statements to be executed if testExpression1 is false // and testExpression2 is true } else if (testExpression 3) { // statements to be executed if testExpression1 //and testExpression2 is false and testExpression3 is true } . . else { // statements to be executed if all test expressions are false } Nouf almunyif

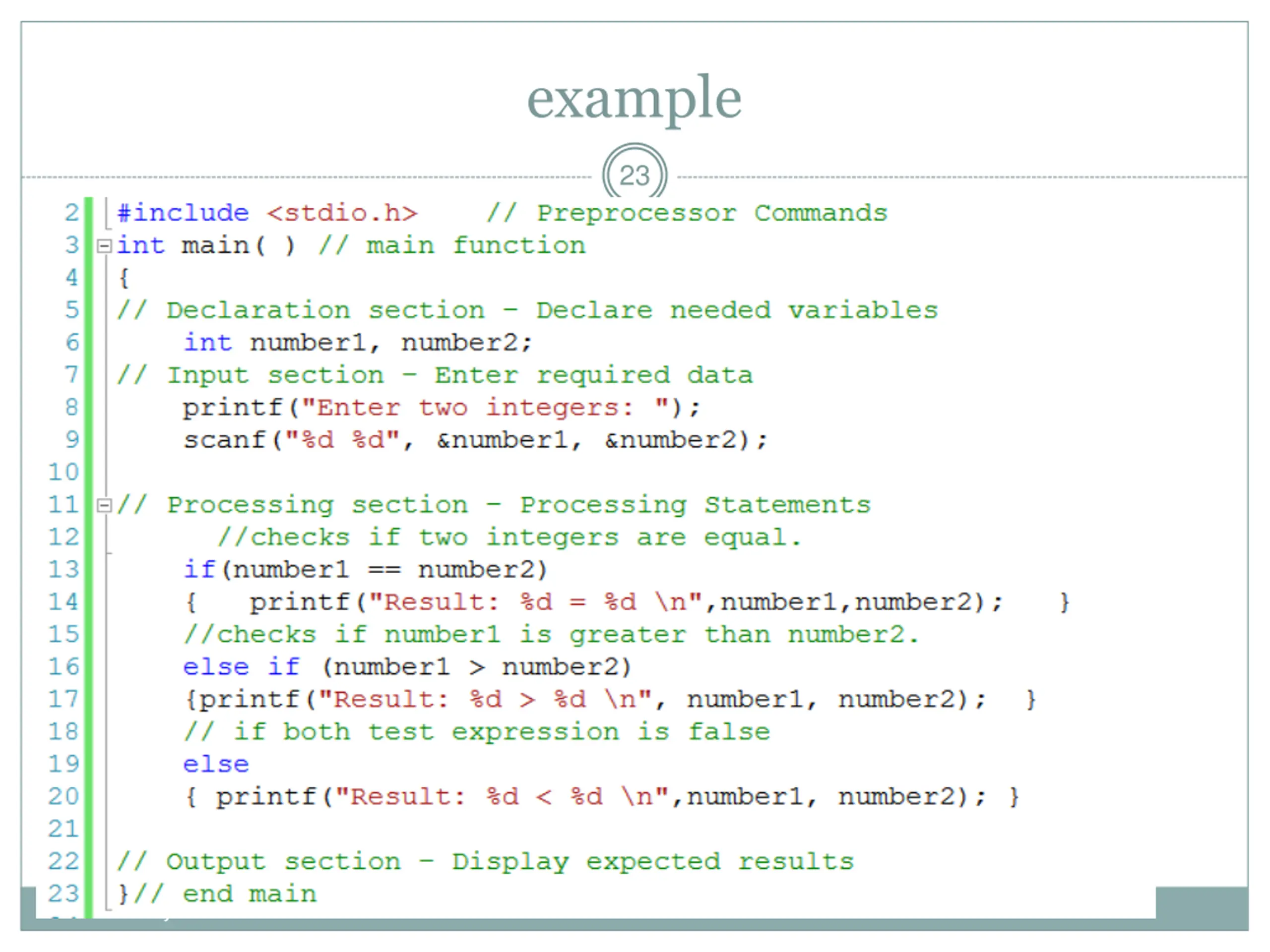

example 23 Nouf almunyif
24 Nouf almunyif

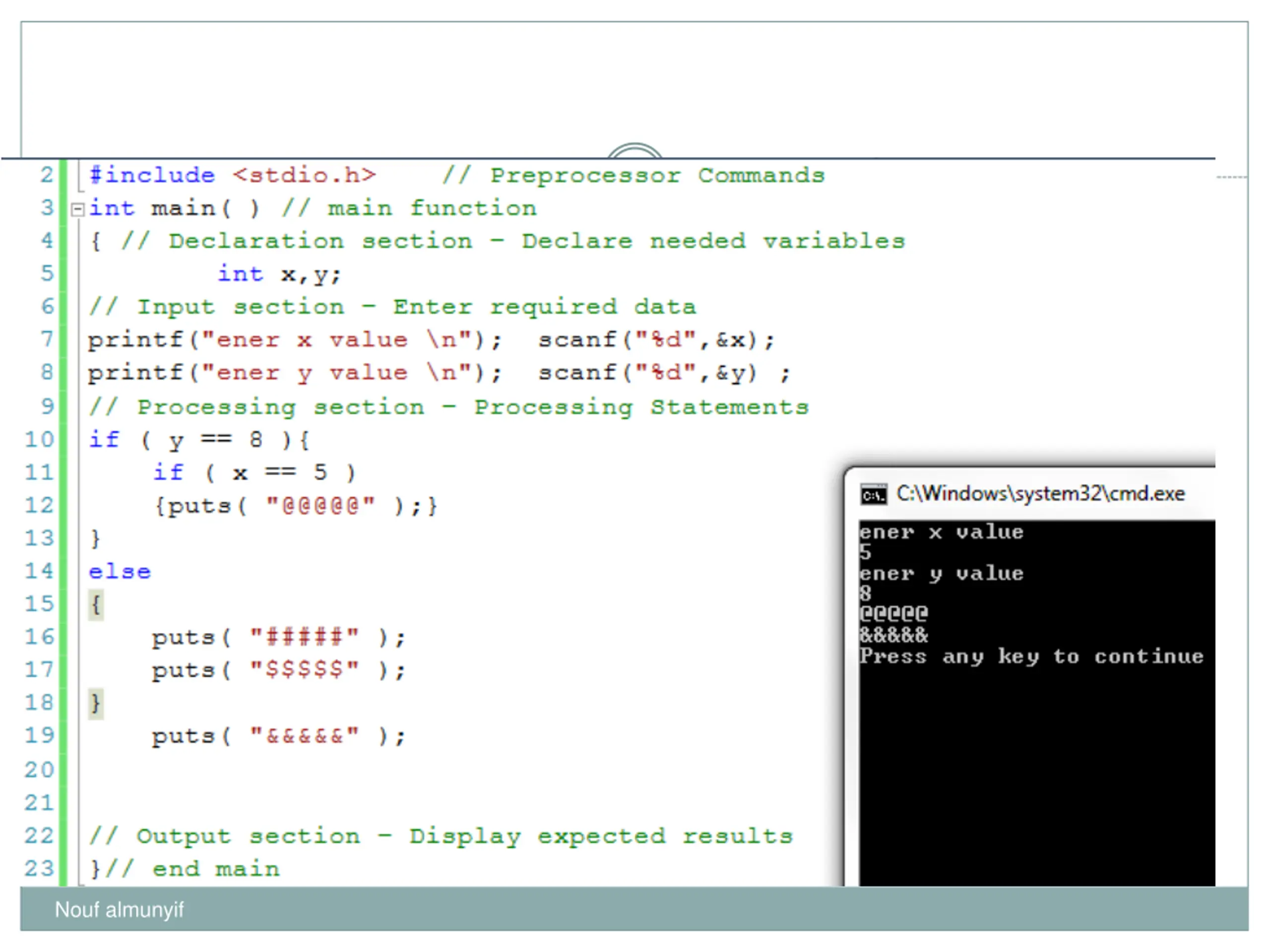

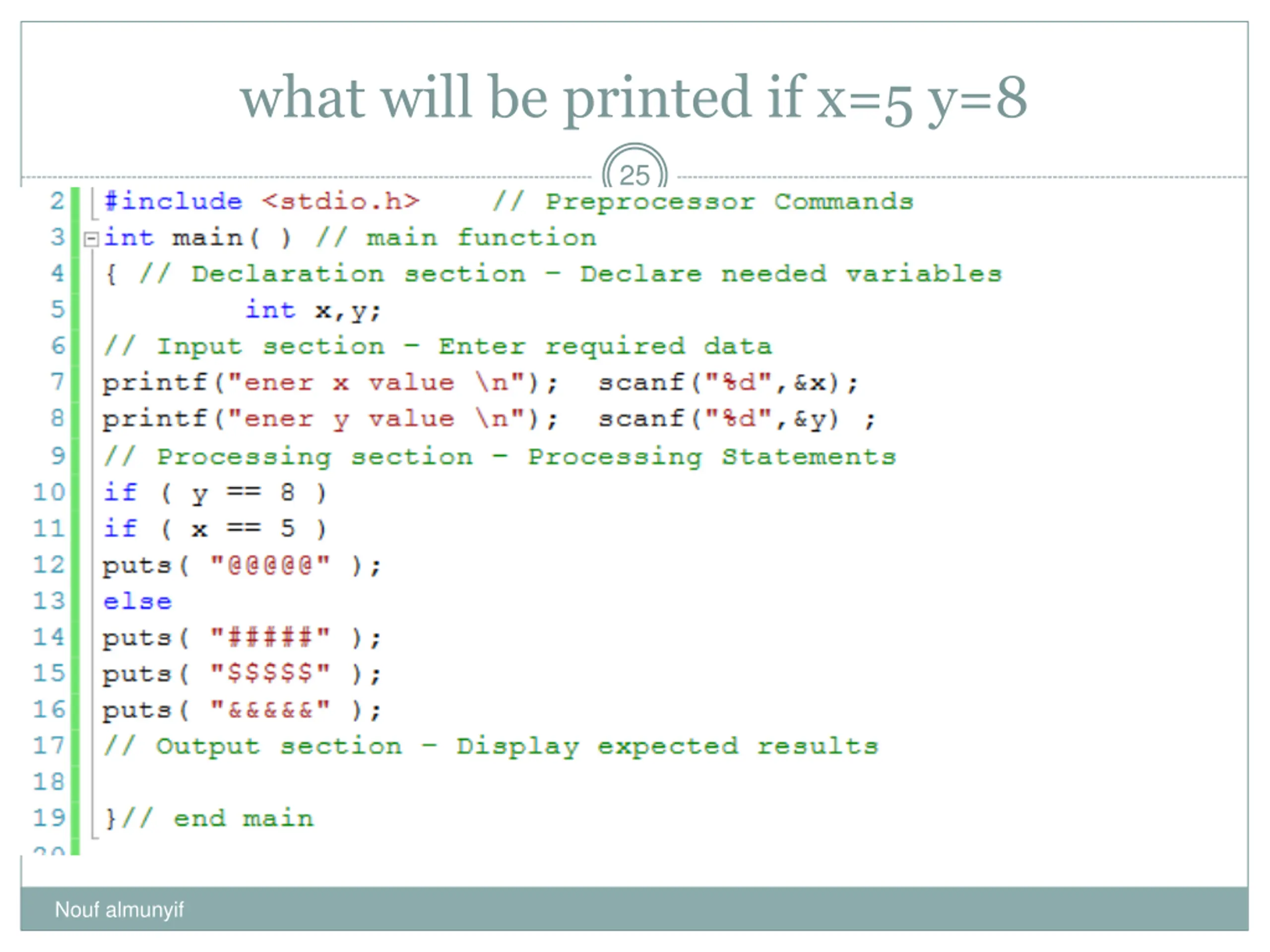

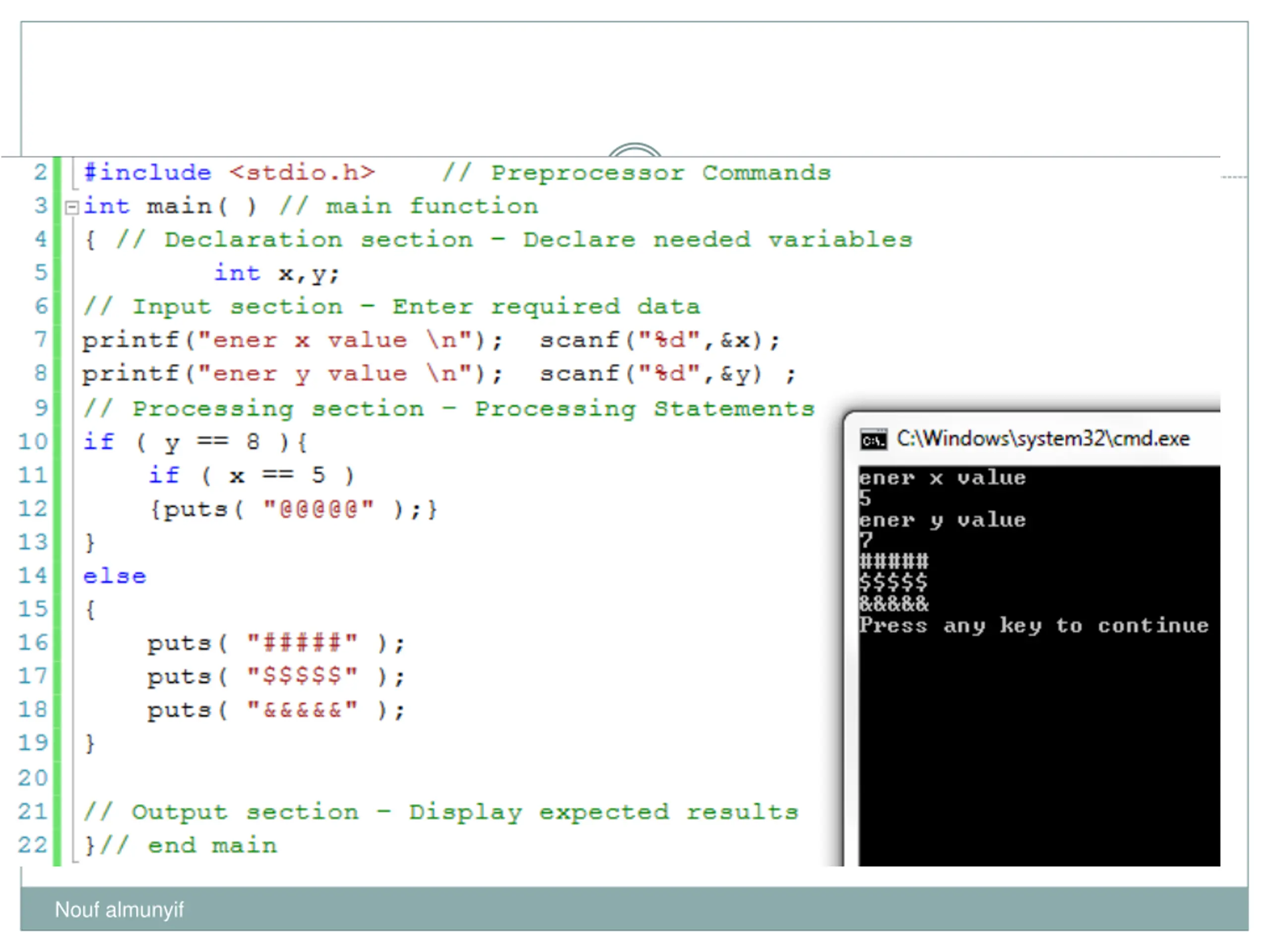

what will be printed if x=5 y=8 25 Nouf almunyif

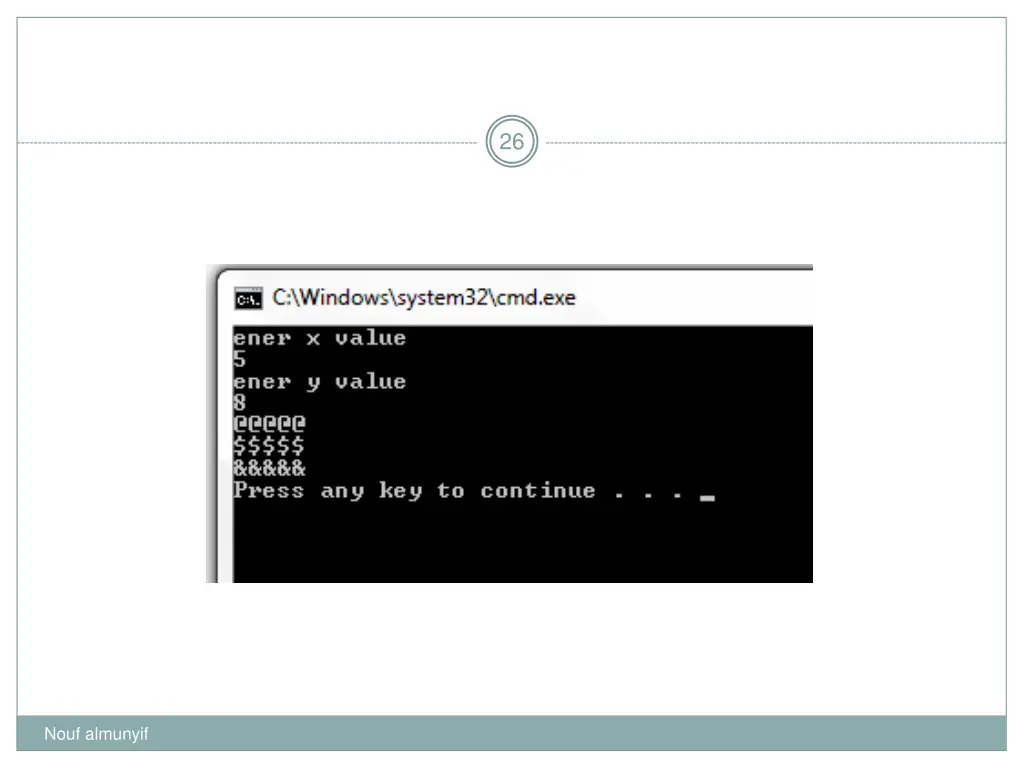

26 Nouf almunyif

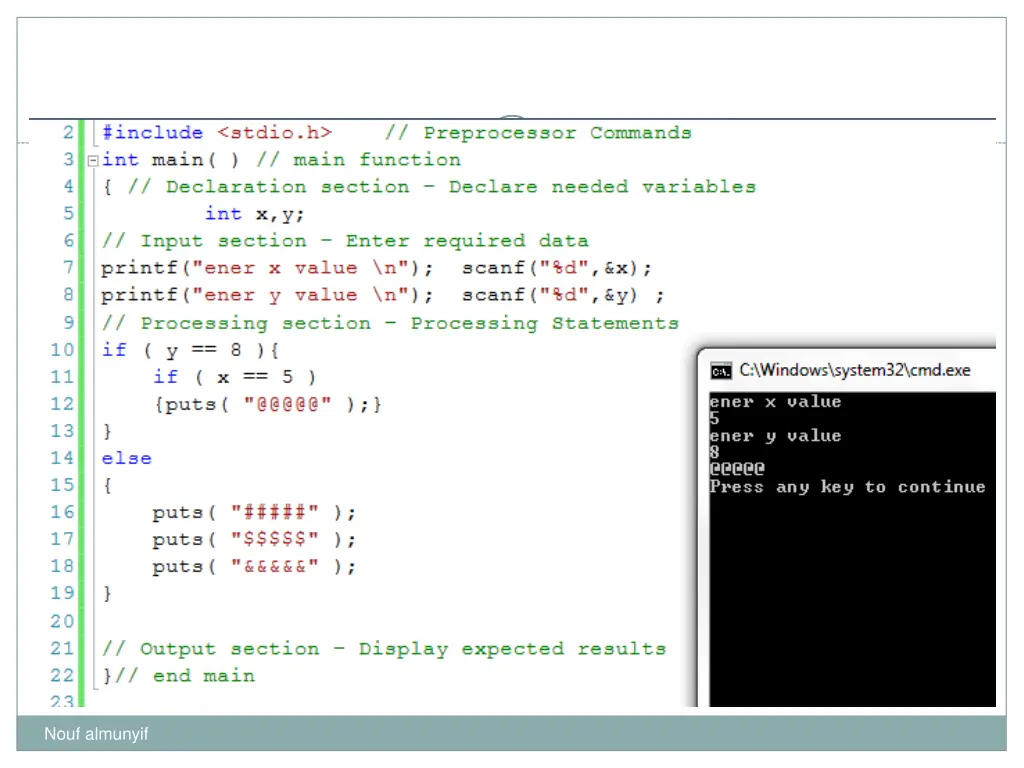

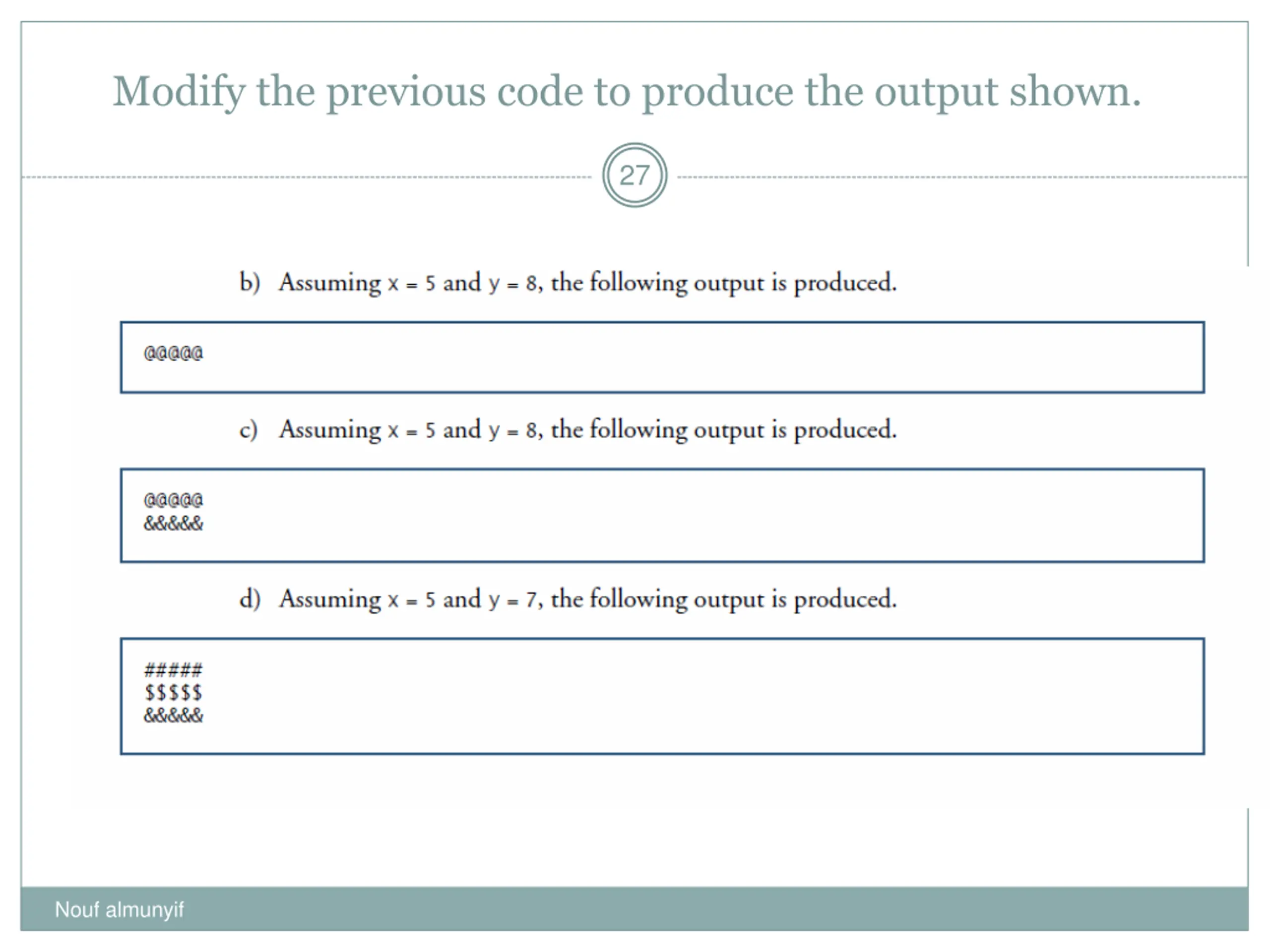

Modify the previous code to produce the output shown. 27 Nouf almunyif
28 Nouf almunyif
29 Nouf almunyif
30 Nouf almunyif

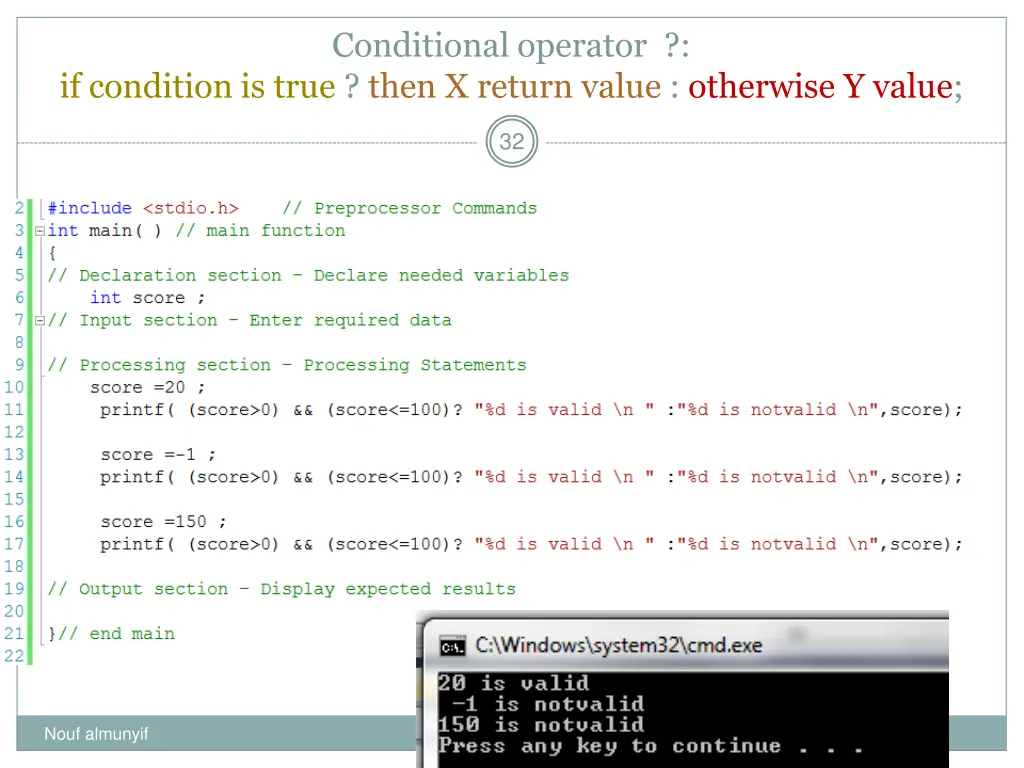

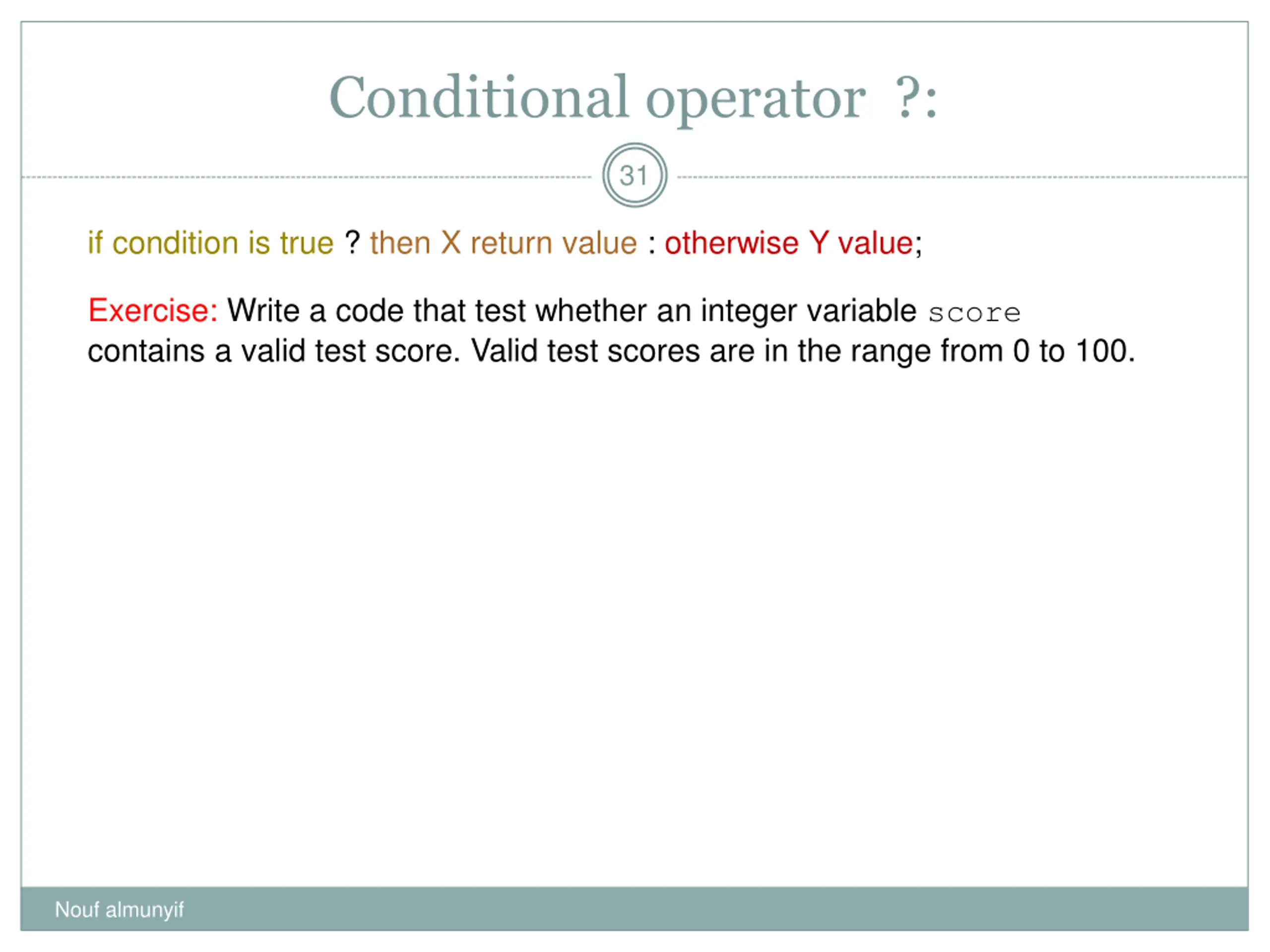

Conditional operator ?: 31 if condition is true ? then X return value : otherwise Y value; Exercise: Write a code that test whether an integer variable score contains a valid test score. Valid test scores are in the range from 0 to 100. Nouf almunyif
Conditional operator ?: if condition is true ? then X return value : otherwise Y value; 32 Nouf almunyif

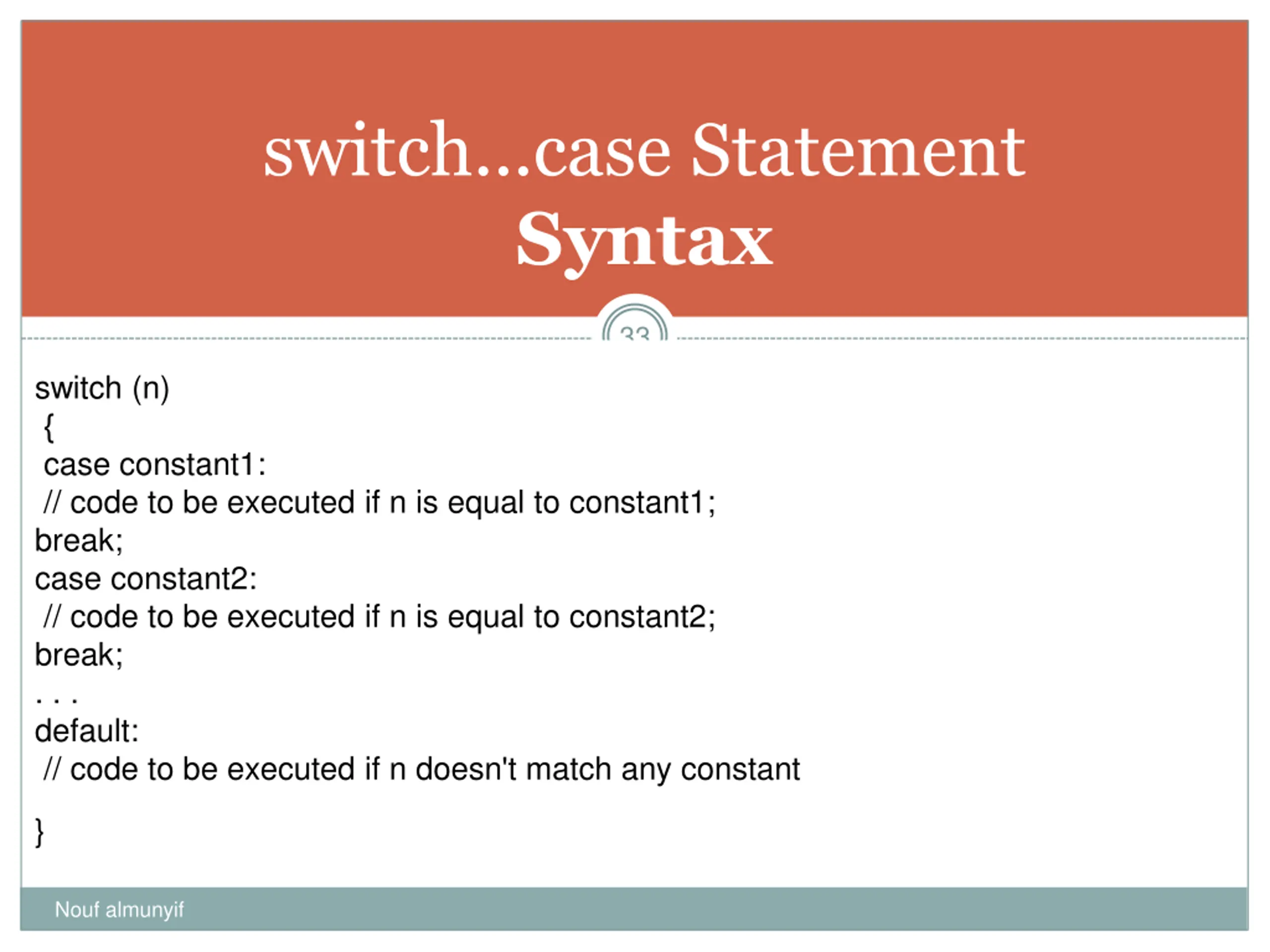

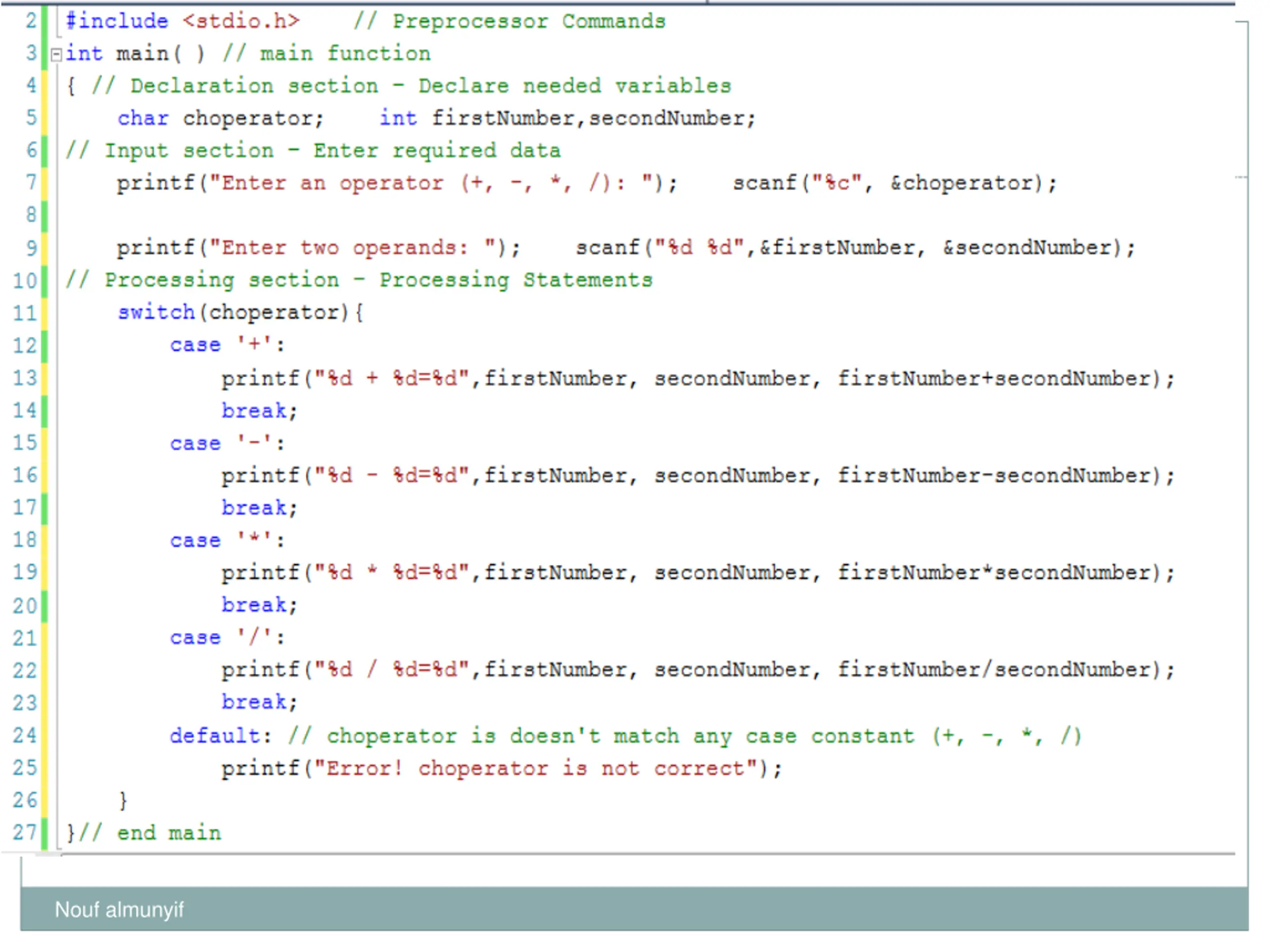

switch...case Statement Syntax 33 switch (n) { case constant1: // code to be executed if n is equal to constant1; break; case constant2: // code to be executed if n is equal to constant2; break; . . . default: // code to be executed if n doesn't match any constant } Nouf almunyif

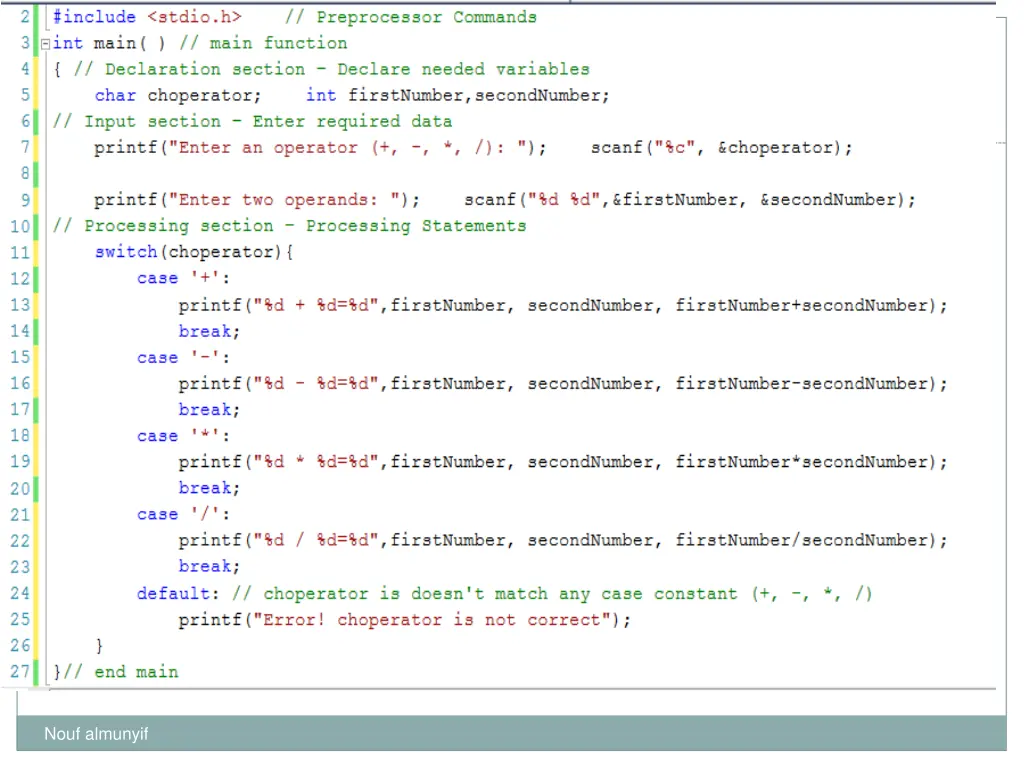

34 Nouf almunyif

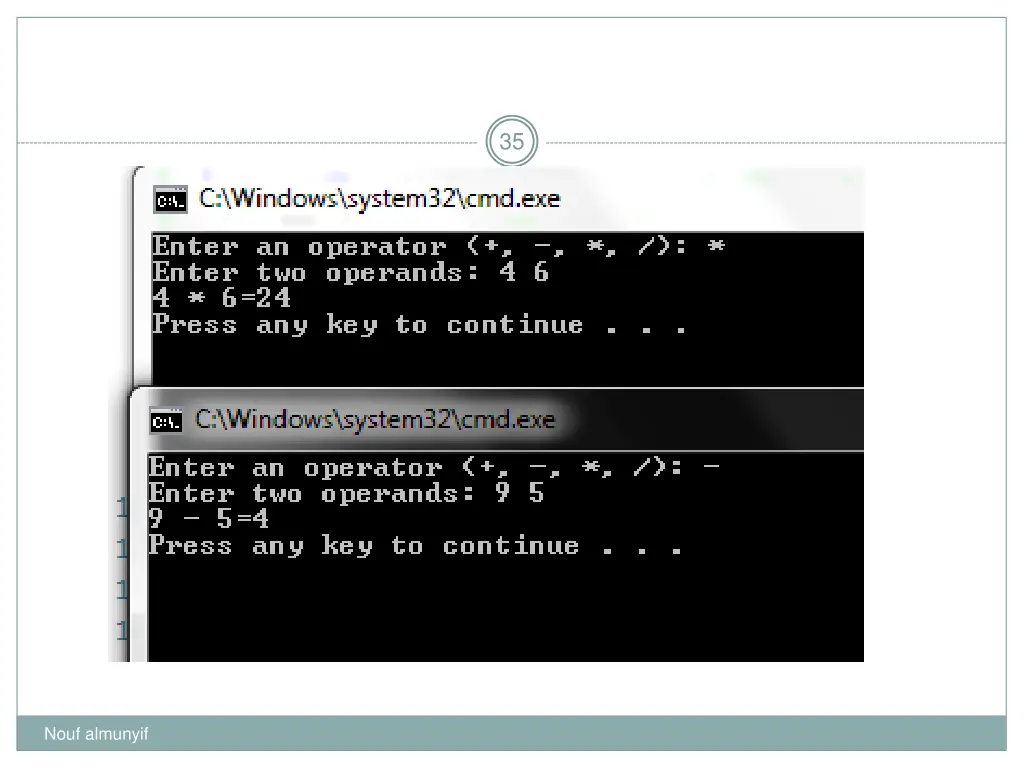

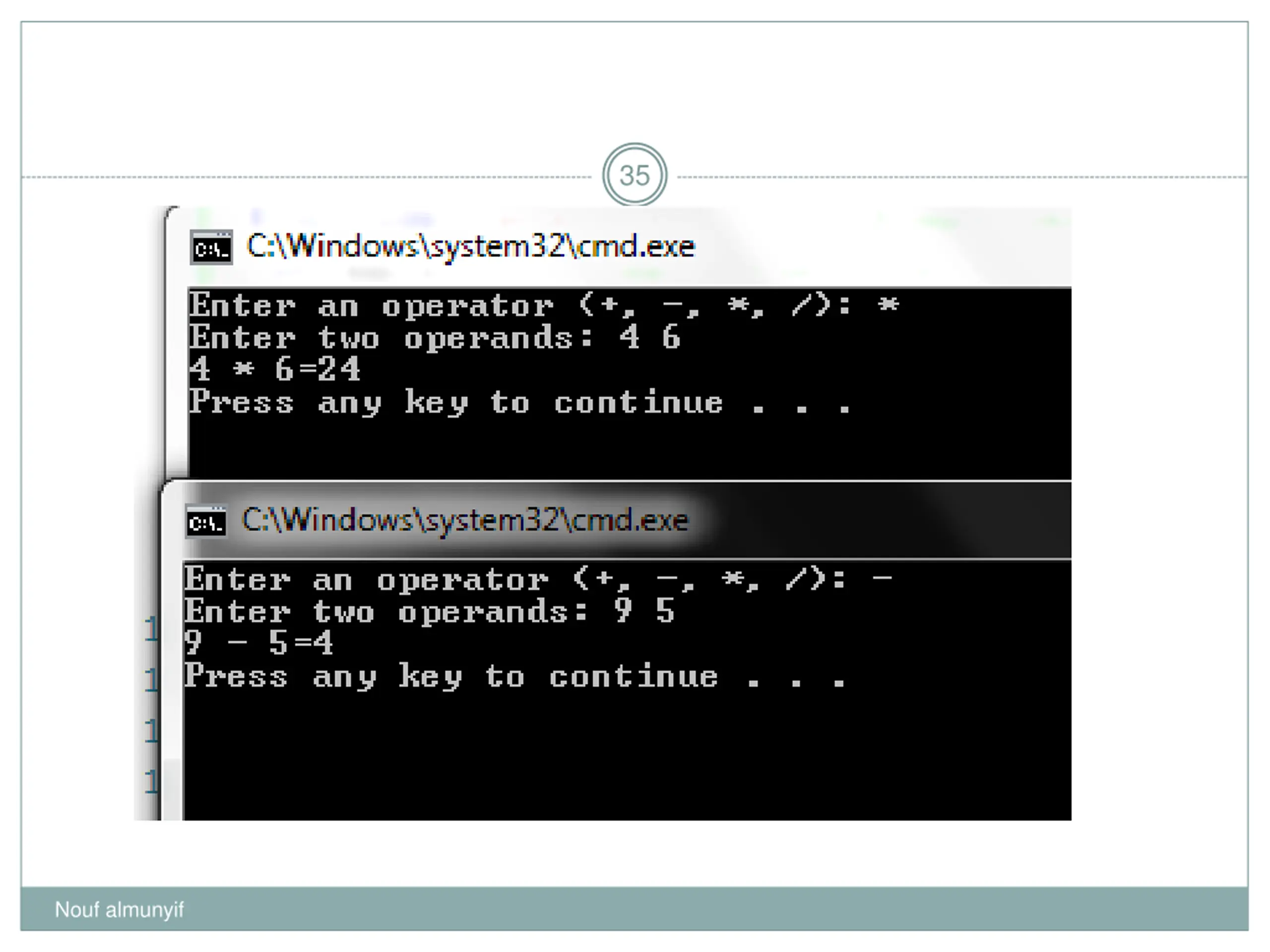

35 Nouf almunyif
