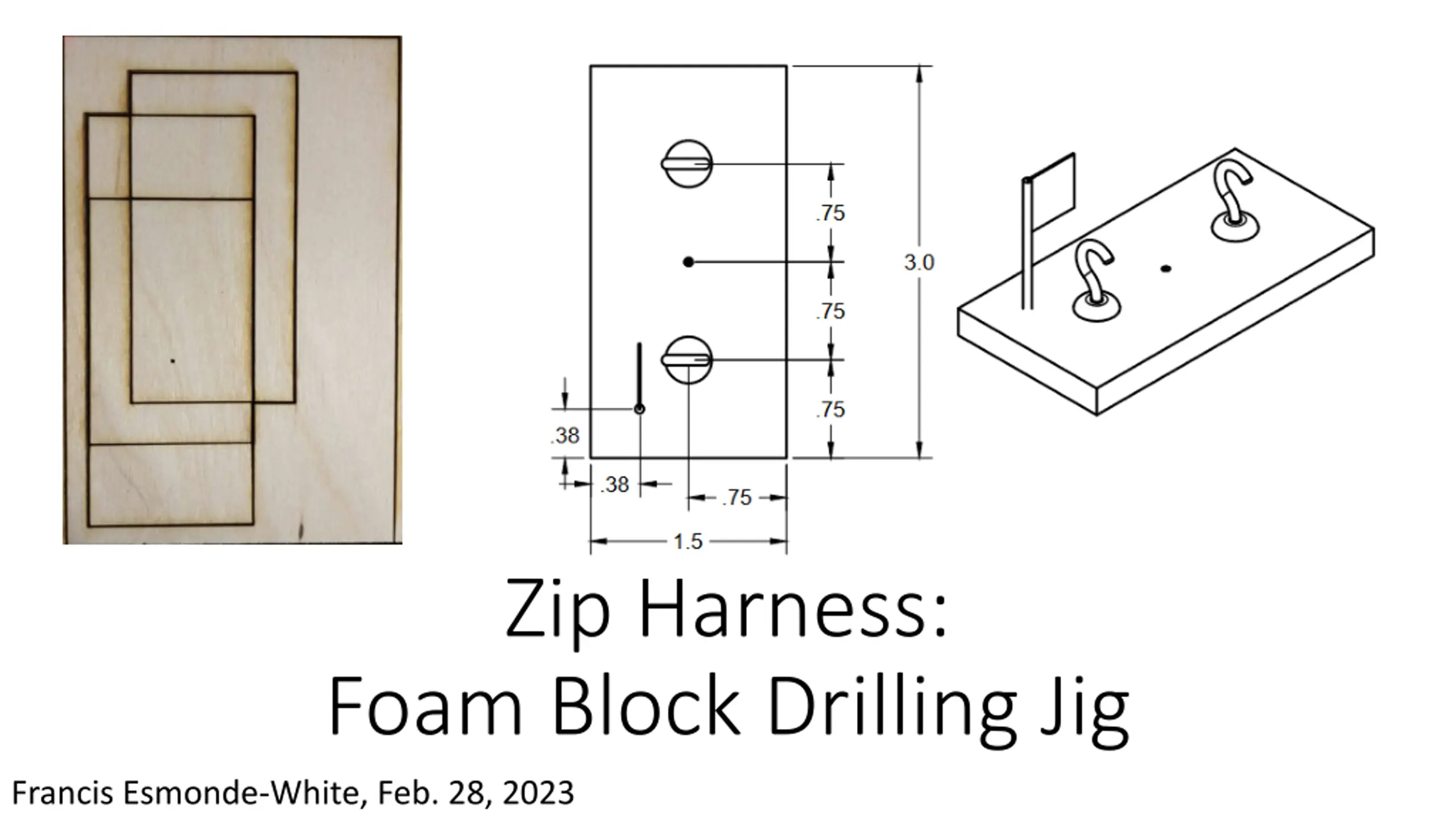

Zip Harness: Foam Block Drilling Jig Francis Esmonde-White, Feb. 28, 2023

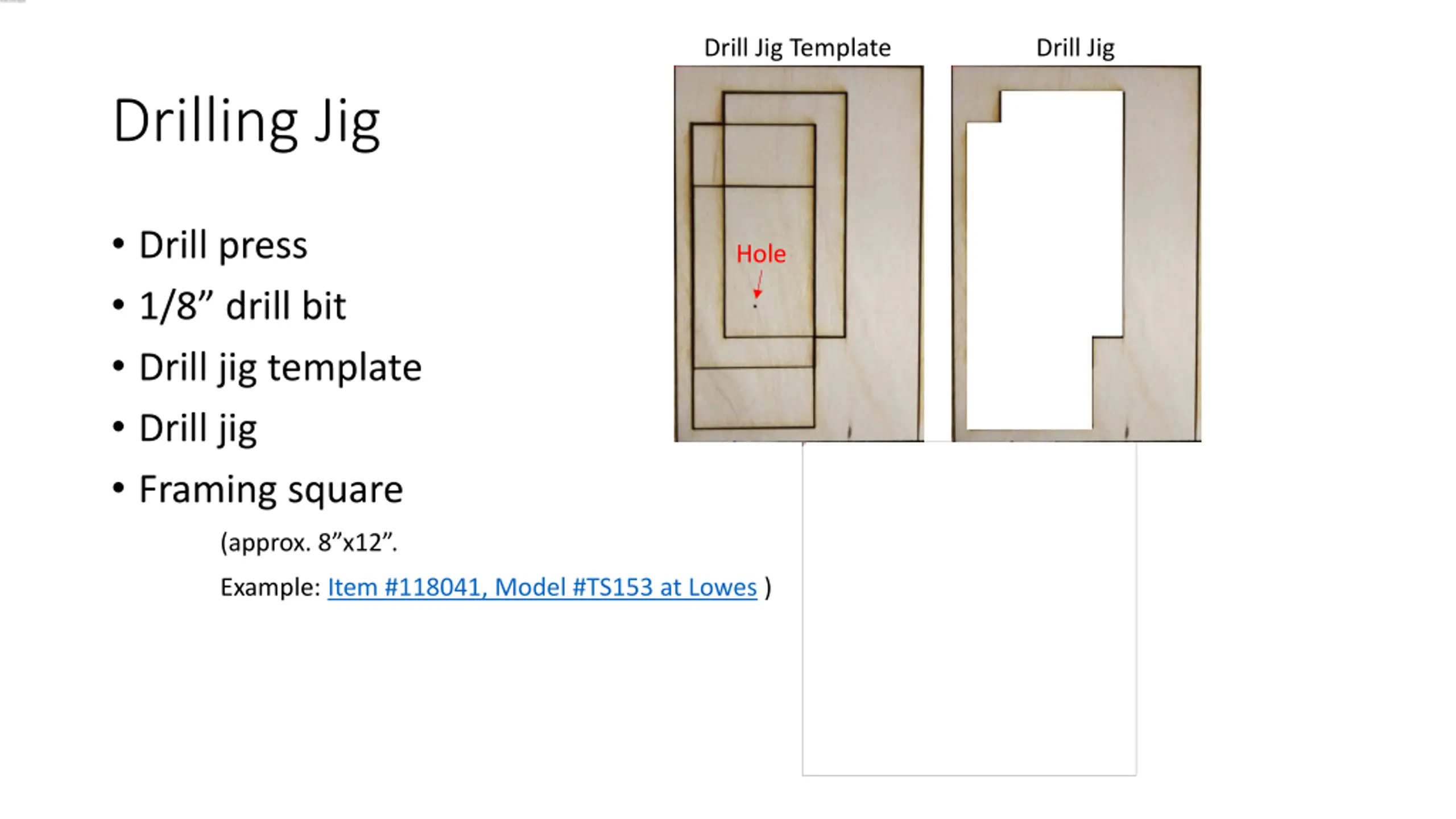

Drill Jig Template Drill Jig Drilling Jig Drill press 1/8 drill bit Drill jig template Drill jig Framing square Hole (approx. 8 x12 . Example: Item #118041, Model #TS153 at Lowes )

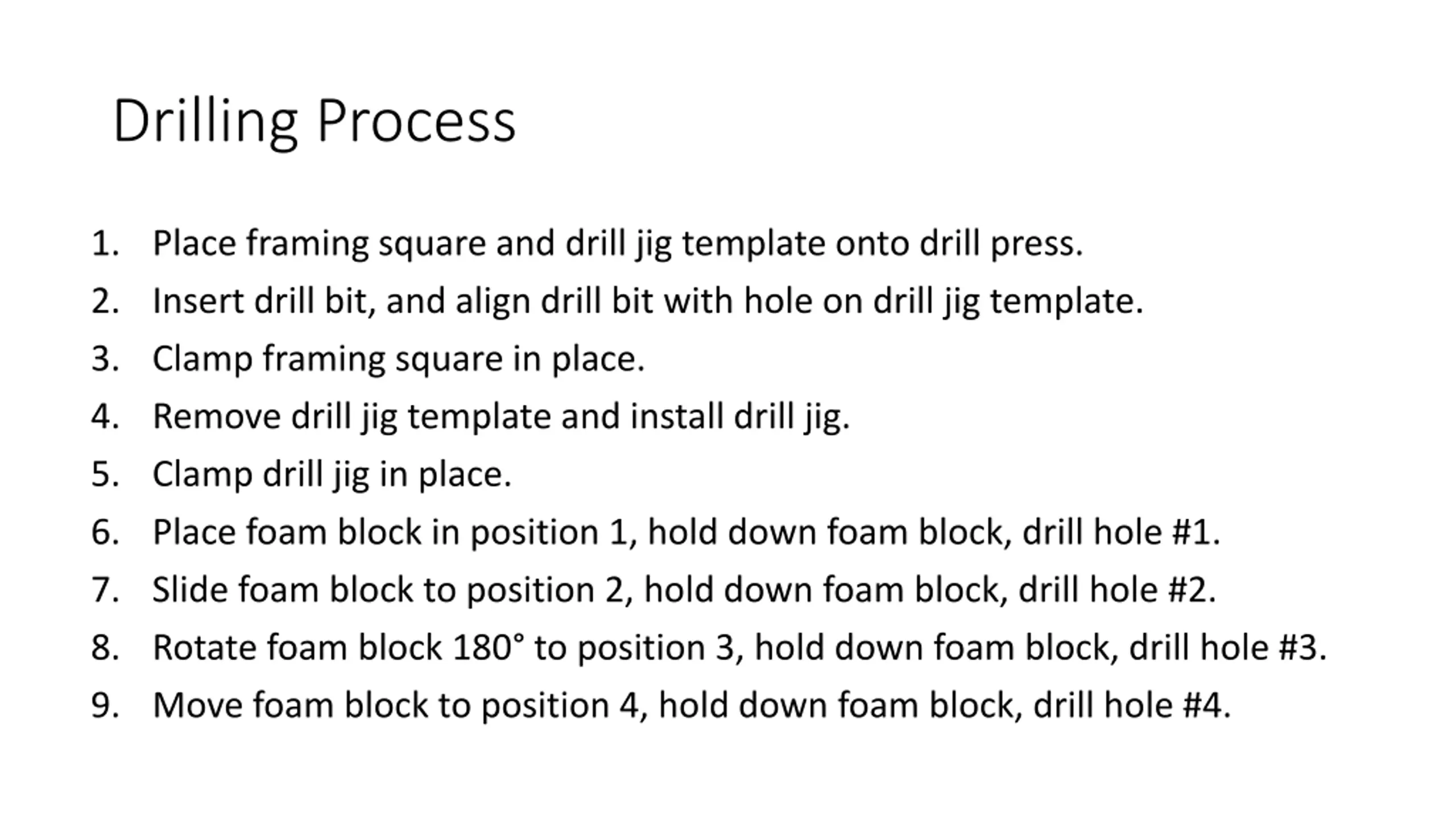

Drilling Process 1. Place framing square and drill jig template onto drill press. 2. Insert drill bit, and align drill bit with hole on drill jig template. 3. Clamp framing square in place. 4. Remove drill jig template and install drill jig. 5. Clamp drill jig in place. 6. Place foam block in position 1, hold down foam block, drill hole #1. 7. Slide foam block to position 2, hold down foam block, drill hole #2. 8. Rotate foam block 180 to position 3, hold down foam block, drill hole #3. 9. Move foam block to position 4, hold down foam block, drill hole #4.

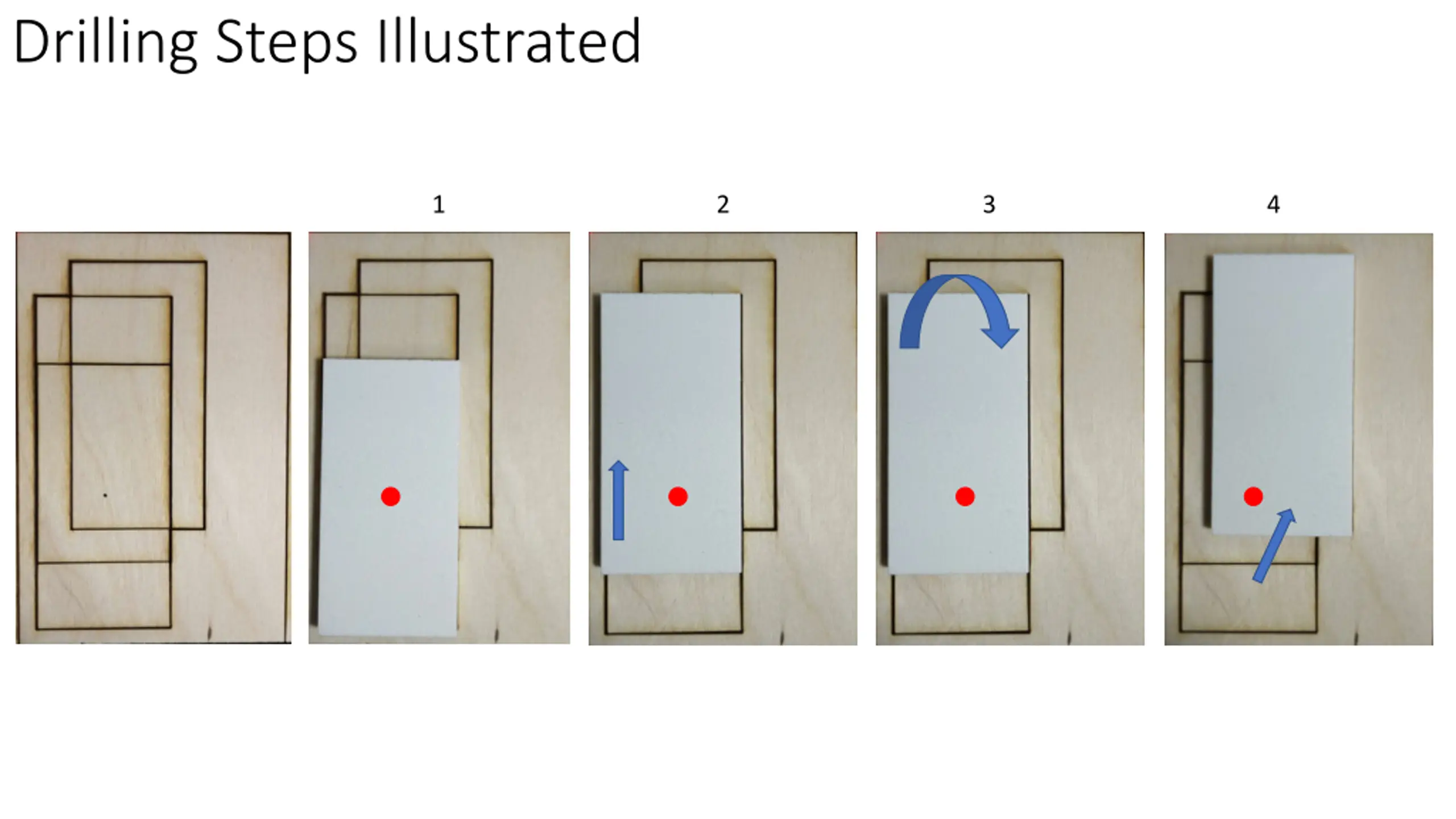

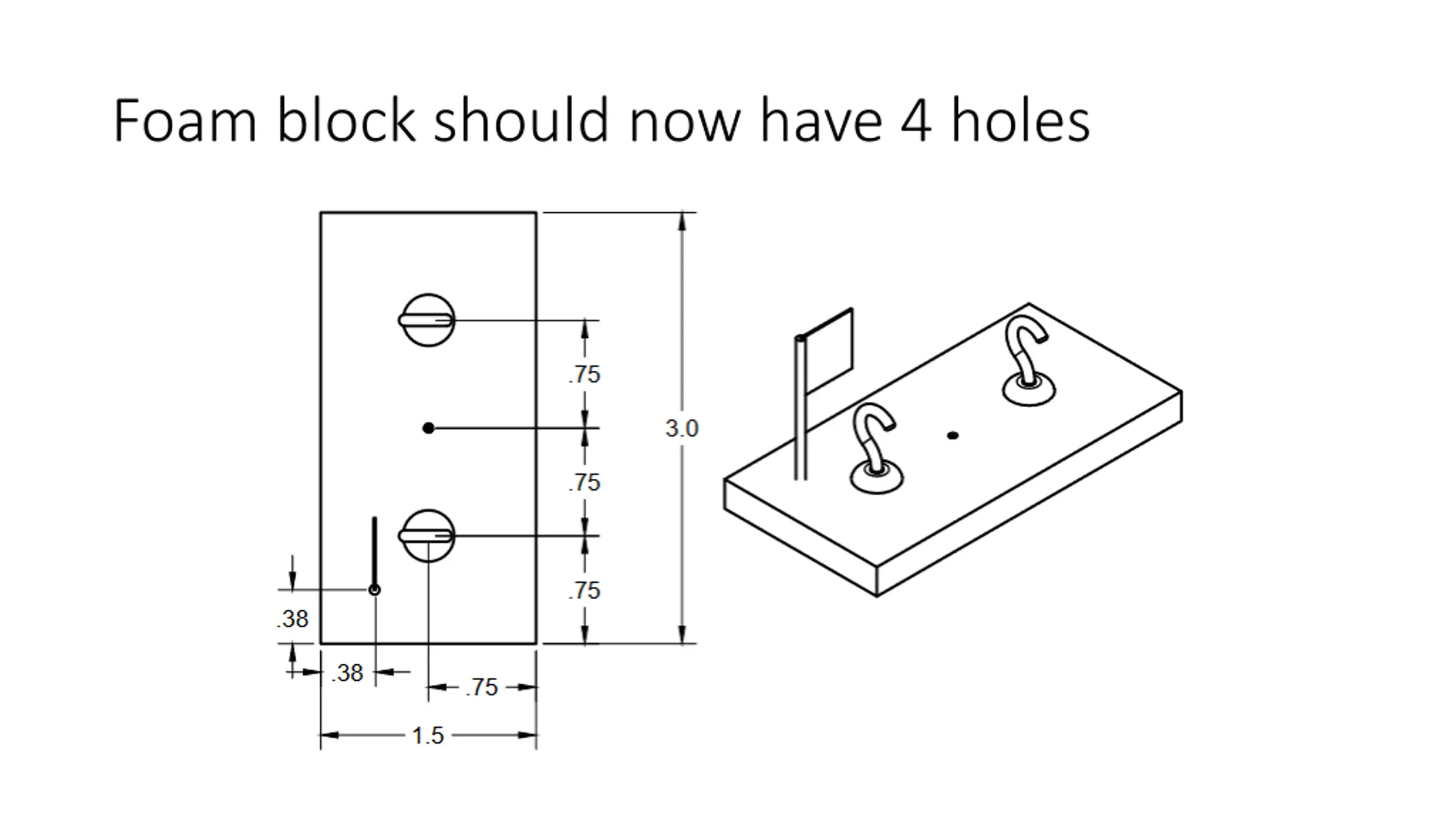

Drilling Steps Illustrated 1 2 3 4
