Forensic Measurements for Nuclear Archaeology - Trawsfynydd revisited Lukas Rademacher, Malte G ttsche

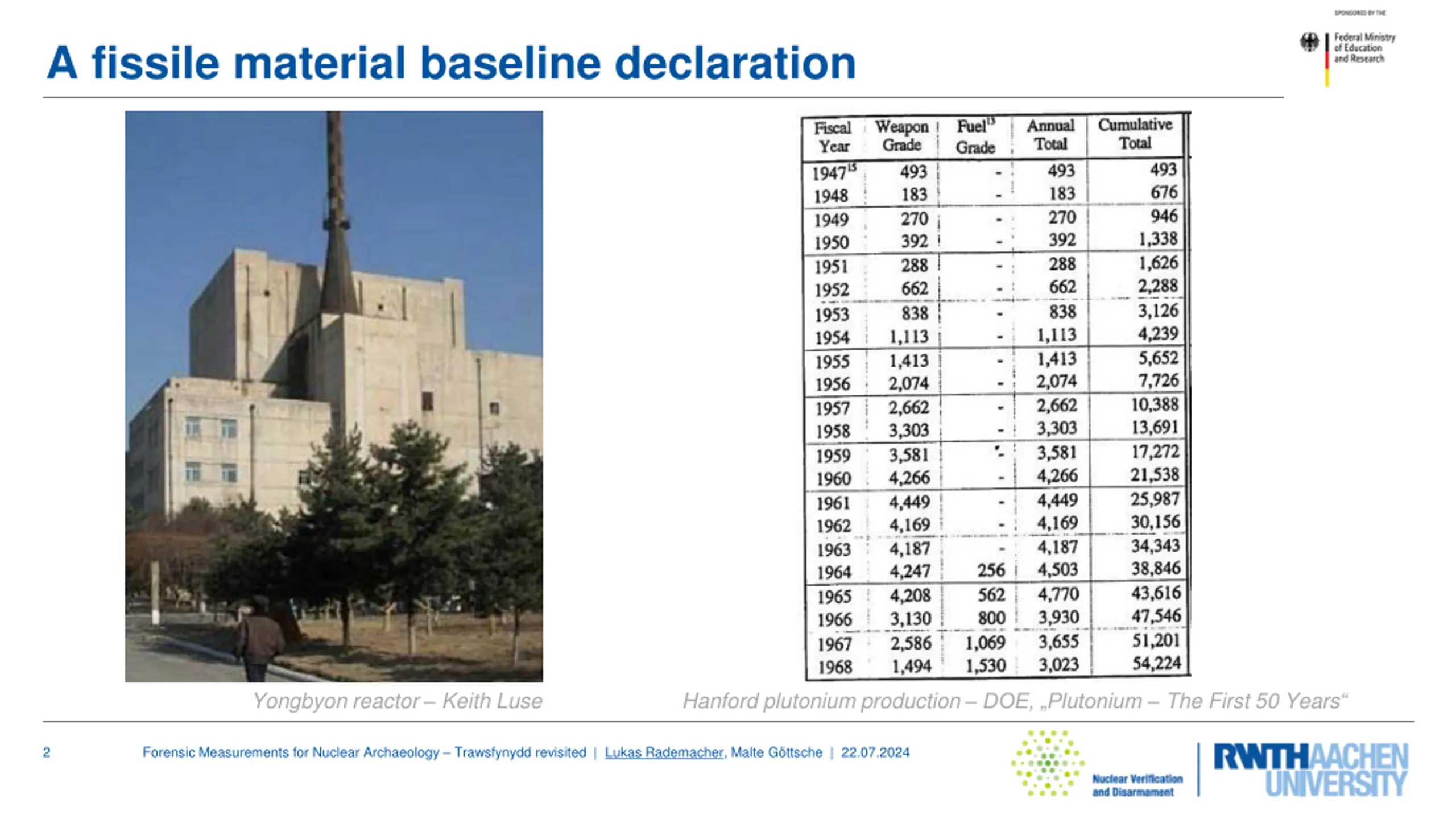

A fissile material baseline declaration Yongbyon reactor Keith Luse Hanford plutonium production DOE, Plutonium The First 50 Years 2 Forensic Measurements for Nuclear Archaeology Trawsfynydd revisited | Lukas Rademacher, Malte G ttsche | 22.07.2024

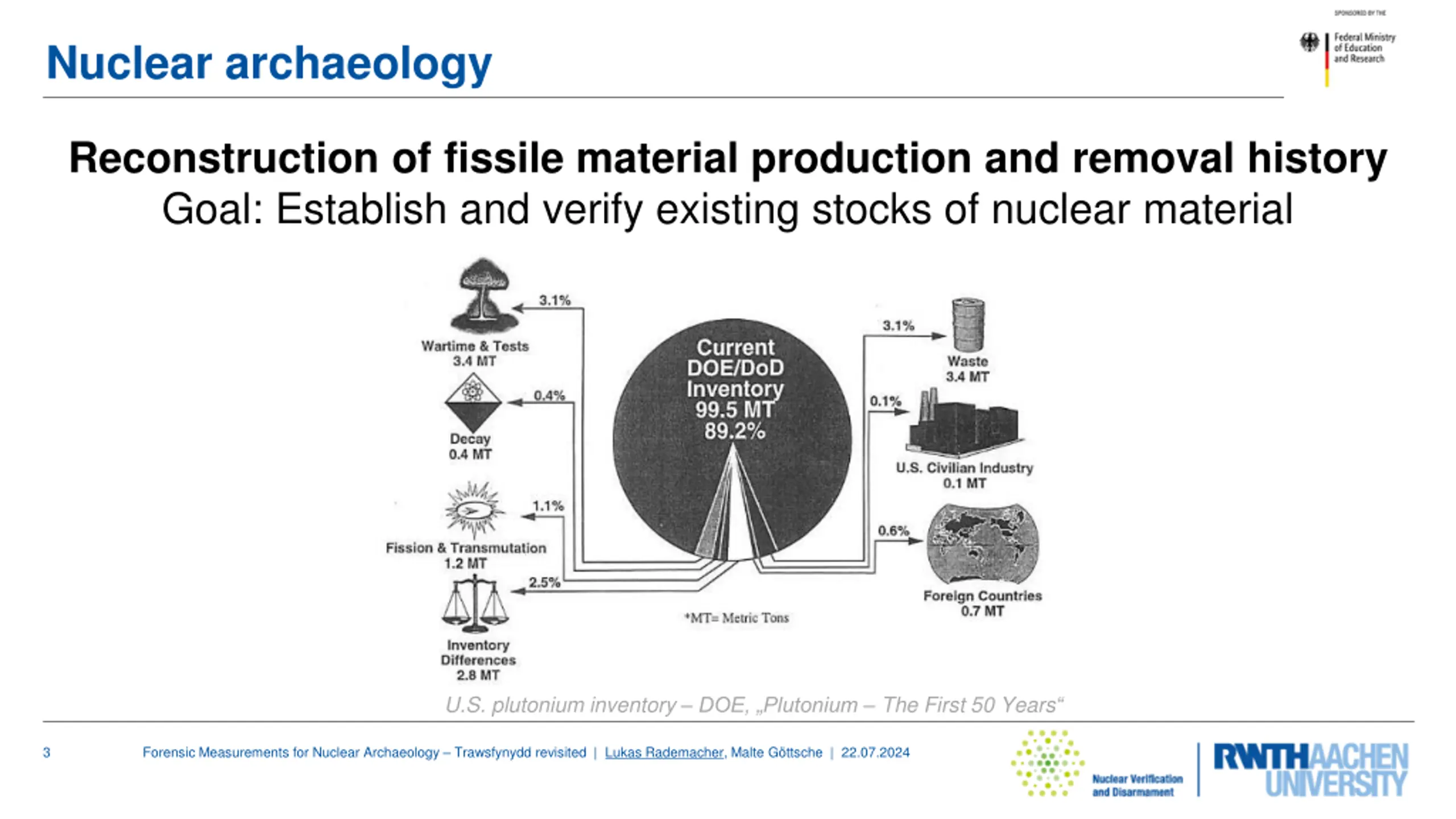

Nuclear archaeology Reconstruction of fissile material production and removal history Goal: Establish and verify existing stocks of nuclear material U.S. plutonium inventory DOE, Plutonium The First 50 Years 3 Forensic Measurements for Nuclear Archaeology Trawsfynydd revisited | Lukas Rademacher, Malte G ttsche | 22.07.2024

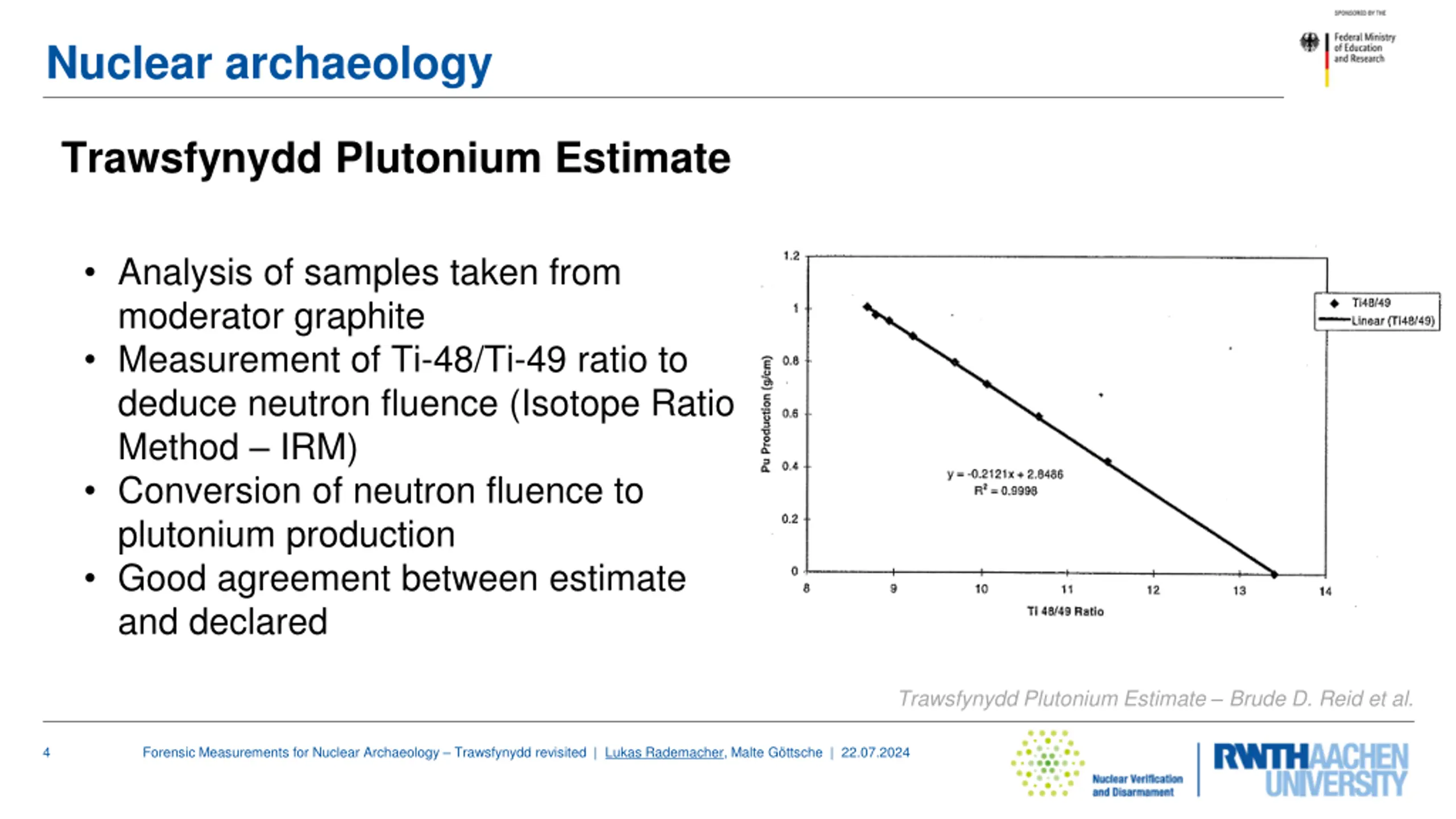

Nuclear archaeology Trawsfynydd Plutonium Estimate Analysis of samples taken from moderator graphite Measurement of Ti-48/Ti-49 ratio to deduce neutron fluence (Isotope Ratio Method IRM) Conversion of neutron fluence to plutonium production Good agreement between estimate and declared Trawsfynydd Plutonium Estimate Brude D. Reid et al. 4 Forensic Measurements for Nuclear Archaeology Trawsfynydd revisited | Lukas Rademacher, Malte G ttsche | 22.07.2024

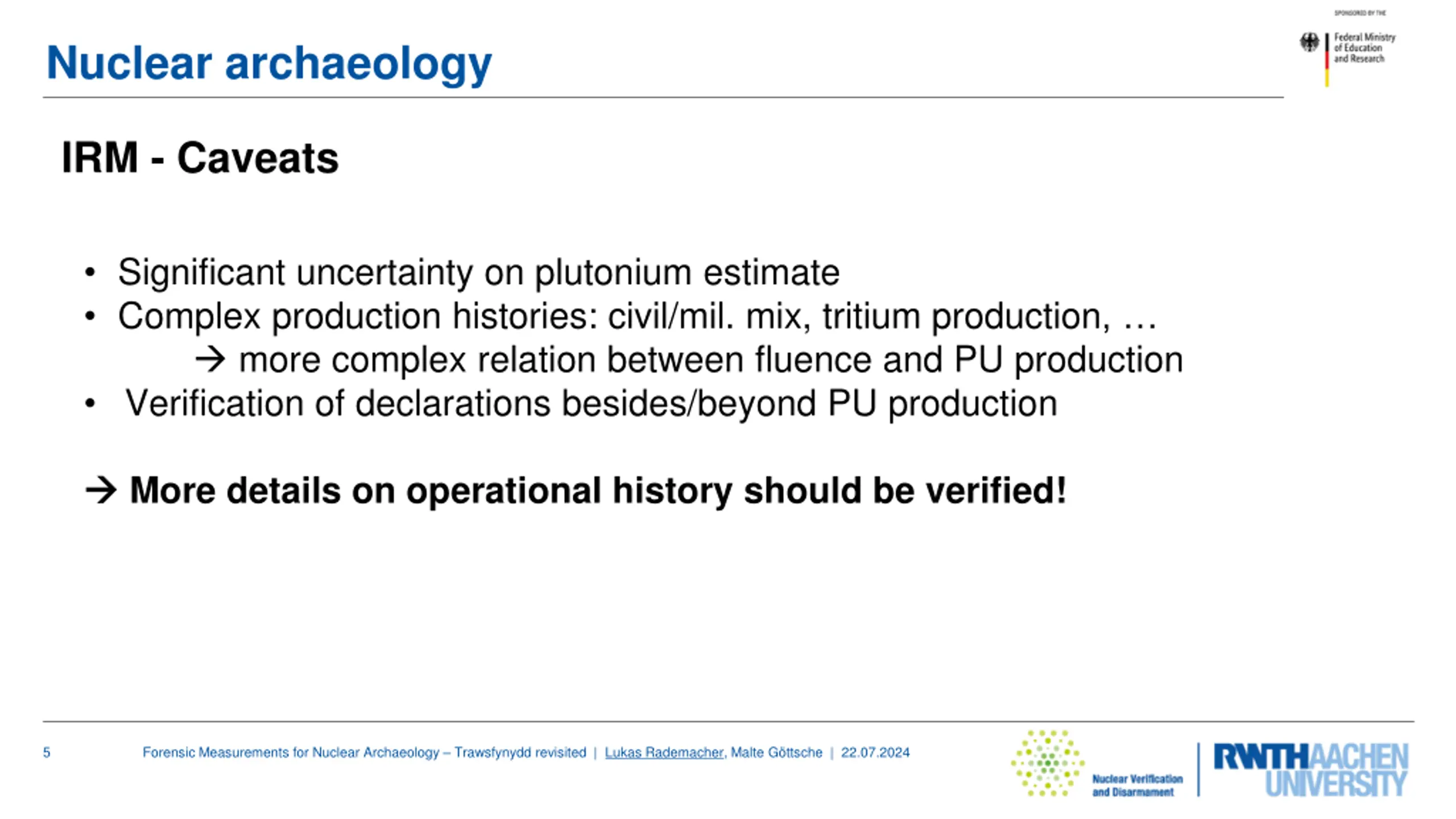

Nuclear archaeology IRM - Caveats Significant uncertainty on plutonium estimate Complex production histories: civil/mil. mix, tritium production, more complex relation between fluence and PU production Verification of declarations besides/beyond PU production More details on operational history should be verified! 5 Forensic Measurements for Nuclear Archaeology Trawsfynydd revisited | Lukas Rademacher, Malte G ttsche | 22.07.2024

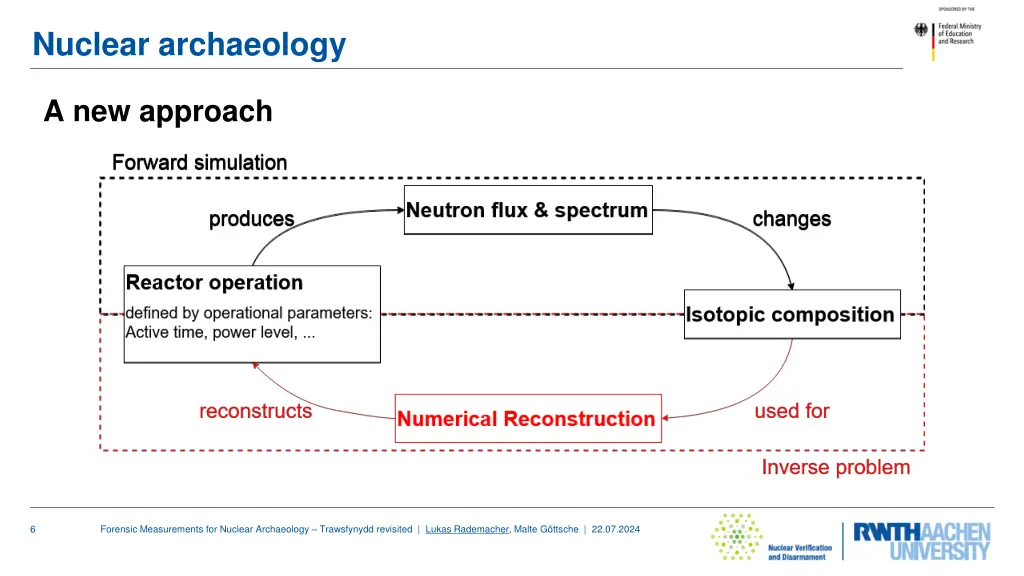

Nuclear archaeology A new approach 6 Forensic Measurements for Nuclear Archaeology Trawsfynydd revisited | Lukas Rademacher, Malte G ttsche | 22.07.2024

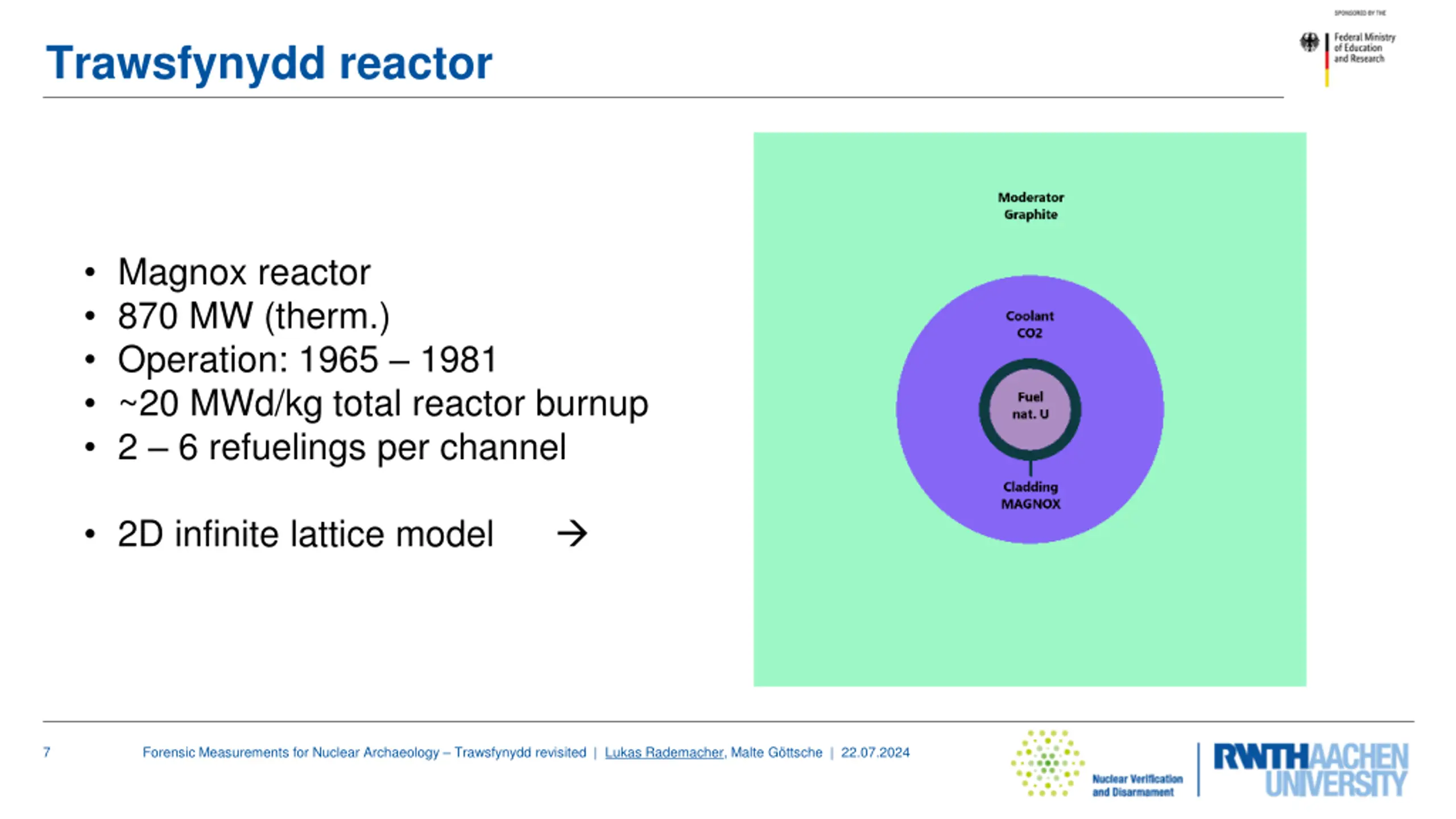

Trawsfynydd reactor Magnox reactor 870 MW (therm.) Operation: 1965 1981 ~20 MWd/kg total reactor burnup 2 6 refuelings per channel 2D infinite lattice model 7 Forensic Measurements for Nuclear Archaeology Trawsfynydd revisited | Lukas Rademacher, Malte G ttsche | 22.07.2024

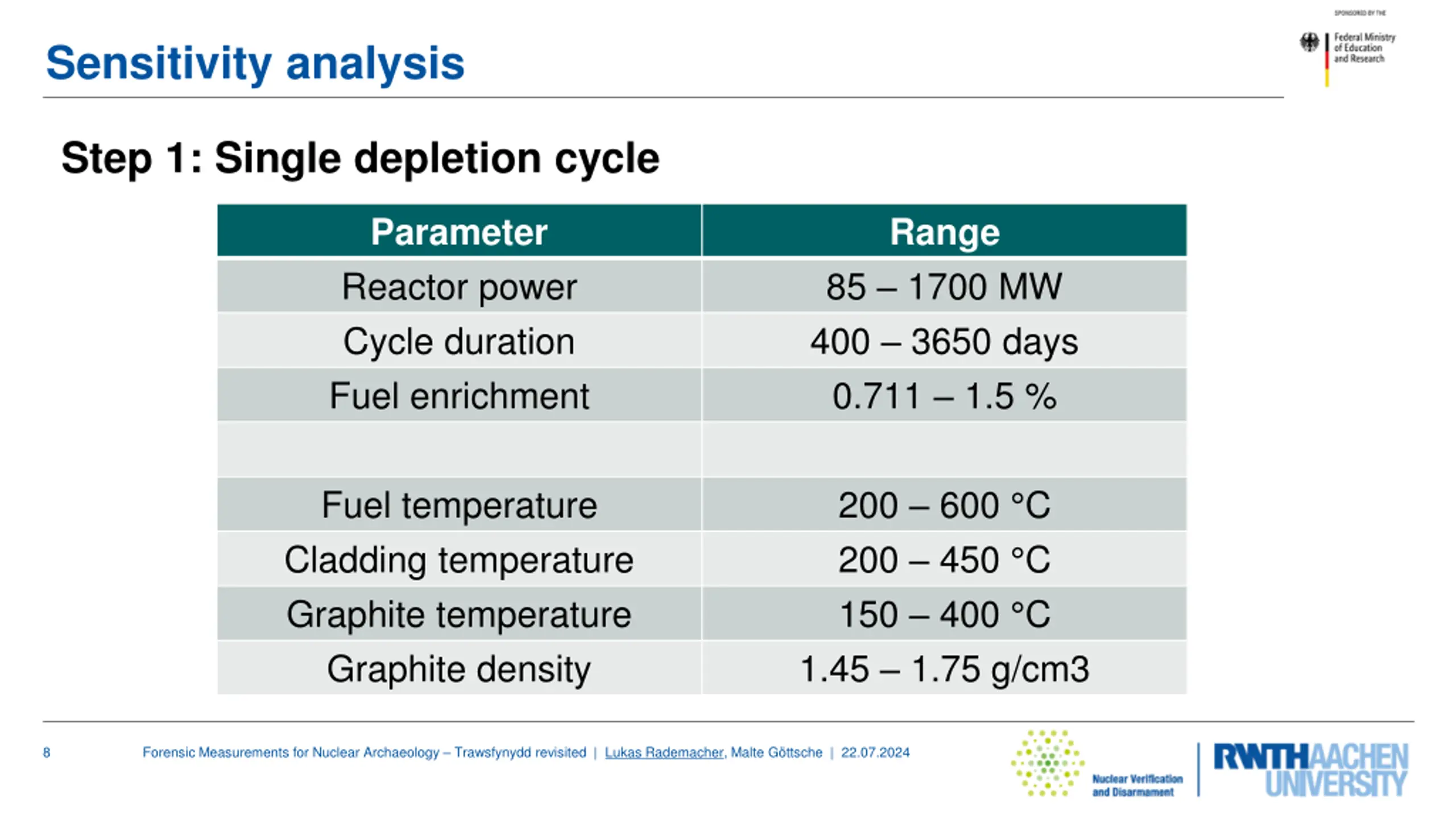

Sensitivity analysis Step 1: Single depletion cycle Parameter Reactor power Cycle duration Fuel enrichment Range 85 1700 MW 400 3650 days 0.711 1.5 % Fuel temperature Cladding temperature Graphite temperature Graphite density 200 600 C 200 450 C 150 400 C 1.45 1.75 g/cm3 8 Forensic Measurements for Nuclear Archaeology Trawsfynydd revisited | Lukas Rademacher, Malte G ttsche | 22.07.2024
Sensitivity analysis 9 Forensic Measurements for Nuclear Archaeology Trawsfynydd revisited | Lukas Rademacher, Malte G ttsche | 22.07.2024

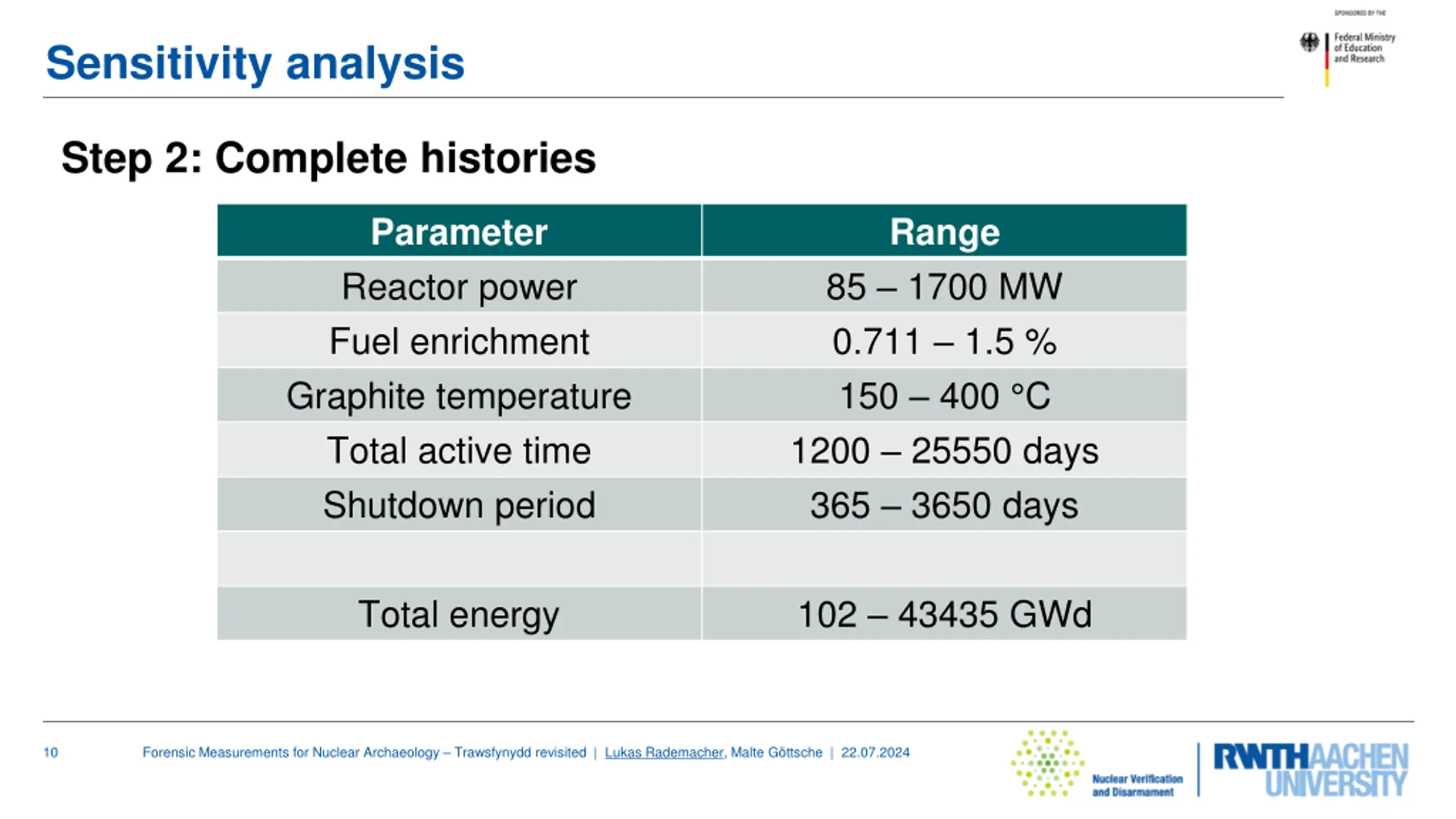

Sensitivity analysis Step 2: Complete histories Parameter Reactor power Fuel enrichment Graphite temperature Total active time Shutdown period Range 85 1700 MW 0.711 1.5 % 150 400 C 1200 25550 days 365 3650 days Total energy 102 43435 GWd 10 Forensic Measurements for Nuclear Archaeology Trawsfynydd revisited | Lukas Rademacher, Malte G ttsche | 22.07.2024

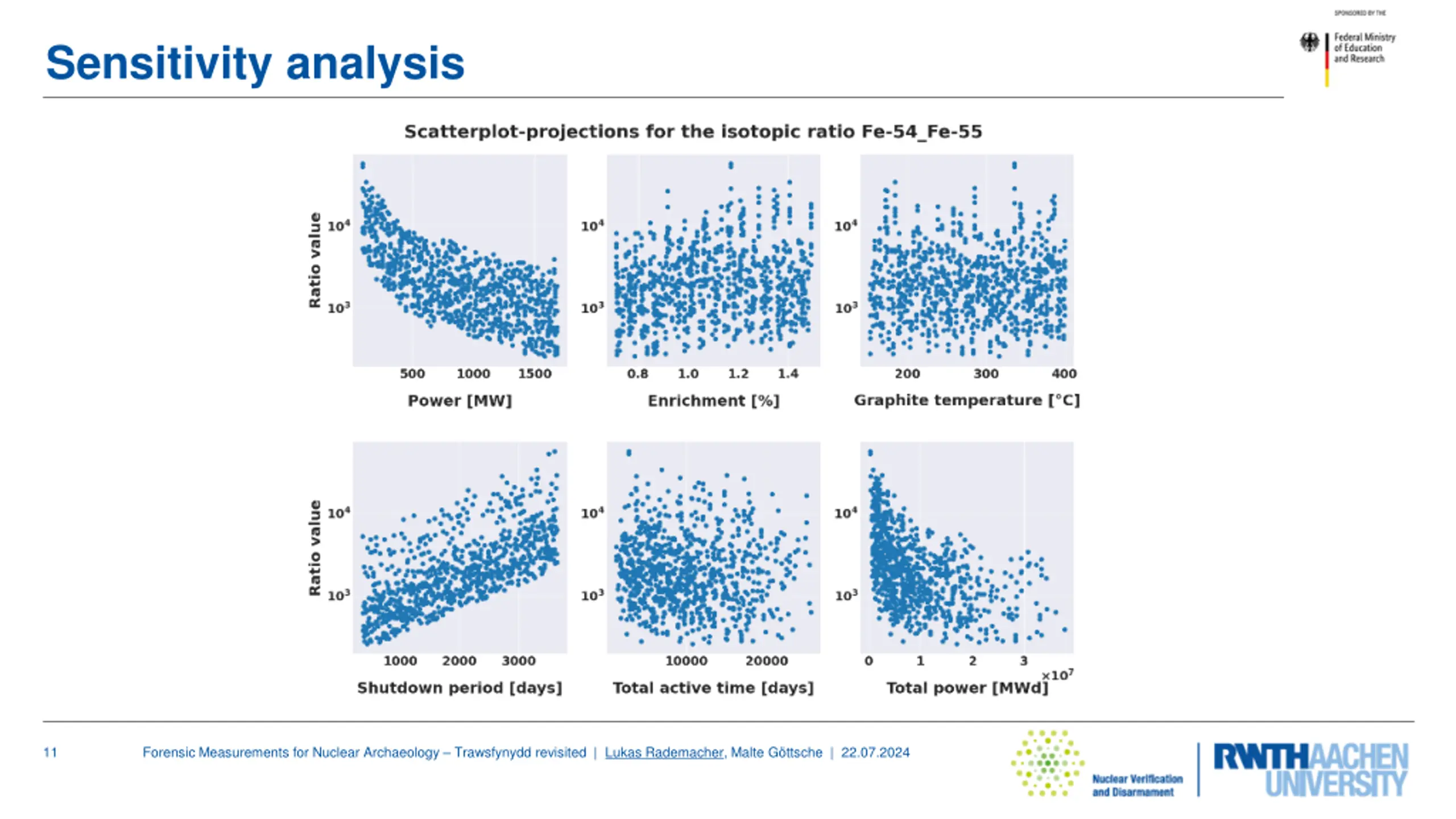

Sensitivity analysis 11 Forensic Measurements for Nuclear Archaeology Trawsfynydd revisited | Lukas Rademacher, Malte G ttsche | 22.07.2024

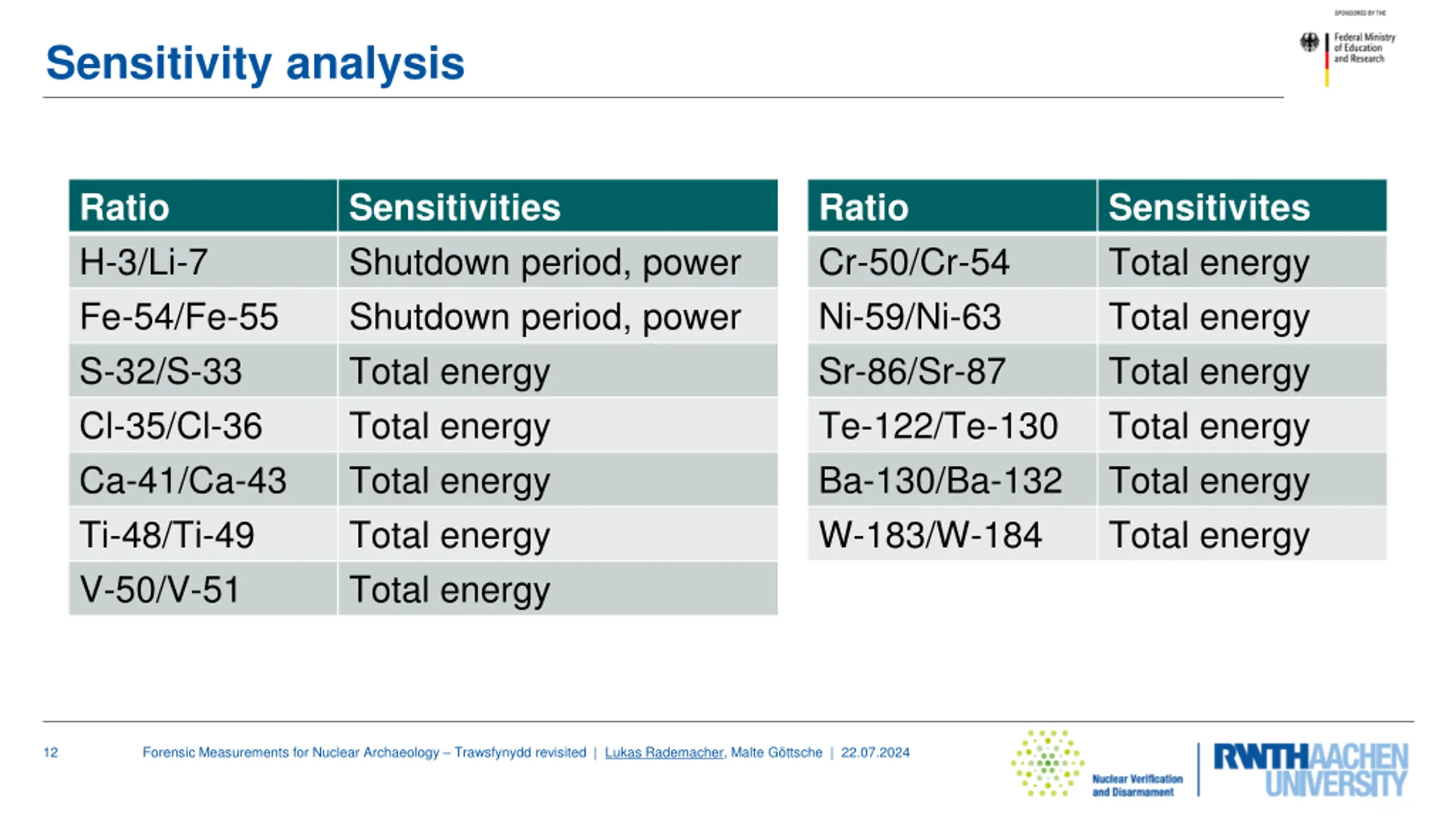

Sensitivity analysis Ratio H-3/Li-7 Fe-54/Fe-55 S-32/S-33 Cl-35/Cl-36 Ca-41/Ca-43 Ti-48/Ti-49 V-50/V-51 Sensitivities Shutdown period, power Shutdown period, power Total energy Total energy Total energy Total energy Total energy Ratio Cr-50/Cr-54 Ni-59/Ni-63 Sr-86/Sr-87 Te-122/Te-130 Ba-130/Ba-132 W-183/W-184 Sensitivites Total energy Total energy Total energy Total energy Total energy Total energy 12 Forensic Measurements for Nuclear Archaeology Trawsfynydd revisited | Lukas Rademacher, Malte G ttsche | 22.07.2024

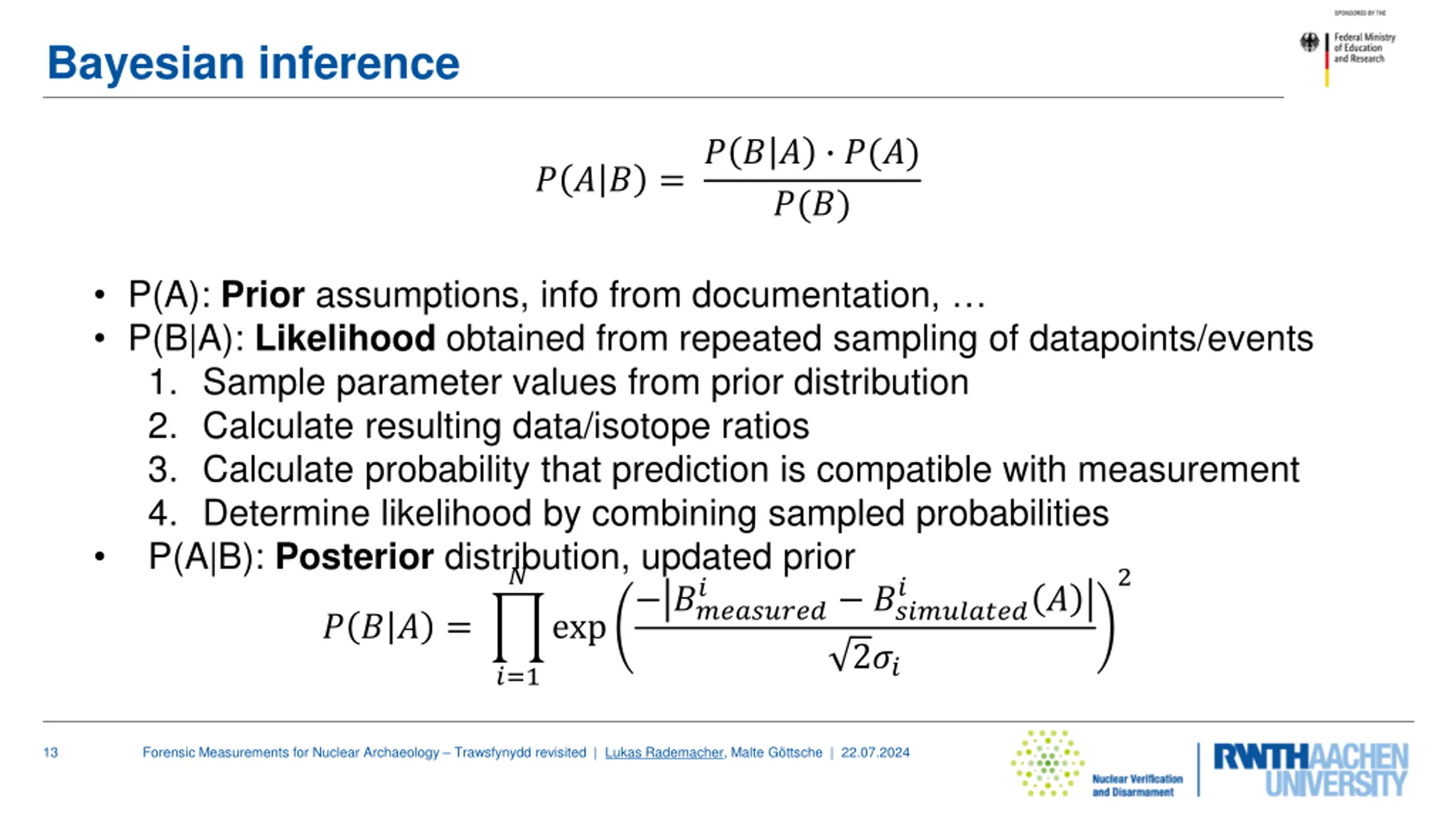

Bayesian inference ? ? ? ?(?) ?(?) ? ? ? = P(A): Prior assumptions, info from documentation, P(B|A): Likelihood obtained from repeated sampling of datapoints/events 1. Sample parameter values from prior distribution 2. Calculate resulting data/isotope ratios 3. Calculate probability that prediction is compatible with measurement 4. Determine likelihood by combining sampled probabilities P(A|B): Posterior distribution, updated prior ? ????????? 2 ? ? ?????????? 2?? ? ? ? ? = exp ?=1 13 Forensic Measurements for Nuclear Archaeology Trawsfynydd revisited | Lukas Rademacher, Malte G ttsche | 22.07.2024

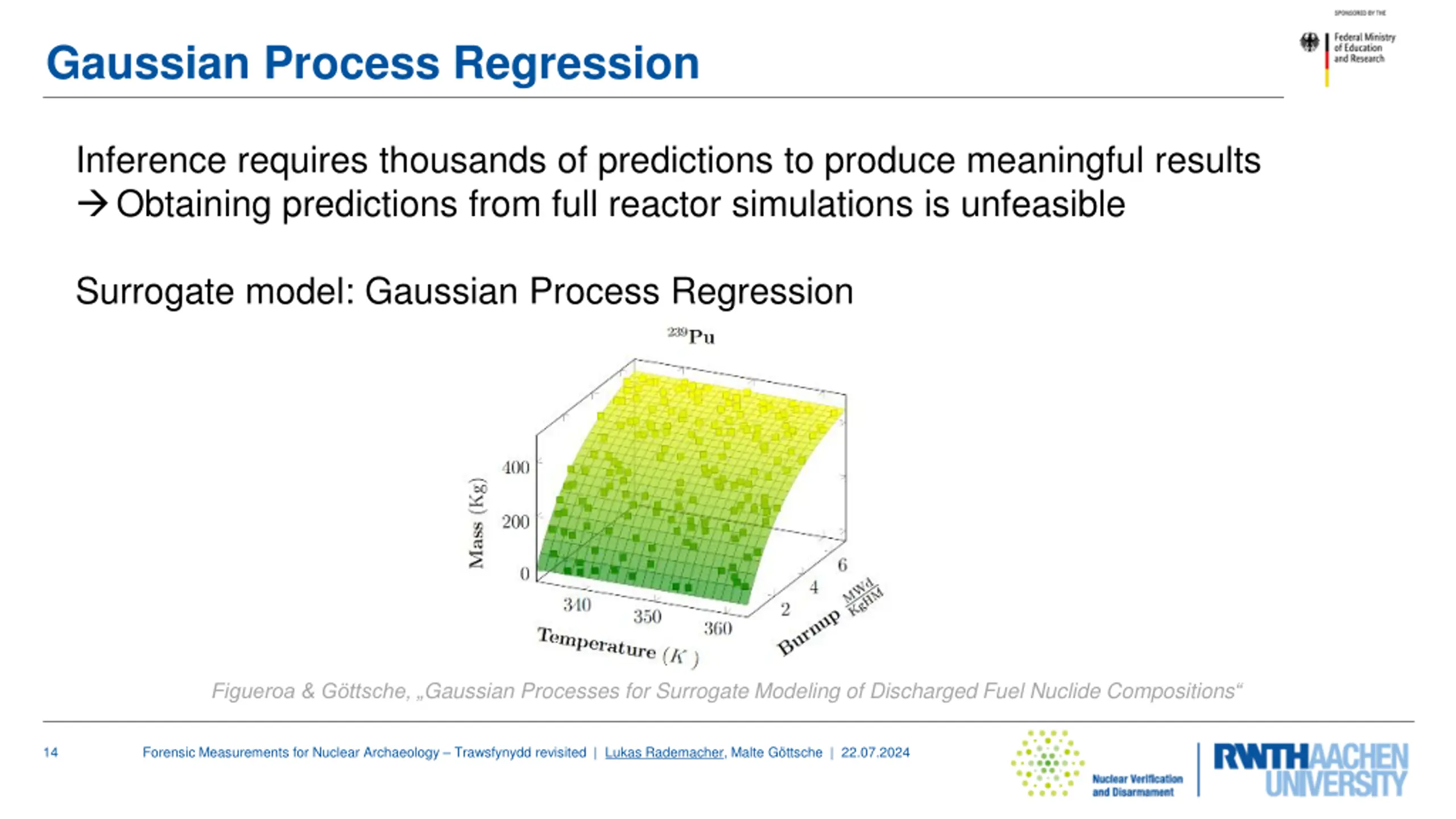

Gaussian Process Regression Inference requires thousands of predictions to produce meaningful results Obtaining predictions from full reactor simulations is unfeasible Surrogate model: Gaussian Process Regression Figueroa & G ttsche, Gaussian Processes for Surrogate Modeling of Discharged Fuel Nuclide Compositions 14 Forensic Measurements for Nuclear Archaeology Trawsfynydd revisited | Lukas Rademacher, Malte G ttsche | 22.07.2024

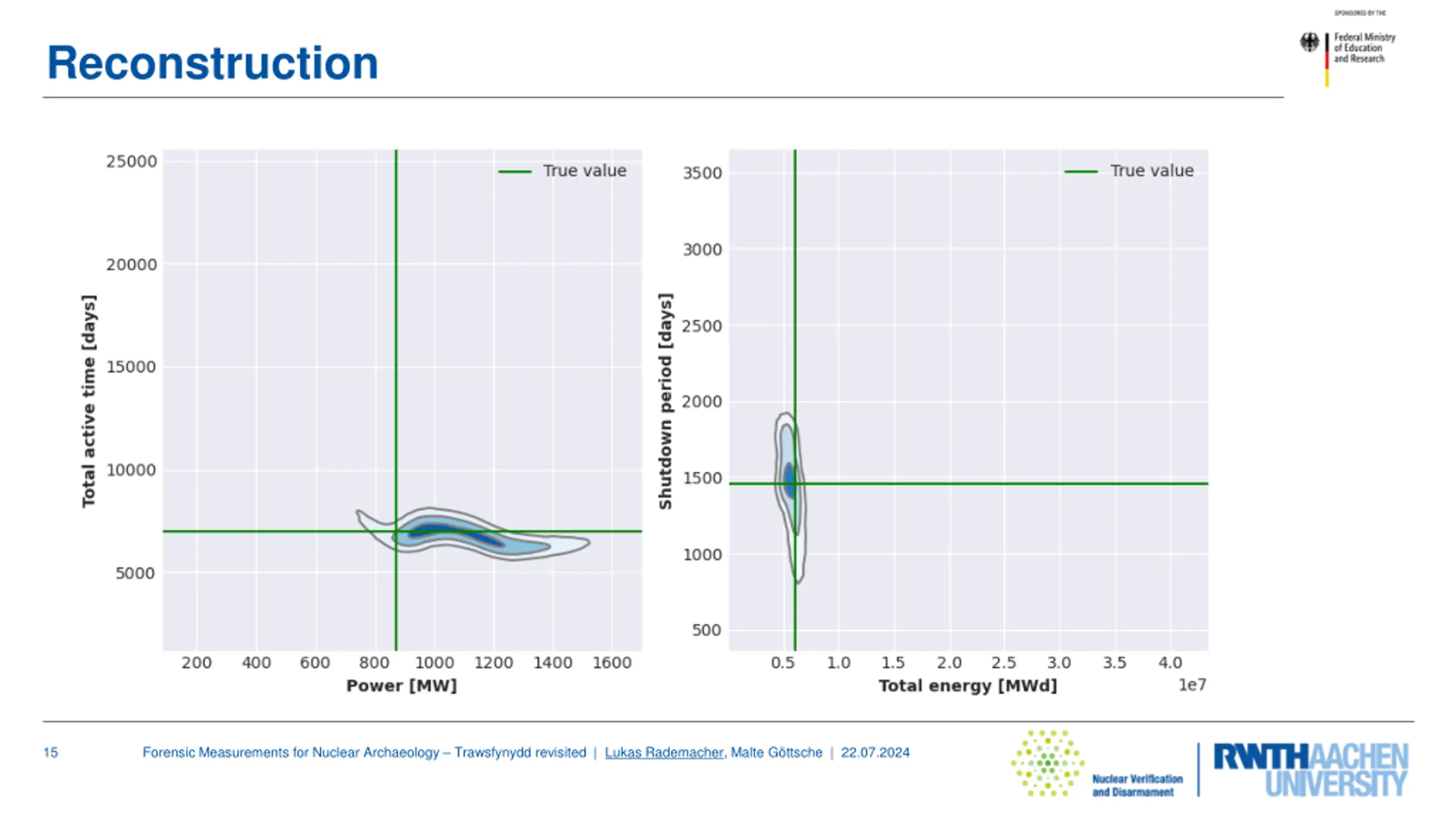

Reconstruction 15 Forensic Measurements for Nuclear Archaeology Trawsfynydd revisited | Lukas Rademacher, Malte G ttsche | 22.07.2024

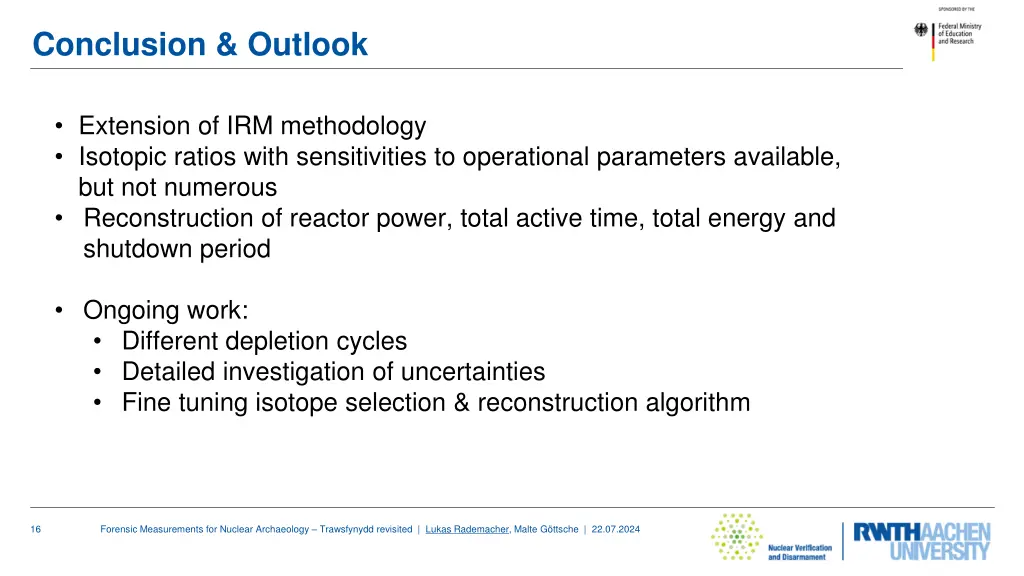

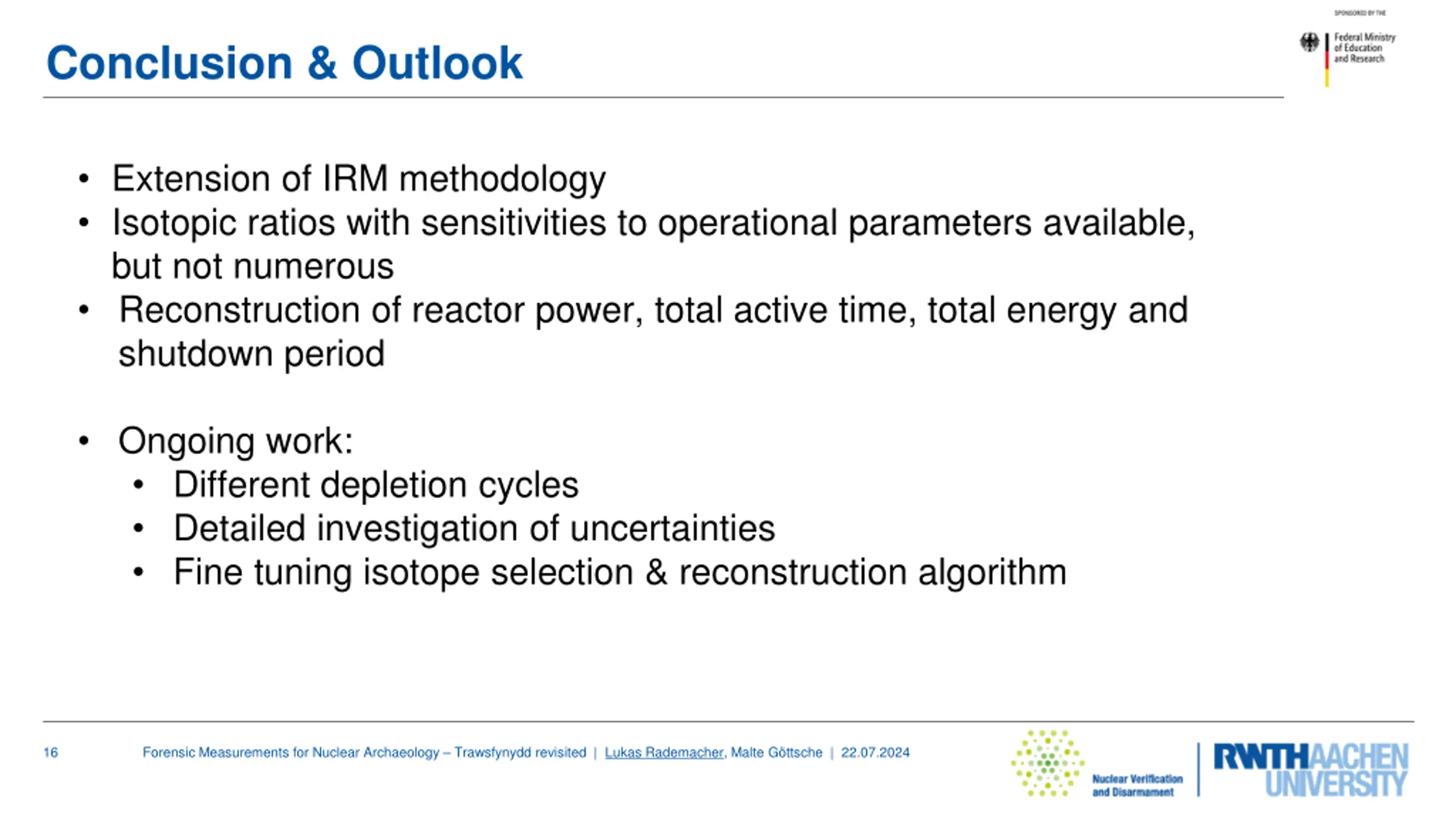

Conclusion & Outlook Extension of IRM methodology Isotopic ratios with sensitivities to operational parameters available, but not numerous Reconstruction of reactor power, total active time, total energy and shutdown period Ongoing work: Different depletion cycles Detailed investigation of uncertainties Fine tuning isotope selection & reconstruction algorithm 16 Forensic Measurements for Nuclear Archaeology Trawsfynydd revisited | Lukas Rademacher, Malte G ttsche | 22.07.2024

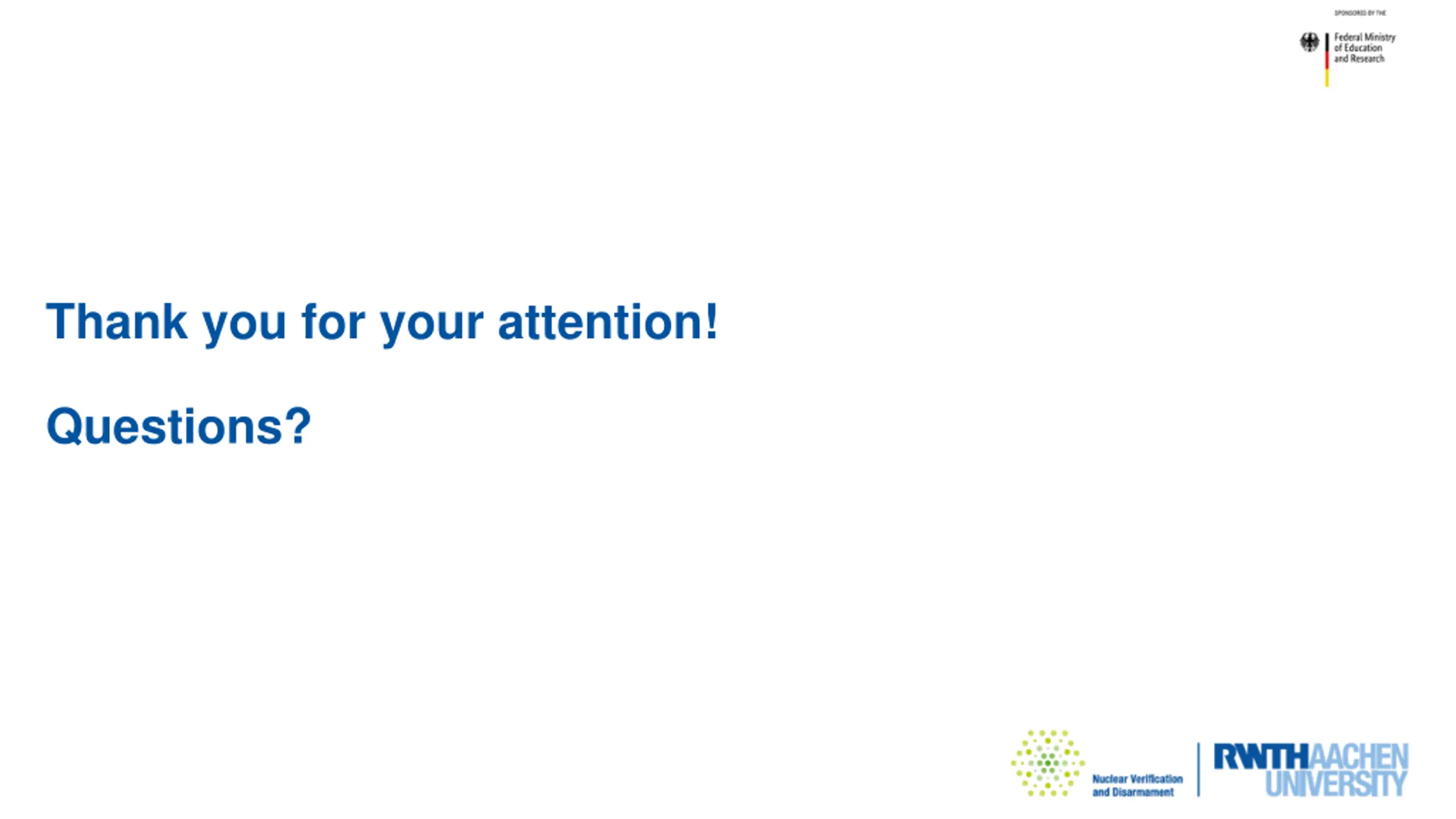

Thank you for your attention! Questions?
