Presentation Transcript

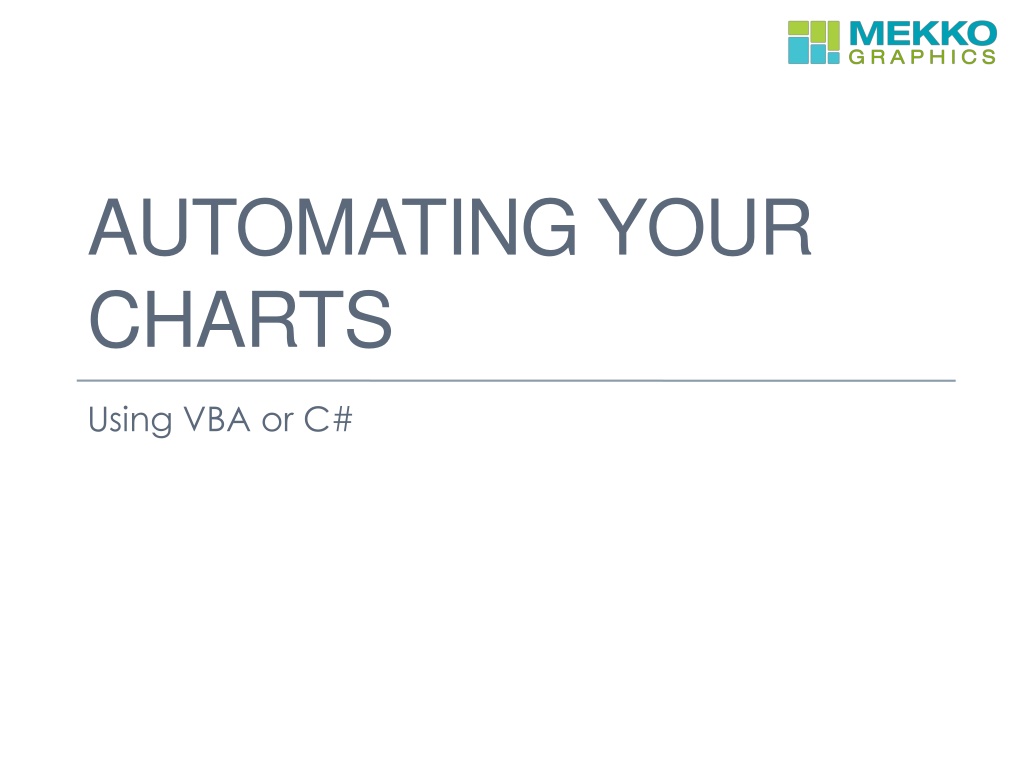

1. AUTOMATING YOUR CHARTS Using VBA or C#

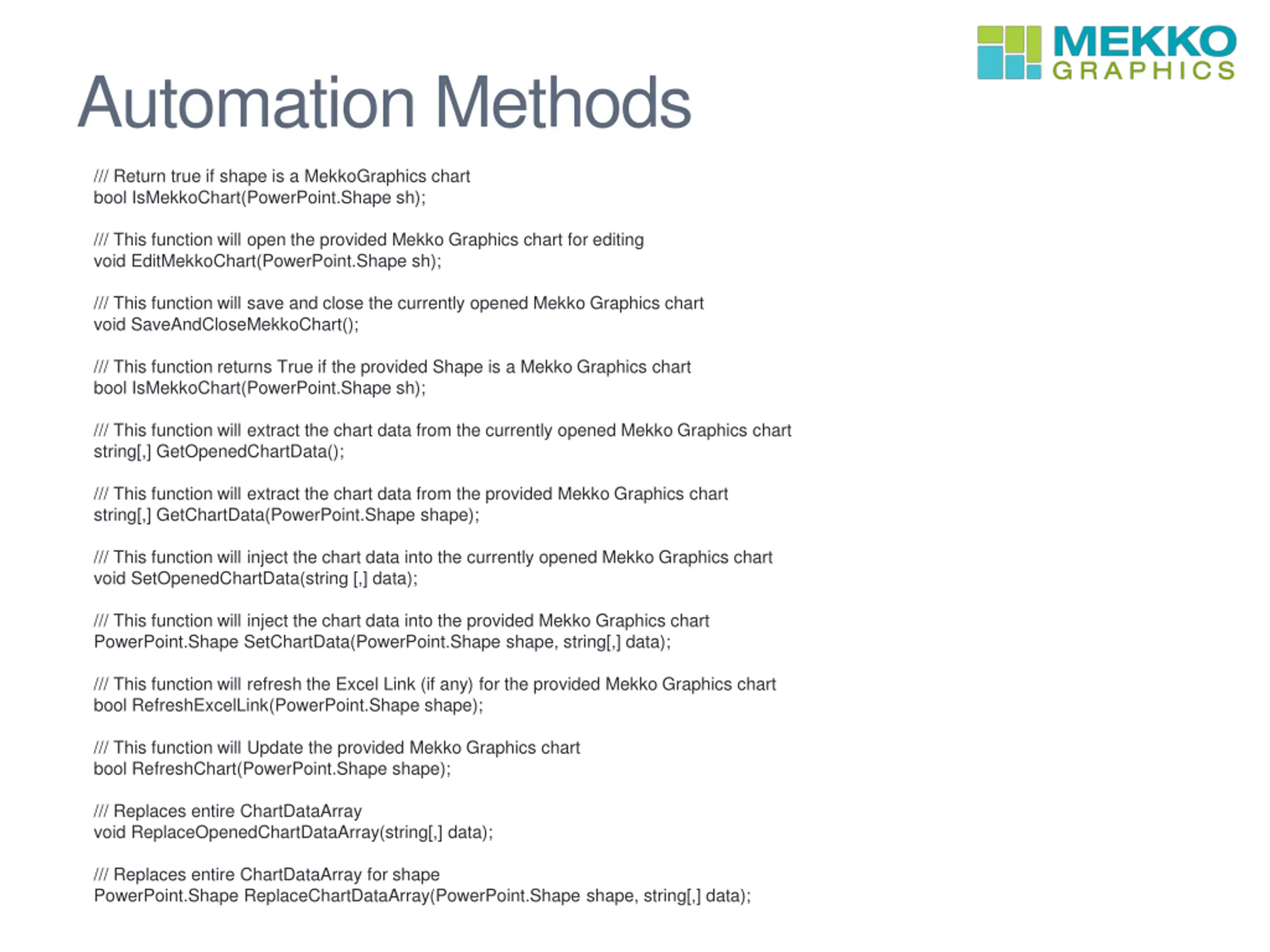

2. Automation Methods /// Return true if shape is a MekkoGraphics chart bool IsMekkoChart(PowerPoint.Shape sh); /// This function will open the provided Mekko Graphics chart for editing void EditMekkoChart(PowerPoint.Shape sh); /// This function will save and close the currently opened Mekko Graphics chart void SaveAndCloseMekkoChart(); /// This function returns True if the provided Shape is a Mekko Graphics chart bool IsMekkoChart(PowerPoint.Shape sh); /// This function will extract the chart data from the currently opened Mekko Graphics chart string[,] GetOpenedChartData(); /// This function will extract the chart data from the provided Mekko Graphics chart string[,] GetChartData(PowerPoint.Shape shape); /// This function will inject the chart data into the currently opened Mekko Graphics chart void SetOpenedChartData(string [,] data); /// This function will inject the chart data into the provided Mekko Graphics chart PowerPoint.Shape SetChartData(PowerPoint.Shape shape, string[,] data); /// This function will refresh the Excel Link (if any) for the provided Mekko Graphics chart bool RefreshExcelLink(PowerPoint.Shape shape); /// This function will Update the provided Mekko Graphics chart bool RefreshChart(PowerPoint.Shape shape); /// Replaces entire ChartDataArray void ReplaceOpenedChartDataArray(string[,] data); /// Replaces entire ChartDataArray for shape PowerPoint.Shape ReplaceChartDataArray(PowerPoint.Shape shape, string[,] data);

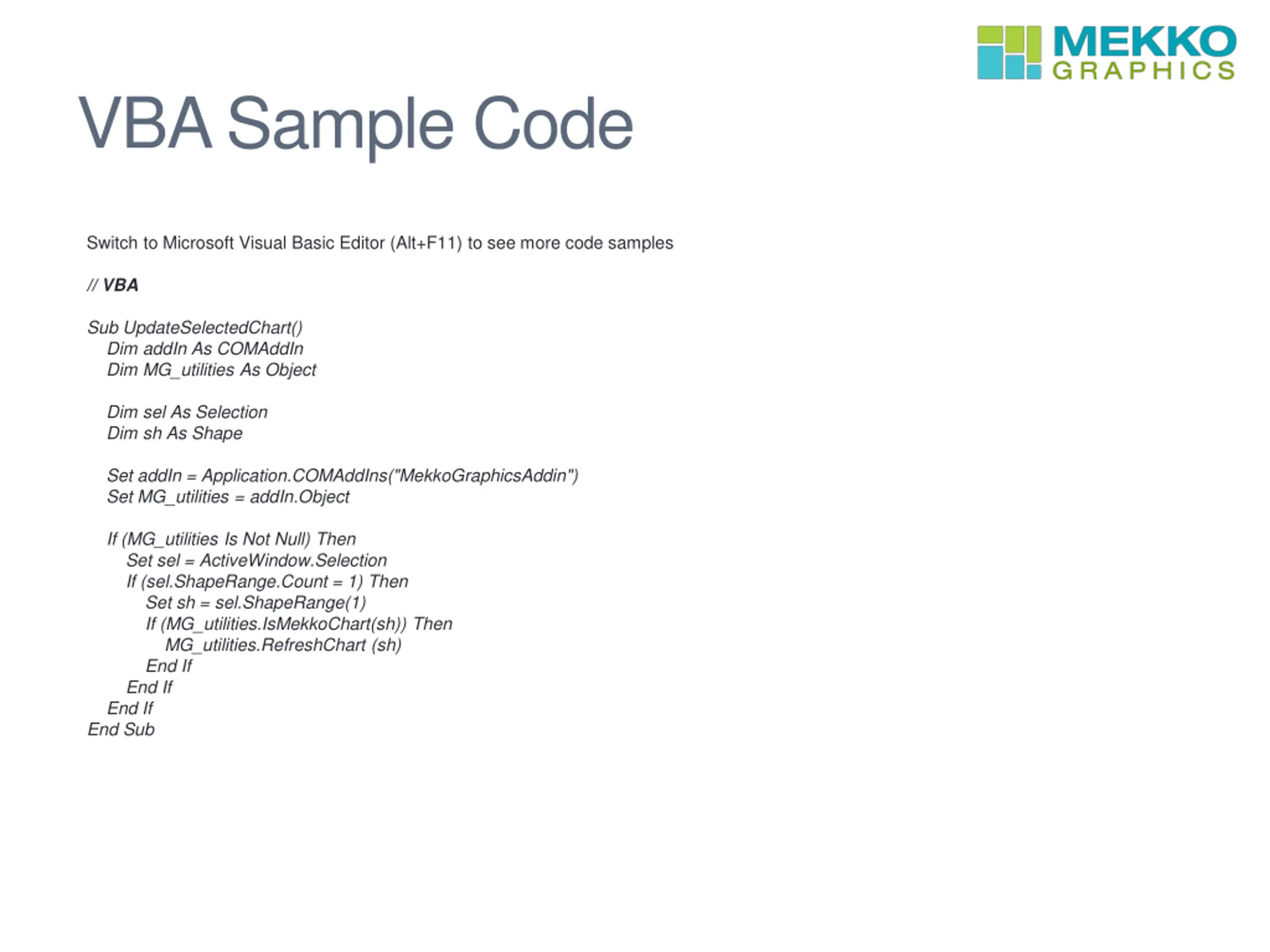

3. VBA Sample Code Switch to Microsoft Visual Basic Editor (Alt+F11) to see more code samples // VBA Sub UpdateSelectedChart() Dim addIn As COMAddIn Dim MG_utilities As Object Dim sel As Selection Dim sh As Shape Set addIn = Application.COMAddIns("MekkoGraphicsAddin") Set MG_utilities = addIn.Object If (MG_utilities Is Not Null) Then Set sel = ActiveWindow.Selection If (sel.ShapeRange.Count = 1) Then Set sh = sel.ShapeRange(1) If (MG_utilities.IsMekkoChart(sh)) Then MG_utilities.RefreshChart (sh) End If End If End If End Sub

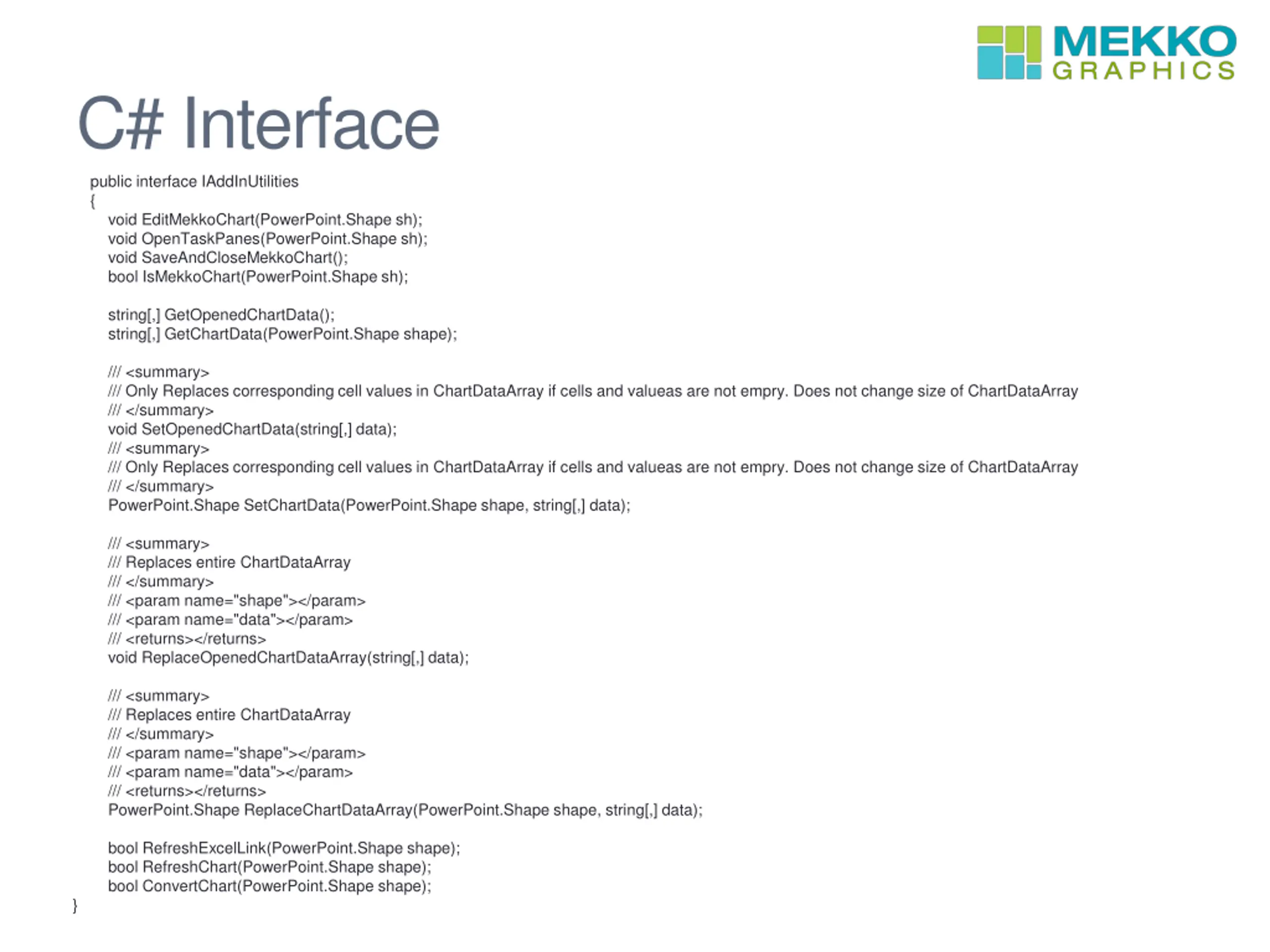

4. C# Interface public interface IAddInUtilities { void EditMekkoChart(PowerPoint.Shape sh); void OpenTaskPanes(PowerPoint.Shape sh); void SaveAndCloseMekkoChart(); bool IsMekkoChart(PowerPoint.Shape sh); string[,] GetOpenedChartData(); string[,] GetChartData(PowerPoint.Shape shape); /// <summary> /// Only Replaces corresponding cell values in ChartDataArray if cells and valueas are not empry. Does not change size of ChartDataArray /// </summary> void SetOpenedChartData(string[,] data); /// <summary> /// Only Replaces corresponding cell values in ChartDataArray if cells and valueas are not empry. Does not change size of ChartDataArray /// </summary> PowerPoint.Shape SetChartData(PowerPoint.Shape shape, string[,] data); /// <summary> /// Replaces entire ChartDataArray /// </summary> /// <param name="shape"></param> /// <param name="data"></param> /// <returns></returns> void ReplaceOpenedChartDataArray(string[,] data); /// <summary> /// Replaces entire ChartDataArray /// </summary> /// <param name="shape"></param> /// <param name="data"></param> /// <returns></returns> PowerPoint.Shape ReplaceChartDataArray(PowerPoint.Shape shape, string[,] data); bool RefreshExcelLink(PowerPoint.Shape shape); bool RefreshChart(PowerPoint.Shape shape); bool ConvertChart(PowerPoint.Shape shape); }

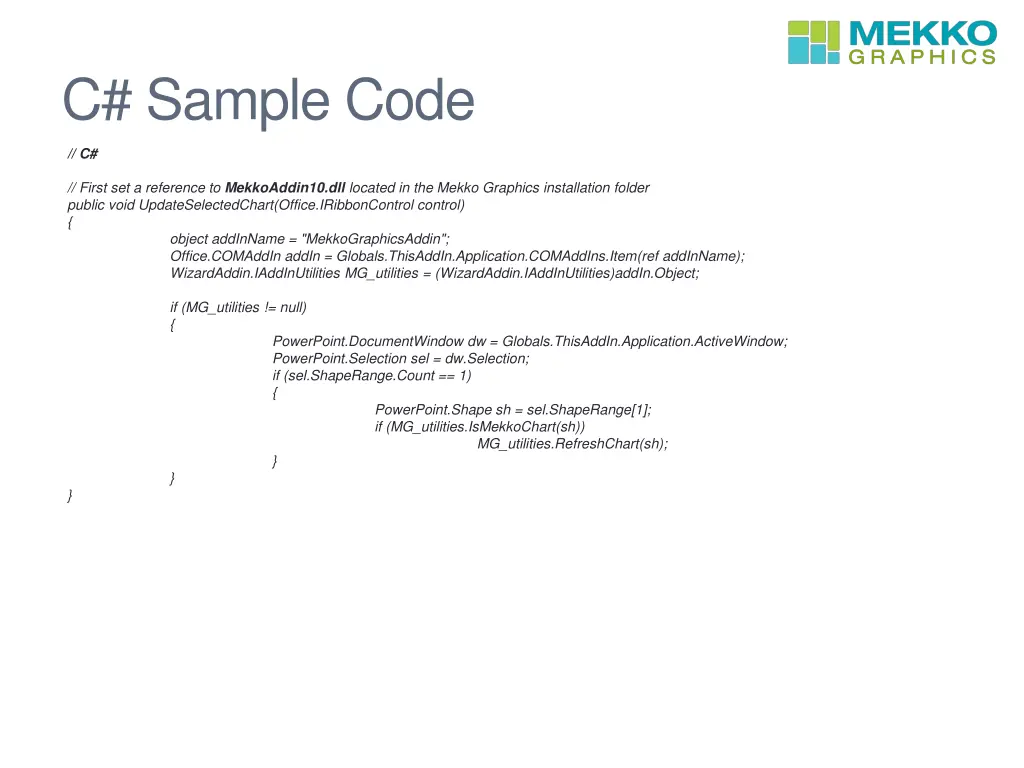

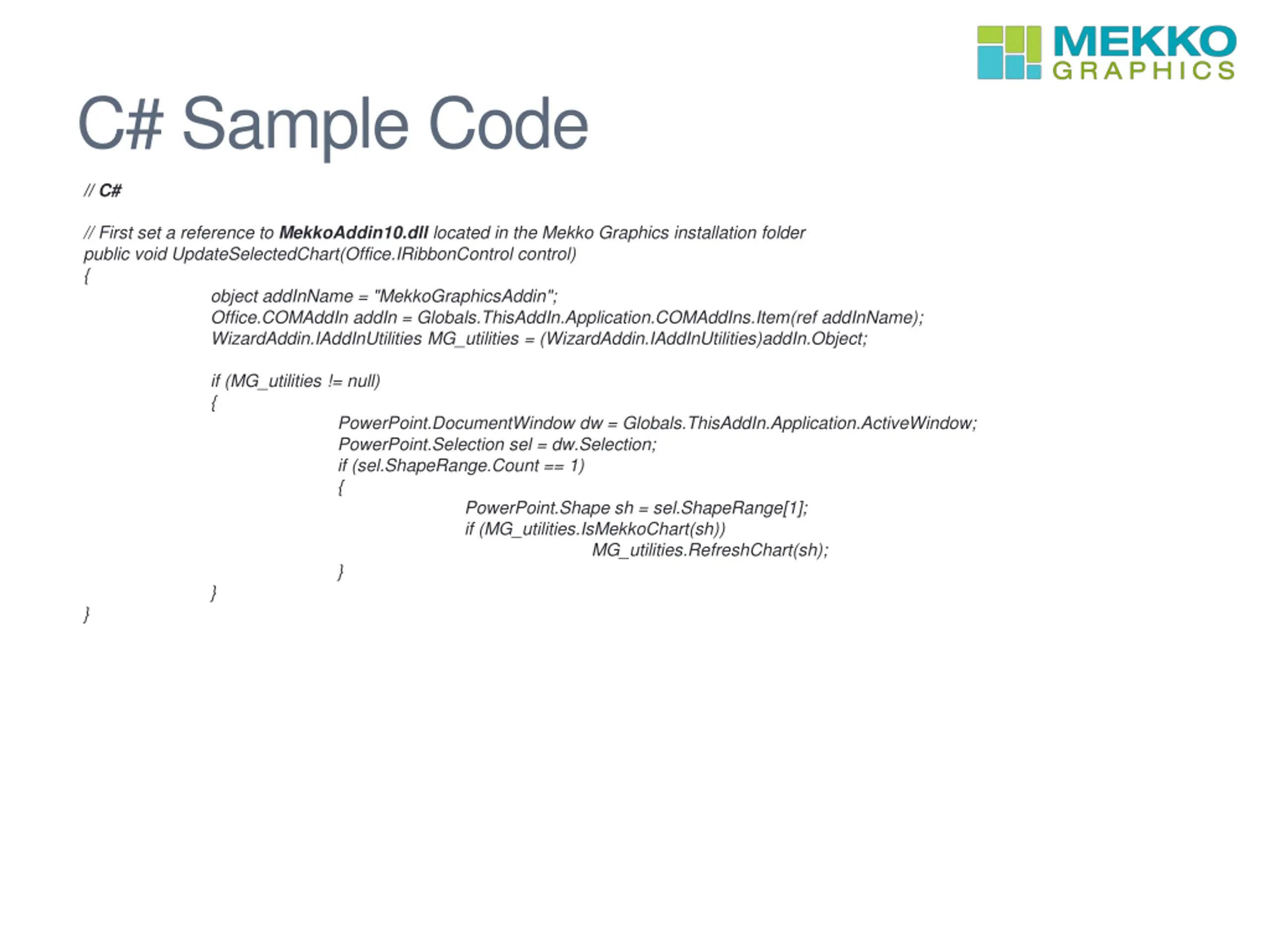

5. C# Sample Code // C# // First set a reference to MekkoAddin10.dll located in the Mekko Graphics installation folder public void UpdateSelectedChart(Office.IRibbonControl control) { object addInName = "MekkoGraphicsAddin"; Office.COMAddIn addIn = Globals.ThisAddIn.Application.COMAddIns.Item(ref addInName); WizardAddin.IAddInUtilities MG_utilities = (WizardAddin.IAddInUtilities)addIn.Object; } if (MG_utilities != null) { } PowerPoint.DocumentWindow dw = Globals.ThisAddIn.Application.ActiveWindow; PowerPoint.Selection sel = dw.Selection; if (sel.ShapeRange.Count == 1) { PowerPoint.Shape sh = sel.ShapeRange[1]; if (MG_utilities.IsMekkoChart(sh)) MG_utilities.RefreshChart(sh); }
