Forensics and CS Philip Chan

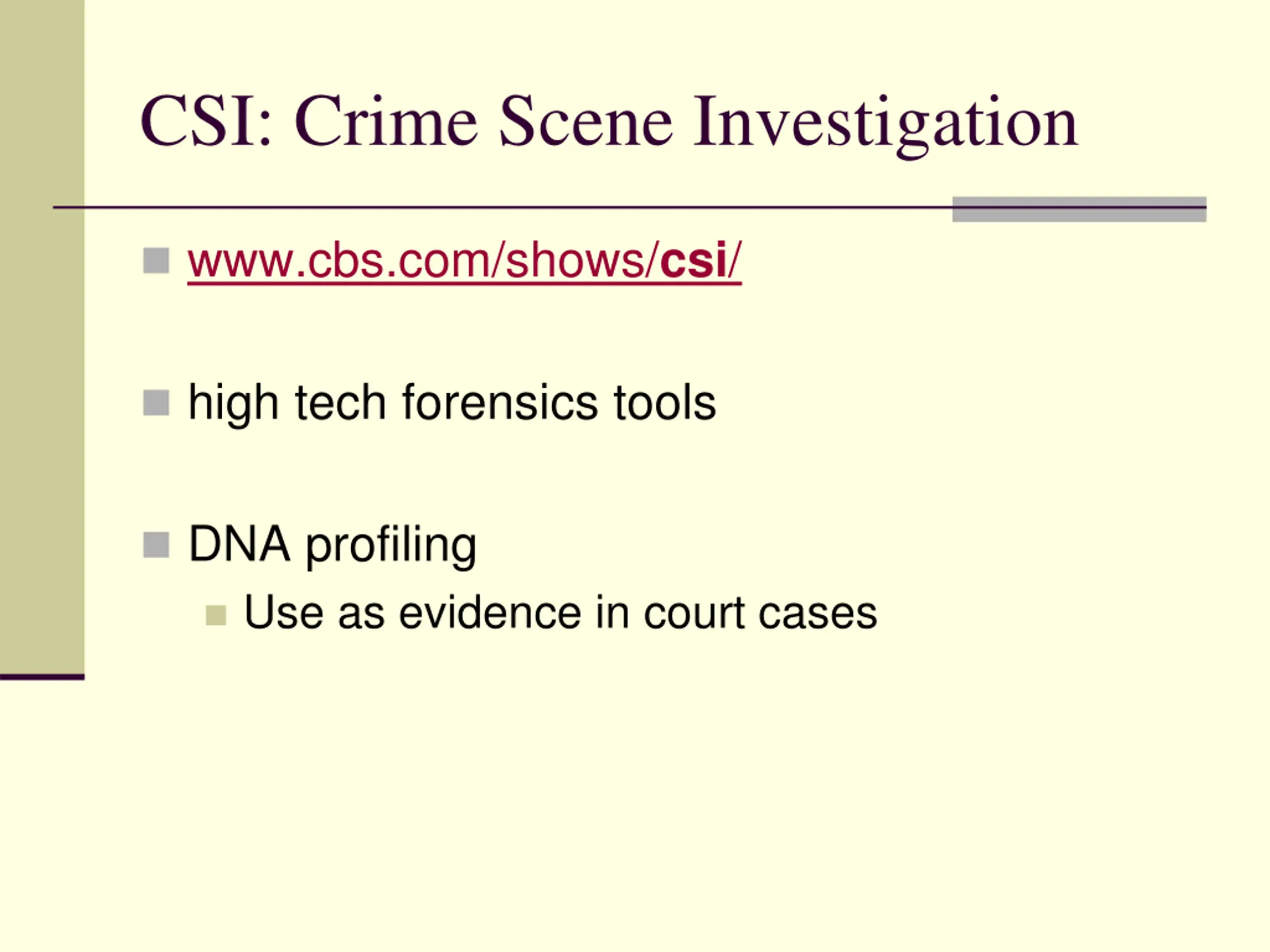

CSI: Crime Scene Investigation www.cbs.com/shows/csi/ high tech forensics tools DNA profiling Use as evidence in court cases

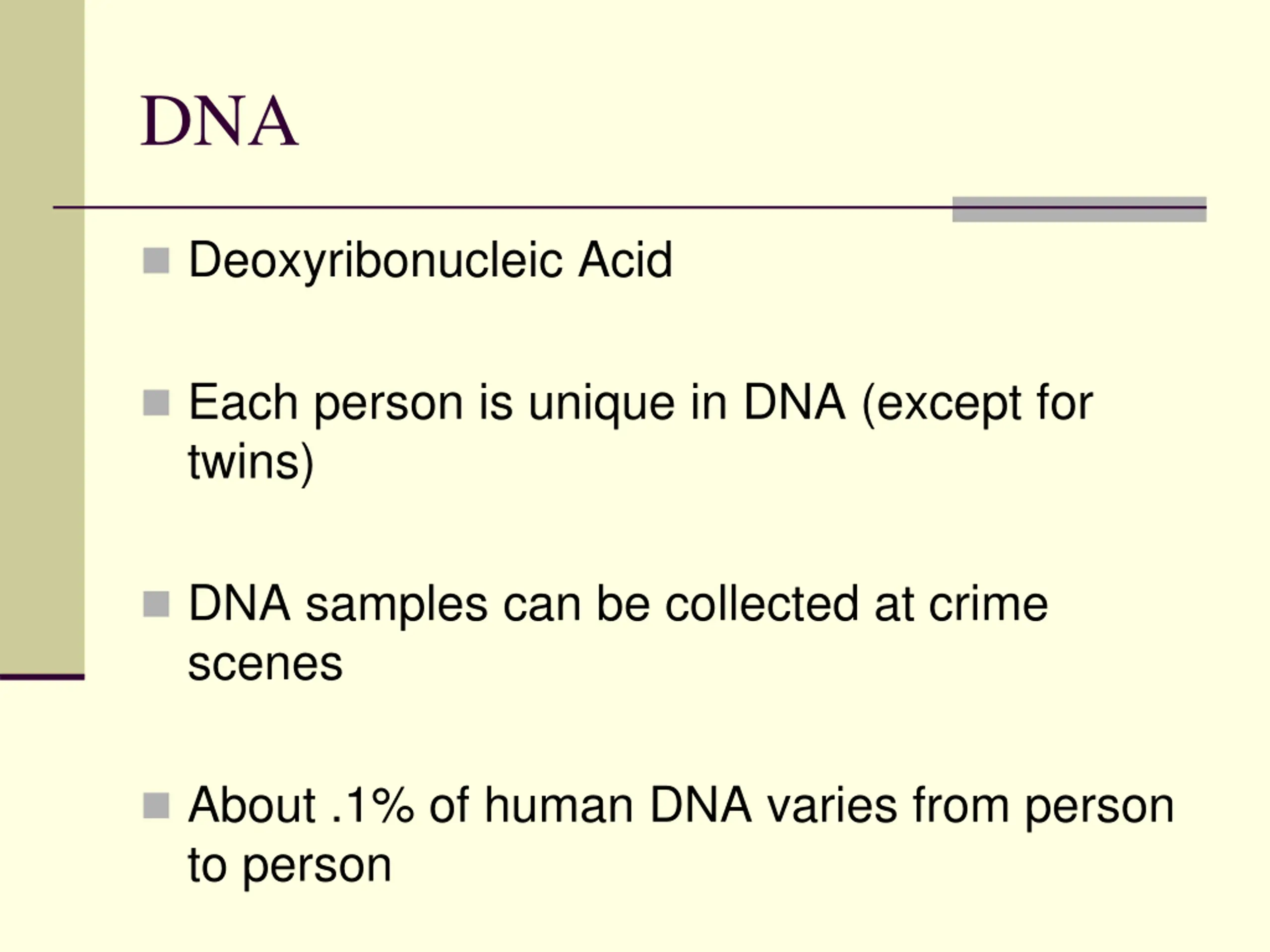

DNA Deoxyribonucleic Acid Each person is unique in DNA (except for twins) DNA samples can be collected at crime scenes About .1% of human DNA varies from person to person

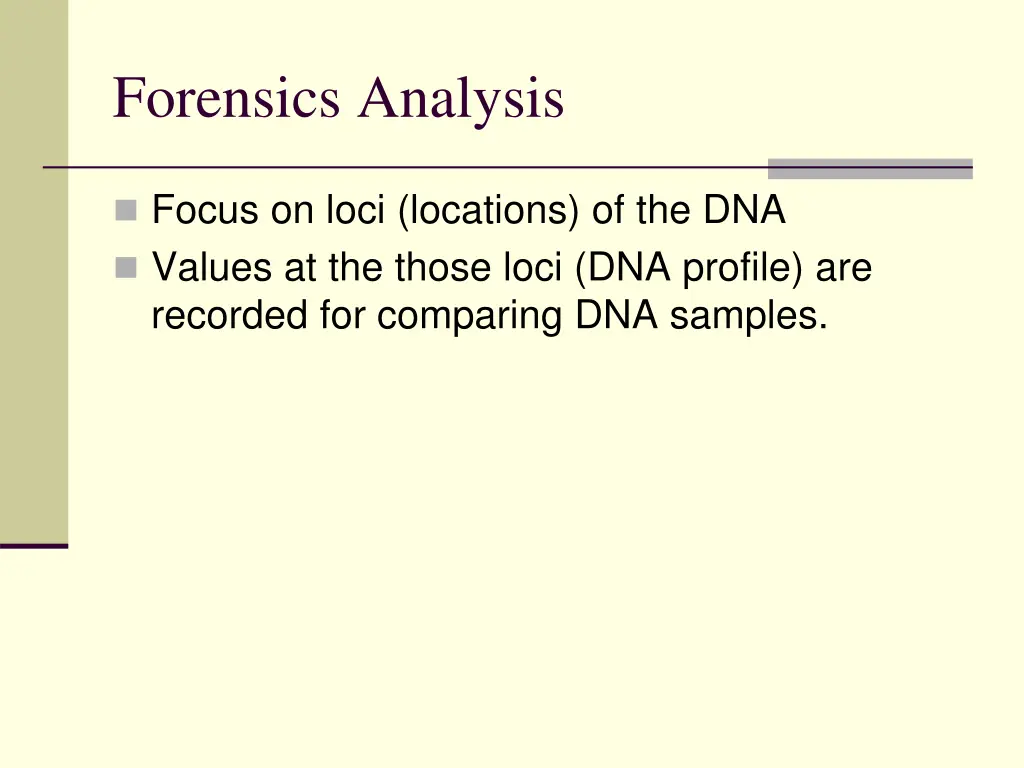

Forensics Analysis Focus on loci (locations) of the DNA Values at the those loci (DNA profile) are recorded for comparing DNA samples.

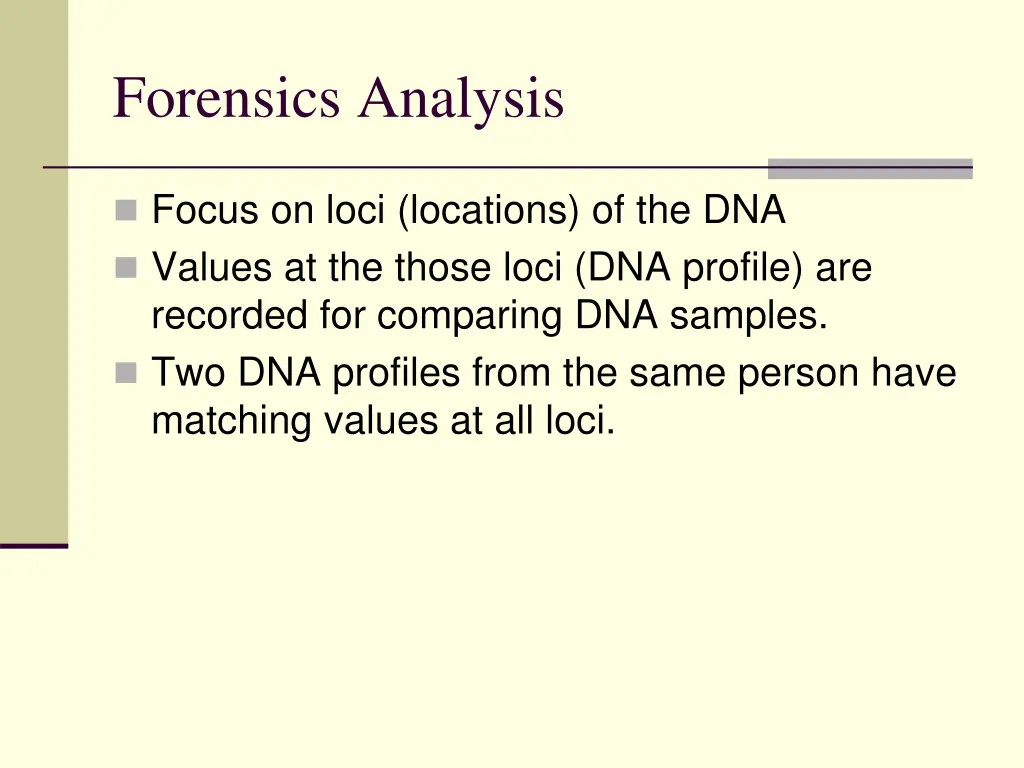

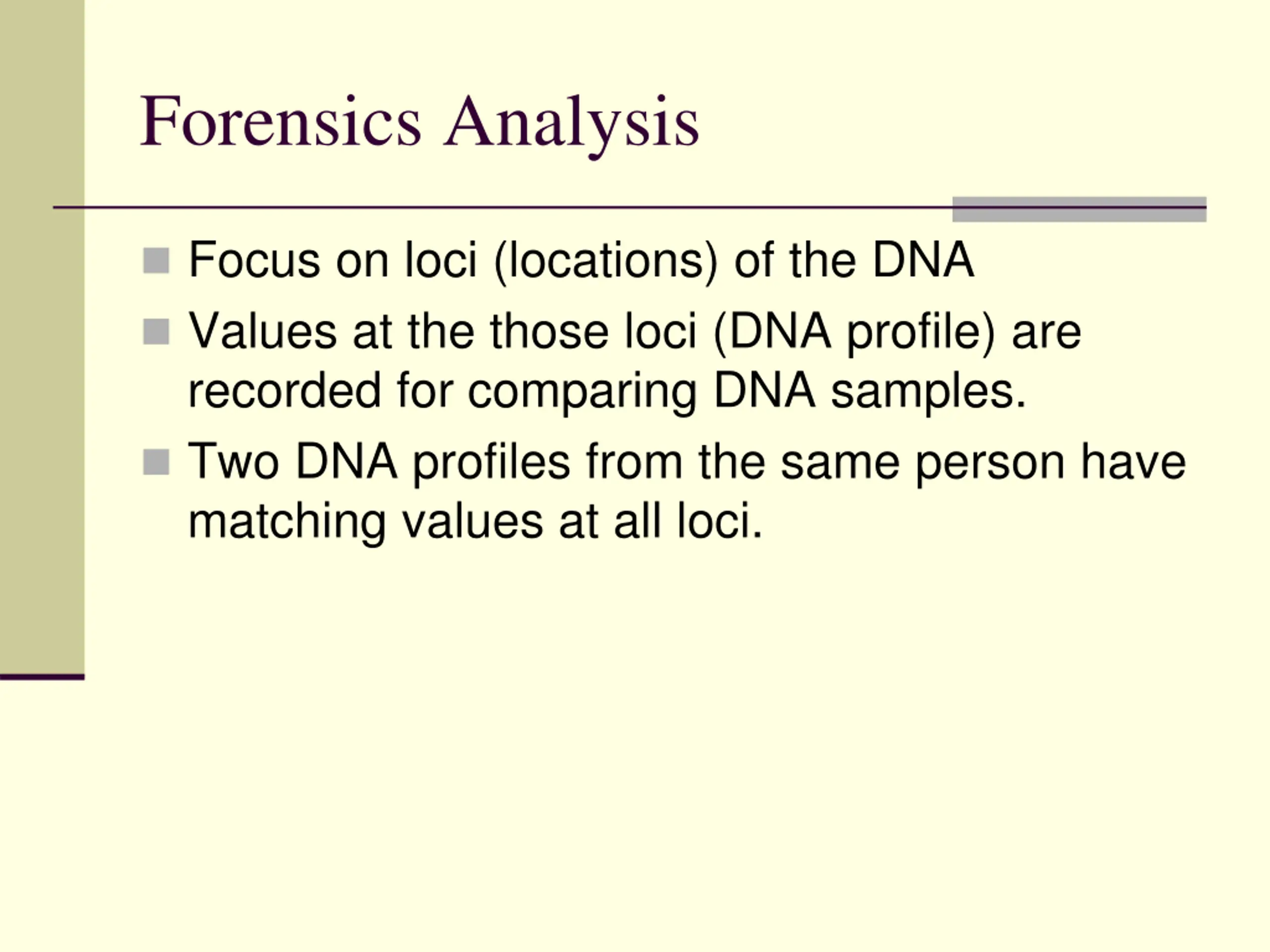

Forensics Analysis Focus on loci (locations) of the DNA Values at the those loci (DNA profile) are recorded for comparing DNA samples. Two DNA profiles from the same person have matching values at all loci.

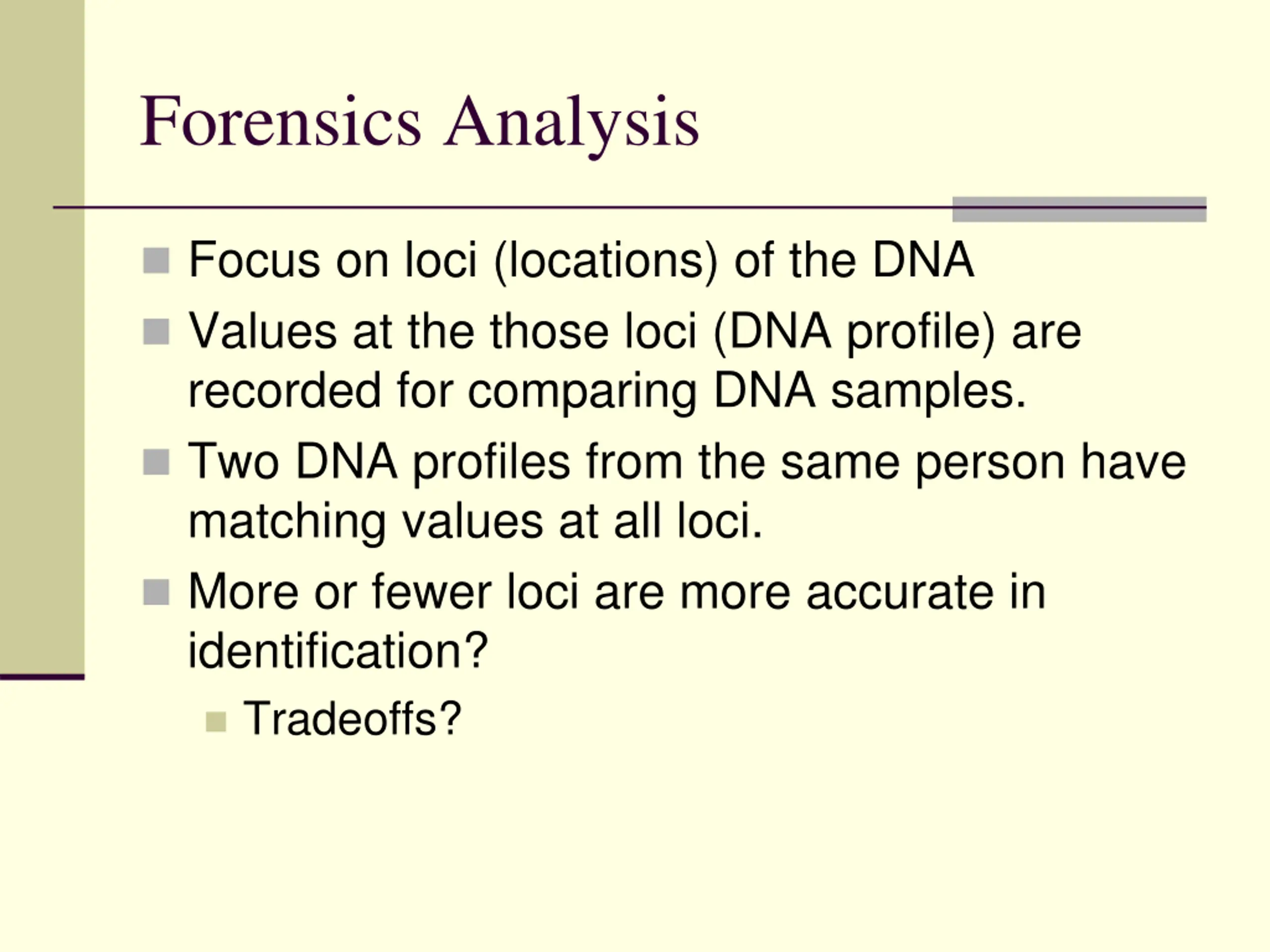

Forensics Analysis Focus on loci (locations) of the DNA Values at the those loci (DNA profile) are recorded for comparing DNA samples. Two DNA profiles from the same person have matching values at all loci. More or fewer loci are more accurate in identification? Tradeoffs?

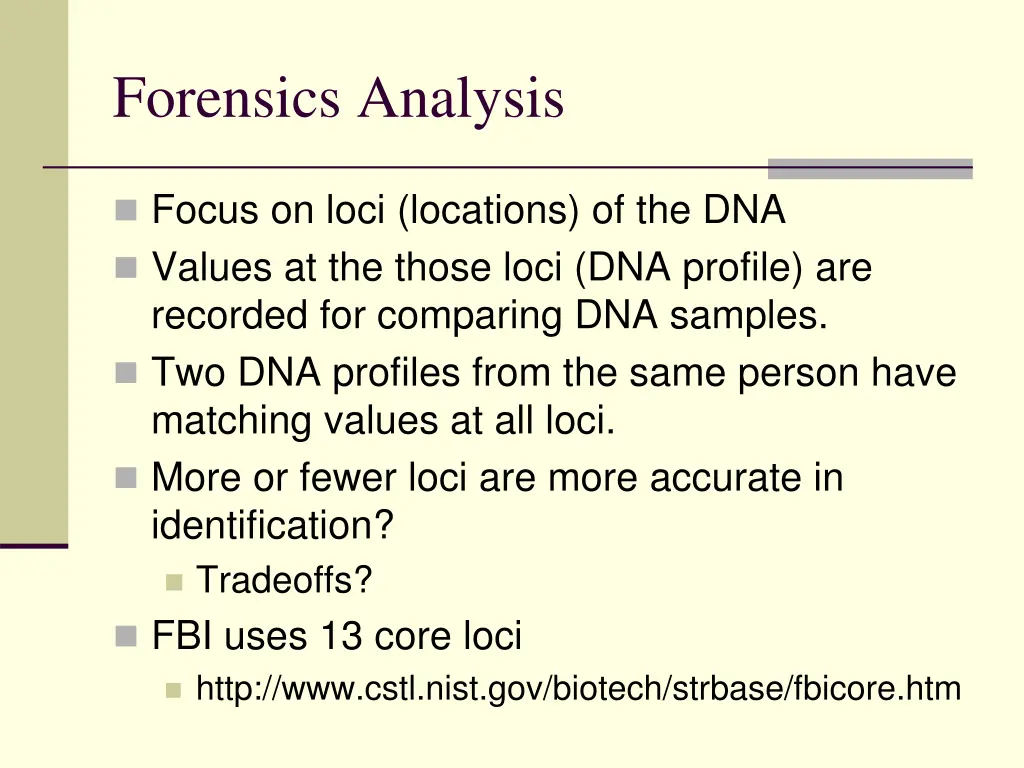

Forensics Analysis Focus on loci (locations) of the DNA Values at the those loci (DNA profile) are recorded for comparing DNA samples. Two DNA profiles from the same person have matching values at all loci. More or fewer loci are more accurate in identification? Tradeoffs? FBI uses 13 core loci http://www.cstl.nist.gov/biotech/strbase/fbicore.htm

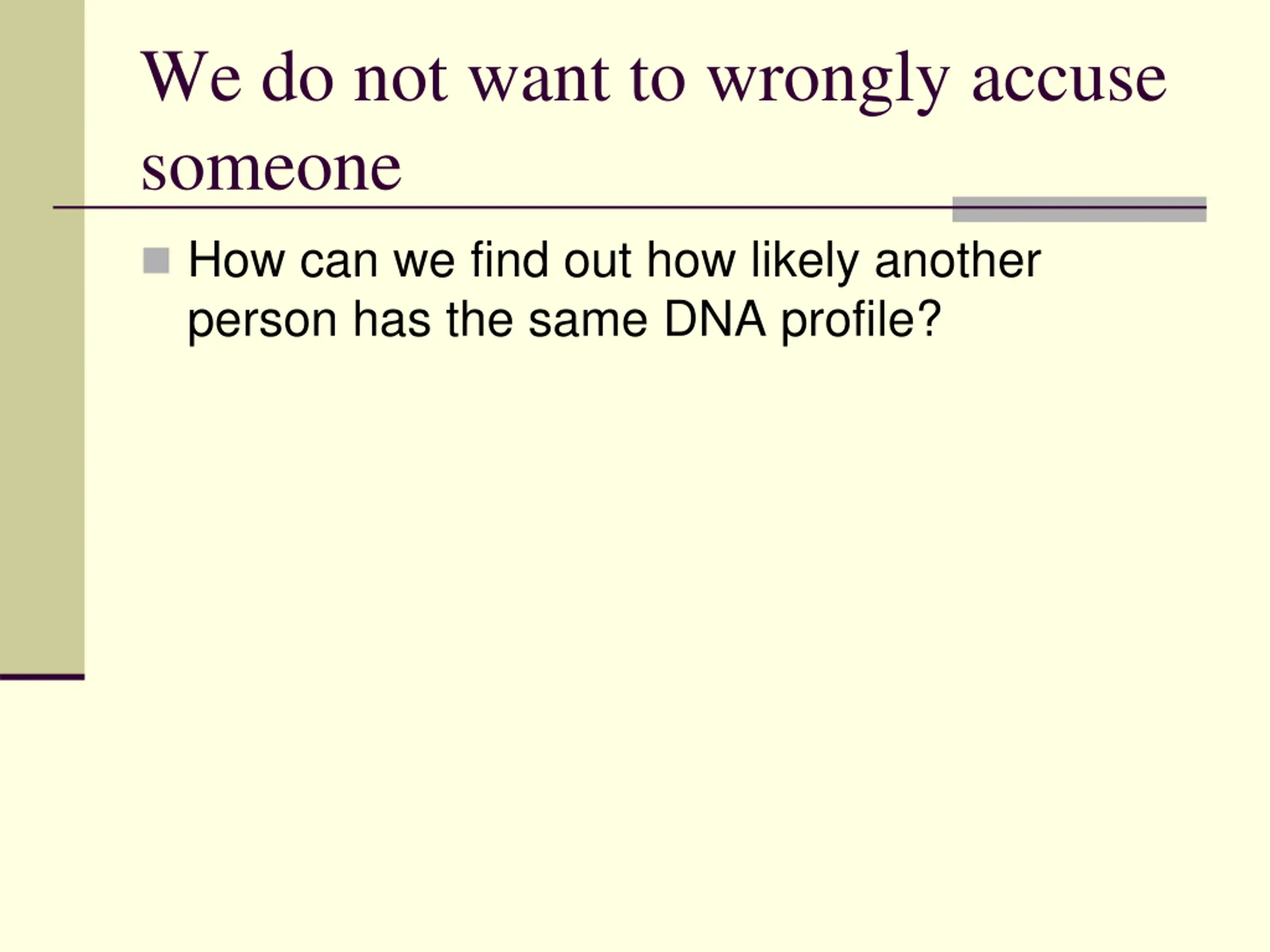

We do not want to wrongly accuse someone How can we find out how likely another person has the same DNA profile?

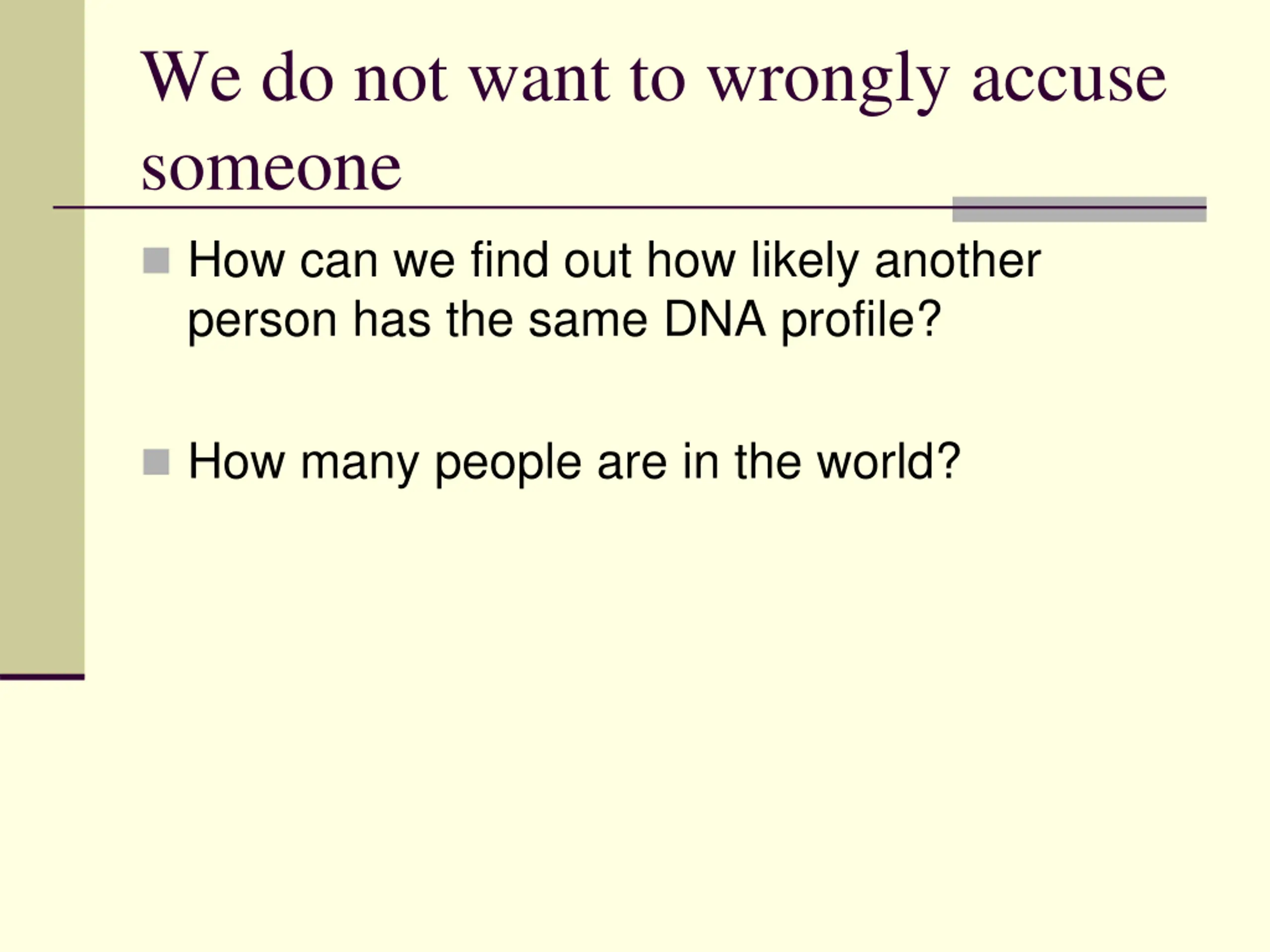

We do not want to wrongly accuse someone How can we find out how likely another person has the same DNA profile? How many people are in the world?

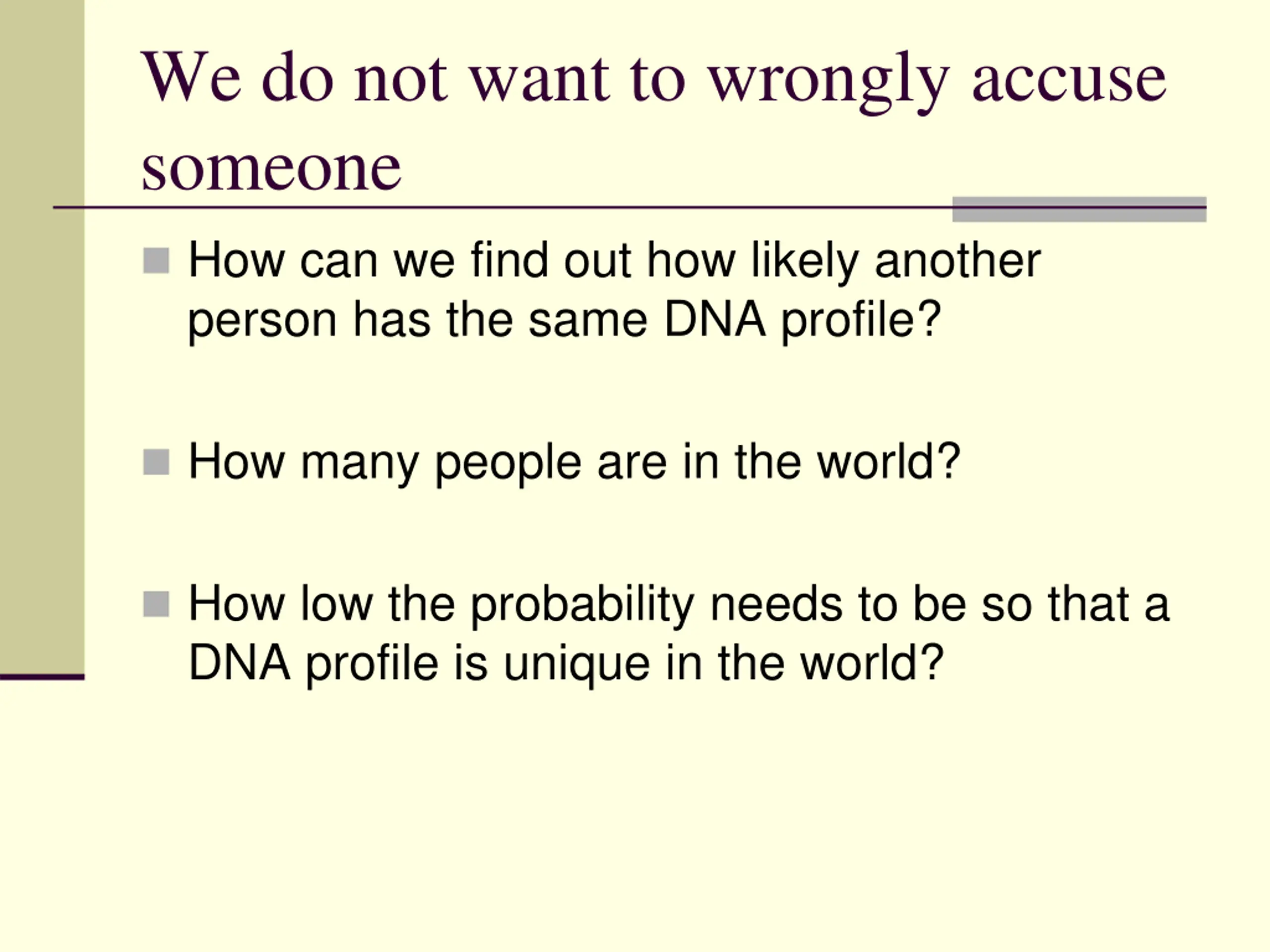

We do not want to wrongly accuse someone How can we find out how likely another person has the same DNA profile? How many people are in the world? How low the probability needs to be so that a DNA profile is unique in the world?

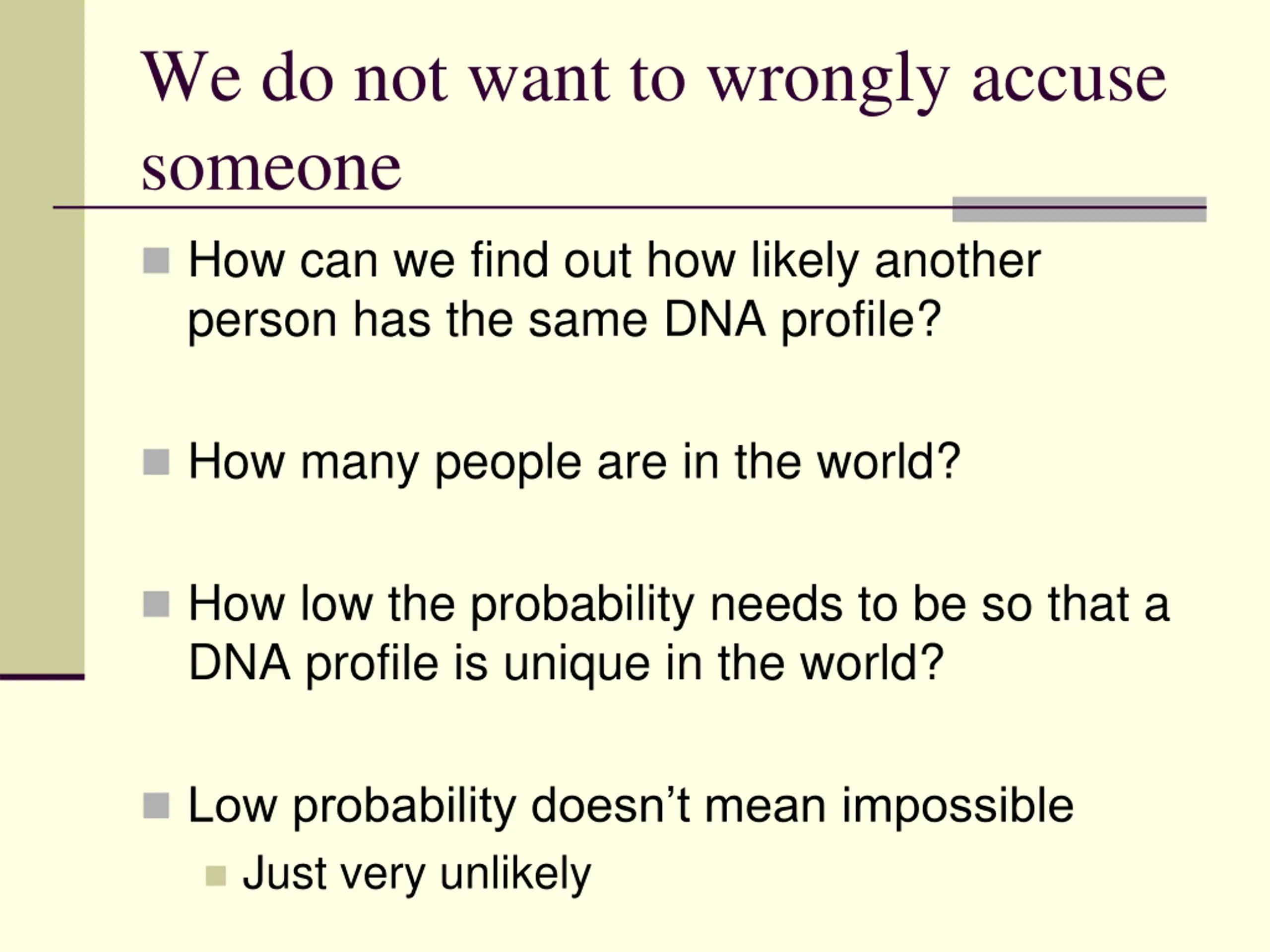

We do not want to wrongly accuse someone How can we find out how likely another person has the same DNA profile? How many people are in the world? How low the probability needs to be so that a DNA profile is unique in the world? Low probability doesn t mean impossible Just very unlikely

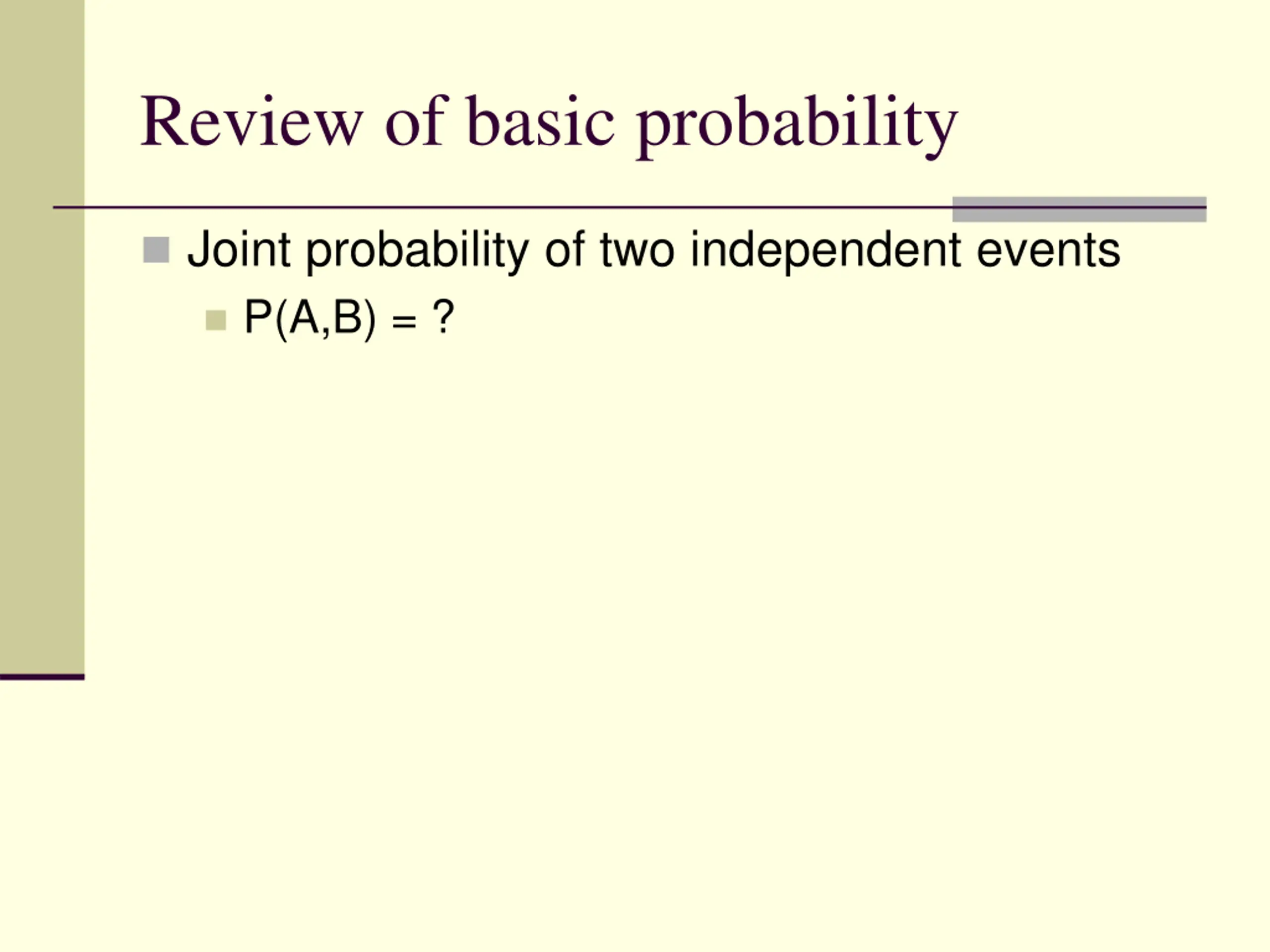

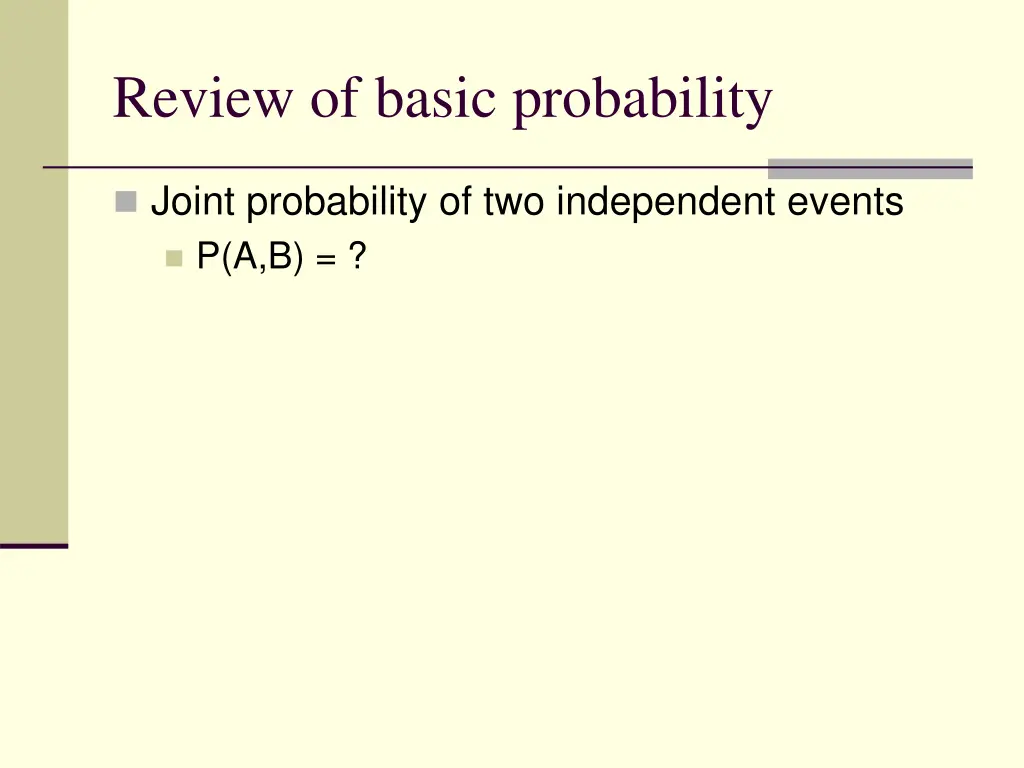

Review of basic probability Joint probability of two independent events P(A,B) = ?

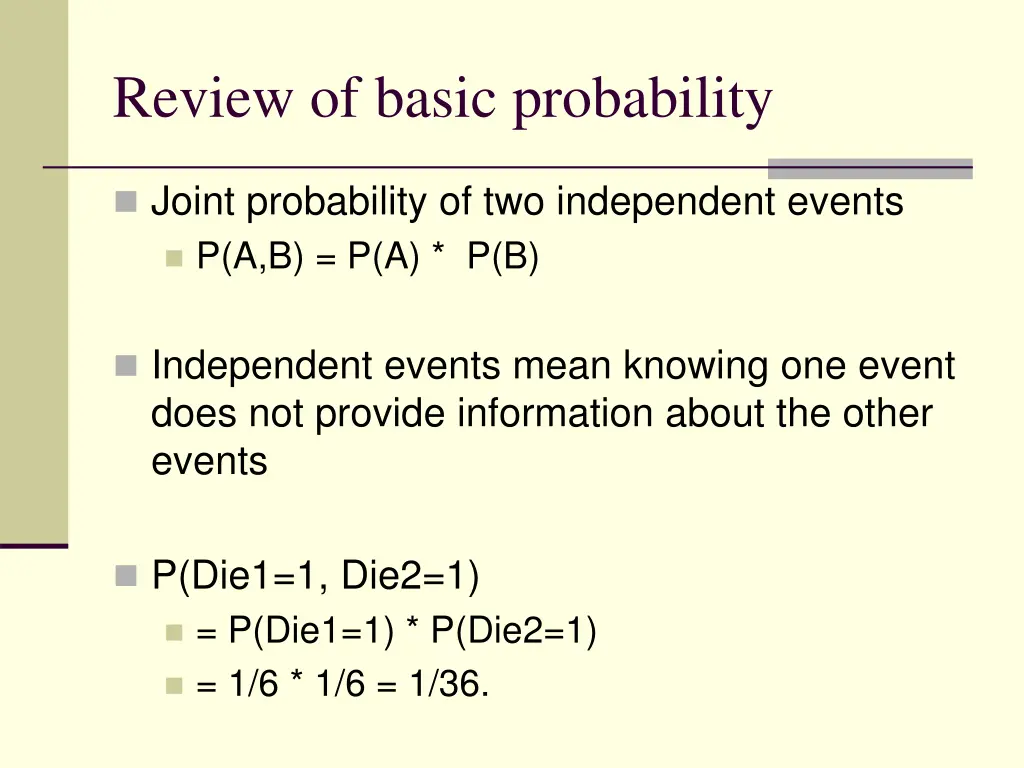

Review of basic probability Joint probability of two independent events P(A,B) = P(A) * P(B) Independent events mean knowing one event does not provide information about the other events P(Die1=1, Die2=1) = P(Die1=1) * P(Die2=1) = 1/6 * 1/6 = 1/36.

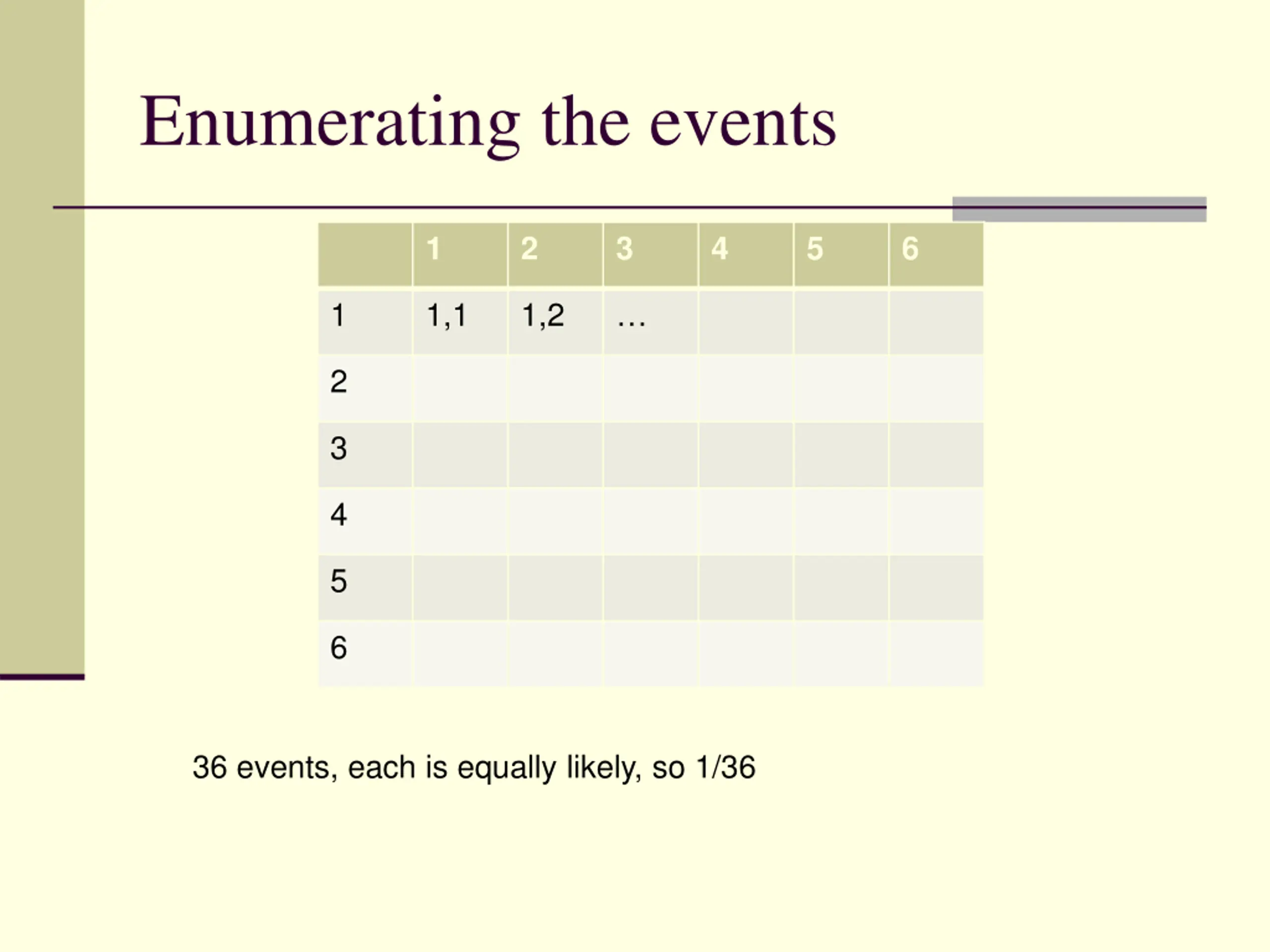

Enumerating the events 1 2 3 4 5 6 1 1,1 1,2 2 3 4 5 6 36 events, each is equally likely, so 1/36

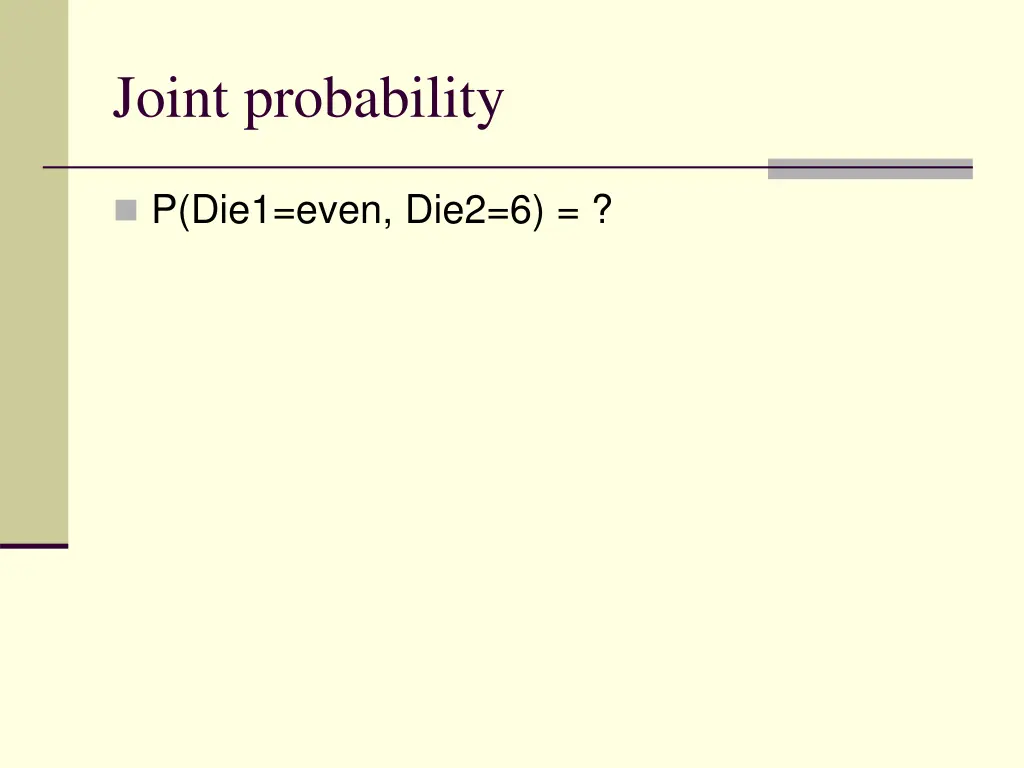

Joint probability P(Die1=even, Die2=6) = ?

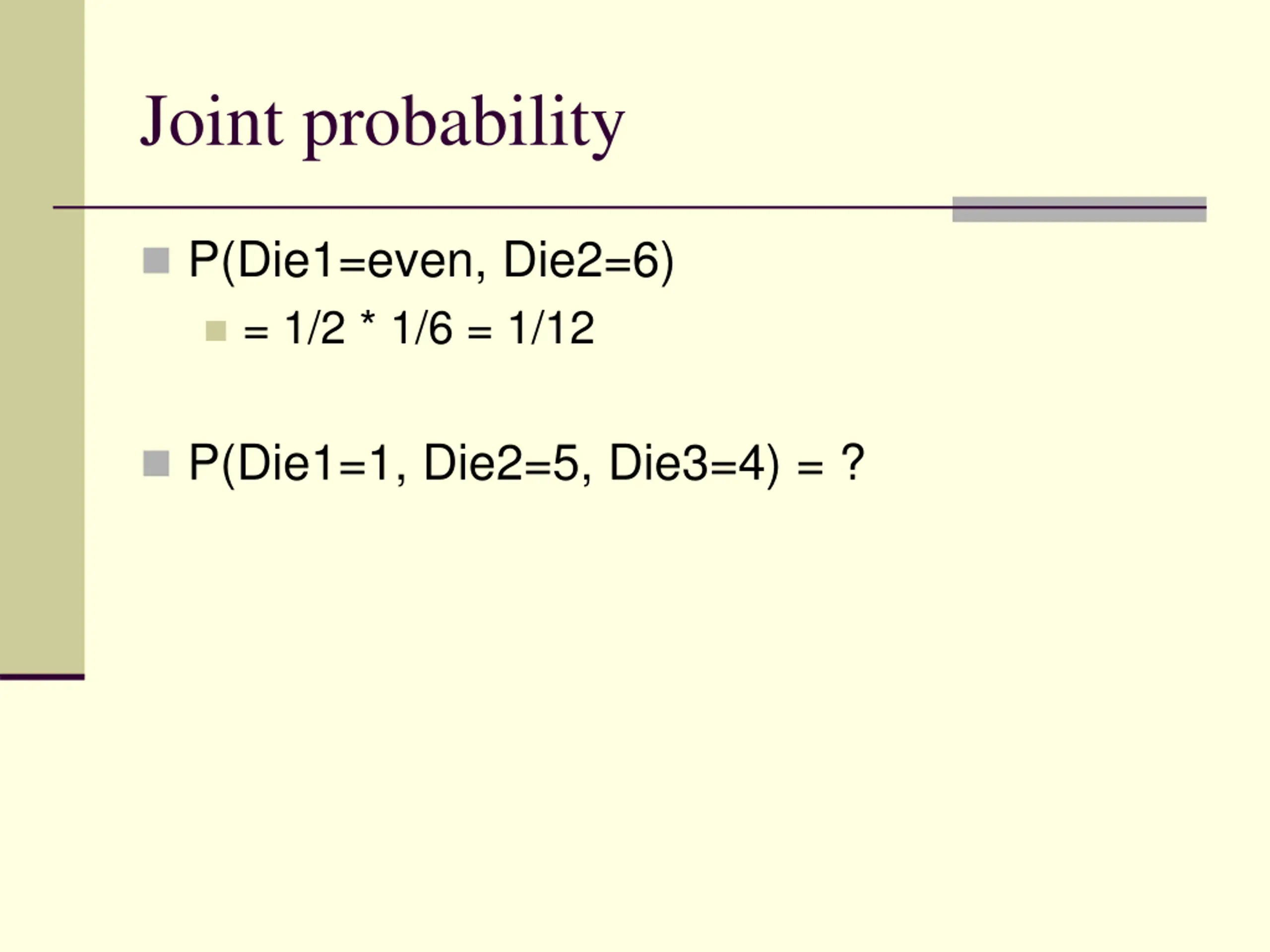

Joint probability P(Die1=even, Die2=6) = 1/2 * 1/6 = 1/12 P(Die1=1, Die2=5, Die3=4) = ?

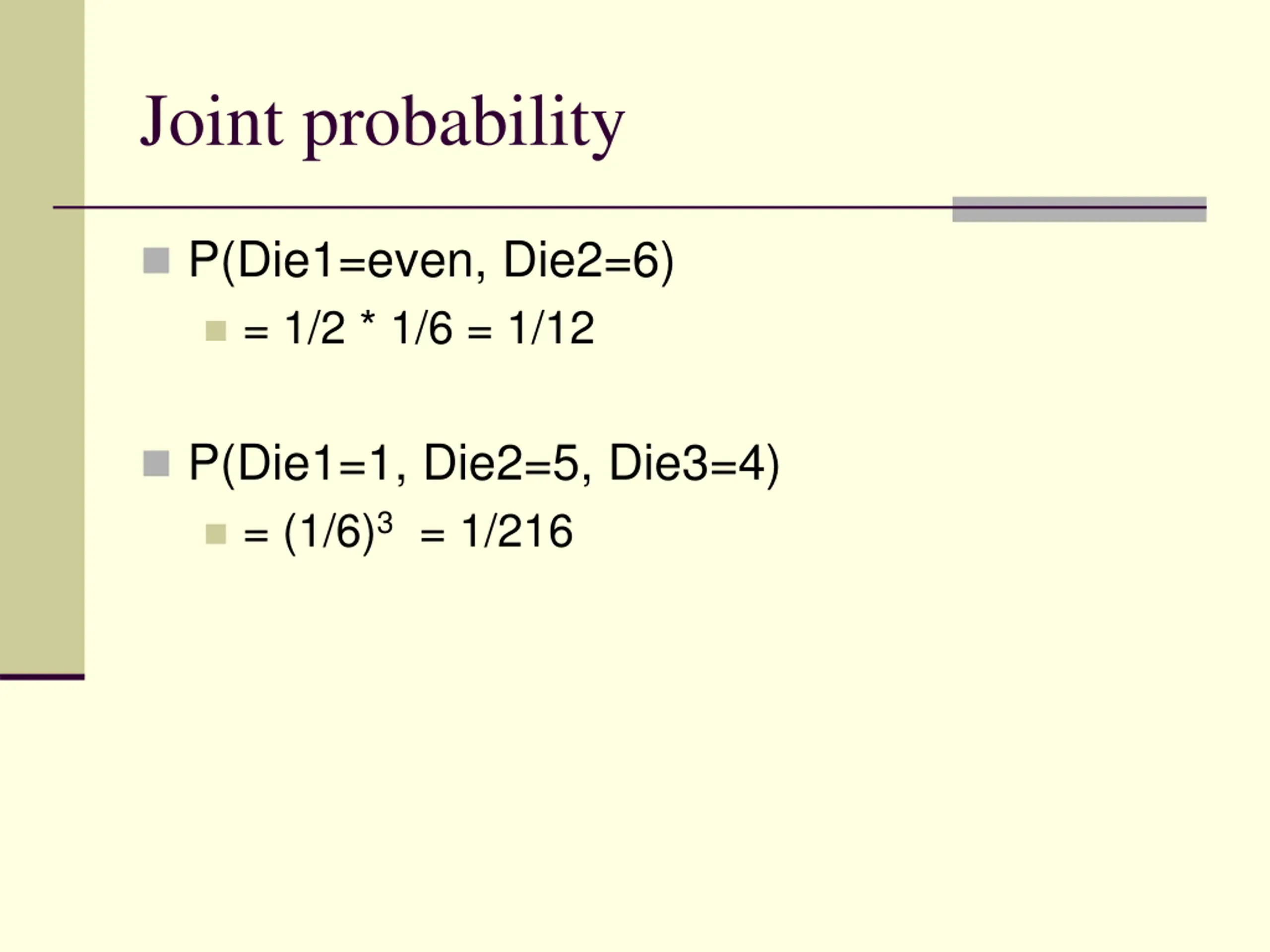

Joint probability P(Die1=even, Die2=6) = 1/2 * 1/6 = 1/12 P(Die1=1, Die2=5, Die3=4) = (1/6)3 = 1/216

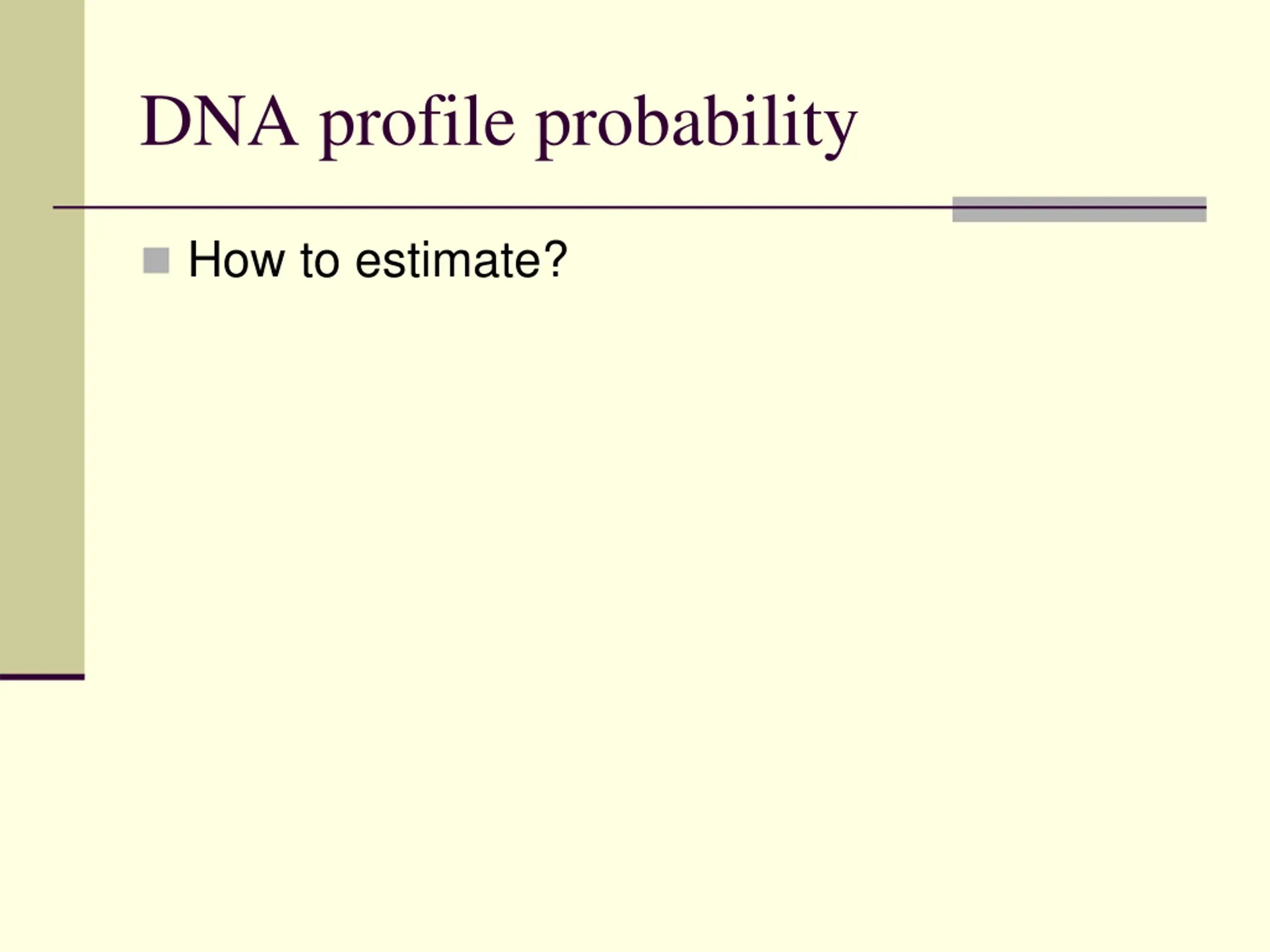

DNA profile probability How to estimate?

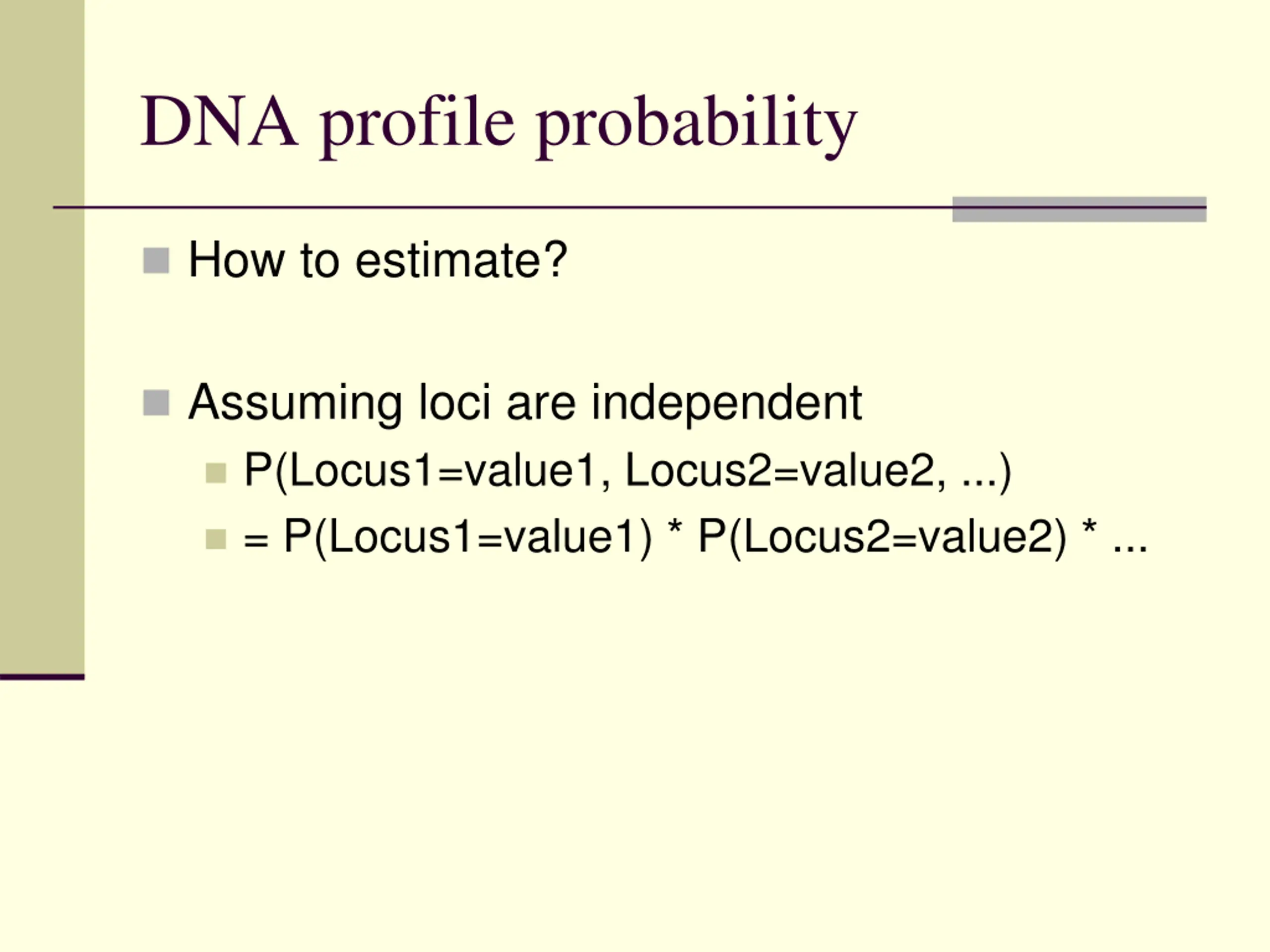

DNA profile probability How to estimate? Assuming loci are independent P(Locus1=value1, Locus2=value2, ...) = P(Locus1=value1) * P(Locus2=value2) * ...

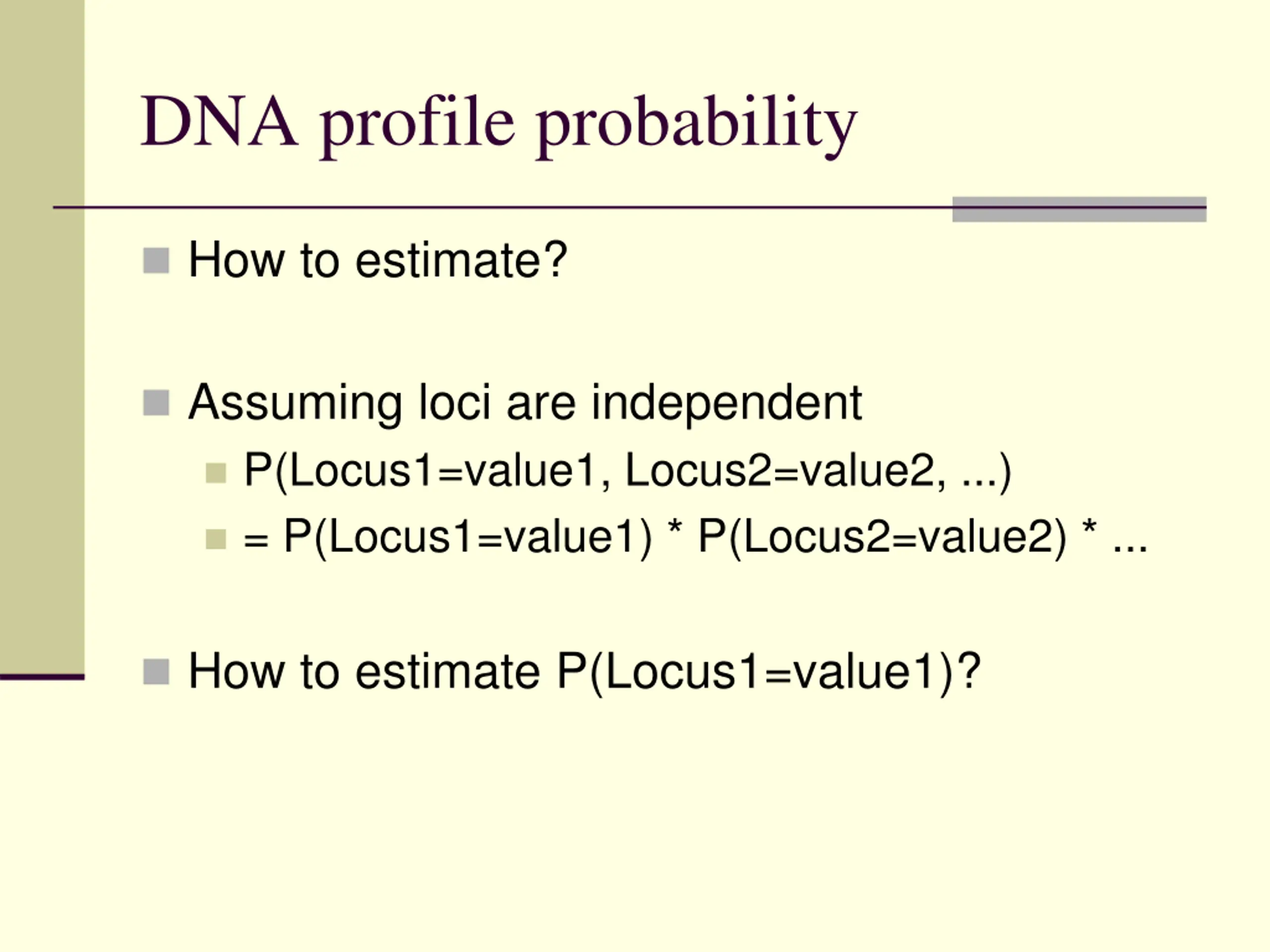

DNA profile probability How to estimate? Assuming loci are independent P(Locus1=value1, Locus2=value2, ...) = P(Locus1=value1) * P(Locus2=value2) * ... How to estimate P(Locus1=value1)?

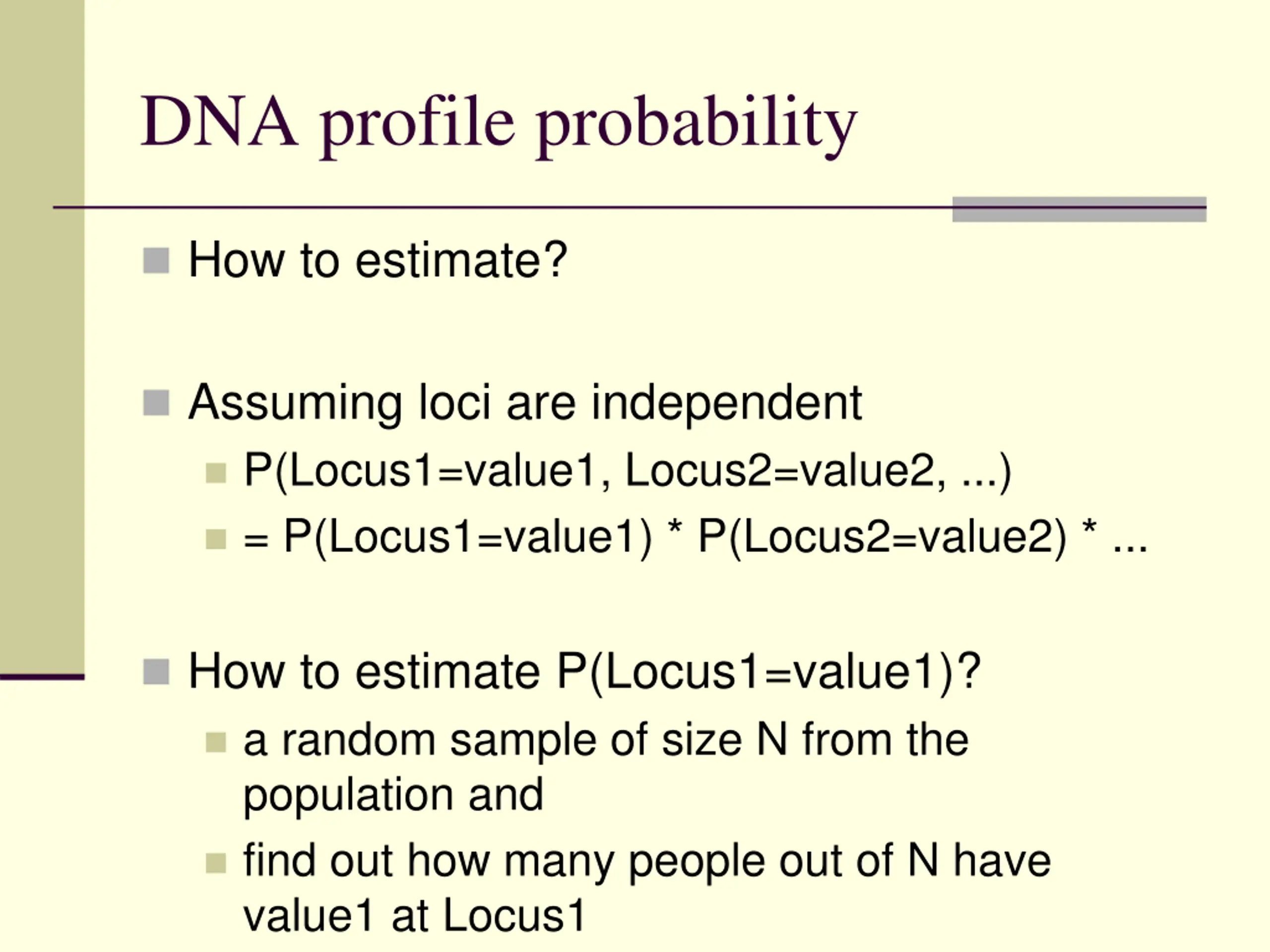

DNA profile probability How to estimate? Assuming loci are independent P(Locus1=value1, Locus2=value2, ...) = P(Locus1=value1) * P(Locus2=value2) * ... How to estimate P(Locus1=value1)? a random sample of size N from the population and find out how many people out of N have value1 at Locus1

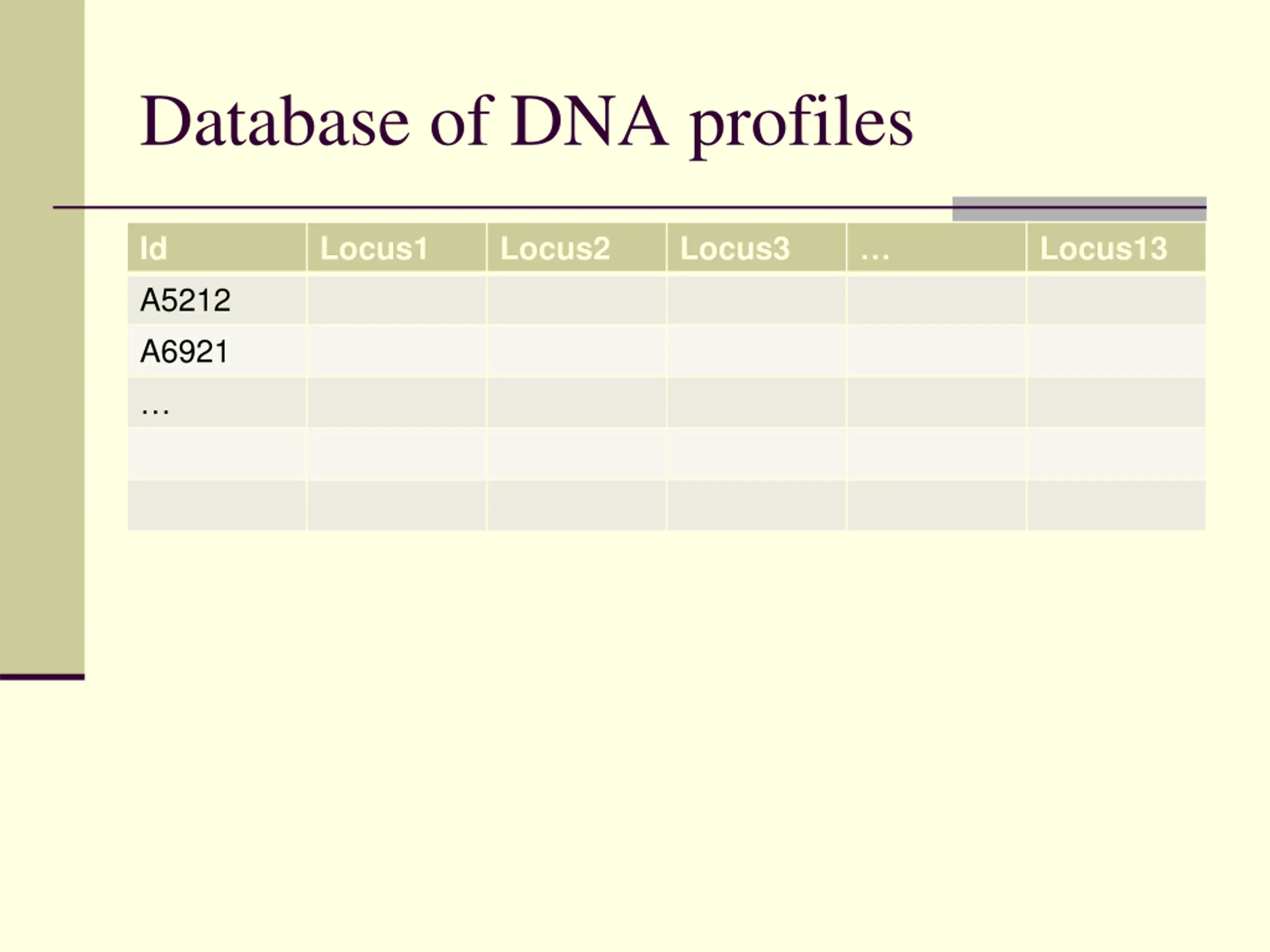

Database of DNA profiles Id A5212 A6921 Locus1 Locus2 Locus3 Locus13

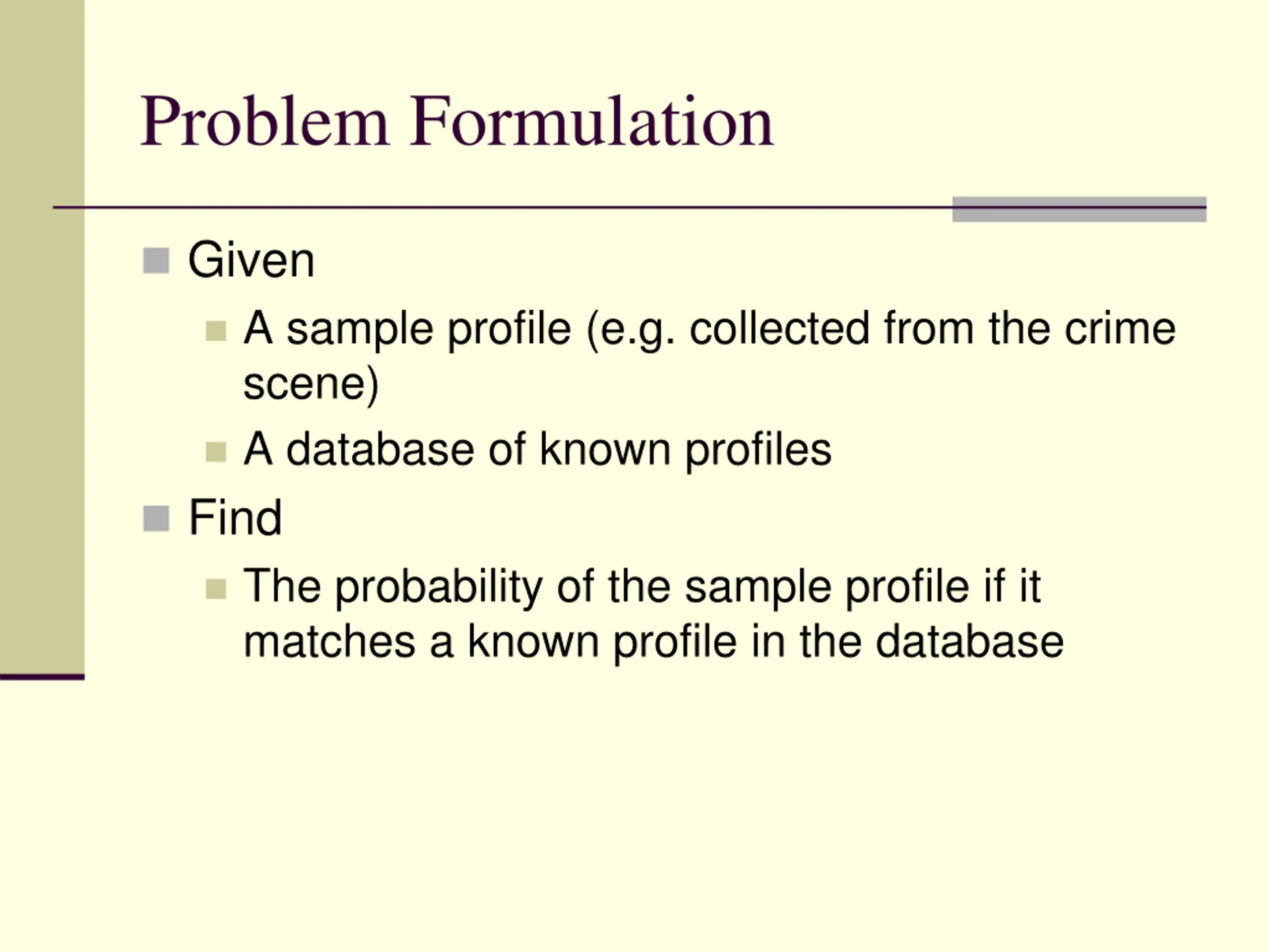

Problem Formulation Given A sample profile (e.g. collected from the crime scene) A database of known profiles Find The probability of the sample profile if it matches a known profile in the database

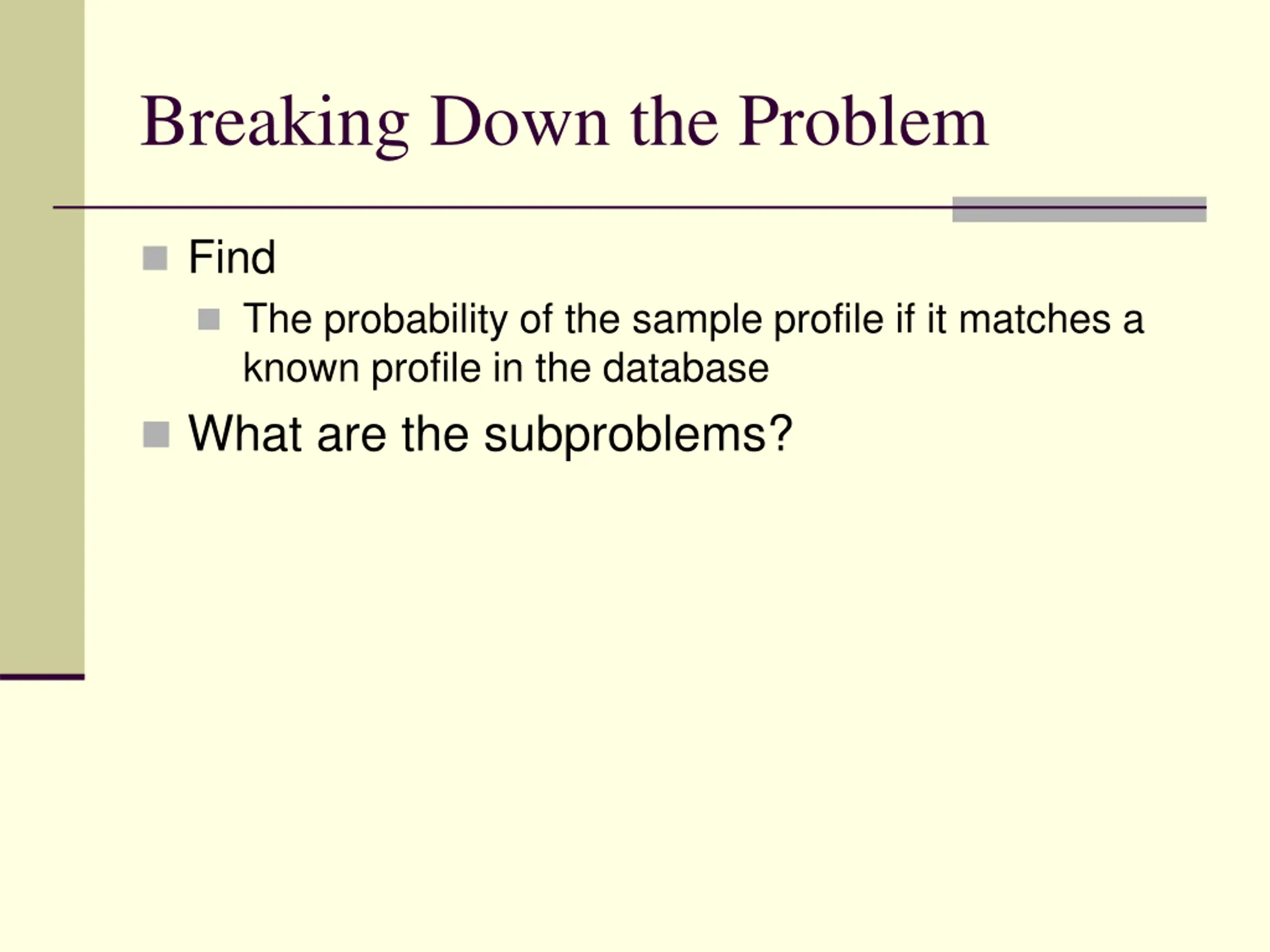

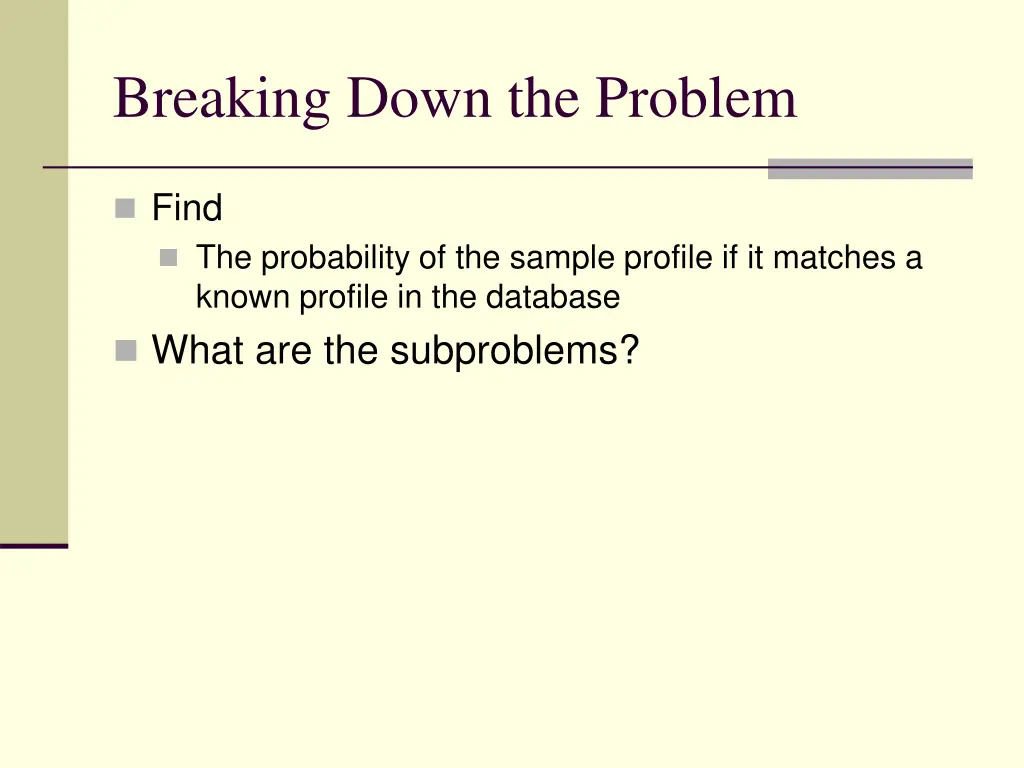

Breaking Down the Problem Find The probability of the sample profile if it matches a known profile in the database What are the subproblems?

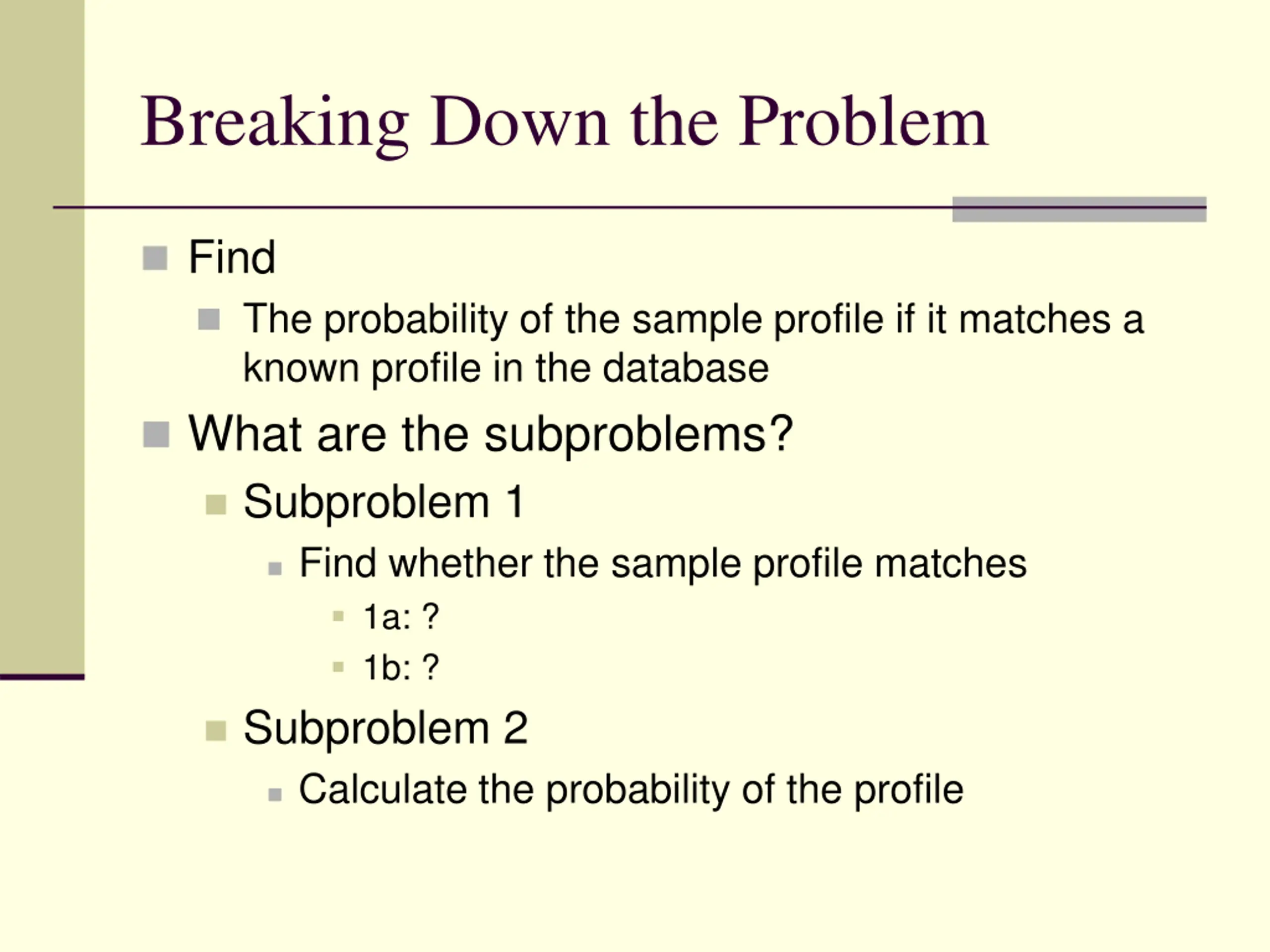

Breaking Down the Problem Find The probability of the sample profile if it matches a known profile in the database What are the subproblems? Subproblem 1 Find whether the sample profile matches 1a: ? 1b: ? Subproblem 2 Calculate the probability of the profile

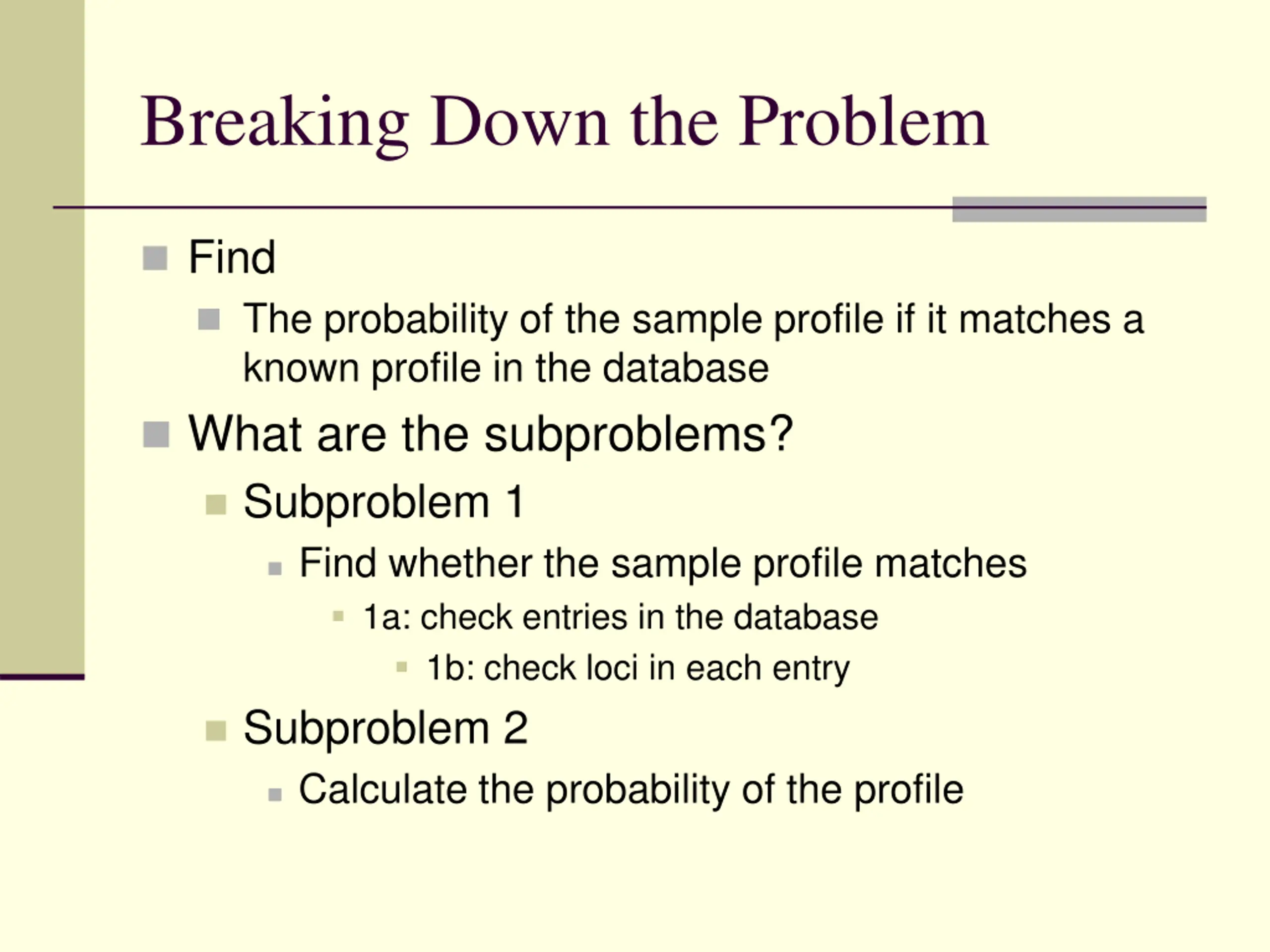

Breaking Down the Problem Find The probability of the sample profile if it matches a known profile in the database What are the subproblems? Subproblem 1 Find whether the sample profile matches 1a: check entries in the database 1b: check loci in each entry Subproblem 2 Calculate the probability of the profile
Simpler Problem for 1a (very common) Given an array of integers (e.g. student IDs) an integer (e.g. an ID) Find whether the integer is in the array (e.g. whether you can enter your dorm) int[] directory; // student id s int id; // to be found

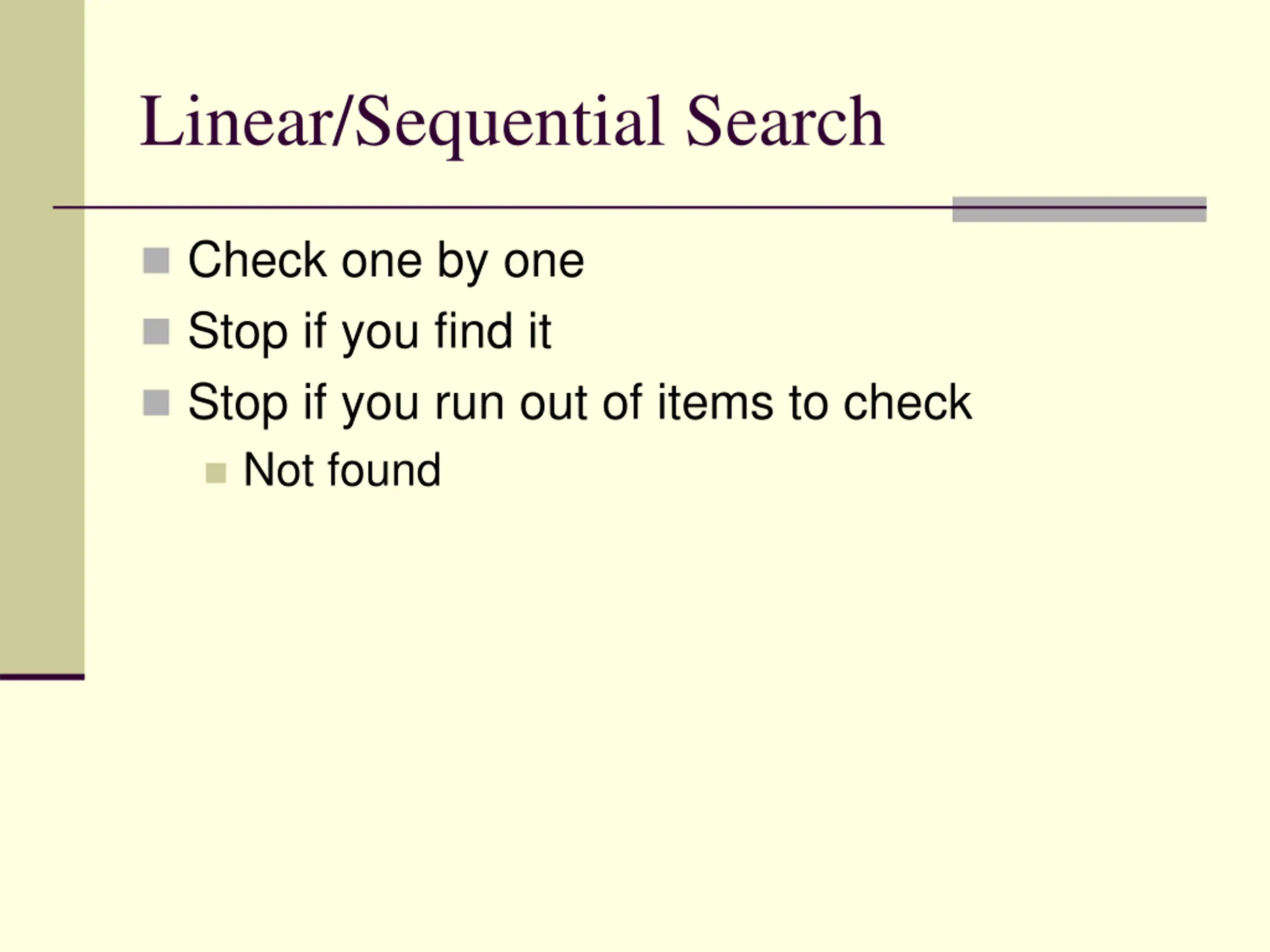

Linear/Sequential Search Check one by one Stop if you find it Stop if you run out of items to check Not found

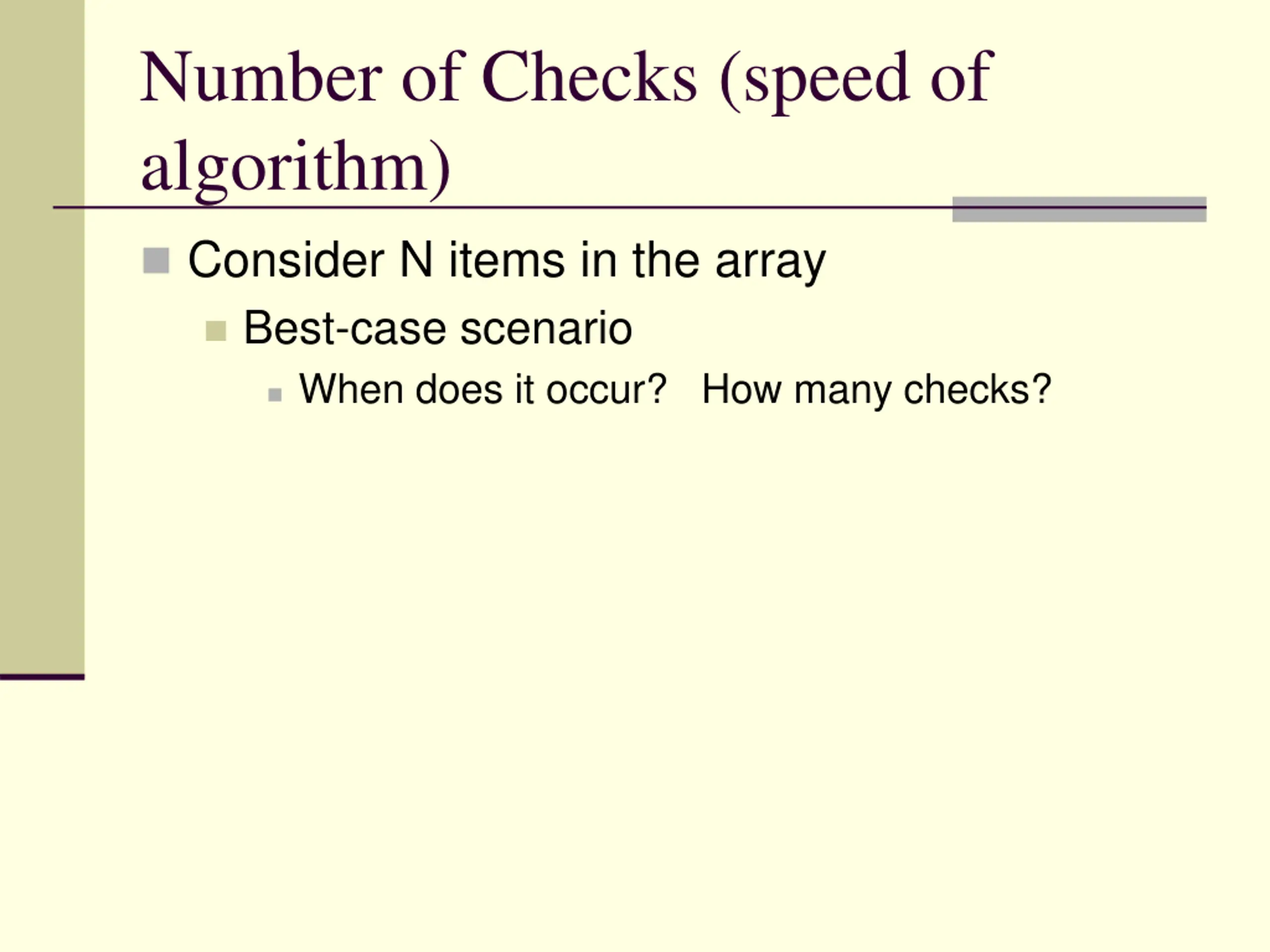

Number of Checks (speed of algorithm) Consider N items in the array Best-case scenario When does it occur? How many checks?

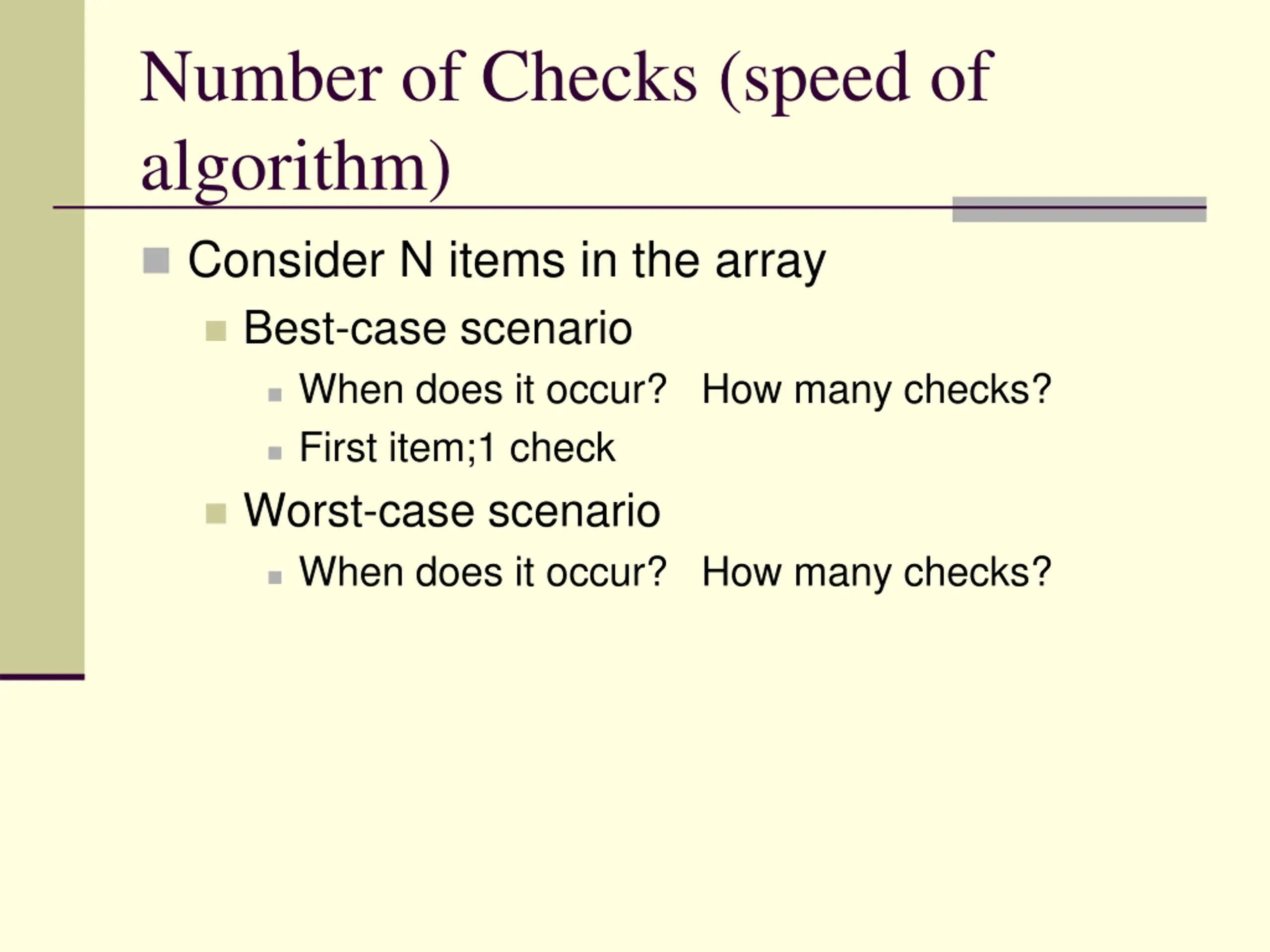

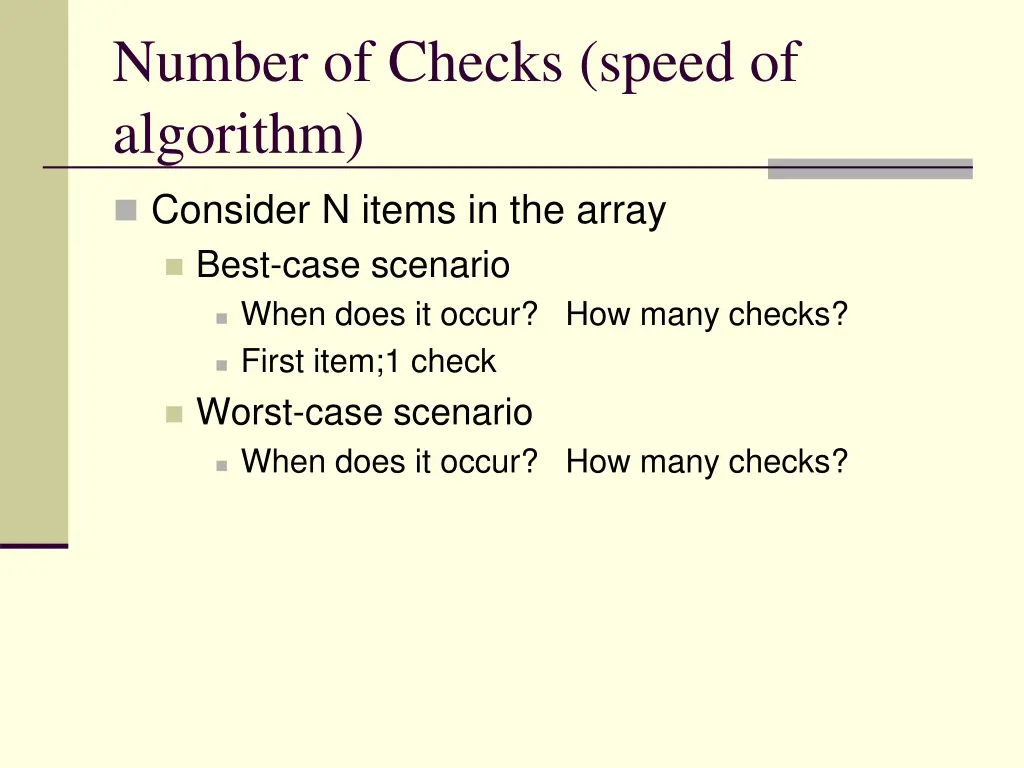

Number of Checks (speed of algorithm) Consider N items in the array Best-case scenario When does it occur? How many checks? First item;1 check Worst-case scenario When does it occur? How many checks?

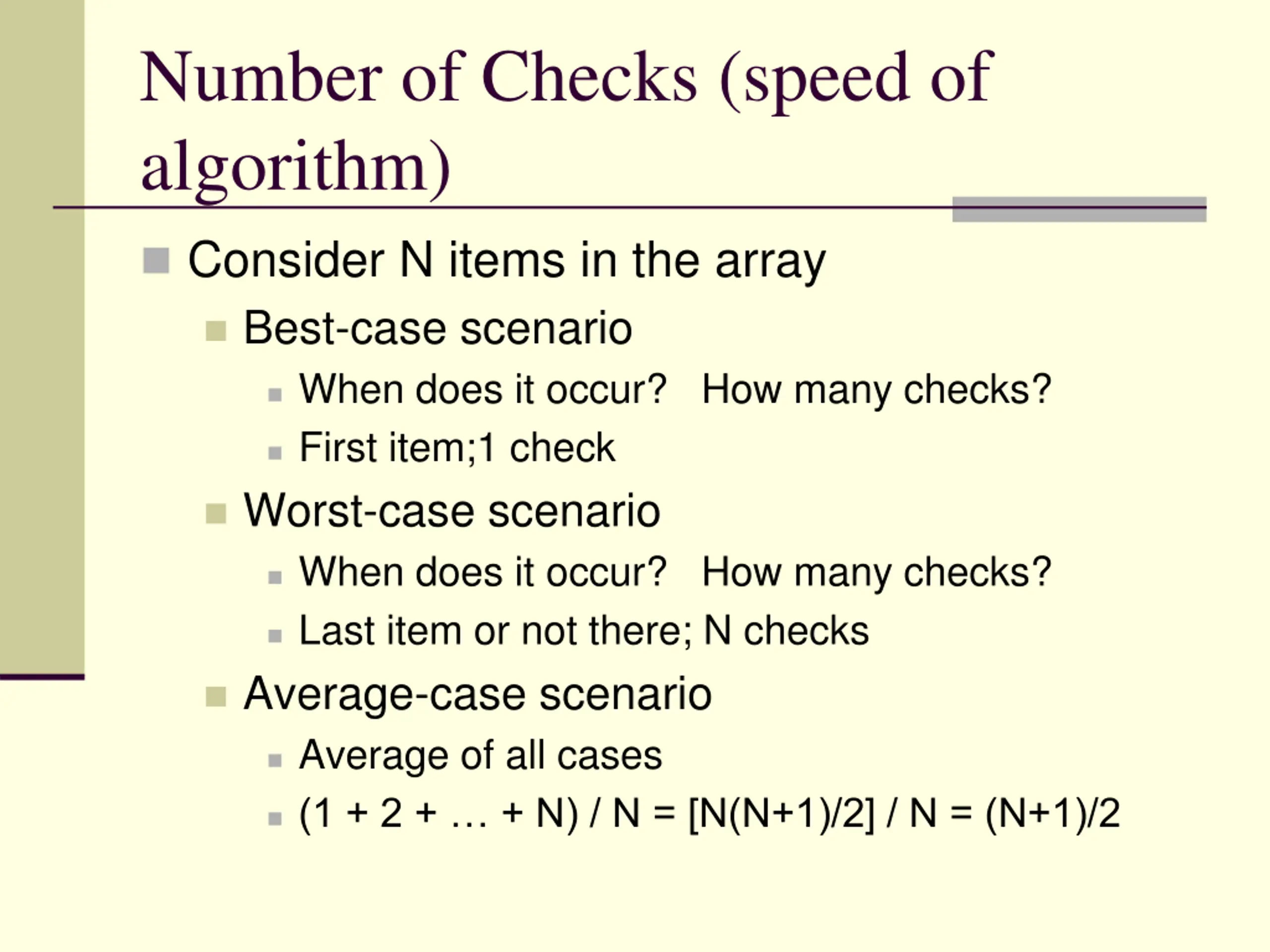

Number of Checks (speed of algorithm) Consider N items in the array Best-case scenario When does it occur? How many checks? First item;1 check Worst-case scenario When does it occur? How many checks? Last item or not there; N checks Average-case scenario Average of all cases (1 + 2 + + N) / N = [N(N+1)/2] / N = (N+1)/2

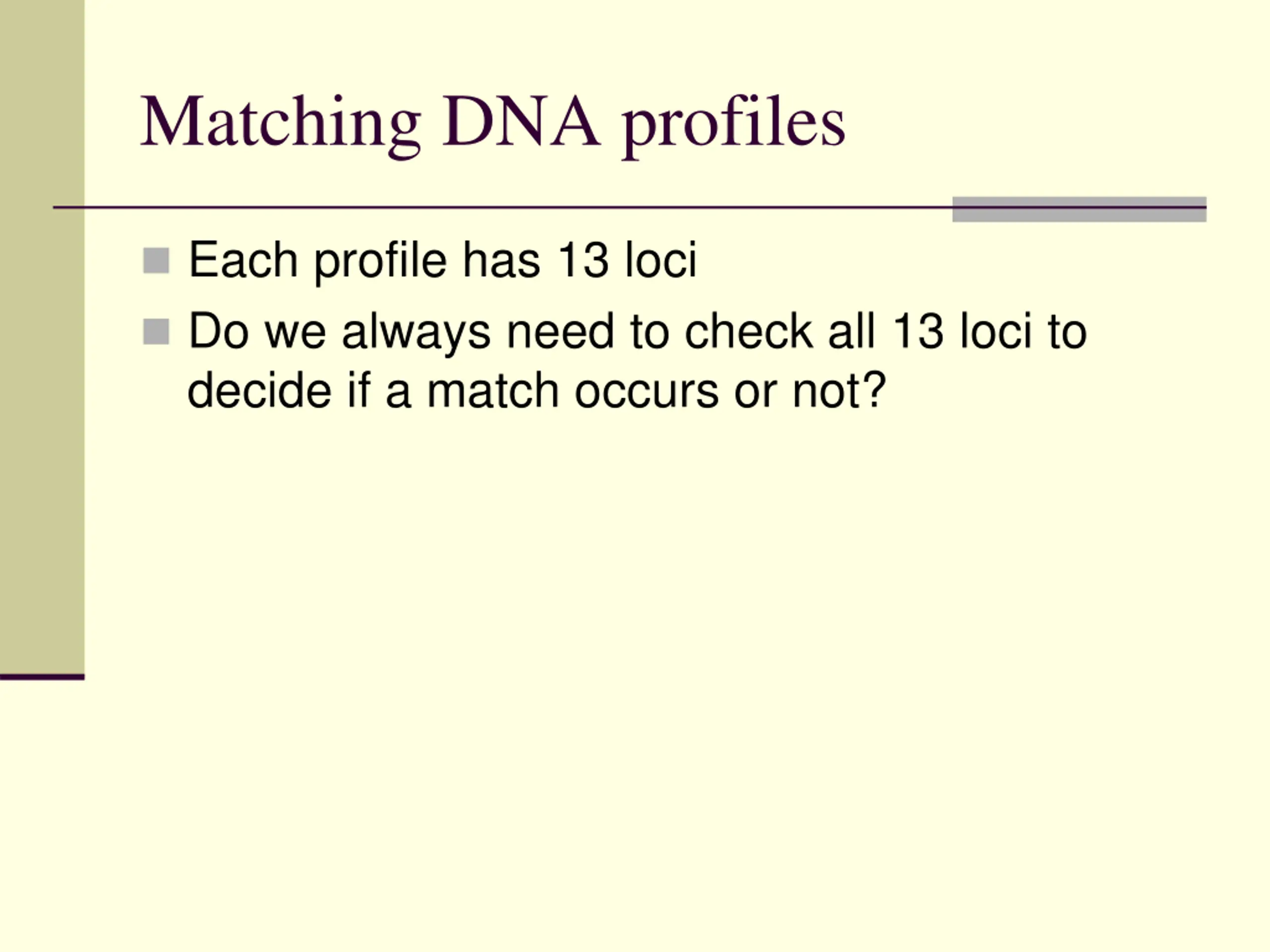

Matching DNA profiles Each profile has 13 loci Do we always need to check all 13 loci to decide if a match occurs or not?

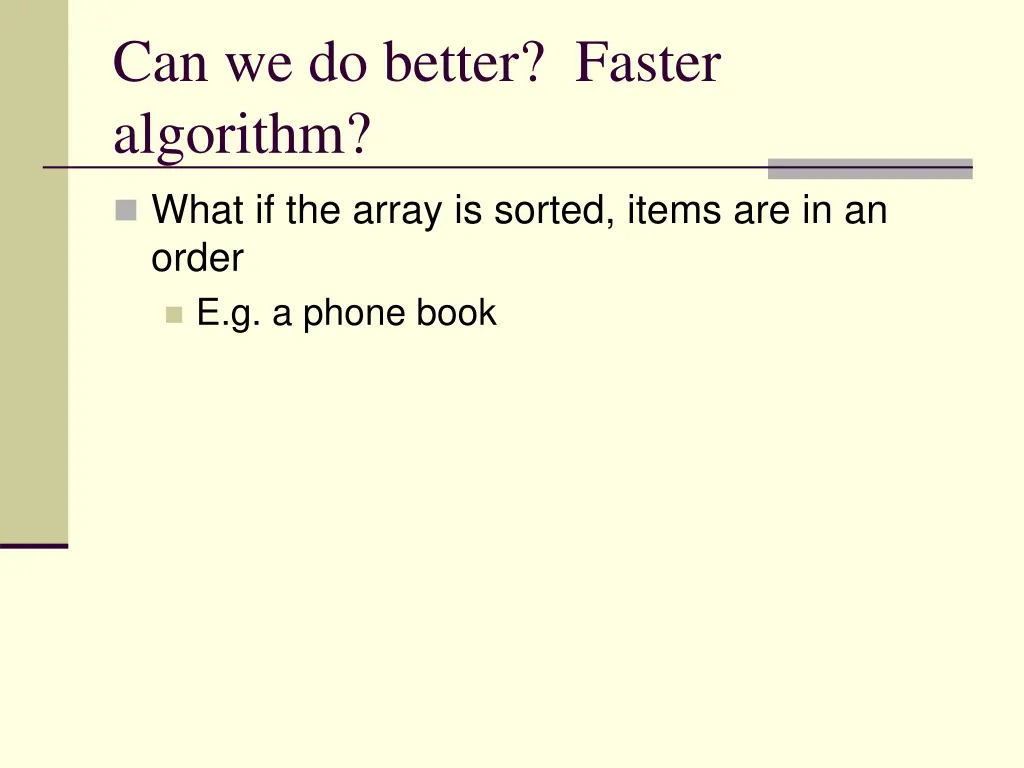

Can we do better? Faster algorithm? What if the array is sorted, items are in an order E.g. a phone book

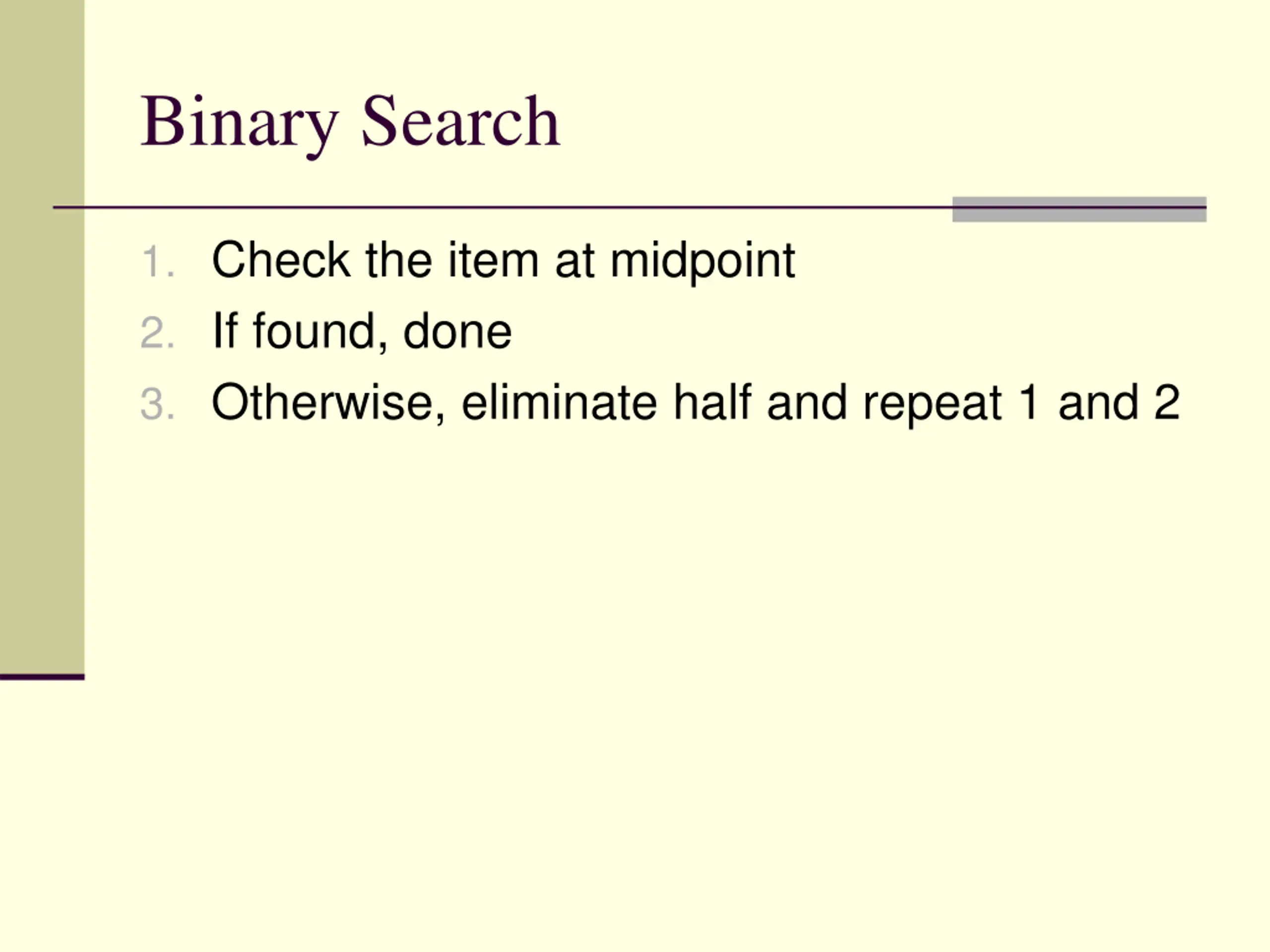

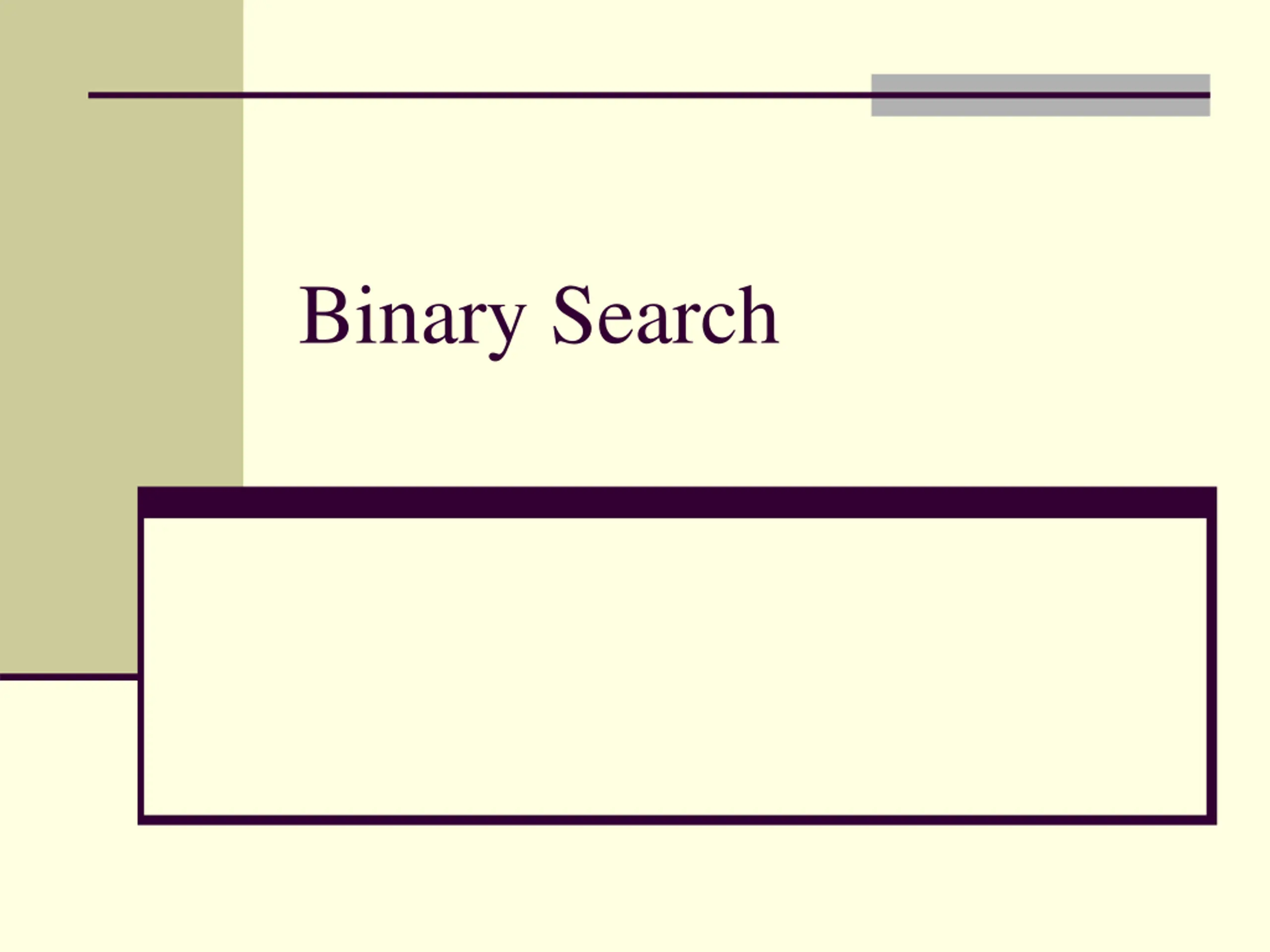

Binary Search 1. Check the item at midpoint 2. If found, done 3. Otherwise, eliminate half and repeat 1 and 2

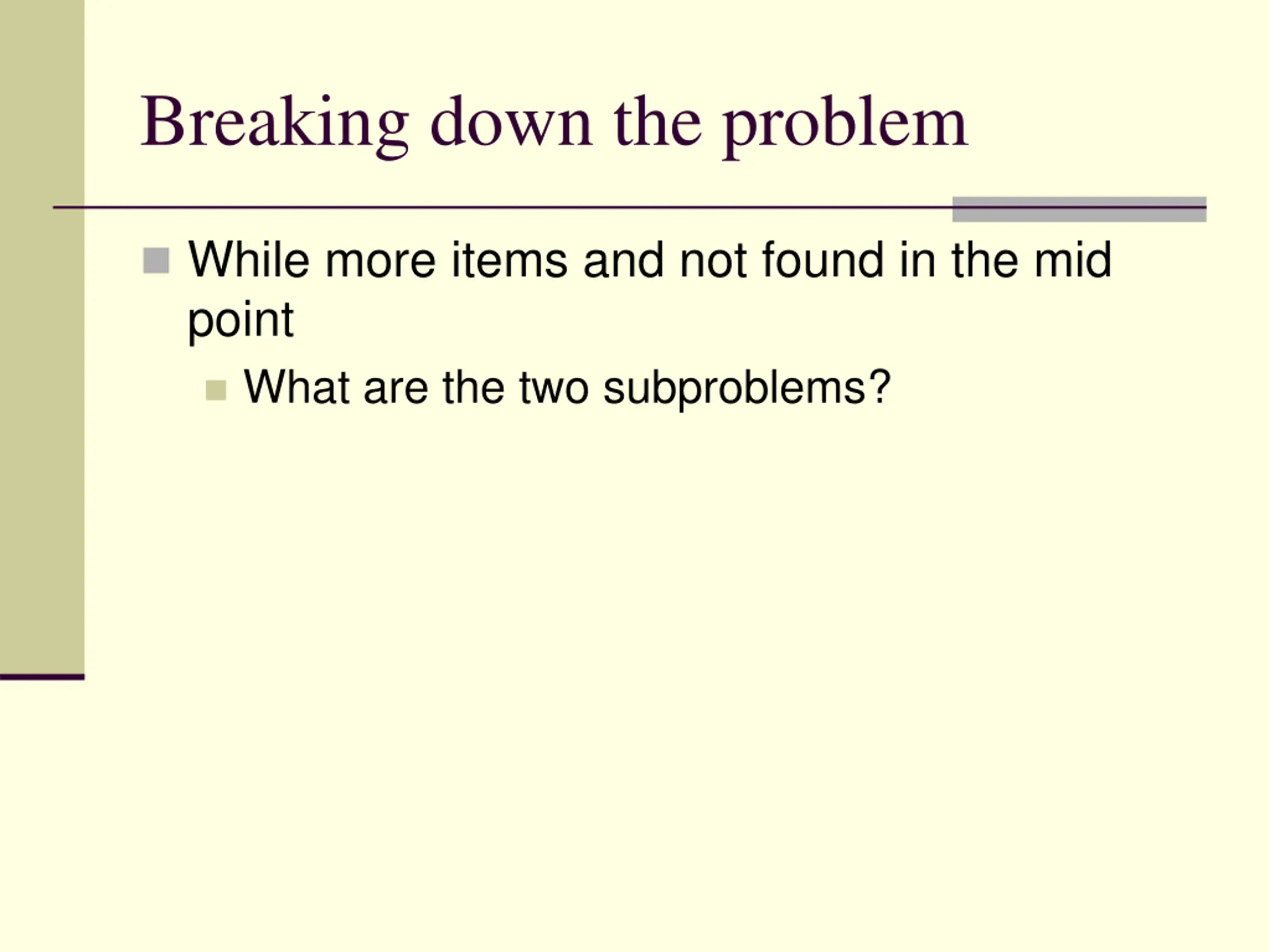

Breaking down the problem While more items and not found in the mid point What are the two subproblems?

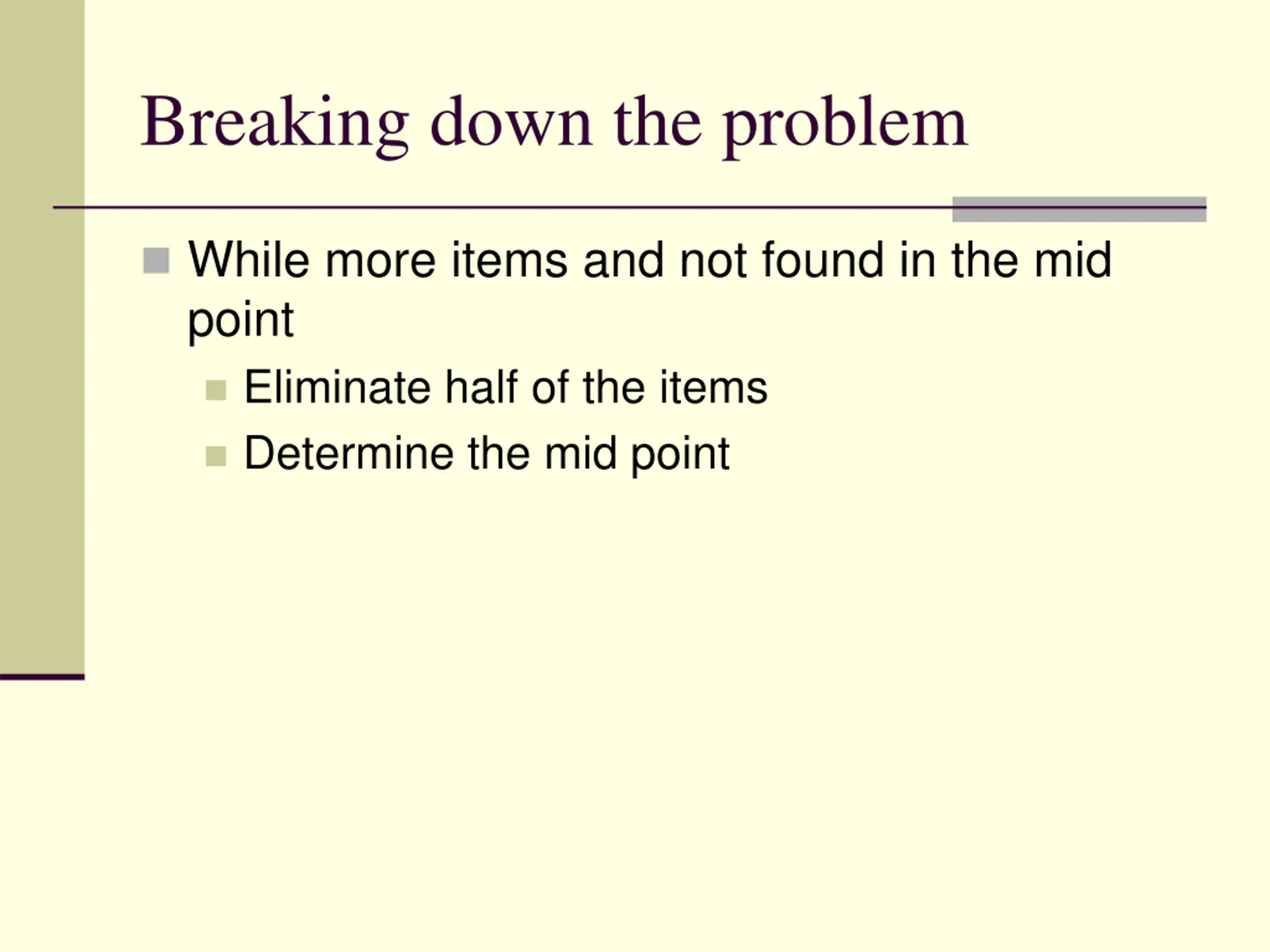

Breaking down the problem While more items and not found in the mid point Eliminate half of the items Determine the mid point

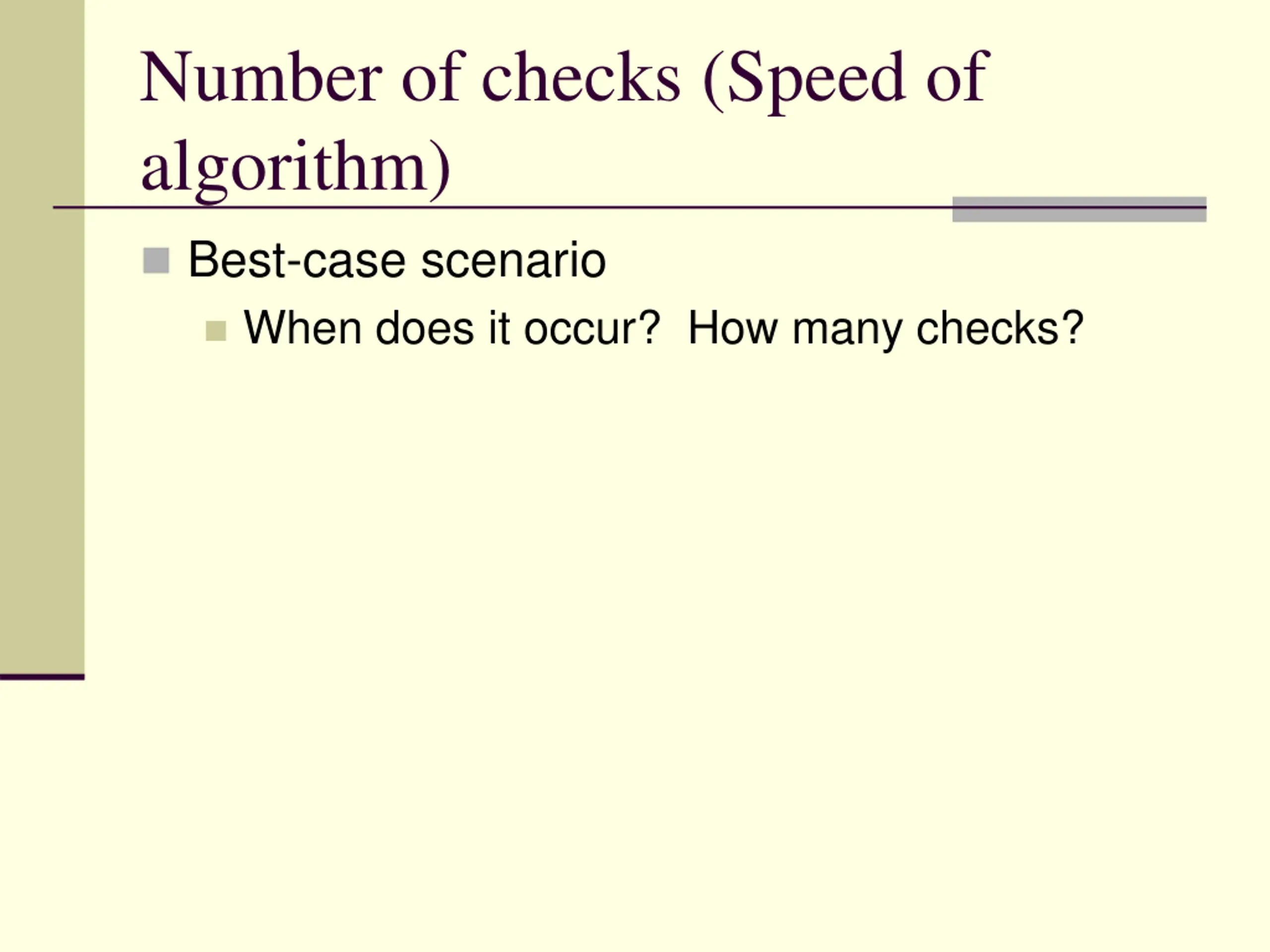

Number of checks (Speed of algorithm) Best-case scenario When does it occur? How many checks?

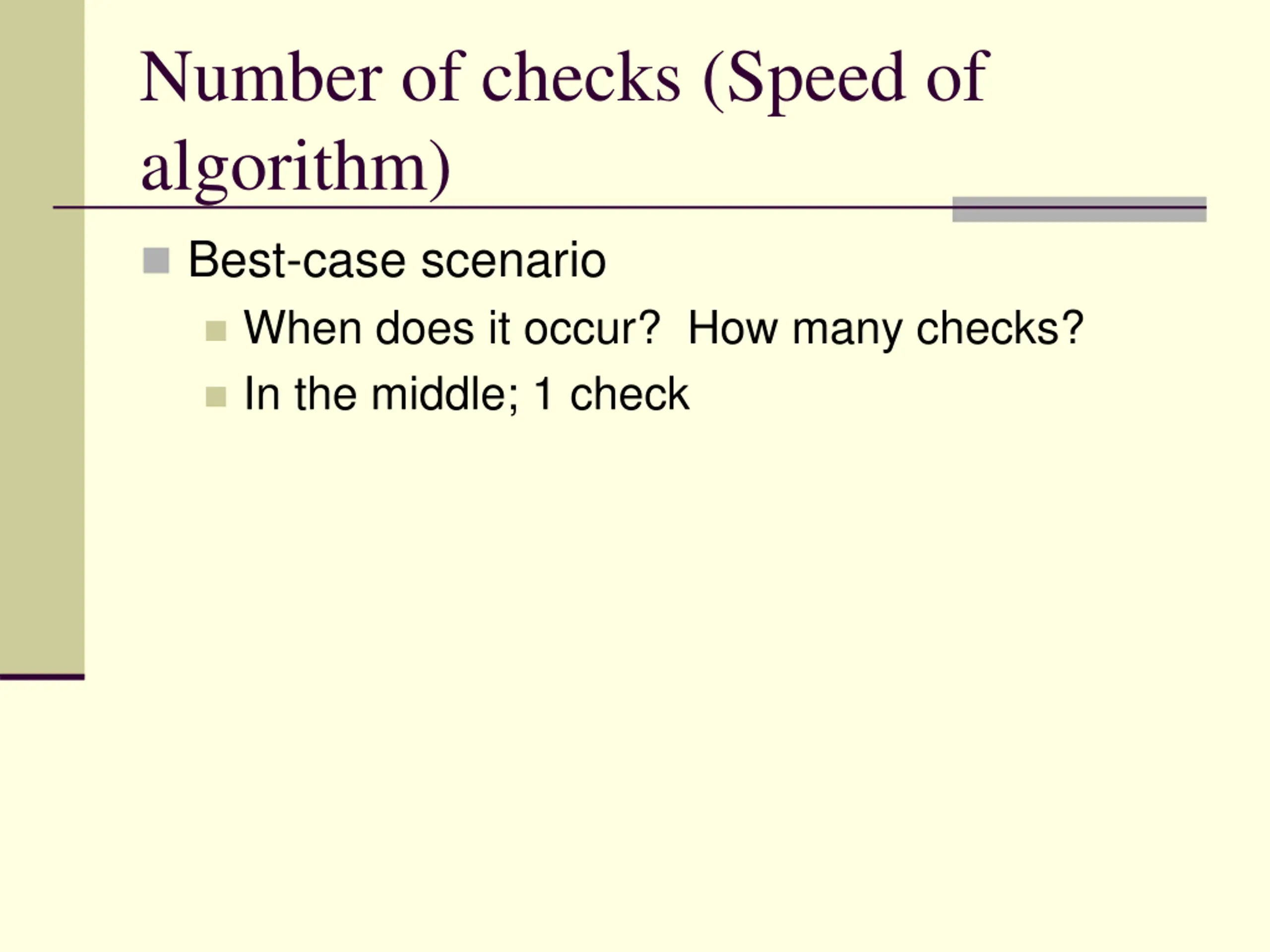

Number of checks (Speed of algorithm) Best-case scenario When does it occur? How many checks? In the middle; 1 check

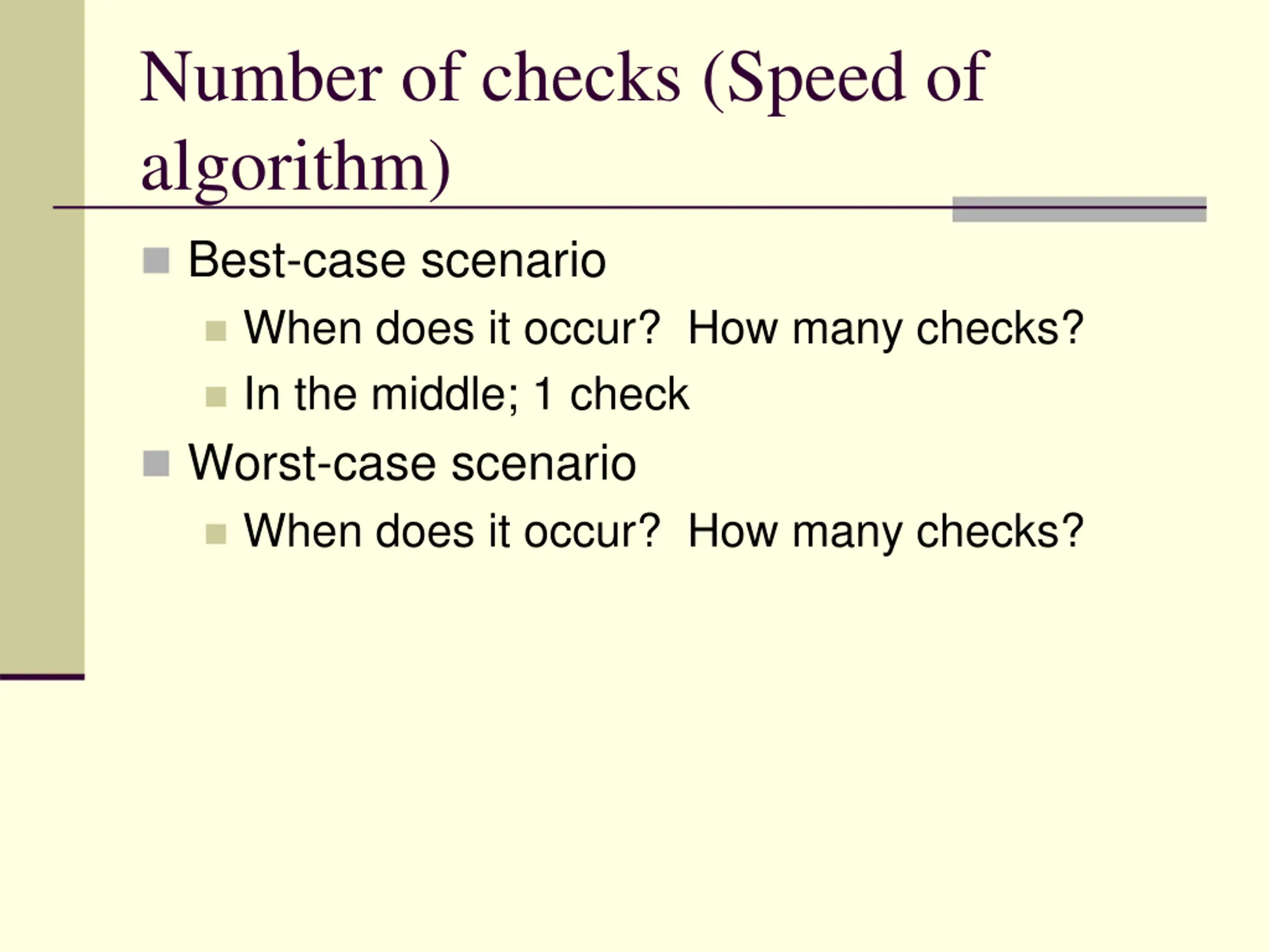

Number of checks (Speed of algorithm) Best-case scenario When does it occur? How many checks? In the middle; 1 check Worst-case scenario When does it occur? How many checks?

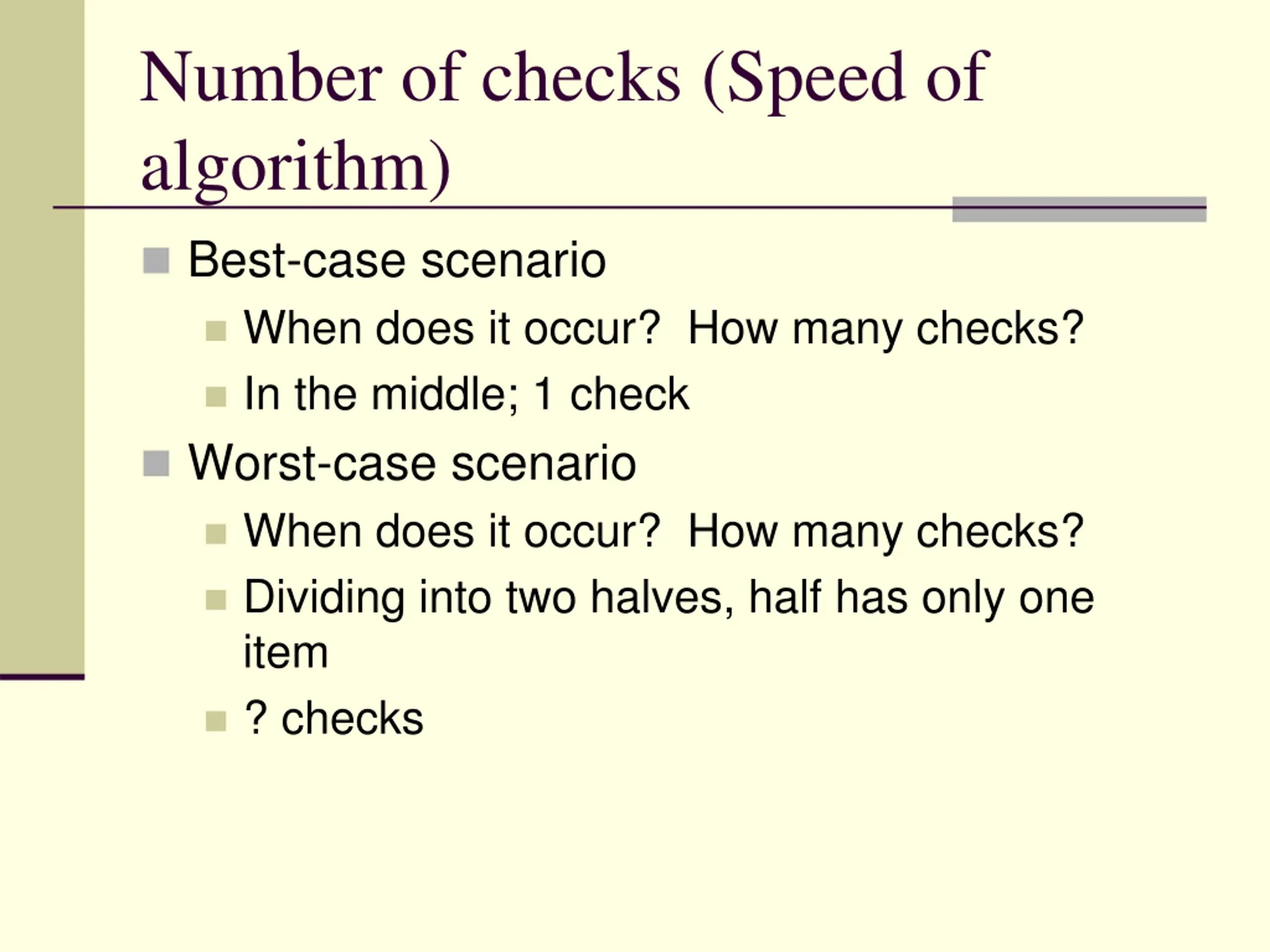

Number of checks (Speed of algorithm) Best-case scenario When does it occur? How many checks? In the middle; 1 check Worst-case scenario When does it occur? How many checks? Dividing into two halves, half has only one item ? checks

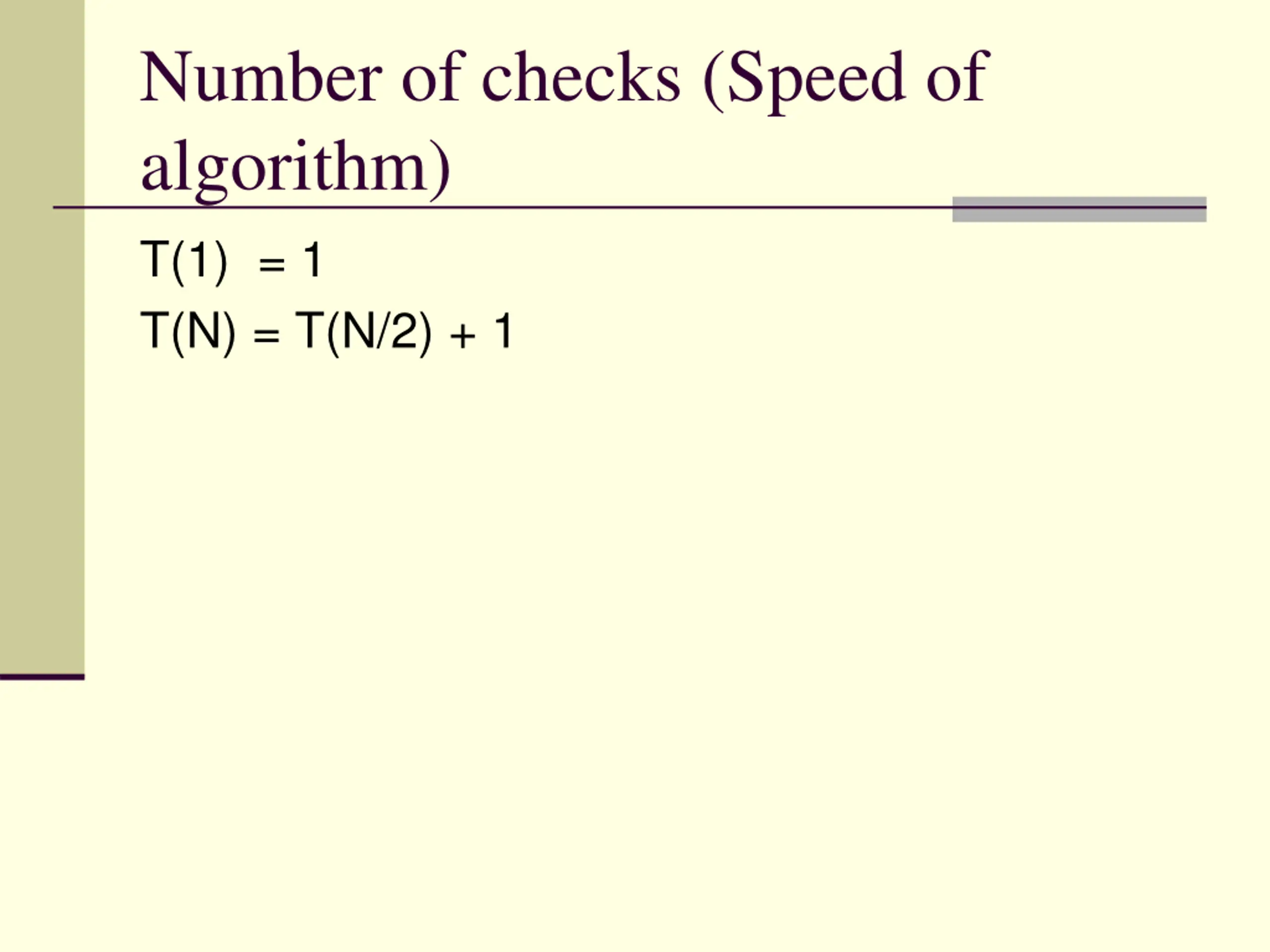

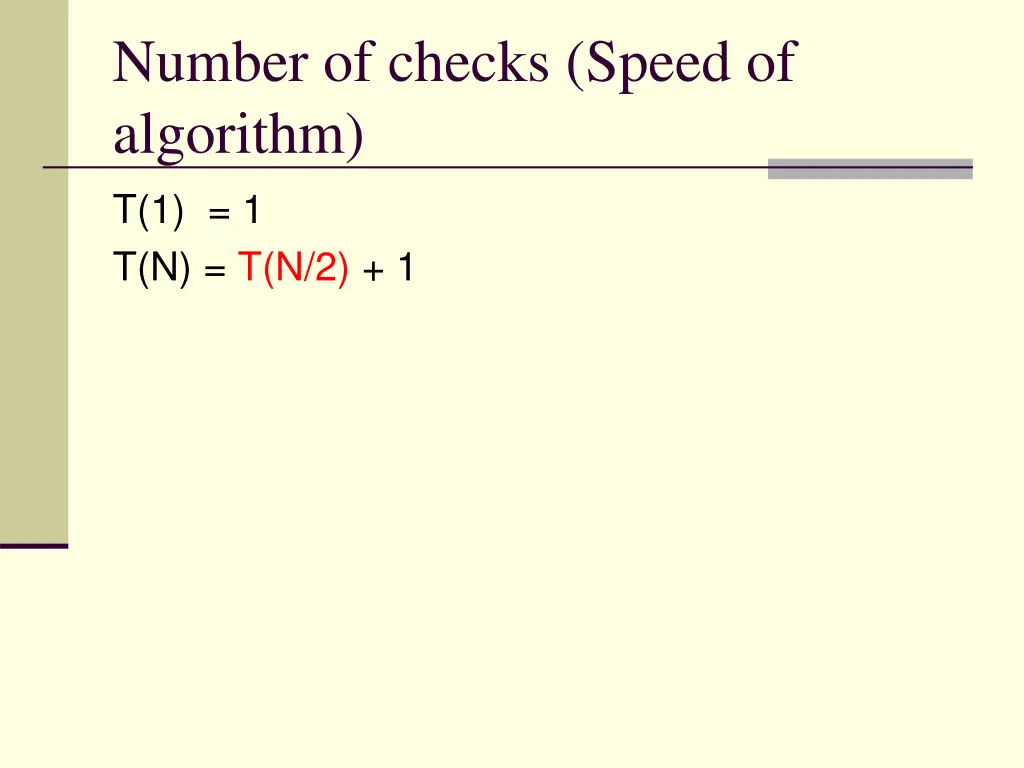

Number of checks (Speed of algorithm) T(1) = 1 T(N) = T(N/2) + 1
Number of checks (Speed of algorithm) T(1) = 1 T(N) = T(N/2) + 1

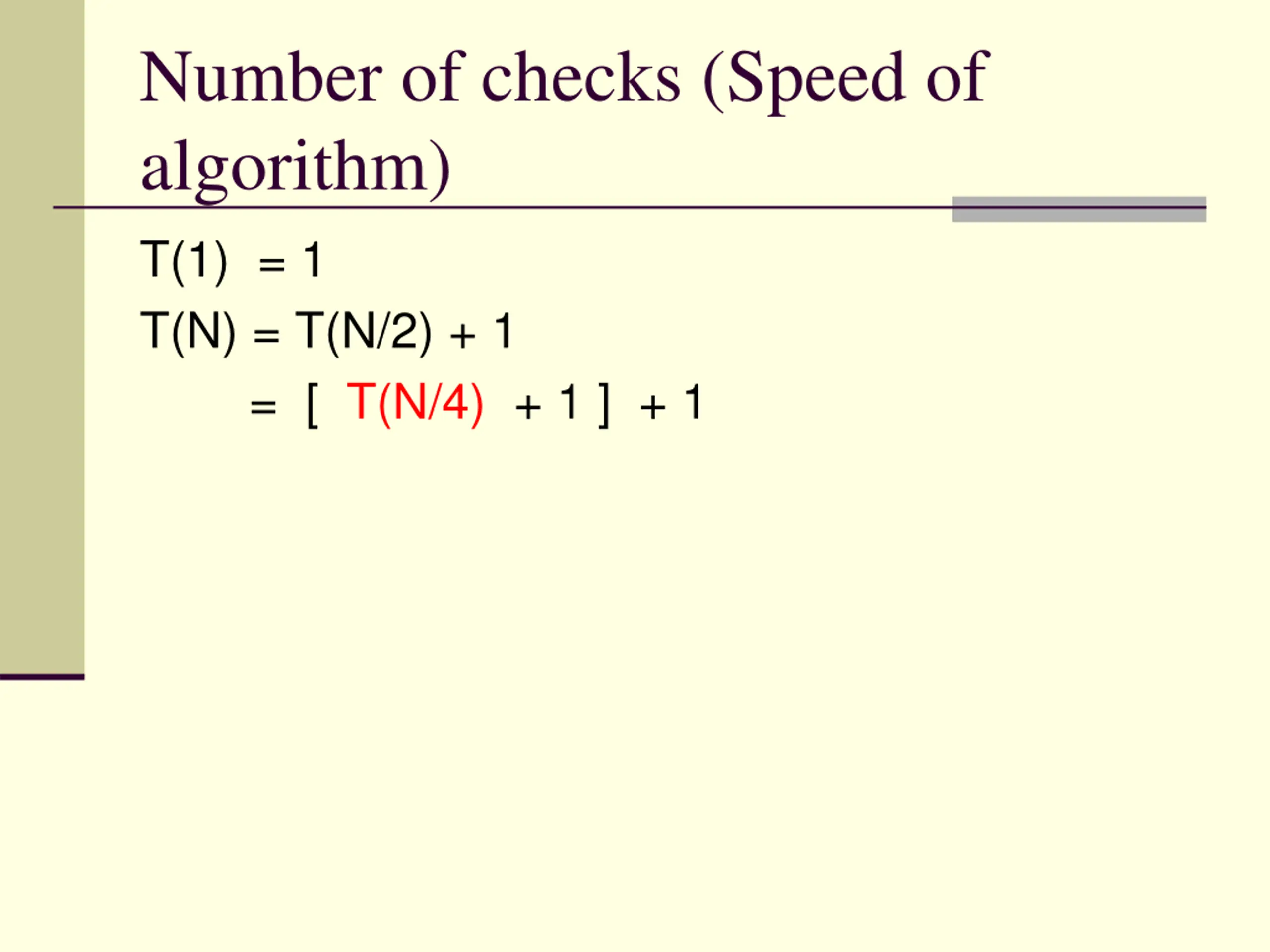

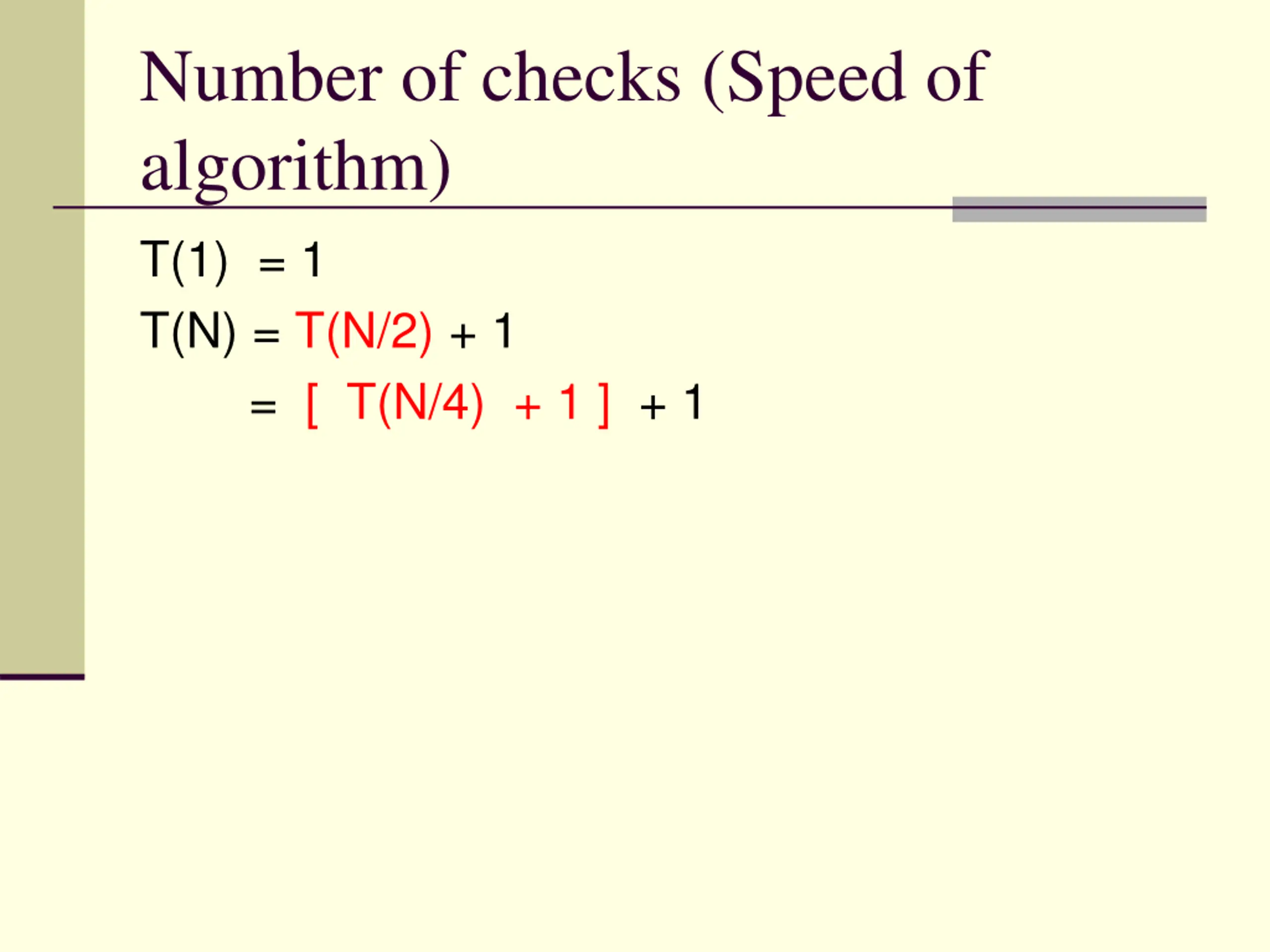

Number of checks (Speed of algorithm) T(1) = 1 T(N) = T(N/2) + 1 = [ T(N/4) + 1 ] + 1
Number of checks (Speed of algorithm) T(1) = 1 T(N) = T(N/2) + 1 = [ T(N/4) + 1 ] + 1

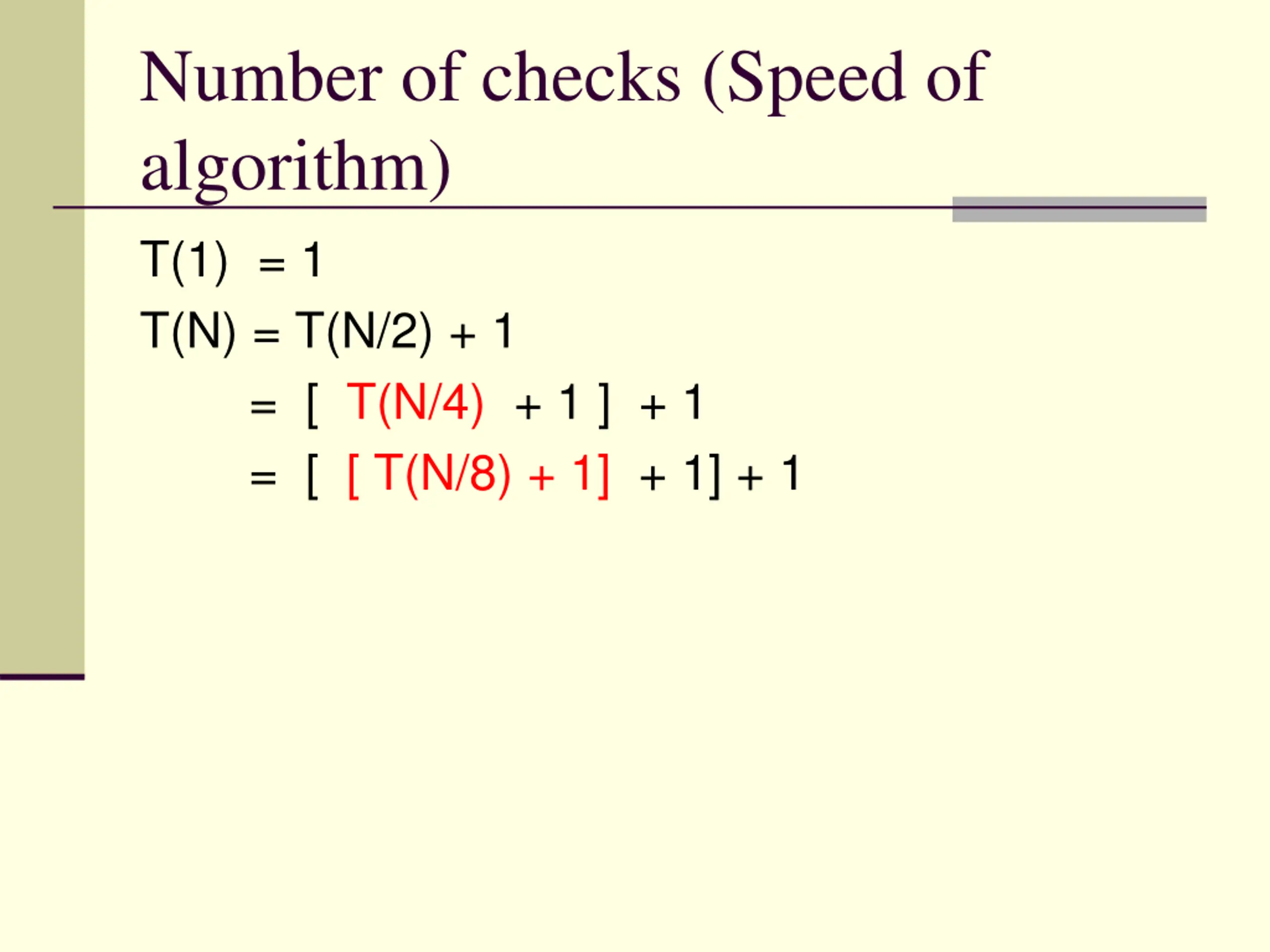

Number of checks (Speed of algorithm) T(1) = 1 T(N) = T(N/2) + 1 = [ T(N/4) + 1 ] + 1 = [ [ T(N/8) + 1] + 1] + 1

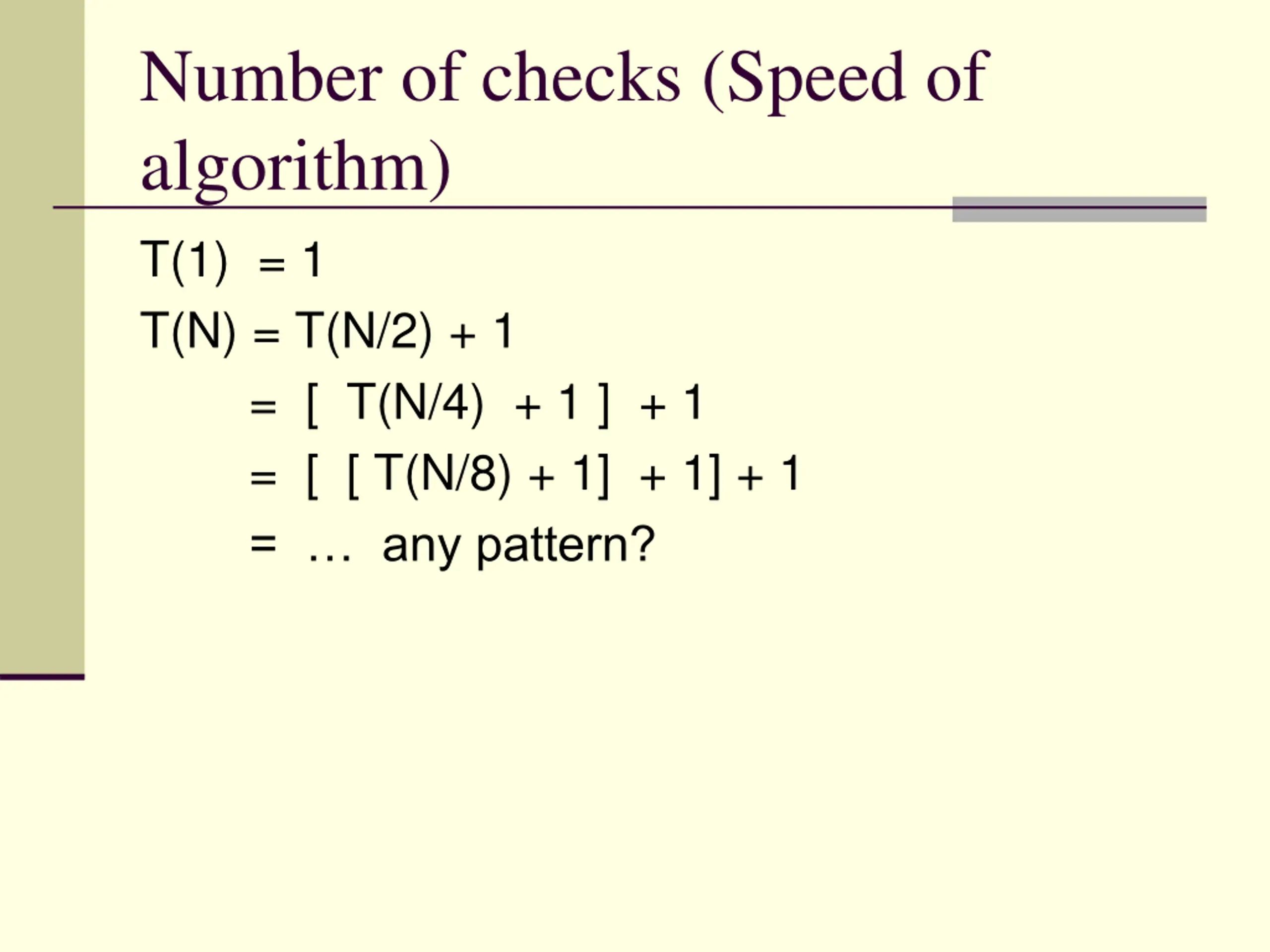

Number of checks (Speed of algorithm) T(1) = 1 T(N) = T(N/2) + 1 = [ T(N/4) + 1 ] + 1 = [ [ T(N/8) + 1] + 1] + 1 = any pattern?

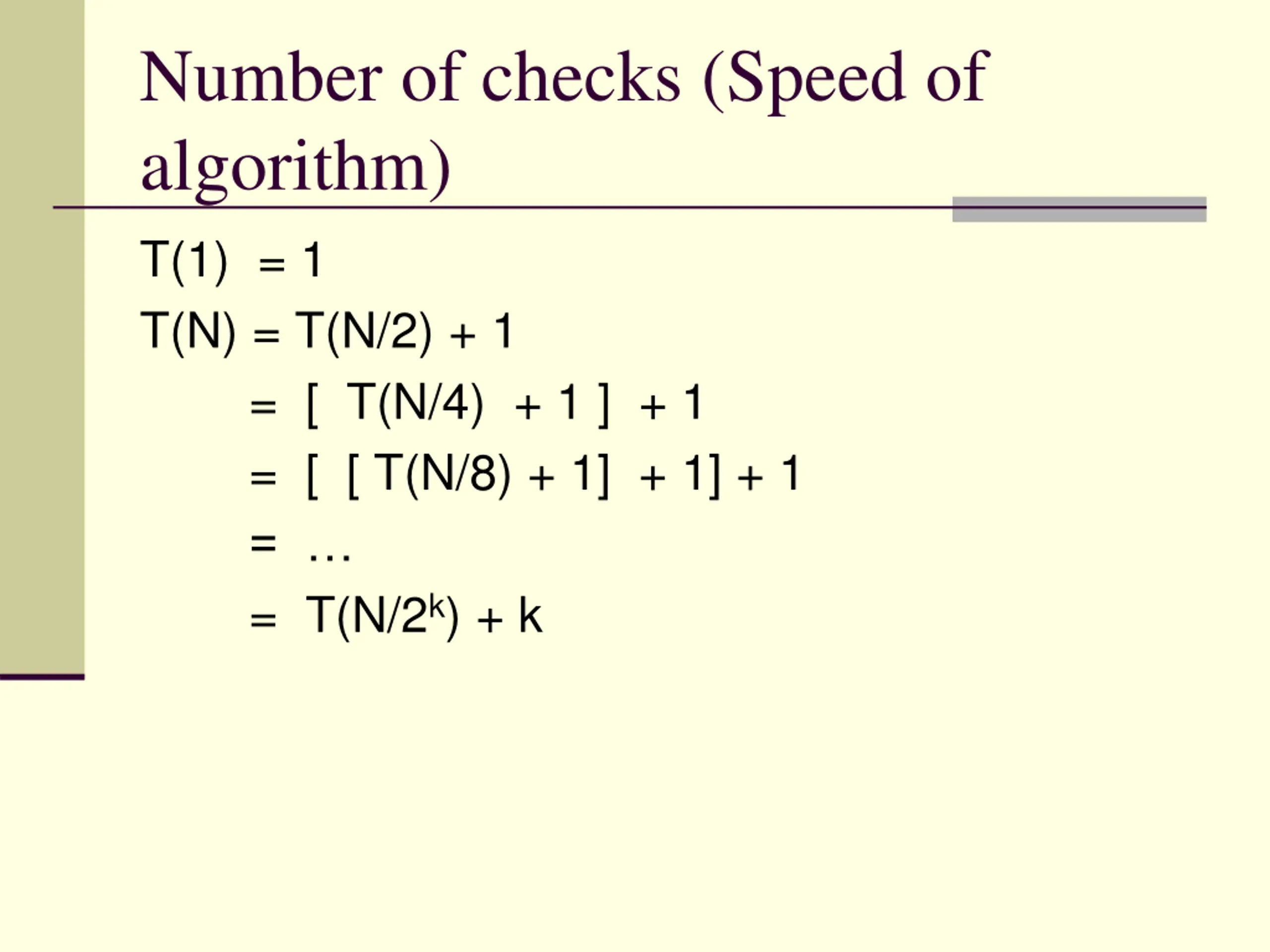

Number of checks (Speed of algorithm) T(1) = 1 T(N) = T(N/2) + 1 = [ T(N/4) + 1 ] + 1 = [ [ T(N/8) + 1] + 1] + 1 = = T(N/2k) + k

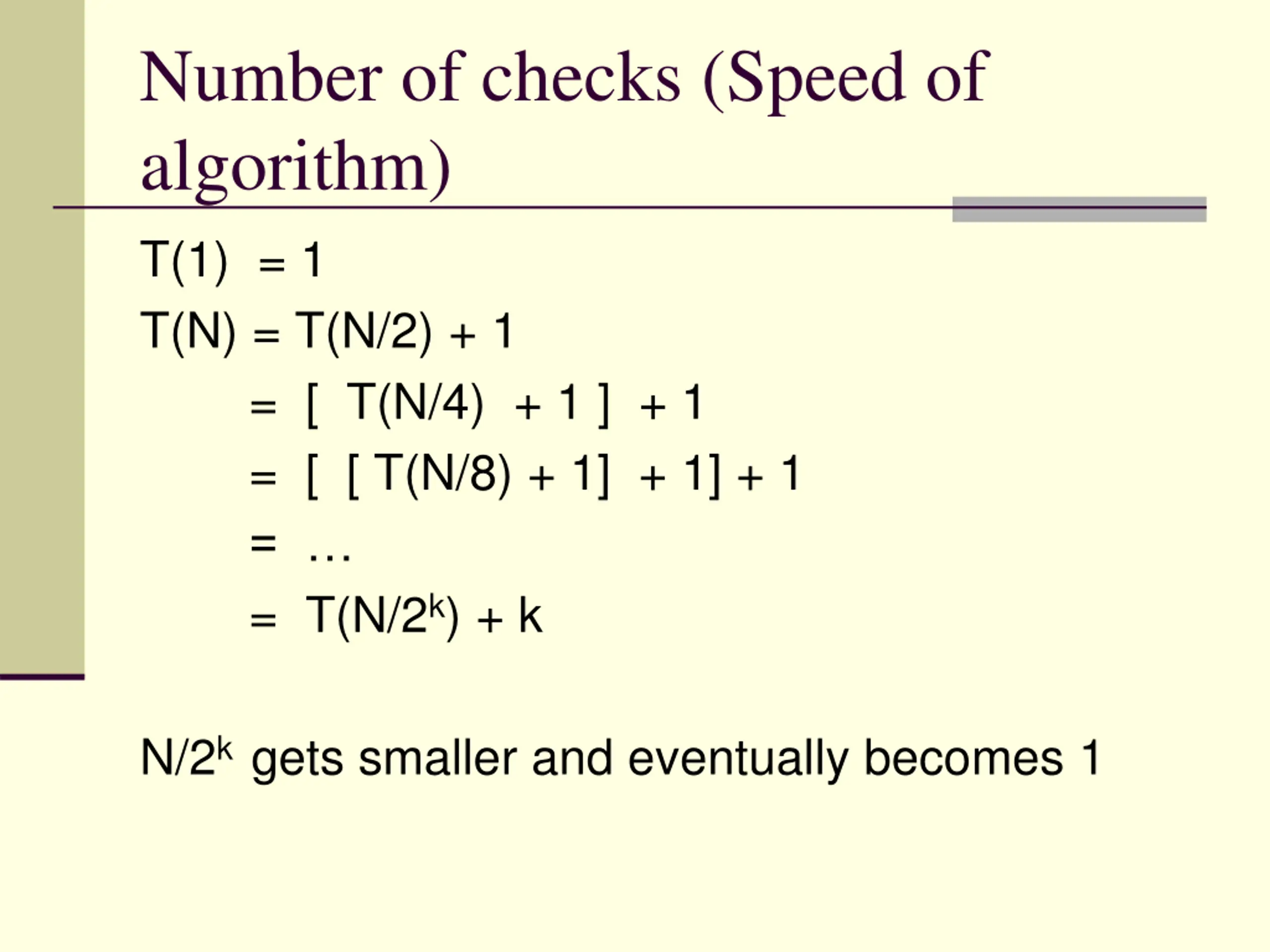

Number of checks (Speed of algorithm) T(1) = 1 T(N) = T(N/2) + 1 = [ T(N/4) + 1 ] + 1 = [ [ T(N/8) + 1] + 1] + 1 = = T(N/2k) + k N/2k gets smaller and eventually becomes 1
