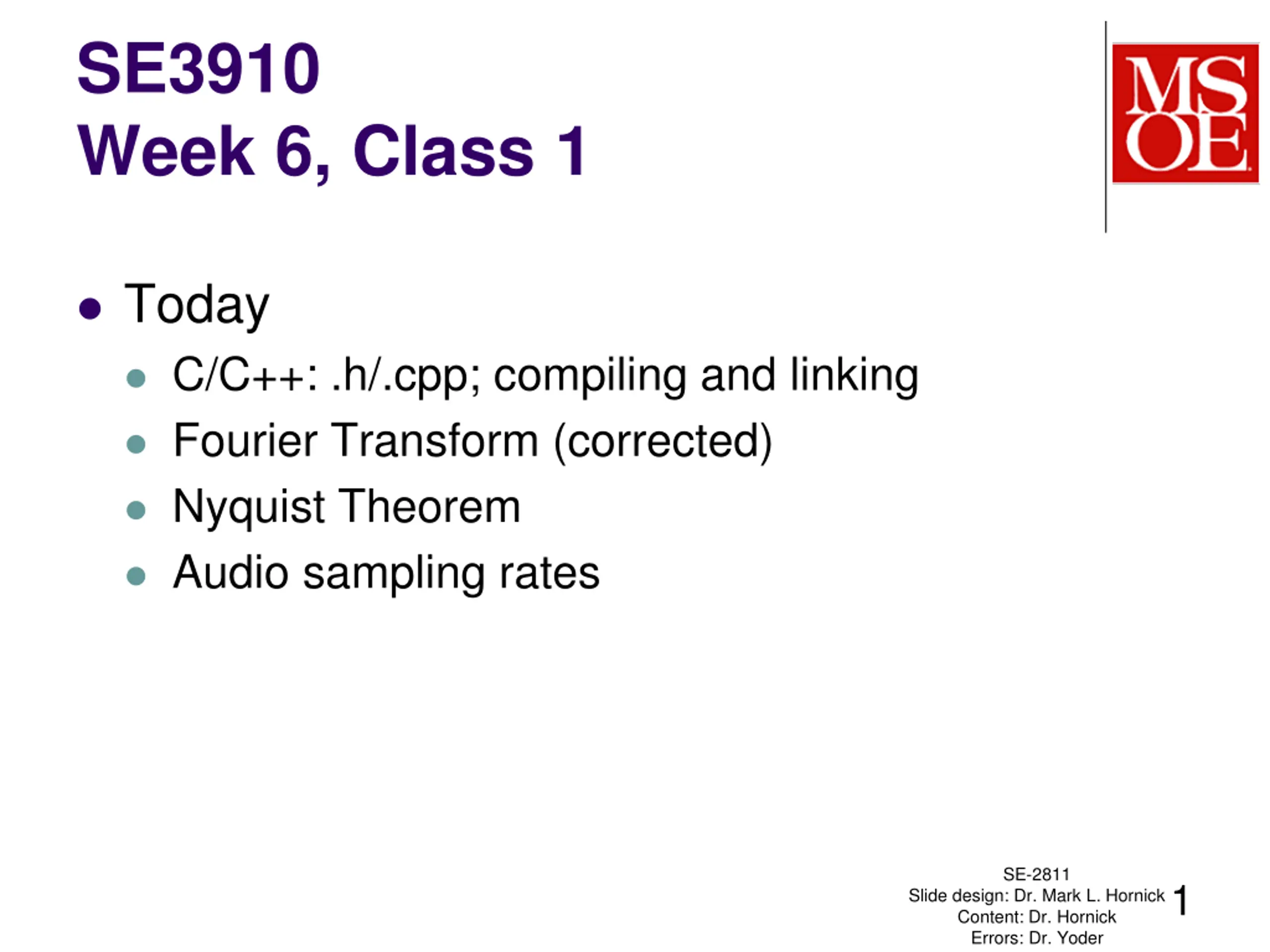

SE3910 Week 6, Class 1 Today C/C++: .h/.cpp; compiling and linking Fourier Transform (corrected) Nyquist Theorem Audio sampling rates SE-2811 1 Slide design: Dr. Mark L. Hornick Content: Dr. Hornick Errors: Dr. Yoder

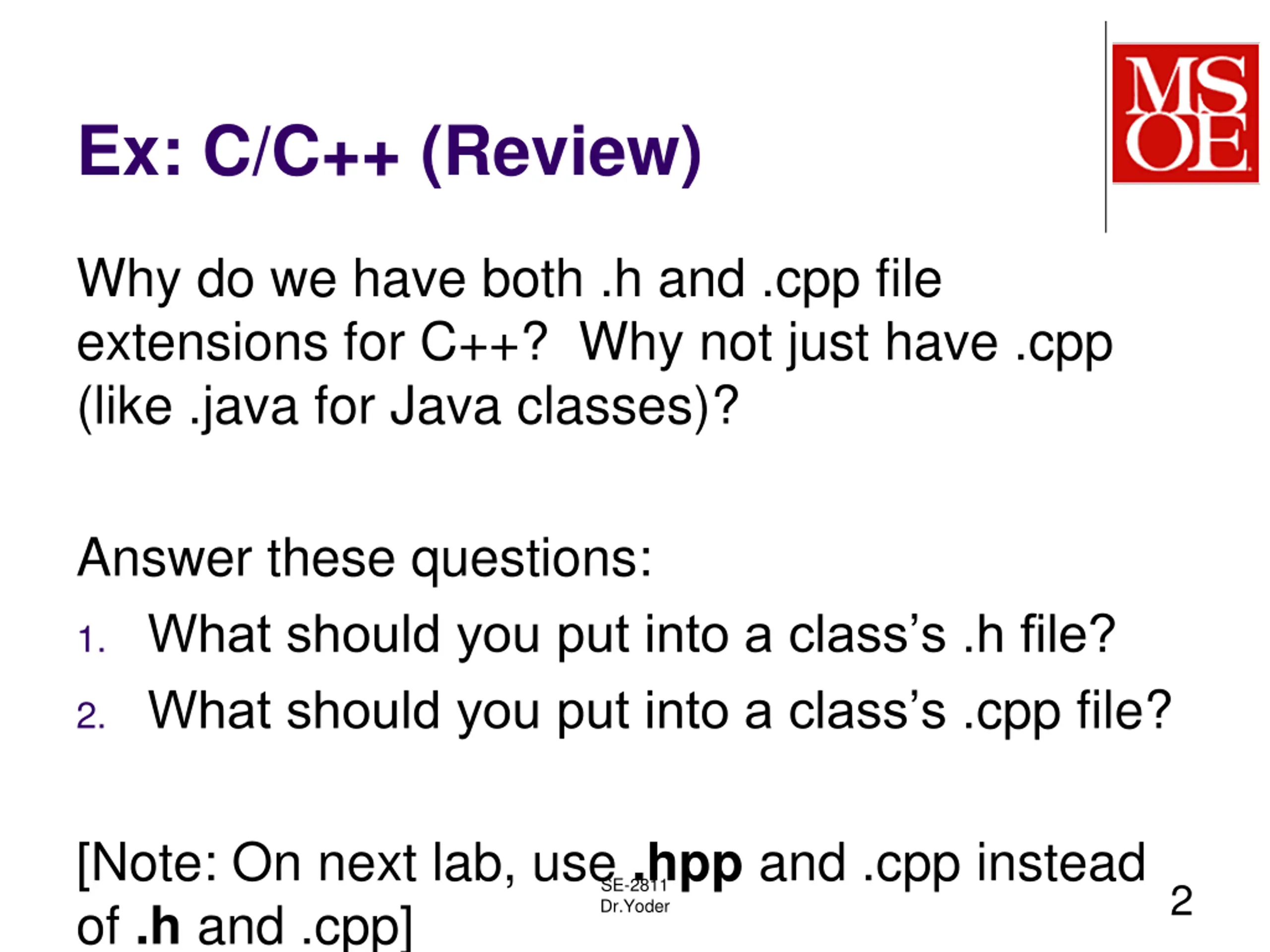

Ex: C/C++ (Review) Why do we have both .h and .cpp file extensions for C++? Why not just have .cpp (like .java for Java classes)? Answer these questions: 1. What should you put into a class s .h file? 2. What should you put into a class s .cpp file? [Note: On next lab, use .hpp and .cpp instead of .h and .cpp] SE-2811 Dr.Yoder 2

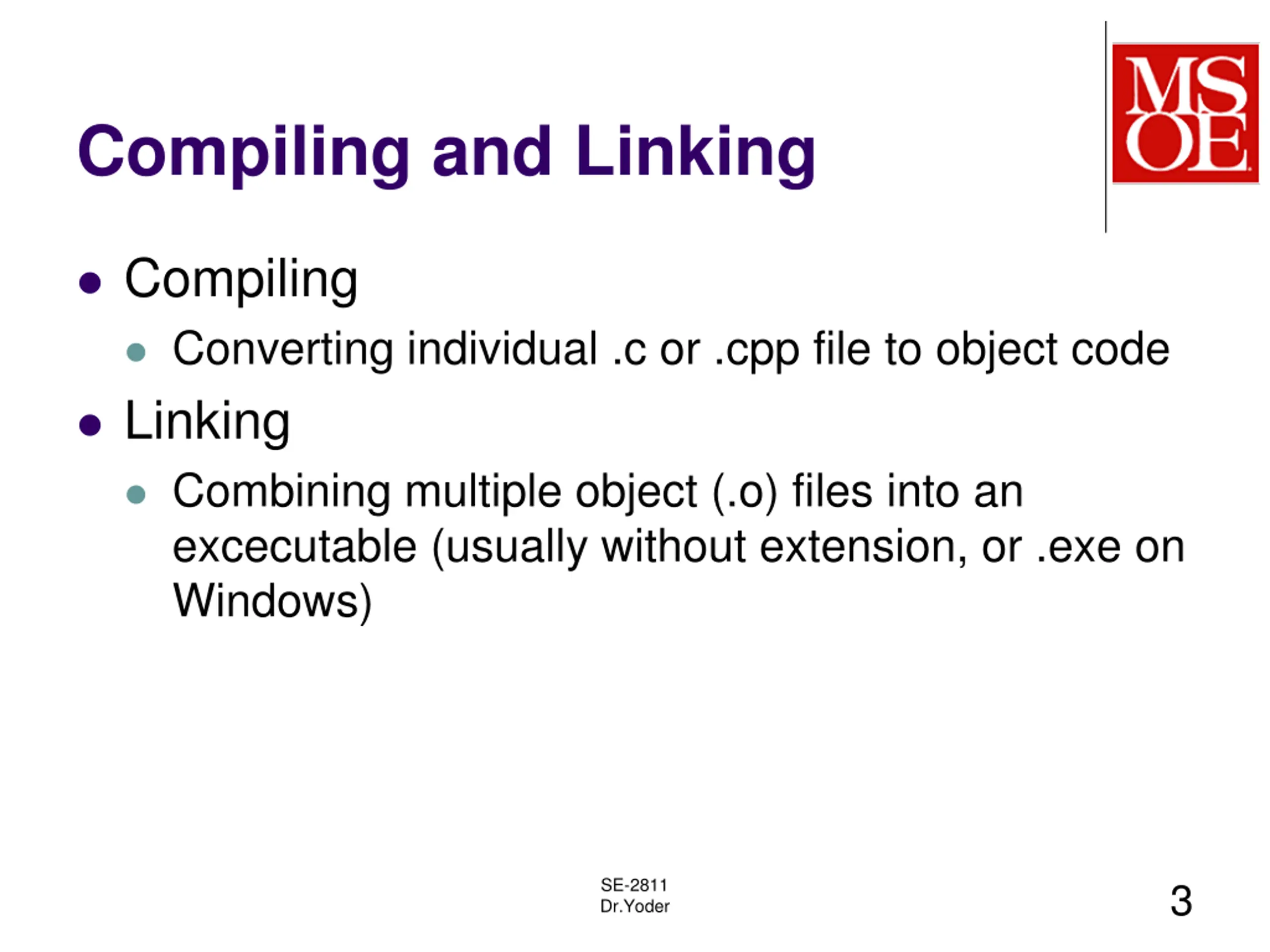

Compiling and Linking Compiling Converting individual .c or .cpp file to object code Linking Combining multiple object (.o) files into an excecutable (usually without extension, or .exe on Windows) SE-2811 Dr.Yoder 3

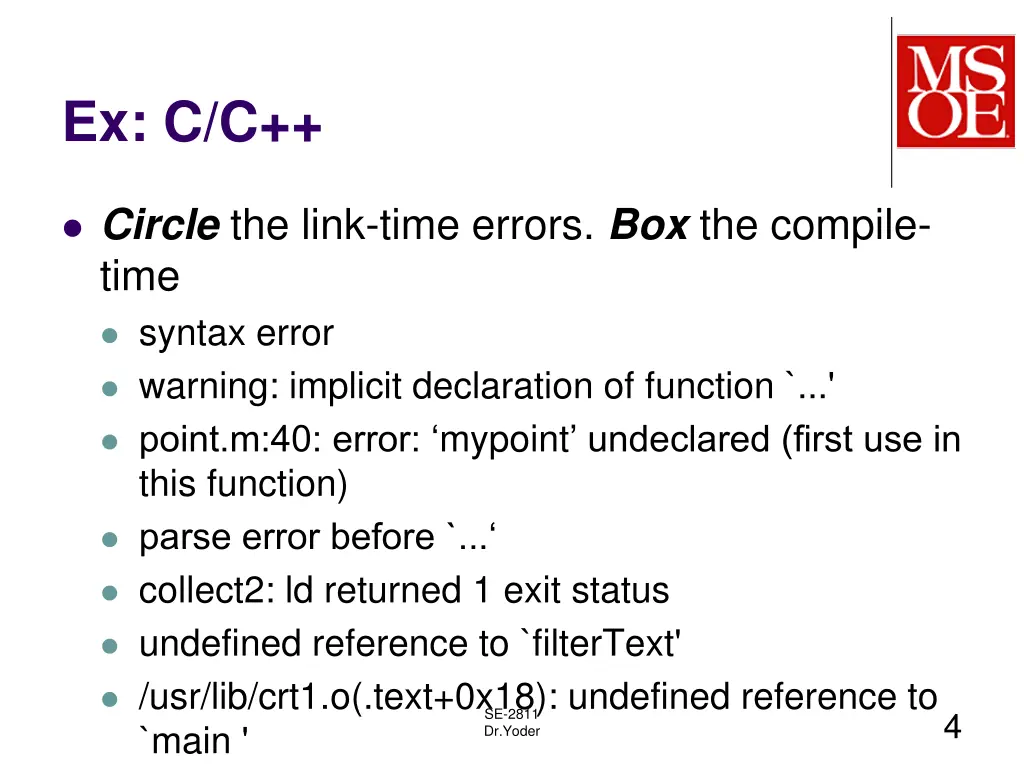

Ex: C/C++ Circle the link-time errors. Box the compile- time syntax error warning: implicit declaration of function `...' point.m:40: error: mypoint undeclared (first use in this function) parse error before `... collect2: ld returned 1 exit status undefined reference to `filterText' /usr/lib/crt1.o(.text+0x18): undefined reference to `main ' SE-2811 Dr.Yoder 4

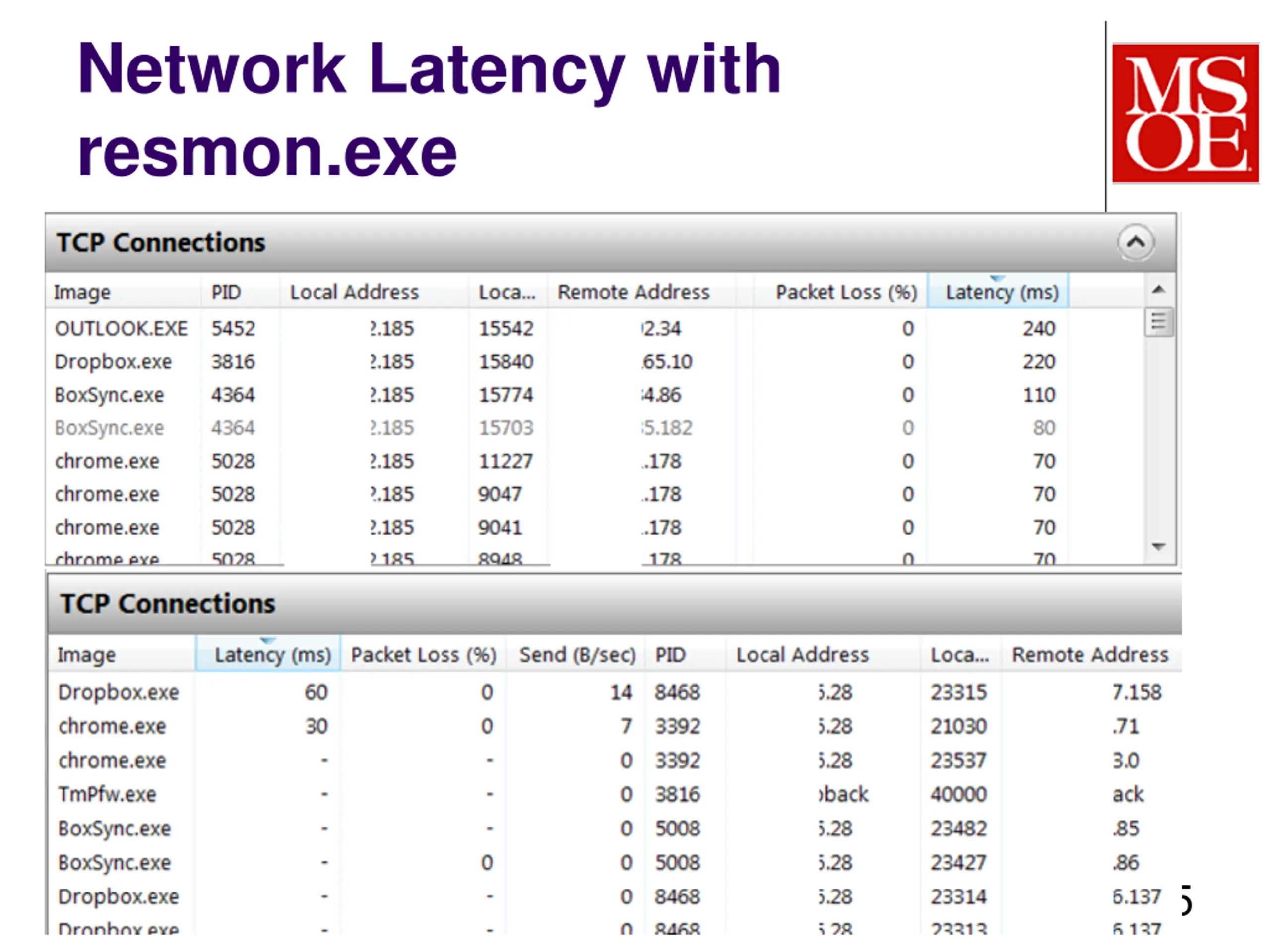

Network Latency with resmon.exe SE-2811 Dr.Yoder 5

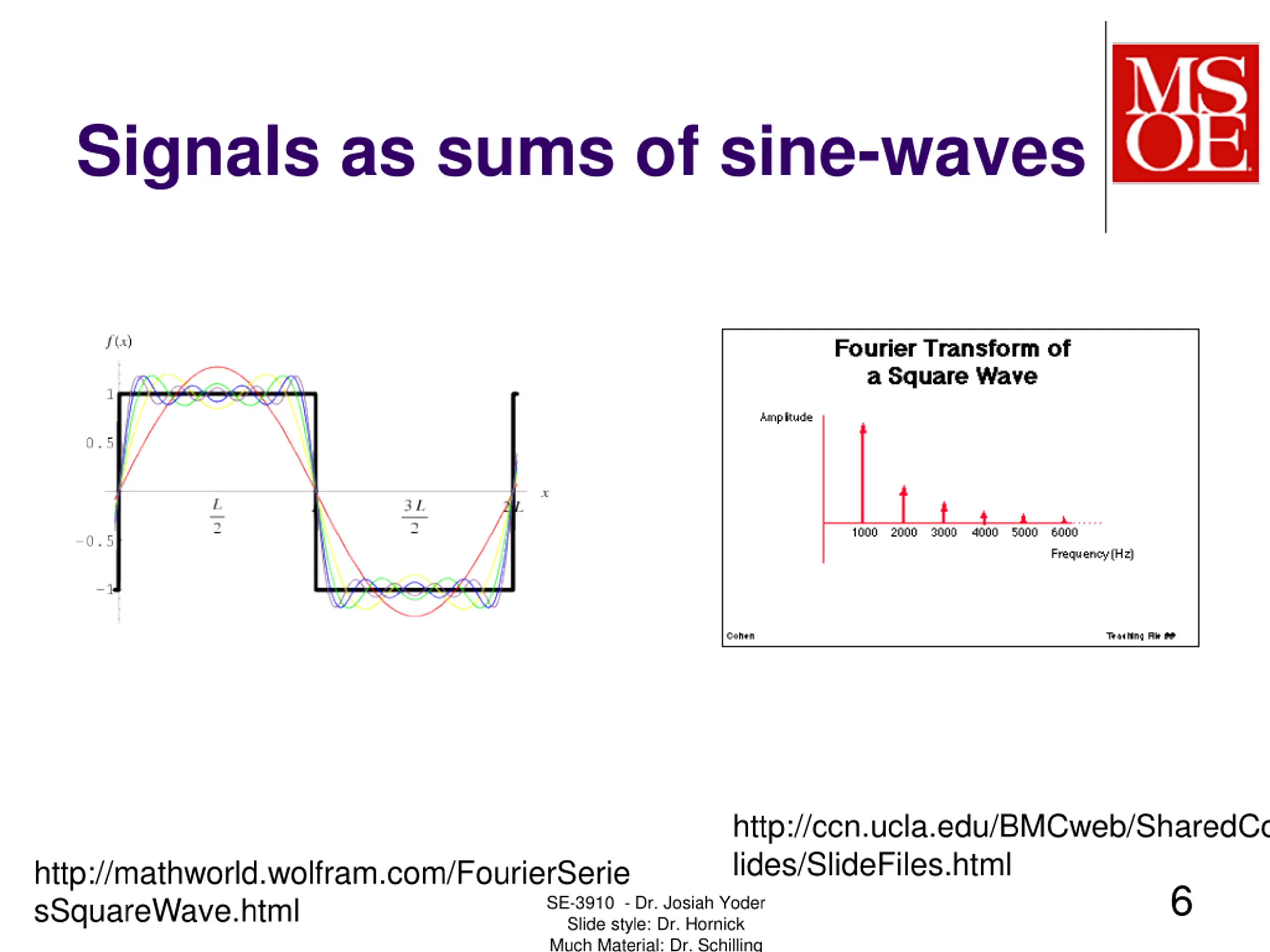

Signals as sums of sine-waves http://ccn.ucla.edu/BMCweb/SharedCode/s lides/SlideFiles.html http://mathworld.wolfram.com/FourierSerie sSquareWave.html 6 SE-3910 - Dr. Josiah Yoder Slide style: Dr. Hornick Much Material: Dr. Schilling

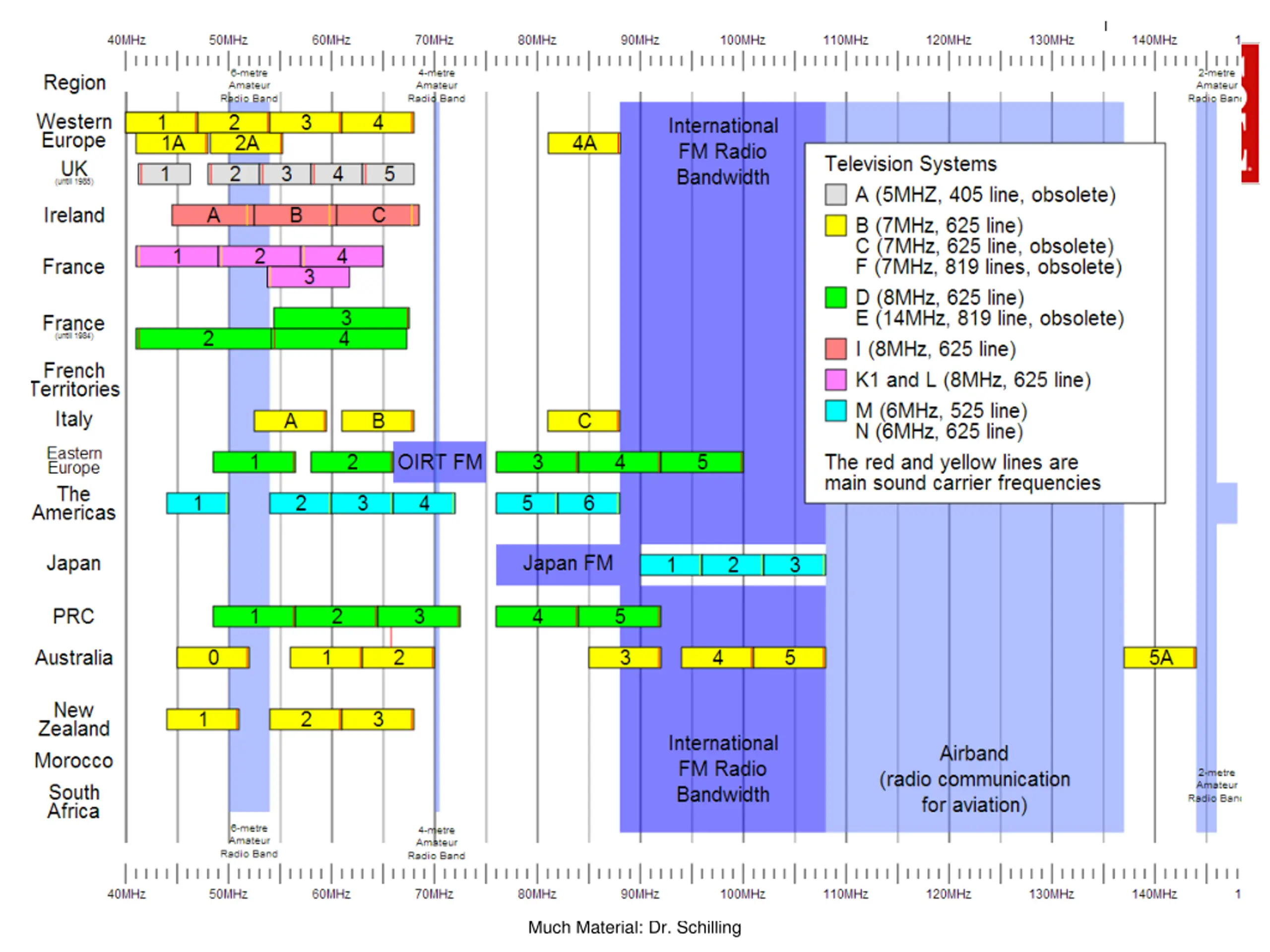

SE-3910 - Dr. Josiah Yoder Slide style: Dr. Hornick Much Material: Dr. Schilling 7

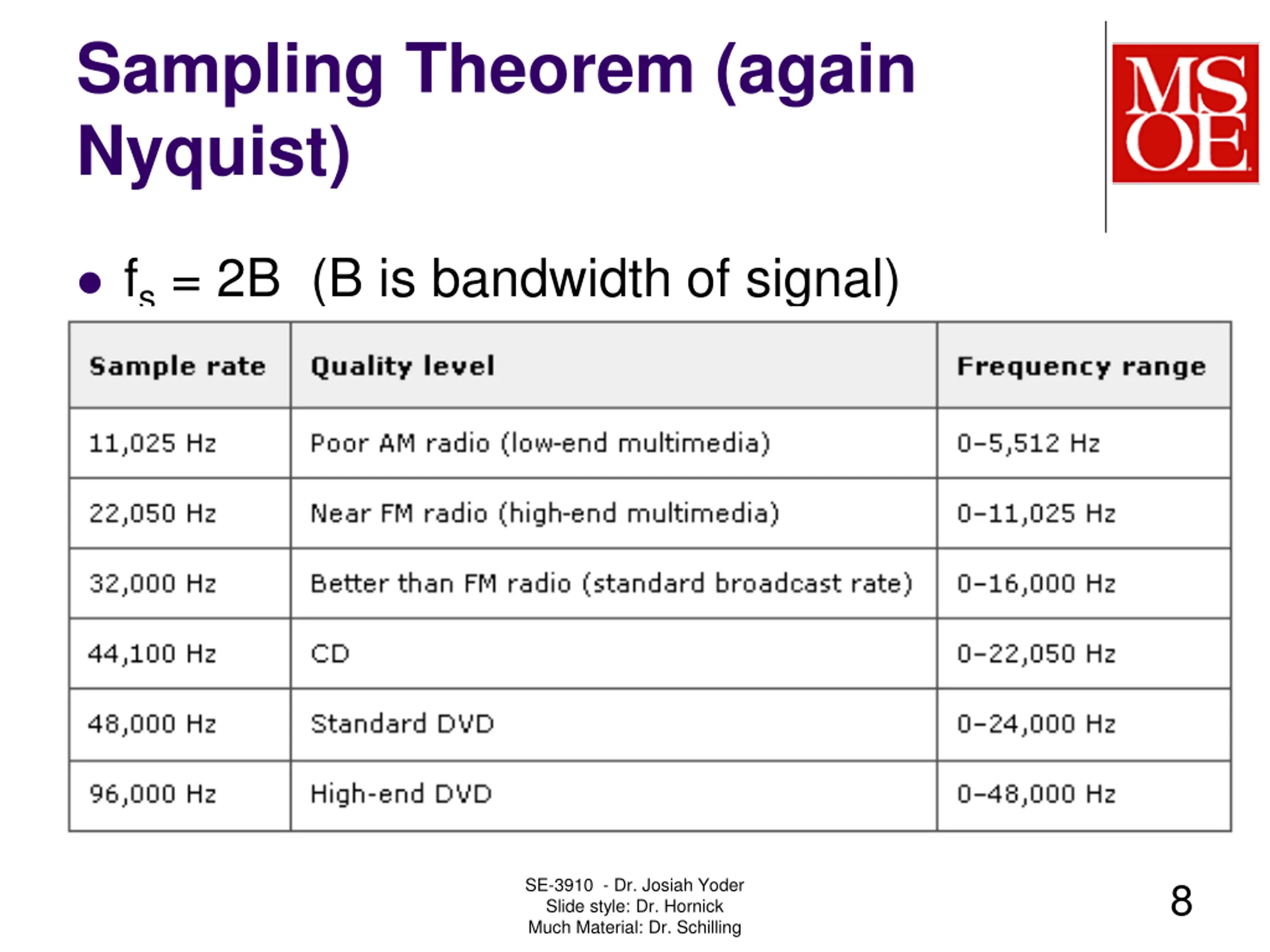

Sampling Theorem (again Nyquist) fs = 2B (B is bandwidth of signal) SE-3910 - Dr. Josiah Yoder Slide style: Dr. Hornick Much Material: Dr. Schilling 8

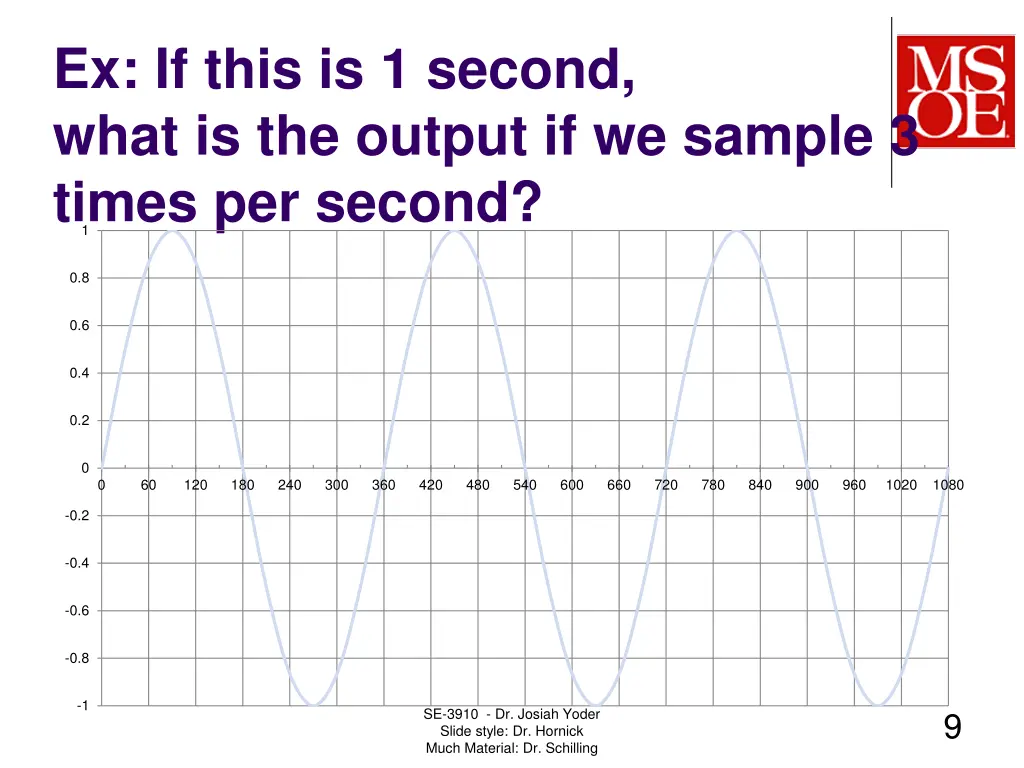

Ex: If this is 1 second, what is the output if we sample 3 times per second? 1 0.8 0.6 0.4 0.2 0 0 60 120 180 240 300 360 420 480 540 600 660 720 780 840 900 960 1020 1080 -0.2 -0.4 -0.6 -0.8 -1 SE-3910 - Dr. Josiah Yoder Slide style: Dr. Hornick Much Material: Dr. Schilling 9

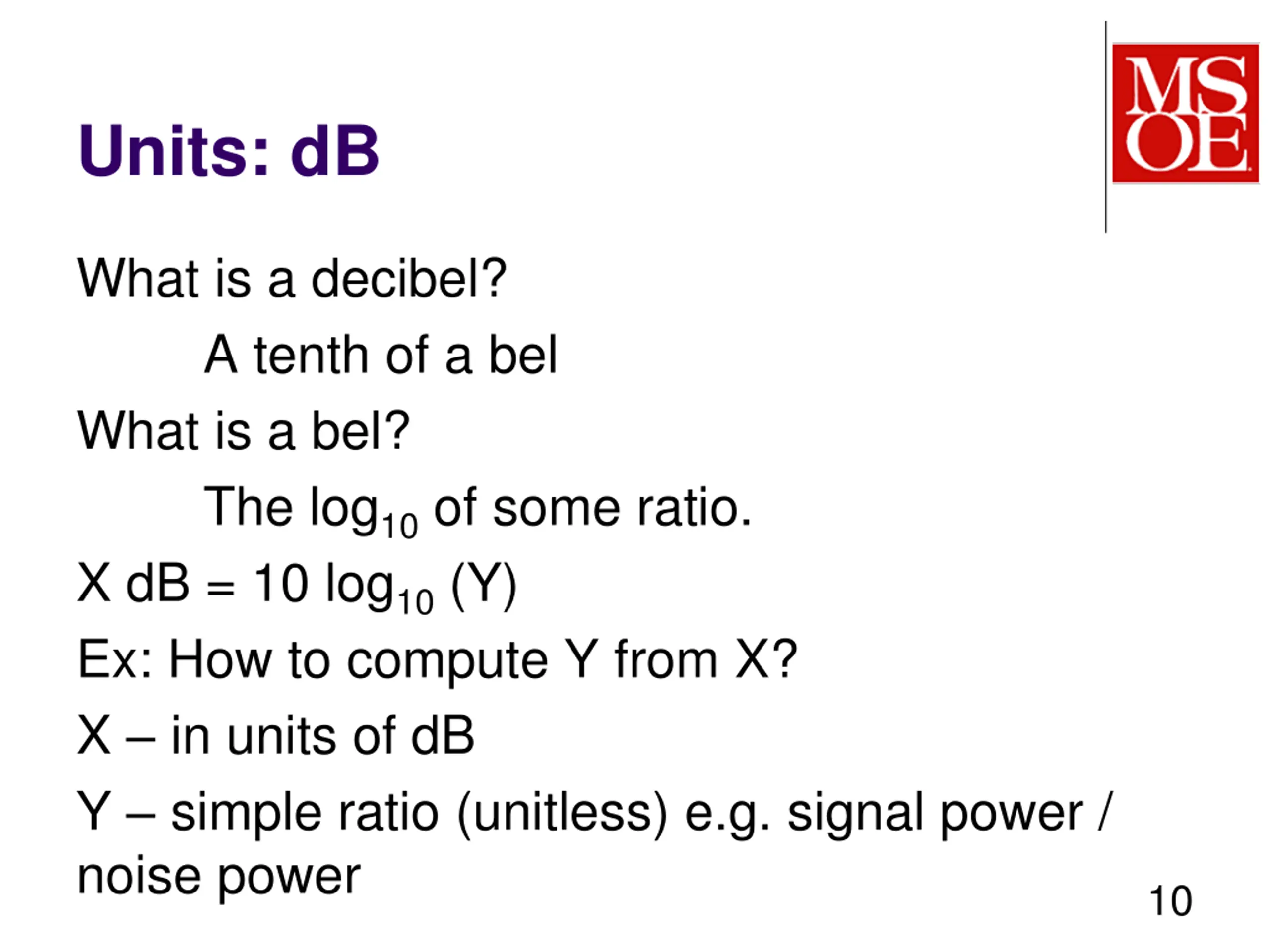

Units: dB What is a decibel? A tenth of a bel What is a bel? The log10 of some ratio. X dB = 10 log10 (Y) Ex: How to compute Y from X? X in units of dB Y simple ratio (unitless) e.g. signal power / noise power 10

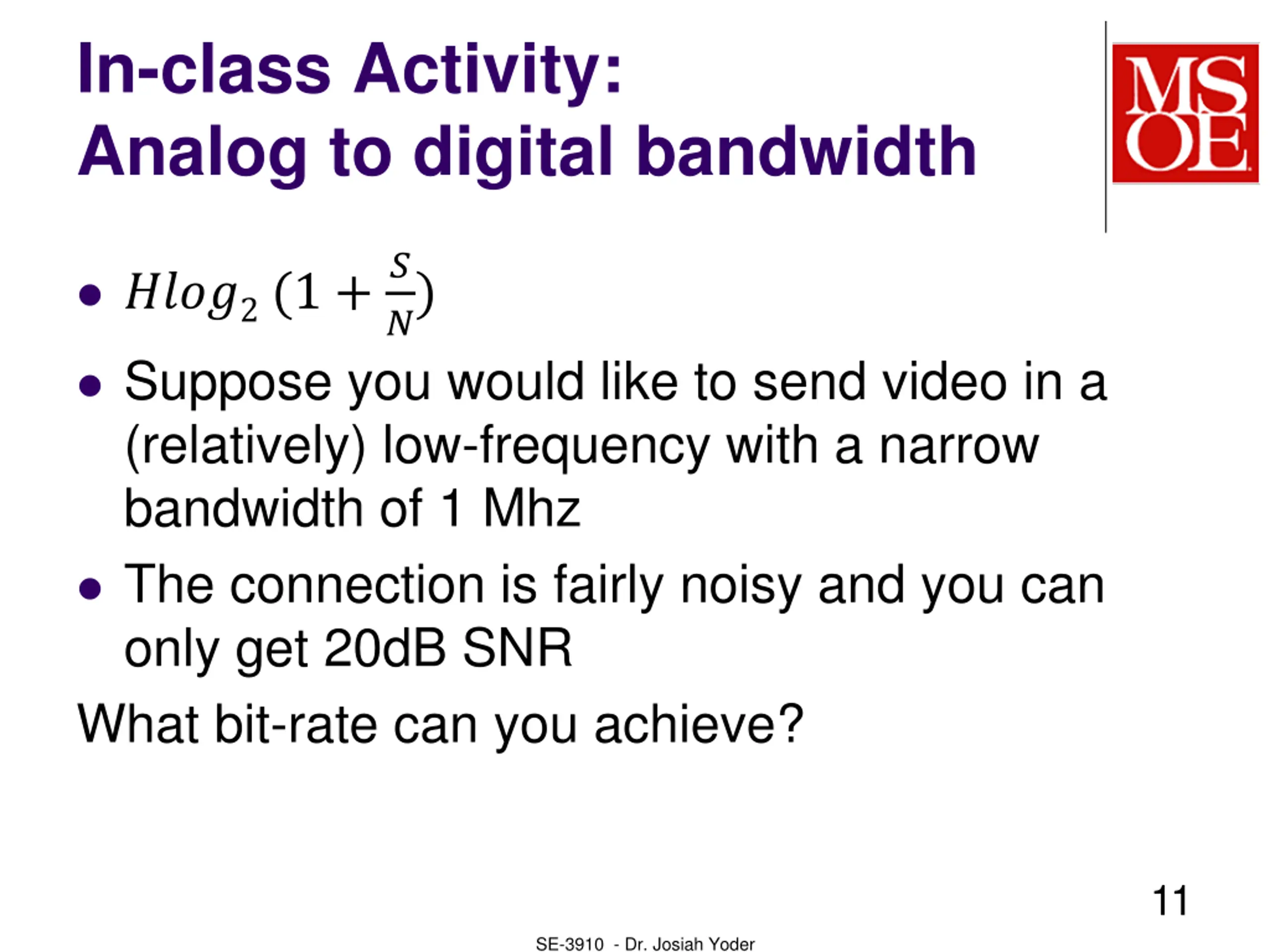

In-class Activity: Analog to digital bandwidth ????2 (1 +? ?) Suppose you would like to send video in a (relatively) low-frequency with a narrow bandwidth of 1 Mhz The connection is fairly noisy and you can only get 20dB SNR What bit-rate can you achieve? 11 SE-3910 - Dr. Josiah Yoder

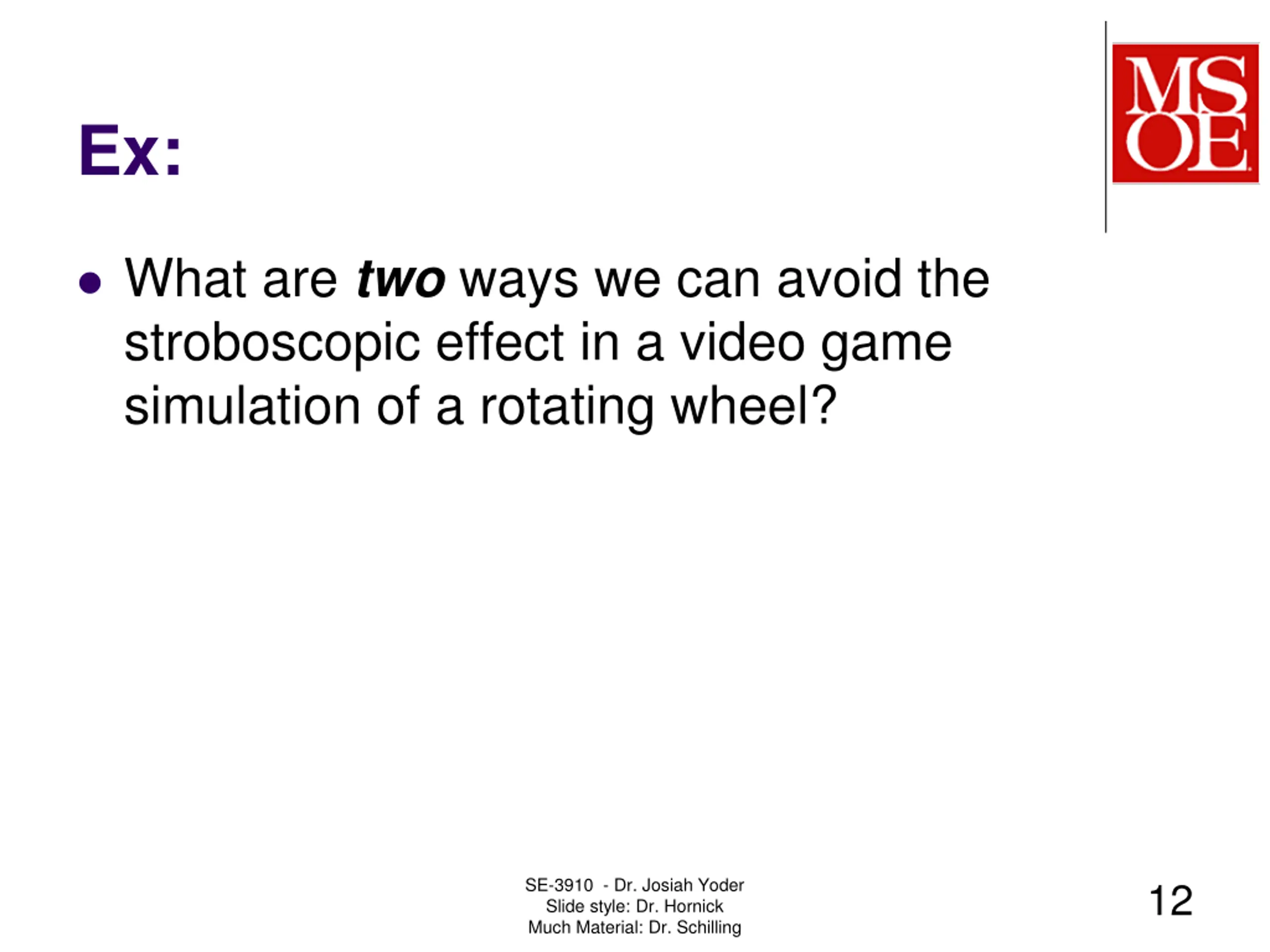

Ex: What are two ways we can avoid the stroboscopic effect in a video game simulation of a rotating wheel? SE-3910 - Dr. Josiah Yoder Slide style: Dr. Hornick Much Material: Dr. Schilling 12

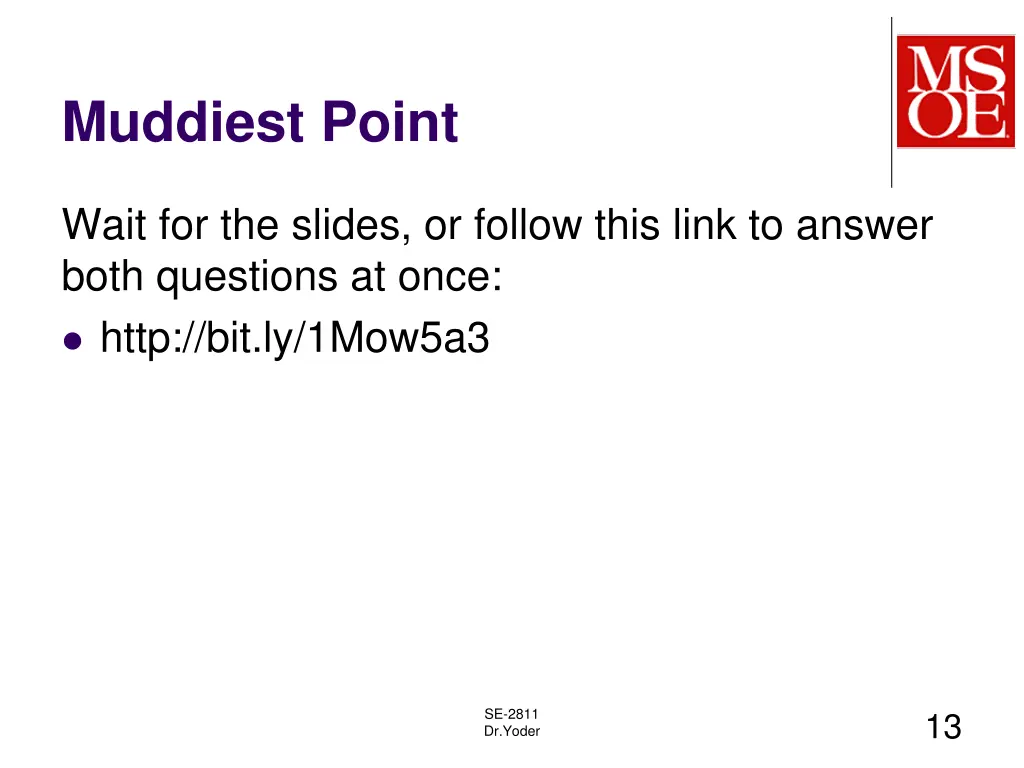

Muddiest Point Wait for the slides, or follow this link to answer both questions at once: http://bit.ly/1Mow5a3 SE-2811 Dr.Yoder 13

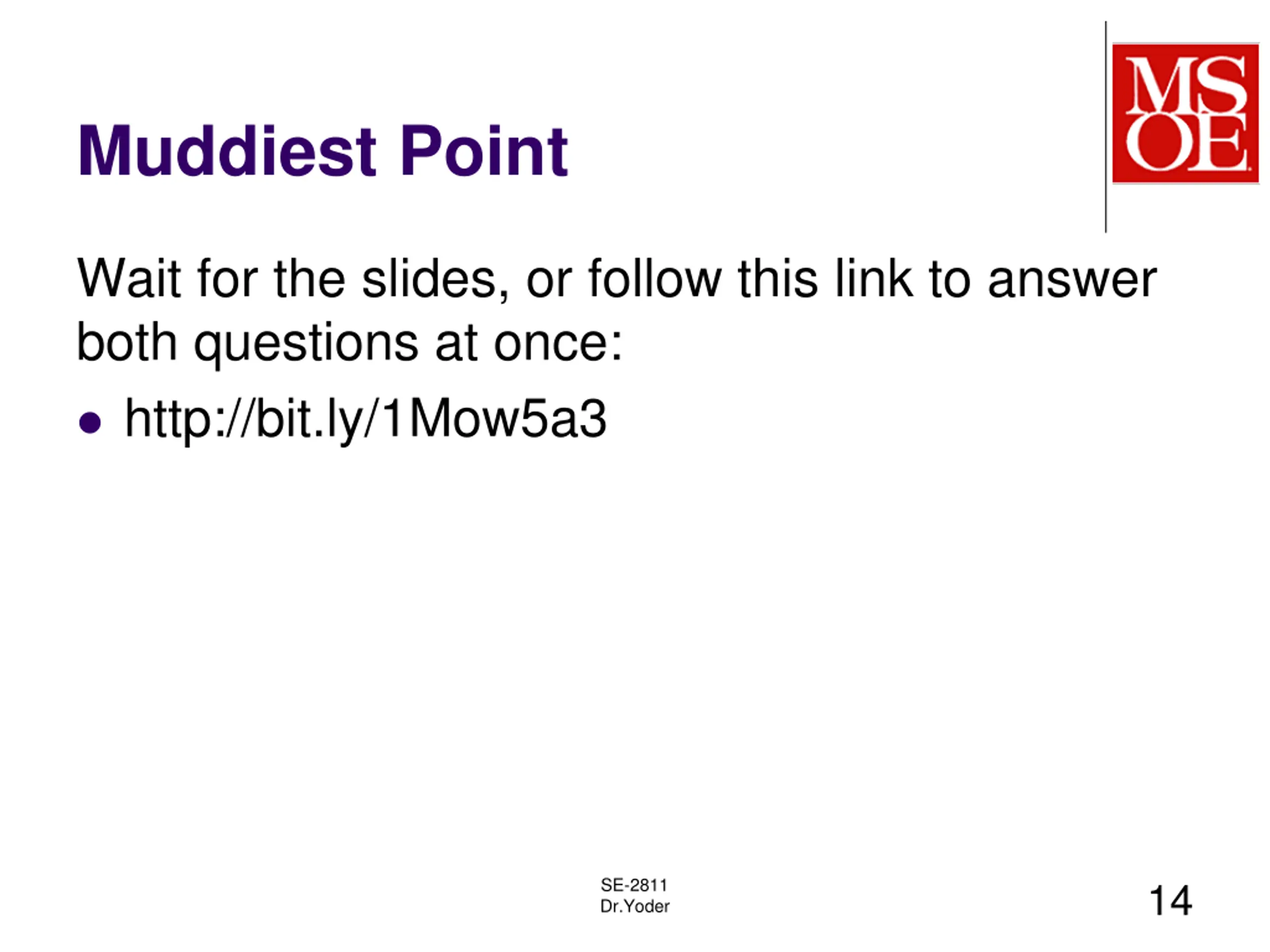

Muddiest Point Wait for the slides, or follow this link to answer both questions at once: http://bit.ly/1Mow5a3 SE-2811 Dr.Yoder 14
http://bit.ly/1Mow5a3 SE-2811 Dr. Josiah Yoder 15
http://bit.ly/1Mow5a3 SE-2811 Dr. Josiah Yoder 16

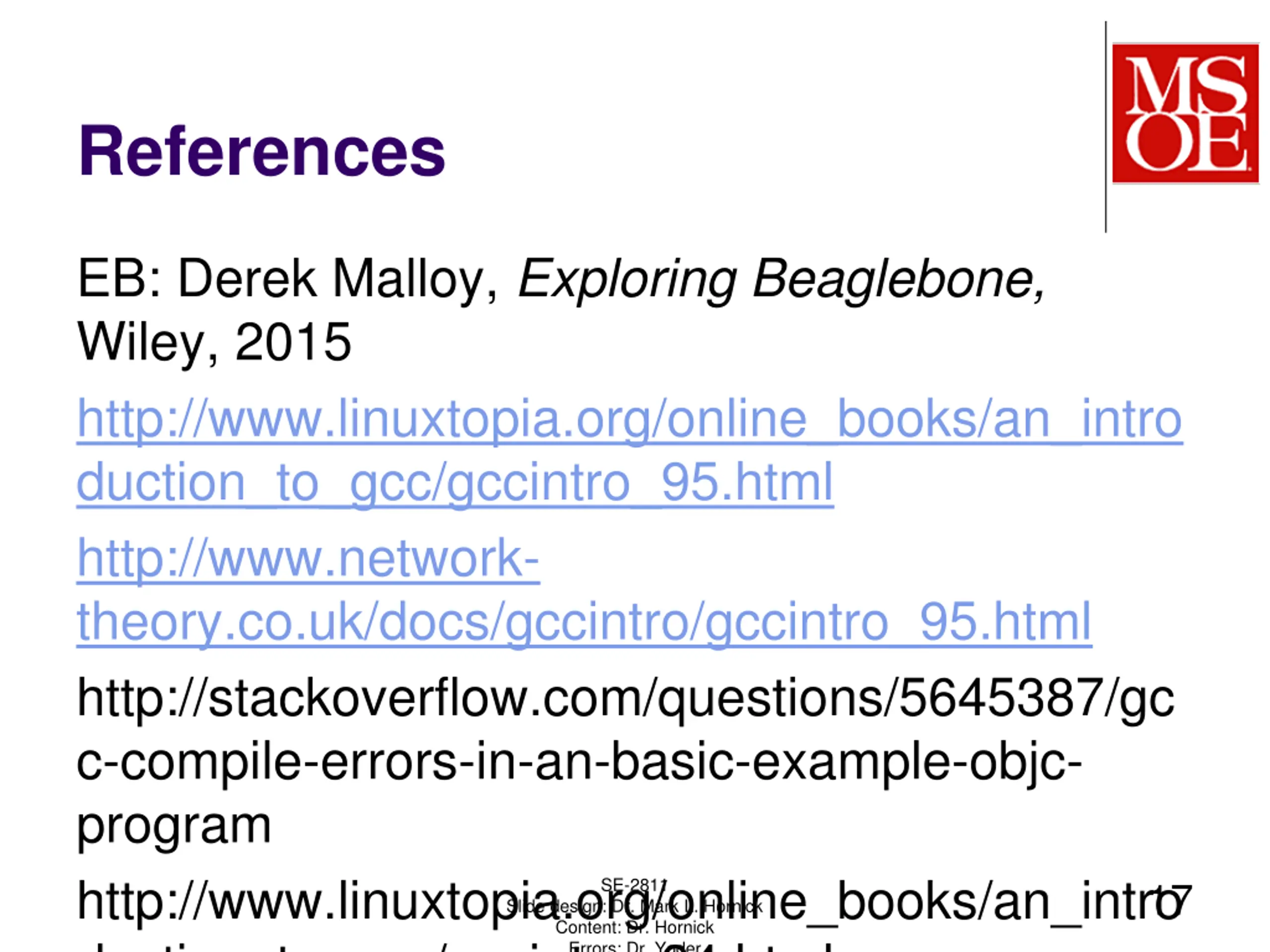

References EB: Derek Malloy, Exploring Beaglebone, Wiley, 2015 http://www.linuxtopia.org/online_books/an_intro duction_to_gcc/gccintro_95.html http://www.network- theory.co.uk/docs/gccintro/gccintro_95.html http://stackoverflow.com/questions/5645387/gc c-compile-errors-in-an-basic-example-objc- program http://www.linuxtopia.org/online_books/an_intro duction_to_gcc/gccintro_94.html SE-2811 17 Slide design: Dr. Mark L. Hornick Content: Dr. Hornick Errors: Dr. Yoder
