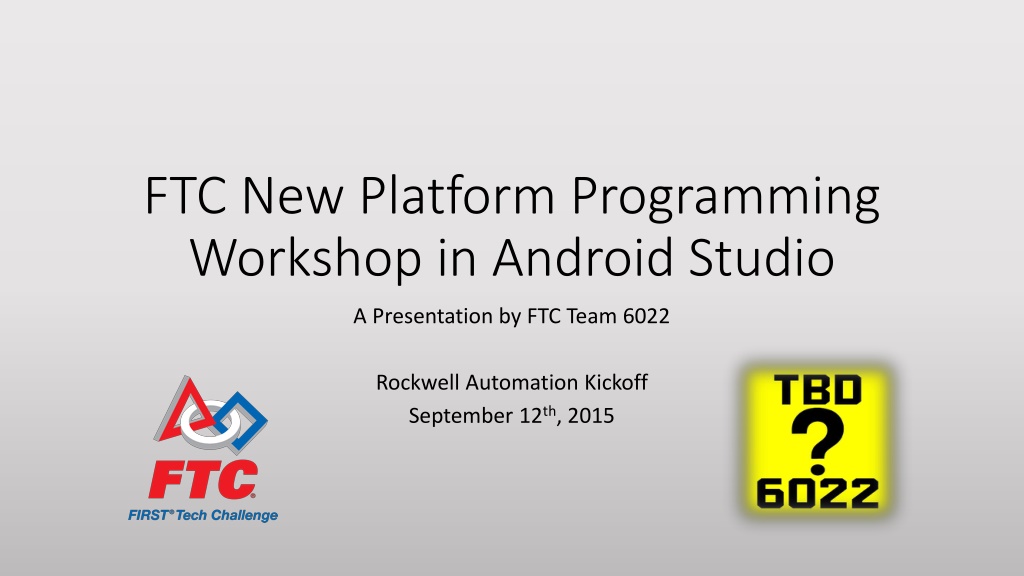

FTC New Platform Programming Workshop in Android Studio A Presentation by FTC Team 6022 Rockwell Automation Kickoff September 12th, 2015

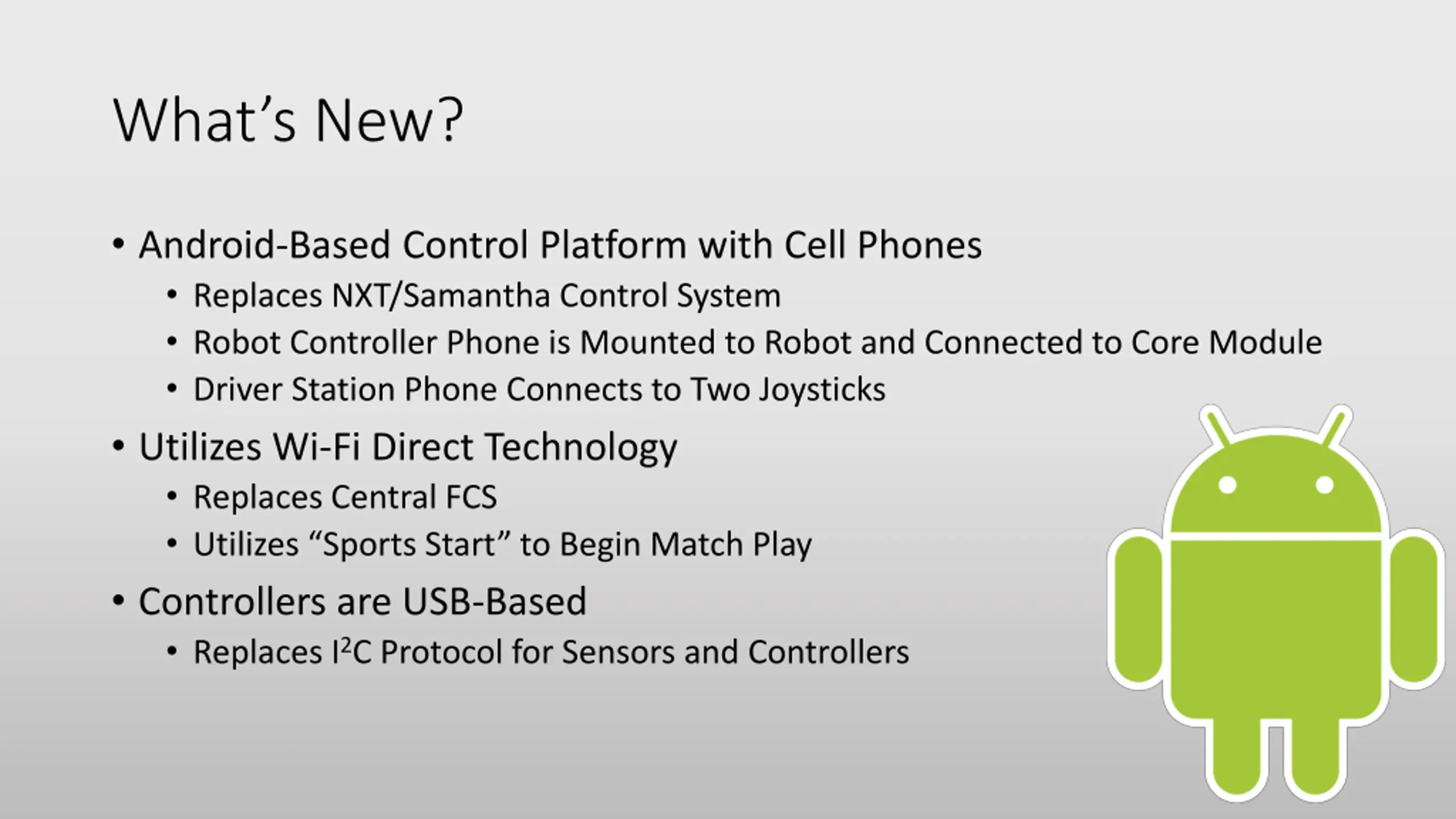

Whats New? Android-Based Control Platform with Cell Phones Replaces NXT/Samantha Control System Robot Controller Phone is Mounted to Robot and Connected to Core Module Driver Station Phone Connects to Two Joysticks Utilizes Wi-Fi Direct Technology Replaces Central FCS Utilizes Sports Start to Begin Match Play Controllers are USB-Based Replaces I2C Protocol for Sensors and Controllers

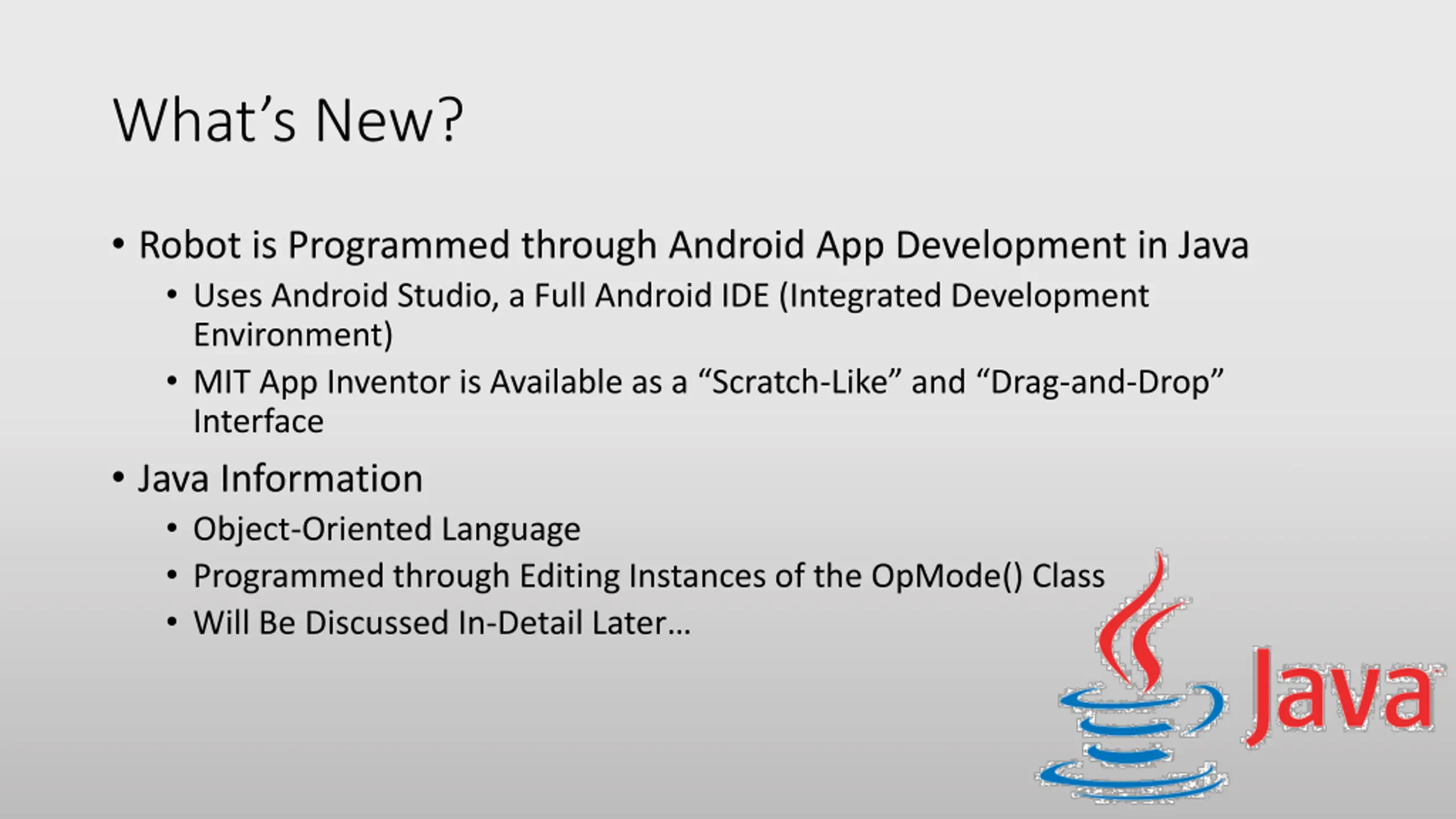

Whats New? Robot is Programmed through Android App Development in Java Uses Android Studio, a Full Android IDE (Integrated Development Environment) MIT App Inventor is Available as a Scratch-Like and Drag-and-Drop Interface Java Information Object-Oriented Language Programmed through Editing Instances of the OpMode() Class Will Be Discussed In-Detail Later

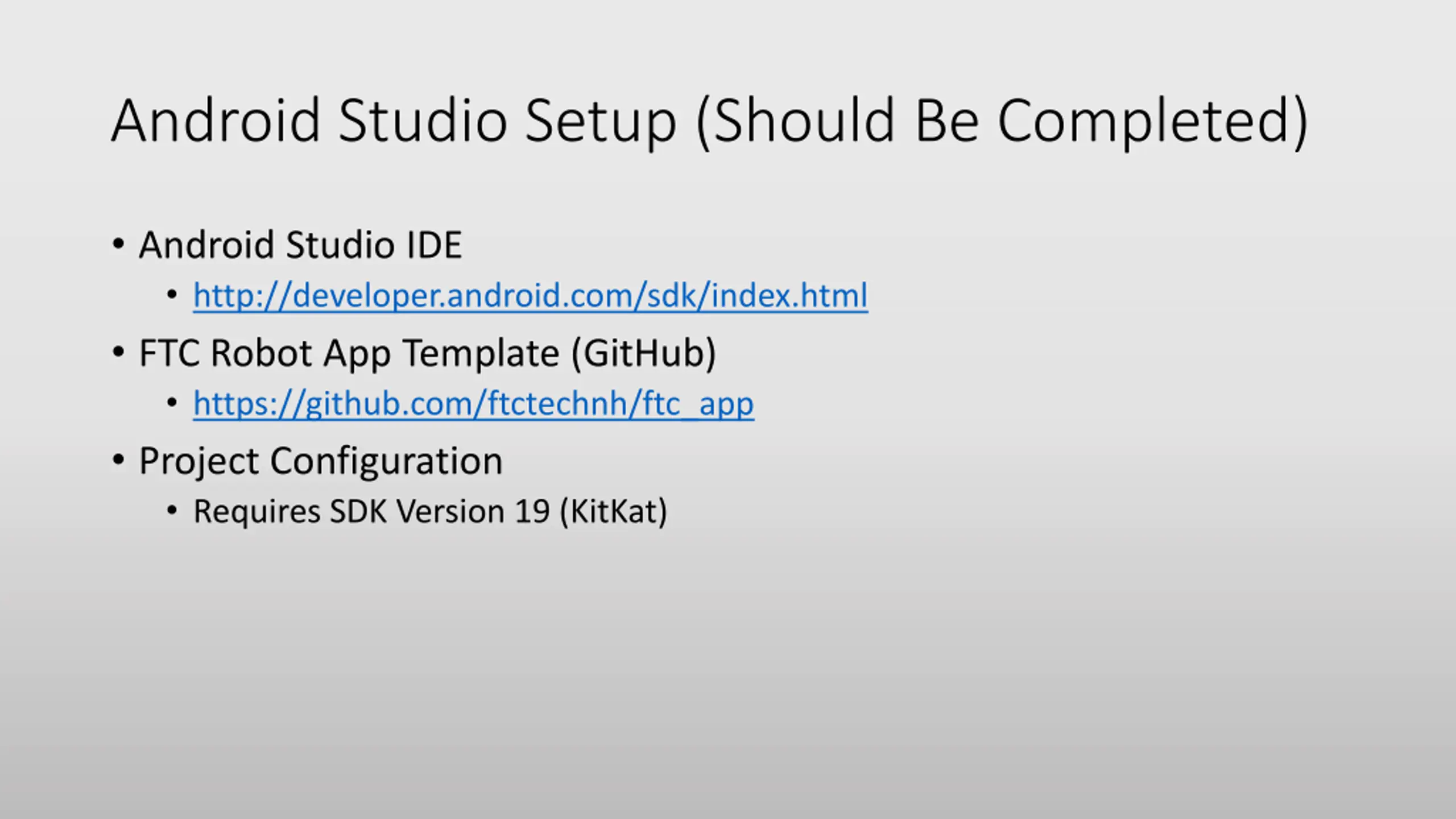

Android Studio Setup (Should Be Completed) Android Studio IDE http://developer.android.com/sdk/index.html FTC Robot App Template (GitHub) https://github.com/ftctechnh/ftc_app Project Configuration Requires SDK Version 19 (KitKat)

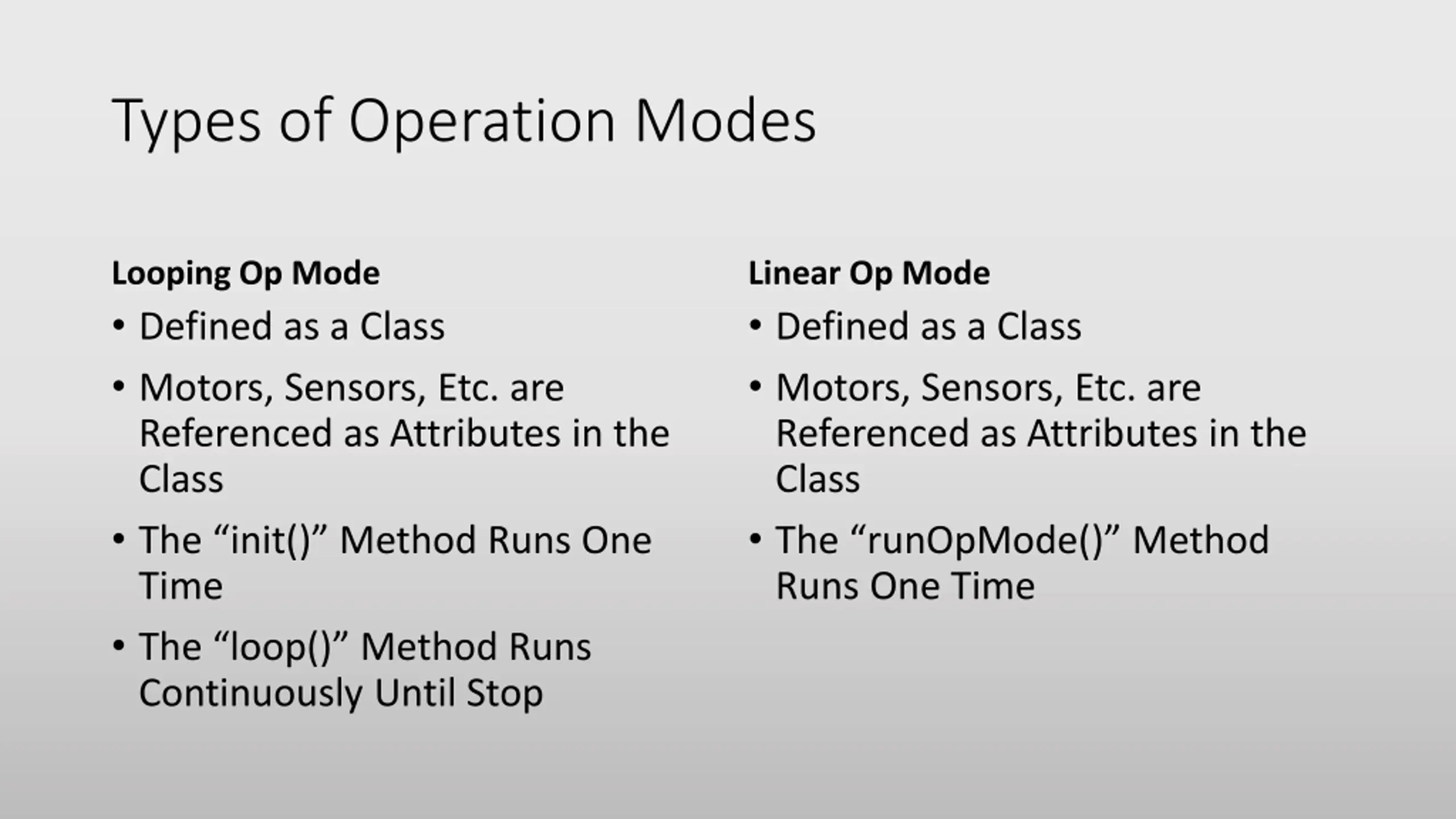

Types of Operation Modes Looping Op Mode Defined as a Class Motors, Sensors, Etc. are Referenced as Attributes in the Class The init() Method Runs One Time The loop() Method Runs Continuously Until Stop Linear Op Mode Defined as a Class Motors, Sensors, Etc. are Referenced as Attributes in the Class The runOpMode() Method Runs One Time

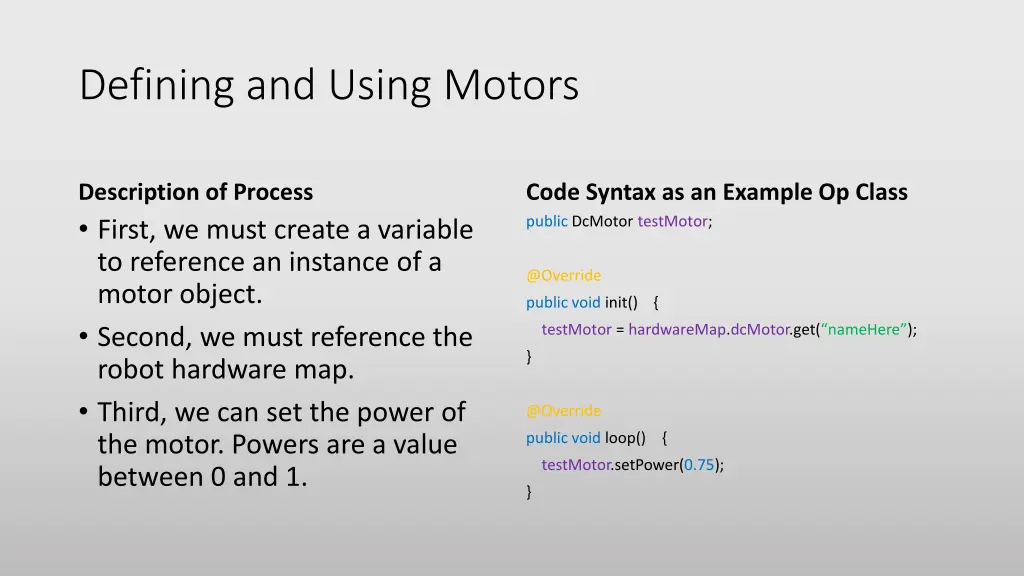

Defining and Using Motors Description of Process First, we must create a variable to reference an instance of a motor object. Second, we must reference the robot hardware map. Third, we can set the power of the motor. Powers are a value between 0 and 1. Code Syntax as an Example Op Class public DcMotor testMotor; @Override public void init() { testMotor = hardwareMap.dcMotor.get( nameHere ); } @Override public void loop() { testMotor.setPower(0.75); }

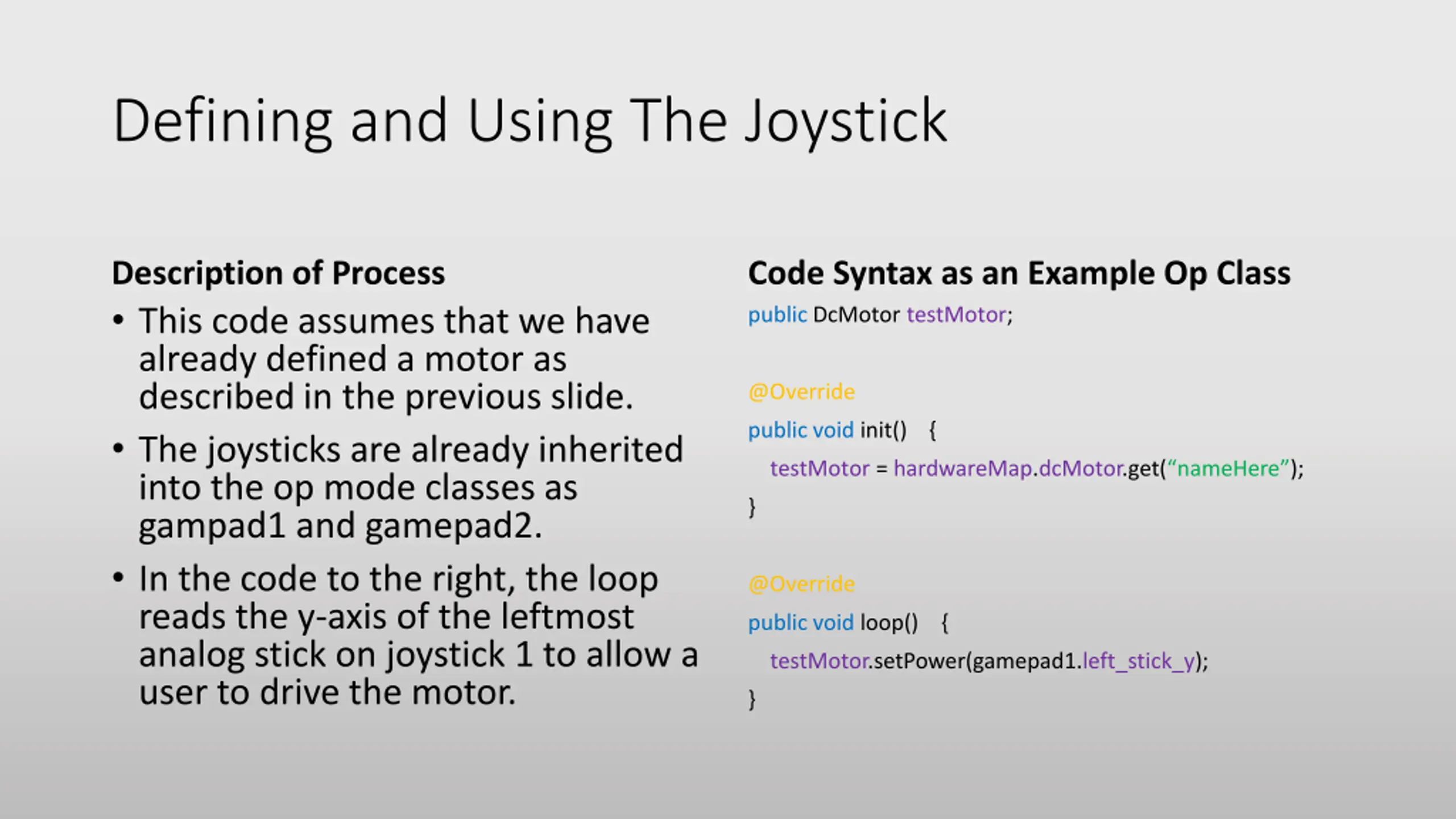

Defining and Using The Joystick Description of Process This code assumes that we have already defined a motor as described in the previous slide. The joysticks are already inherited into the op mode classes as gampad1 and gamepad2. In the code to the right, the loop reads the y-axis of the leftmost analog stick on joystick 1 to allow a user to drive the motor. Code Syntax as an Example Op Class public DcMotor testMotor; @Override public void init() { testMotor = hardwareMap.dcMotor.get( nameHere ); } @Override public void loop() { testMotor.setPower(gamepad1.left_stick_y); }

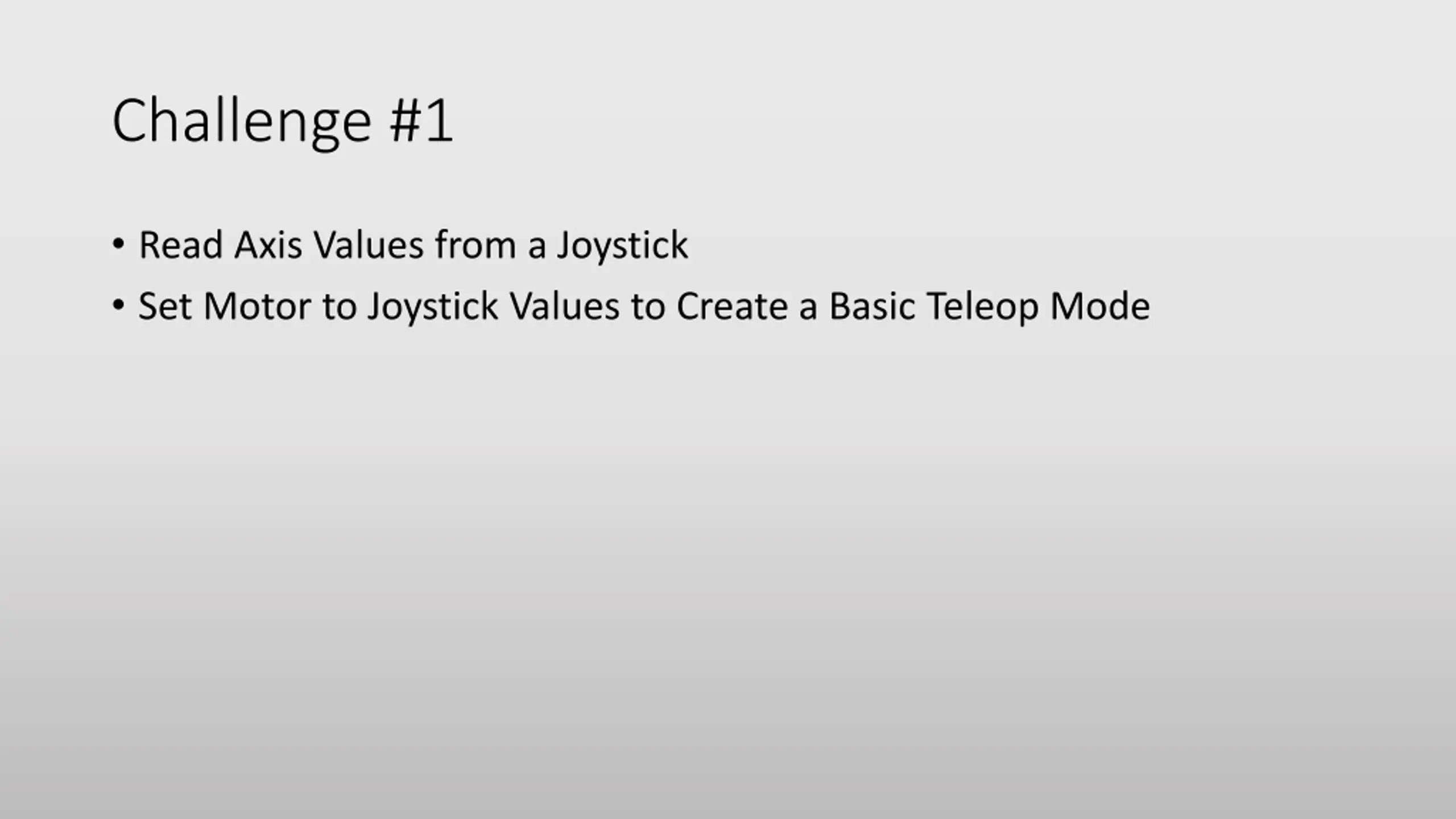

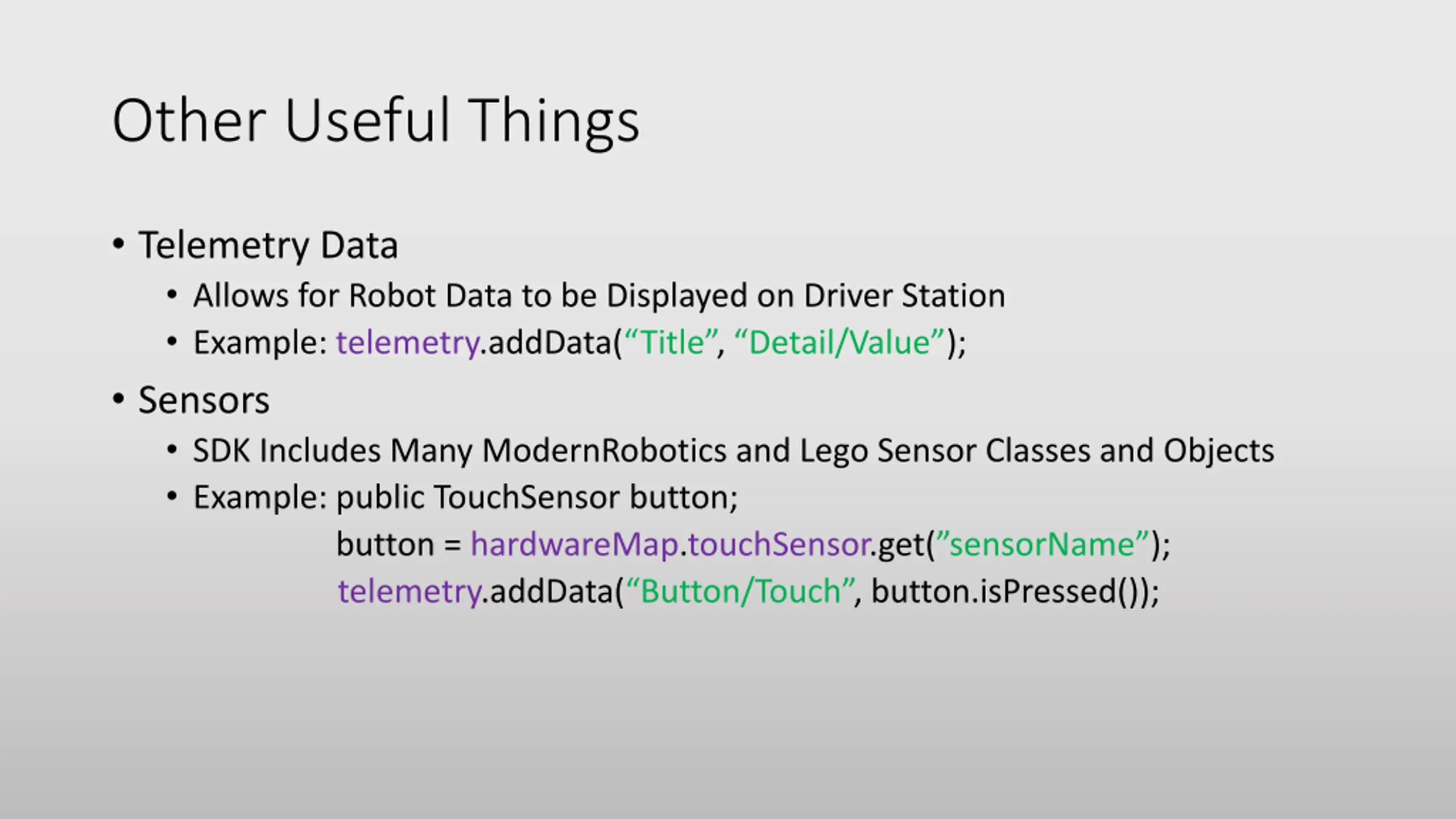

Other Useful Things Telemetry Data Allows for Robot Data to be Displayed on Driver Station Example: telemetry.addData( Title , Detail/Value ); Sensors SDK Includes Many ModernRobotics and Lego Sensor Classes and Objects Example: public TouchSensor button; button = hardwareMap.touchSensor.get( sensorName ); telemetry.addData( Button/Touch , button.isPressed());

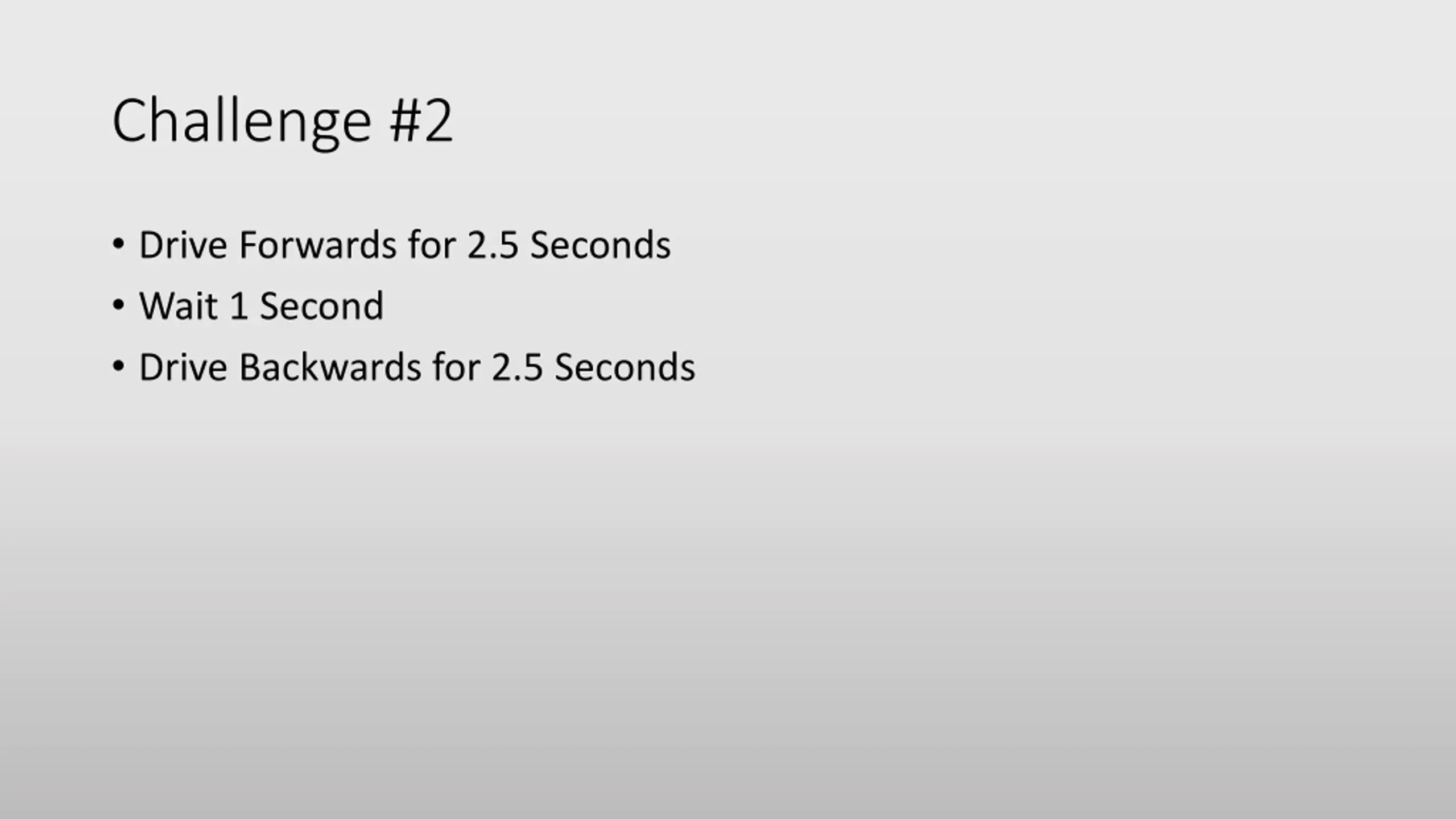

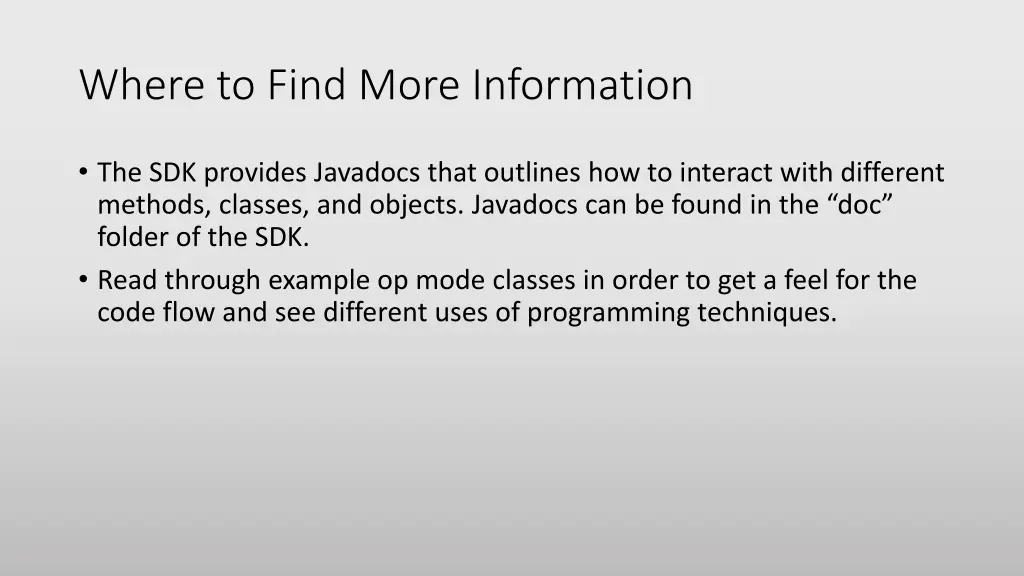

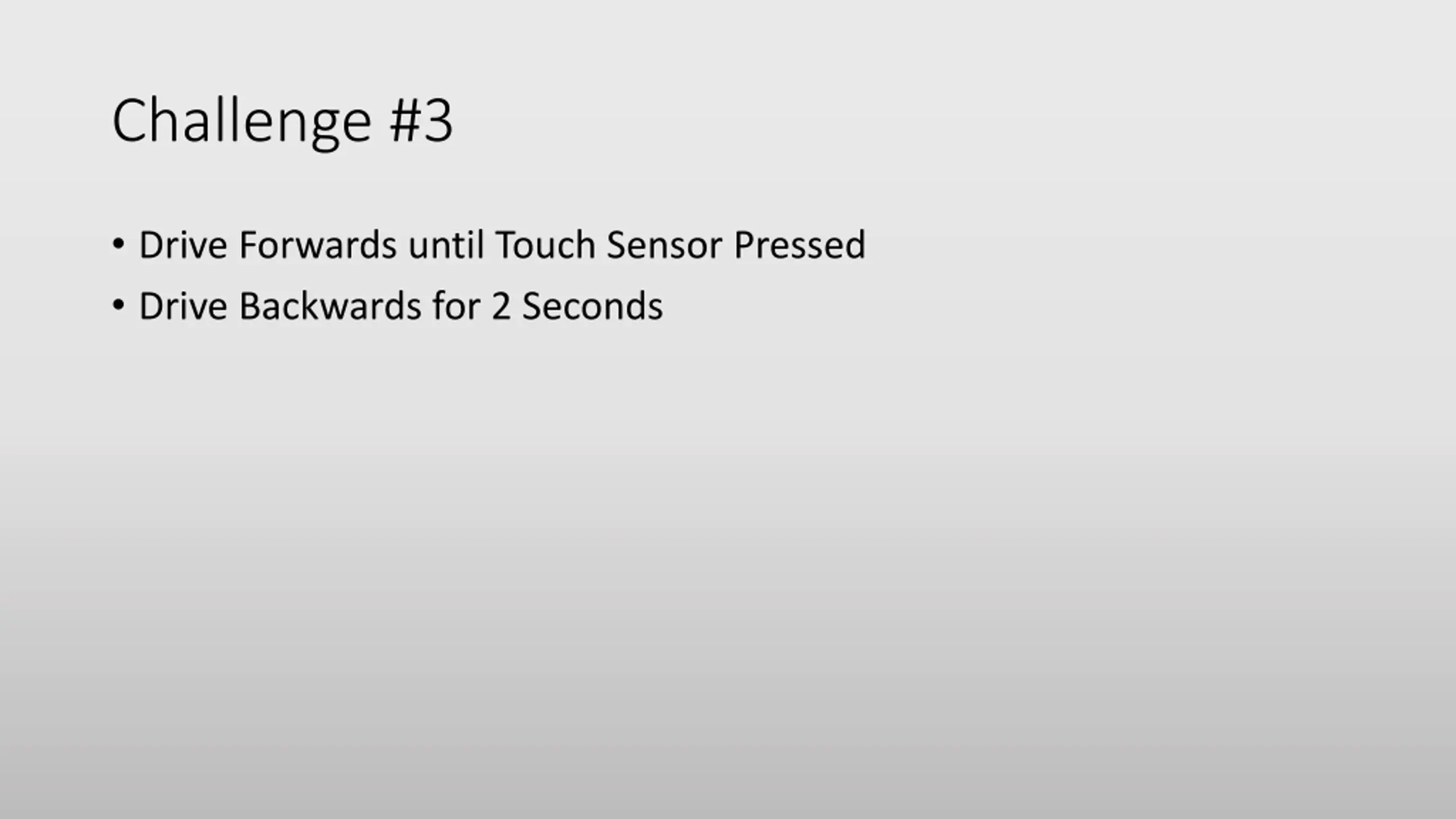

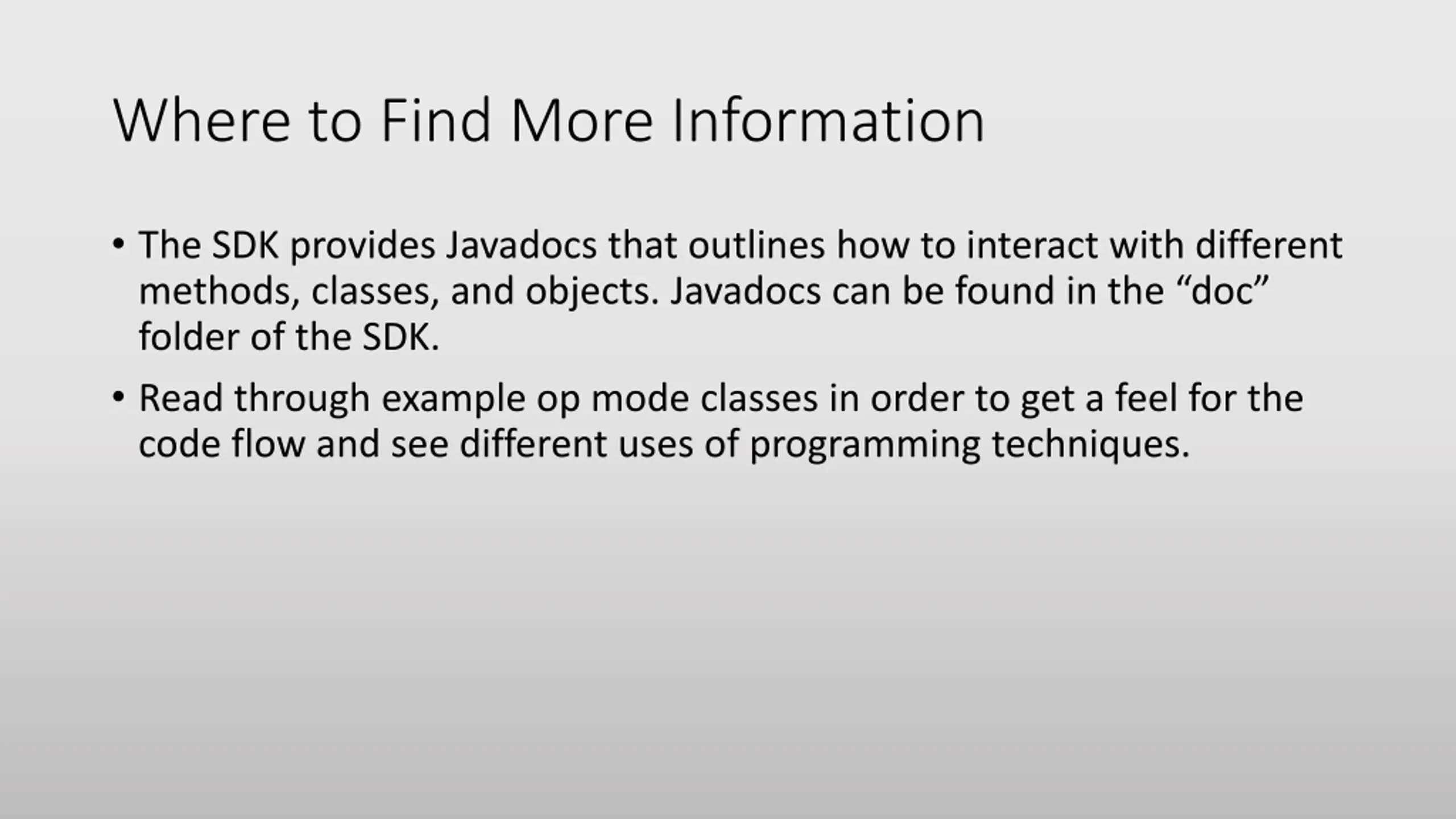

Where to Find More Information The SDK provides Javadocs that outlines how to interact with different methods, classes, and objects. Javadocs can be found in the doc folder of the SDK. Read through example op mode classes in order to get a feel for the code flow and see different uses of programming techniques.
