Fundamental to Artificial Intelligent IT-456 Dr. Saman Mirza Abdullah Saman.mirza@tiu.edu.iq

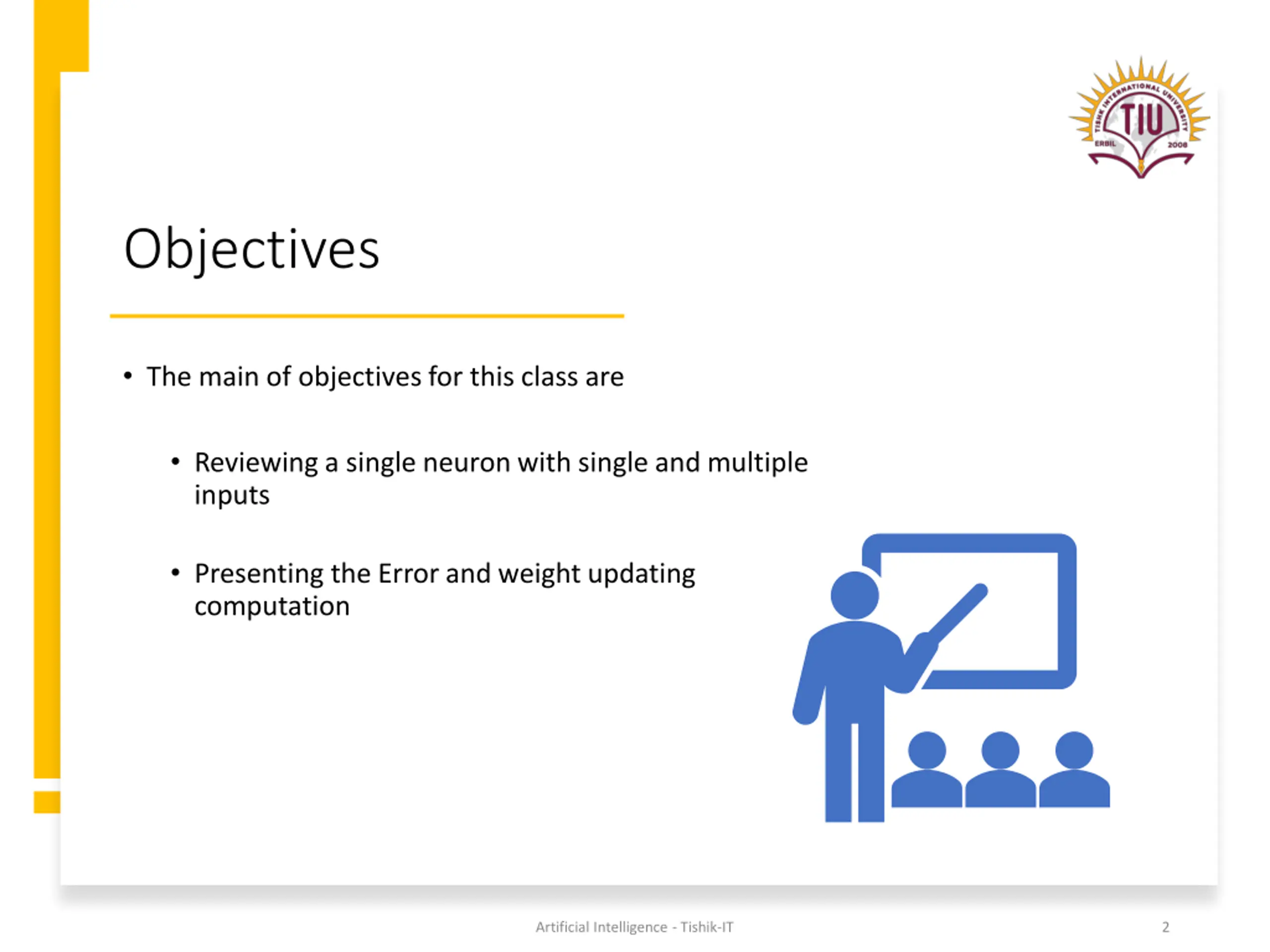

Objectives The main of objectives for this class are Reviewing a single neuron with single and multiple inputs Presenting the Error and weight updating computation Artificial Intelligence - Tishik-IT 2

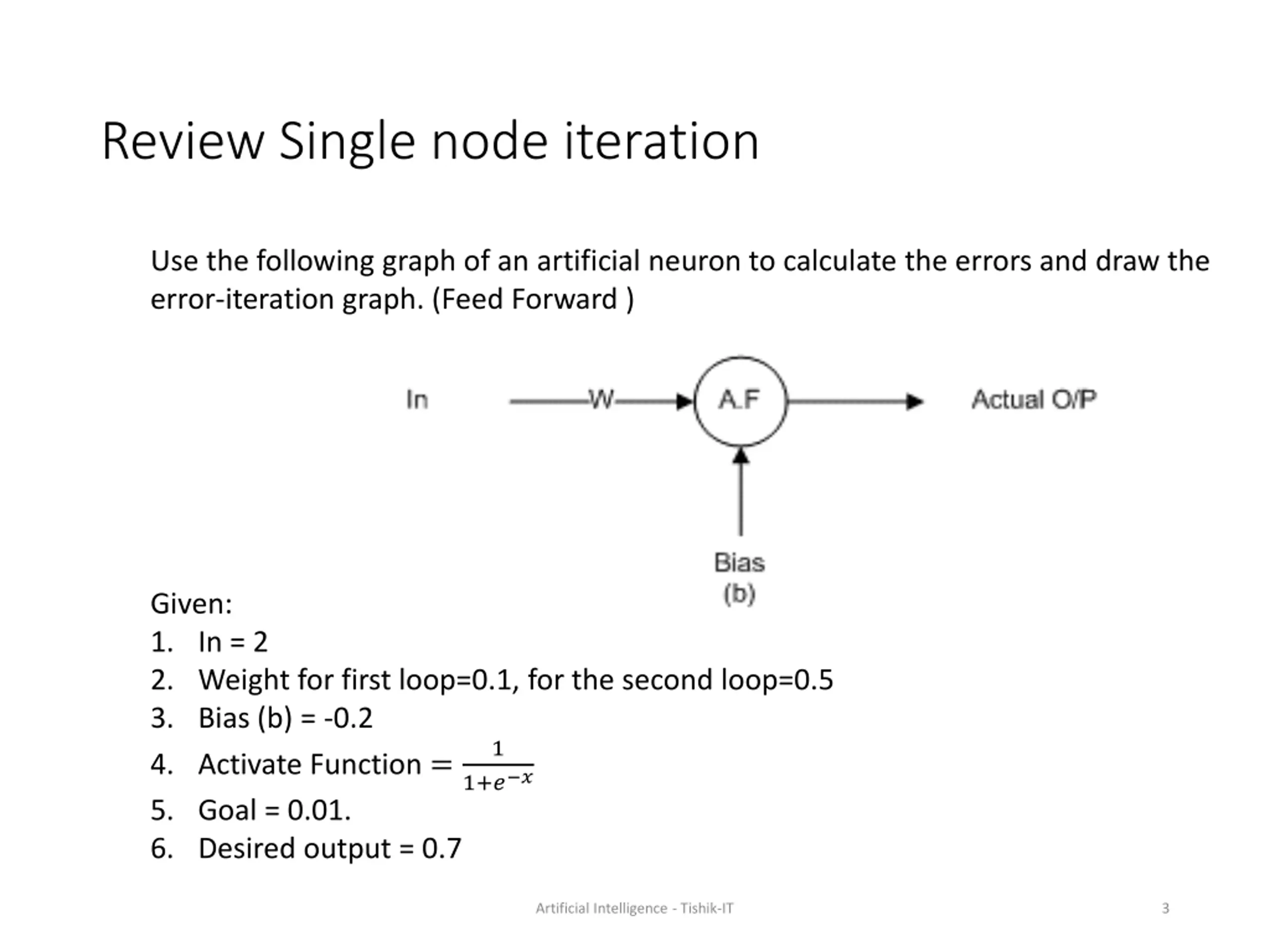

Review Single node iteration Use the following graph of an artificial neuron to calculate the errors and draw the error-iteration graph. (Feed Forward ) Given: 1. In = 2 2. Weight for first loop=0.1, for the second loop=0.5 3. Bias (b) = -0.2 4. Activate Function = 1+? ? 5. Goal = 0.01. 6. Desired output = 0.7 1 Artificial Intelligence - Tishik-IT 3

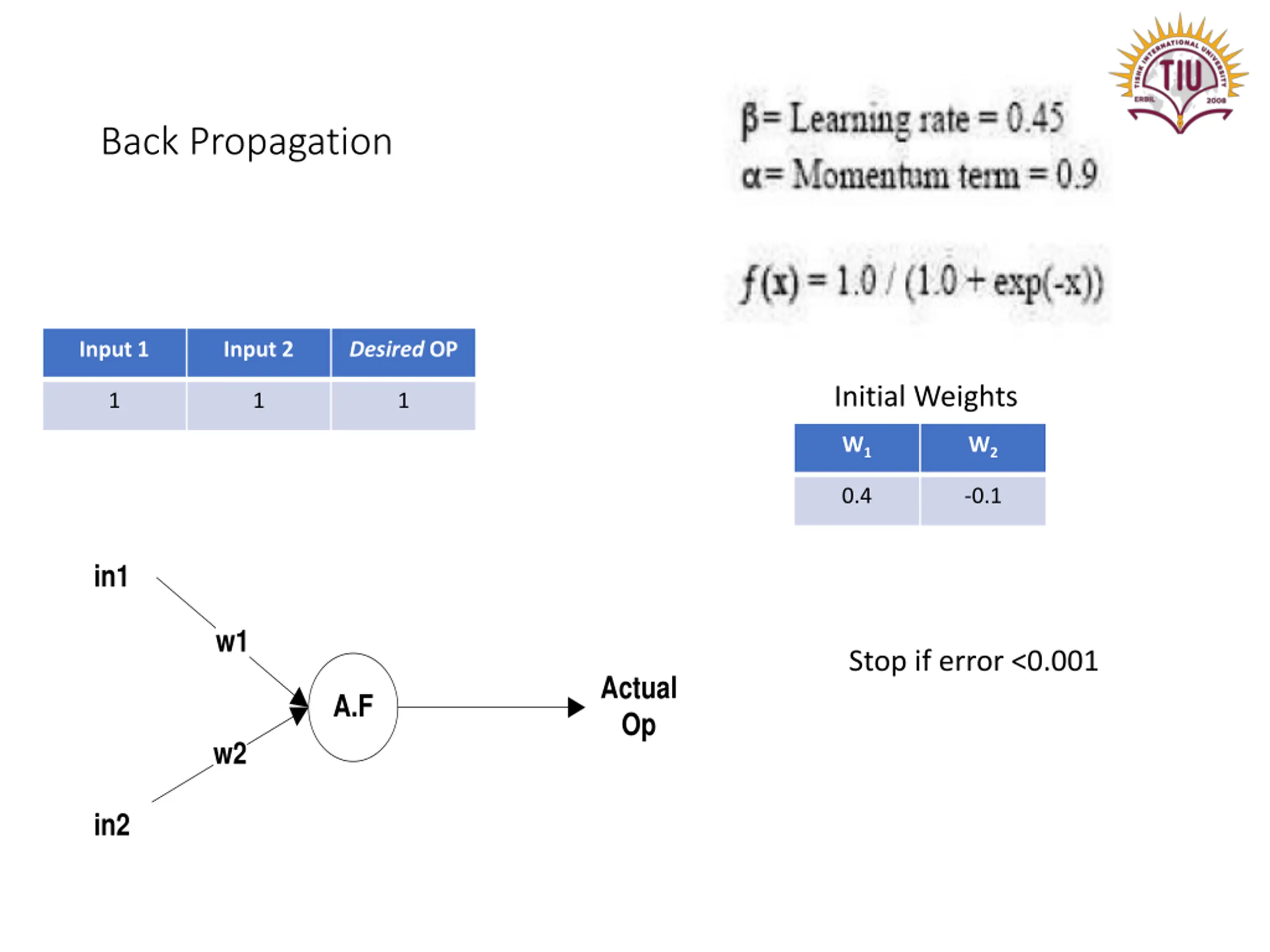

Back Propagation Input 1 Input 2 Desired OP Initial Weights 1 1 1 W1 W2 0.4 -0.1 in1 w1 Stop if error <0.001 Actual Op A.F w2 in2

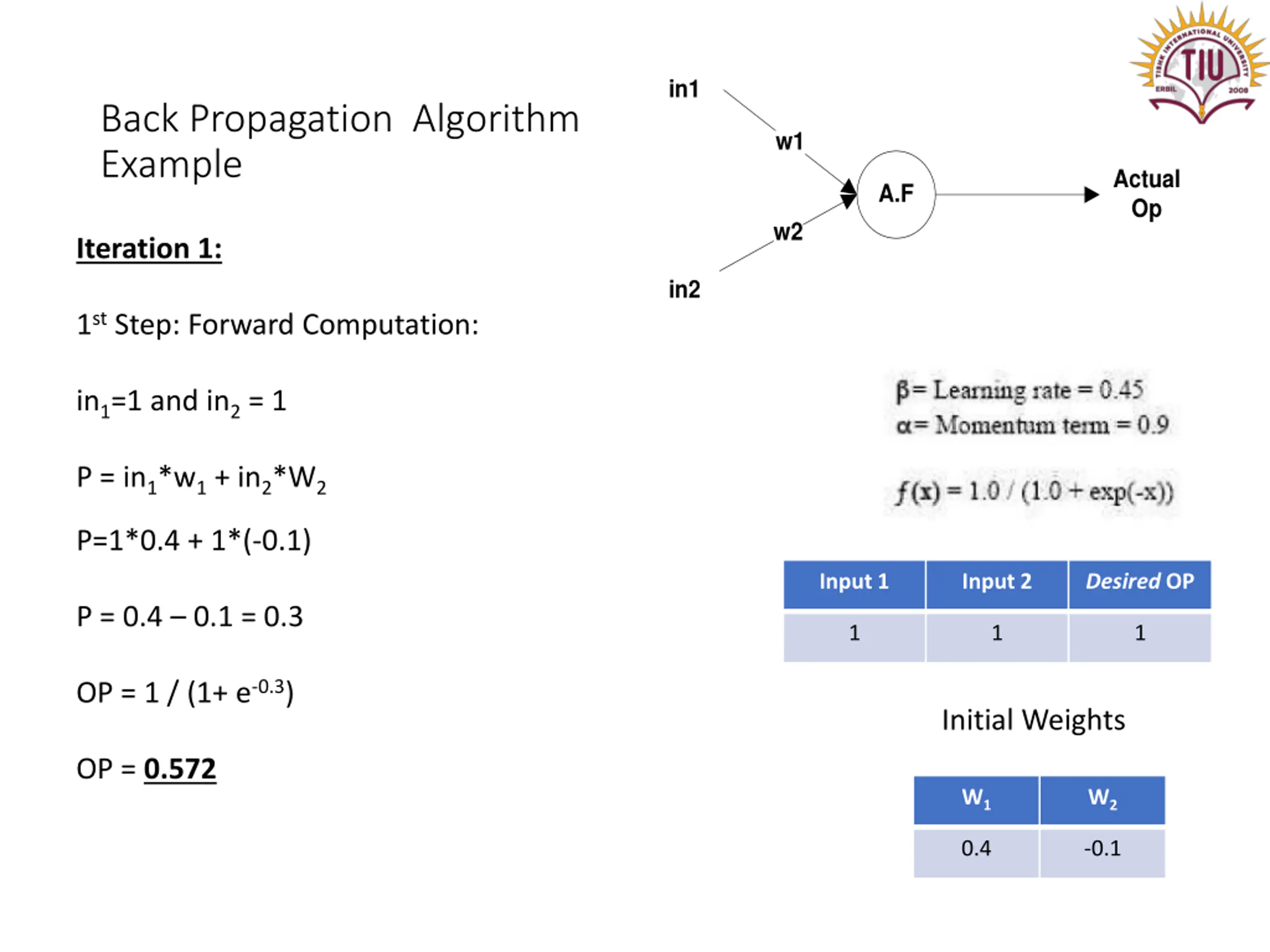

in1 Back Propagation Algorithm Example w1 Actual Op A.F w2 Iteration 1: in2 1st Step: Forward Computation: in1=1 and in2 = 1 P = in1*w1 + in2*W2 P=1*0.4 + 1*(-0.1) Input 1 Input 2 Desired OP P = 0.4 0.1 = 0.3 1 1 1 OP = 1 / (1+ e-0.3) Initial Weights OP = 0.572 W1 W2 0.4 -0.1

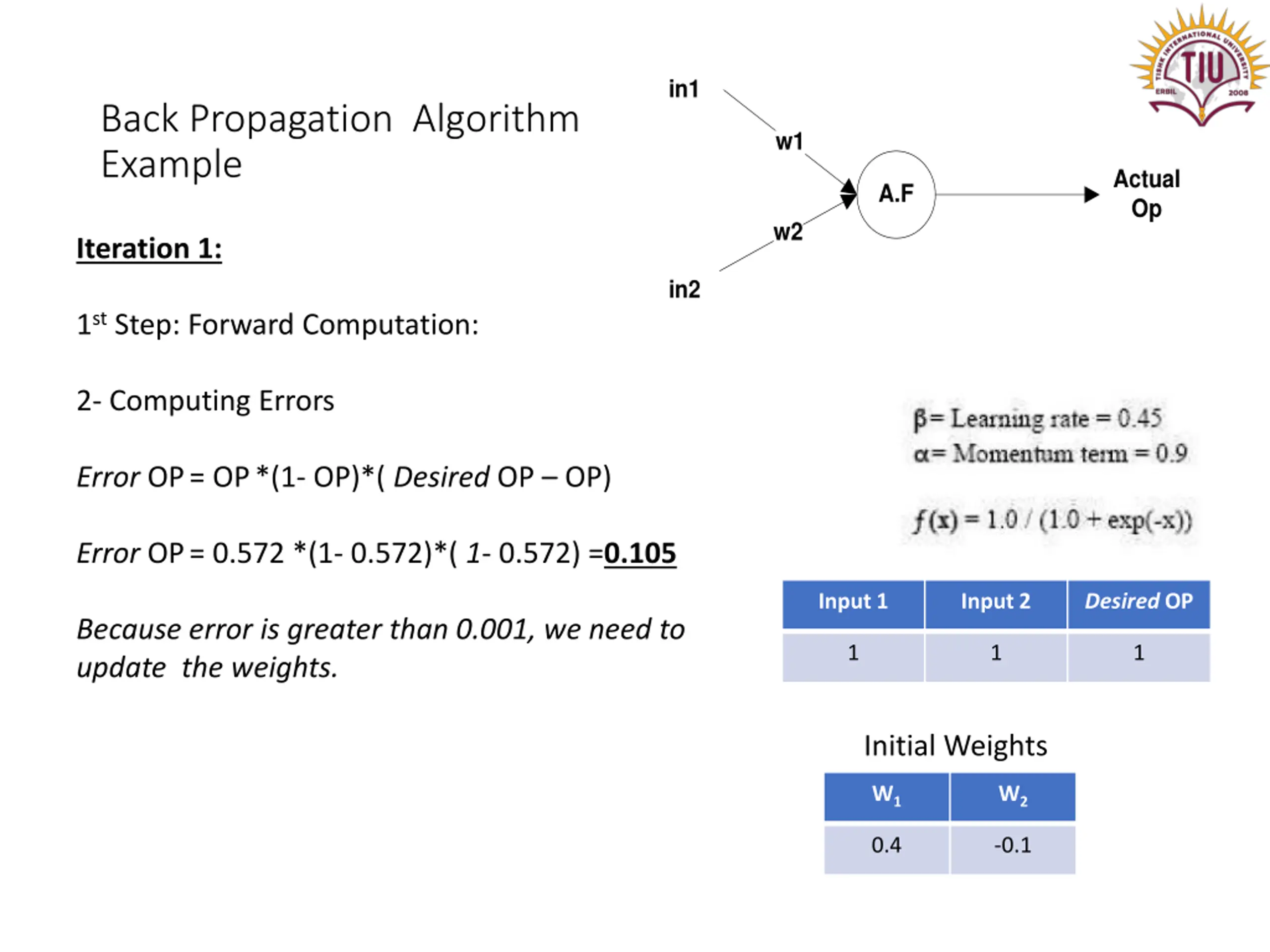

in1 Back Propagation Algorithm Example w1 Actual Op A.F w2 Iteration 1: in2 1st Step: Forward Computation: 2- Computing Errors Error OP= OP*(1- OP)*( Desired OP OP) Error OP= 0.572 *(1- 0.572)*( 1- 0.572) =0.105 Input 1 Input 2 Desired OP Because error is greater than 0.001, we need to update the weights. 1 1 1 Initial Weights W1 W2 0.4 -0.1

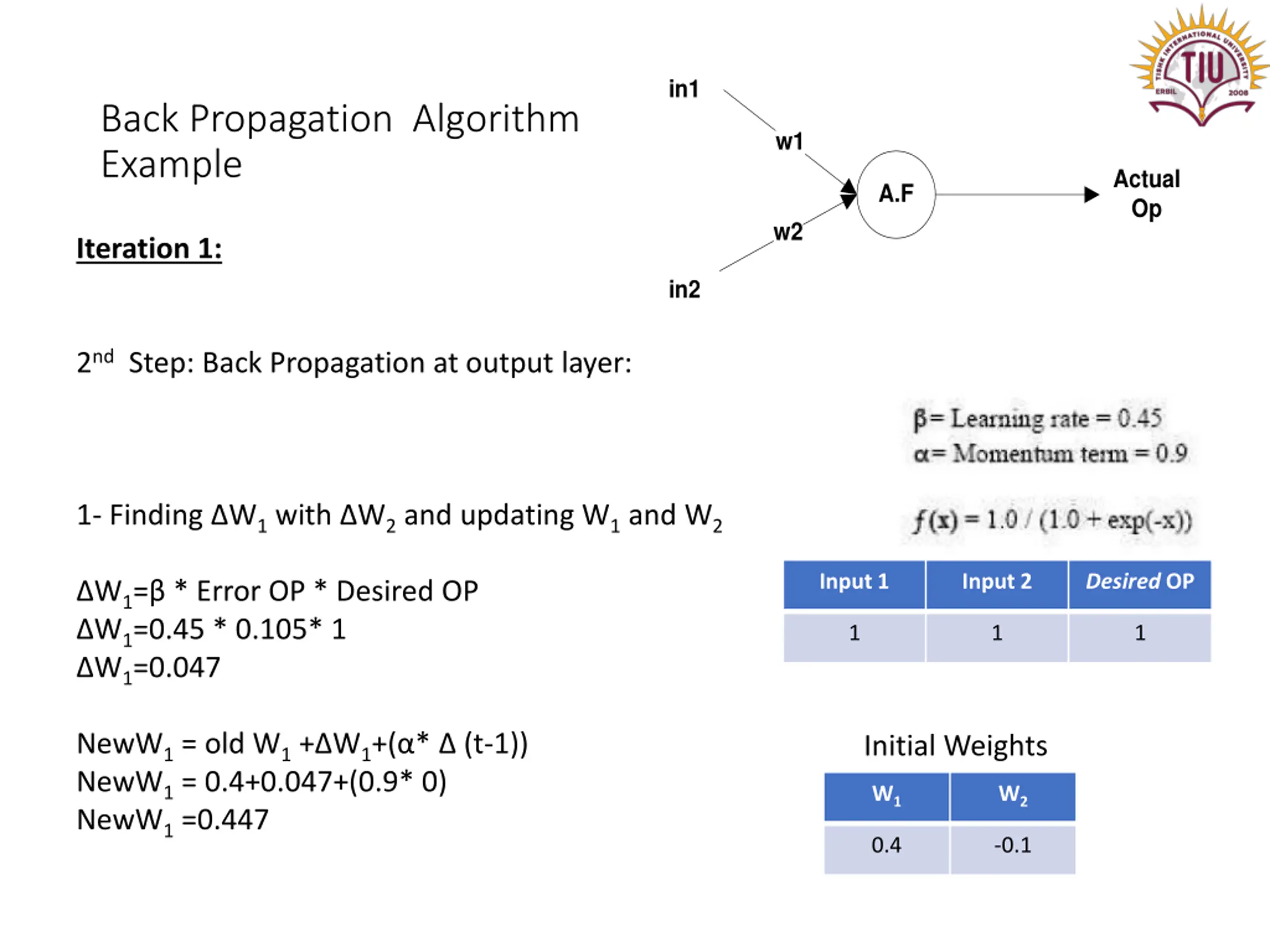

in1 Back Propagation Algorithm Example w1 Actual Op A.F w2 Iteration 1: in2 2nd Step: Back Propagation at output layer: 1- Finding W1with W2 and updating W1 and W2 Input 1 Input 2 Desired OP W1= * Error OP * Desired OP W1=0.45 * 0.105* 1 W1=0.047 1 1 1 NewW1 = old W1+ W1+( * (t-1)) NewW1 = 0.4+0.047+(0.9* 0) NewW1 =0.447 Initial Weights W1 W2 0.4 -0.1

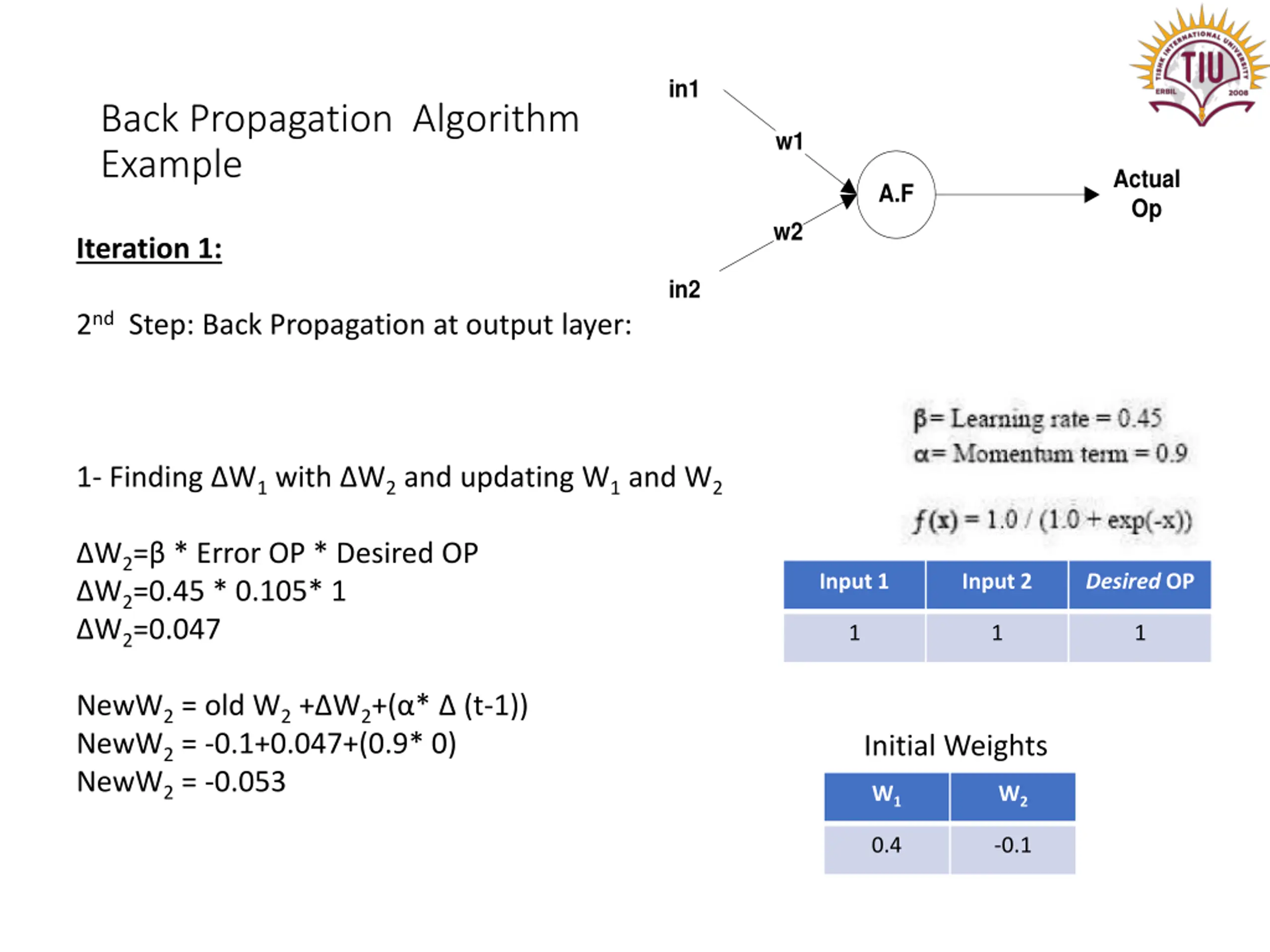

in1 Back Propagation Algorithm Example w1 Actual Op A.F w2 Iteration 1: in2 2nd Step: Back Propagation at output layer: 1- Finding W1with W2 and updating W1 and W2 W2= * Error OP * Desired OP W2=0.45 * 0.105* 1 W2=0.047 Input 1 Input 2 Desired OP 1 1 1 NewW2 = old W2+ W2+( * (t-1)) NewW2 = -0.1+0.047+(0.9* 0) NewW2 = -0.053 Initial Weights W1 W2 0.4 -0.1

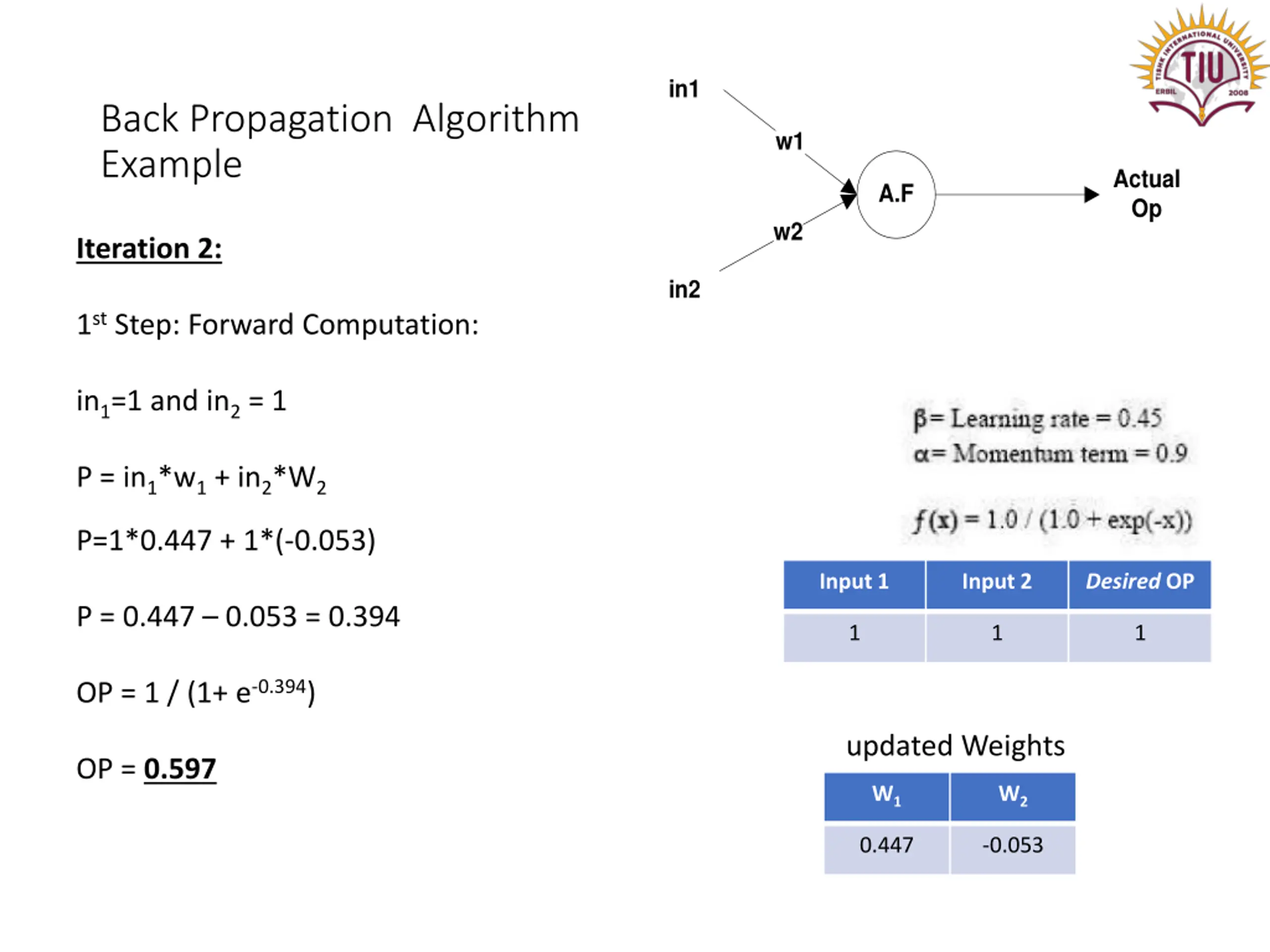

in1 Back Propagation Algorithm Example w1 Actual Op A.F w2 Iteration 2: in2 1st Step: Forward Computation: in1=1 and in2 = 1 P = in1*w1 + in2*W2 P=1*0.447 + 1*(-0.053) Input 1 Input 2 Desired OP P = 0.447 0.053 = 0.394 1 1 1 OP = 1 / (1+ e-0.394) updated Weights OP = 0.597 W1 W2 0.447 -0.053

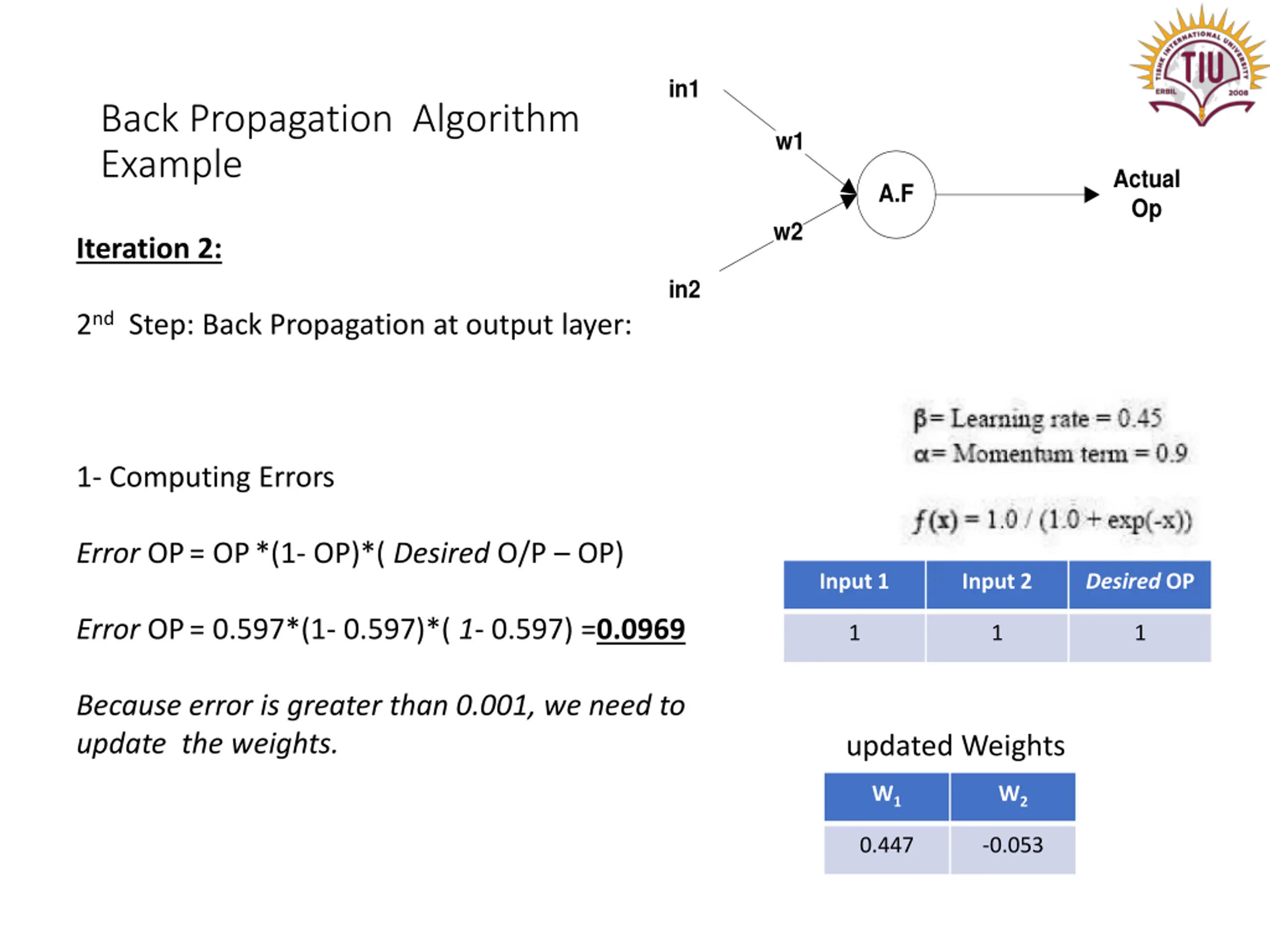

in1 Back Propagation Algorithm Example w1 Actual Op A.F w2 Iteration 2: in2 2nd Step: Back Propagation at output layer: 1- Computing Errors Error OP= OP*(1- OP)*( Desired O/P OP) Input 1 Input 2 Desired OP Error OP= 0.597*(1- 0.597)*( 1- 0.597) =0.0969 1 1 1 Because error is greater than 0.001, we need to update the weights. updated Weights W1 W2 0.447 -0.053

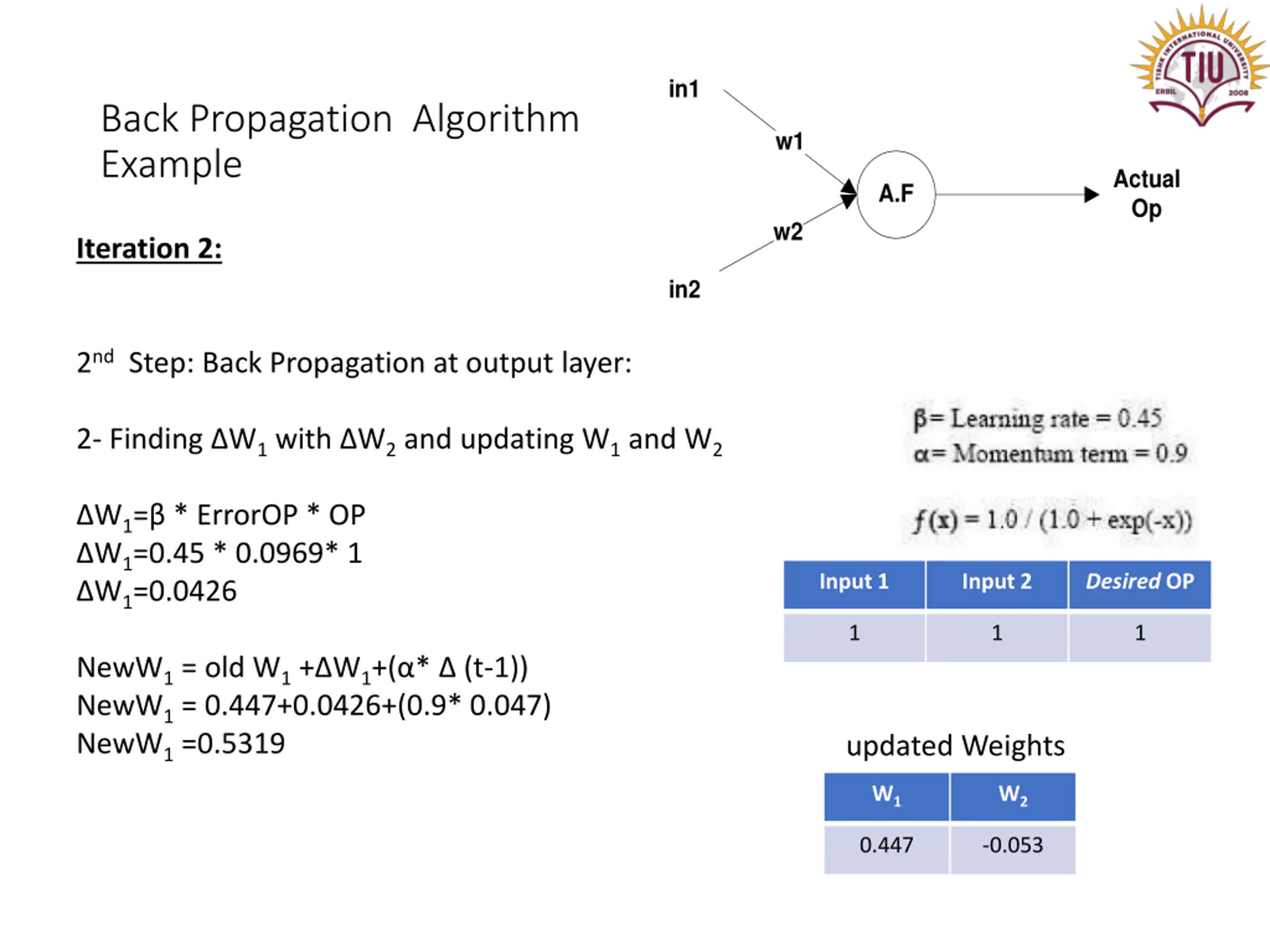

in1 Back Propagation Algorithm Example w1 Actual Op A.F w2 Iteration 2: in2 2nd Step: Back Propagation at output layer: 2- Finding W1with W2 and updating W1 and W2 W1= * ErrorOP * OP W1=0.45 * 0.0969* 1 W1=0.0426 Input 1 Input 2 Desired OP 1 1 1 NewW1 = old W1+ W1+( * (t-1)) NewW1 = 0.447+0.0426+(0.9* 0.047) NewW1 =0.5319 updated Weights W1 W2 0.447 -0.053
in1 Back Propagation Algorithm Example w1 Actual Op A.F w2 Iteration 2: in2 2nd Step: Back Propagation at output layer: 2- Finding W1with W2 and updating W1 and W2 W2= * ErrorOP * OP W2=0.45 * 0.0969* 1 W2=0.0426 Input 1 Input 2 Desired OP 1 1 1 NewW2 = old W1+ W1+( * (t-1)) NewW2 = -0.053+0.0426+(0.9* 0.047) NewW2 =0.0319 updated Weights W1 W2 0.447 -0.053

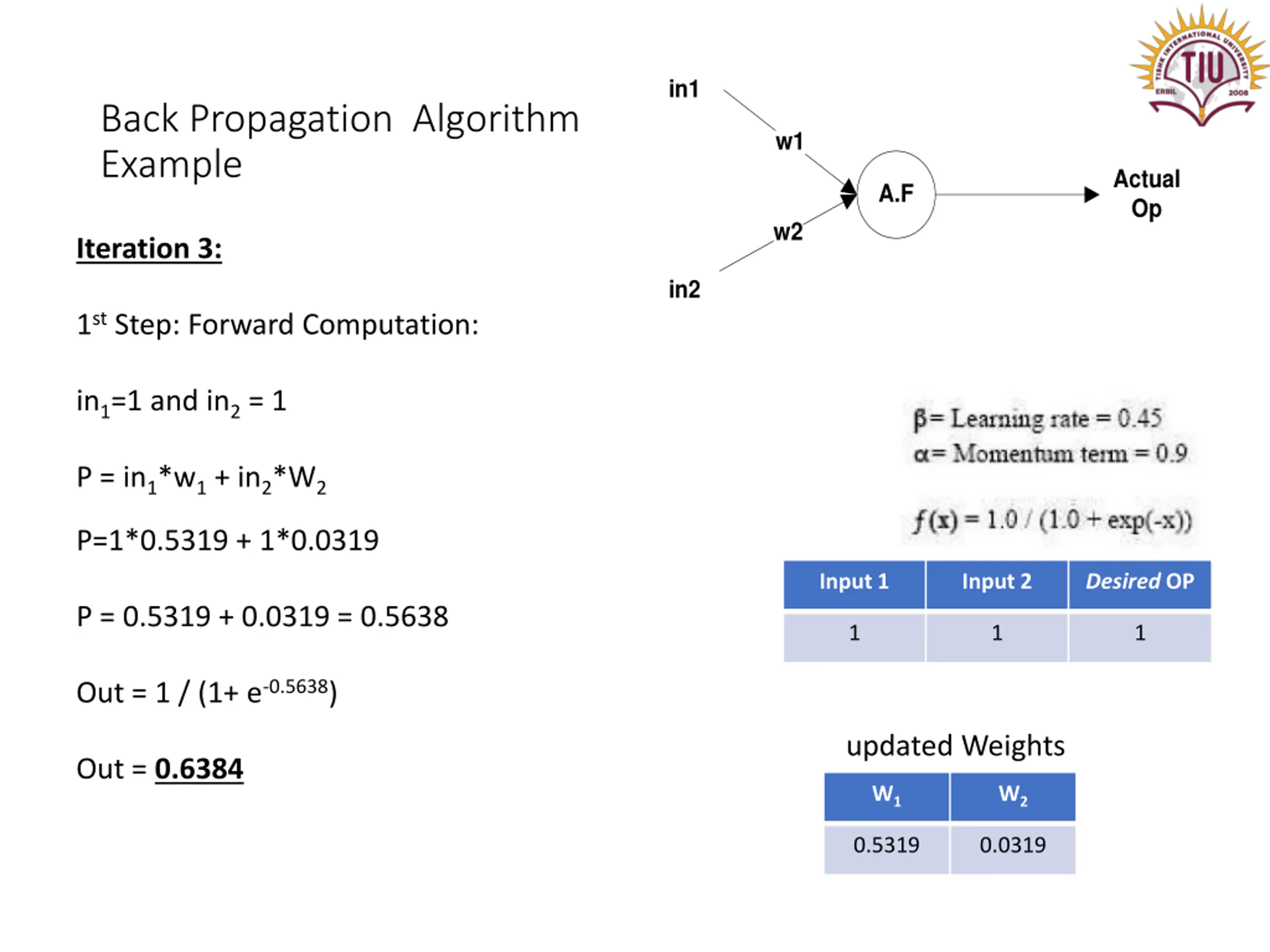

in1 Back Propagation Algorithm Example w1 Actual Op A.F w2 Iteration 3: in2 1st Step: Forward Computation: in1=1 and in2 = 1 P = in1*w1 + in2*W2 P=1*0.5319 + 1*0.0319 Input 1 Input 2 Desired OP P = 0.5319 + 0.0319 = 0.5638 1 1 1 Out = 1 / (1+ e-0.5638) updated Weights Out = 0.6384 W1 W2 0.5319 0.0319

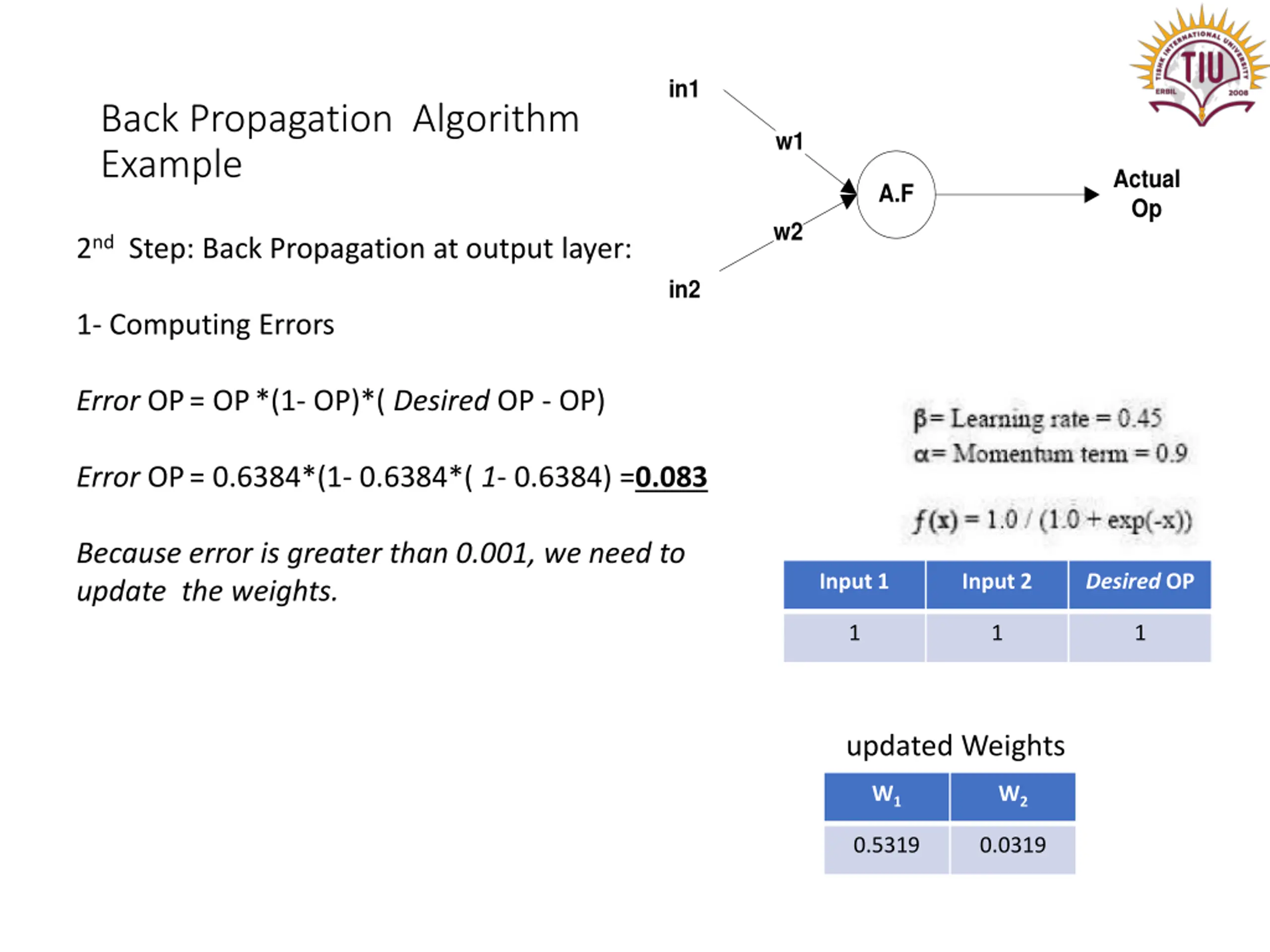

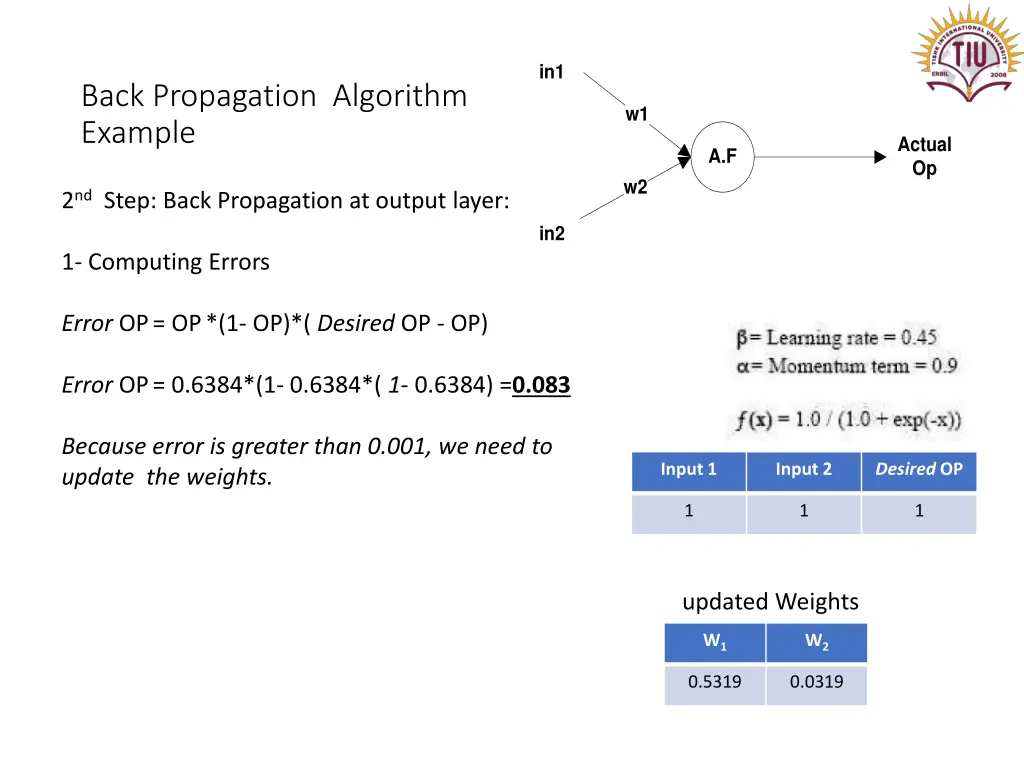

in1 Back Propagation Algorithm Example w1 Actual Op A.F w2 2nd Step: Back Propagation at output layer: in2 1- Computing Errors Error OP= OP*(1- OP)*( Desired OP - OP) Error OP= 0.6384*(1- 0.6384*( 1- 0.6384) =0.083 Because error is greater than 0.001, we need to update the weights. Input 1 Input 2 Desired OP 1 1 1 updated Weights W1 W2 0.5319 0.0319

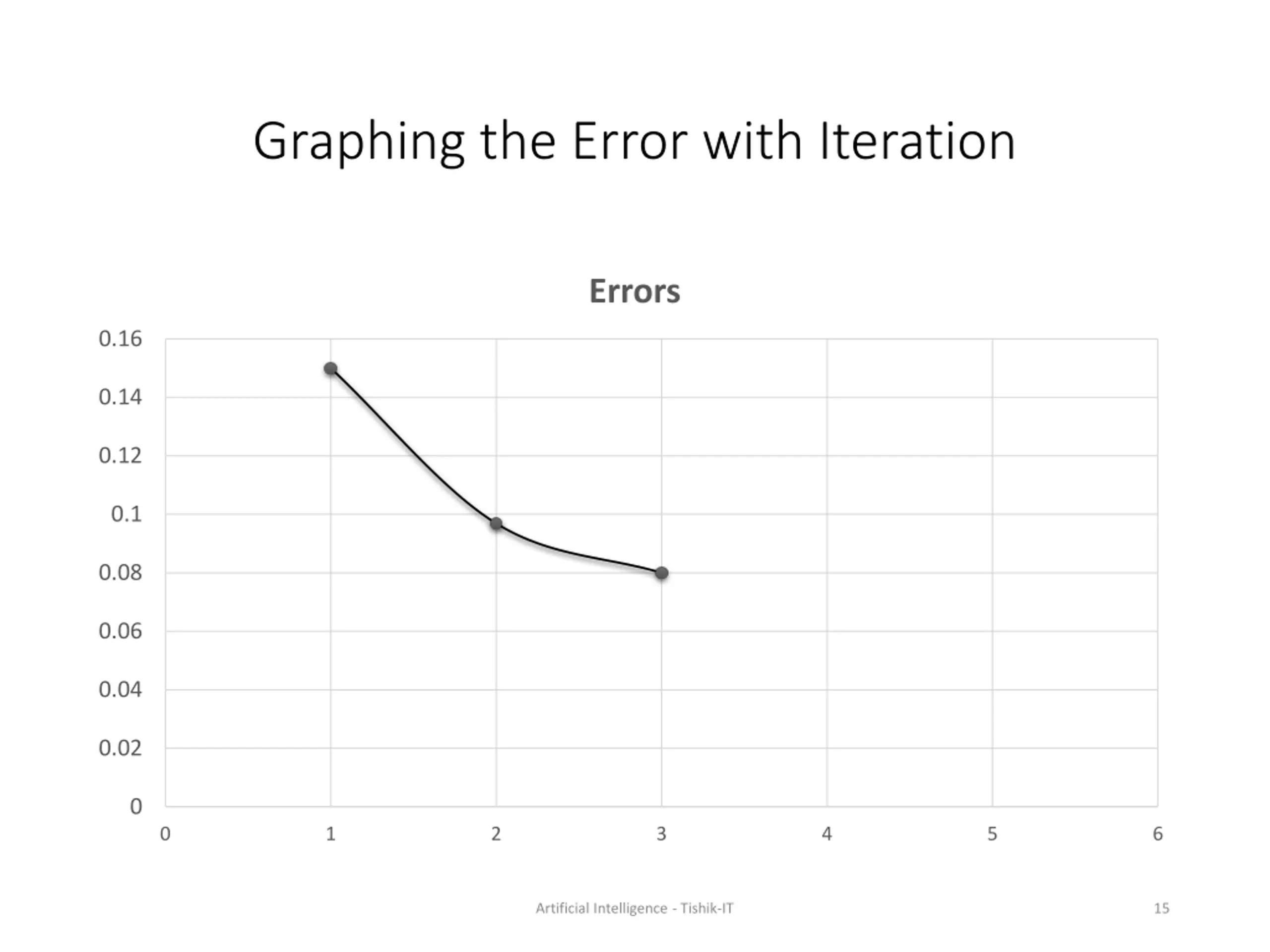

Graphing the Error with Iteration Errors 0.16 0.14 0.12 0.1 0.08 0.06 0.04 0.02 0 0 1 2 3 4 5 6 Artificial Intelligence - Tishik-IT 15
Class Ended 16 Artificial Intelligence - Tishik-IT
