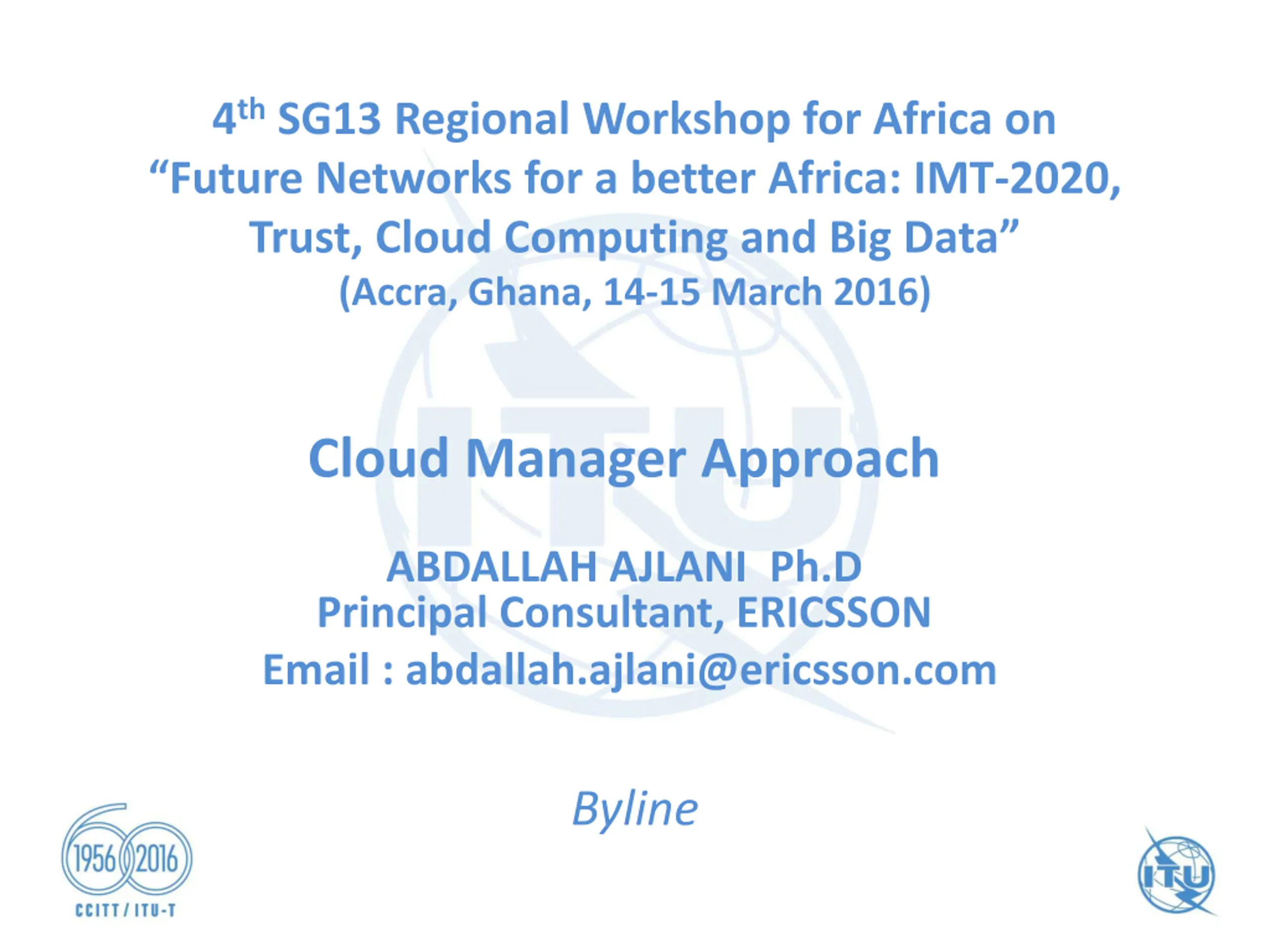

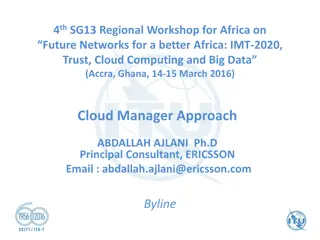

4thSG13 Regional Workshop for Africa on Future Networks for a better Africa: IMT-2020, Trust, Cloud Computing and Big Data (Accra, Ghana, 14-15 March 2016) Cloud Manager Approach ABDALLAH AJLANI Ph.D Principal Consultant, ERICSSON Email : abdallah.ajlani@ericsson.com Byline

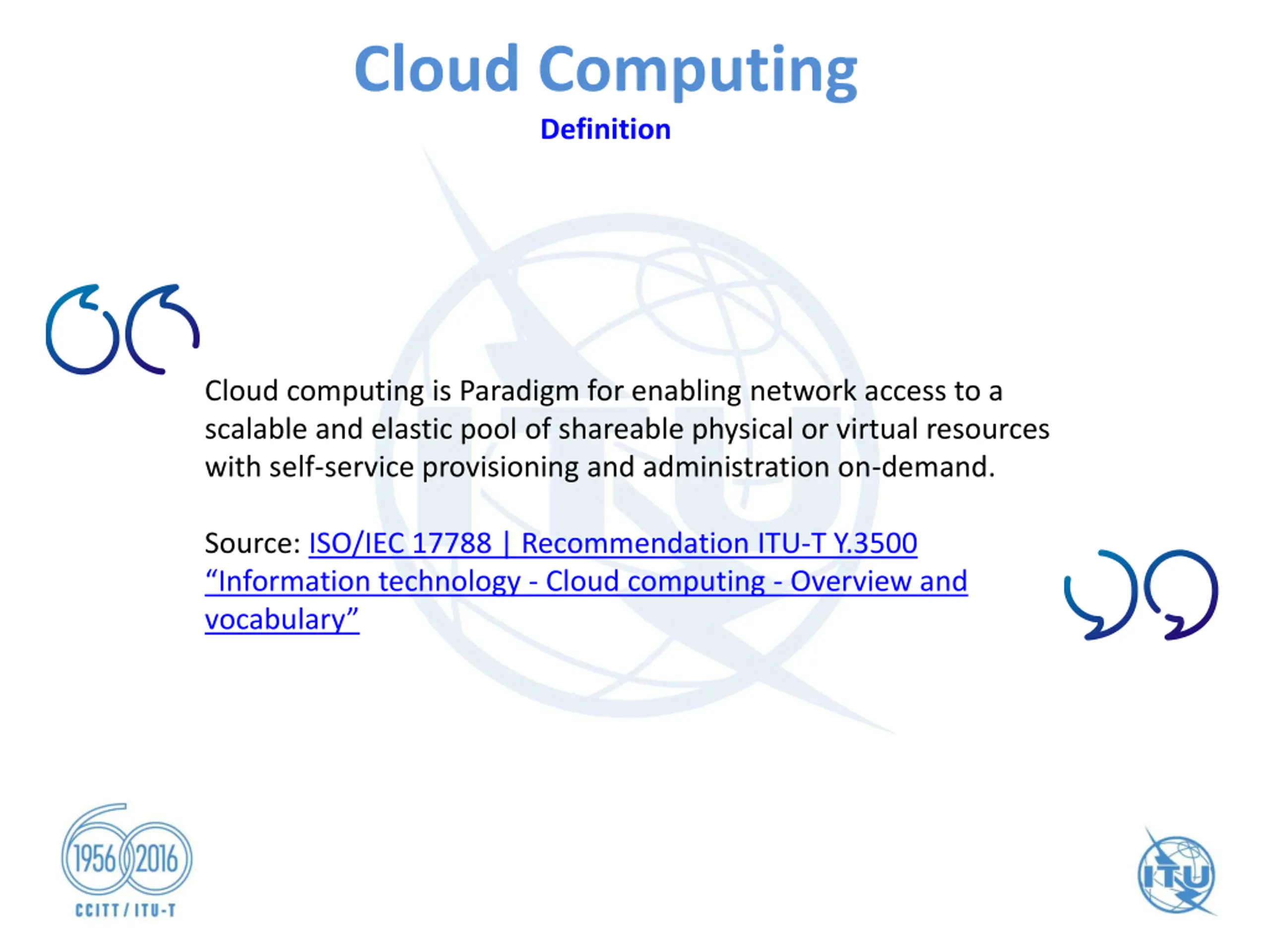

Cloud Computing Definition Cloud computing is Paradigm for enabling network access to a scalable and elastic pool of shareable physical or virtual resources with self-service provisioning and administration on-demand. Source: ISO/IEC 17788 | Recommendation ITU-T Y.3500 Information technology - Cloud computing - Overview and vocabulary

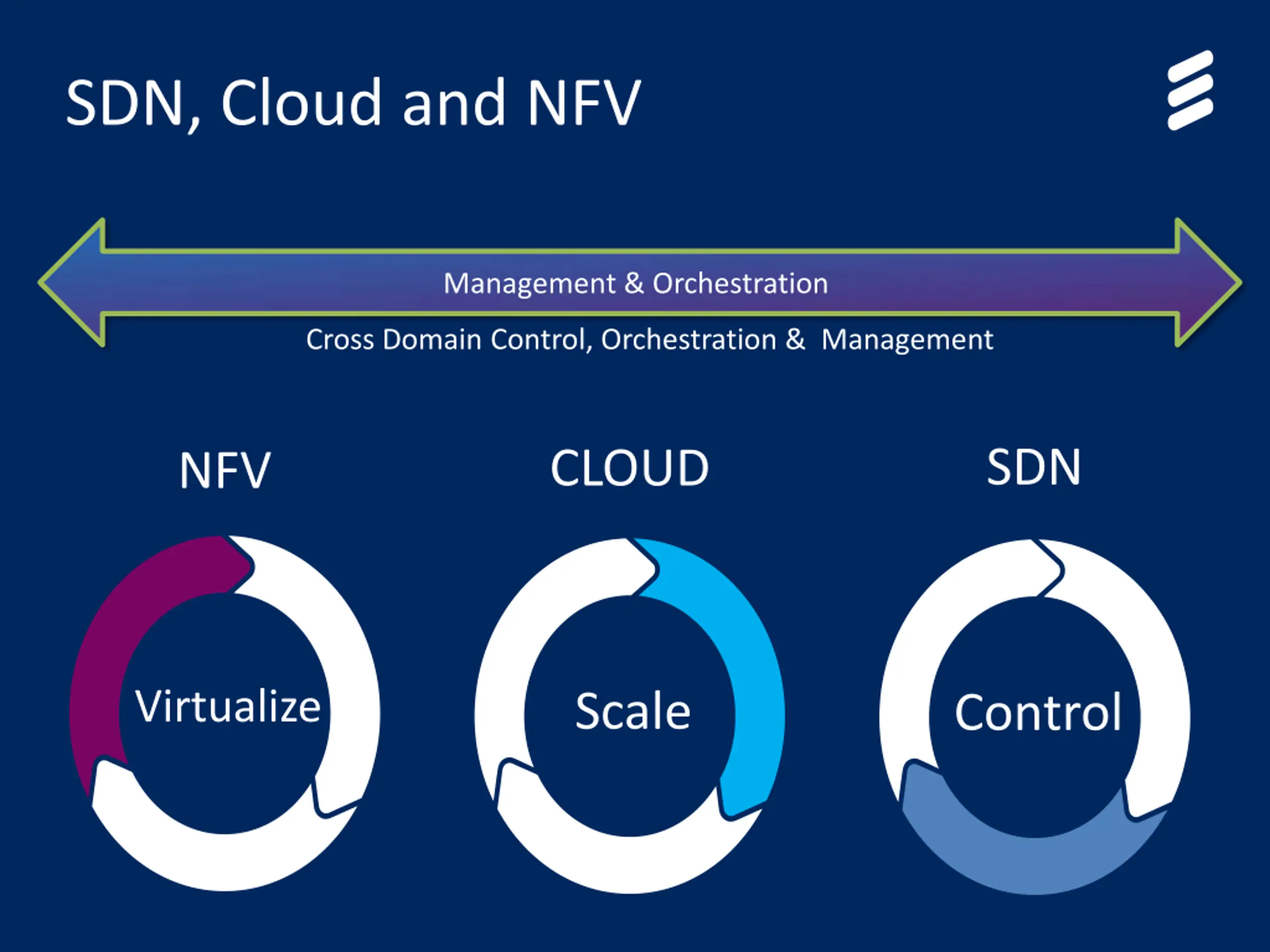

SDN, Cloud and NFV Management & Orchestration Cross Domain Control, Orchestration & Management SDN CLOUD NFV Virtualize Scale Control
Change Drivers voices from the industry Innovation Providing cloud services to enterprise Kris Rinne, Senior VP of Technology, AT&T Speed Bring products to market much quicker Mike Wright, Executive Director, Telstra Efficiency Radically simplified network Bruno Jacobfeuerborn, CTO DT

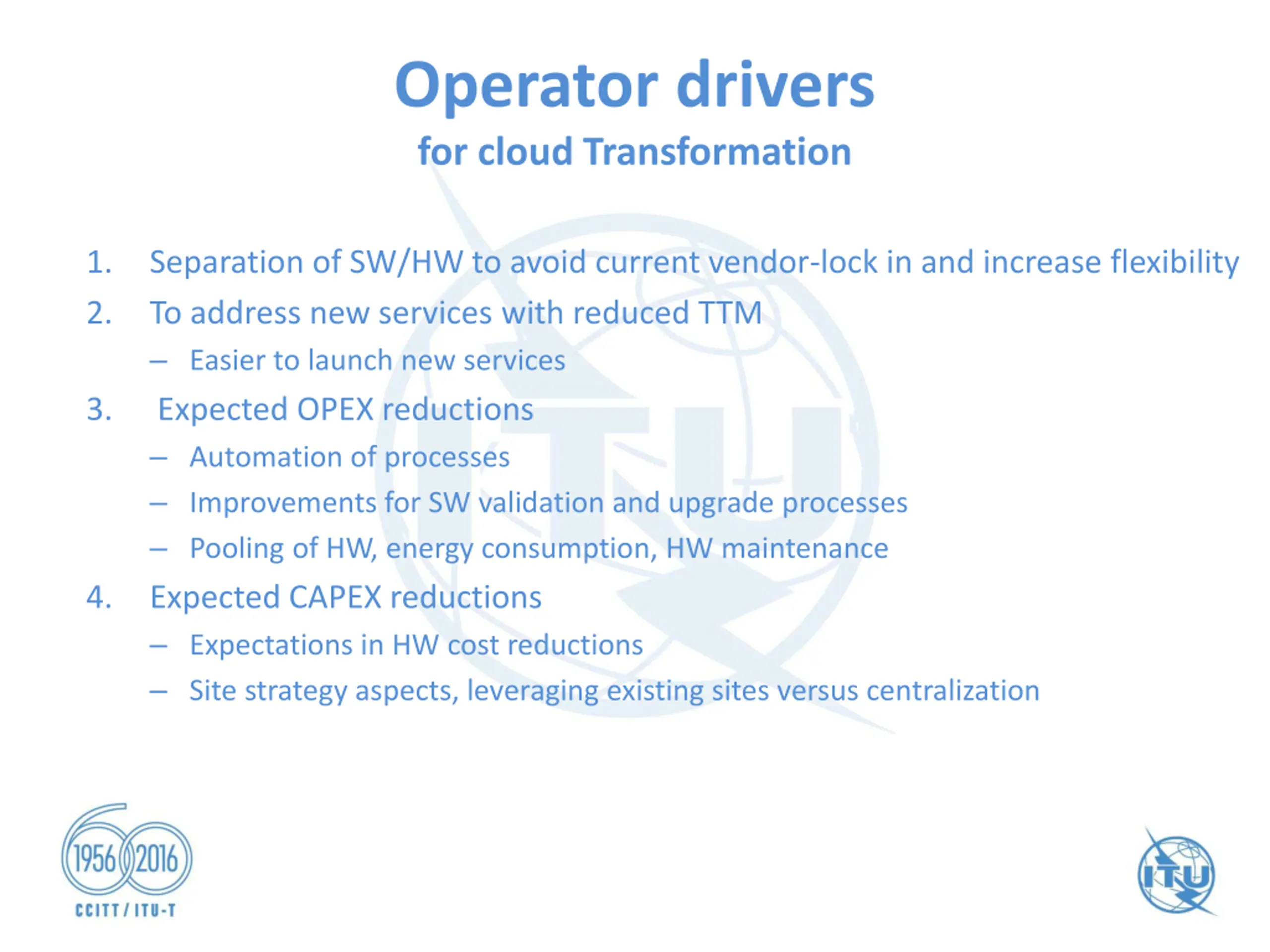

Operator drivers for cloud Transformation 1. 2. Separation of SW/HW to avoid current vendor-lock in and increase flexibility To address new services with reduced TTM Easier to launch new services Expected OPEX reductions Automation of processes Improvements for SW validation and upgrade processes Pooling of HW, energy consumption, HW maintenance Expected CAPEX reductions Expectations in HW cost reductions Site strategy aspects, leveraging existing sites versus centralization 3. 4.

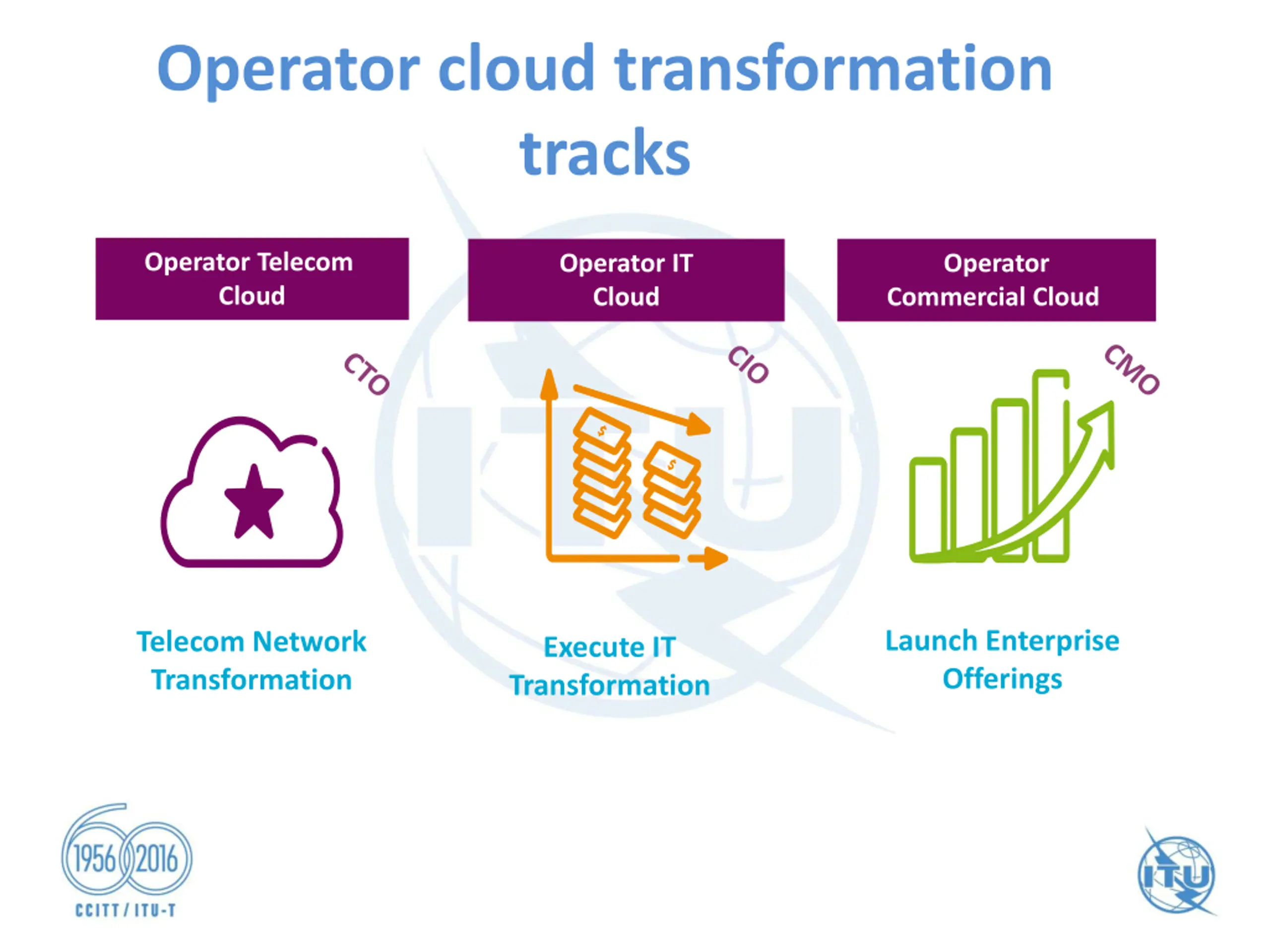

Operator cloud transformation tracks Operator Telecom Cloud Operator IT Cloud Operator Commercial Cloud Launch Enterprise Offerings Telecom Network Transformation Execute IT Transformation

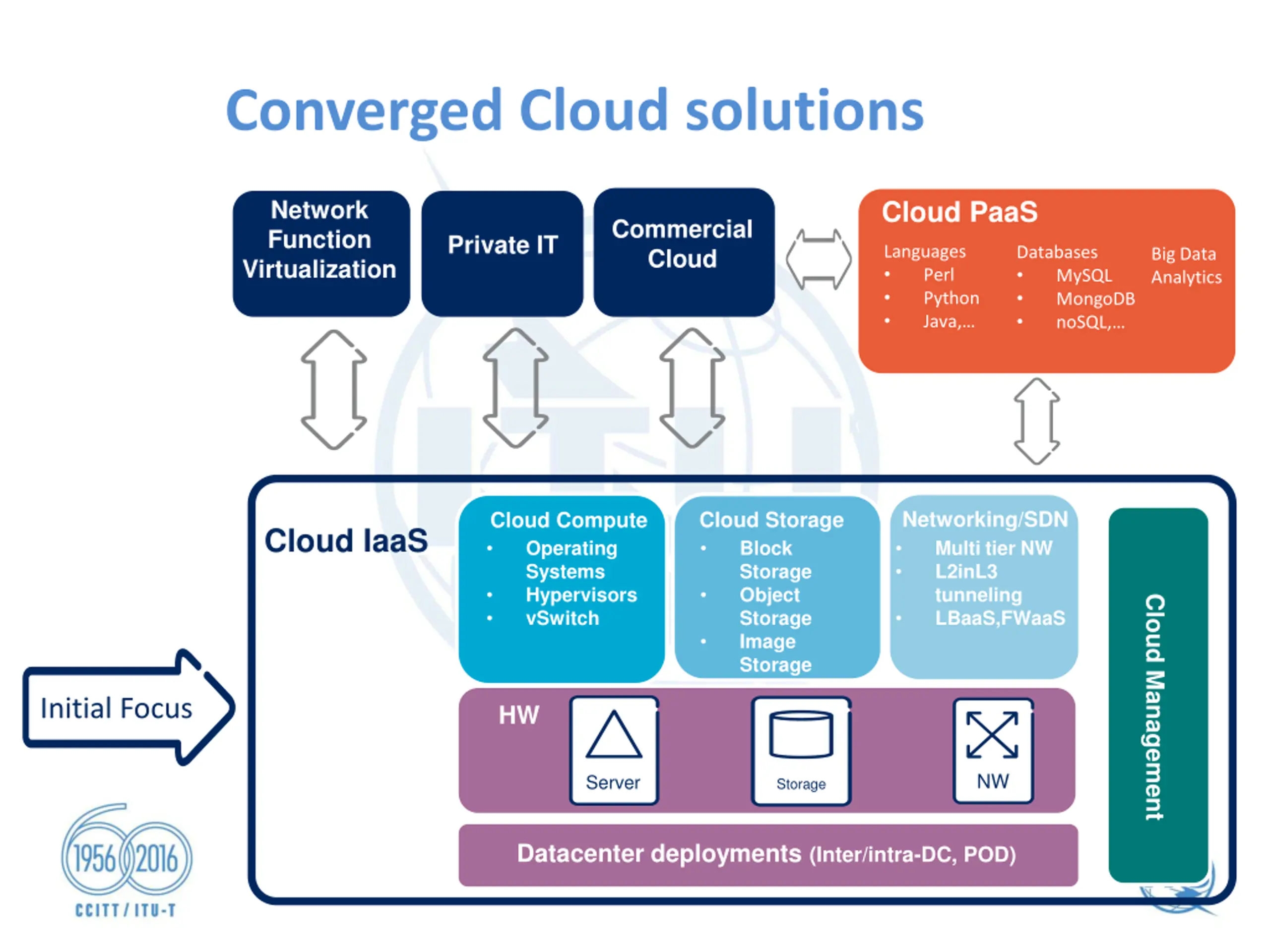

Converged Cloud solutions Cloud PaaS Network Function Virtualization Commercial Cloud Private IT Languages Perl Python Java, Databases MySQL MongoDB noSQL, Big Data Analytics Networking/SDN Multi tier NW L2inL3 tunneling LBaaS,FWaaS Cloud Storage Block Storage Object Storage Image Storage Cloud Compute Cloud IaaS Operating Systems Hypervisors vSwitch Cloud Management Initial Focus HW NW Server Storage Datacenter deployments (Inter/intra-DC, POD)

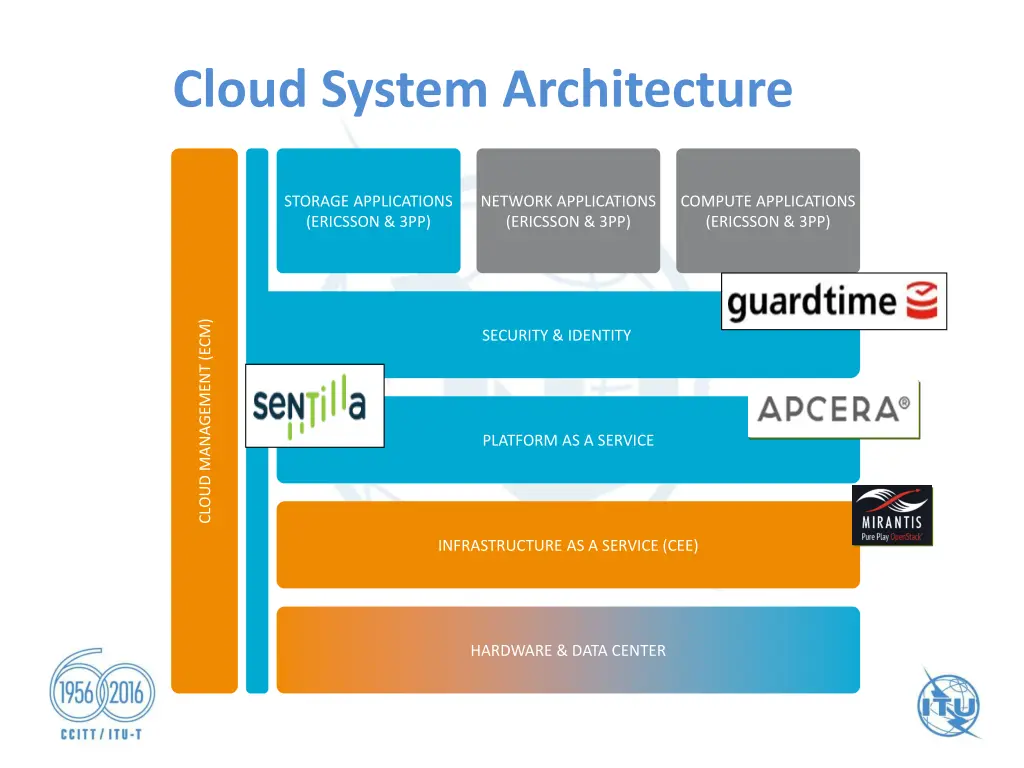

Cloud System Architecture STORAGE APPLICATIONS (ERICSSON & 3PP) NETWORK APPLICATIONS (ERICSSON & 3PP) COMPUTE APPLICATIONS (ERICSSON & 3PP) CLOUD MANAGEMENT (ECM) SECURITY & IDENTITY PLATFORM AS A SERVICE INFRASTRUCTURE AS A SERVICE (CEE) HARDWARE & DATA CENTER

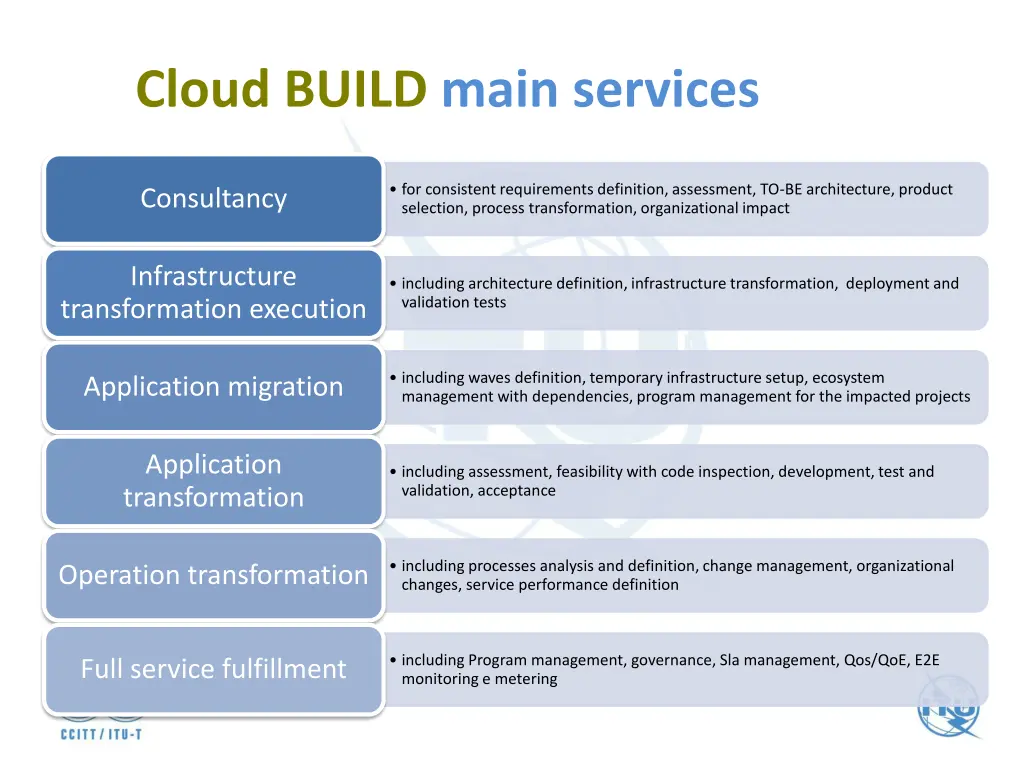

Cloud BUILD main services for consistent requirements definition, assessment, TO-BE architecture, product selection, process transformation, organizational impact Consultancy Infrastructure transformation execution including architecture definition, infrastructure transformation, deployment and validation tests including waves definition, temporary infrastructure setup, ecosystem management with dependencies, program management for the impacted projects Application migration Application transformation including assessment, feasibility with code inspection, development, test and validation, acceptance including processes analysis and definition, change management, organizational changes, service performance definition Operation transformation including Program management, governance, Sla management, Qos/QoE, E2E monitoring e metering Full service fulfillment
Cloud Execution Environment Resource Allocation & Optimization Resource Isolation Mirantis OpenStack based Carrier Grade Security Multi-tenancy with end-to-end isolation Software Management and Upgrade Support Hitless & automated upgrades Roll-back Backup and Restore Automatic backup Recovery incl. consistency audit and conflict resolution Audit and Trouble Shooting Audit log, monitor and troubleshoot Assurance: Storage EMC VNX plugins Multiple backends Application Domain OSS NFV Applications Enterprise Applications Cloud Manager NEUTRON API Glance API KEYSTONE API CINDER API NOVA API Support functions Ceilometer OS NETWORK FRAMEWORK OS COMPUTE FRAMEWORK OS STORAGE FRAMEWORK OS SECURITY FRAMEWORK Networking OVS & Extreme plugins PLUGIN PLUGIN PLUGIN PLUGIN Linux PLUGINPLUGIN NETWORK COMPUTE STORAGE IDAM Real Time Response Interrupt servicing OVS latency High Availability No single point of failure Mitigation of systematic failures Fault monitoring and heath check

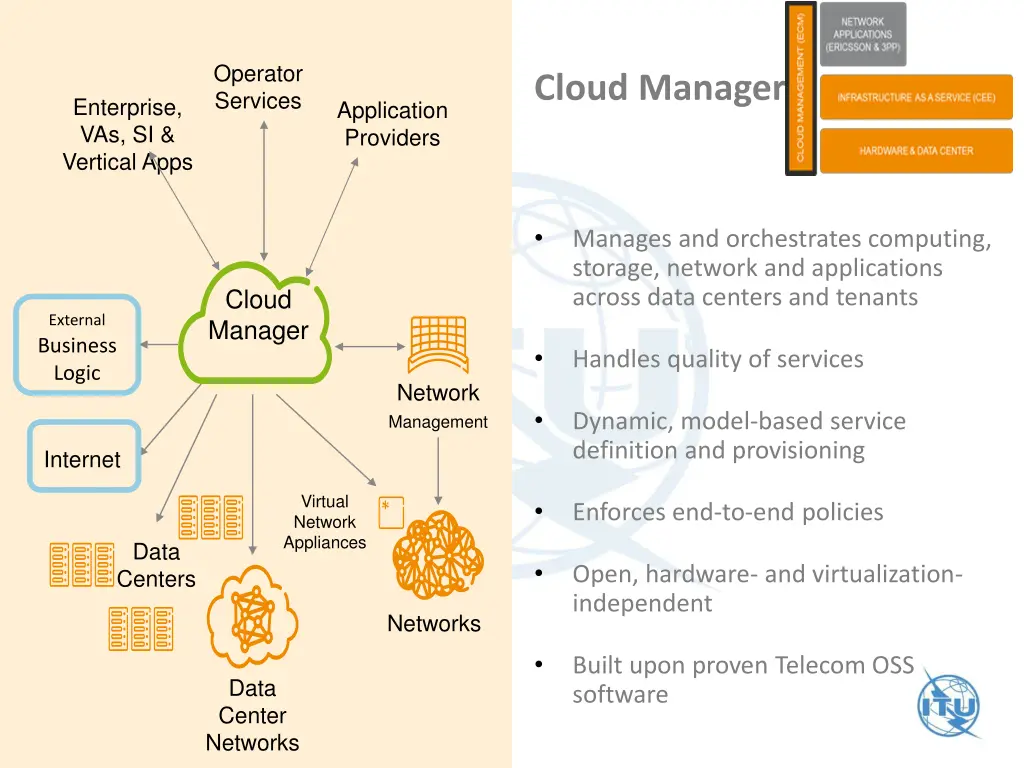

Operator Services Cloud Manager Enterprise, VAs, SI & Vertical Apps Application Providers Manages and orchestrates computing, storage, network and applications across data centers and tenants Cloud Manager External Business Logic Handles quality of services Network Management Dynamic, model-based service definition and provisioning Internet Virtual Network Appliances Enforces end-to-end policies Data Centers Open, hardware- and virtualization- independent Networks Built upon proven Telecom OSS software Data Center Networks

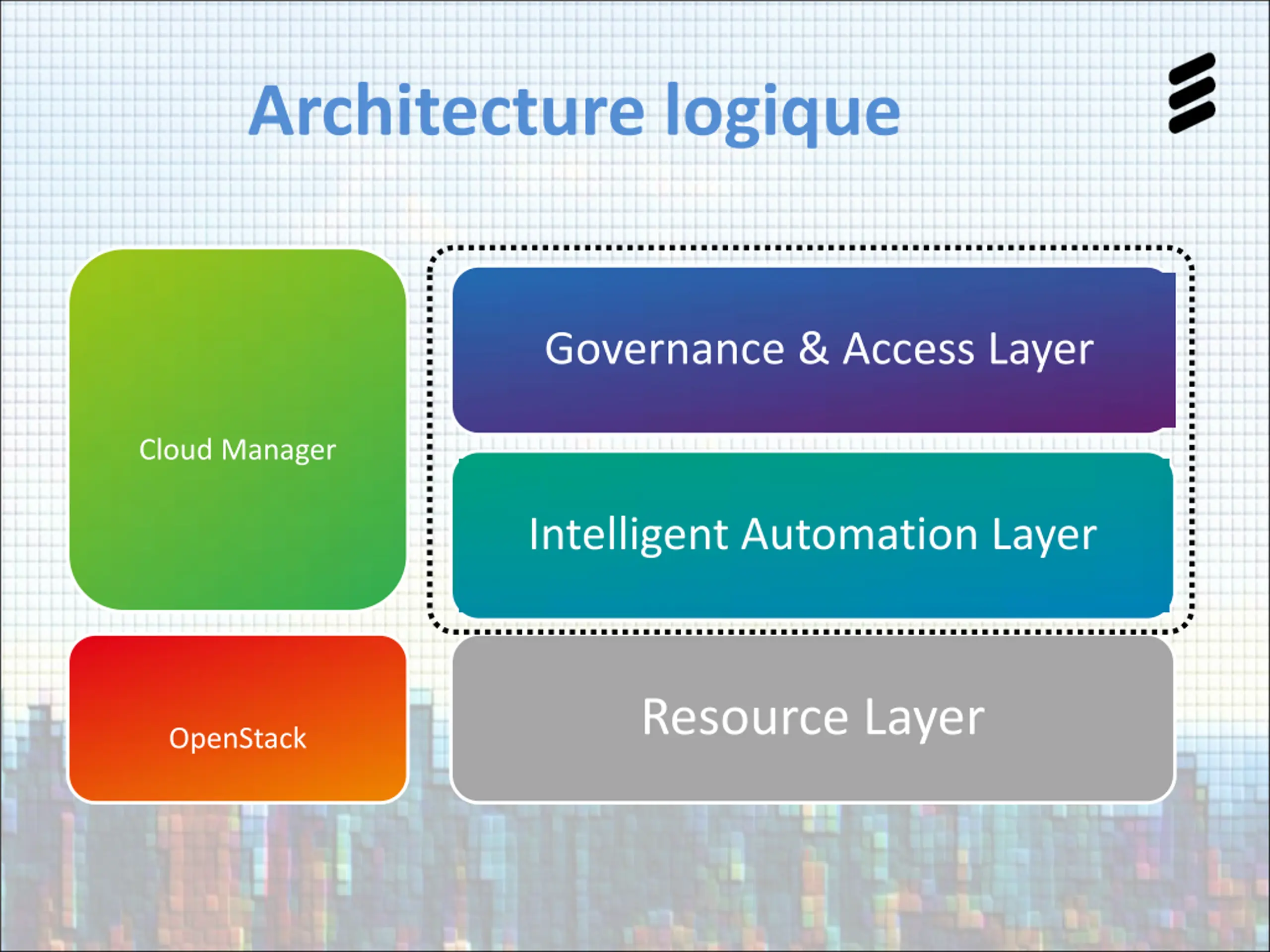

Architecture logique Governance & Access Layer Cloud Manager Intelligent Automation Layer Resource Layer OpenStack

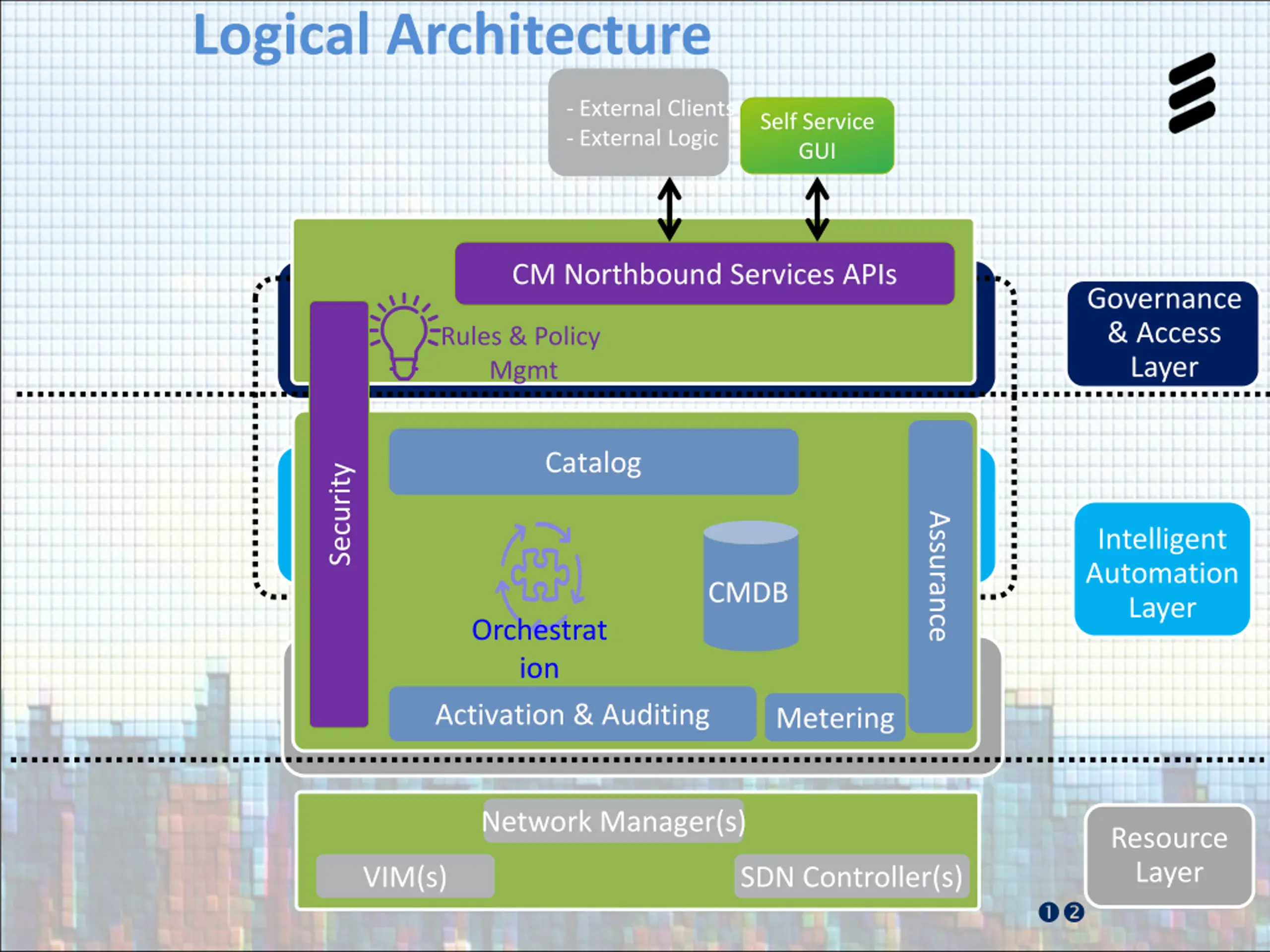

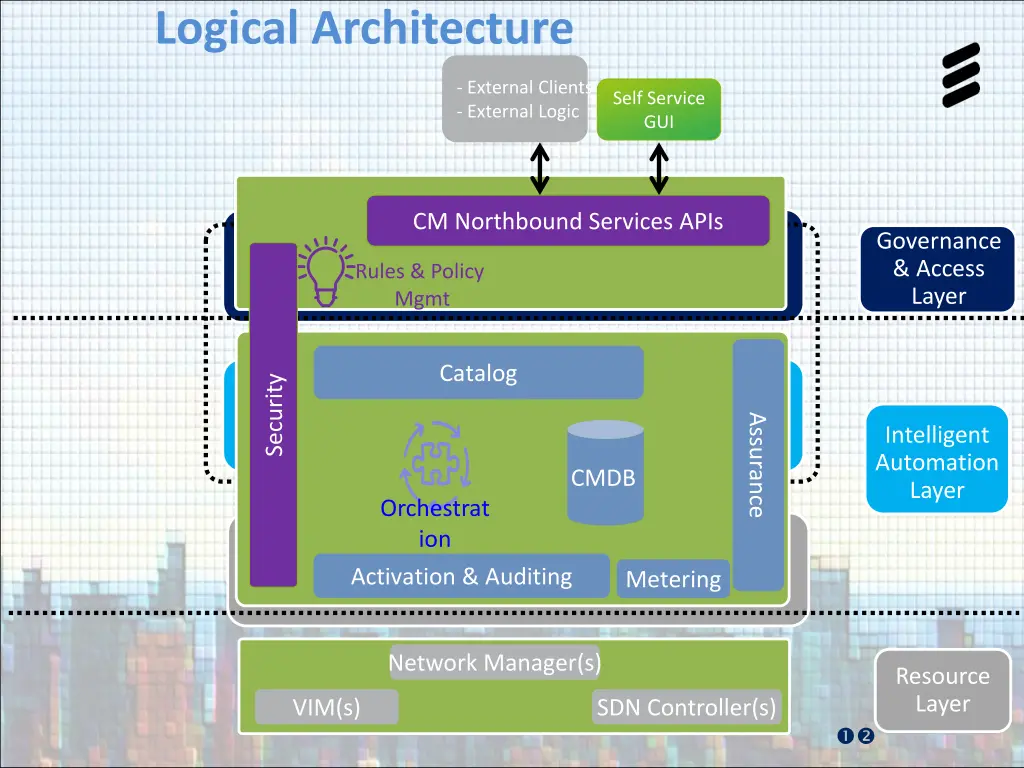

Logical Architecture - External Clients - External Logic Self Service GUI CM Northbound Services APIs Governance & Access Layer Governance & Access Layer Rules & Policy Mgmt Catalog Security Intelligent Automation Layer Security Orchestrat ion Assurance Intelligent Automation Layer CMDB Resource Layer Activation & Auditing Metering Network Manager(s) Resource Layer SDN Controller(s) VIM(s)

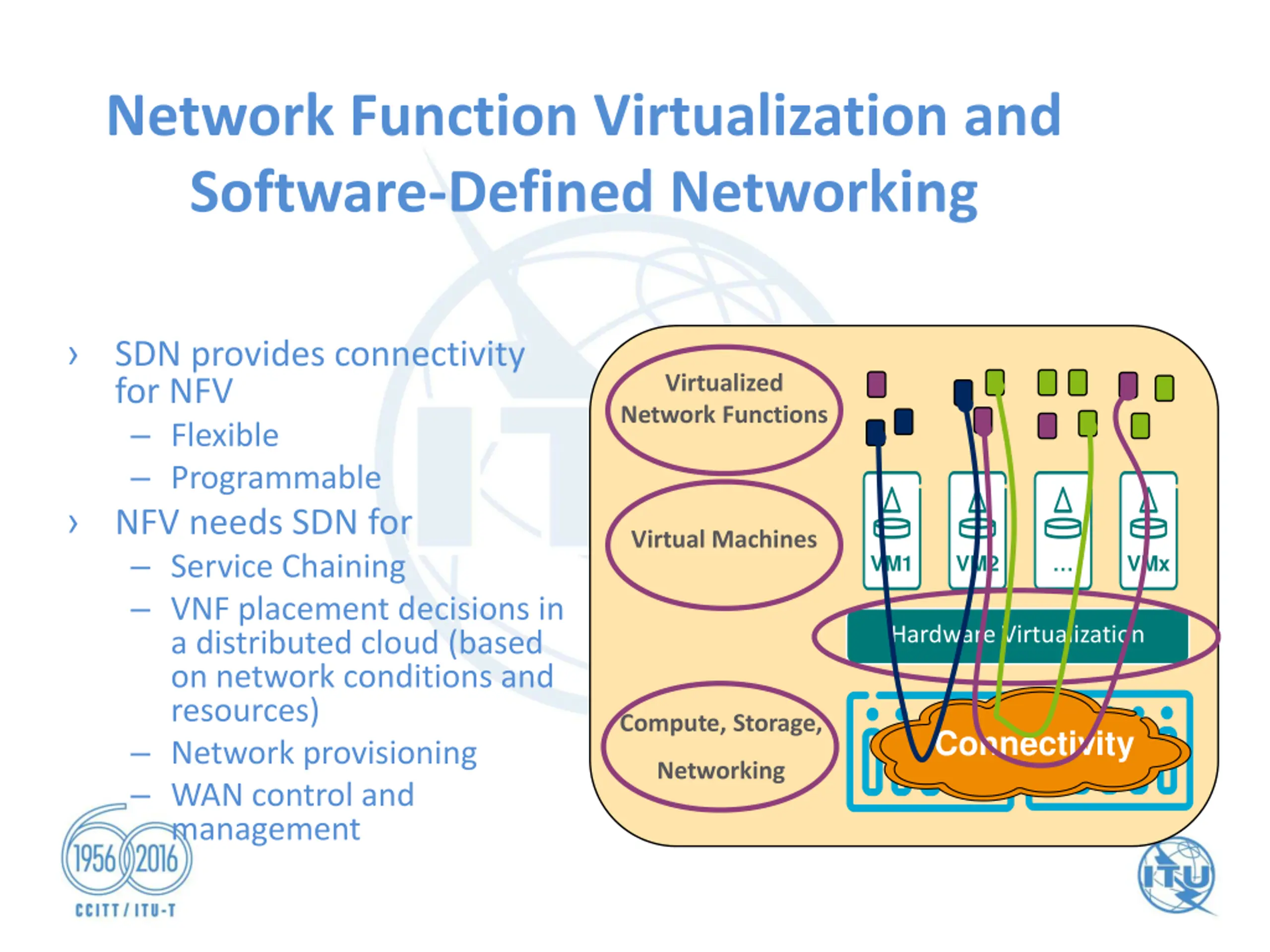

Network Function Virtualization and Software-Defined Networking SDN provides connectivity for NFV Flexible Programmable NFV needs SDN for Service Chaining VNF placement decisions in a distributed cloud (based on network conditions and resources) Network provisioning WAN control and management Virtualized Network Functions Virtual Machines VM1 VM2 VMx Hardware Virtualization Compute, Storage, Connectivity Networking

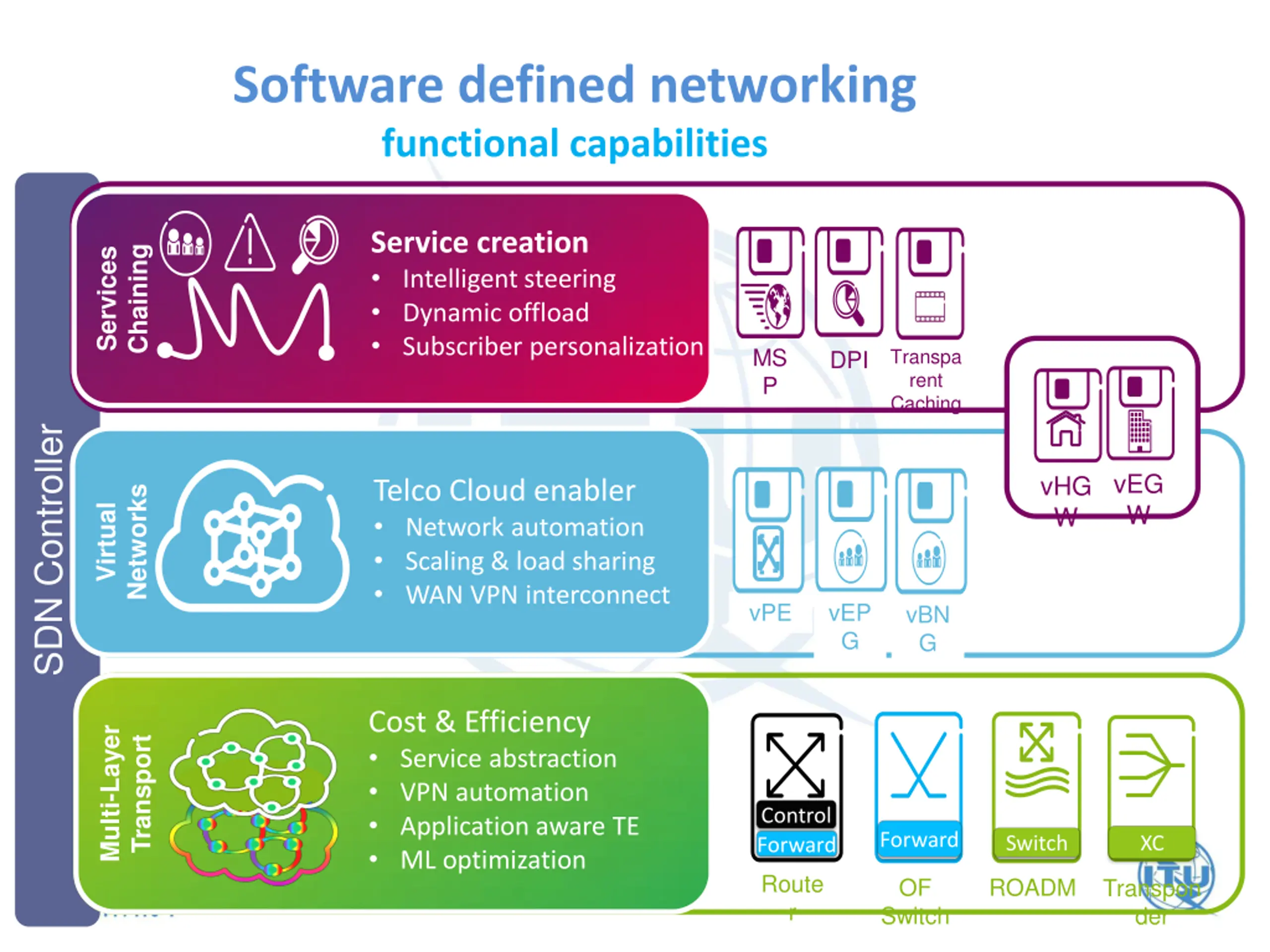

Software defined networking functional capabilities Service creation Intelligent steering Dynamic offload Subscriber personalization Chaining Services MS P Transpa rent Caching DPI SDN Controller vEG W vHG W Telco Cloud enabler Network automation Scaling & load sharing WAN VPN interconnect Networks Virtual vPE vEP G vBN G Cost & Efficiency Service abstraction VPN automation Application aware TE ML optimization Multi-Layer Transport Control Forward Route r Forward Switch XC OF Switch ROADM Transpon der

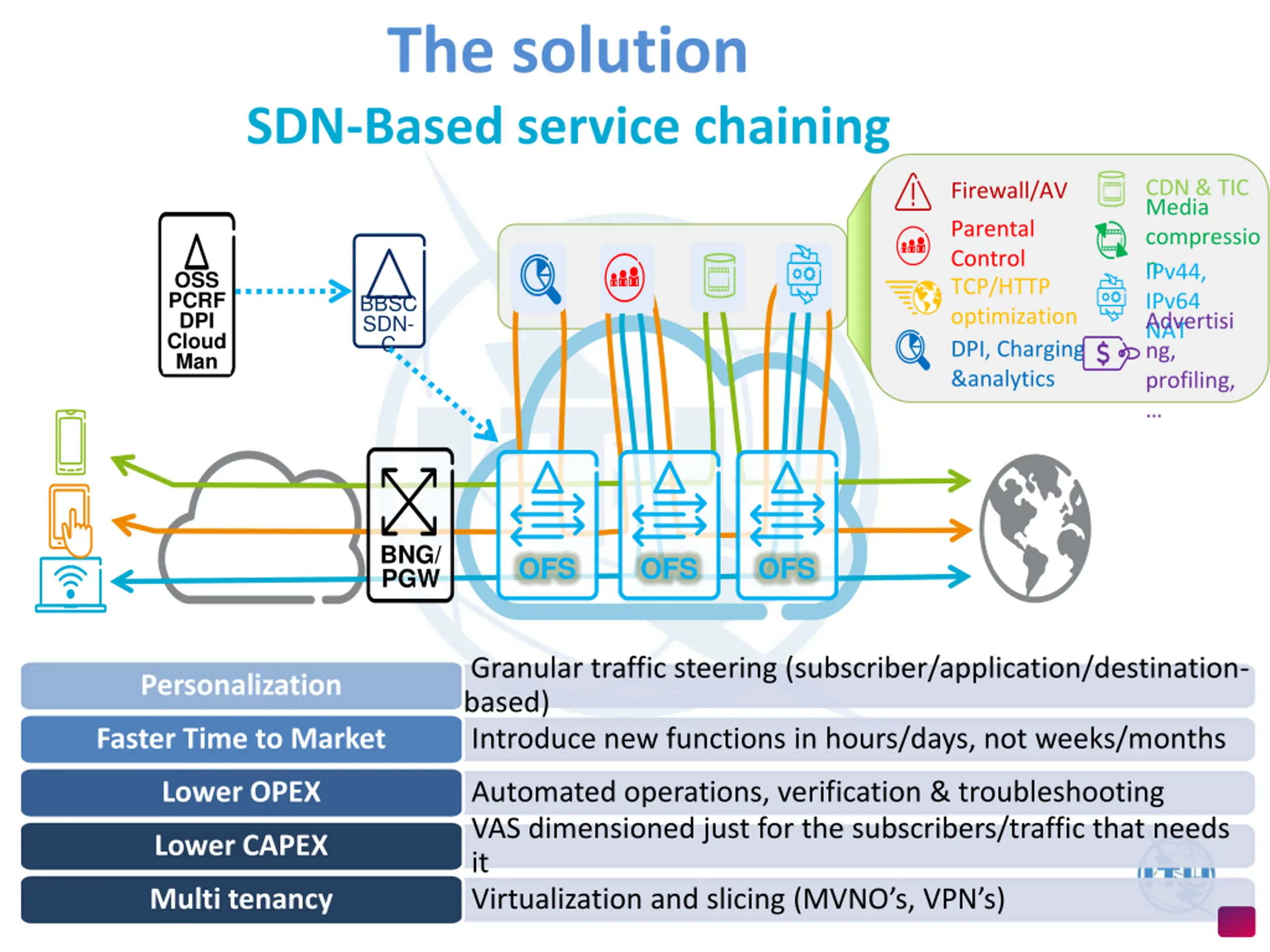

The solution SDN-Based service chaining CDN & TIC Media compressio nIPv44, IPv64 NAT Advertisi ng, profiling, Firewall/AV Parental Control TCP/HTTP optimization DPI, Charging &analytics OSS PCRF DPI Cloud Man BBSC SDN- C BNG/ PGW OFS OFS OFS Granular traffic steering (subscriber/application/destination- based) Introduce new functions in hours/days, not weeks/months Personalization Faster Time to Market Lower OPEX Automated operations, verification & troubleshooting VAS dimensioned just for the subscribers/traffic that needs it Virtualization and slicing (MVNO s, VPN s) Lower CAPEX Multi tenancy

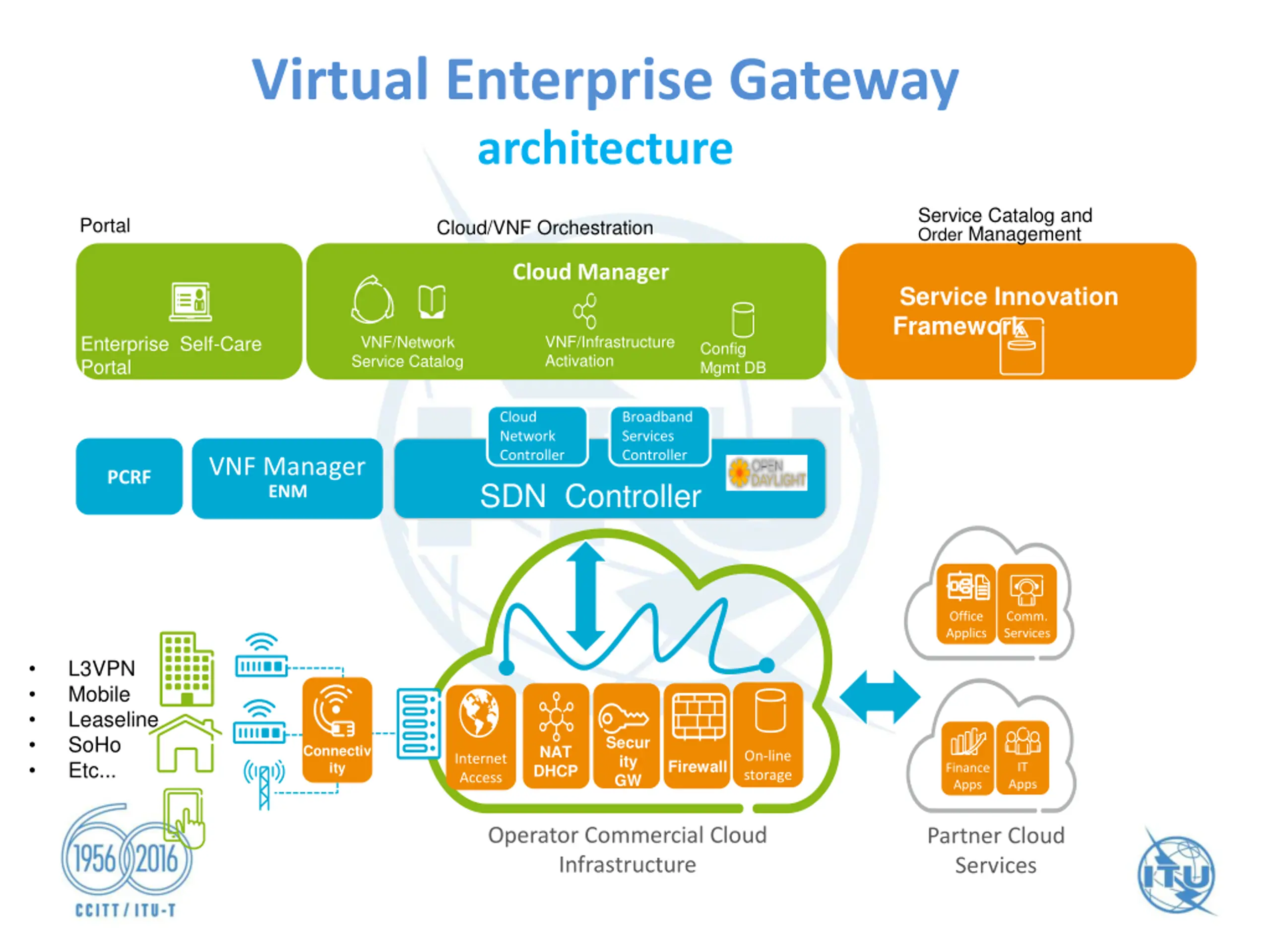

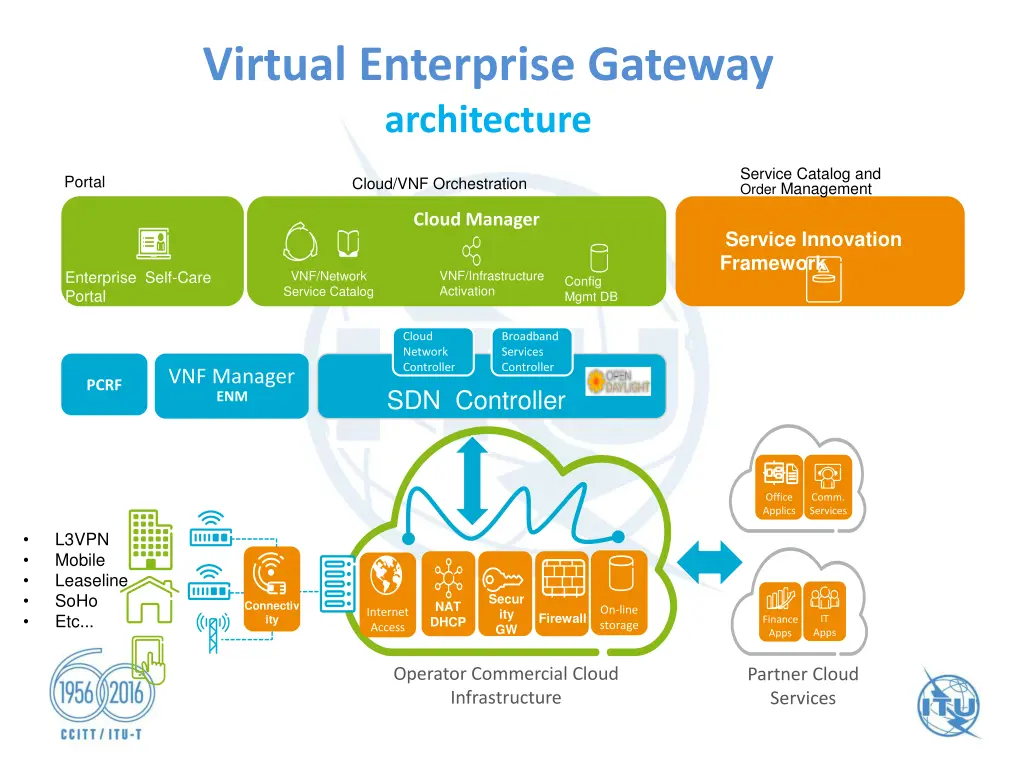

Virtual Enterprise Gateway architecture Service Catalog and Order Management Portal Cloud/VNF Orchestration Cloud Manager Service Innovation Framework Catalog & e2e Order Management Enterprise Self-Care Portal VNF/Infrastructure Activation VNF/Network Service Catalog Config Mgmt DB Cloud Network Controller SDN Controller Broadband Services Controller VNF Manager ENM PCRF VNF /Net wor k Serv ice Cat alog Office Applics Comm. Services L3VPN Mobile Leaseline SoHo Etc... Secur ity GW Connectiv ity NAT DHCP On-line storage Internet Access Firewall IT Finance Apps Apps Operator Commercial Cloud Infrastructure Partner Cloud Services

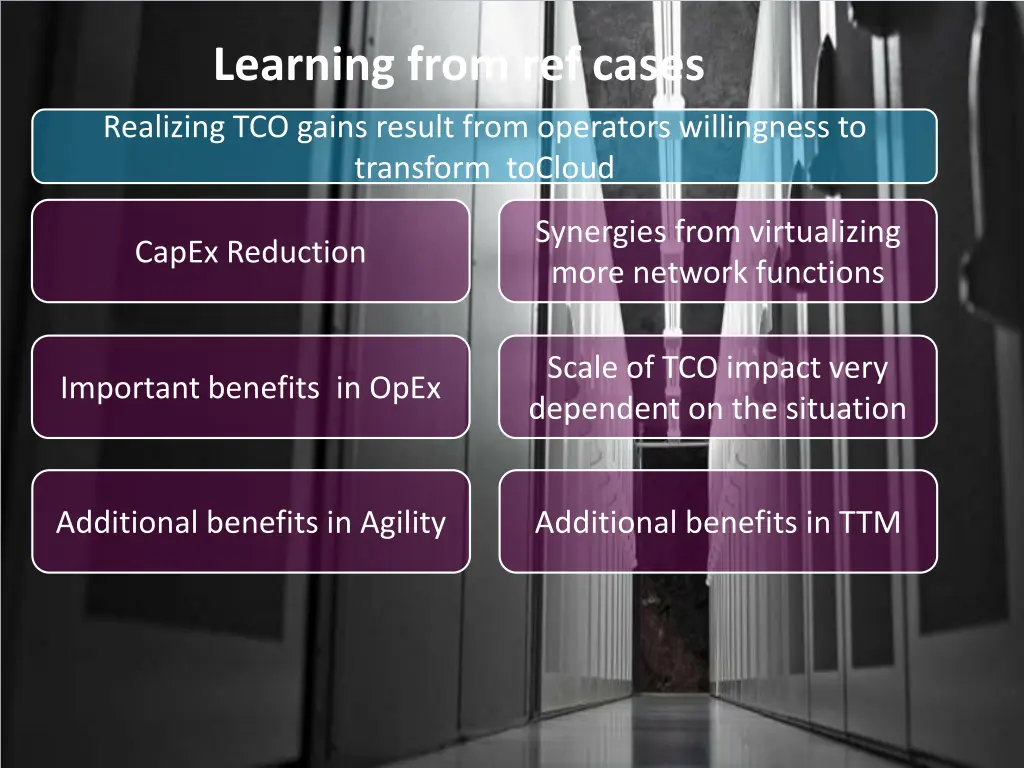

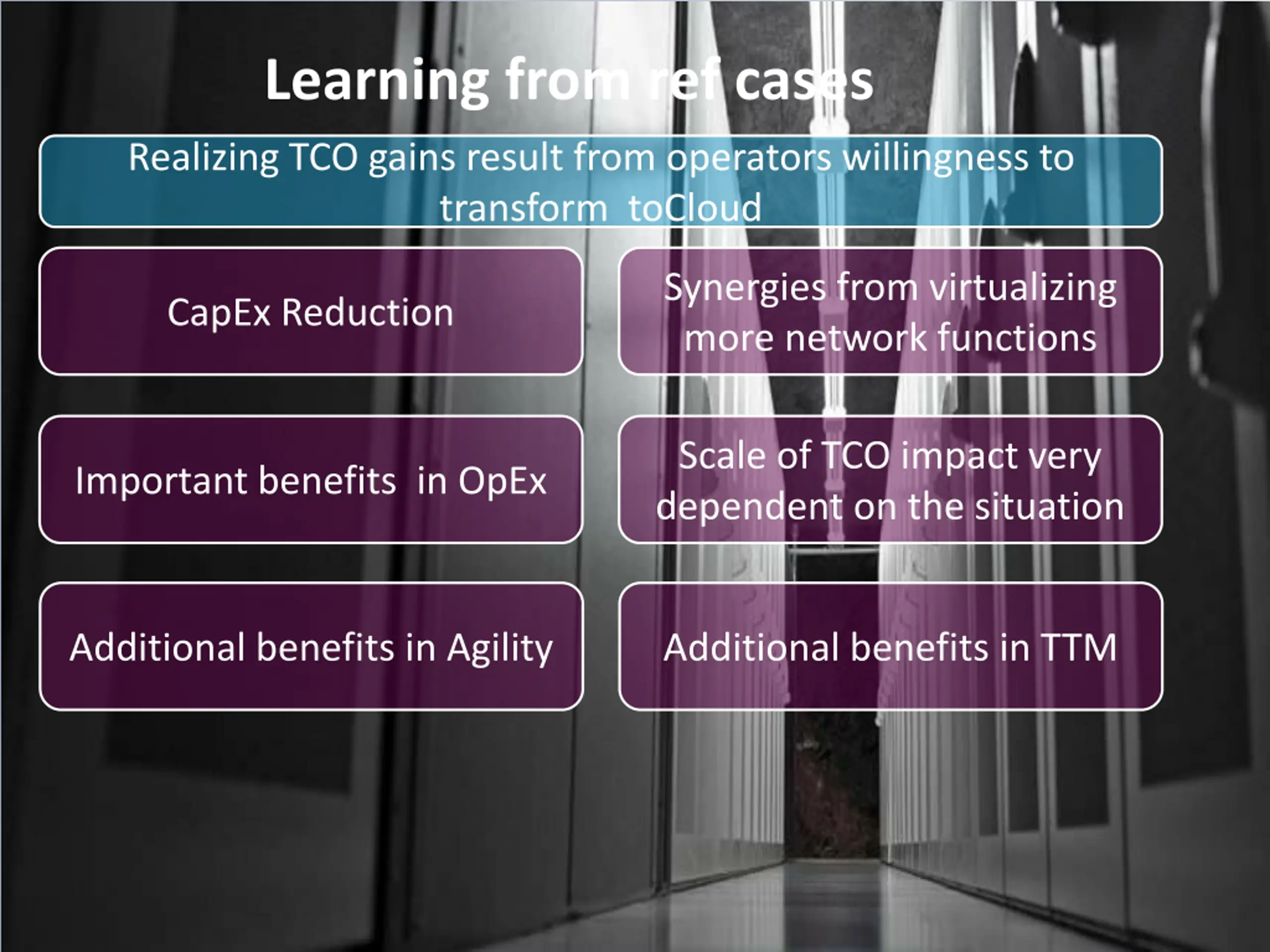

Learning from ref cases Realizing TCO gains result from operators willingness to transform toCloud Synergies from virtualizing more network functions CapEx Reduction Scale of TCO impact very dependent on the situation Important benefits in OpEx Additional benefits in Agility Additional benefits in TTM
THANK YOU Abdallah.ajlani@ericsson.com
