Garage Door Parts and Functions
Explore the different parts of a garage door system, such as springs, drums, bearings, plates, cones, and more. Understand the key functions of each part to maintain and repair your garage door effectively.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript
Exercise Exercise- -Garage Door Parts Garage Door Parts 1 2 3 Name the part Briefly explain the function of that part GOOD LUCK!
9 1 4 3 2 5 5 6 8 7

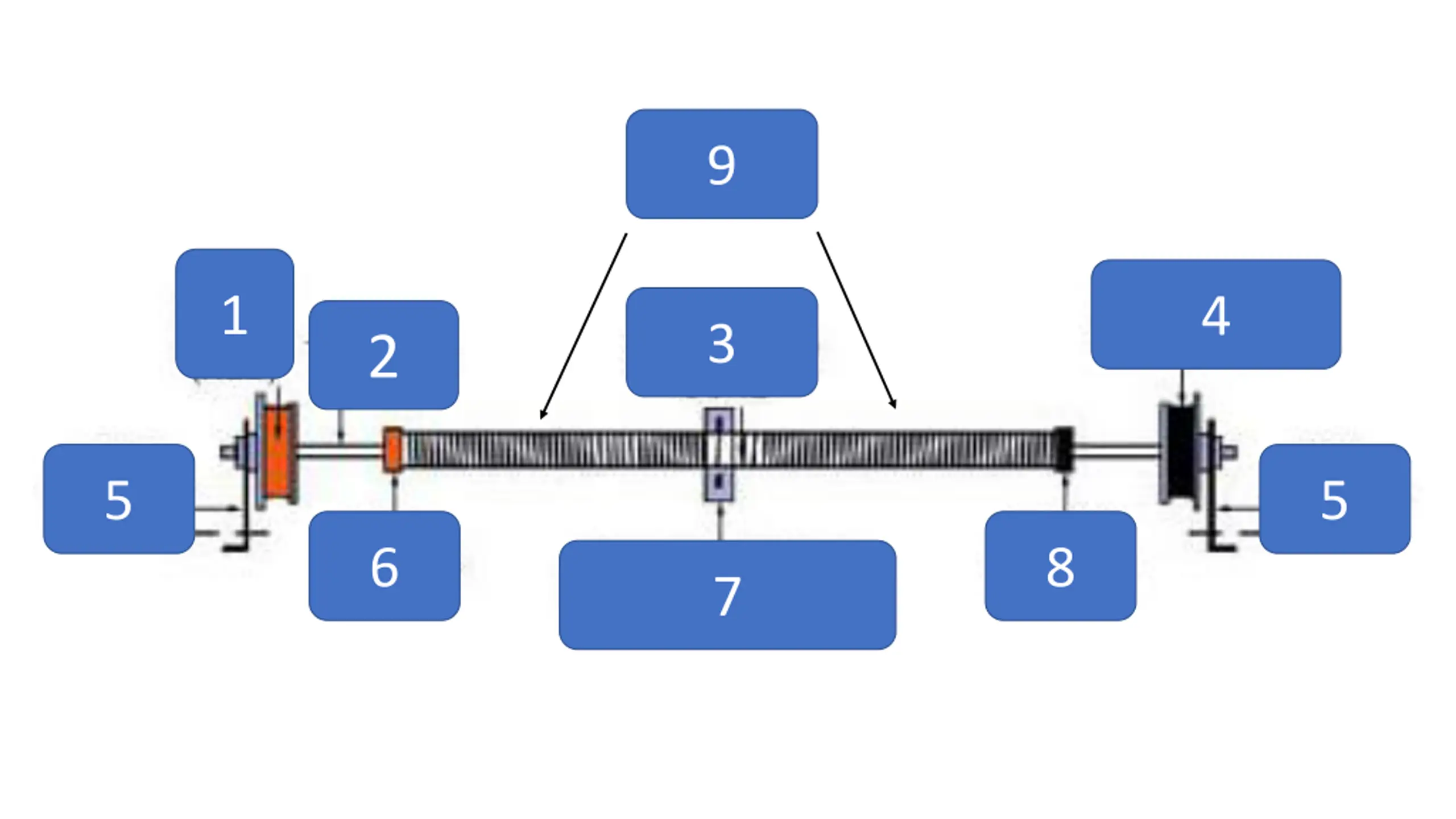

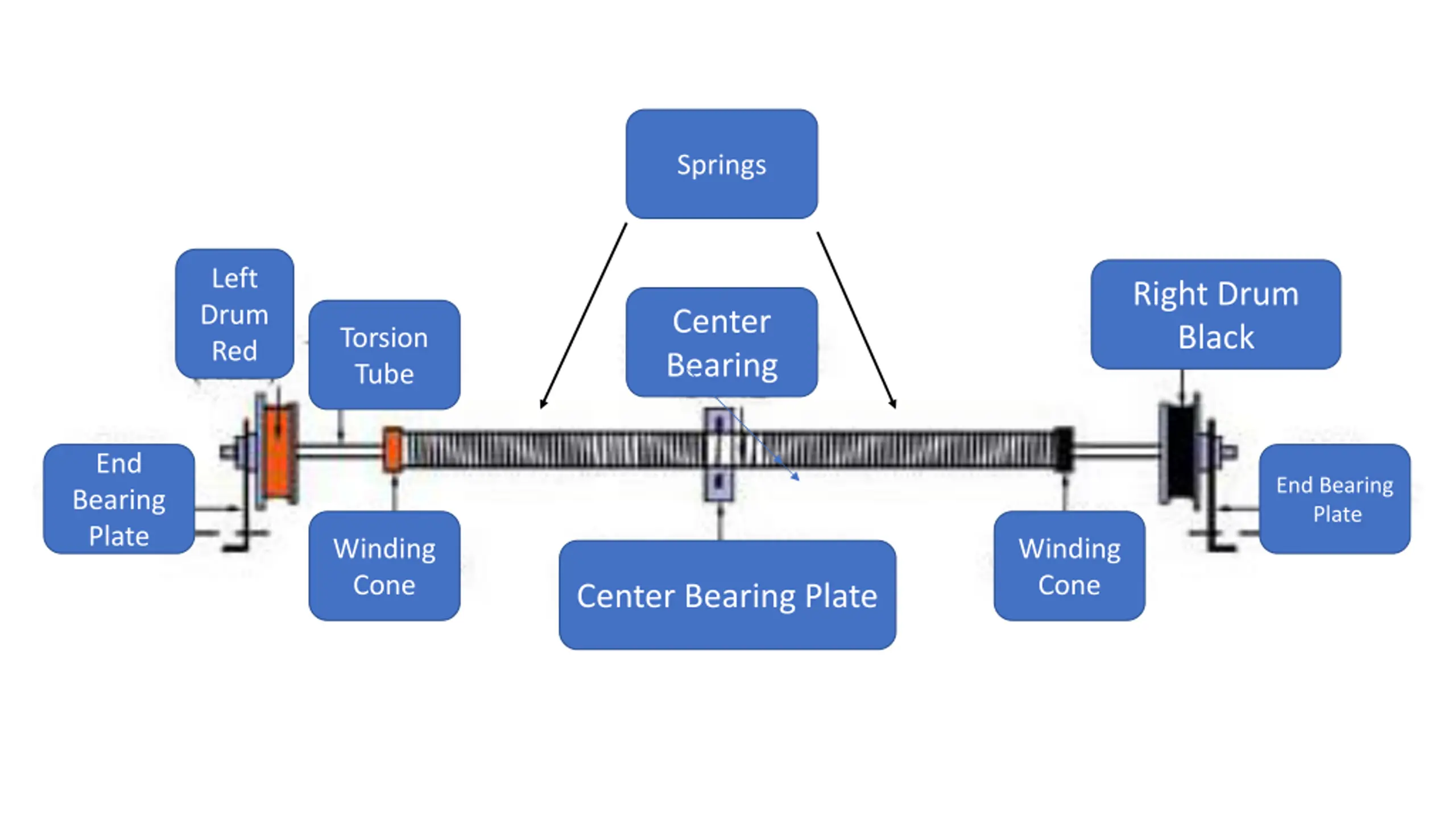

Springs Left Drum Red Right Drum Black Center Bearing Torsion Tube End Bearing Plate End Bearing Plate Winding Cone Winding Cone Center Bearing Plate
29 16 15 18 14 17 10 25 24 30 28 13 11 19 22 12 20 26 21 27 23

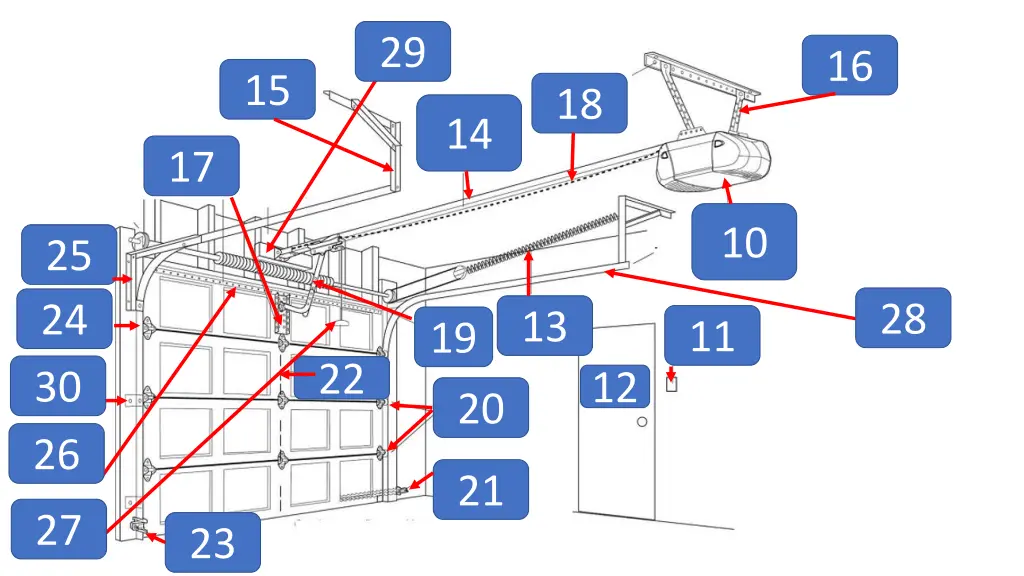

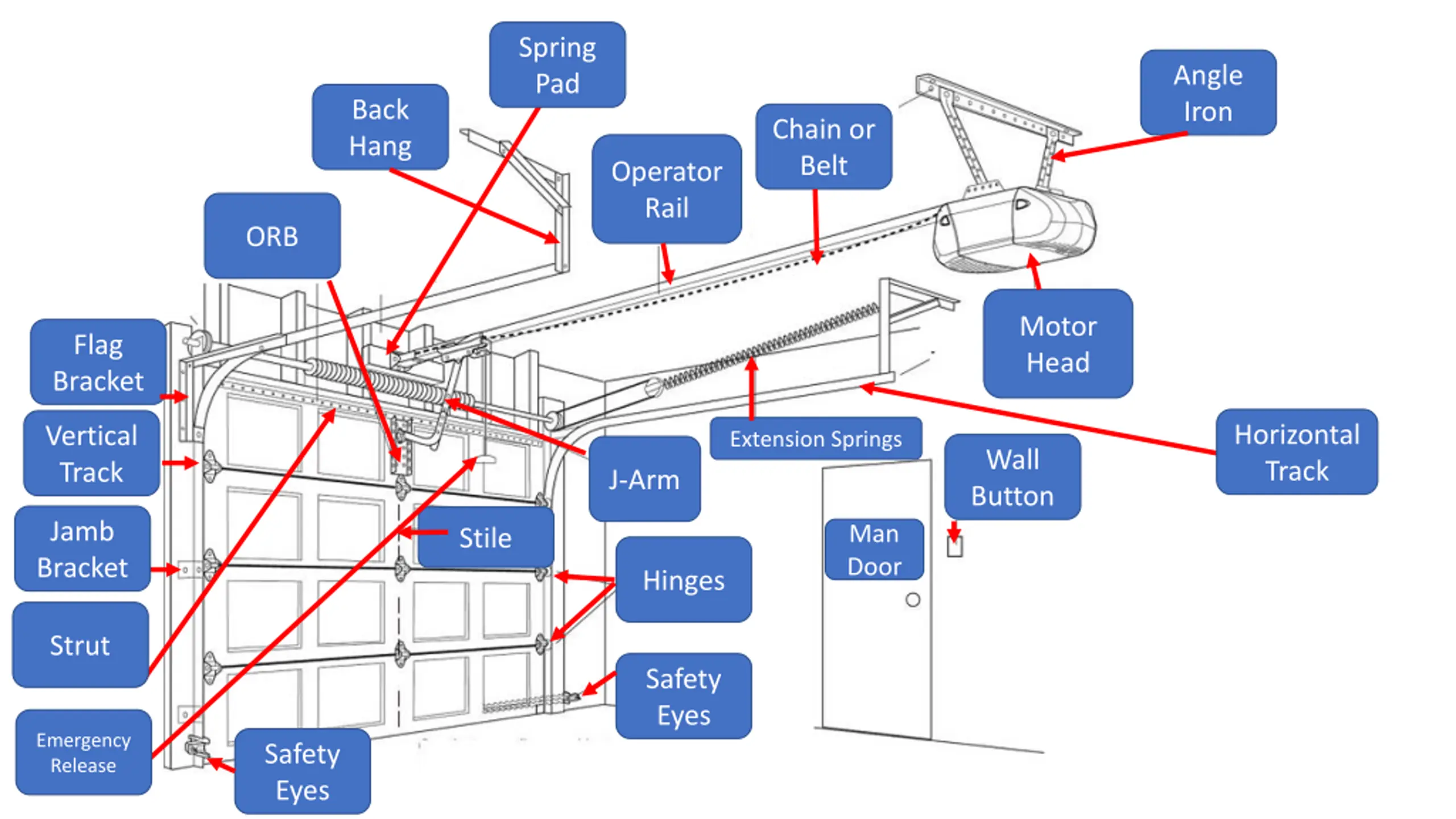

Spring Pad Angle Iron Back Hang Chain or Belt Operator Rail ORB Motor Head Flag Bracket Horizontal Track Vertical Track Extension Springs Wall Button J-Arm Jamb Bracket Man Door Stile Hinges Strut Safety Eyes Emergency Release Safety Eyes
