Gas Laws and Examples - Charles' Law and Gay-Lussac's Law
Gas laws govern the behavior of gases and their relationships with variables like temperature, volume, and pressure. Charles' Law states that the volume of a gas is directly proportional to its temperature when pressure is constant, while Gay-Lussac's Law reveals the direct relationship between pressure and temperature when volume remains constant. Explore examples like hot air balloons, baking bread, and engine combustion to understand these laws better.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

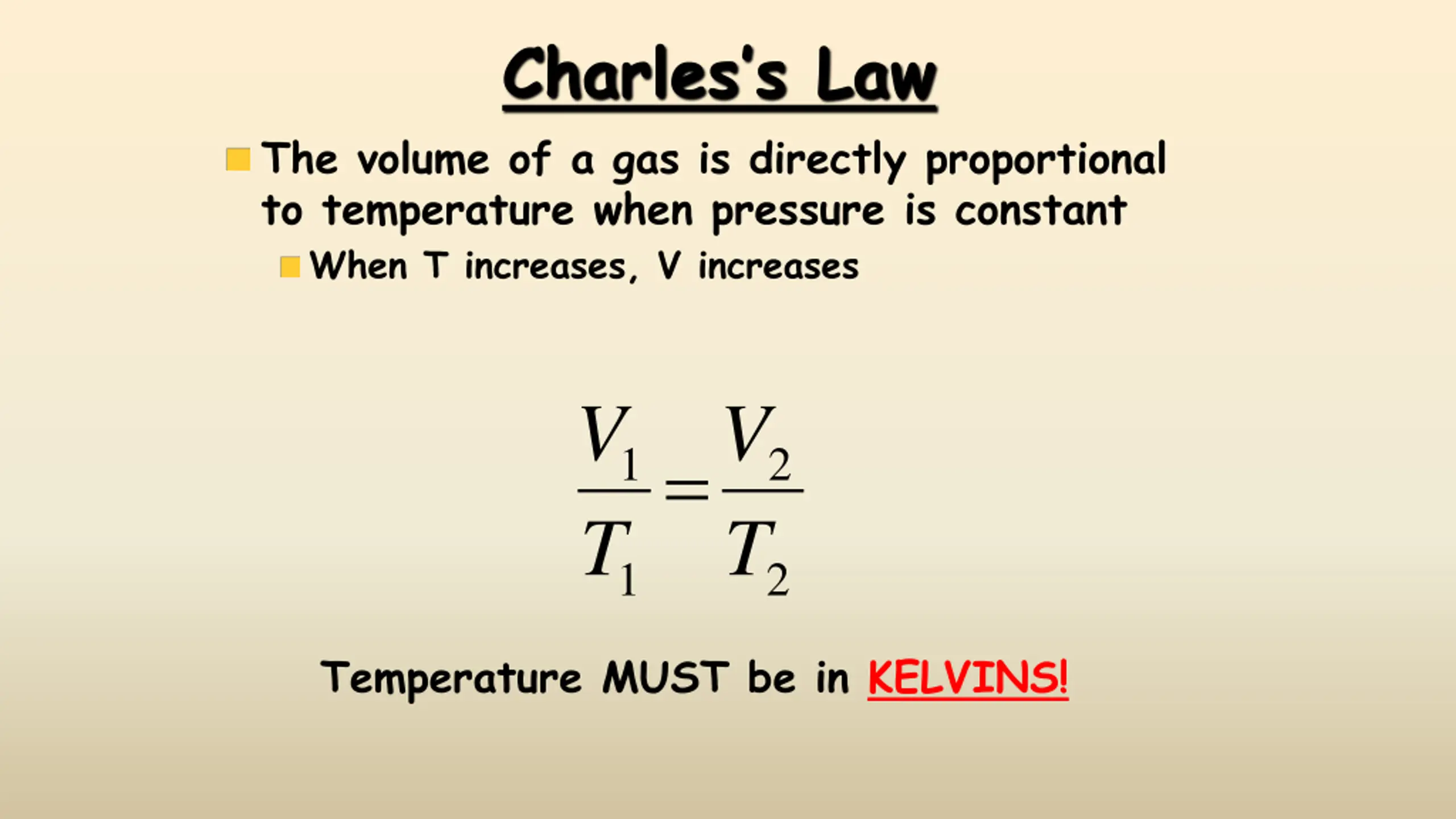

Charless Law The volume of a gas is directly proportional to temperature when pressure is constant When T increases, V increases V= V 1 2 T T 1 2 Temperature MUST be in KELVINS!

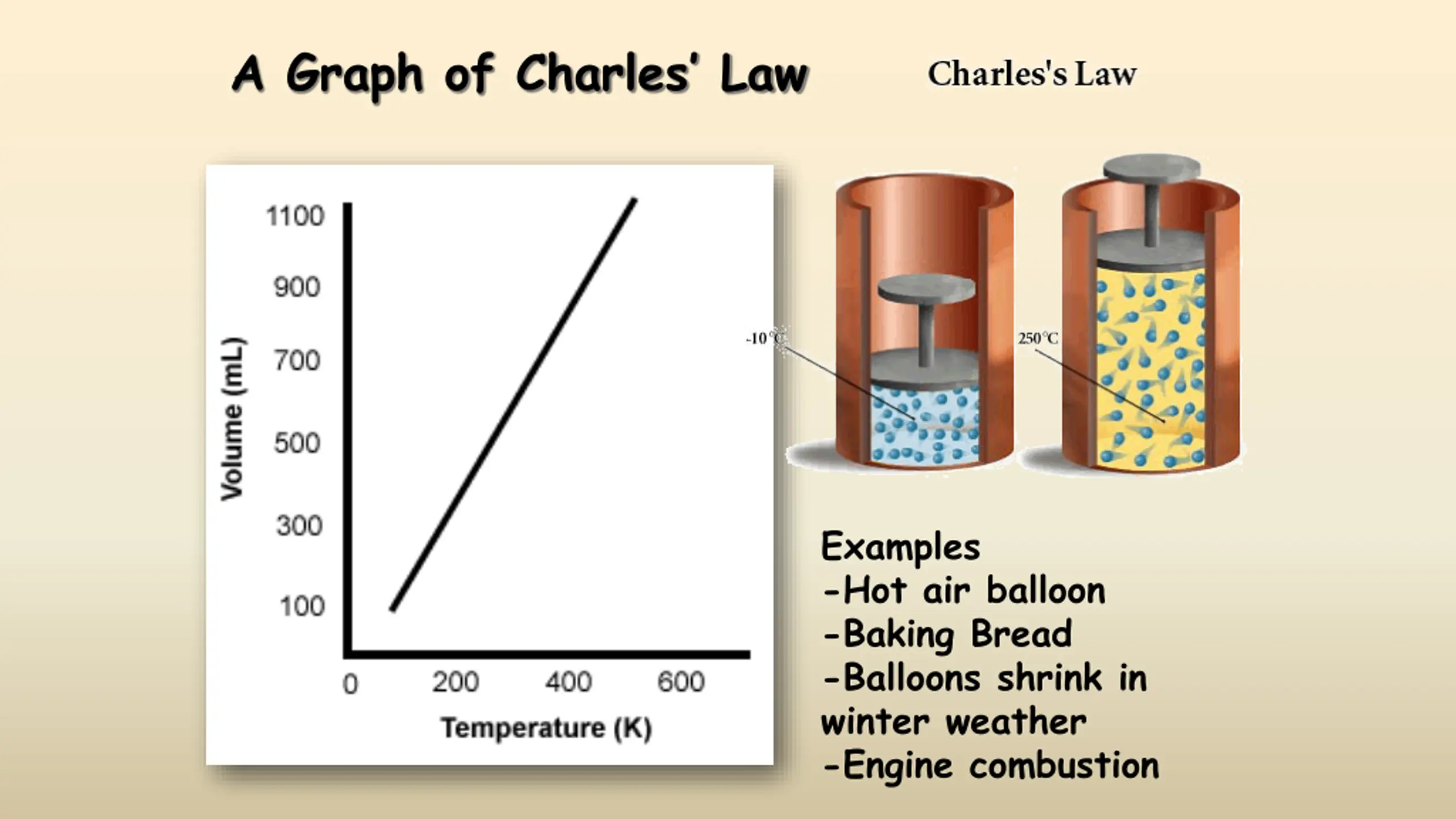

A Graph of Charles Law Examples -Hot air balloon -Baking Bread -Balloons shrink in winter weather -Engine combustion

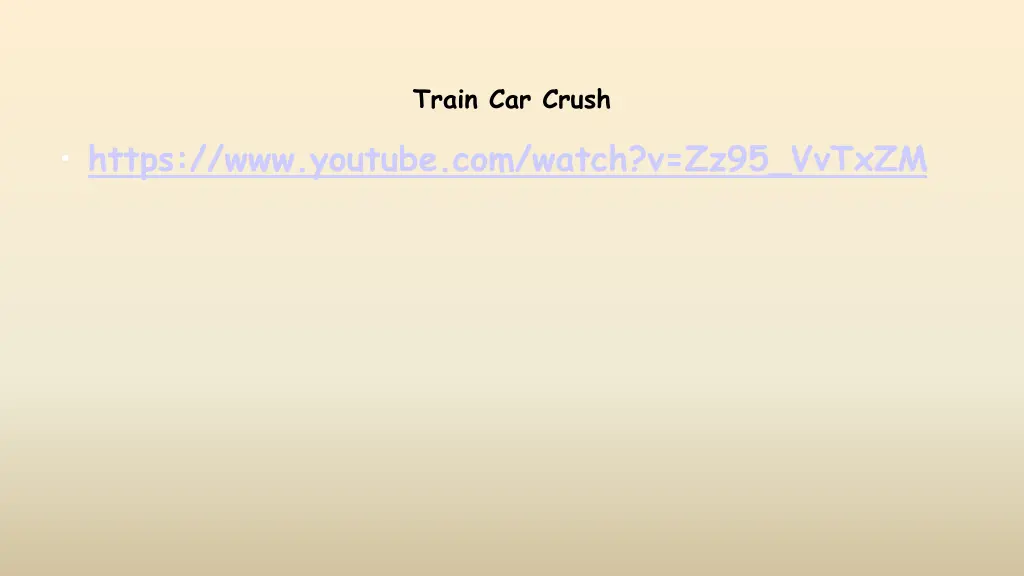

Train Car Crush https://www.youtube.com/watch?v=Zz95_VvTxZM

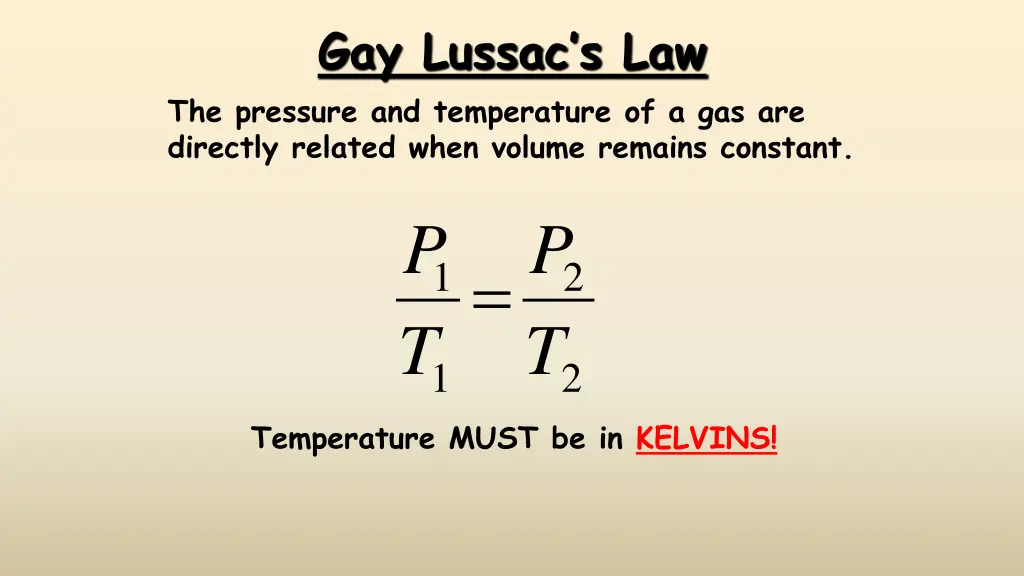

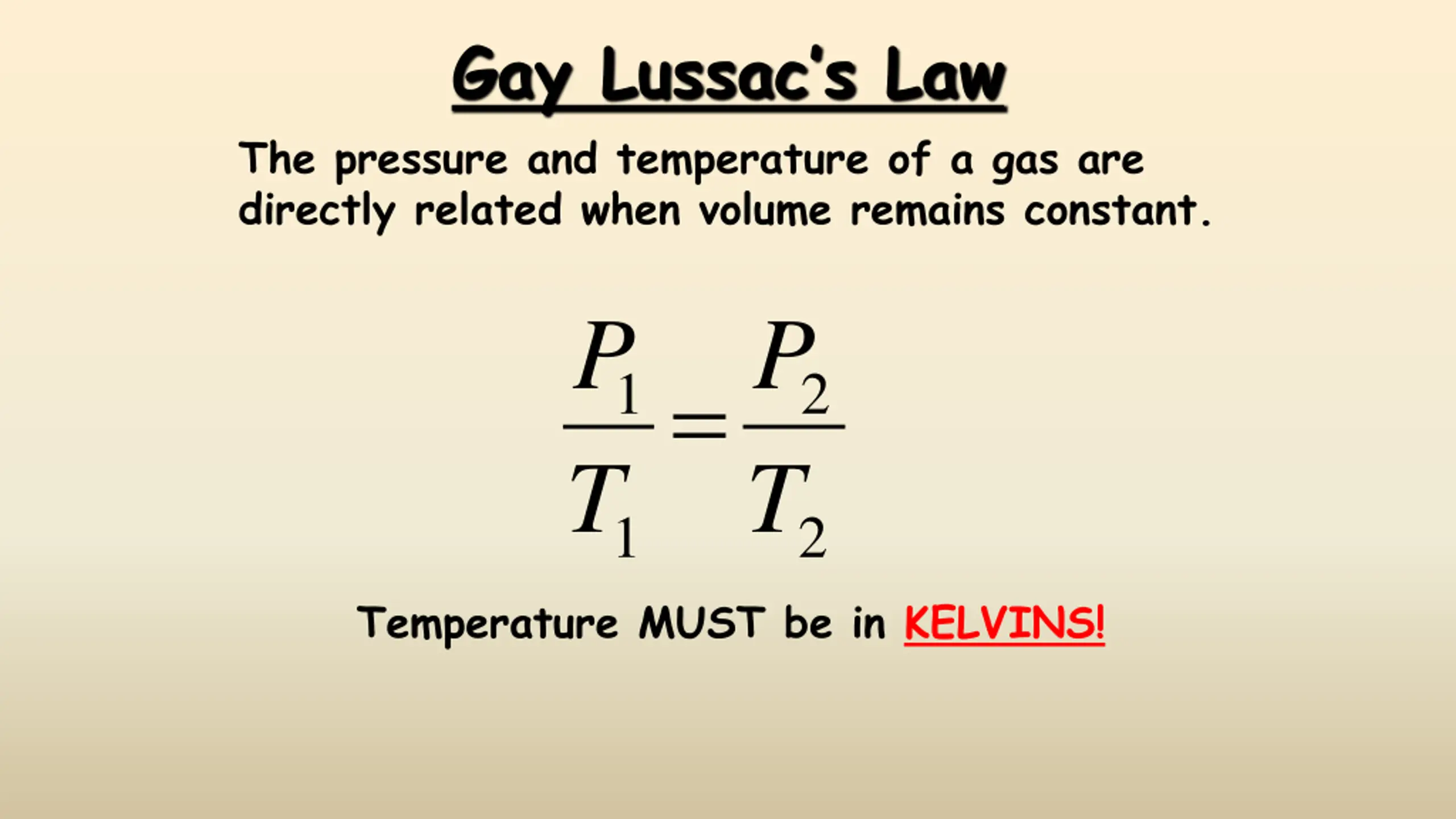

Gay Lussacs Law The pressure and temperature of a gas are directly related when volume remains constant. P= P 1 2 T T 1 2 Temperature MUST be in KELVINS!

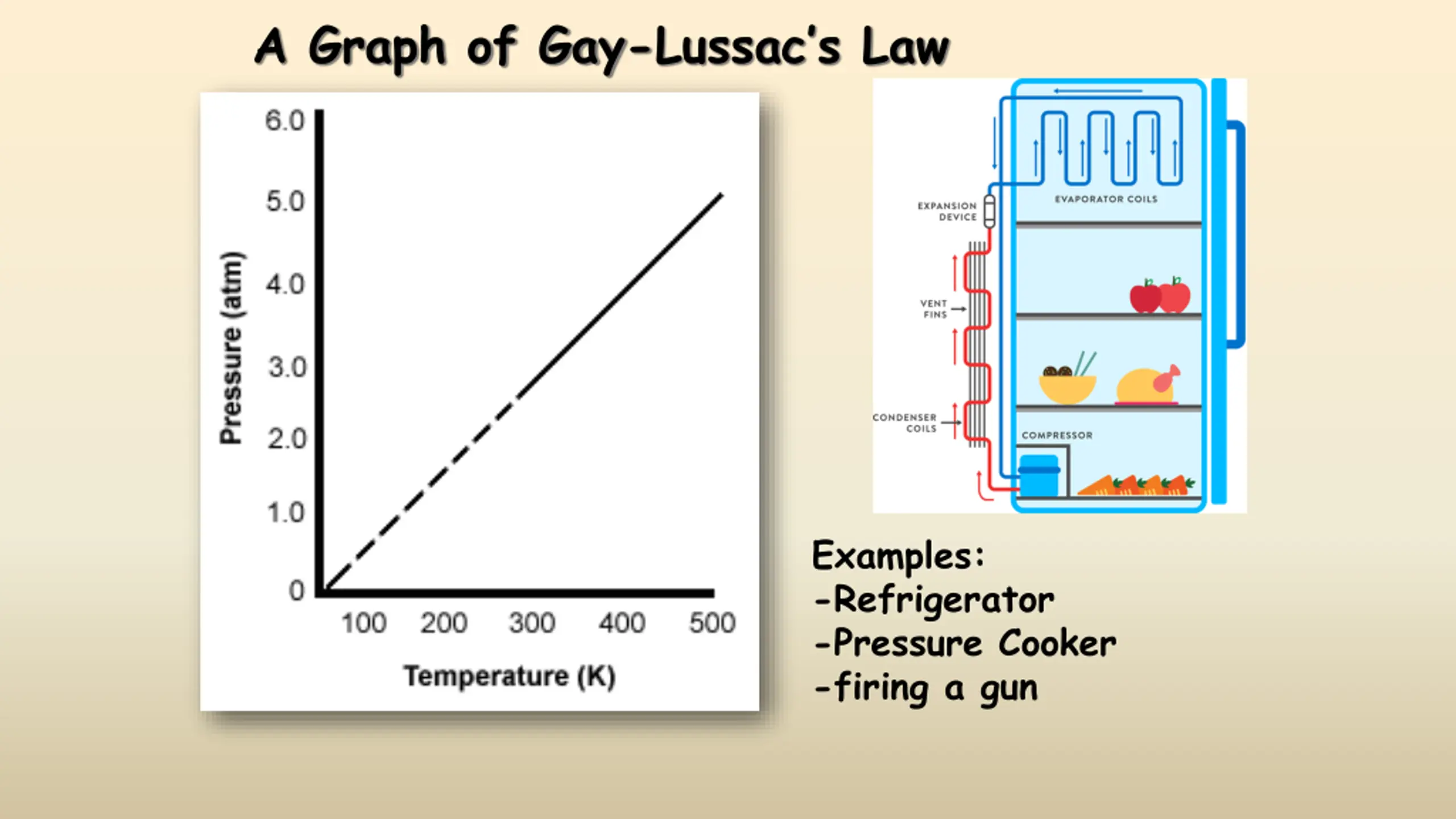

A Graph of Gay-Lussacs Law Examples: -Refrigerator -Pressure Cooker -firing a gun

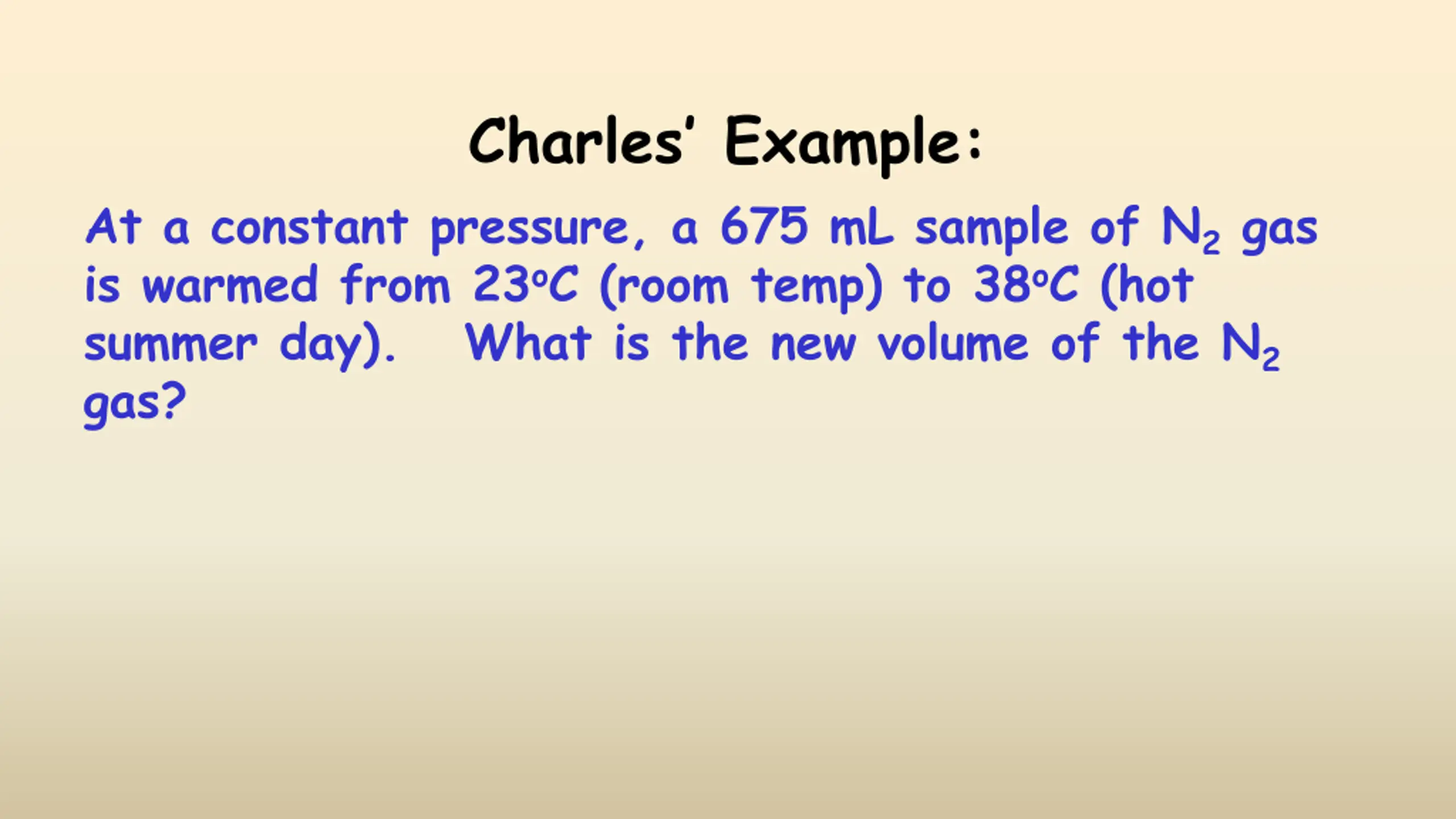

Charles Example: At a constant pressure, a 675 mL sample of N2 gas is warmed from 23oC (room temp) to 38oC (hot summer day). What is the new volume of the N2 gas?

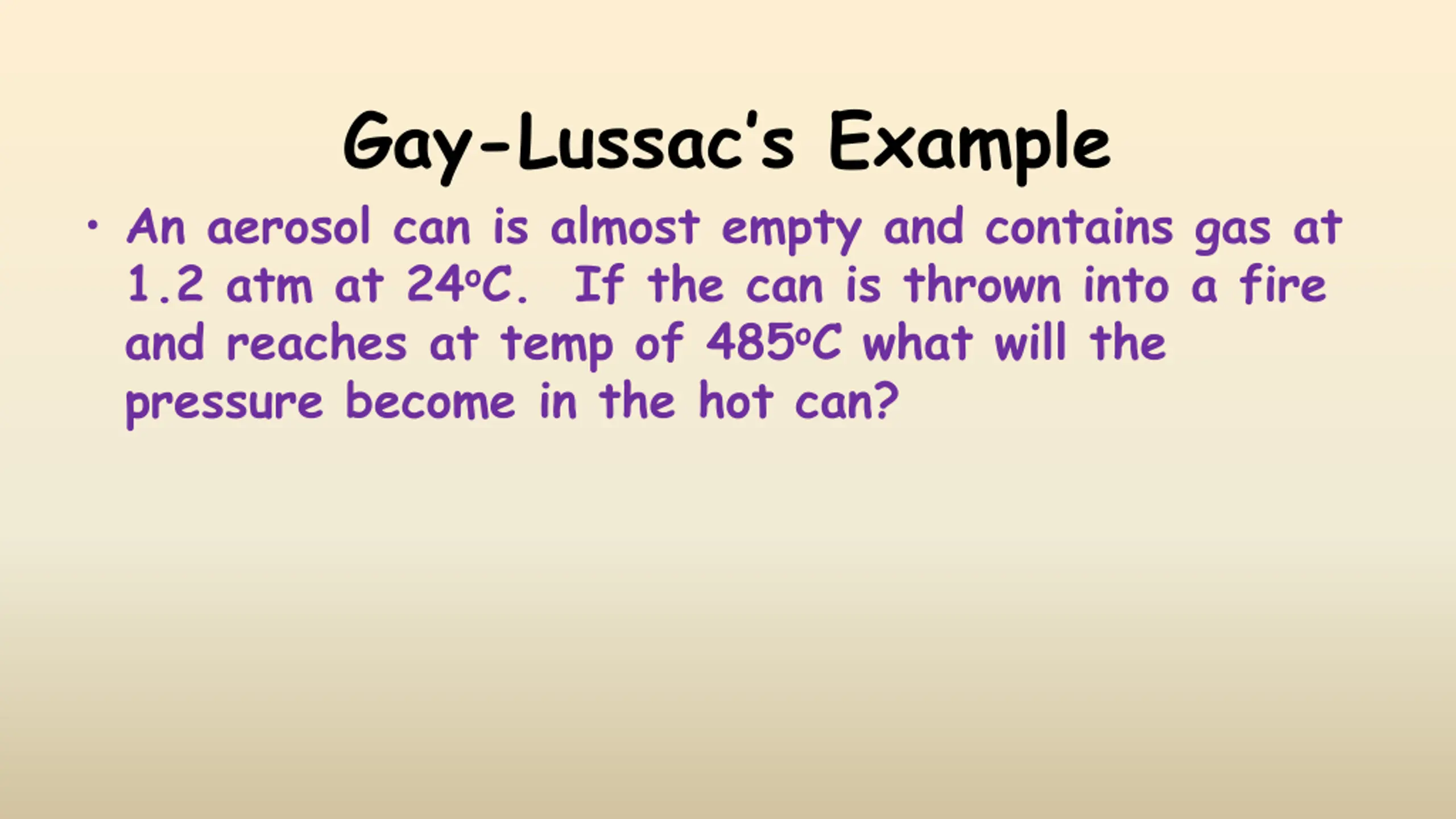

Gay-Lussacs Example An aerosol can is almost empty and contains gas at 1.2 atm at 24oC. If the can is thrown into a fire and reaches at temp of 485oC what will the pressure become in the hot can?
