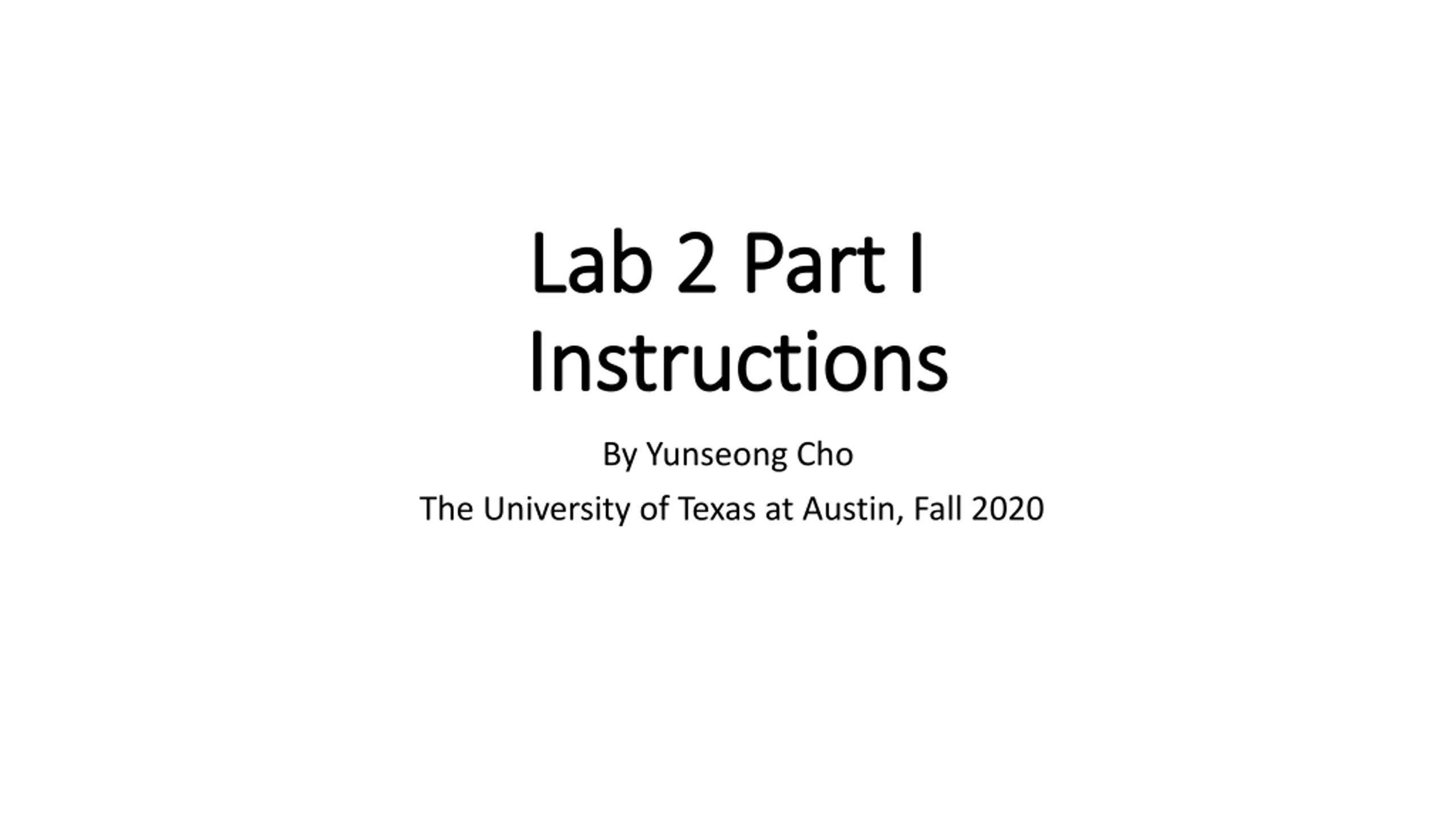

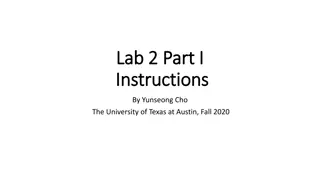

Lab 2 Part I Lab 2 Part I Instructions Instructions By Yunseong Cho The University of Texas at Austin, Fall 2020

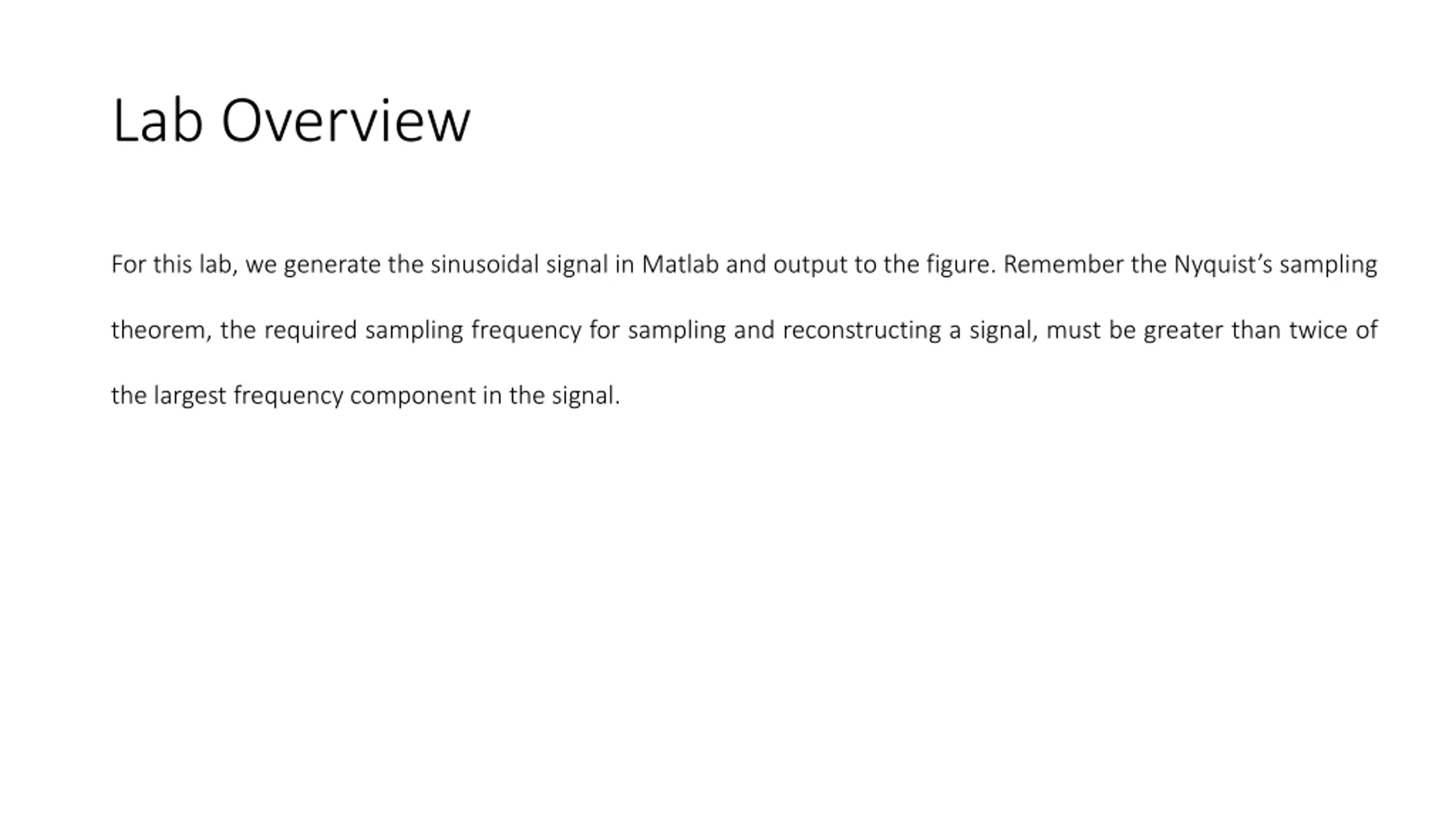

Lab Overview For this lab, we generate the sinusoidal signal in Matlab and output to the figure. Remember the Nyquist s sampling theorem, the required sampling frequency for sampling and reconstructing a signal, must be greater than twice of the largest frequency component in the signal.

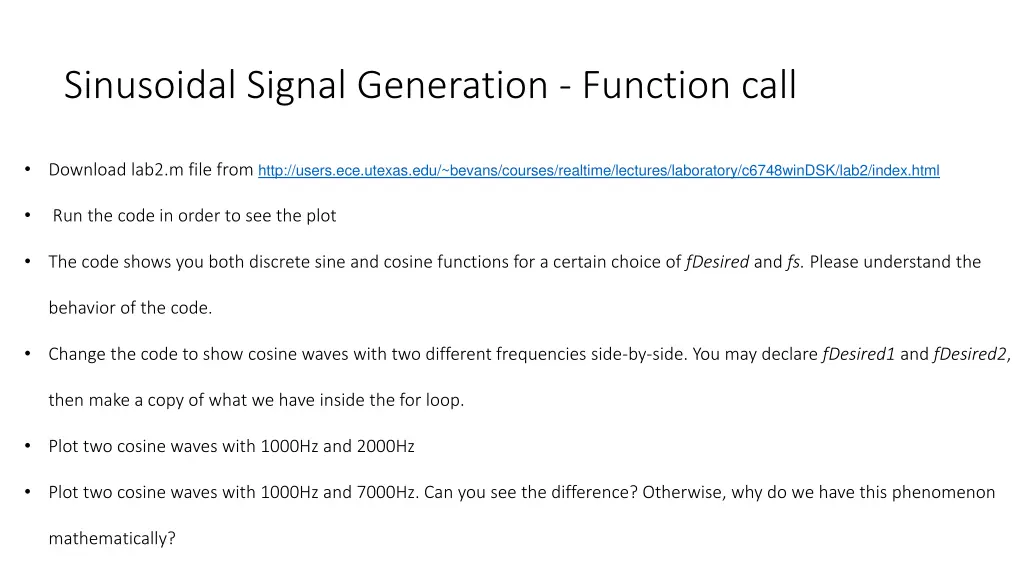

Sinusoidal Signal Generation - Function call Download lab2.m file from http://users.ece.utexas.edu/~bevans/courses/realtime/lectures/laboratory/c6748winDSK/lab2/index.html Run the code in order to see the plot The code shows you both discrete sine and cosine functions for a certain choice of fDesired and fs. Please understand the behavior of the code. Change the code to show cosine waves with two different frequencies side-by-side. You may declare fDesired1 and fDesired2, then make a copy of what we have inside the for loop. Plot two cosine waves with 1000Hz and 2000Hz Plot two cosine waves with 1000Hz and 7000Hz. Can you see the difference? Otherwise, why do we have this phenomenon mathematically?

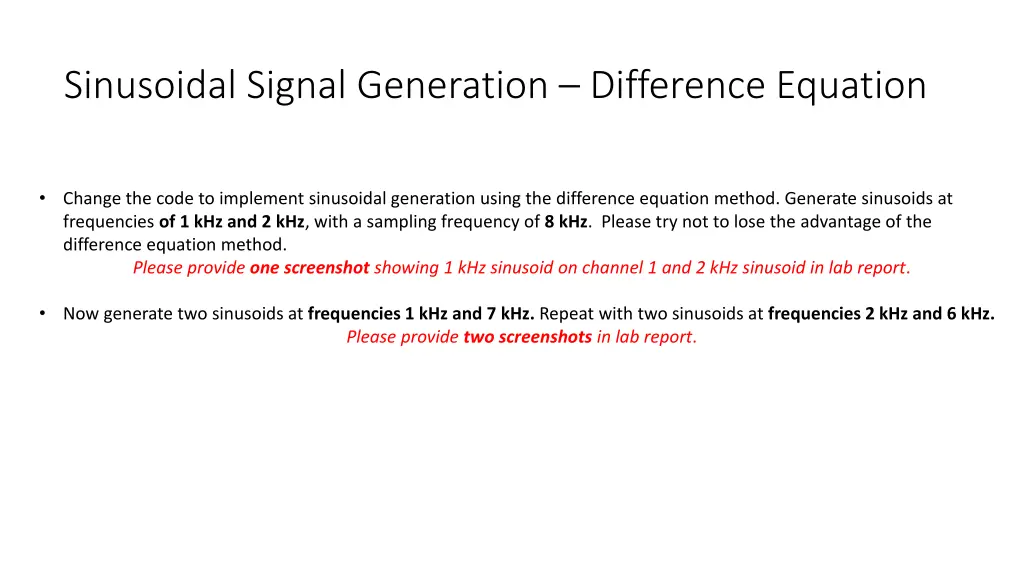

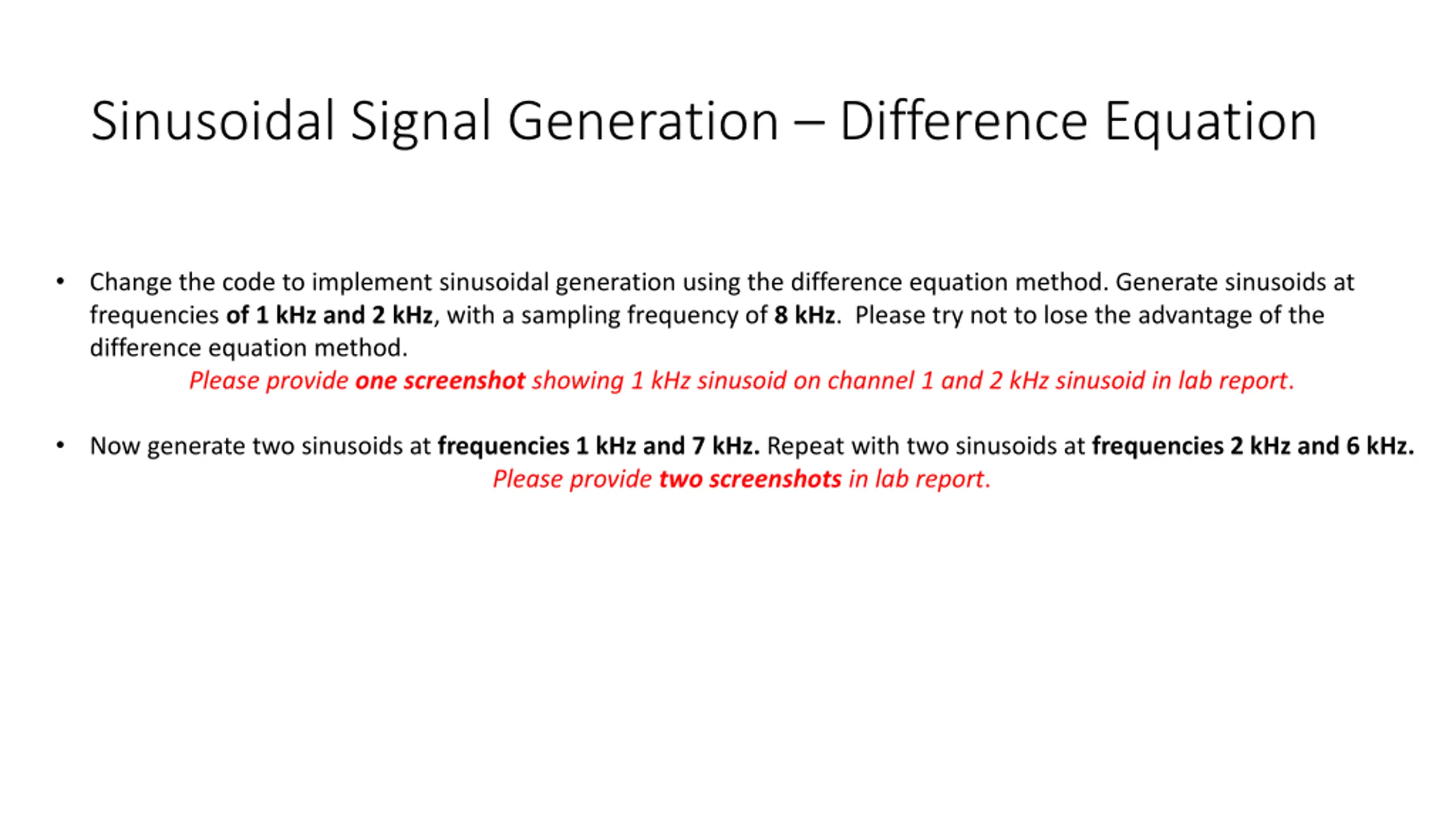

Sinusoidal Signal Generation Difference Equation Change the code to implement sinusoidal generation using the difference equation method. Generate sinusoids at frequencies of 1 kHz and 2 kHz, with a sampling frequency of 8 kHz. Please try not to lose the advantage of the difference equation method. Please provide one screenshot showing 1 kHz sinusoid on channel 1 and 2 kHz sinusoid in lab report. Now generate two sinusoids at frequencies 1 kHz and 7 kHz. Repeat with two sinusoids at frequencies 2 kHz and 6 kHz. Please provide two screenshots in lab report.

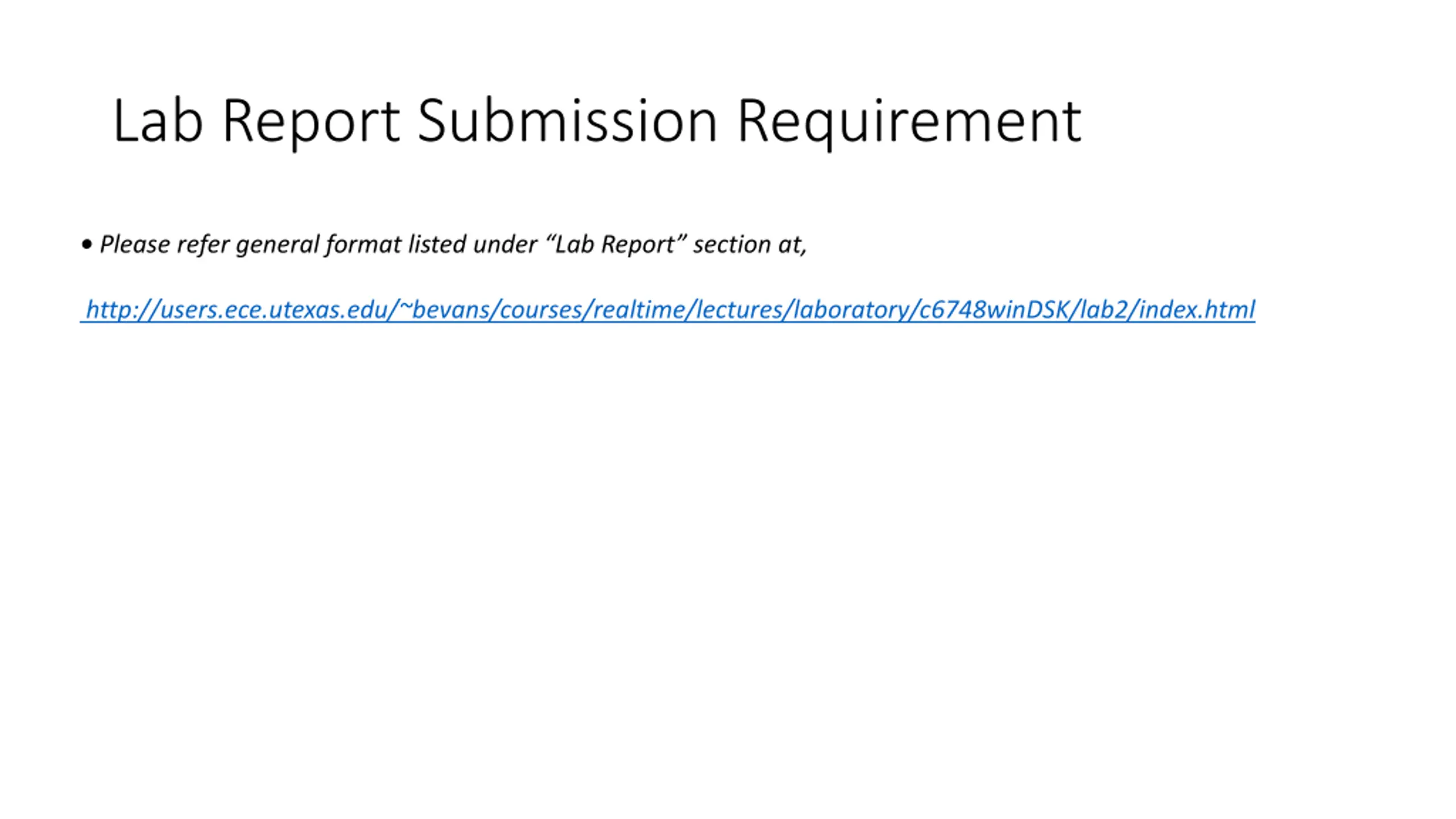

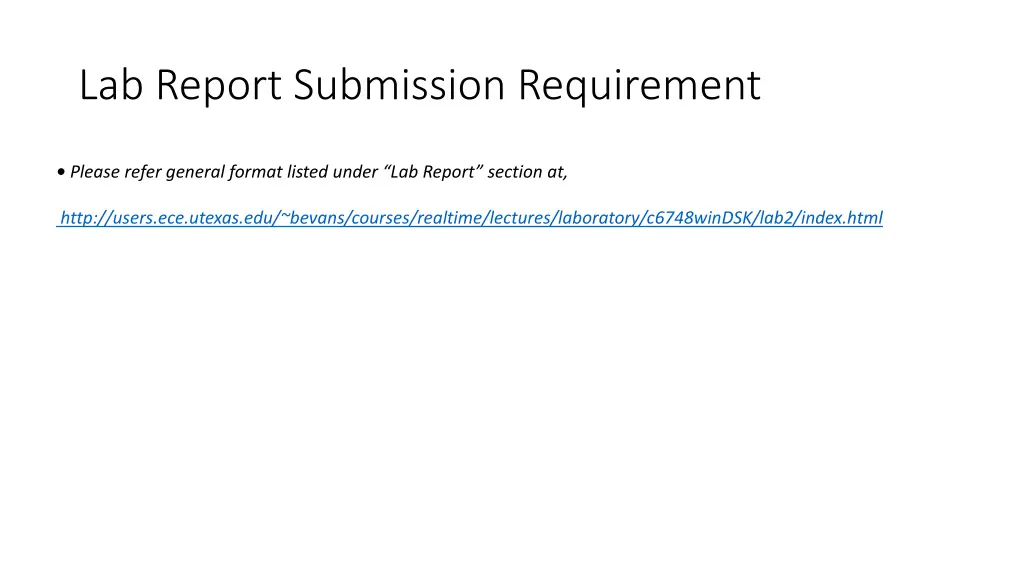

Lab Report Submission Requirement Please refer general format listed under Lab Report section at, http://users.ece.utexas.edu/~bevans/courses/realtime/lectures/laboratory/c6748winDSK/lab2/index.html
