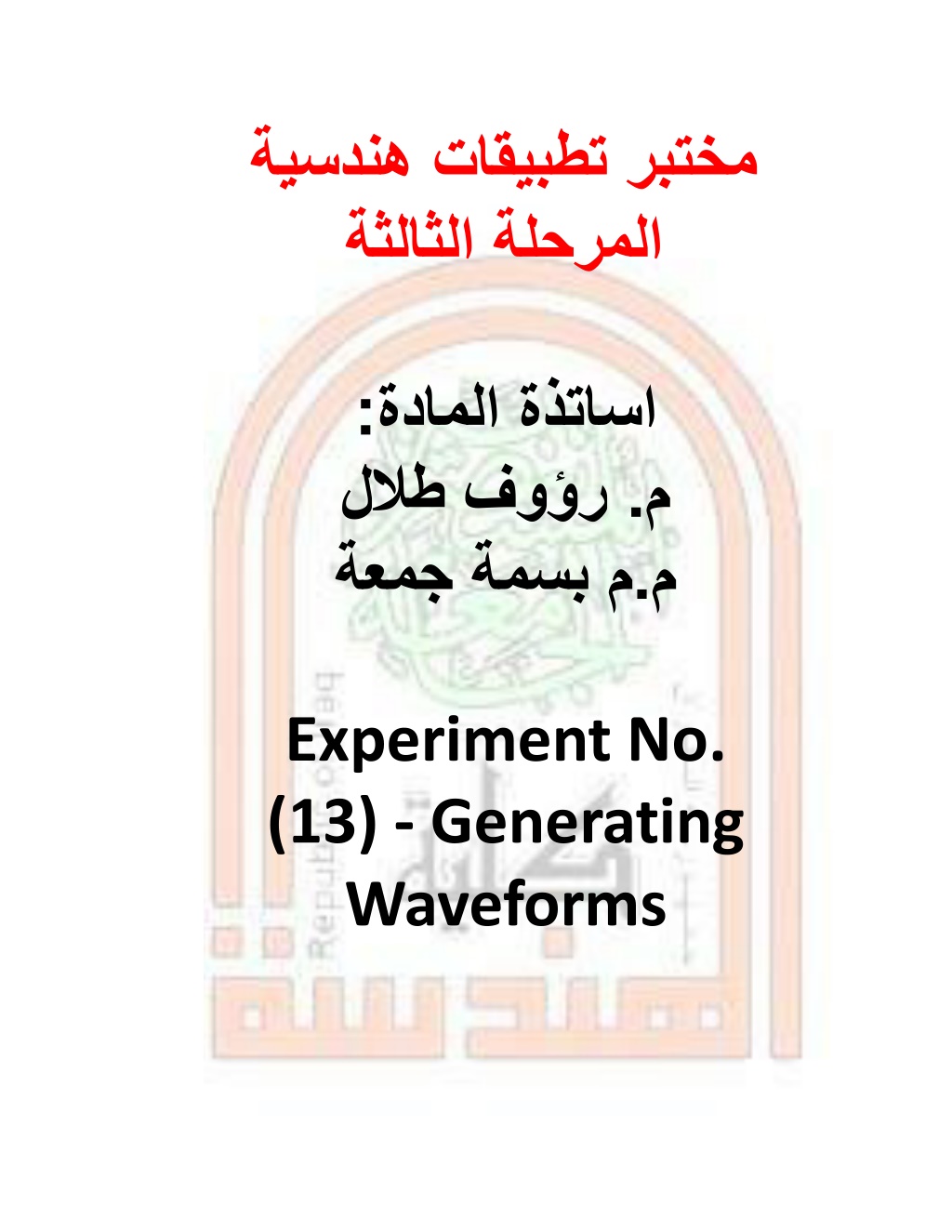

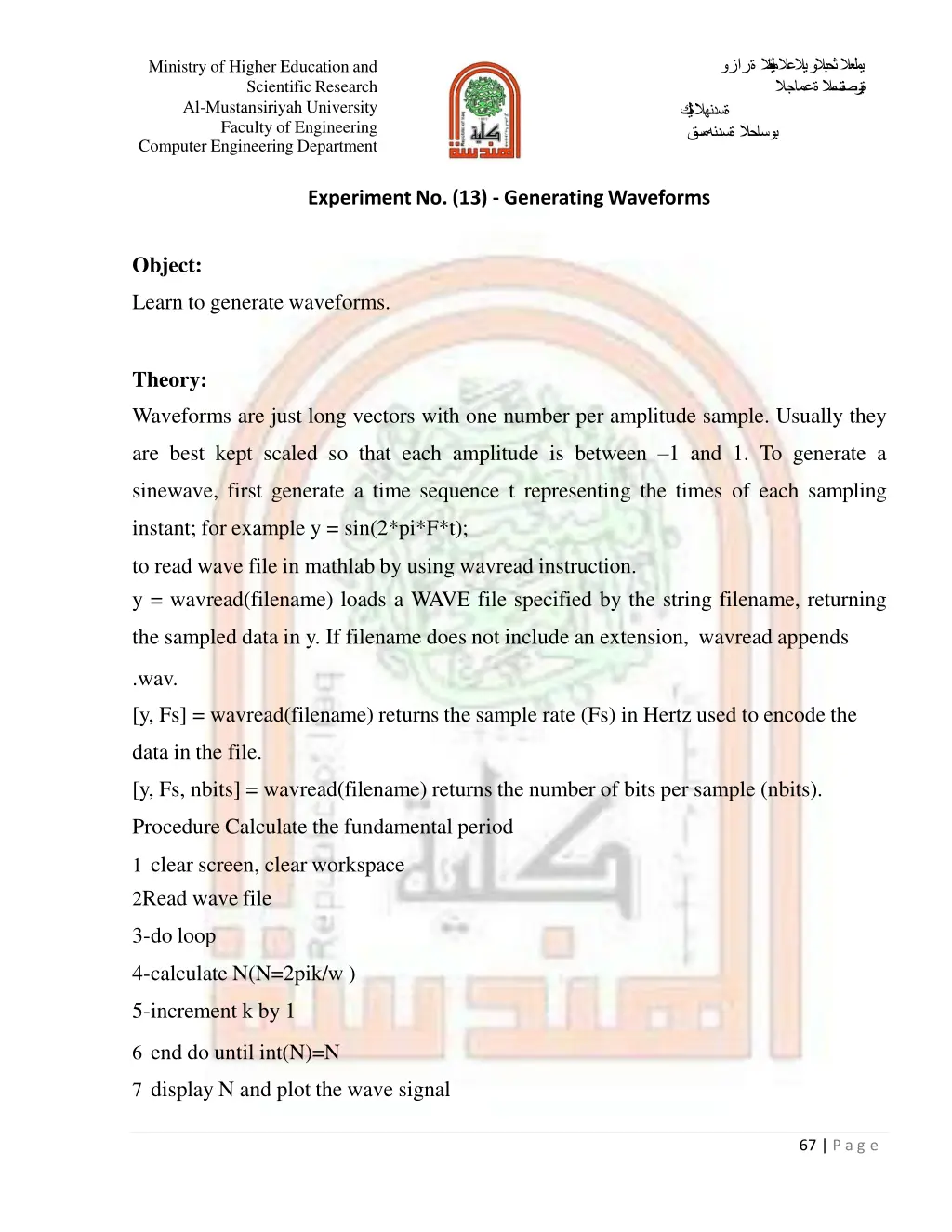

Ministry of Higher Education and Scientific Research Al-Mustansiriyah University Faculty of Engineering Computer Engineering Department Experiment No. (13) - Generating Waveforms Object: Learn to generate waveforms. Theory: Waveforms are just long vectors with one number per amplitude sample. Usually they are best kept scaled so that each amplitude is between 1 and 1. To generate a sinewave, first generate a time sequence t representing the times of each sampling instant; for example y = sin(2*pi*F*t); to read wave file in mathlab by using wavread instruction. y = wavread(filename) loads a WAVE file specified by the string filename, returning the sampled data in y. If filename does not include an extension, wavread appends .wav. [y, Fs] = wavread(filename) returns the sample rate (Fs) in Hertz used to encode the data in the file. [y, Fs, nbits] = wavread(filename) returns the number of bits per sample (nbits). Procedure Calculate the fundamental period 1 clear screen, clearworkspace 2Read wavefile 3-do loop 4-calculate N(N=2pik/w ) 5-increment k by 1 6 end do until int(N)=N 7 display N and plot the wave signal 67 | P a g e

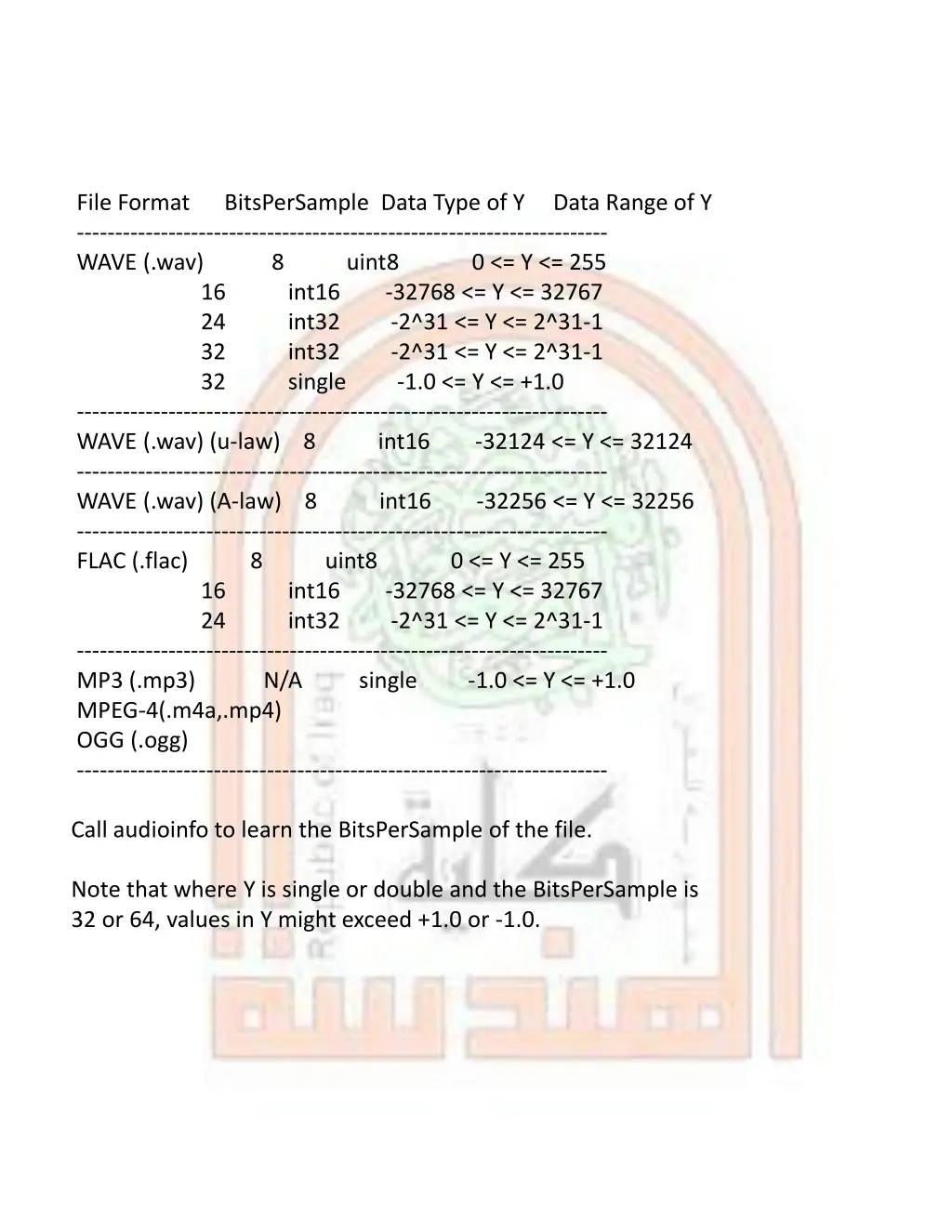

File Format BitsPerSample Data Type of Y Data Range of Y ---------------------------------------------------------------------- WAVE (.wav) 8 uint8 0 <= Y <= 255 16 int16 -32768 <= Y <= 32767 24 int32 -2^31 <= Y <= 2^31-1 32 int32 -2^31 <= Y <= 2^31-1 32 single -1.0 <= Y <= +1.0 ---------------------------------------------------------------------- WAVE (.wav) (u-law) 8 int16 -32124 <= Y <= 32124 ---------------------------------------------------------------------- WAVE (.wav) (A-law) 8 int16 -32256 <= Y <= 32256 ---------------------------------------------------------------------- FLAC (.flac) 8 uint8 0 <= Y <= 255 16 int16 -32768 <= Y <= 32767 24 int32 -2^31 <= Y <= 2^31-1 ---------------------------------------------------------------------- MP3 (.mp3) N/A single -1.0 <= Y <= +1.0 MPEG-4(.m4a,.mp4) OGG (.ogg) ---------------------------------------------------------------------- Call audioinfo to learn the BitsPerSample of the file. Note that where Y is single or double and the BitsPerSample is 32 or 64, values in Y might exceed +1.0 or -1.0.

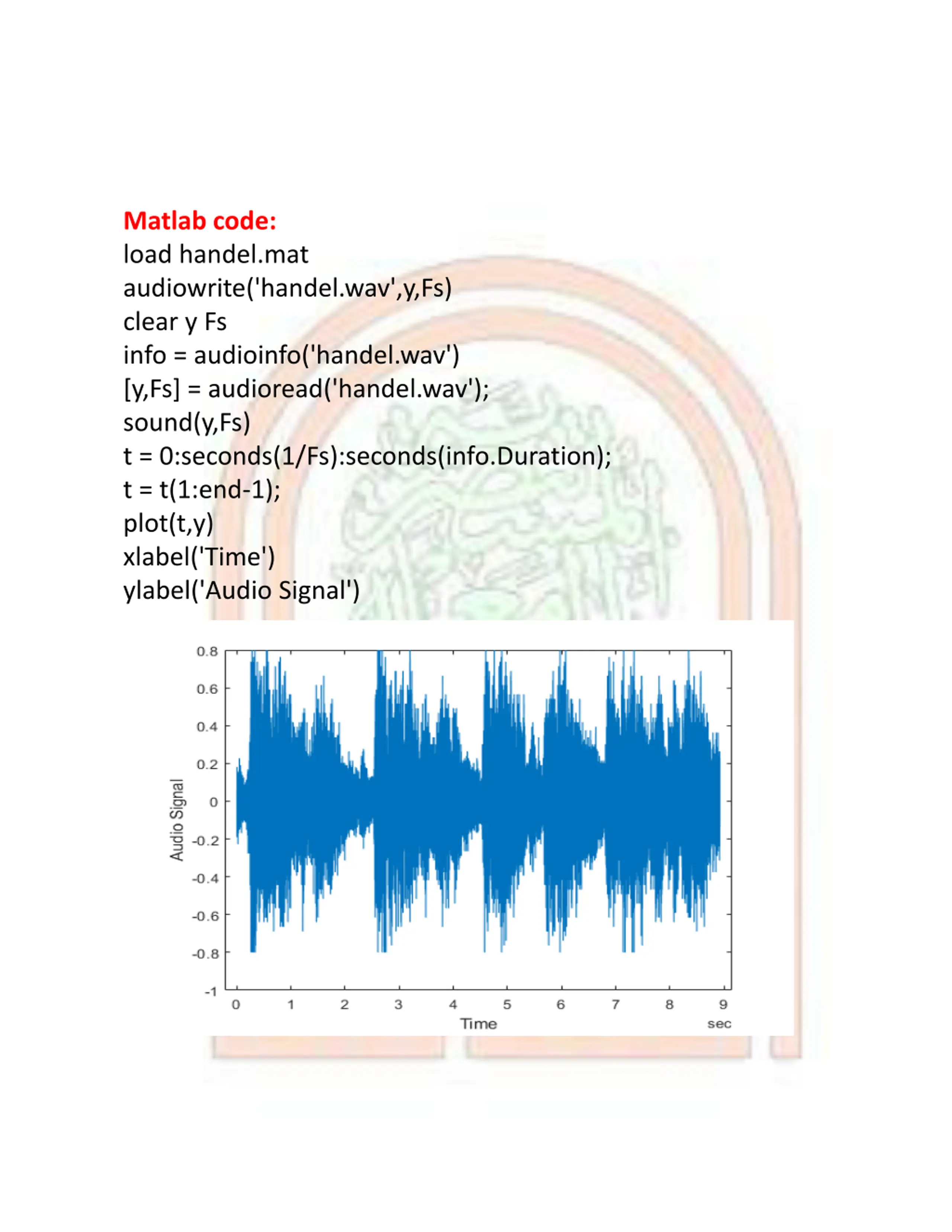

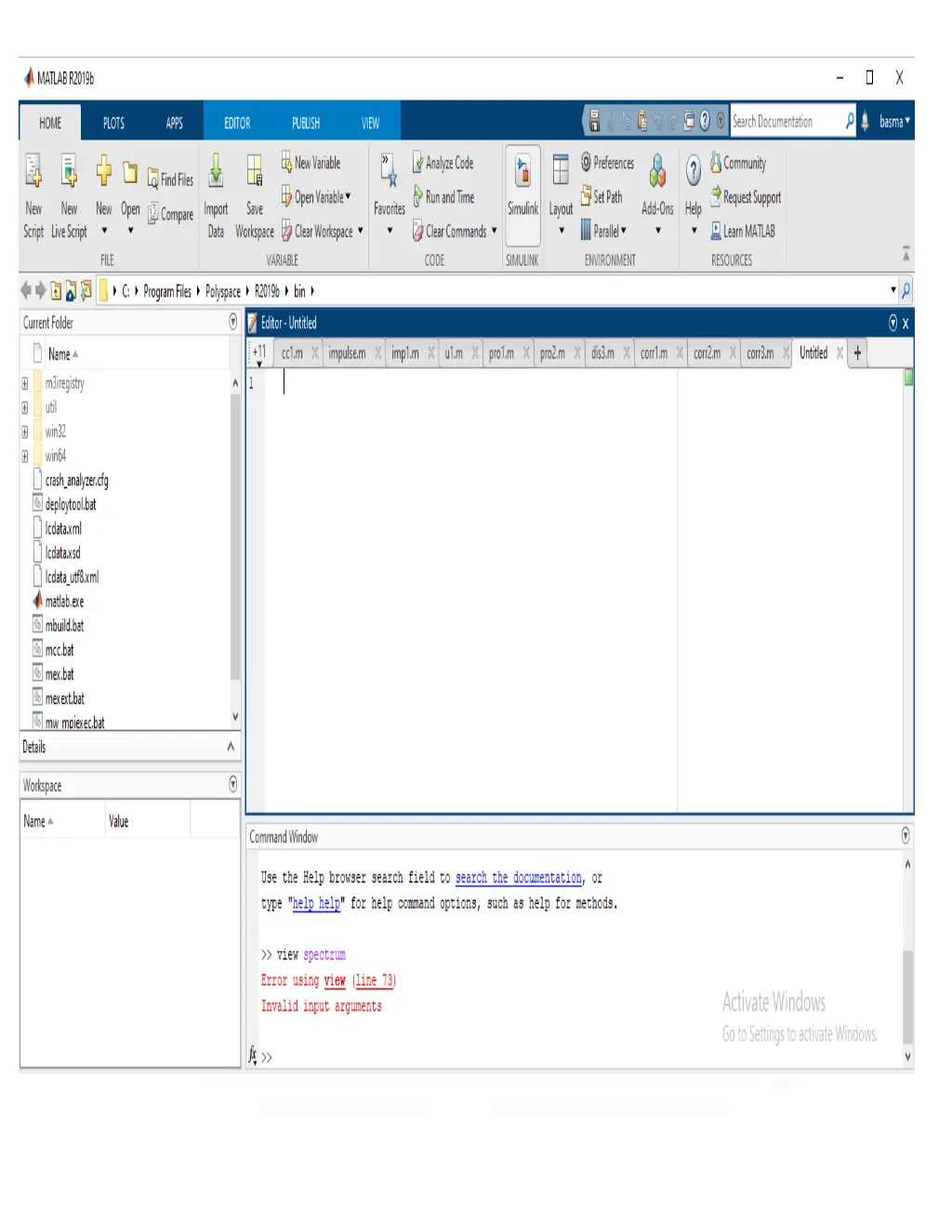

Matlab code: load handel.mat audiowrite('handel.wav',y,Fs) clear y Fs info = audioinfo('handel.wav') [y,Fs] = audioread('handel.wav'); sound(y,Fs) t = 0:seconds(1/Fs):seconds(info.Duration); t = t(1:end-1); plot(t,y) xlabel('Time') ylabel('Audio Signal')

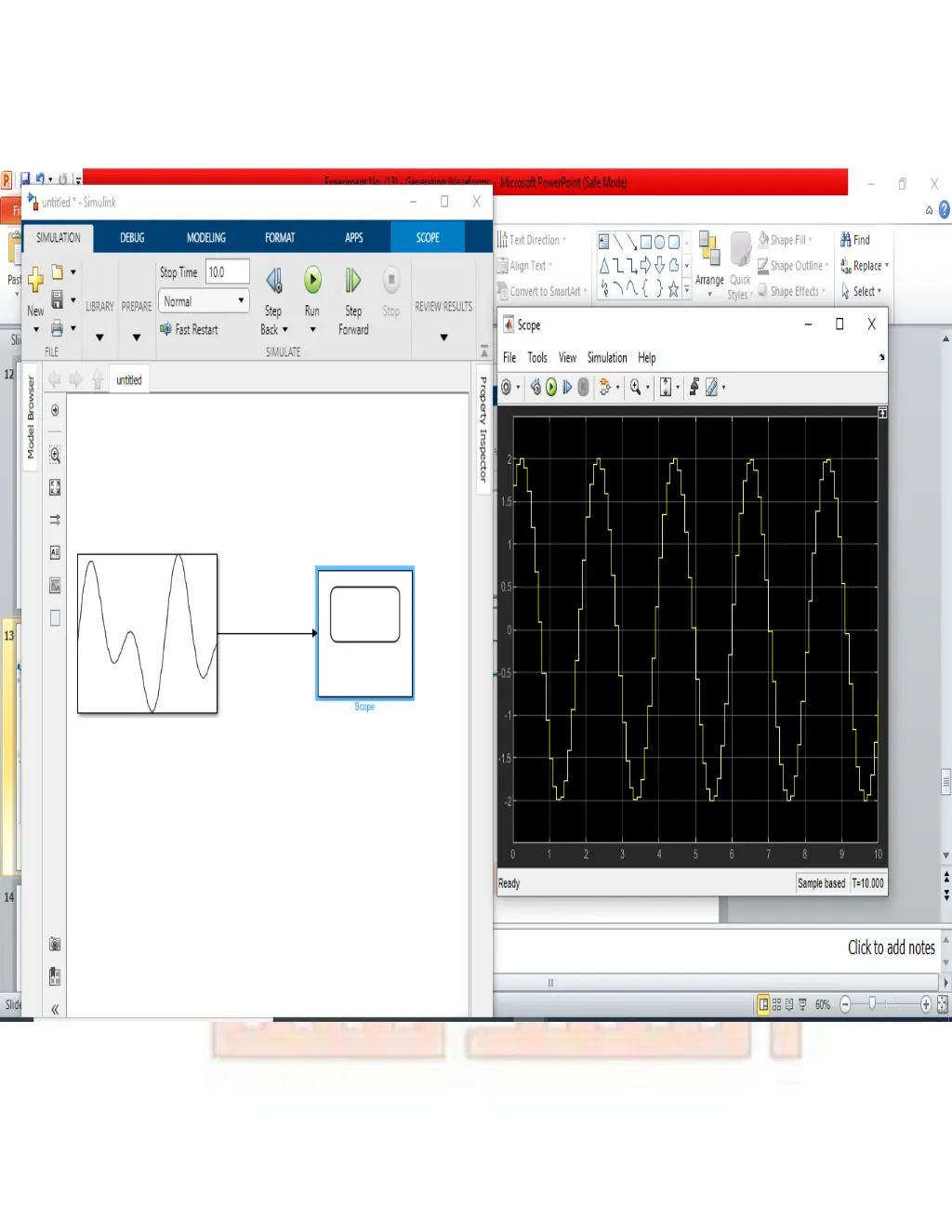

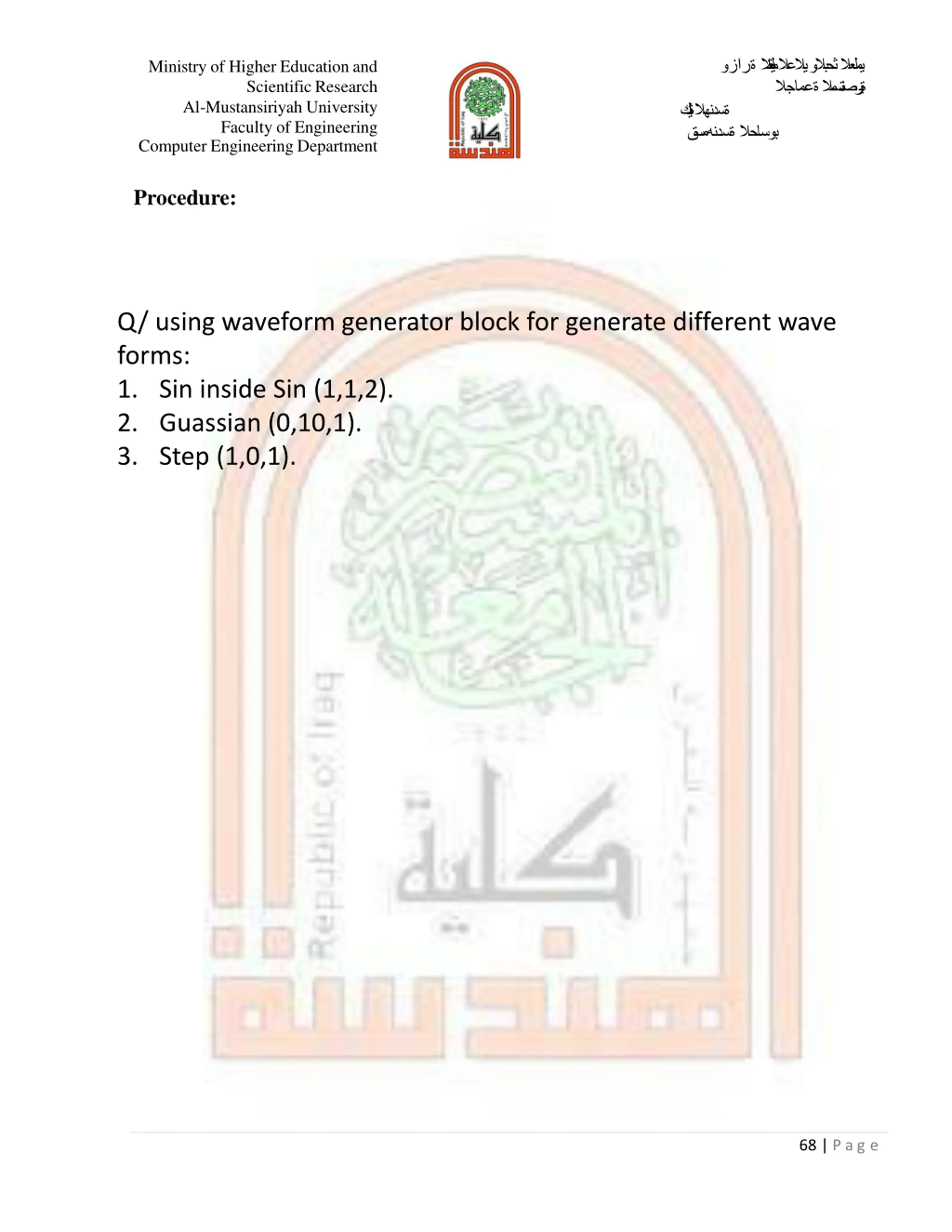

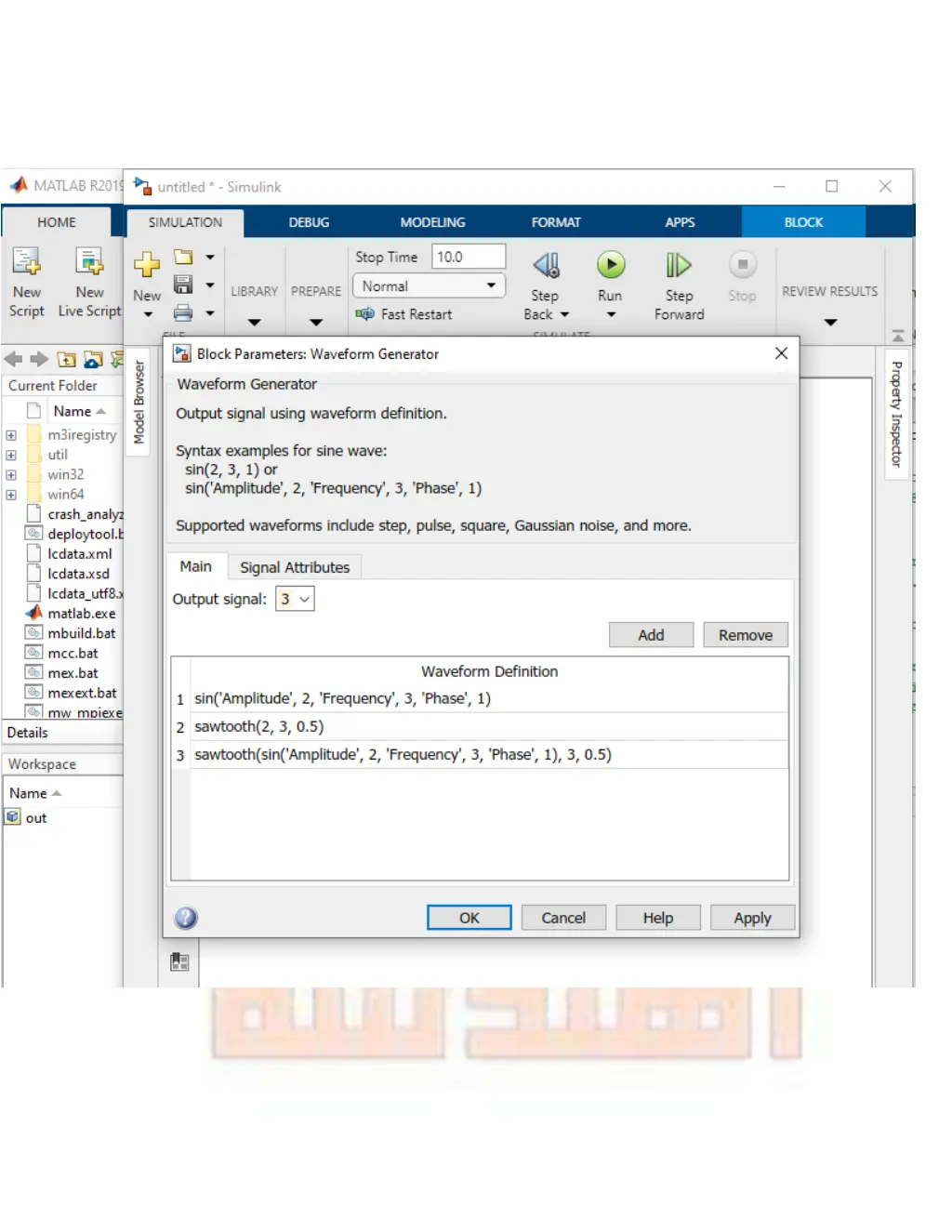

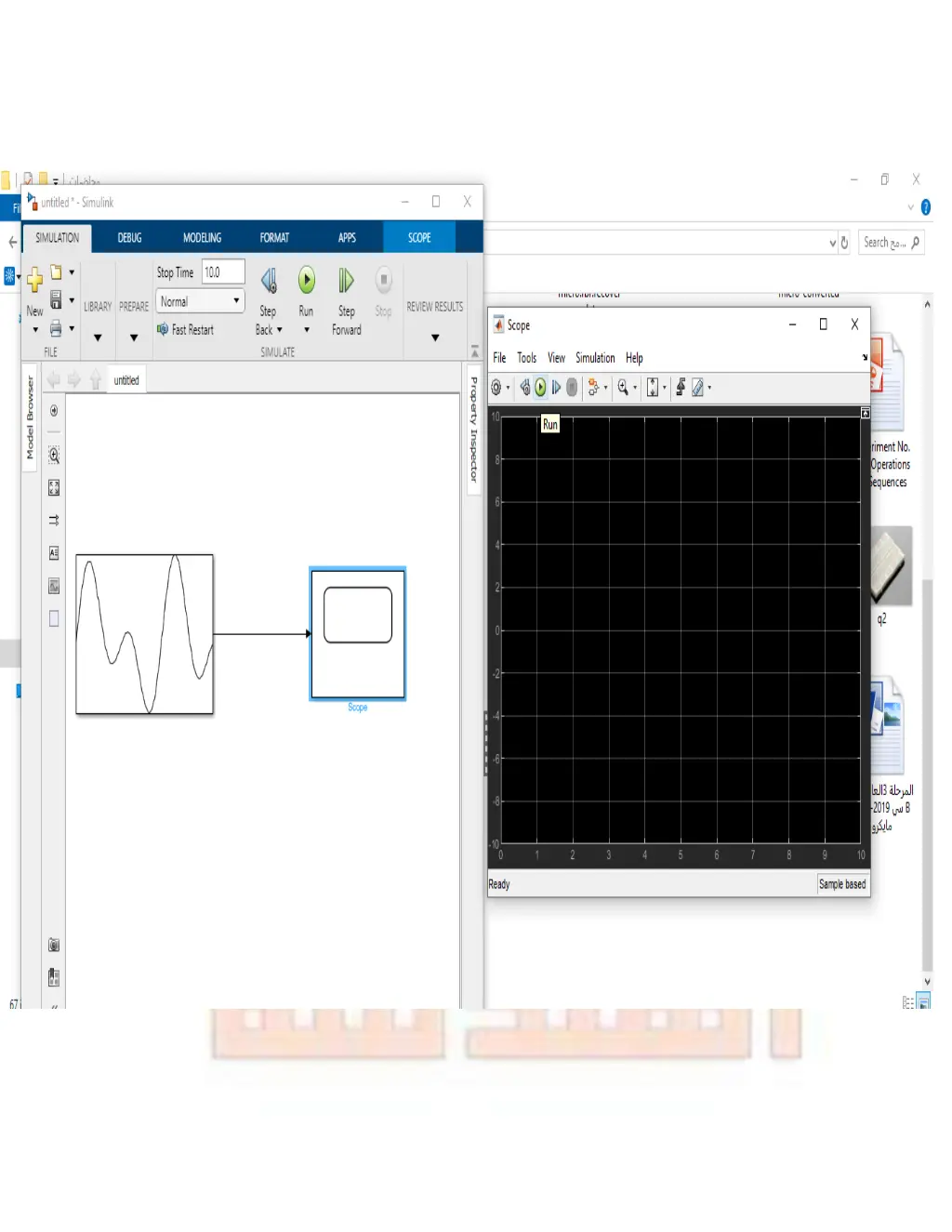

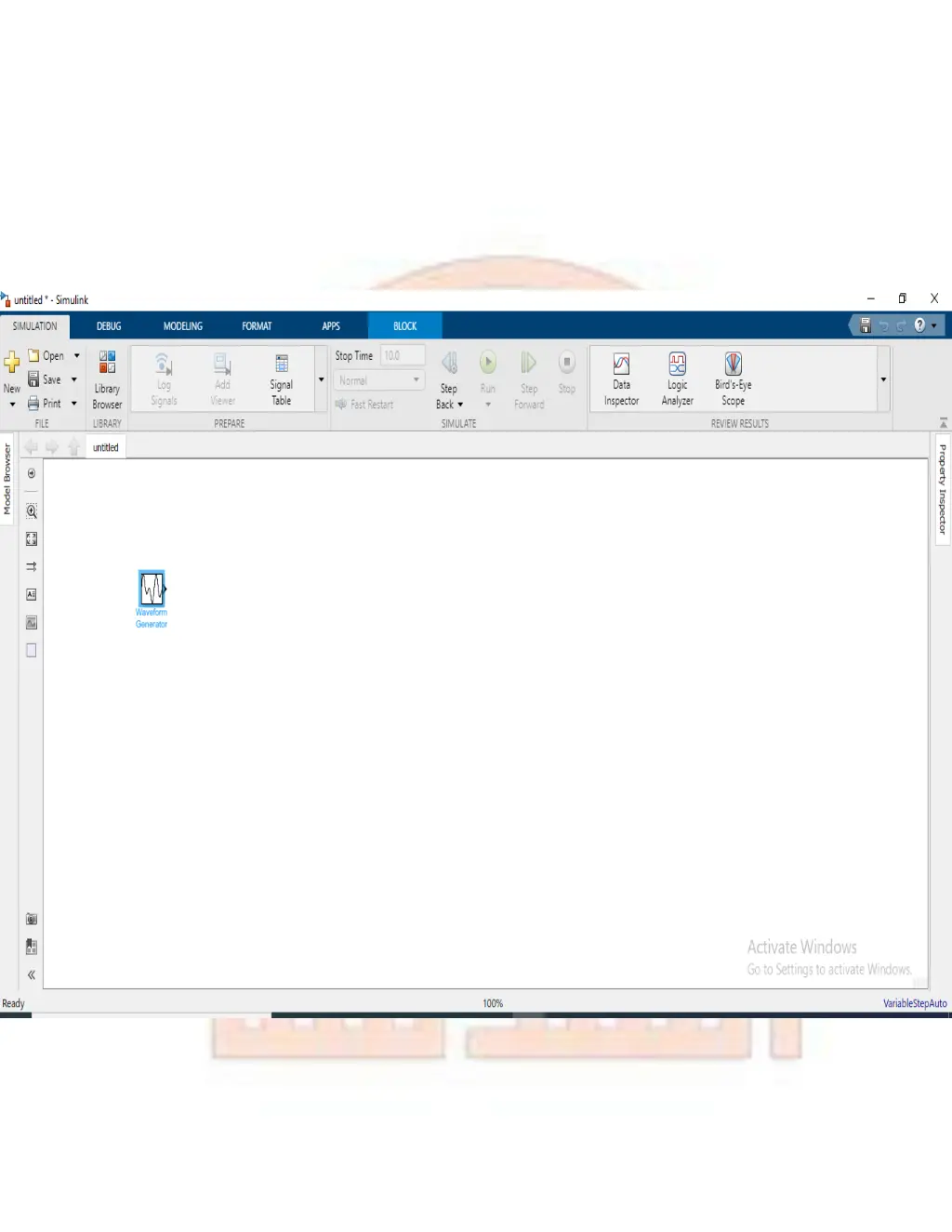

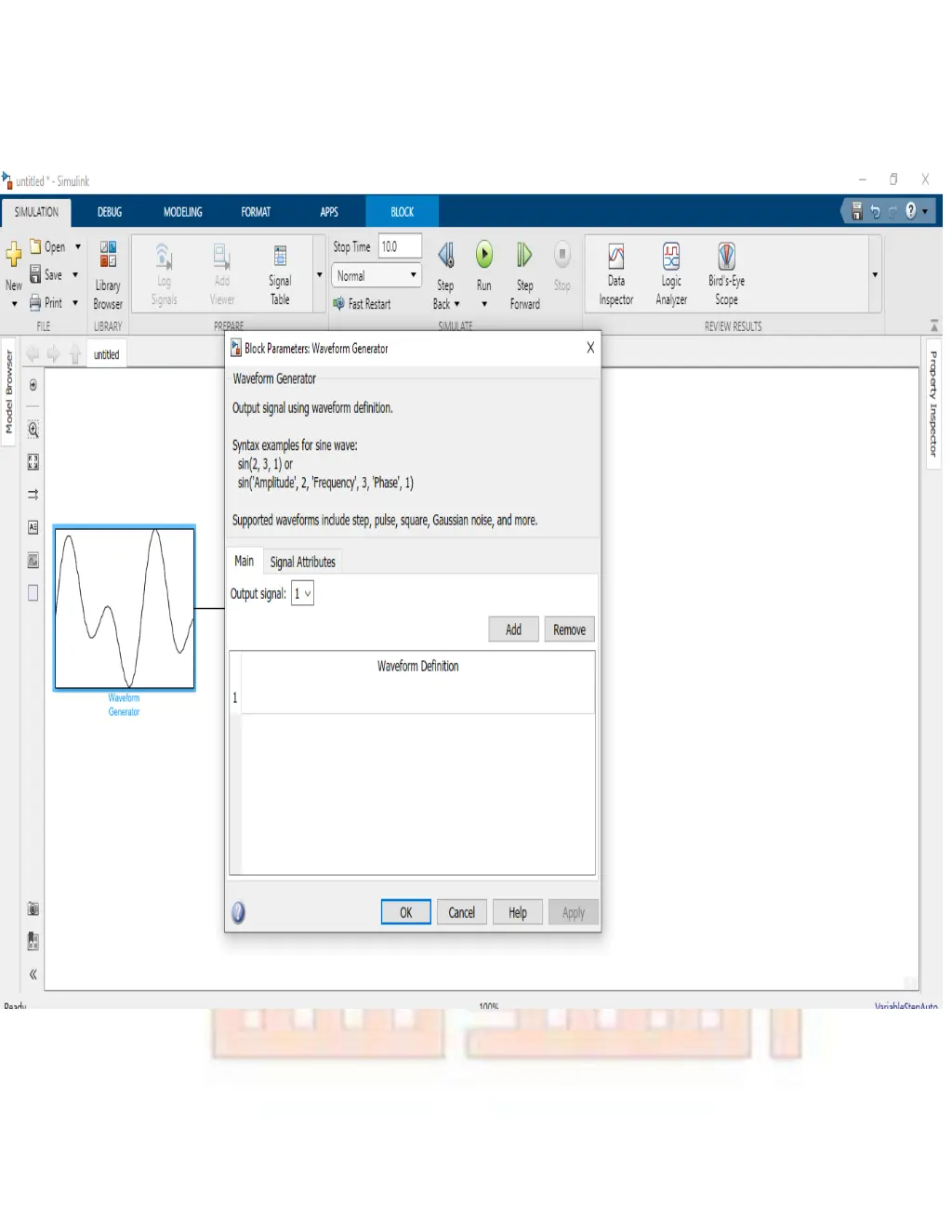

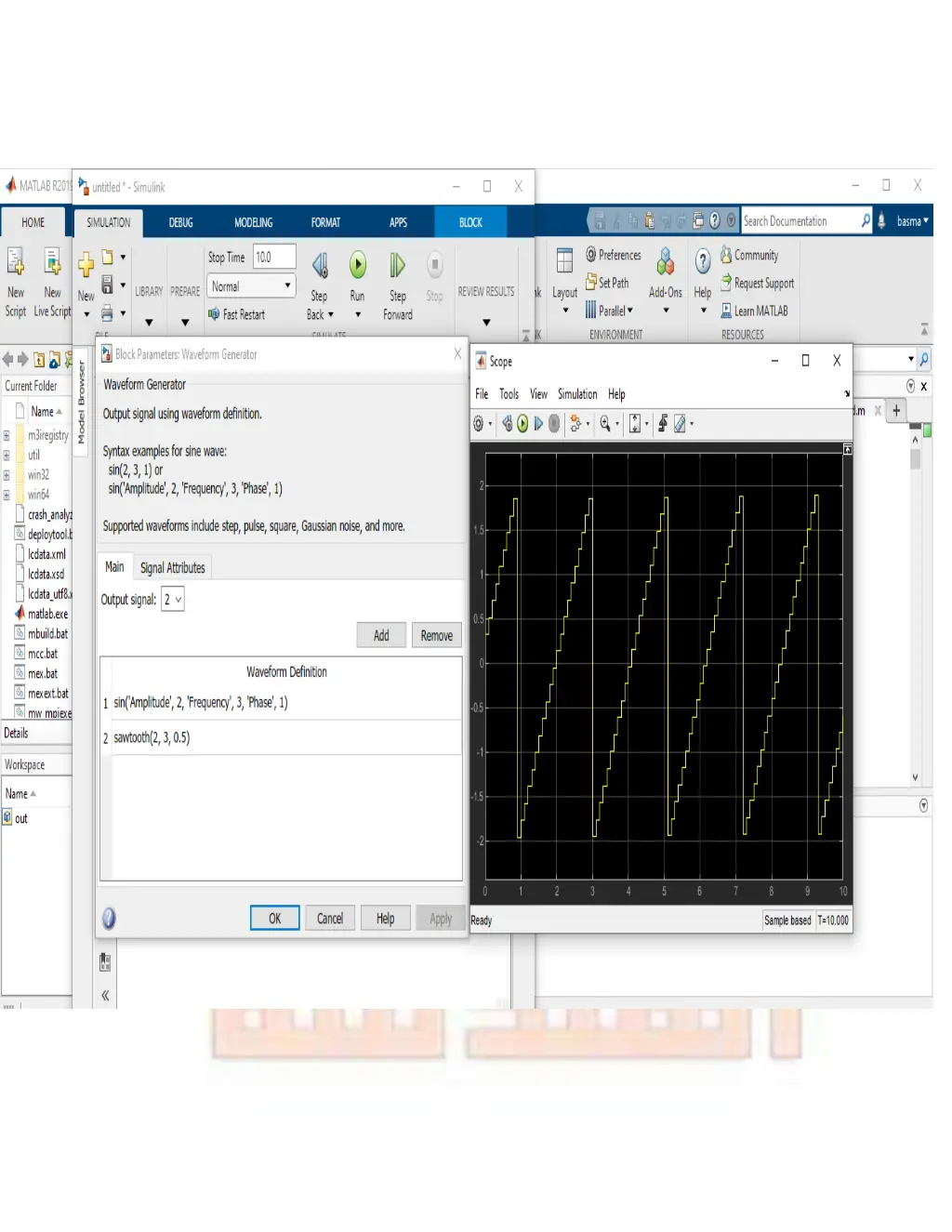

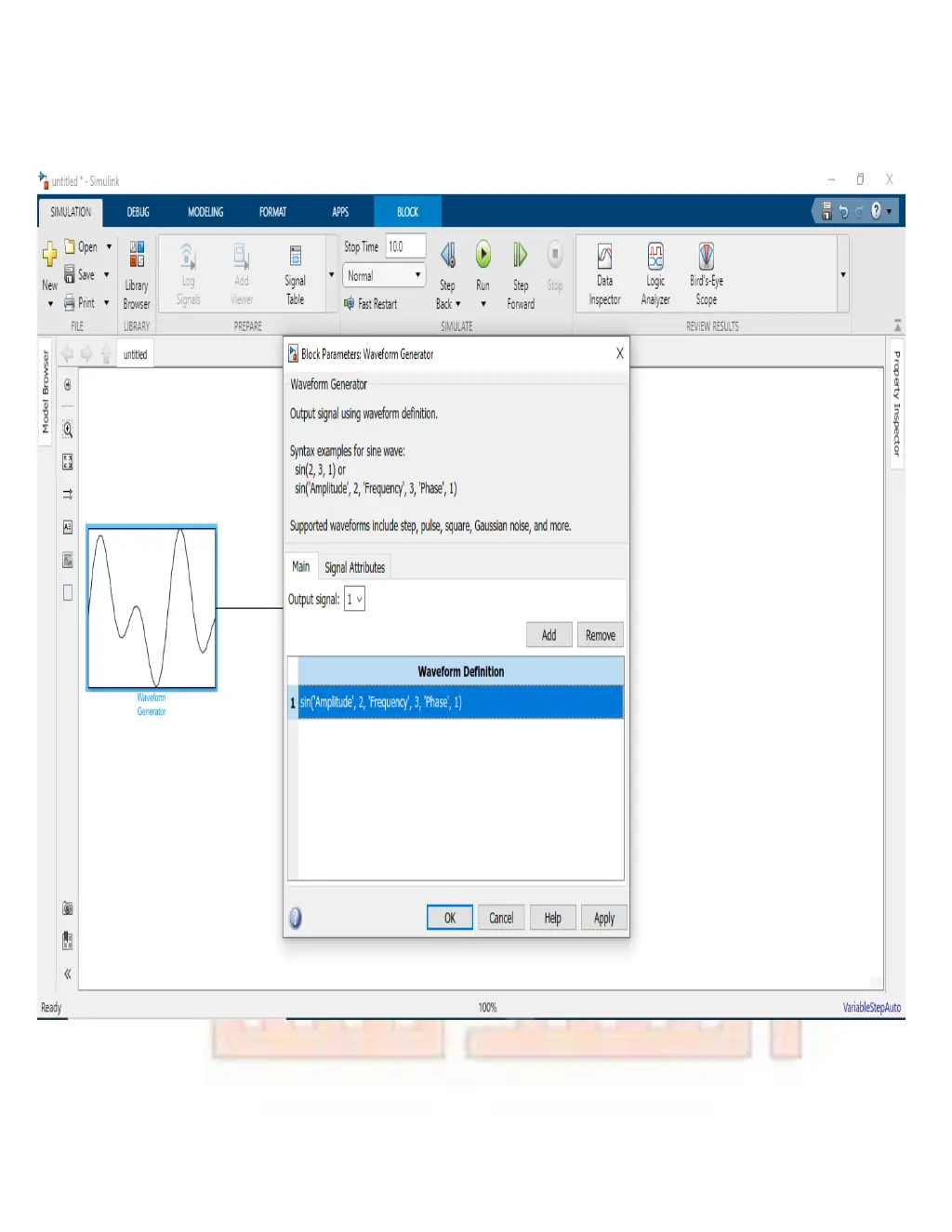

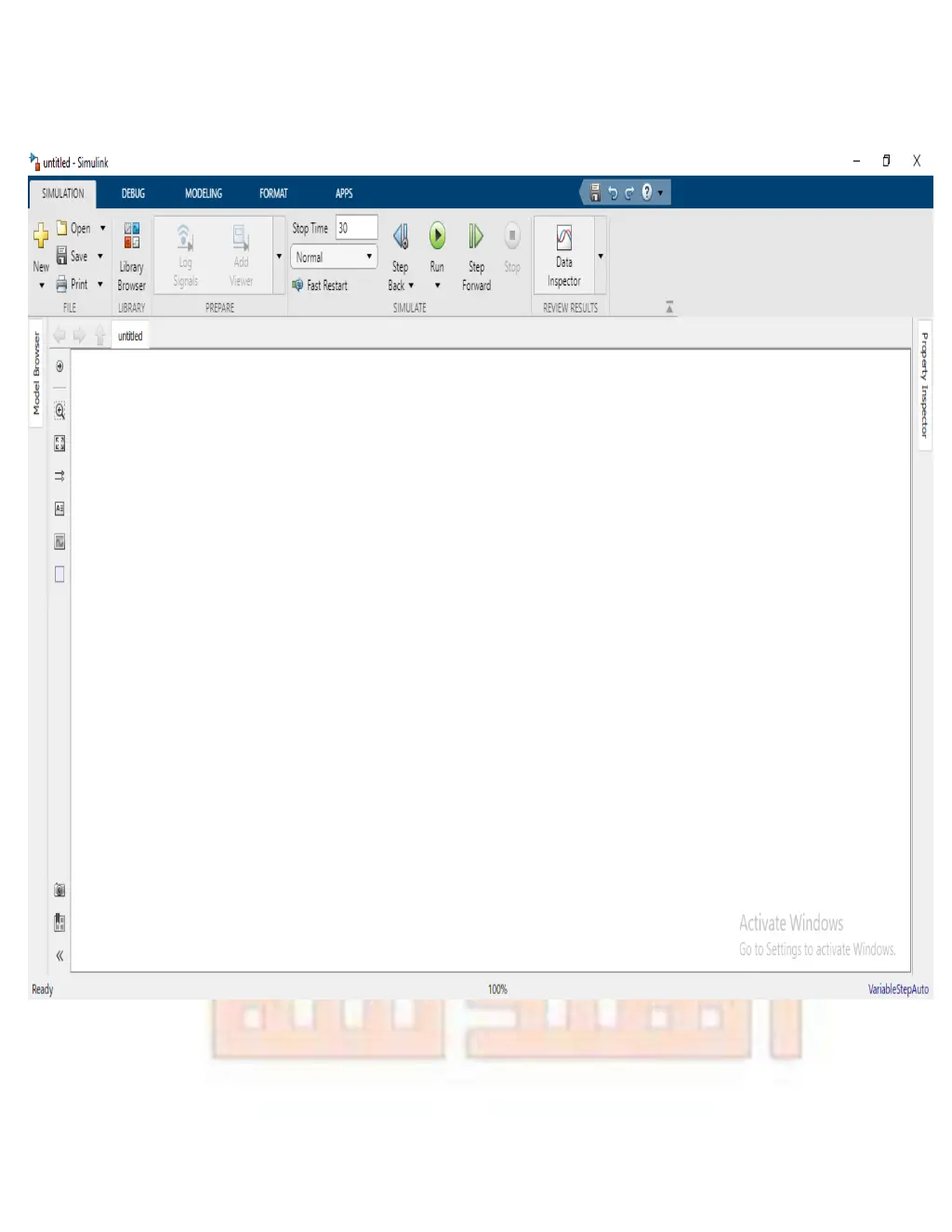

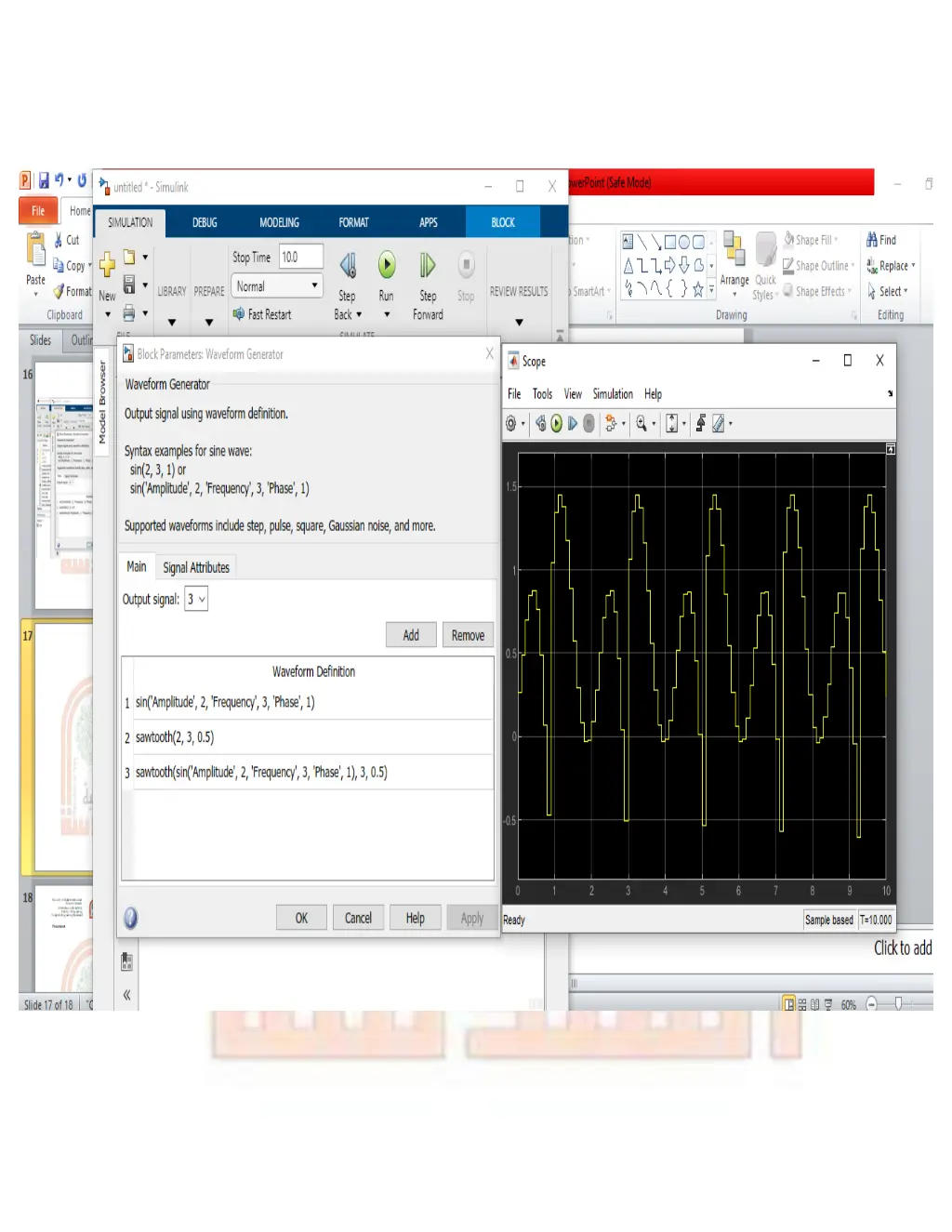

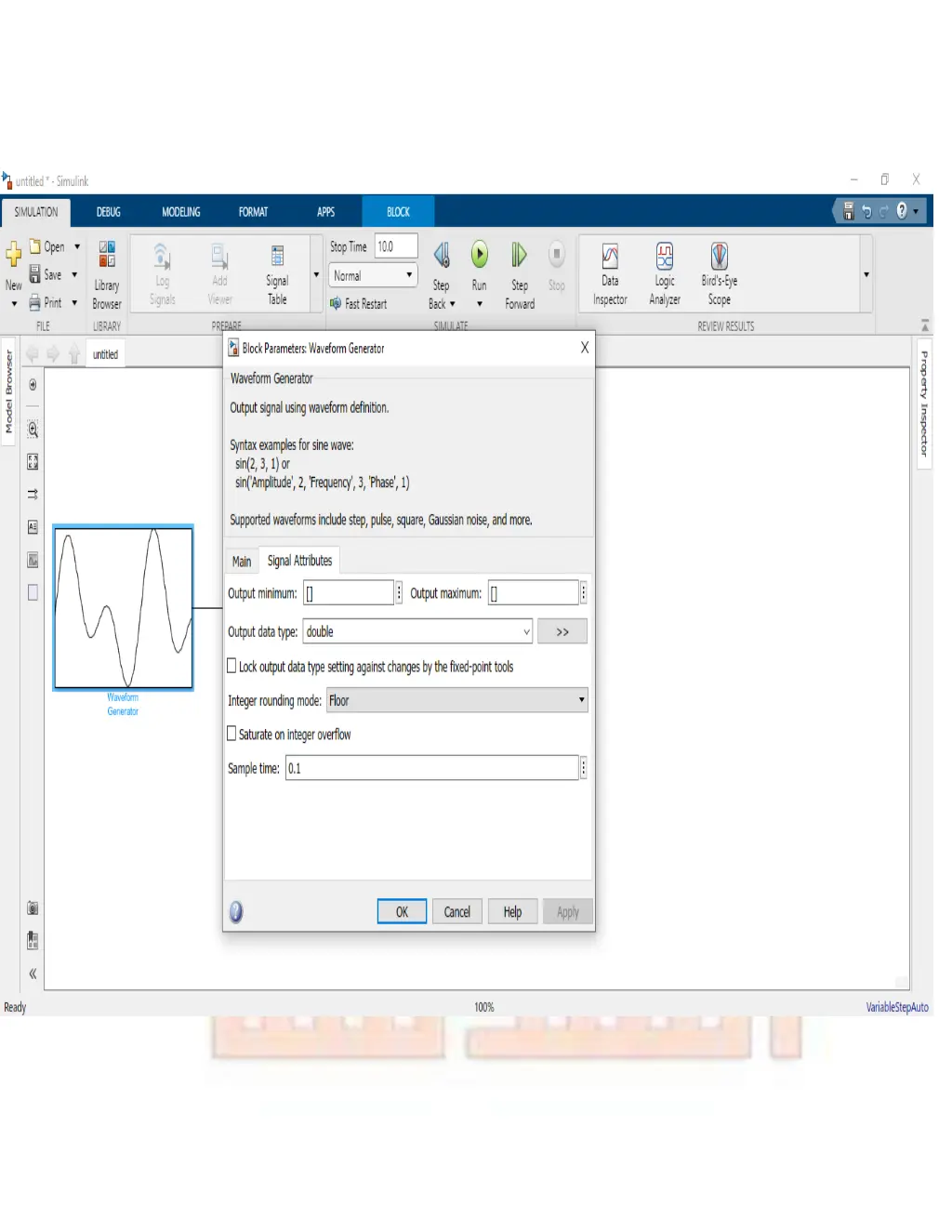

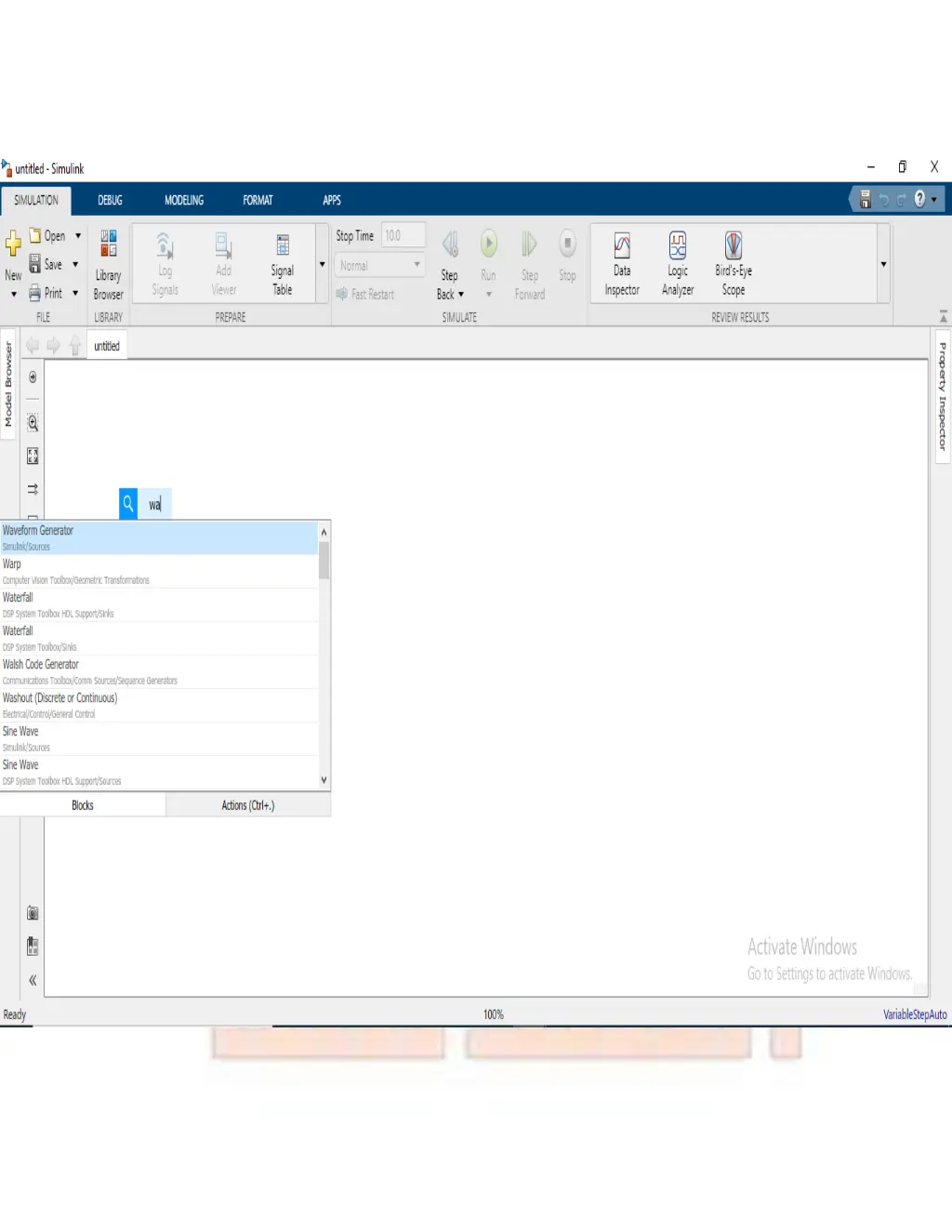

Ministry of Higher Education and Scientific Research Al-Mustansiriyah University Faculty of Engineering Computer Engineering Department Procedure: Q/ using waveform generator block for generate different wave forms: 1. Sin inside Sin (1,1,2). 2. Guassian (0,10,1). 3. Step (1,0,1). 68 | P a g e
