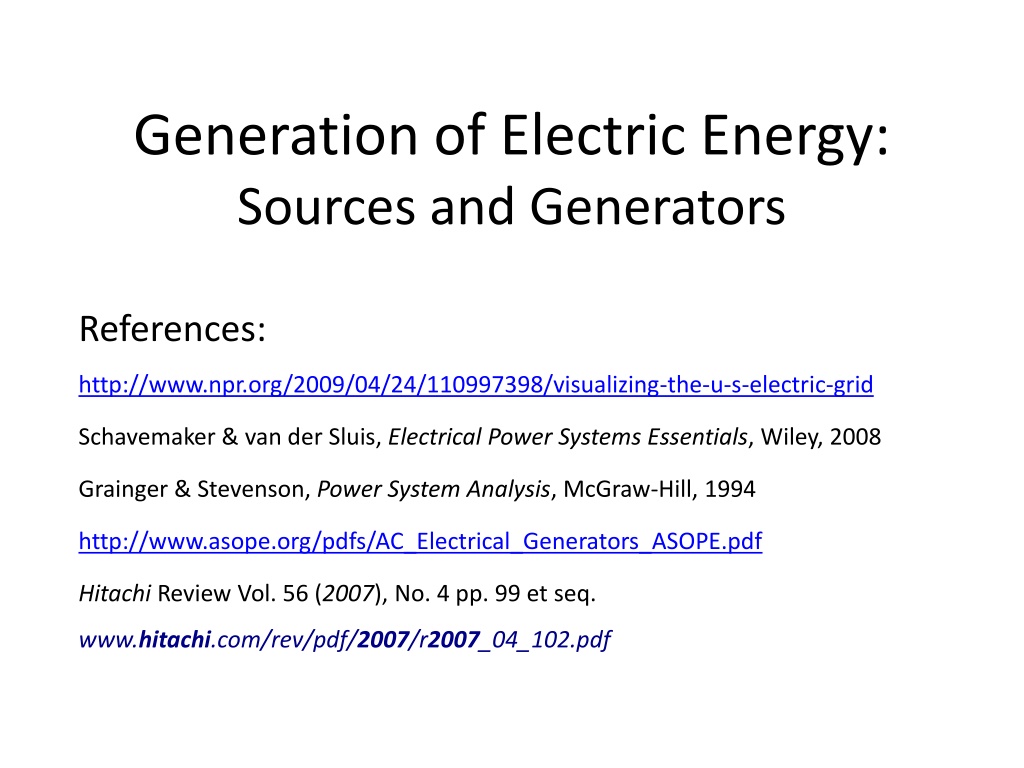

1. Generation of Electric Energy: Sources and Generators References: http://www.npr.org/2009/04/24/110997398/visualizing-the-u-s-electric-grid Schavemaker & van der Sluis, Electrical Power Systems Essentials, Wiley, 2008 Grainger & Stevenson, Power System Analysis, McGraw-Hill, 1994 http://www.asope.org/pdfs/AC_Electrical_Generators_ASOPE.pdf Hitachi Review Vol. 56 (2007), No. 4 pp. 99 et seq. www.hitachi.com/rev/pdf/2007/r2007_04_102.pdf

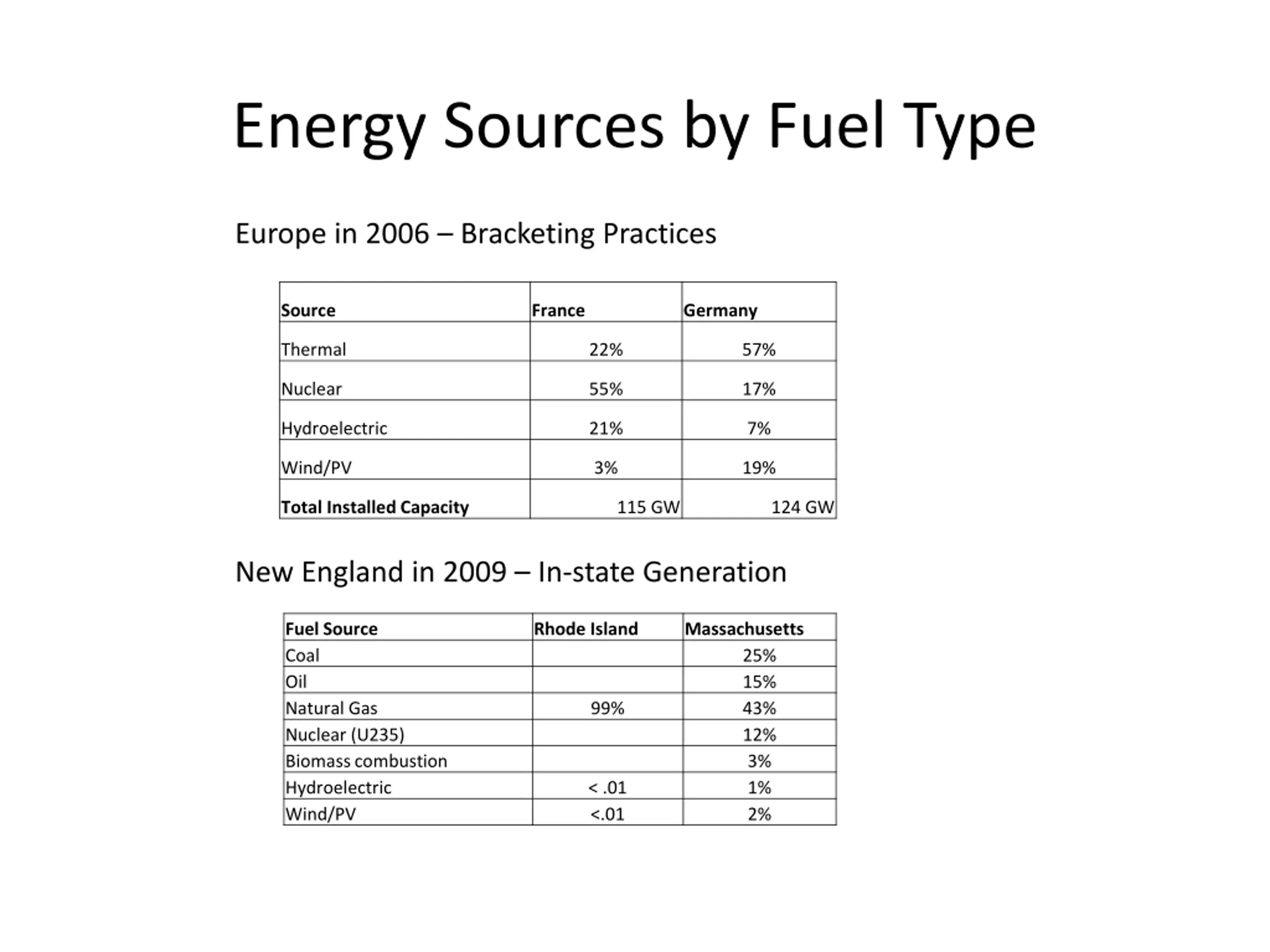

2. Energy Sources by Fuel Type Europe in 2006 Bracketing Practices Source France Germany Thermal 22% 57% Nuclear 55% 17% Hydroelectric 21% 7% Wind/PV 3% 19% Total Installed Capacity 115 GW 124 GW New England in 2009 In-state Generation Fuel Source Coal Oil Natural Gas Nuclear (U235) Biomass combustion Hydroelectric Wind/PV Rhode Island Massachusetts 25% 15% 43% 12% 99% 3% 1% 2% < .01 <.01

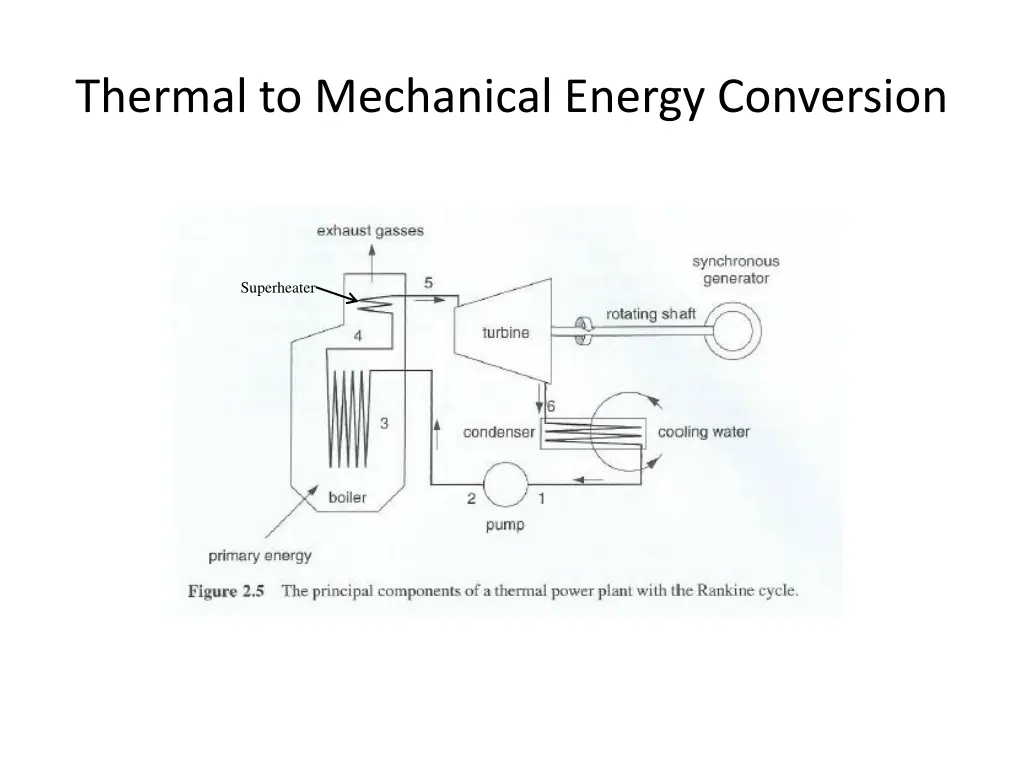

3. Thermal to Mechanical Energy Conversion Superheater

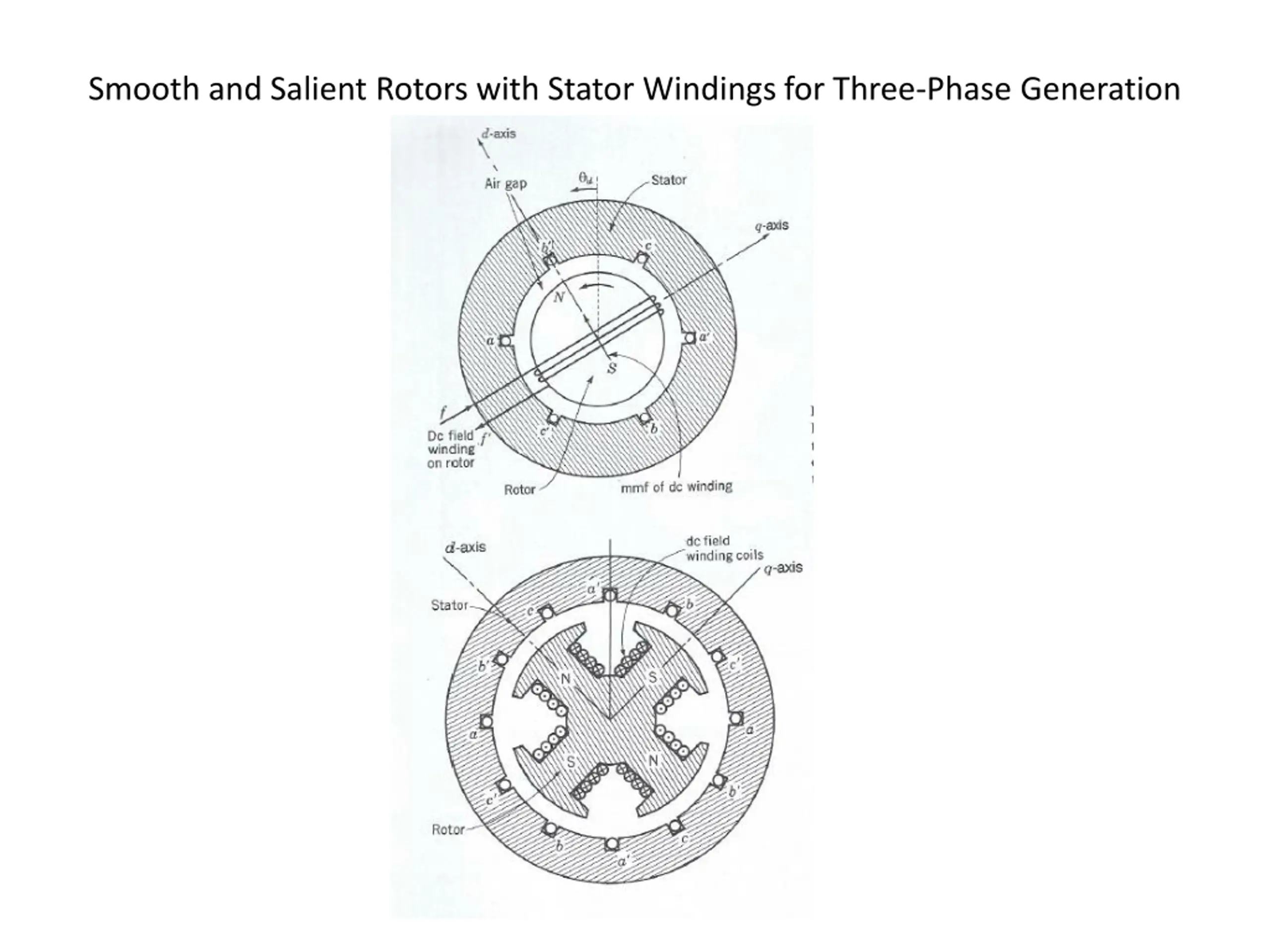

4. Smooth and Salient Rotors with Stator Windings for Three-Phase Generation

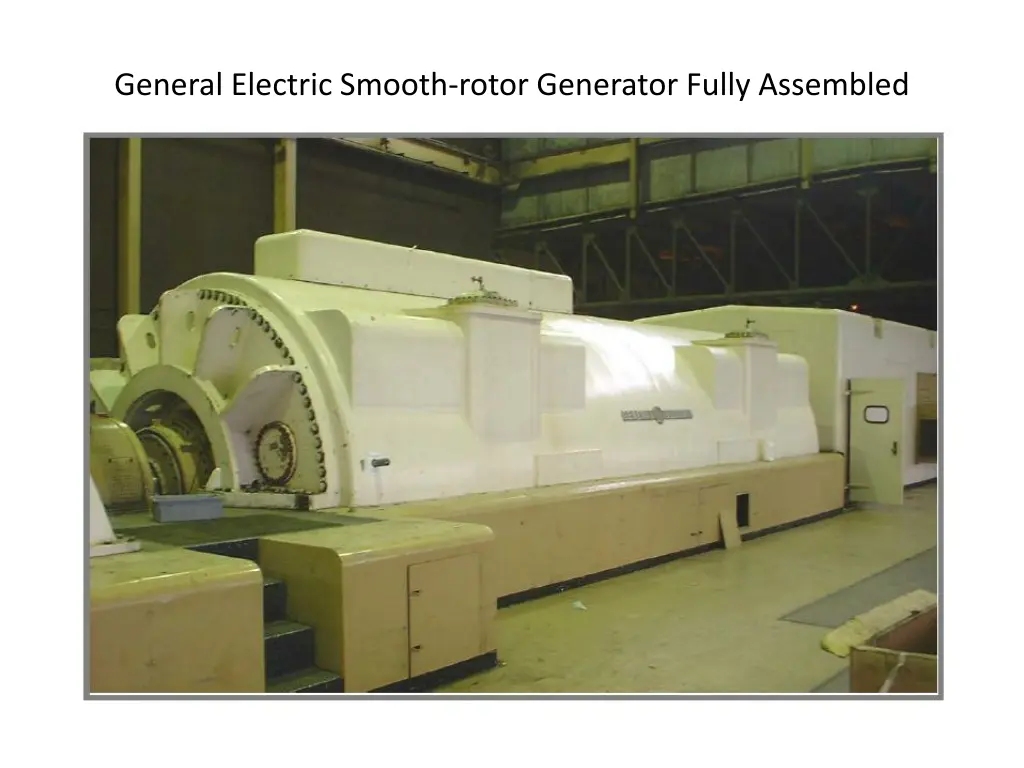

5. General Electric Smooth-rotor Generator Fully Assembled

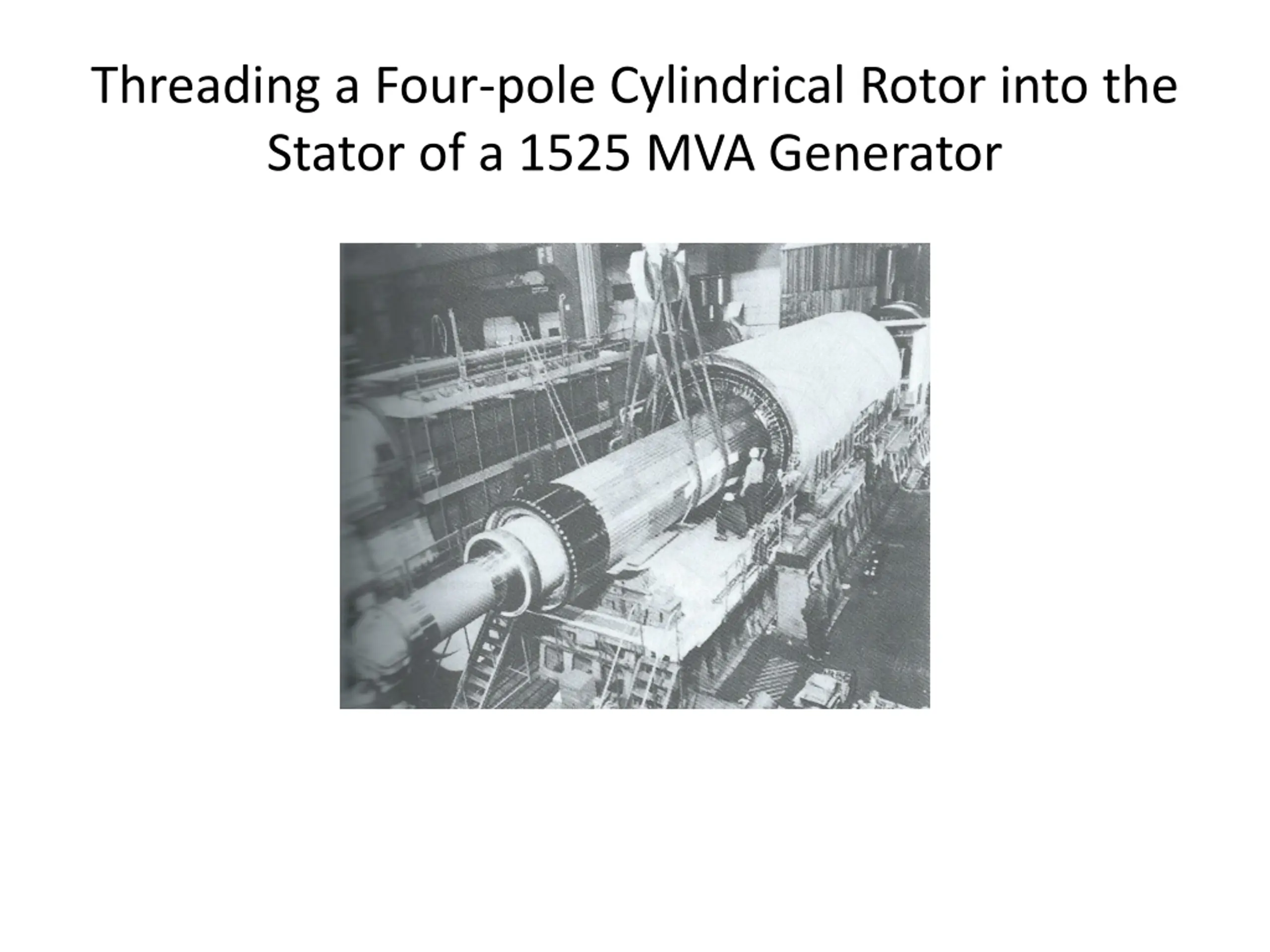

6. Threading a Four-pole Cylindrical Rotor into the Stator of a 1525 MVA Generator

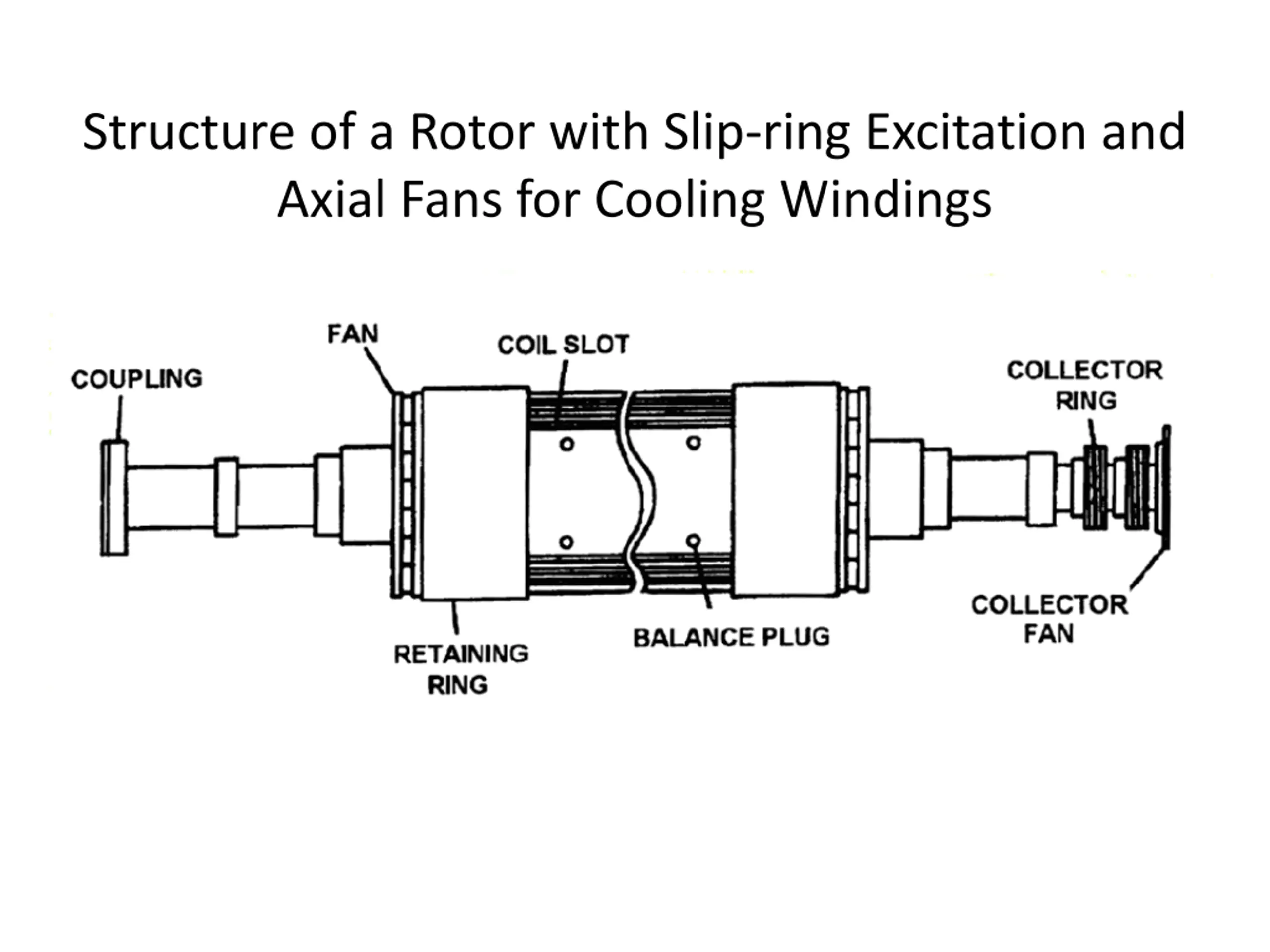

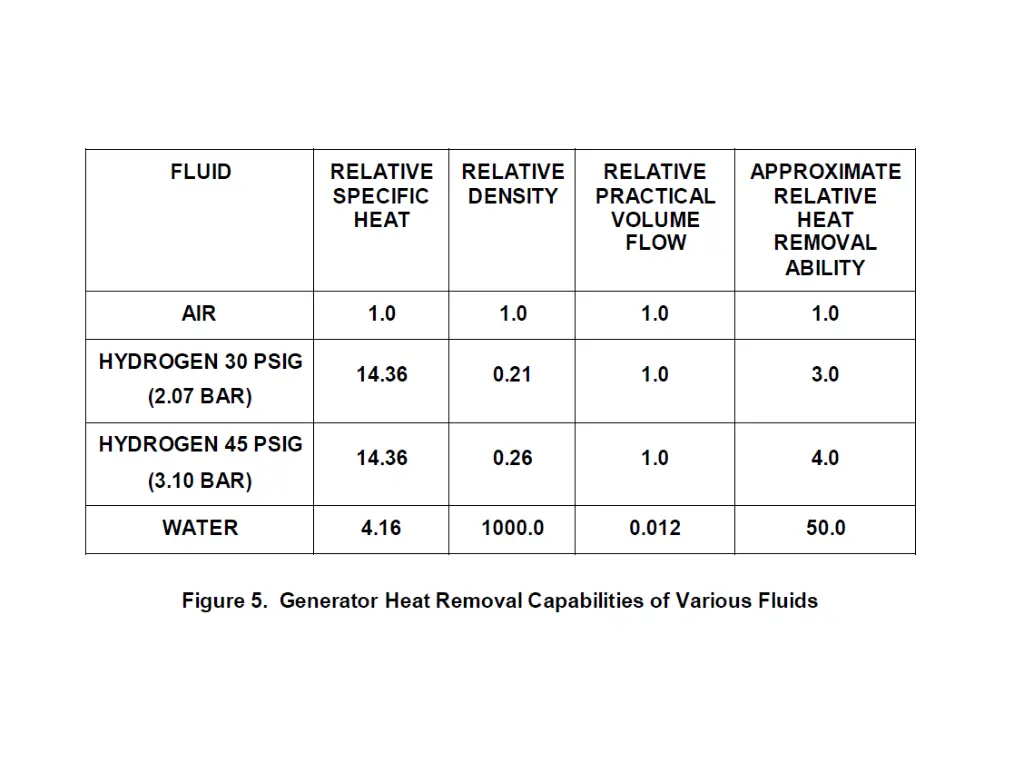

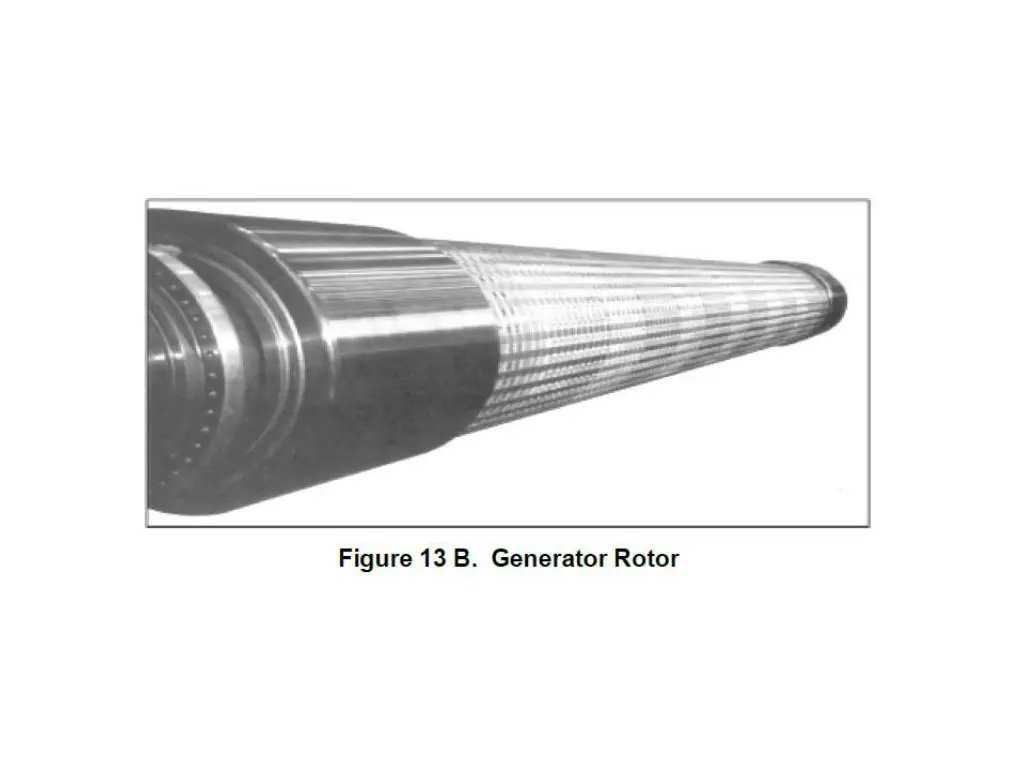

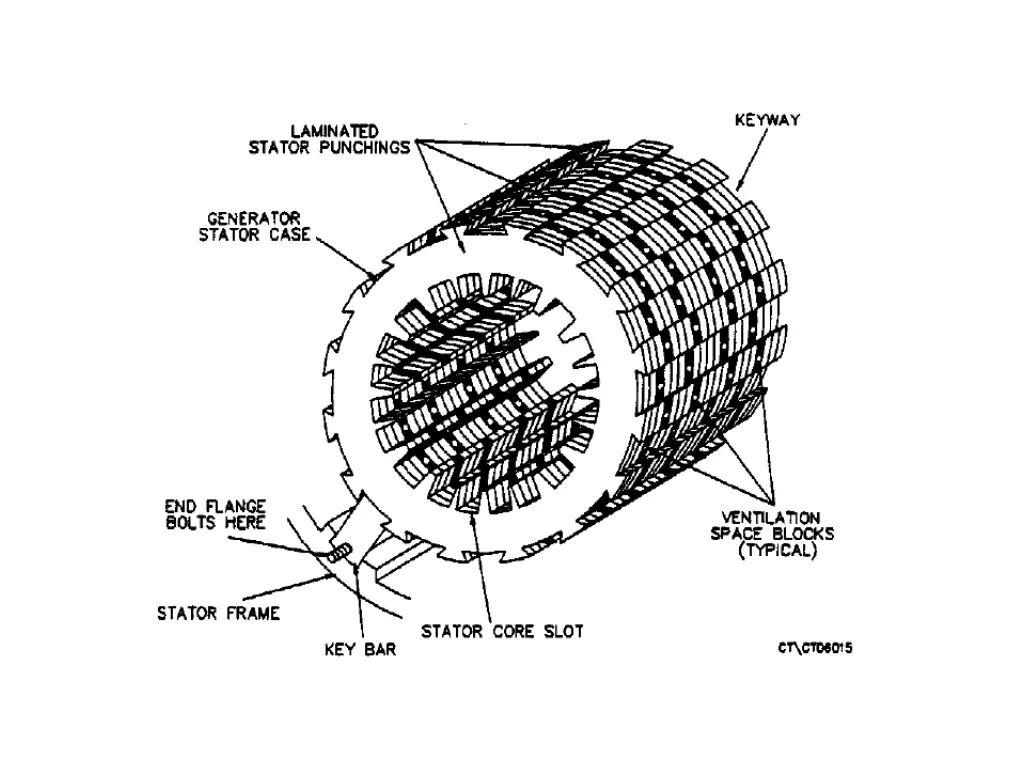

11. Structure of a Rotor with Slip-ring Excitation and Axial Fans for Cooling Windings
