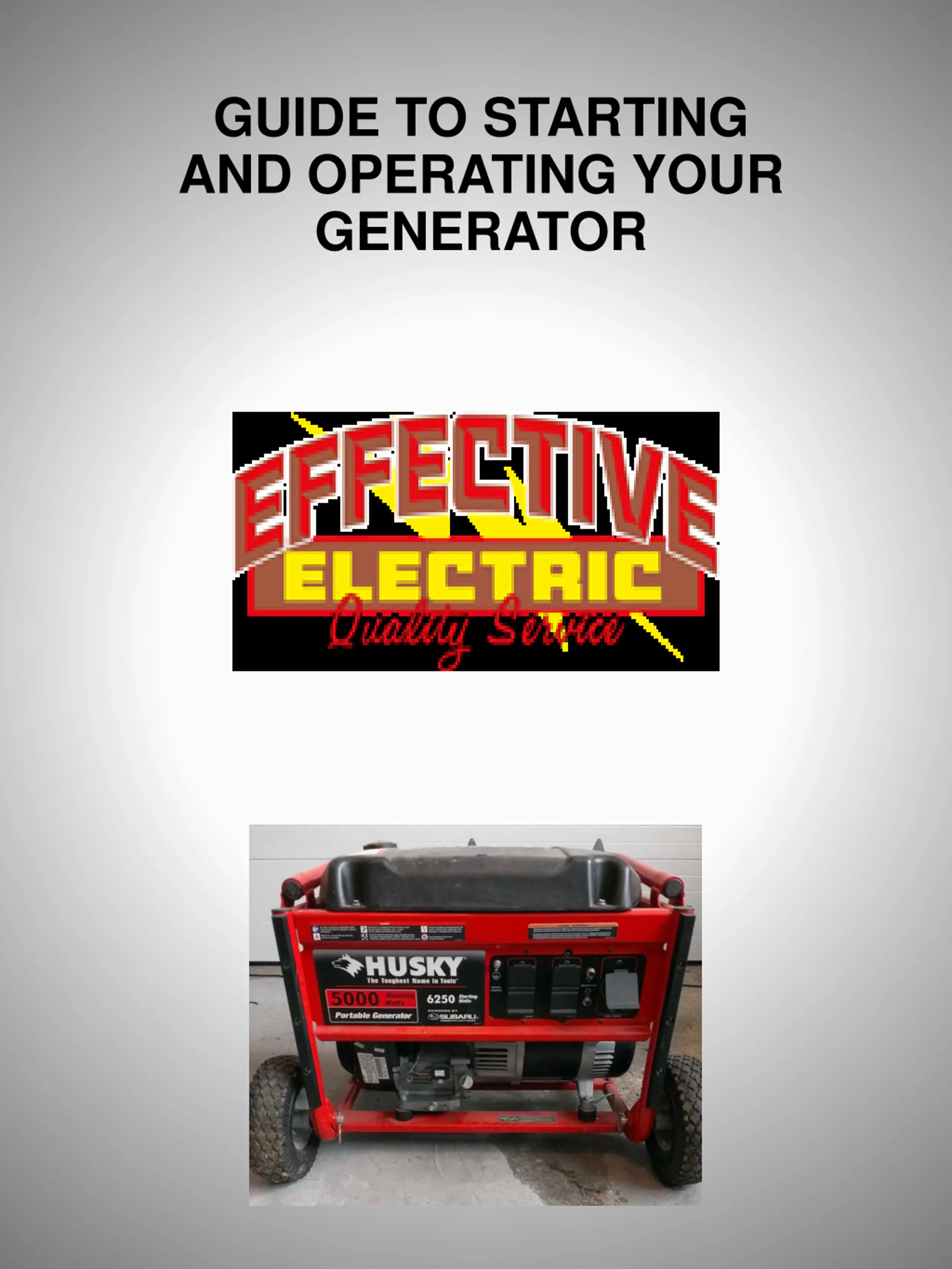

GUIDE TO STARTING AND OPERATING YOUR GENERATOR

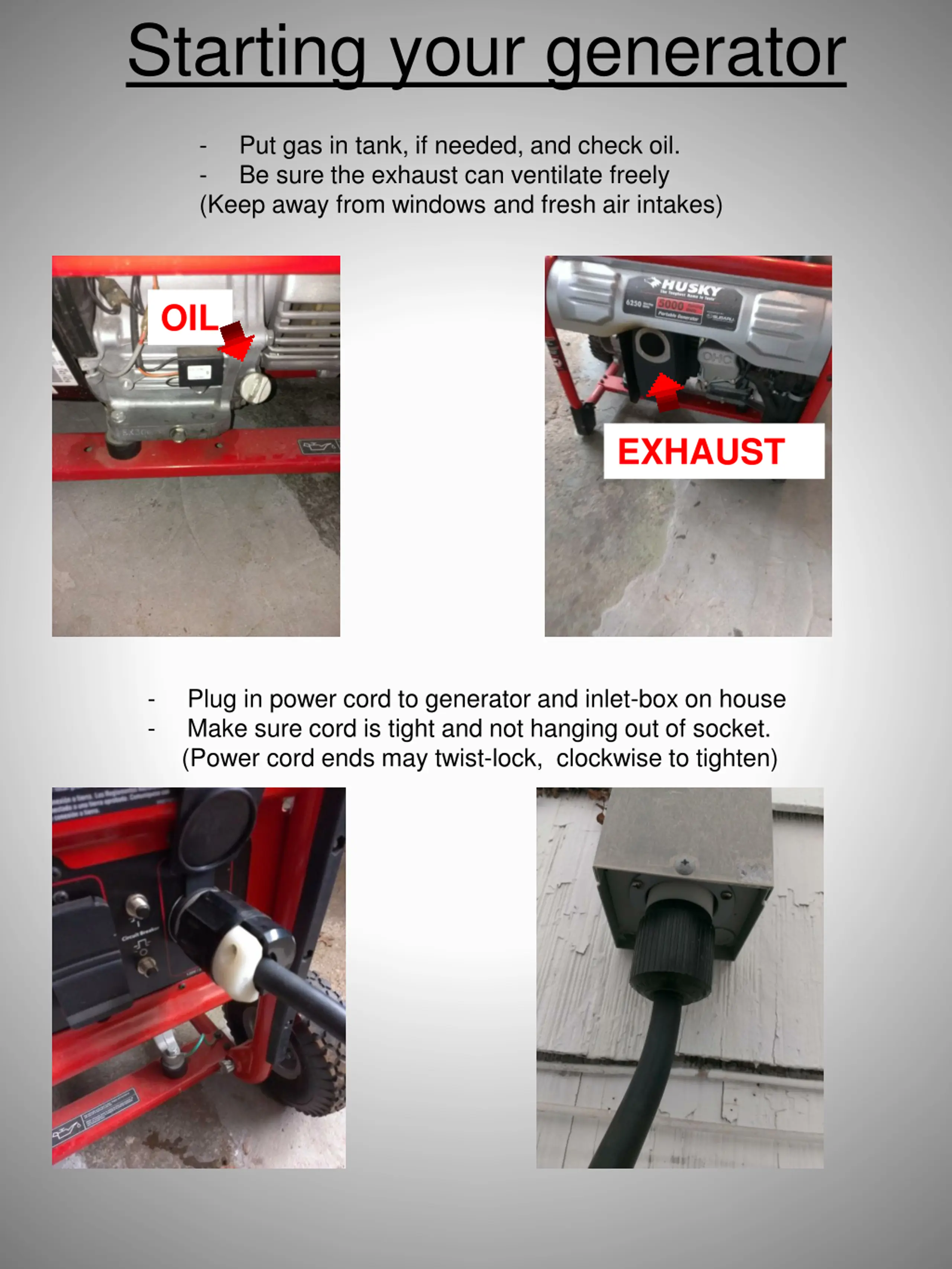

Starting your generator - - (Keep away from windows and fresh air intakes) Put gas in tank, if needed, and check oil. Be sure the exhaust can ventilate freely OIL EXHAUST - - (Power cord ends may twist-lock, clockwise to tighten) Plug in power cord to generator and inlet-box on house Make sure cord is tight and not hanging out of socket.

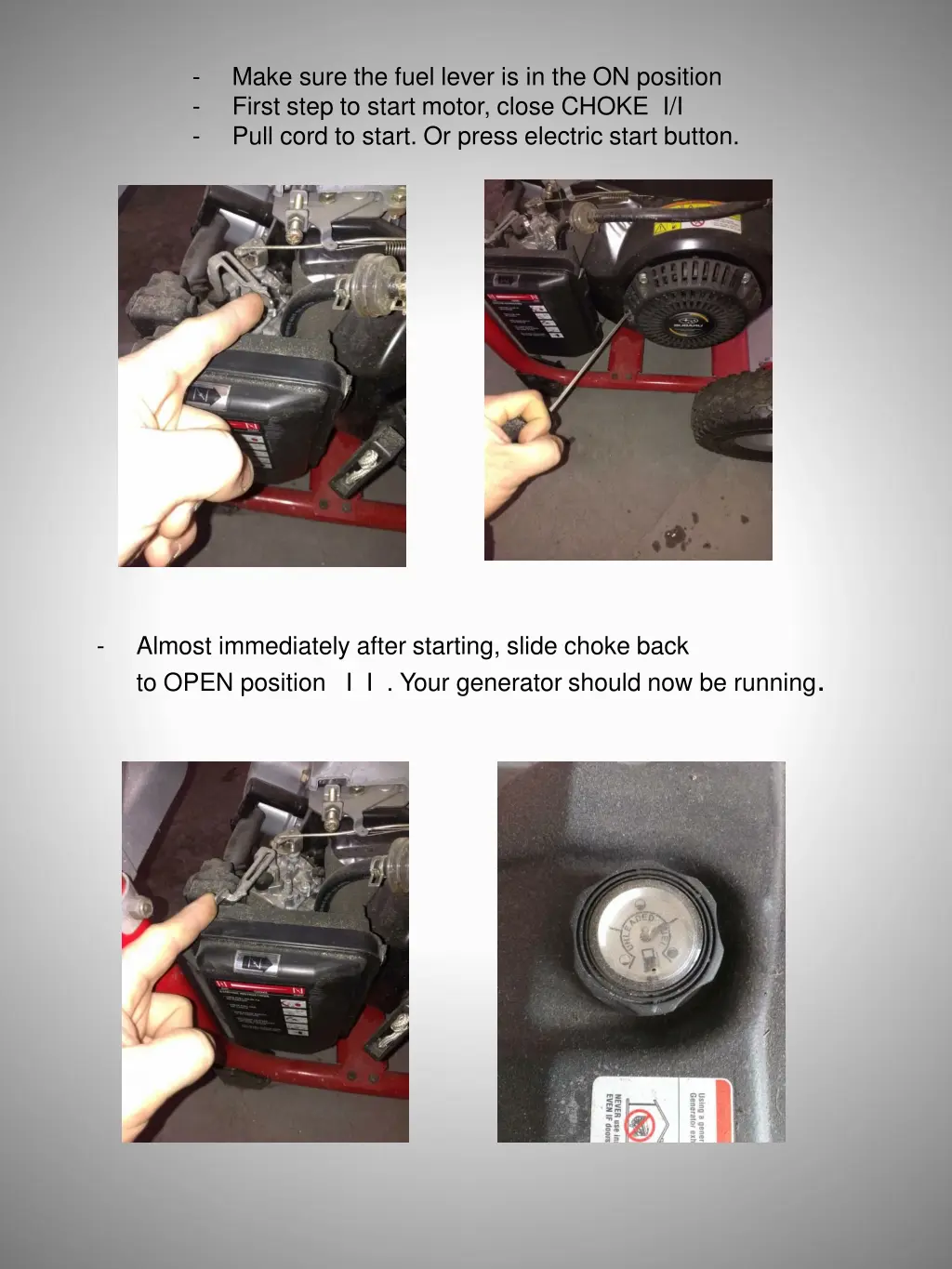

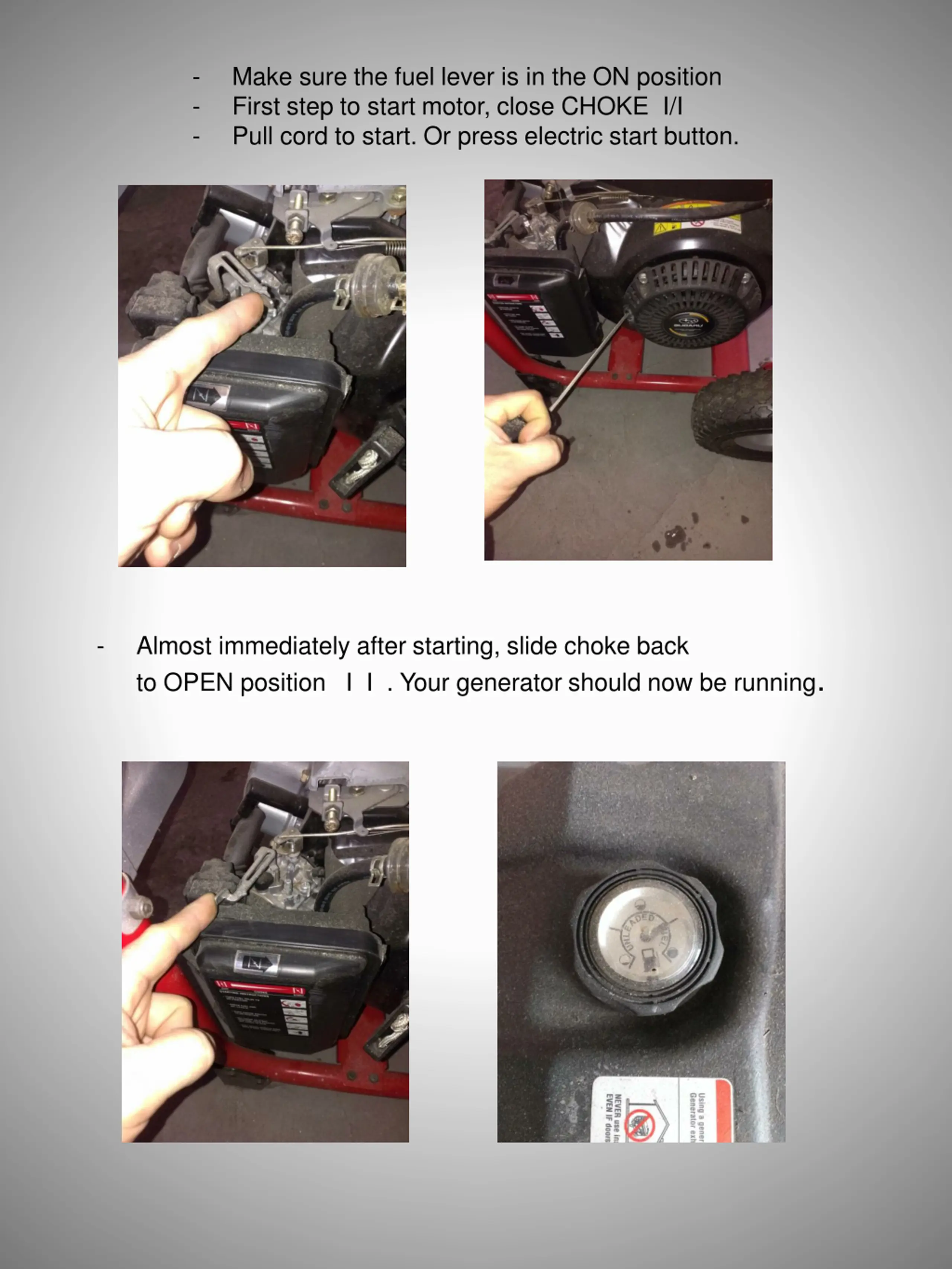

- - - Make sure the fuel lever is in the ON position First step to start motor, close CHOKE I/I Pull cord to start. Or press electric start button. - Almost immediately after starting, slide choke back to OPEN position I I . Your generator should now be running.

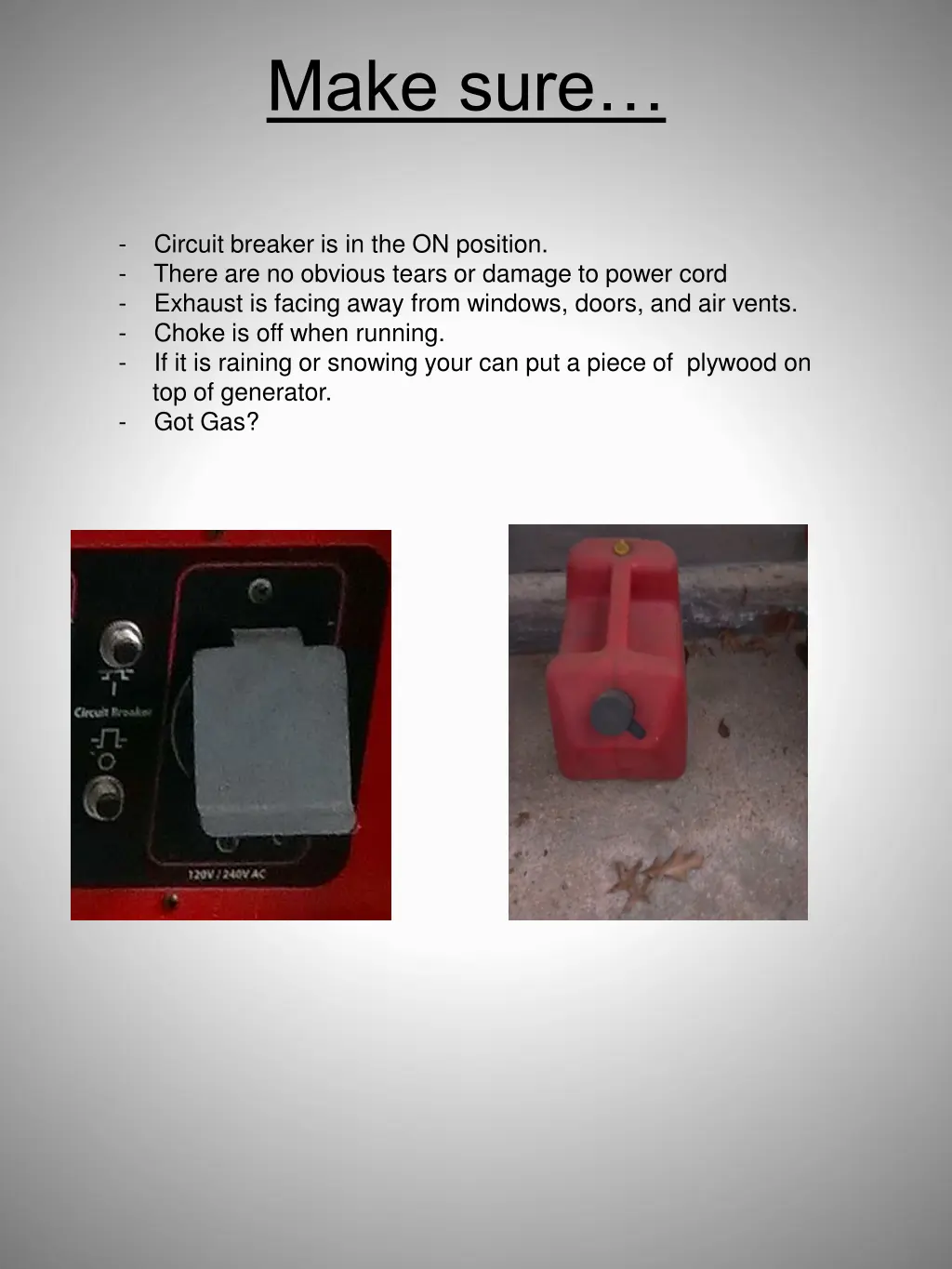

Make sure - Circuit breaker is in the ON position. - There are no obvious tears or damage to power cord - Exhaust is facing away from windows, doors, and air vents. - Choke is off when running. - If it is raining or snowing your can put a piece of plywood on top of generator. - Got Gas?

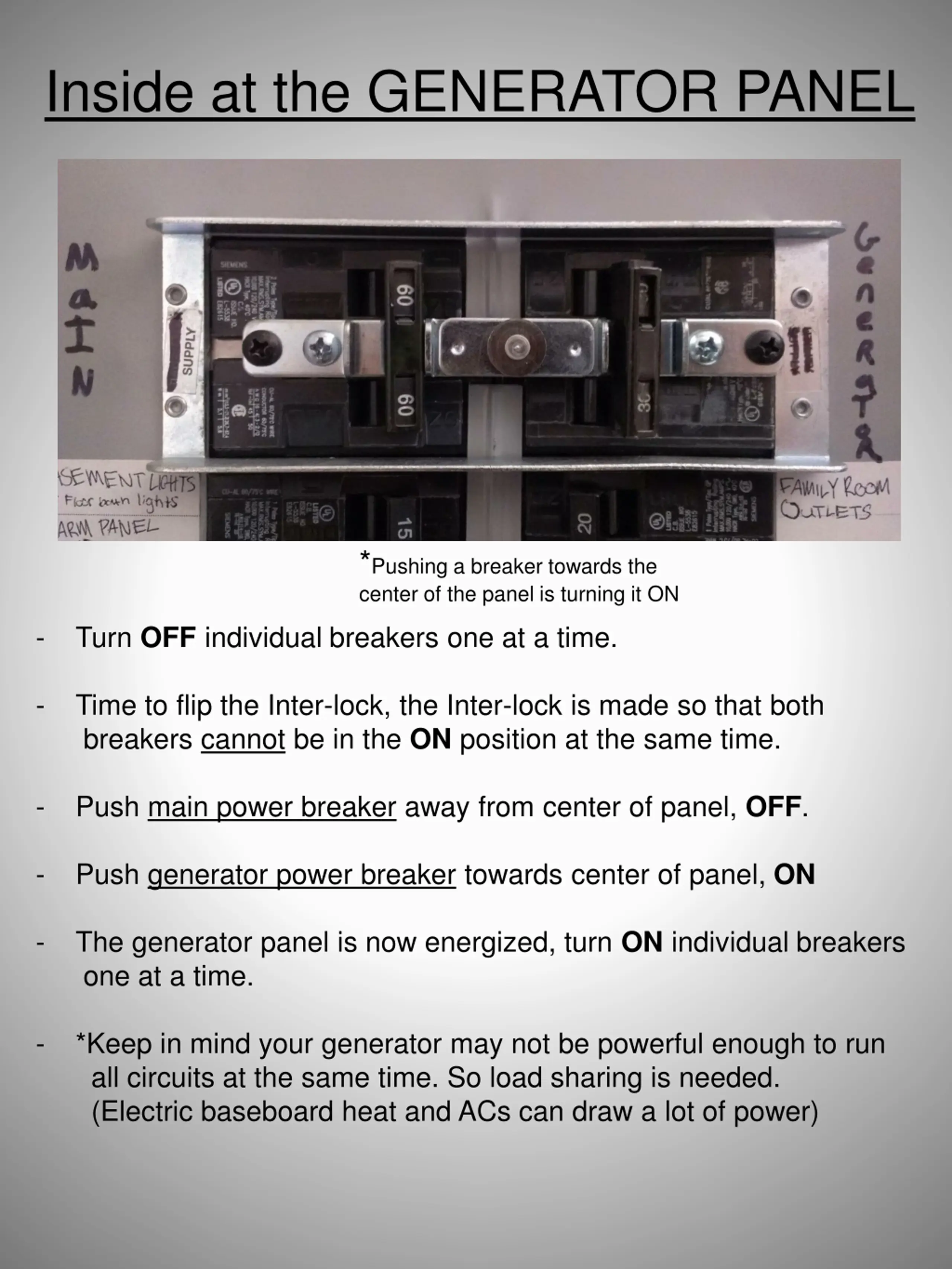

Inside at the GENERATOR PANEL *Pushing a breaker towards the center of the panel is turning it ON - Turn OFF individual breakers one at a time. - breakers cannot be in the ON position at the same time. Time to flip the Inter-lock, the Inter-lock is made so that both - Push main power breaker away from center of panel, OFF. - Push generator power breaker towards center of panel, ON - The generator panel is now energized, turn ON individual breakers one at a time. - *Keep in mind your generator may not be powerful enough to run all circuits at the same time. So load sharing is needed. (Electric baseboard heat and ACs can draw a lot of power)

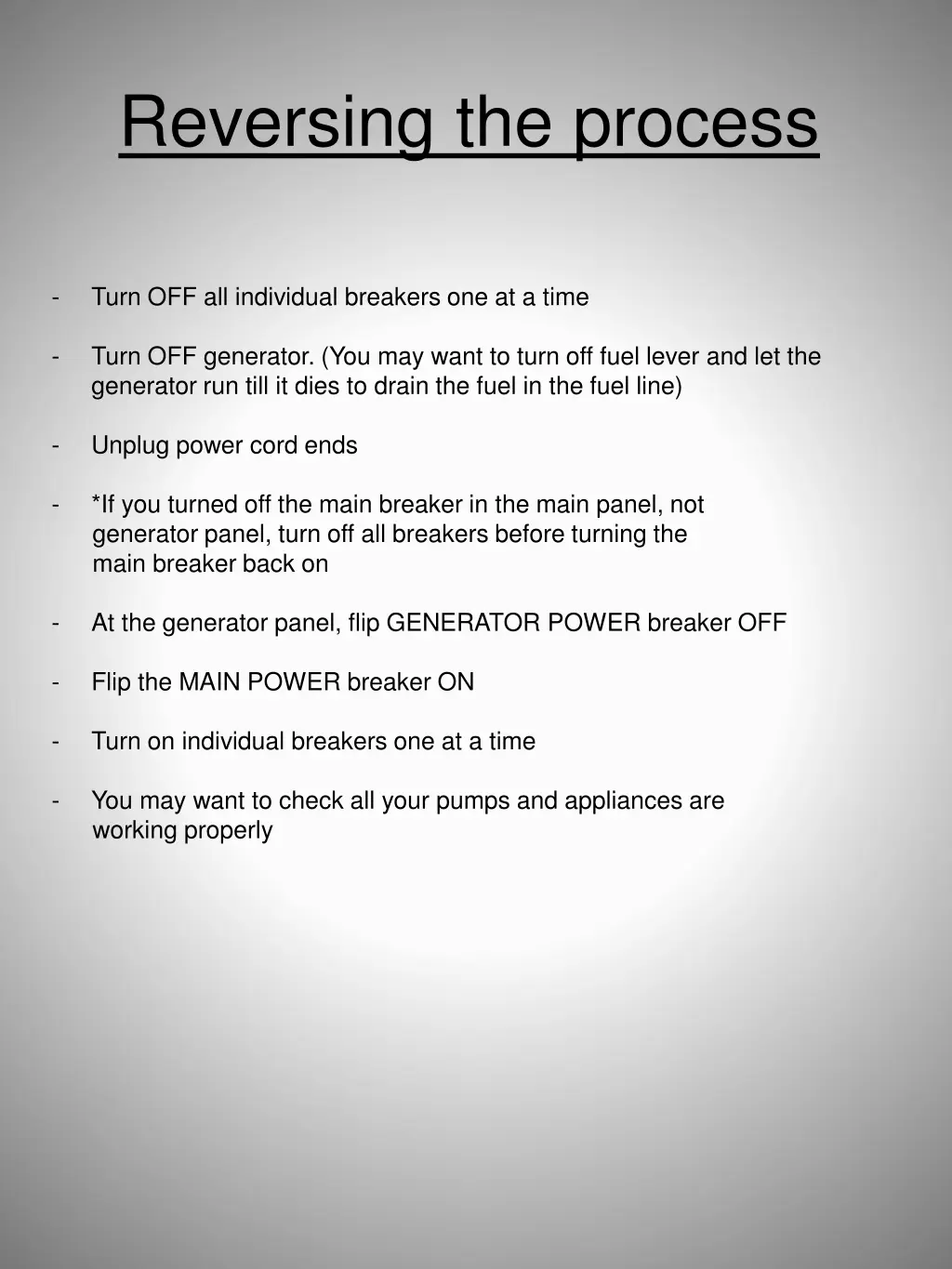

Reversing the process - Turn OFF all individual breakers one at a time - Turn OFF generator. (You may want to turn off fuel lever and let the generator run till it dies to drain the fuel in the fuel line) - Unplug power cord ends - generator panel, turn off all breakers before turning the main breaker back on *If you turned off the main breaker in the main panel, not - At the generator panel, flip GENERATOR POWER breaker OFF - Flip the MAIN POWER breaker ON - Turn on individual breakers one at a time - working properly You may want to check all your pumps and appliances are
