Presentation Transcript

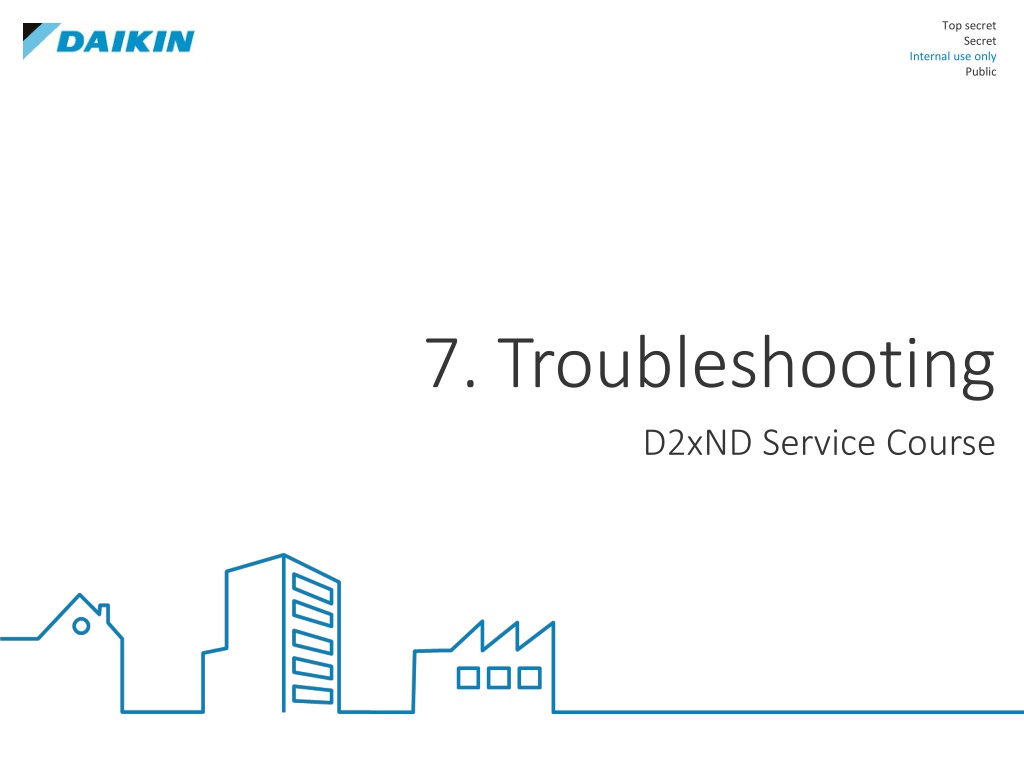

Top secret Secret Internal use only Public 7. Troubleshooting D2xND Service Course

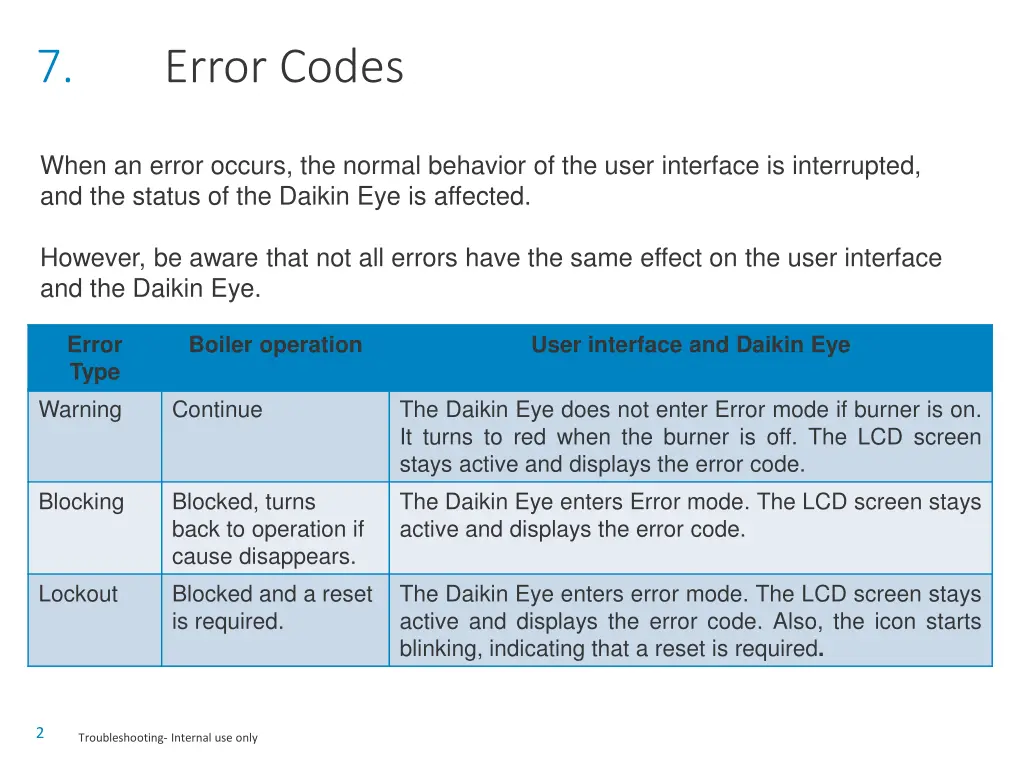

7. Error Codes When an error occurs, the normal behavior of the user interface is interrupted, and the status of the Daikin Eye is affected. However, be aware that not all errors have the same effect on the user interface and the Daikin Eye. Error Type Warning Boiler operation User interface and Daikin Eye Continue The Daikin Eye does not enter Error mode if burner is on. It turns to red when the burner is off. The LCD screen stays active and displays the error code. The Daikin Eye enters Error mode. The LCD screen stays active and displays the error code. Blocking Blocked, turns back to operation if cause disappears. Blocked and a reset is required. Lockout The Daikin Eye enters error mode. The LCD screen stays active and displays the error code. Also, the icon starts blinking, indicating that a reset is required. 2 Troubleshooting- Internal use only

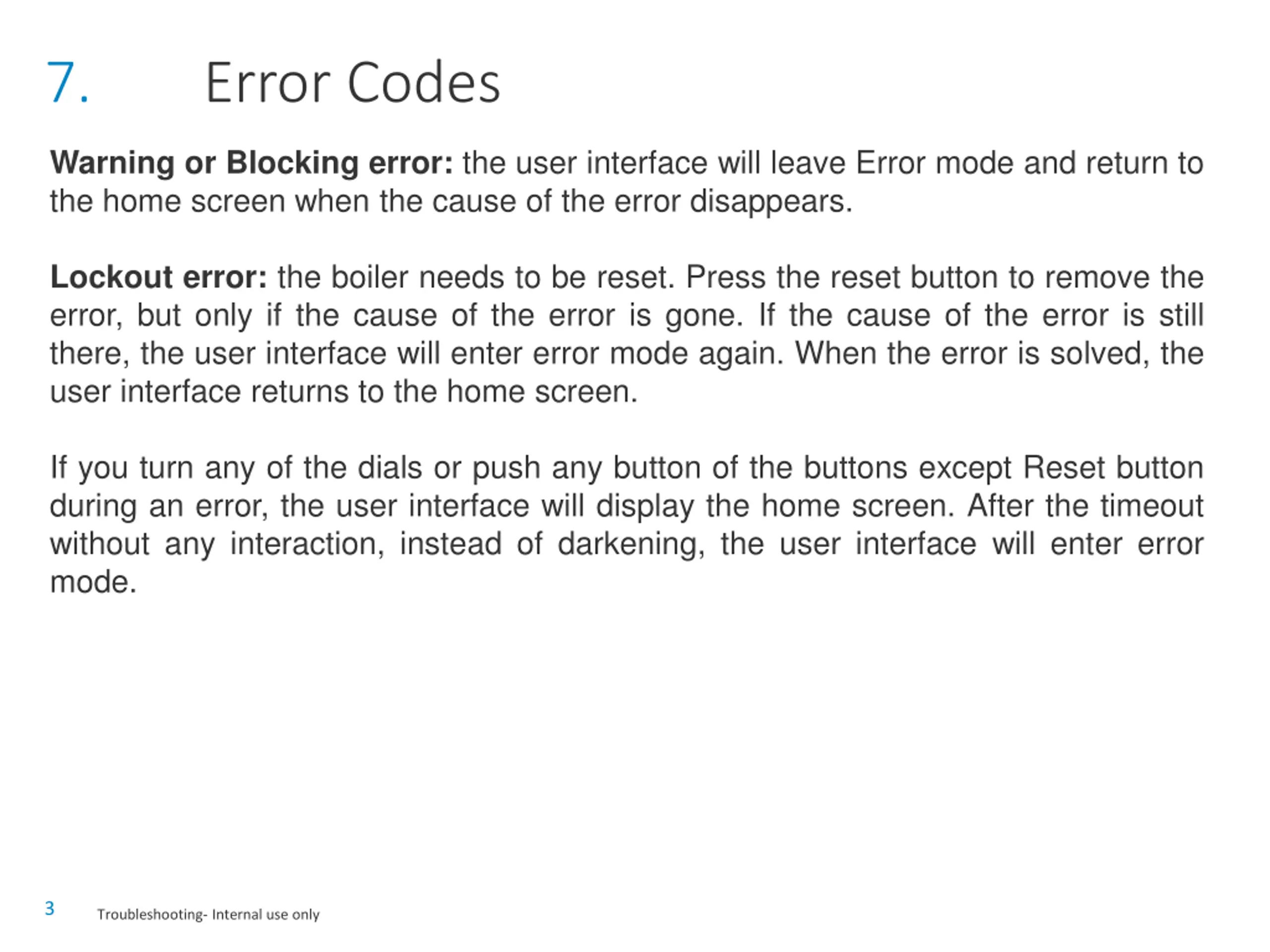

7. Error Codes Warning or Blocking error: the user interface will leave Error mode and return to the home screen when the cause of the error disappears. Lockout error: the boiler needs to be reset. Press the reset button to remove the error, but only if the cause of the error is gone. If the cause of the error is still there, the user interface will enter error mode again. When the error is solved, the user interface returns to the home screen. If you turn any of the dials or push any button of the buttons except Reset button during an error, the user interface will display the home screen. After the timeout without any interaction, instead of darkening, the user interface will enter error mode. 3 Troubleshooting- Internal use only
Thank you Thank you
