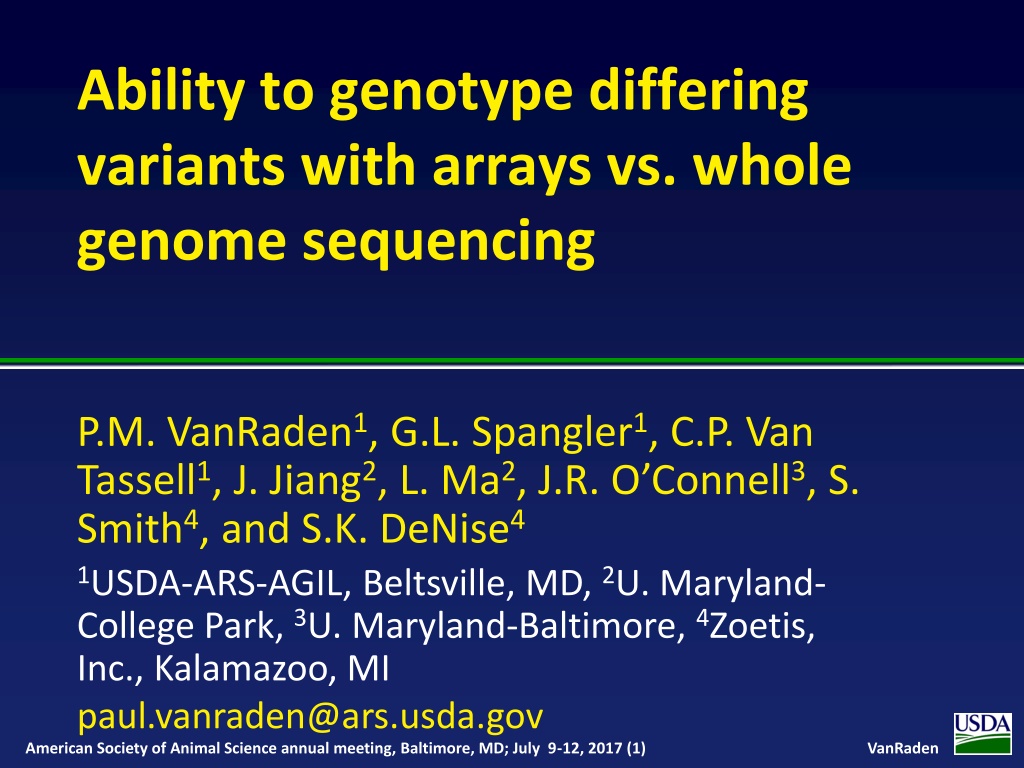

Ability to genotype differing variants with arrays vs. whole genome sequencing P.M. VanRaden1, G.L. Spangler1, C.P. Van Tassell1, J. Jiang2, L. Ma2, J.R. O Connell3, S. Smith4, and S.K. DeNise4 1USDA-ARS-AGIL, Beltsville, MD, 2U. Maryland- College Park, 3U. Maryland-Baltimore, 4Zoetis, Inc., Kalamazoo, MI paul.vanraden@ars.usda.gov American Society of Animal Science annual meeting, Baltimore, MD; July 9-12, 2017 (1) VanRaden

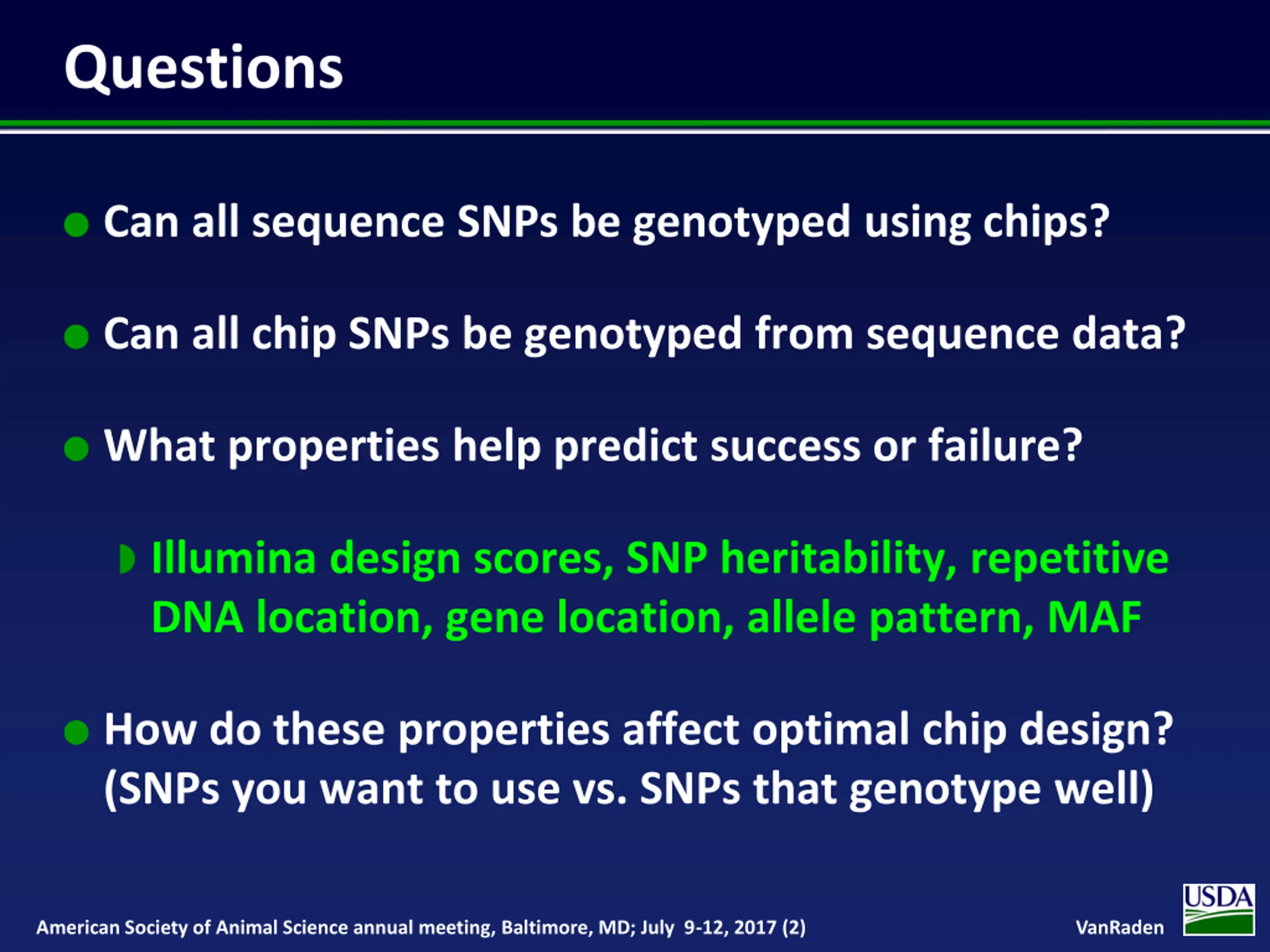

Questions l Can all sequence SNPs be genotyped using chips? l Can all chip SNPs be genotyped from sequence data? l What properties help predict success or failure? w Illumina design scores, SNP heritability, repetitive DNA location, gene location, allele pattern, MAF l How do these properties affect optimal chip design? (SNPs you want to use vs. SNPs that genotype well) American Society of Animal Science annual meeting, Baltimore, MD; July 9-12, 2017 (2) VanRaden

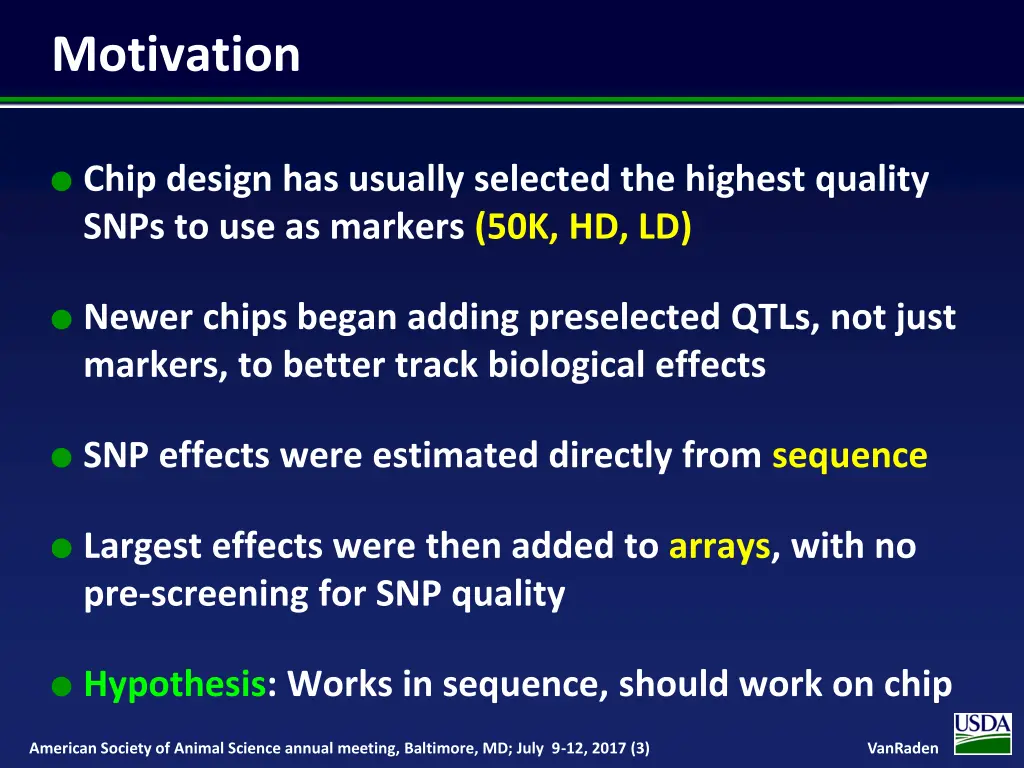

Motivation l Chip design has usually selected the highest quality SNPs to use as markers (50K, HD, LD) l Newer chips began adding preselected QTLs, not just markers, to better track biological effects l SNP effects were estimated directly from sequence l Largest effects were then added to arrays, with no pre-screening for SNP quality l Hypothesis: Works in sequence, should work on chip American Society of Animal Science annual meeting, Baltimore, MD; July 9-12, 2017 (3) VanRaden

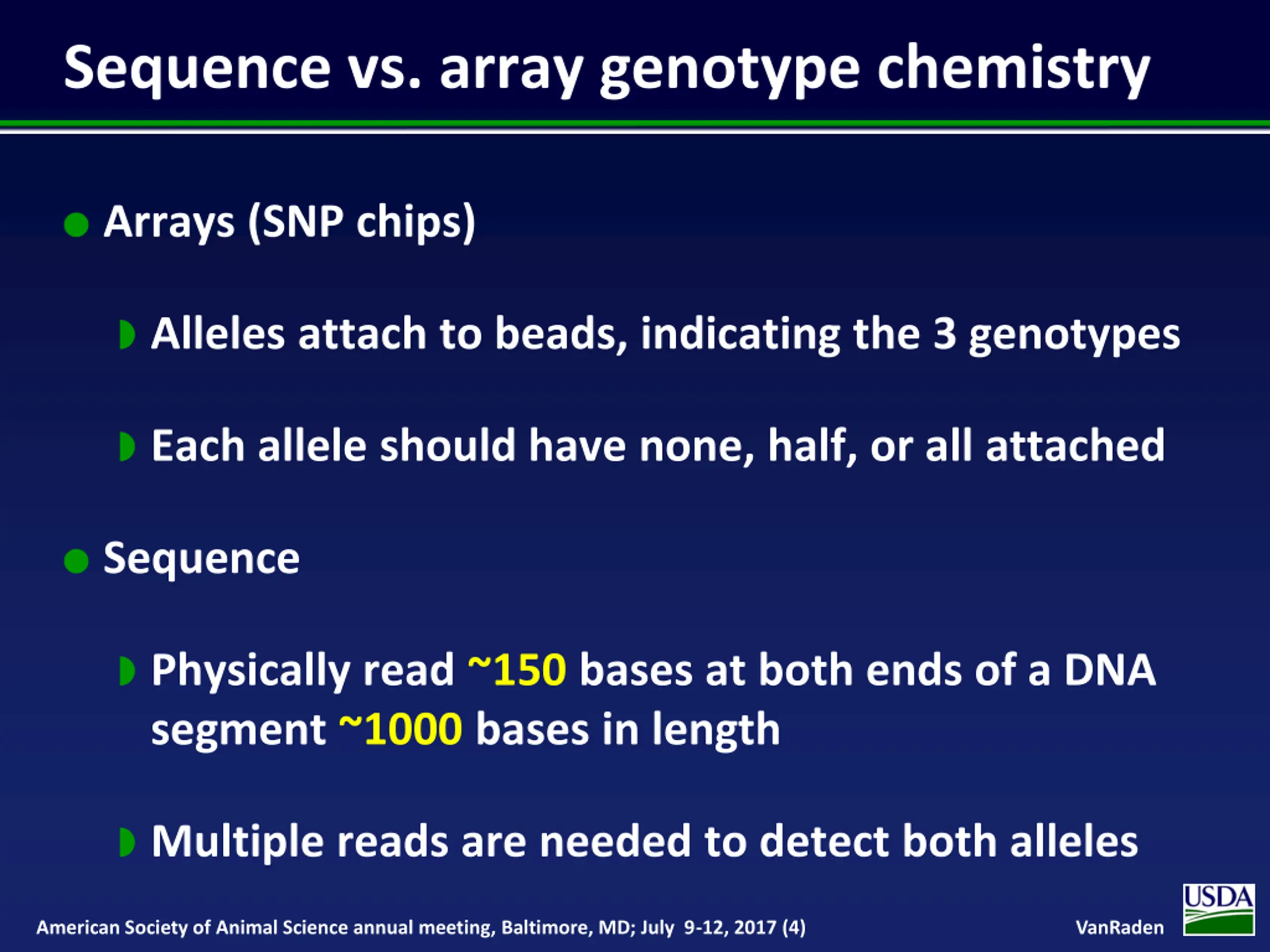

Sequence vs. array genotype chemistry l Arrays (SNP chips) w Alleles attach to beads, indicating the 3 genotypes w Each allele should have none, half, or all attached l Sequence w Physically read ~150 bases at both ends of a DNA segment ~1000 bases in length w Multiple reads are needed to detect both alleles American Society of Animal Science annual meeting, Baltimore, MD; July 9-12, 2017 (4) VanRaden

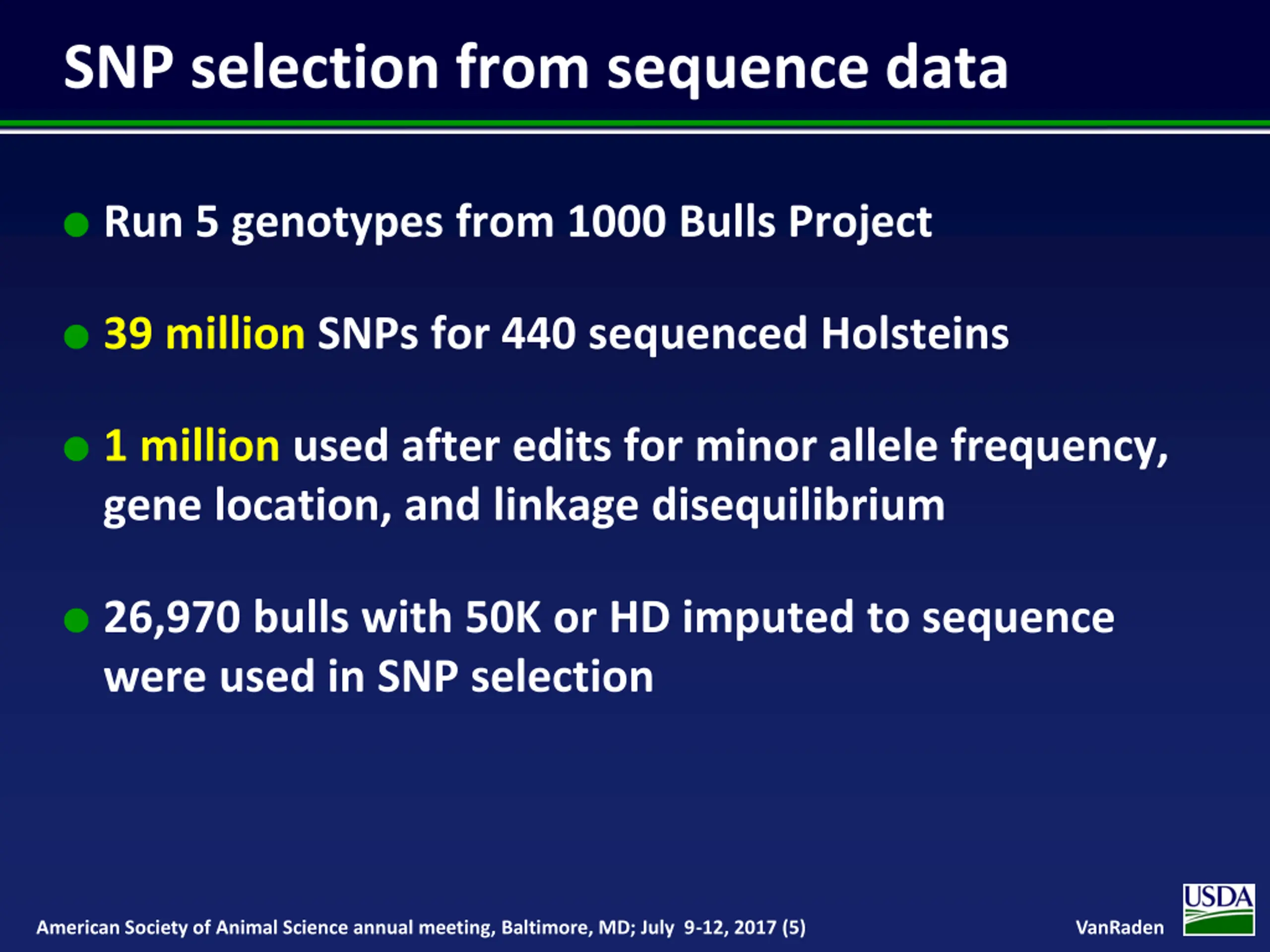

SNP selection from sequence data l Run 5 genotypes from 1000 Bulls Project l 39 million SNPs for 440 sequenced Holsteins l 1 million used after edits for minor allele frequency, gene location, and linkage disequilibrium l 26,970 bulls with 50K or HD imputed to sequence were used in SNP selection American Society of Animal Science annual meeting, Baltimore, MD; July 9-12, 2017 (5) VanRaden

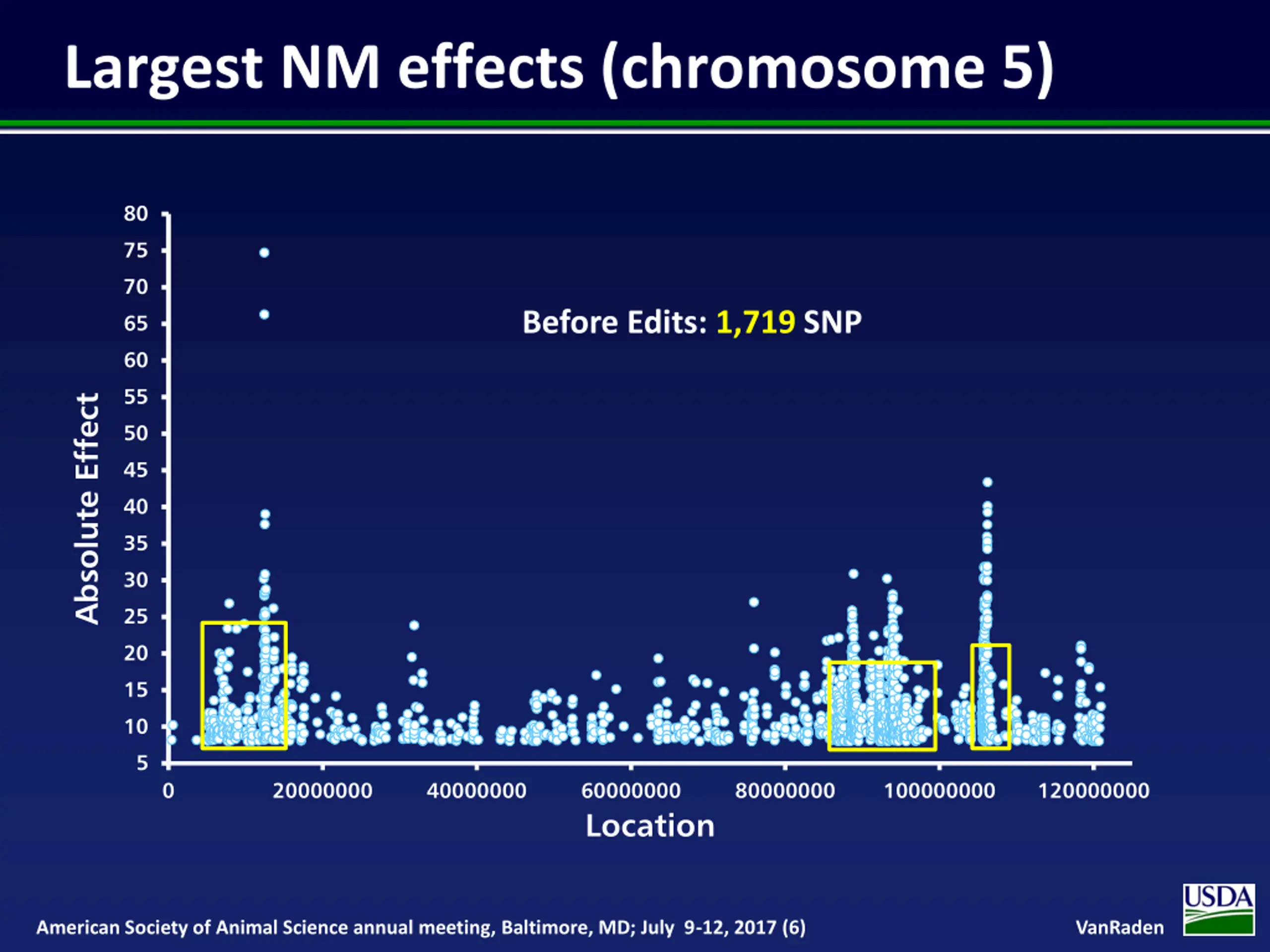

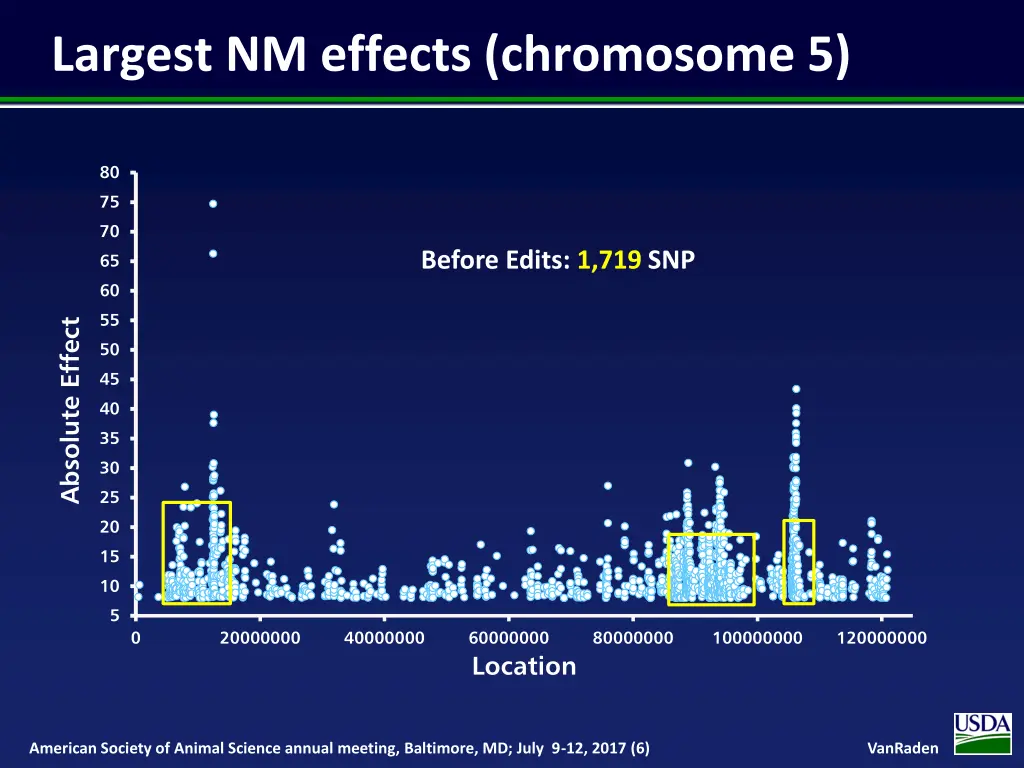

Largest NM effects (chromosome 5) 80 75 70 Before Edits: 1,719 SNP 65 60 55 Absolute Effect 50 45 40 35 30 25 20 15 10 5 0 20000000 40000000 60000000 Location 80000000 100000000 120000000 American Society of Animal Science annual meeting, Baltimore, MD; July 9-12, 2017 (6) VanRaden

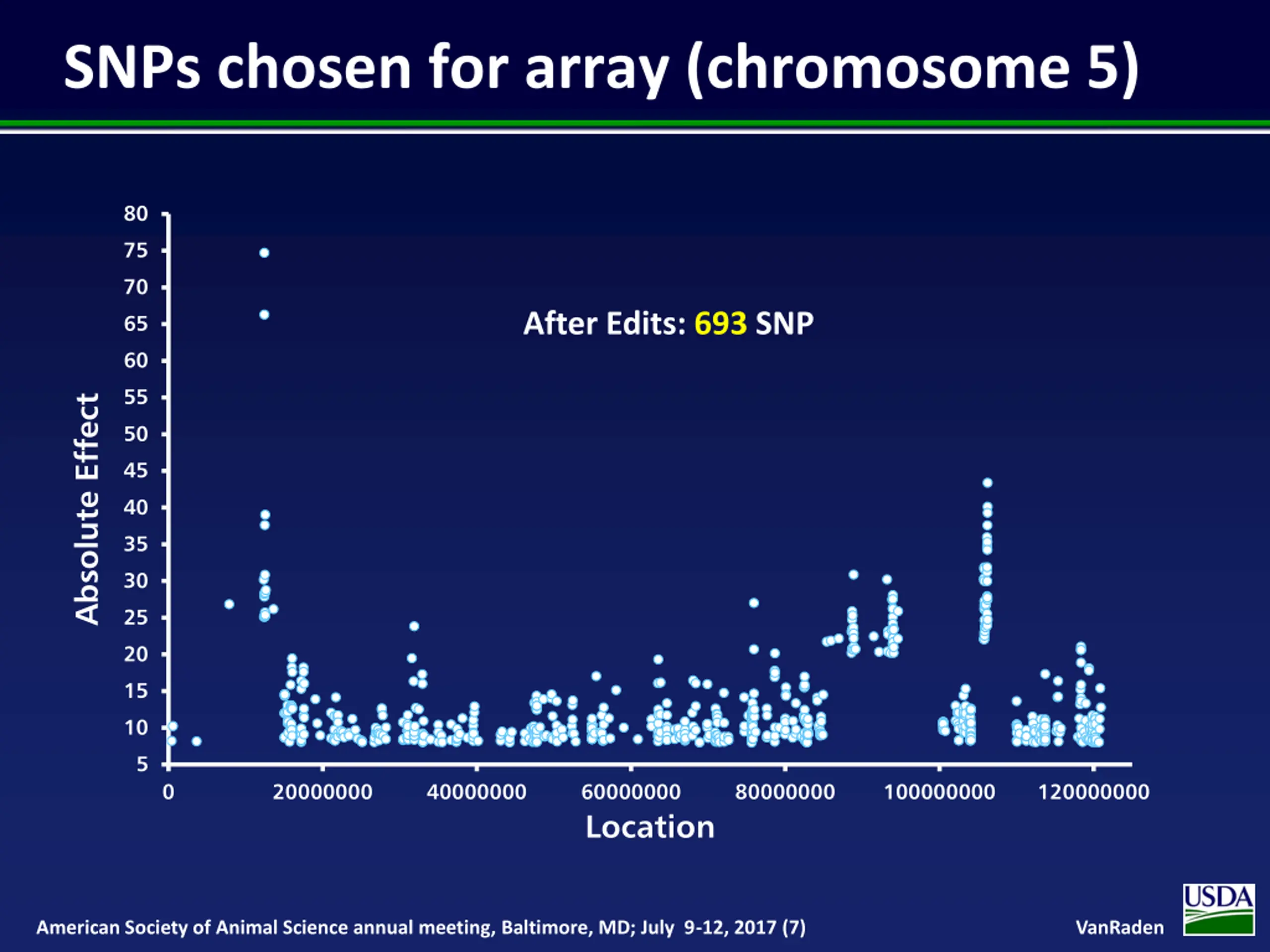

SNPs chosen for array (chromosome 5) 80 75 70 After Edits: 693 SNP 65 60 55 Absolute Effect 50 45 40 35 30 25 20 15 10 5 0 20000000 40000000 60000000 Location 80000000 100000000 120000000 American Society of Animal Science annual meeting, Baltimore, MD; July 9-12, 2017 (7) VanRaden

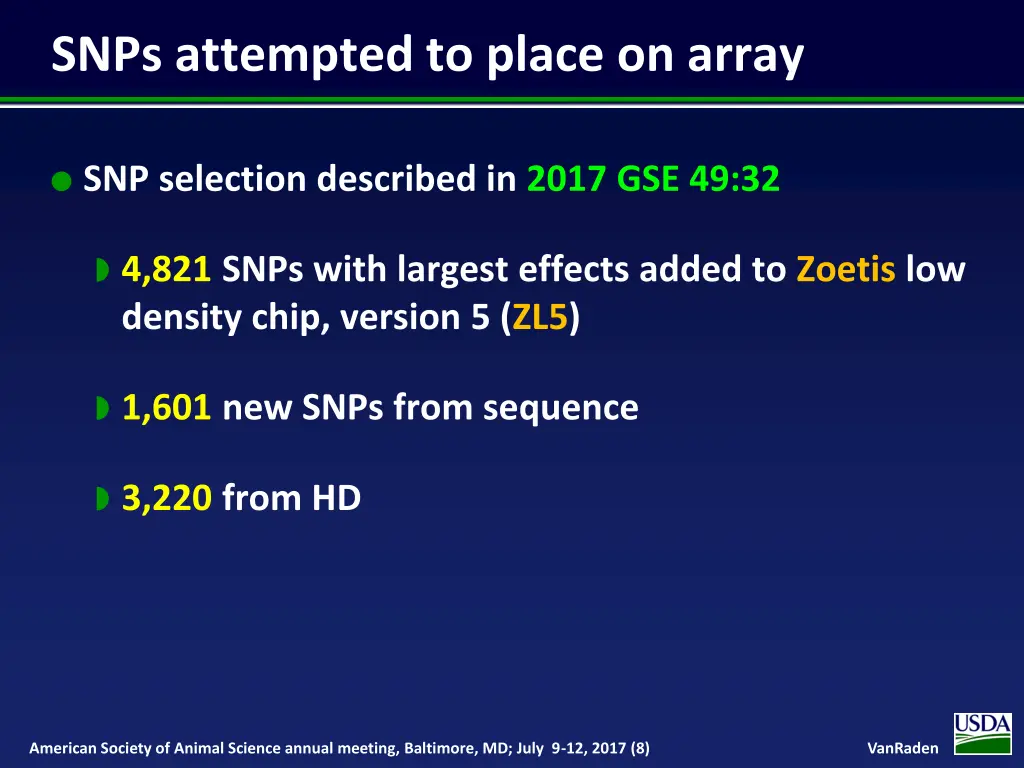

SNPs attempted to place on array l SNP selection described in 2017 GSE 49:32 w 4,821 SNPs with largest effects added to Zoetis low density chip, version 5 (ZL5) w 1,601 new SNPs from sequence w 3,220 from HD American Society of Animal Science annual meeting, Baltimore, MD; July 9-12, 2017 (8) VanRaden

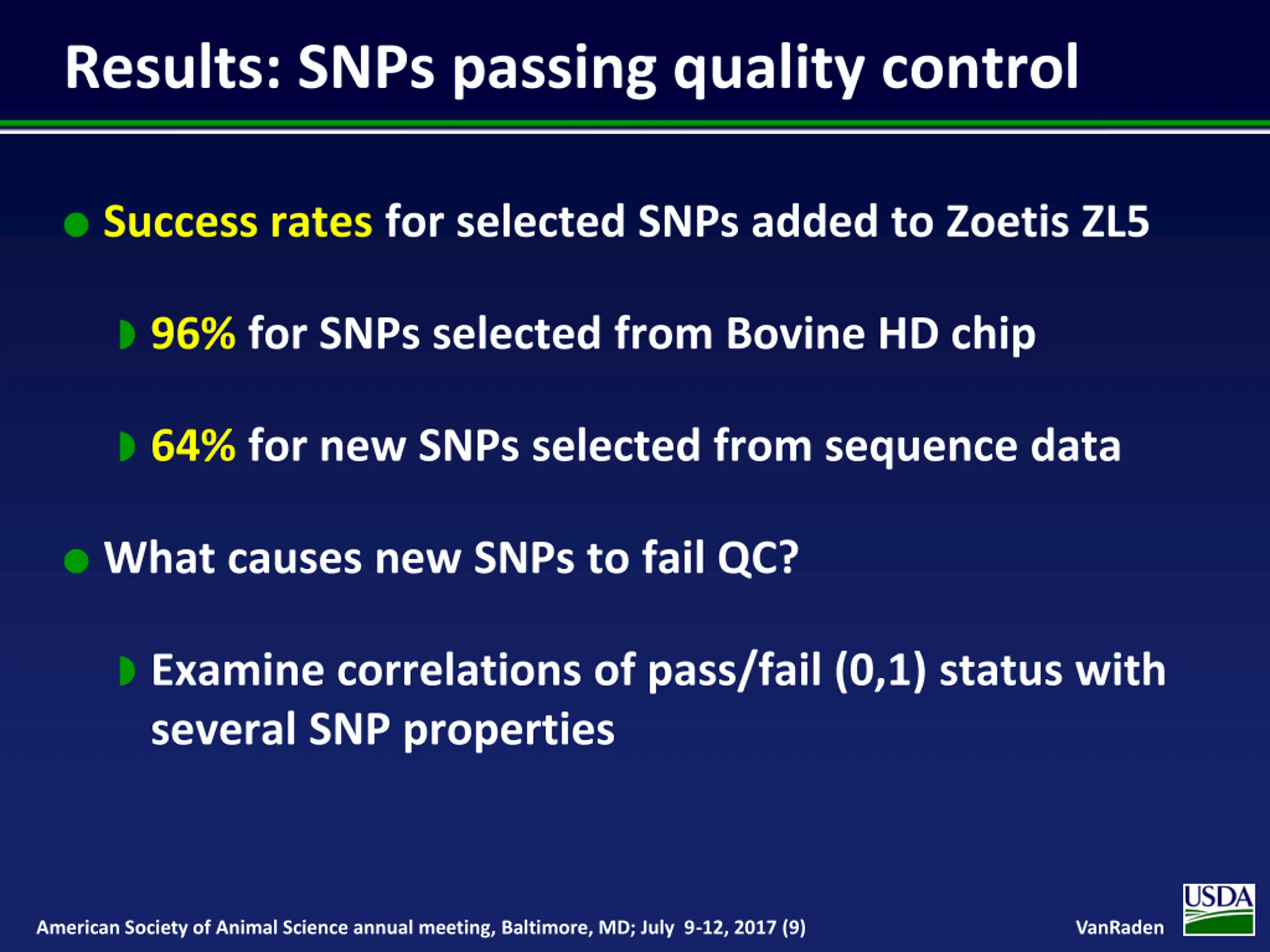

Results: SNPs passing quality control l Success rates for selected SNPs added to Zoetis ZL5 w 96% for SNPs selected from Bovine HD chip w 64% for new SNPs selected from sequence data l What causes new SNPs to fail QC? w Examine correlations of pass/fail (0,1) status with several SNP properties American Society of Animal Science annual meeting, Baltimore, MD; July 9-12, 2017 (9) VanRaden

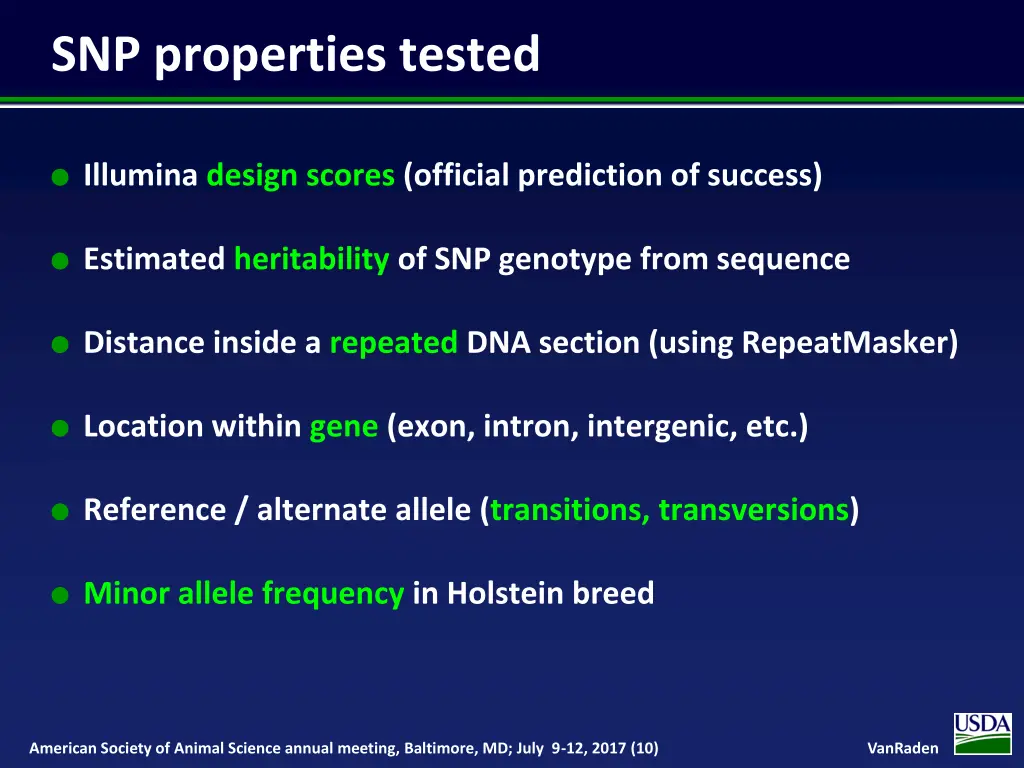

SNP properties tested l Illumina design scores (official prediction of success) l Estimated heritability of SNP genotype from sequence l Distance inside a repeated DNA section (using RepeatMasker) l Location within gene (exon, intron, intergenic, etc.) l Reference / alternate allele (transitions, transversions) l Minor allele frequency in Holstein breed American Society of Animal Science annual meeting, Baltimore, MD; July 9-12, 2017 (10) VanRaden

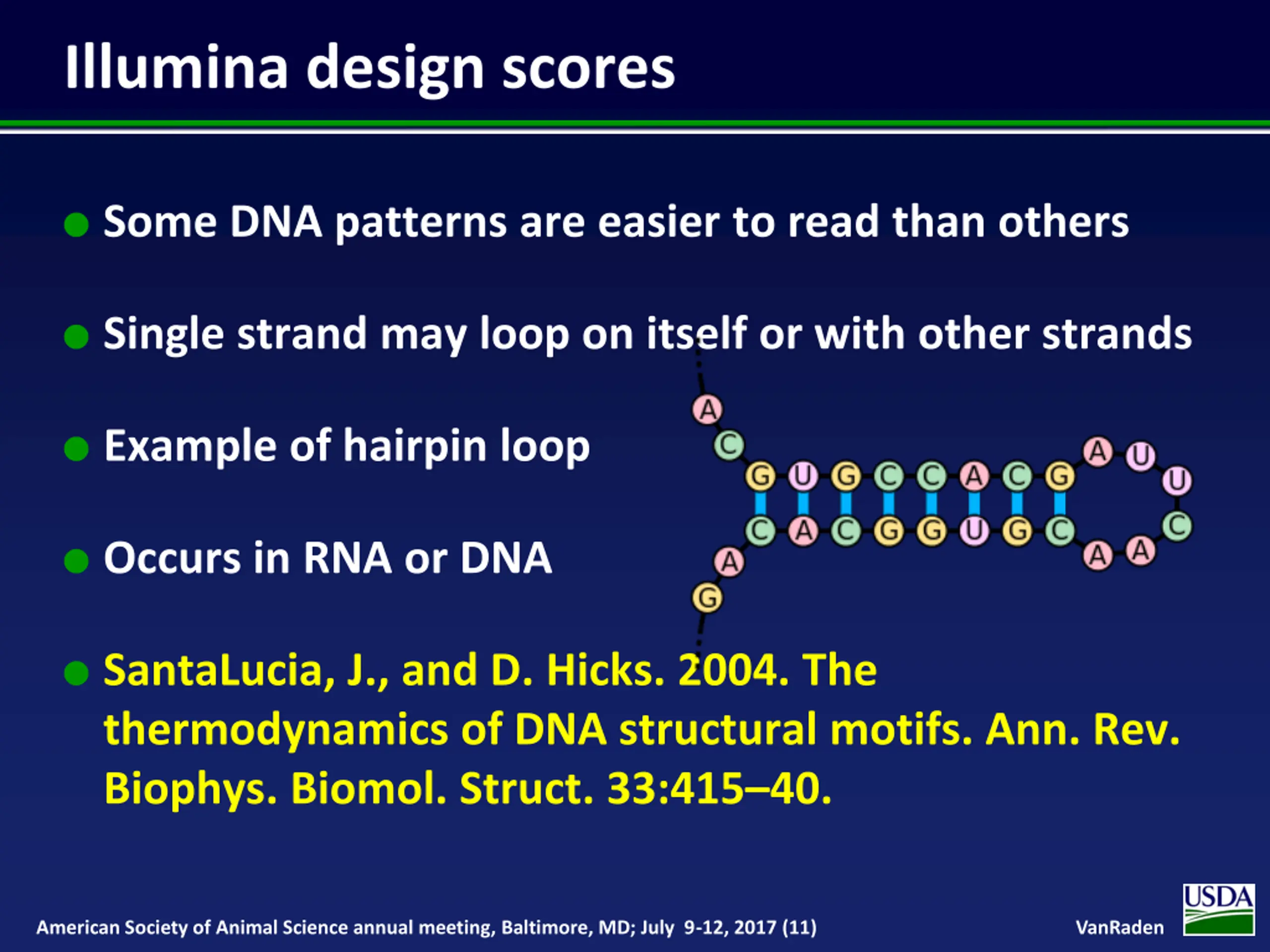

Illumina design scores l Some DNA patterns are easier to read than others l Single strand may loop on itself or with other strands l Example of hairpin loop l Occurs in RNA or DNA l SantaLucia, J., and D. Hicks. 2004. The thermodynamics of DNA structural motifs. Ann. Rev. Biophys. Biomol. Struct. 33:415 40. American Society of Animal Science annual meeting, Baltimore, MD; July 9-12, 2017 (11) VanRaden

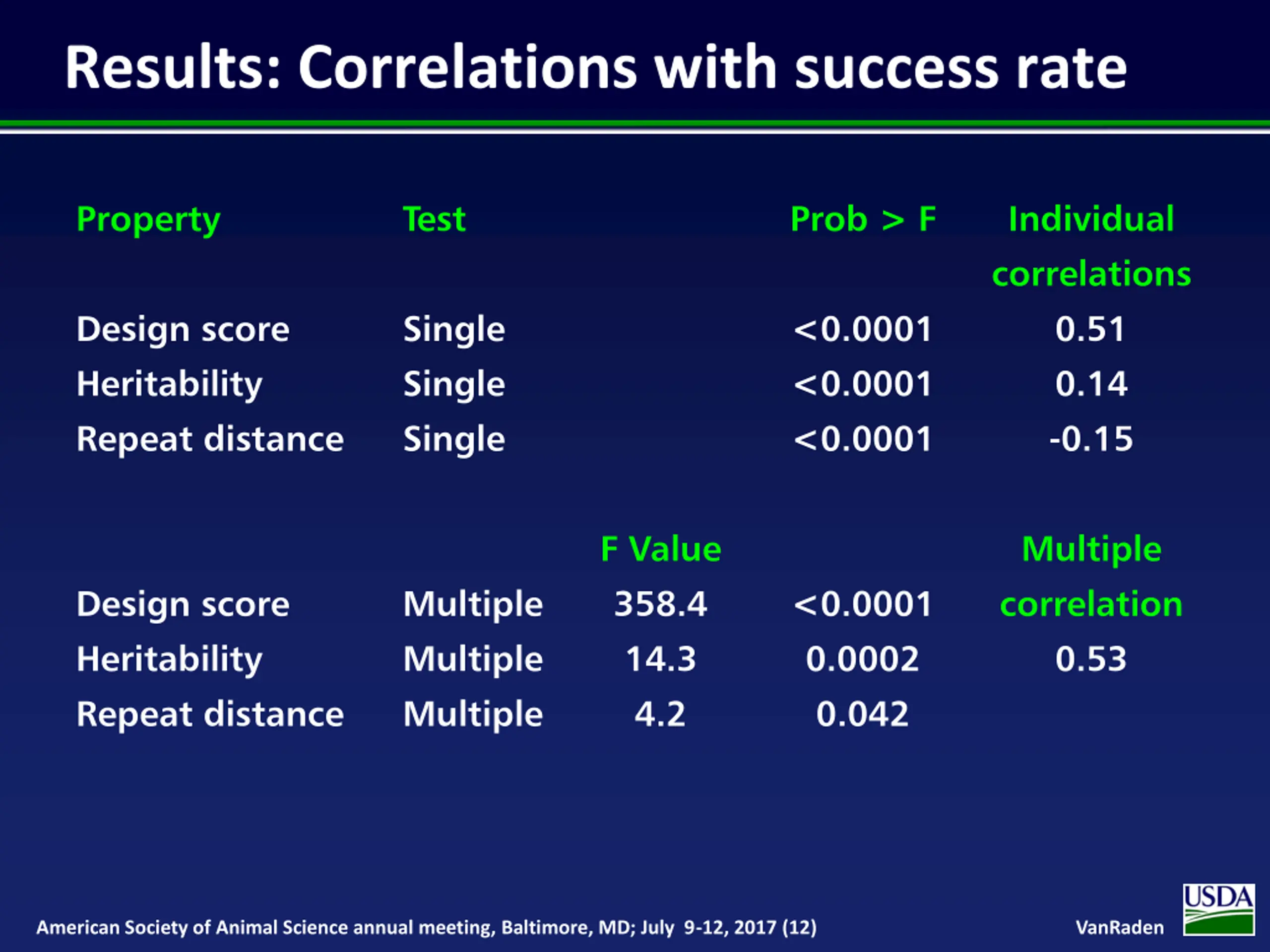

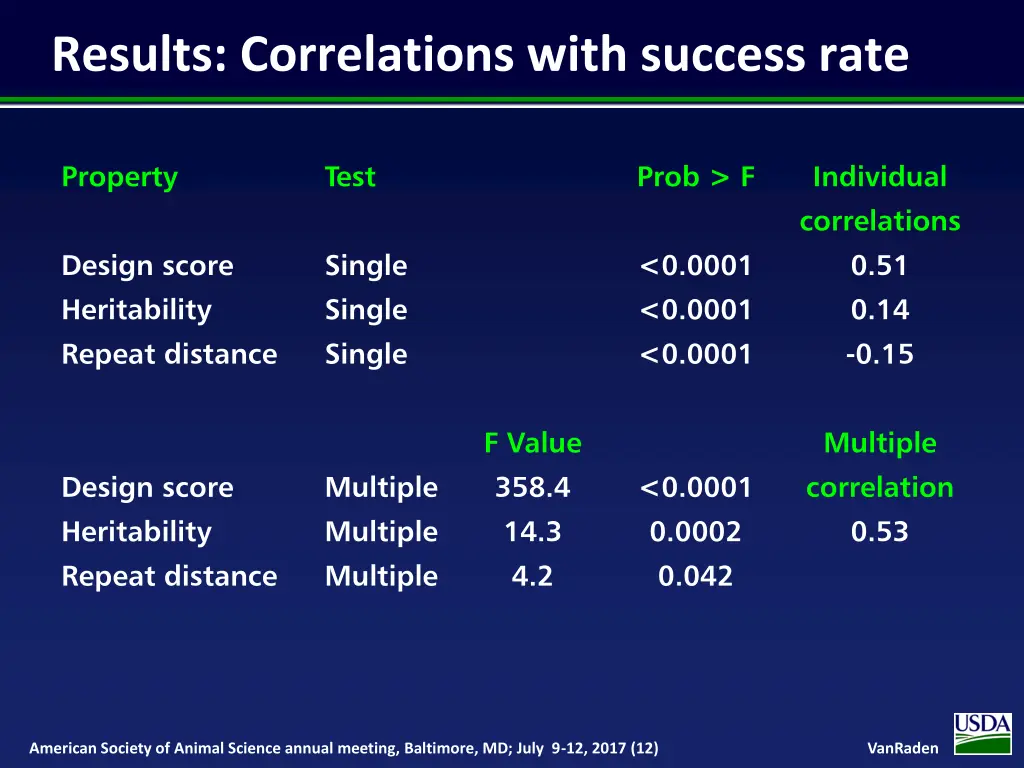

Results: Correlations with success rate Property Test Prob > F Individual correlations 0.51 0.14 -0.15 Design score Heritability Repeat distance Single Single Single <0.0001 <0.0001 <0.0001 F Value 358.4 14.3 4.2 Multiple correlation 0.53 Design score Heritability Repeat distance Multiple Multiple Multiple <0.0001 0.0002 0.042 American Society of Animal Science annual meeting, Baltimore, MD; July 9-12, 2017 (12) VanRaden

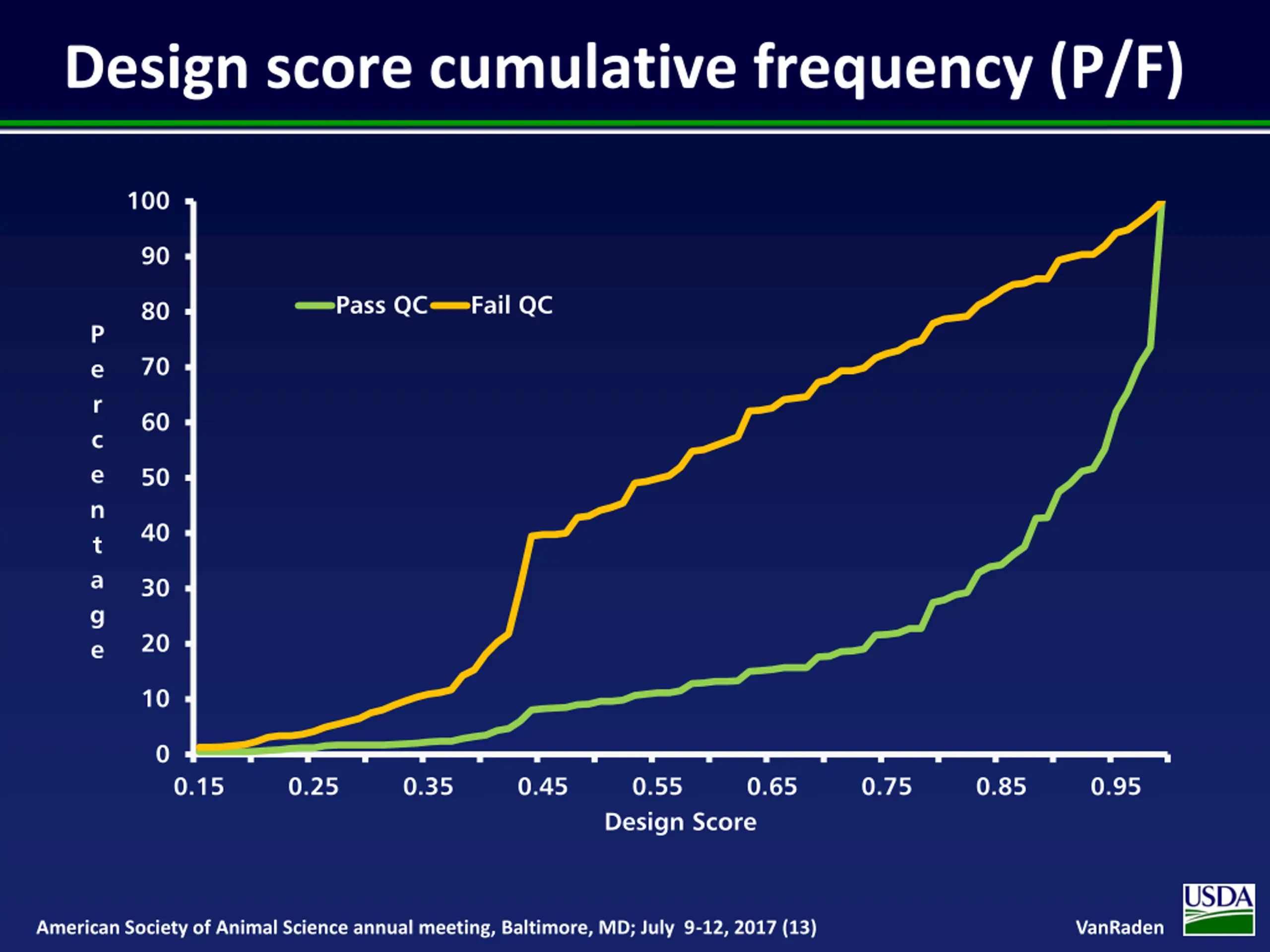

Design score cumulative frequency (P/F) 100 90 Pass QC Fail QC 80 P e r c e n t a g e 70 60 50 40 30 20 10 0 0.15 0.25 0.35 0.45 0.55 0.65 0.75 0.85 0.95 Design Score American Society of Animal Science annual meeting, Baltimore, MD; July 9-12, 2017 (13) VanRaden

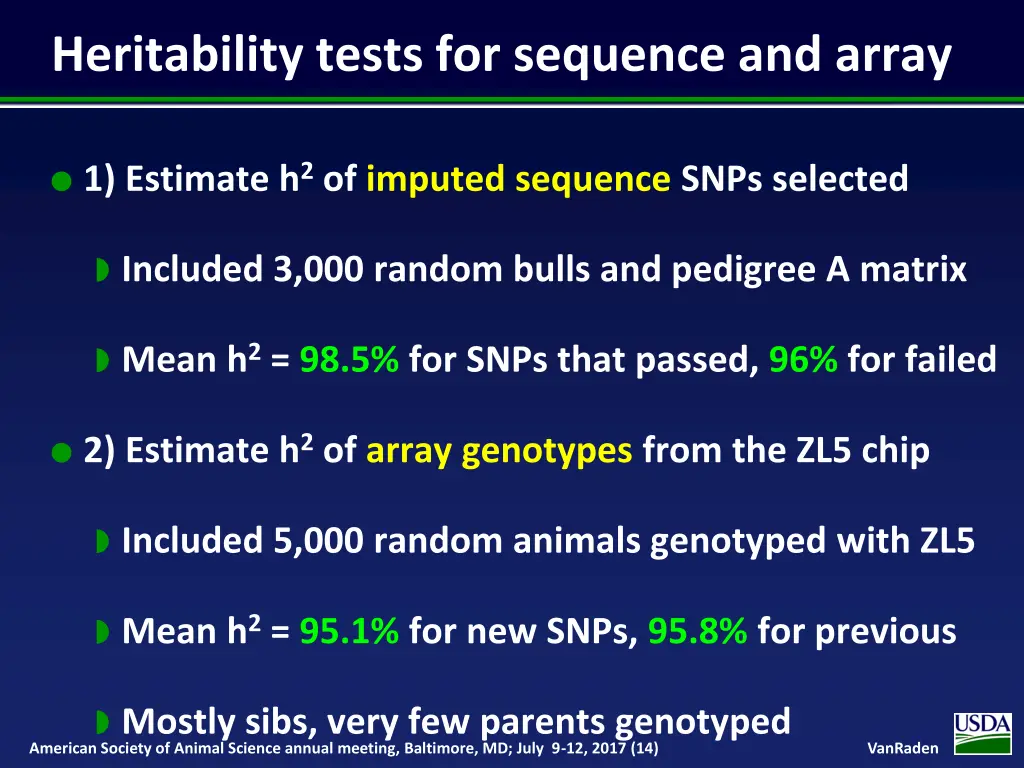

Heritability tests for sequence and array l 1) Estimate h2 of imputed sequence SNPs selected w Included 3,000 random bulls and pedigree A matrix w Mean h2 = 98.5% for SNPs that passed, 96% for failed l 2) Estimate h2 of array genotypes from the ZL5 chip w Included 5,000 random animals genotyped with ZL5 w Mean h2 = 95.1% for new SNPs, 95.8% for previous w Mostly sibs, very few parents genotyped American Society of Animal Science annual meeting, Baltimore, MD; July 9-12, 2017 (14) VanRaden

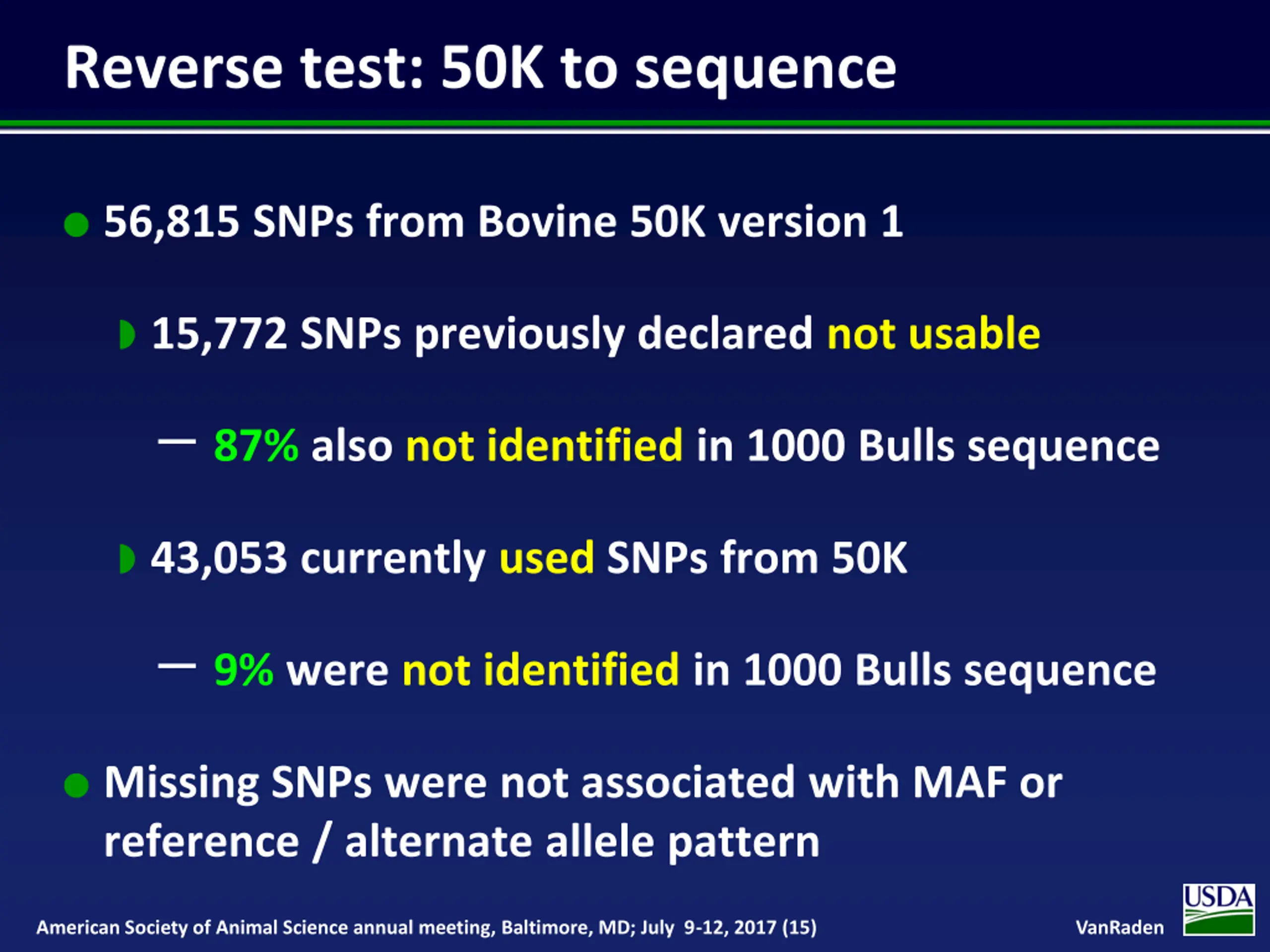

Reverse test: 50K to sequence l 56,815 SNPs from Bovine 50K version 1 w 15,772 SNPs previously declared not usable 87% also not identified in 1000 Bulls sequence w 43,053 currently used SNPs from 50K 9% were not identified in 1000 Bulls sequence l Missing SNPs were not associated with MAF or reference / alternate allele pattern American Society of Animal Science annual meeting, Baltimore, MD; July 9-12, 2017 (15) VanRaden

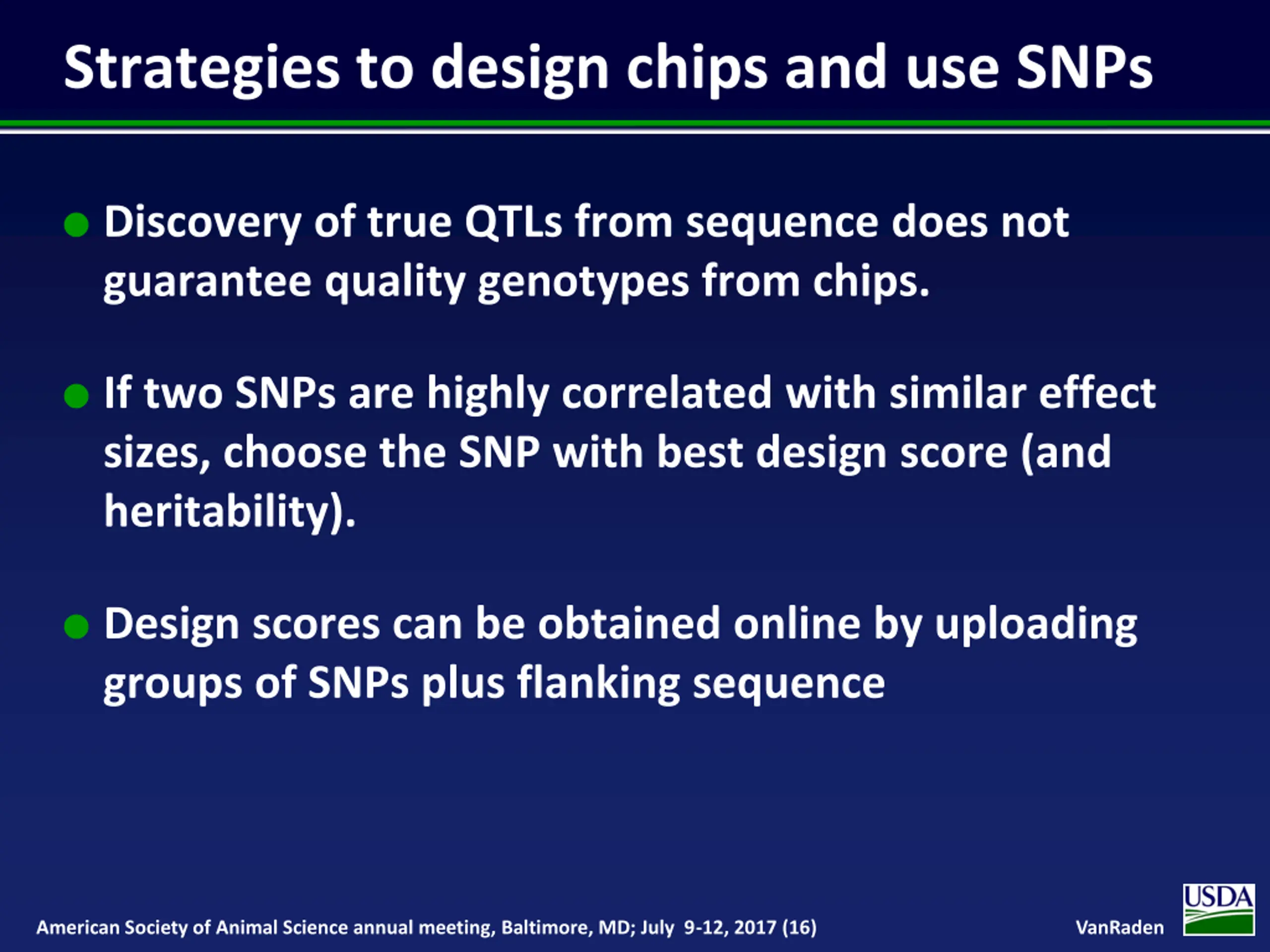

Strategies to design chips and use SNPs l Discovery of true QTLs from sequence does not guarantee quality genotypes from chips. l If two SNPs are highly correlated with similar effect sizes, choose the SNP with best design score (and heritability). l Design scores can be obtained online by uploading groups of SNPs plus flanking sequence American Society of Animal Science annual meeting, Baltimore, MD; July 9-12, 2017 (16) VanRaden

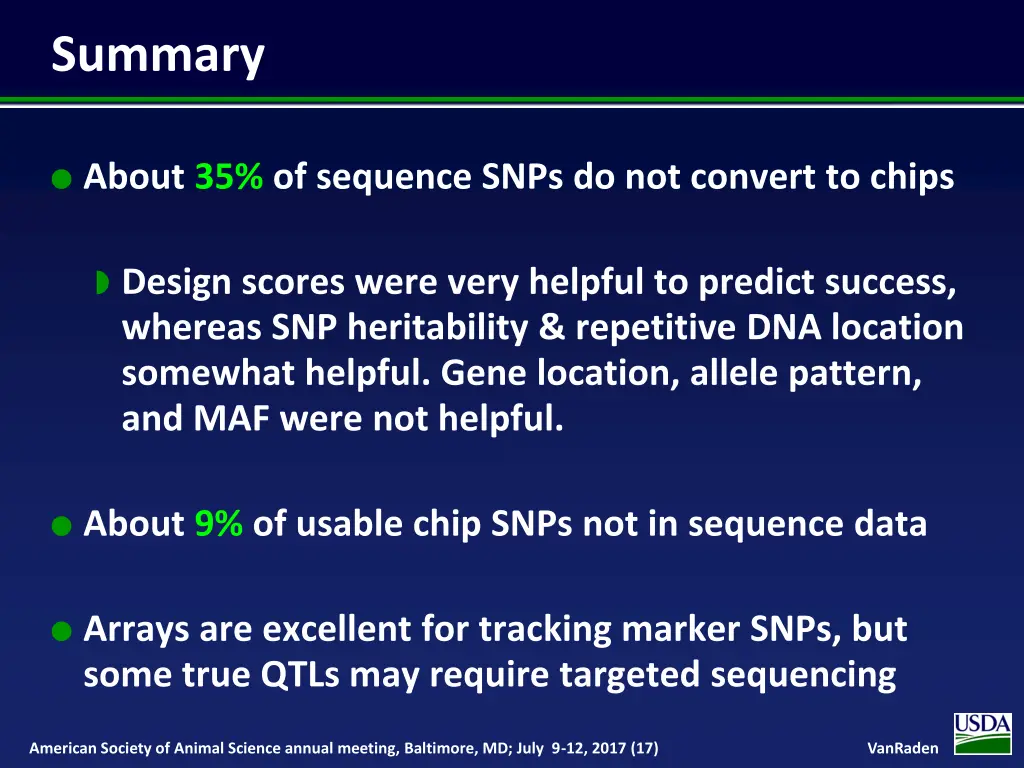

Summary l About 35% of sequence SNPs do not convert to chips w Design scores were very helpful to predict success, whereas SNP heritability & repetitive DNA location somewhat helpful. Gene location, allele pattern, and MAF were not helpful. l About 9% of usable chip SNPs not in sequence data l Arrays are excellent for tracking marker SNPs, but some true QTLs may require targeted sequencing American Society of Animal Science annual meeting, Baltimore, MD; July 9-12, 2017 (17) VanRaden

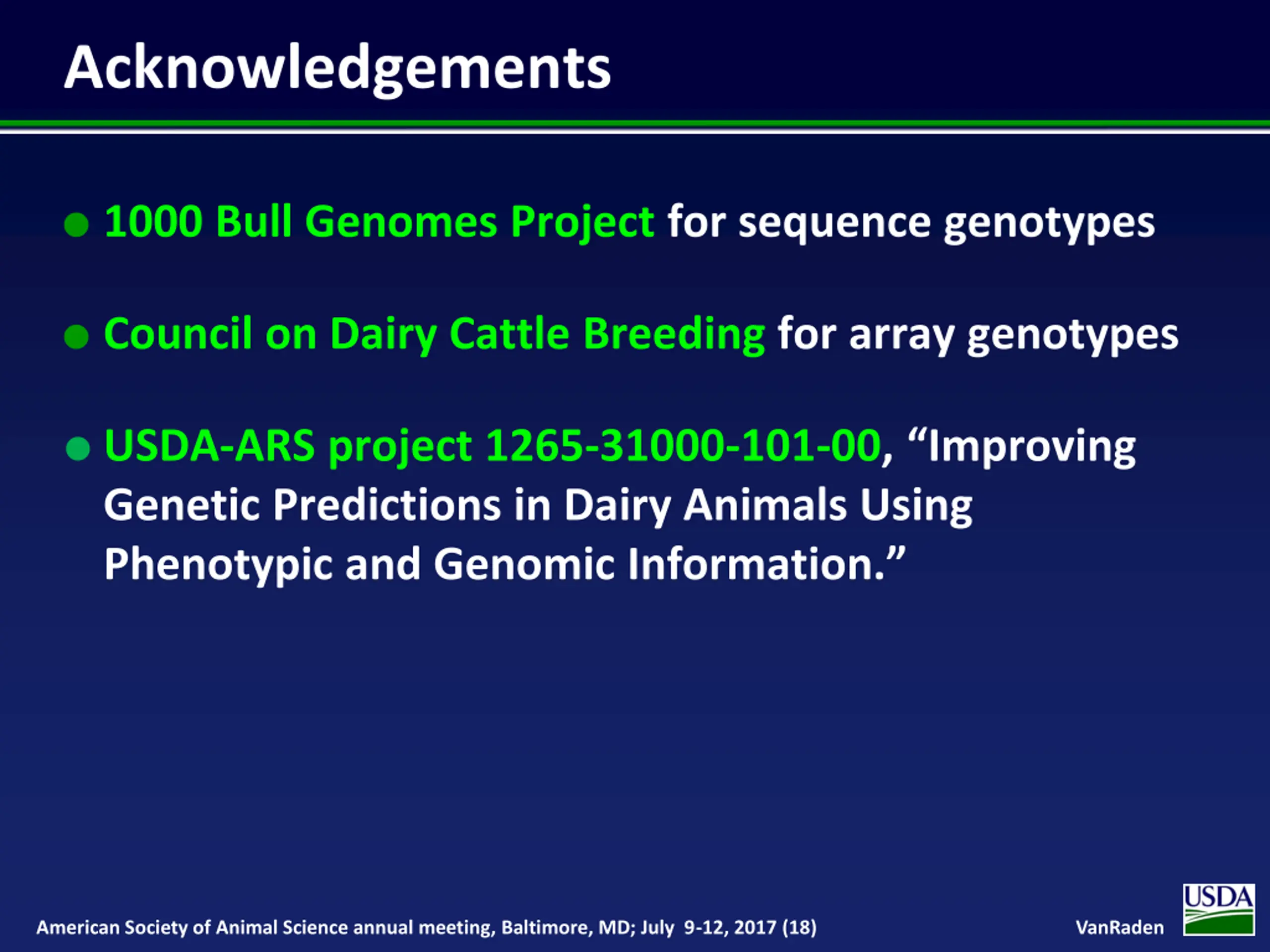

Acknowledgements l 1000 Bull Genomes Project for sequence genotypes l Council on Dairy Cattle Breeding for array genotypes USDA-ARS project 1265-31000-101-00, Improving Genetic Predictions in Dairy Animals Using Phenotypic and Genomic Information. American Society of Animal Science annual meeting, Baltimore, MD; July 9-12, 2017 (18) VanRaden
