A Very Gentle Introduction to Digital Design and Logisim

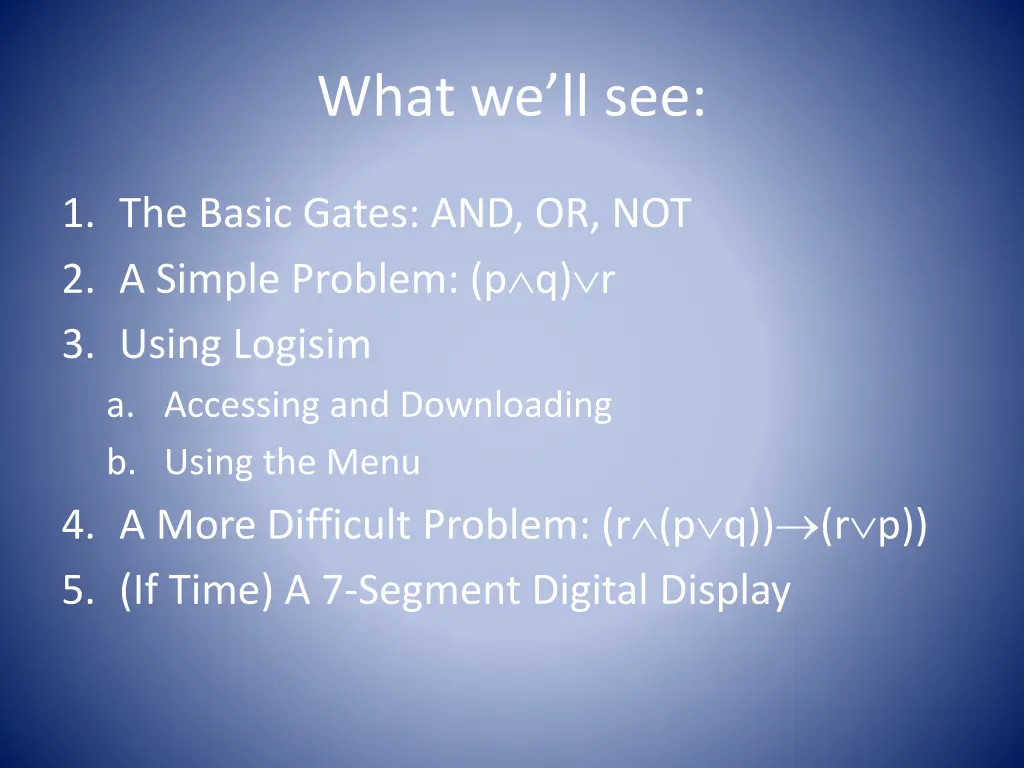

What well see: 1. The Basic Gates: AND, OR, NOT 2. A Simple Problem: (p q) r 3. Using Logisim a. Accessing and Downloading b. Using the Menu 4. A More Difficult Problem: (r (p q)) (r p)) 5. (If Time) A 7-Segment Digital Display

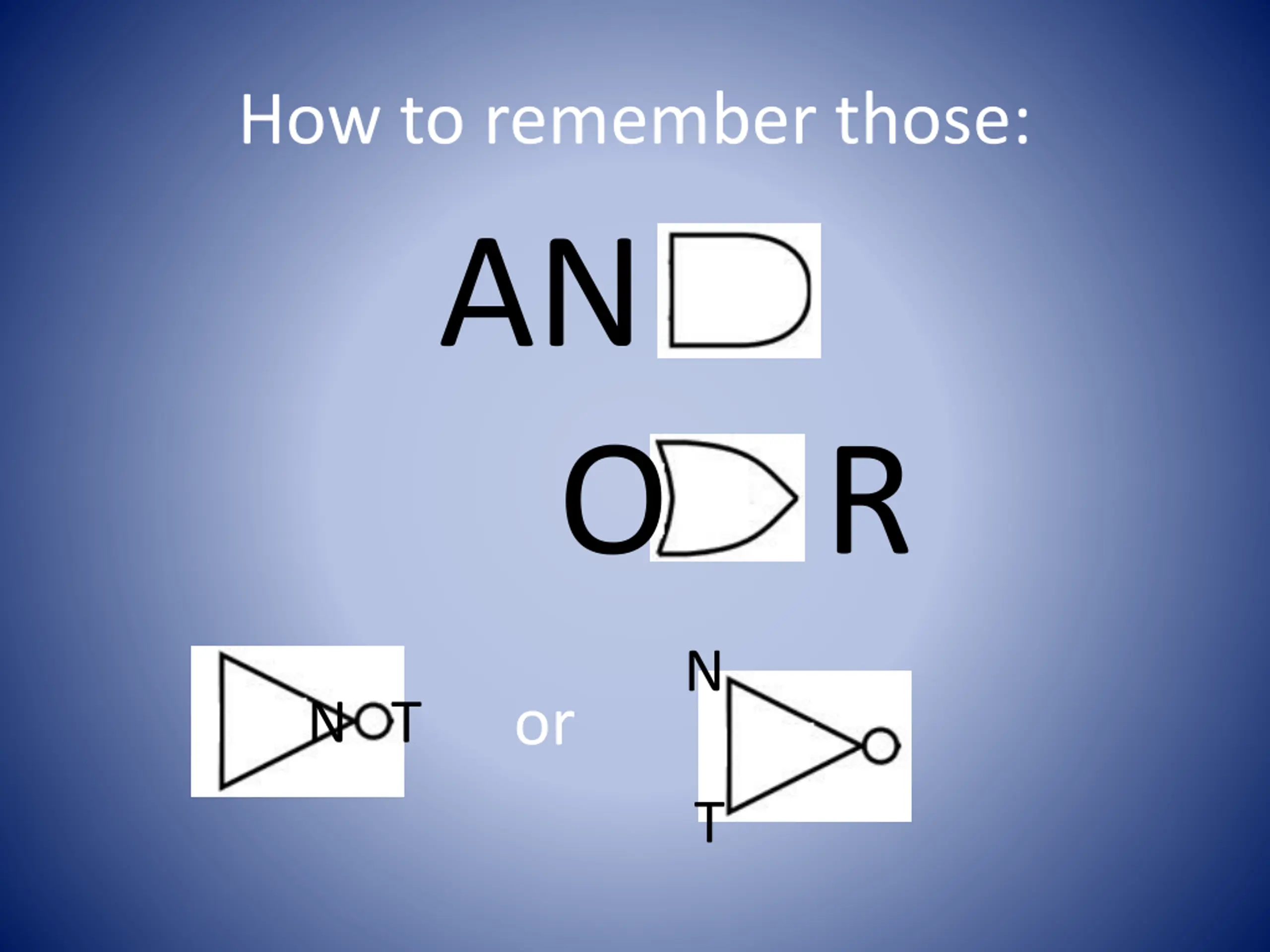

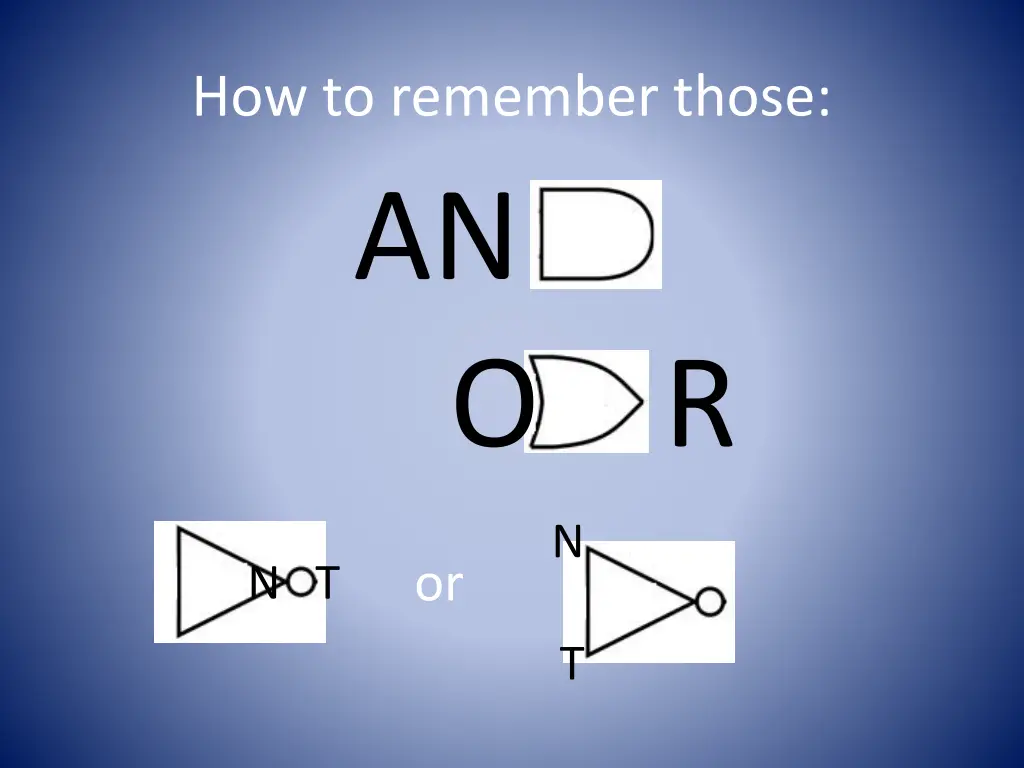

How to remember those: AN O R N or N T T

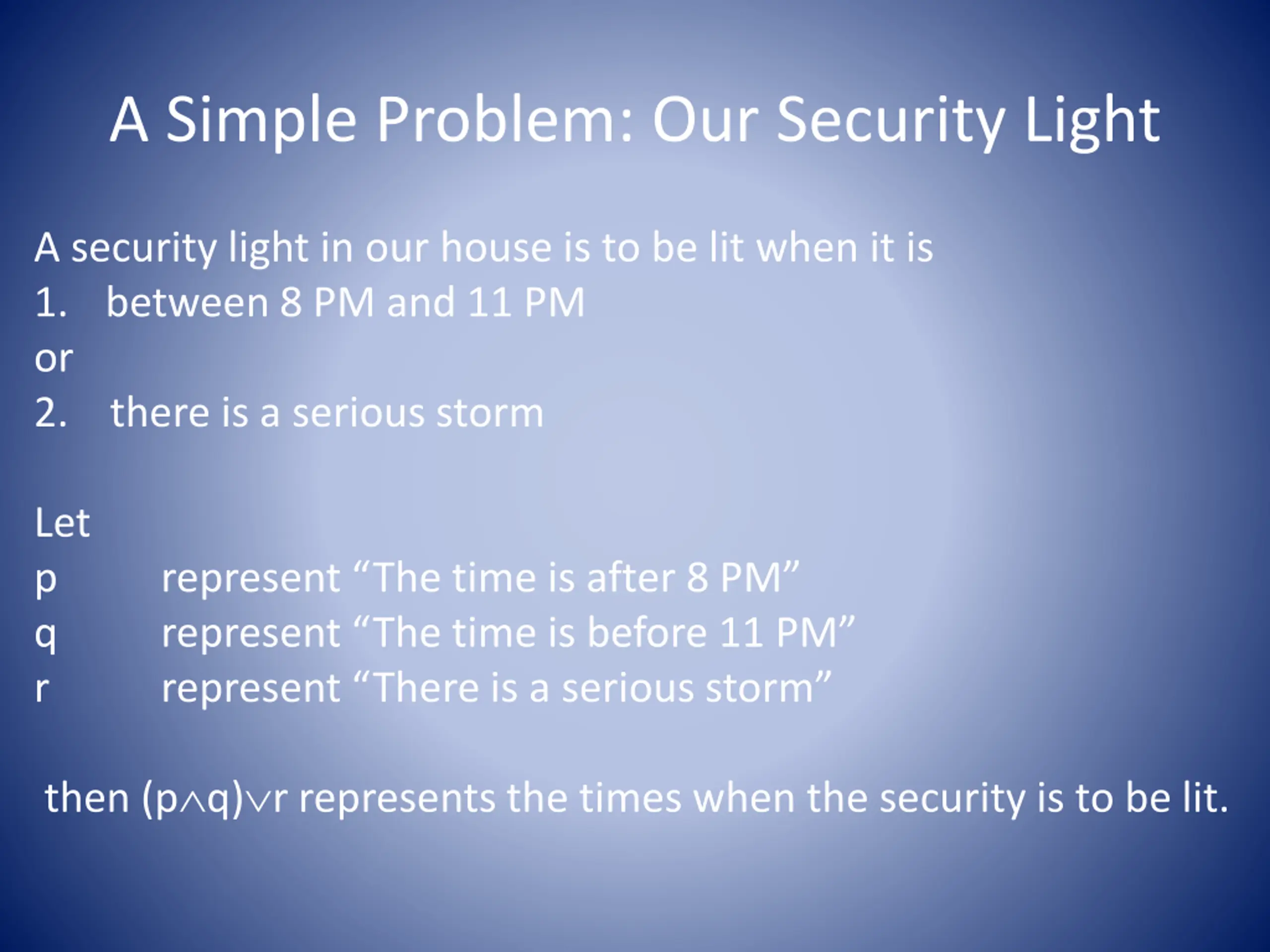

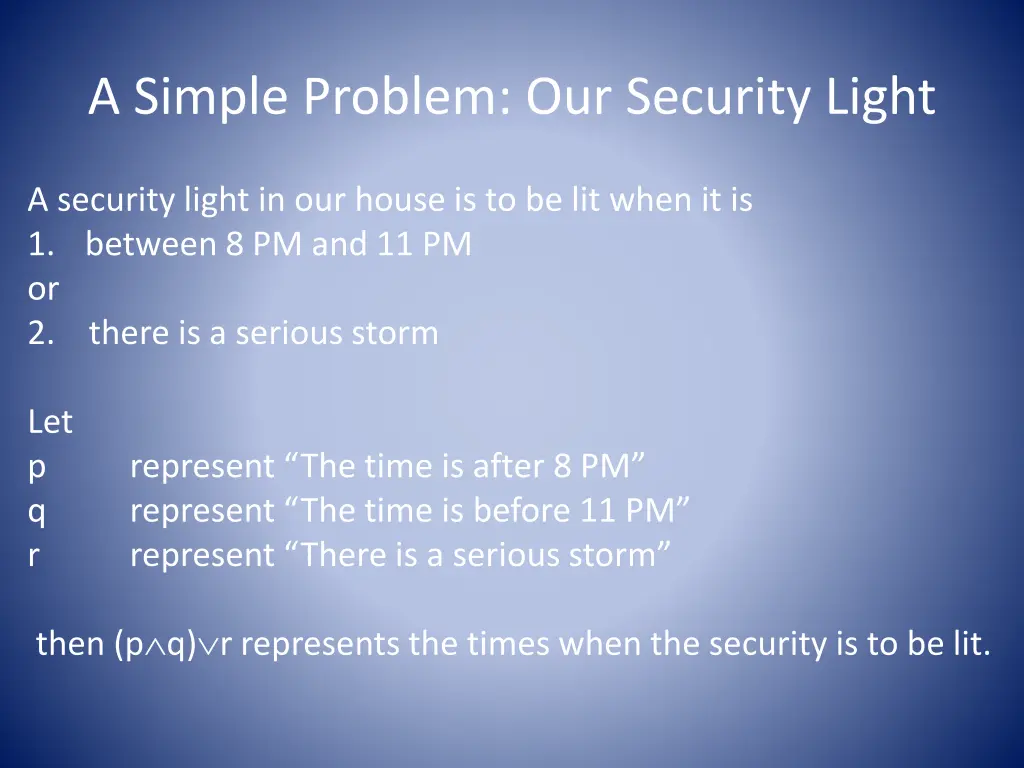

A Simple Problem: Our Security Light A security light in our house is to be lit when it is 1. between 8 PM and 11 PM or 2. there is a serious storm Let p q r represent The time is after 8 PM represent The time is before 11 PM represent There is a serious storm then (p q) r represents the times when the security is to be lit.

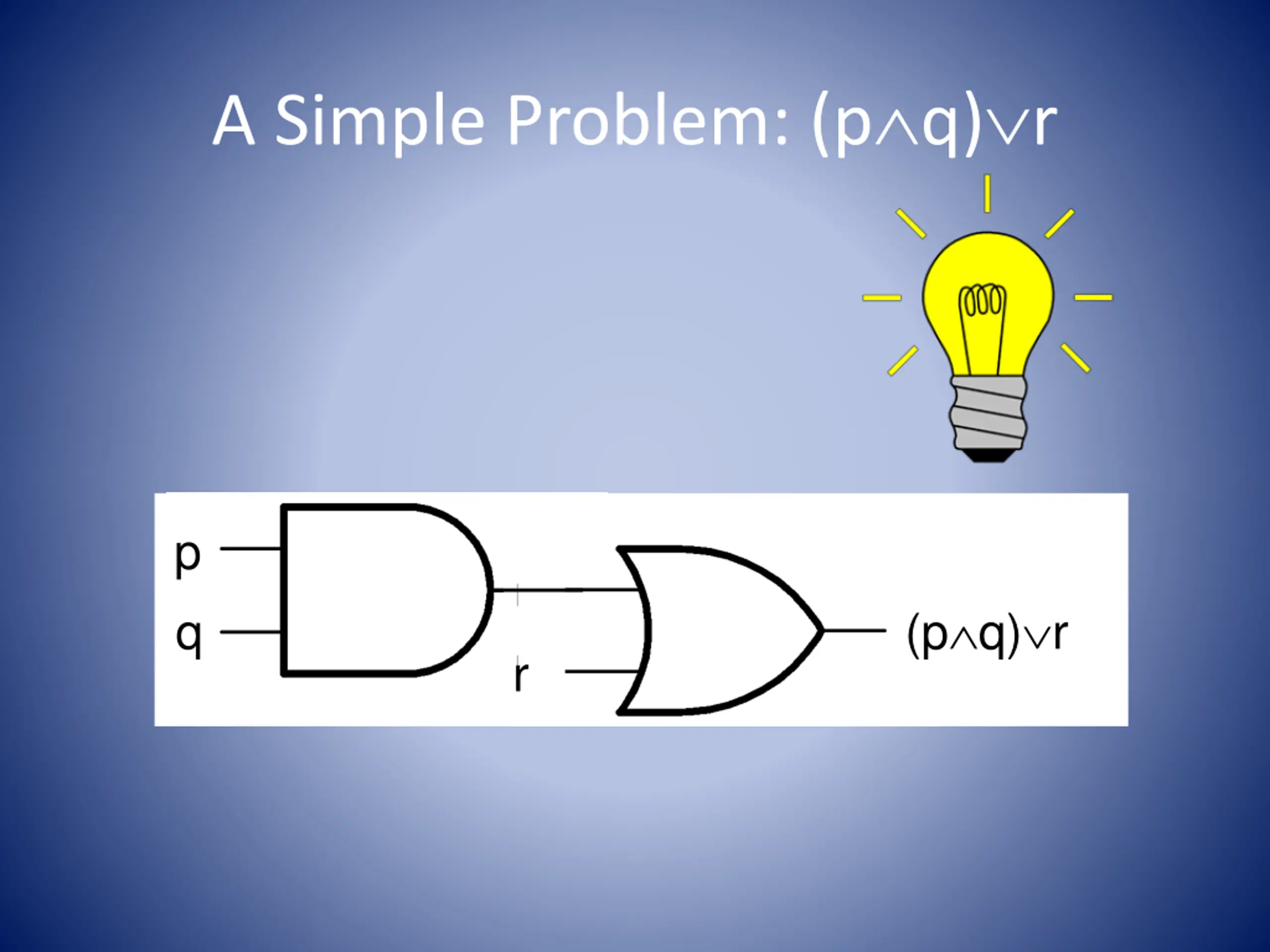

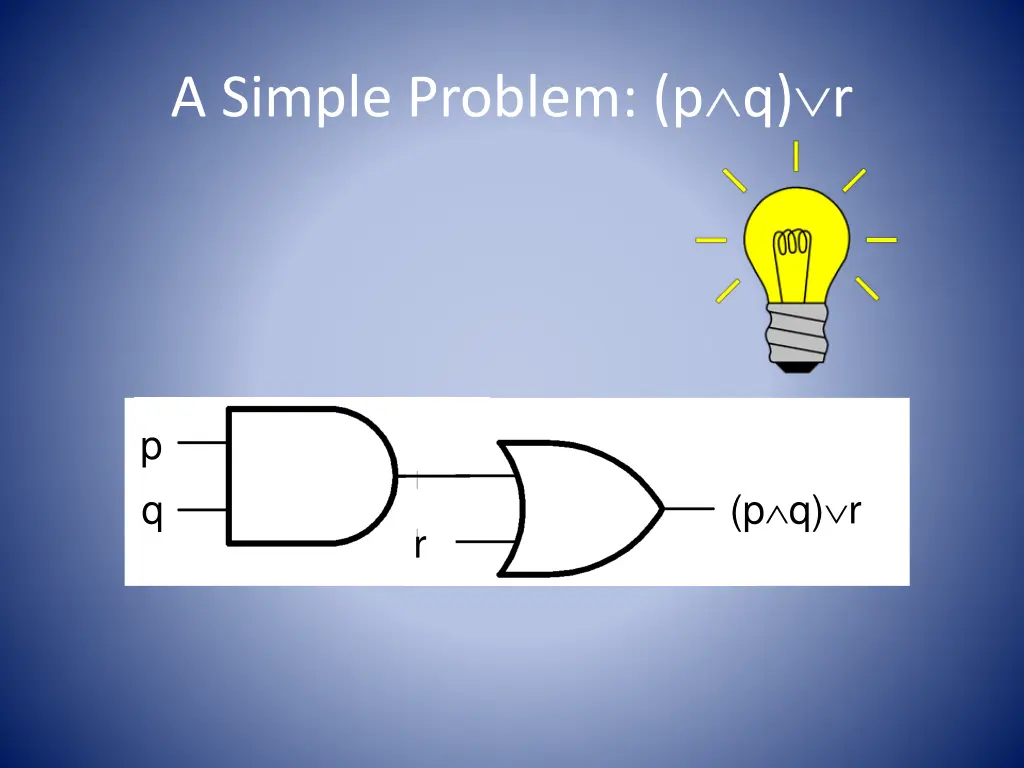

A Simple Problem: (pq)r p q (p q) r r

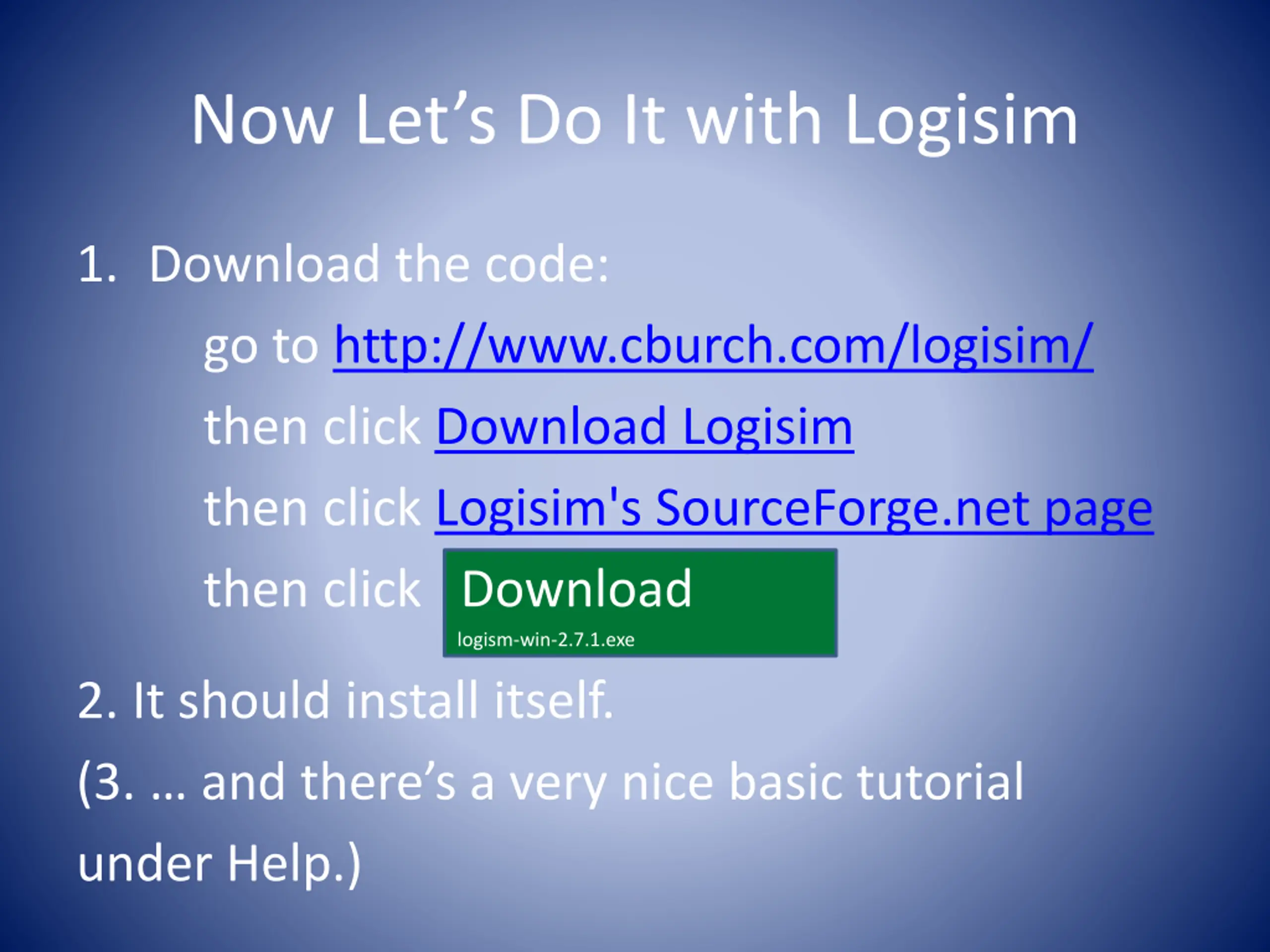

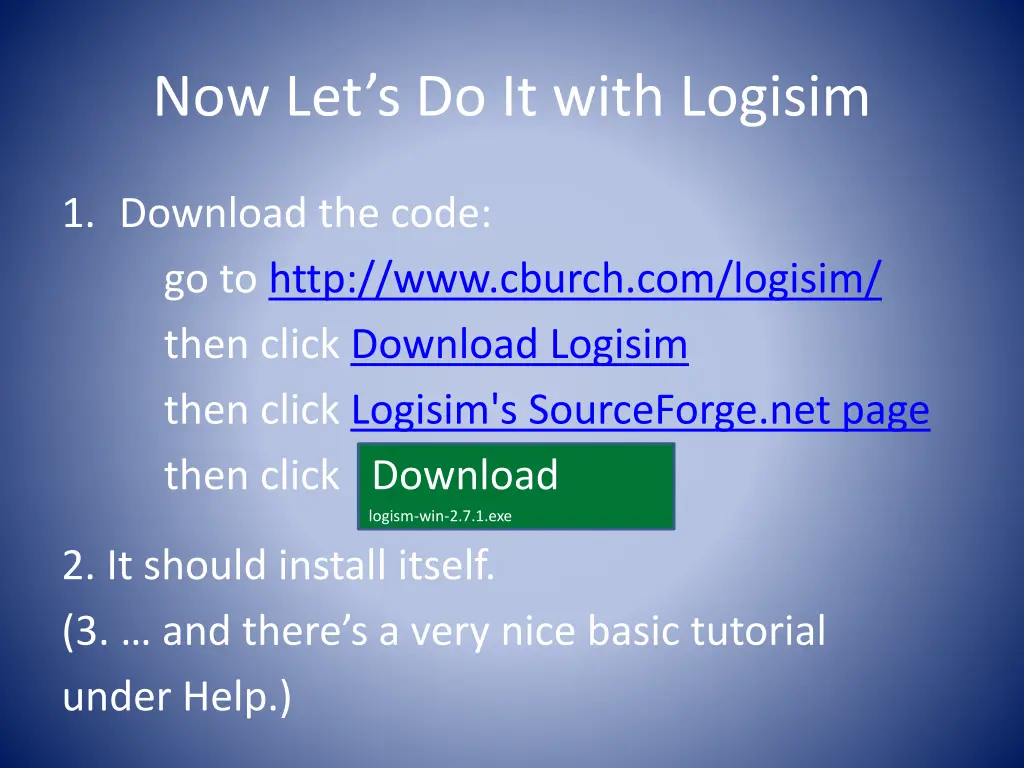

Now Lets Do It with Logisim 1. Download the code: go to http://www.cburch.com/logisim/ then click Download Logisim then click Logisim's SourceForge.net page then click Download logism-win-2.7.1.exe 2. It should install itself. (3. and there s a very nice basic tutorial under Help.)

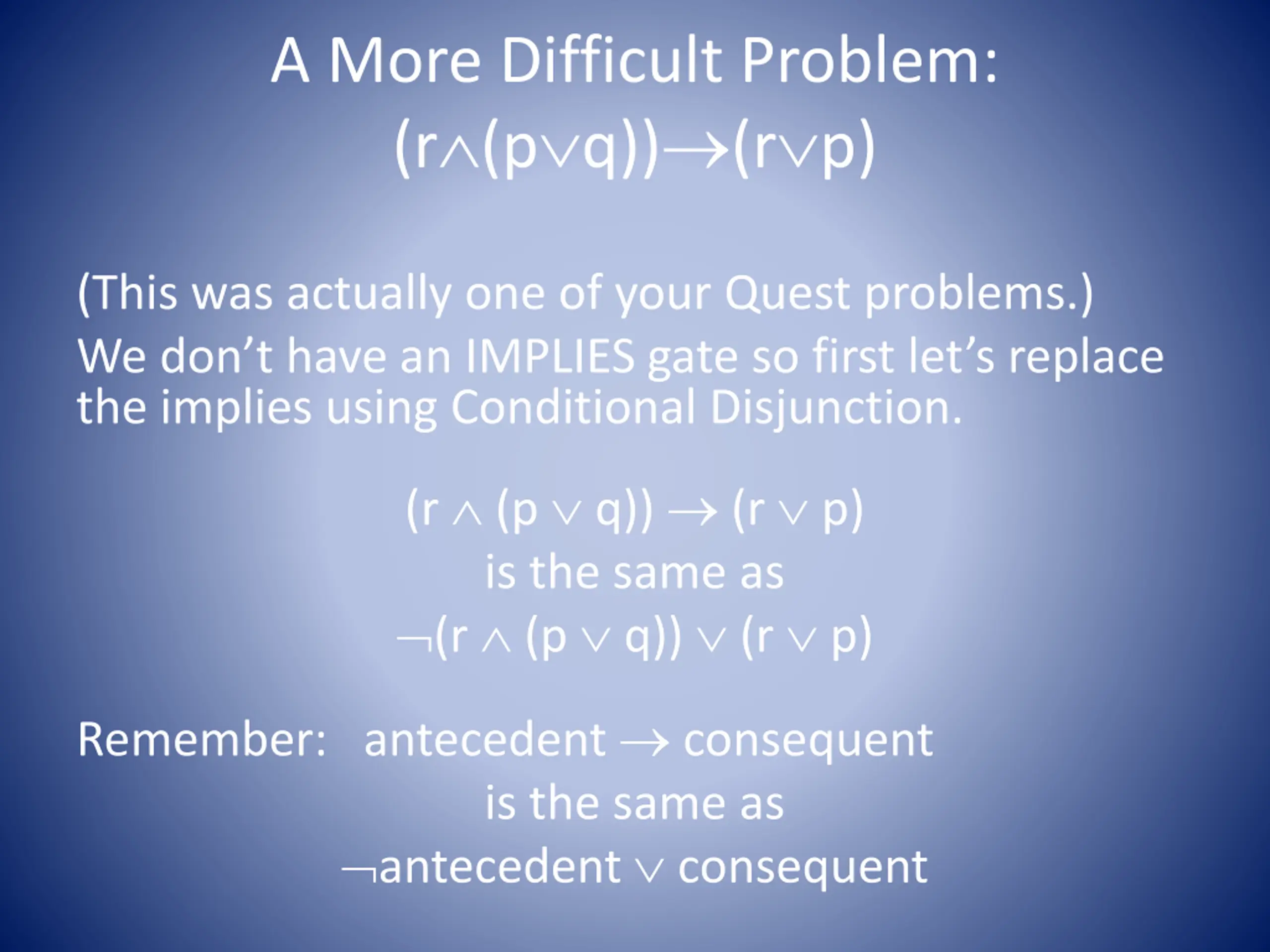

A More Difficult Problem: (r (p q)) (r p) (This was actually one of your Quest problems.) We don t have an IMPLIES gate so first let s replace the implies using Conditional Disjunction. (r (p q)) (r p) is the same as (r (p q)) (r p) Remember: antecedent consequent is the same as antecedent consequent

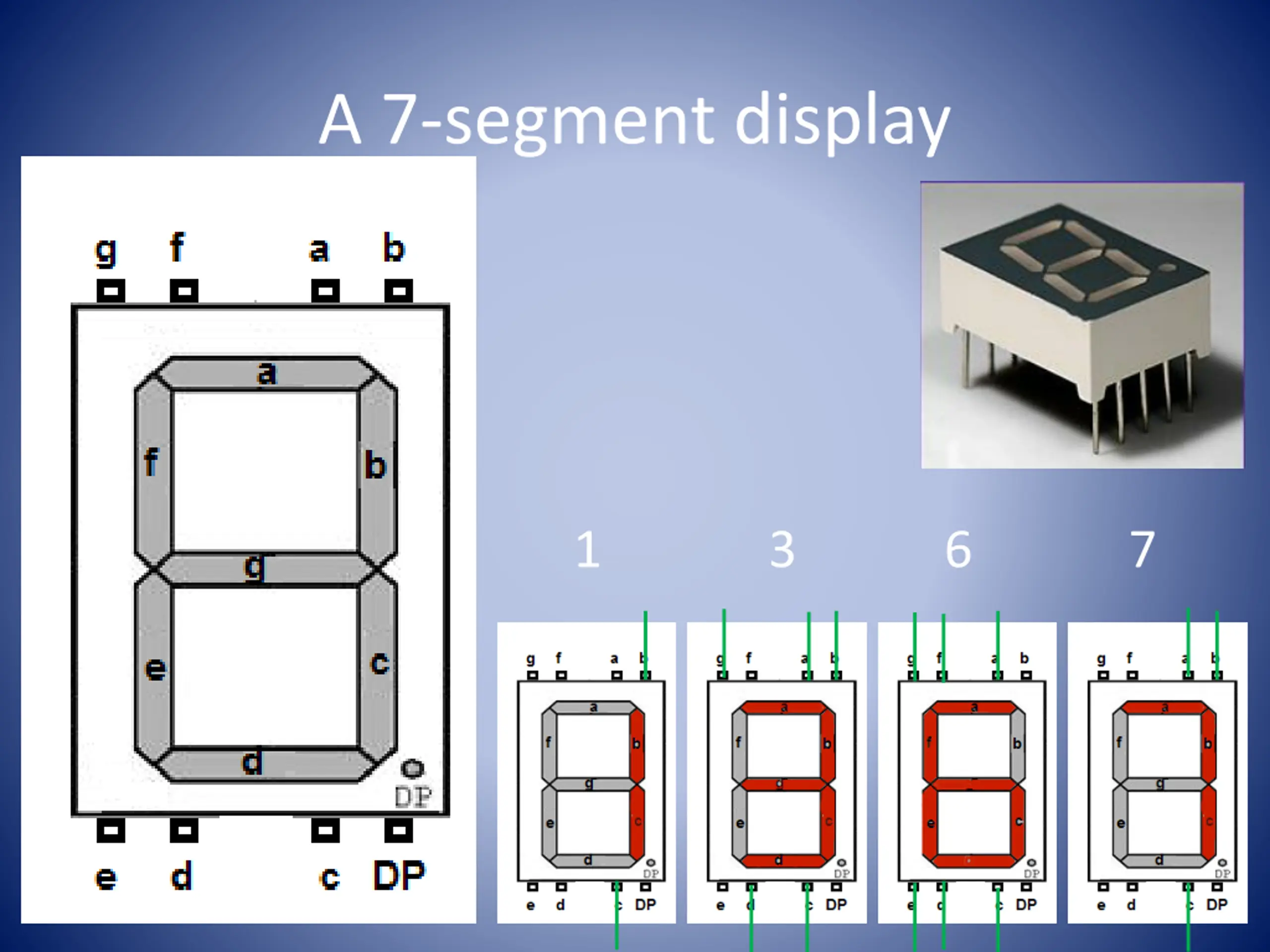

A 7-segment display 1 3 6 7

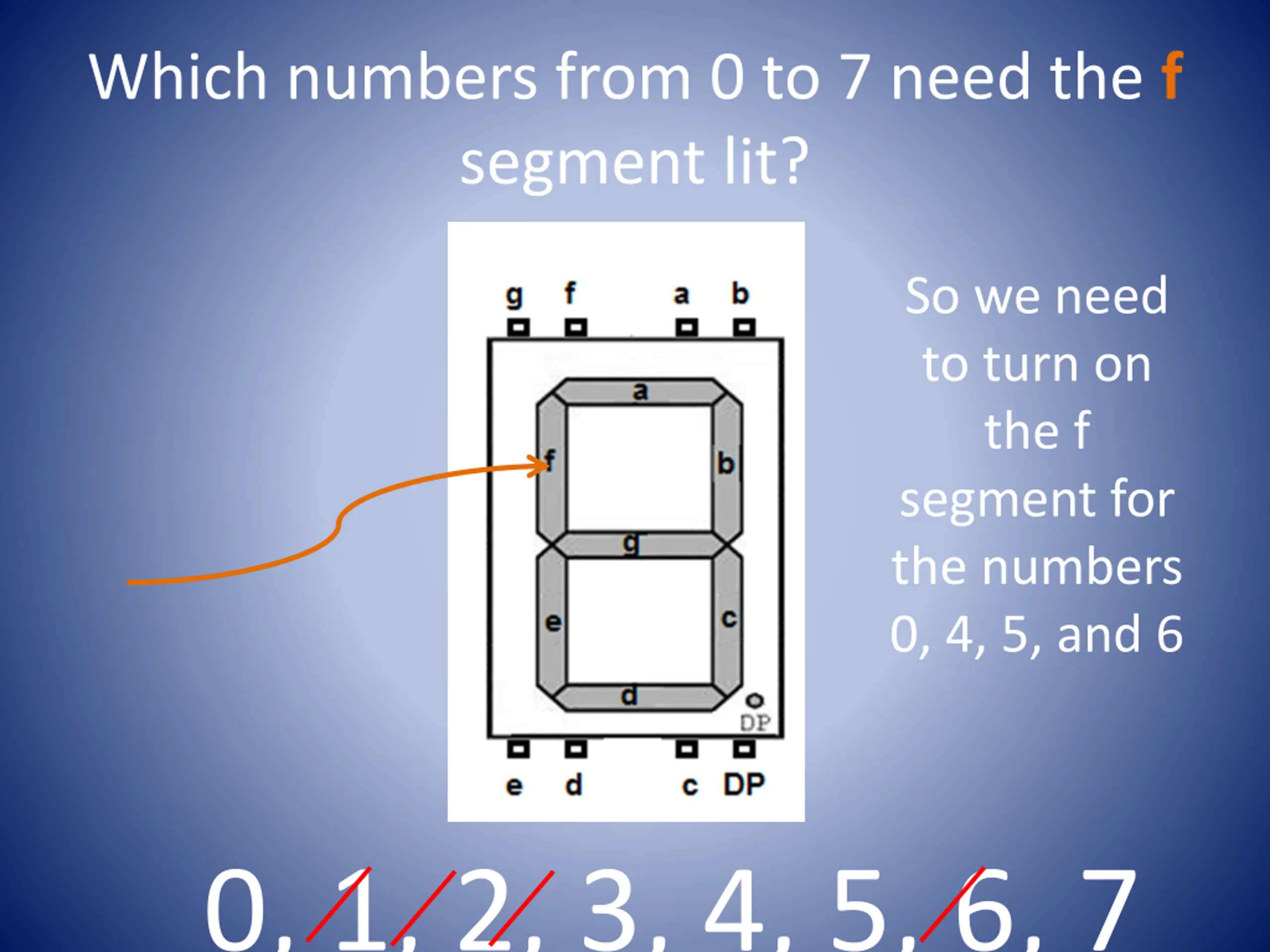

Which numbers from 0 to 7 need the f segment lit? So we need to turn on the f segment for the numbers 0, 4, 5, and 6 0, 1, 2, 3, 4, 5, 6, 7

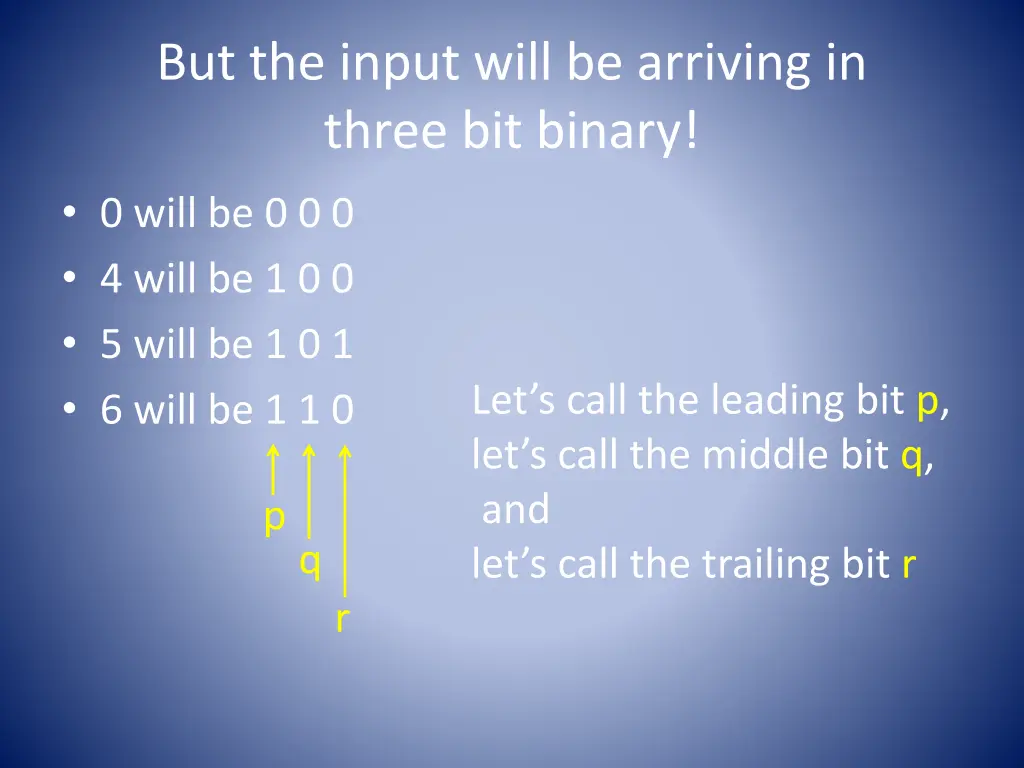

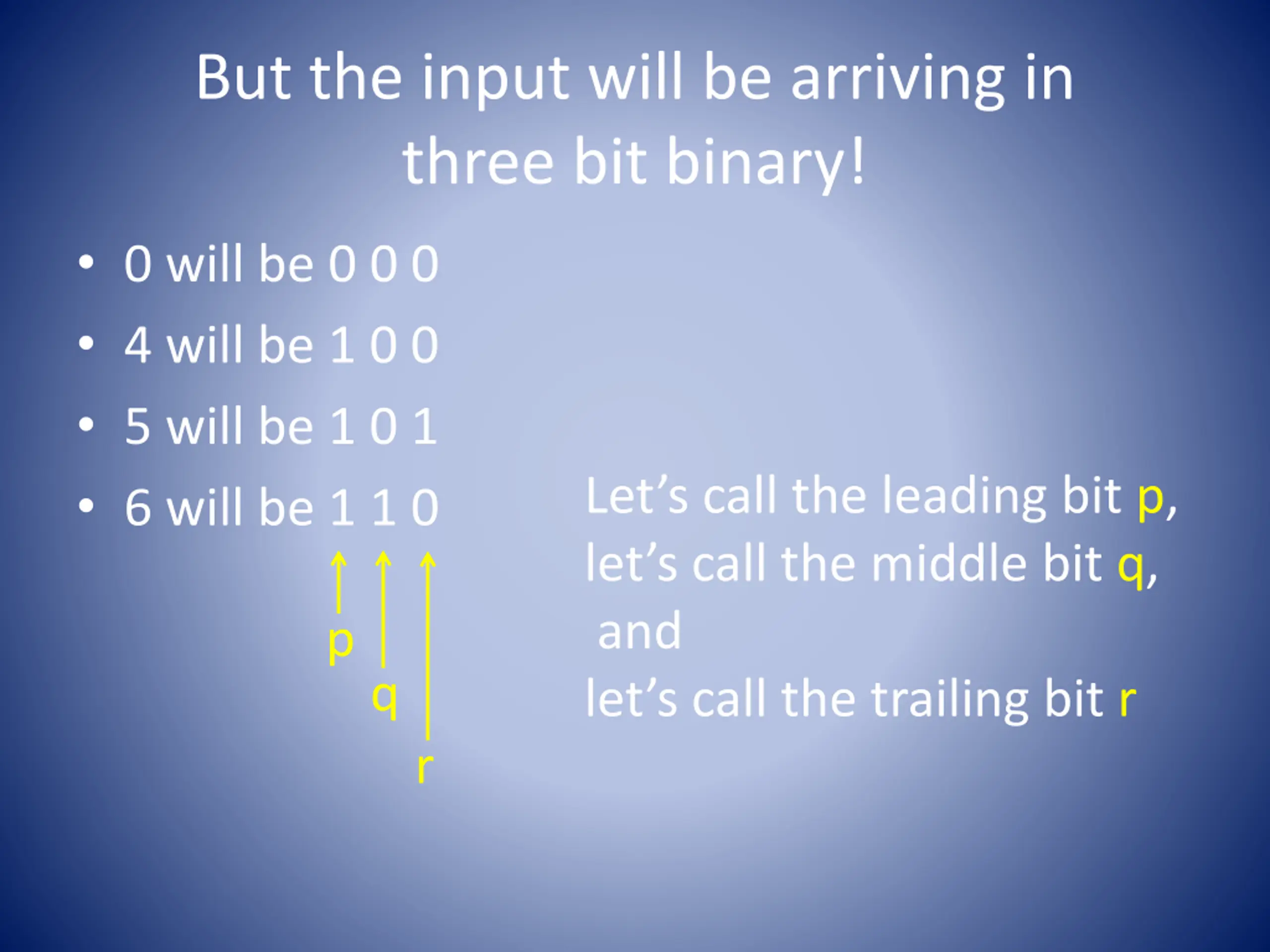

But the input will be arriving in three bit binary! 0 will be 0 0 0 4 will be 1 0 0 5 will be 1 0 1 6 will be 1 1 0 Let s call the leading bit p, let s call the middle bit q, and let s call the trailing bit r p q r

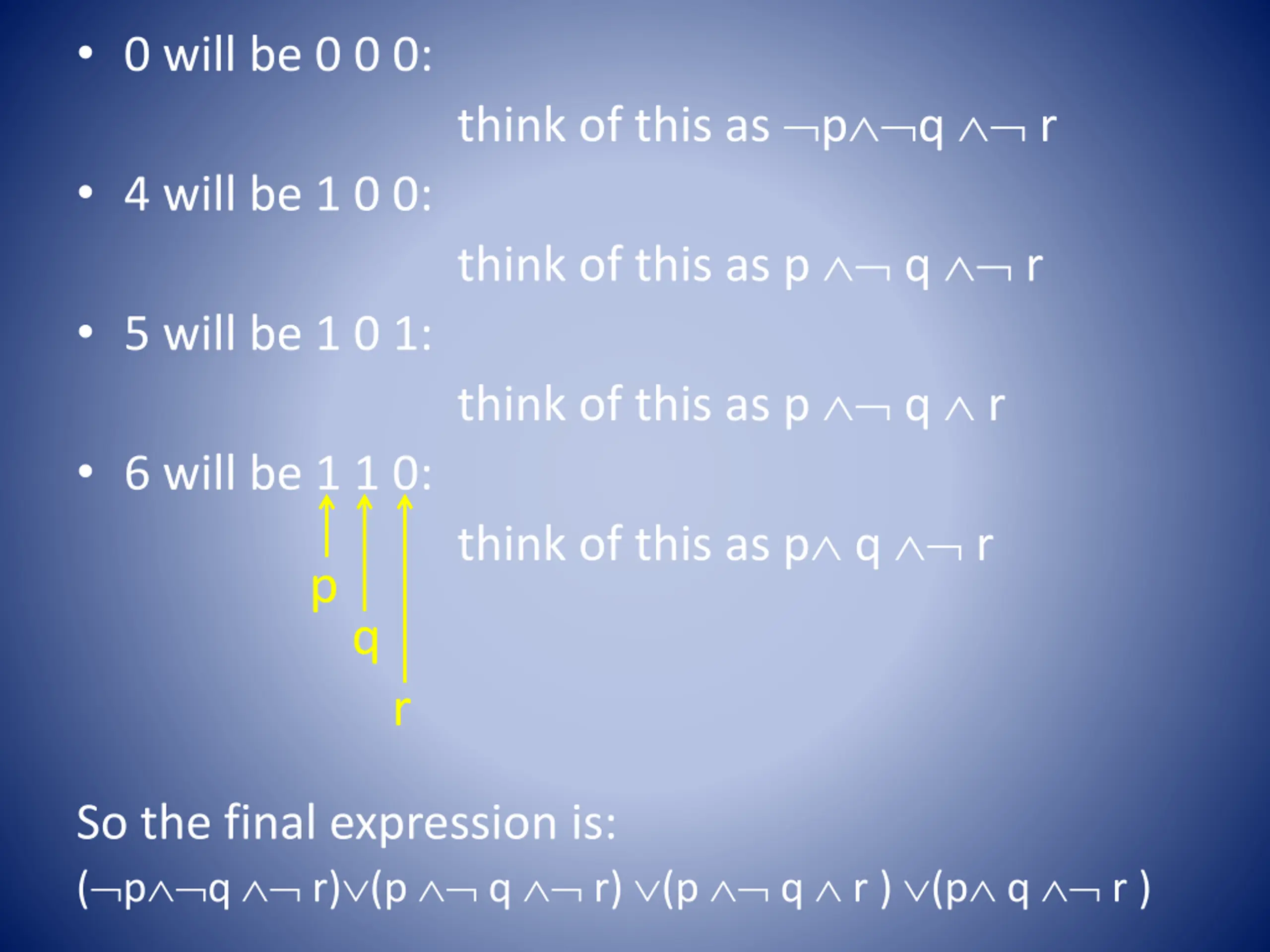

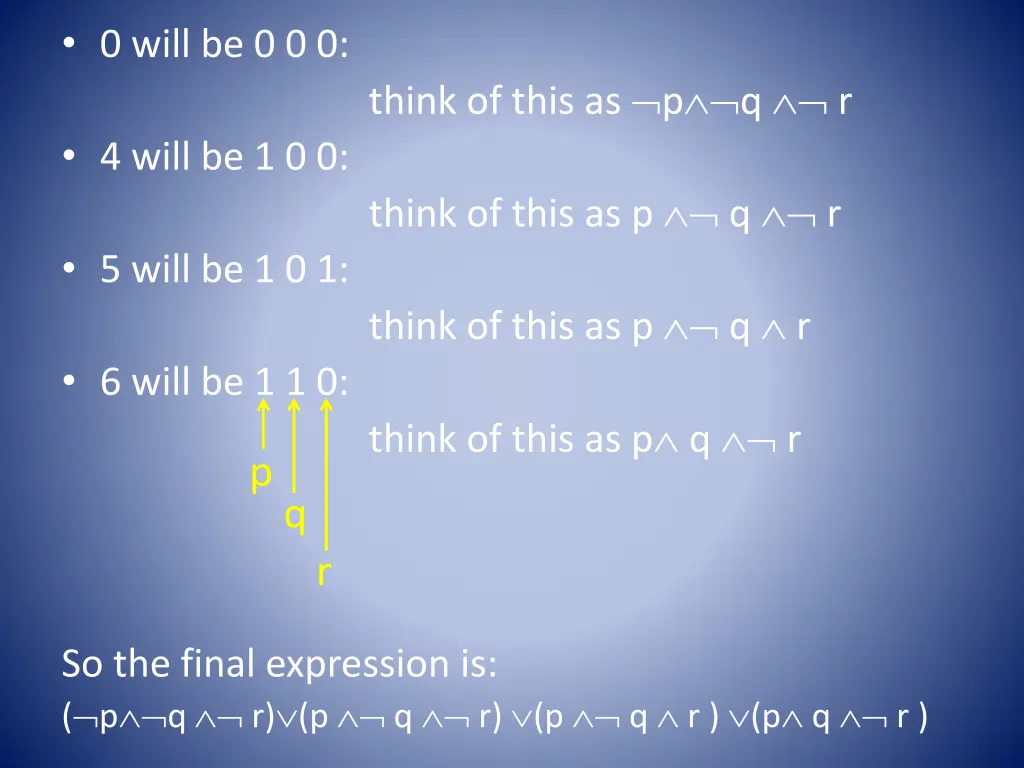

0 will be 0 0 0: 4 will be 1 0 0: 5 will be 1 0 1: 6 will be 1 1 0: think of this as p q r think of this as p q r think of this as p q r think of this as p q r p q r So the final expression is: ( p q r) (p q r) (p q r ) (p q r )

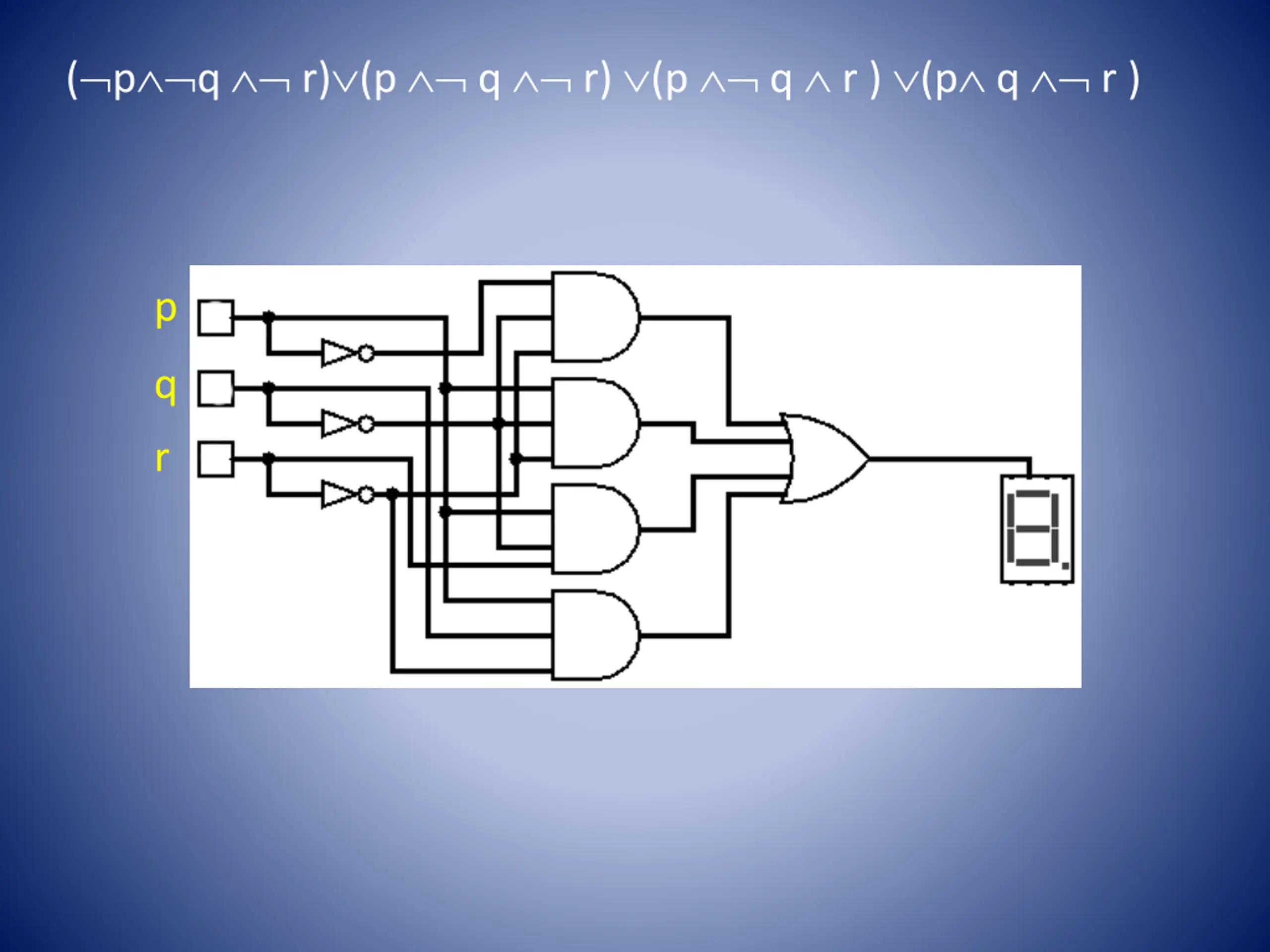

(pq r)(p q r) (p q r ) (p q r ) p q r
