Presentation Transcript

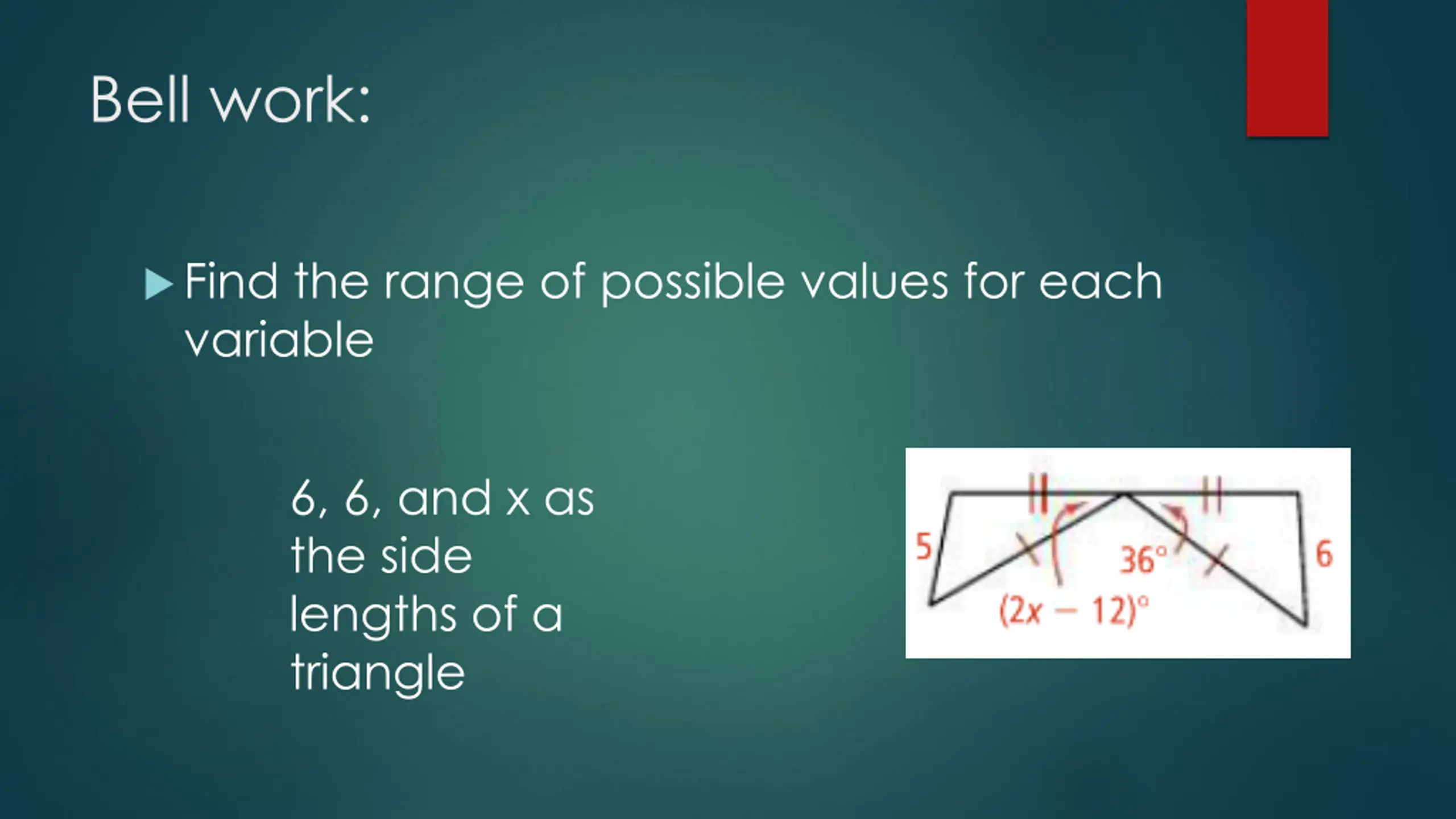

Bell work: Find the range of possible values for each variable 6, 6, and x as the side lengths of a triangle

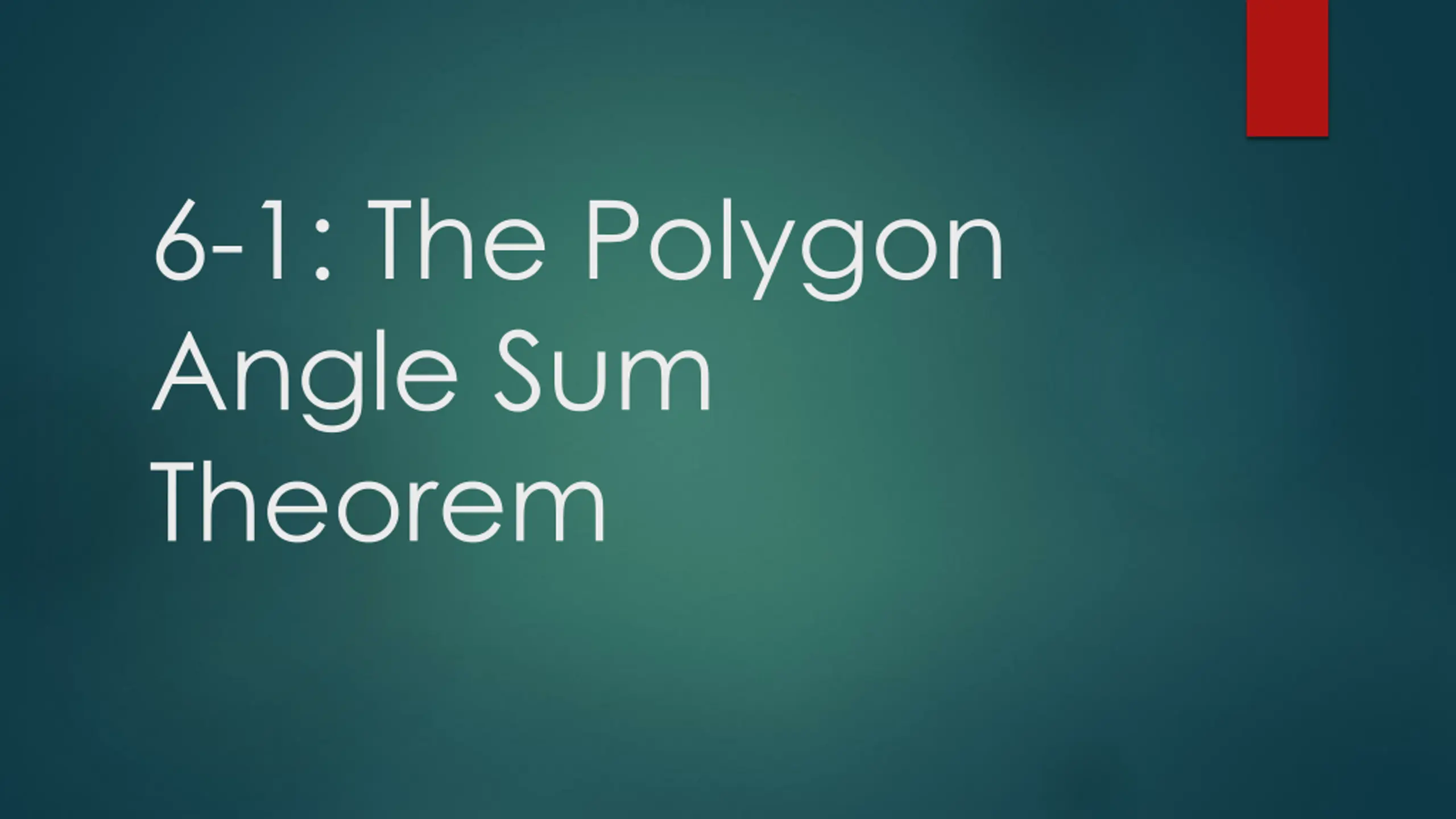

6-1: The Polygon Angle Sum Theorem

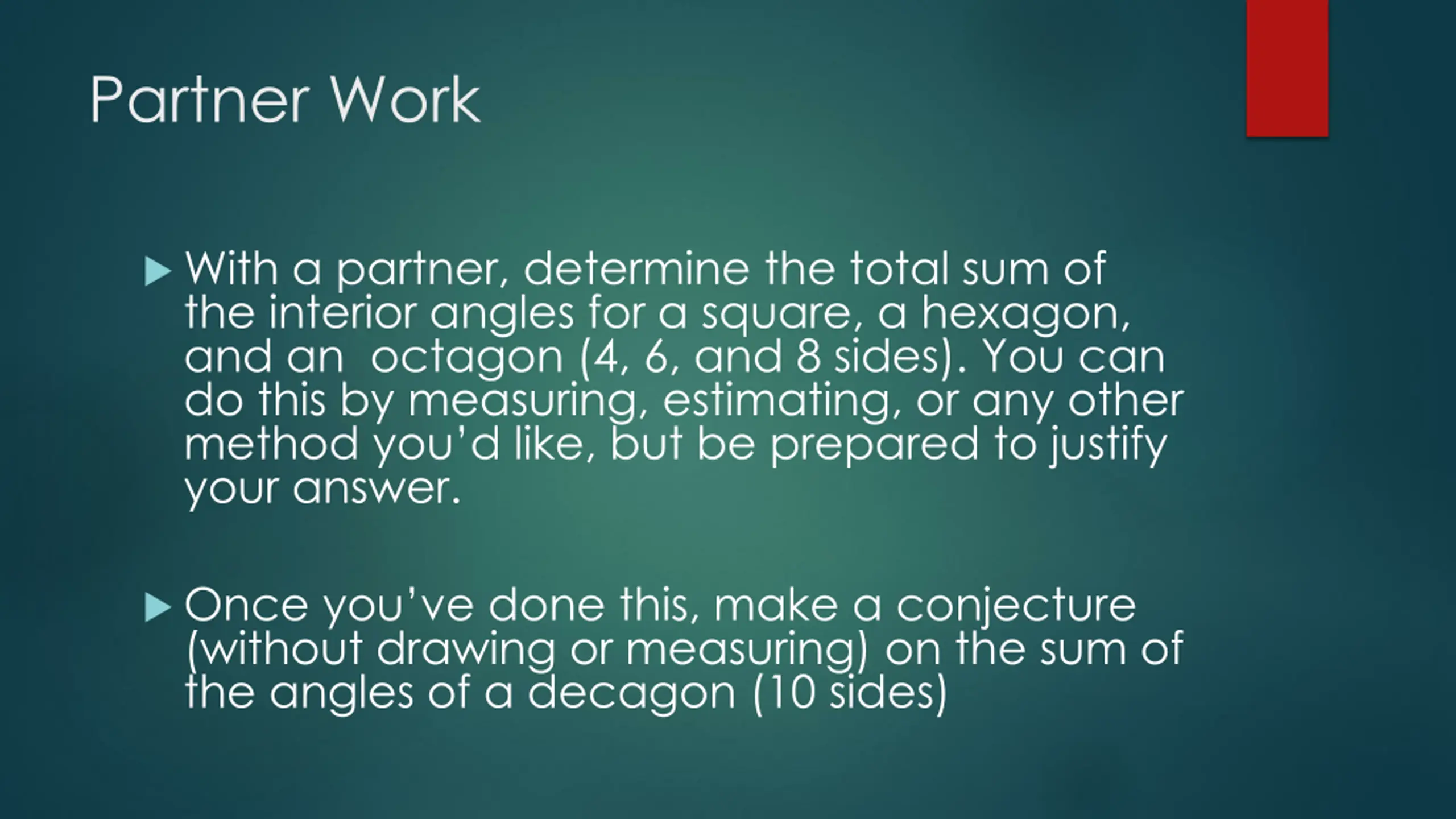

Partner Work With a partner, determine the total sum of the interior angles for a square, a hexagon, and an octagon (4, 6, and 8 sides). You can do this by measuring, estimating, or any other method you d like, but be prepared to justify your answer. Once you ve done this, make a conjecture (without drawing or measuring) on the sum of the angles of a decagon (10 sides)

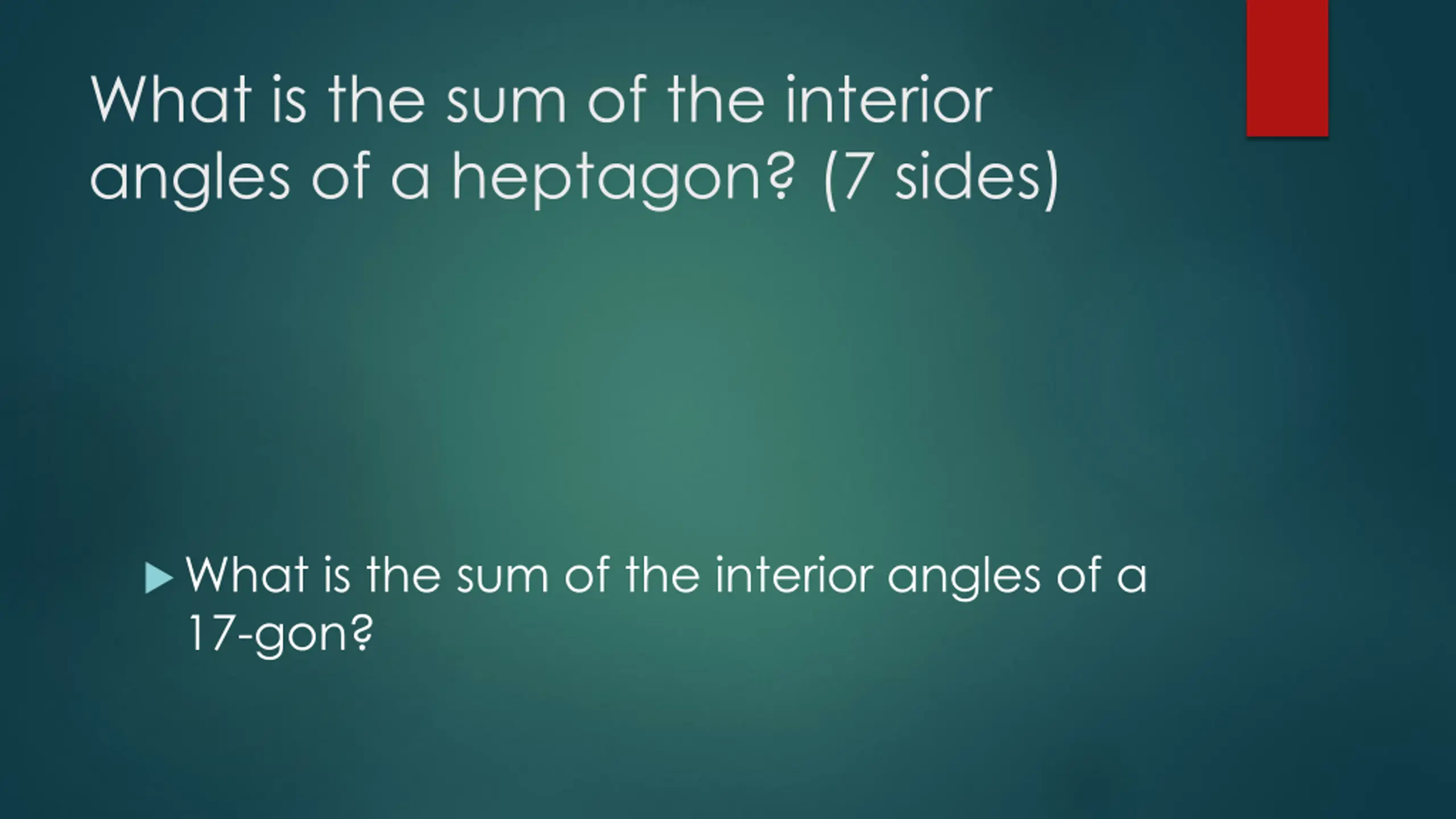

What is the sum of the interior angles of a heptagon? (7 sides) What is the sum of the interior angles of a 17-gon?

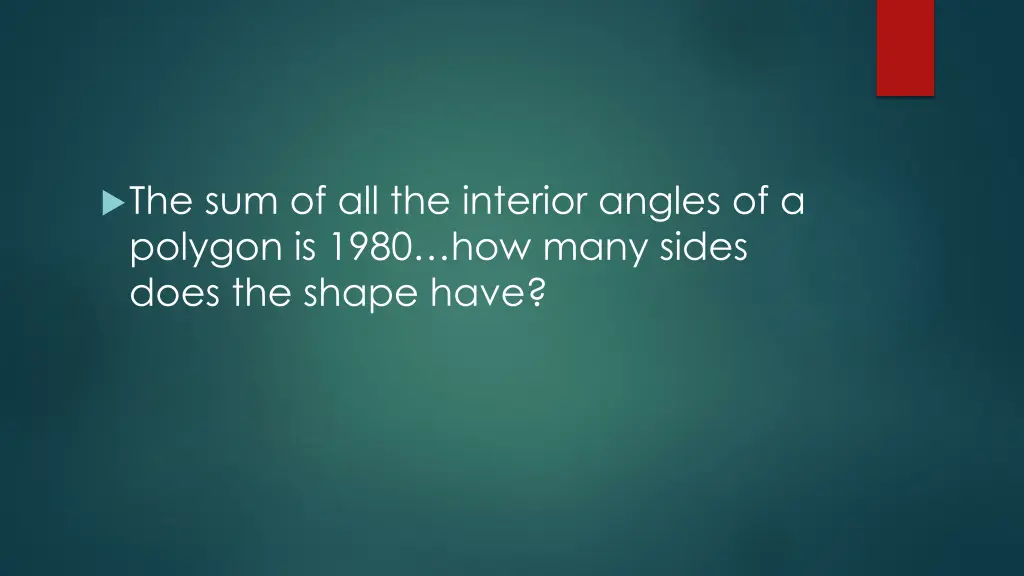

The sum of all the interior angles of a polygon is 1980 how many sides does the shape have?

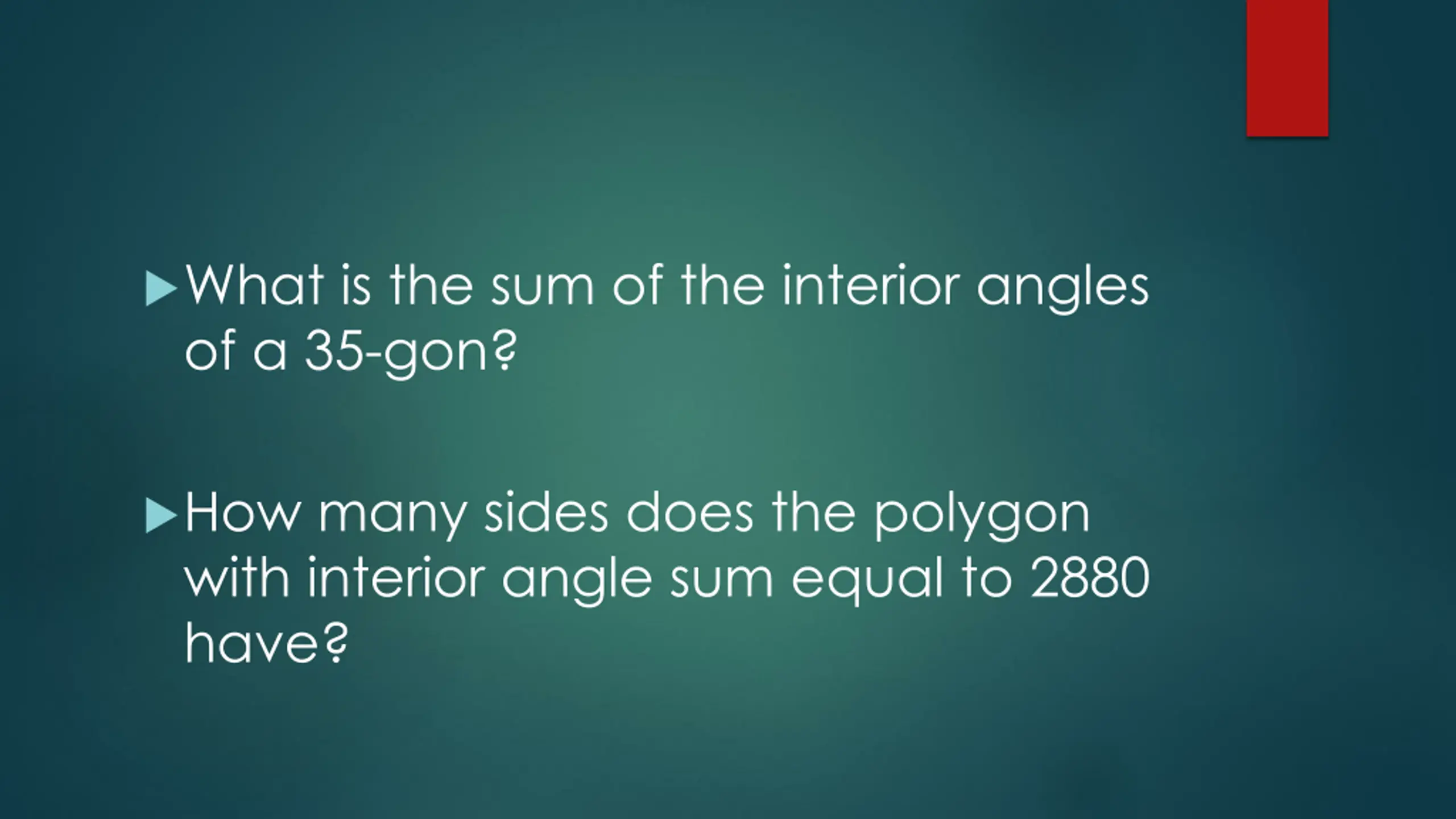

What is the sum of the interior angles of a 35-gon? How many sides does the polygon with interior angle sum equal to 2880 have?

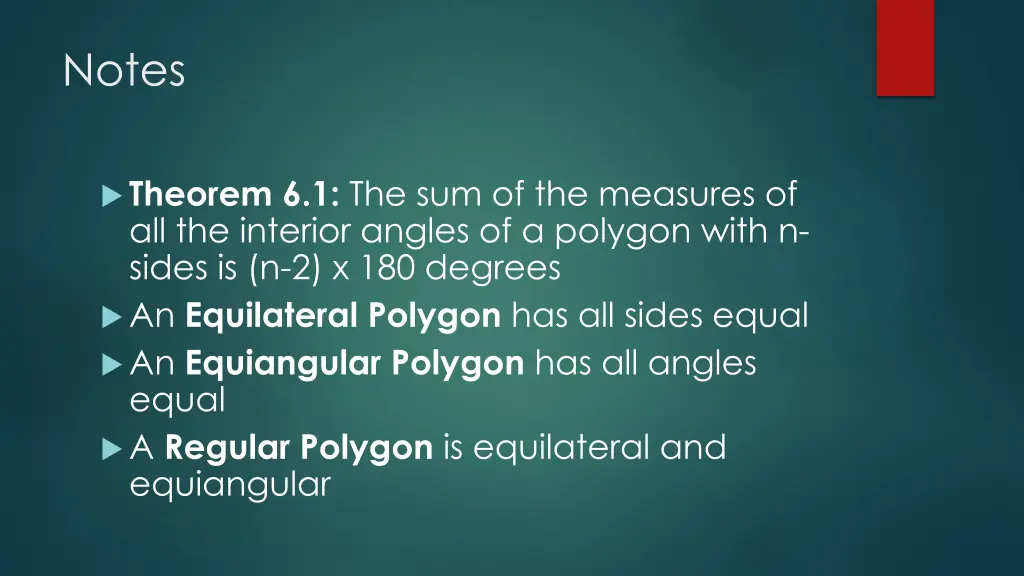

Notes Theorem 6.1: The sum of the measures of all the interior angles of a polygon with n- sides is (n-2) x 180 degrees An Equilateral Polygon has all sides equal An Equiangular Polygon has all angles equal A Regular Polygon is equilateral and equiangular

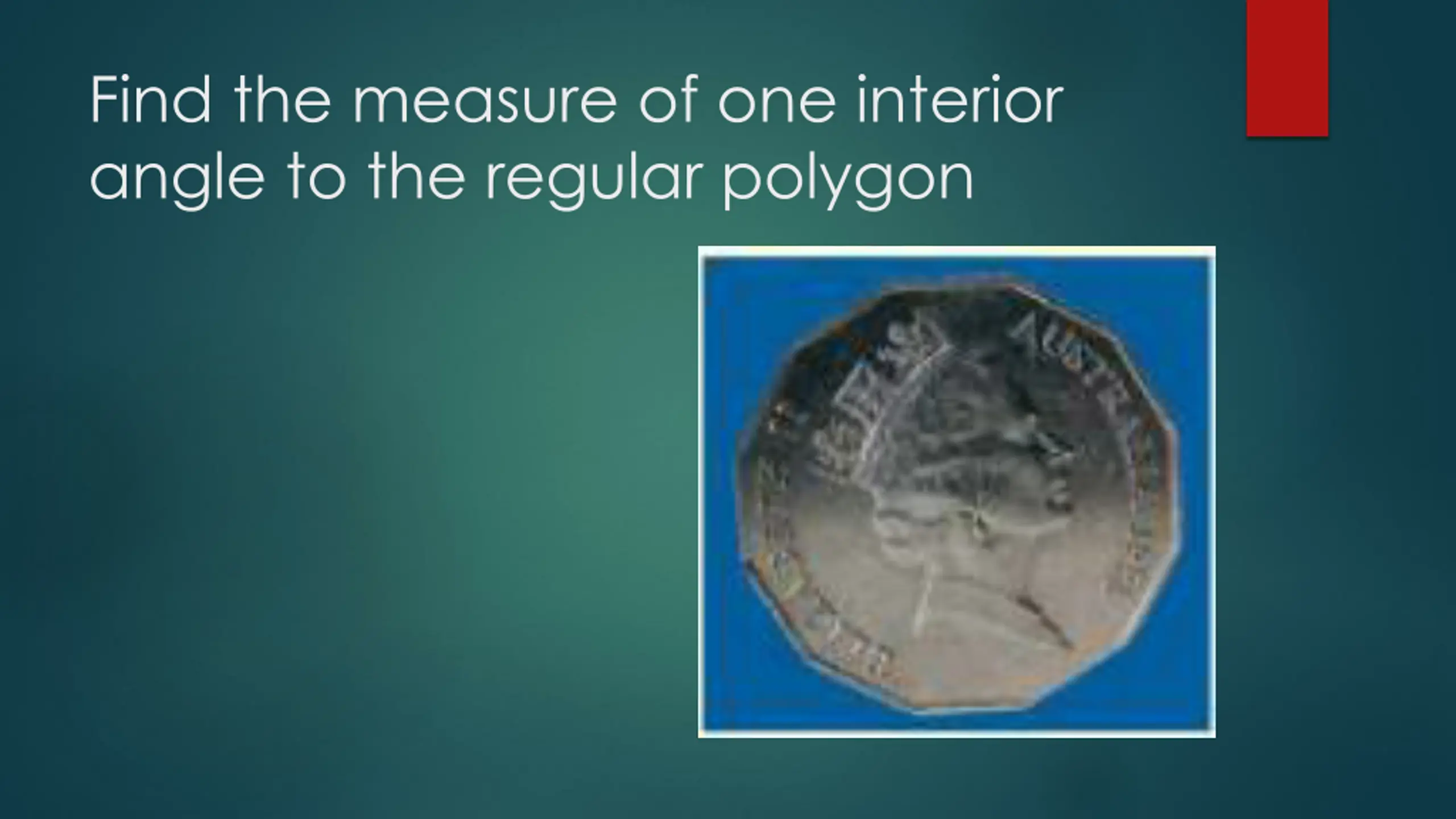

Find the measure of one interior angle to the regular polygon

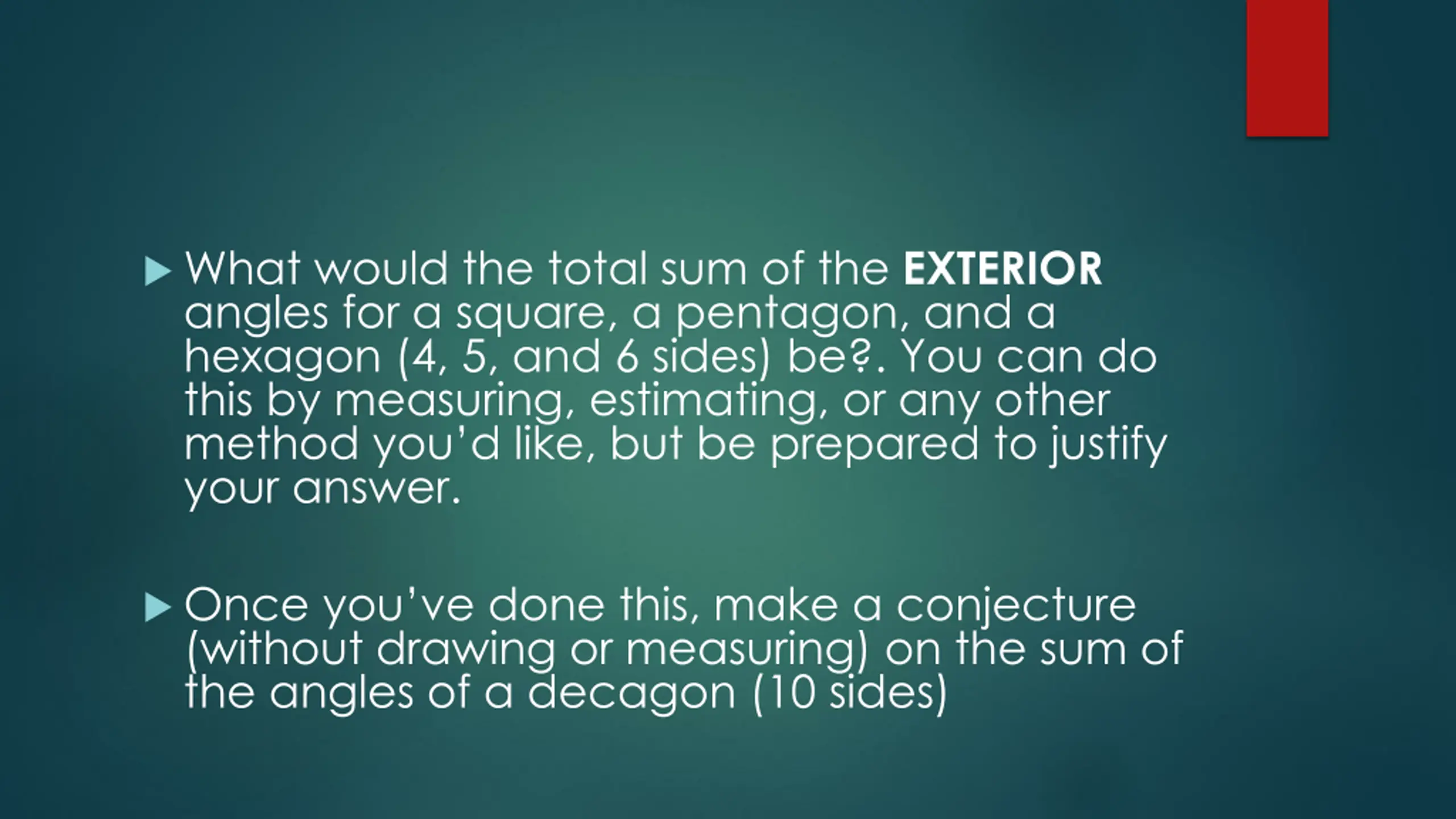

What would the total sum of the EXTERIOR angles for a square, a pentagon, and a hexagon (4, 5, and 6 sides) be?. You can do this by measuring, estimating, or any other method you d like, but be prepared to justify your answer. Once you ve done this, make a conjecture (without drawing or measuring) on the sum of the angles of a decagon (10 sides)

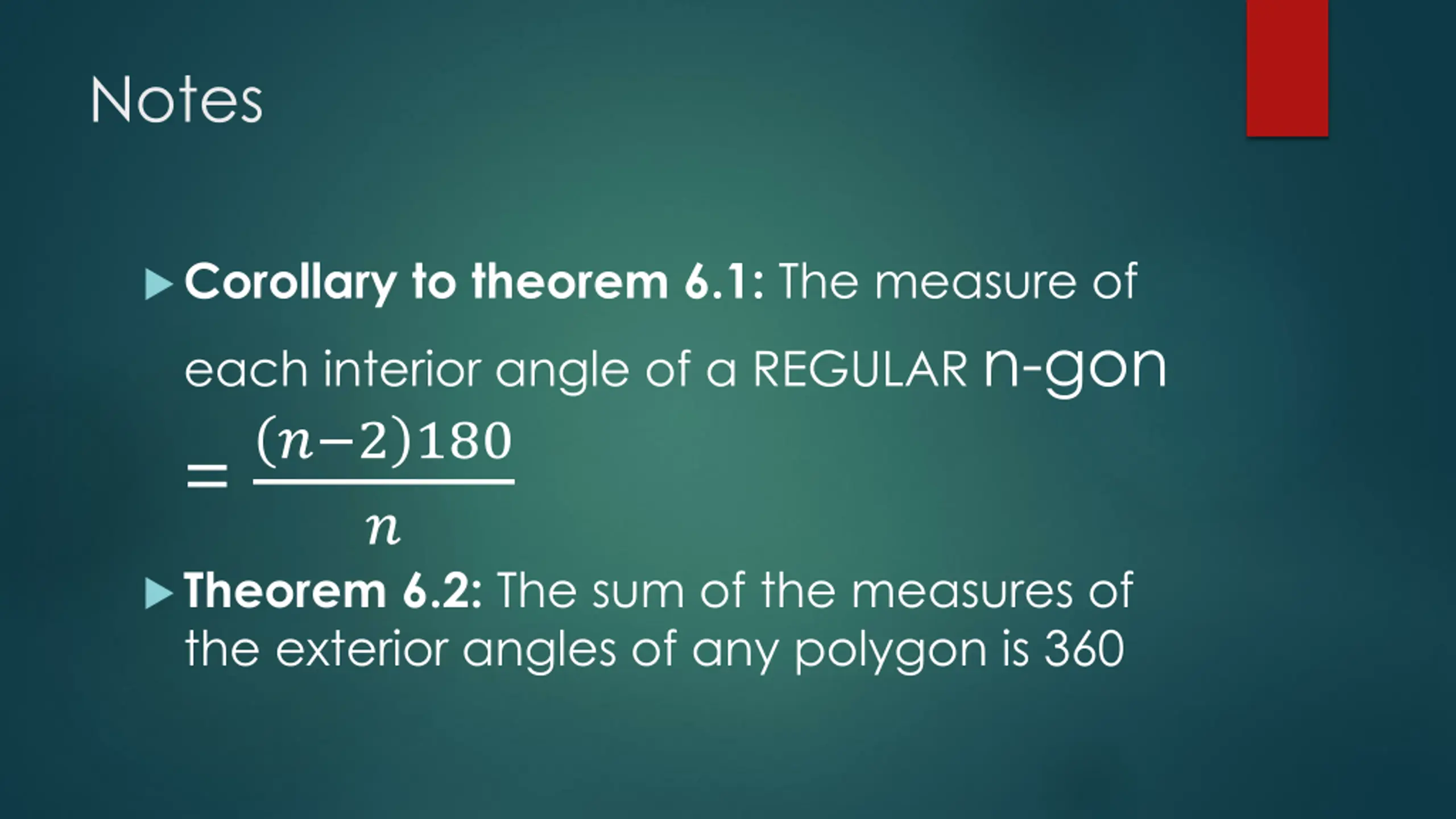

Notes Corollary to theorem 6.1: The measure of each interior angle of a REGULAR n-gon = ? Theorem 6.2: The sum of the measures of the exterior angles of any polygon is 360 ? 2 180

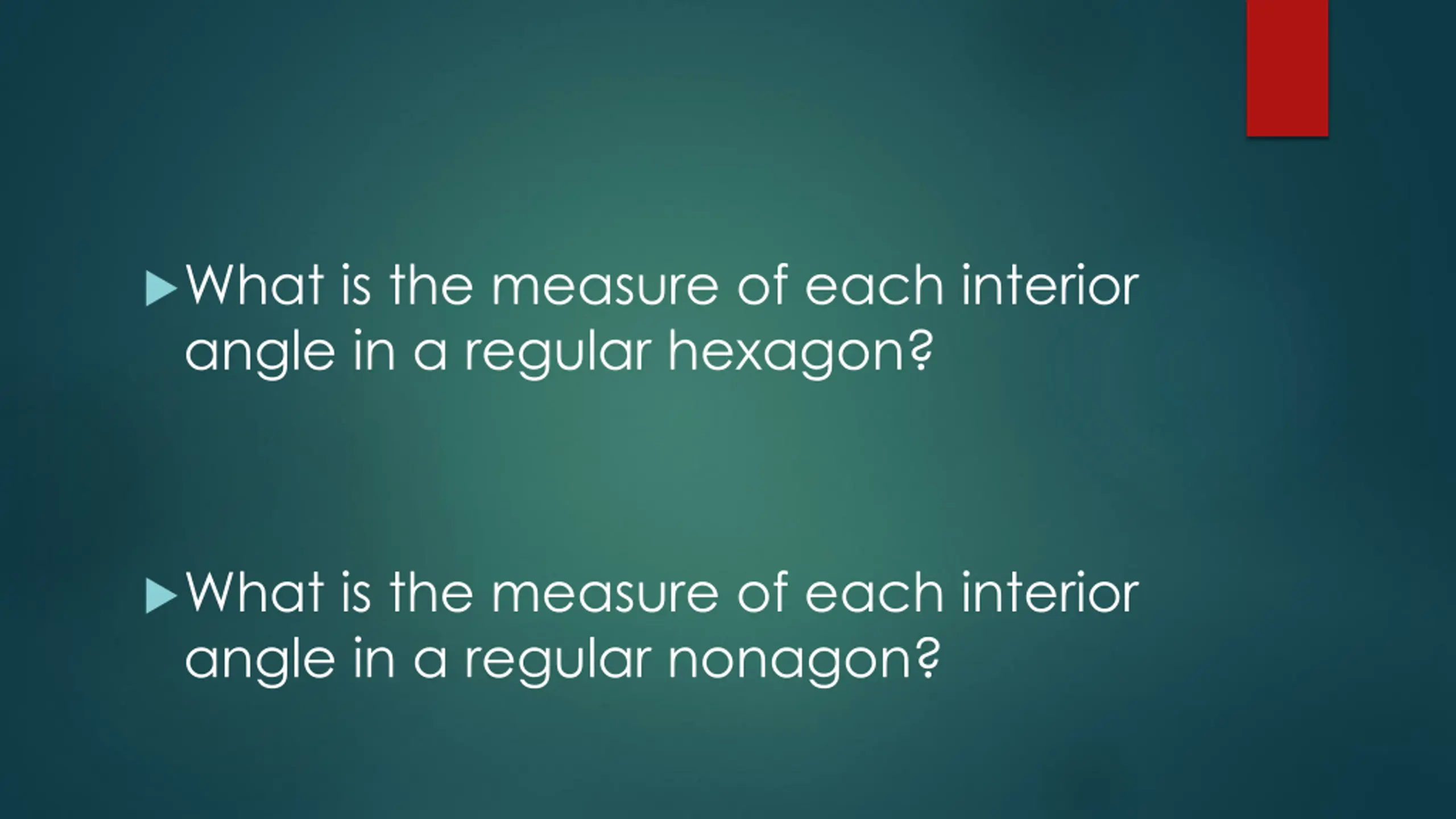

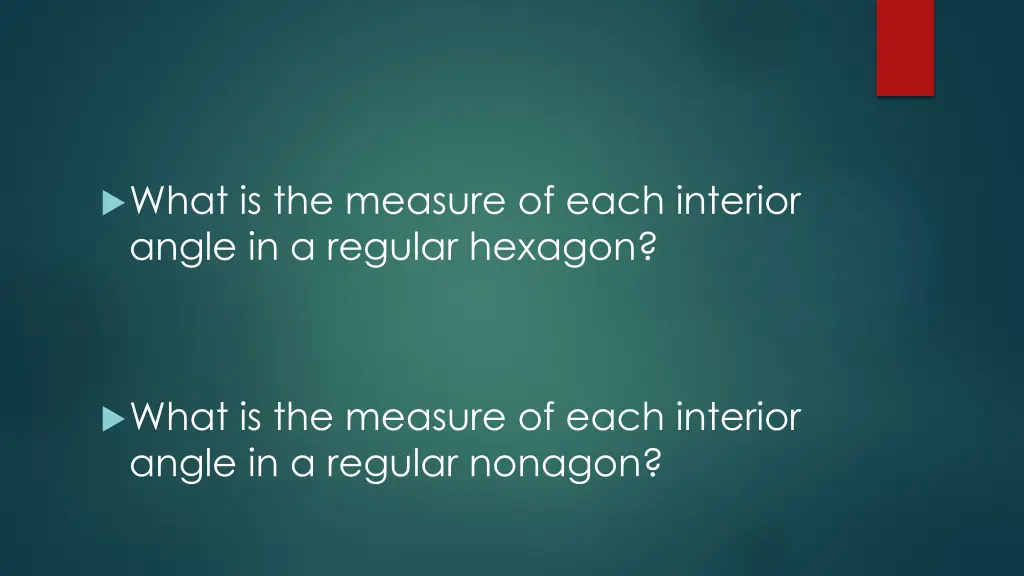

What is the measure of each interior angle in a regular hexagon? What is the measure of each interior angle in a regular nonagon?

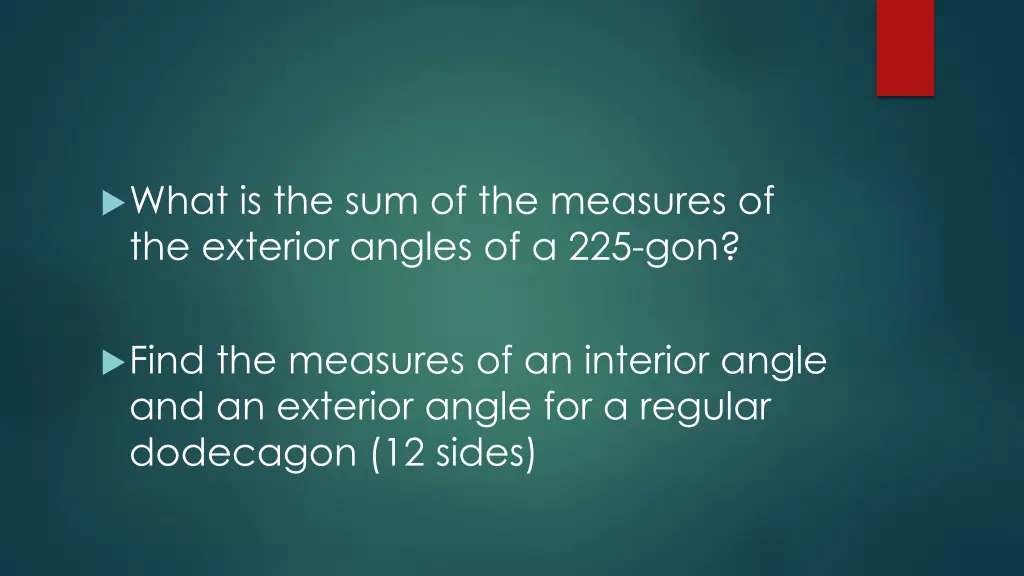

What is the sum of the measures of the exterior angles of a 225-gon? Find the measures of an interior angle and an exterior angle for a regular dodecagon (12 sides)

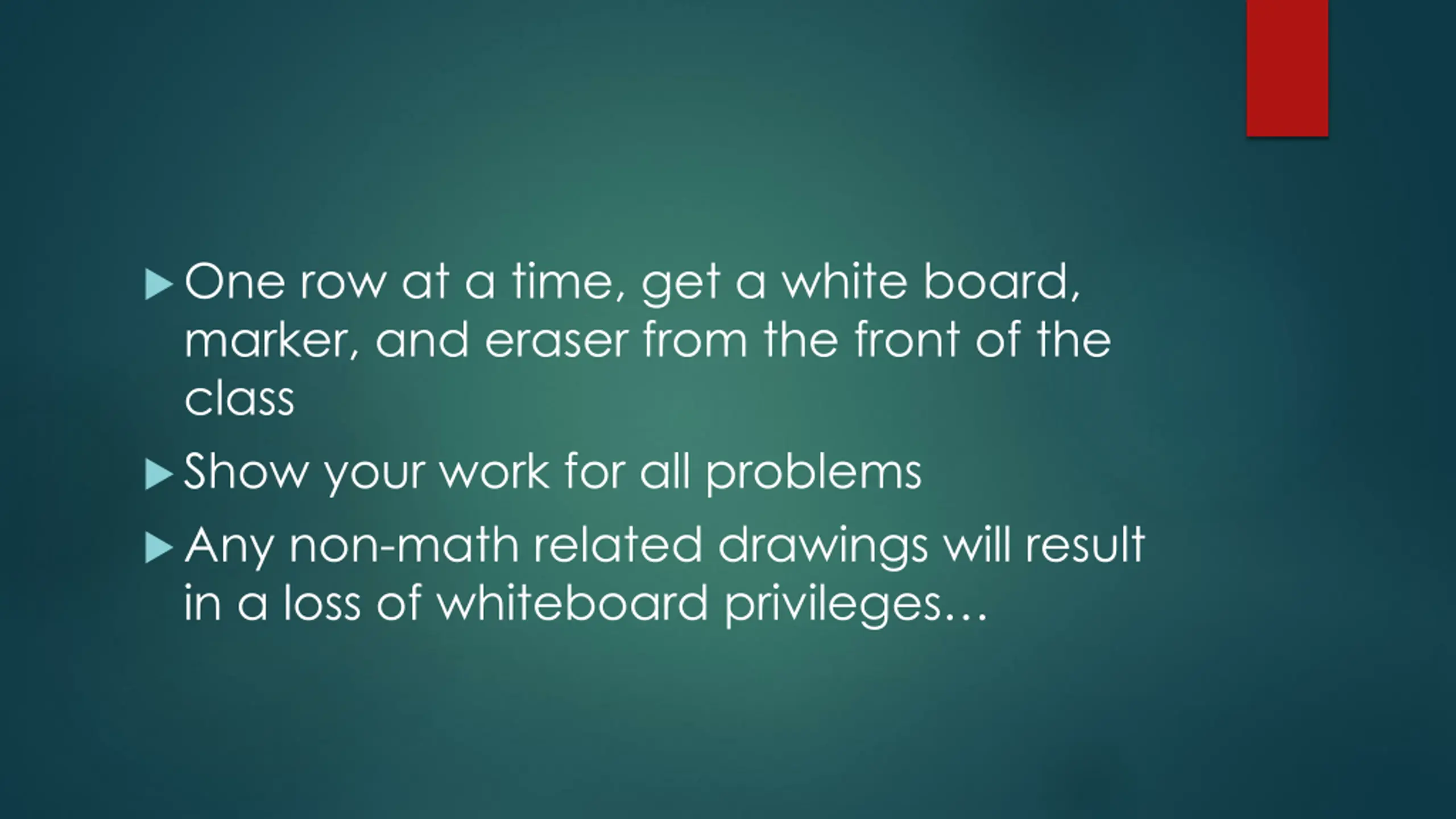

One row at a time, get a white board, marker, and eraser from the front of the class Show your work for all problems Any non-math related drawings will result in a loss of whiteboard privileges

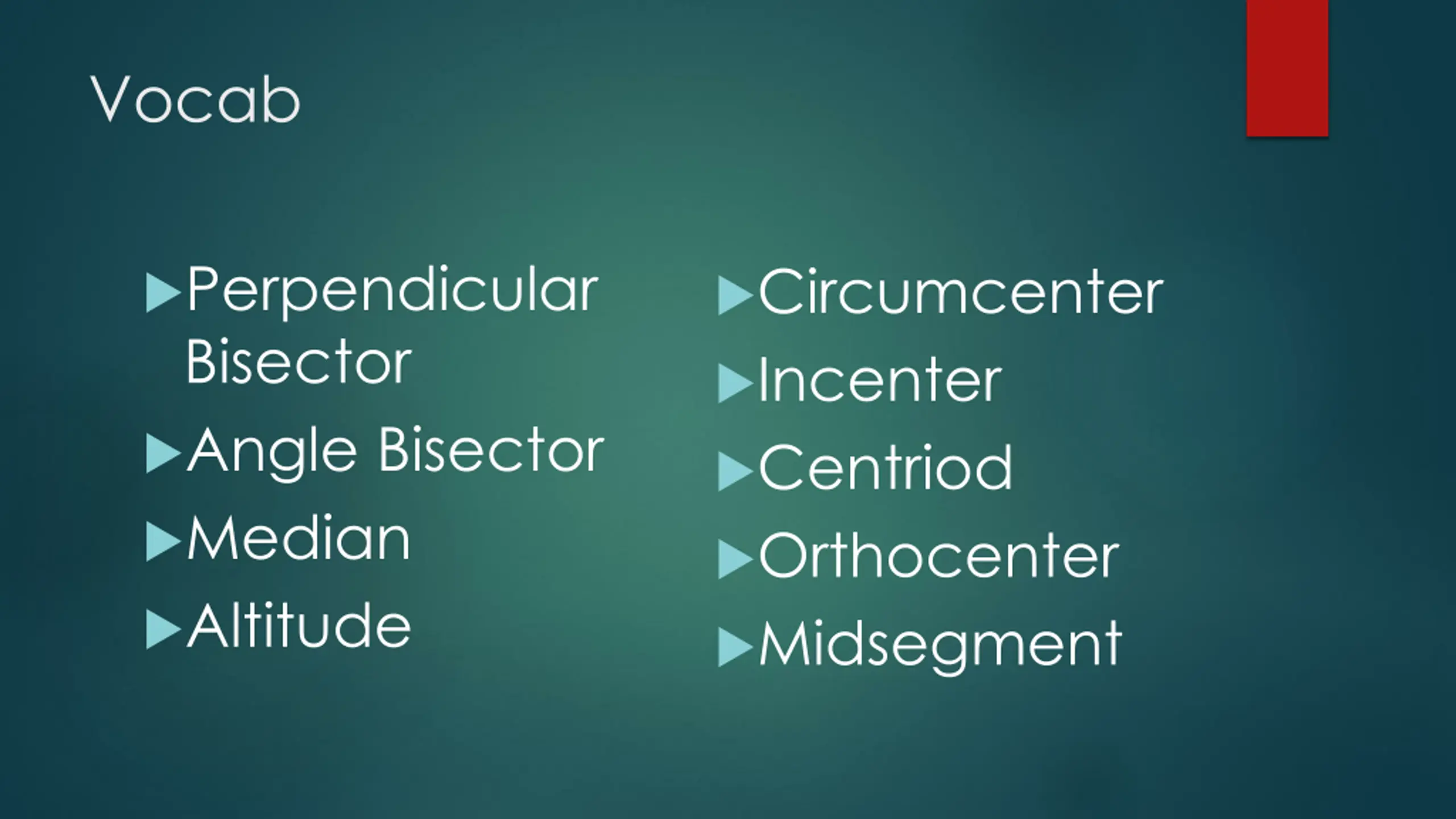

Vocab Perpendicular Bisector Angle Bisector Median Altitude Circumcenter Incenter Centriod Orthocenter Midsegment

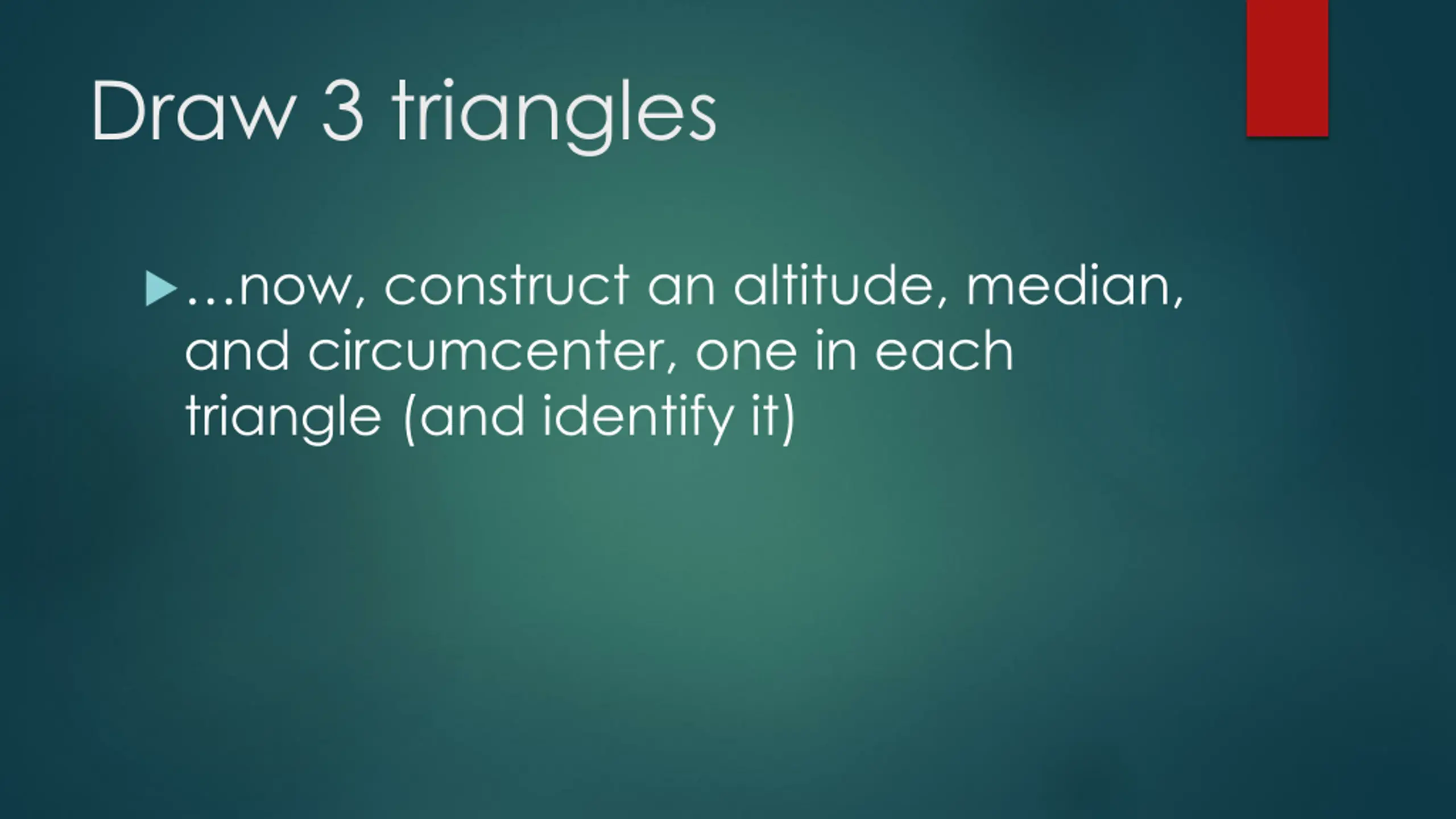

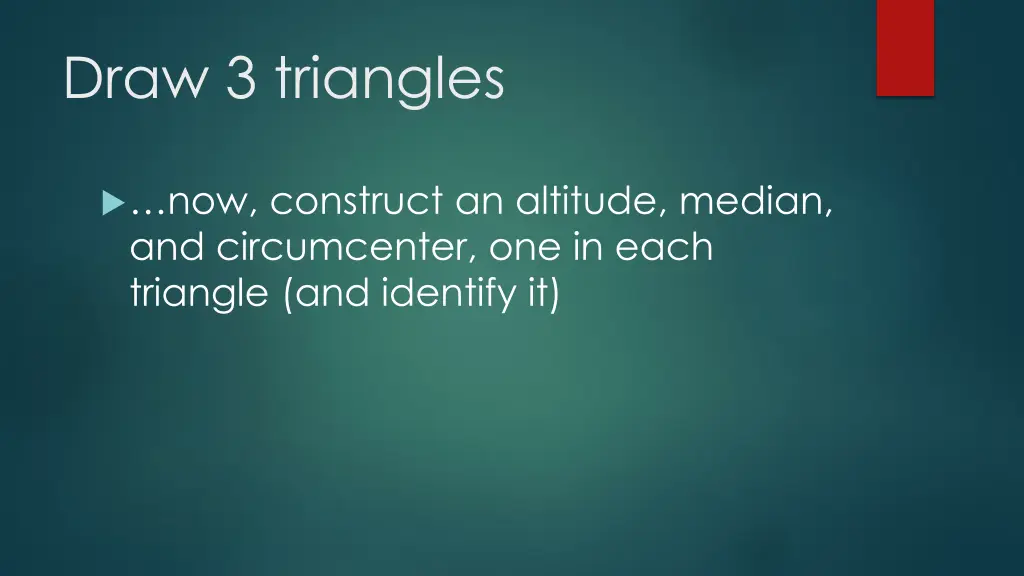

Draw 3 triangles now, construct an altitude, median, and circumcenter, one in each triangle (and identify it)

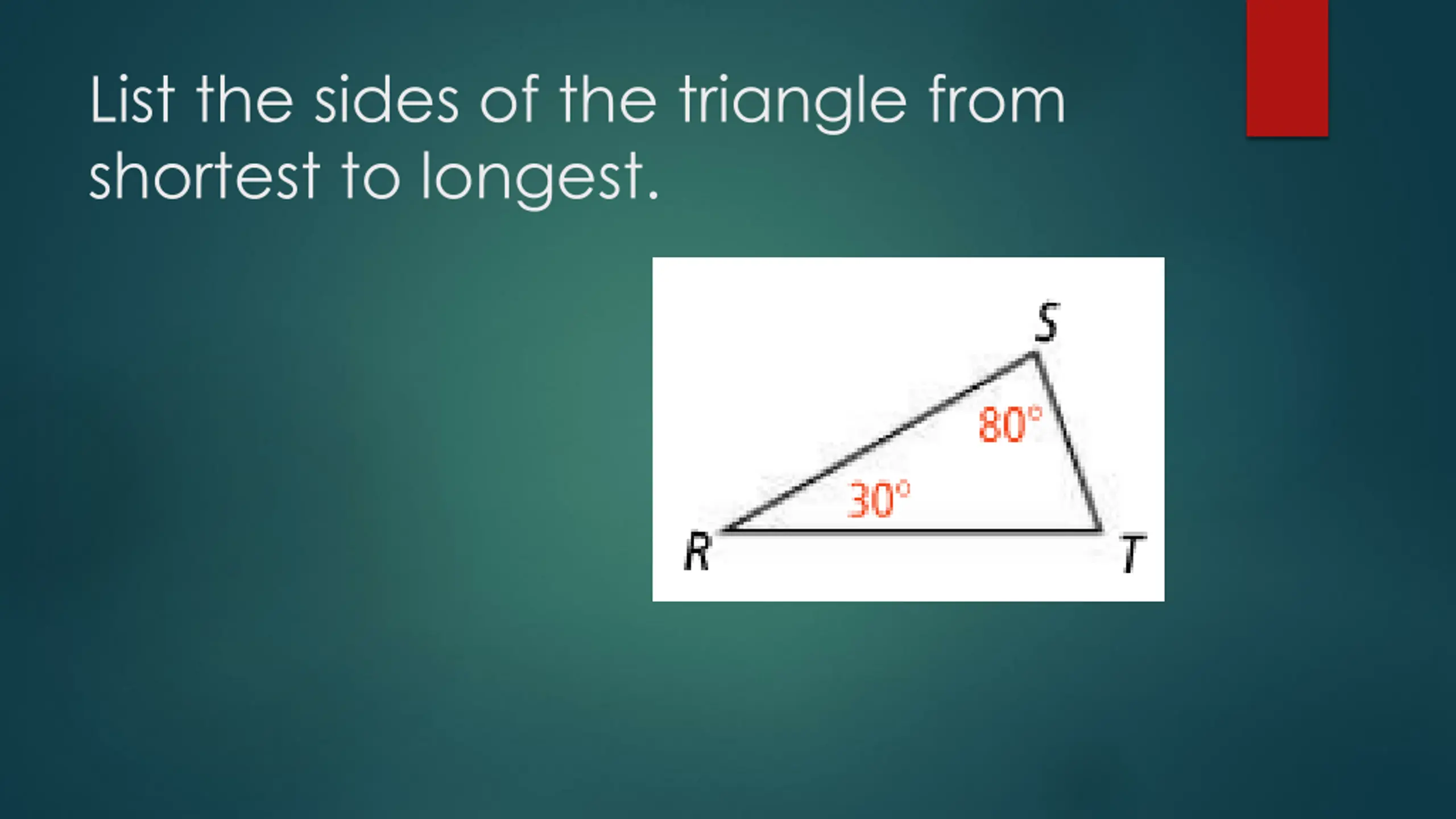

List the sides of the triangle from shortest to longest.

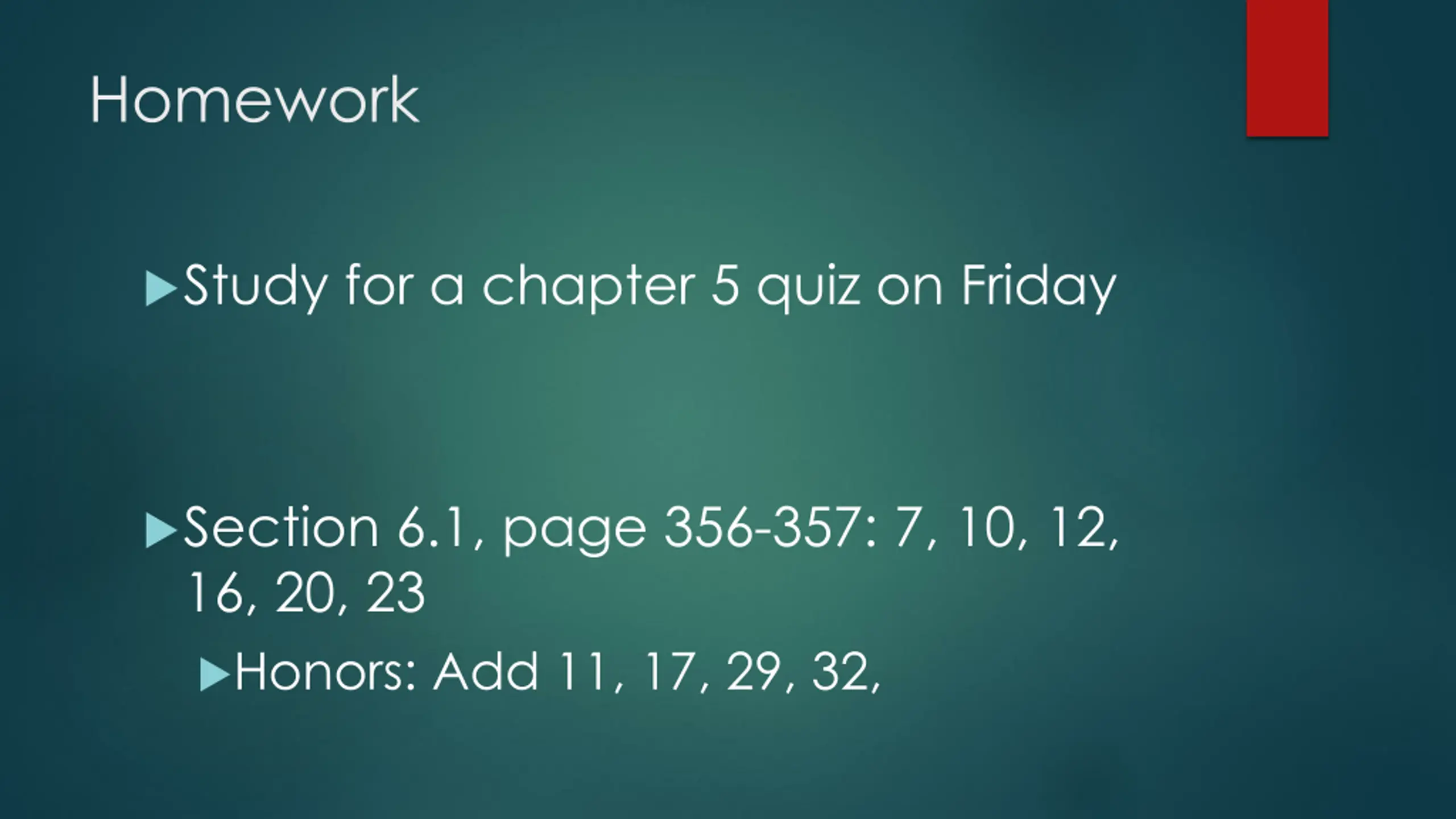

Homework Study for a chapter 5 quiz on Friday Section 6.1, page 356-357: 7, 10, 12, 16, 20, 23 Honors: Add 11, 17, 29, 32,
