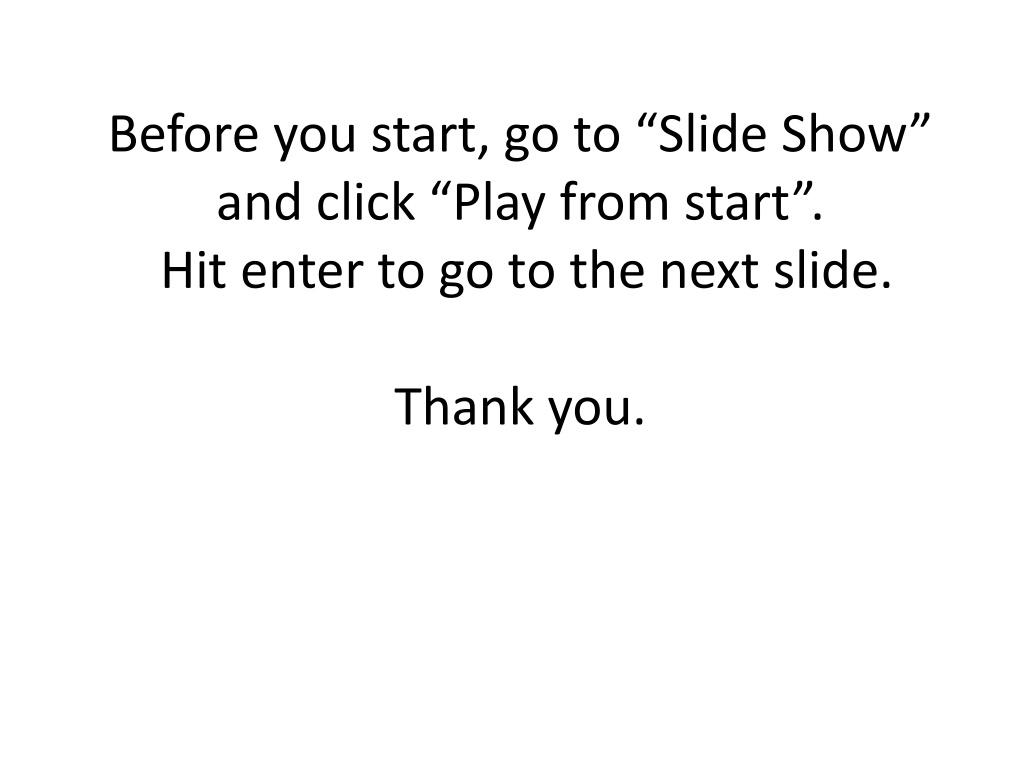

1. Before you start, go to Slide Show and click Play from start . Hit enter to go to the next slide. Thank you.

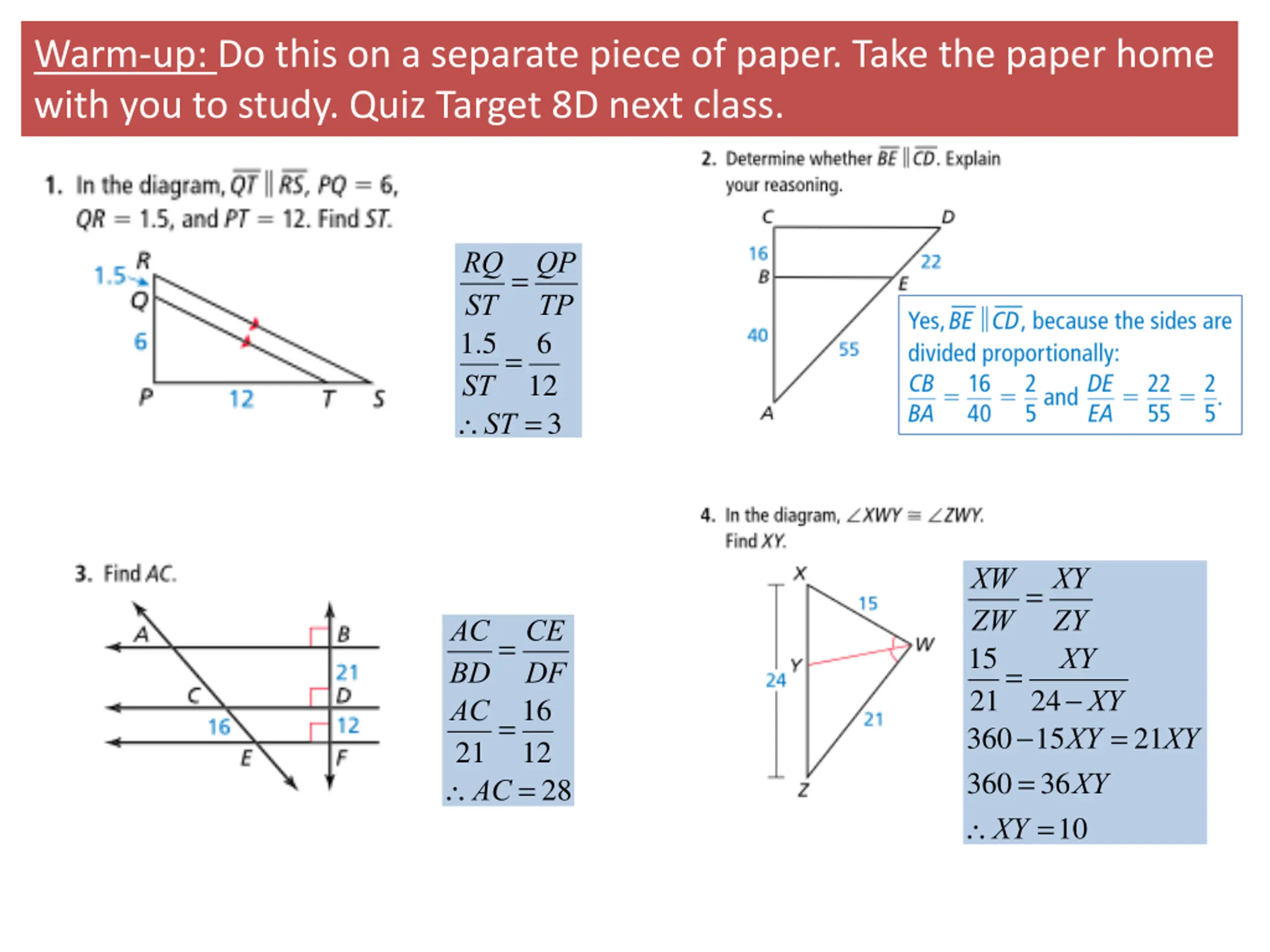

2. Warm-up: Do this on a separate piece of paper. Take the paper home with you to study. Quiz Target 8D next class. RQ ST 1.5 ST=6 \ST =3 =QP TP 12 XW ZW 15 21= 360-15XY = 21XY 360 =36XY \XY =10 =XY ZY AC BD=CE AC 21=16 \AC = 28 XY DF 24- XY 12

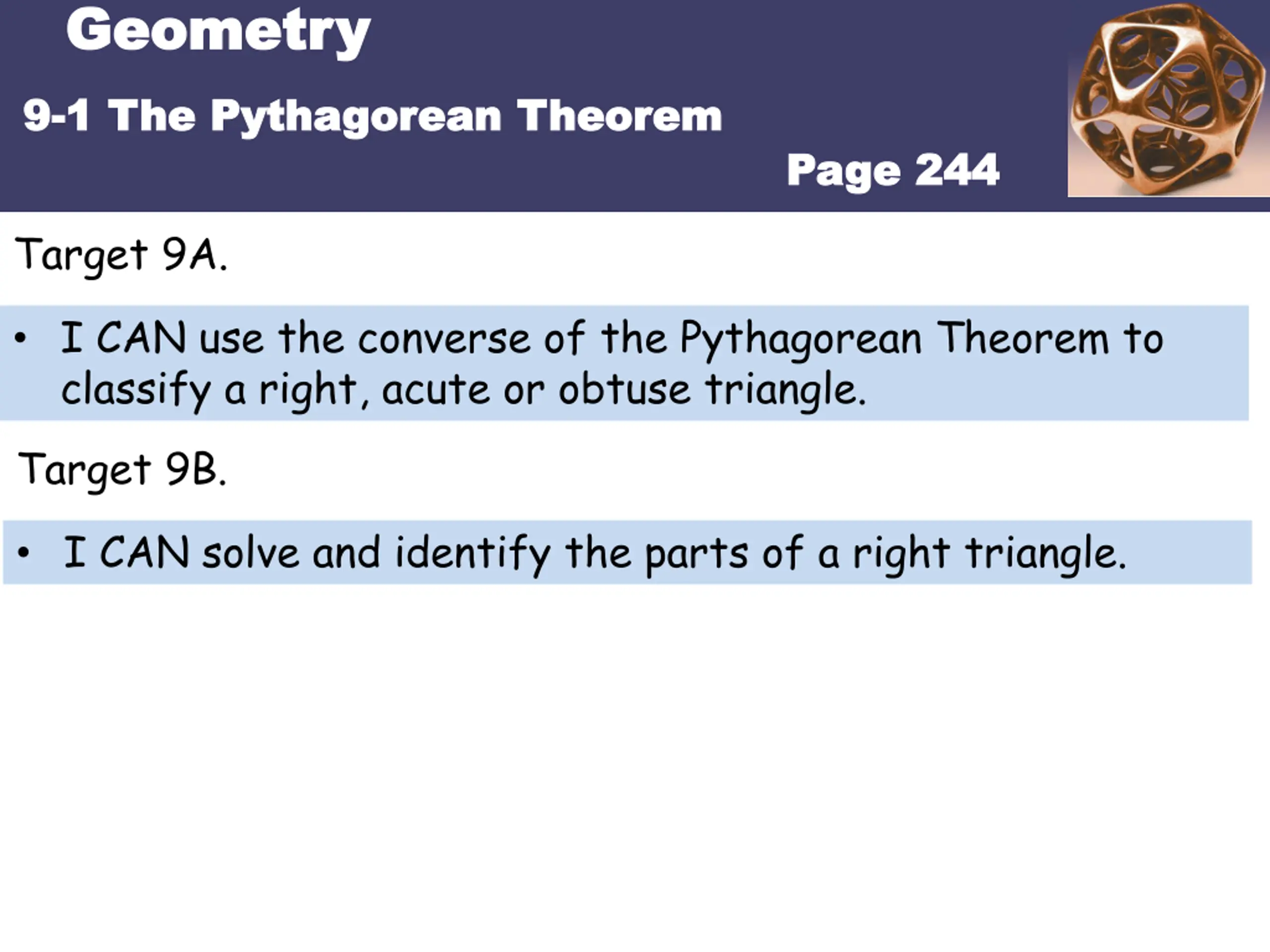

3. Geometry Geometry POINTS, LINES AND PLANES 9 9- -1 The Pythagorean Theorem 1 The Pythagorean Theorem Page 244 Page 244 Target 9A. I CAN use the converse of the Pythagorean Theorem to classify a right, acute or obtuse triangle. Target 9B. I CAN solve and identify the parts of a right triangle.

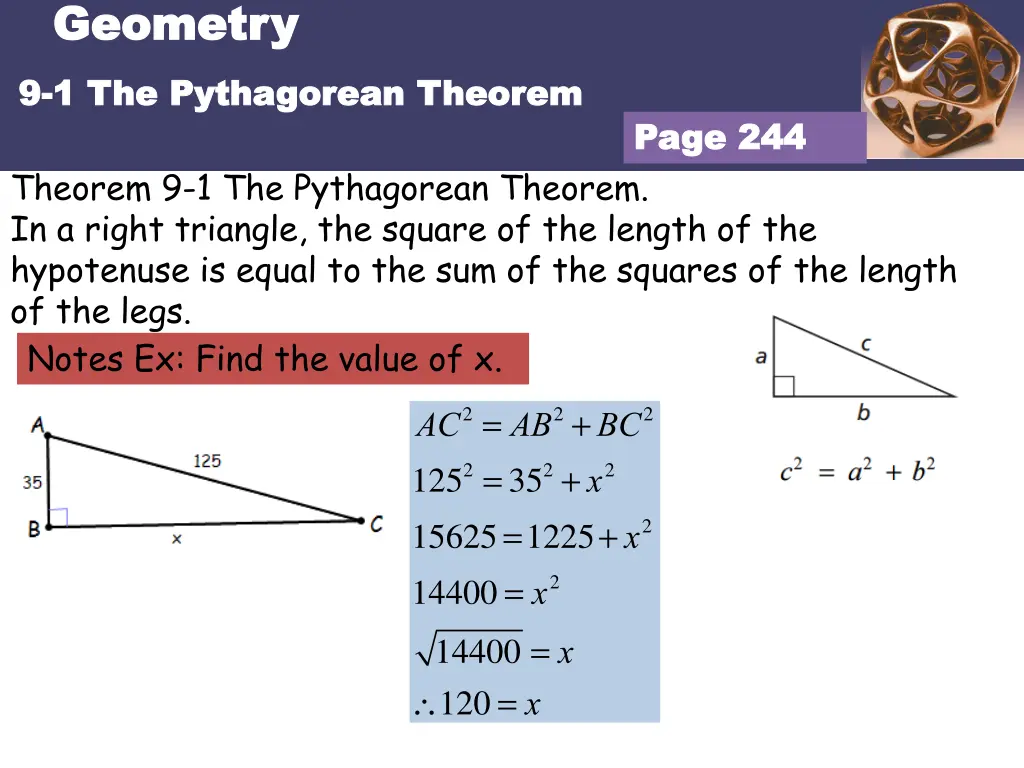

4. Geometry Geometry POINTS, LINES AND PLANES 9 9- -1 The Pythagorean Theorem 1 The Pythagorean Theorem Page 244 Page 244 Theorem 9-1 The Pythagorean Theorem. In a right triangle, the square of the length of the hypotenuse is equal to the sum of the squares of the length of the legs. Notes Ex: Find the value of x. AC2= AB2+BC2 1252=352+ x2 15625=1225+ x2 14400 = x2 14400 = x \120 = x

5. Geometry Geometry Page 244 Page 244 POINTS, LINES AND PLANES 9 9- -1 The Pythagorean Theorem 1 The Pythagorean Theorem Pythagorean Triple. A Pythagorean Triple is a set of three positive integers (whole numbers) a, b and c which satisfy the Pythagorean Theorem.

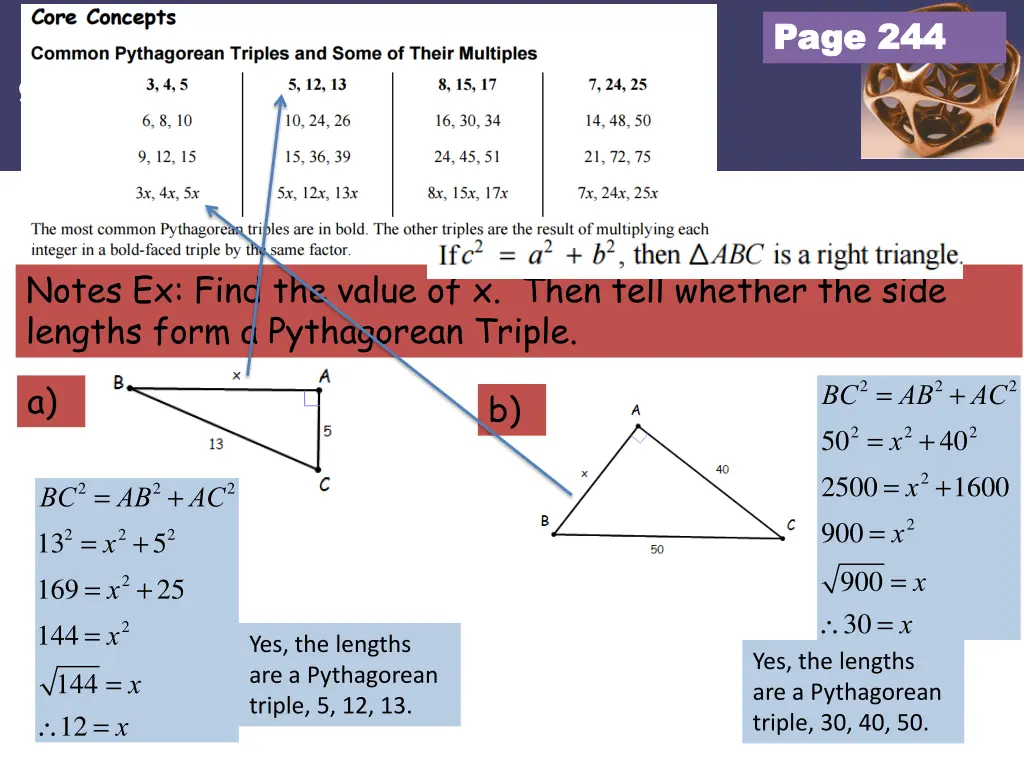

6. Geometry Geometry Page 244 Page 244 POINTS, LINES AND PLANES 9 9- -1 The Pythagorean Theorem 1 The Pythagorean Theorem Notes Ex: Find the value of x. Then tell whether the side lengths form a Pythagorean Triple. a) BC2= AB2+ AC2 502= x2+402 2500 = x2+1600 900 = x2 900 = x \30 = x Yes, the lengths are a Pythagorean triple, 30, 40, 50. b) BC2= AB2+ AC2 132= x2+52 169 = x2+25 144 = x2 144 = x \12 = x Yes, the lengths are a Pythagorean triple, 5, 12, 13.

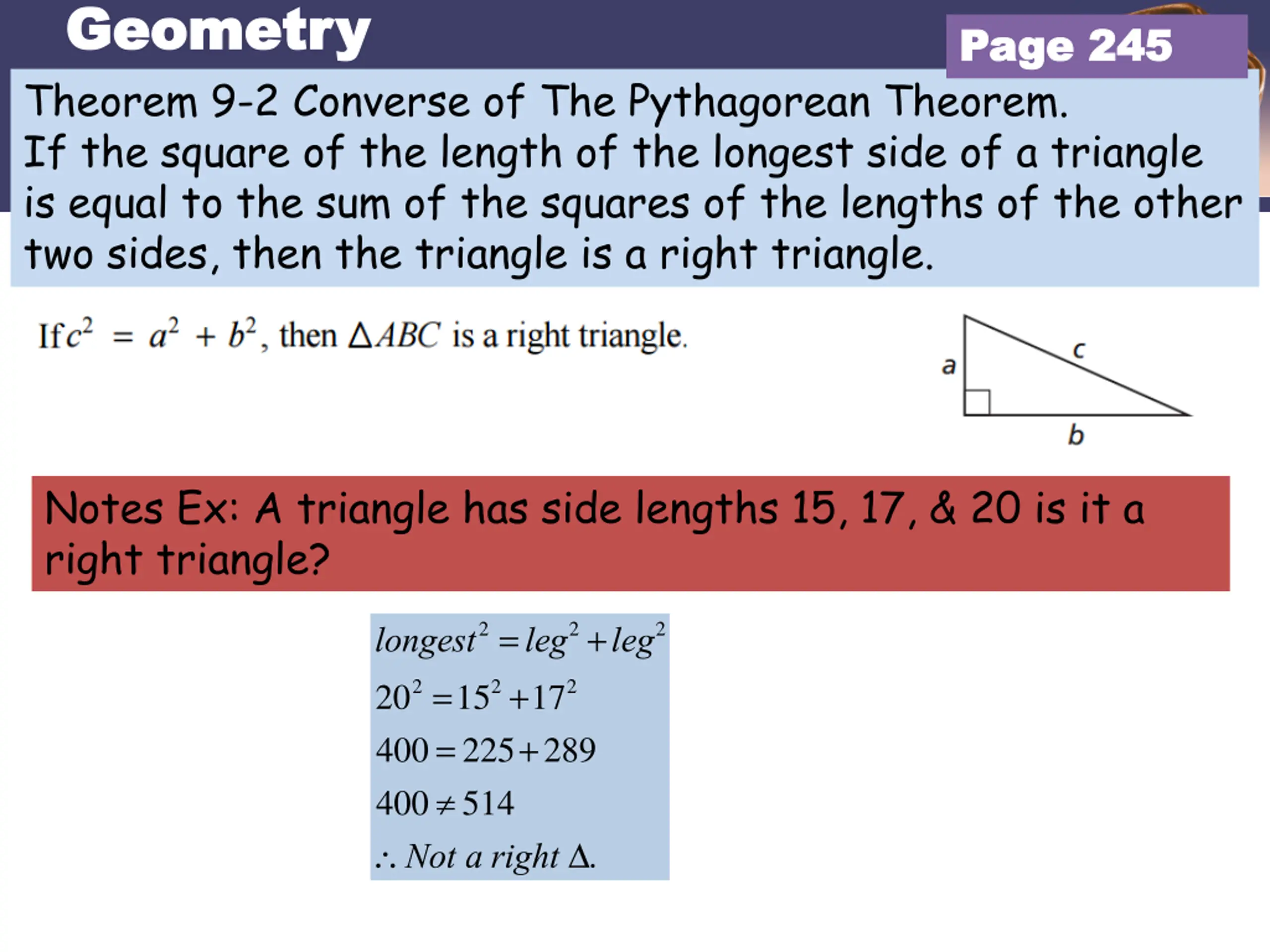

7. Geometry Geometry Theorem 9-2 Converse of The Pythagorean Theorem. Page 245 Page 245 POINTS, LINES AND PLANES 9 9- -1 The Pythagorean Theorem 1 The Pythagorean Theorem If the square of the length of the longest side of a triangle is equal to the sum of the squares of the lengths of the other two sides, then the triangle is a right triangle. Notes Ex: A triangle has side lengths 15, 17, & 20 is it a right triangle? longest2=leg2+leg2 202=152+172 400 = 225+289 400 514 \Not a right D.

8. Geometry Geometry Page 245 Page 245 POINTS, LINES AND PLANES 9 9- -1 The Pythagorean Theorem 1 The Pythagorean Theorem Theorem 9-3 Pythagorean Inequalities Theorem. For any ???, where c is the length of the longest side, the following statements are true. Notes Ex: Verify that the segments form a triangle. Is the triangle acute or obtuse? a) 16, 20, 23 b) 15, 8, 23 16+20 =36 36 > 23 \It's a D. longest2?leg2+leg2 232?162+202 529?256+400 529 < 656 \Acute D. 15+8= 23 23not > 23 \It's not a D.

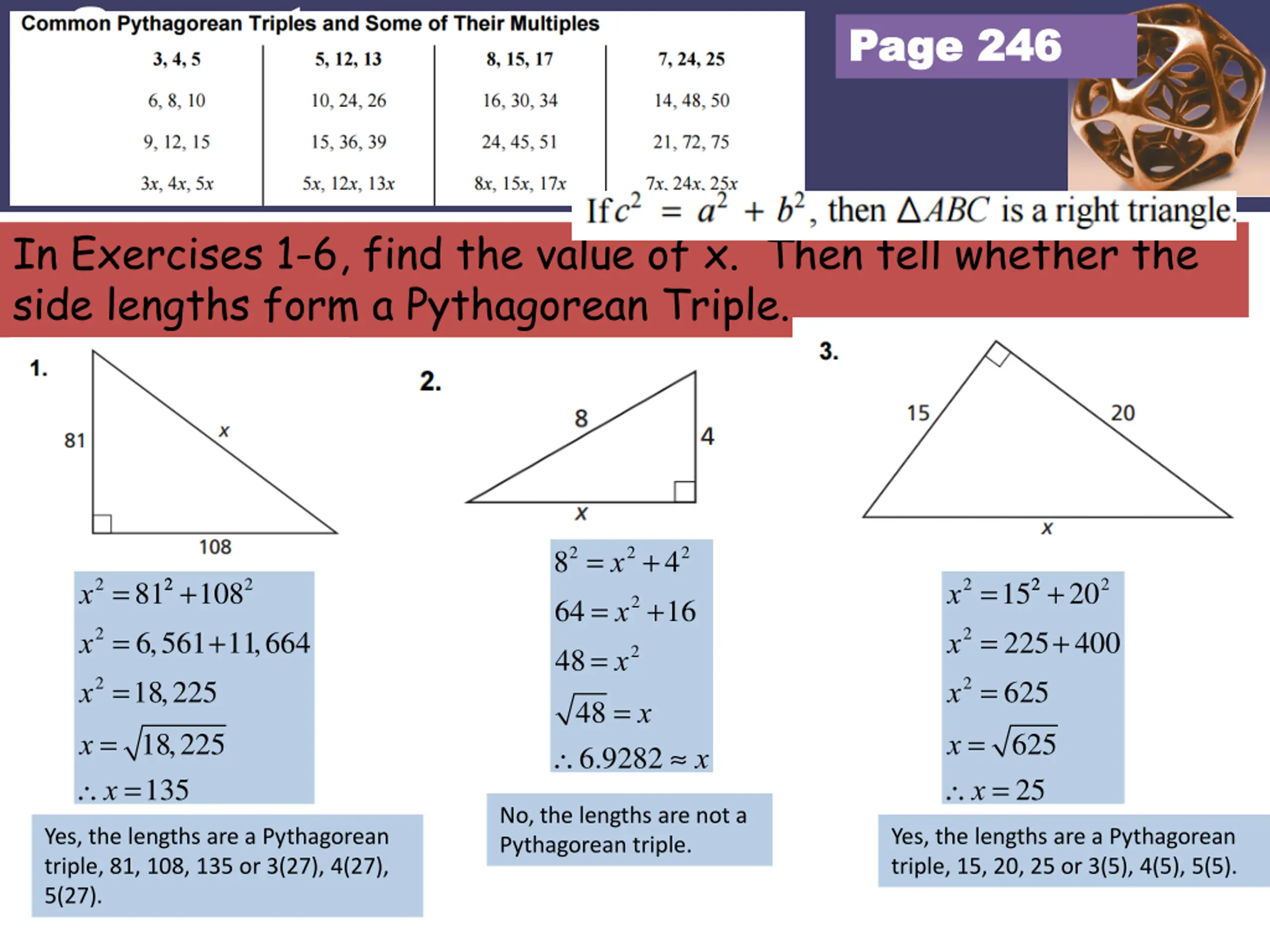

9. Geometry Geometry Page 246 Page 246 POINTS, LINES AND PLANES 9 9- -1 The Pythagorean Theorem 1 The Pythagorean Theorem In Exercises 1-6, find the value of x. Then tell whether the side lengths form a Pythagorean Triple. 82= x2+42 64 = x2+16 48= x2 48 = x \6.9282 x x2=812 2+1082 x2= 6,561+11,664 x2=18,225 x = 18,225 \x =135 x2=152 2+202 x2= 225+400 x2= 625 x = 625 \x = 25 No, the lengths are not a Pythagorean triple. Yes, the lengths are a Pythagorean triple, 81, 108, 135 or 3(27), 4(27), 5(27). Yes, the lengths are a Pythagorean triple, 15, 20, 25 or 3(5), 4(5), 5(5).

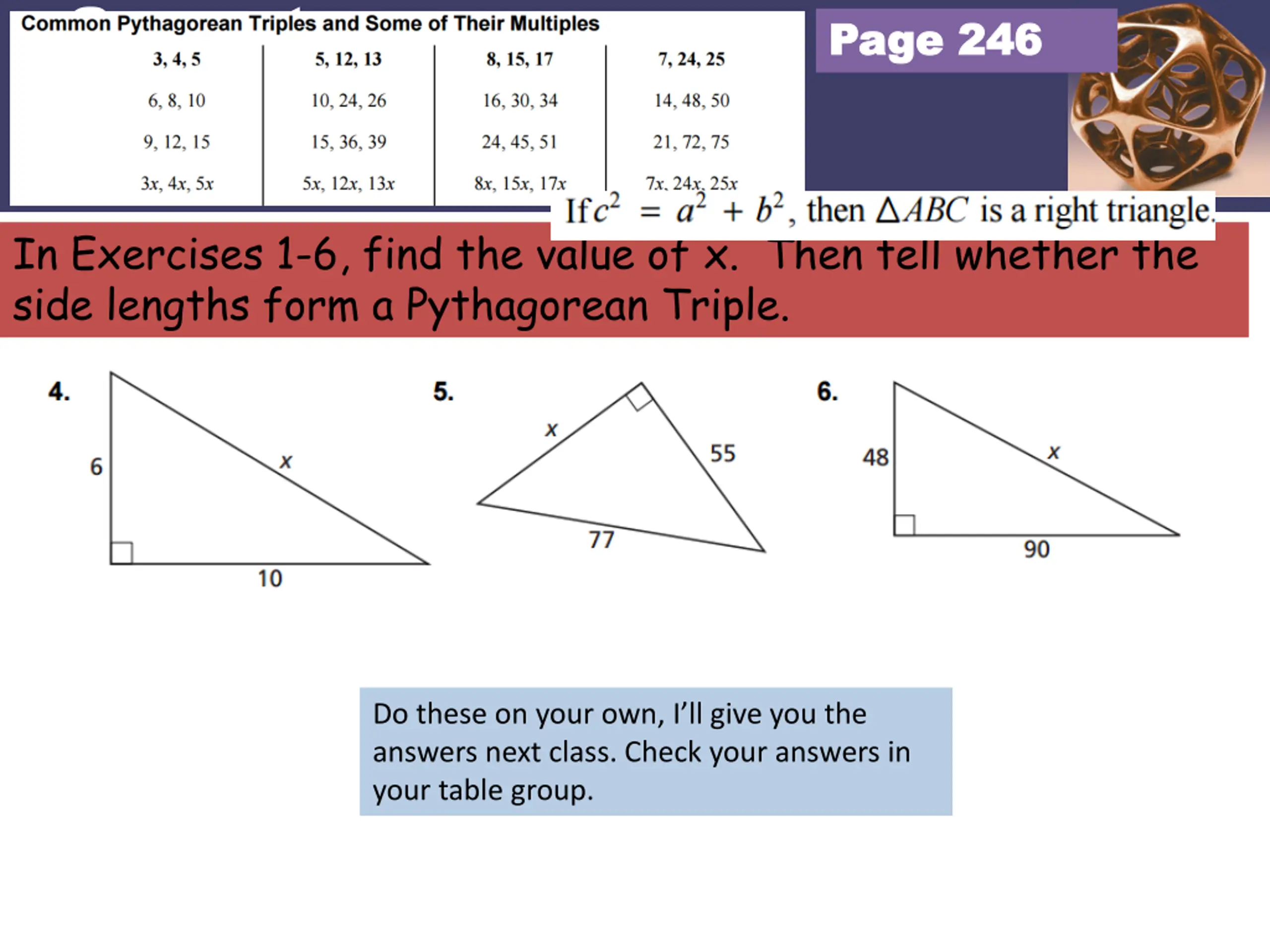

10. Geometry Geometry Page 246 Page 246 POINTS, LINES AND PLANES 9 9- -1 The Pythagorean Theorem 1 The Pythagorean Theorem In Exercises 1-6, find the value of x. Then tell whether the side lengths form a Pythagorean Triple. Do these on your own, I ll give you the answers next class. Check your answers in your table group.

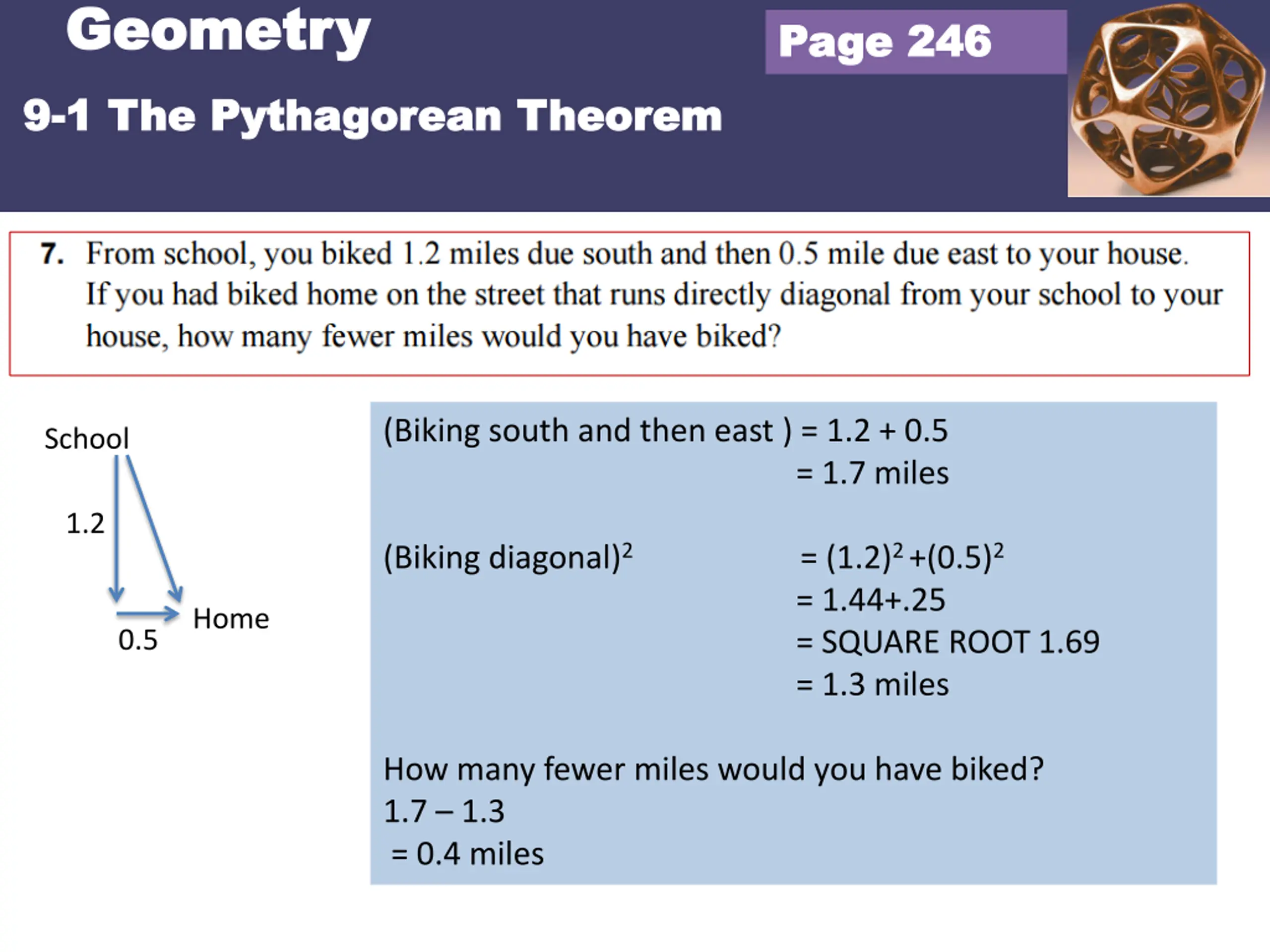

11. Geometry Geometry Page 246 Page 246 POINTS, LINES AND PLANES 9 9- -1 The Pythagorean Theorem 1 The Pythagorean Theorem (Biking south and then east ) = 1.2 + 0.5 School = 1.7 miles 1.2 (Biking diagonal)2 = (1.2)2 +(0.5)2 = 1.44+.25 = SQUARE ROOT 1.69 = 1.3 miles Home 0.5 How many fewer miles would you have biked? 1.7 1.3 = 0.4 miles

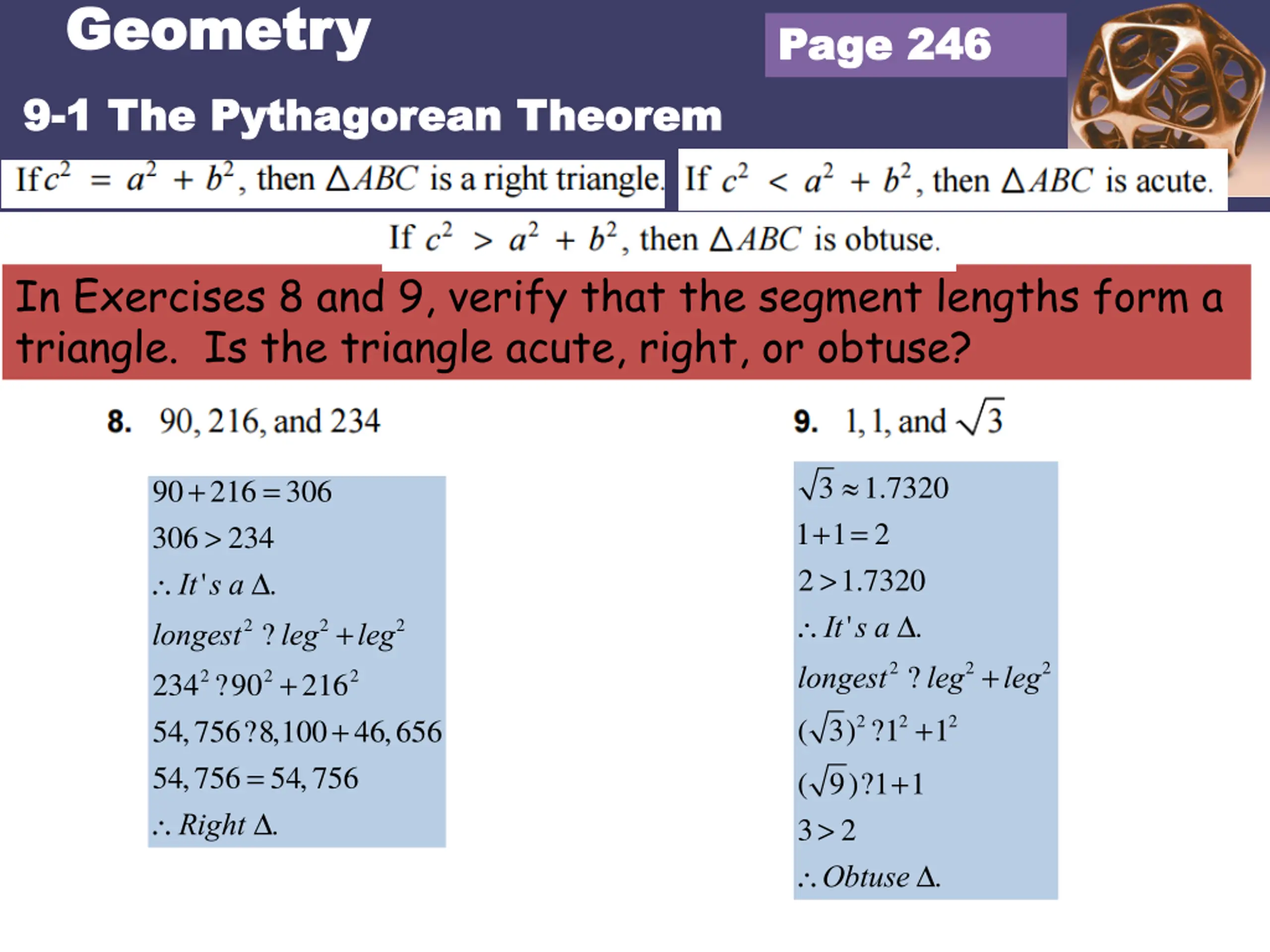

12. Geometry Geometry Page 246 Page 246 POINTS, LINES AND PLANES 9 9- -1 The Pythagorean Theorem 1 The Pythagorean Theorem In Exercises 8 and 9, verify that the segment lengths form a triangle. Is the triangle acute, right, or obtuse? 3 1.7320 1+1= 2 2 >1.7320 \It's a D. longest2?leg2+leg2 ( 3)2?12+12 ( 9)?1+1 3> 2 \Obtuse D. 90+216 =306 306 > 234 \It's a D. longest2?leg2+leg2 2342?902+2162 54,756?8,100+46,656 54,756 = 54,756 \Right D.

13. The end KHAN ACADEMY NEXT
