Graph Game Model for Software Tamper Protection & Security Analysis

A Graph Game Model for Software Tamper Protection Mariusz Jakubowski Ramarathnam Venkatesan Microsoft Research Nenad Dedi Boston University Information Hiding 07 June 11-13, 2007

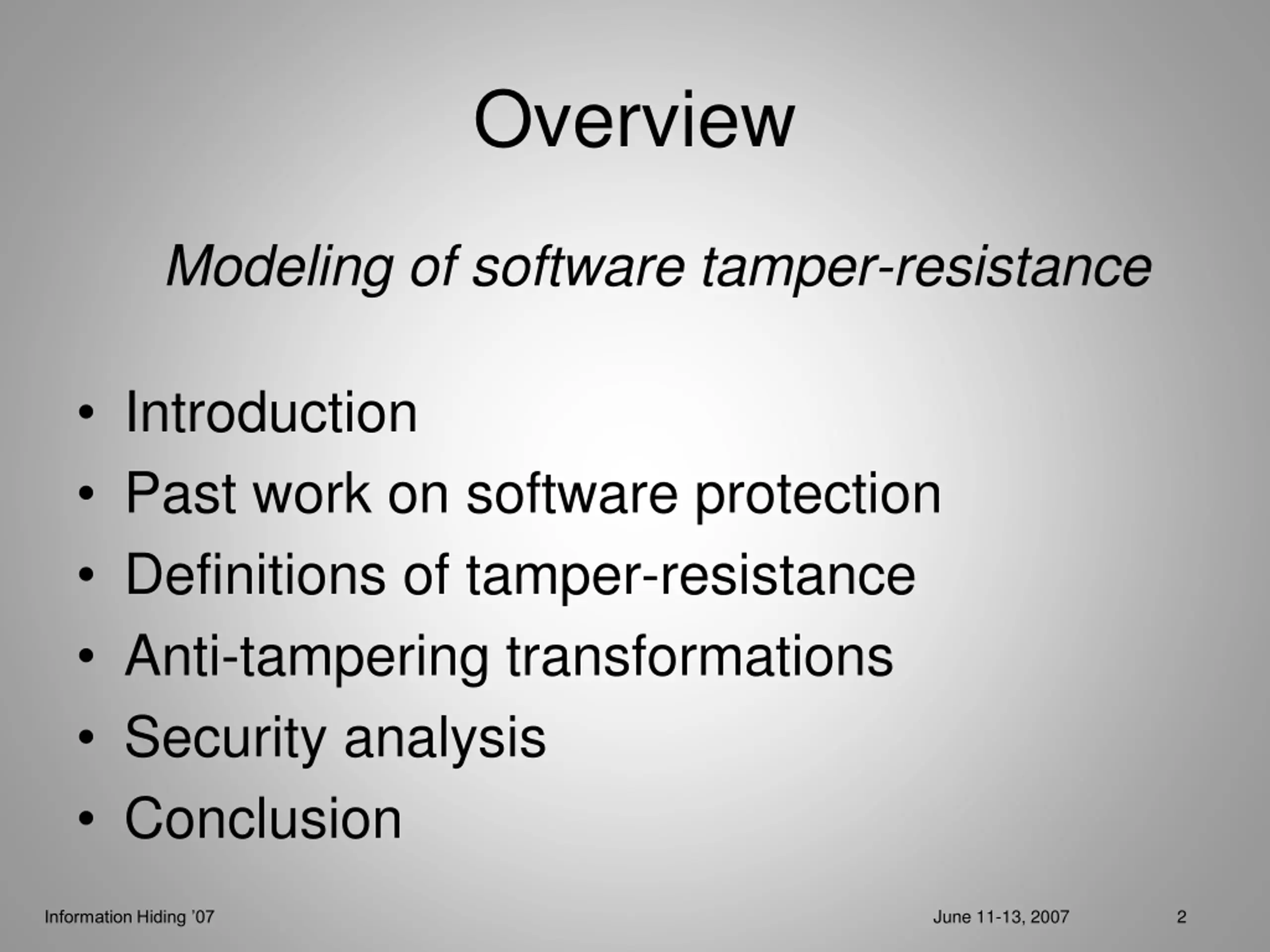

Overview Modeling of software tamper-resistance Introduction Past work on software protection Definitions of tamper-resistance Anti-tampering transformations Security analysis Conclusion June 11-13, 2007 2 Information Hiding 07

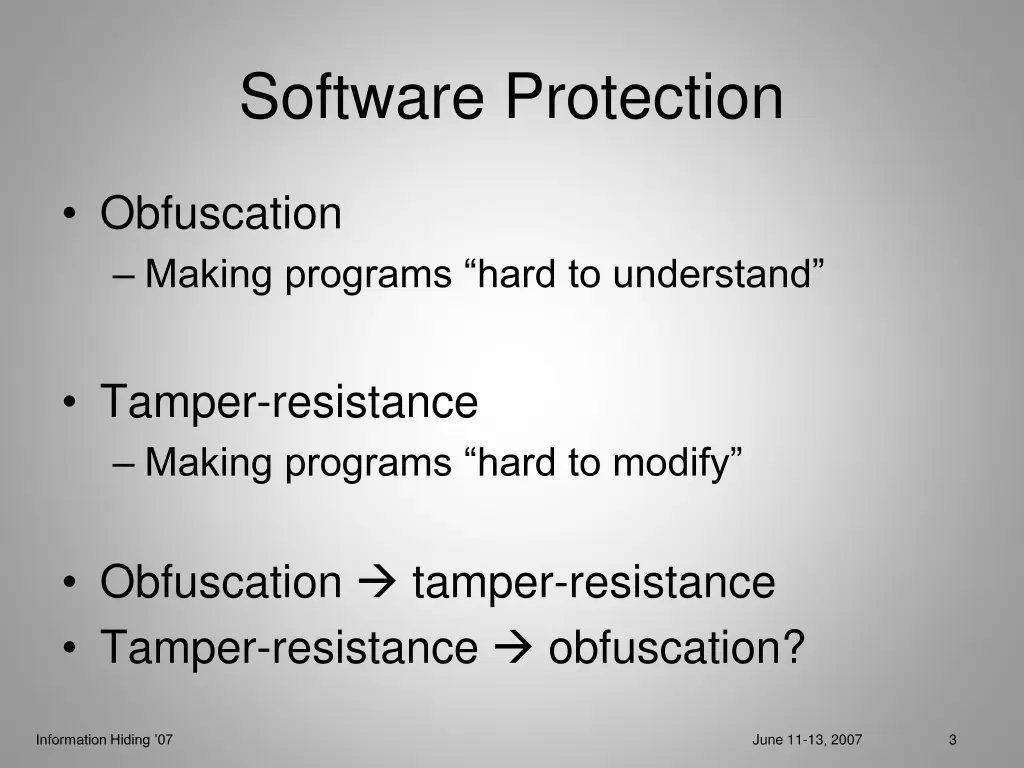

Software Protection Obfuscation Making programs hard to understand Tamper-resistance Making programs hard to modify Obfuscation tamper-resistance Tamper-resistance obfuscation? June 11-13, 2007 3 Information Hiding 07

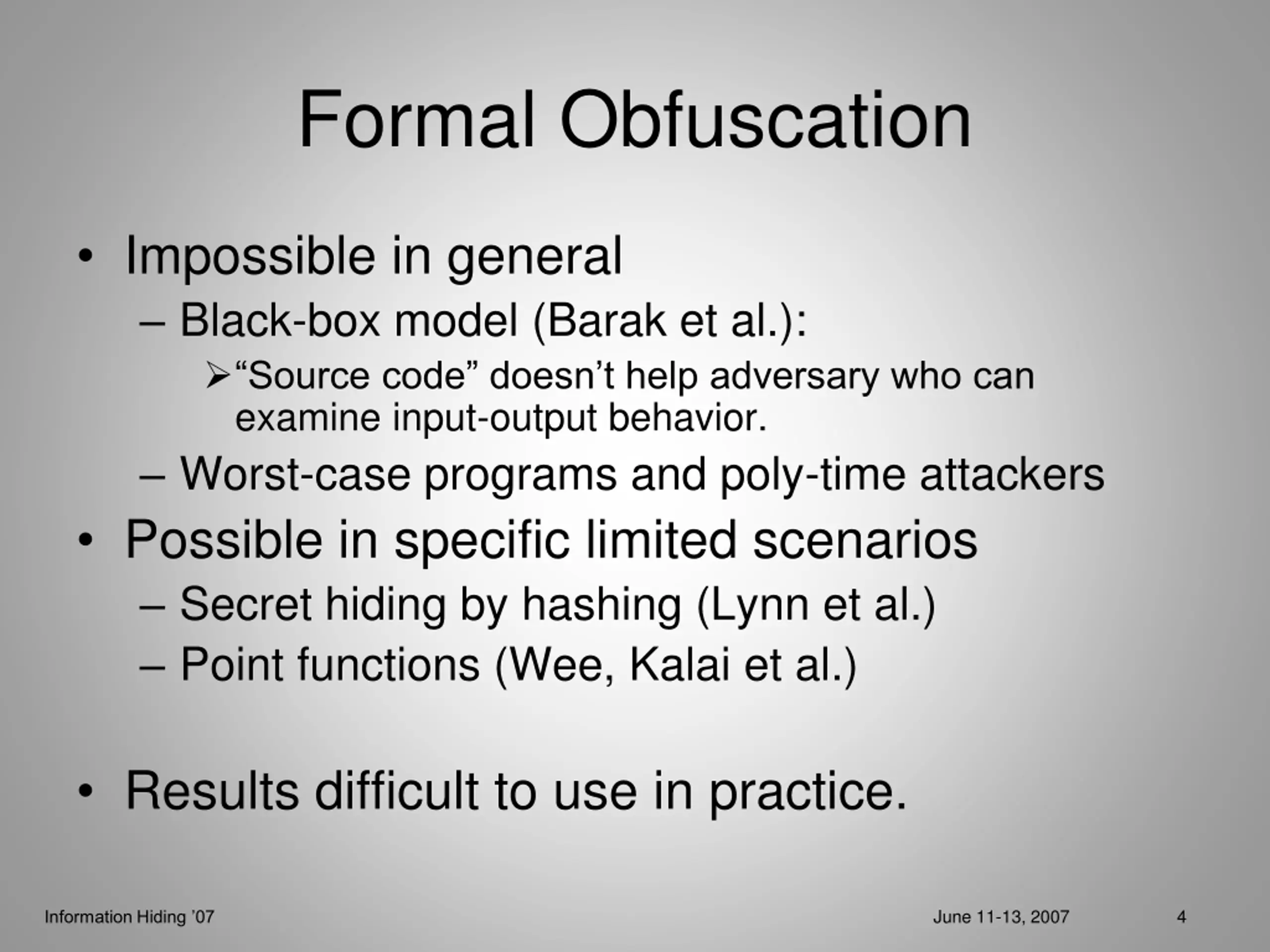

Formal Obfuscation Impossible in general Black-box model (Barak et al.): Source code doesn t help adversary who can examine input-output behavior. Worst-case programs and poly-time attackers Possible in specific limited scenarios Secret hiding by hashing (Lynn et al.) Point functions (Wee, Kalai et al.) Results difficult to use in practice. June 11-13, 2007 4 Information Hiding 07

Tamper-resistance Many techniques used in practice e.g.: Code-integrity checksums Anti-debugging and anti-disassembly methods Virtual machines and interpreters Polymorphic and metamorphic code Never-ending battle on a very active field Targets: DRM, CD/DVD protection, games, dongles, licensing, etc. Defenses: Binary packers and cryptors, special compilers, transformation tools, programming strategies, etc. Current techniques tend to be ad hoc: No provable security No analysis of time required to crack protected instances June 11-13, 2007 5 Information Hiding 07

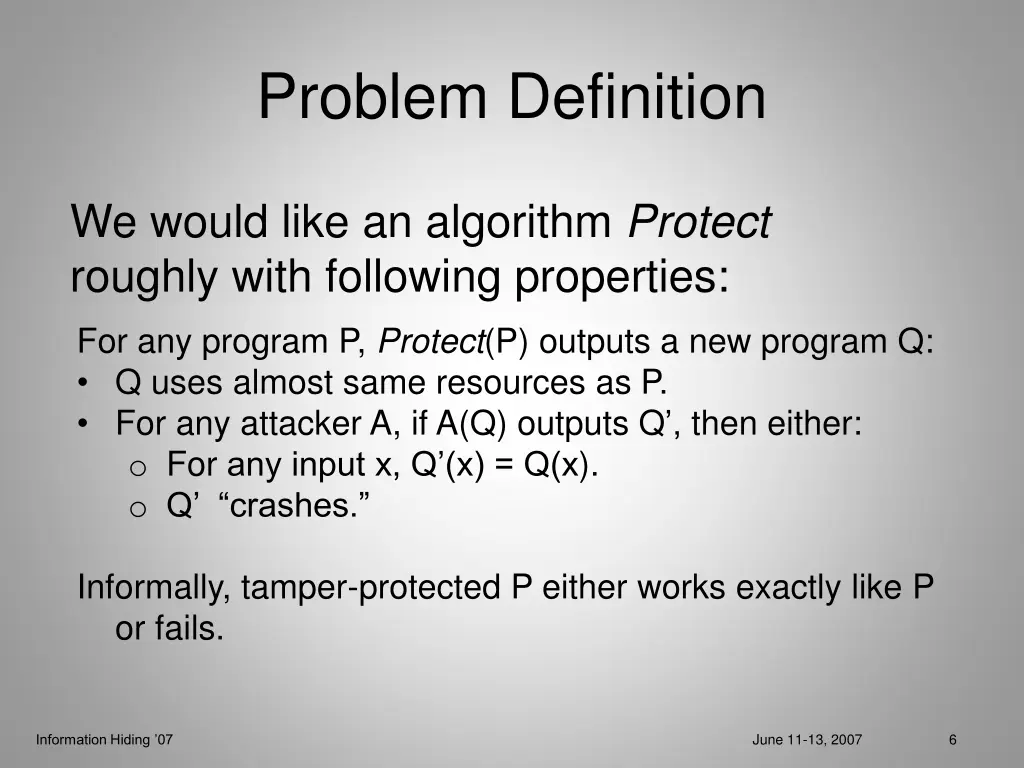

Problem Definition We would like an algorithm Protect roughly with following properties: For any program P, Protect(P) outputs a new program Q: Q uses almost same resources as P. For any attacker A, if A(Q) outputs Q , then either: o For any input x, Q (x) = Q(x). o Q crashes. Informally, tamper-protected P either works exactly like P or fails. June 11-13, 2007 6 Information Hiding 07

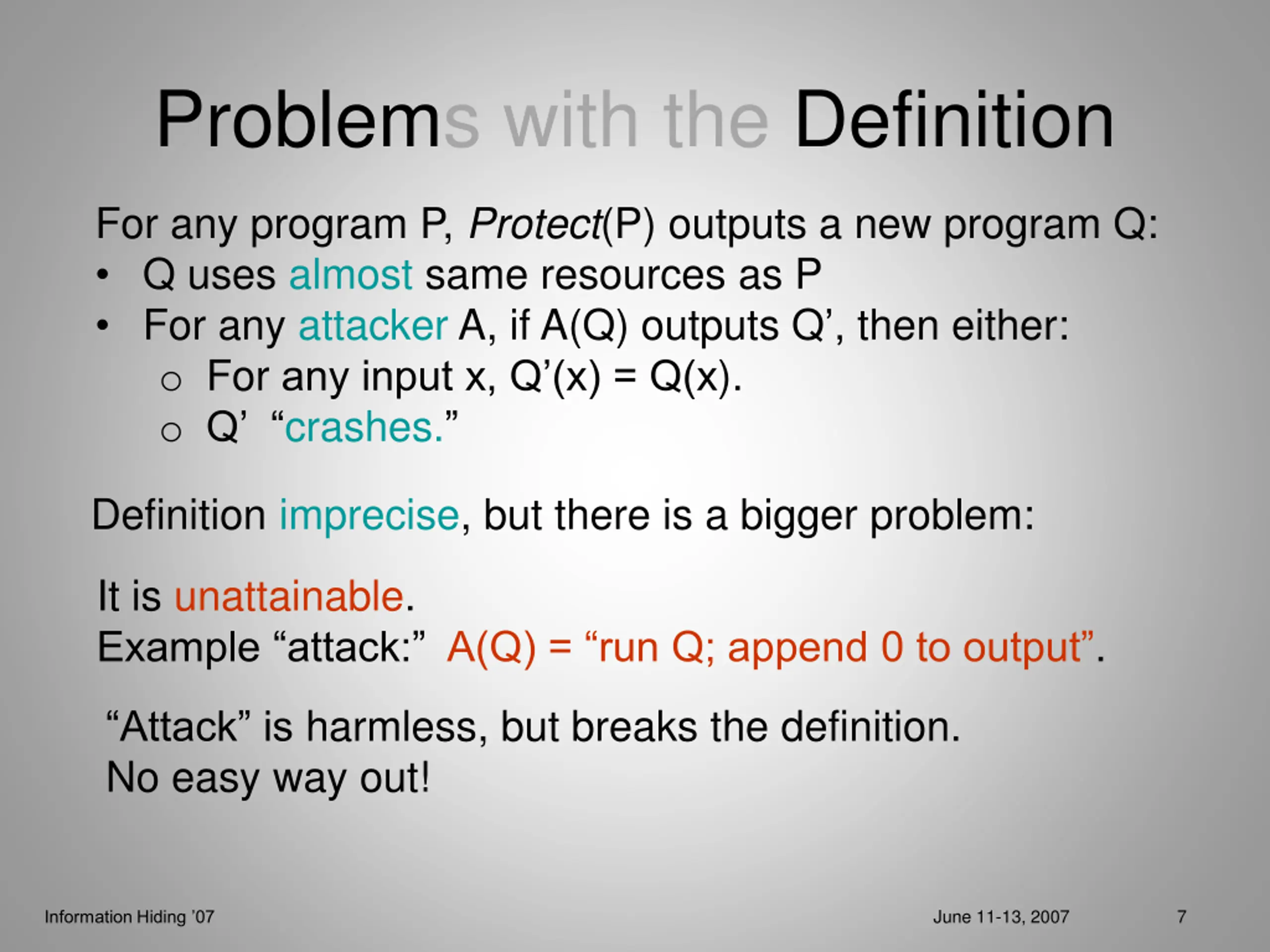

Problems with the Definition For any program P, Protect(P) outputs a new program Q: Q uses almost same resources as P For any attacker A, if A(Q) outputs Q , then either: o For any input x, Q (x) = Q(x). o Q crashes. Definition imprecise, but there is a bigger problem: It is unattainable. Example attack: A(Q) = run Q; append 0 to output . Attack is harmless, but breaks the definition. No easy way out! June 11-13, 2007 7 Information Hiding 07

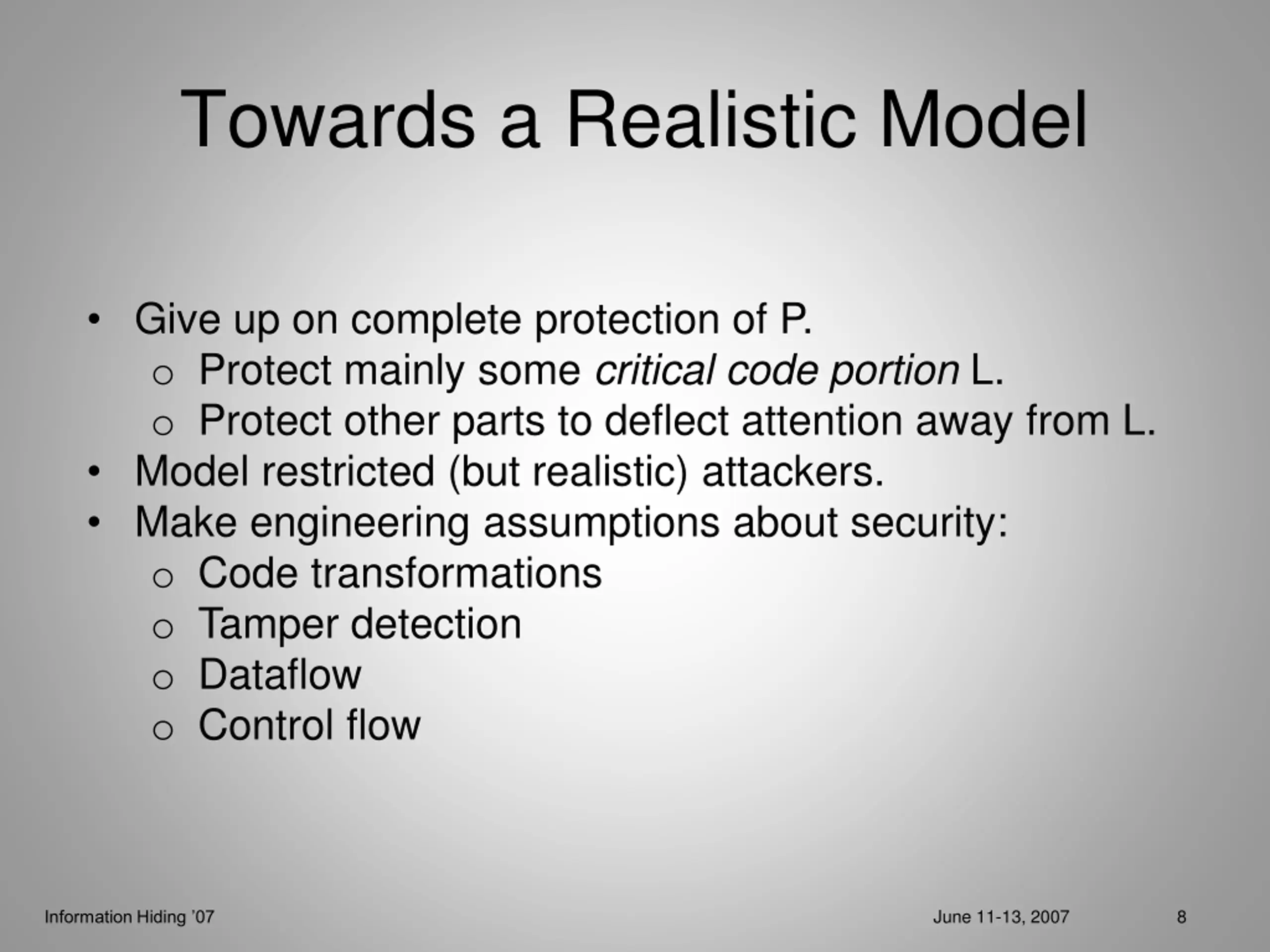

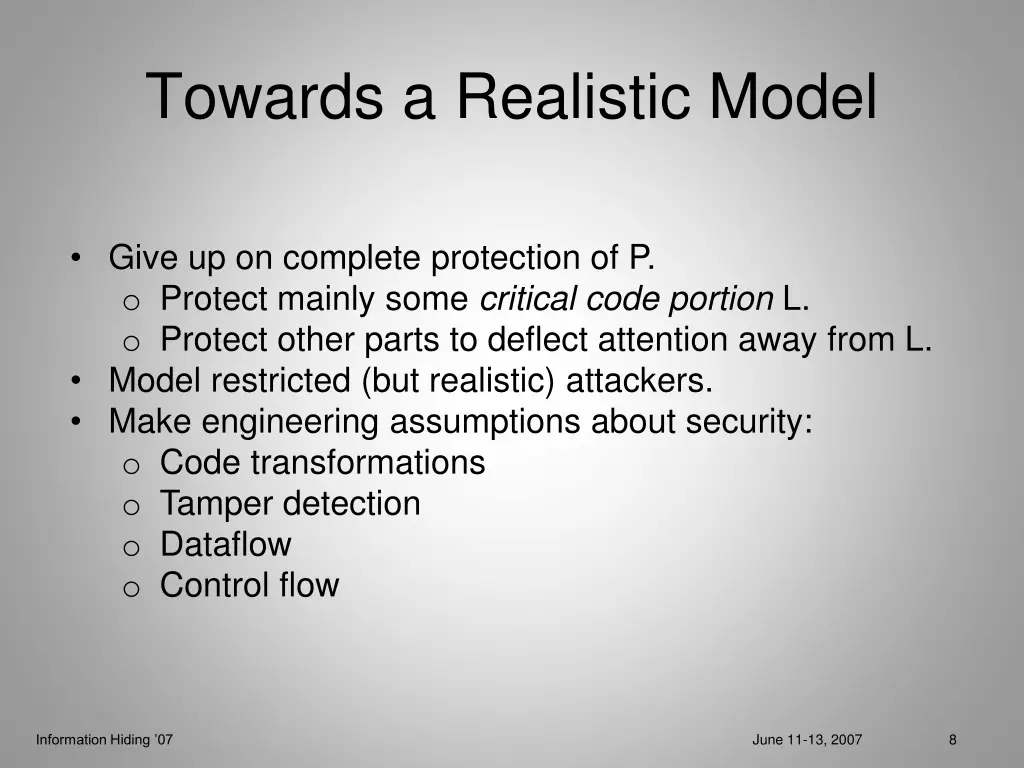

Towards a Realistic Model Give up on complete protection of P. o Protect mainly some critical code portion L. o Protect other parts to deflect attention away from L. Model restricted (but realistic) attackers. Make engineering assumptions about security: o Code transformations o Tamper detection o Dataflow o Control flow June 11-13, 2007 8 Information Hiding 07

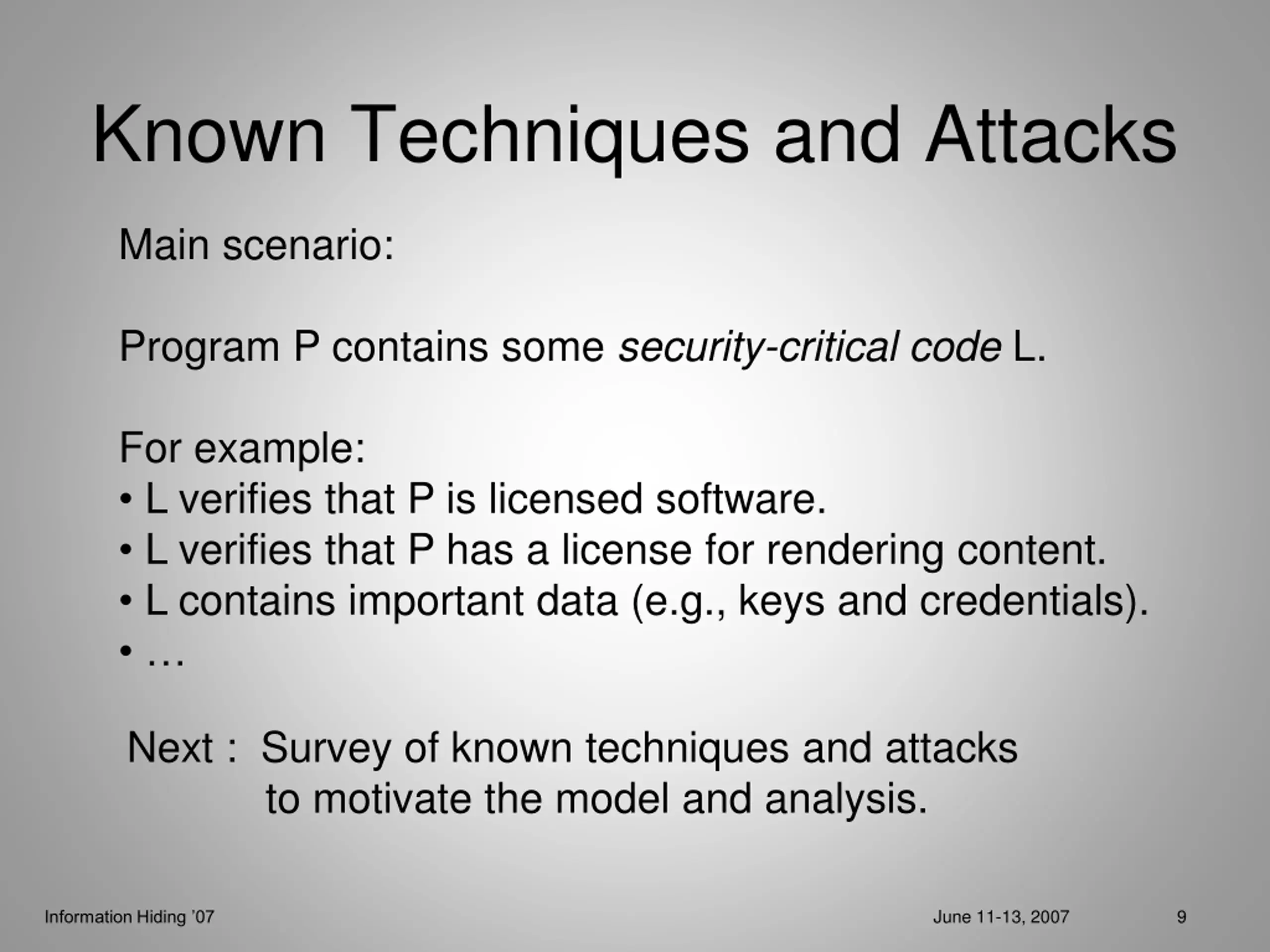

Known Techniques and Attacks Main scenario: Program P contains some security-critical code L. For example: L verifies that P is licensed software. L verifies that P has a license for rendering content. L contains important data (e.g., keys and credentials). Next : Survey of known techniques and attacks to motivate the model and analysis. June 11-13, 2007 9 Information Hiding 07

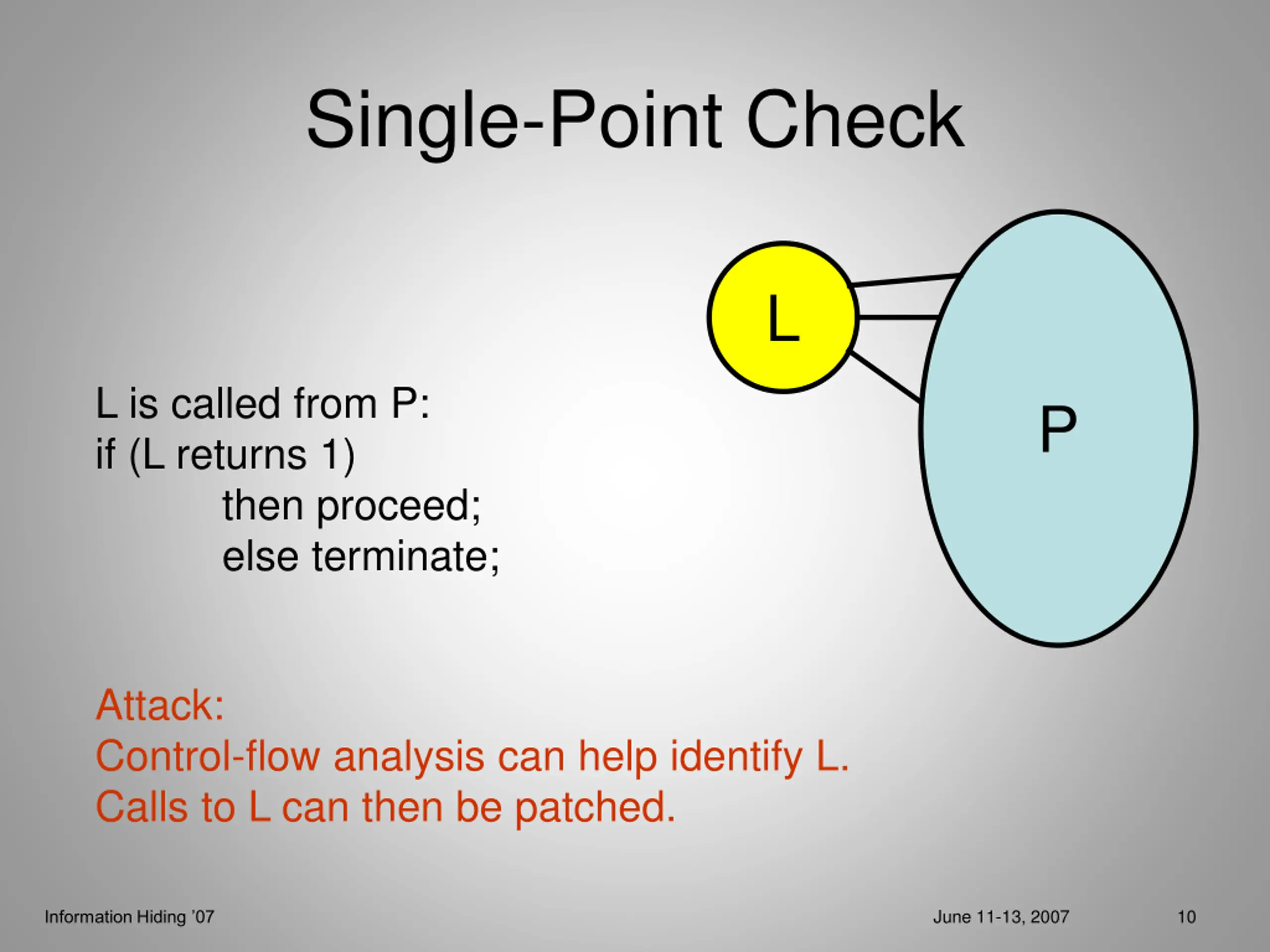

Single-Point Check L L is called from P: if (L returns 1) then proceed; else terminate; P Attack: Control-flow analysis can help identify L. Calls to L can then be patched. June 11-13, 2007 10 Information Hiding 07

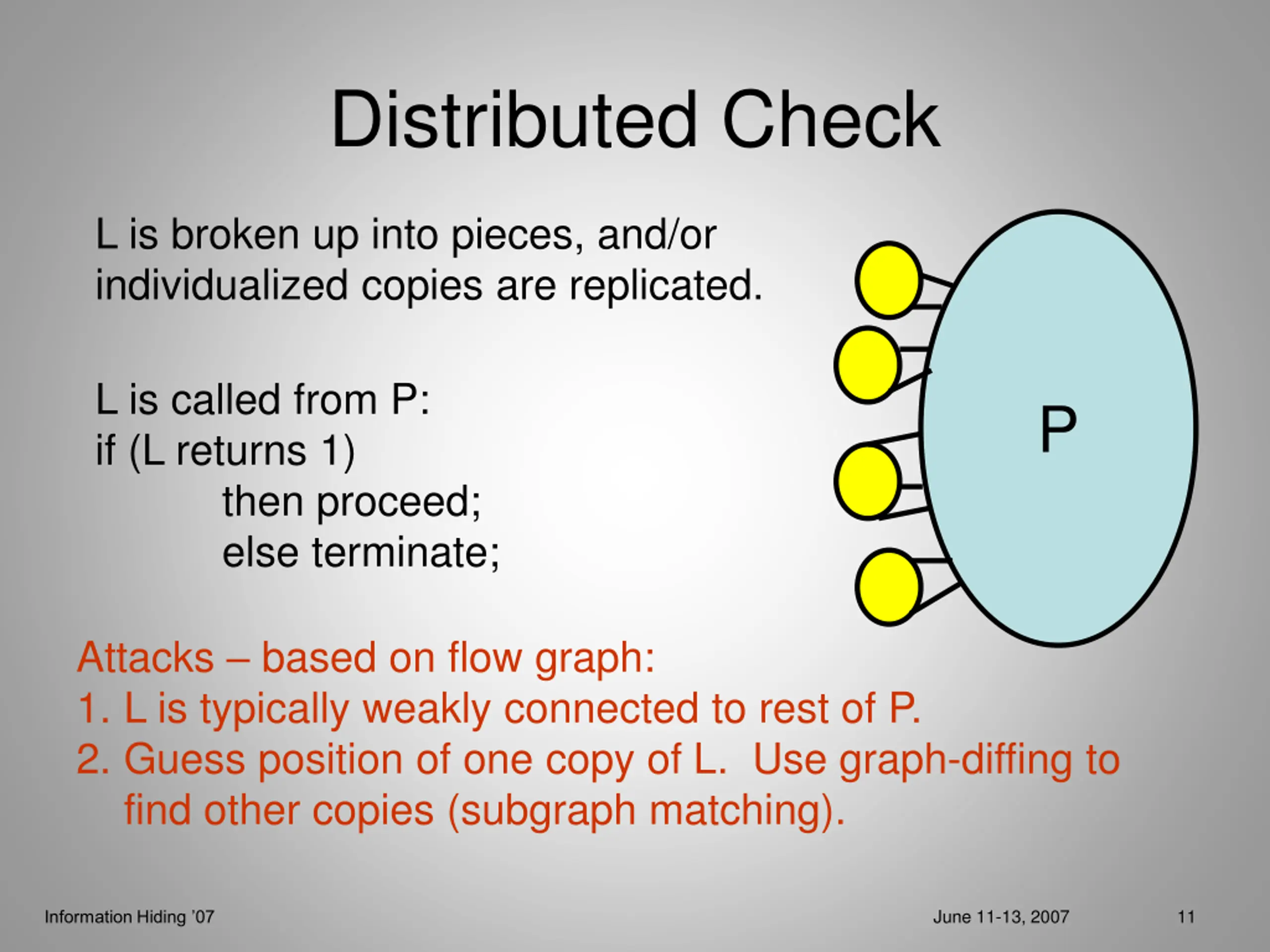

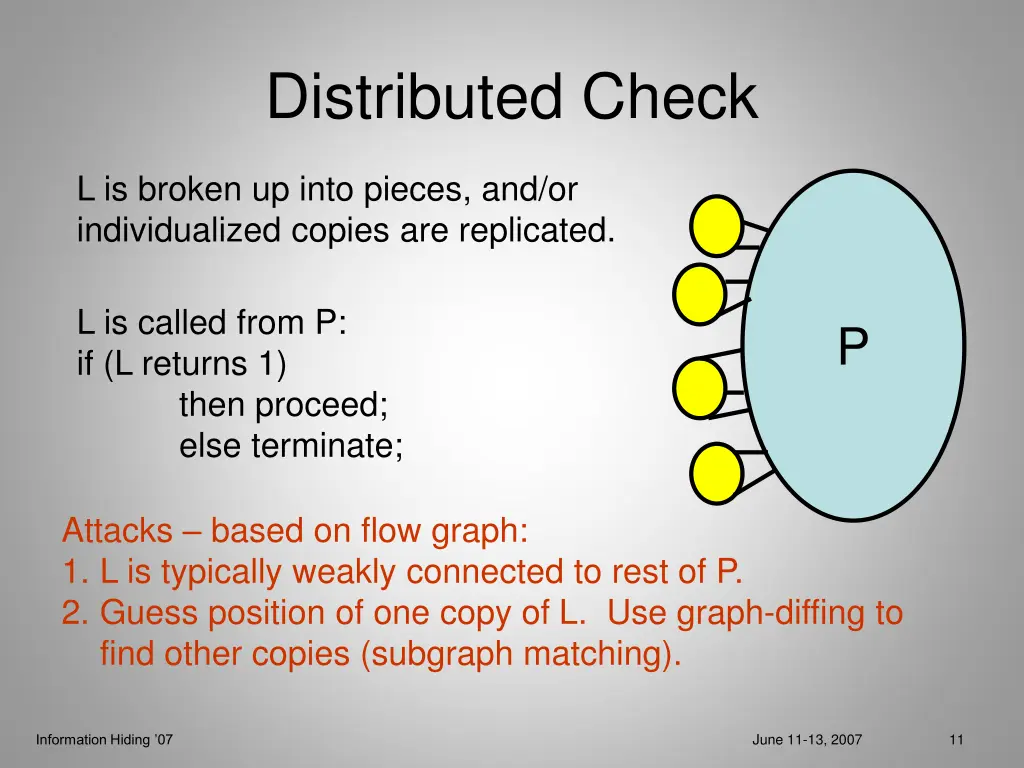

Distributed Check L is broken up into pieces, and/or individualized copies are replicated. L is called from P: if (L returns 1) then proceed; else terminate; P Attacks based on flow graph: 1. L is typically weakly connected to rest of P. 2. Guess position of one copy of L. Use graph-diffing to find other copies (subgraph matching). June 11-13, 2007 11 Information Hiding 07

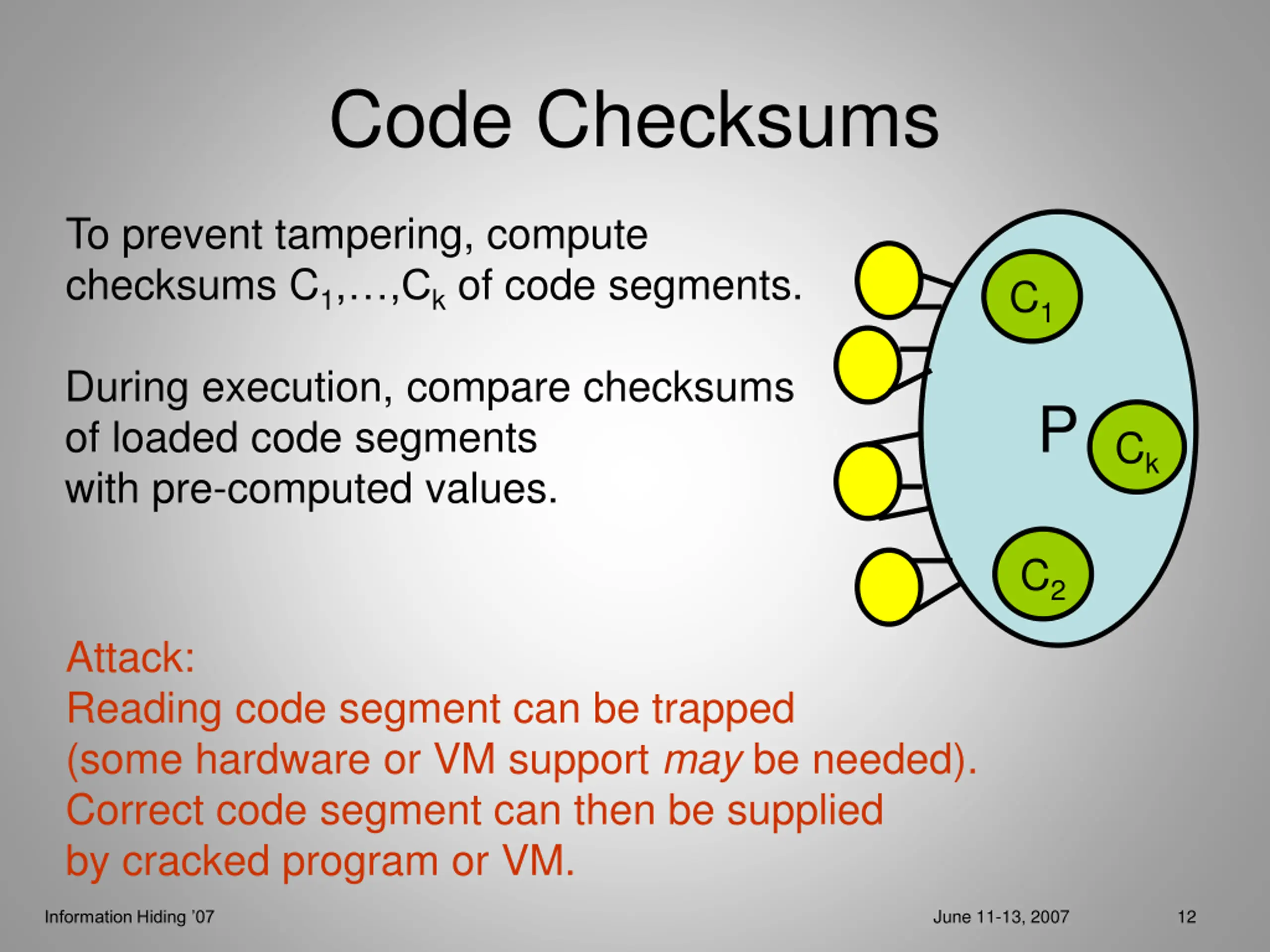

Code Checksums To prevent tampering, compute checksums C1, ,Ck of code segments. C1 During execution, compare checksums of loaded code segments with pre-computed values. P Ck C2 Attack: Reading code segment can be trapped (some hardware or VM support may be needed). Correct code segment can then be supplied by cracked program or VM. June 11-13, 2007 12 Information Hiding 07

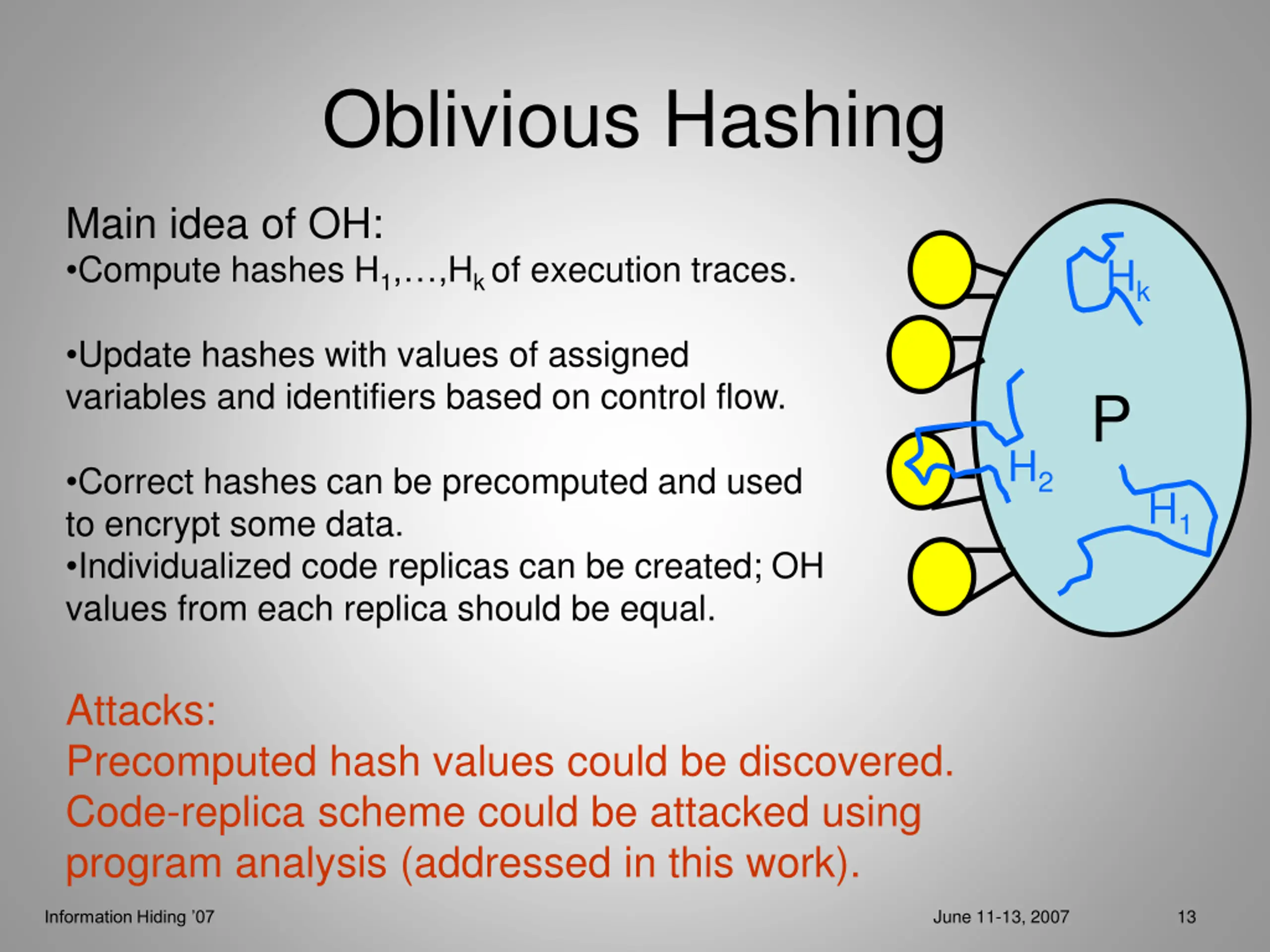

Oblivious Hashing Main idea of OH: Compute hashes H1, ,Hk of execution traces. Hk Update hashes with values of assigned variables and identifiers based on control flow. P H2 Correct hashes can be precomputed and used to encrypt some data. Individualized code replicas can be created; OH values from each replica should be equal. H1 Attacks: Precomputed hash values could be discovered. Code-replica scheme could be attacked using program analysis (addressed in this work). June 11-13, 2007 13 Information Hiding 07

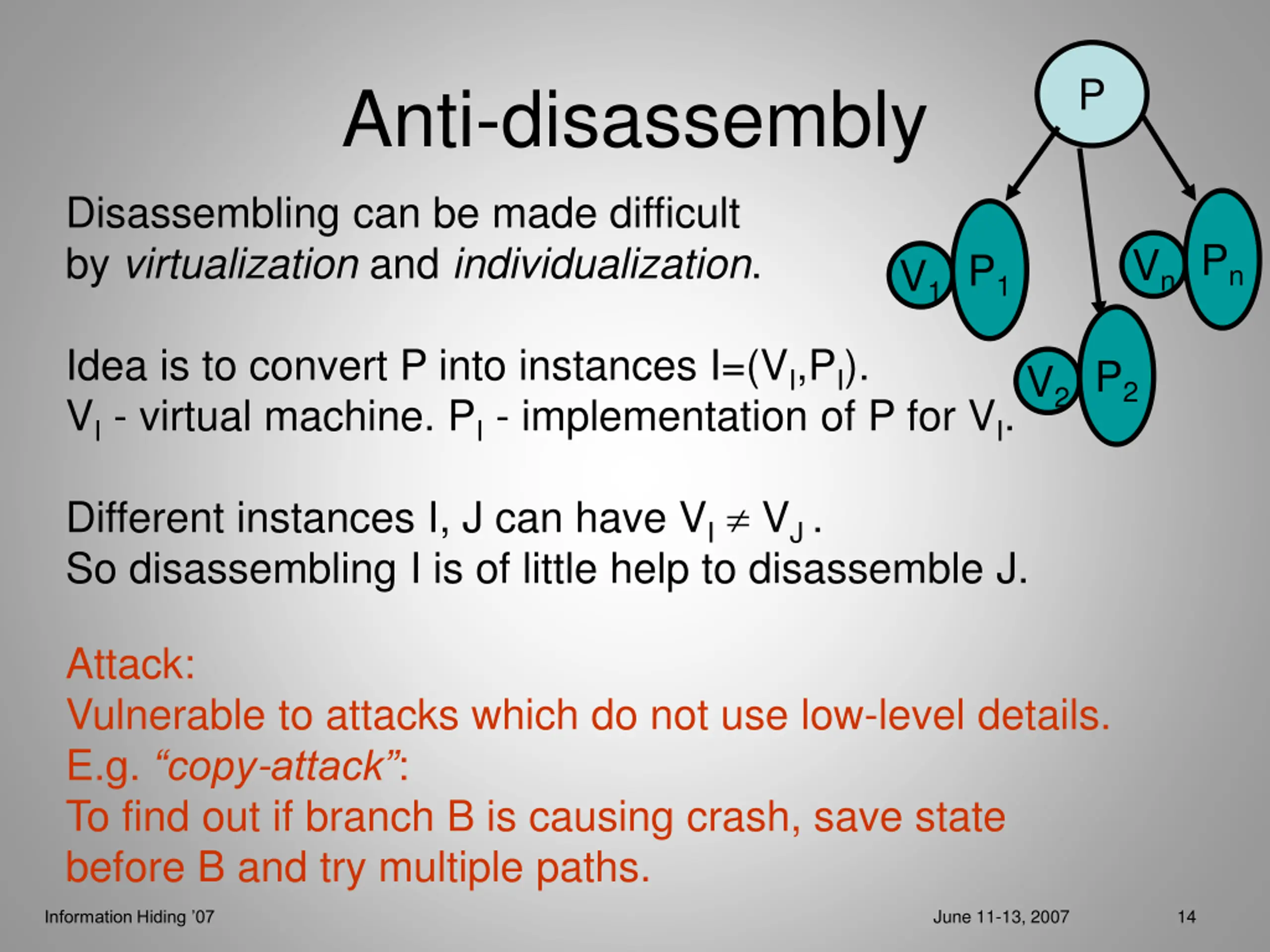

P Anti-disassembly Disassembling can be made difficult by virtualization and individualization. VnPn V1P1 Idea is to convert P into instances I=(VI,PI). VI - virtual machine. PI - implementation of P for VI. V2P2 Different instances I, J can have VI VJ . So disassembling I is of little help to disassemble J. Attack: Vulnerable to attacks which do not use low-level details. E.g. copy-attack : To find out if branch B is causing crash, save state before B and try multiple paths. June 11-13, 2007 14 Information Hiding 07

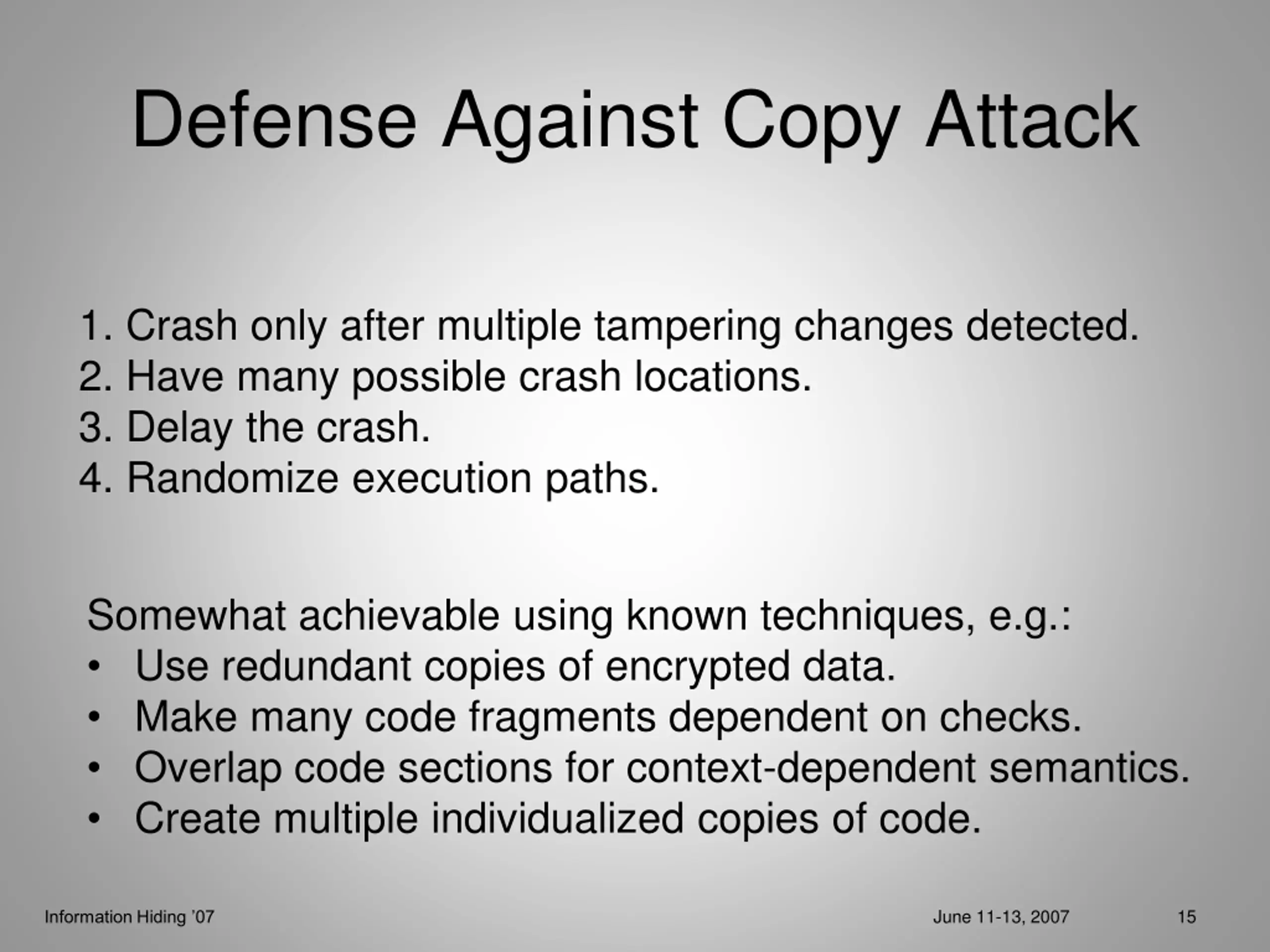

Defense Against Copy Attack 1. Crash only after multiple tampering changes detected. 2. Have many possible crash locations. 3. Delay the crash. 4. Randomize execution paths. Somewhat achievable using known techniques, e.g.: Use redundant copies of encrypted data. Make many code fragments dependent on checks. Overlap code sections for context-dependent semantics. Create multiple individualized copies of code. June 11-13, 2007 15 Information Hiding 07

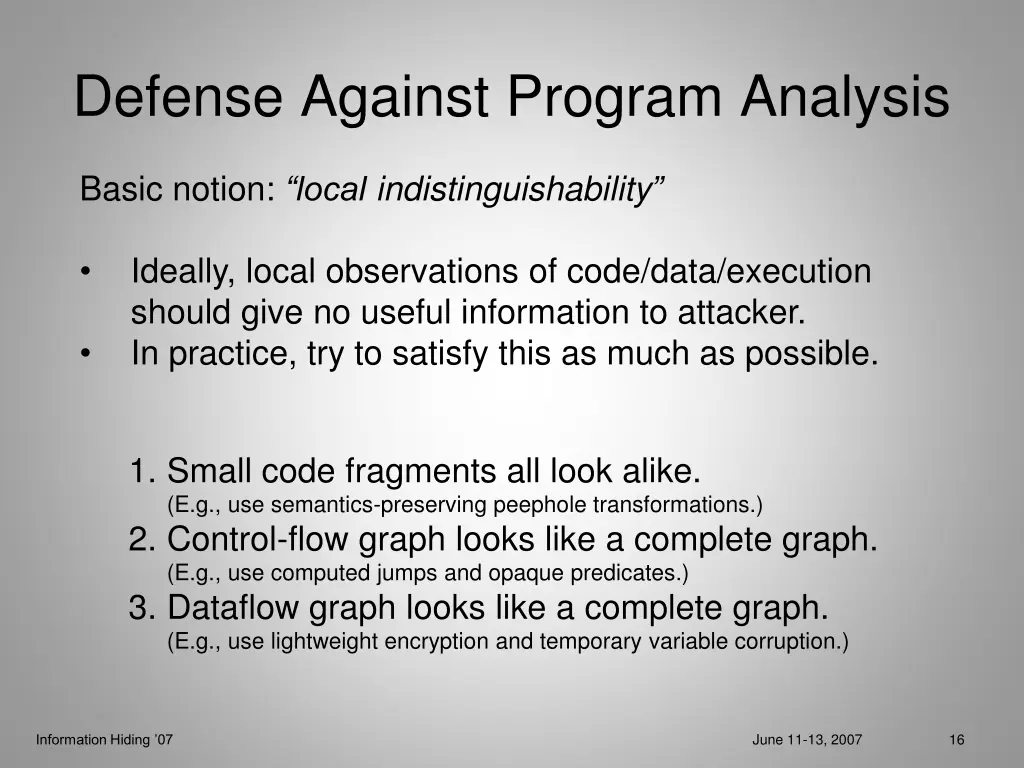

Defense Against Program Analysis Basic notion: local indistinguishability Ideally, local observations of code/data/execution should give no useful information to attacker. In practice, try to satisfy this as much as possible. 1. Small code fragments all look alike. (E.g., use semantics-preserving peephole transformations.) 2. Control-flow graph looks like a complete graph. (E.g., use computed jumps and opaque predicates.) 3. Dataflow graph looks like a complete graph. (E.g., use lightweight encryption and temporary variable corruption.) June 11-13, 2007 16 Information Hiding 07

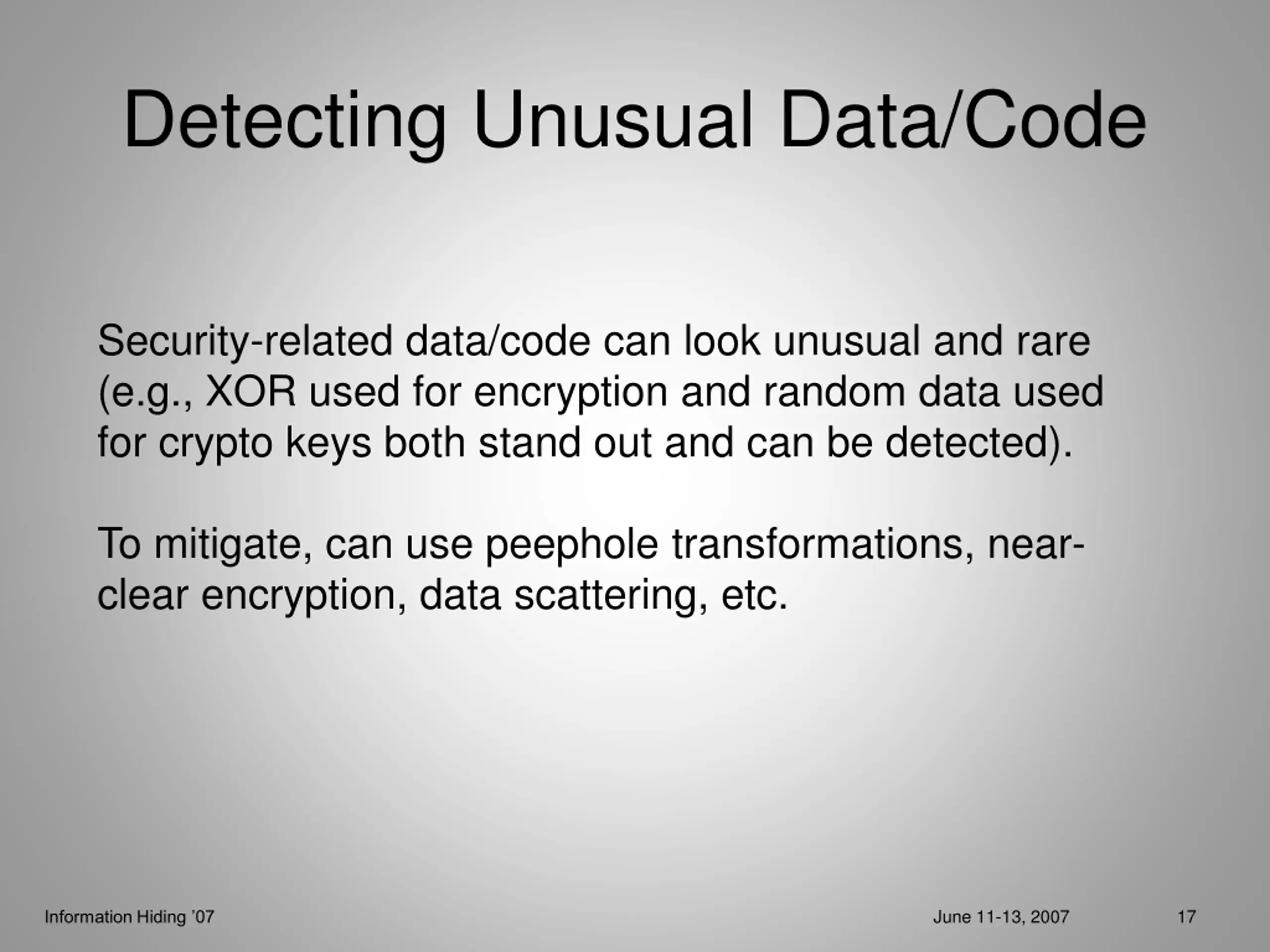

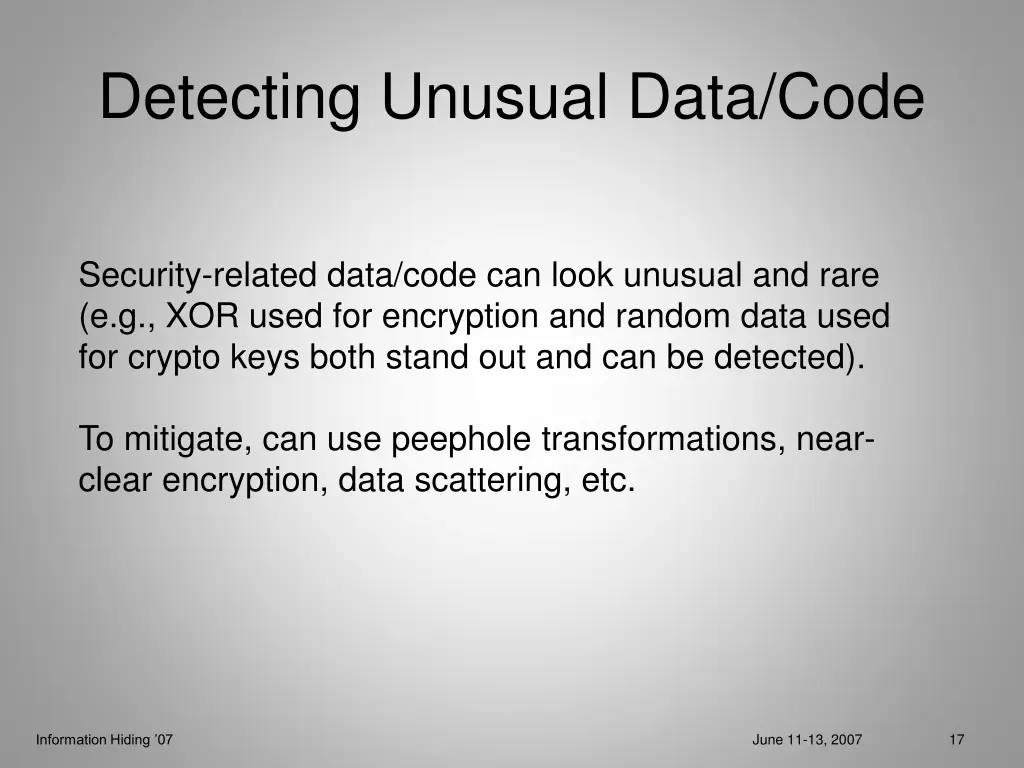

Detecting Unusual Data/Code Security-related data/code can look unusual and rare (e.g., XOR used for encryption and random data used for crypto keys both stand out and can be detected). To mitigate, can use peephole transformations, near- clear encryption, data scattering, etc. June 11-13, 2007 17 Information Hiding 07

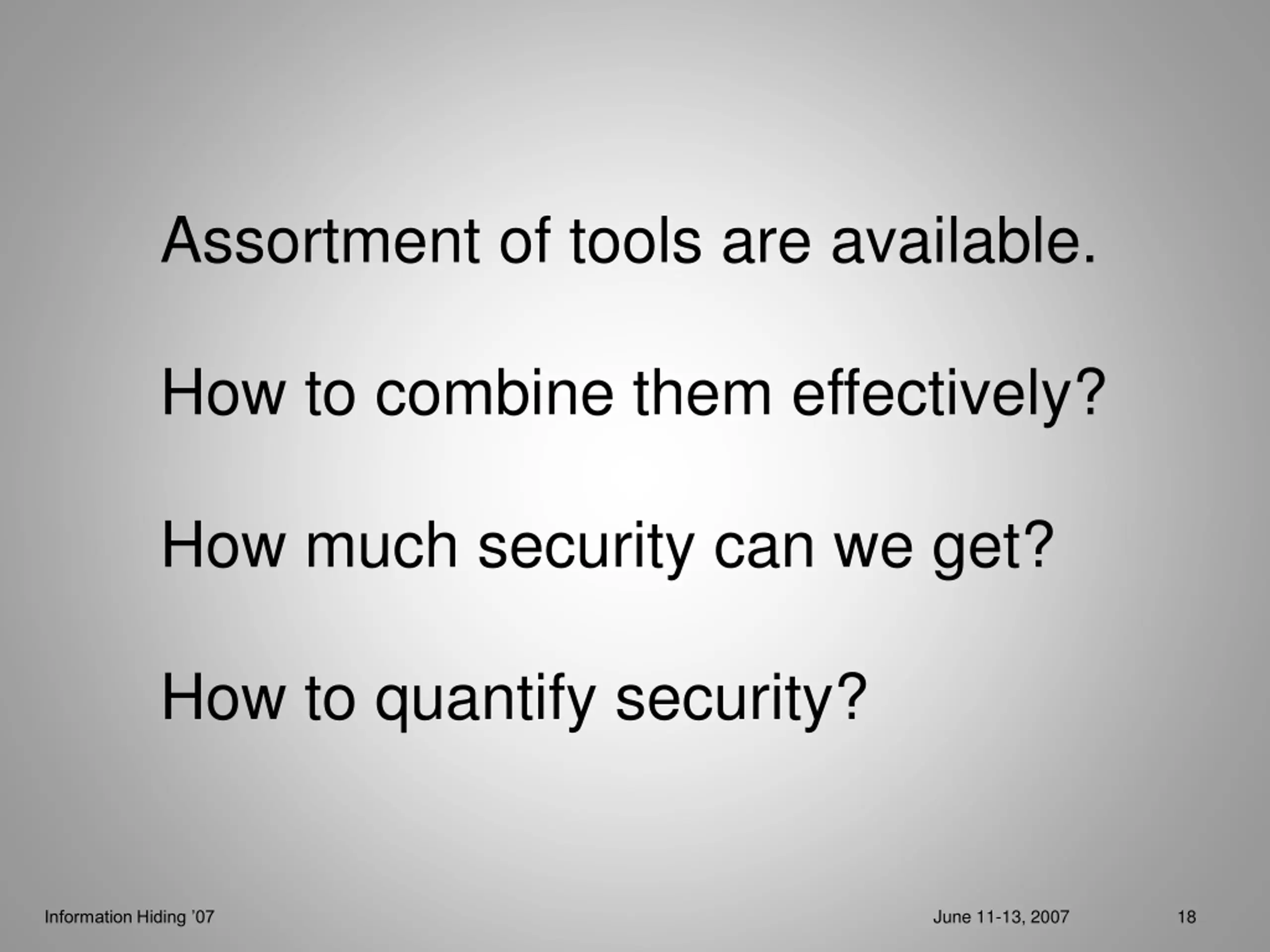

Assortment of tools are available. How to combine them effectively? How much security can we get? How to quantify security? June 11-13, 2007 18 Information Hiding 07

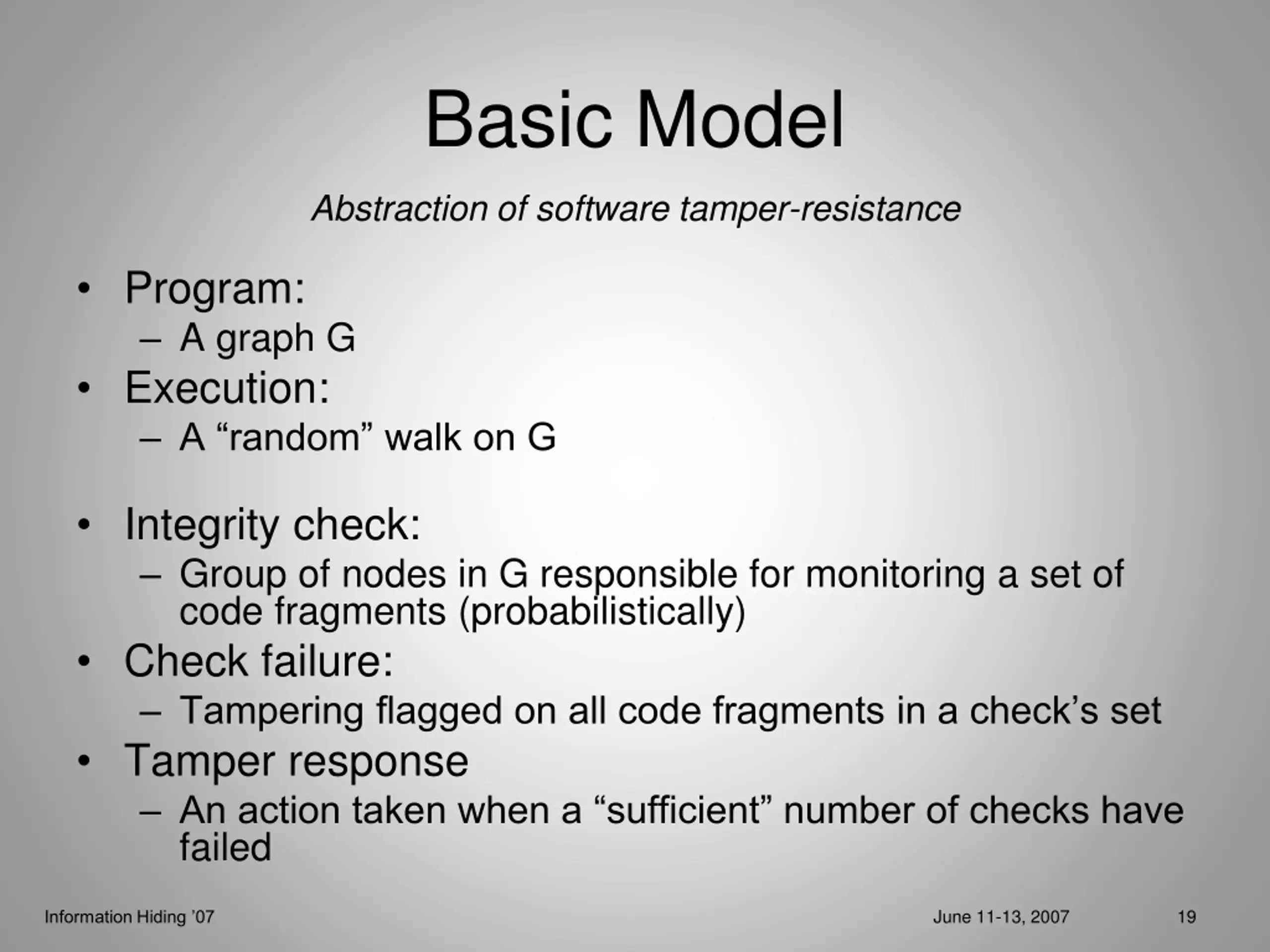

Basic Model Abstraction of software tamper-resistance Program: A graph G Execution: A random walk on G Integrity check: Group of nodes in G responsible for monitoring a set of code fragments (probabilistically) Check failure: Tampering flagged on all code fragments in a check s set Tamper response An action taken when a sufficient number of checks have failed June 11-13, 2007 19 Information Hiding 07

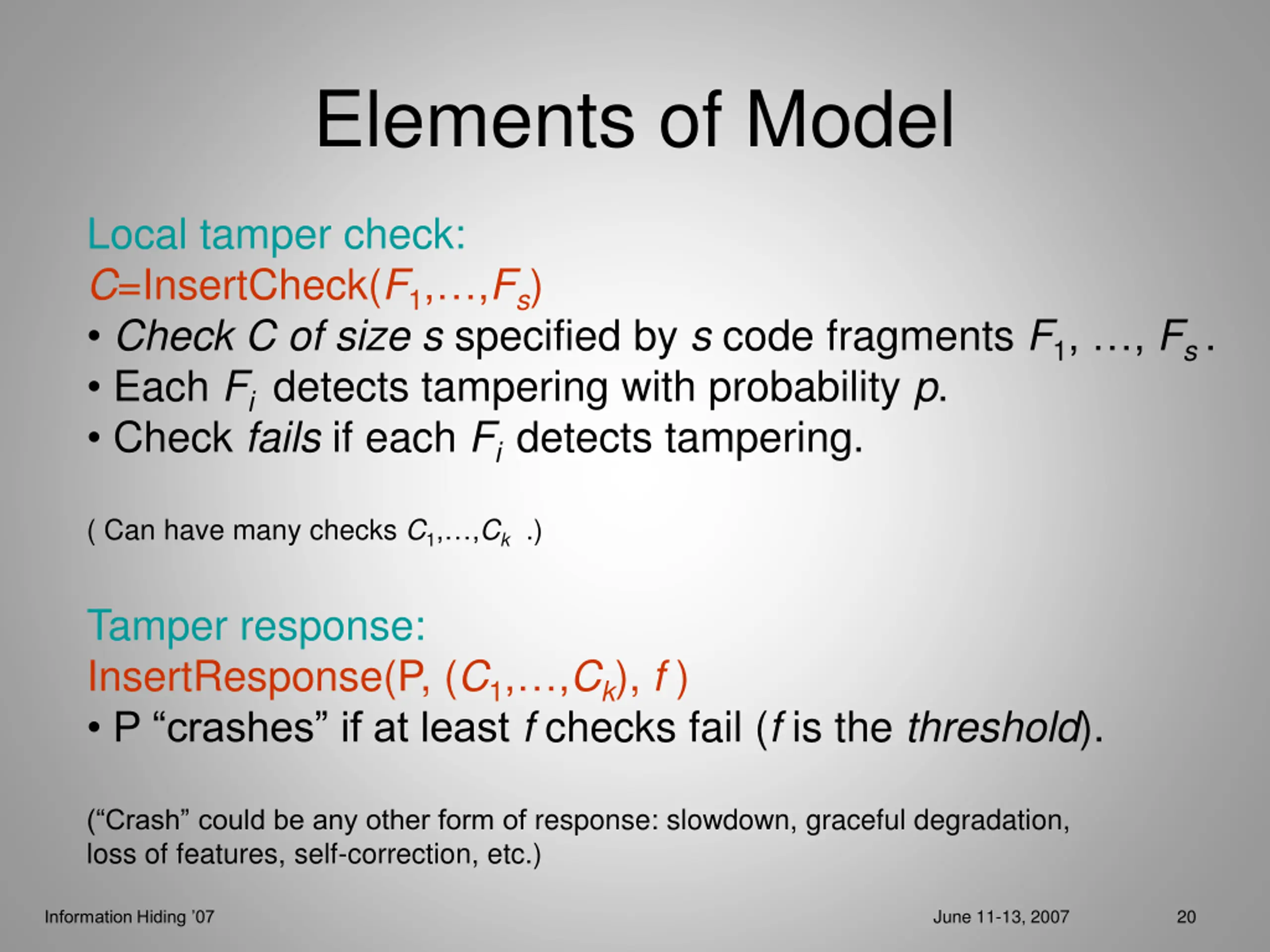

Elements of Model Local tamper check: C=InsertCheck(F1, ,Fs) Check C of size s specified by s code fragments F1, , Fs . Each Fi detects tampering with probability p. Check fails if each Fi detects tampering. ( Can have many checks C1, ,Ck .) Tamper response: InsertResponse(P, (C1, ,Ck), f ) P crashes if at least f checks fail (f is the threshold). ( Crash could be any other form of response: slowdown, graceful degradation, loss of features, self-correction, etc.) June 11-13, 2007 20 Information Hiding 07

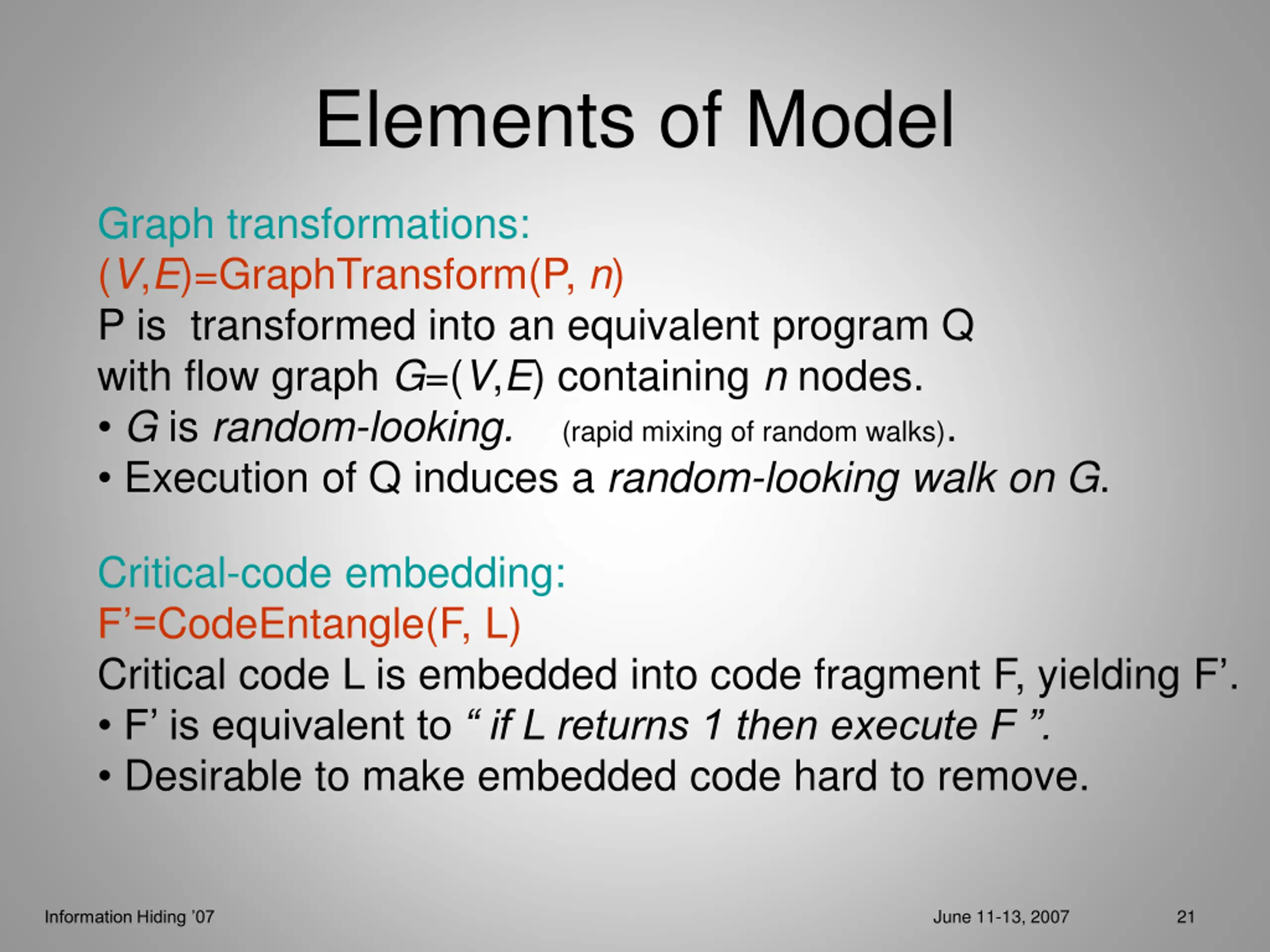

Elements of Model Graph transformations: (V,E)=GraphTransform(P, n) P is transformed into an equivalent program Q with flow graph G=(V,E) containing n nodes. G is random-looking.(rapid mixing of random walks). Execution of Q induces a random-looking walk on G. Critical-code embedding: F =CodeEntangle(F, L) Critical code L is embedded into code fragment F, yielding F . F is equivalent to if L returns 1 then execute F . Desirable to make embedded code hard to remove. June 11-13, 2007 21 Information Hiding 07

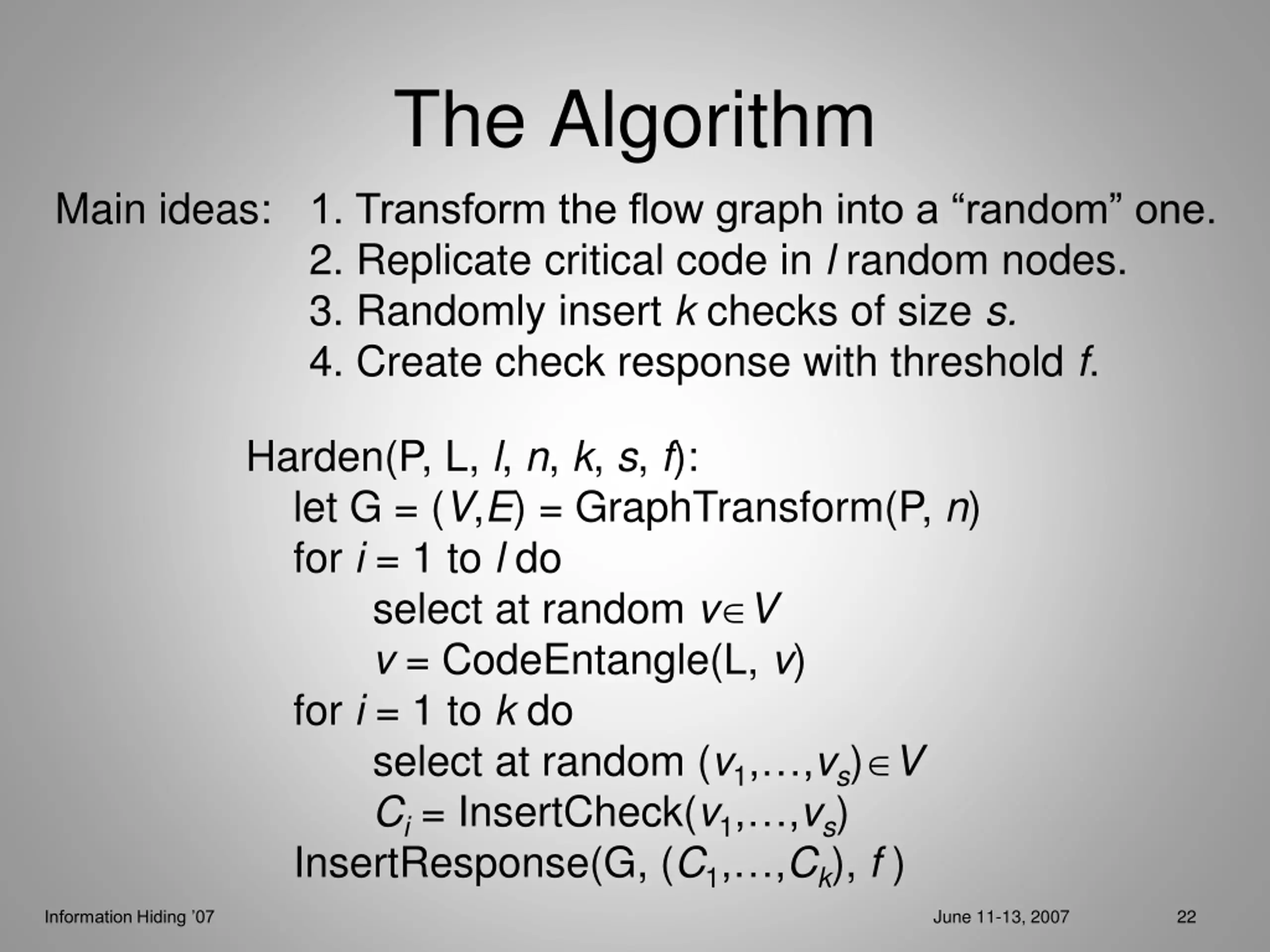

The Algorithm Main ideas: 1. Transform the flow graph into a random one. 2. Replicate critical code in l random nodes. 3. Randomly insert k checks of size s. 4. Create check response with threshold f. Harden(P, L, l, n, k, s, f): let G = (V,E) = GraphTransform(P, n) for i = 1 to l do select at random v V v = CodeEntangle(L, v) for i = 1 to k do select at random (v1, ,vs) V Ci = InsertCheck(v1, ,vs) InsertResponse(G, (C1, ,Ck), f ) June 11-13, 2007 22 Information Hiding 07

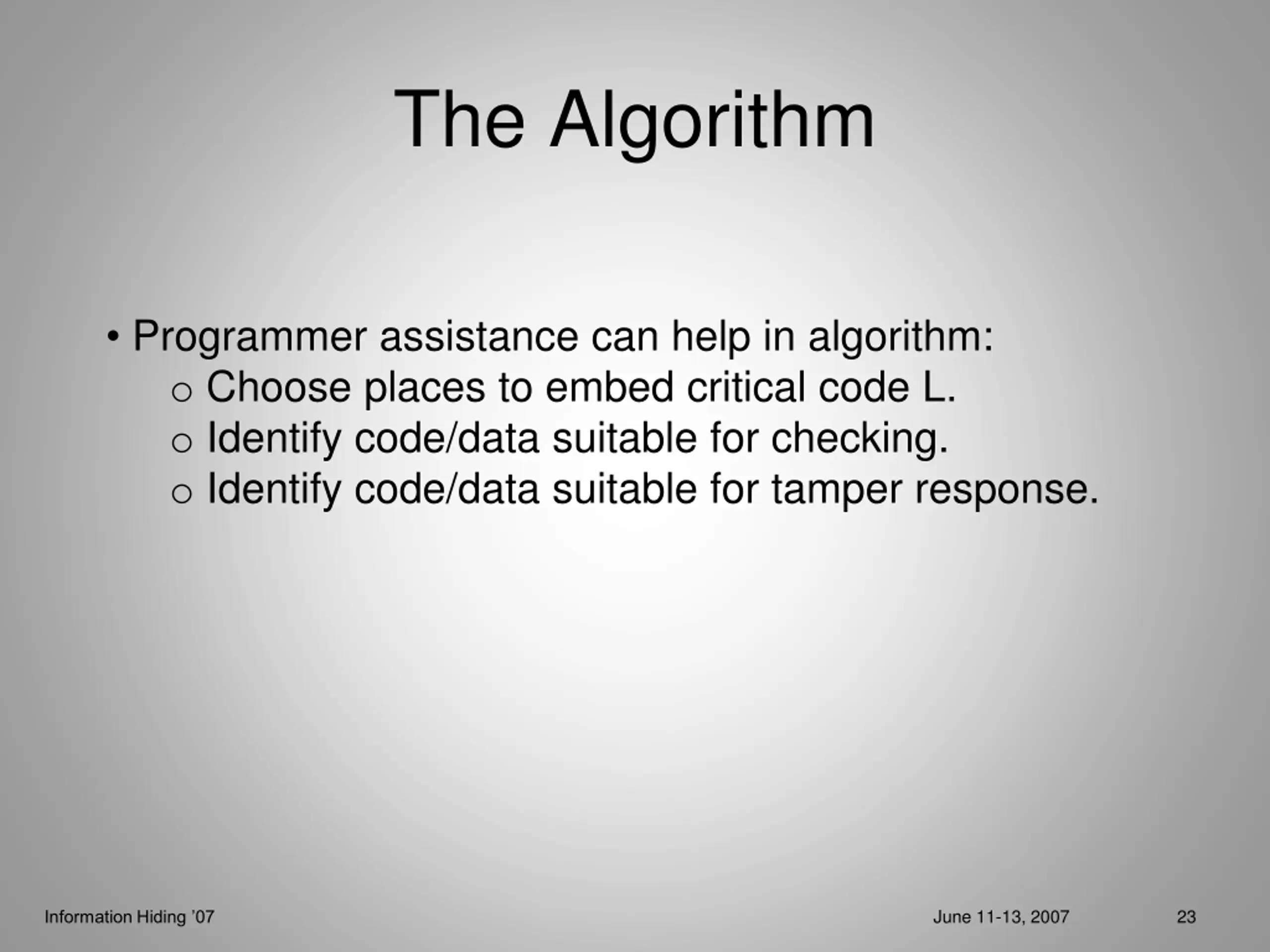

The Algorithm Programmer assistance can help in algorithm: o Choose places to embed critical code L. o Identify code/data suitable for checking. o Identify code/data suitable for tamper response. June 11-13, 2007 23 Information Hiding 07

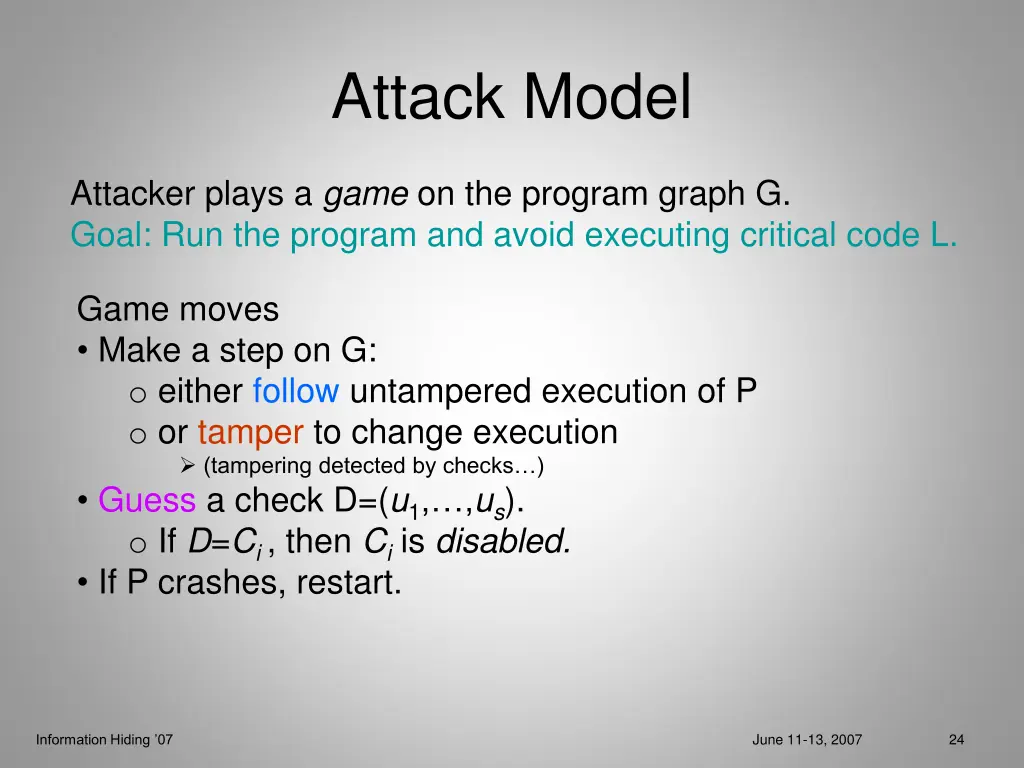

Attack Model Attacker plays a game on the program graph G. Goal: Run the program and avoid executing critical code L. Game moves Make a step on G: o either follow untampered execution of P o or tamper to change execution (tampering detected by checks ) Guess a check D=(u1, ,us). o If D=Ci, then Ci is disabled. If P crashes, restart. June 11-13, 2007 24 Information Hiding 07

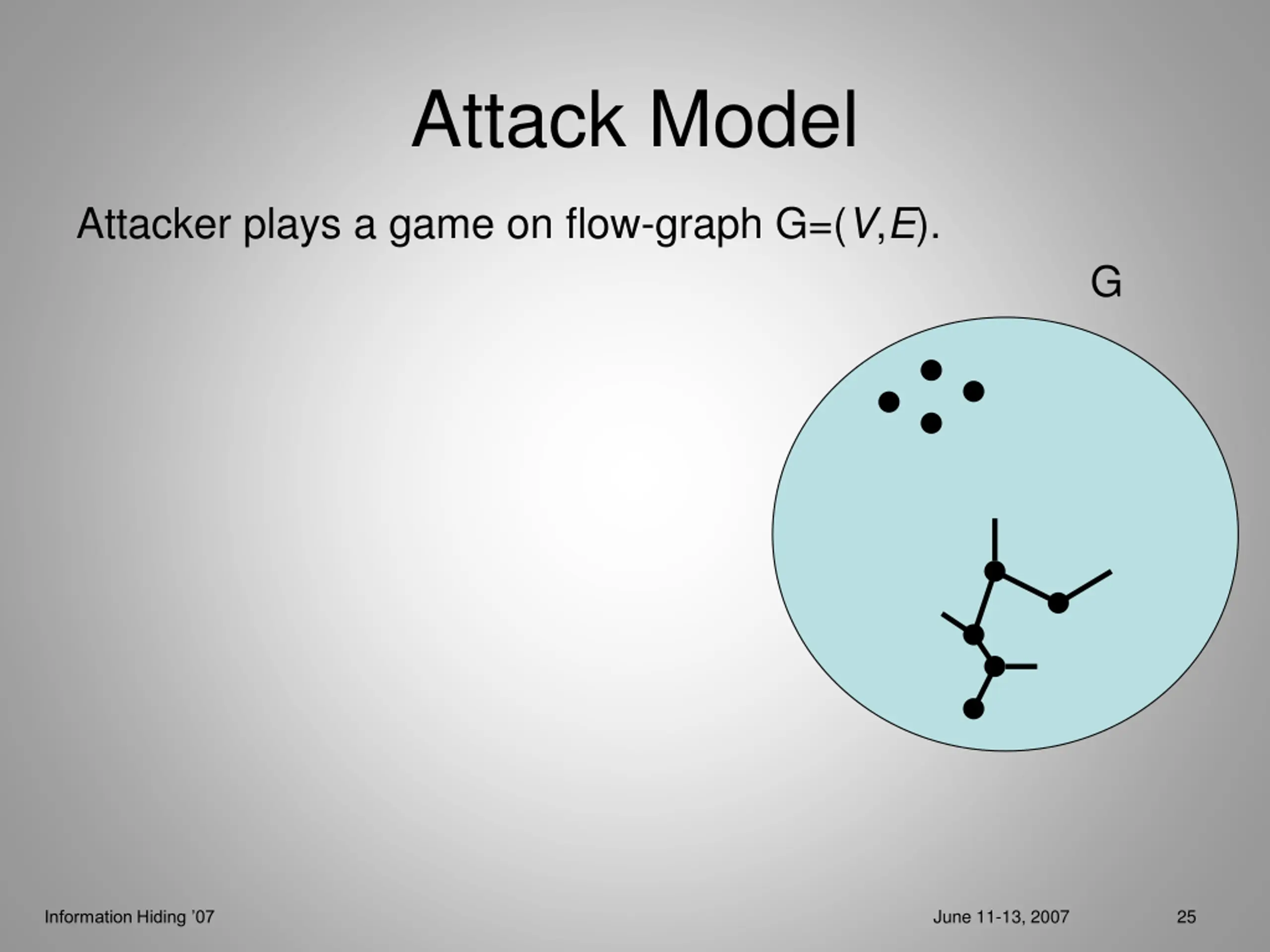

Attack Model Attacker plays a game on flow-graph G=(V,E). G June 11-13, 2007 25 Information Hiding 07

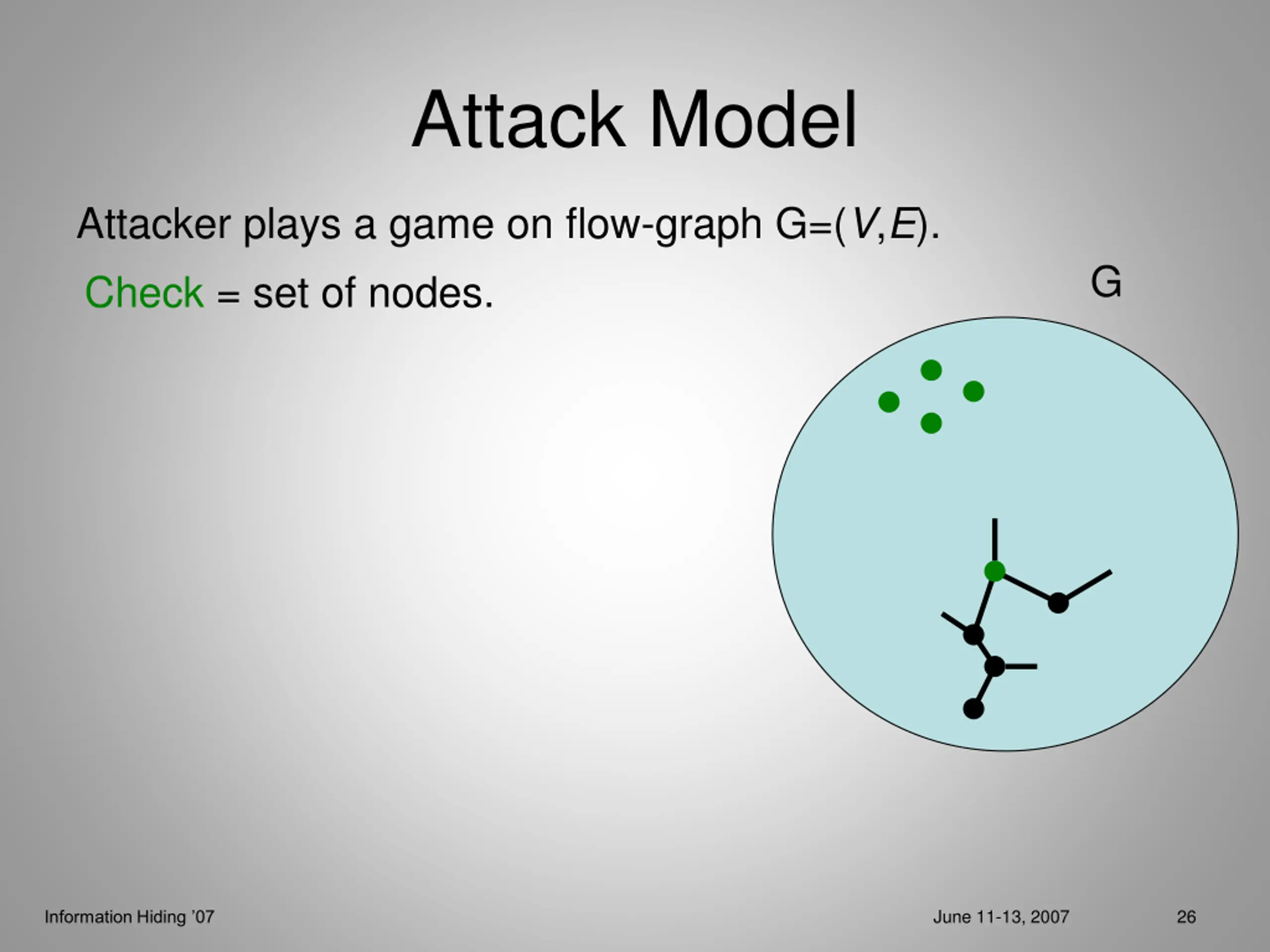

Attack Model Attacker plays a game on flow-graph G=(V,E). G Check = set of nodes. June 11-13, 2007 26 Information Hiding 07

Attack Model Attacker plays a game on flow-graph G=(V,E). G Check = set of nodes. = critical code June 11-13, 2007 27 Information Hiding 07

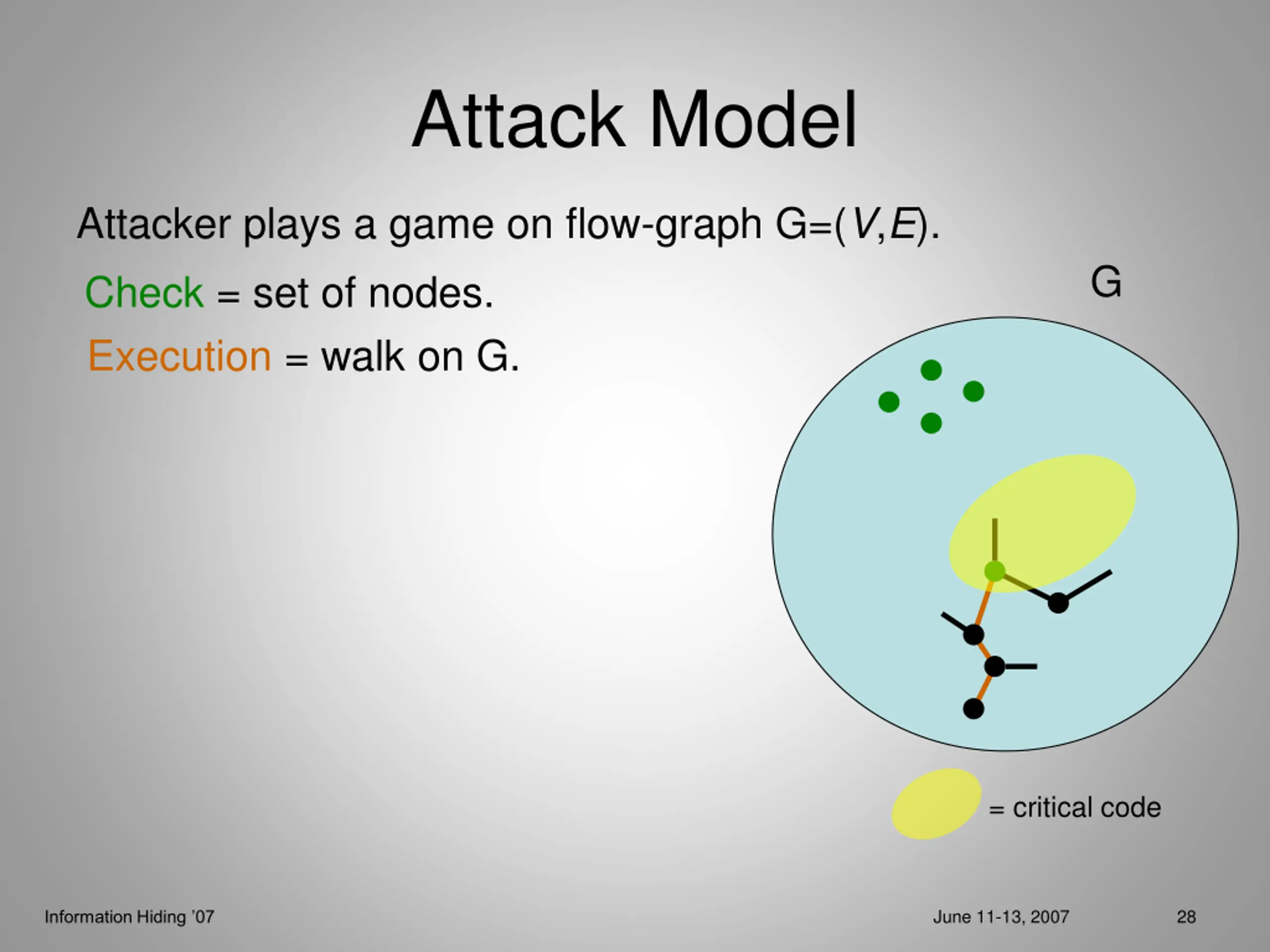

Attack Model Attacker plays a game on flow-graph G=(V,E). G Check = set of nodes. Execution = walk on G. = critical code June 11-13, 2007 28 Information Hiding 07

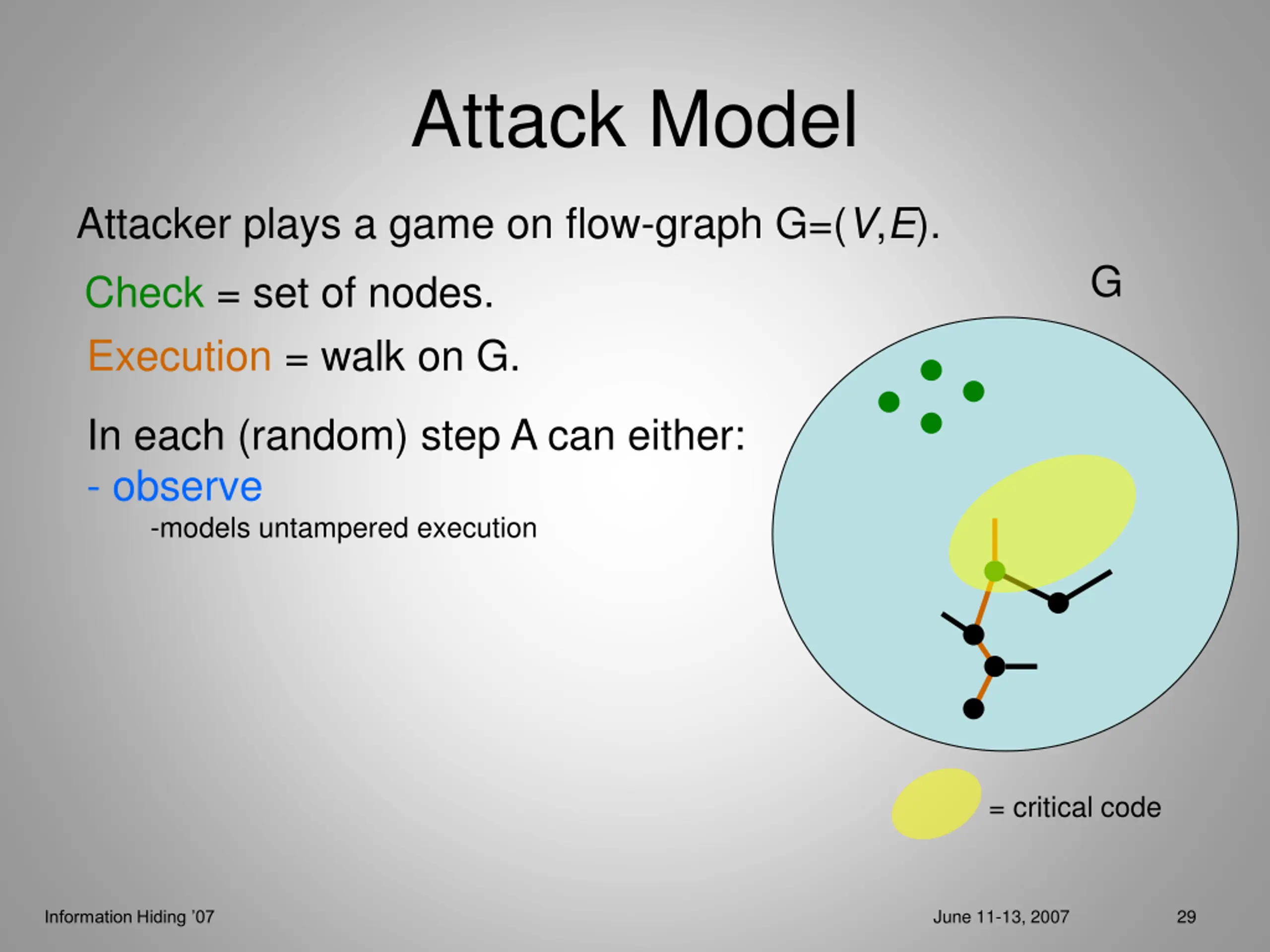

Attack Model Attacker plays a game on flow-graph G=(V,E). G Check = set of nodes. Execution = walk on G. In each (random) step A can either: - observe -models untampered execution = critical code June 11-13, 2007 29 Information Hiding 07

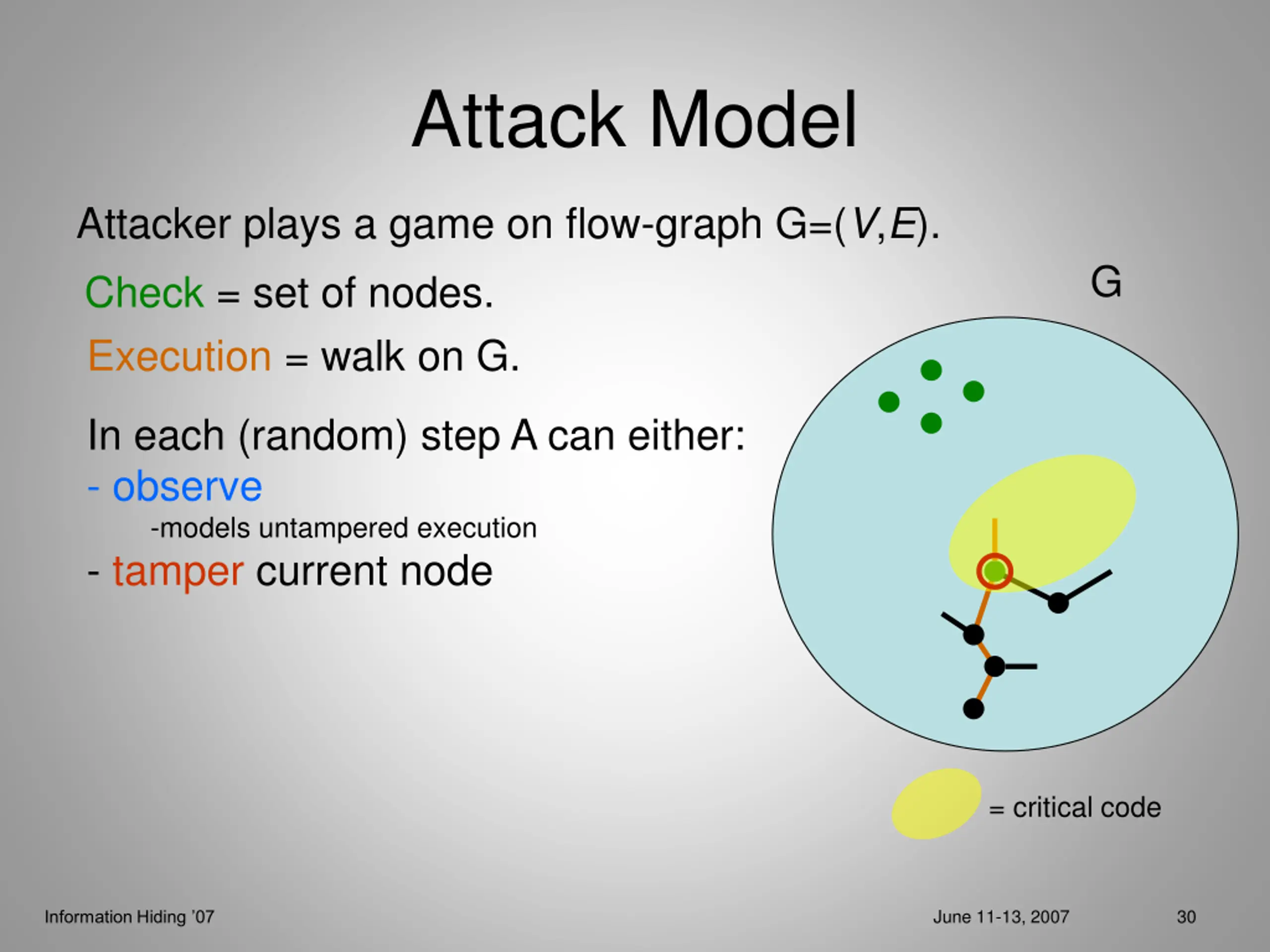

Attack Model Attacker plays a game on flow-graph G=(V,E). G Check = set of nodes. Execution = walk on G. In each (random) step A can either: - observe -models untampered execution - tamper current node = critical code June 11-13, 2007 30 Information Hiding 07

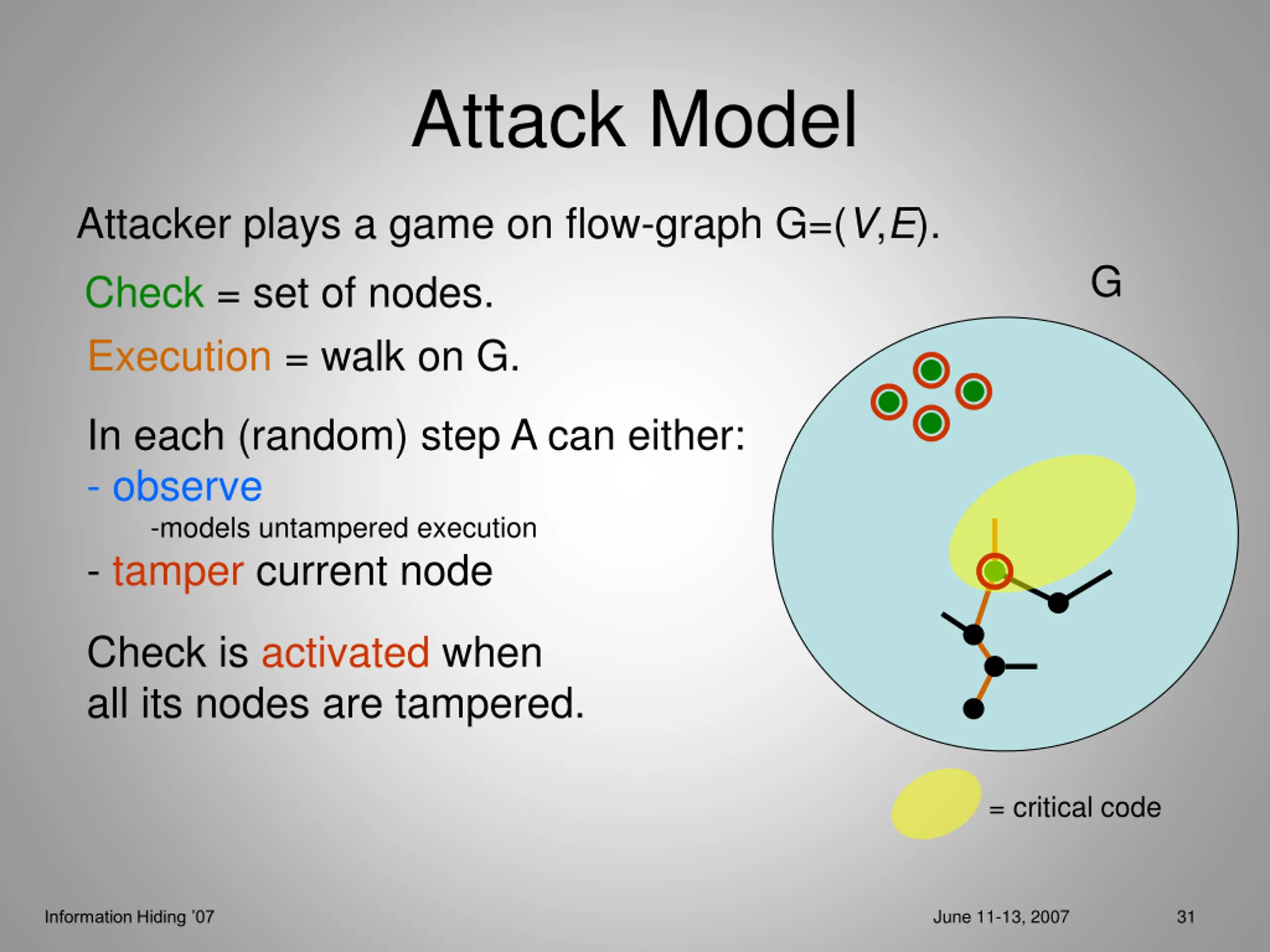

Attack Model Attacker plays a game on flow-graph G=(V,E). G Check = set of nodes. Execution = walk on G. In each (random) step A can either: - observe -models untampered execution - tamper current node Check is activated when all its nodes are tampered. = critical code June 11-13, 2007 31 Information Hiding 07

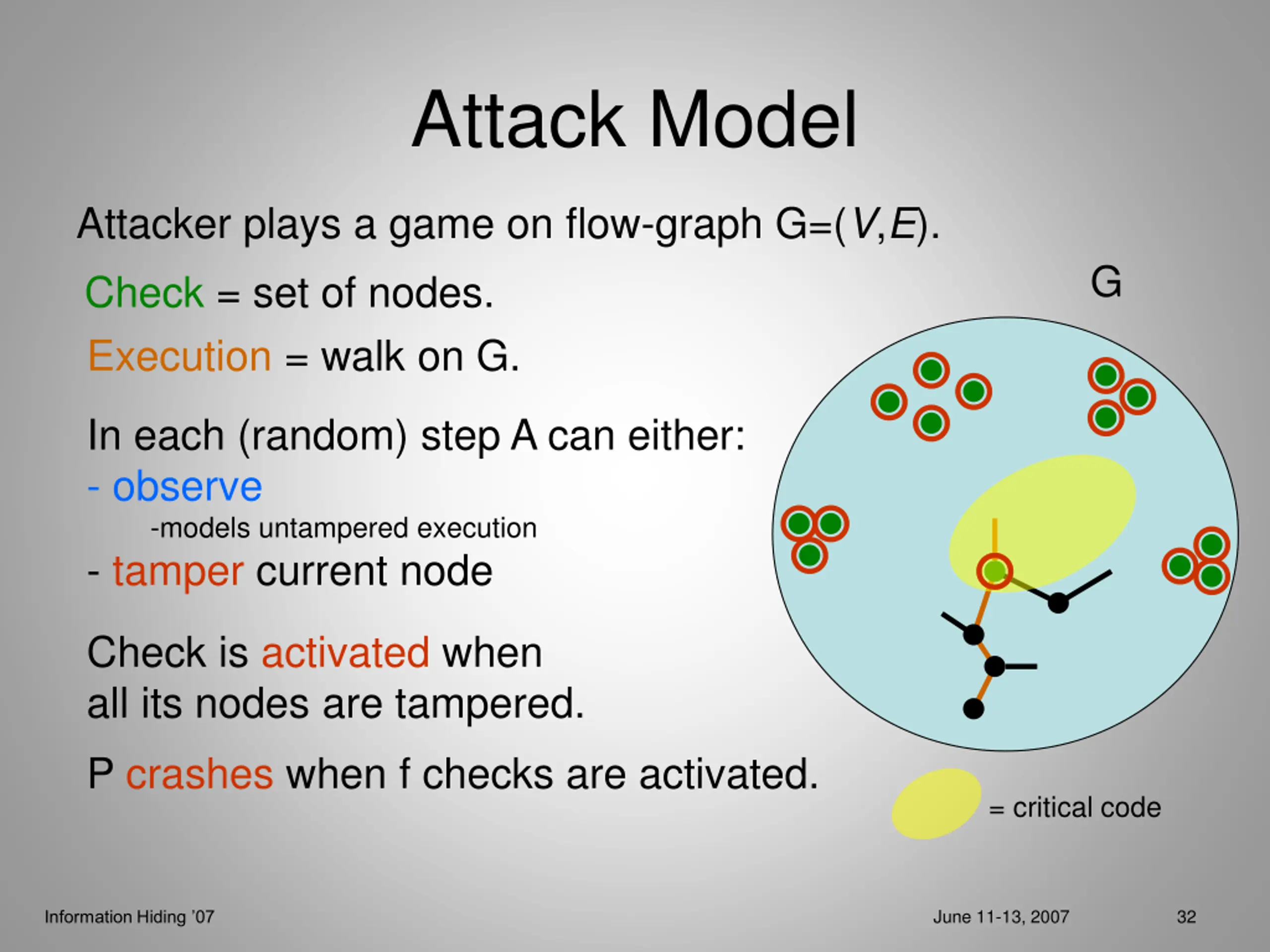

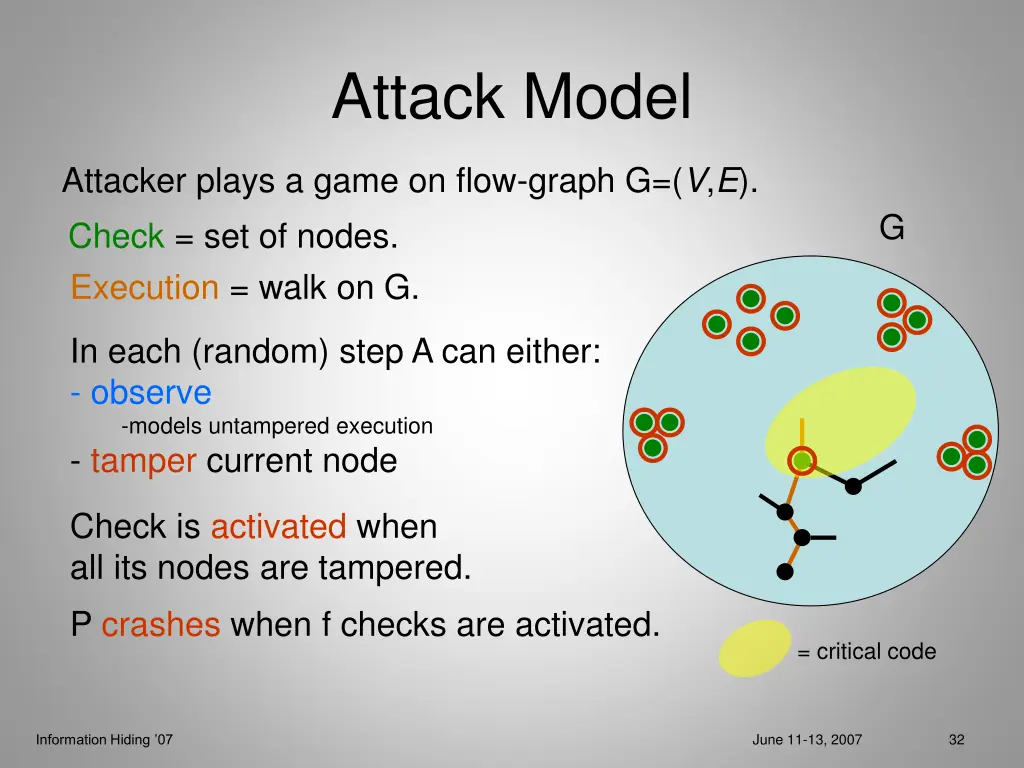

Attack Model Attacker plays a game on flow-graph G=(V,E). G Check = set of nodes. Execution = walk on G. In each (random) step A can either: - observe -models untampered execution - tamper current node Check is activated when all its nodes are tampered. P crashes when f checks are activated. = critical code June 11-13, 2007 32 Information Hiding 07

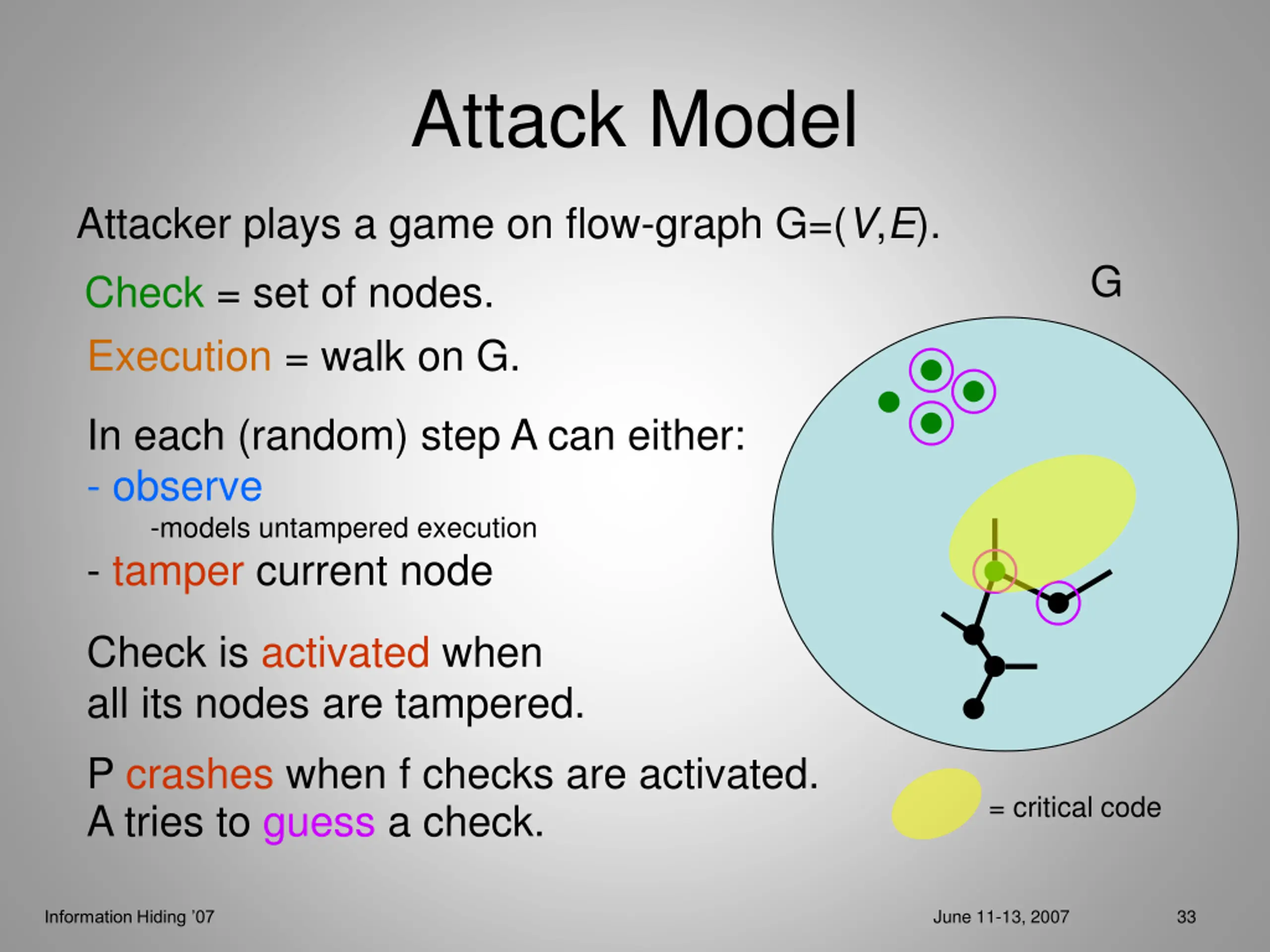

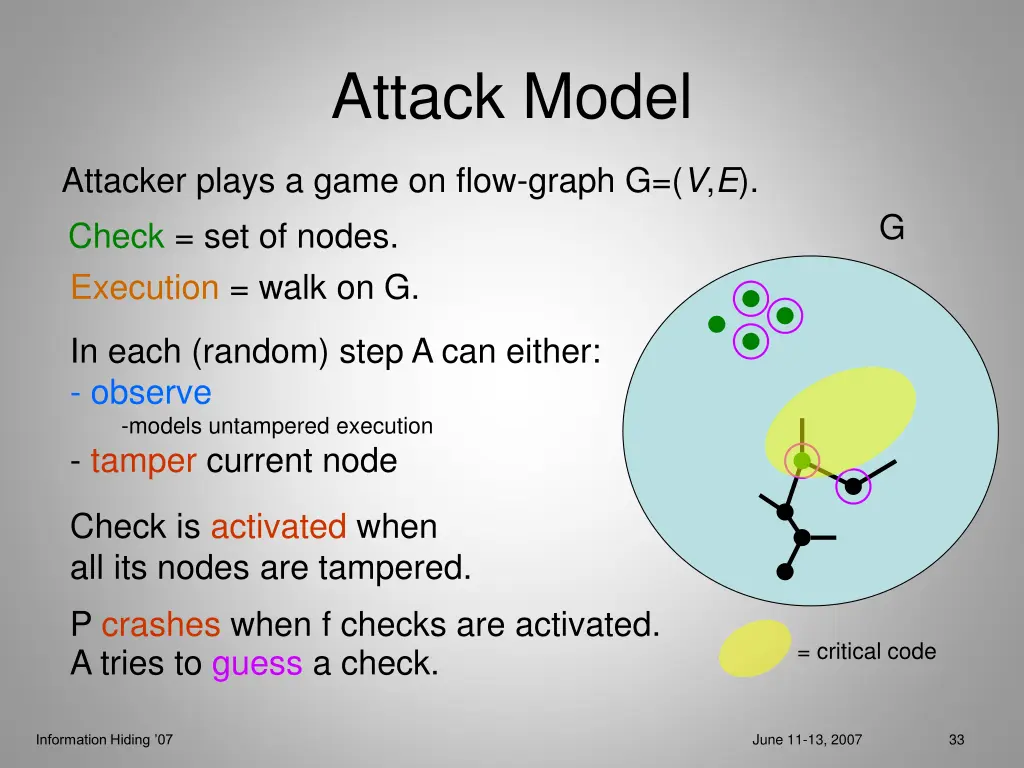

Attack Model Attacker plays a game on flow-graph G=(V,E). G Check = set of nodes. Execution = walk on G. In each (random) step A can either: - observe -models untampered execution - tamper current node Check is activated when all its nodes are tampered. P crashes when f checks are activated. A tries to guess a check. = critical code June 11-13, 2007 33 Information Hiding 07

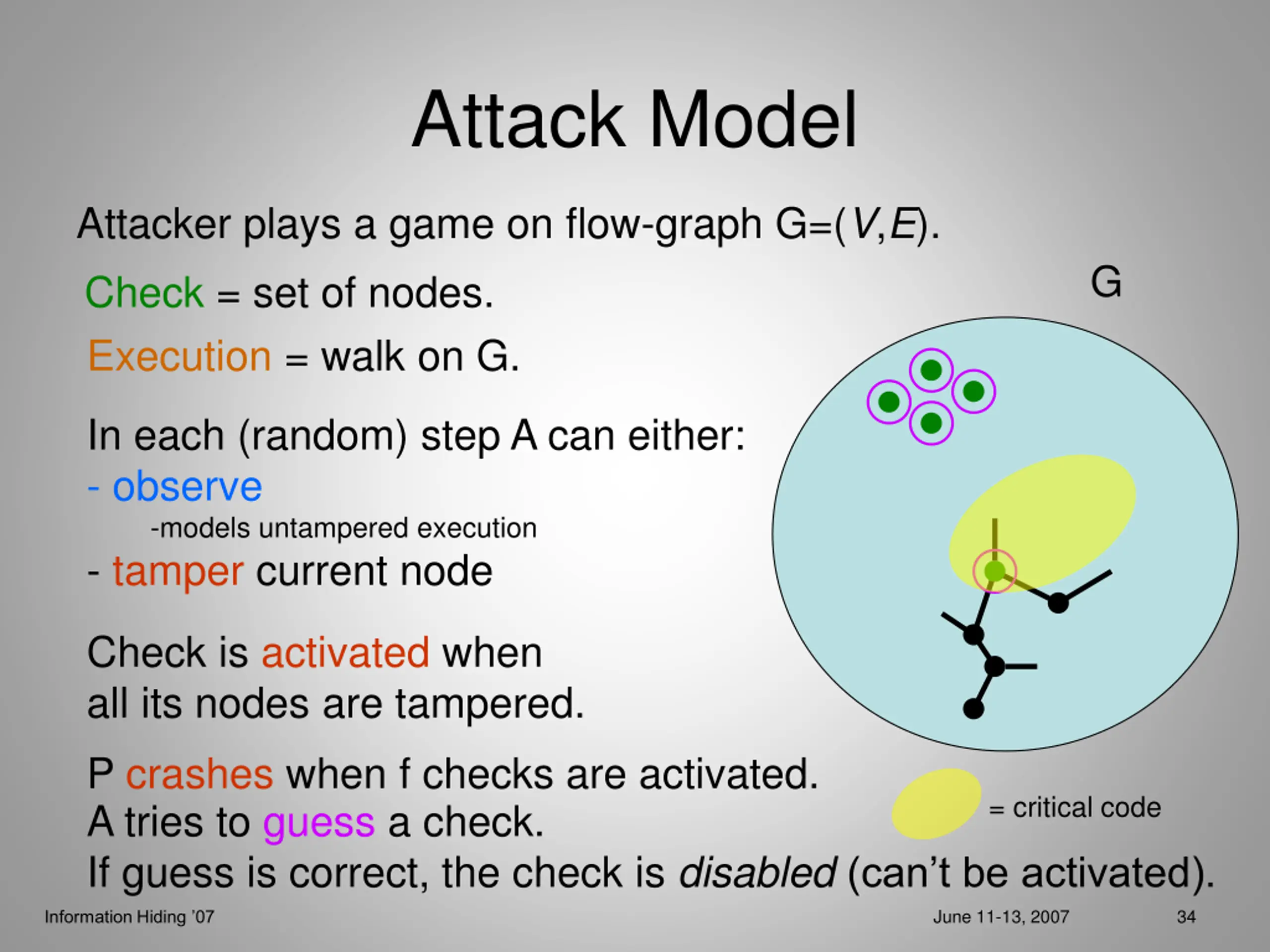

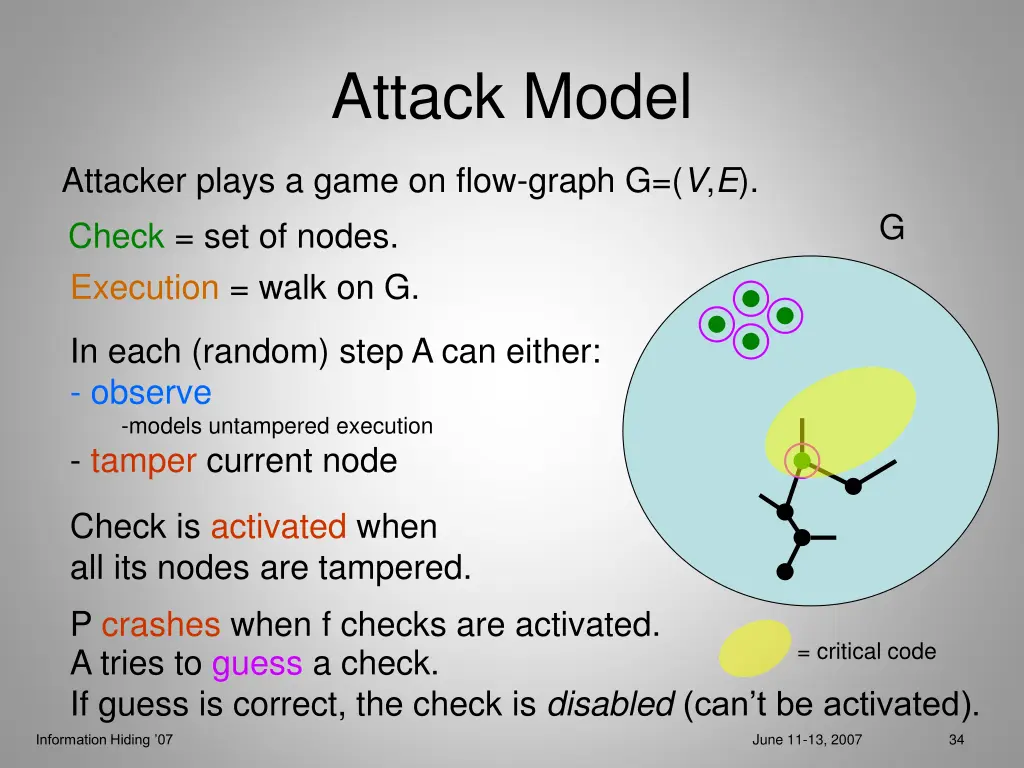

Attack Model Attacker plays a game on flow-graph G=(V,E). G Check = set of nodes. Execution = walk on G. In each (random) step A can either: - observe -models untampered execution - tamper current node Check is activated when all its nodes are tampered. P crashes when f checks are activated. A tries to guess a check. If guess is correct, the check is disabled(can t be activated). = critical code June 11-13, 2007 34 Information Hiding 07

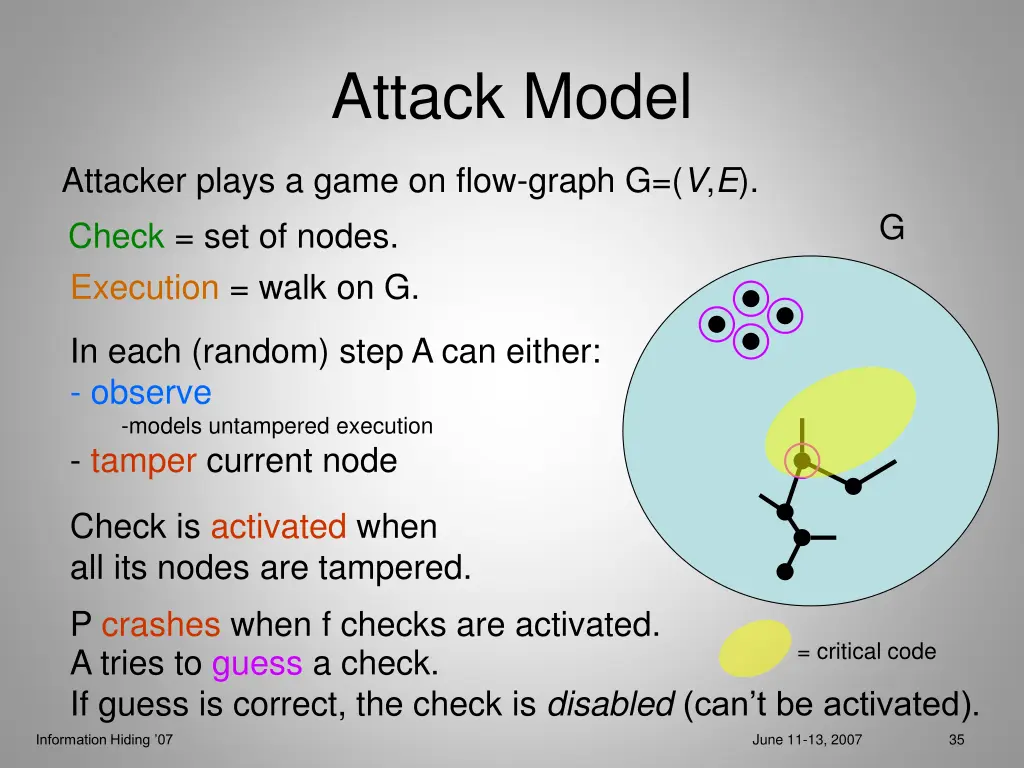

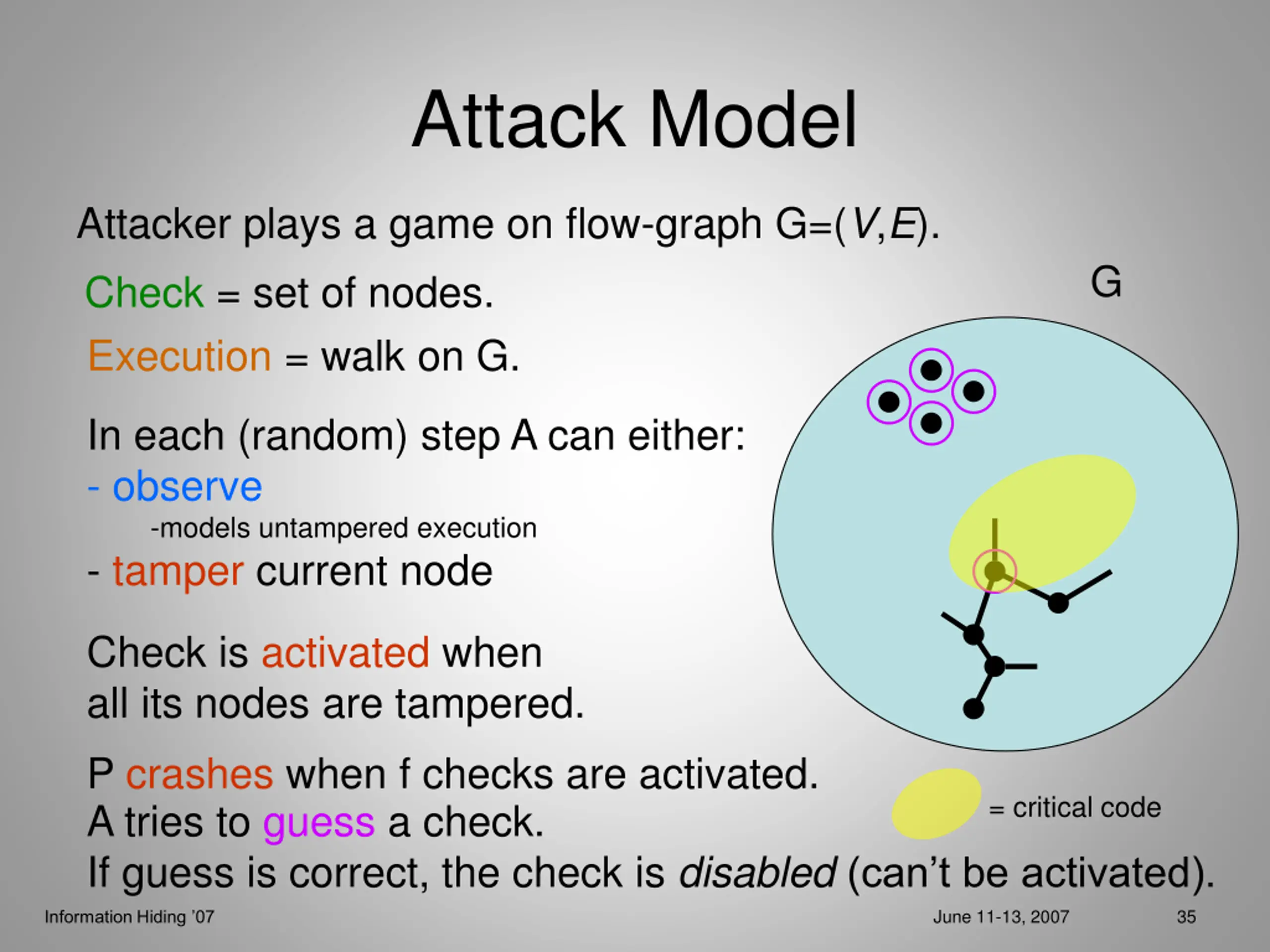

Attack Model Attacker plays a game on flow-graph G=(V,E). G Check = set of nodes. Execution = walk on G. In each (random) step A can either: - observe -models untampered execution - tamper current node Check is activated when all its nodes are tampered. P crashes when f checks are activated. A tries to guess a check. If guess is correct, the check is disabled(can t be activated). = critical code June 11-13, 2007 35 Information Hiding 07

Attack Model Attacker plays a game on flow-graph G=(V,E). G Check = set of nodes. Execution = walk on G. Game moves: observe, tamper, guess = critical code June 11-13, 2007 36 Information Hiding 07

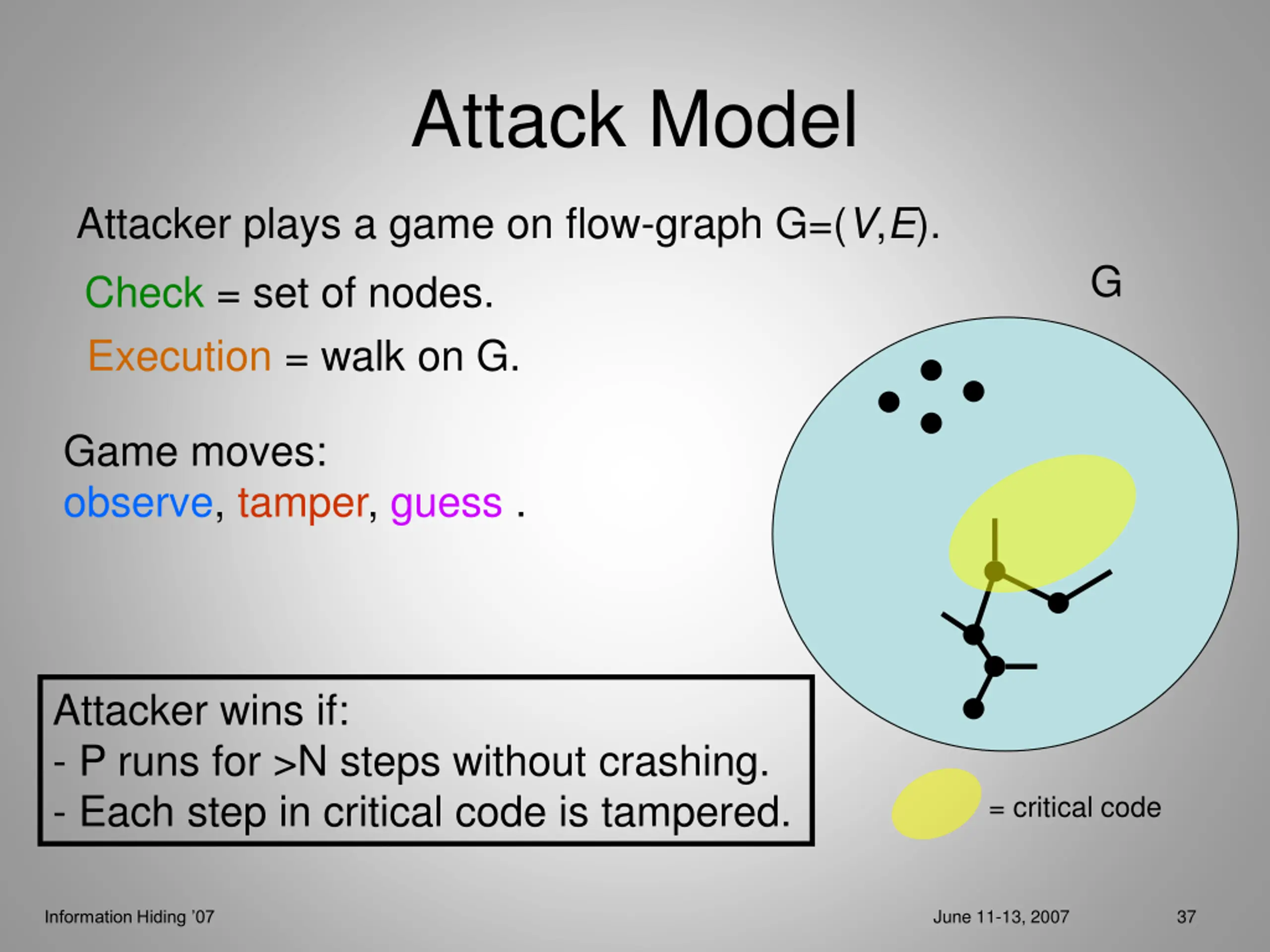

Attack Model Attacker plays a game on flow-graph G=(V,E). G Check = set of nodes. Execution = walk on G. Game moves: observe, tamper, guess . Attacker wins if: - P runs for >N steps without crashing. - Each step in critical code is tampered. = critical code June 11-13, 2007 37 Information Hiding 07

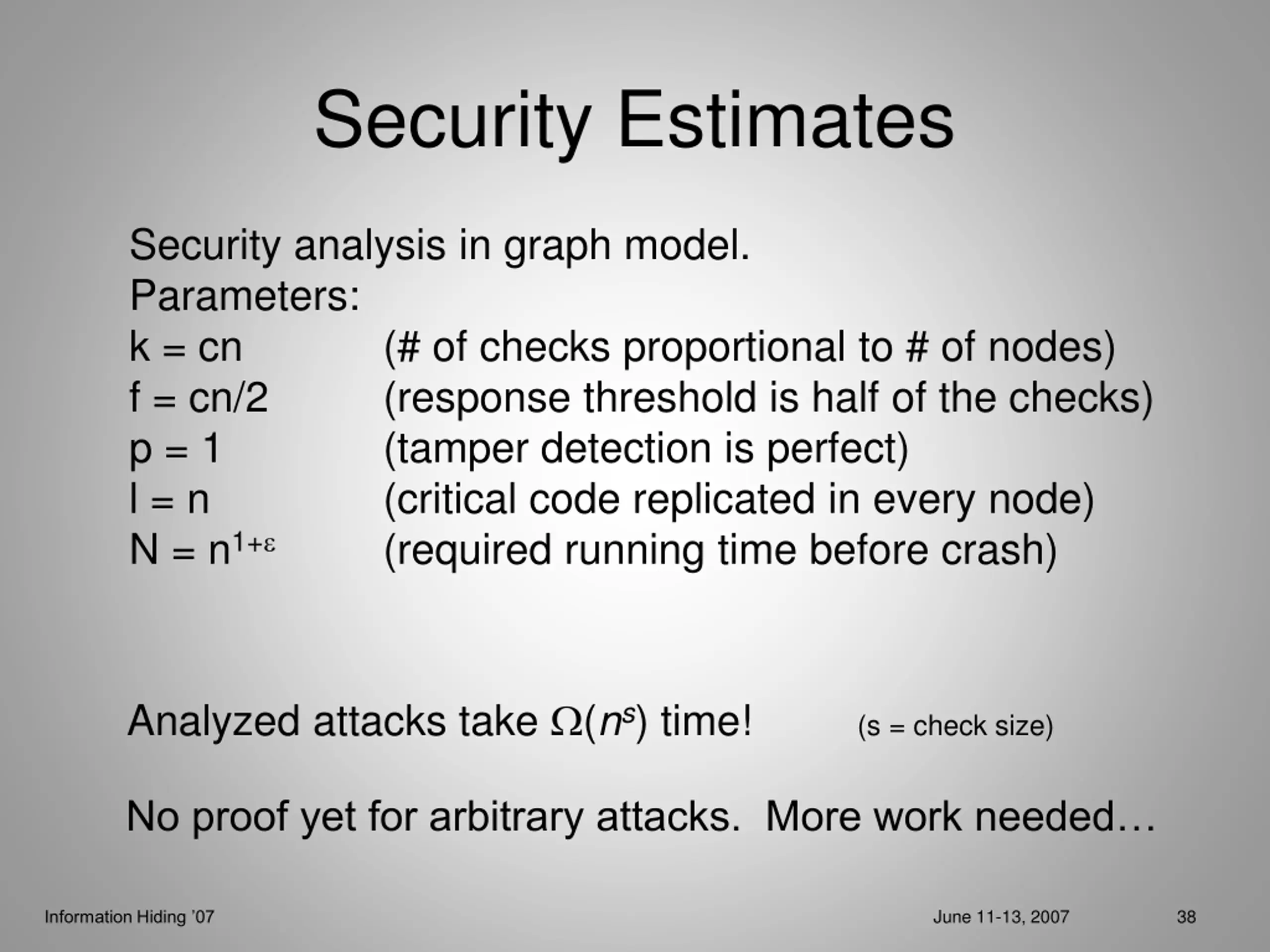

Security Estimates Security analysis in graph model. Parameters: k = cn (# of checks proportional to # of nodes) f = cn/2 (response threshold is half of the checks) p = 1 (tamper detection is perfect) l = n (critical code replicated in every node) N = n1+ (required running time before crash) Analyzed attacks take (ns) time! (s = check size) No proof yet for arbitrary attacks. More work needed June 11-13, 2007 38 Information Hiding 07

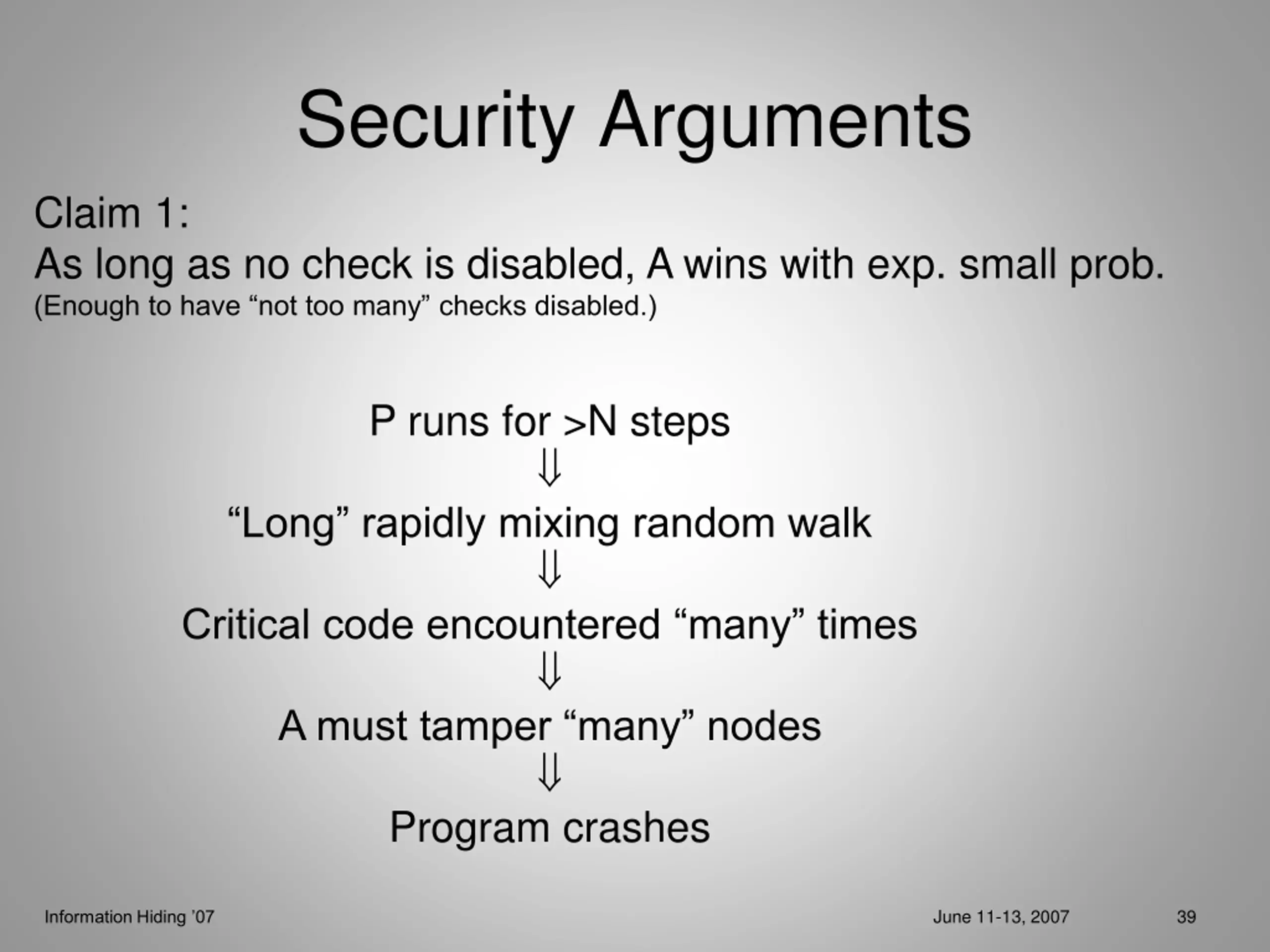

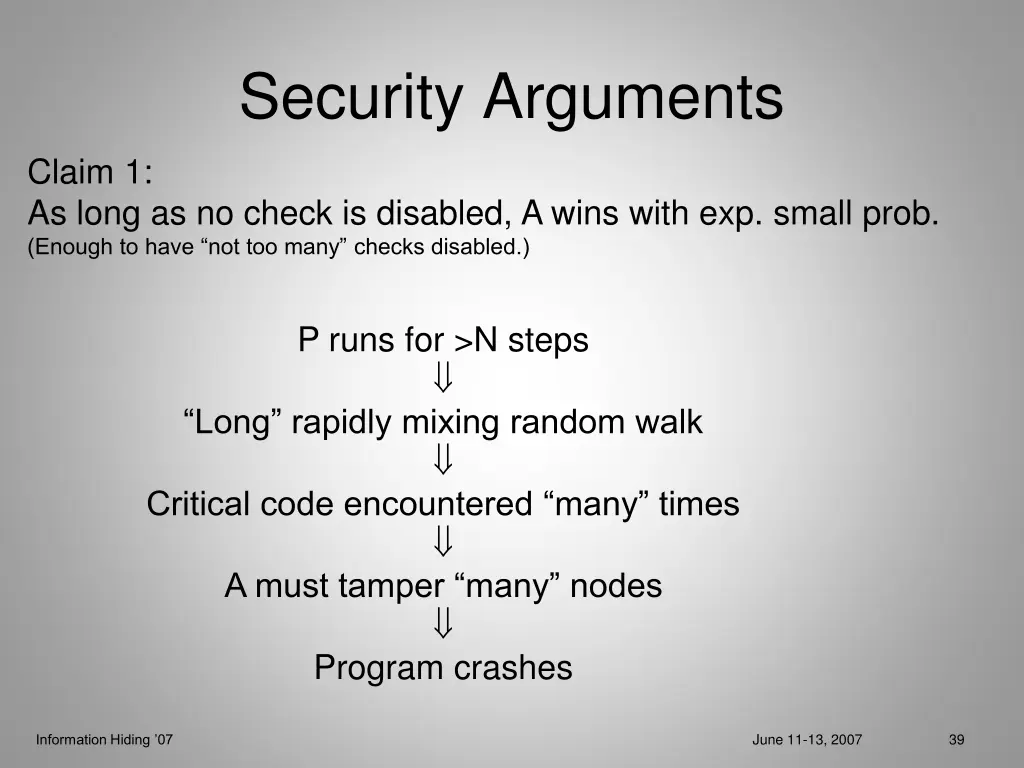

Security Arguments Claim 1: As long as no check is disabled, A wins with exp. small prob. (Enough to have not too many checks disabled.) P runs for >N steps Long rapidly mixing random walk Critical code encountered many times A must tamper many nodes Program crashes June 11-13, 2007 39 Information Hiding 07

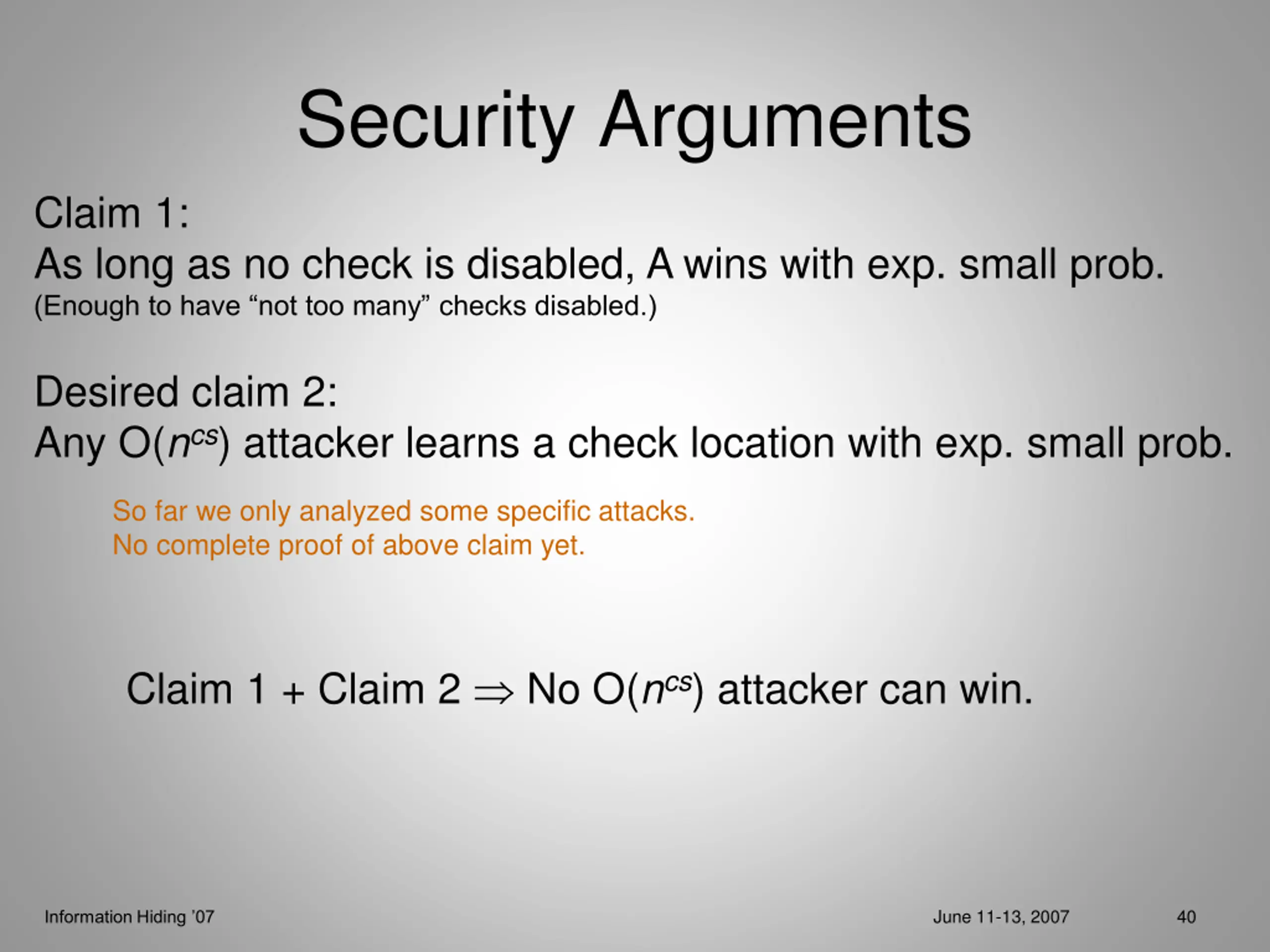

Security Arguments Claim 1: As long as no check is disabled, A wins with exp. small prob. (Enough to have not too many checks disabled.) Desired claim 2: Any O(ncs) attacker learns a check location with exp. small prob. So far we only analyzed some specific attacks. No complete proof of above claim yet. Claim 1 + Claim 2 No O(ncs) attacker can win. June 11-13, 2007 40 Information Hiding 07

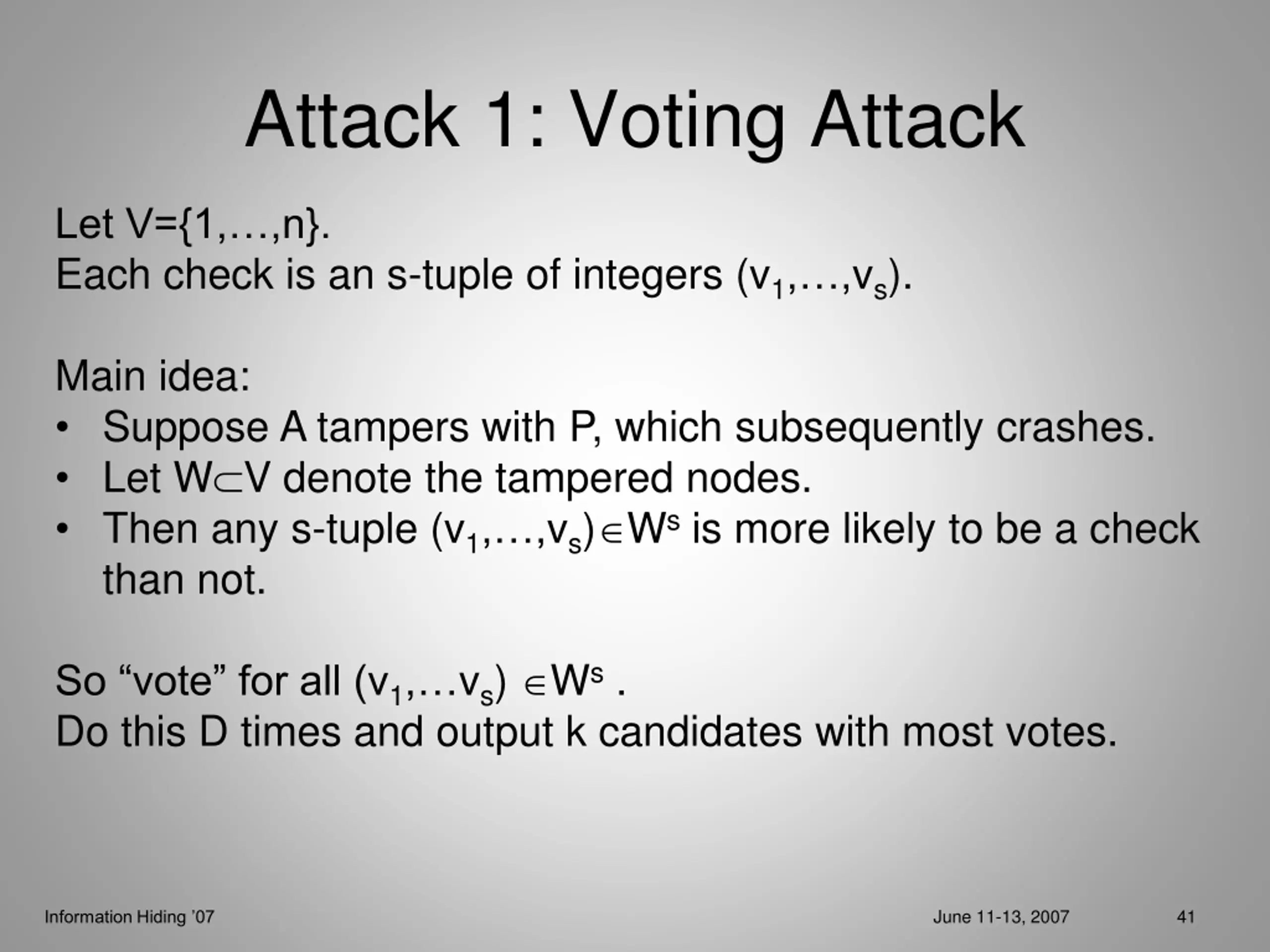

Attack 1: Voting Attack Let V={1, ,n}. Each check is an s-tuple of integers (v1, ,vs). Main idea: Suppose A tampers with P, which subsequently crashes. Let W V denote the tampered nodes. Then any s-tuple (v1, ,vs) Ws is more likely to be a check than not. So vote for all (v1, vs) Ws . Do this D times and output k candidates with most votes. June 11-13, 2007 41 Information Hiding 07

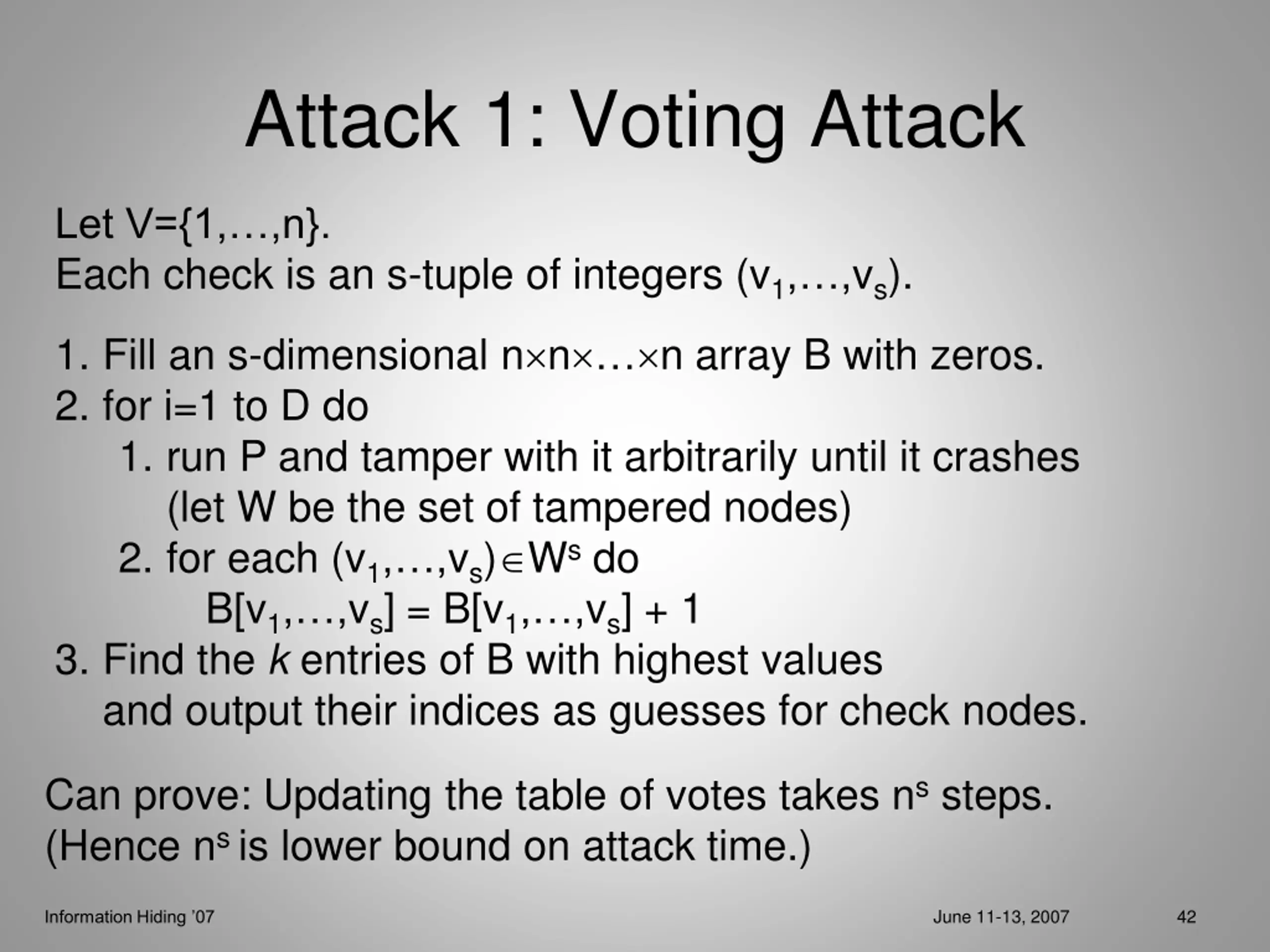

Attack 1: Voting Attack Let V={1, ,n}. Each check is an s-tuple of integers (v1, ,vs). 1. Fill an s-dimensional n n n array B with zeros. 2. for i=1 to D do 1. run P and tamper with it arbitrarily until it crashes (let W be the set of tampered nodes) 2. for each (v1, ,vs) Ws do B[v1, ,vs] = B[v1, ,vs] + 1 3. Find the k entries of B with highest values and output their indices as guesses for check nodes. Can prove: Updating the table of votes takes ns steps. (Hence ns is lower bound on attack time.) June 11-13, 2007 42 Information Hiding 07

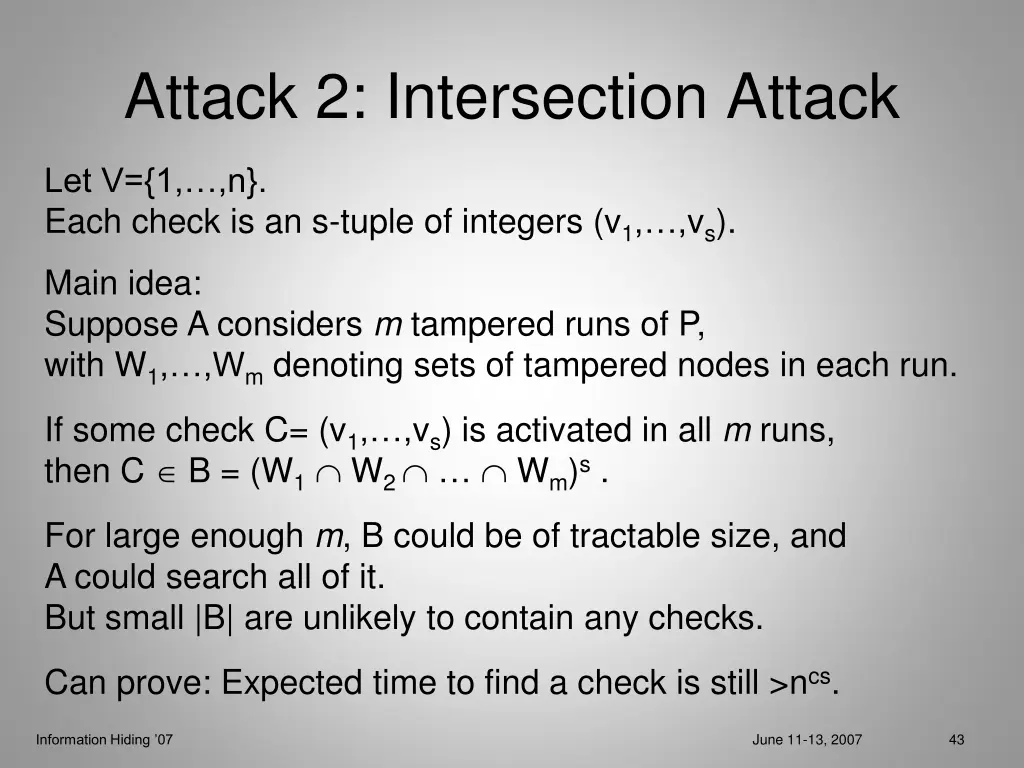

Attack 2: Intersection Attack Let V={1, ,n}. Each check is an s-tuple of integers (v1, ,vs). Main idea: Suppose A considers m tampered runs of P, with W1, ,Wm denoting sets of tampered nodes in each run. If some check C= (v1, ,vs) is activated in all m runs, then C B = (W1 W2 Wm)s . For large enough m, B could be of tractable size, and A could search all of it. But small |B| are unlikely to contain any checks. Can prove: Expected time to find a check is still >ncs. June 11-13, 2007 43 Information Hiding 07

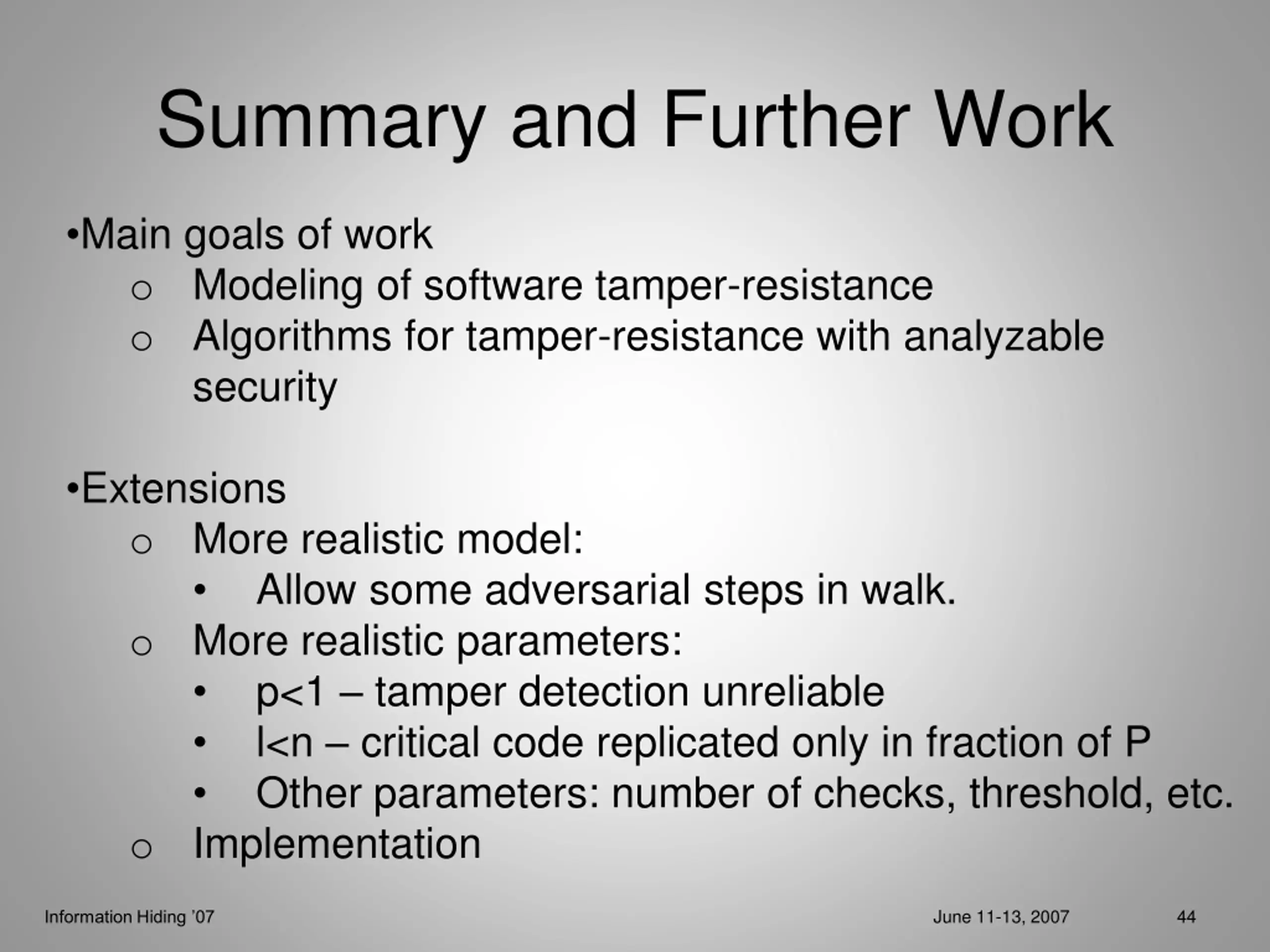

Summary and Further Work Main goals of work o Modeling of software tamper-resistance o Algorithms for tamper-resistance with analyzable security Extensions o More realistic model: Allow some adversarial steps in walk. More realistic parameters: p<1 tamper detection unreliable l<n critical code replicated only in fraction of P Other parameters: number of checks, threshold, etc. Implementation o o June 11-13, 2007 44 Information Hiding 07
