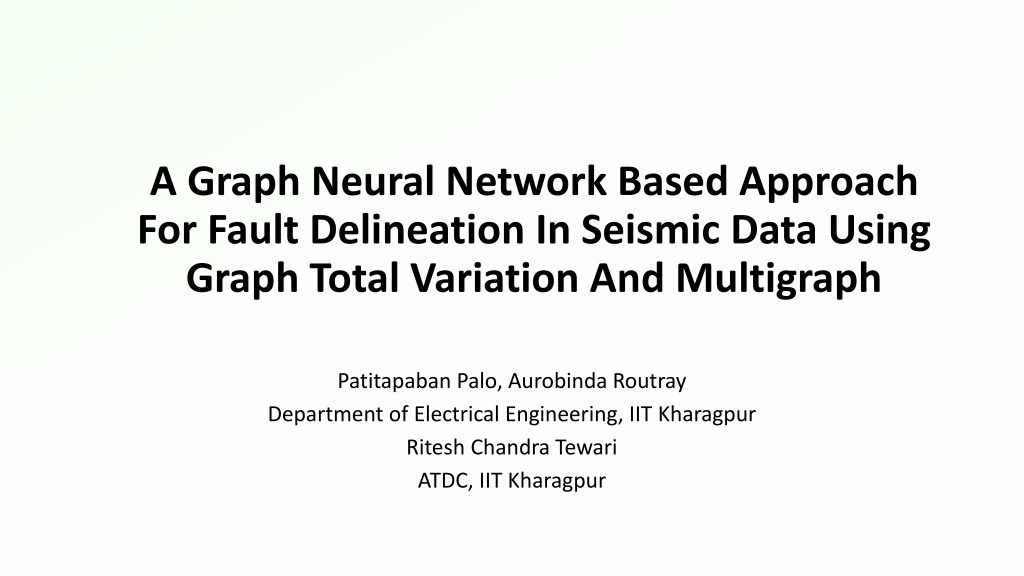

A Graph Neural Network Based Approach For Fault Delineation In Seismic Data Using Graph Total Variation And Multigraph Patitapaban Palo, Aurobinda Routray Department of Electrical Engineering, IIT Kharagpur Ritesh Chandra Tewari ATDC, IIT Kharagpur

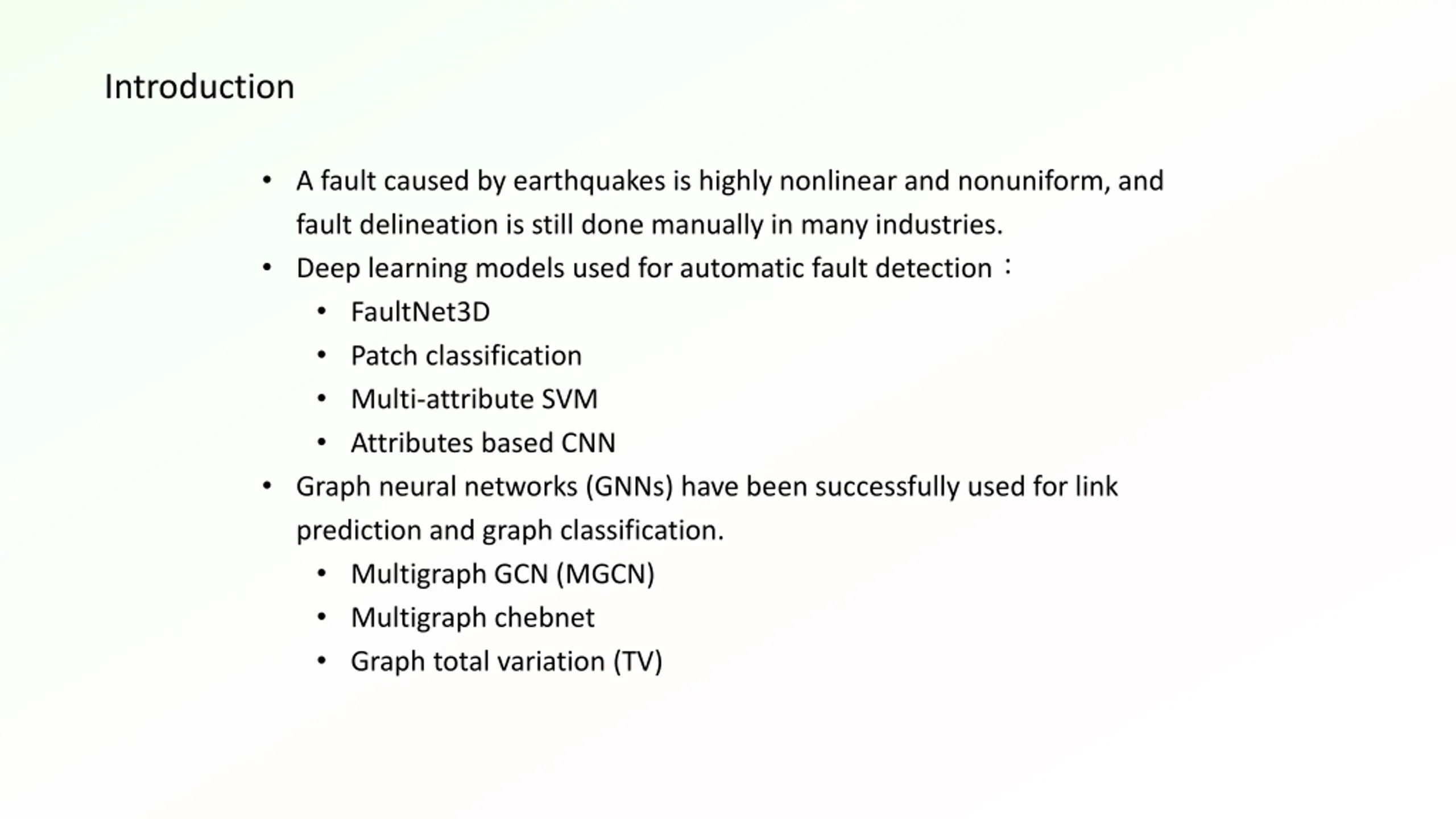

Introduction A fault caused by earthquakes is highly nonlinear and nonuniform, and fault delineation is still done manually in many industries. Deep learning models used for automatic fault detection FaultNet3D Patch classification Multi-attribute SVM Attributes based CNN Graph neural networks (GNNs) have been successfully used for link prediction and graph classification. Multigraph GCN (MGCN) Multigraph chebnet Graph total variation (TV)

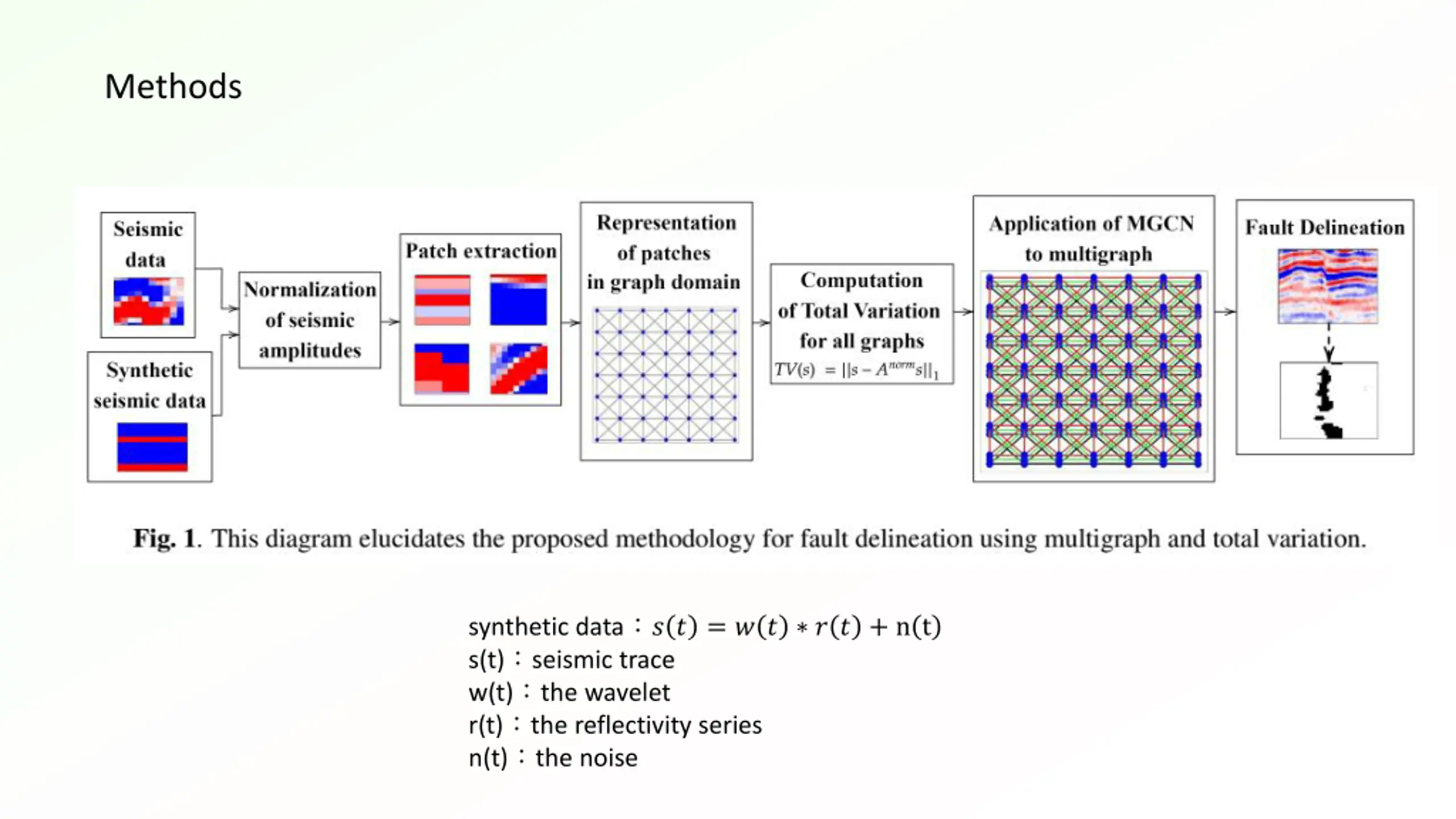

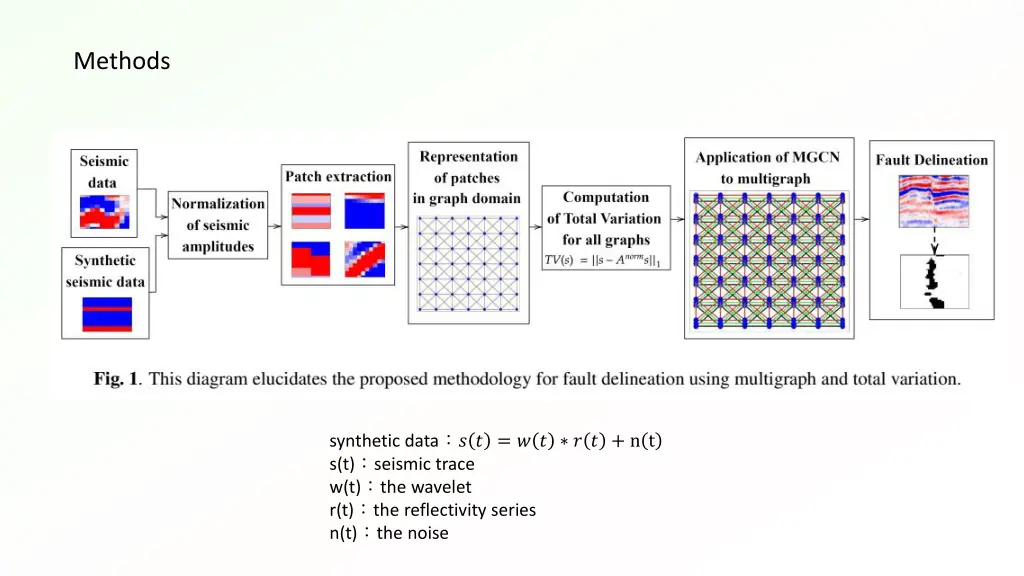

Methods synthetic data ? ? = ? ? ? ? + n t s(t) seismic trace w(t) the wavelet r(t) the reflectivity series n(t) the noise

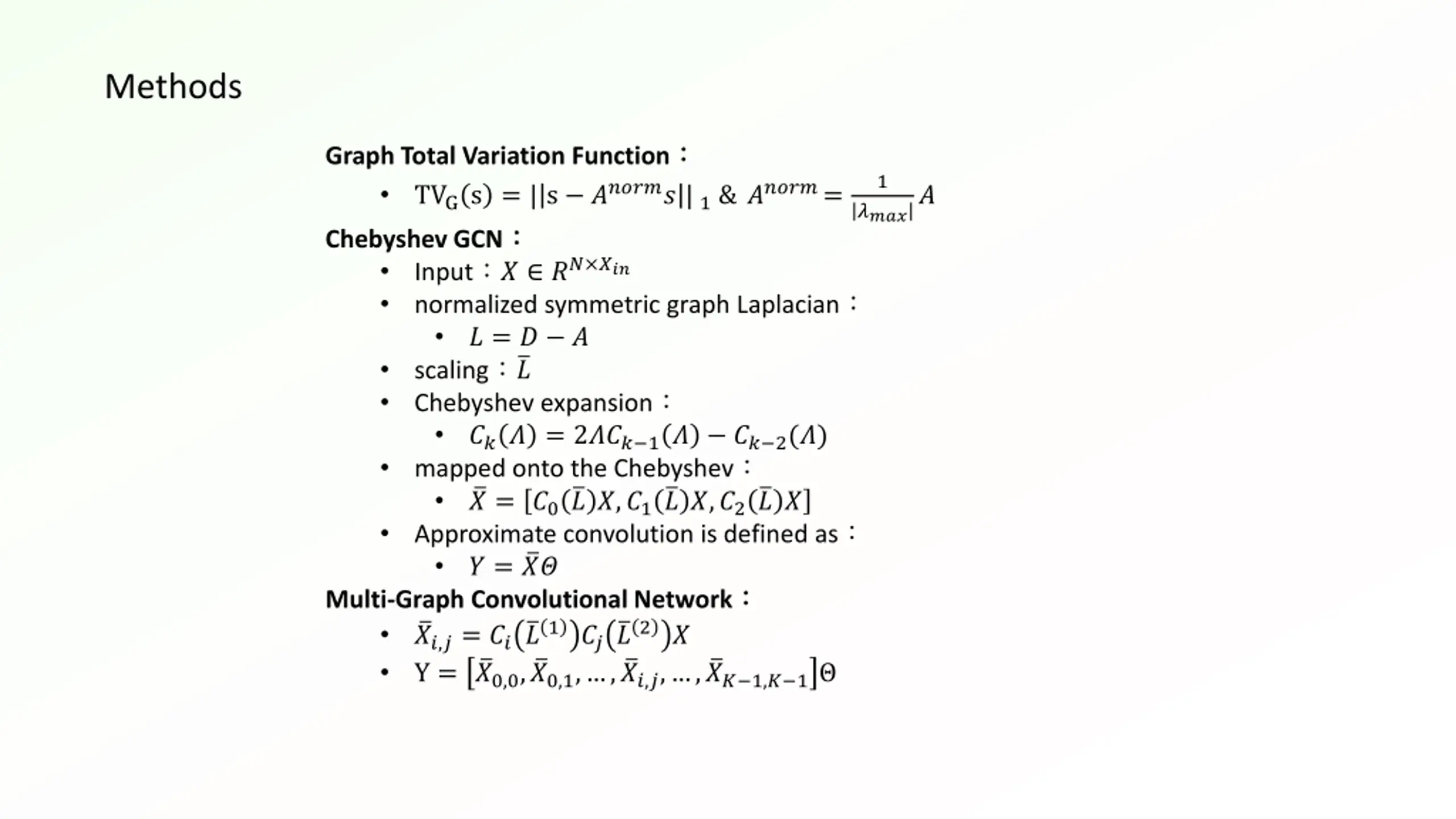

Methods Graph Total Variation Function TVGs = | s ?????? |1& ?????= Chebyshev GCN Input ? ?? ??? normalized symmetric graph Laplacian ? = ? ? scaling ? Chebyshev expansion ??? = 2??? 1? ?? 2(?) mapped onto the Chebyshev ? = ?0 ? ?,?1 ? ?,?2 ? ? Approximate convolution is defined as ? = ?? Multi-Graph Convolutional Network ??,?= ?? ?1?? ?2? Y = ?0,0, ?0,1, , ??,?, , ?? 1,? 1 1 ?????

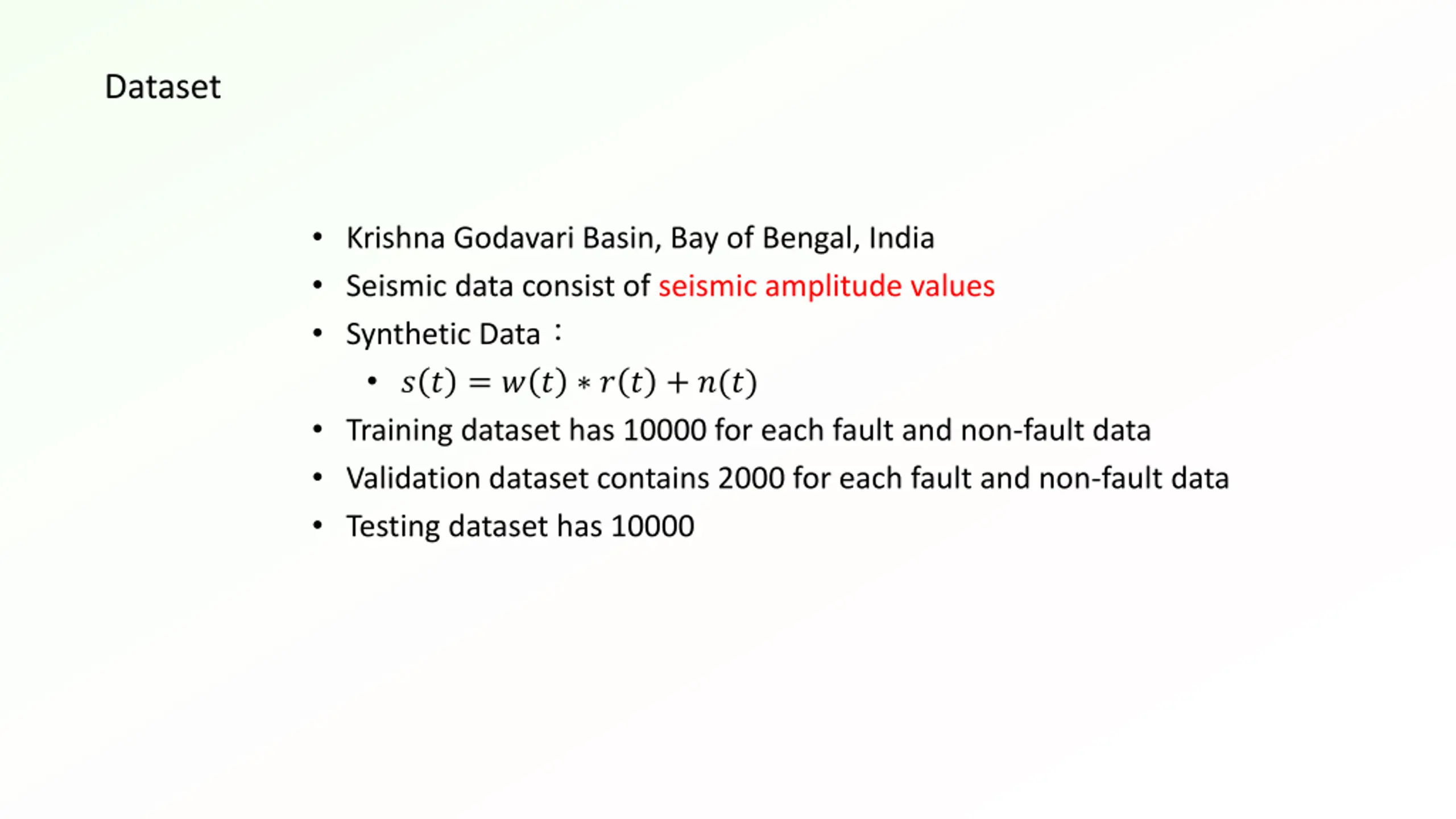

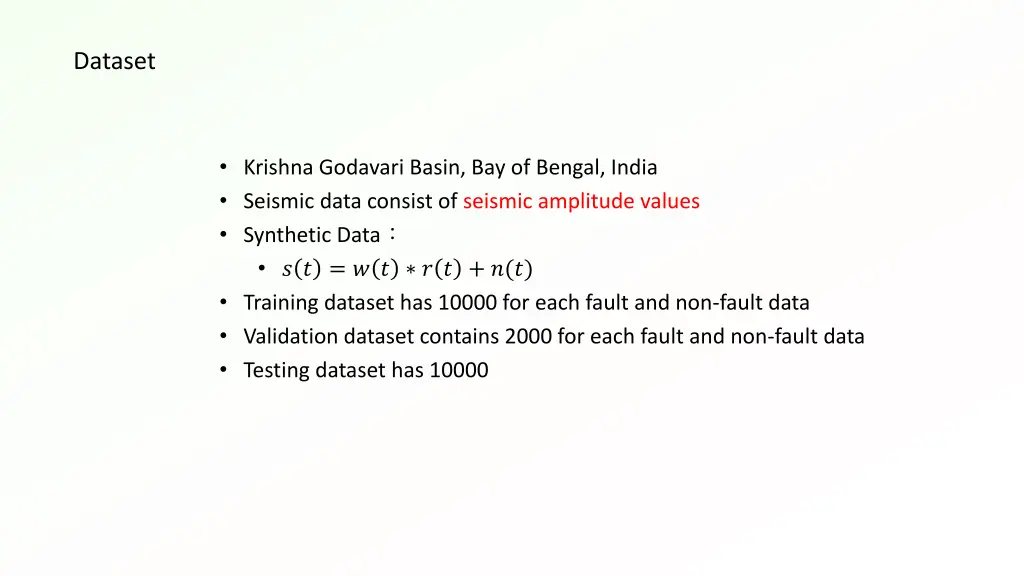

Dataset Krishna Godavari Basin, Bay of Bengal, India Seismic data consist of seismic amplitude values Synthetic Data ? ? = ? ? ? ? + ?(?) Training dataset has 10000 for each fault and non-fault data Validation dataset contains 2000 for each fault and non-fault data Testing dataset has 10000
