CSCE-411 Design and Analysis of Algorithms Spring 2025 Instructor: Jianer Chen Office: PETR 428 Phone: 845-4259 Email: chen@cse.tamu.edu Notes 12: Breadth-First-Search (BFS)

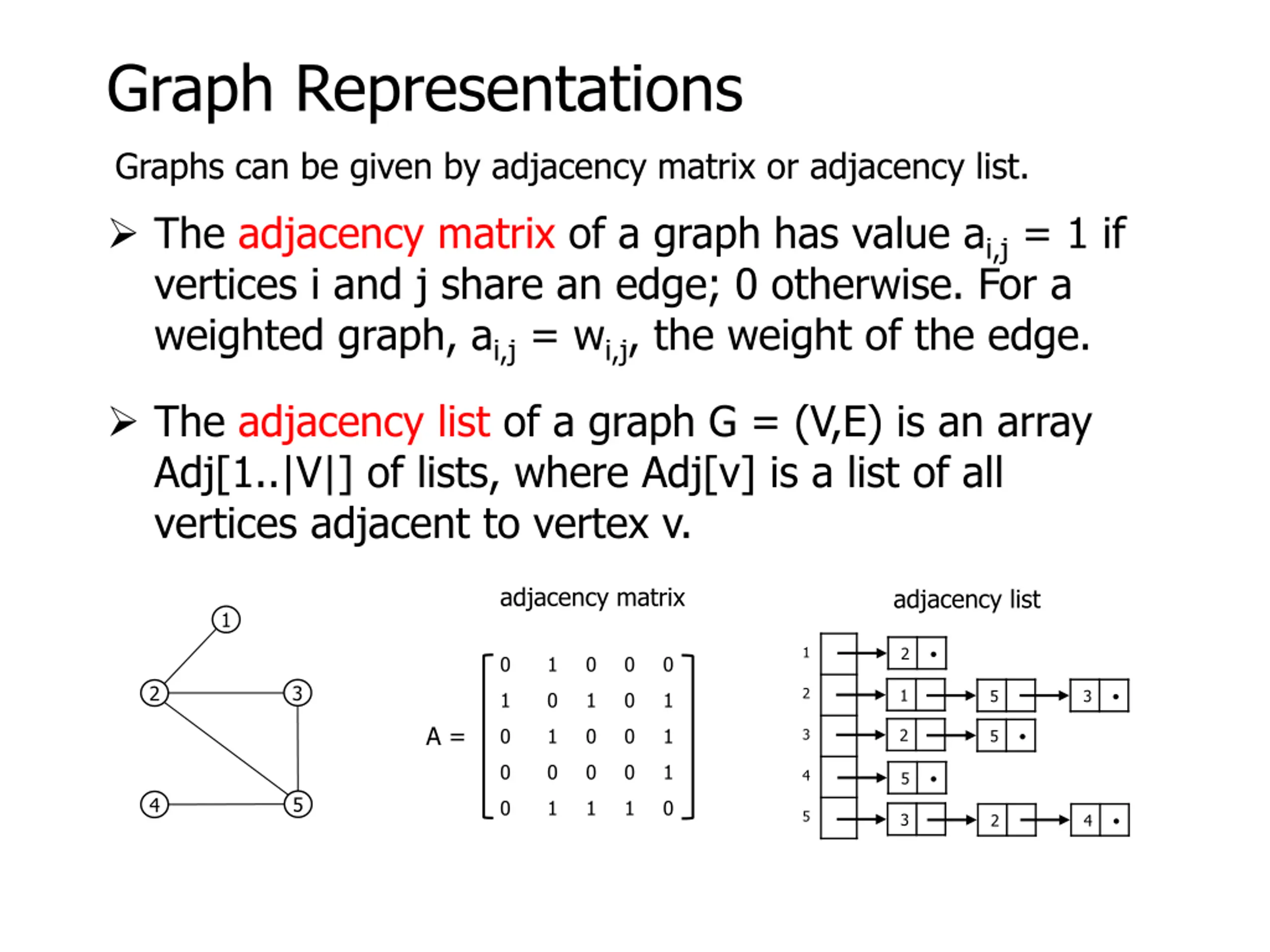

Graph Representations Graphs can be given by adjacency matrix or adjacency list. The adjacency matrix of a graph has value ai,j = 1 if vertices i and j share an edge; 0 otherwise. For a weighted graph, ai,j = wi,j, the weight of the edge. The adjacency list of a graph G = (V,E) is an array Adj[1..|V|] of lists, where Adj[v] is a list of all vertices adjacent to vertex v. adjacency matrix adjacency list 1 1 2 0 1 0 0 0 3 2 2 1 5 3 1 0 1 0 1 A = 0 1 0 0 1 2 3 5 0 0 0 0 1 4 5 5 4 0 1 1 1 0 5 3 2 4

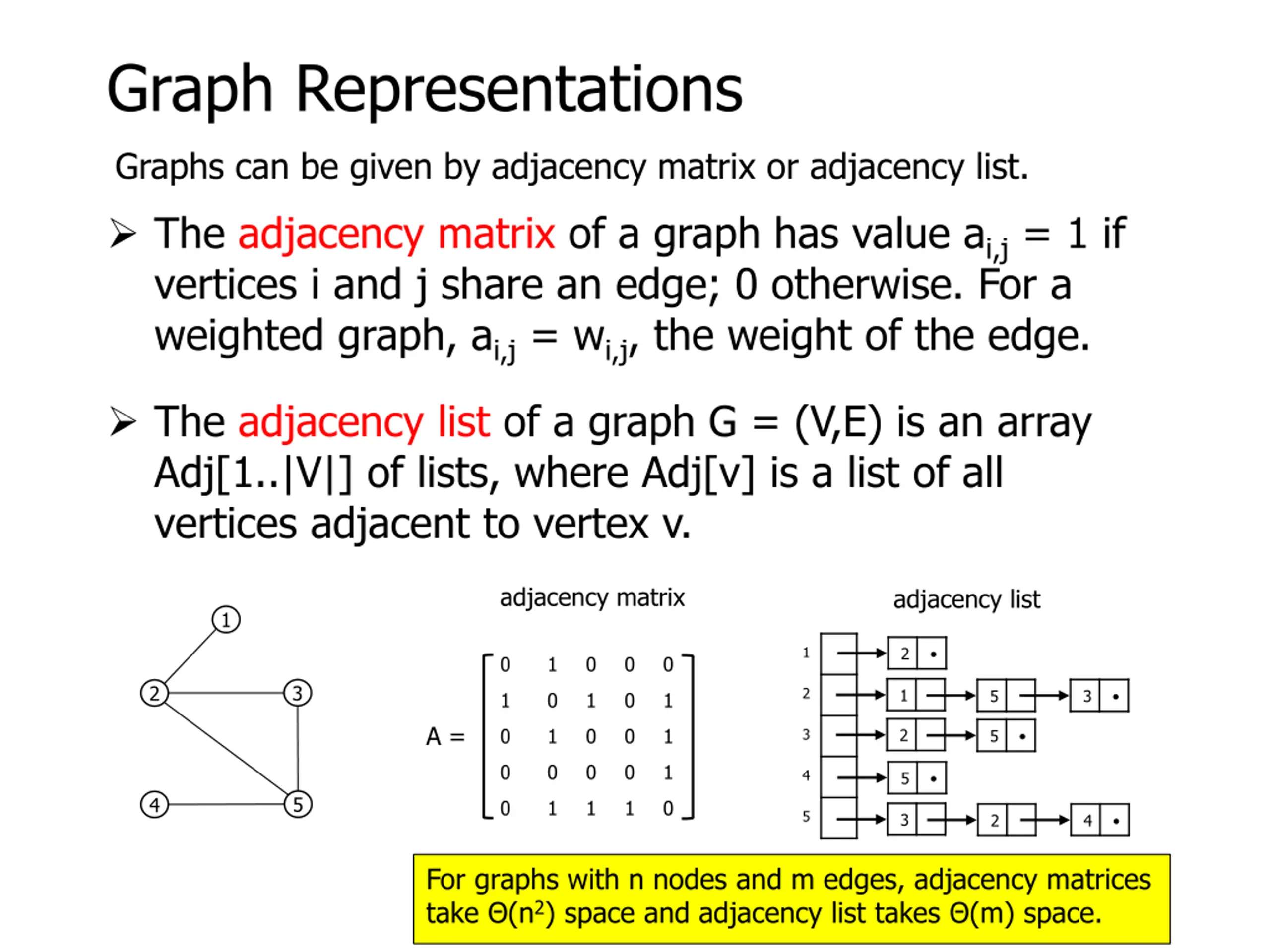

Graph Representations Graphs can be given by adjacency matrix or adjacency list. The adjacency matrix of a graph has value ai,j = 1 if vertices i and j share an edge; 0 otherwise. For a weighted graph, ai,j = wi,j, the weight of the edge. The adjacency list of a graph G = (V,E) is an array Adj[1..|V|] of lists, where Adj[v] is a list of all vertices adjacent to vertex v. adjacency matrix adjacency list 1 1 2 0 1 0 0 0 3 2 2 1 5 3 1 0 1 0 1 A = 0 1 0 0 1 2 3 5 0 0 0 0 1 4 5 5 4 0 1 1 1 0 5 3 2 4 For graphs with n nodes and m edges, adjacency matrices take (n2) space and adjacency list takes (m) space.

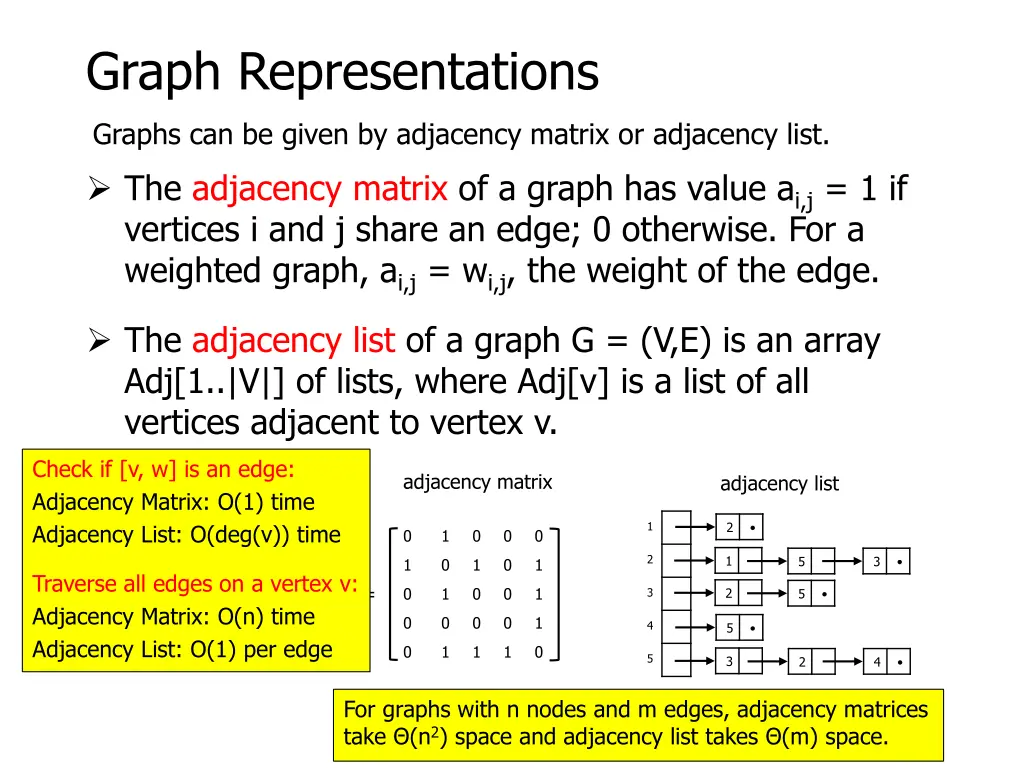

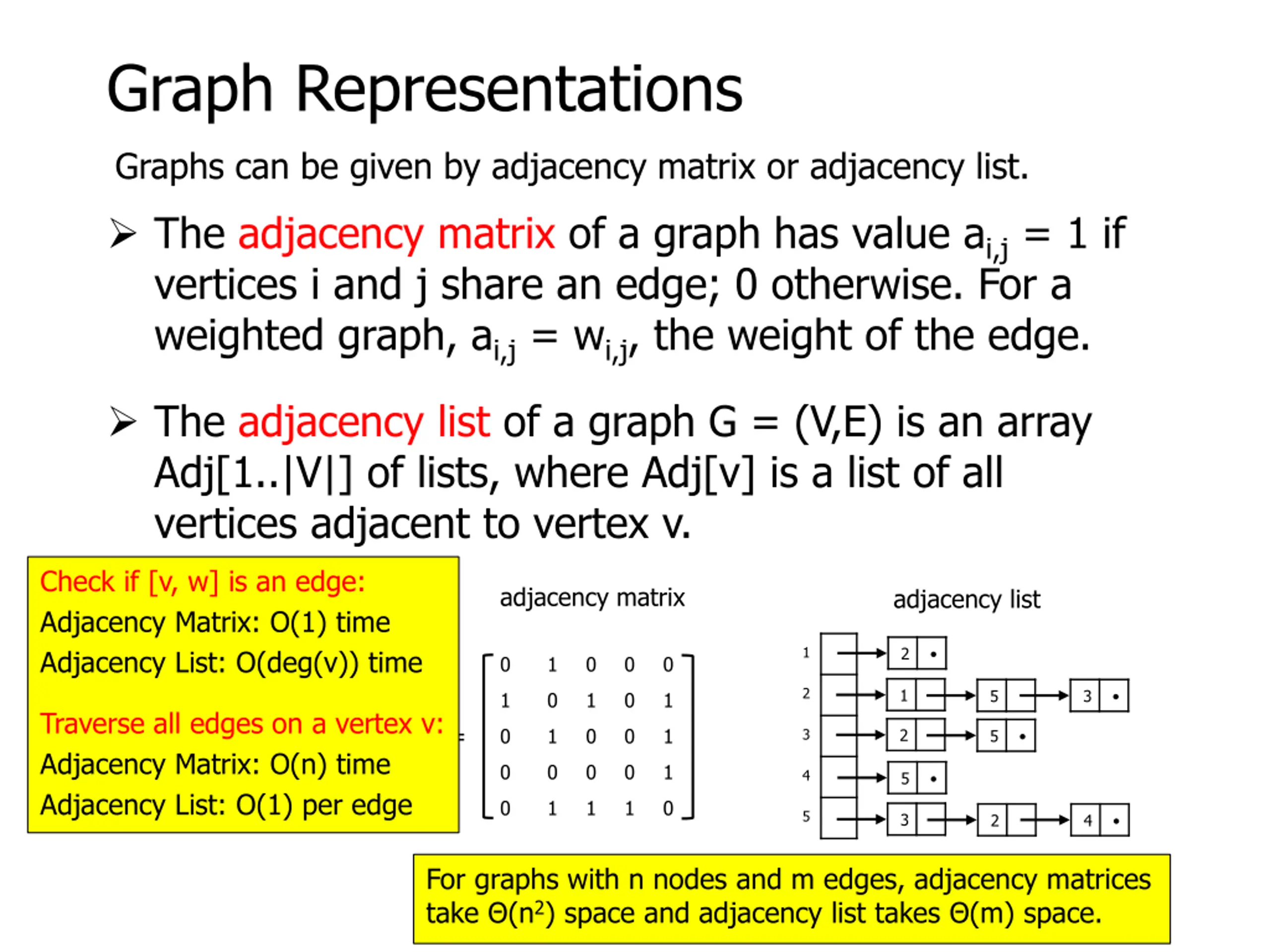

Graph Representations Graphs can be given by adjacency matrix or adjacency list. The adjacency matrix of a graph has value ai,j = 1 if vertices i and j share an edge; 0 otherwise. For a weighted graph, ai,j = wi,j, the weight of the edge. The adjacency list of a graph G = (V,E) is an array Adj[1..|V|] of lists, where Adj[v] is a list of all vertices adjacent to vertex v. Check if [v, w] is an edge: Adjacency Matrix: O(1) time Adjacency List: O(deg(v)) time adjacency matrix adjacency list 1 1 2 0 1 0 0 0 3 2 2 1 5 3 1 0 1 0 1 Traverse all edges on a vertex v: Adjacency Matrix: O(n) time Adjacency List: O(1) per edge A = 0 1 0 0 1 2 3 5 0 0 0 0 1 4 5 5 4 0 1 1 1 0 5 3 2 4 For graphs with n nodes and m edges, adjacency matrices take (n2) space and adjacency list takes (m) space.

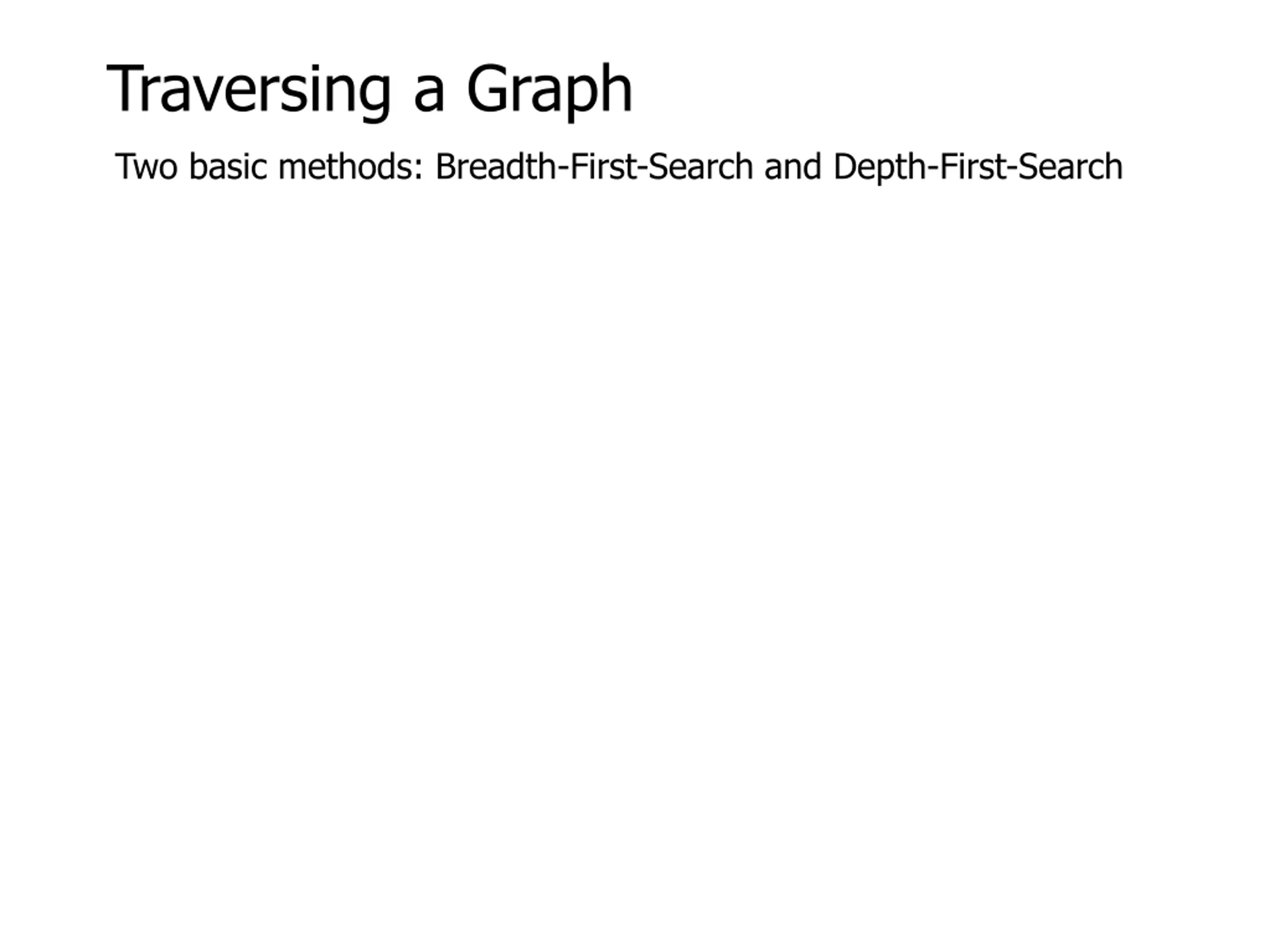

Traversing a Graph Two basic methods: Breadth-First-Search and Depth-First-Search

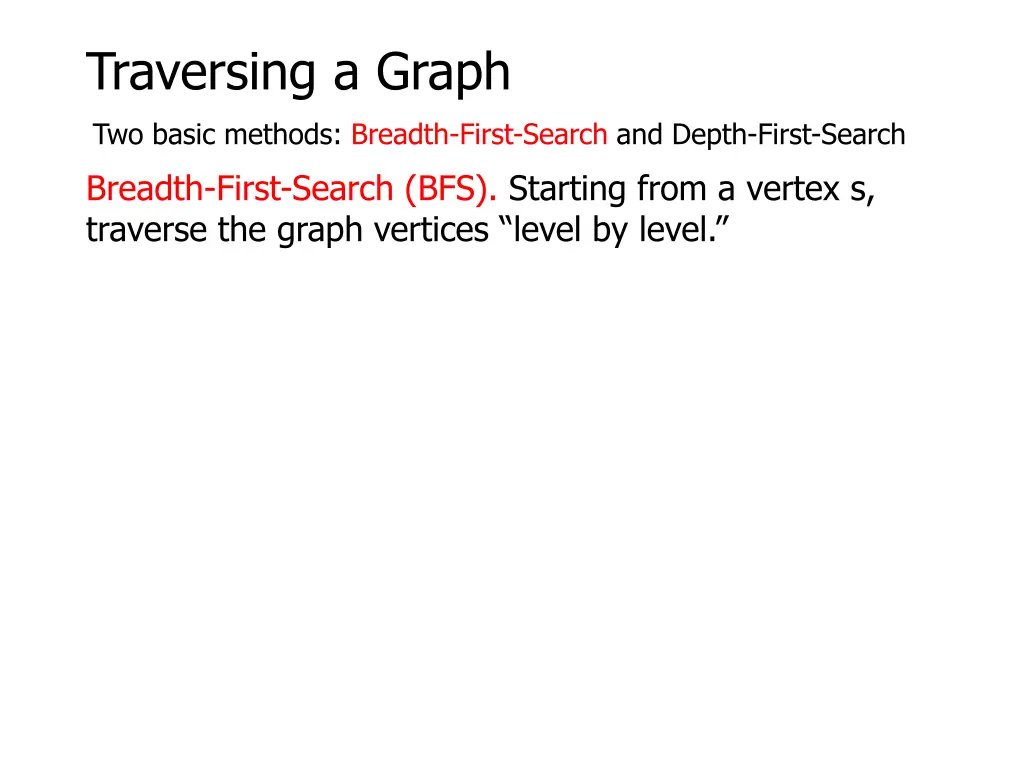

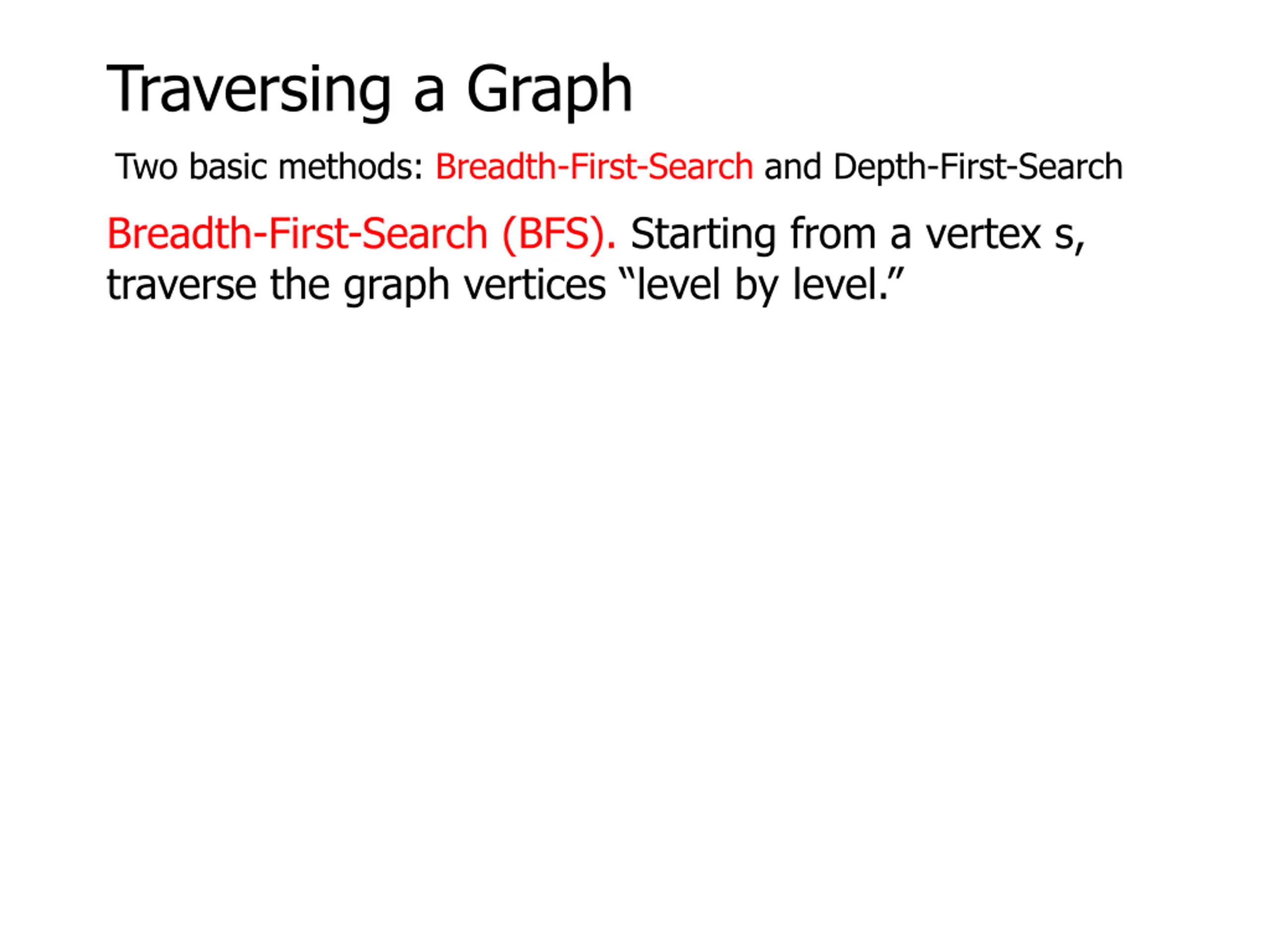

Traversing a Graph Two basic methods: Breadth-First-Search and Depth-First-Search Breadth-First-Search (BFS). Starting from a vertex s, traverse the graph vertices level by level.

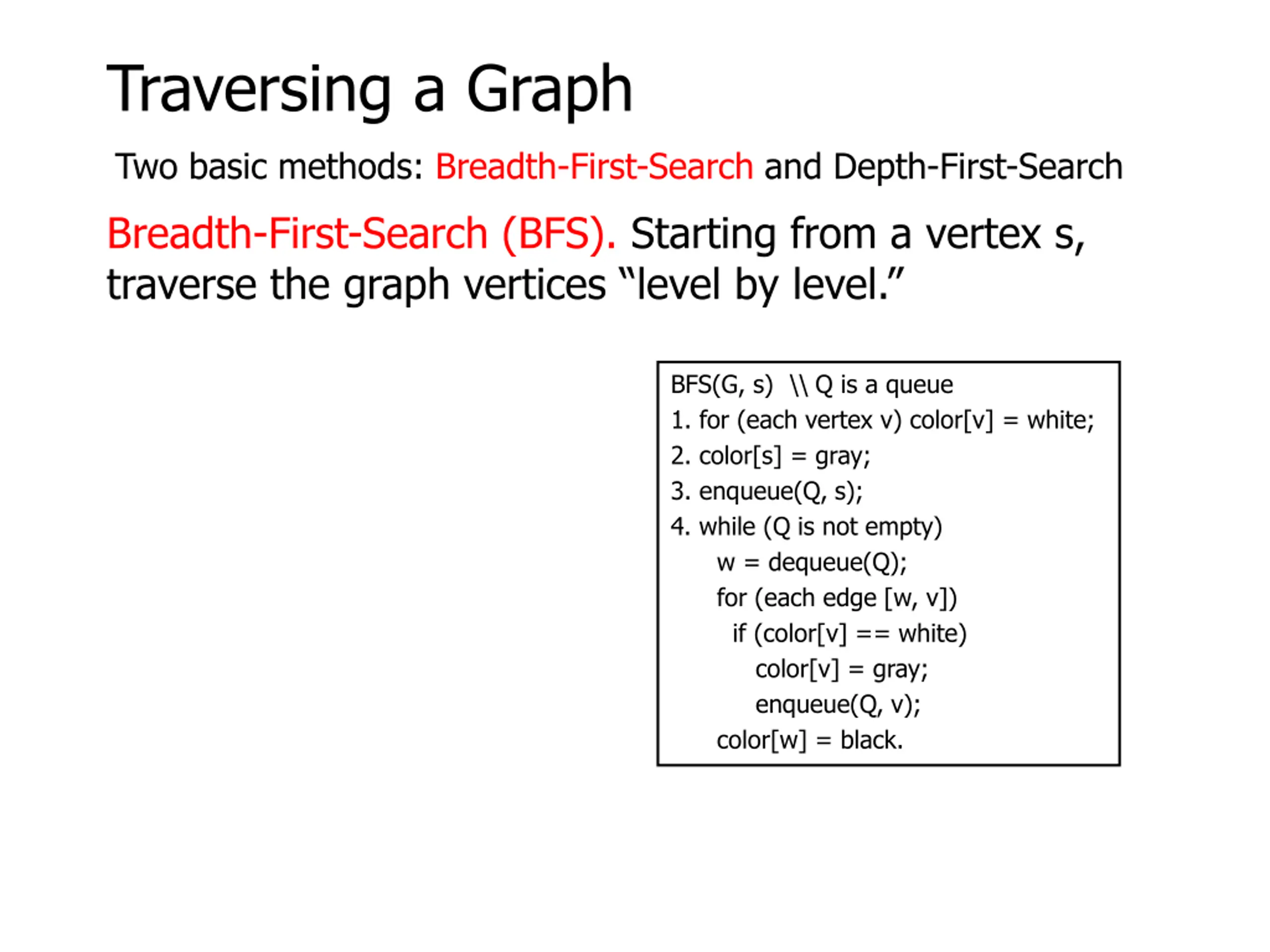

Traversing a Graph Two basic methods: Breadth-First-Search and Depth-First-Search Breadth-First-Search (BFS). Starting from a vertex s, traverse the graph vertices level by level. BFS(G, s) \\ Q is a queue 1. for (each vertex v) color[v] = white; 2. color[s] = gray; 3. enqueue(Q, s); 4. while (Q is not empty) w = dequeue(Q); for (each edge [w, v]) if (color[v] == white) color[v] = gray; enqueue(Q, v); color[w] = black.

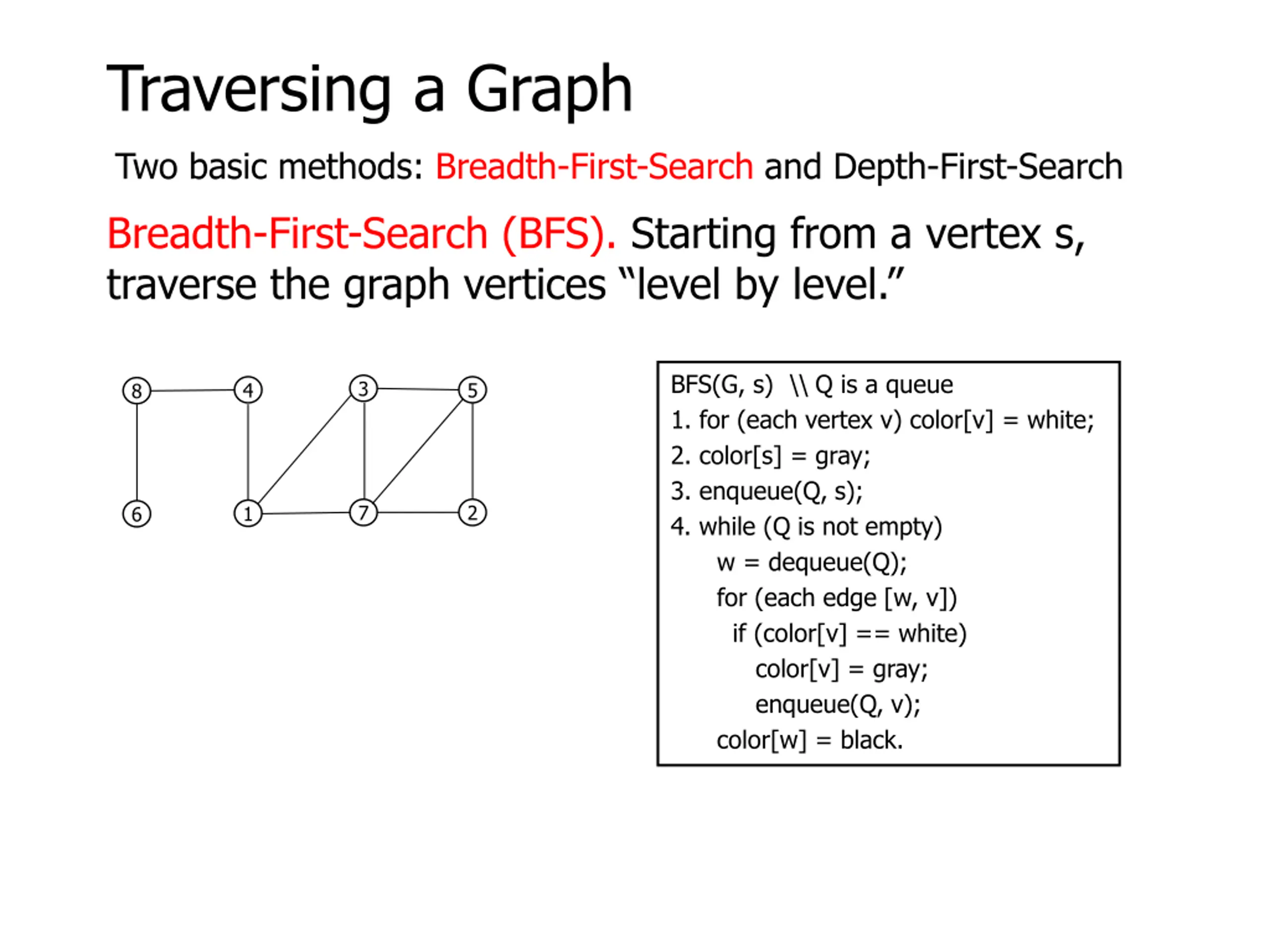

Traversing a Graph Two basic methods: Breadth-First-Search and Depth-First-Search Breadth-First-Search (BFS). Starting from a vertex s, traverse the graph vertices level by level. BFS(G, s) \\ Q is a queue 1. for (each vertex v) color[v] = white; 2. color[s] = gray; 3. enqueue(Q, s); 4. while (Q is not empty) w = dequeue(Q); for (each edge [w, v]) if (color[v] == white) color[v] = gray; enqueue(Q, v); color[w] = black. 3 4 5 8 7 2 1 6
