  1. GRAPHS: SEARCH David Kauchak CS 62 Spring 2021

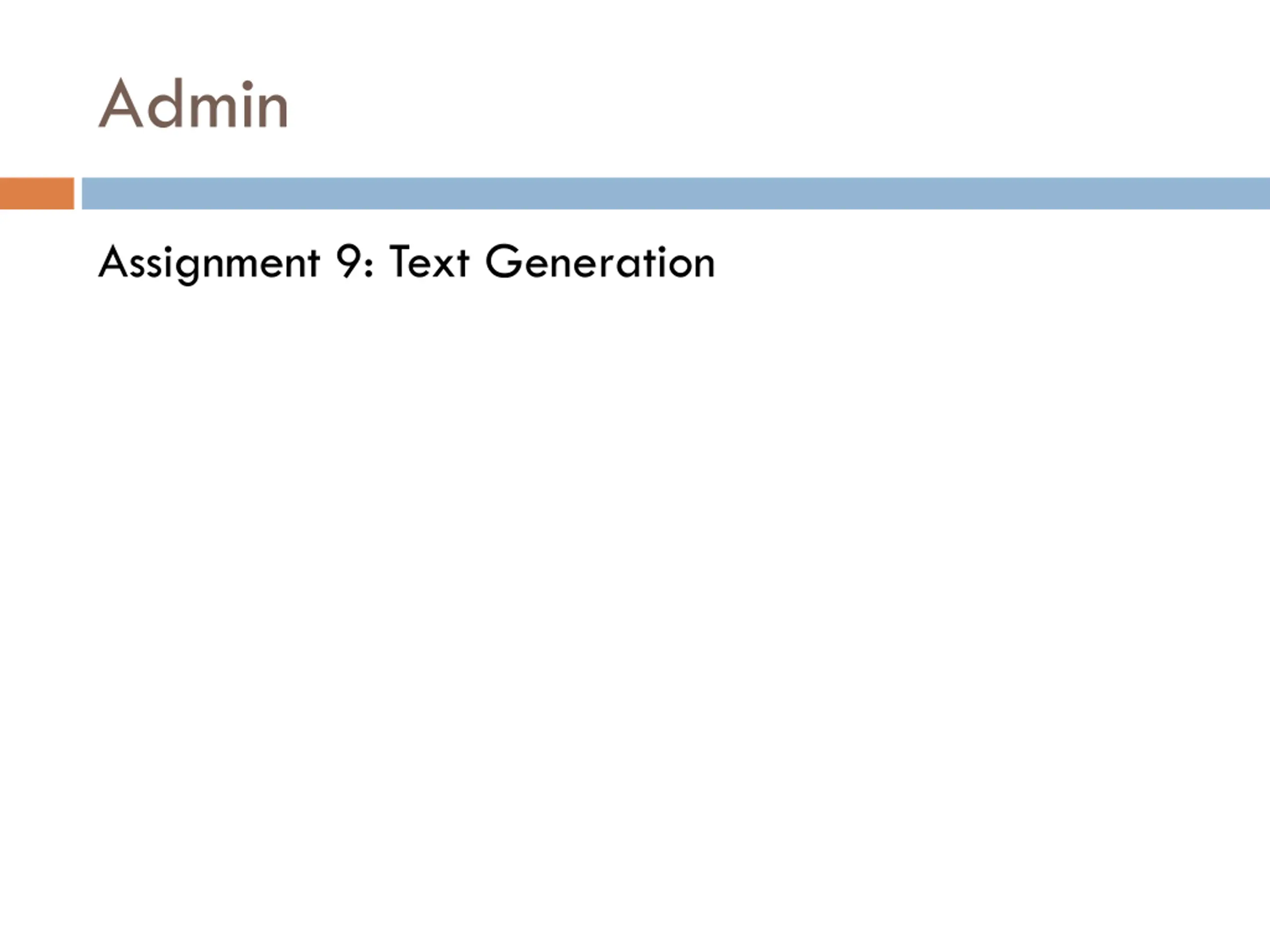

  2. Admin Assignment 9: Text Generation

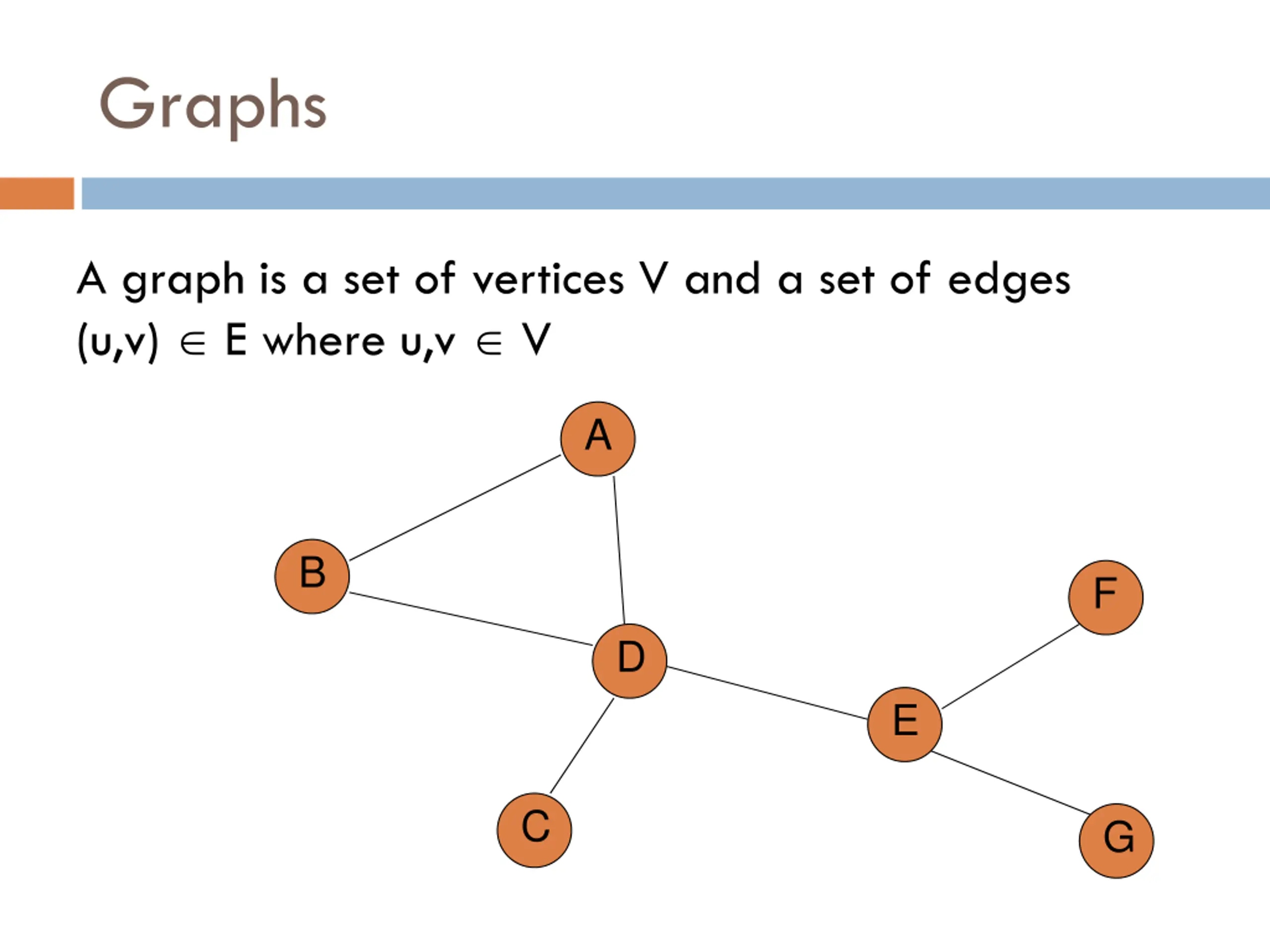

  3. Graphs A graph is a set of vertices V and a set of edges (u,v) E where u,v V A B F D E C G

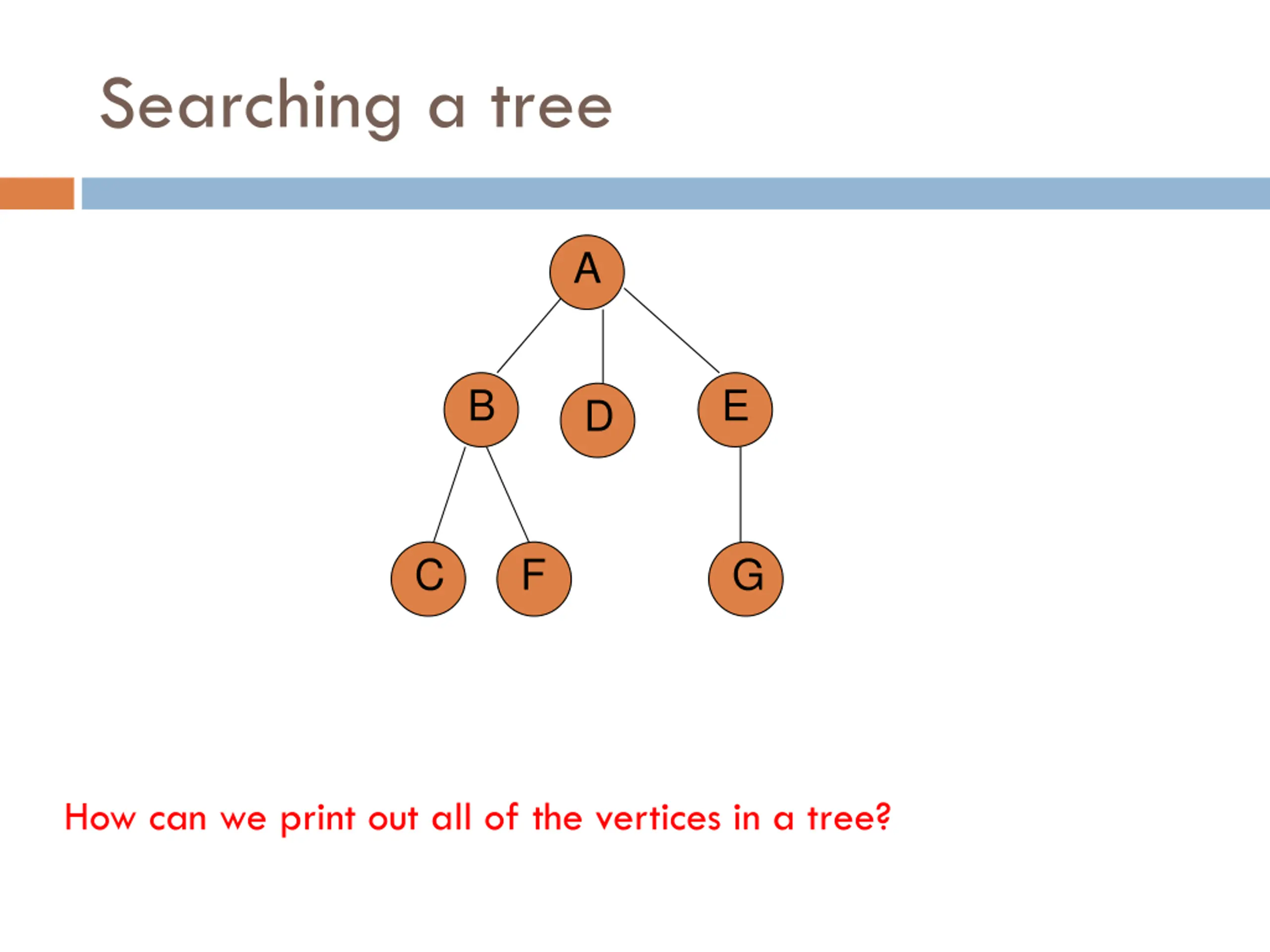

  4. Searching a tree A B E D C F G How can we print out all of the vertices in a tree?

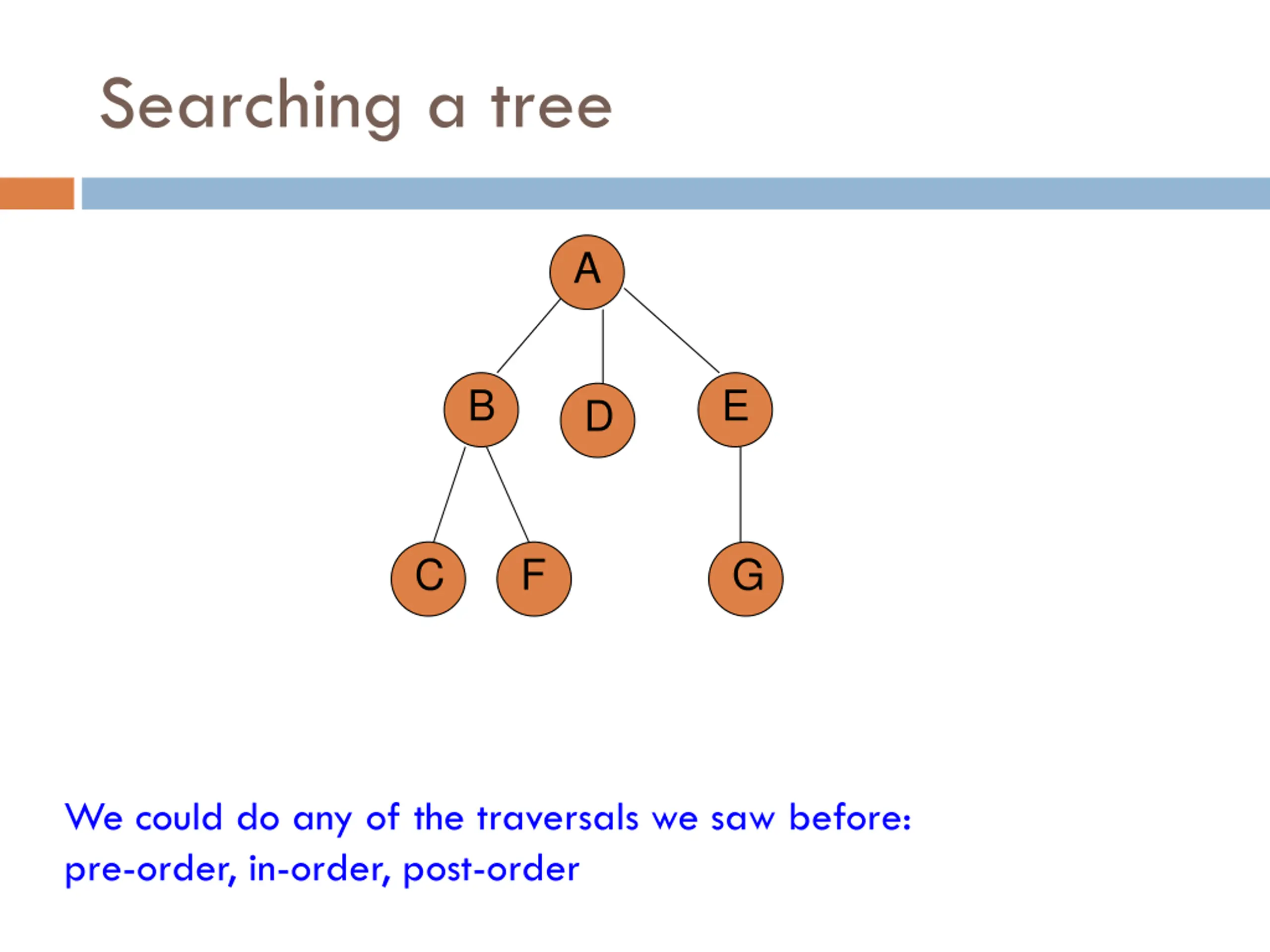

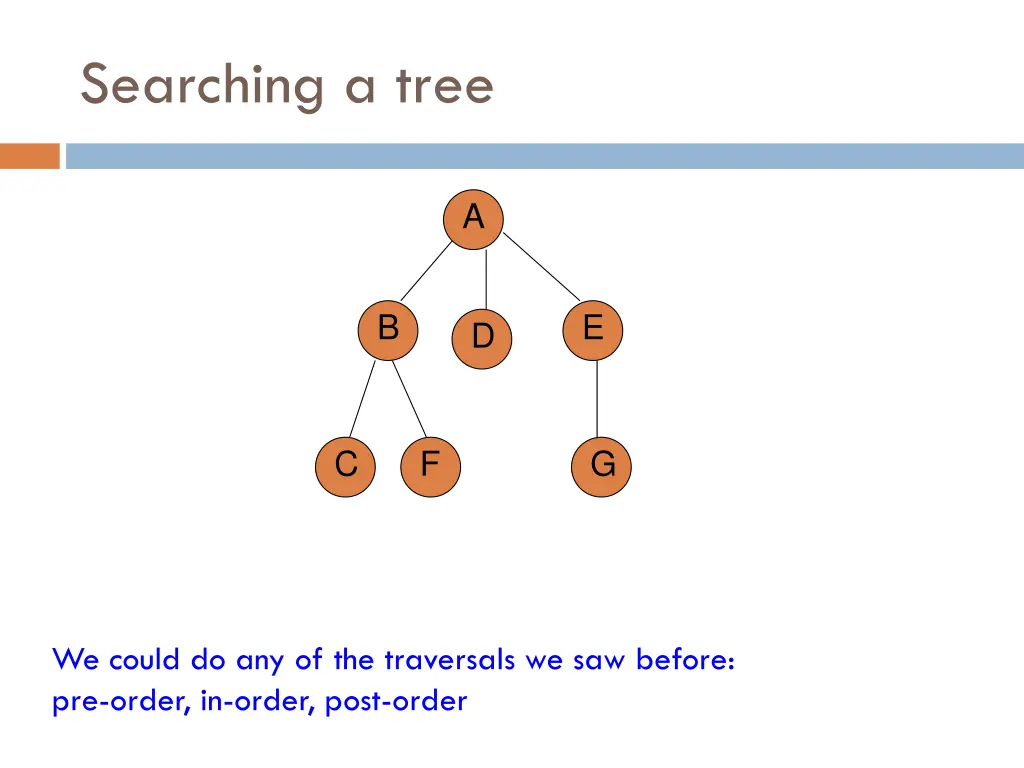

  5. Searching a tree A B E D C F G We could do any of the traversals we saw before: pre-order, in-order, post-order

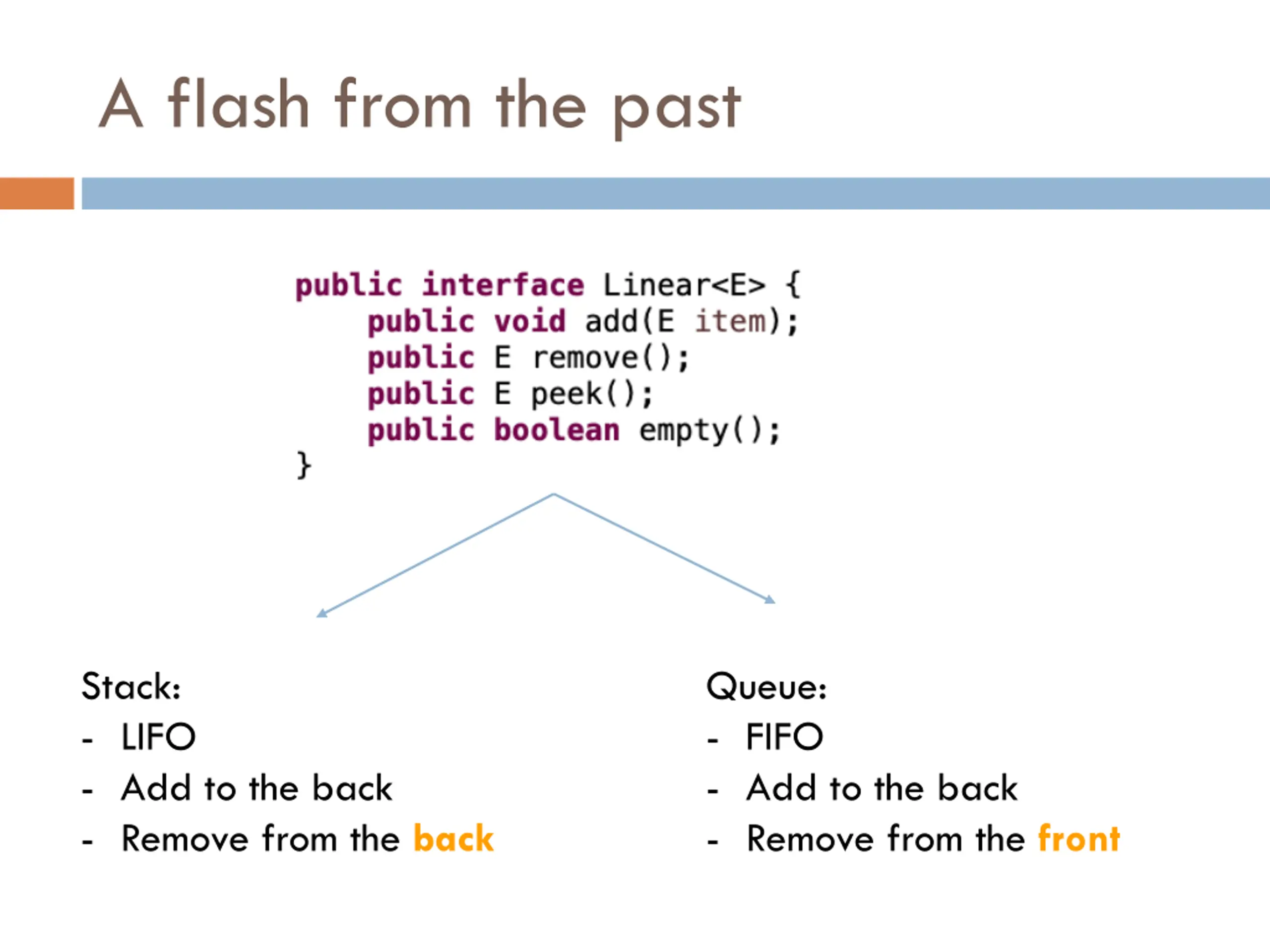

  6. A flash from the past Stack: - LIFO - Add to the back - Remove from the back Queue: - FIFO - Add to the back - Remove from the front

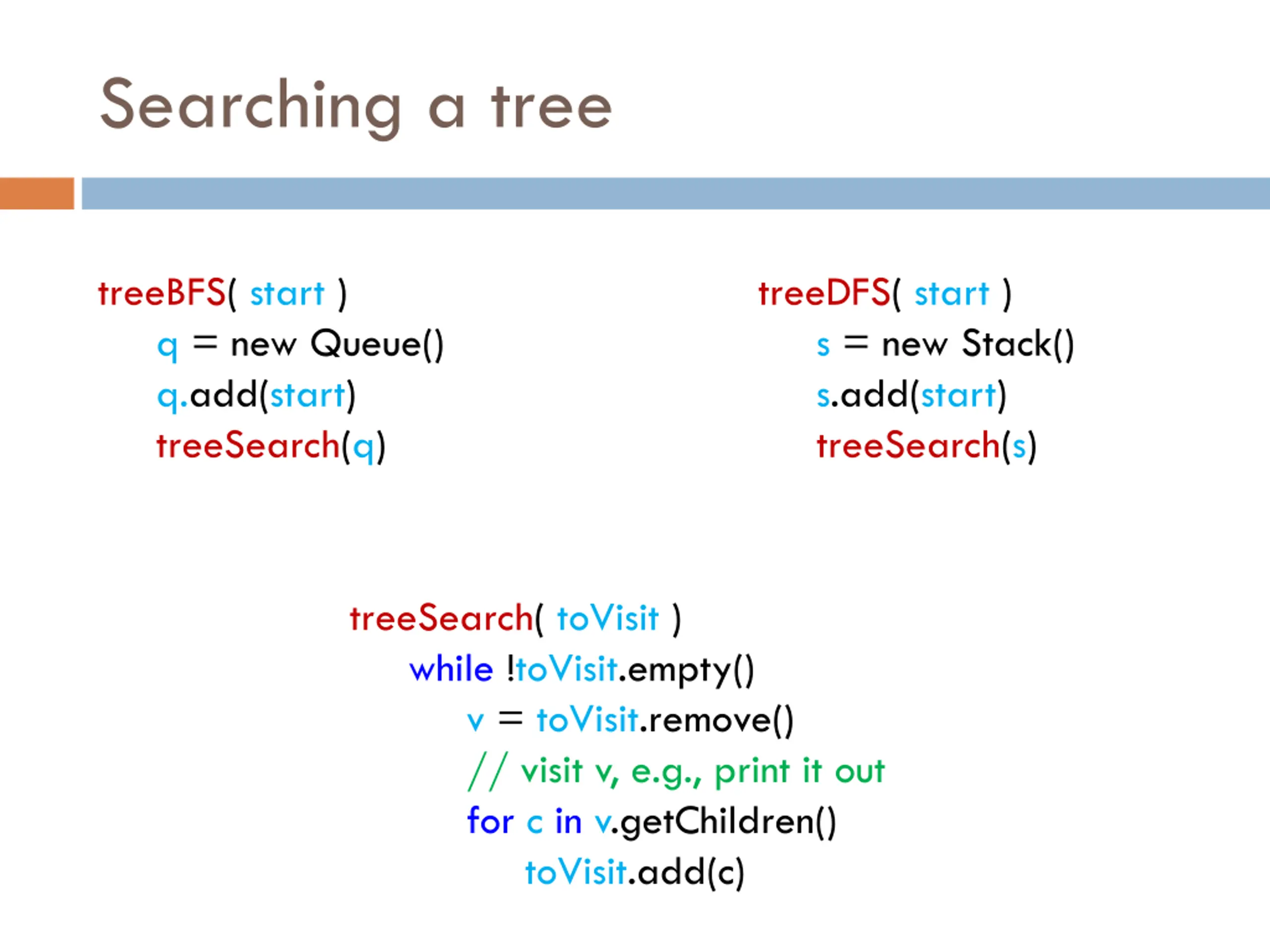

  7. Searching a tree treeBFS( start ) q = new Queue() q.add(start) treeSearch(q) treeDFS( start ) s = new Stack() s.add(start) treeSearch(s) treeSearch( toVisit ) while !toVisit.empty() v = toVisit.remove() // visit v, e.g., print it out for c in v.getChildren() toVisit.add(c)

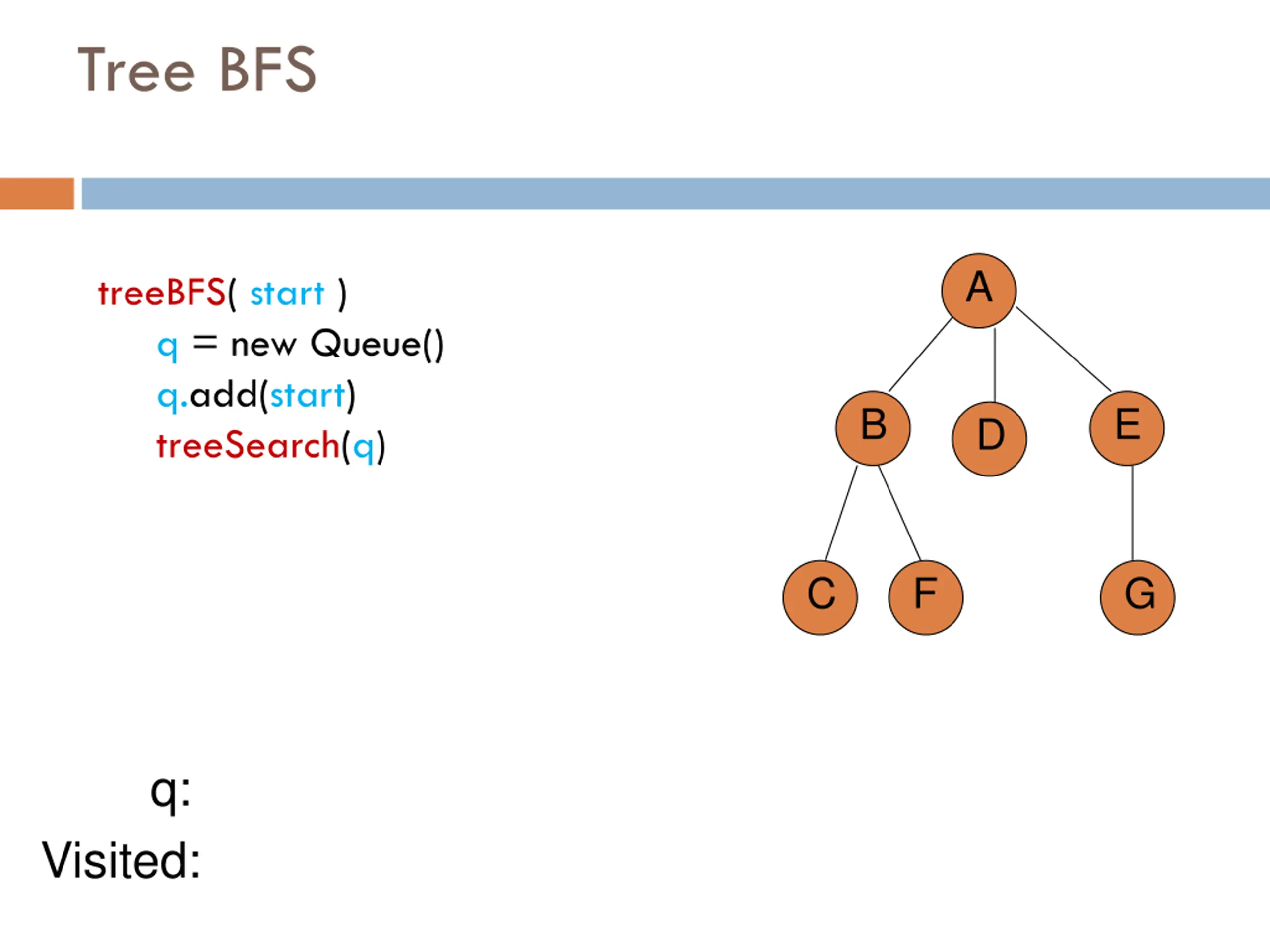

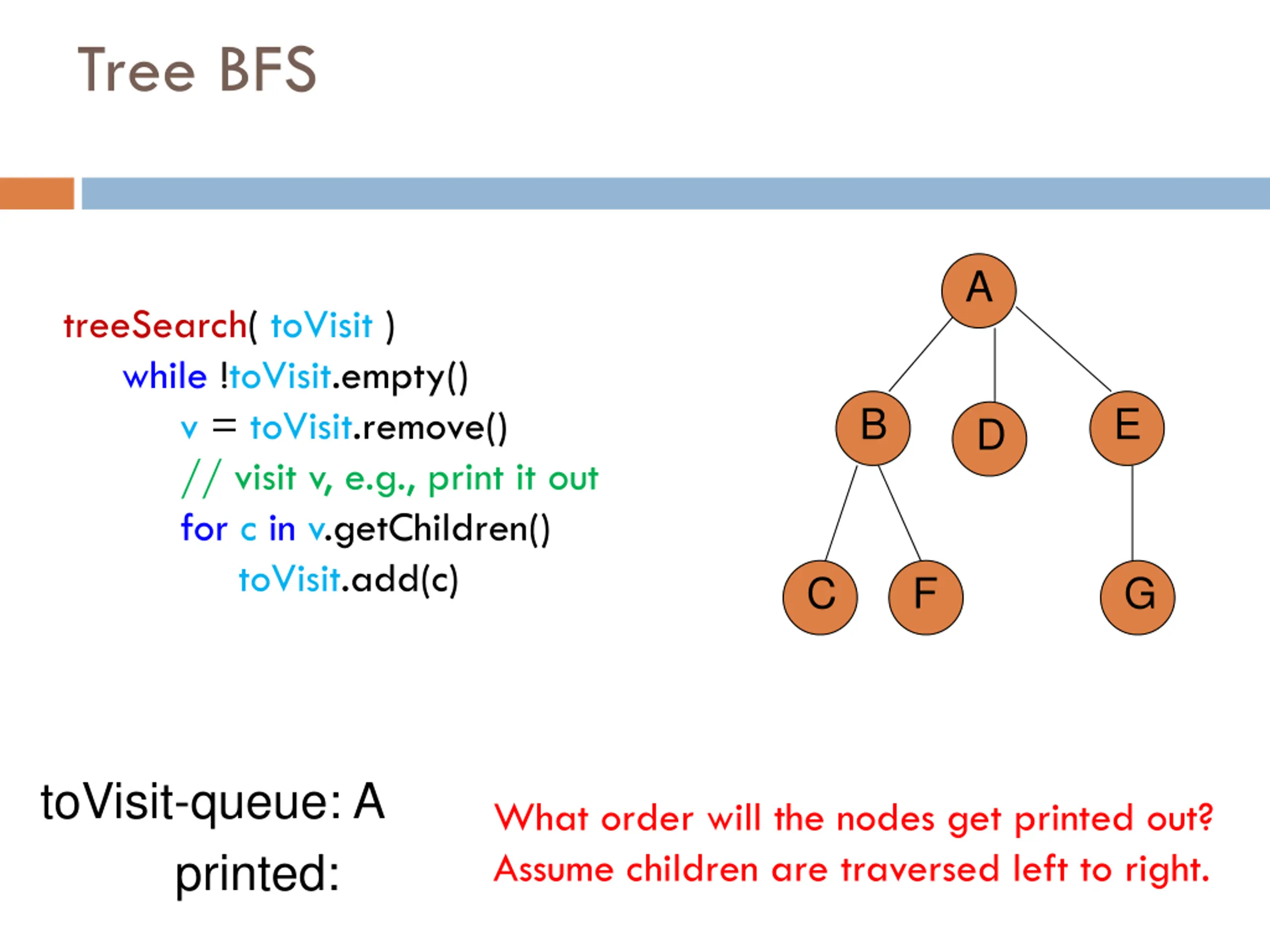

  8. Tree BFS A treeBFS( start ) q = new Queue() q.add(start) treeSearch(q) B E D C F G q: Visited:

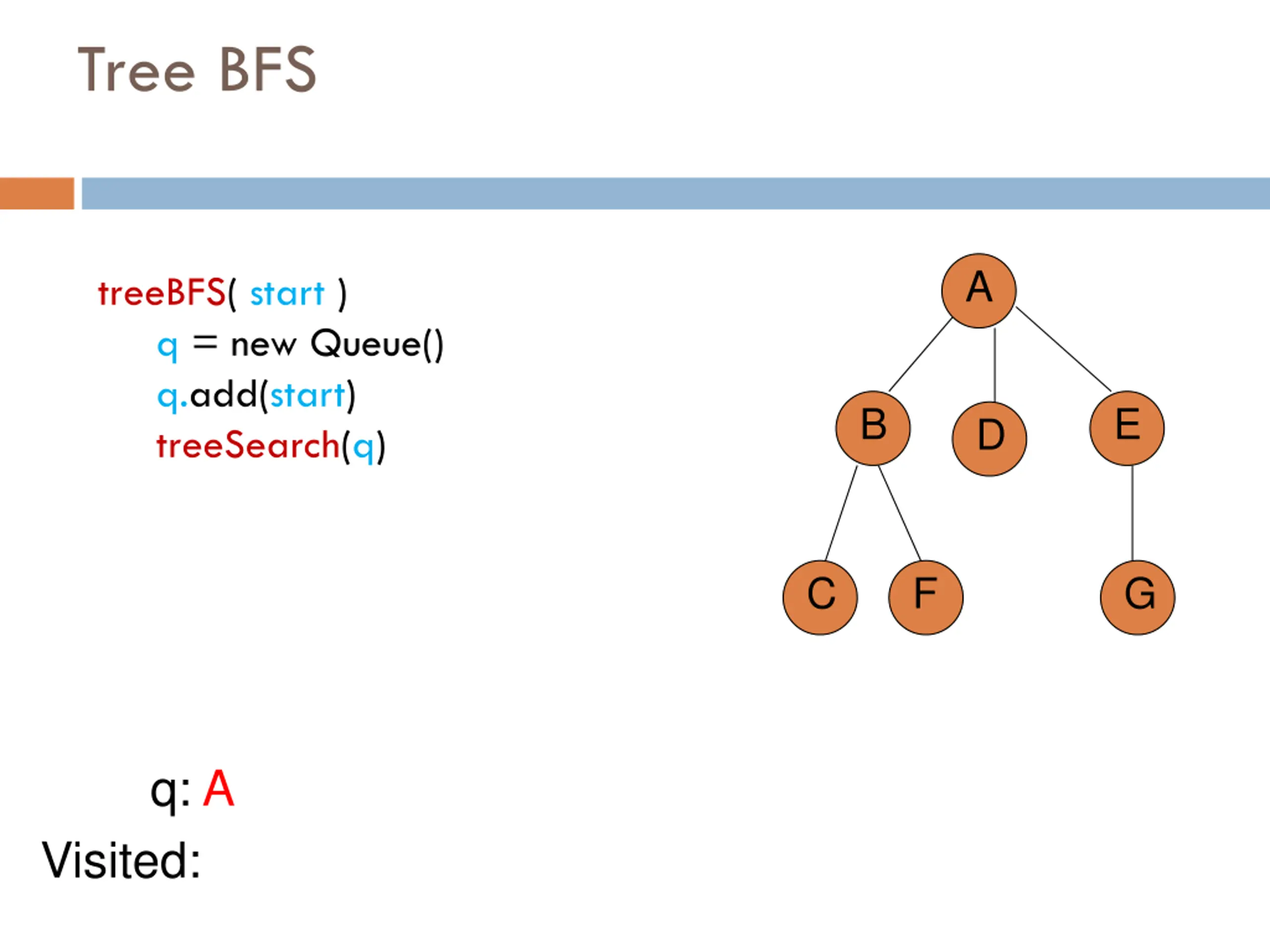

  9. Tree BFS A treeBFS( start ) q = new Queue() q.add(start) treeSearch(q) B E D C F G q: A Visited:

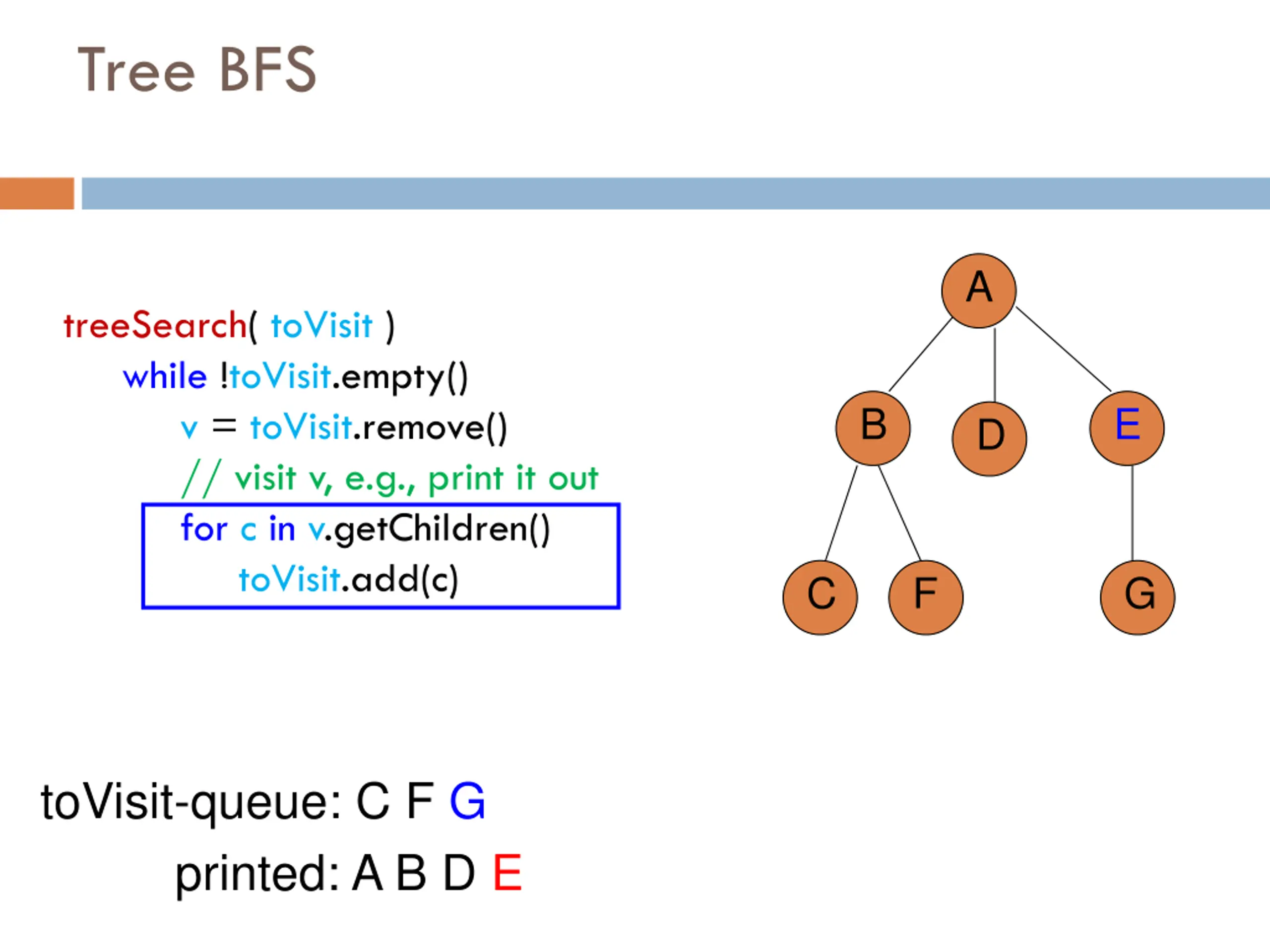

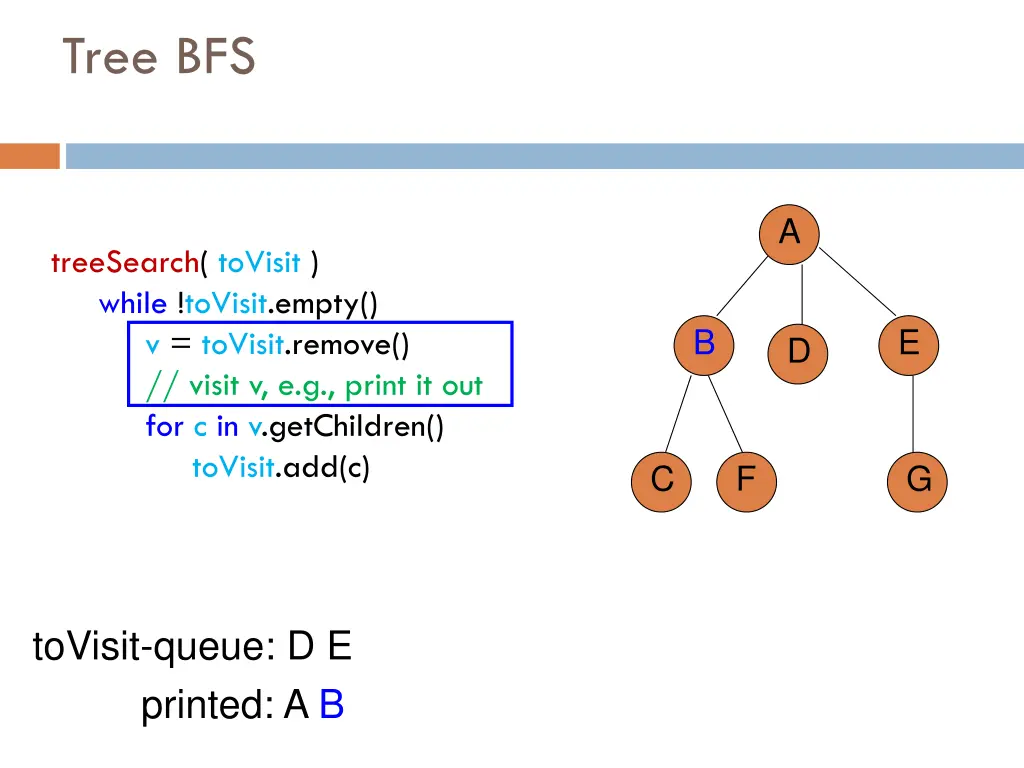

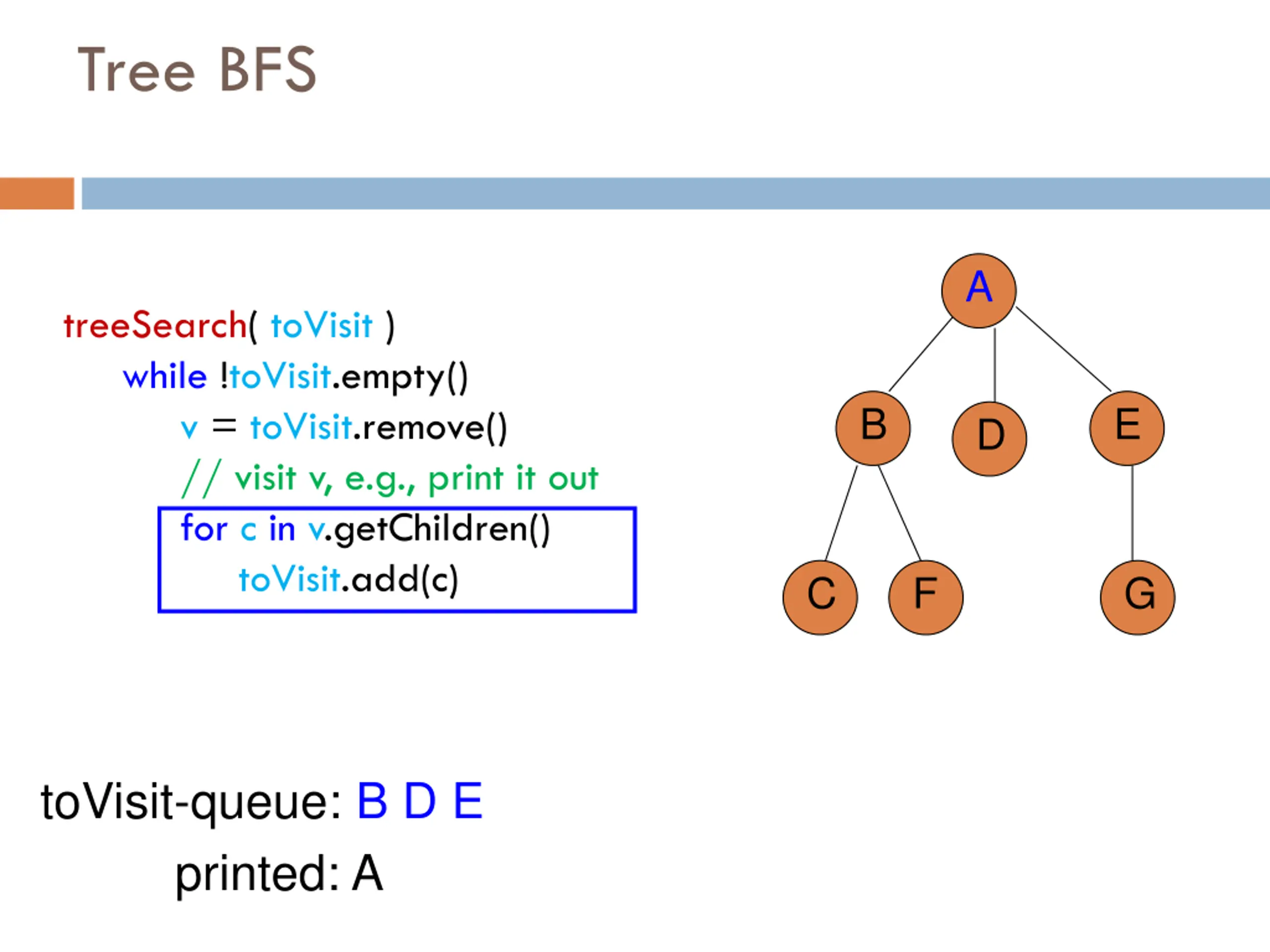

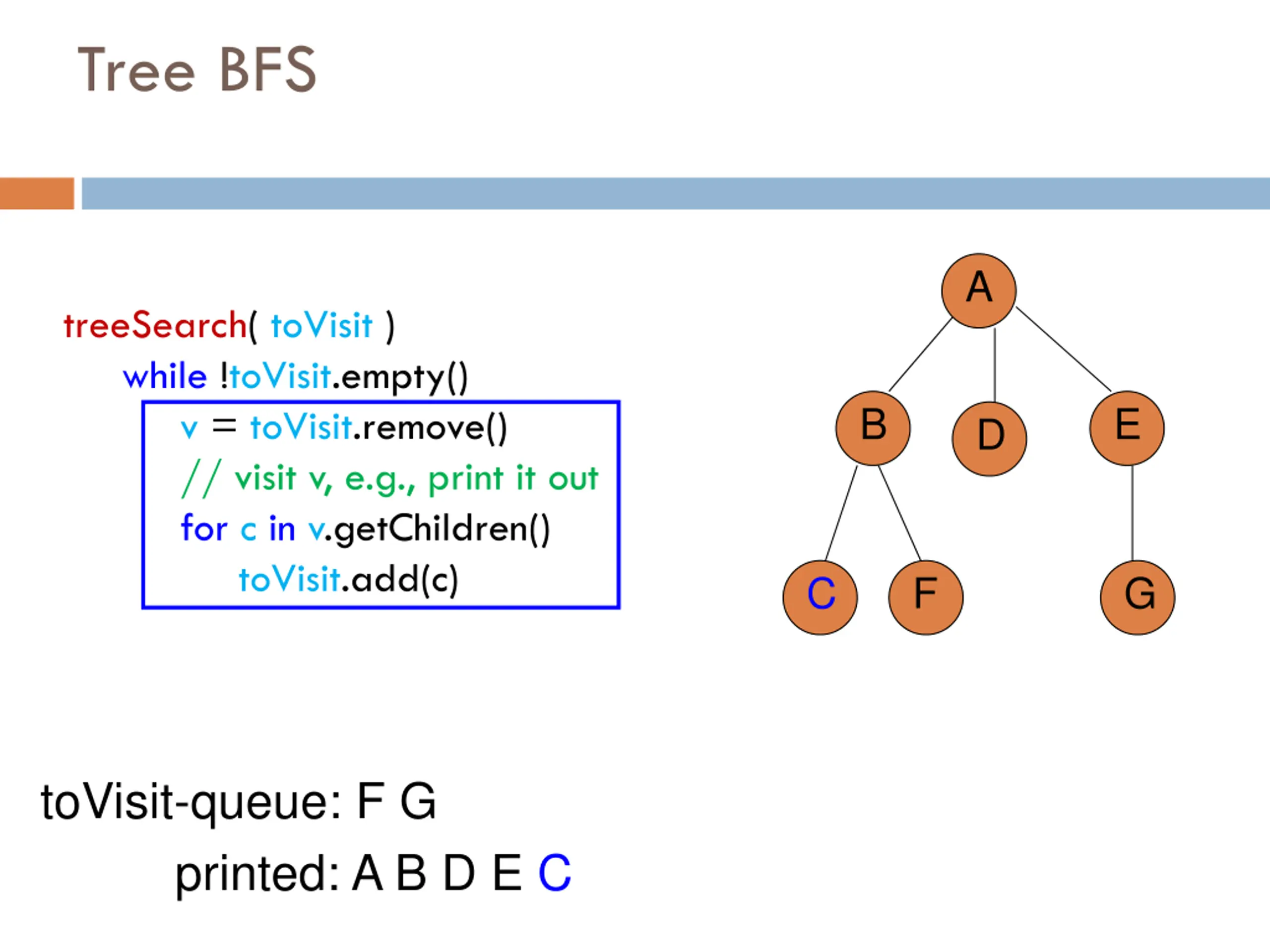

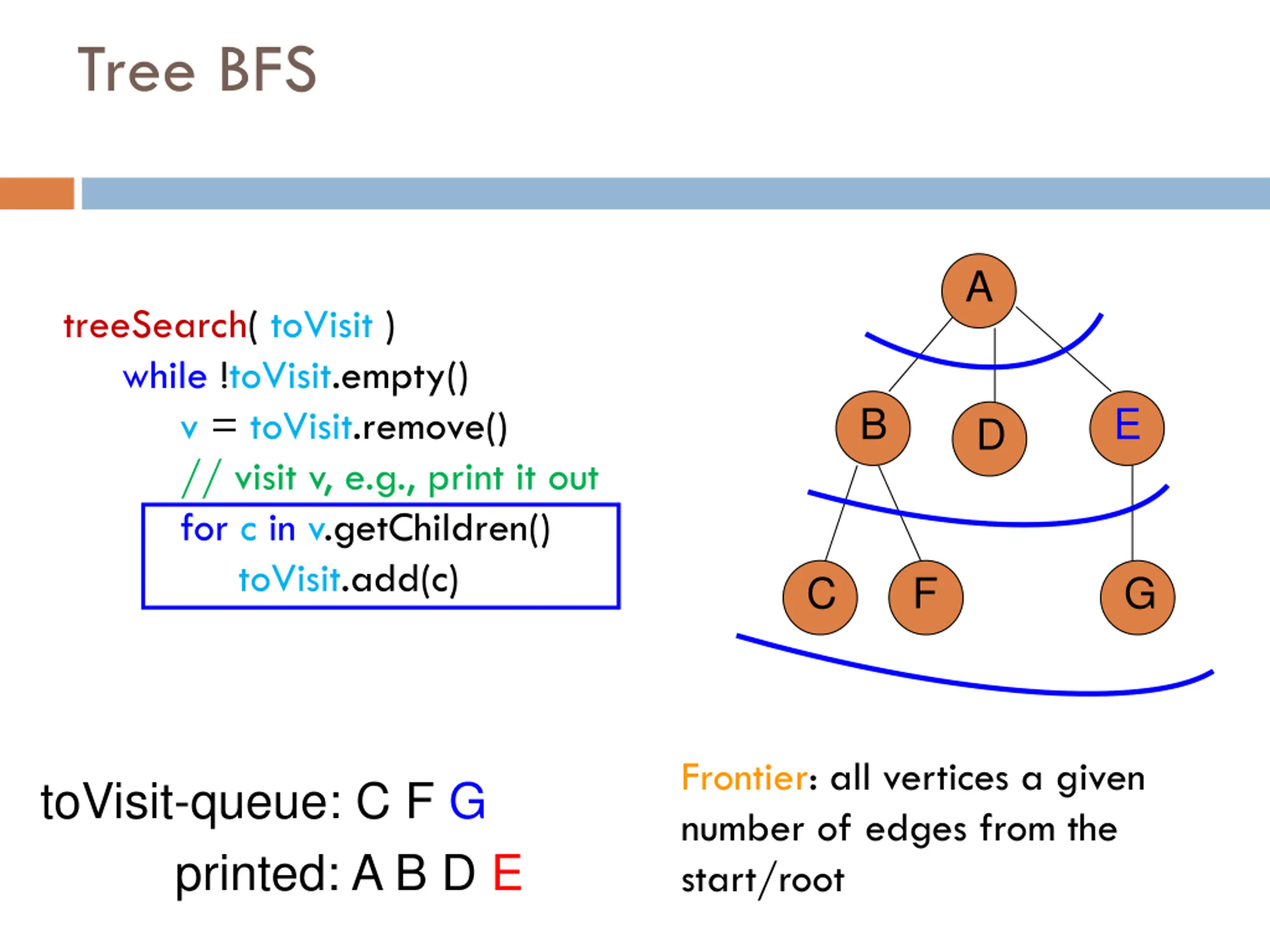

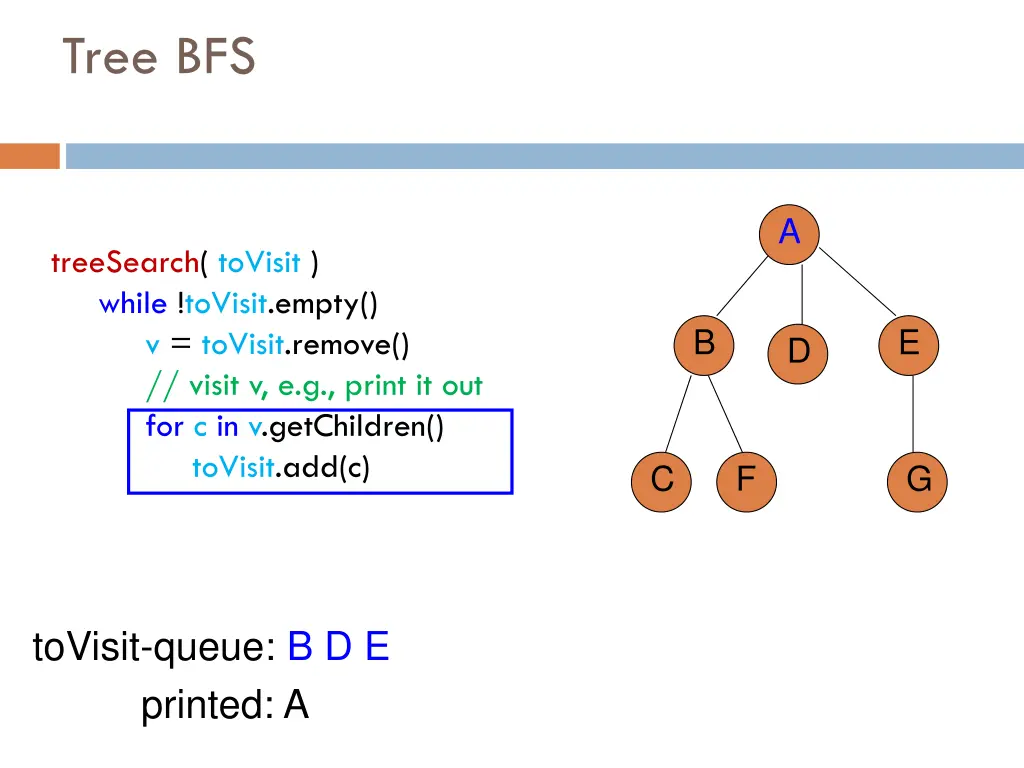

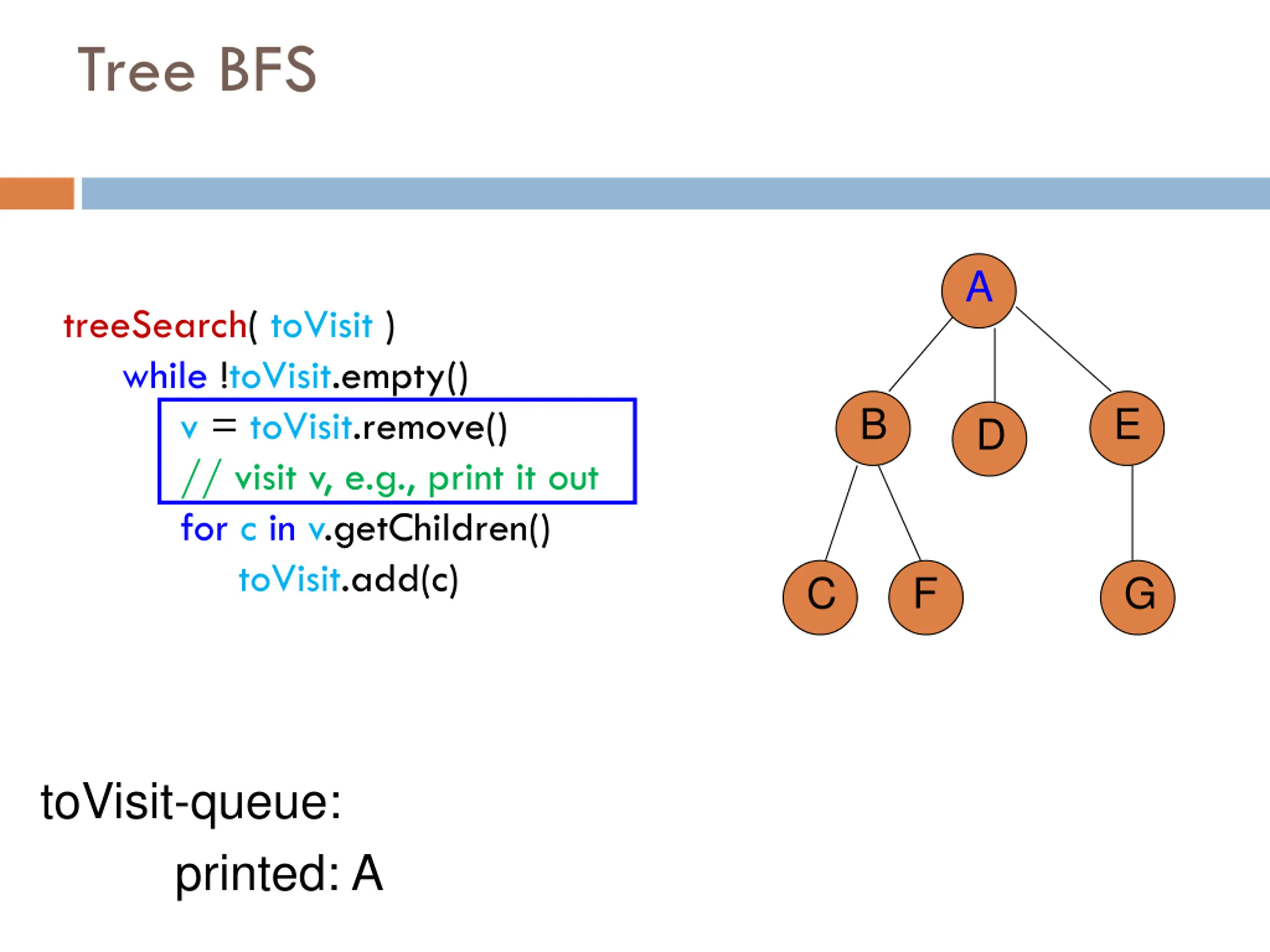

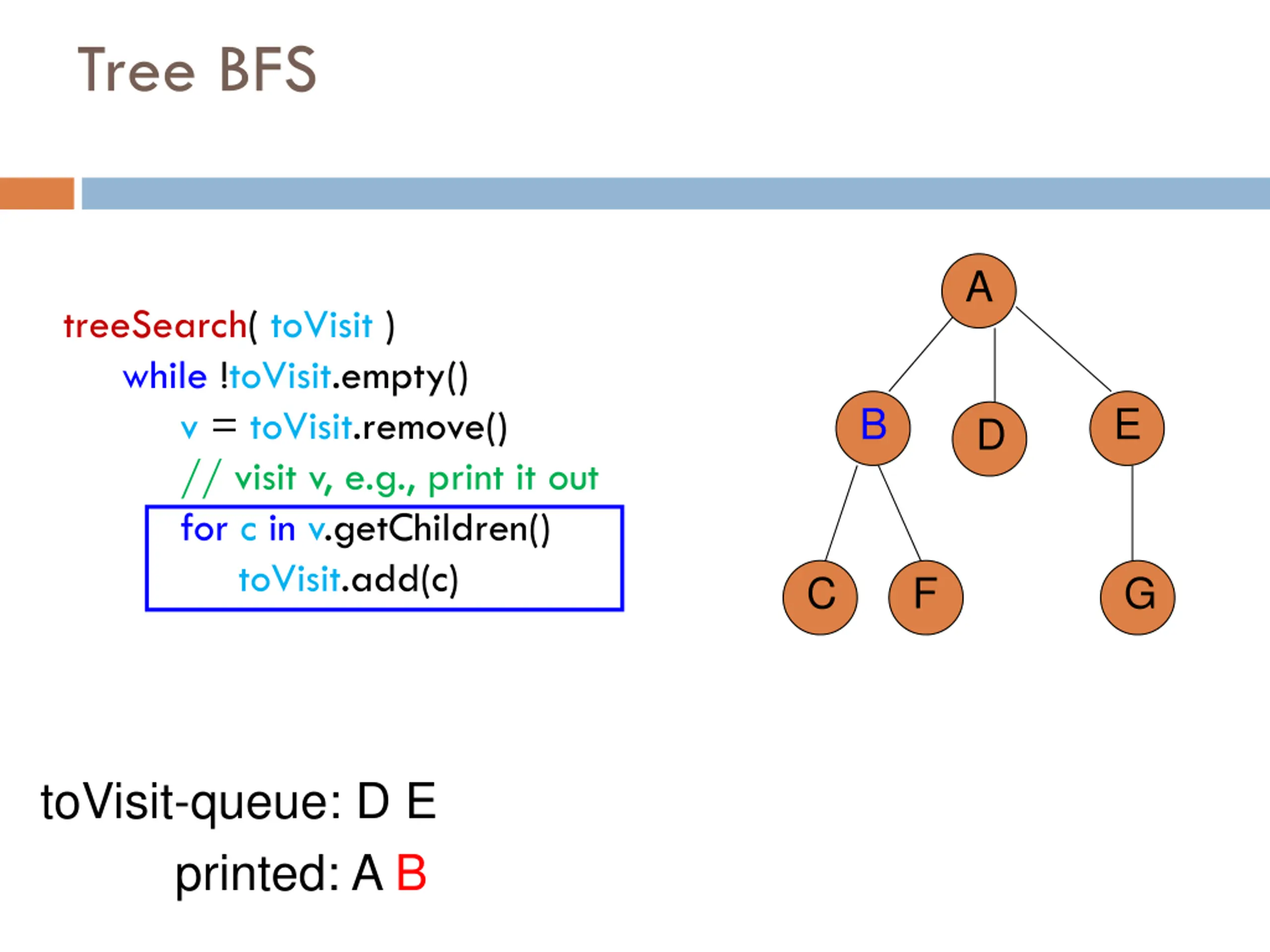

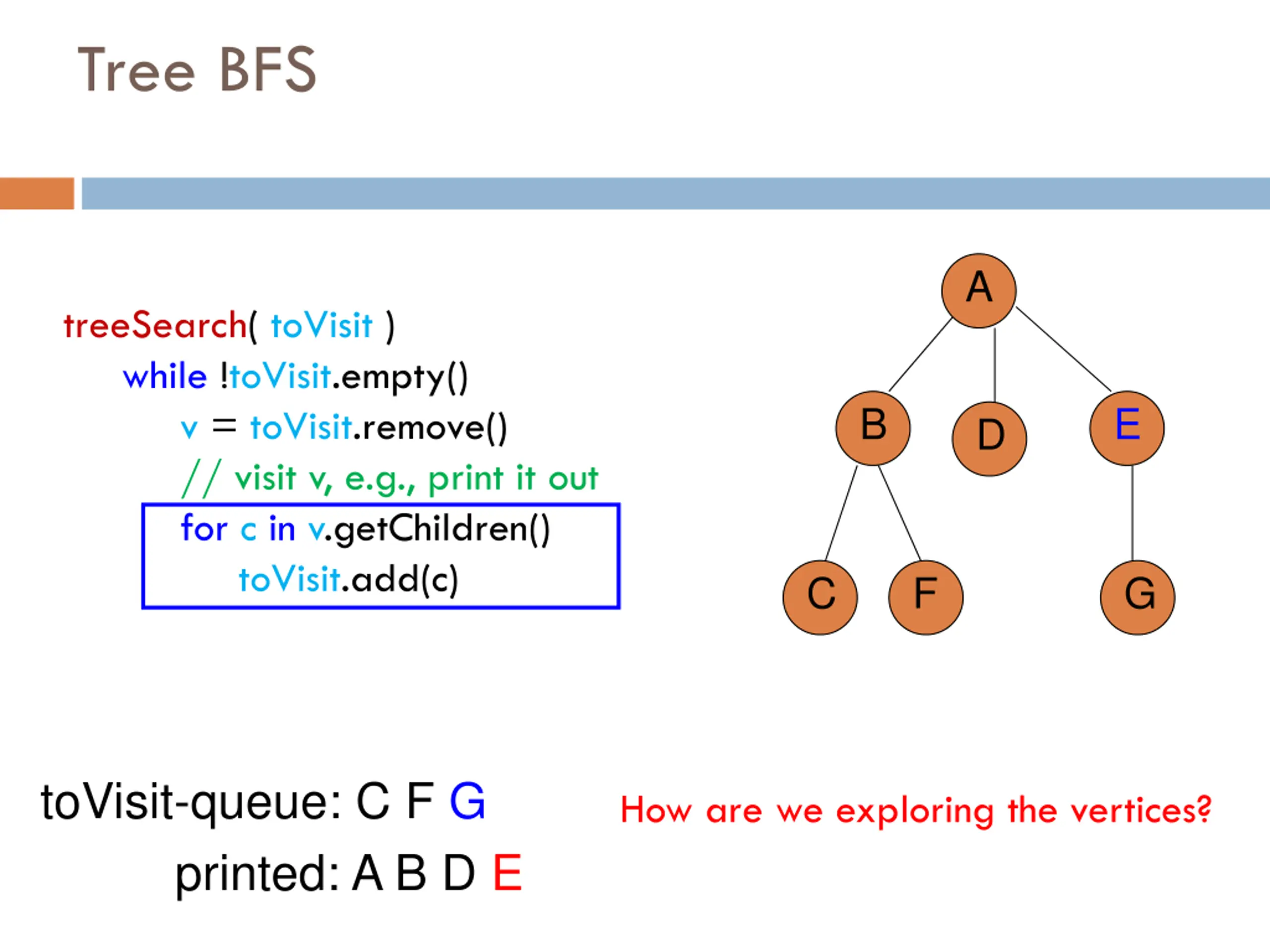

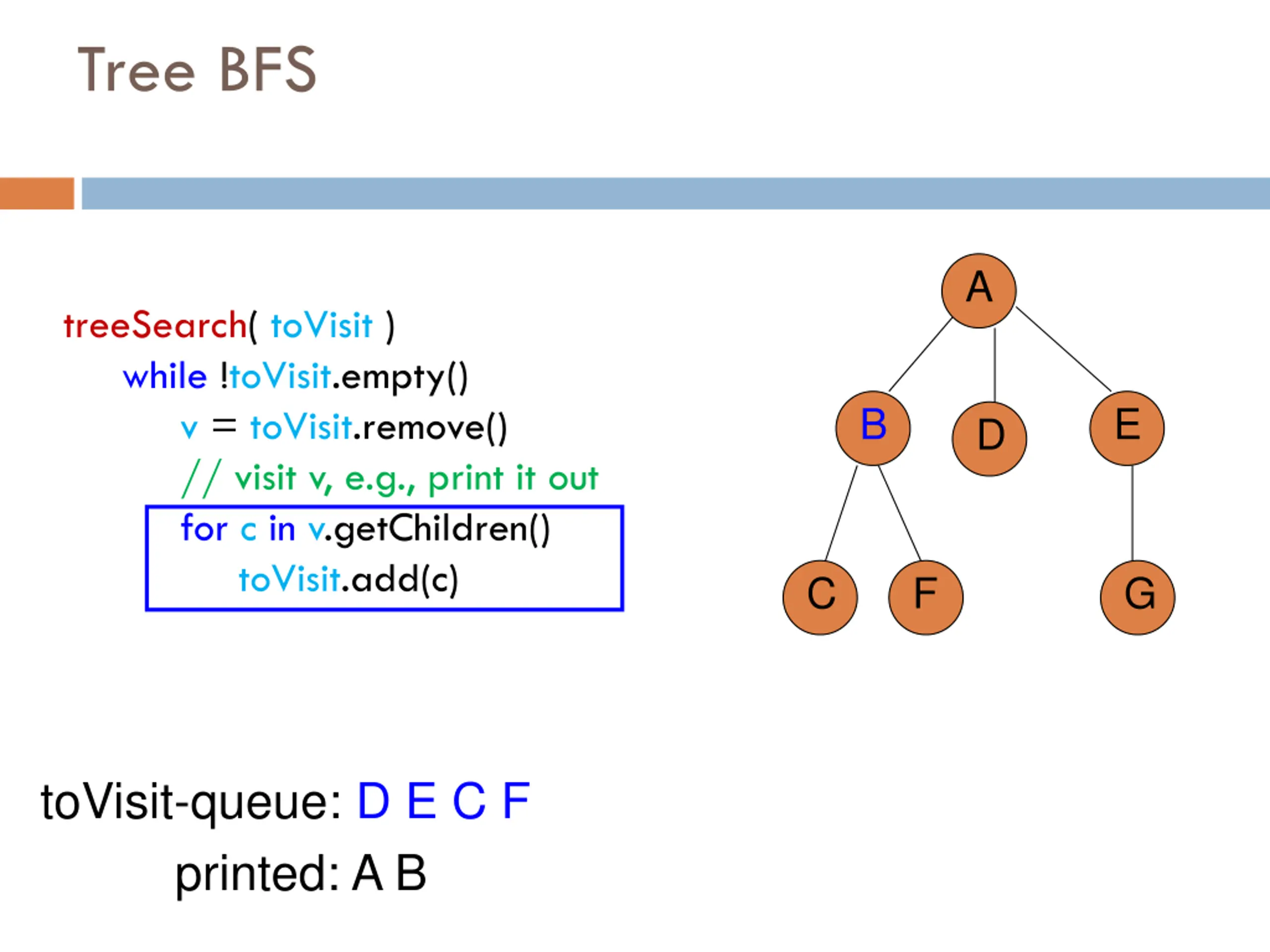

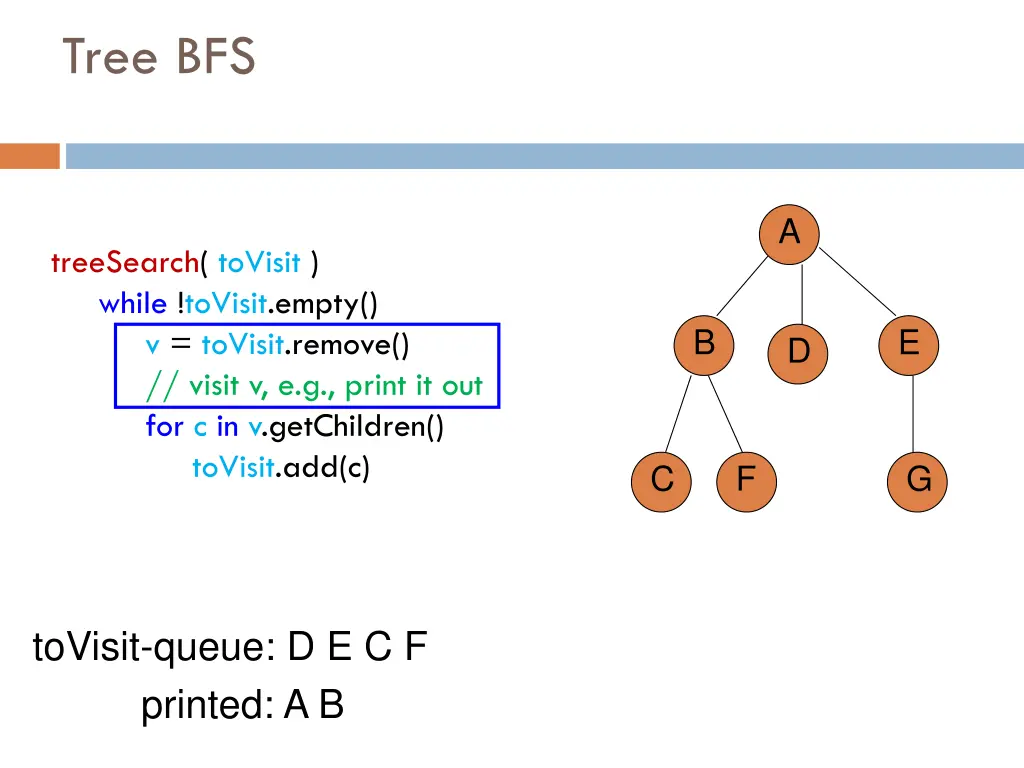

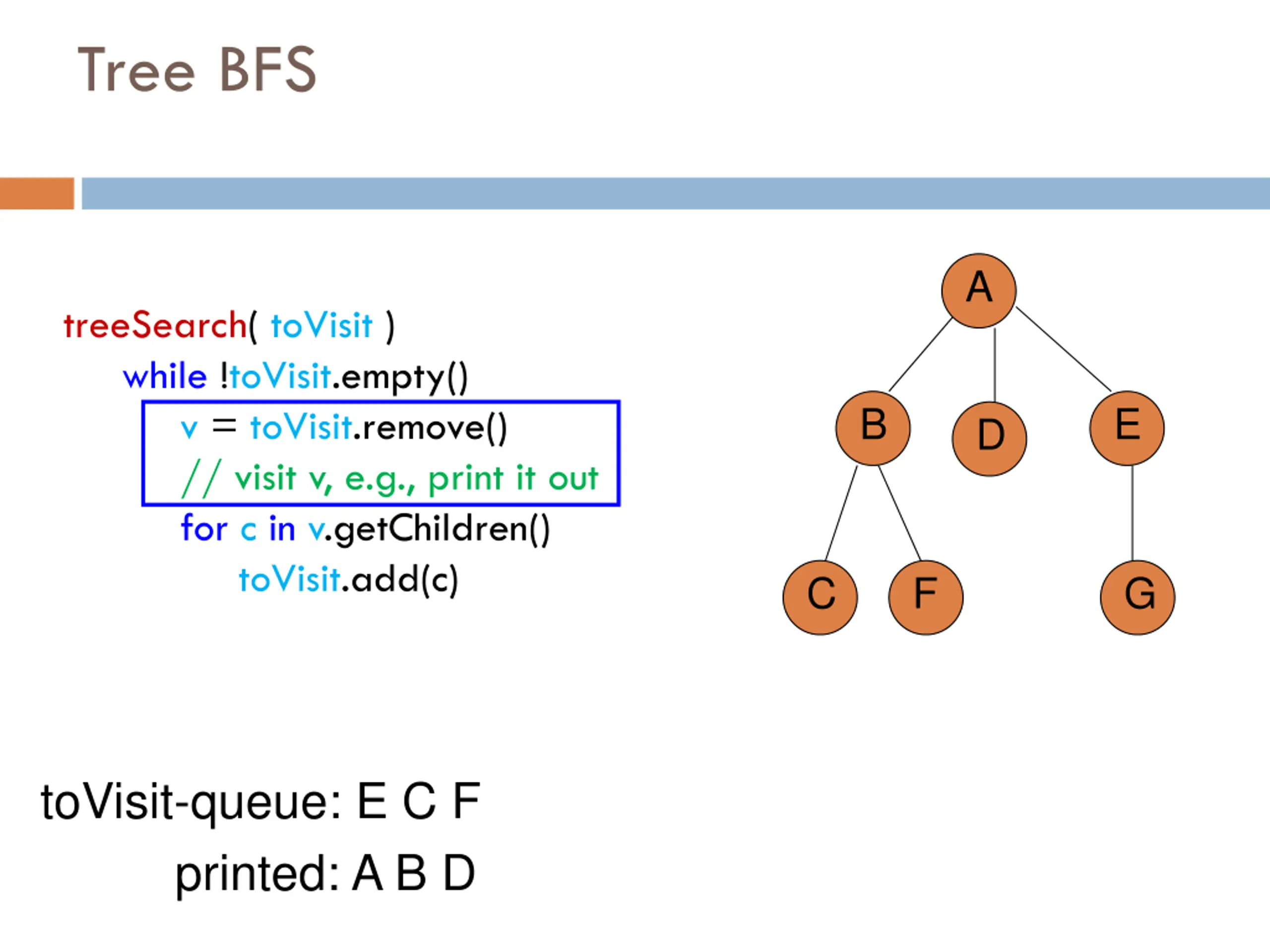

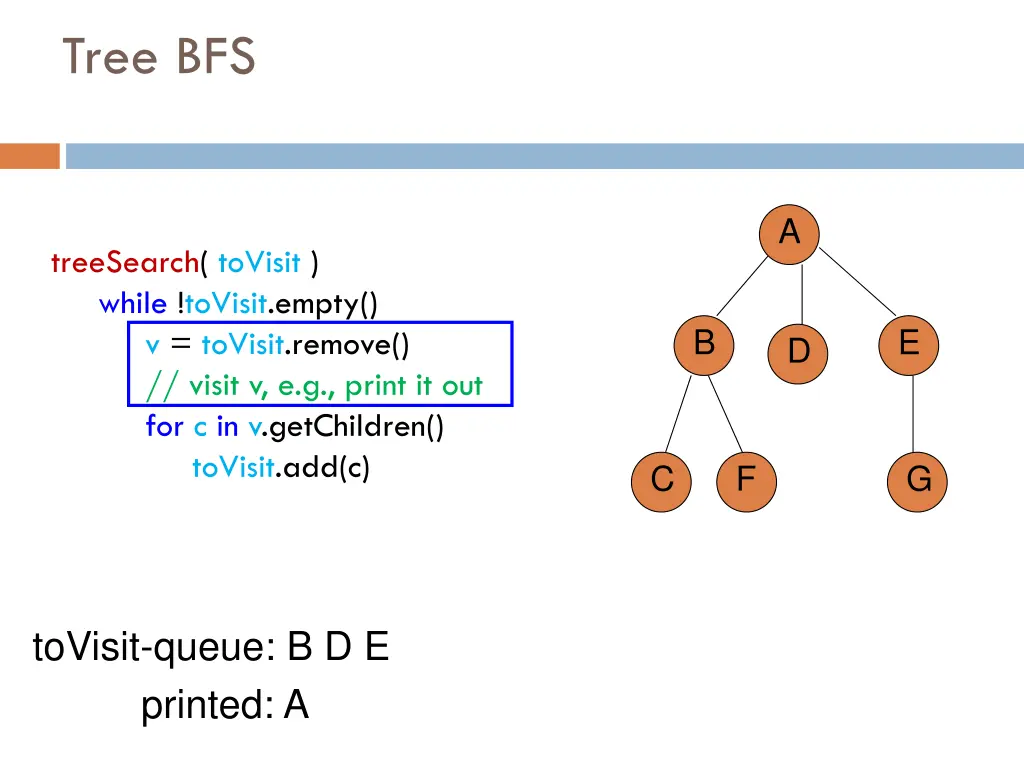

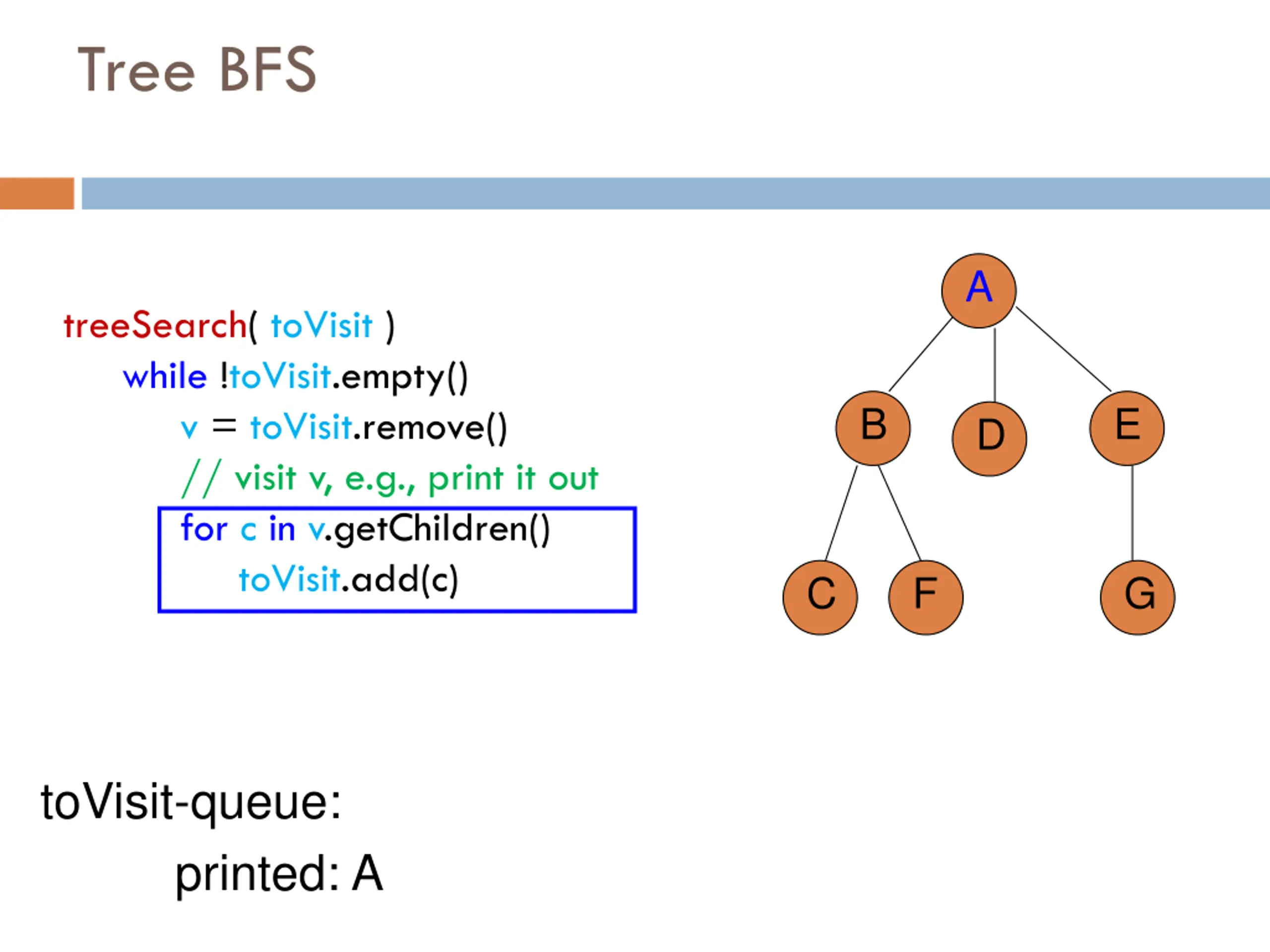

  10. Tree BFS A treeSearch( toVisit ) while !toVisit.empty() v = toVisit.remove() // visit v, e.g., print it out for c in v.getChildren() toVisit.add(c) B E D C F G toVisit-queue: A printed: What order will the nodes get printed out? Assume children are traversed left to right.

  11. Tree BFS A treeSearch( toVisit ) while !toVisit.empty() v = toVisit.remove() // visit v, e.g., print it out for c in v.getChildren() toVisit.add(c) B E D C F G toVisit-queue: A printed:

  12. Tree BFS A treeSearch( toVisit ) while !toVisit.empty() v = toVisit.remove() // visit v, e.g., print it out for c in v.getChildren() toVisit.add(c) B E D C F G toVisit-queue: printed: A

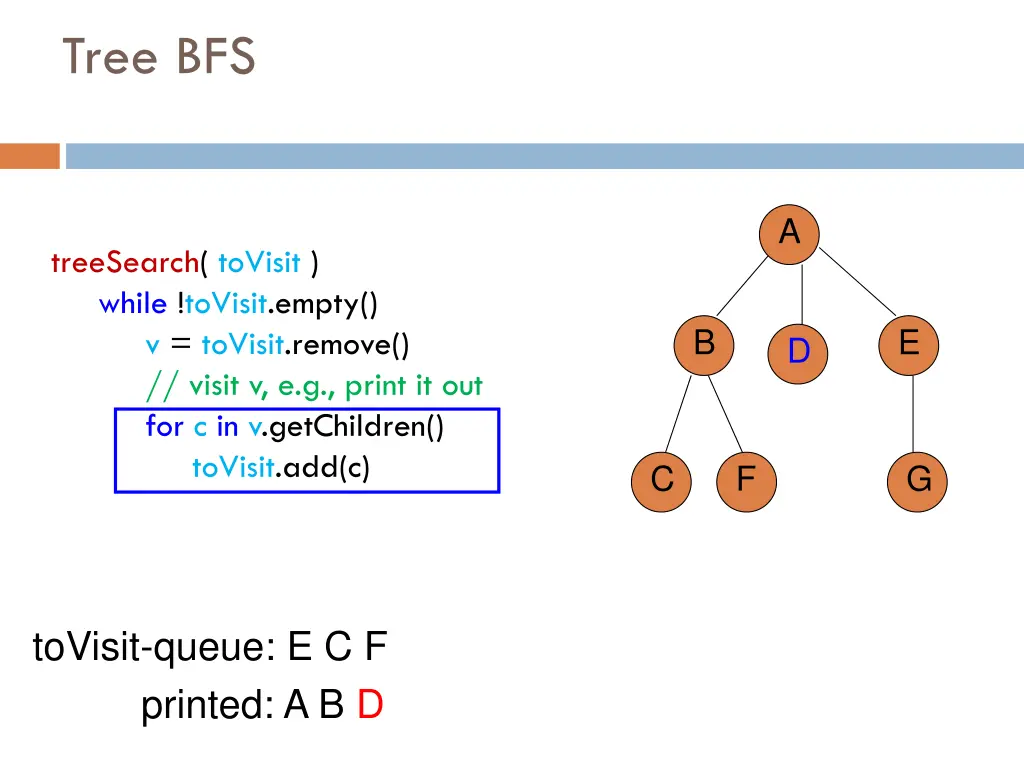

  13. Tree BFS A treeSearch( toVisit ) while !toVisit.empty() v = toVisit.remove() // visit v, e.g., print it out for c in v.getChildren() toVisit.add(c) B E D C F G toVisit-queue: printed: A

  14. Tree BFS A treeSearch( toVisit ) while !toVisit.empty() v = toVisit.remove() // visit v, e.g., print it out for c in v.getChildren() toVisit.add(c) B E D C F G toVisit-queue: B D E printed: A

  15. Tree BFS A treeSearch( toVisit ) while !toVisit.empty() v = toVisit.remove() // visit v, e.g., print it out for c in v.getChildren() toVisit.add(c) B E D C F G toVisit-queue: B D E printed: A

  16. Tree BFS A treeSearch( toVisit ) while !toVisit.empty() v = toVisit.remove() // visit v, e.g., print it out for c in v.getChildren() toVisit.add(c) B E D C F G toVisit-queue: D E printed: A B

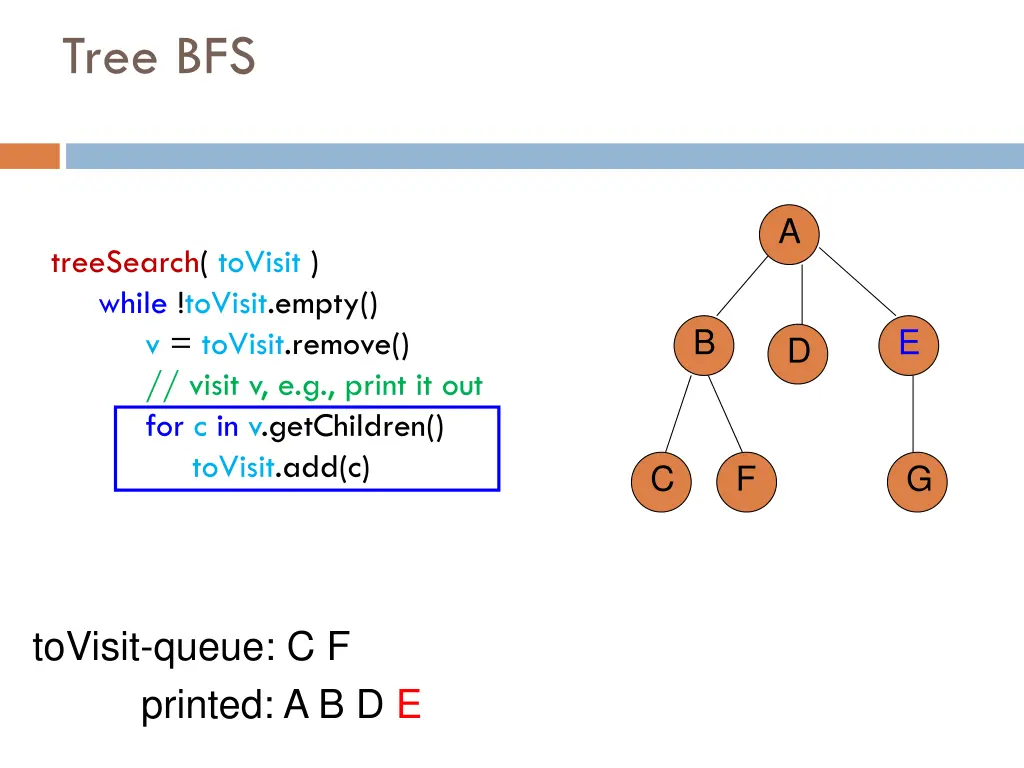

  17. Tree BFS A treeSearch( toVisit ) while !toVisit.empty() v = toVisit.remove() // visit v, e.g., print it out for c in v.getChildren() toVisit.add(c) B E D C F G toVisit-queue: D E printed: A B

  18. Tree BFS A treeSearch( toVisit ) while !toVisit.empty() v = toVisit.remove() // visit v, e.g., print it out for c in v.getChildren() toVisit.add(c) B E D C F G toVisit-queue: D E C F printed: A B

  19. Tree BFS A treeSearch( toVisit ) while !toVisit.empty() v = toVisit.remove() // visit v, e.g., print it out for c in v.getChildren() toVisit.add(c) B E D C F G toVisit-queue: D E C F printed: A B

  20. Tree BFS A treeSearch( toVisit ) while !toVisit.empty() v = toVisit.remove() // visit v, e.g., print it out for c in v.getChildren() toVisit.add(c) B E D C F G toVisit-queue: E C F printed: A B D

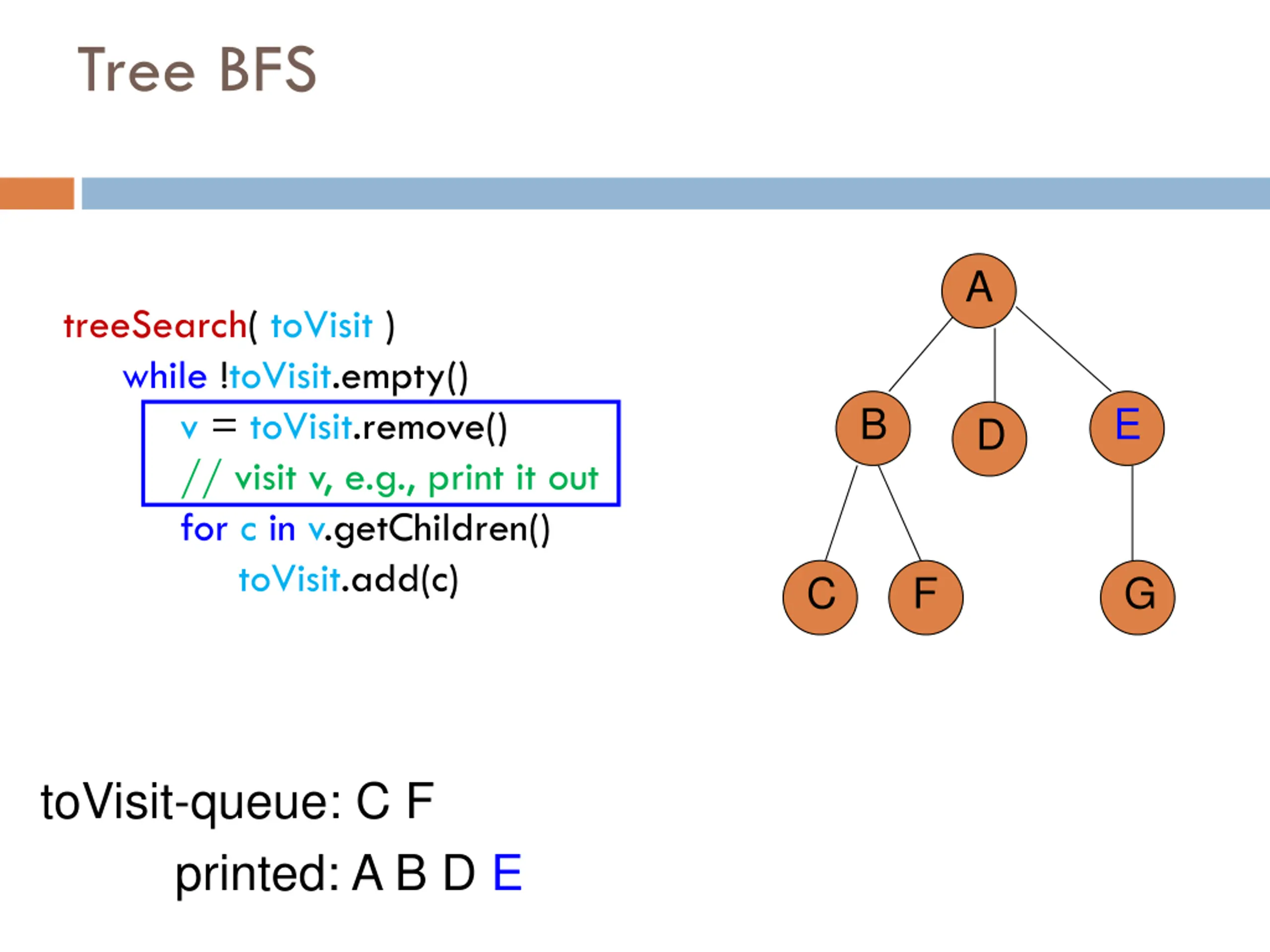

  21. Tree BFS A treeSearch( toVisit ) while !toVisit.empty() v = toVisit.remove() // visit v, e.g., print it out for c in v.getChildren() toVisit.add(c) B E D C F G toVisit-queue: E C F printed: A B D

  22. Tree BFS A treeSearch( toVisit ) while !toVisit.empty() v = toVisit.remove() // visit v, e.g., print it out for c in v.getChildren() toVisit.add(c) B E D C F G toVisit-queue: E C F printed: A B D

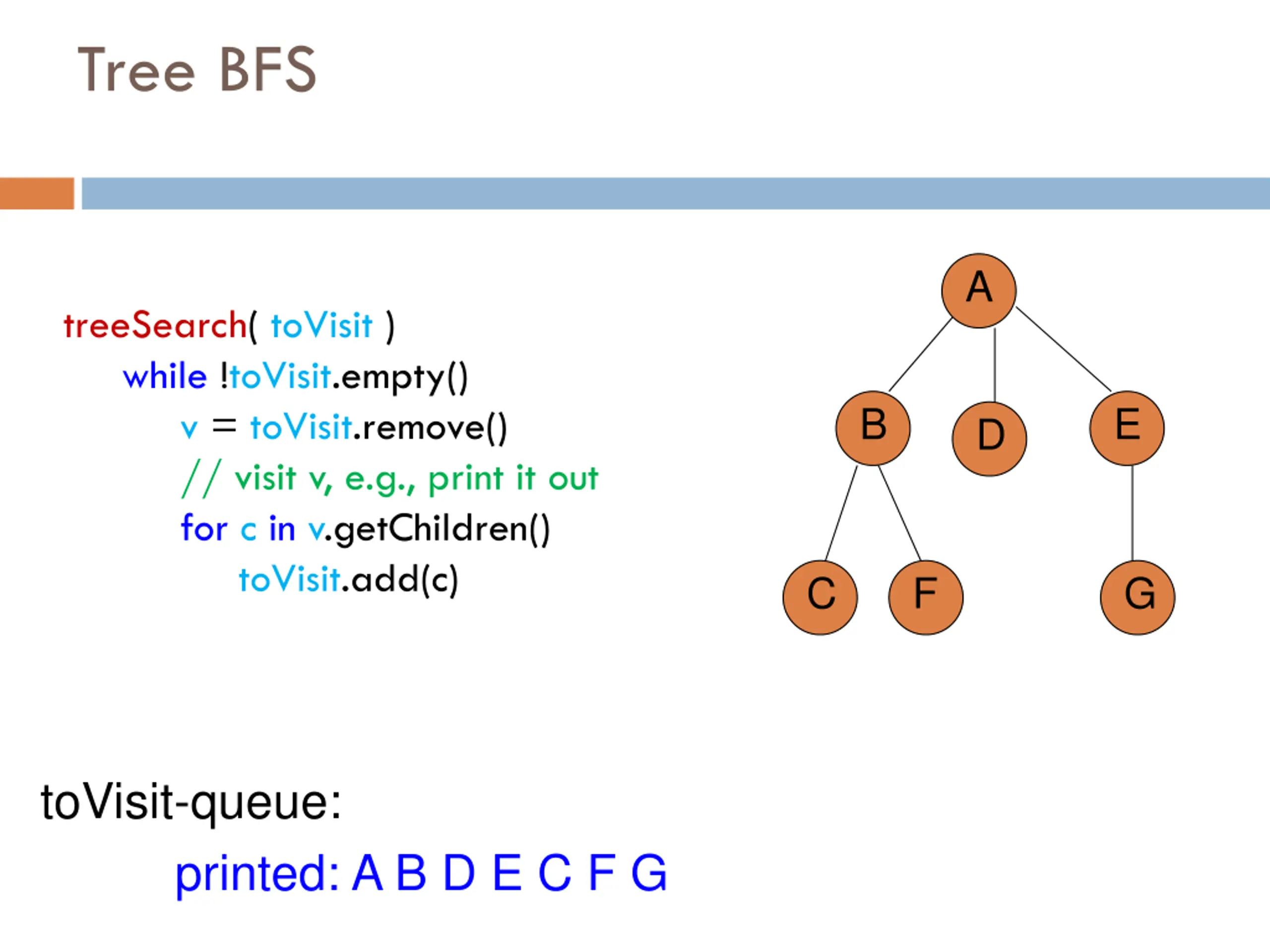

  23. Tree BFS A treeSearch( toVisit ) while !toVisit.empty() v = toVisit.remove() // visit v, e.g., print it out for c in v.getChildren() toVisit.add(c) B E D C F G toVisit-queue: E C F printed: A B D

  24. Tree BFS A treeSearch( toVisit ) while !toVisit.empty() v = toVisit.remove() // visit v, e.g., print it out for c in v.getChildren() toVisit.add(c) B E D C F G toVisit-queue: C F printed: A B D E

  25. Tree BFS A treeSearch( toVisit ) while !toVisit.empty() v = toVisit.remove() // visit v, e.g., print it out for c in v.getChildren() toVisit.add(c) B E D C F G toVisit-queue: C F printed: A B D E

  26. Tree BFS A treeSearch( toVisit ) while !toVisit.empty() v = toVisit.remove() // visit v, e.g., print it out for c in v.getChildren() toVisit.add(c) B E D C F G toVisit-queue: C F G printed: A B D E

  27. Tree BFS A treeSearch( toVisit ) while !toVisit.empty() v = toVisit.remove() // visit v, e.g., print it out for c in v.getChildren() toVisit.add(c) B E D C F G toVisit-queue: C F G printed: A B D E How are we exploring the vertices?

  28. Tree BFS A treeSearch( toVisit ) while !toVisit.empty() v = toVisit.remove() // visit v, e.g., print it out for c in v.getChildren() toVisit.add(c) B E D C F G Frontier: all vertices a given number of edges from the start/root toVisit-queue: C F G printed: A B D E

  29. Tree BFS = Tree breadth first search A treeSearch( toVisit ) while !toVisit.empty() v = toVisit.remove() // visit v, e.g., print it out for c in v.getChildren() toVisit.add(c) B E D C F G Frontier: all vertices a given number of edges from the start/root toVisit-queue: C F G printed: A B D E

  30. Tree BFS A treeSearch( toVisit ) while !toVisit.empty() v = toVisit.remove() // visit v, e.g., print it out for c in v.getChildren() toVisit.add(c) B E D C F G toVisit-queue: C F G printed: A B D E

  31. Tree BFS A treeSearch( toVisit ) while !toVisit.empty() v = toVisit.remove() // visit v, e.g., print it out for c in v.getChildren() toVisit.add(c) B E D C F G toVisit-queue: F G printed: A B D E C

  32. Tree BFS A treeSearch( toVisit ) while !toVisit.empty() v = toVisit.remove() // visit v, e.g., print it out for c in v.getChildren() toVisit.add(c) B E D C F G toVisit-queue: printed: A B D E C F G

  33. Tree DFS treeDFS( start ) s = new Stack() s.add(start) treeSearch(s) A B E D C F G s: printed:

  34. Tree DFS treeDFS( start ) s = new Stack() s.add(start) treeSearch(s) A B E D C F G s: A printed:

  35. Tree DFS A treeSearch( toVisit ) while !toVisit.empty() v = toVisit.remove() // visit v, e.g., print it out for c in v.getChildren() toVisit.add(c) B E D C F G toVisit-stack: A printed: What order will the nodes get printed out? Assume children are traversed left to right.

  36. Tree DFS A treeSearch( toVisit ) while !toVisit.empty() v = toVisit.remove() // visit v, e.g., print it out for c in v.getChildren() toVisit.add(c) B E D C F G toVisit-stack: A printed:

  37. Tree DFS A treeSearch( toVisit ) while !toVisit.empty() v = toVisit.remove() // visit v, e.g., print it out for c in v.getChildren() toVisit.add(c) B E D C F G toVisit-stack: printed: A

  38. Tree DFS A treeSearch( toVisit ) while !toVisit.empty() v = toVisit.remove() // visit v, e.g., print it out for c in v.getChildren() toVisit.add(c) B E D C F G toVisit-stack: printed: A

  39. Tree DFS A treeSearch( toVisit ) while !toVisit.empty() v = toVisit.remove() // visit v, e.g., print it out for c in v.getChildren() toVisit.add(c) B E D C F G toVisit-stack: B D E printed: A

  40. Tree DFS A treeSearch( toVisit ) while !toVisit.empty() v = toVisit.remove() // visit v, e.g., print it out for c in v.getChildren() toVisit.add(c) B E D C F G toVisit-stack: B D E printed: A

  41. Tree DFS A treeSearch( toVisit ) while !toVisit.empty() v = toVisit.remove() // visit v, e.g., print it out for c in v.getChildren() toVisit.add(c) B E D C F G toVisit-stack: B D printed: A E

  42. Tree DFS A treeSearch( toVisit ) while !toVisit.empty() v = toVisit.remove() // visit v, e.g., print it out for c in v.getChildren() toVisit.add(c) B E D C F G toVisit-stack: B D printed: A E

  43. Tree DFS A treeSearch( toVisit ) while !toVisit.empty() v = toVisit.remove() // visit v, e.g., print it out for c in v.getChildren() toVisit.add(c) B E D C F G toVisit-stack: B D G printed: A E

  44. Tree DFS A treeSearch( toVisit ) while !toVisit.empty() v = toVisit.remove() // visit v, e.g., print it out for c in v.getChildren() toVisit.add(c) B E D C F G toVisit-stack: B D G printed: A E

  45. Tree DFS A treeSearch( toVisit ) while !toVisit.empty() v = toVisit.remove() // visit v, e.g., print it out for c in v.getChildren() toVisit.add(c) B E D C F G toVisit-stack: B D printed: A E G

  46. Tree DFS A treeSearch( toVisit ) while !toVisit.empty() v = toVisit.remove() // visit v, e.g., print it out for c in v.getChildren() toVisit.add(c) B E D C F G toVisit-stack: B D printed: A E G

  47. Tree DFS A treeSearch( toVisit ) while !toVisit.empty() v = toVisit.remove() // visit v, e.g., print it out for c in v.getChildren() toVisit.add(c) B E D C F G toVisit-stack: B D printed: A E G

  48. Tree DFS A treeSearch( toVisit ) while !toVisit.empty() v = toVisit.remove() // visit v, e.g., print it out for c in v.getChildren() toVisit.add(c) B E D C F G toVisit-stack: B printed: A E G D

  49. Tree DFS A treeSearch( toVisit ) while !toVisit.empty() v = toVisit.remove() // visit v, e.g., print it out for c in v.getChildren() toVisit.add(c) B E D C F G toVisit-stack: B printed: A E G D How are we exploring the vertices?

  50. Tree DFS A treeSearch( toVisit ) while !toVisit.empty() v = toVisit.remove() // visit v, e.g., print it out for c in v.getChildren() toVisit.add(c) B E D C F G Frontier: go as far down one branch as possible, working right to left toVisit-stack: B printed: A E G D
