GTS GUN

In this comprehensive analysis, the properties of GTS.GUNYan9/1 and the behavior of sheds in electrical systems are examined. The updated gun performance exceeds 50 MV/m, reaching values of 10.07 MV/m and 12 MeV/m. A shed with dimensions r1=1 cm, r2=2.5 cm, and r3=9.5 cm experiences electric fields of 9.5 MV/m and 8 MV/m. Various sheds with different gaps demonstrate a range of electric field strengths. The potential along the insulator surface is explored, shedding light on the distribution of electrical potential. Shed dimensions are outlined in detail, providing insights into the structural components of the electrical system.

• Analysis
• Electrical Systems
• Sheds
• Potential
• Insulator

azri_611 Follow

Uploaded on Feb 16, 2025 | 0 Views

Download Presentation

Please find below an Image/Link to download the presentation.

The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.

You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.

The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.

Presentation Transcript

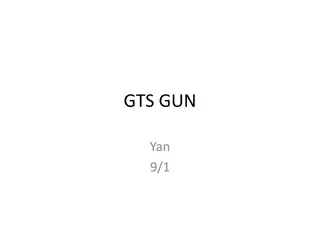

1. GTS GUN Yan 9/1

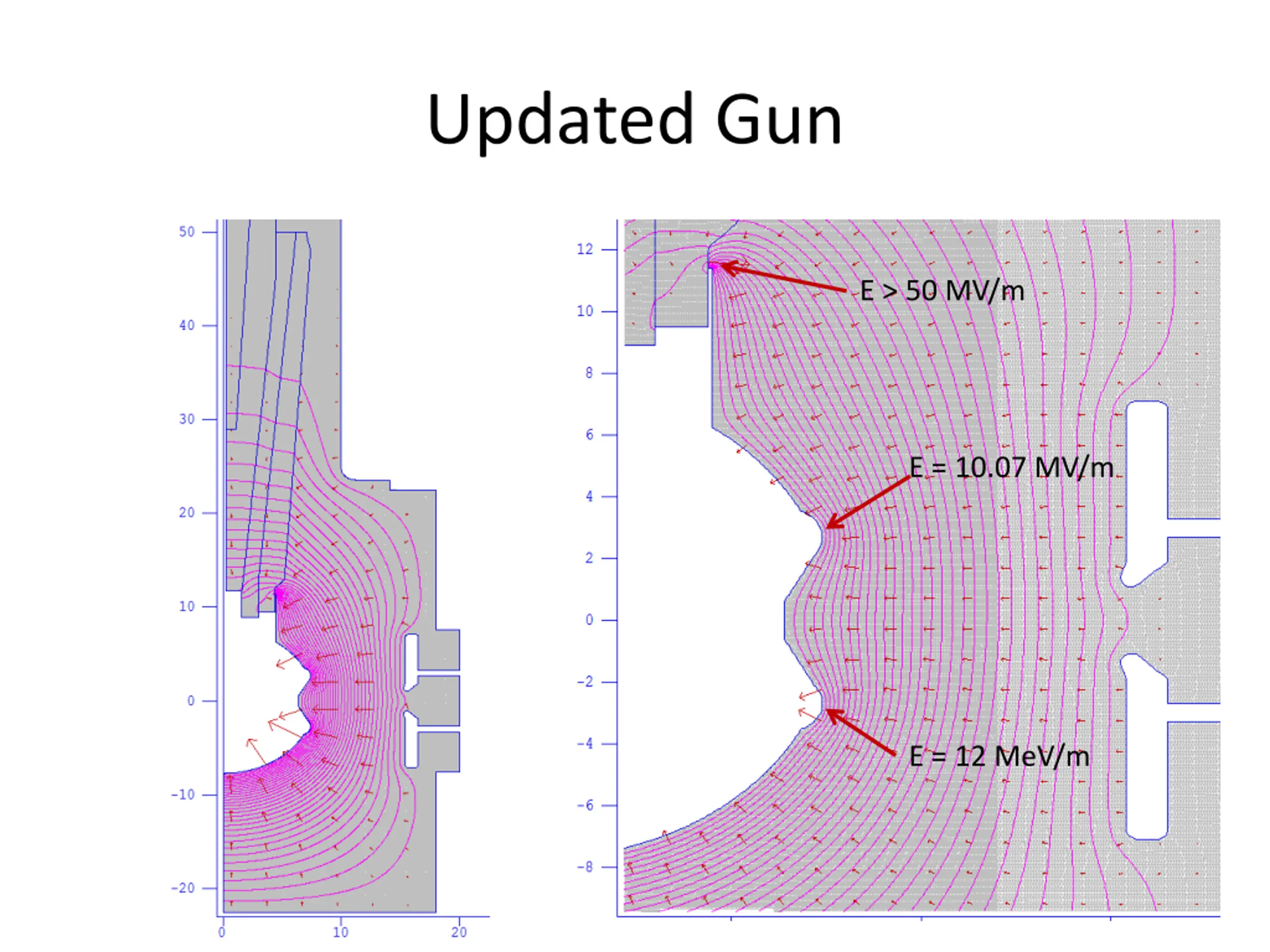

2. Updated Gun E > 50 MV/m E = 10.07 MV/m E = 12 MeV/m

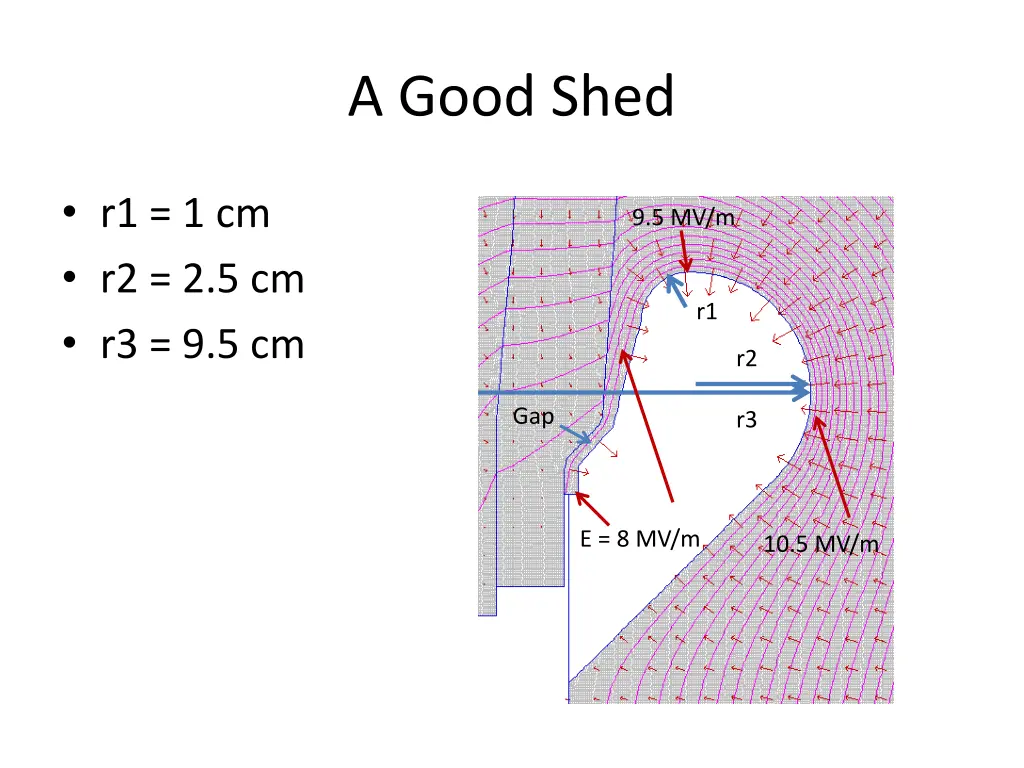

3. A Good Shed r1 = 1 cm r2 = 2.5 cm r3 = 9.5 cm 9.5 MV/m r1 r2 Gap r3 E = 8 MV/m 10.5 MV/m

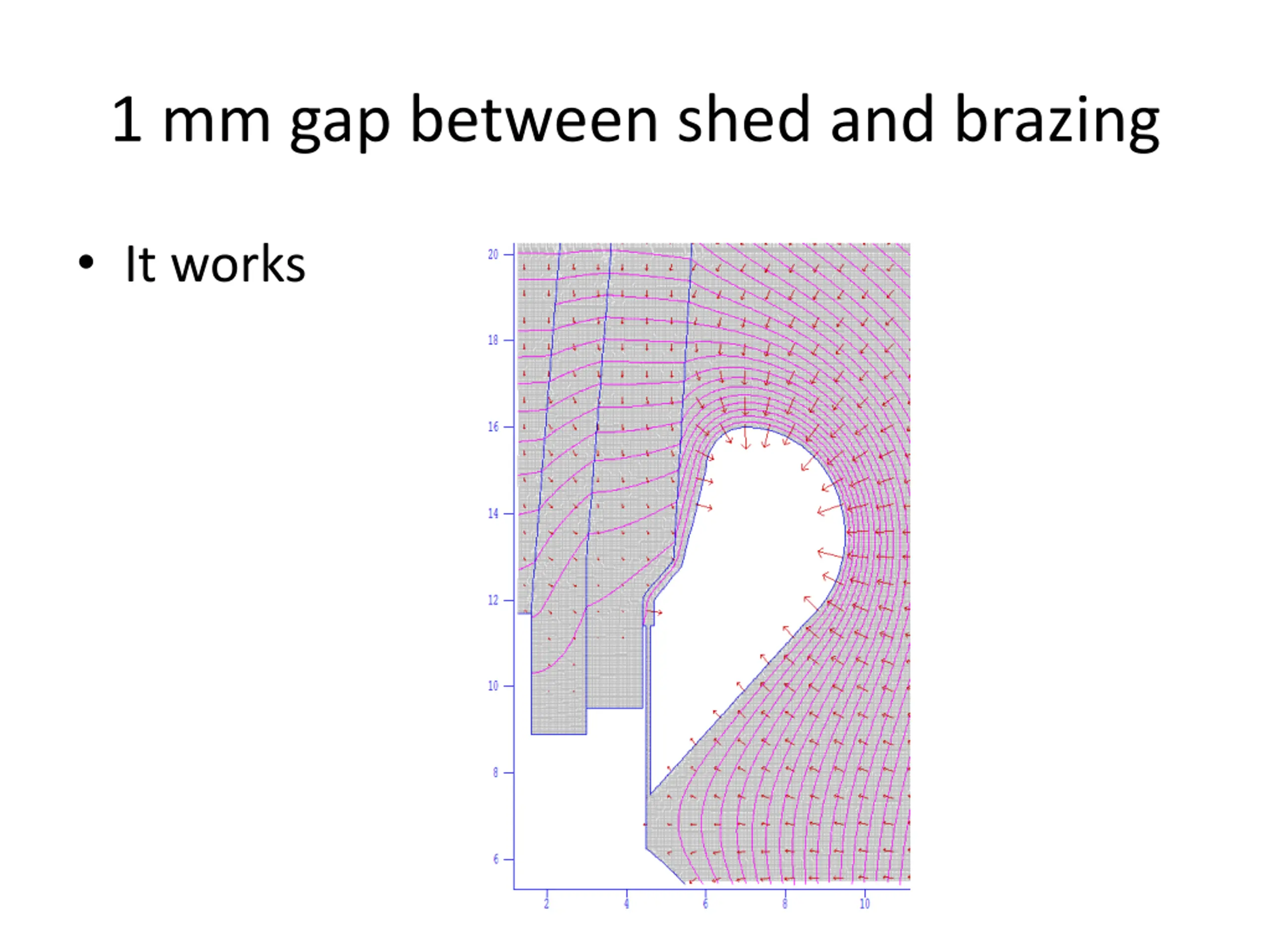

4. 1 mm gap between shed and brazing It works

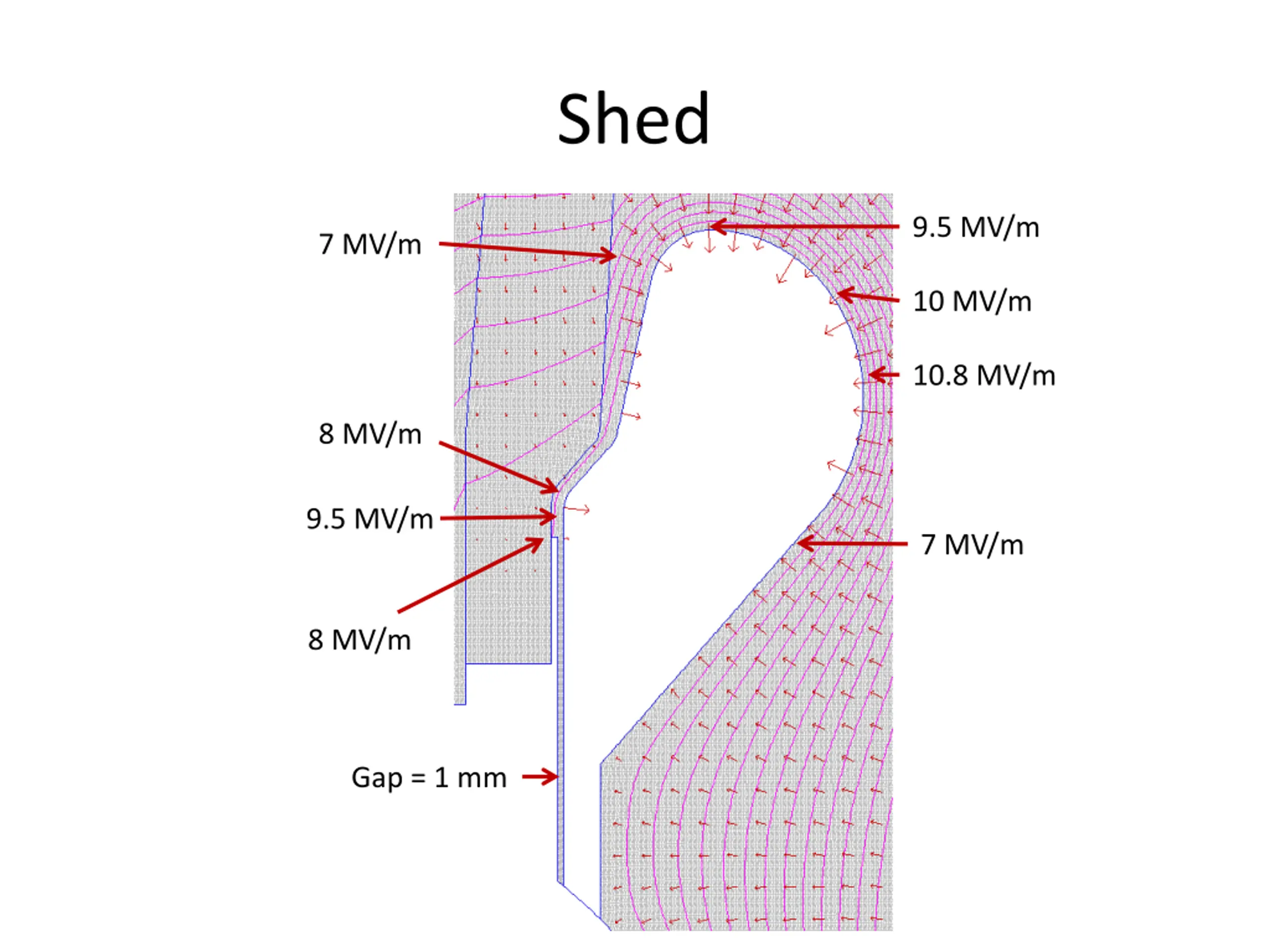

5. Shed 9.5 MV/m 7 MV/m 10 MV/m 10.8 MV/m 8 MV/m 9.5 MV/m 7 MV/m 8 MV/m Gap = 1 mm

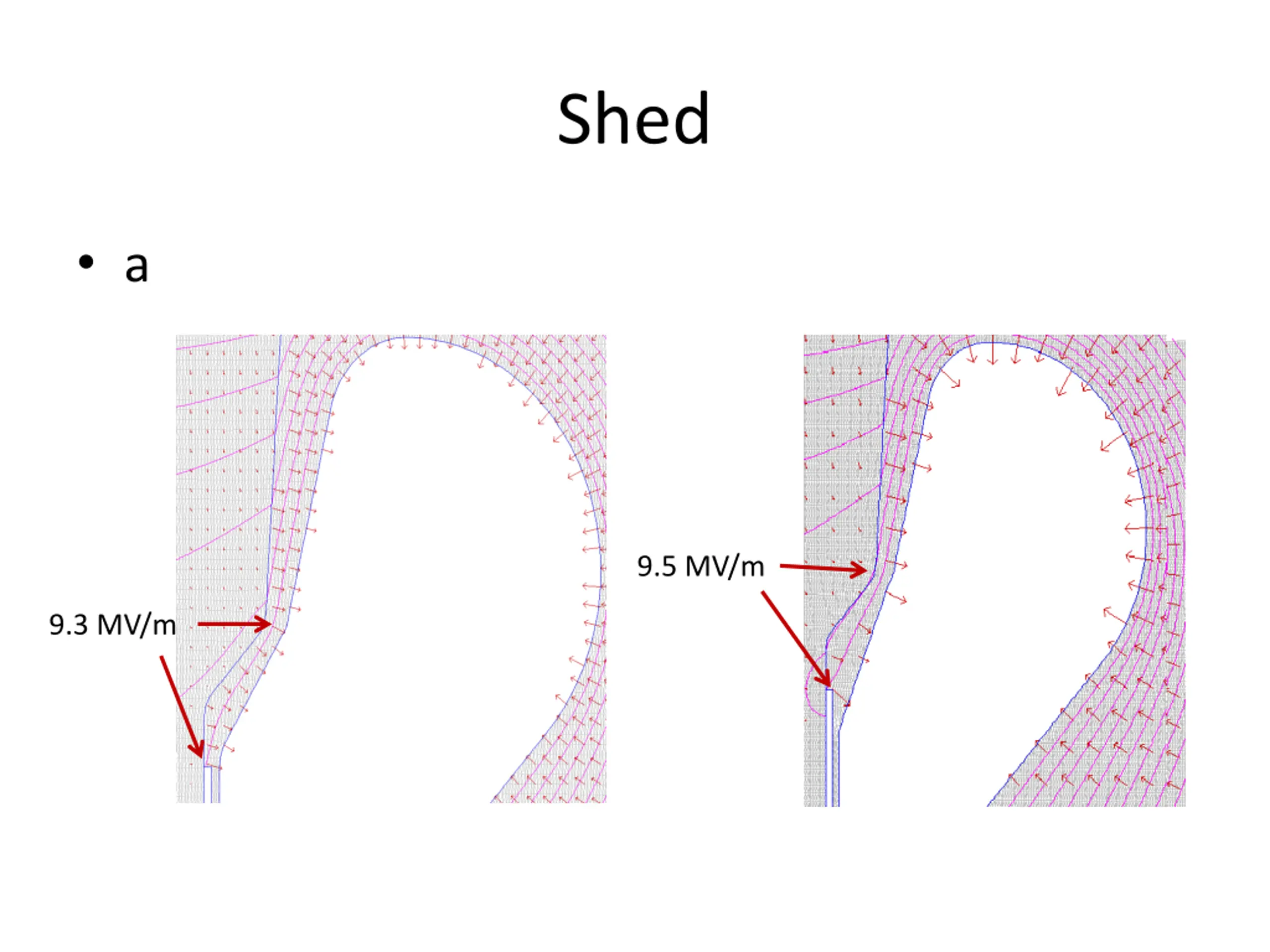

6. Shed a 9.5 MV/m 9.3 MV/m

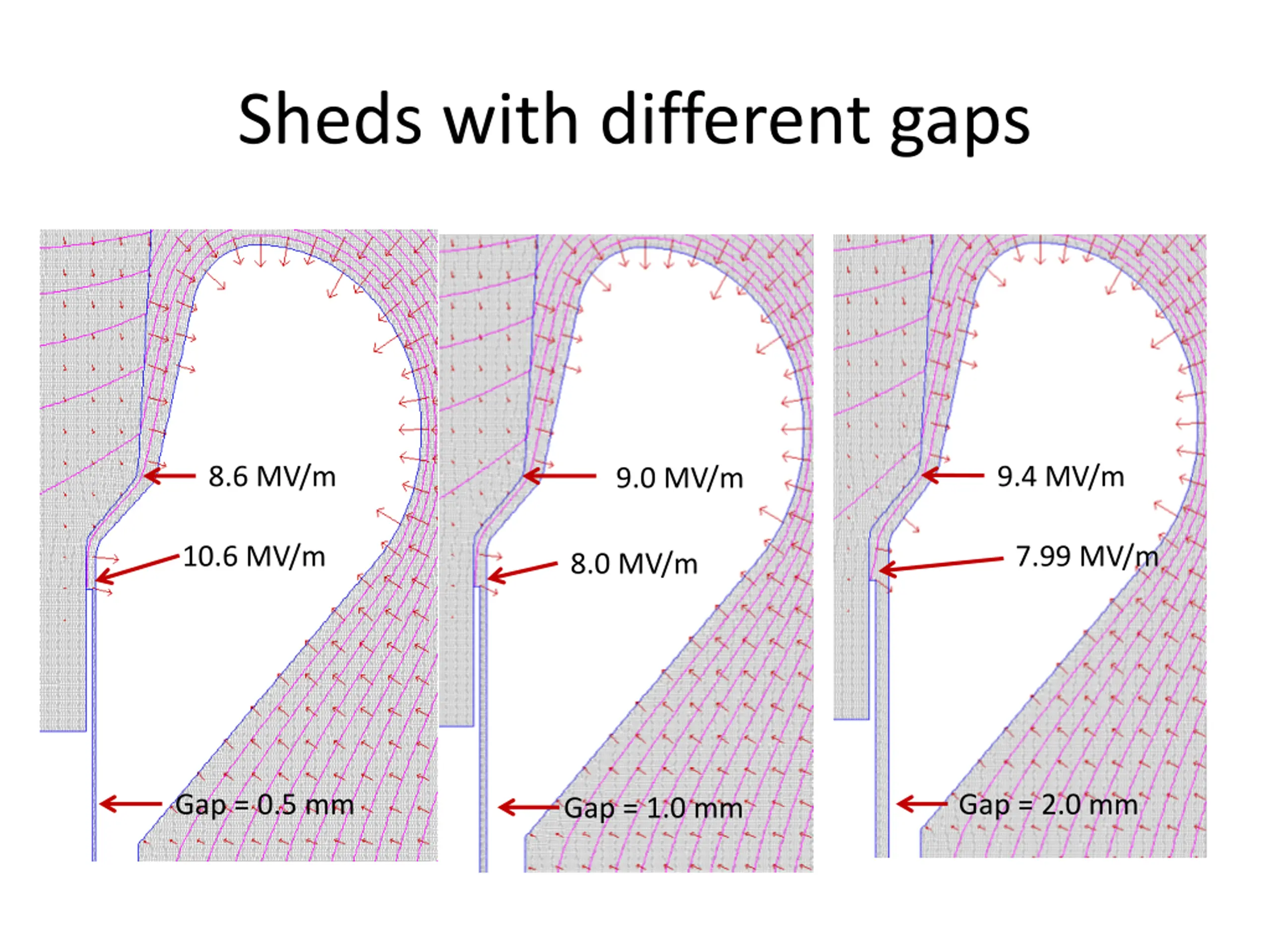

7. Sheds with different gaps z 8.6 MV/m 9.4 MV/m 9.0 MV/m 10.6 MV/m 7.99 MV/m 8.0 MV/m Gap = 0.5 mm Gap = 2.0 mm Gap = 1.0 mm

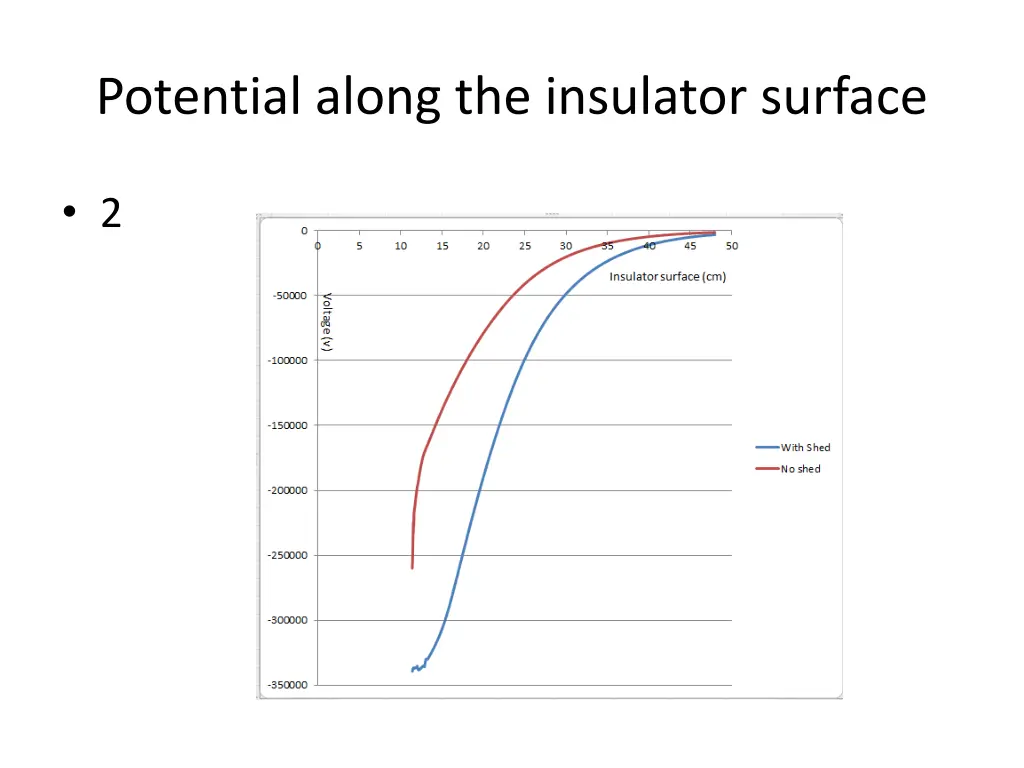

8. Potential along the insulator surface 2

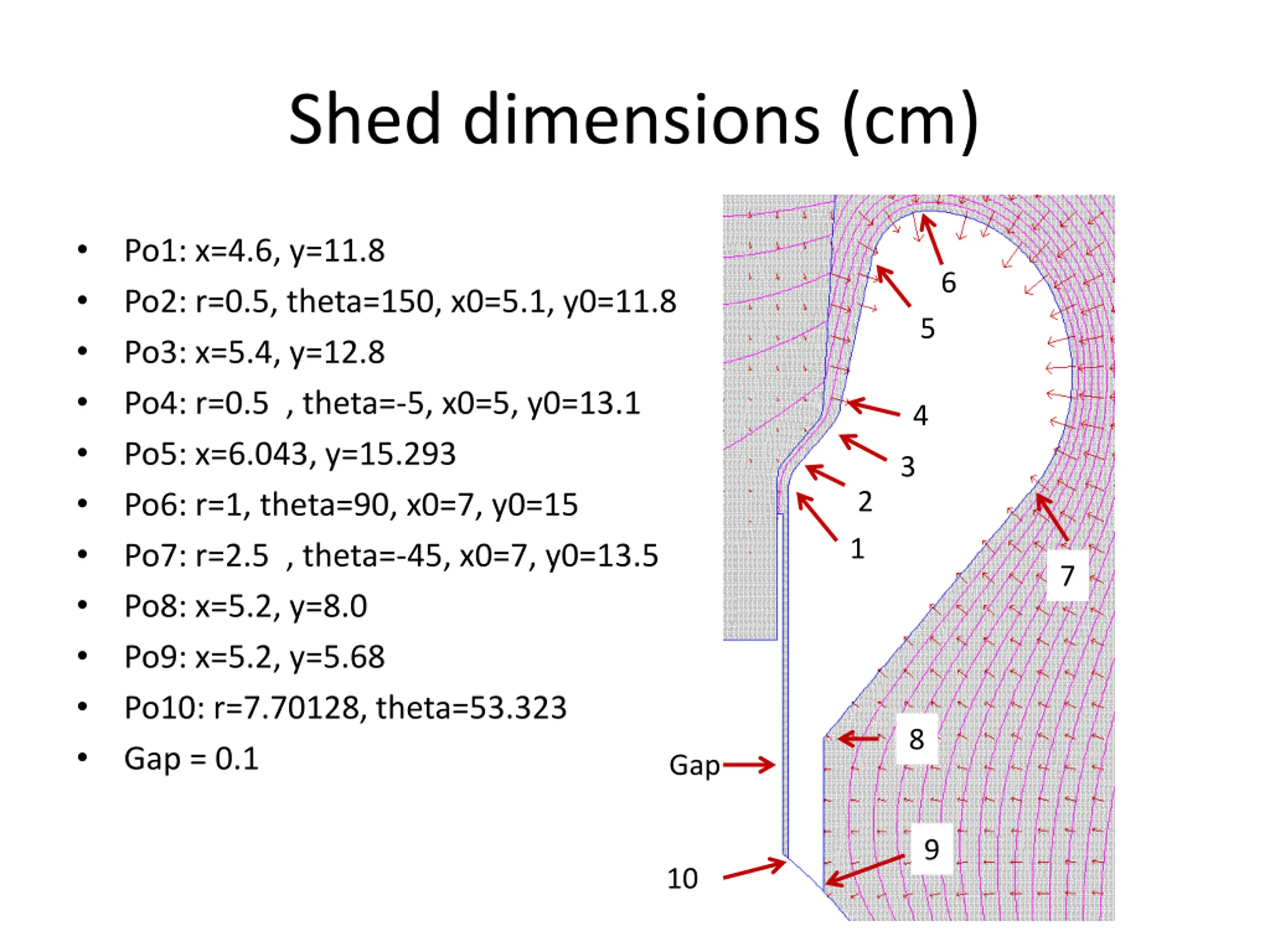

9. Shed dimensions (cm) Po1: x=4.6, y=11.8 Po2: r=0.5, theta=150, x0=5.1, y0=11.8 Po3: x=5.4, y=12.8 Po4: r=0.5 , theta=-5, x0=5, y0=13.1 Po5: x=6.043, y=15.293 Po6: r=1, theta=90, x0=7, y0=15 Po7: r=2.5 , theta=-45, x0=7, y0=13.5 Po8: x=5.2, y=8.0 Po9: x=5.2, y=5.68 Po10: r=7.70128, theta=53.323 Gap = 0.1 6 5 4 3 2 1 7 8 Gap 9 10
