CCB to OH Tests at Rice M.Matveev Rice University May 12, 2016 1

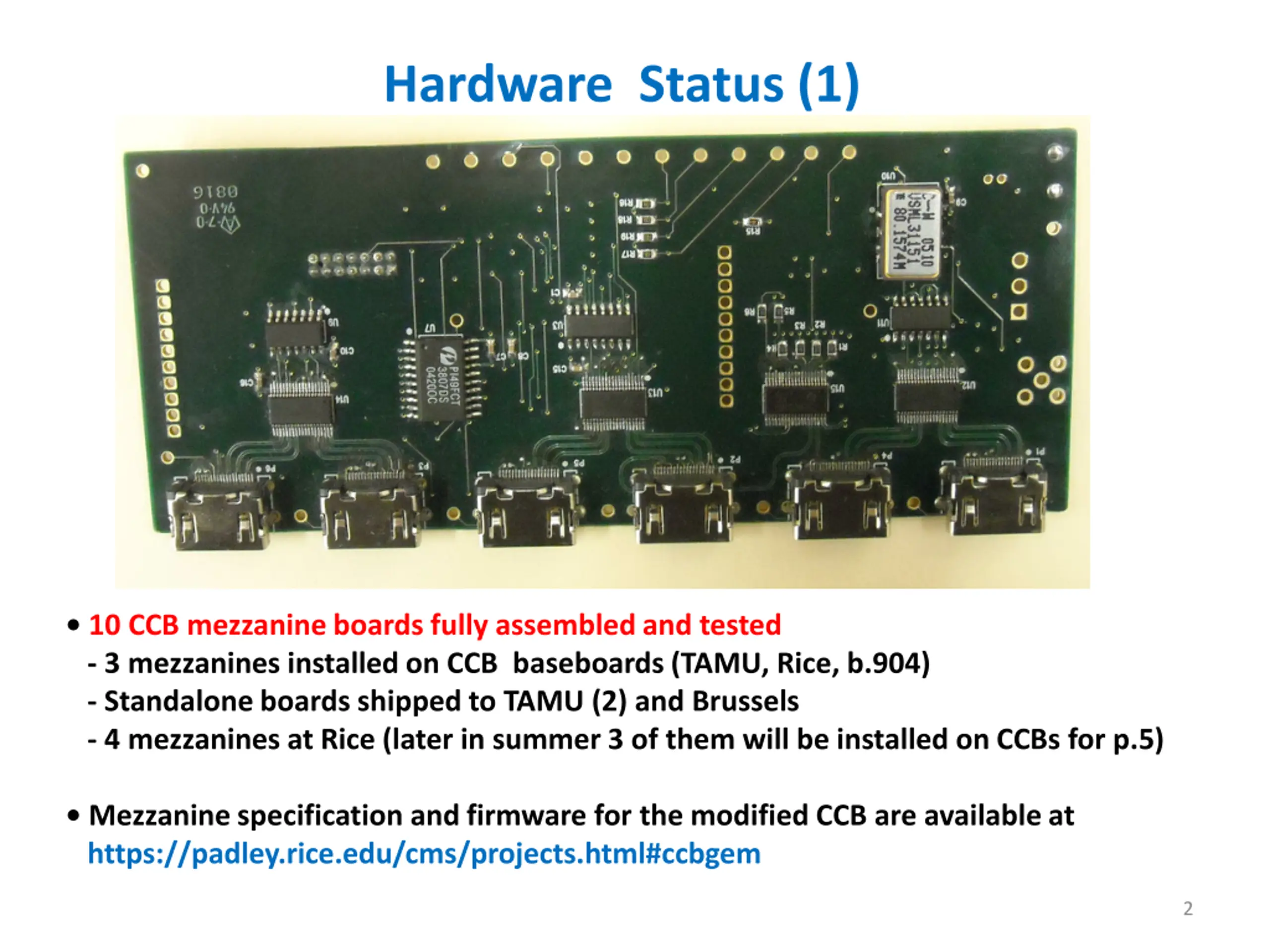

Hardware Status (1) 10 CCB mezzanine boards fully assembled and tested - 3 mezzanines installed on CCB baseboards (TAMU, Rice, b.904) - Standalone boards shipped to TAMU (2) and Brussels - 4 mezzanines at Rice (later in summer 3 of them will be installed on CCBs for p.5) Mezzanine specification and firmware for the modified CCB are available at https://padley.rice.edu/cms/projects.html#ccbgem 2

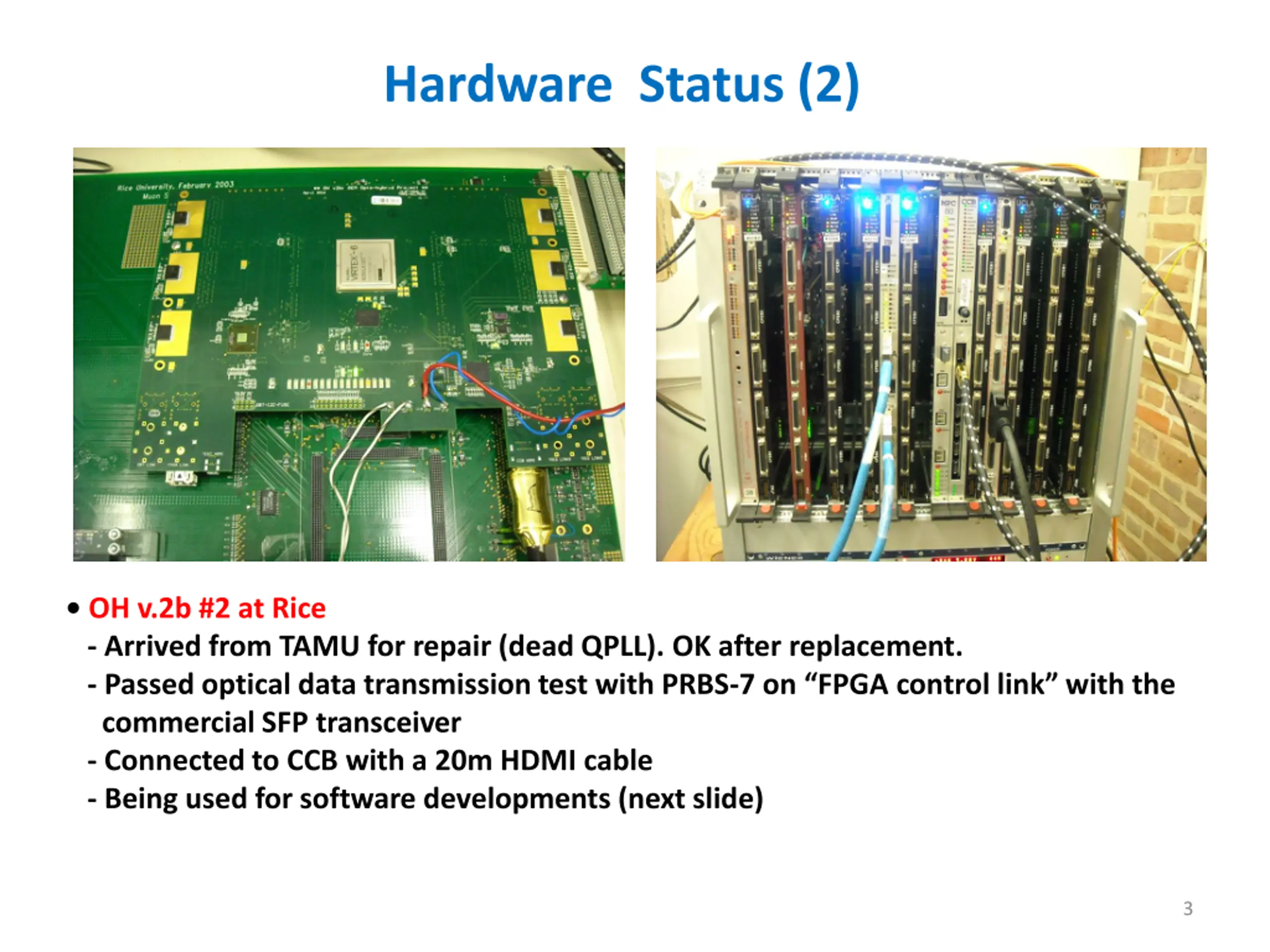

Hardware Status (2) OH v.2b #2 at Rice - Arrived from TAMU for repair (dead QPLL). OK after replacement. - Passed optical data transmission test with PRBS-7 on FPGA control link with the commercial SFP transceiver - Connected to CCB with a 20m HDMI cable - Being used for software developments (next slide) 3

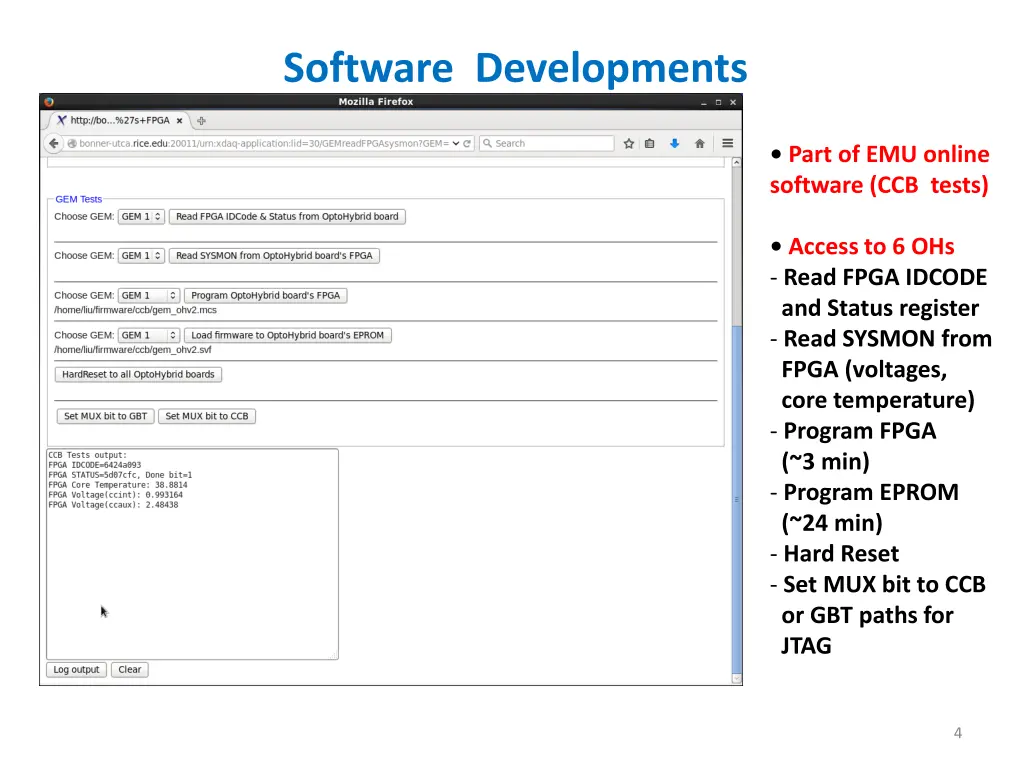

Software Developments Part of EMU online software (CCB tests) Access to 6 OHs - Read FPGA IDCODE and Status register - Read SYSMON from FPGA (voltages, core temperature) - Program FPGA (~3 min) - Program EPROM (~24 min) - Hard Reset - Set MUX bit to CCB or GBT paths for JTAG 4
