  1. HEART-LUNG TRANSPLANTATION Adult Recipients 2017 JHLT. 2017 Oct; 36(10): 1037-1079

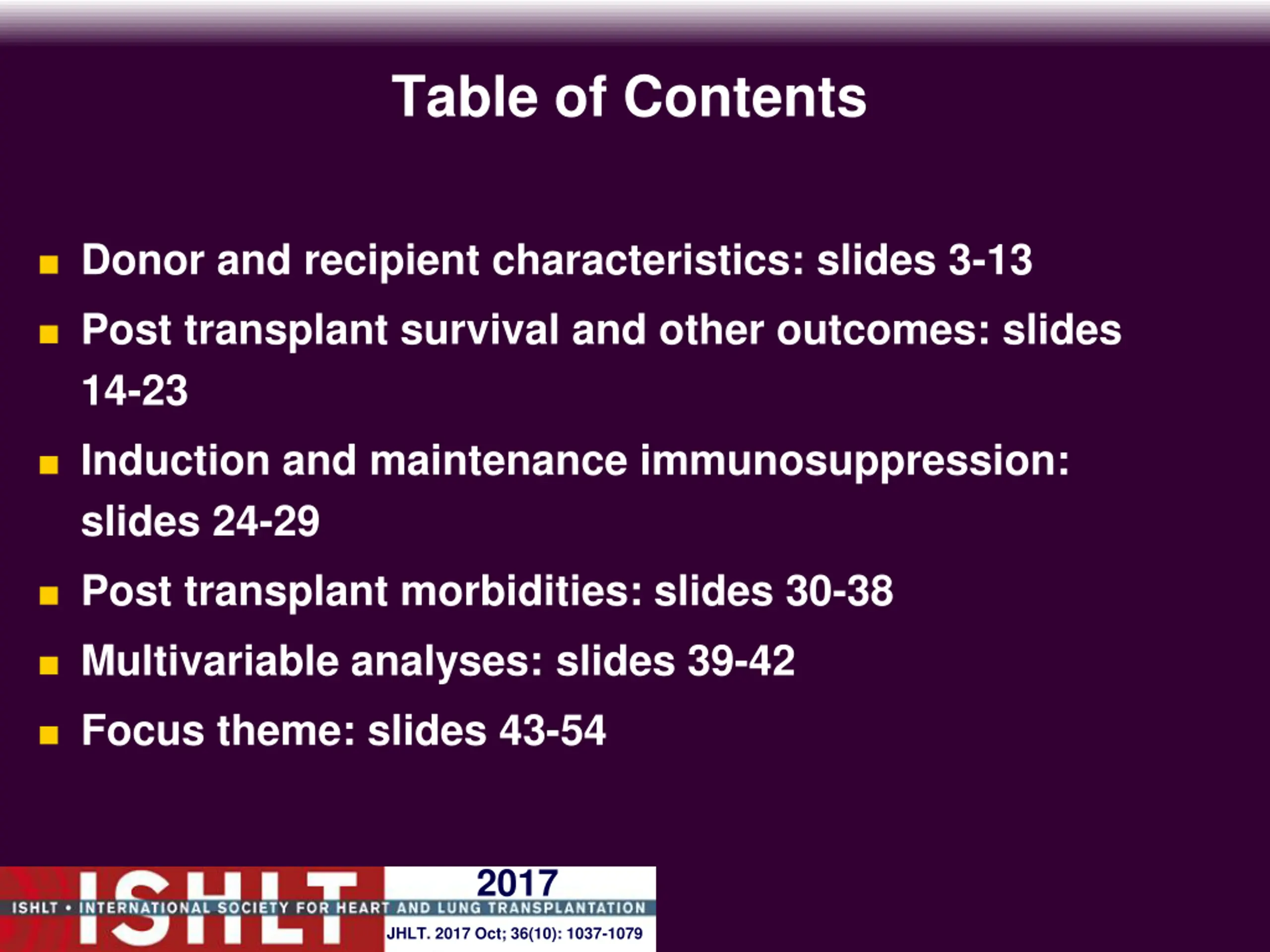

  2. Table of Contents Donor and recipient characteristics: slides 3-13 Post transplant survival and other outcomes: slides 14-23 Induction and maintenance immunosuppression: slides 24-29 Post transplant morbidities: slides 30-38 Multivariable analyses: slides 39-42 Focus theme: slides 43-54 2017 JHLT. 2017 Oct; 36(10): 1037-1079

  3. Donor and Recipient Characteristics 2017 JHLT. 2017 Oct; 36(10): 1037-1079

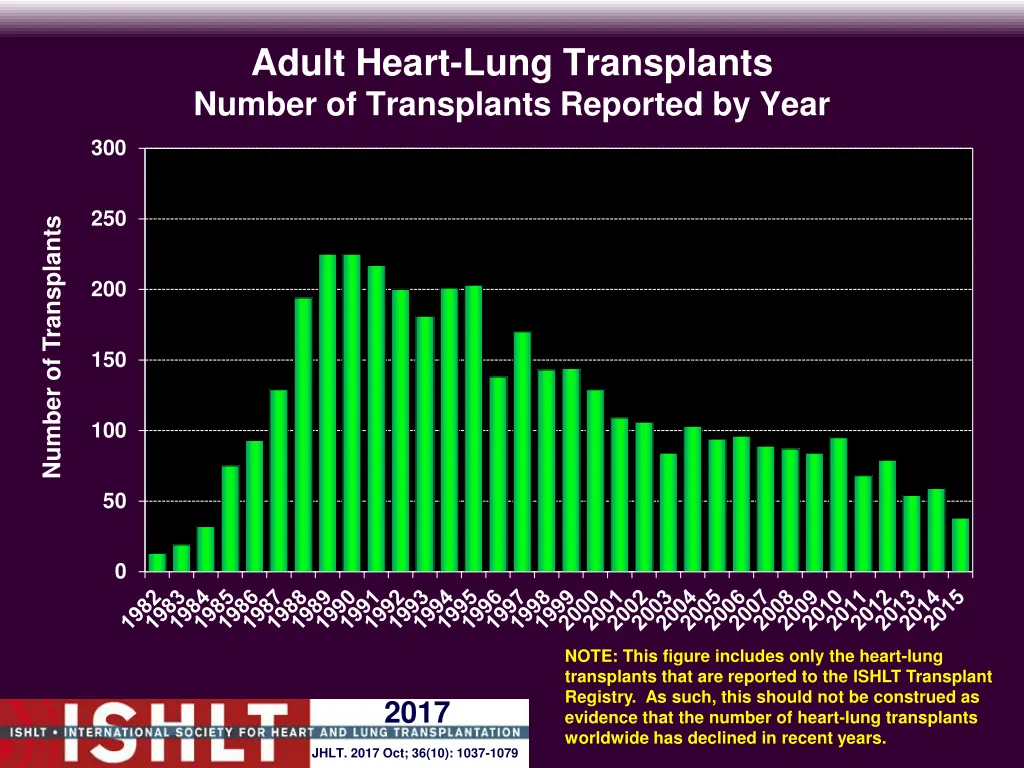

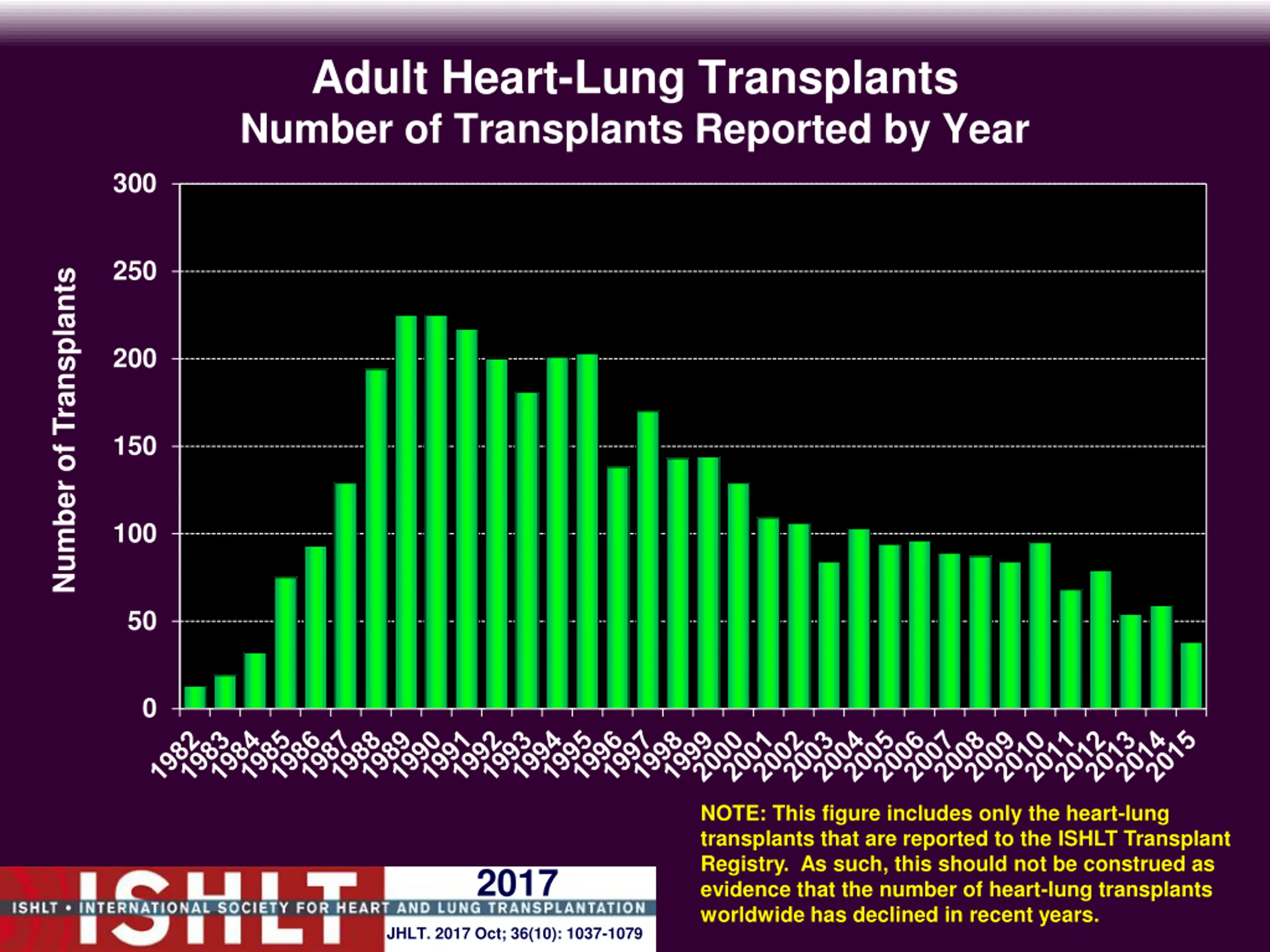

  4. Adult Heart-Lung Transplants Number of Transplants Reported by Year 300 250 Number of Transplants 200 150 100 50 0 NOTE: This figure includes only the heart-lung transplants that are reported to the ISHLT Transplant Registry. As such, this should not be construed as evidence that the number of heart-lung transplants worldwide has declined in recent years. 2017 JHLT. 2017 Oct; 36(10): 1037-1079

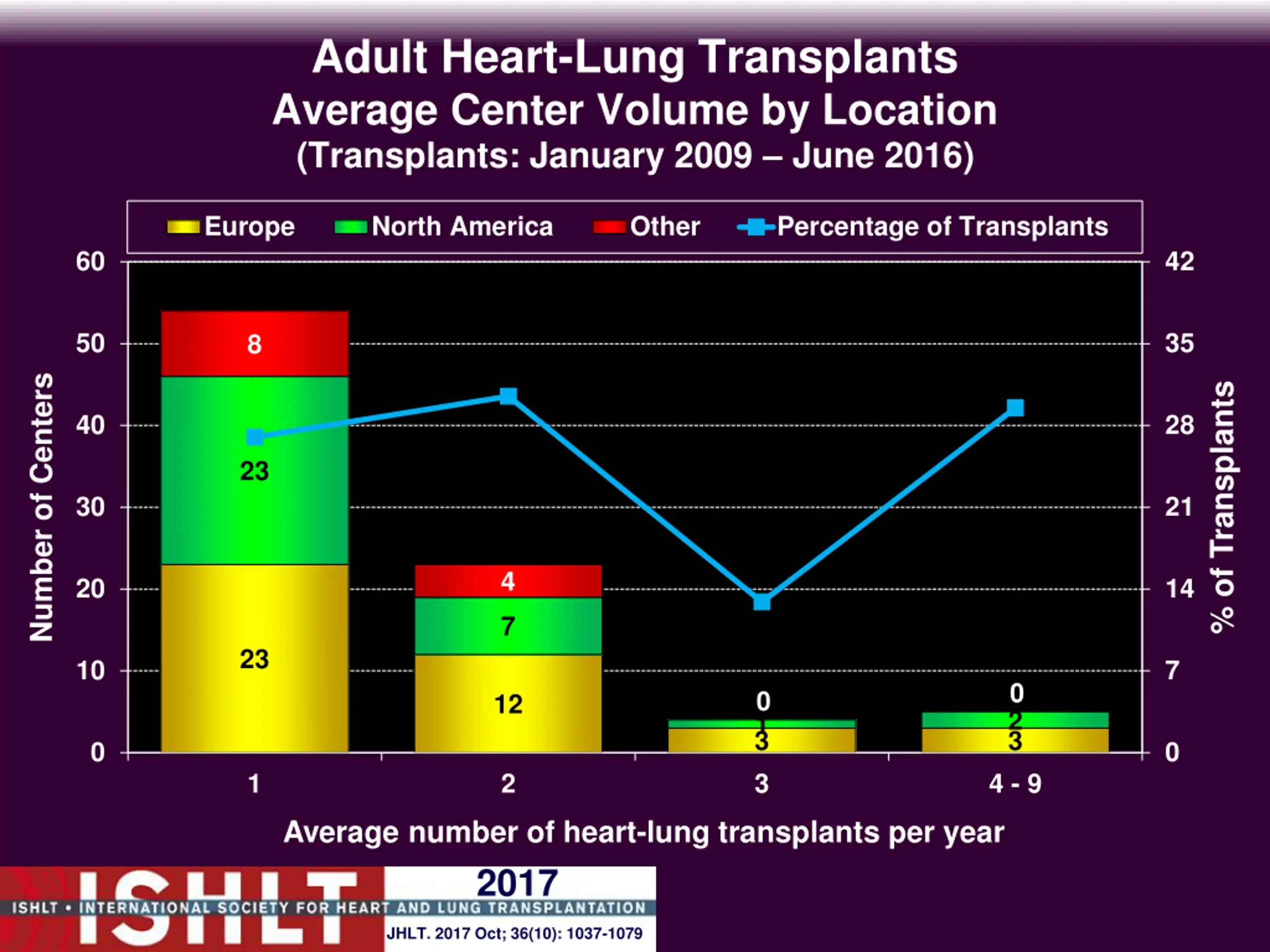

  5. Adult Heart-Lung Transplants Average Center Volume by Location (Transplants: January 2009 June 2016) Europe North America Other Percentage of Transplants 60 42 50 35 8 Number of Centers % of Transplants 40 28 23 30 21 4 20 14 7 23 10 7 0 0 12 2 1 3 3 3 0 0 1 2 4 - 9 Average number of heart-lung transplants per year 2017 JHLT. 2017 Oct; 36(10): 1037-1079

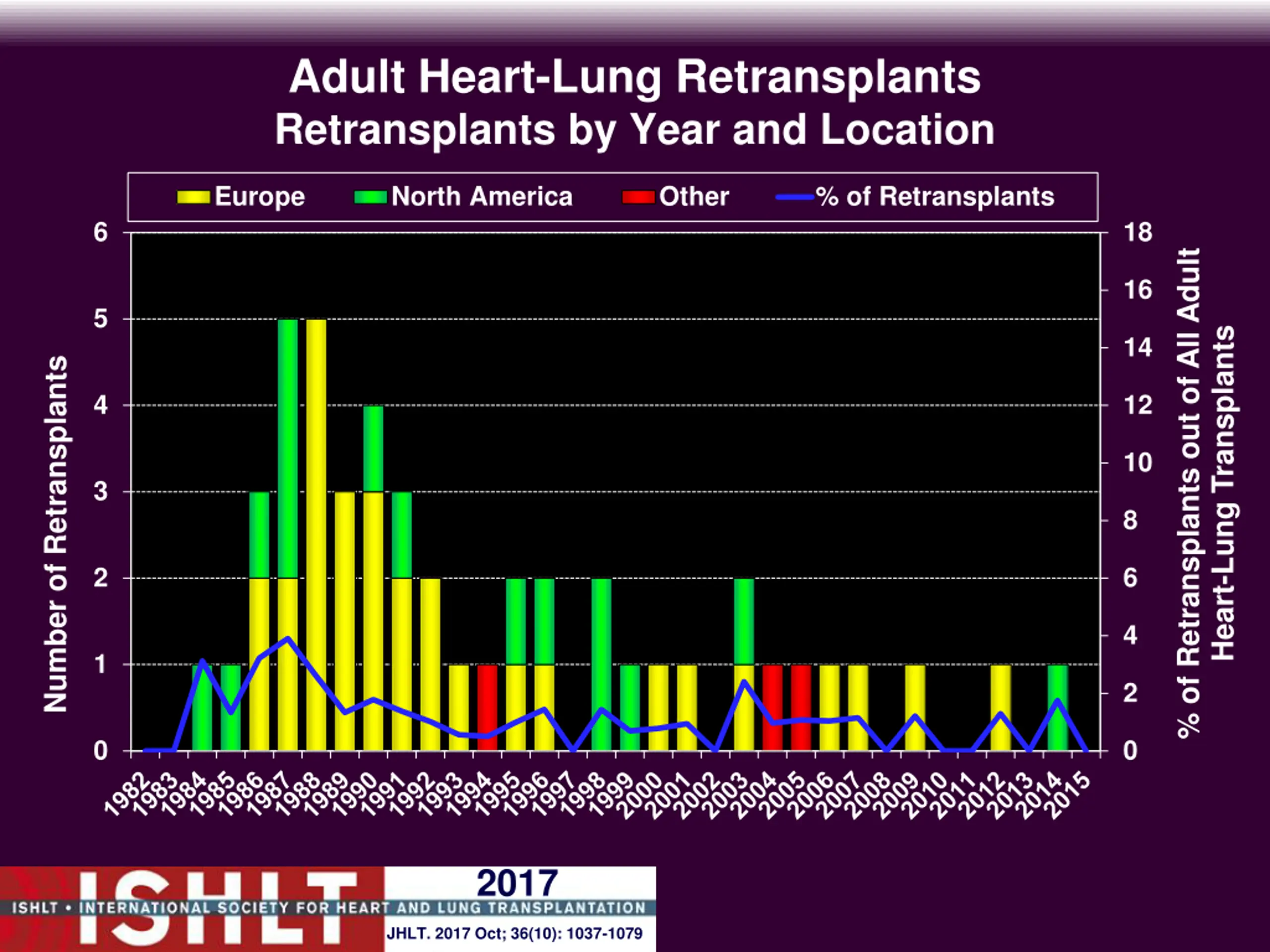

  6. Adult Heart-Lung Retransplants Retransplants by Year and Location Europe North America Other % of Retransplants 6 18 % of Retransplants out of All Adult 16 5 Heart-Lung Transplants 14 Number of Retransplants 4 12 10 3 8 2 6 4 1 2 0 0 2017 JHLT. 2017 Oct; 36(10): 1037-1079

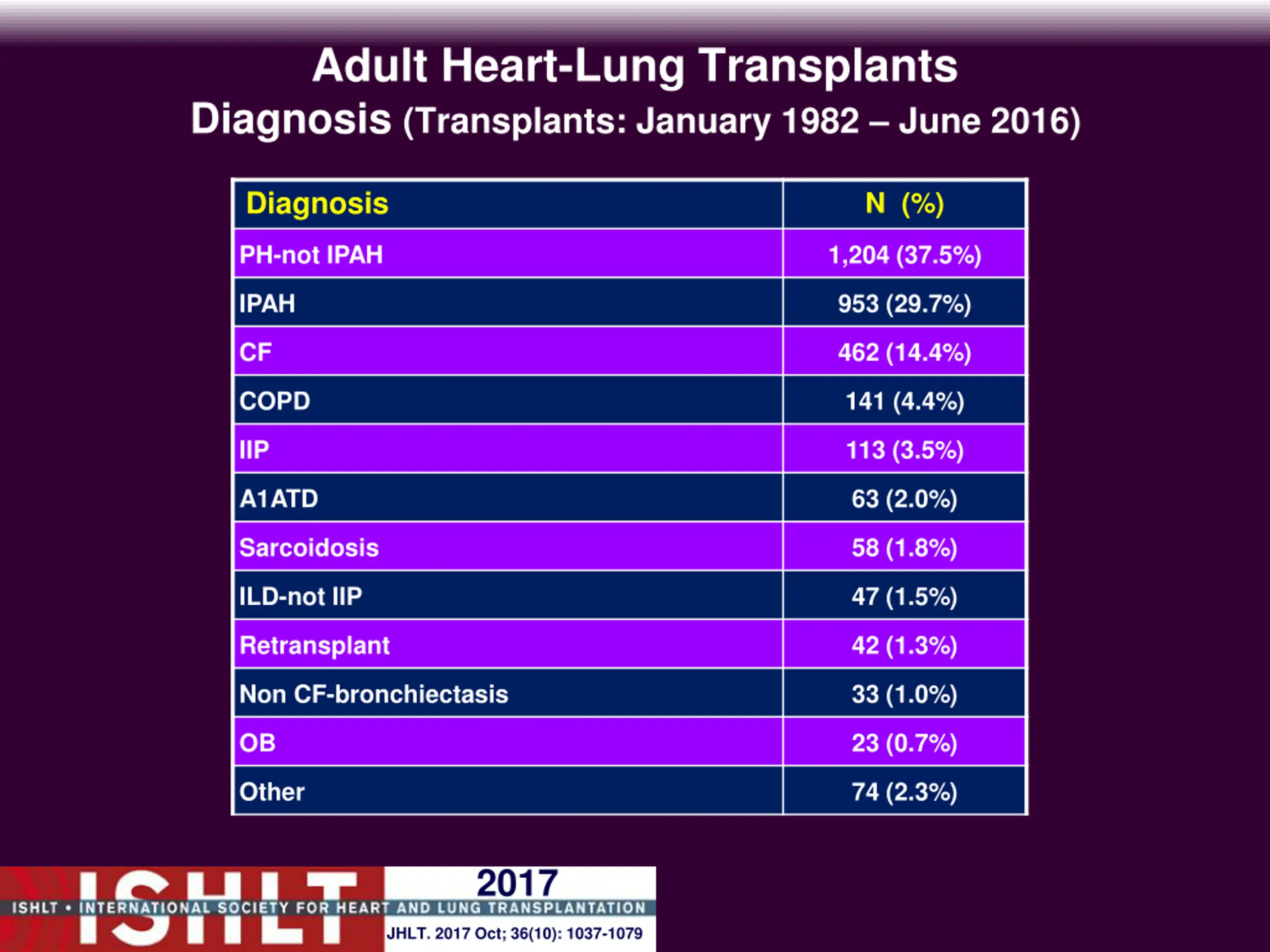

  7. Adult Heart-Lung Transplants Diagnosis (Transplants: January 1982 June 2016) Diagnosis N (%) PH-not IPAH 1,204 (37.5%) IPAH 953 (29.7%) CF 462 (14.4%) COPD 141 (4.4%) IIP 113 (3.5%) A1ATD 63 (2.0%) Sarcoidosis 58 (1.8%) ILD-not IIP 47 (1.5%) Retransplant 42 (1.3%) Non CF-bronchiectasis 33 (1.0%) OB 23 (0.7%) Other 74 (2.3%) 2017 JHLT. 2017 Oct; 36(10): 1037-1079

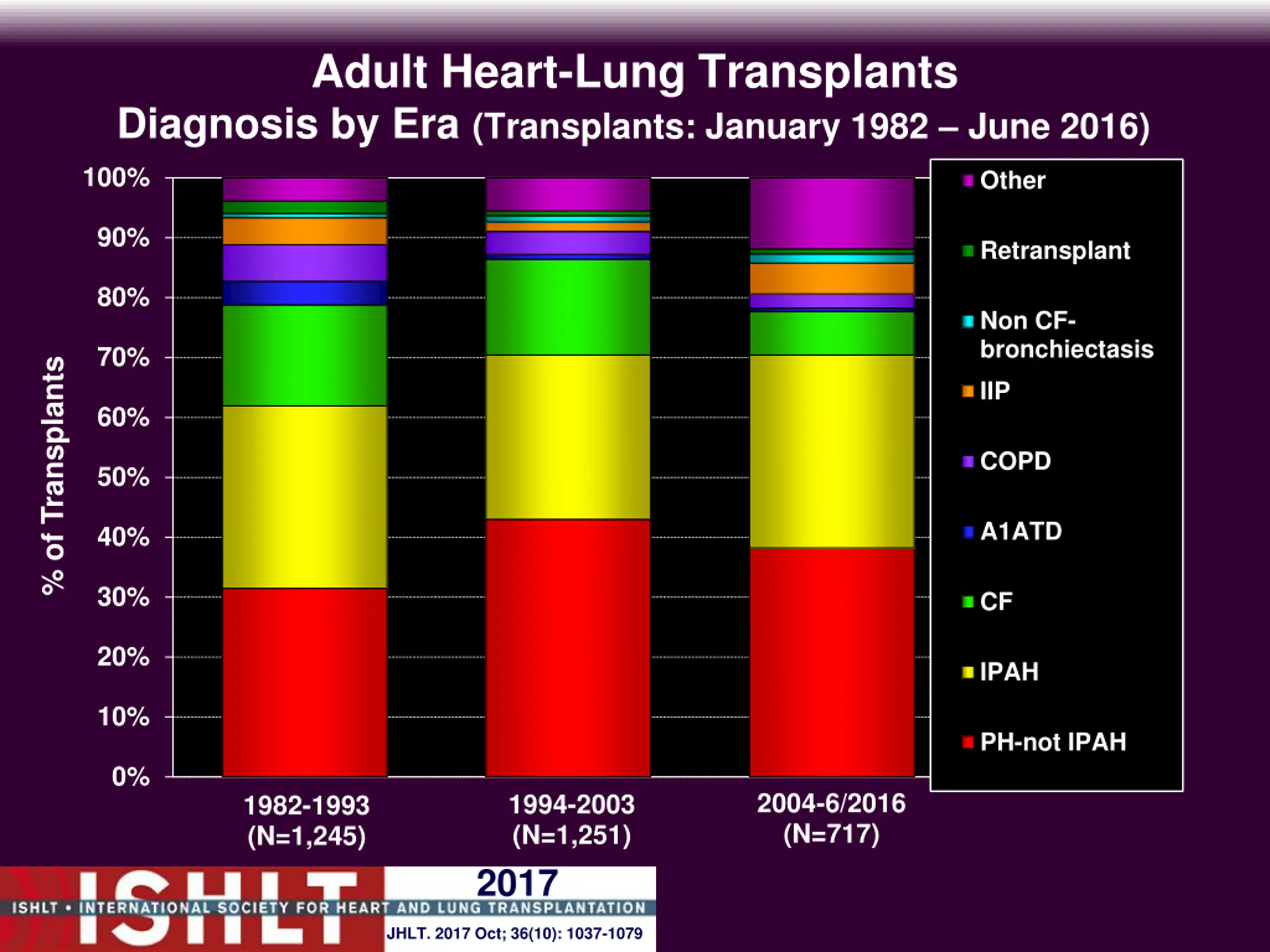

  8. Adult Heart-Lung Transplants Diagnosis by Era (Transplants: January 1982 June 2016) 100% Other 90% Retransplant 80% Non CF- bronchiectasis 70% % of Transplants IIP 60% COPD 50% A1ATD 40% 30% CF 20% IPAH 10% PH-not IPAH 0% 2004-6/2016 (N=717) 1994-2003 (N=1,251) 2017 1982-1993 (N=1,245) JHLT. 2017 Oct; 36(10): 1037-1079

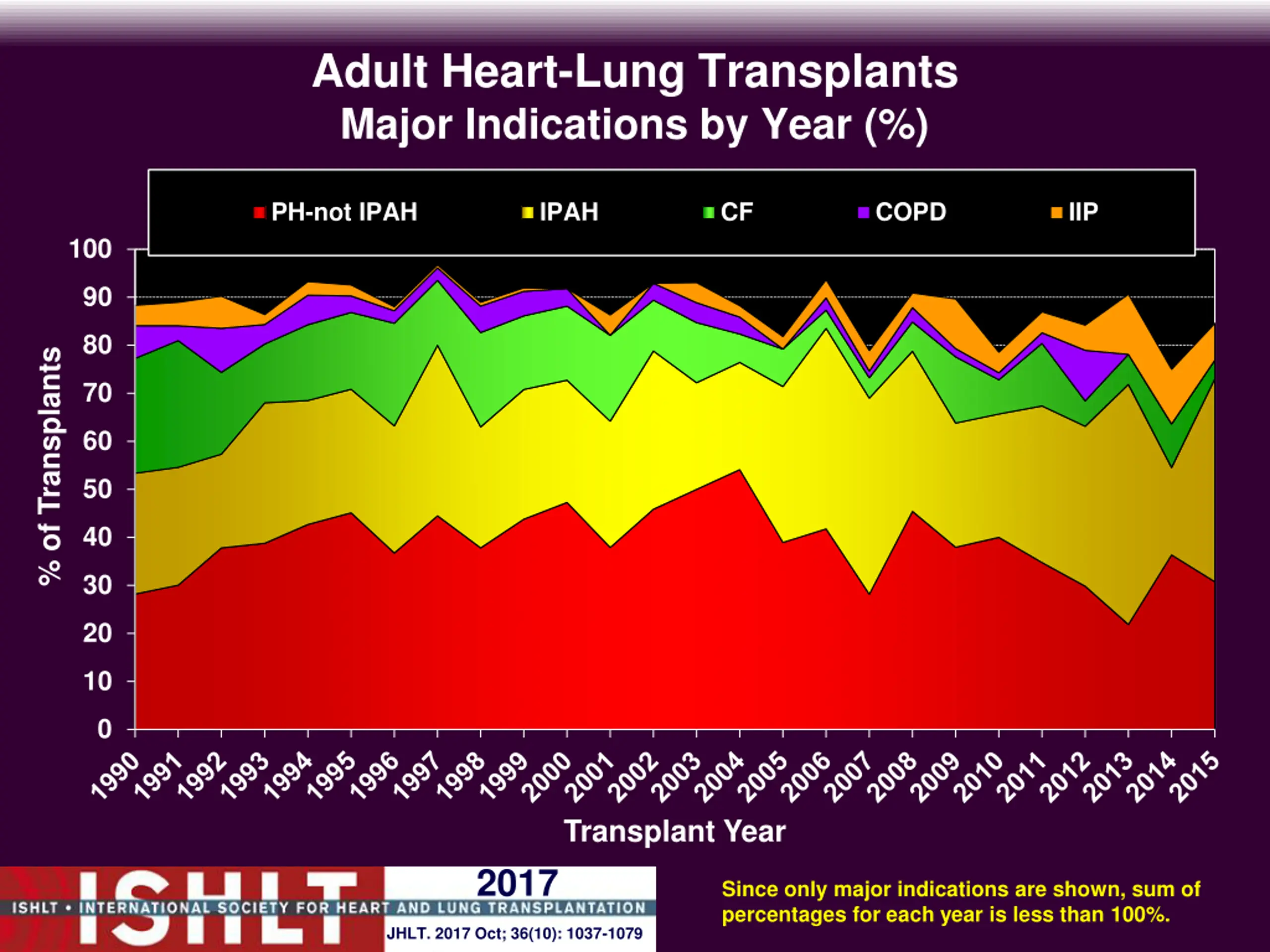

  9. Adult Heart-Lung Transplants Major Indications by Year (%) PH-not IPAH IPAH CF COPD IIP 100 90 80 % of Transplants 70 60 50 40 30 20 10 0 Transplant Year 2017 Since only major indications are shown, sum of percentages for each year is less than 100%. JHLT. 2017 Oct; 36(10): 1037-1079

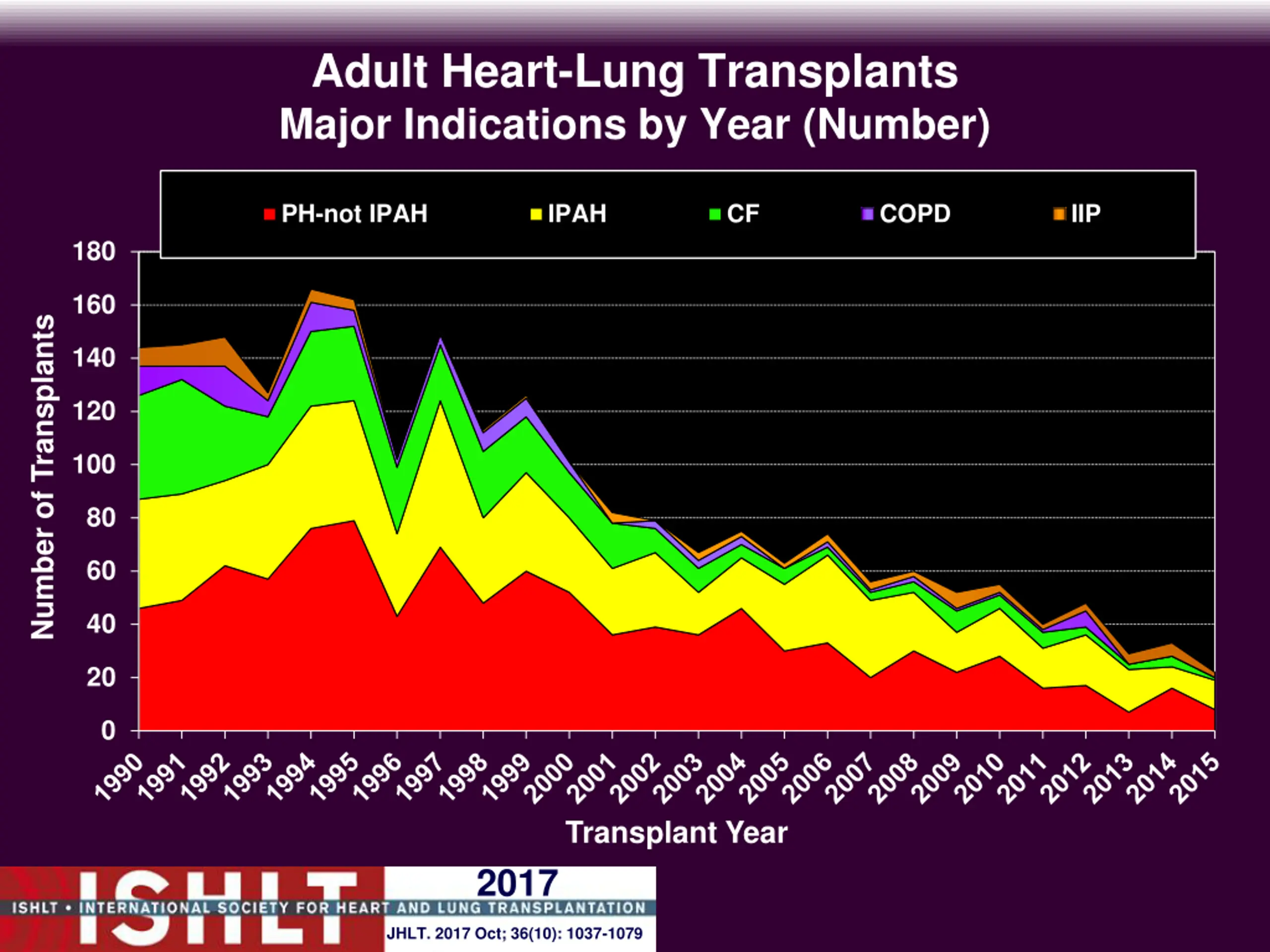

  10. Adult Heart-Lung Transplants Major Indications by Year (Number) PH-not IPAH IPAH CF COPD IIP 180 160 Number of Transplants 140 120 100 80 60 40 20 0 Transplant Year 2017 JHLT. 2017 Oct; 36(10): 1037-1079

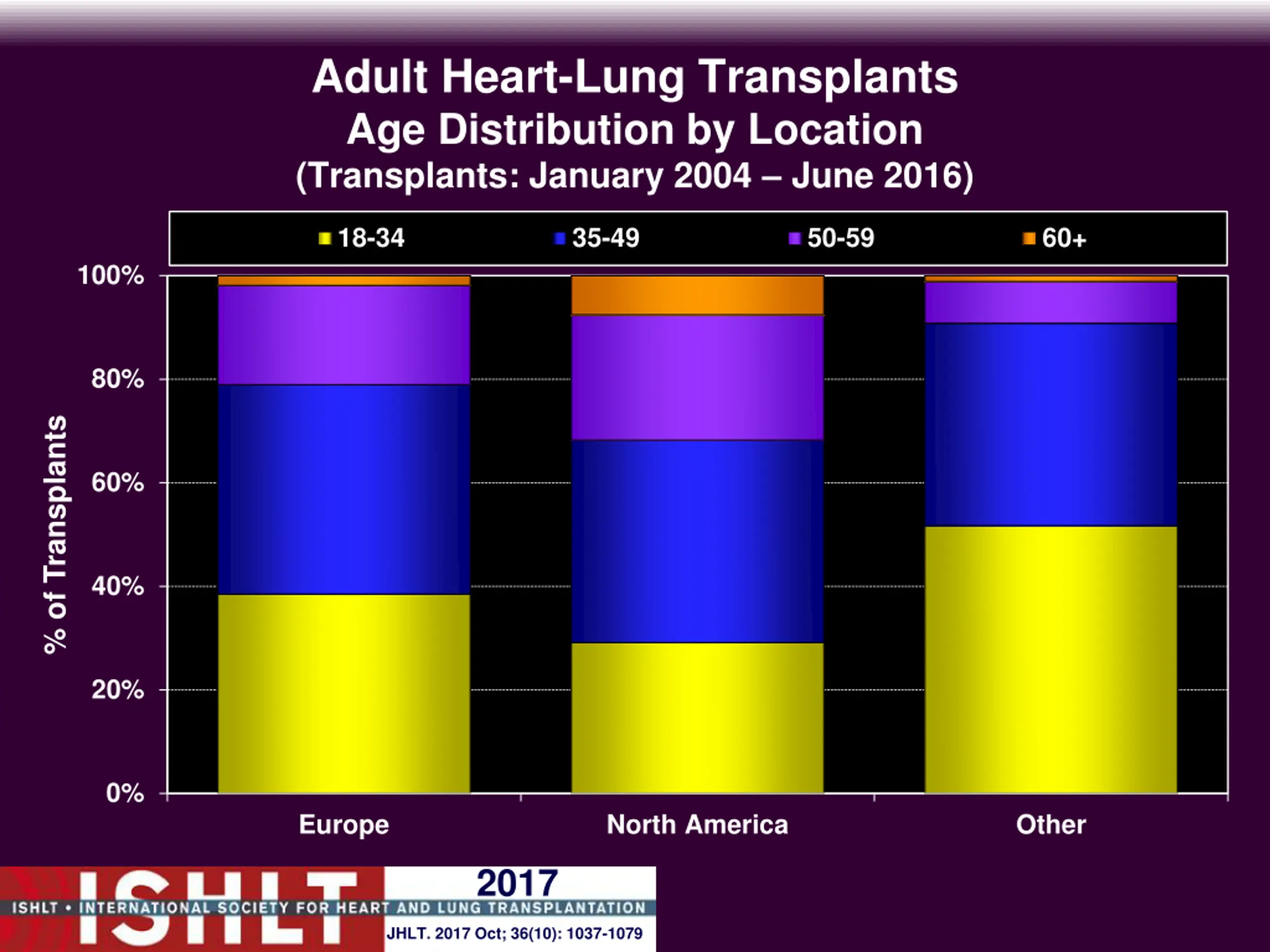

  11. Adult Heart-Lung Transplants Age Distribution by Location (Transplants: January 2004 June 2016) 18-34 35-49 50-59 60+ 100% 80% % of Transplants 60% 40% 20% 0% Europe North America Other 2017 JHLT. 2017 Oct; 36(10): 1037-1079

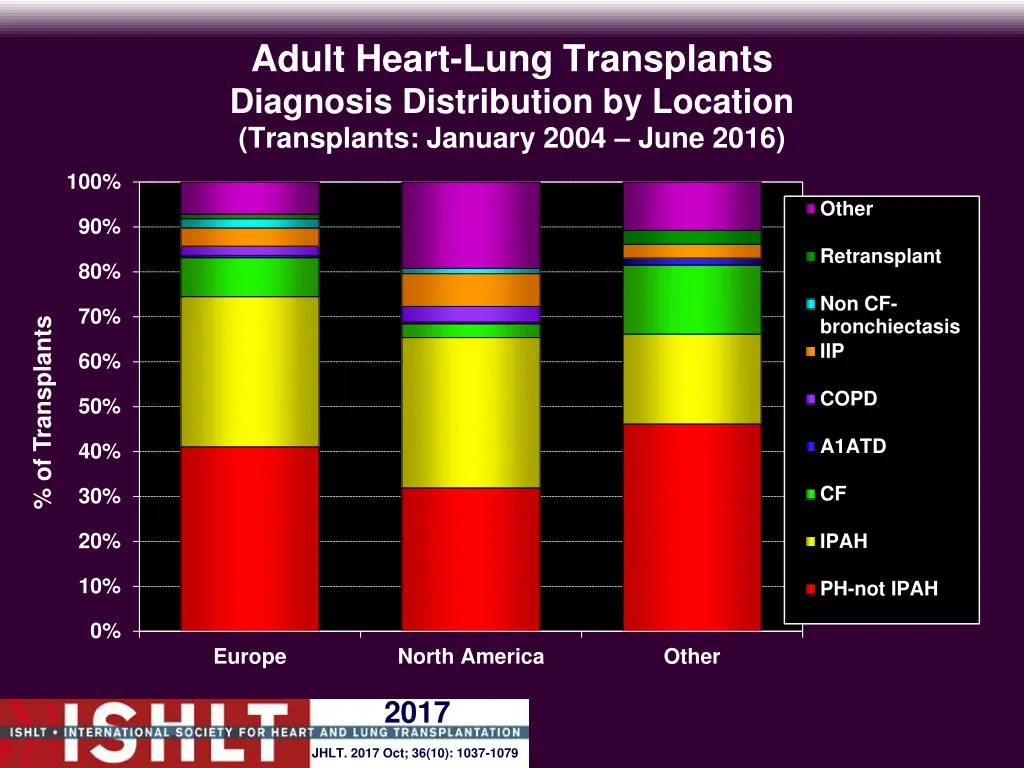

  12. Adult Heart-Lung Transplants Diagnosis Distribution by Location (Transplants: January 2004 June 2016) 100% Other 90% Retransplant 80% Non CF- bronchiectasis IIP 70% % of Transplants 60% COPD 50% A1ATD 40% CF 30% 20% IPAH 10% PH-not IPAH 0% Europe North America Other 2017 JHLT. 2017 Oct; 36(10): 1037-1079

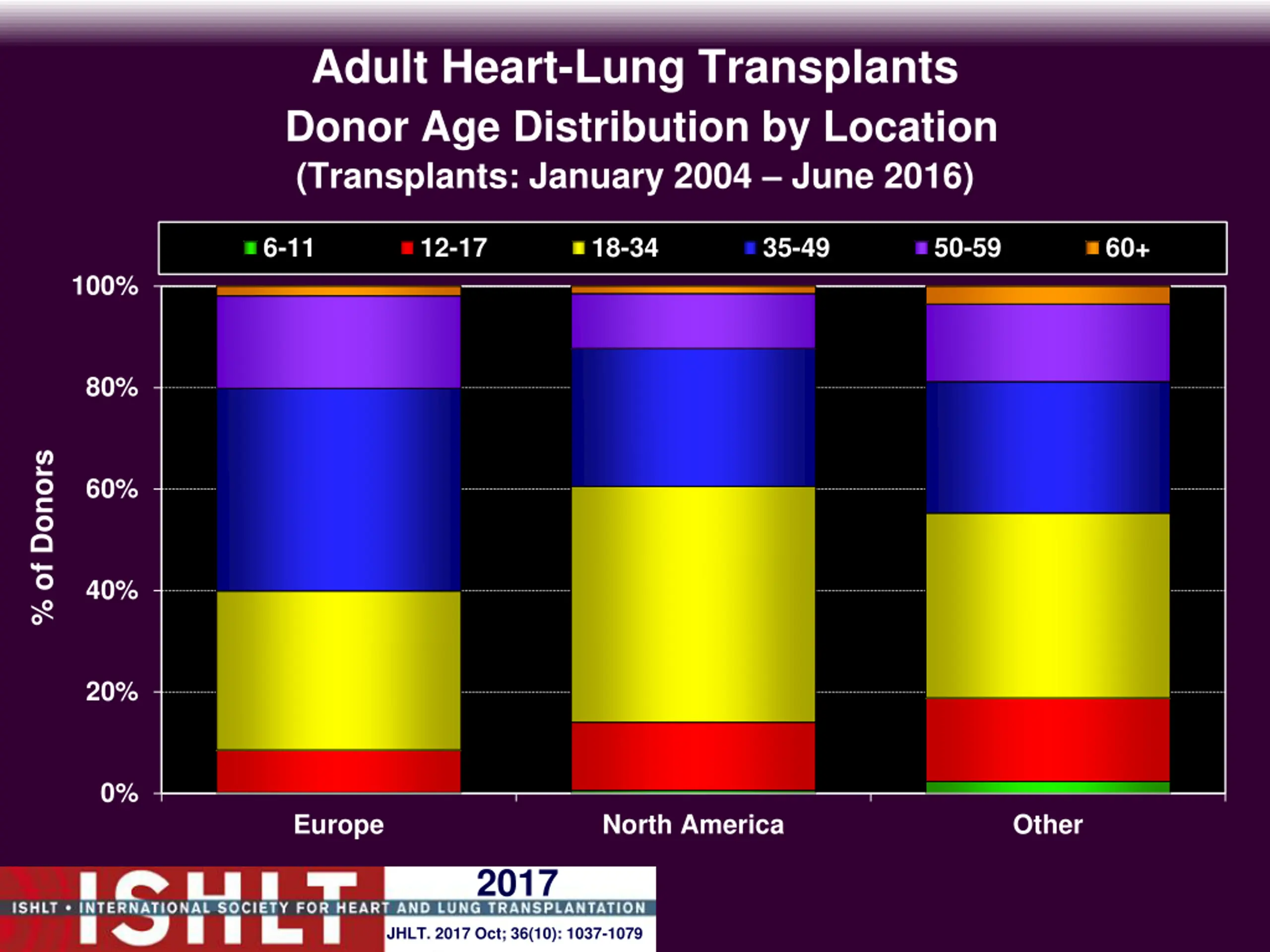

  13. Adult Heart-Lung Transplants Donor Age Distribution by Location (Transplants: January 2004 June 2016) 6-11 12-17 18-34 35-49 50-59 60+ 100% 80% % of Donors 60% 40% 20% 0% Europe North America Other 2017 JHLT. 2017 Oct; 36(10): 1037-1079

  14. Post Transplant Survival and Other Outcomes 2017 JHLT. 2017 Oct; 36(10): 1037-1079

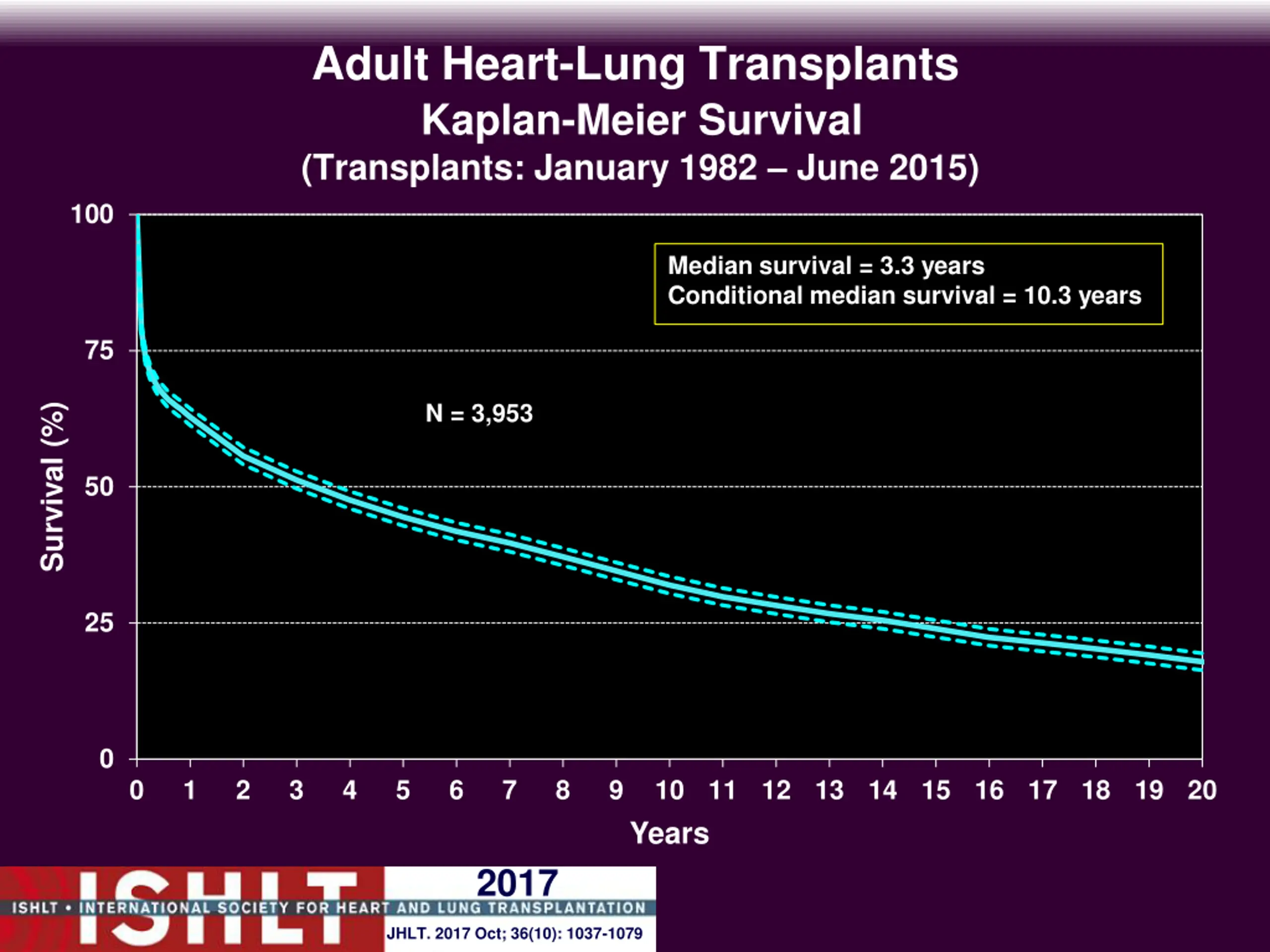

  15. Adult Heart-Lung Transplants Kaplan-Meier Survival (Transplants: January 1982 June 2015) 100 Median survival = 3.3 years Conditional median survival = 10.3 years 75 N = 3,953 Survival (%) 50 25 0 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Years 2017 JHLT. 2017 Oct; 36(10): 1037-1079

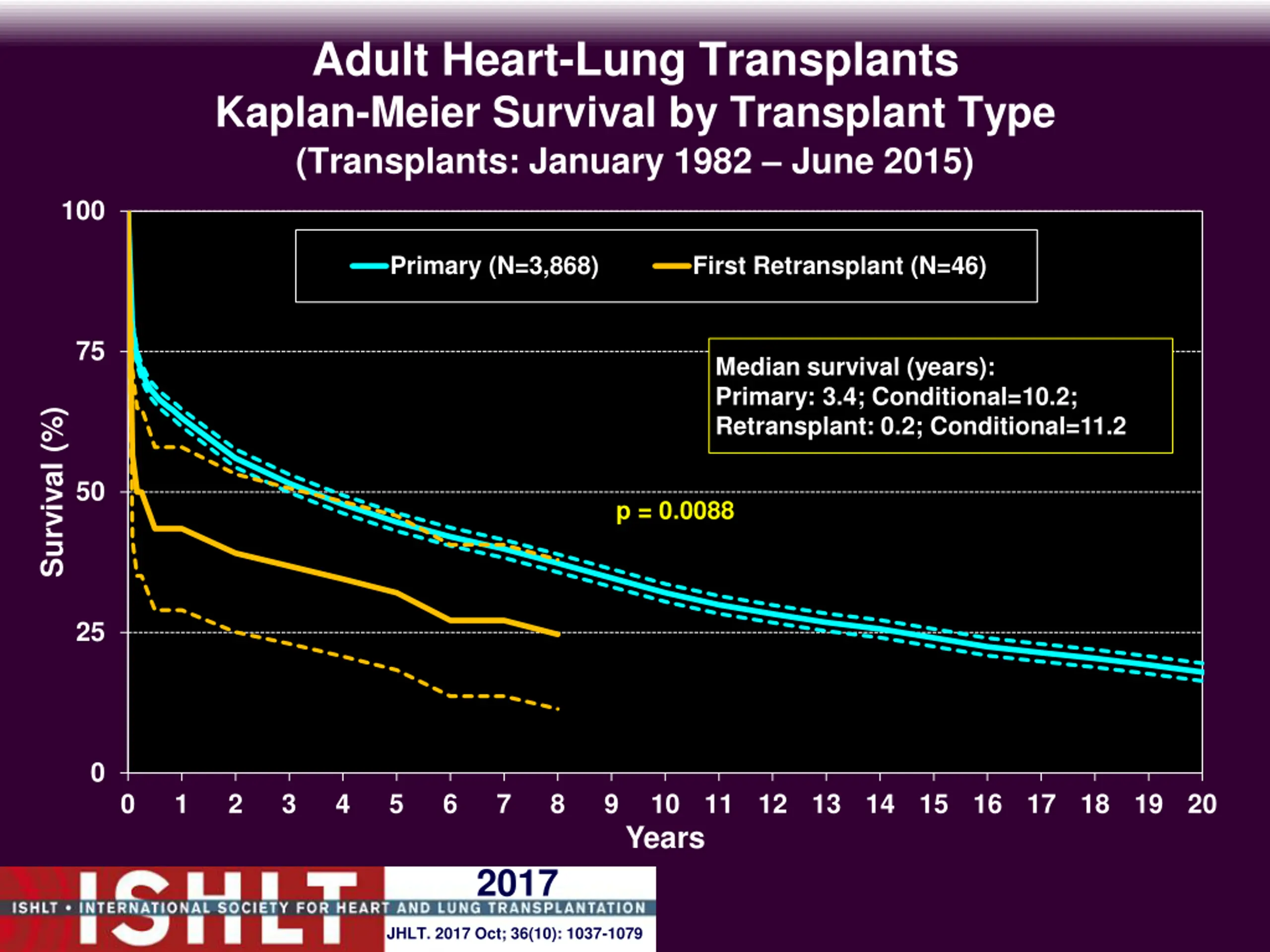

  16. Adult Heart-Lung Transplants Kaplan-Meier Survival by Transplant Type (Transplants: January 1982 June 2015) 100 Primary (N=3,868) First Retransplant (N=46) 75 Median survival (years): Primary: 3.4; Conditional=10.2; Retransplant: 0.2; Conditional=11.2 Survival (%) 50 p = 0.0088 25 0 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Years 2017 JHLT. 2017 Oct; 36(10): 1037-1079

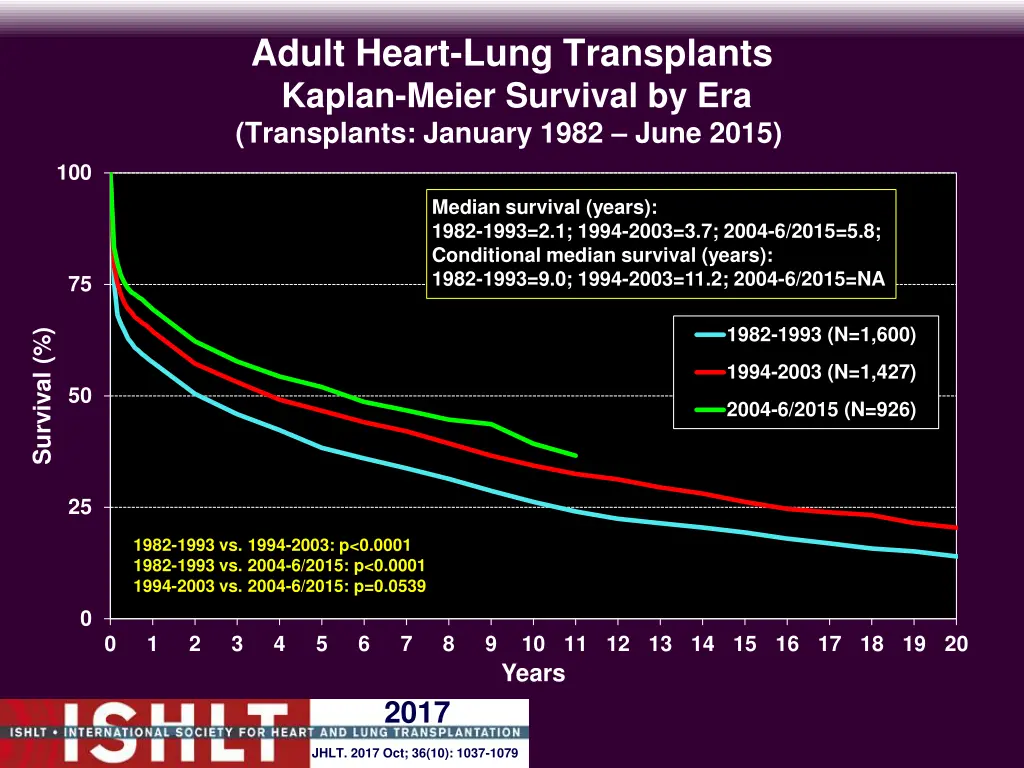

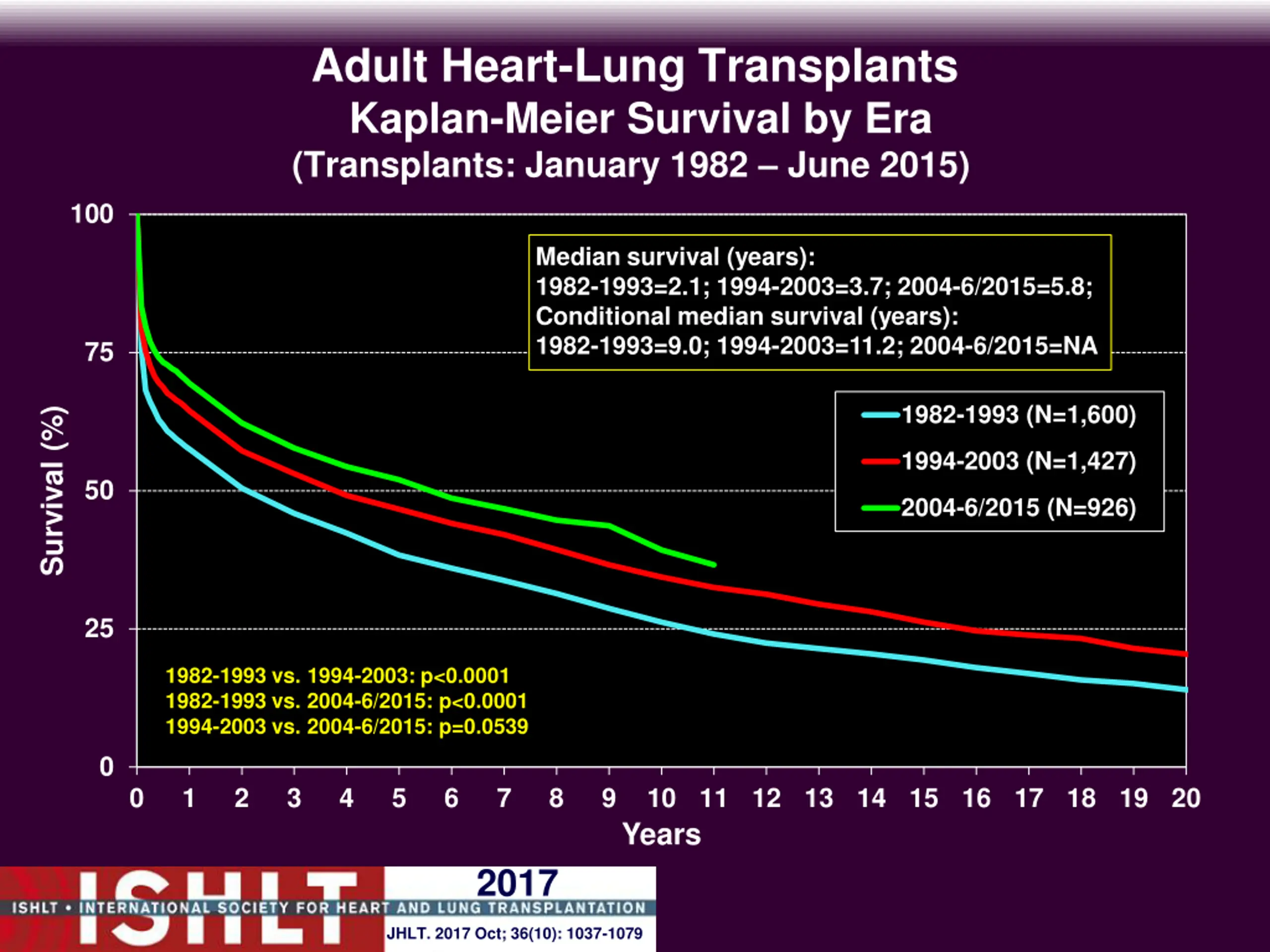

  17. Adult Heart-Lung Transplants Kaplan-Meier Survival by Era (Transplants: January 1982 June 2015) 100 Median survival (years): 1982-1993=2.1; 1994-2003=3.7; 2004-6/2015=5.8; Conditional median survival (years): 1982-1993=9.0; 1994-2003=11.2; 2004-6/2015=NA 75 1982-1993 (N=1,600) Survival (%) 1994-2003 (N=1,427) 50 2004-6/2015 (N=926) 25 1982-1993 vs. 1994-2003: p<0.0001 1982-1993 vs. 2004-6/2015: p<0.0001 1994-2003 vs. 2004-6/2015: p=0.0539 0 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Years 2017 JHLT. 2017 Oct; 36(10): 1037-1079

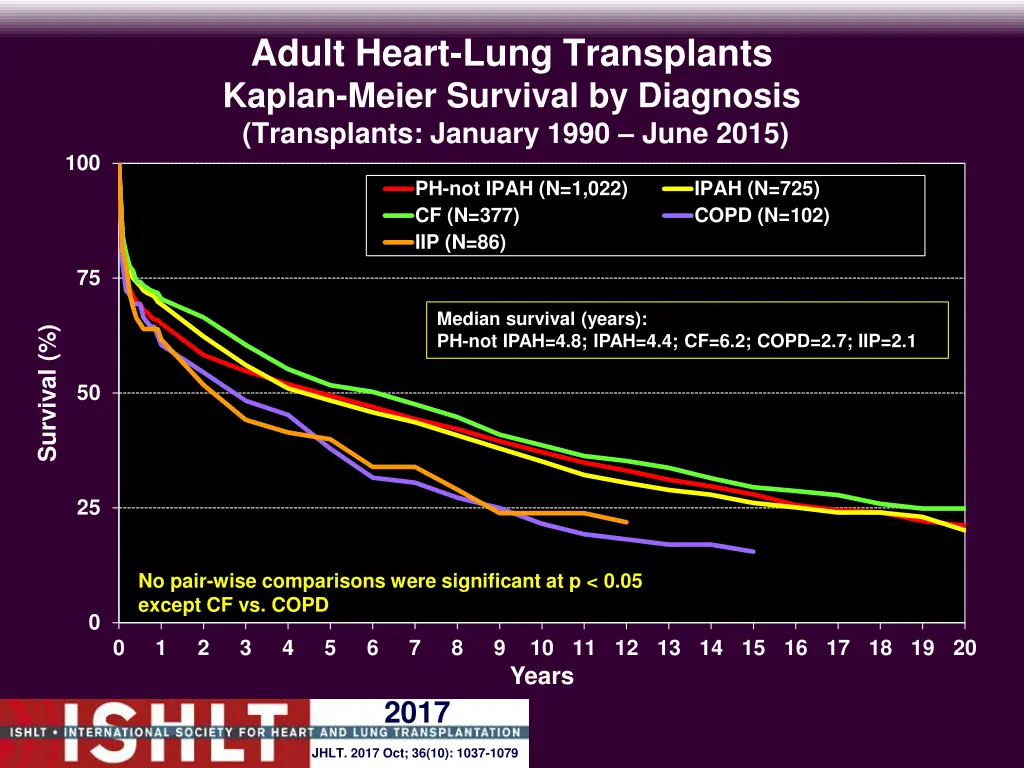

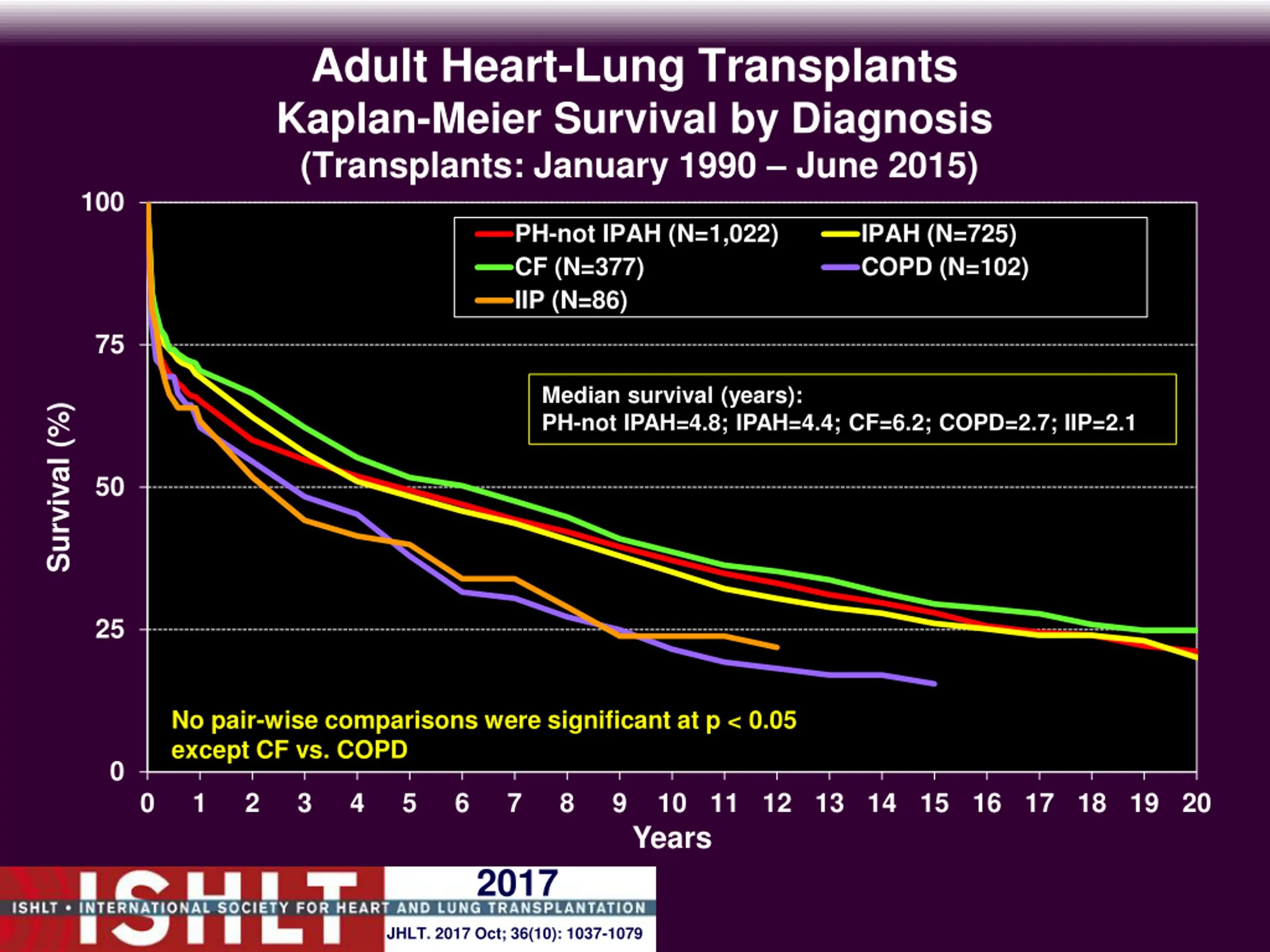

  18. Adult Heart-Lung Transplants Kaplan-Meier Survival by Diagnosis (Transplants: January 1990 June 2015) 100 PH-not IPAH (N=1,022) CF (N=377) IIP (N=86) IPAH (N=725) COPD (N=102) 75 Median survival (years): PH-not IPAH=4.8; IPAH=4.4; CF=6.2; COPD=2.7; IIP=2.1 Survival (%) 50 25 No pair-wise comparisons were significant at p < 0.05 except CF vs. COPD 0 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Years 2017 JHLT. 2017 Oct; 36(10): 1037-1079

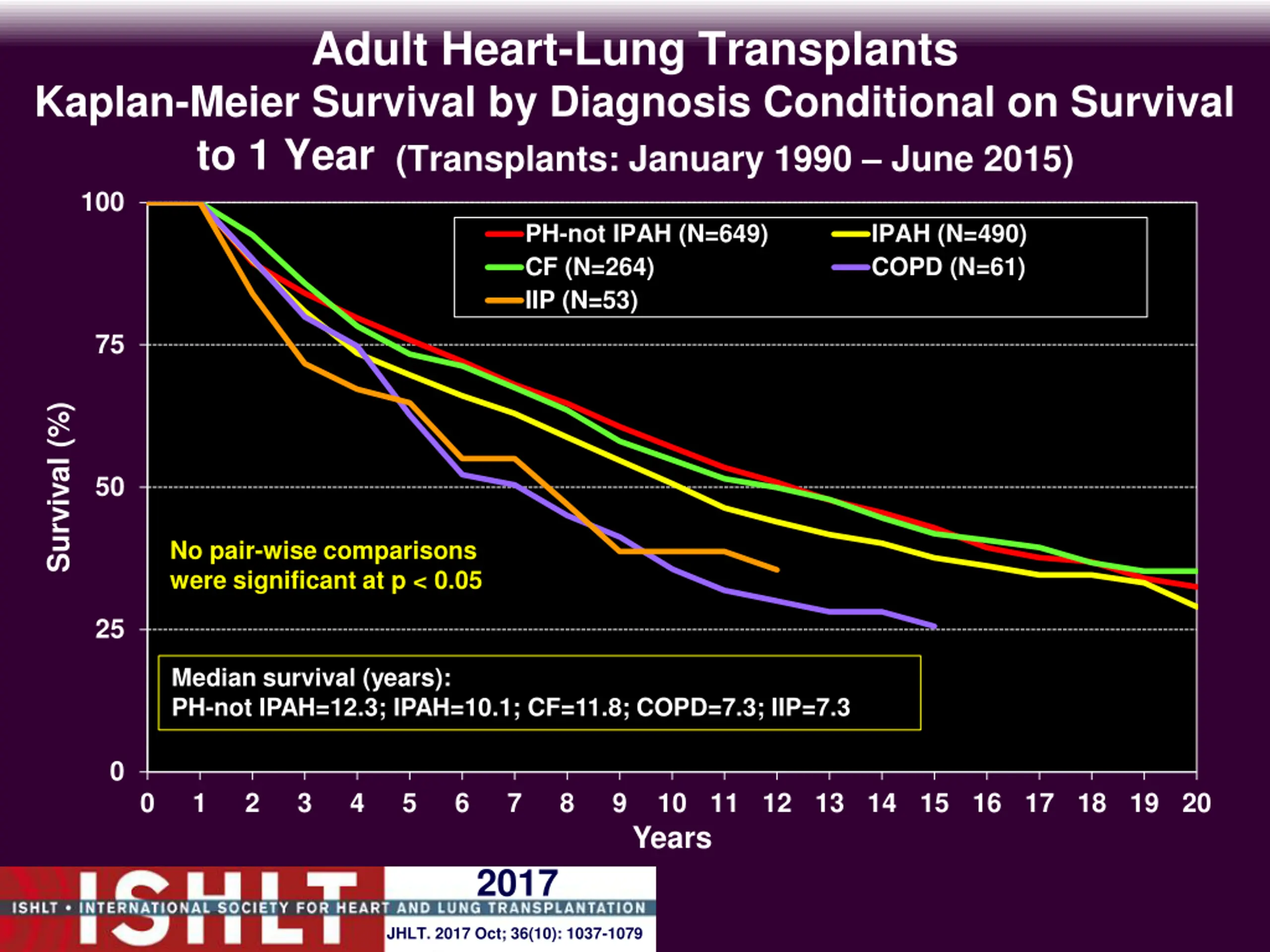

  19. Adult Heart-Lung Transplants Kaplan-Meier Survival by Diagnosis Conditional on Survival to 1 Year (Transplants: January 1990 June 2015) 100 PH-not IPAH (N=649) CF (N=264) IIP (N=53) IPAH (N=490) COPD (N=61) 75 Survival (%) 50 No pair-wise comparisons were significant at p < 0.05 25 Median survival (years): PH-not IPAH=12.3; IPAH=10.1; CF=11.8; COPD=7.3; IIP=7.3 0 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Years 2017 JHLT. 2017 Oct; 36(10): 1037-1079

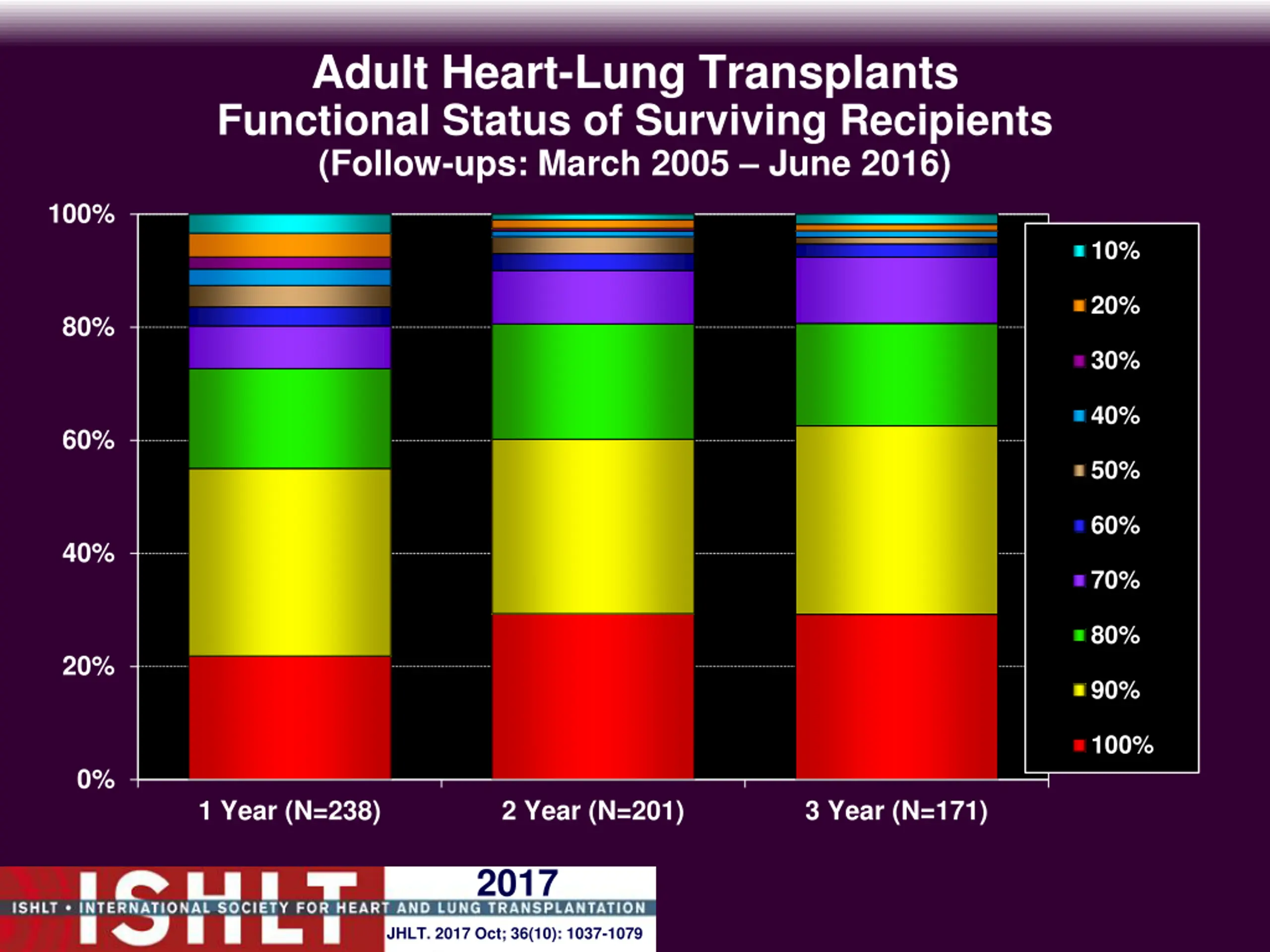

  20. Adult Heart-Lung Transplants Functional Status of Surviving Recipients (Follow-ups: March 2005 June 2016) 100% 10% 20% 80% 30% 40% 60% 50% 60% 40% 70% 80% 20% 90% 100% 0% 1 Year (N=238) 2 Year (N=201) 3 Year (N=171) 2017 JHLT. 2017 Oct; 36(10): 1037-1079

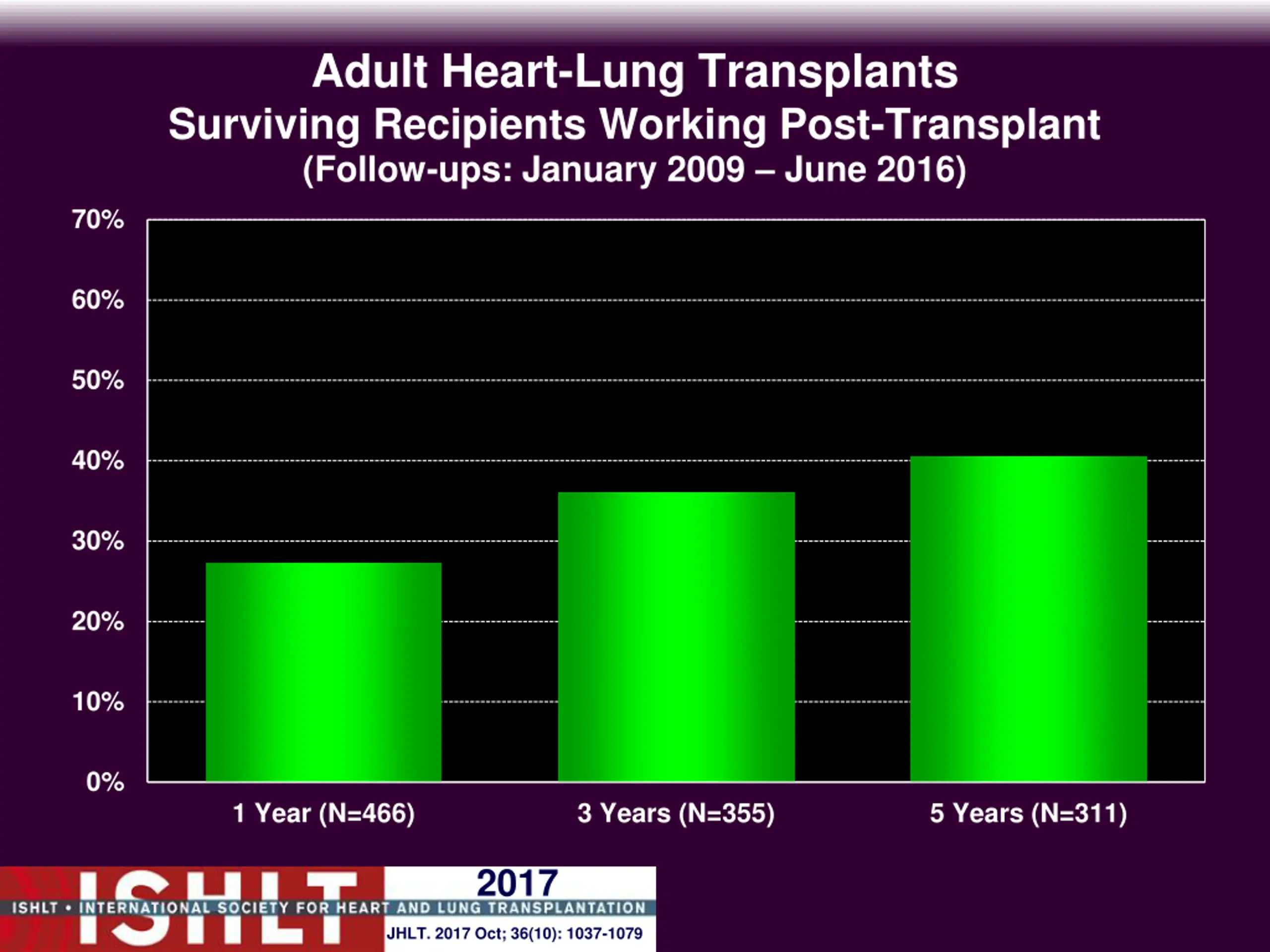

  21. Adult Heart-Lung Transplants Surviving Recipients Working Post-Transplant (Follow-ups: January 2009 June 2016) 70% 60% 50% 40% 30% 20% 10% 0% 1 Year (N=466) 3 Years (N=355) 5 Years (N=311) 2017 JHLT. 2017 Oct; 36(10): 1037-1079

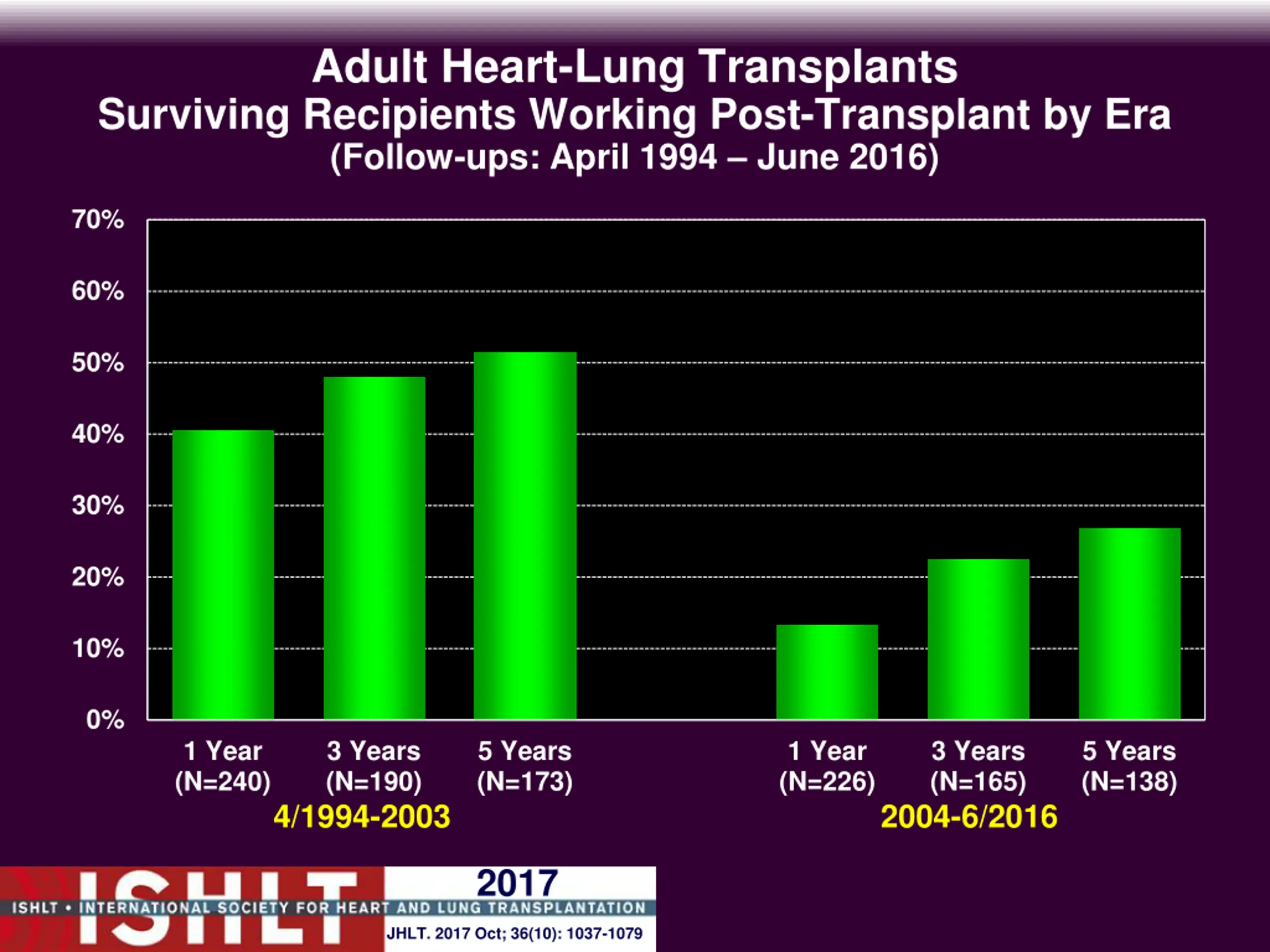

  22. Adult Heart-Lung Transplants Surviving Recipients Working Post-Transplant by Era (Follow-ups: April 1994 June 2016) 70% 60% 50% 40% 30% 20% 10% 0% 1 Year (N=240) 3 Years (N=190) 5 Years (N=173) 1 Year (N=226) 3 Years (N=165) 5 Years (N=138) 4/1994-2003 2004-6/2016 2017 JHLT. 2017 Oct; 36(10): 1037-1079

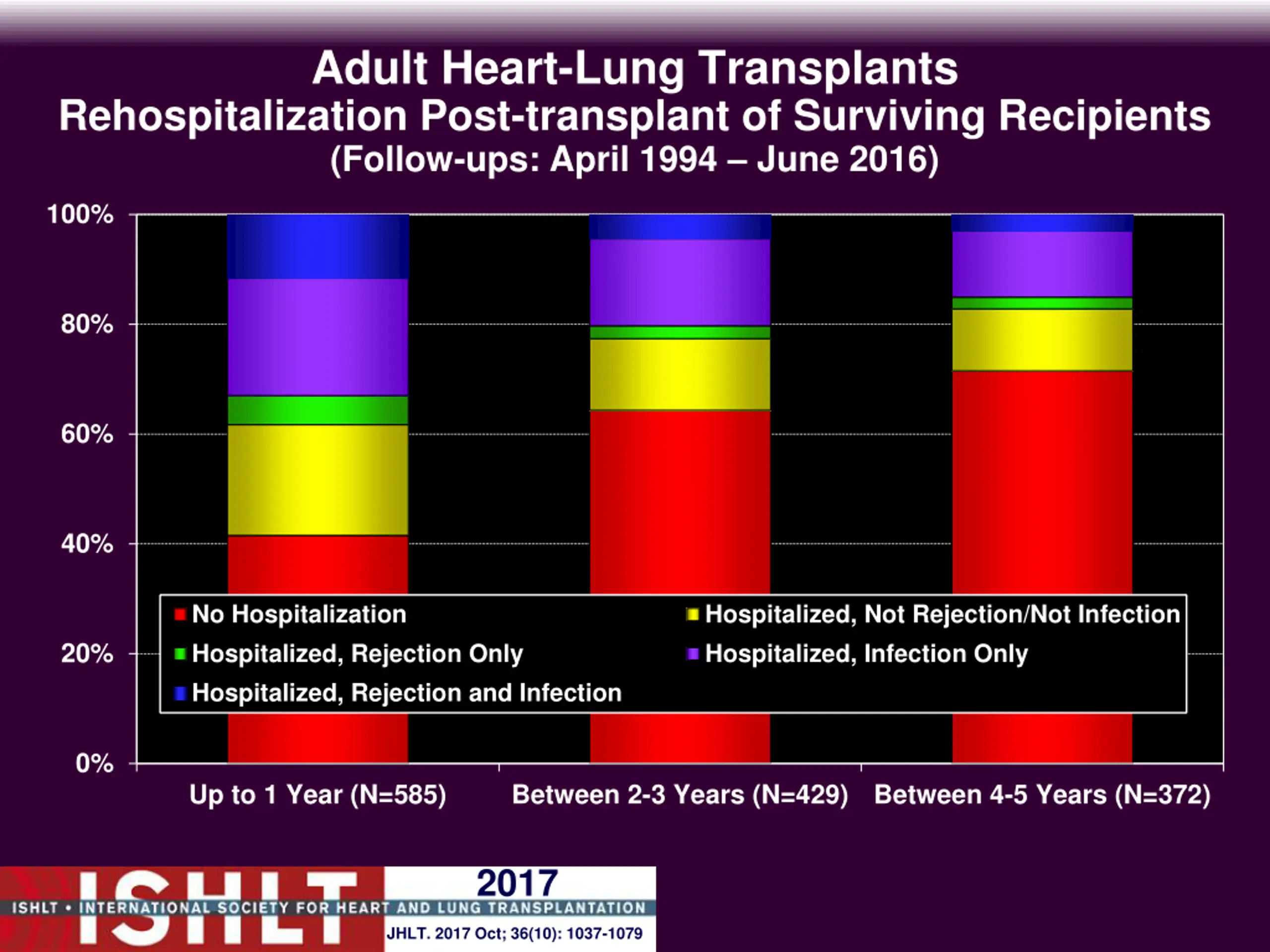

  23. Adult Heart-Lung Transplants Rehospitalization Post-transplant of Surviving Recipients (Follow-ups: April 1994 June 2016) 100% 80% 60% 40% No Hospitalization Hospitalized, Rejection Only Hospitalized, Rejection and Infection Hospitalized, Not Rejection/Not Infection Hospitalized, Infection Only 20% 0% Up to 1 Year (N=585) Between 2-3 Years (N=429) Between 4-5 Years (N=372) 2017 JHLT. 2017 Oct; 36(10): 1037-1079

  24. Induction and Maintenance Immunosuppression 2017 JHLT. 2017 Oct; 36(10): 1037-1079

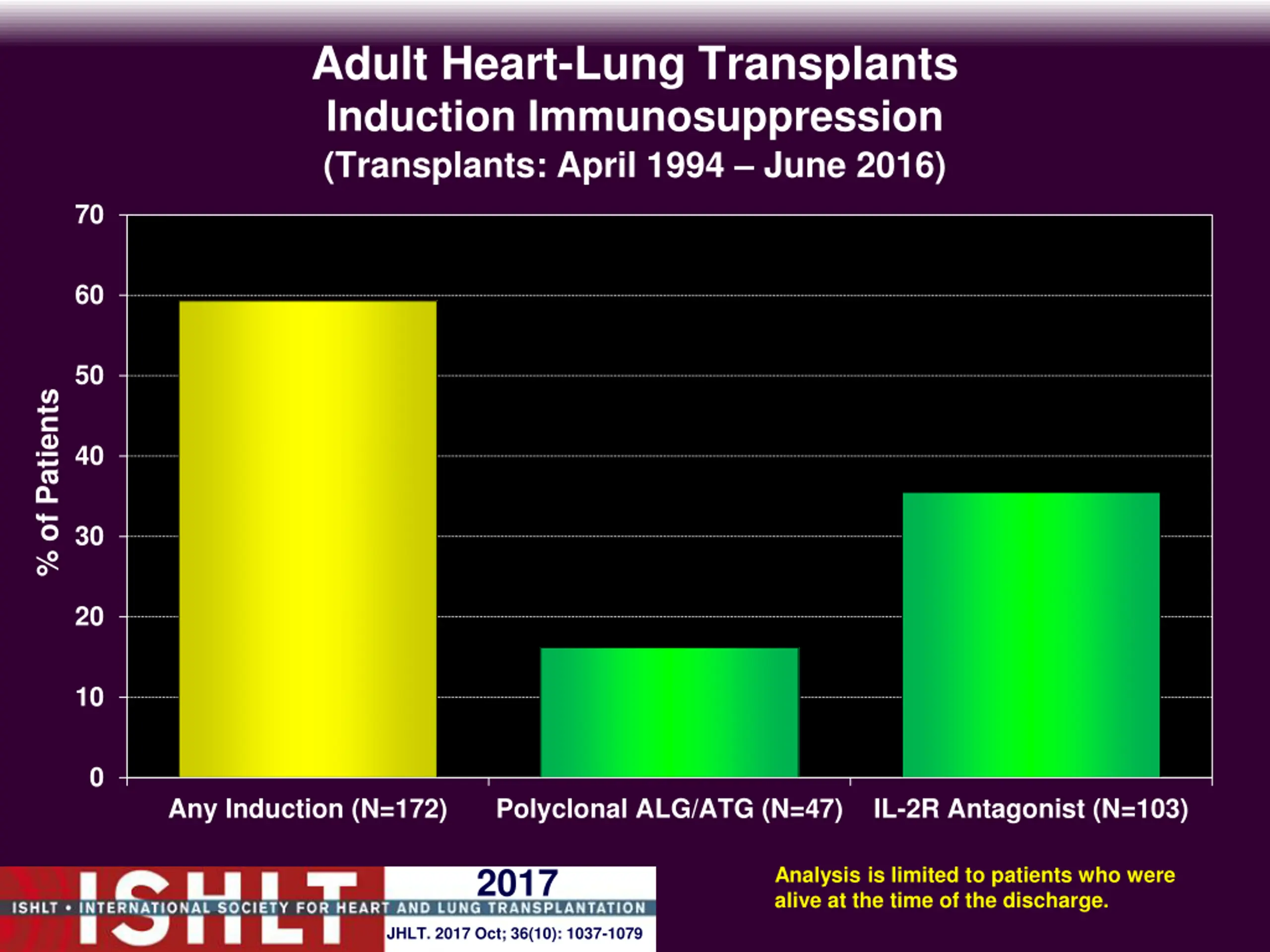

  25. Adult Heart-Lung Transplants Induction Immunosuppression (Transplants: April 1994 June 2016) 70 60 50 % of Patients 40 30 20 10 0 Any Induction (N=172) Polyclonal ALG/ATG (N=47) IL-2R Antagonist (N=103) 2017 Analysis is limited to patients who were alive at the time of the discharge. JHLT. 2017 Oct; 36(10): 1037-1079

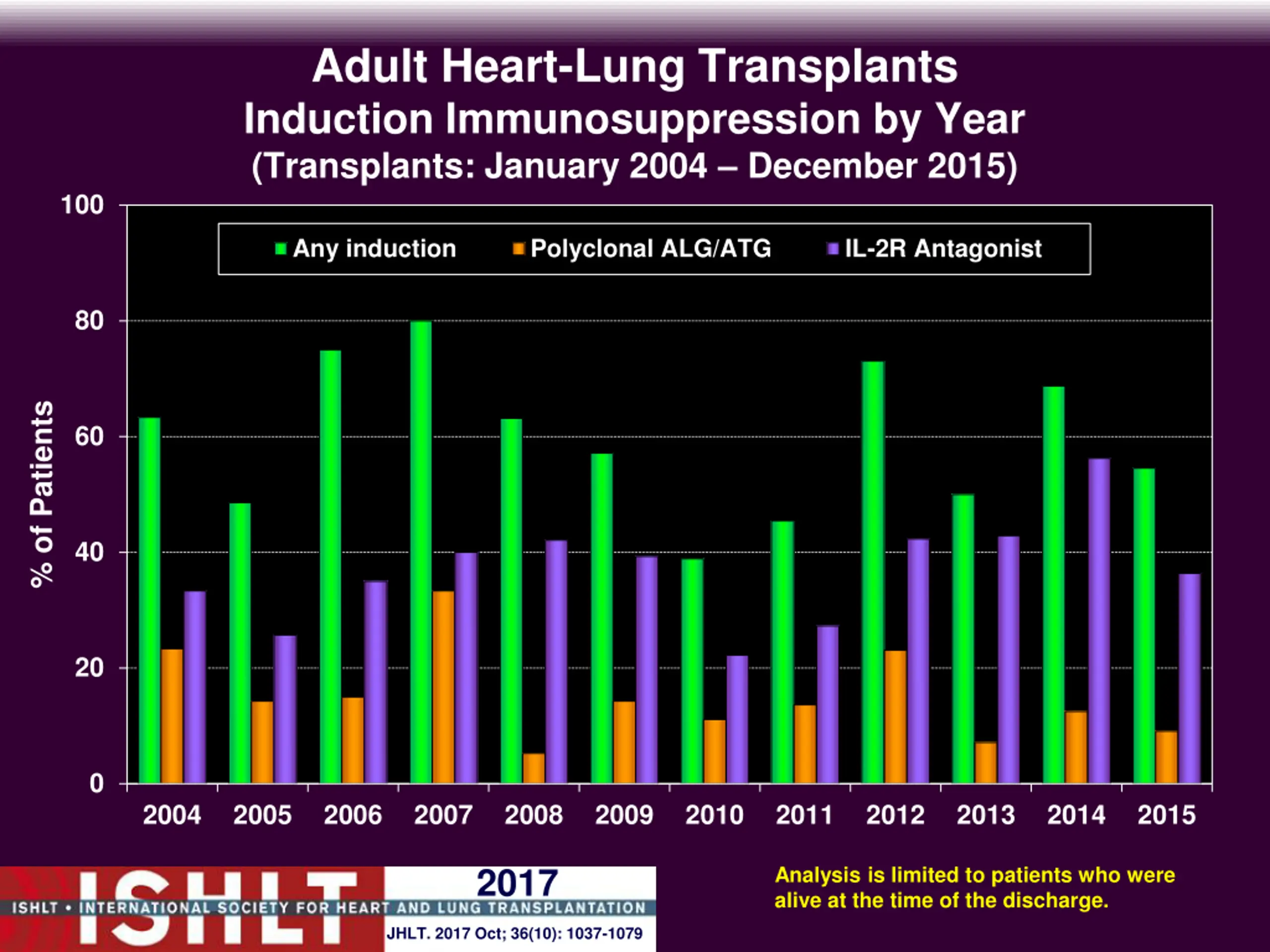

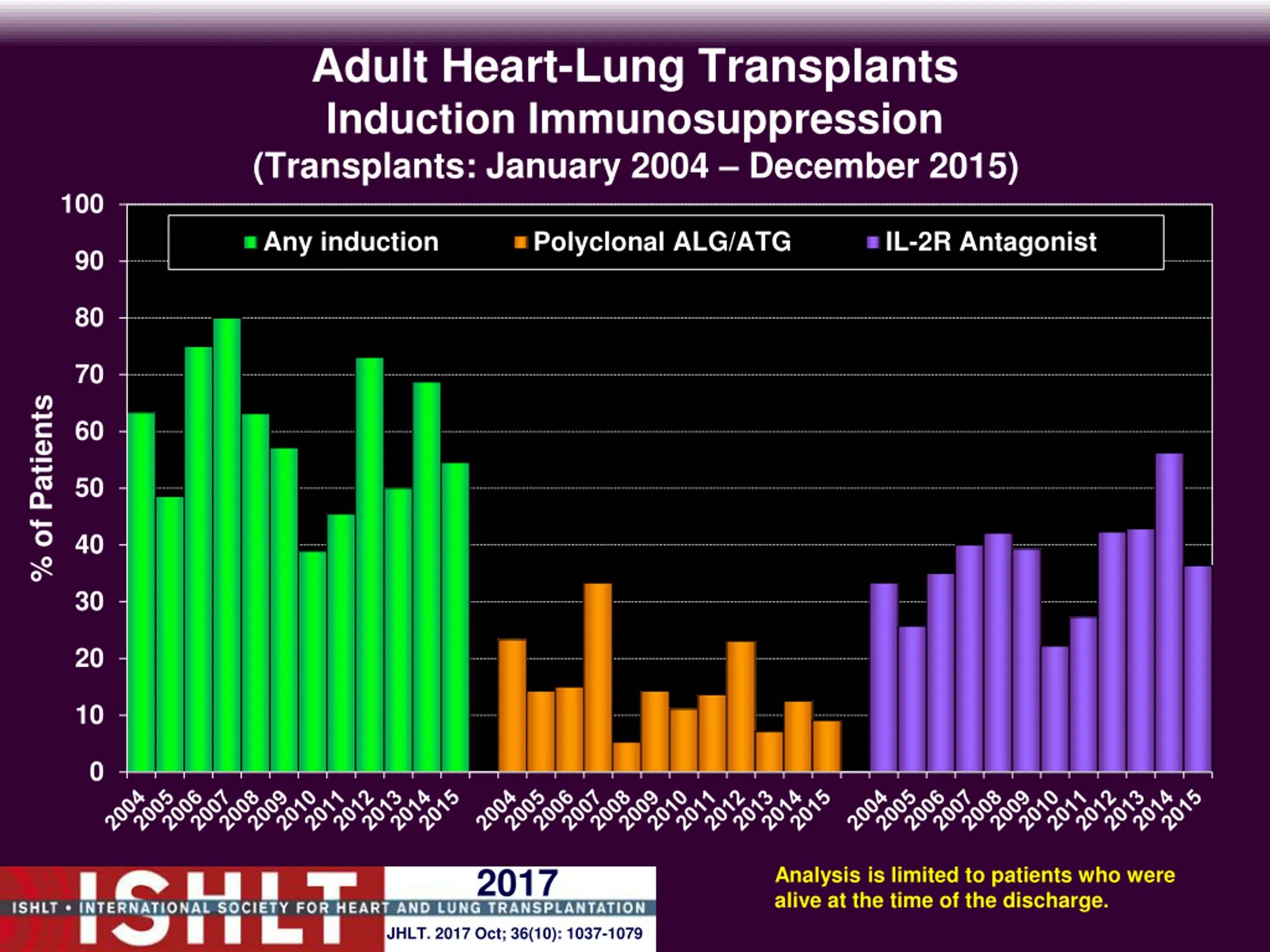

  26. Adult Heart-Lung Transplants Induction Immunosuppression by Year (Transplants: January 2004 December 2015) 100 Any induction Polyclonal ALG/ATG IL-2R Antagonist 80 % of Patients 60 40 20 0 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2017 Analysis is limited to patients who were alive at the time of the discharge. JHLT. 2017 Oct; 36(10): 1037-1079

  27. Adult Heart-Lung Transplants Induction Immunosuppression (Transplants: January 2004 December 2015) 100 Any induction Polyclonal ALG/ATG IL-2R Antagonist 90 80 70 % of Patients 60 50 40 30 20 10 0 2017 Analysis is limited to patients who were alive at the time of the discharge. JHLT. 2017 Oct; 36(10): 1037-1079

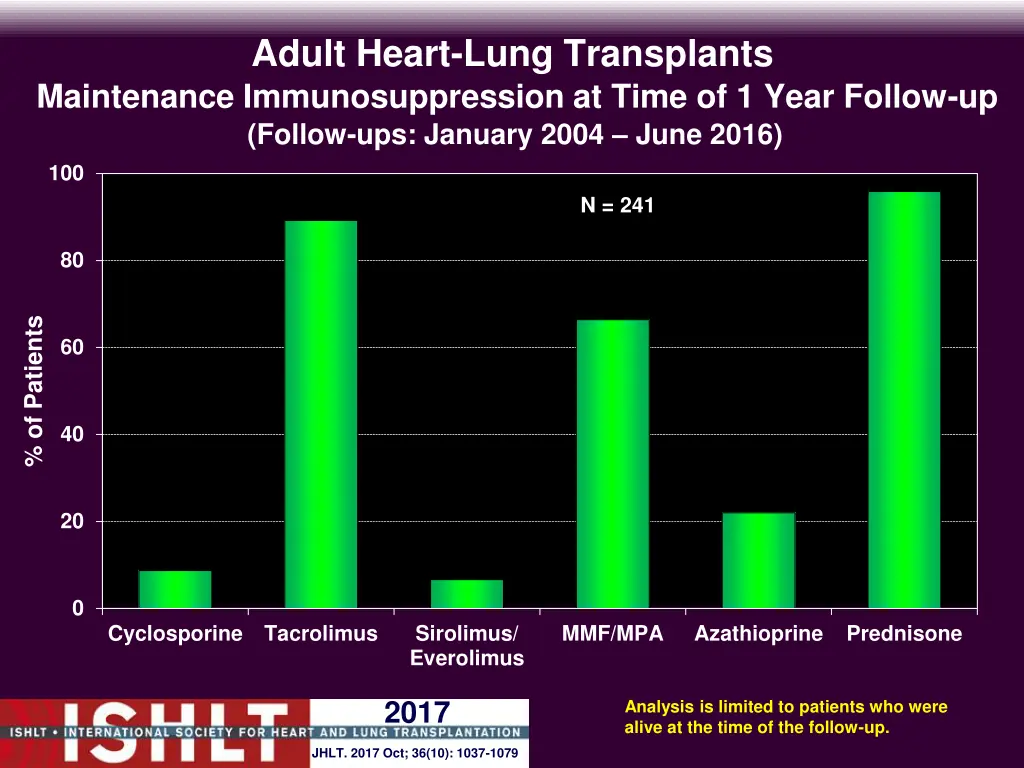

  28. Adult Heart-Lung Transplants Maintenance Immunosuppression at Time of 1 Year Follow-up (Follow-ups: January 2004 June 2016) 100 N = 241 80 % of Patients 60 40 20 0 Cyclosporine Tacrolimus Sirolimus/ Everolimus MMF/MPA Azathioprine Prednisone 2017 Analysis is limited to patients who were alive at the time of the follow-up. JHLT. 2017 Oct; 36(10): 1037-1079

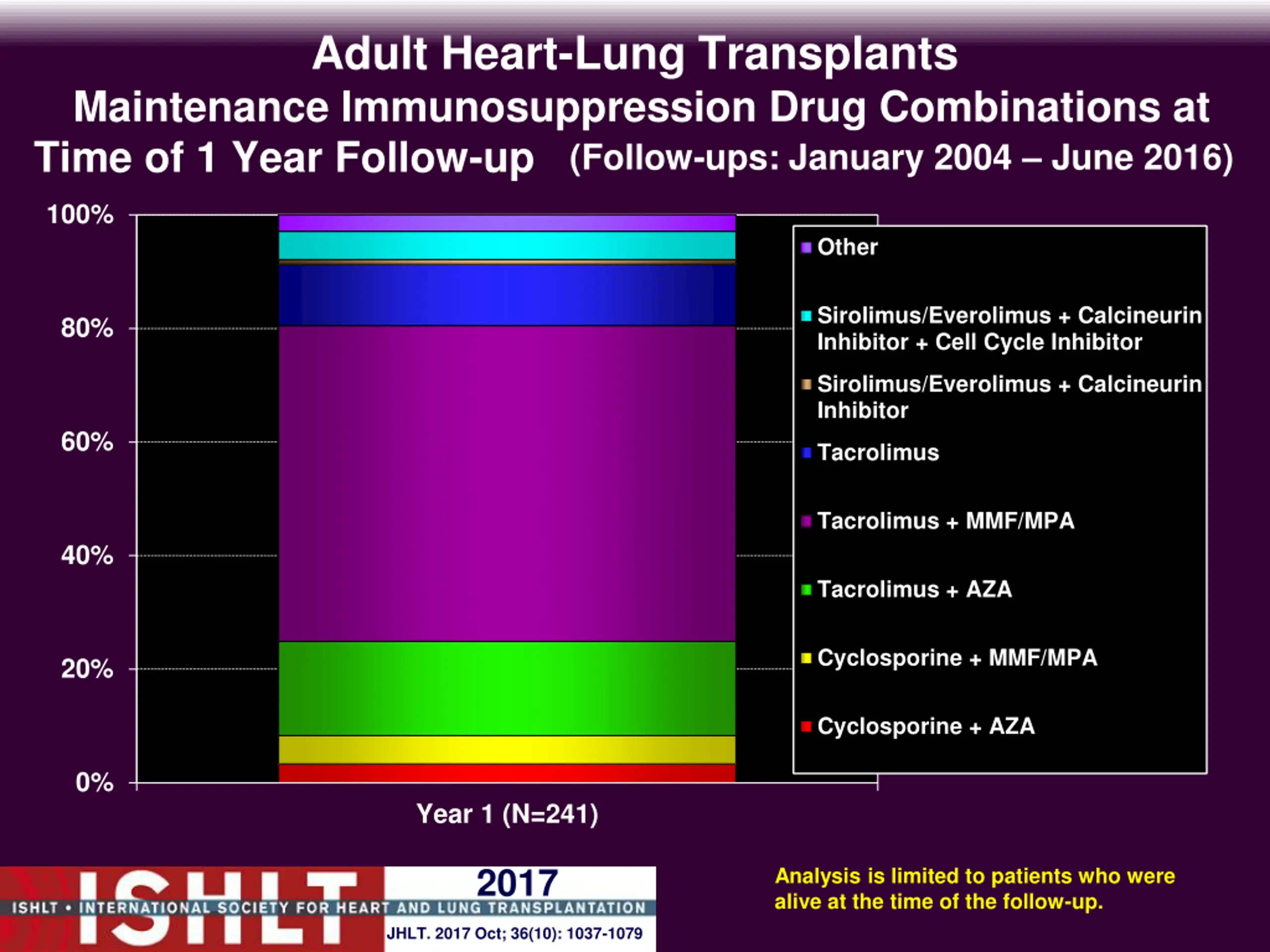

  29. Adult Heart-Lung Transplants Maintenance Immunosuppression Drug Combinations at Time of 1 Year Follow-up (Follow-ups: January 2004 June 2016) 100% Other Sirolimus/Everolimus + Calcineurin Inhibitor + Cell Cycle Inhibitor 80% Sirolimus/Everolimus + Calcineurin Inhibitor 60% Tacrolimus Tacrolimus + MMF/MPA 40% Tacrolimus + AZA Cyclosporine + MMF/MPA 20% Cyclosporine + AZA 0% Year 1 (N=241) 2017 Analysis is limited to patients who were alive at the time of the follow-up. JHLT. 2017 Oct; 36(10): 1037-1079

  30. Post Transplant Morbidities 2017 JHLT. 2017 Oct; 36(10): 1037-1079

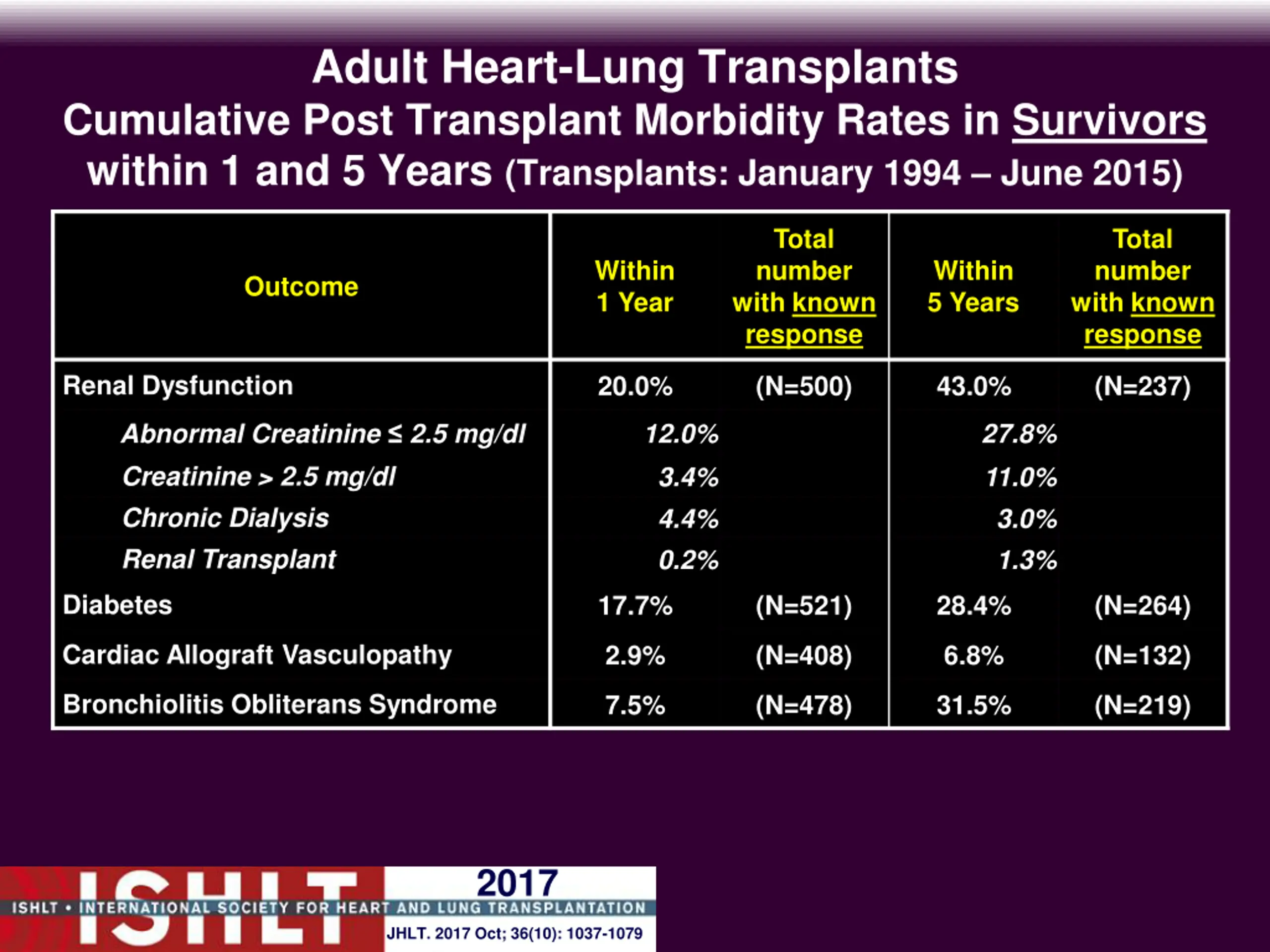

  31. Adult Heart-Lung Transplants Cumulative Post Transplant Morbidity Rates in Survivors within 1 and 5 Years (Transplants: January 1994 June 2015) Total number with known response Total number with known response Within 1 Year Within 5 Years Outcome Renal Dysfunction 20.0% (N=500) 43.0% (N=237) Abnormal Creatinine 2.5 mg/dl Creatinine > 2.5 mg/dl Chronic Dialysis Renal Transplant 12.0% 3.4% 4.4% 0.2% 27.8% 11.0% 3.0% 1.3% Diabetes 17.7% (N=521) 28.4% (N=264) Cardiac Allograft Vasculopathy 2.9% (N=408) 6.8% (N=132) Bronchiolitis Obliterans Syndrome 7.5% (N=478) 31.5% (N=219) 2017 JHLT. 2017 Oct; 36(10): 1037-1079

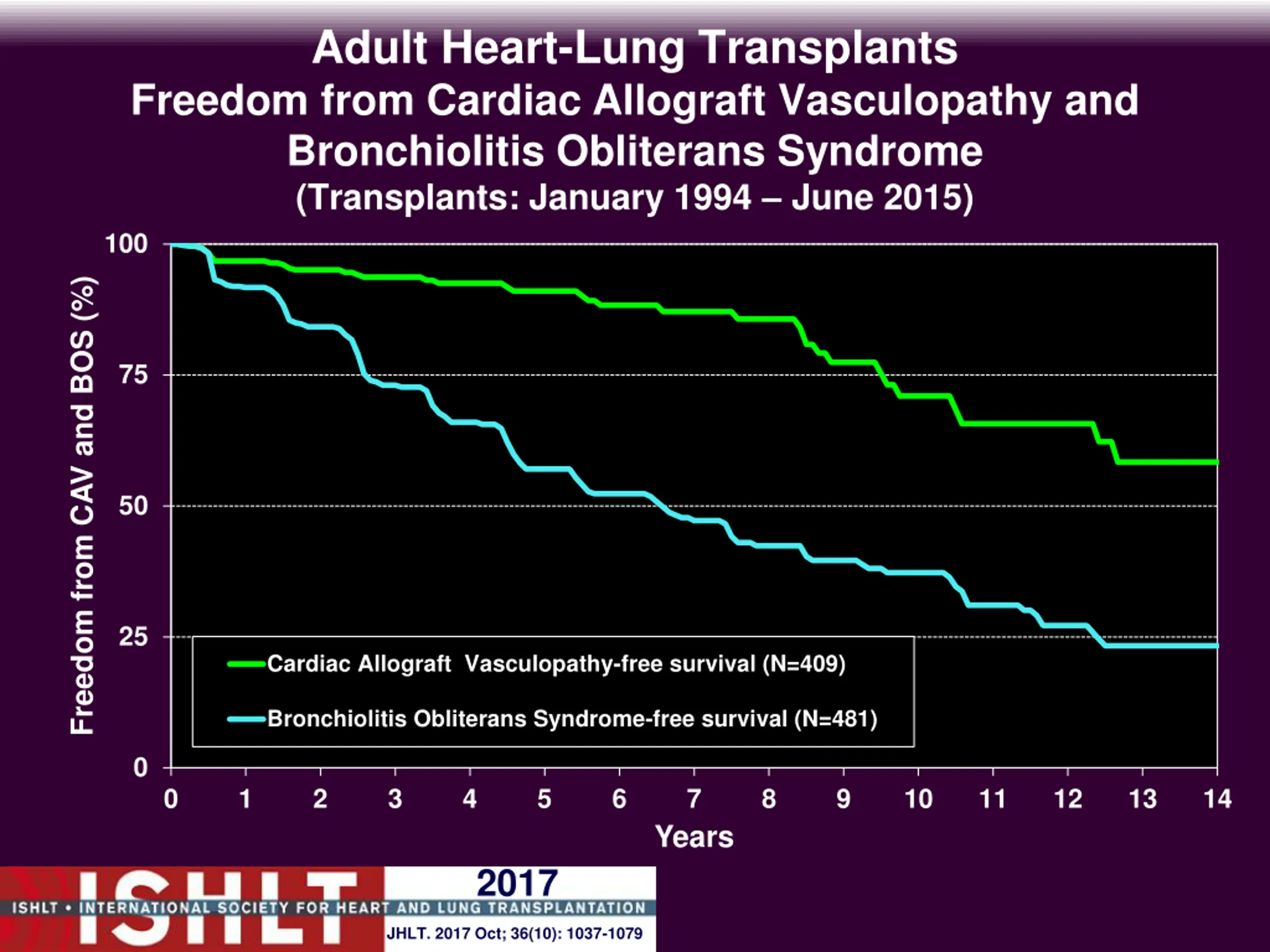

  32. Adult Heart-Lung Transplants Freedom from Cardiac Allograft Vasculopathy and Bronchiolitis Obliterans Syndrome (Transplants: January 1994 June 2015) 100 Freedom from CAV and BOS (%) 75 50 25 Cardiac Allograft Vasculopathy-free survival (N=409) Bronchiolitis Obliterans Syndrome-free survival (N=481) 0 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 Years 2017 JHLT. 2017 Oct; 36(10): 1037-1079

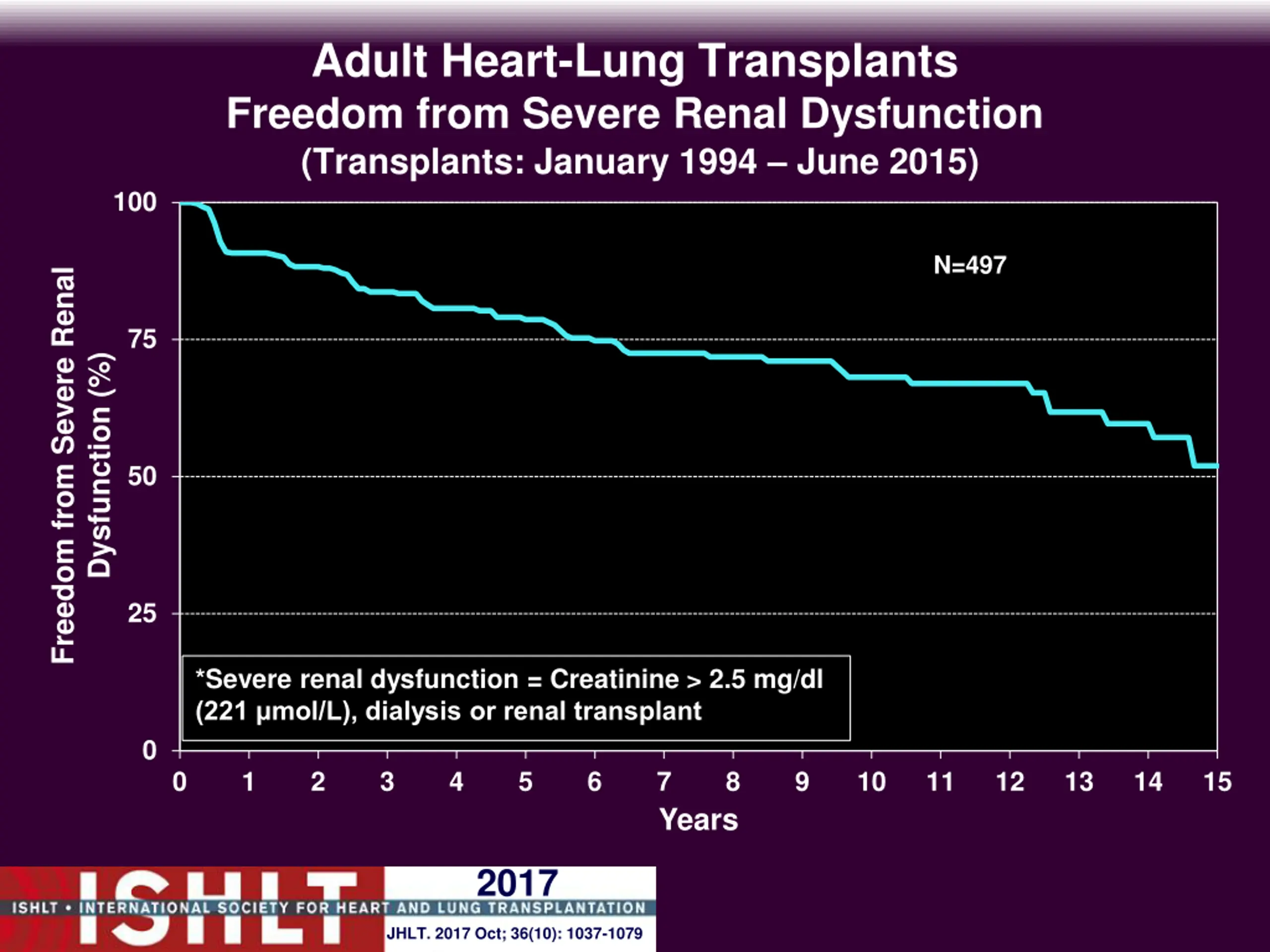

  33. Adult Heart-Lung Transplants Freedom from Severe Renal Dysfunction (Transplants: January 1994 June 2015) 100 N=497 Freedom from Severe Renal 75 Dysfunction (%) 50 25 *Severe renal dysfunction = Creatinine > 2.5 mg/dl (221 mol/L), dialysis or renal transplant 0 0 1 2 3 4 5 6 7 Years 8 9 10 11 12 13 14 15 2017 JHLT. 2017 Oct; 36(10): 1037-1079

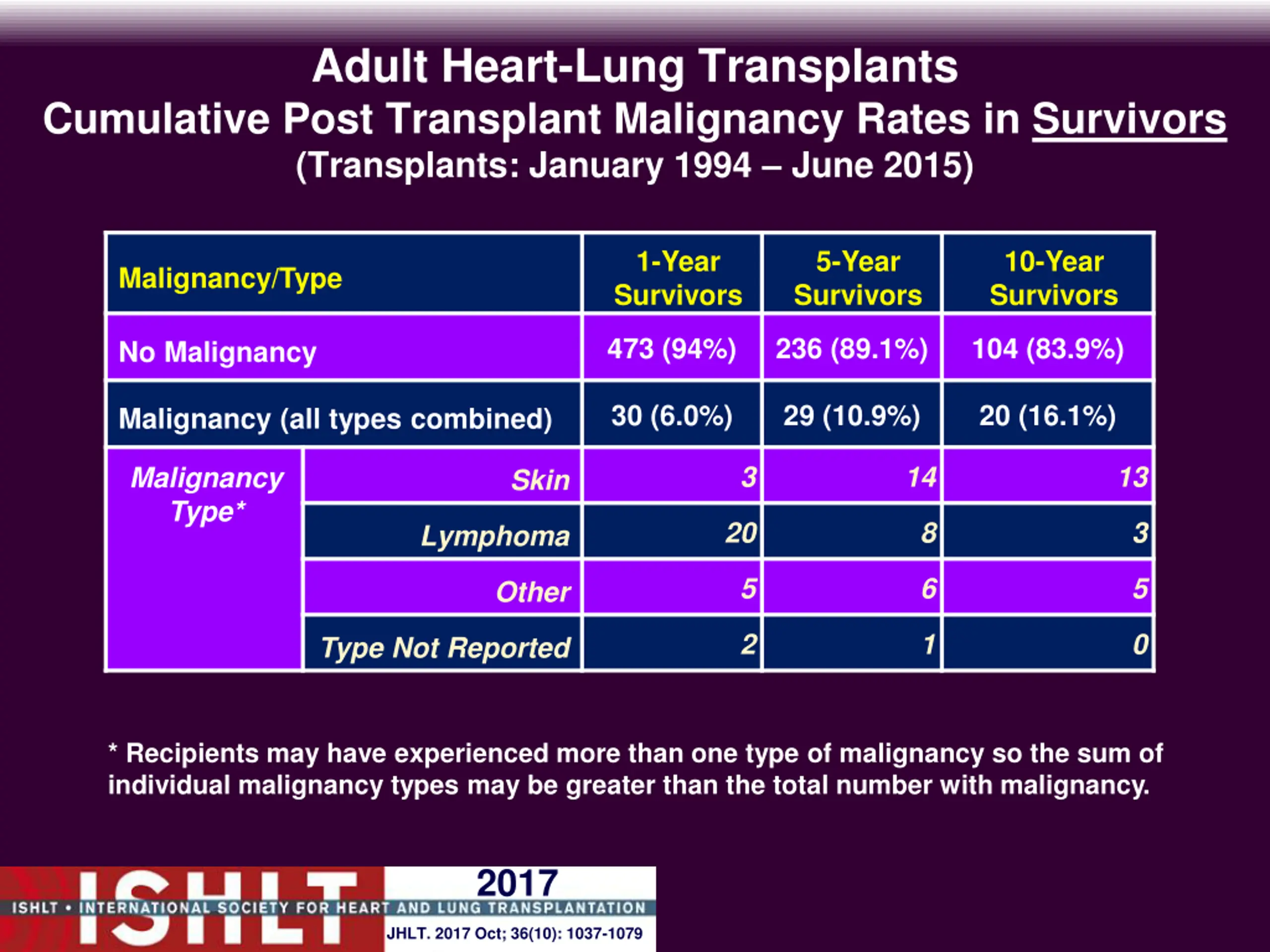

  34. Adult Heart-Lung Transplants Cumulative Post Transplant Malignancy Rates in Survivors (Transplants: January 1994 June 2015) 1-Year Survivors 5-Year Survivors 10-Year Survivors Malignancy/Type 473 (94%) 236 (89.1%) 104 (83.9%) No Malignancy 30 (6.0%) 29 (10.9%) 20 (16.1%) Malignancy (all types combined) 3 14 13 Malignancy Type* Skin 20 8 3 Lymphoma 5 6 5 Other 2 1 0 Type Not Reported * Recipients may have experienced more than one type of malignancy so the sum of individual malignancy types may be greater than the total number with malignancy. 2017 JHLT. 2017 Oct; 36(10): 1037-1079

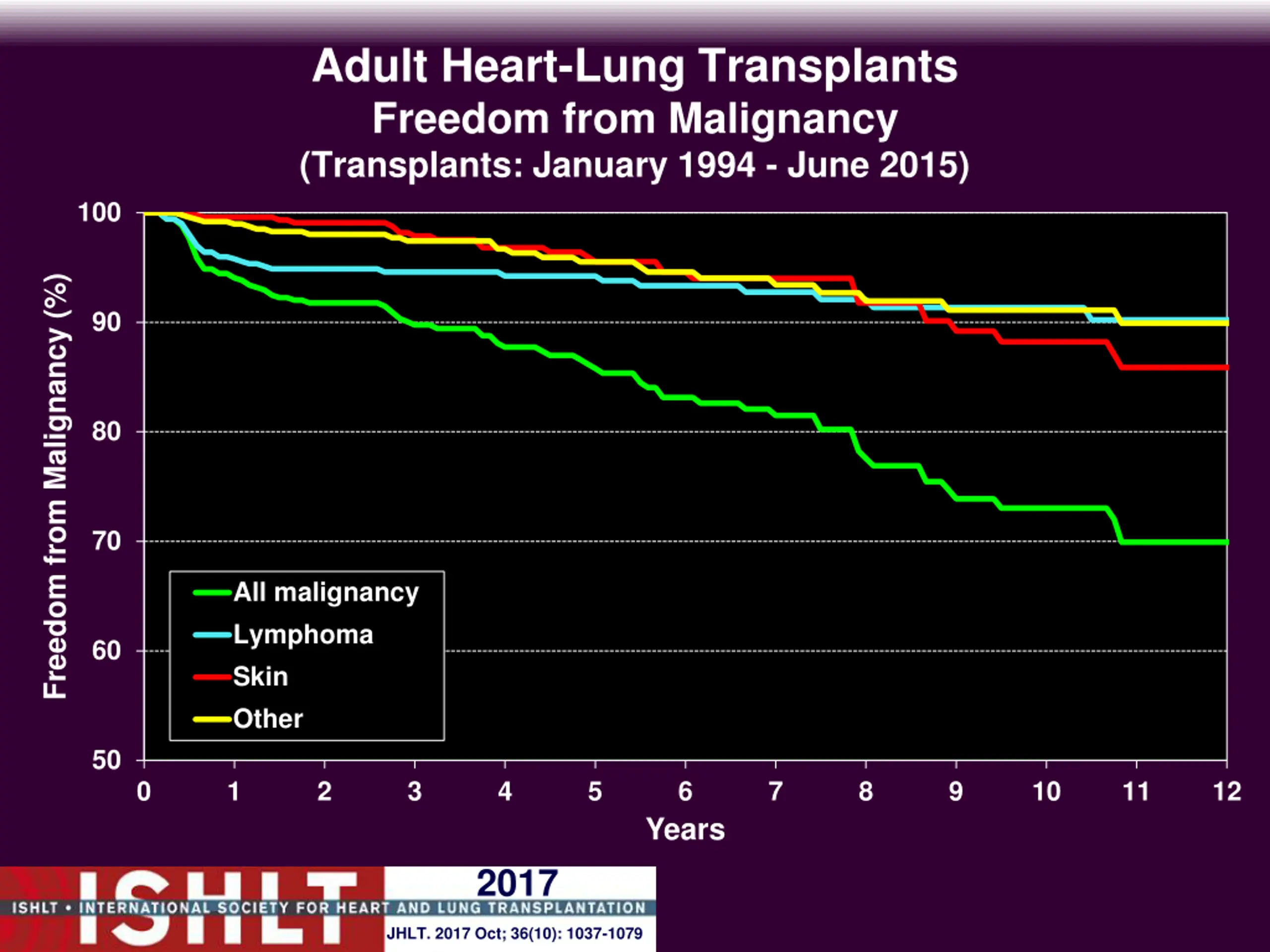

  35. Adult Heart-Lung Transplants Freedom from Malignancy (Transplants: January 1994 - June 2015) 100 Freedom from Malignancy (%) 90 80 70 All malignancy Lymphoma Skin Other 60 50 0 1 2 3 4 5 6 7 8 9 10 11 12 Years 2017 JHLT. 2017 Oct; 36(10): 1037-1079

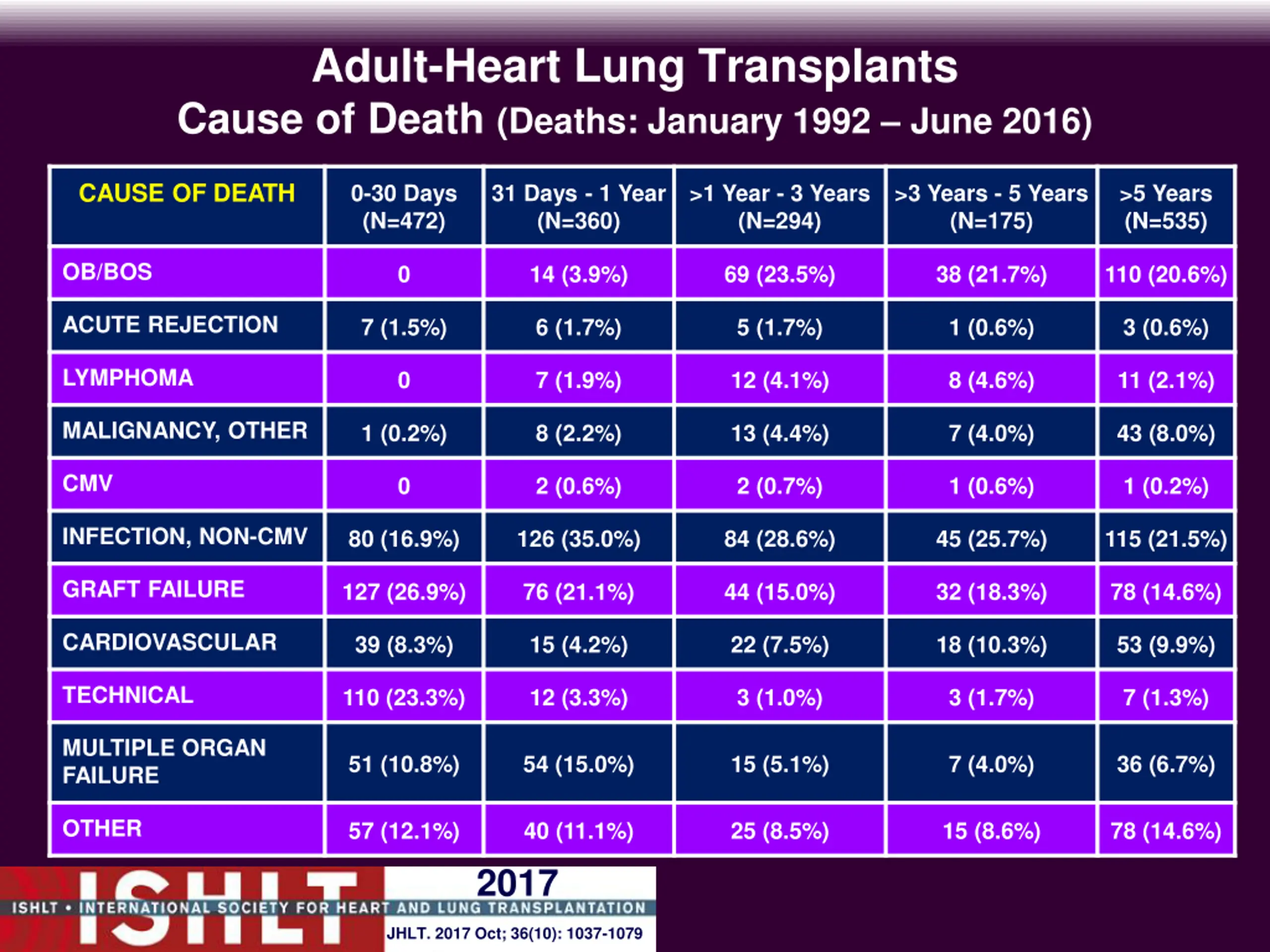

  36. Adult-Heart Lung Transplants Cause of Death (Deaths: January 1992 June 2016) CAUSE OF DEATH 0-30 Days (N=472) 31 Days - 1 Year (N=360) >1 Year - 3 Years (N=294) >3 Years - 5 Years (N=175) >5 Years (N=535) OB/BOS 0 14 (3.9%) 69 (23.5%) 38 (21.7%) 110 (20.6%) ACUTE REJECTION 7 (1.5%) 6 (1.7%) 5 (1.7%) 1 (0.6%) 3 (0.6%) LYMPHOMA 0 7 (1.9%) 12 (4.1%) 8 (4.6%) 11 (2.1%) MALIGNANCY, OTHER 1 (0.2%) 8 (2.2%) 13 (4.4%) 7 (4.0%) 43 (8.0%) CMV 0 2 (0.6%) 2 (0.7%) 1 (0.6%) 1 (0.2%) INFECTION, NON-CMV 80 (16.9%) 126 (35.0%) 84 (28.6%) 45 (25.7%) 115 (21.5%) GRAFT FAILURE 127 (26.9%) 76 (21.1%) 44 (15.0%) 32 (18.3%) 78 (14.6%) CARDIOVASCULAR 39 (8.3%) 15 (4.2%) 22 (7.5%) 18 (10.3%) 53 (9.9%) TECHNICAL 110 (23.3%) 12 (3.3%) 3 (1.0%) 3 (1.7%) 7 (1.3%) MULTIPLE ORGAN FAILURE 51 (10.8%) 54 (15.0%) 15 (5.1%) 7 (4.0%) 36 (6.7%) OTHER 57 (12.1%) 40 (11.1%) 2017 25 (8.5%) 15 (8.6%) 78 (14.6%) JHLT. 2017 Oct; 36(10): 1037-1079

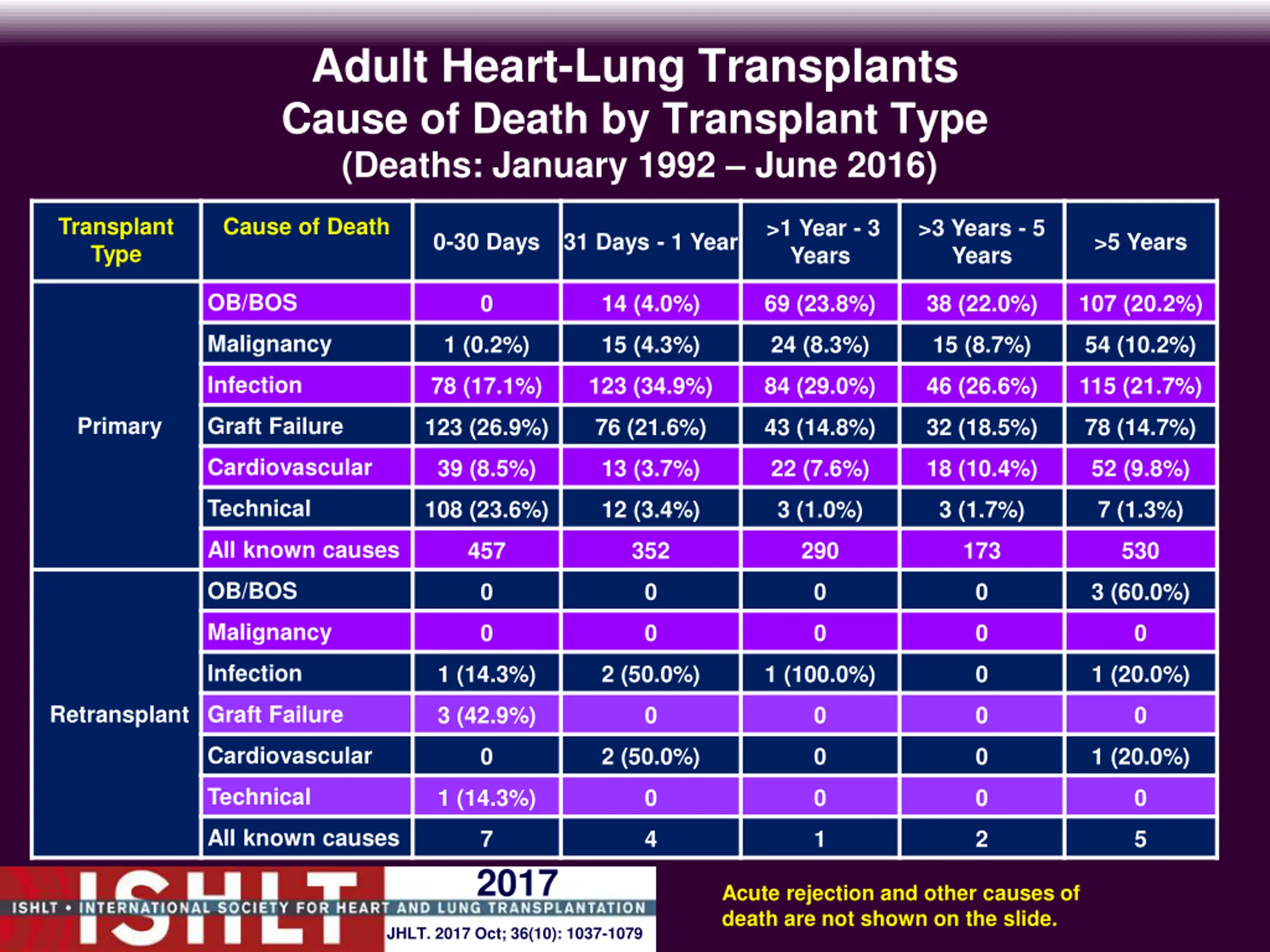

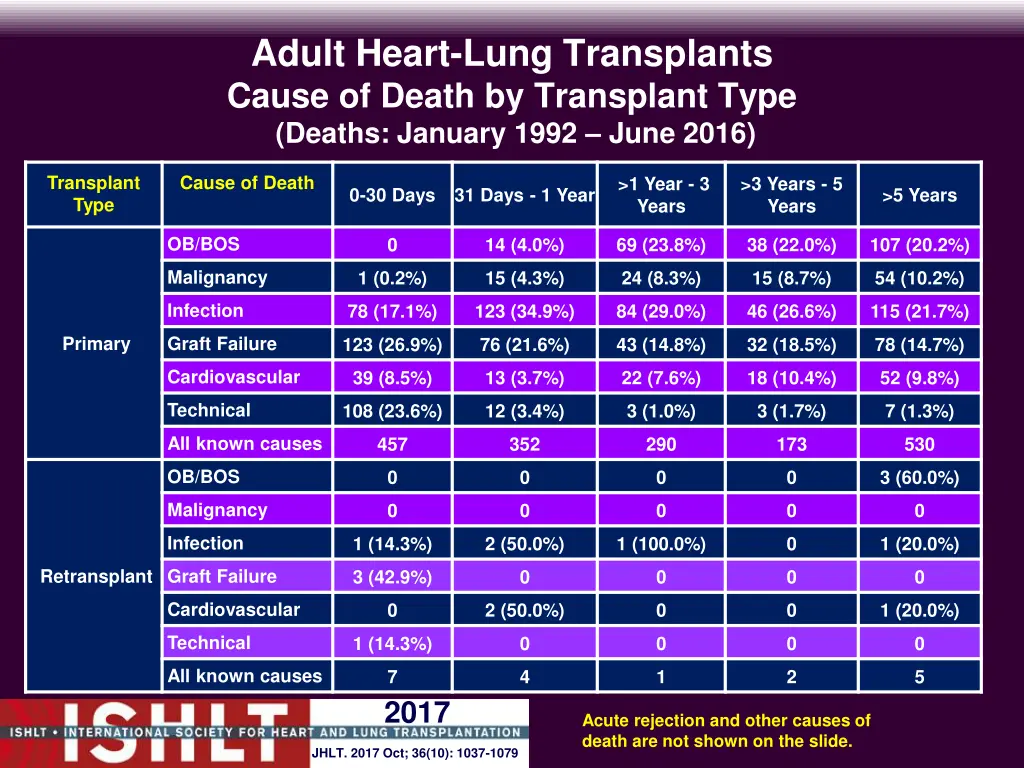

  37. Adult Heart-Lung Transplants Cause of Death by Transplant Type (Deaths: January 1992 June 2016) Transplant Type Cause of Death >1 Year - 3 Years >3 Years - 5 Years 0-30 Days 31 Days - 1 Year >5 Years OB/BOS 0 14 (4.0%) 69 (23.8%) 38 (22.0%) 107 (20.2%) Malignancy 1 (0.2%) 15 (4.3%) 24 (8.3%) 15 (8.7%) 54 (10.2%) Infection 78 (17.1%) 123 (34.9%) 84 (29.0%) 46 (26.6%) 115 (21.7%) Primary Graft Failure 123 (26.9%) 76 (21.6%) 43 (14.8%) 32 (18.5%) 78 (14.7%) Cardiovascular 39 (8.5%) 13 (3.7%) 22 (7.6%) 18 (10.4%) 52 (9.8%) Technical 108 (23.6%) 12 (3.4%) 3 (1.0%) 3 (1.7%) 7 (1.3%) All known causes 457 352 290 173 530 OB/BOS 0 0 0 0 3 (60.0%) Malignancy 0 0 0 0 0 Infection 1 (14.3%) 2 (50.0%) 1 (100.0%) 0 1 (20.0%) Retransplant Graft Failure 3 (42.9%) 0 0 0 0 Cardiovascular 0 2 (50.0%) 0 0 1 (20.0%) Technical 1 (14.3%) 0 0 0 0 All known causes 7 2017 4 1 2 5 Acute rejection and other causes of death are not shown on the slide. JHLT. 2017 Oct; 36(10): 1037-1079

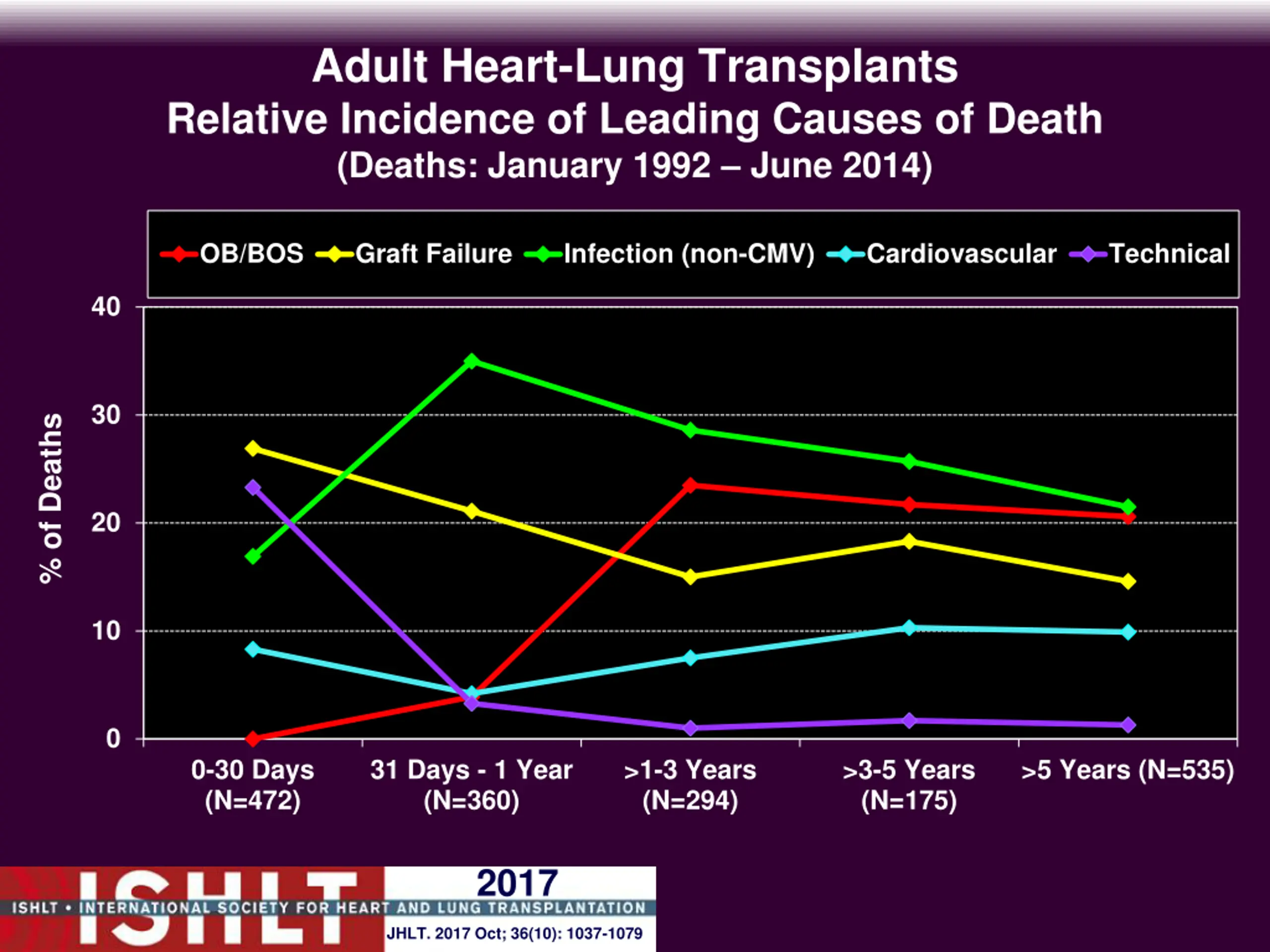

  38. Adult Heart-Lung Transplants Relative Incidence of Leading Causes of Death (Deaths: January 1992 June 2014) OB/BOS Graft Failure Infection (non-CMV) Cardiovascular Technical 40 30 % of Deaths 20 10 0 0-30 Days (N=472) 31 Days - 1 Year (N=360) >1-3 Years (N=294) >3-5 Years (N=175) >5 Years (N=535) 2017 JHLT. 2017 Oct; 36(10): 1037-1079

  39. Multivariable Analysis 2017 JHLT. 2017 Oct; 36(10): 1037-1079

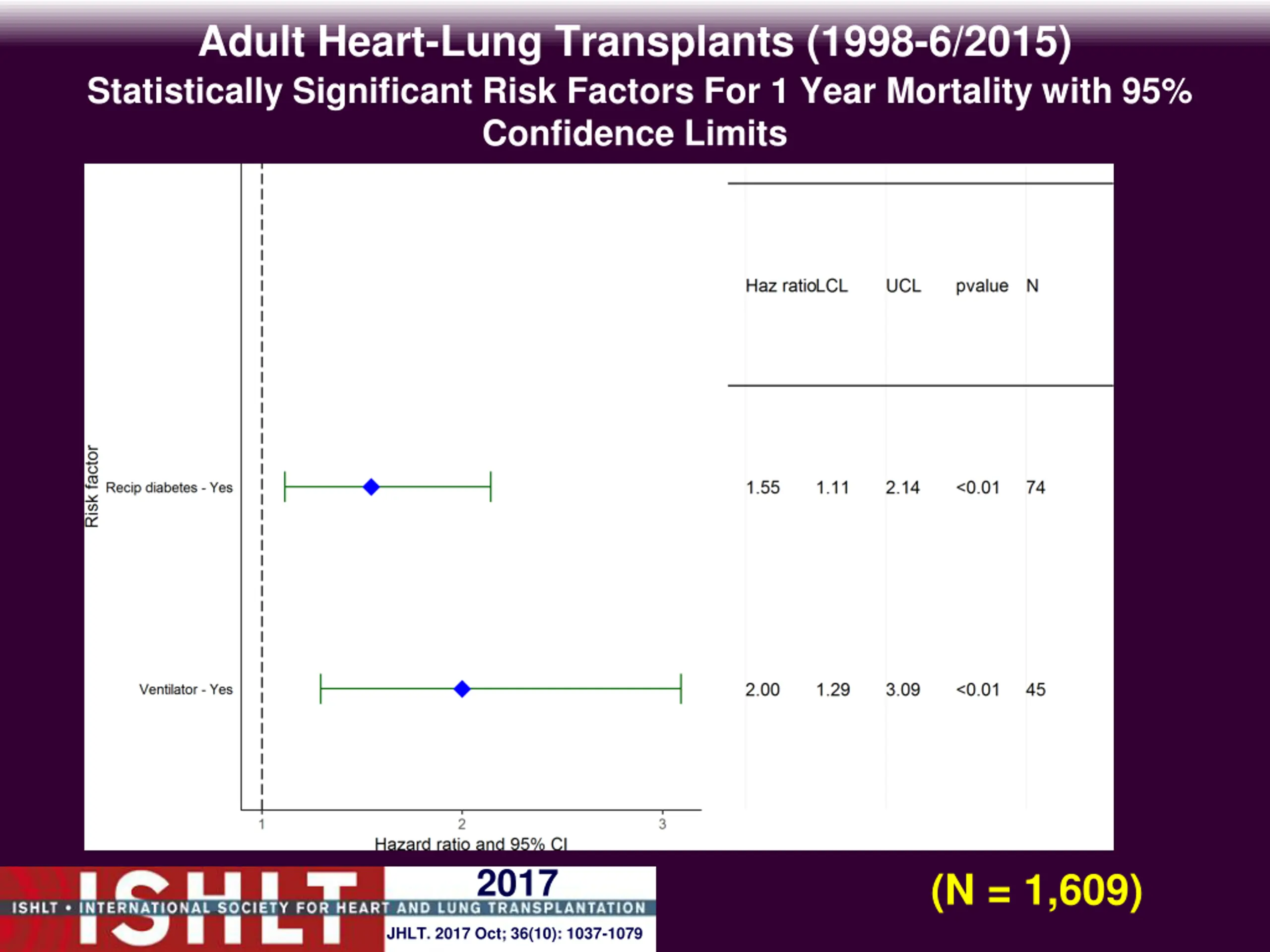

  40. Adult Heart-Lung Transplants (1998-6/2015) Statistically Significant Risk Factors For 1 Year Mortality with 95% Confidence Limits 2017 (N = 1,609) JHLT. 2017 Oct; 36(10): 1037-1079

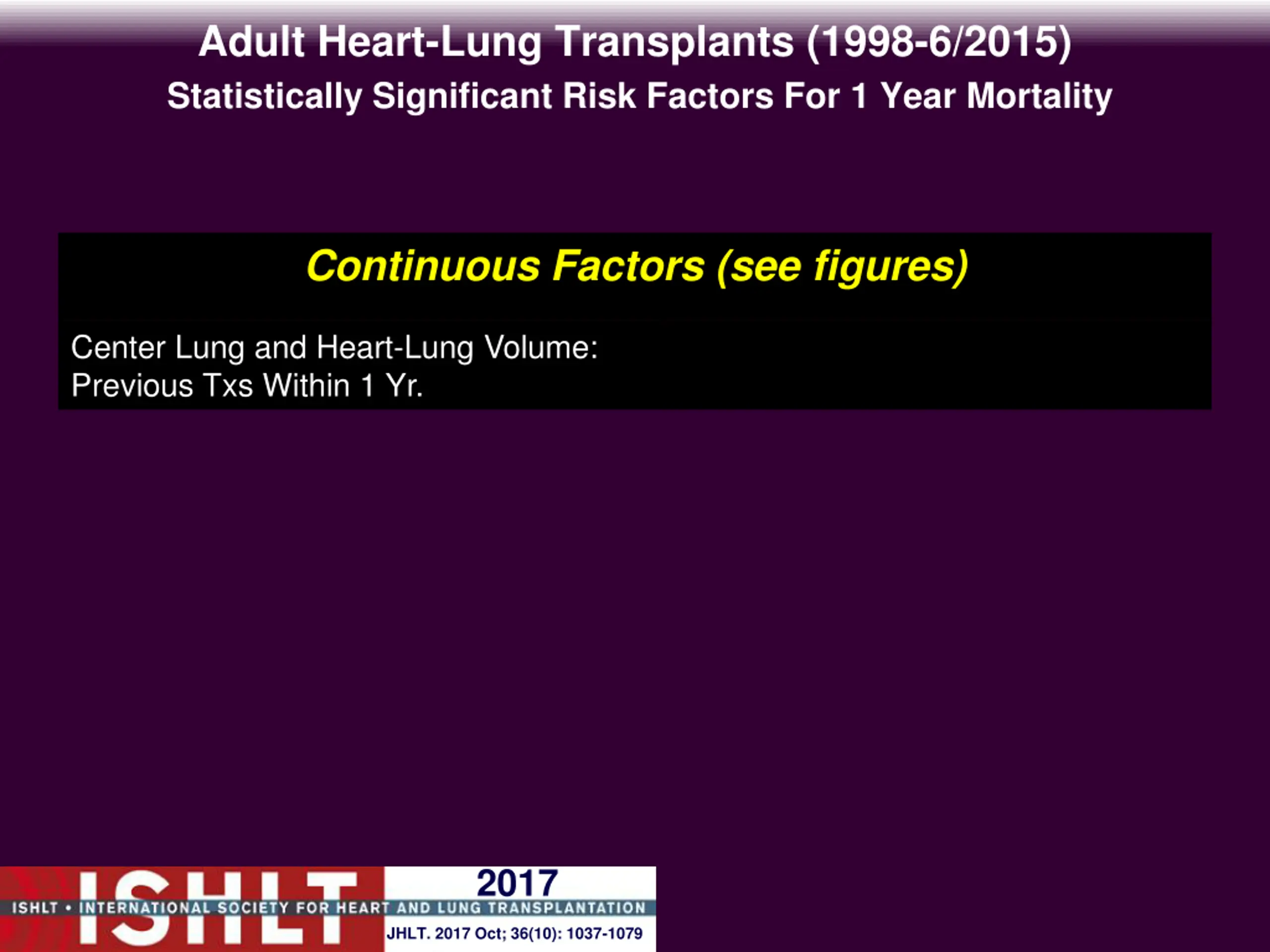

  41. Adult Heart-Lung Transplants (1998-6/2015) Statistically Significant Risk Factors For 1 Year Mortality Continuous Factors (see figures) Center Lung and Heart-Lung Volume: Previous Txs Within 1 Yr. 2017 JHLT. 2017 Oct; 36(10): 1037-1079

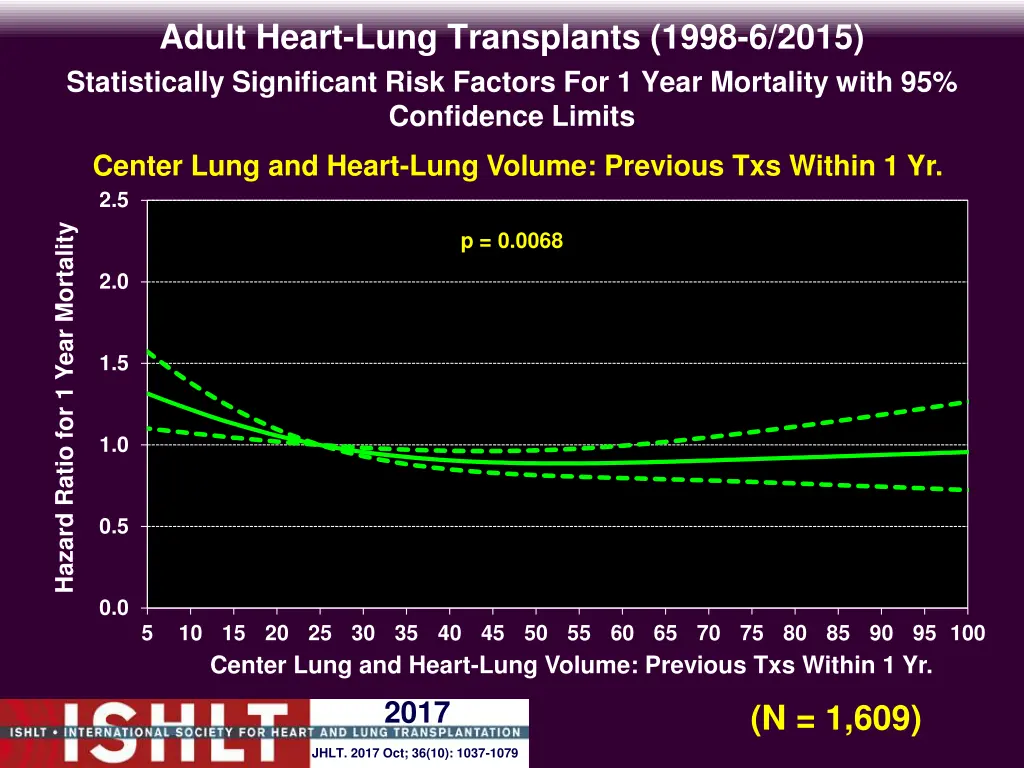

  42. Adult Heart-Lung Transplants (1998-6/2015) Statistically Significant Risk Factors For 1 Year Mortality with 95% Confidence Limits Center Lung and Heart-Lung Volume: Previous Txs Within 1 Yr. 2.5 Hazard Ratio for 1 Year Mortality p = 0.0068 2.0 1.5 1.0 0.5 0.0 5 10 15 Center Lung and Heart-Lung Volume: Previous Txs Within 1 Yr. 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 2017 (N = 1,609) JHLT. 2017 Oct; 36(10): 1037-1079

  43. Focus Theme 2017 JHLT. 2017 Oct; 36(10): 1037-1079

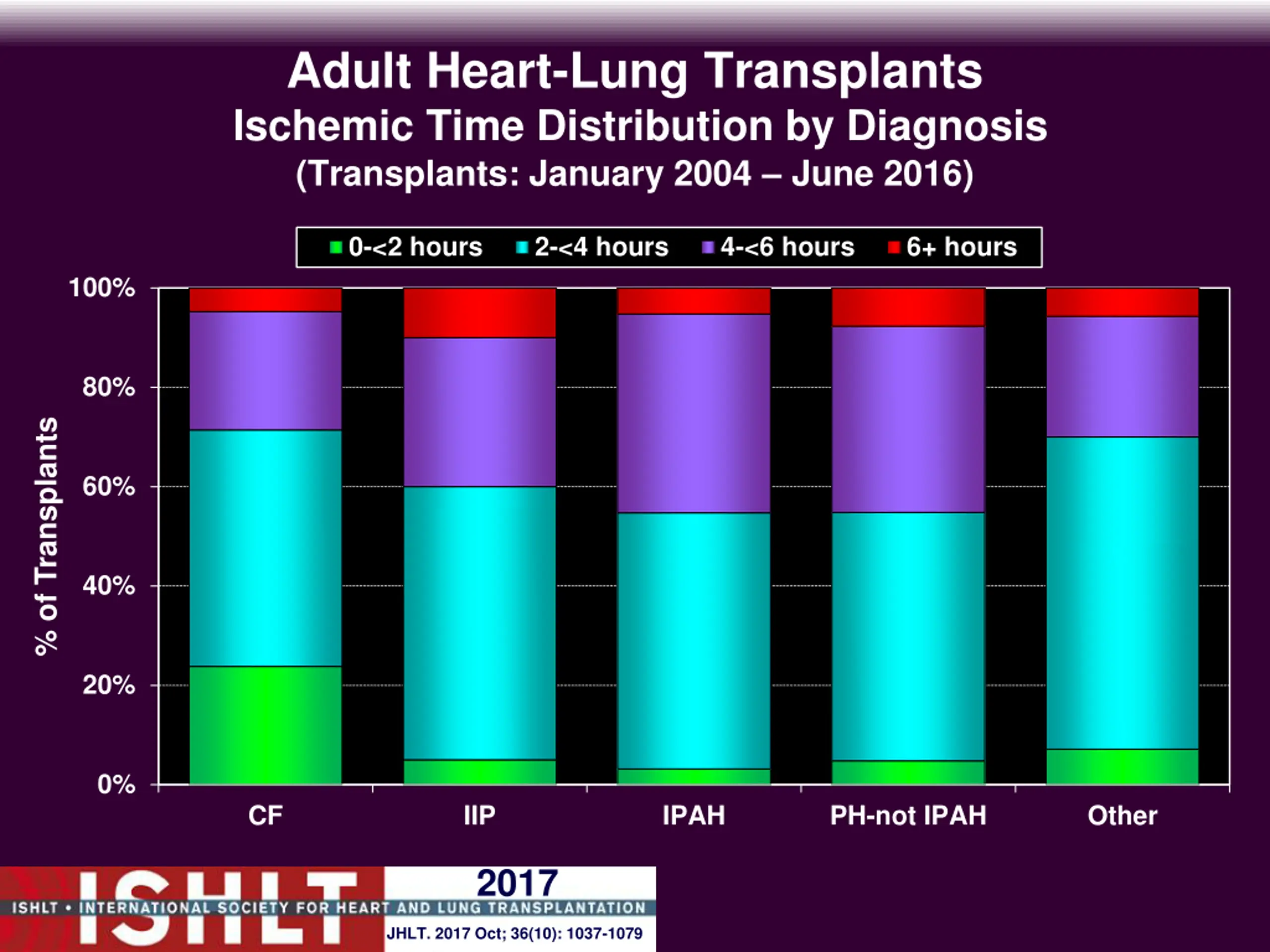

  44. Adult Heart-Lung Transplants Ischemic Time Distribution by Diagnosis (Transplants: January 2004 June 2016) 0-<2 hours 2-<4 hours 4-<6 hours 6+ hours 100% 80% % of Transplants 60% 40% 20% 0% CF IIP IPAH PH-not IPAH Other 2017 JHLT. 2017 Oct; 36(10): 1037-1079

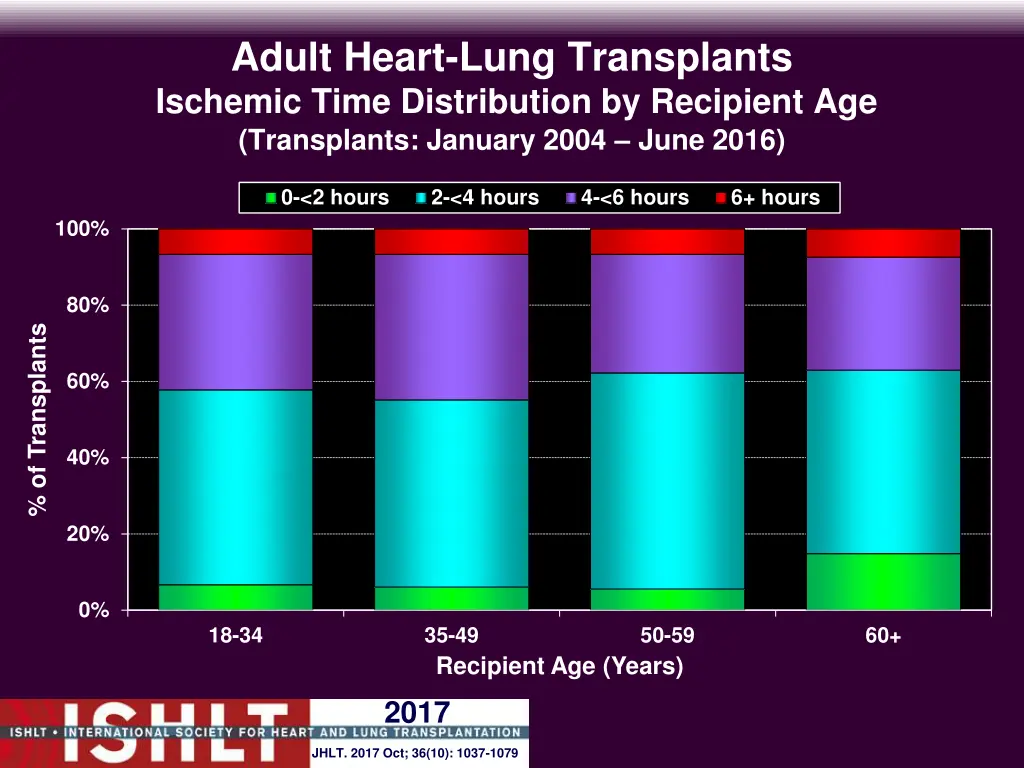

  45. Adult Heart-Lung Transplants Ischemic Time Distribution by Recipient Age (Transplants: January 2004 June 2016) 0-<2 hours 2-<4 hours 4-<6 hours 6+ hours 100% 80% % of Transplants 60% 40% 20% 0% 18-34 35-49 Recipient Age (Years) 2017 50-59 60+ JHLT. 2017 Oct; 36(10): 1037-1079

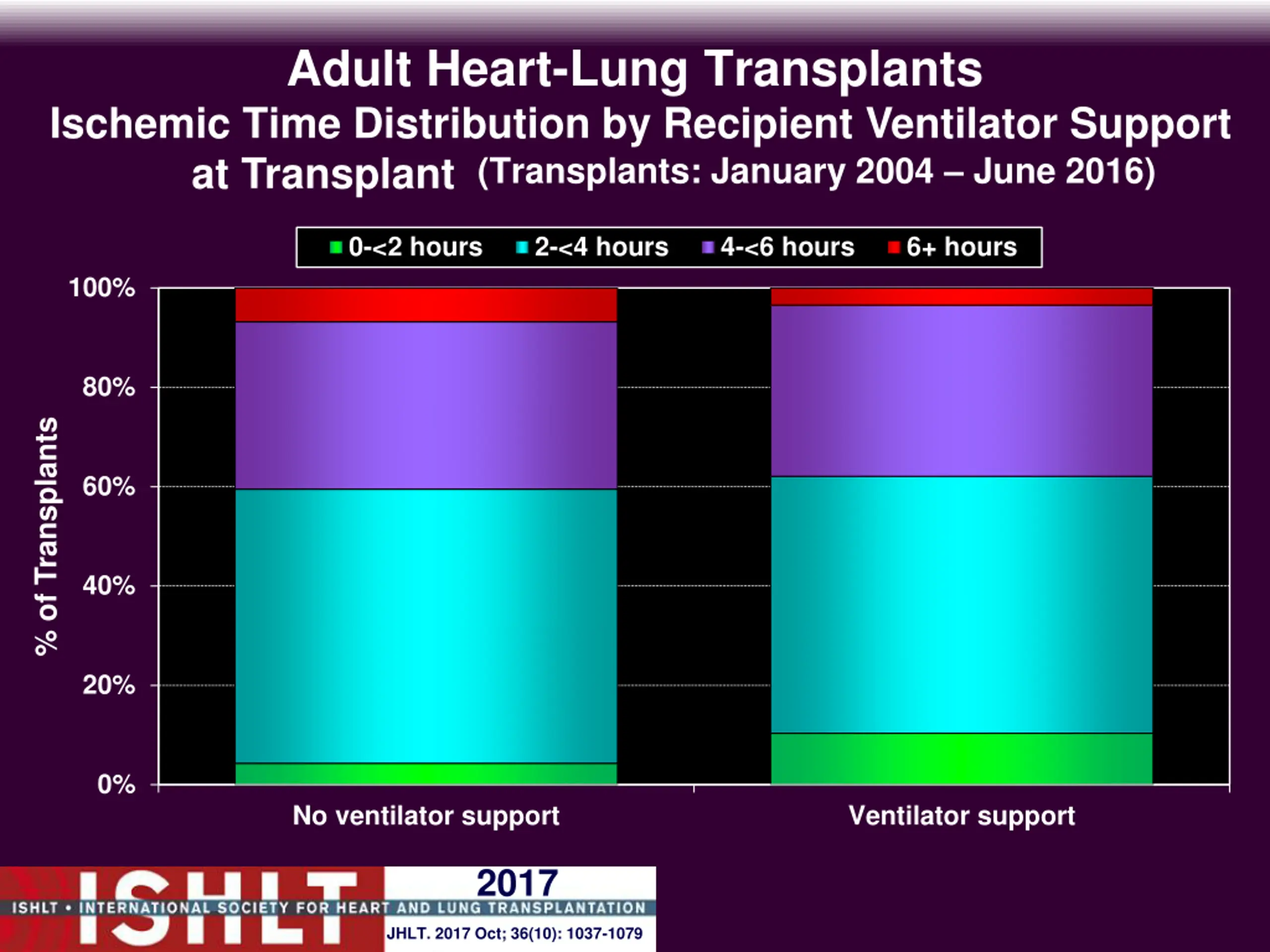

  46. Adult Heart-Lung Transplants Ischemic Time Distribution by Recipient Ventilator Support (Transplants: January 2004 June 2016) at Transplant 0-<2 hours 2-<4 hours 4-<6 hours 6+ hours 100% 80% % of Transplants 60% 40% 20% 0% No ventilator support Ventilator support 2017 JHLT. 2017 Oct; 36(10): 1037-1079

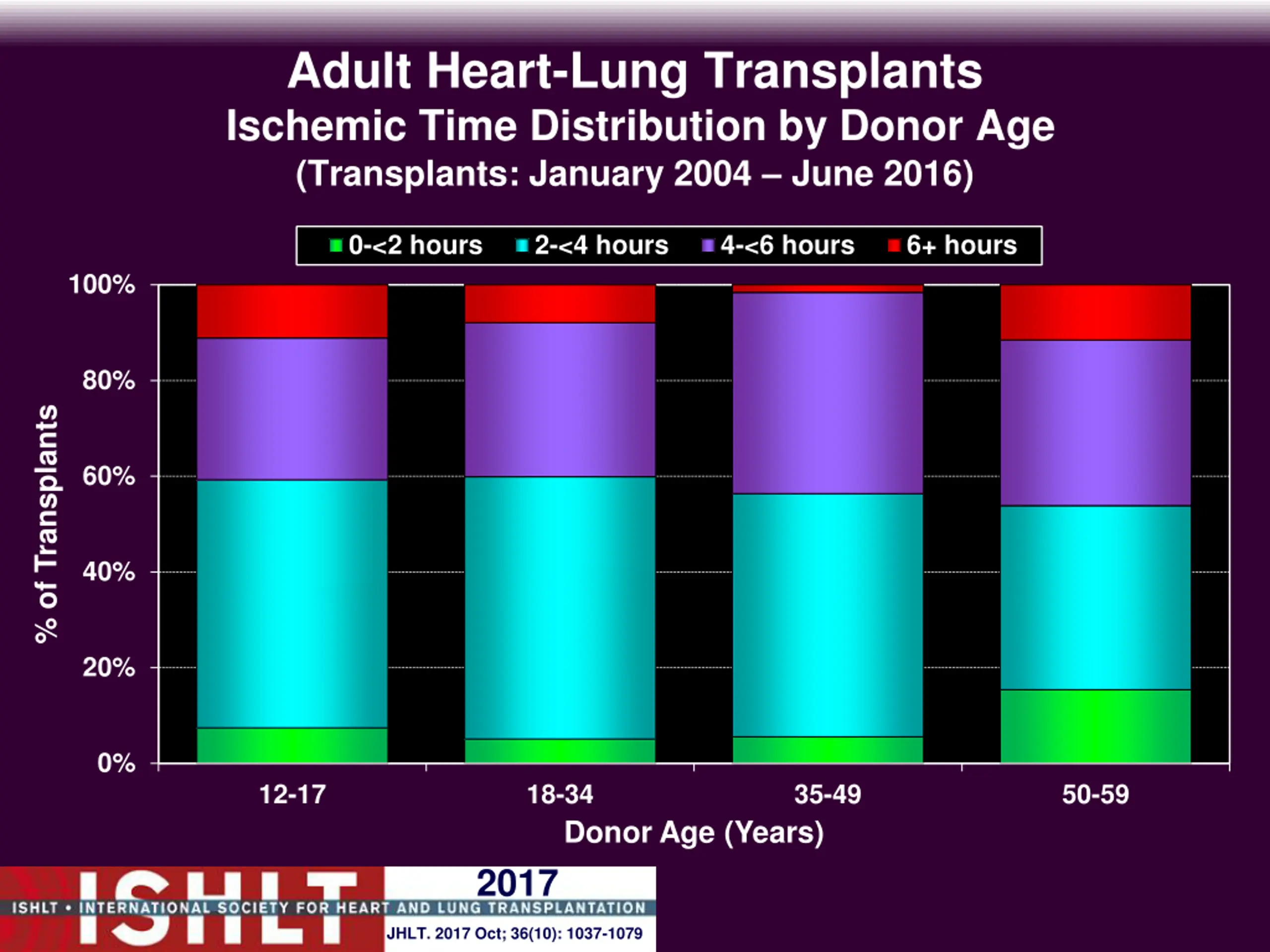

  47. Adult Heart-Lung Transplants Ischemic Time Distribution by Donor Age (Transplants: January 2004 June 2016) 0-<2 hours 2-<4 hours 4-<6 hours 6+ hours 100% 80% % of Transplants 60% 40% 20% 0% 12-17 18-34 35-49 50-59 Donor Age (Years) 2017 JHLT. 2017 Oct; 36(10): 1037-1079

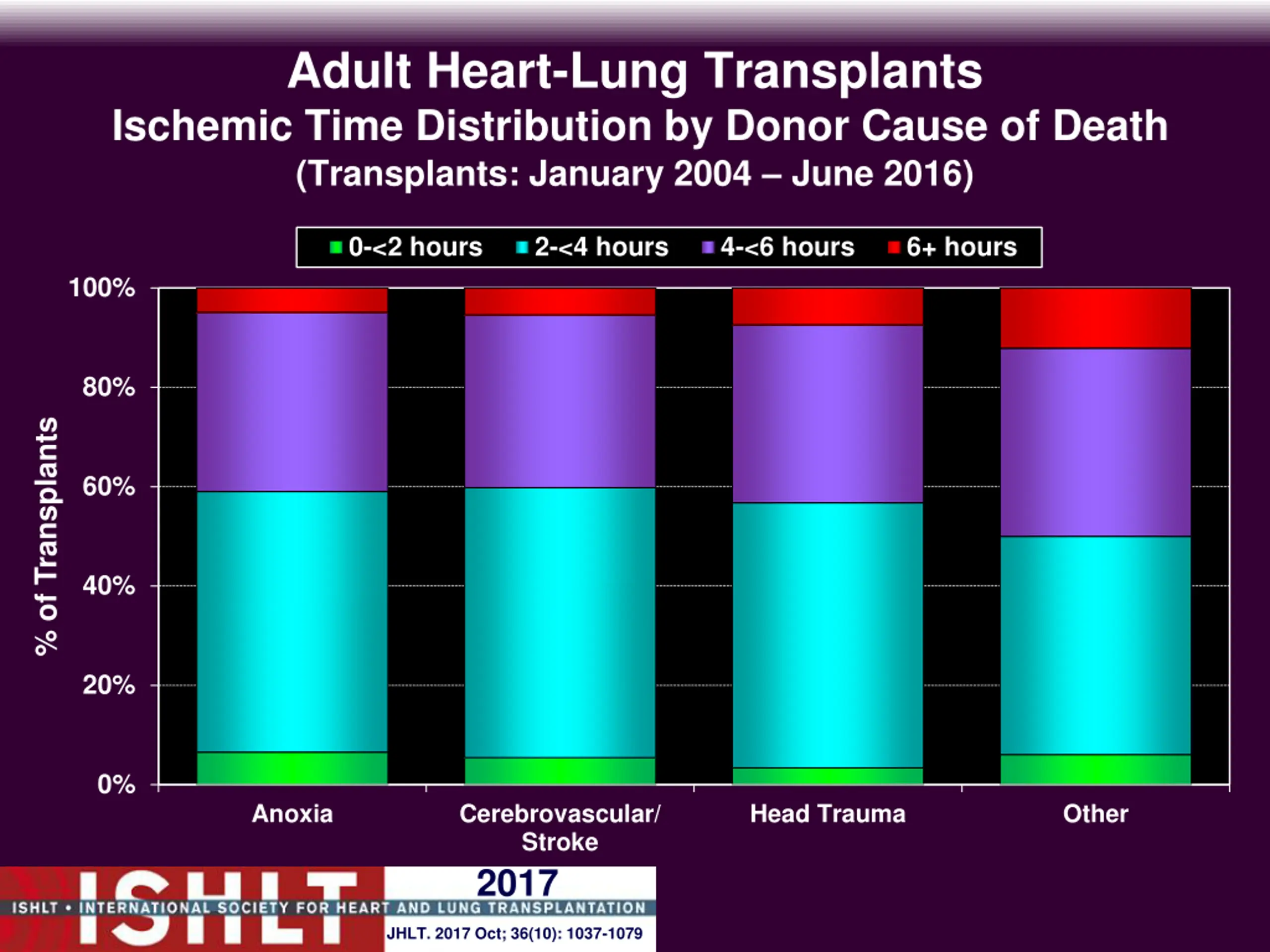

  48. Adult Heart-Lung Transplants Ischemic Time Distribution by Donor Cause of Death (Transplants: January 2004 June 2016) 0-<2 hours 2-<4 hours 4-<6 hours 6+ hours 100% 80% % of Transplants 60% 40% 20% 0% Anoxia Cerebrovascular/ Stroke 2017 Head Trauma Other JHLT. 2017 Oct; 36(10): 1037-1079

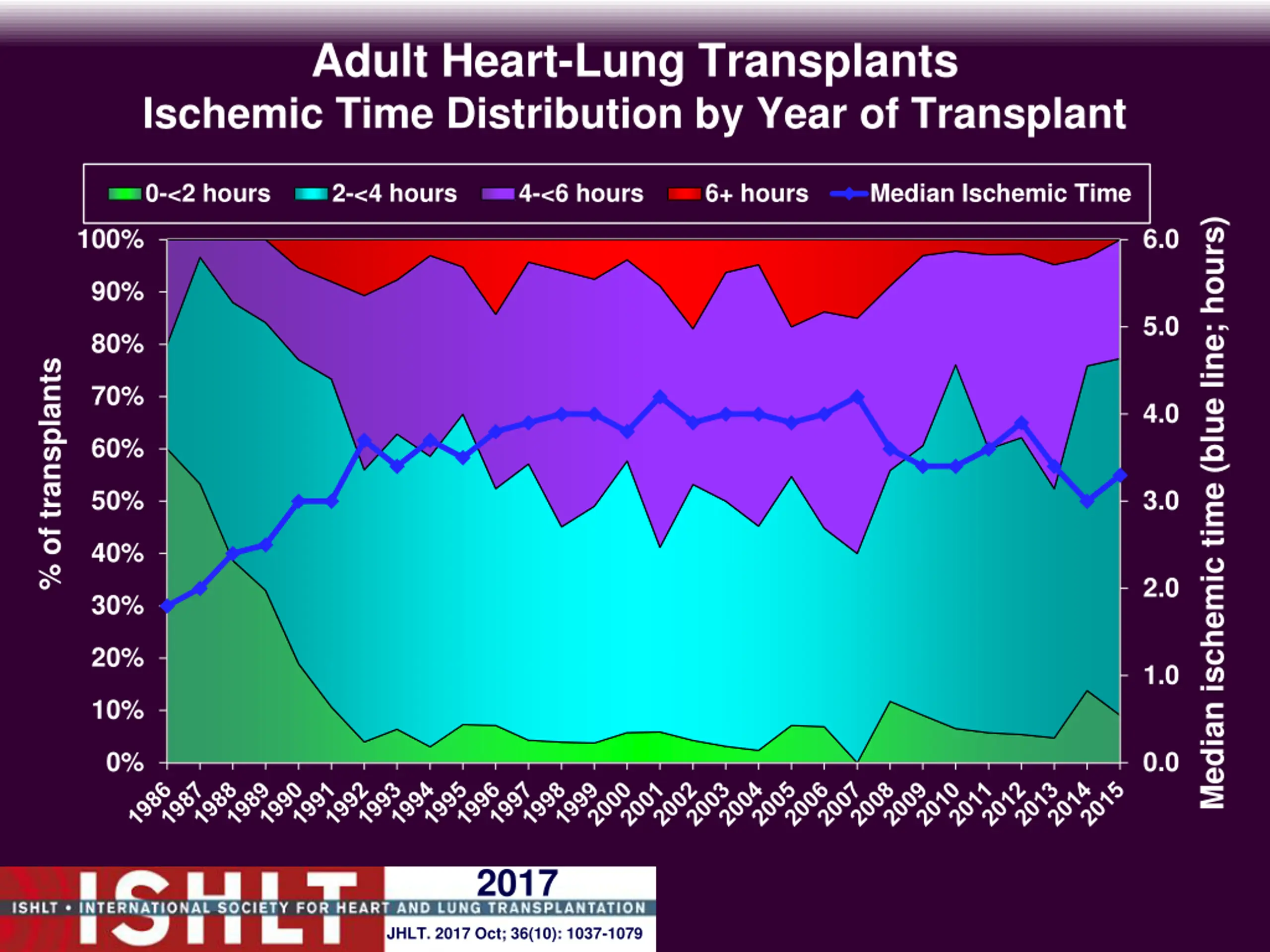

  49. Adult Heart-Lung Transplants Ischemic Time Distribution by Year of Transplant 0-<2 hours 2-<4 hours 4-<6 hours 6+ hours Median Ischemic Time Median ischemic time (blue line; hours) 100% 6.0 90% 5.0 80% % of transplants 70% 4.0 60% 50% 3.0 40% 2.0 30% 20% 1.0 10% 0% 0.0 2017 JHLT. 2017 Oct; 36(10): 1037-1079

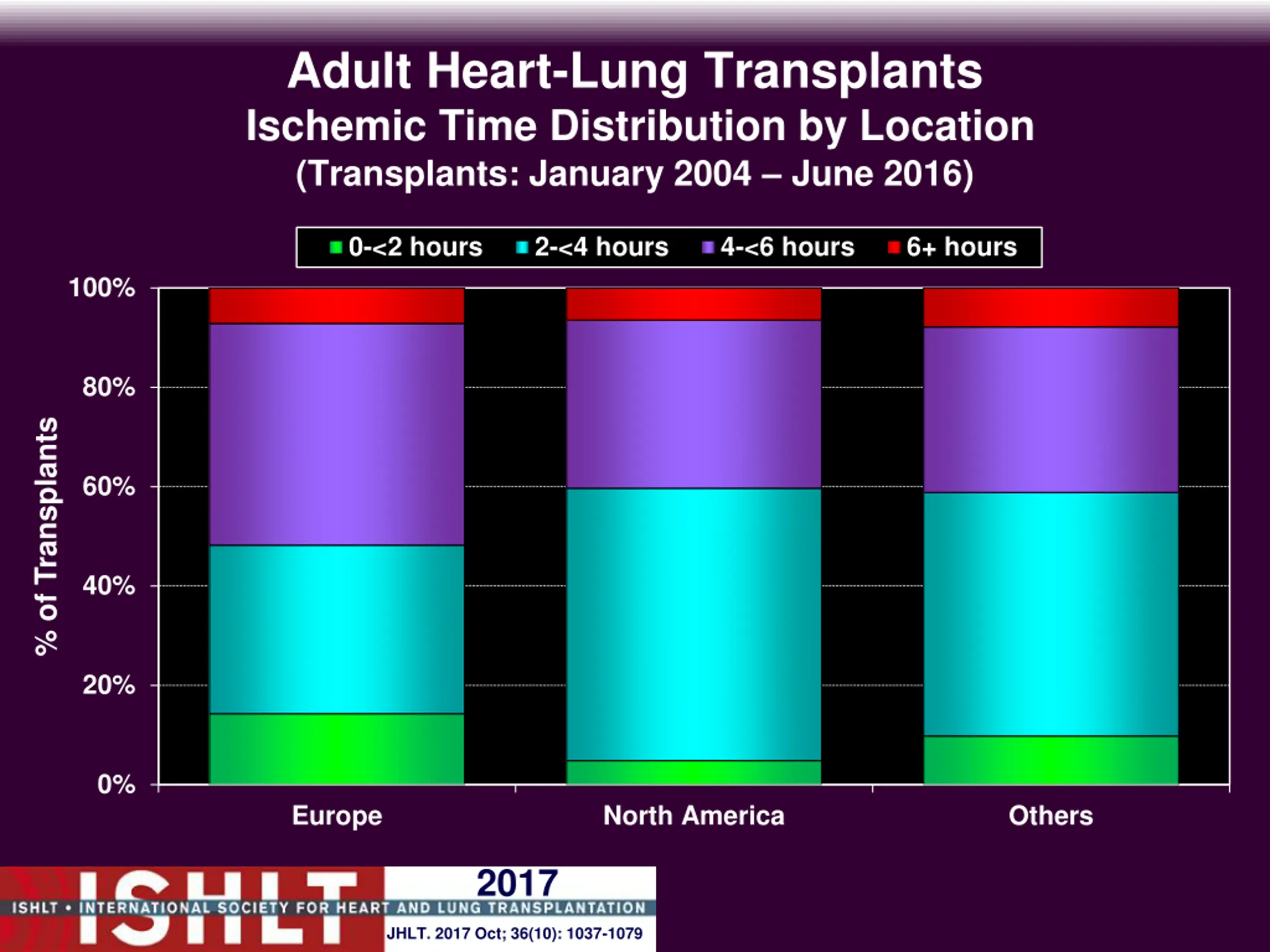

  50. Adult Heart-Lung Transplants Ischemic Time Distribution by Location (Transplants: January 2004 June 2016) 0-<2 hours 2-<4 hours 4-<6 hours 6+ hours 100% 80% % of Transplants 60% 40% 20% 0% Europe North America Others 2017 JHLT. 2017 Oct; 36(10): 1037-1079
