Hidden Markov Model Algorithms and Example

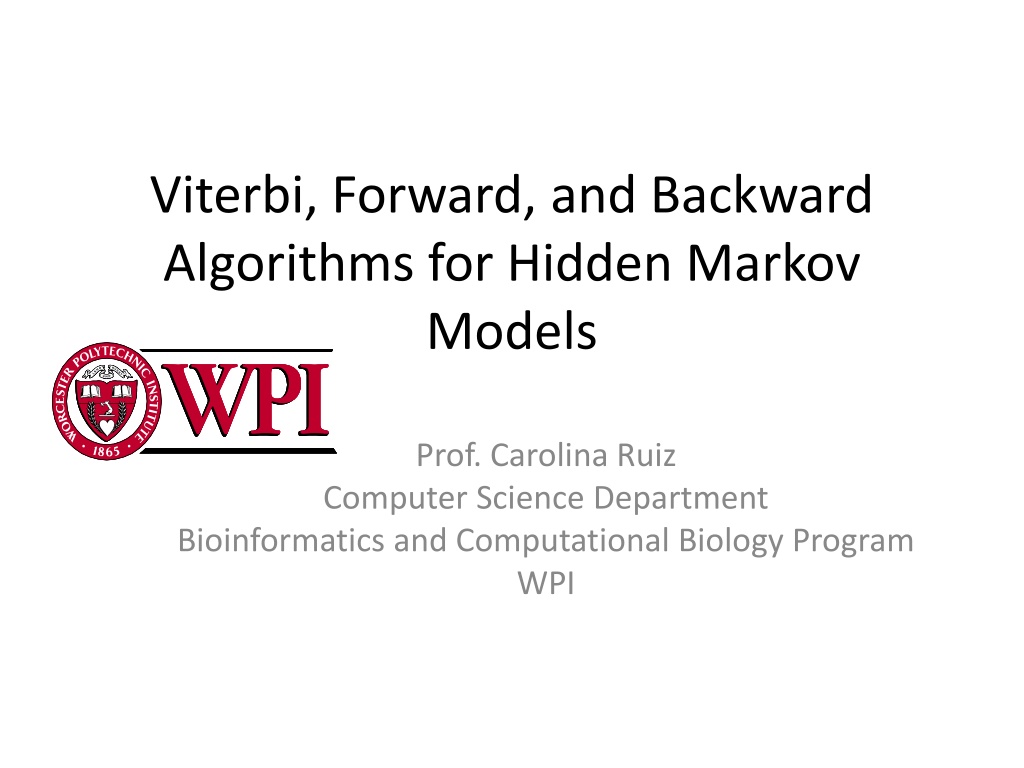

Viterbi, Forward, and Backward Algorithms for Hidden Markov Models Prof. Carolina Ruiz Computer Science Department Bioinformatics and Computational Biology Program WPI

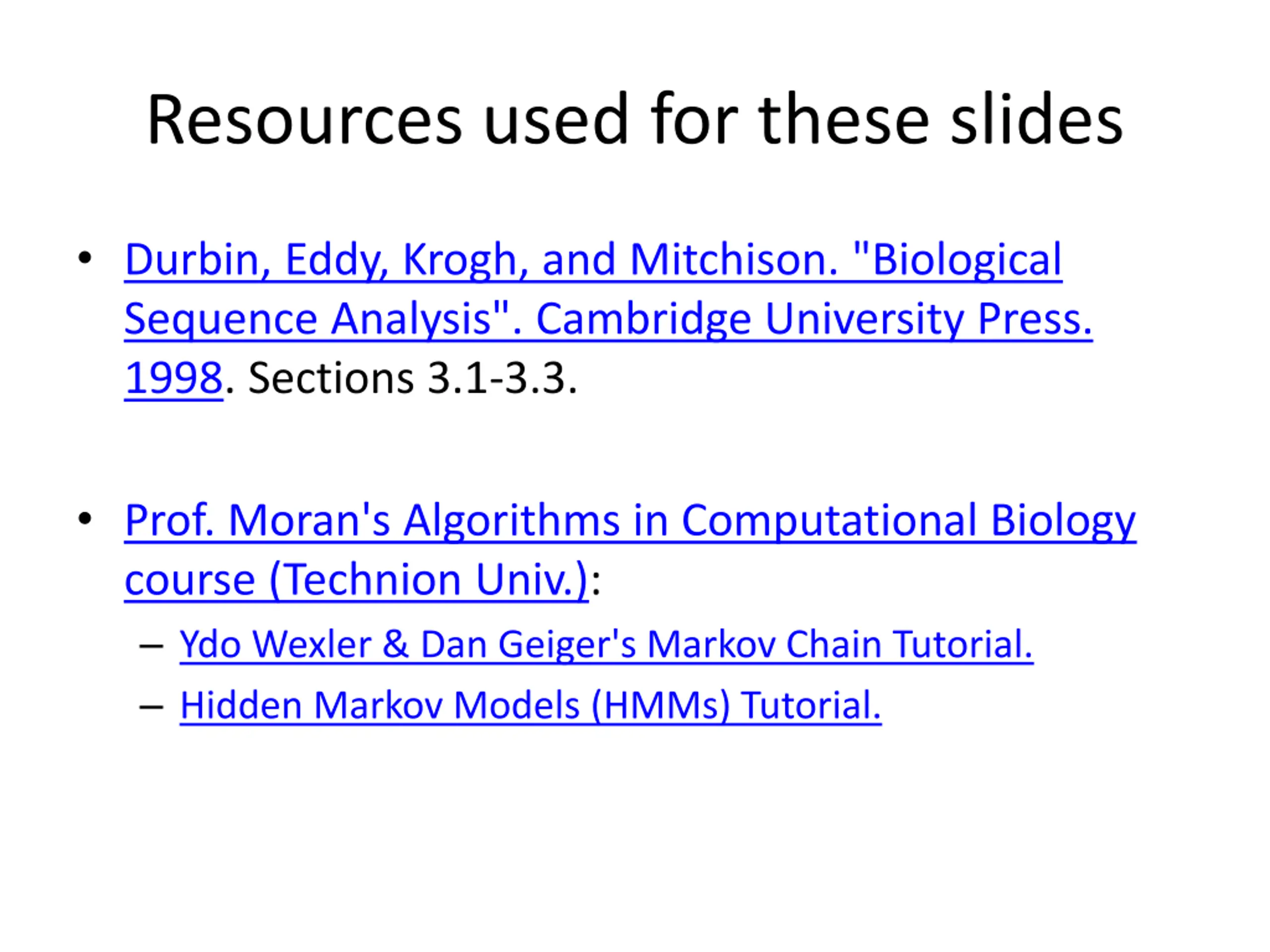

Resources used for these slides Durbin, Eddy, Krogh, and Mitchison. "Biological Sequence Analysis". Cambridge University Press. 1998. Sections 3.1-3.3. Prof. Moran's Algorithms in Computational Biology course (Technion Univ.): Ydo Wexler & Dan Geiger's Markov Chain Tutorial. Hidden Markov Models (HMMs) Tutorial.

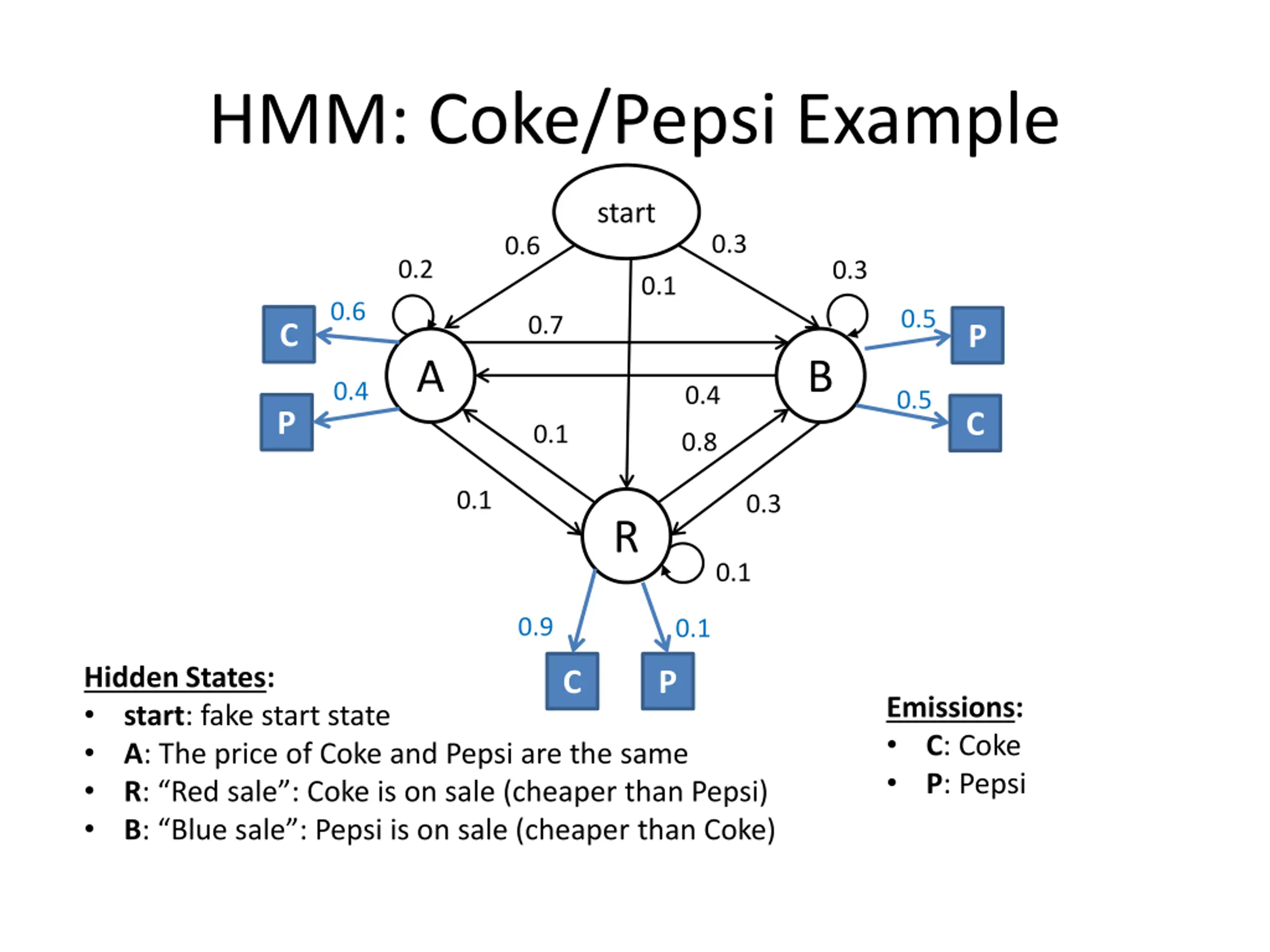

HMM: Coke/Pepsi Example start 0.3 0.6 0.2 0.3 0.1 0.6 0.5 0.7 C P A B 0.4 0.4 0.5 P C 0.1 0.8 0.1 0.3 R 0.1 0.9 0.1 Hidden States: start: fake start state A: The price of Coke and Pepsi are the same R: Red sale : Coke is on sale (cheaper than Pepsi) B: Blue sale : Pepsi is on sale (cheaper than Coke) C P Emissions: C: Coke P: Pepsi

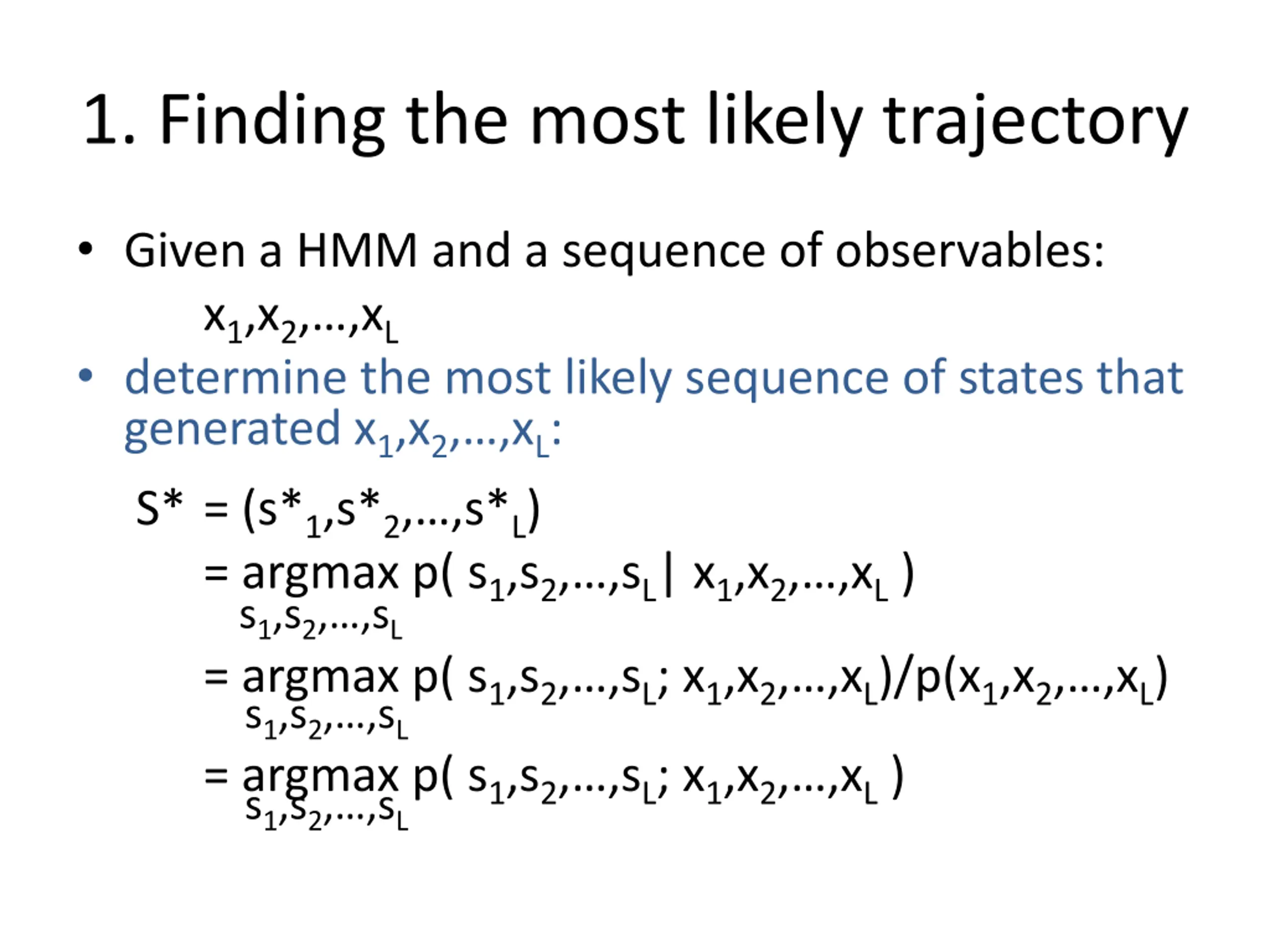

1. Finding the most likely trajectory Given a HMM and a sequence of observables: x1,x2, ,xL determine the most likely sequence of states that generated x1,x2, ,xL: S* = (s*1,s*2, ,s*L) = argmax p( s1,s2, ,sL| x1,x2, ,xL ) s1,s2, ,sL = argmax p( s1,s2, ,sL; x1,x2, ,xL)/p(x1,x2, ,xL) s1,s2, ,sL = argmax p( s1,s2, ,sL; x1,x2, ,xL ) s1,s2, ,sL

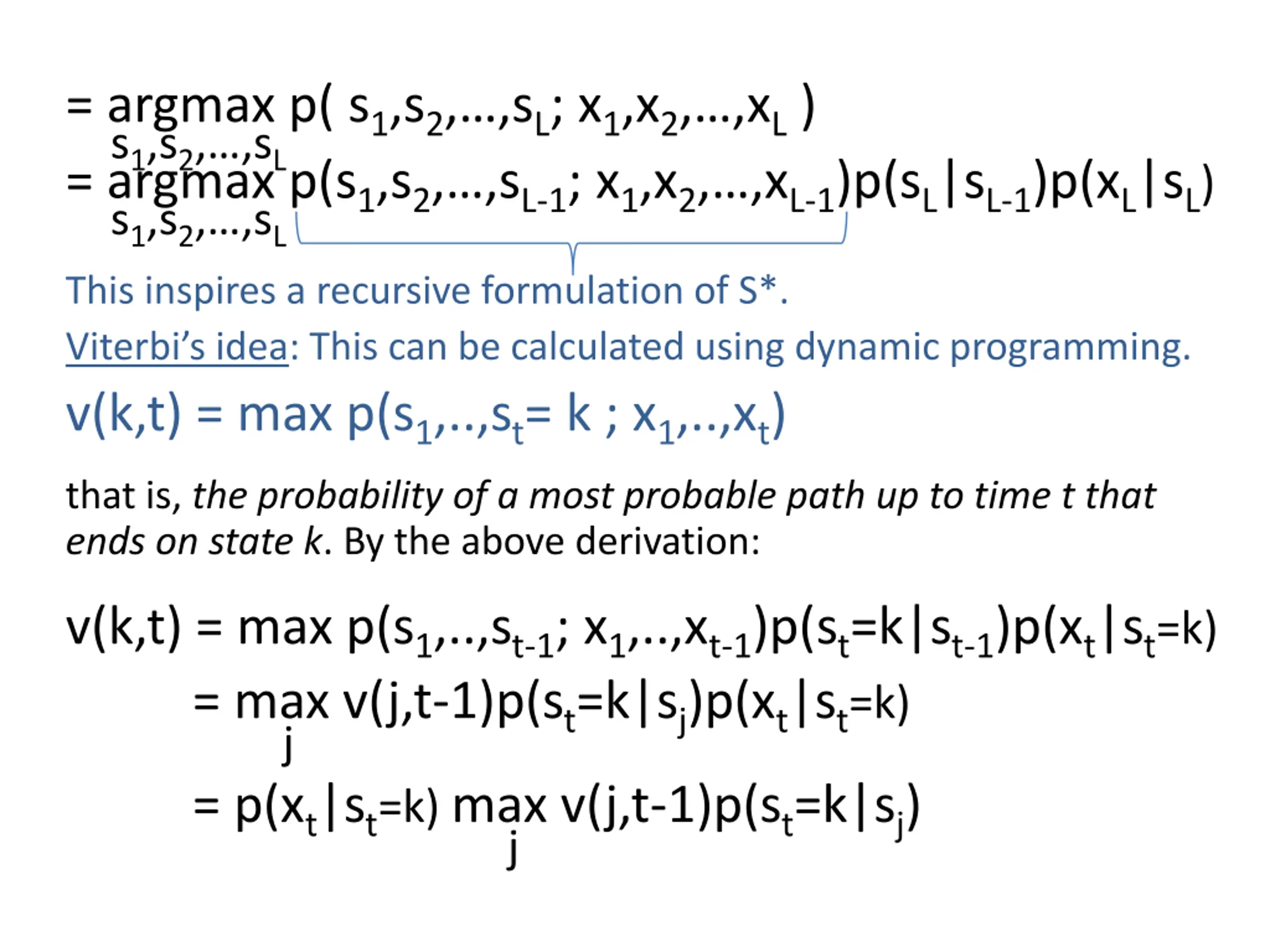

= argmax p( s1,s2,,sL; x1,x2,,xL ) s1,s2, ,sL = argmax p(s1,s2, ,sL-1; x1,x2, ,xL-1)p(sL|sL-1)p(xL|sL) s1,s2, ,sL This inspires a recursive formulation of S*. Viterbi s idea: This can be calculated using dynamic programming. v(k,t) = max p(s1,..,st= k ; x1,..,xt) that is, the probability of a most probable path up to time t that ends on state k. By the above derivation: v(k,t) = max p(s1,..,st-1; x1,..,xt-1)p(st=k|st-1)p(xt|st=k) = max v(j,t-1)p(st=k|sj)p(xt|st=k) j = p(xt|st=k) max v(j,t-1)p(st=k|sj) j

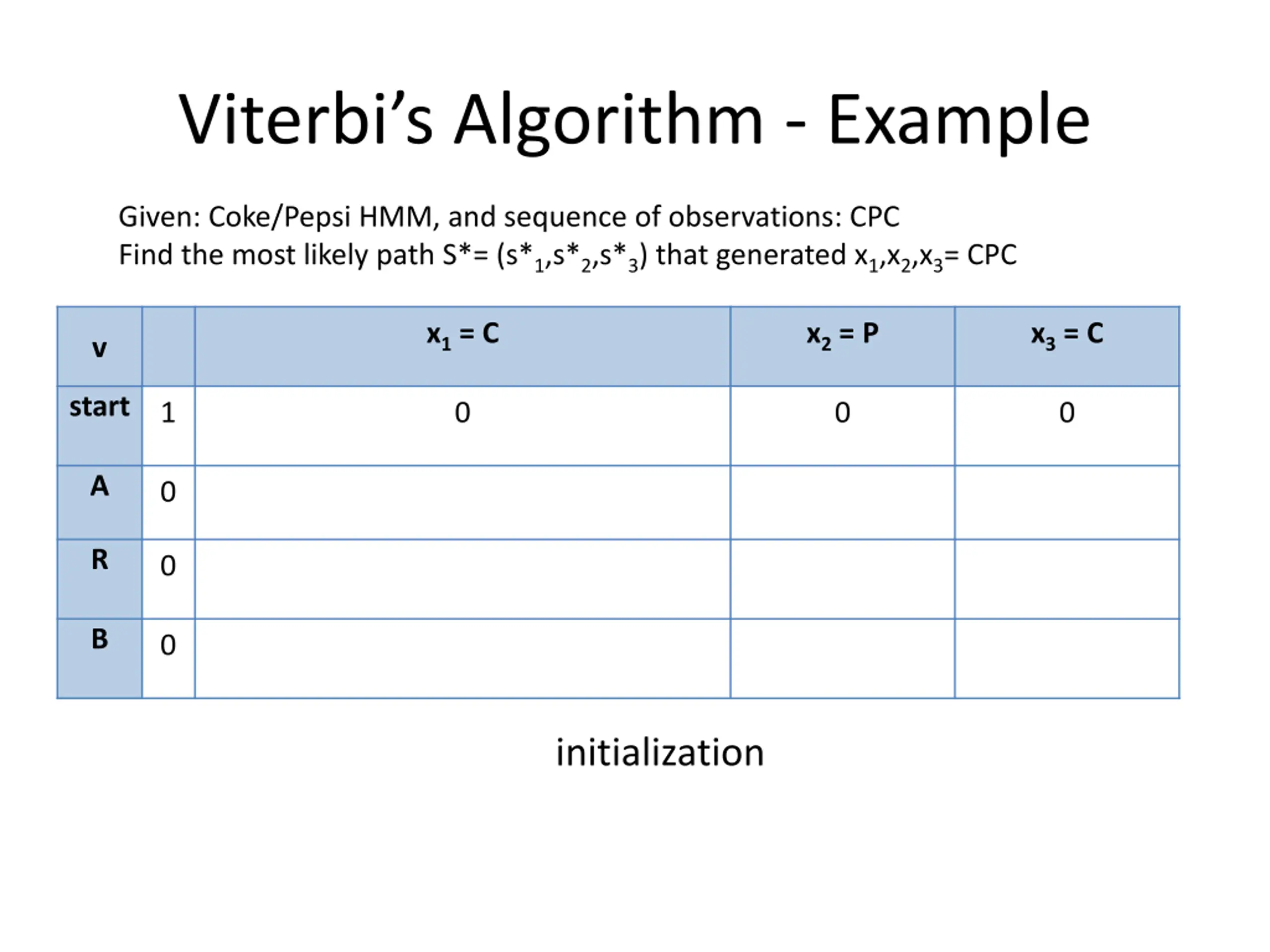

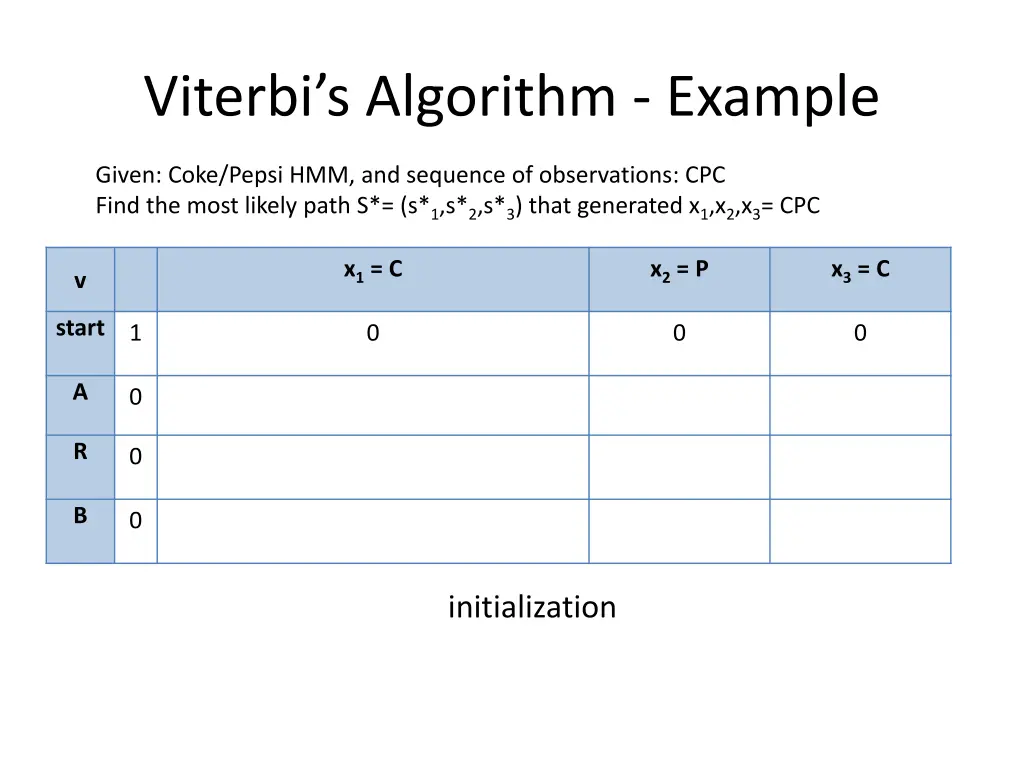

Viterbis Algorithm - Example Given: Coke/Pepsi HMM, and sequence of observations: CPC Find the most likely path S*= (s*1,s*2,s*3) that generated x1,x2,x3= CPC x1 = C x2 = P x3 = C v start 1 0 0 0 A 0 R 0 B 0 initialization

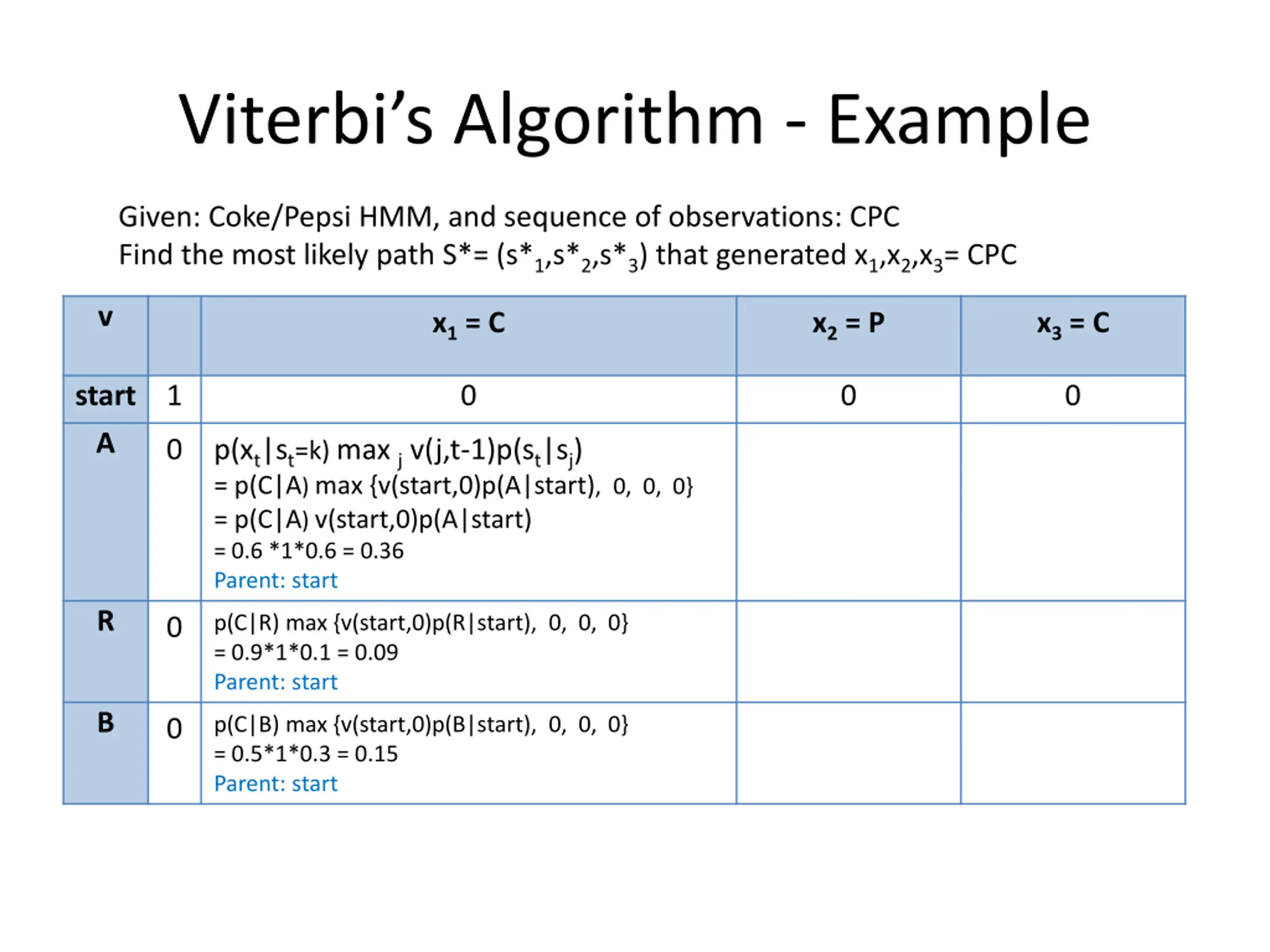

Viterbis Algorithm - Example Given: Coke/Pepsi HMM, and sequence of observations: CPC Find the most likely path S*= (s*1,s*2,s*3) that generated x1,x2,x3= CPC v x1 = C x2 = P x3 = C start A 1 0 0 0 0 p(xt|st=k) max j v(j,t-1)p(st|sj) = p(C|A) max {v(start,0)p(A|start), 0, 0, 0} = p(C|A) v(start,0)p(A|start) = 0.6 *1*0.6 = 0.36 Parent: start R p(C|R) max {v(start,0)p(R|start), 0, 0, 0} = 0.9*1*0.1 = 0.09 Parent: start 0 B p(C|B) max {v(start,0)p(B|start), 0, 0, 0} = 0.5*1*0.3 = 0.15 Parent: start 0

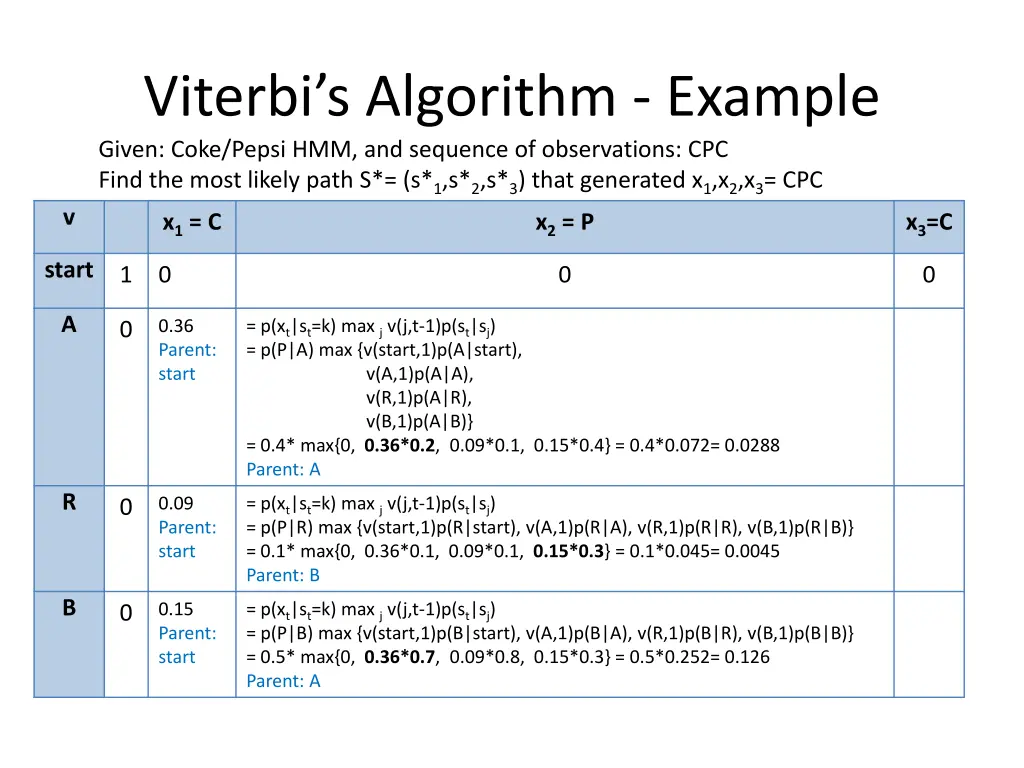

Viterbis Algorithm - Example Given: Coke/Pepsi HMM, and sequence of observations: CPC Find the most likely path S*= (s*1,s*2,s*3) that generated x1,x2,x3= CPC v x1 = C x2 = P x3=C start 1 0 0 0 A 0.36 Parent: start = p(xt|st=k) max j v(j,t-1)p(st|sj) = p(P|A) max {v(start,1)p(A|start), v(A,1)p(A|A), v(R,1)p(A|R), v(B,1)p(A|B)} = 0.4* max{0, 0.36*0.2, 0.09*0.1, 0.15*0.4} = 0.4*0.072= 0.0288 Parent: A 0 R 0.09 Parent: start = p(xt|st=k) max j v(j,t-1)p(st|sj) = p(P|R) max {v(start,1)p(R|start), v(A,1)p(R|A), v(R,1)p(R|R), v(B,1)p(R|B)} = 0.1* max{0, 0.36*0.1, 0.09*0.1, 0.15*0.3} = 0.1*0.045= 0.0045 Parent: B 0 B 0.15 Parent: start = p(xt|st=k) max j v(j,t-1)p(st|sj) = p(P|B) max {v(start,1)p(B|start), v(A,1)p(B|A), v(R,1)p(B|R), v(B,1)p(B|B)} = 0.5* max{0, 0.36*0.7, 0.09*0.8, 0.15*0.3} = 0.5*0.252= 0.126 Parent: A 0

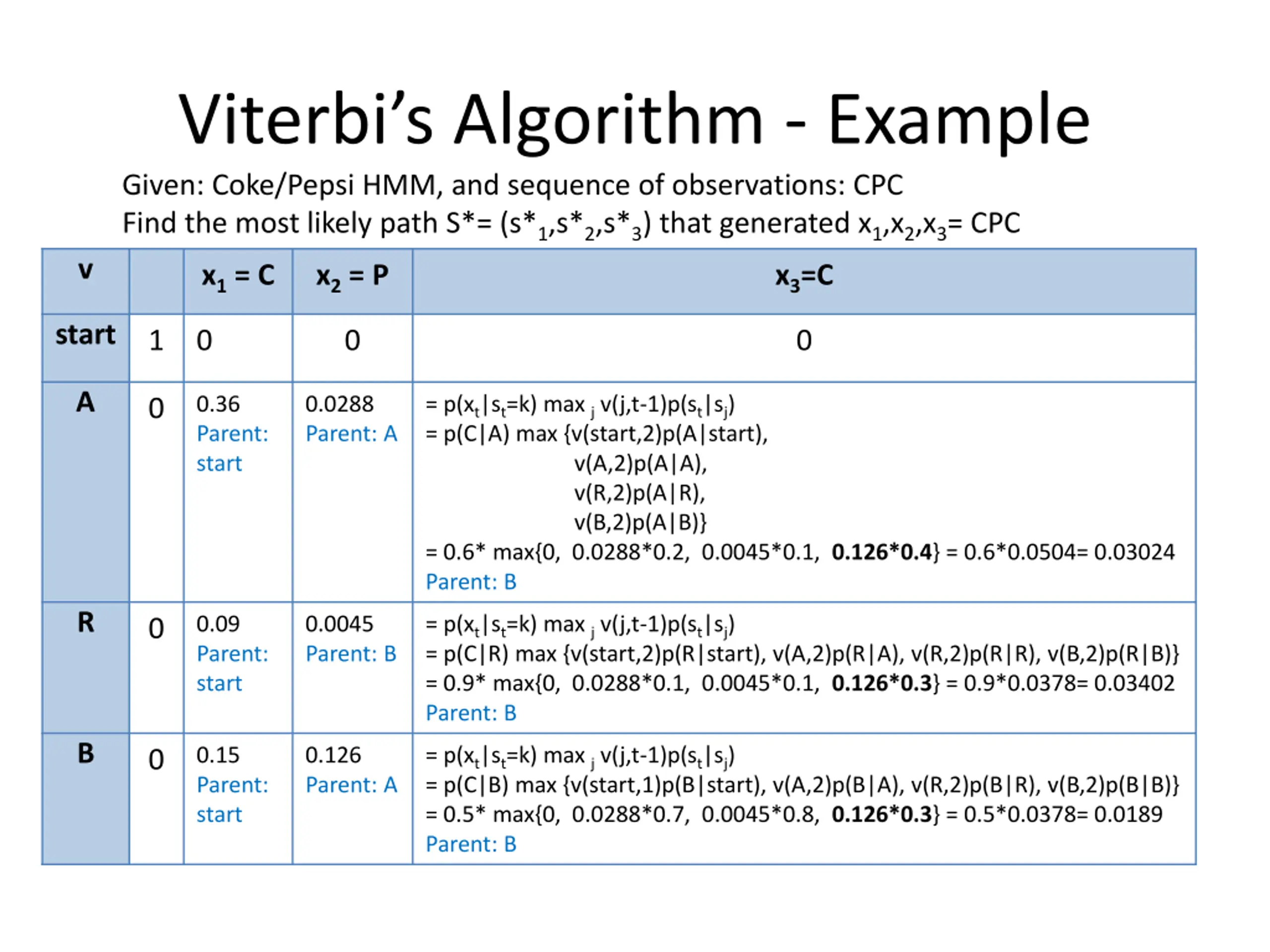

Viterbis Algorithm - Example Given: Coke/Pepsi HMM, and sequence of observations: CPC Find the most likely path S*= (s*1,s*2,s*3) that generated x1,x2,x3= CPC v x1 = C x2 = P x3=C start 1 0 0 0 A 0.36 Parent: start 0.0288 Parent: A = p(xt|st=k) max j v(j,t-1)p(st|sj) = p(C|A) max {v(start,2)p(A|start), v(A,2)p(A|A), v(R,2)p(A|R), v(B,2)p(A|B)} = 0.6* max{0, 0.0288*0.2, 0.0045*0.1, 0.126*0.4} = 0.6*0.0504= 0.03024 Parent: B 0 R 0.09 Parent: start 0.0045 Parent: B = p(xt|st=k) max j v(j,t-1)p(st|sj) = p(C|R) max {v(start,2)p(R|start), v(A,2)p(R|A), v(R,2)p(R|R), v(B,2)p(R|B)} = 0.9* max{0, 0.0288*0.1, 0.0045*0.1, 0.126*0.3} = 0.9*0.0378= 0.03402 Parent: B 0 B 0.15 Parent: start 0.126 Parent: A = p(xt|st=k) max j v(j,t-1)p(st|sj) = p(C|B) max {v(start,1)p(B|start), v(A,2)p(B|A), v(R,2)p(B|R), v(B,2)p(B|B)} = 0.5* max{0, 0.0288*0.7, 0.0045*0.8, 0.126*0.3} = 0.5*0.0378= 0.0189 Parent: B 0

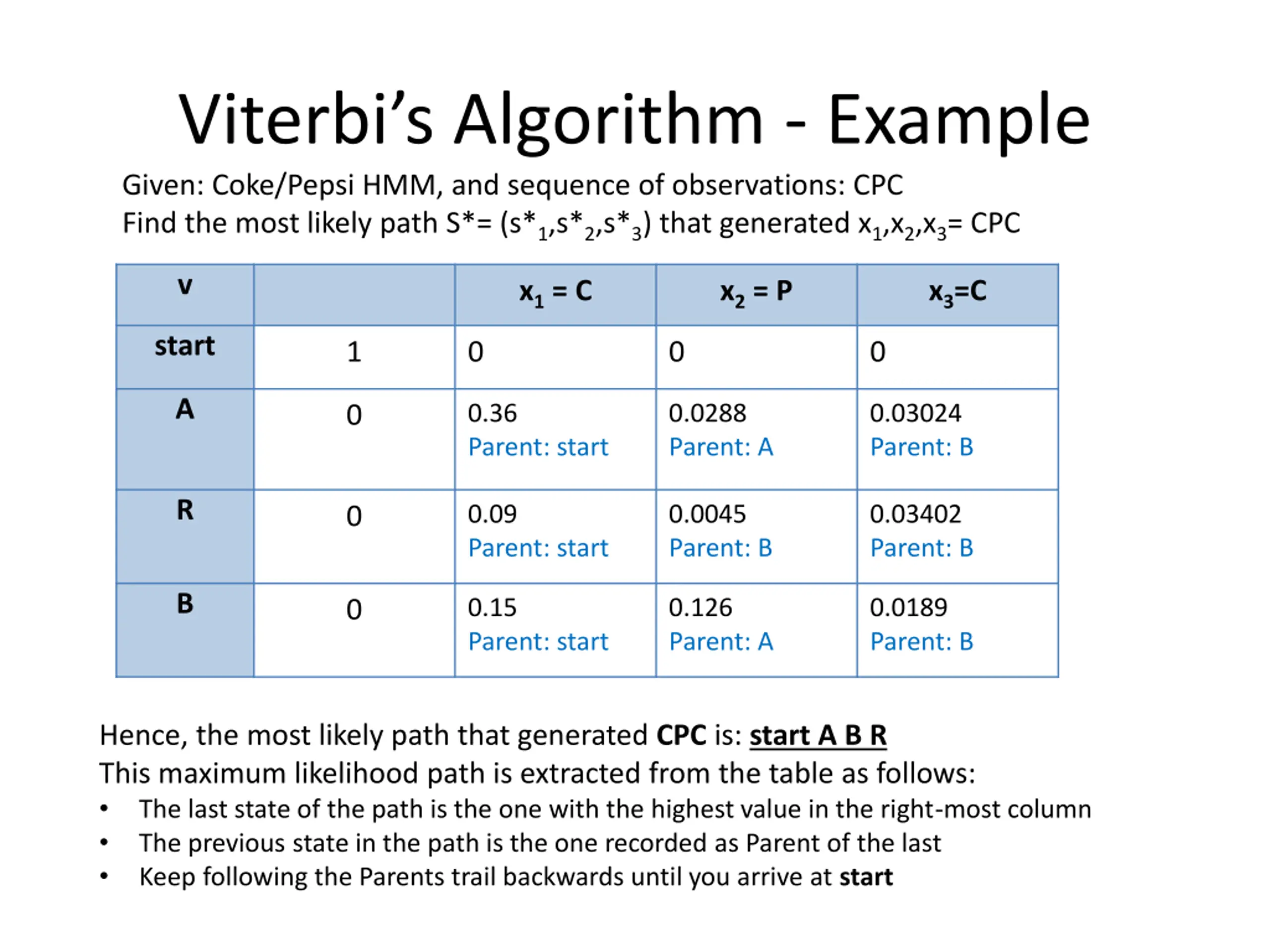

Viterbis Algorithm - Example Given: Coke/Pepsi HMM, and sequence of observations: CPC Find the most likely path S*= (s*1,s*2,s*3) that generated x1,x2,x3= CPC v x1 = C x2 = P x3=C start 1 0 0 0 A 0.36 Parent: start 0.0288 Parent: A 0.03024 Parent: B 0 R 0.09 Parent: start 0.0045 Parent: B 0.03402 Parent: B 0 B 0.15 Parent: start 0.126 Parent: A 0.0189 Parent: B 0 Hence, the most likely path that generated CPC is: start A B R This maximum likelihood path is extracted from the table as follows: The last state of the path is the one with the highest value in the right-most column The previous state in the path is the one recorded as Parent of the last Keep following the Parents trail backwards until you arrive at start

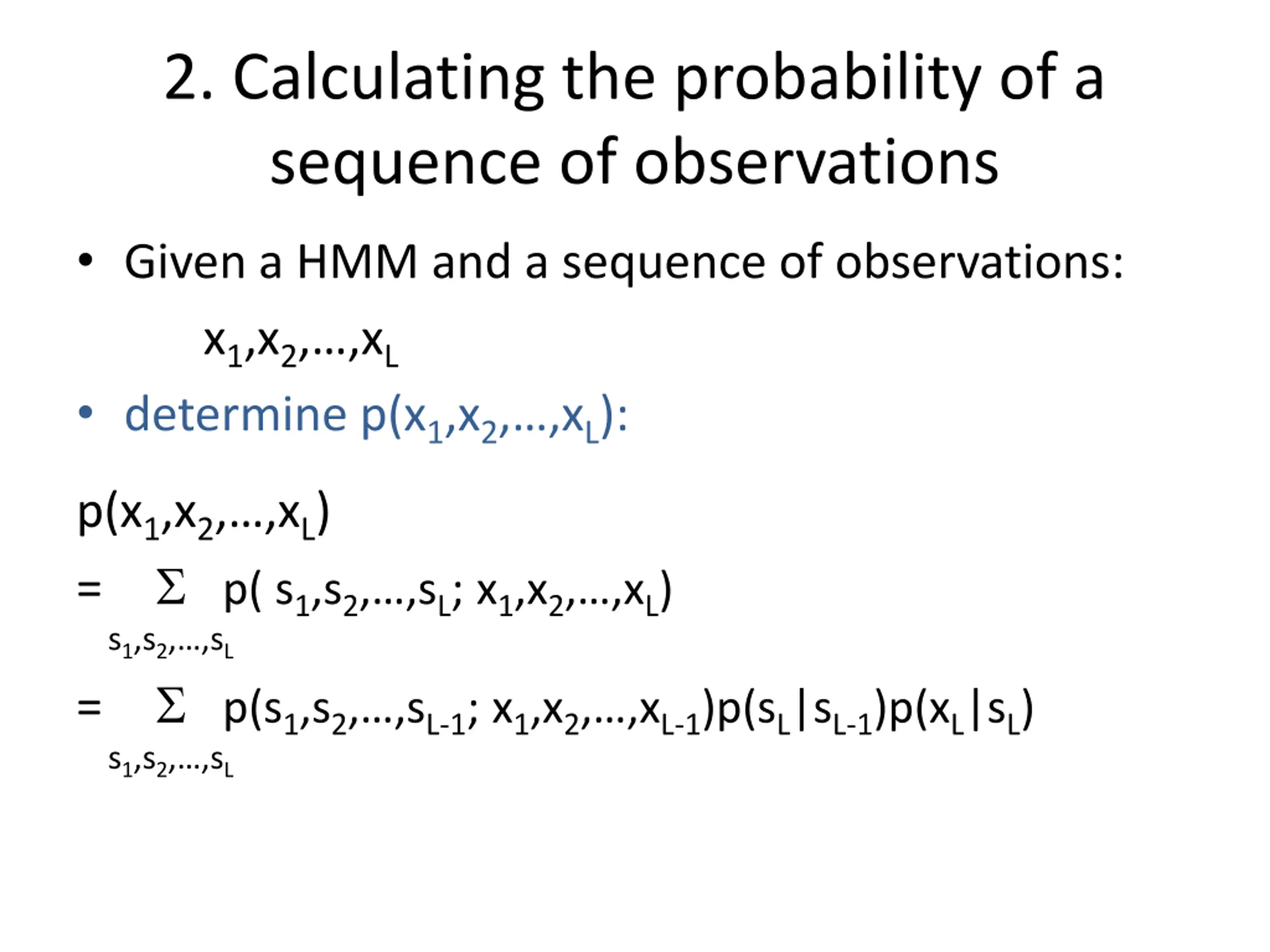

2. Calculating the probability of a sequence of observations Given a HMM and a sequence of observations: x1,x2, ,xL determine p(x1,x2, ,xL): p(x1,x2, ,xL) = p( s1,s2, ,sL; x1,x2, ,xL) s1,s2, ,sL = p(s1,s2, ,sL-1; x1,x2, ,xL-1)p(sL|sL-1)p(xL|sL) s1,s2, ,sL

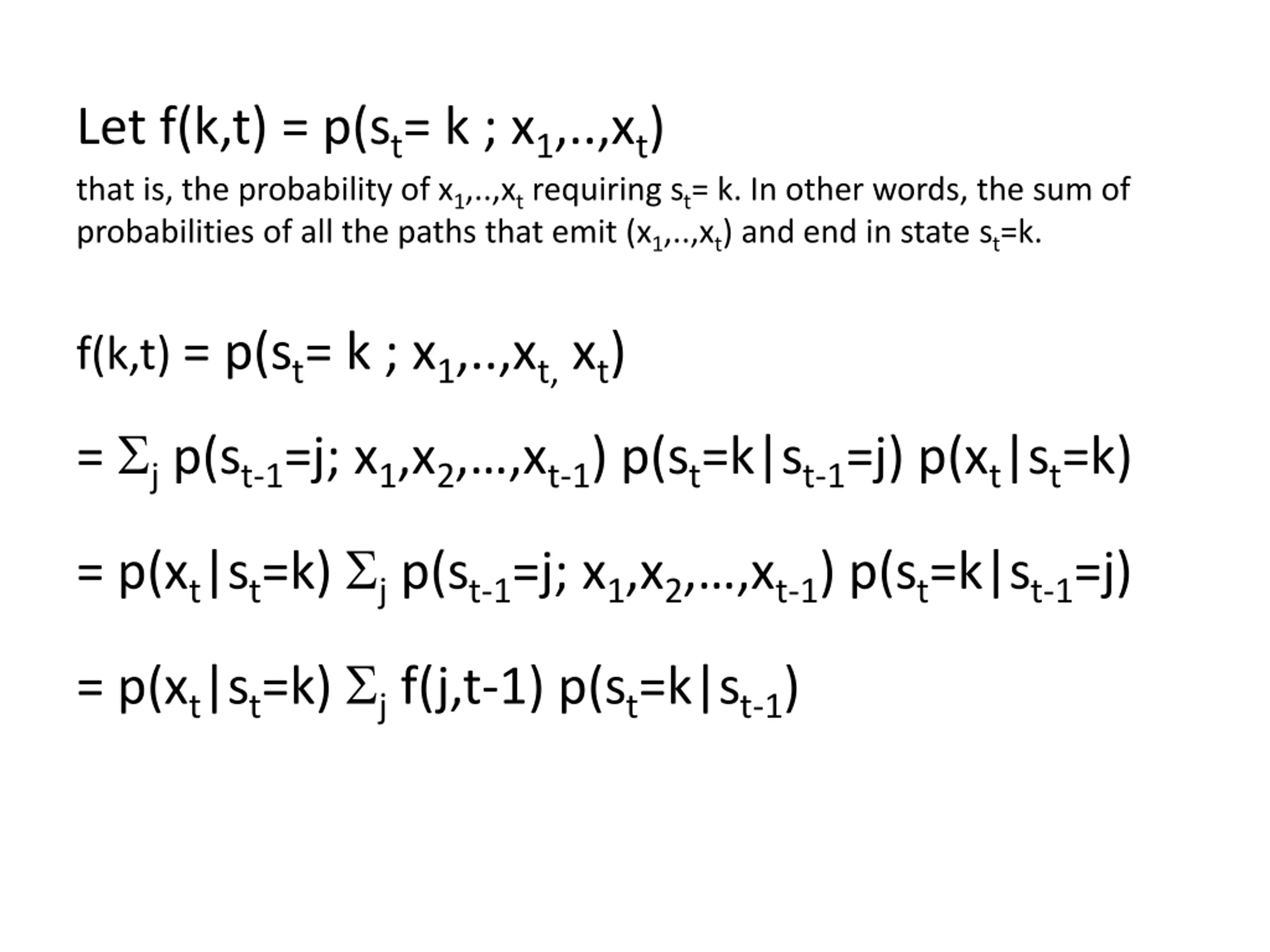

Let f(k,t) = p(st= k ; x1,..,xt) that is, the probability of x1,..,xt requiring st= k. In other words, the sum of probabilities of all the paths that emit (x1,..,xt) and end in state st=k. f(k,t) = p(st= k ; x1,..,xt, xt) = j p(st-1=j; x1,x2, ,xt-1) p(st=k|st-1=j) p(xt|st=k) = p(xt|st=k) j p(st-1=j; x1,x2, ,xt-1) p(st=k|st-1=j) = p(xt|st=k) j f(j,t-1) p(st=k|st-1)

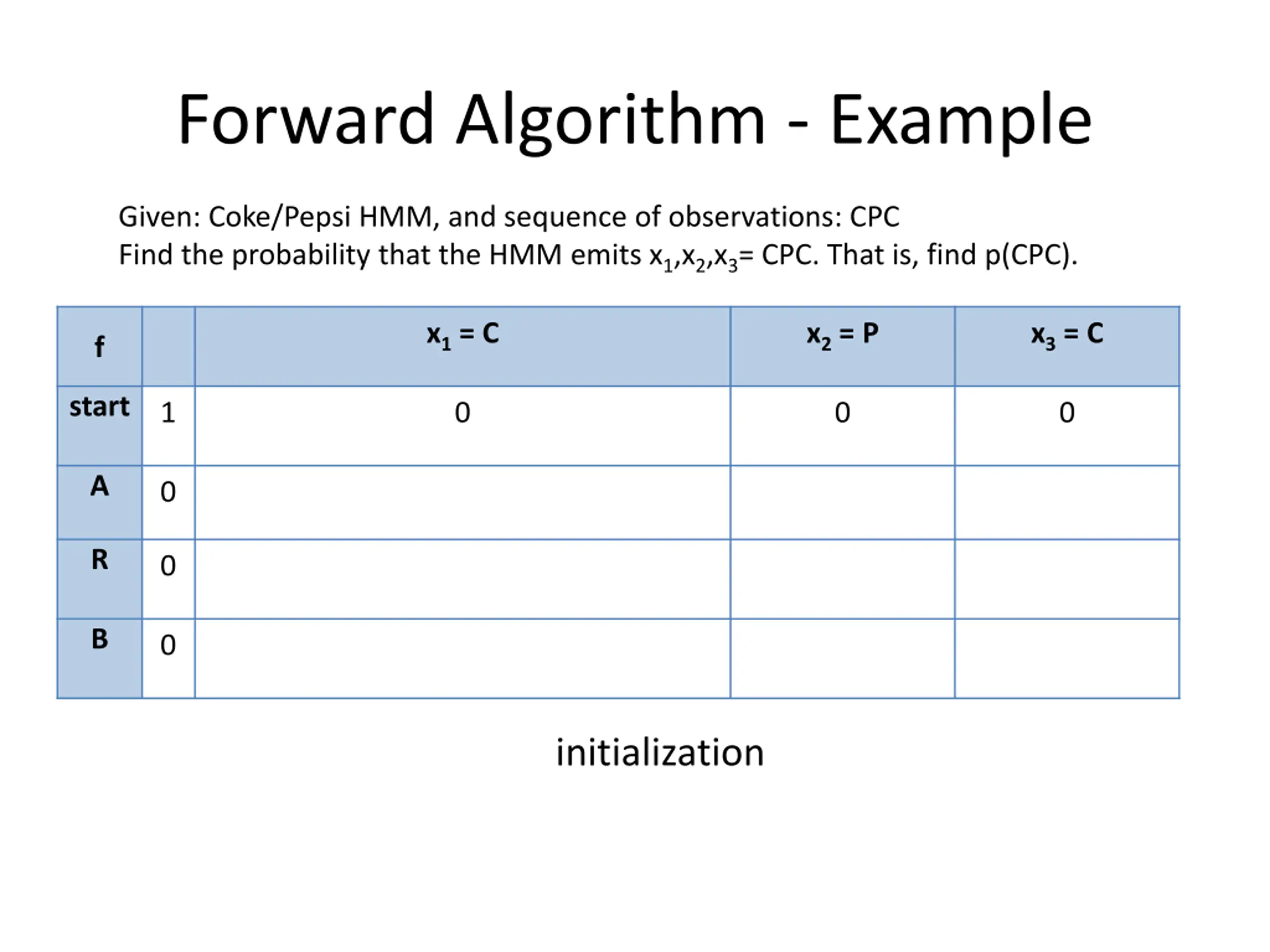

Forward Algorithm - Example Given: Coke/Pepsi HMM, and sequence of observations: CPC Find the probability that the HMM emits x1,x2,x3= CPC. That is, find p(CPC). x1 = C x2 = P x3 = C f start 1 0 0 0 A 0 R 0 B 0 initialization

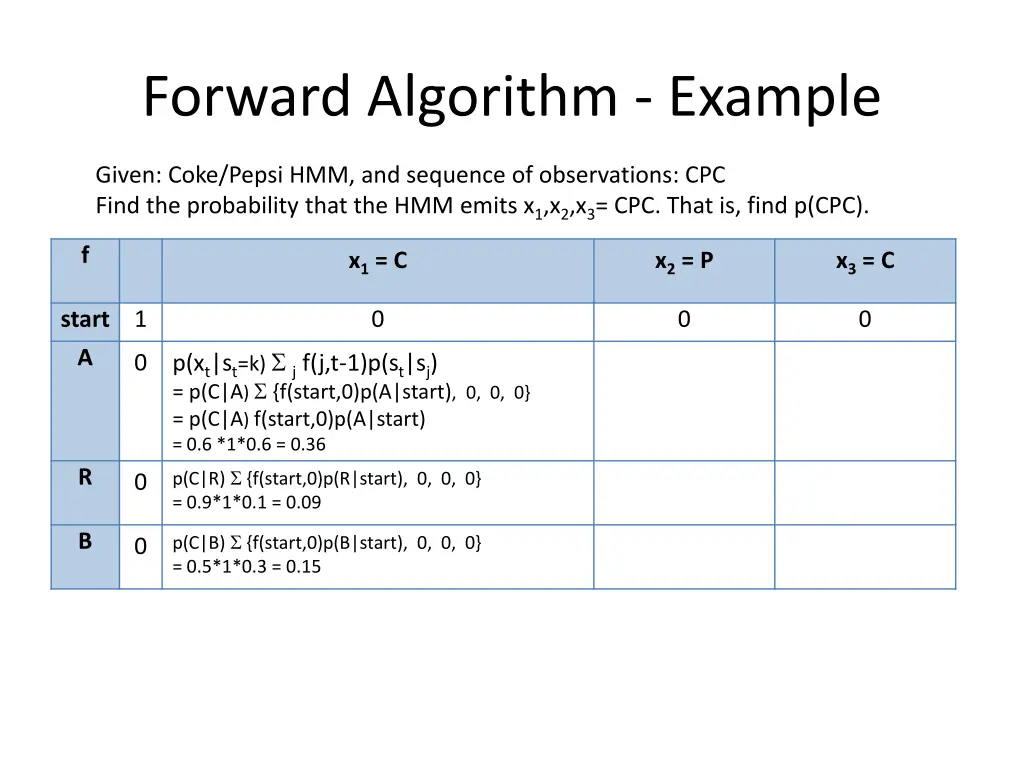

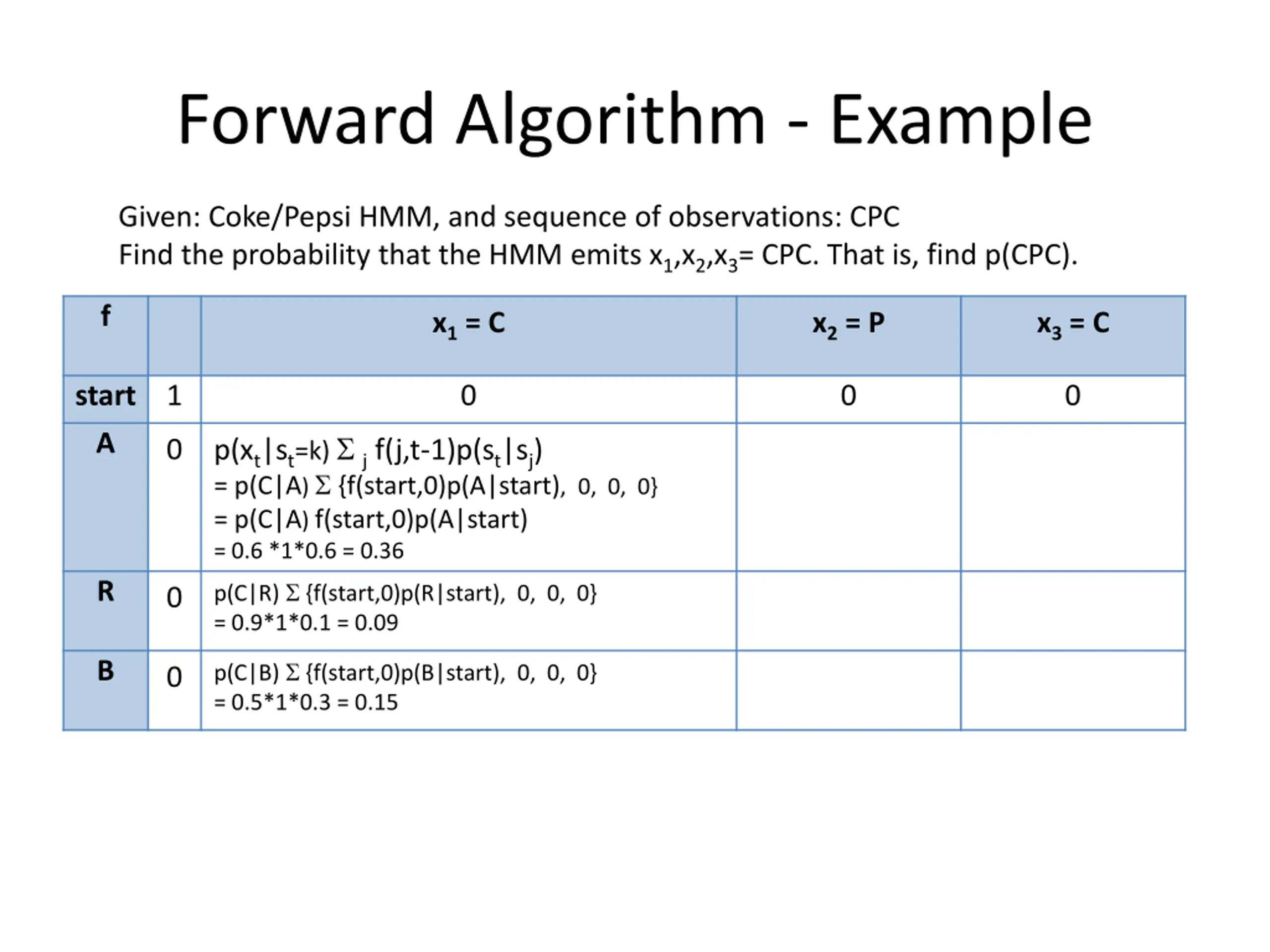

Forward Algorithm - Example Given: Coke/Pepsi HMM, and sequence of observations: CPC Find the probability that the HMM emits x1,x2,x3= CPC. That is, find p(CPC). f x1 = C x2 = P x3 = C start A 1 0 0 0 p(xt|st=k) j f(j,t-1)p(st|sj) = p(C|A) {f(start,0)p(A|start), 0, 0, 0} = p(C|A) f(start,0)p(A|start) = 0.6 *1*0.6 = 0.36 p(C|R) {f(start,0)p(R|start), 0, 0, 0} = 0.9*1*0.1 = 0.09 0 R 0 p(C|B) {f(start,0)p(B|start), 0, 0, 0} = 0.5*1*0.3 = 0.15 B 0

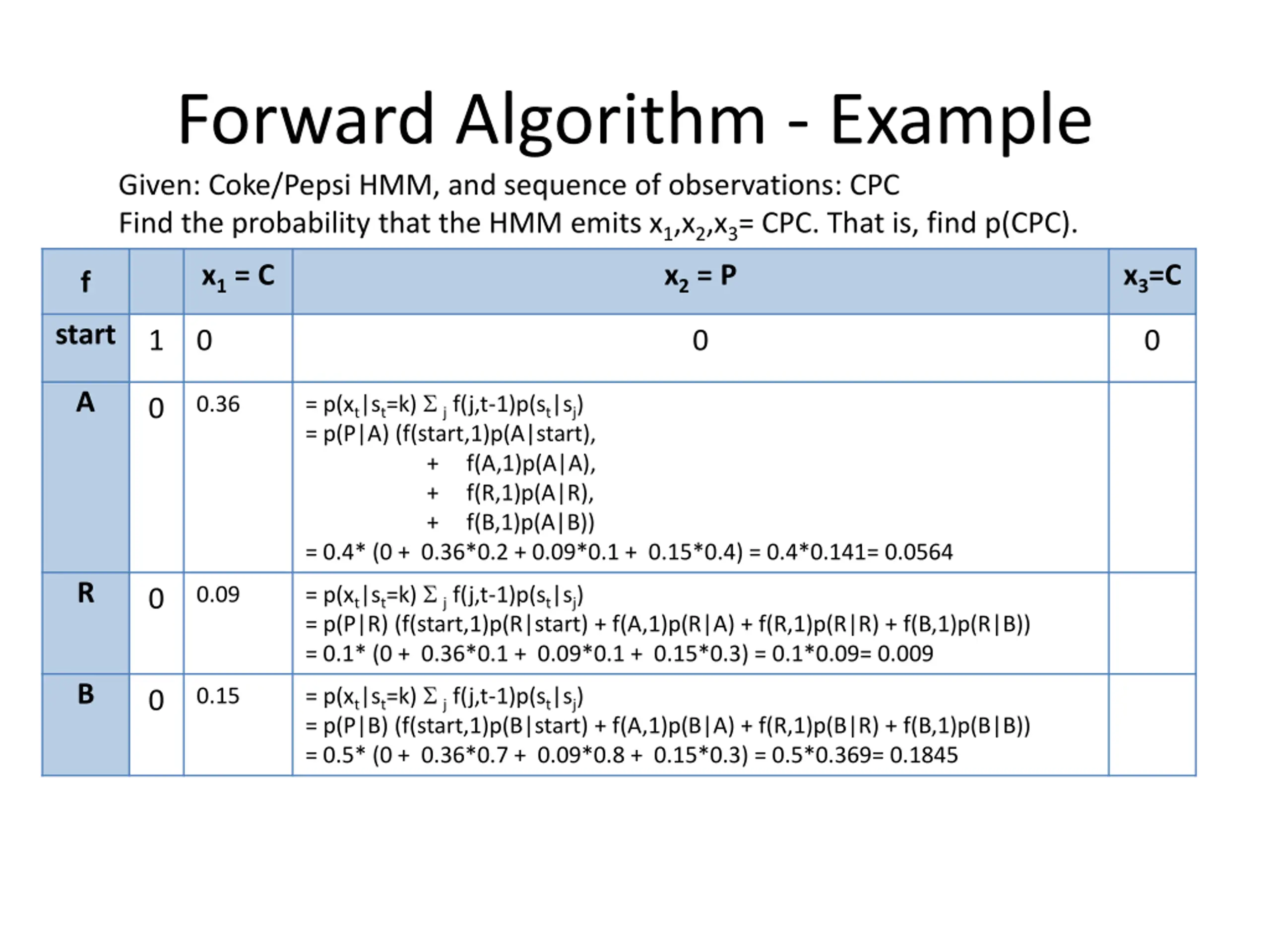

Forward Algorithm - Example Given: Coke/Pepsi HMM, and sequence of observations: CPC Find the probability that the HMM emits x1,x2,x3= CPC. That is, find p(CPC). x1 = C x2 = P x3=C f start 1 0 0 0 = p(xt|st=k) j f(j,t-1)p(st|sj) = p(P|A) (f(start,1)p(A|start), + f(A,1)p(A|A), + f(R,1)p(A|R), + f(B,1)p(A|B)) = 0.4* (0 + 0.36*0.2 + 0.09*0.1 + 0.15*0.4) = 0.4*0.141= 0.0564 = p(xt|st=k) j f(j,t-1)p(st|sj) = p(P|R) (f(start,1)p(R|start) + f(A,1)p(R|A) + f(R,1)p(R|R) + f(B,1)p(R|B)) = 0.1* (0 + 0.36*0.1 + 0.09*0.1 + 0.15*0.3) = 0.1*0.09= 0.009 = p(xt|st=k) j f(j,t-1)p(st|sj) = p(P|B) (f(start,1)p(B|start) + f(A,1)p(B|A) + f(R,1)p(B|R) + f(B,1)p(B|B)) = 0.5* (0 + 0.36*0.7 + 0.09*0.8 + 0.15*0.3) = 0.5*0.369= 0.1845 A 0.36 0 R 0.09 0 B 0.15 0

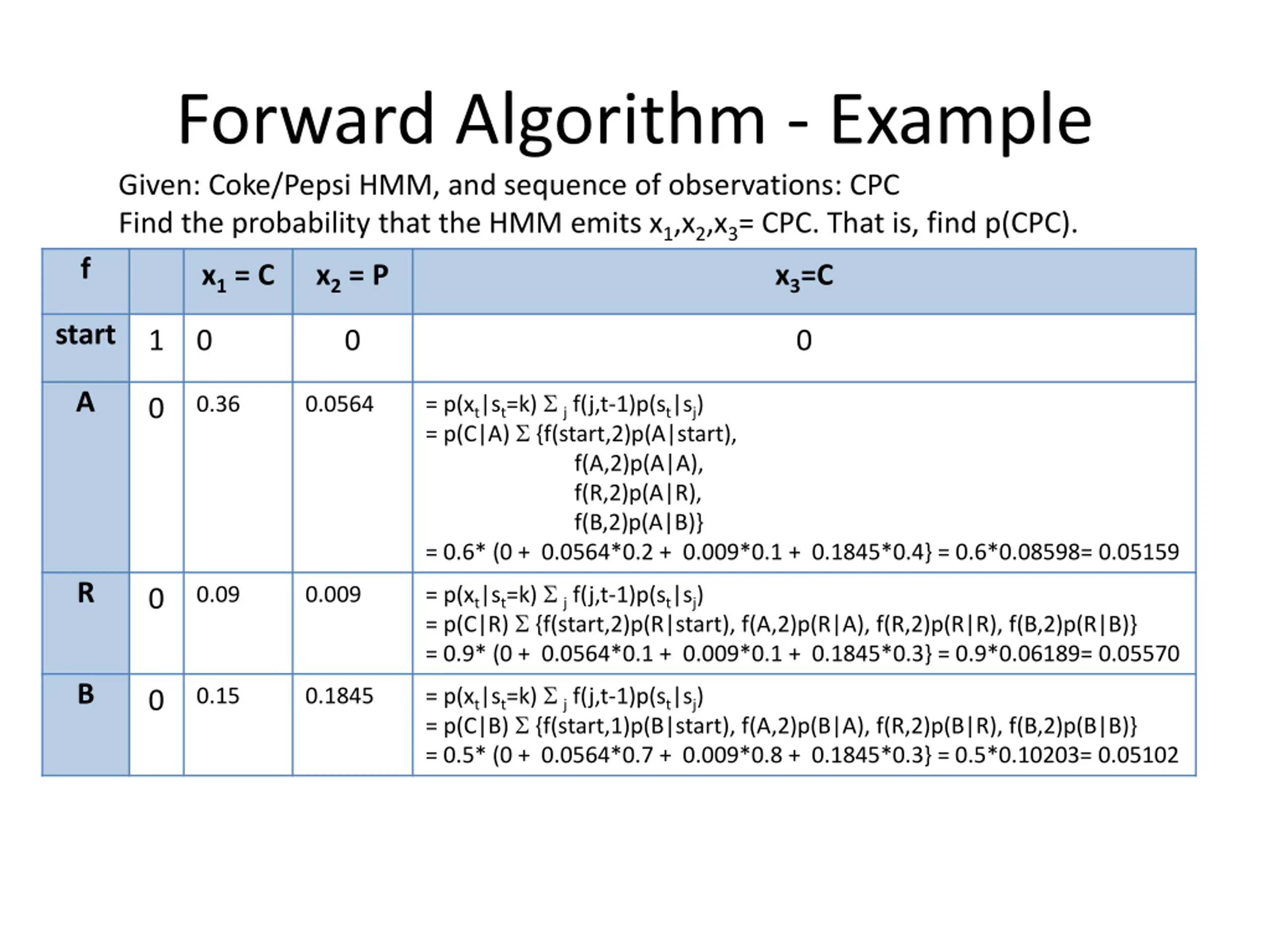

Forward Algorithm - Example Given: Coke/Pepsi HMM, and sequence of observations: CPC Find the probability that the HMM emits x1,x2,x3= CPC. That is, find p(CPC). f x1 = C x2 = P x3=C start 1 0 0 0 = p(xt|st=k) j f(j,t-1)p(st|sj) = p(C|A) {f(start,2)p(A|start), f(A,2)p(A|A), f(R,2)p(A|R), f(B,2)p(A|B)} = 0.6* (0 + 0.0564*0.2 + 0.009*0.1 + 0.1845*0.4} = 0.6*0.08598= 0.05159 = p(xt|st=k) j f(j,t-1)p(st|sj) = p(C|R) {f(start,2)p(R|start), f(A,2)p(R|A), f(R,2)p(R|R), f(B,2)p(R|B)} = 0.9* (0 + 0.0564*0.1 + 0.009*0.1 + 0.1845*0.3} = 0.9*0.06189= 0.05570 = p(xt|st=k) j f(j,t-1)p(st|sj) = p(C|B) {f(start,1)p(B|start), f(A,2)p(B|A), f(R,2)p(B|R), f(B,2)p(B|B)} = 0.5* (0 + 0.0564*0.7 + 0.009*0.8 + 0.1845*0.3} = 0.5*0.10203= 0.05102 A 0.36 0.0564 0 R 0.09 0.009 0 B 0.15 0.1845 0

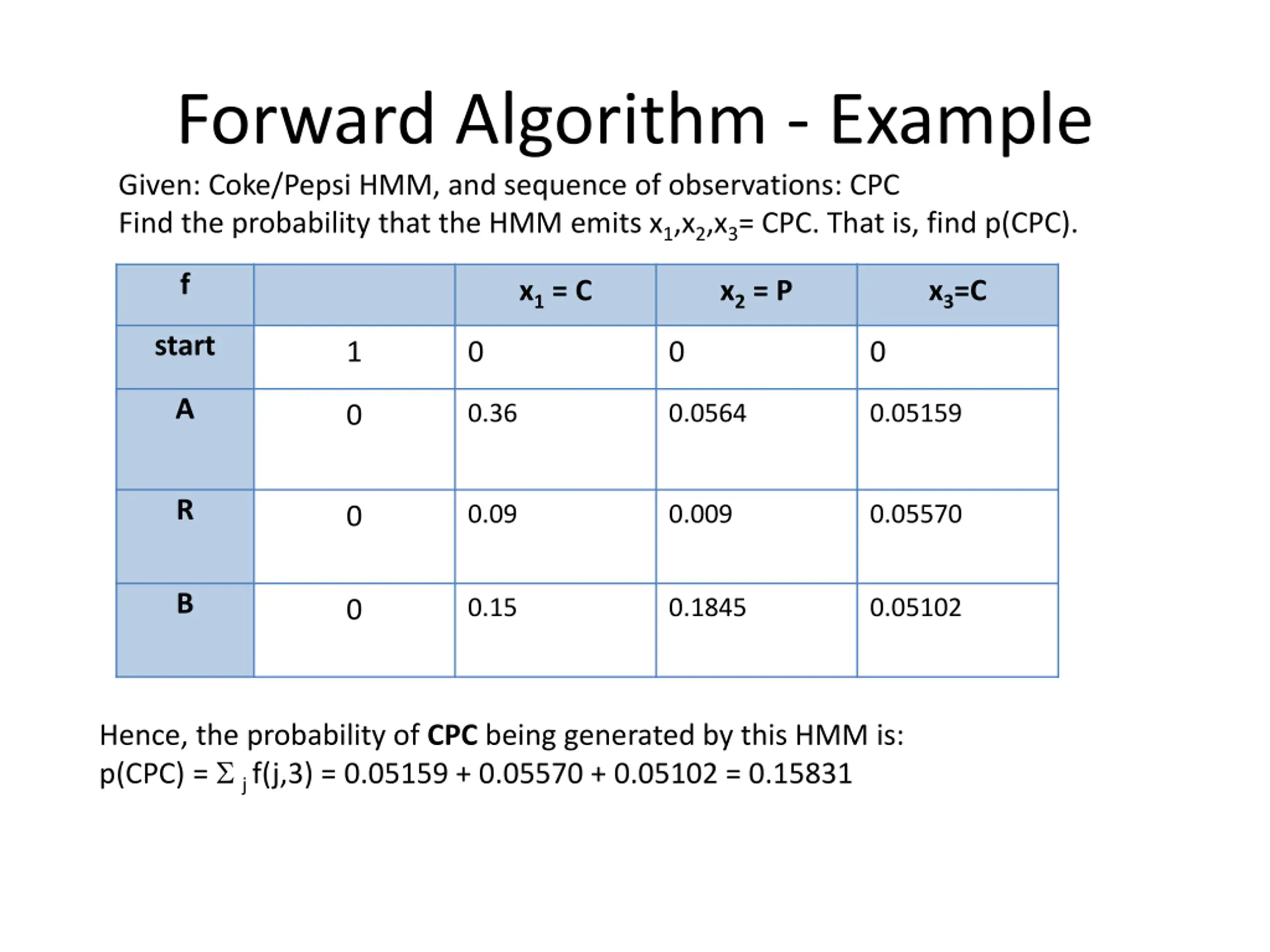

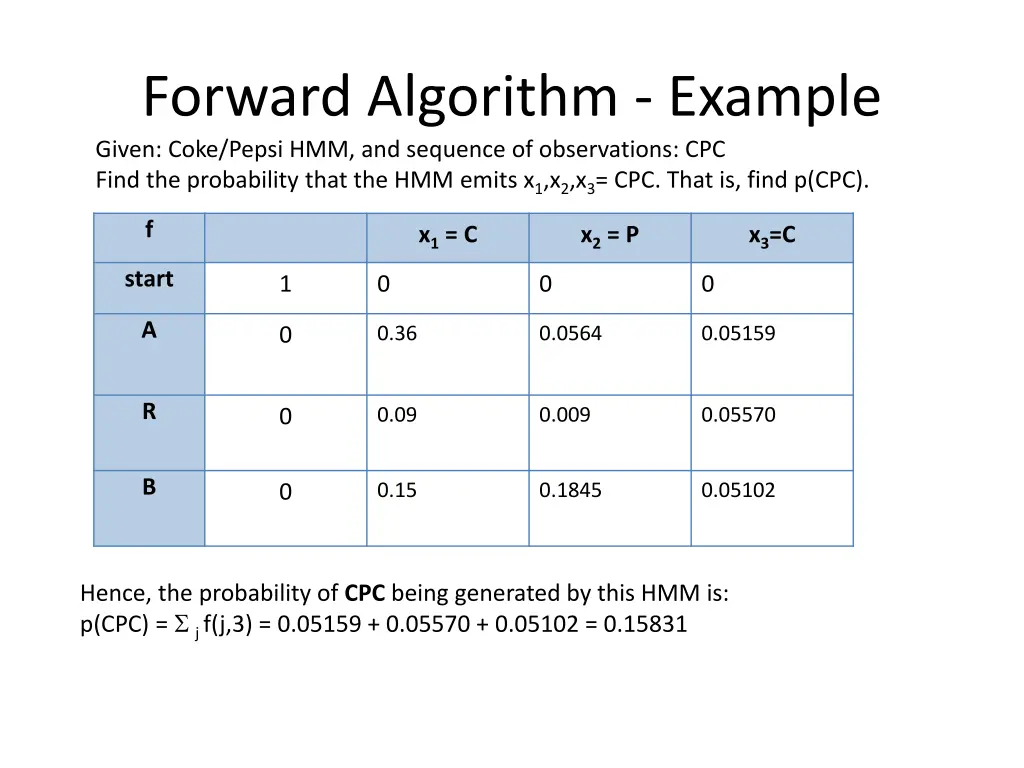

Forward Algorithm - Example Given: Coke/Pepsi HMM, and sequence of observations: CPC Find the probability that the HMM emits x1,x2,x3= CPC. That is, find p(CPC). f x1 = C x2 = P x3=C start 1 0 0 0 A 0.36 0.0564 0.05159 0 R 0.09 0.009 0.05570 0 B 0.15 0.1845 0.05102 0 Hence, the probability of CPC being generated by this HMM is: p(CPC) = j f(j,3) = 0.05159 + 0.05570 + 0.05102 = 0.15831

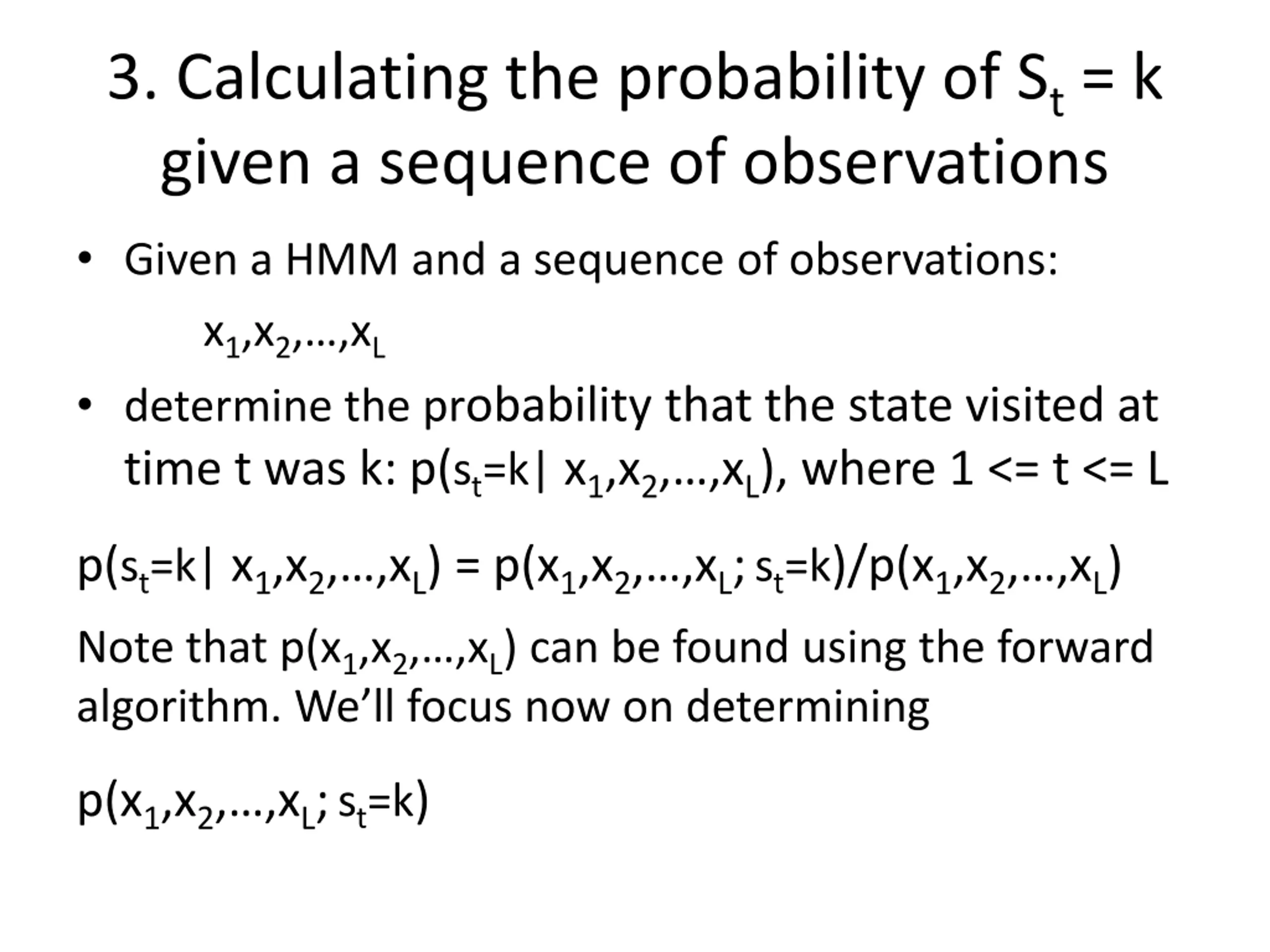

3. Calculating the probability of St = k given a sequence of observations Given a HMM and a sequence of observations: x1,x2, ,xL determine the probability that the state visited at time t was k: p(st=k| x1,x2, ,xL), where 1 <= t <= L p(st=k| x1,x2, ,xL) = p(x1,x2, ,xL;st=k)/p(x1,x2, ,xL) Note that p(x1,x2, ,xL) can be found using the forward algorithm. We ll focus now on determining p(x1,x2, ,xL;st=k)

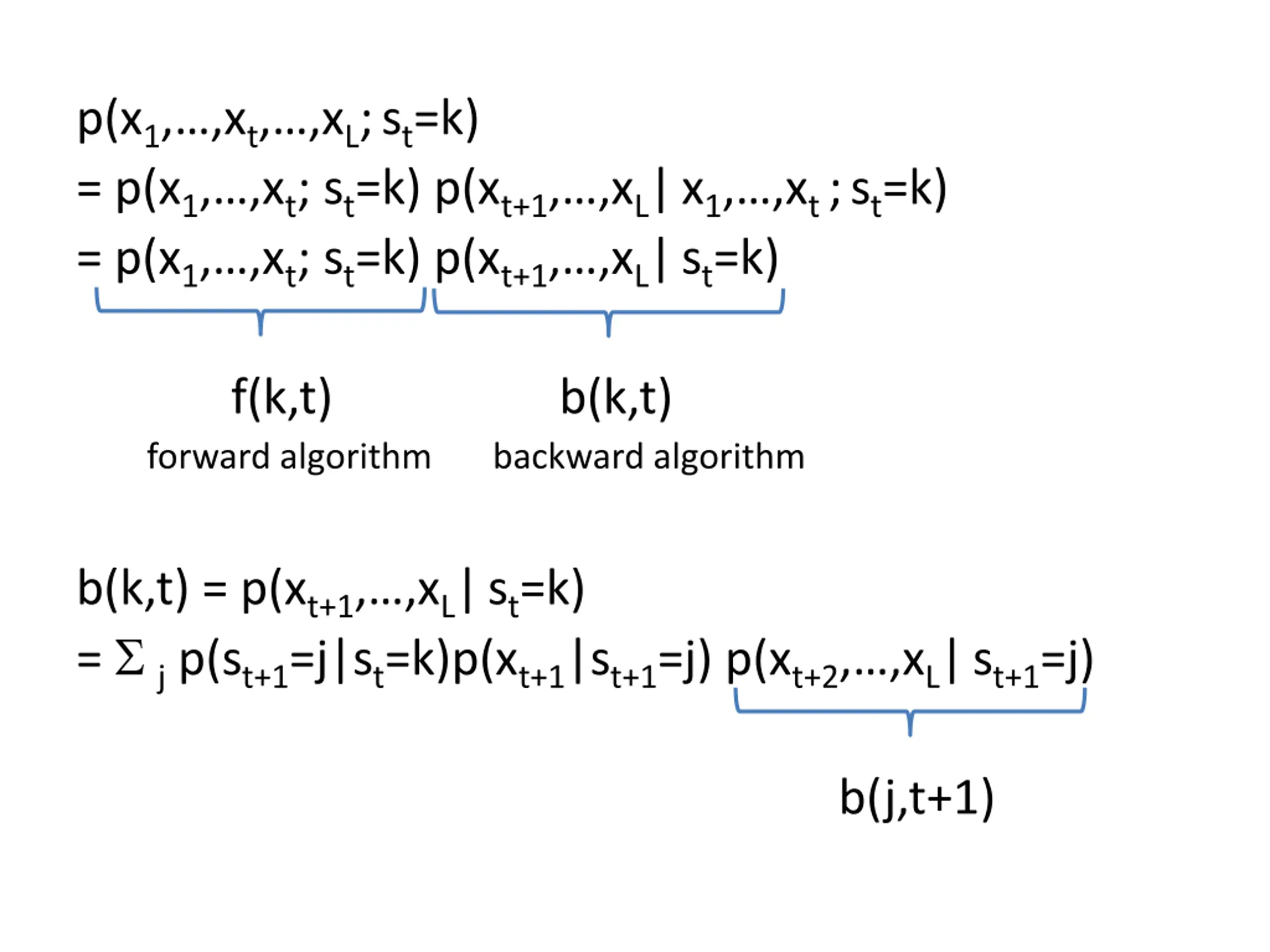

p(x1,,xt,,xL;st=k) = p(x1, ,xt; st=k) p(xt+1, ,xL|x1, ,xt ;st=k) = p(x1, ,xt; st=k) p(xt+1, ,xL|st=k) f(k,t) b(k,t) forward algorithm backward algorithm b(k,t) = p(xt+1, ,xL|st=k) = j p(st+1=j|st=k)p(xt+1|st+1=j) p(xt+2, ,xL|st+1=j) b(j,t+1)

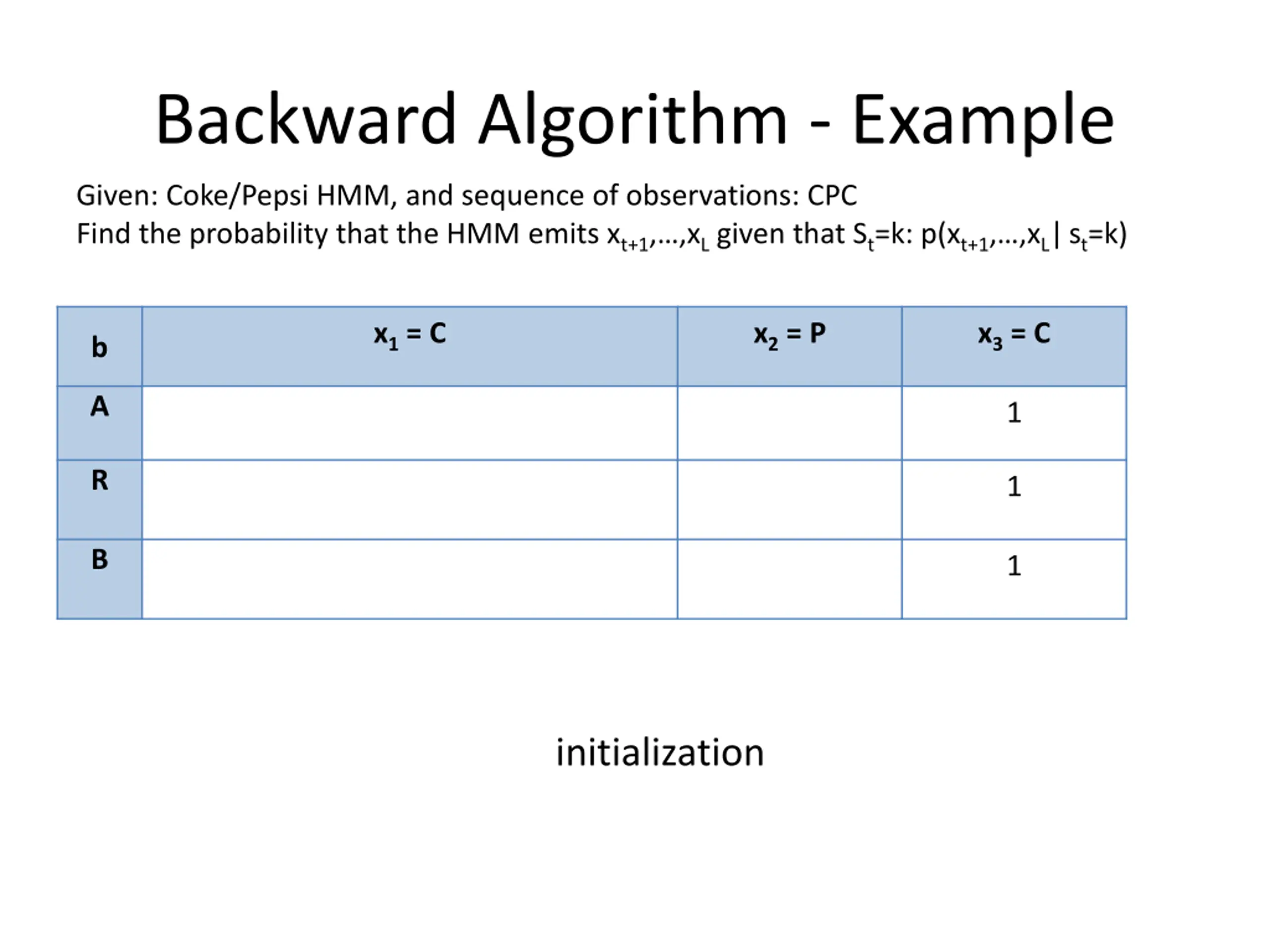

Backward Algorithm - Example Given: Coke/Pepsi HMM, and sequence of observations: CPC Find the probability that the HMM emits xt+1, ,xL given that St=k: p(xt+1, ,xL|st=k) x1 = C x2 = P x3 = C b A 1 R 1 B 1 initialization

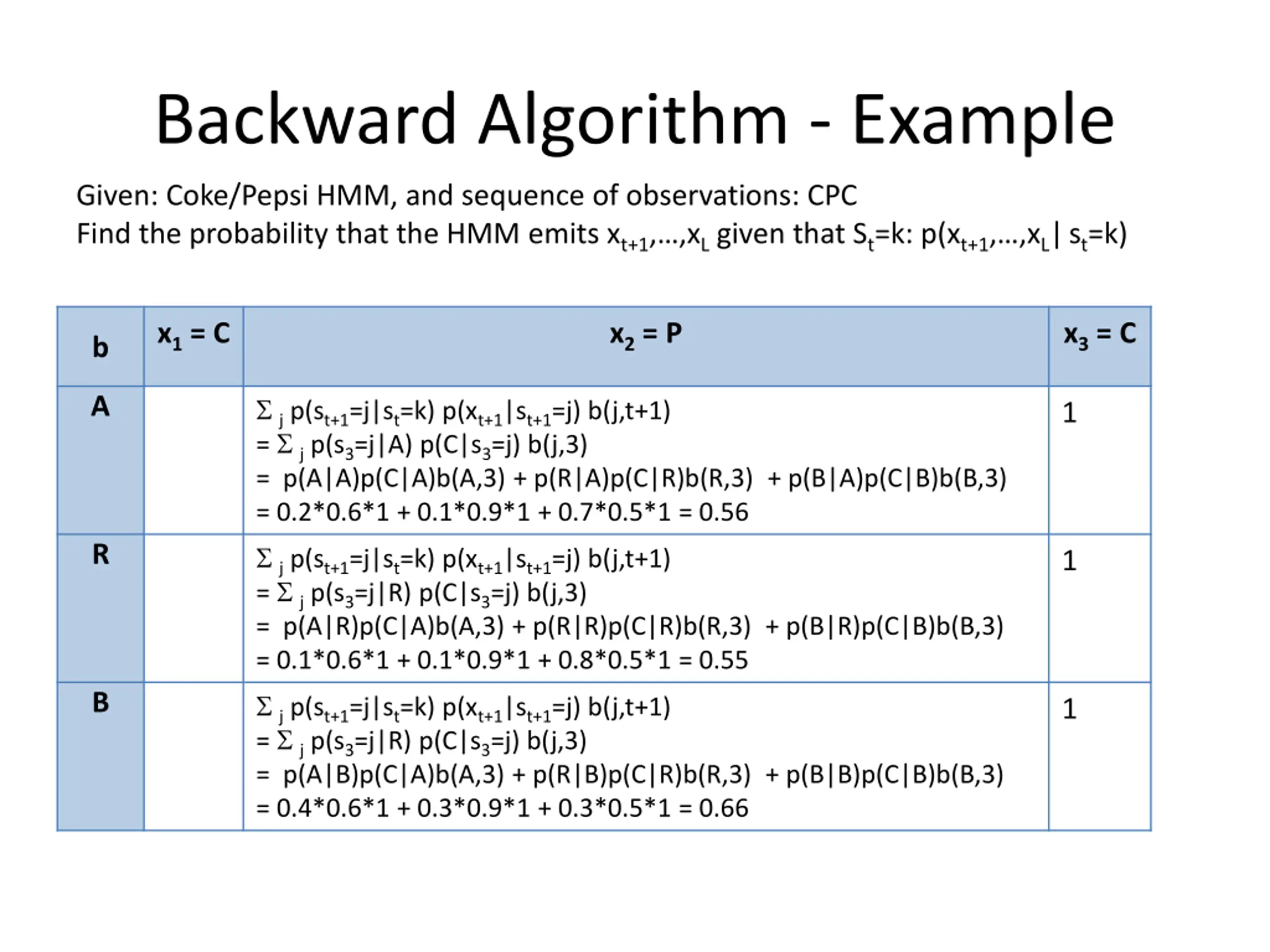

Backward Algorithm - Example Given: Coke/Pepsi HMM, and sequence of observations: CPC Find the probability that the HMM emits xt+1, ,xL given that St=k: p(xt+1, ,xL|st=k) x1 = C x2 = P x3 = C b j p(st+1=j|st=k) p(xt+1|st+1=j) b(j,t+1) = j p(s3=j|A) p(C|s3=j) b(j,3) = p(A|A)p(C|A)b(A,3) + p(R|A)p(C|R)b(R,3) + p(B|A)p(C|B)b(B,3) = 0.2*0.6*1 + 0.1*0.9*1 + 0.7*0.5*1 = 0.56 j p(st+1=j|st=k) p(xt+1|st+1=j) b(j,t+1) = j p(s3=j|R) p(C|s3=j) b(j,3) = p(A|R)p(C|A)b(A,3) + p(R|R)p(C|R)b(R,3) + p(B|R)p(C|B)b(B,3) = 0.1*0.6*1 + 0.1*0.9*1 + 0.8*0.5*1 = 0.55 j p(st+1=j|st=k) p(xt+1|st+1=j) b(j,t+1) = j p(s3=j|R) p(C|s3=j) b(j,3) = p(A|B)p(C|A)b(A,3) + p(R|B)p(C|R)b(R,3) + p(B|B)p(C|B)b(B,3) = 0.4*0.6*1 + 0.3*0.9*1 + 0.3*0.5*1 = 0.66 A 1 R 1 B 1

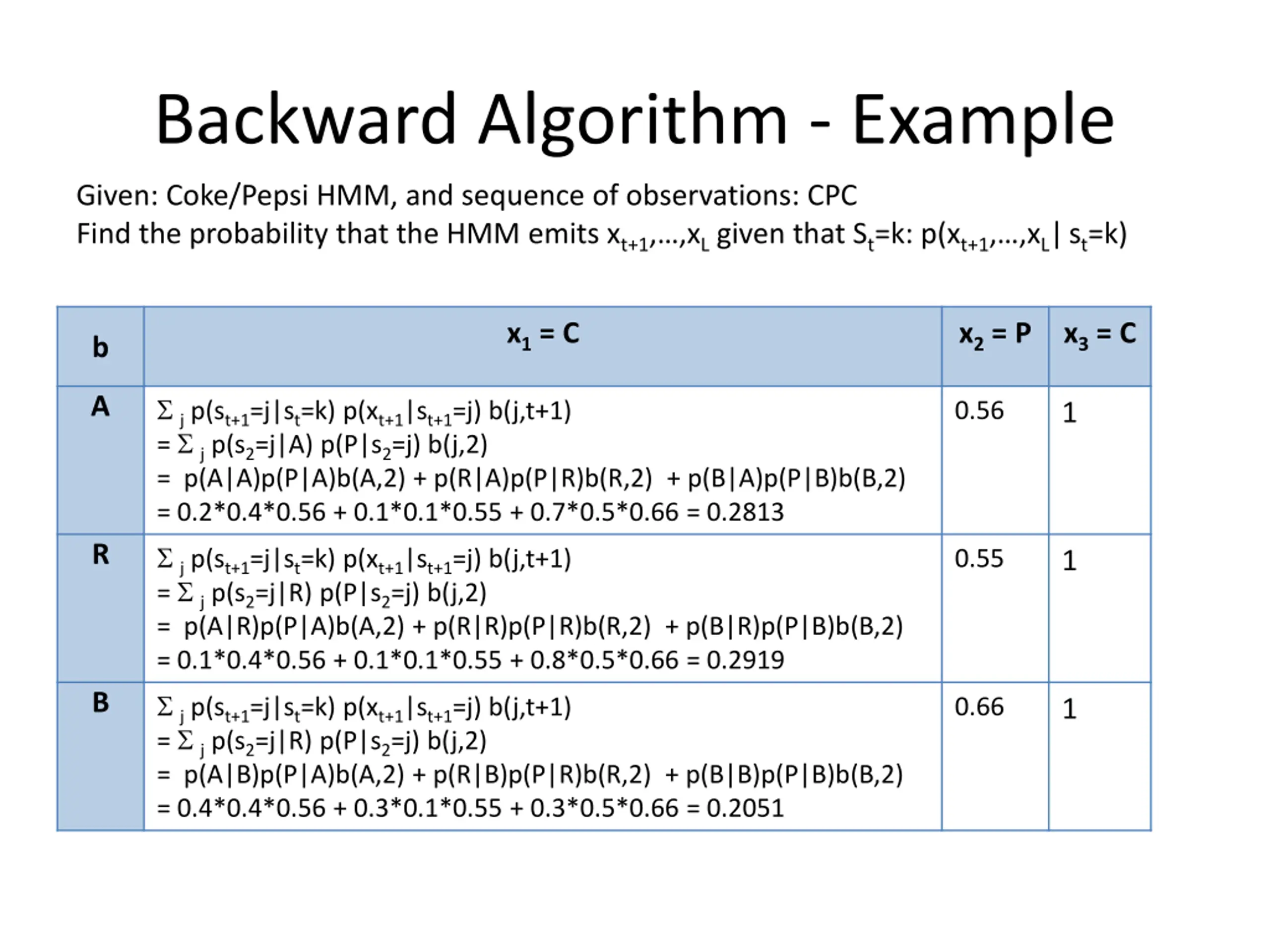

Backward Algorithm - Example Given: Coke/Pepsi HMM, and sequence of observations: CPC Find the probability that the HMM emits xt+1, ,xL given that St=k: p(xt+1, ,xL|st=k) x1 = C x2 = P x3 = C b j p(st+1=j|st=k) p(xt+1|st+1=j) b(j,t+1) = j p(s2=j|A) p(P|s2=j) b(j,2) = p(A|A)p(P|A)b(A,2) + p(R|A)p(P|R)b(R,2) + p(B|A)p(P|B)b(B,2) = 0.2*0.4*0.56 + 0.1*0.1*0.55 + 0.7*0.5*0.66 = 0.2813 j p(st+1=j|st=k) p(xt+1|st+1=j) b(j,t+1) = j p(s2=j|R) p(P|s2=j) b(j,2) = p(A|R)p(P|A)b(A,2) + p(R|R)p(P|R)b(R,2) + p(B|R)p(P|B)b(B,2) = 0.1*0.4*0.56 + 0.1*0.1*0.55 + 0.8*0.5*0.66 = 0.2919 j p(st+1=j|st=k) p(xt+1|st+1=j) b(j,t+1) = j p(s2=j|R) p(P|s2=j) b(j,2) = p(A|B)p(P|A)b(A,2) + p(R|B)p(P|R)b(R,2) + p(B|B)p(P|B)b(B,2) = 0.4*0.4*0.56 + 0.3*0.1*0.55 + 0.3*0.5*0.66 = 0.2051 A 0.56 1 R 0.55 1 B 0.66 1

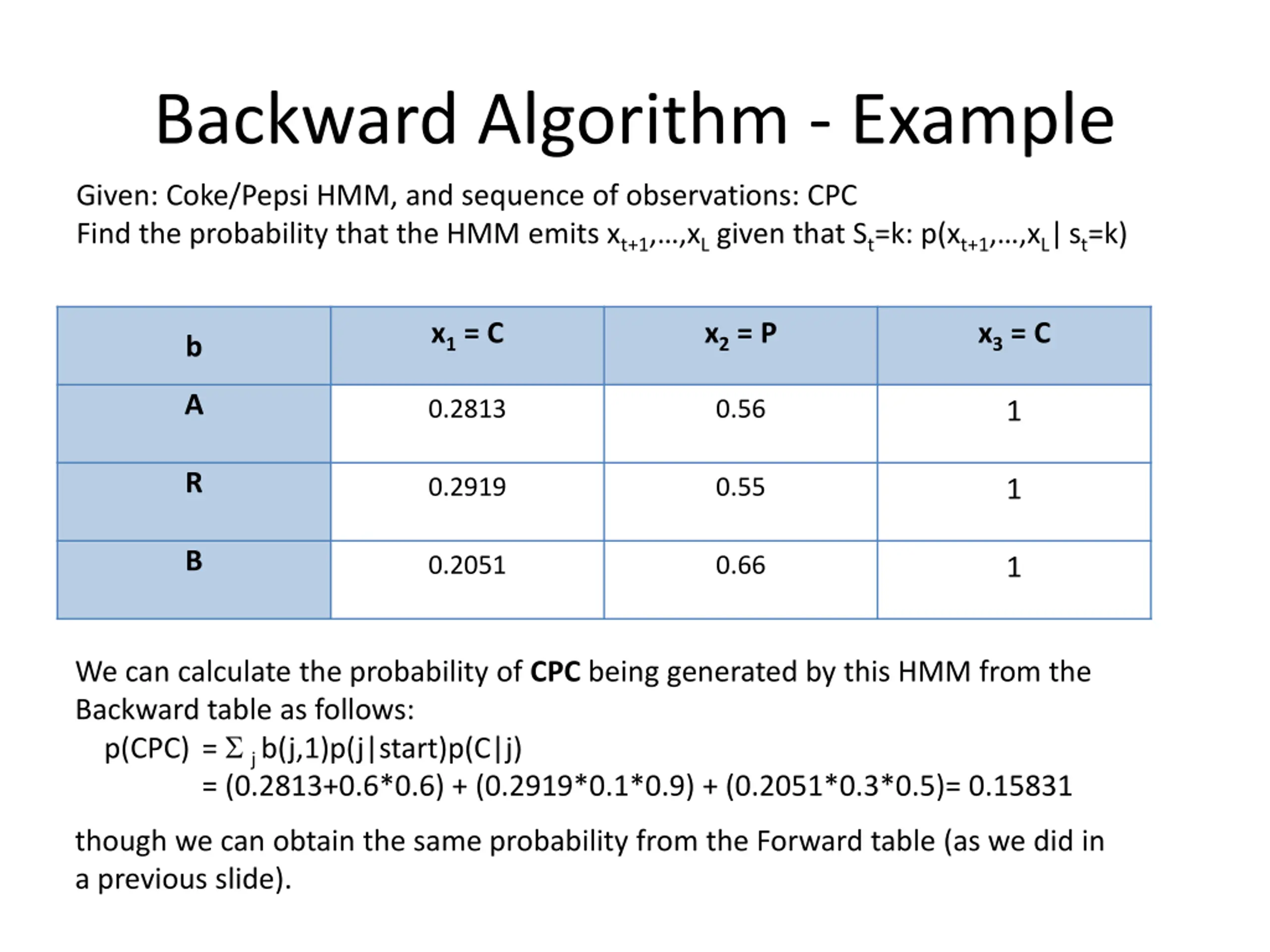

Backward Algorithm - Example Given: Coke/Pepsi HMM, and sequence of observations: CPC Find the probability that the HMM emits xt+1, ,xL given that St=k: p(xt+1, ,xL|st=k) x1 = C x2 = P x3 = C b A 0.2813 0.56 1 R 0.2919 0.55 1 B 0.2051 0.66 1 We can calculate the probability of CPC being generated by this HMM from the Backward table as follows: p(CPC) = j b(j,1)p(j|start)p(C|j) = (0.2813+0.6*0.6) + (0.2919*0.1*0.9) + (0.2051*0.3*0.5)= 0.15831 though we can obtain the same probability from the Forward table (as we did in a previous slide).

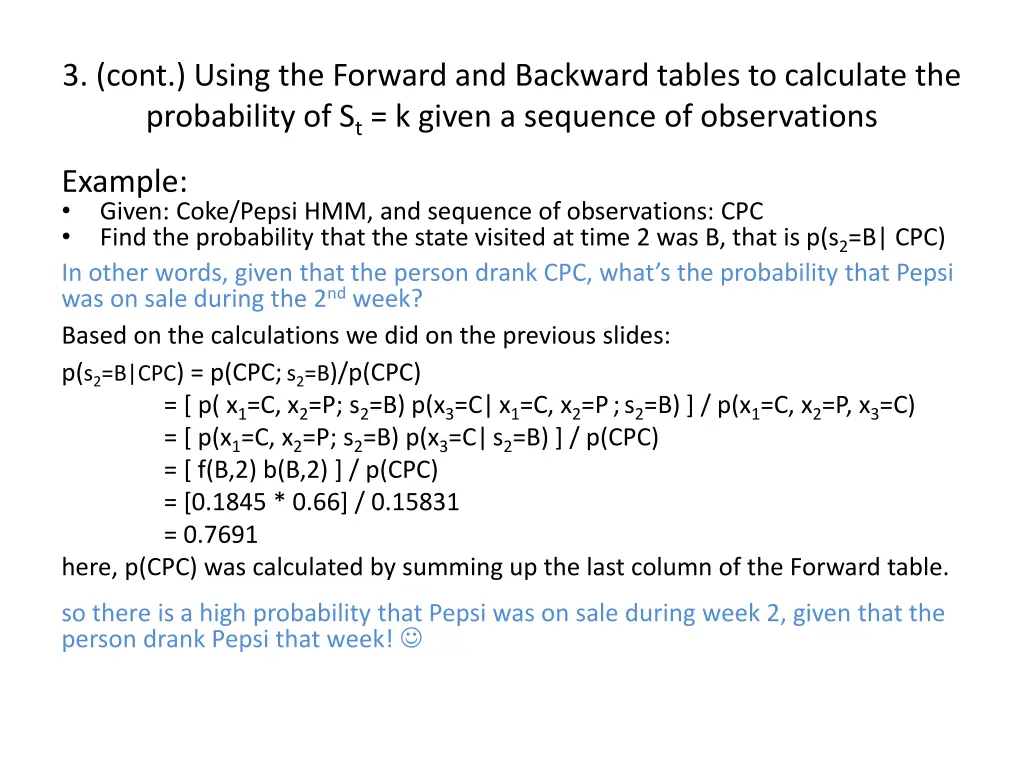

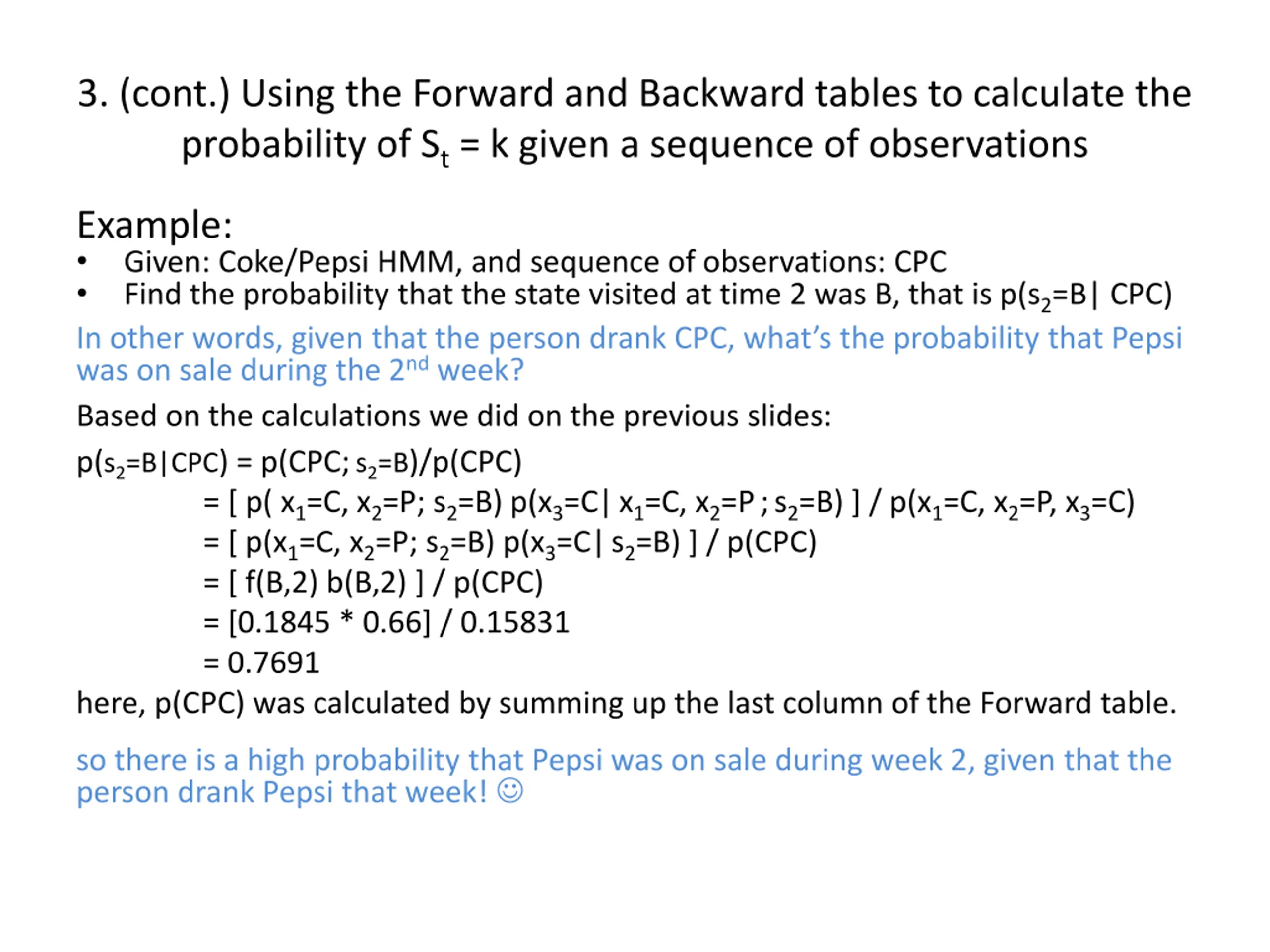

3. (cont.) Using the Forward and Backward tables to calculate the probability of St = k given a sequence of observations Example: Given: Coke/Pepsi HMM, and sequence of observations: CPC Find the probability that the state visited at time 2 was B, that is p(s2=B| CPC) In other words, given that the person drank CPC, what s the probability that Pepsi was on sale during the 2nd week? Based on the calculations we did on the previous slides: p(s2=B|CPC) = p(CPC;s2=B)/p(CPC) = [ p( x1=C, x2=P; s2=B) p(x3=C|x1=C, x2=P;s2=B) ] / p(x1=C, x2=P, x3=C) = [ p(x1=C, x2=P; s2=B) p(x3=C|s2=B) ] / p(CPC) = [ f(B,2) b(B,2) ] / p(CPC) = [0.1845 * 0.66] / 0.15831 = 0.7691 here, p(CPC) was calculated by summing up the last column of the Forward table. so there is a high probability that Pepsi was on sale during week 2, given that the person drank Pepsi that week!
