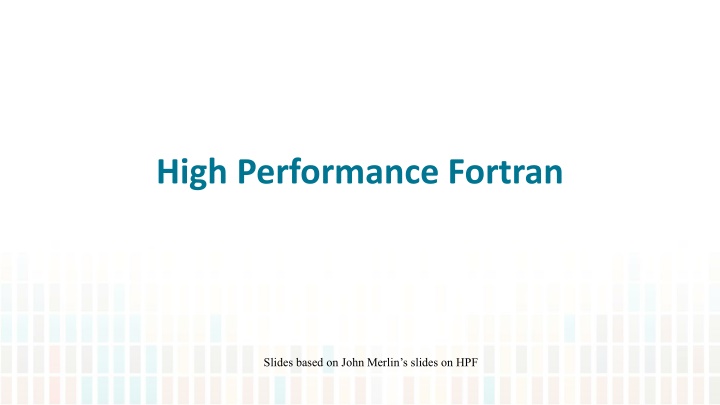

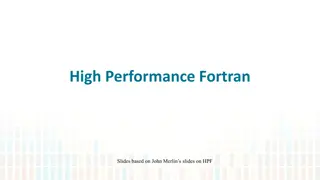

High Performance Fortran Slides based on John Merlin s slides on HPF

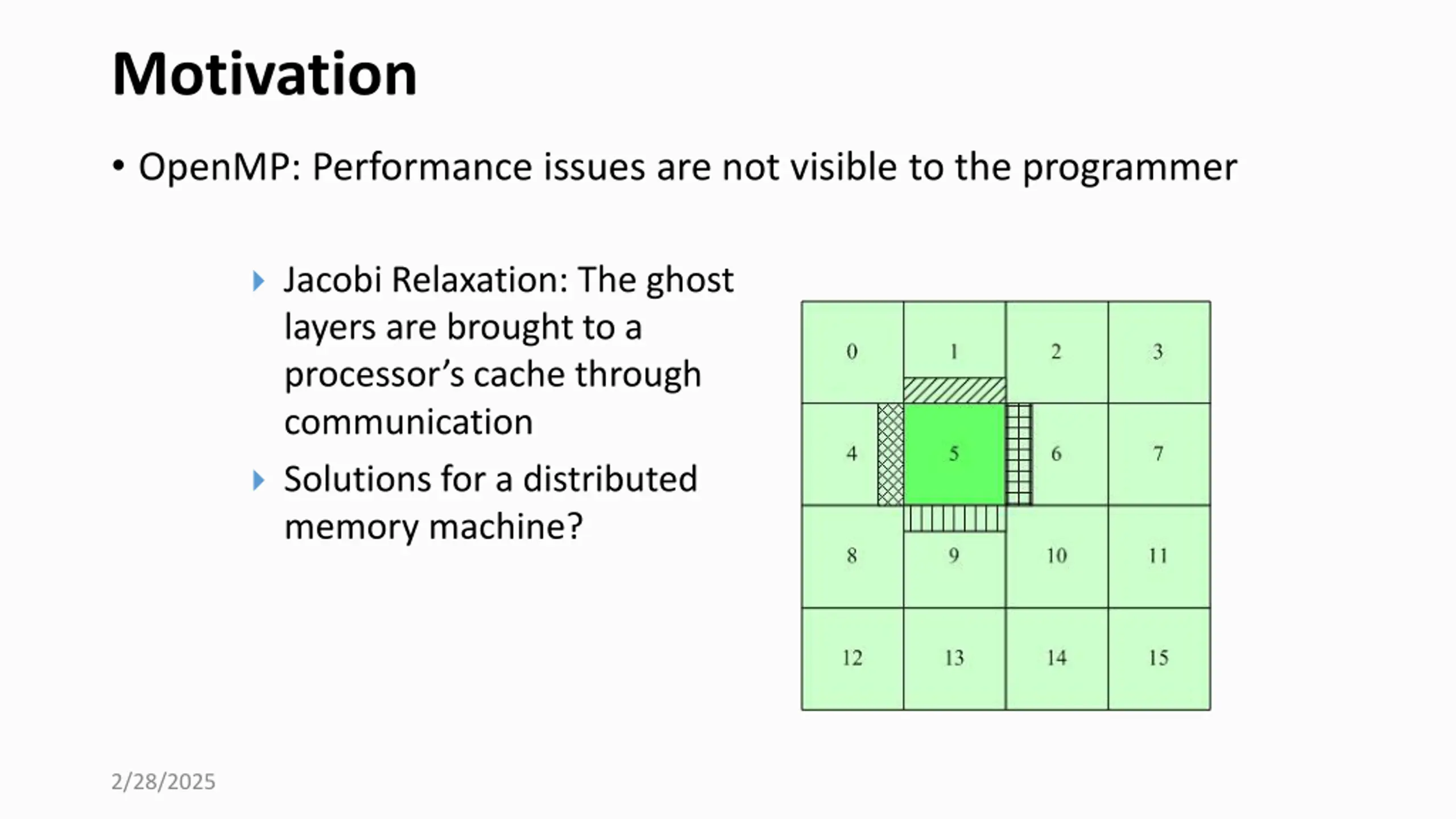

Motivation OpenMP: Performance issues are not visible to the programmer Jacobi Relaxation: The ghost layers are brought to a processor s cache through communication Solutions for a distributed memory machine? 2/28/2025

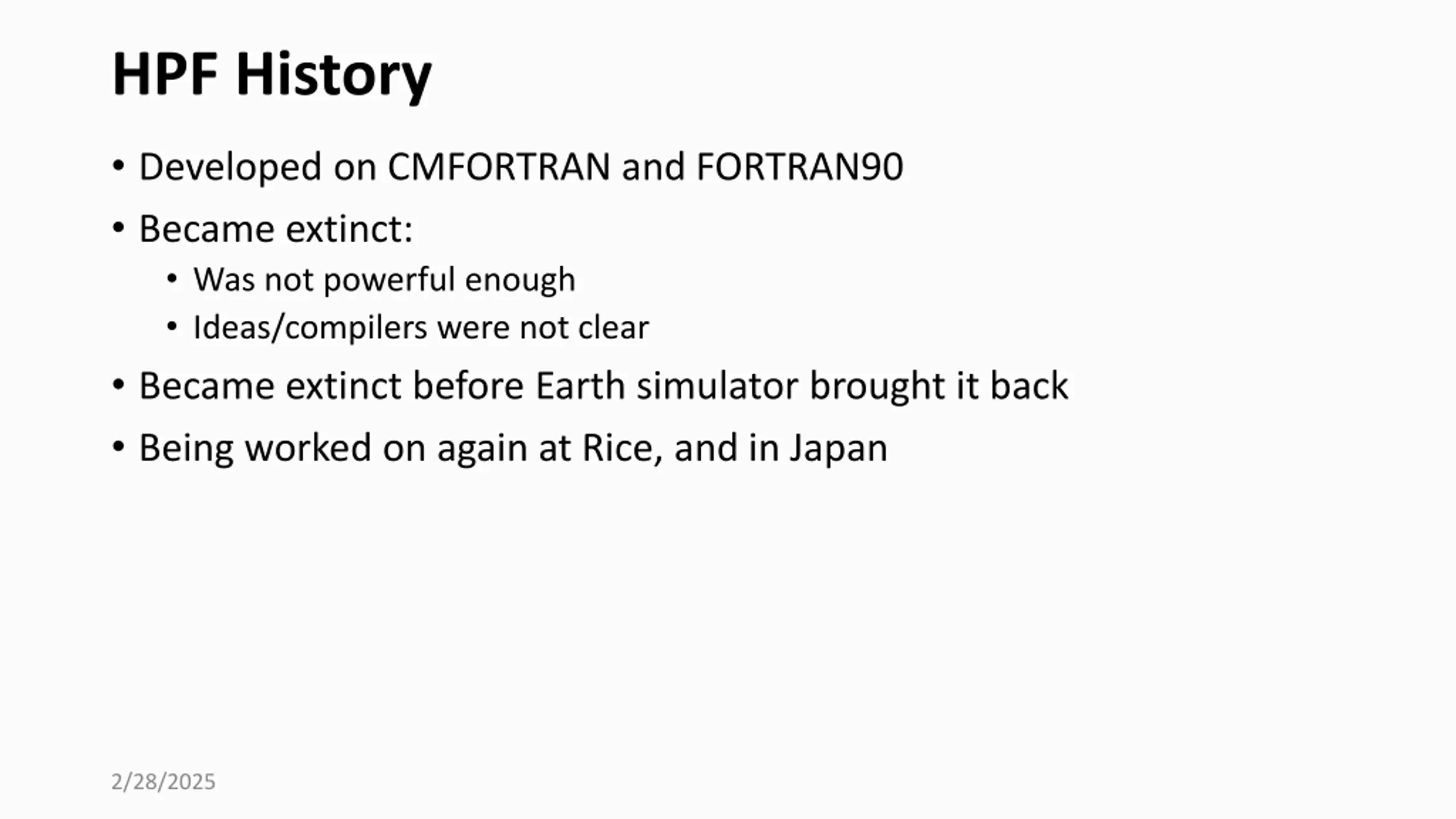

HPF History Developed on CMFORTRAN and FORTRAN90 Became extinct: Was not powerful enough Ideas/compilers were not clear Became extinct before Earth simulator brought it back Being worked on again at Rice, and in Japan 2/28/2025

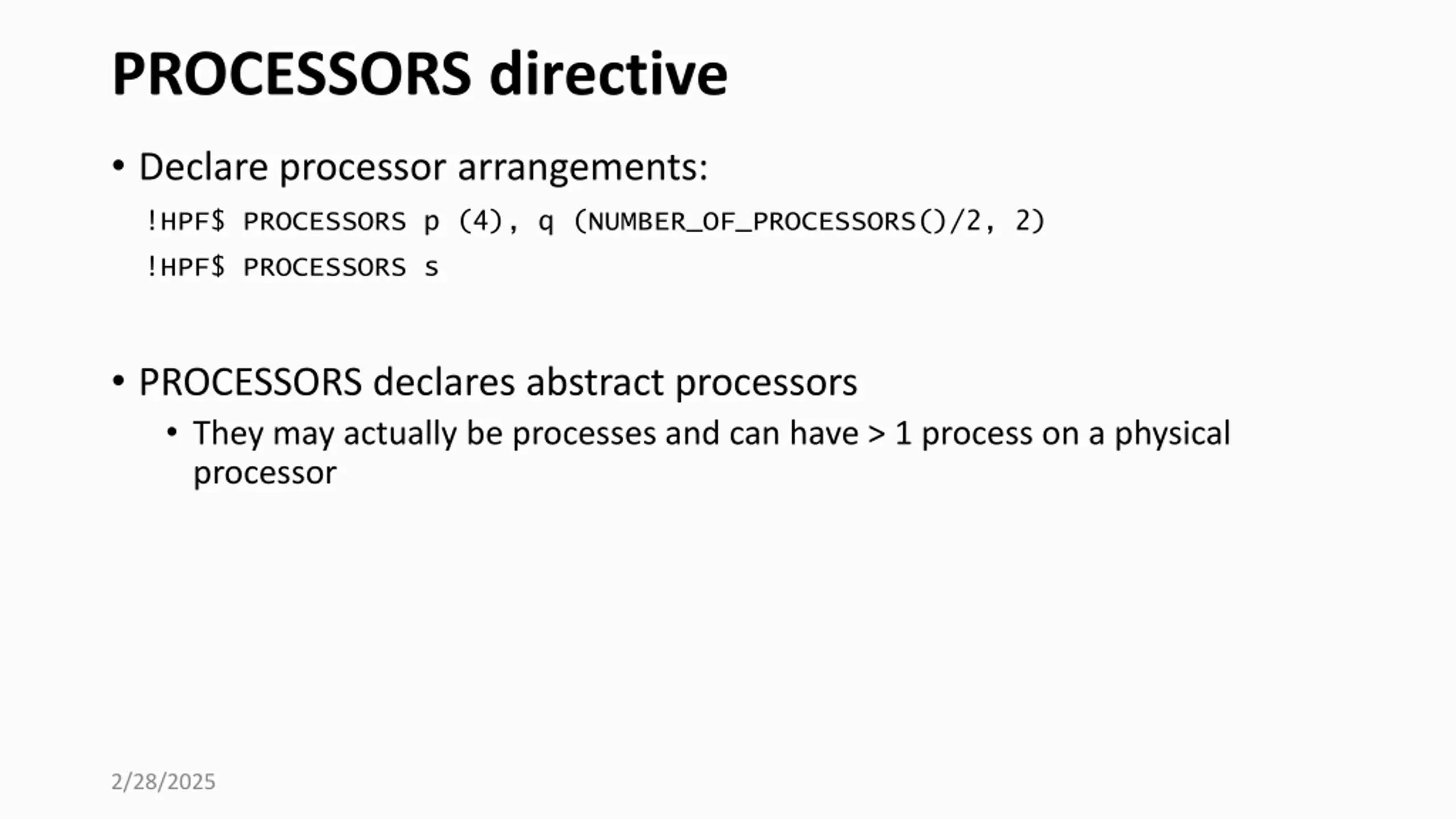

PROCESSORS directive Declare processor arrangements: !HPF$ PROCESSORS p (4), q (NUMBER_OF_PROCESSORS()/2, 2) !HPF$ PROCESSORS s PROCESSORS declares abstract processors They may actually be processes and can have > 1 process on a physical processor 2/28/2025

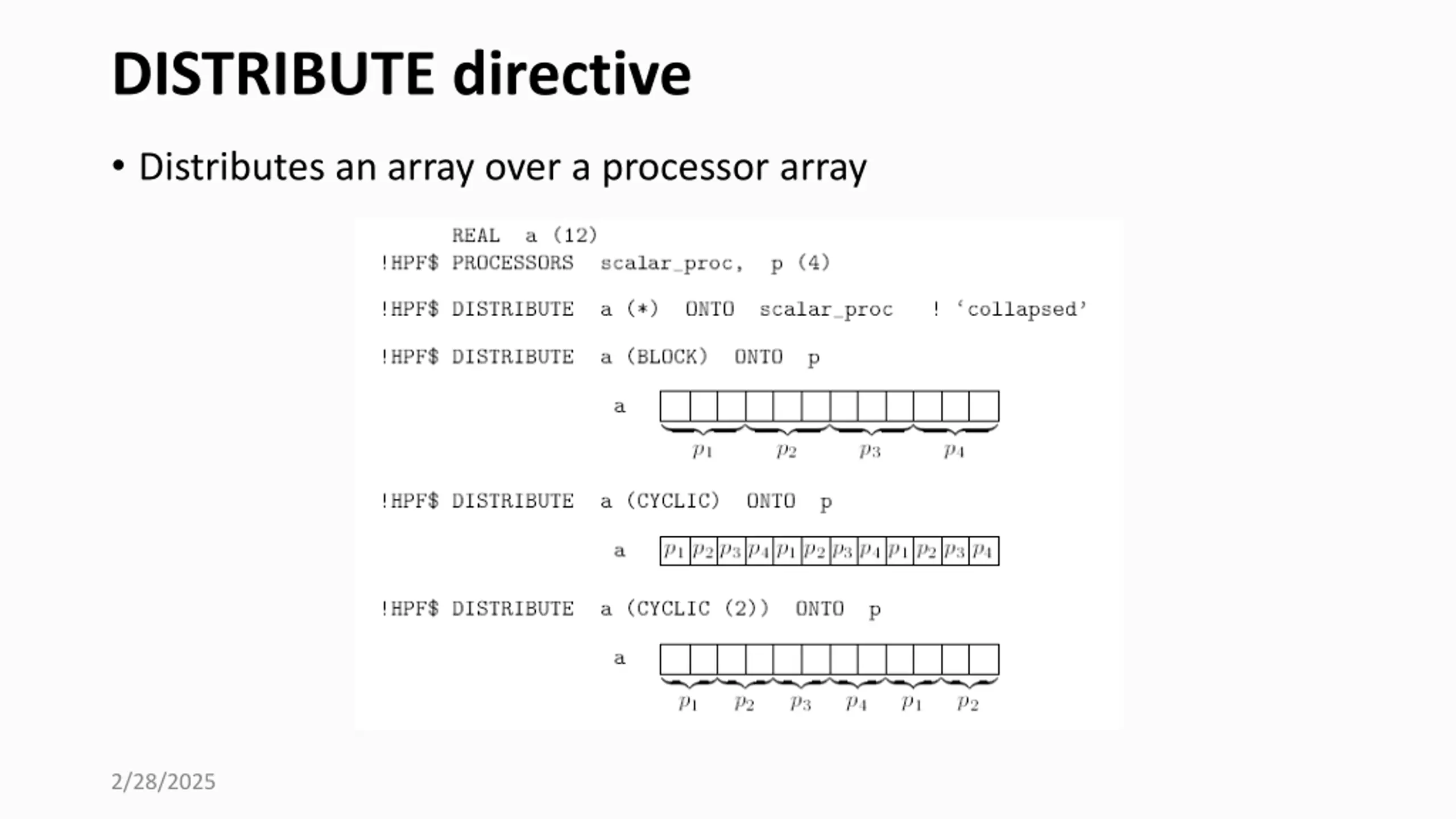

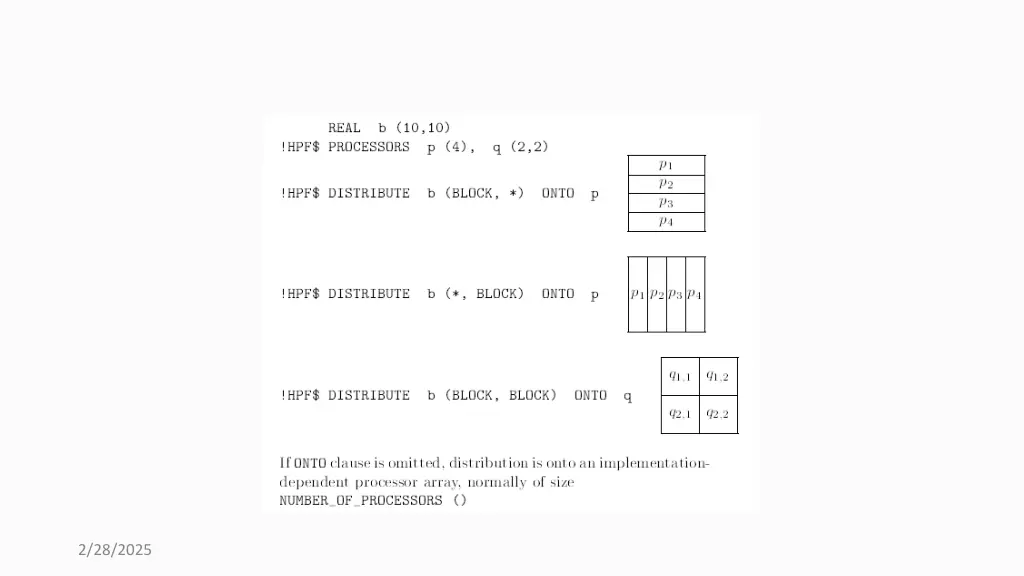

DISTRIBUTE directive Distributes an array over a processor array 2/28/2025

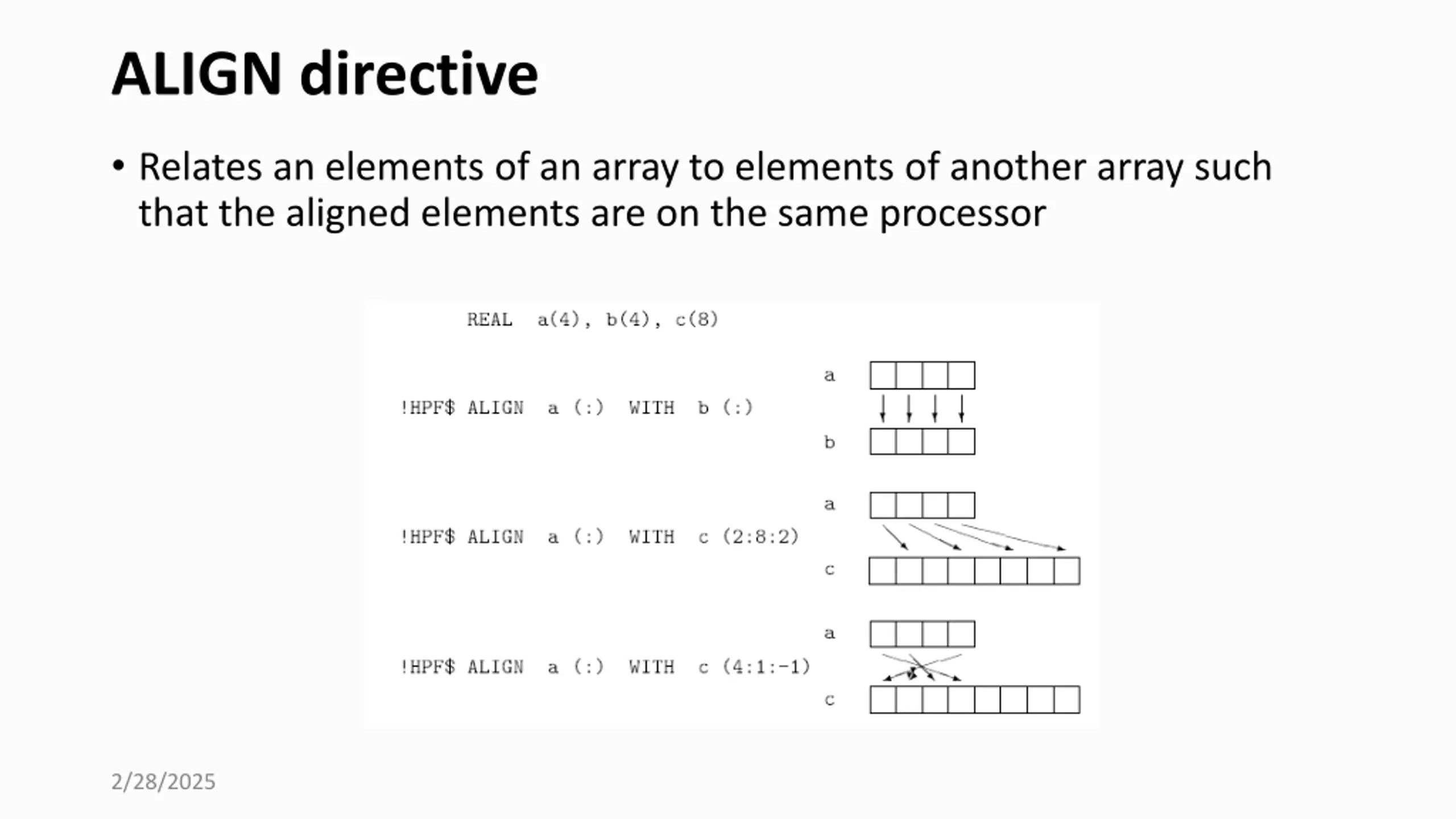

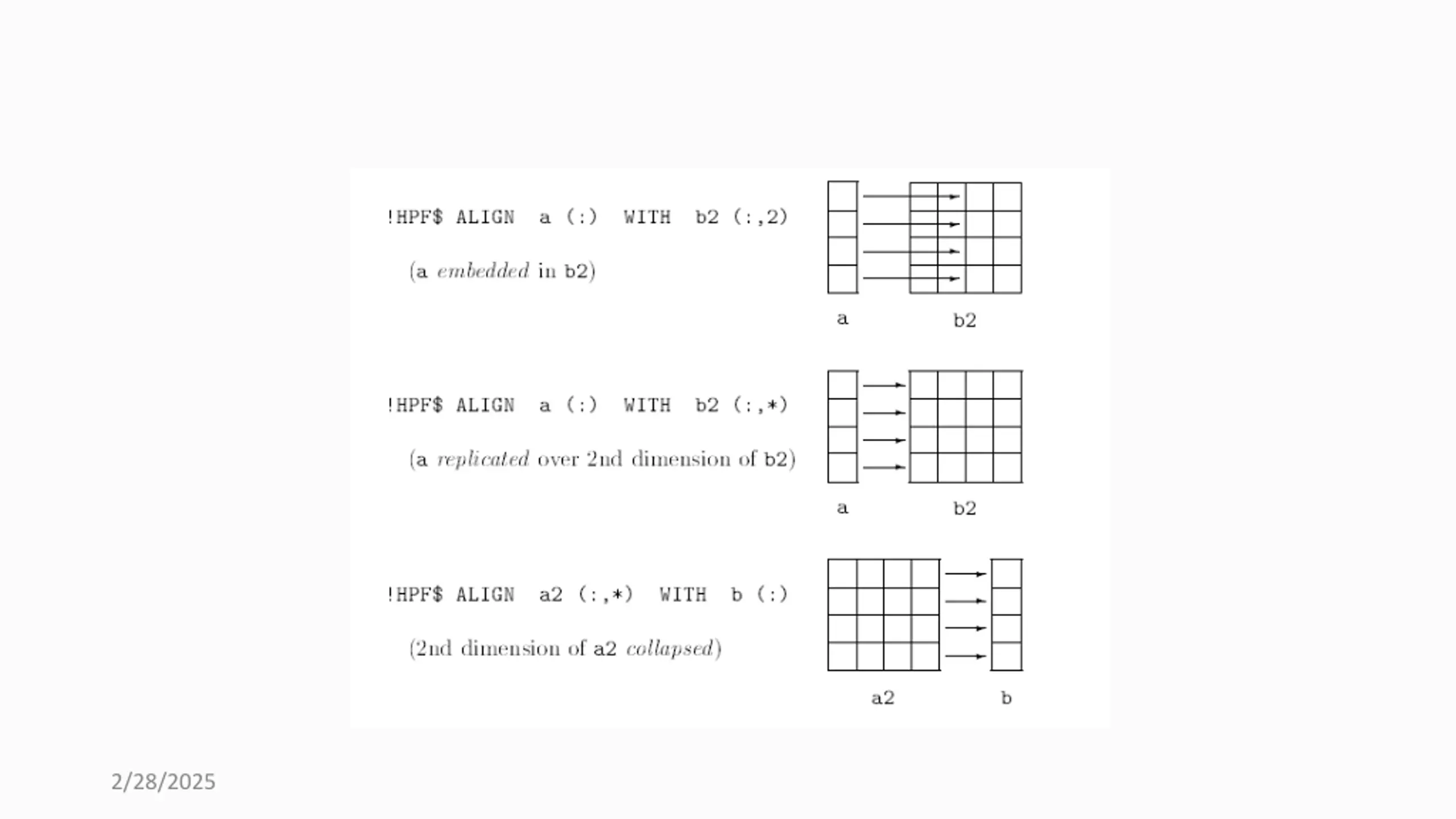

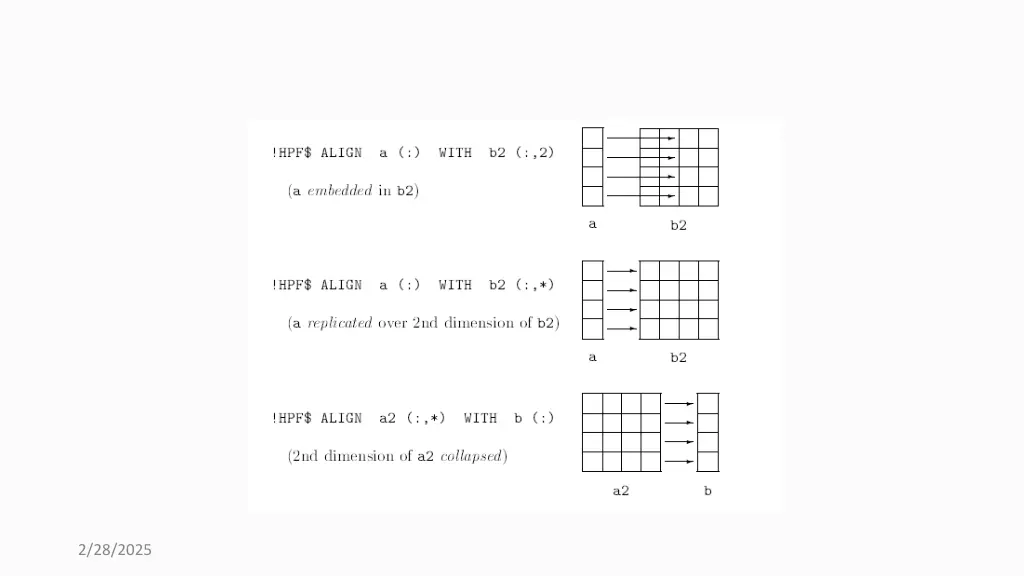

ALIGN directive Relates an elements of an array to elements of another array such that the aligned elements are on the same processor 2/28/2025

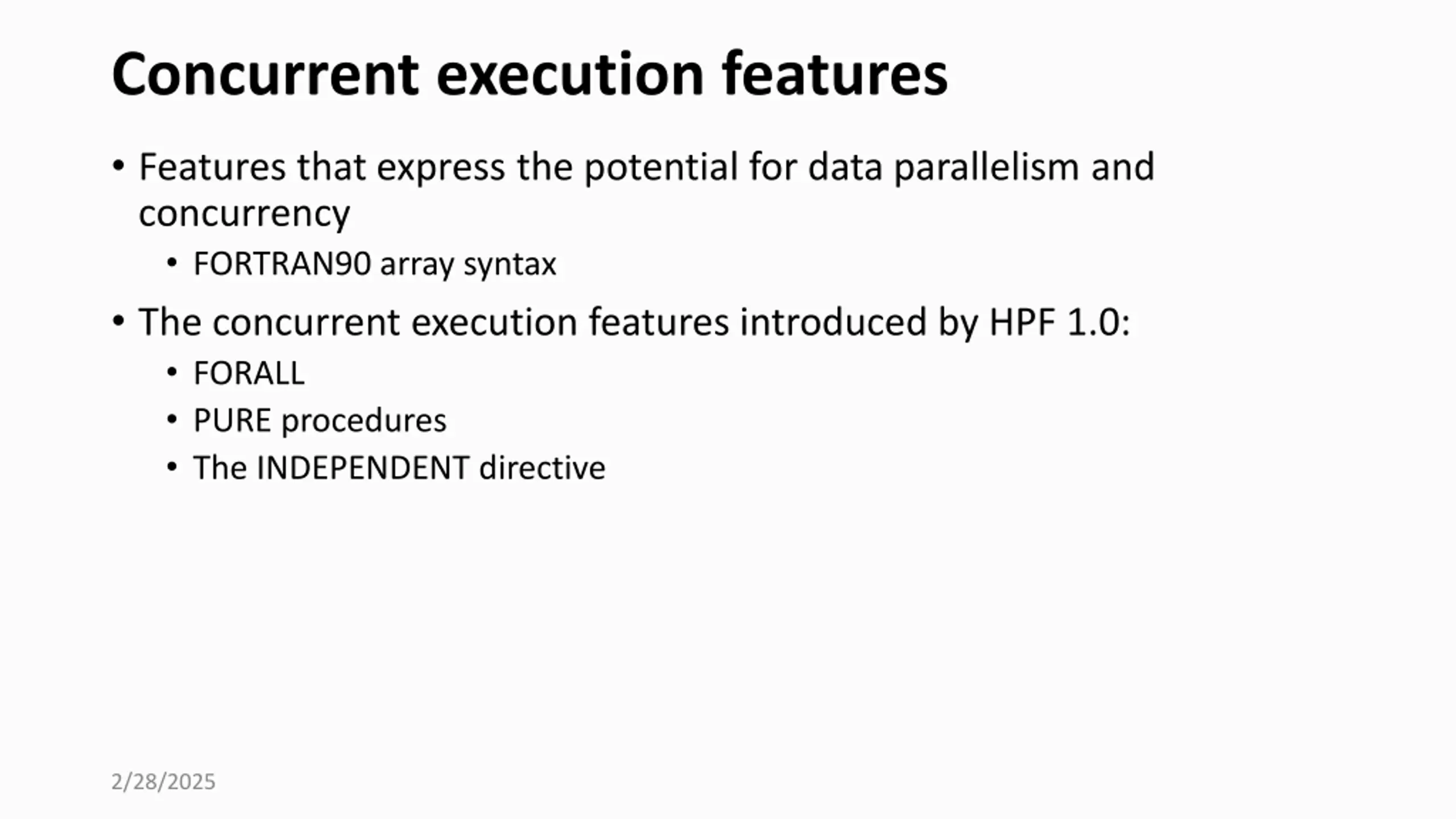

Concurrent execution features Features that express the potential for data parallelism and concurrency FORTRAN90 array syntax The concurrent execution features introduced by HPF 1.0: FORALL PURE procedures The INDEPENDENT directive 2/28/2025

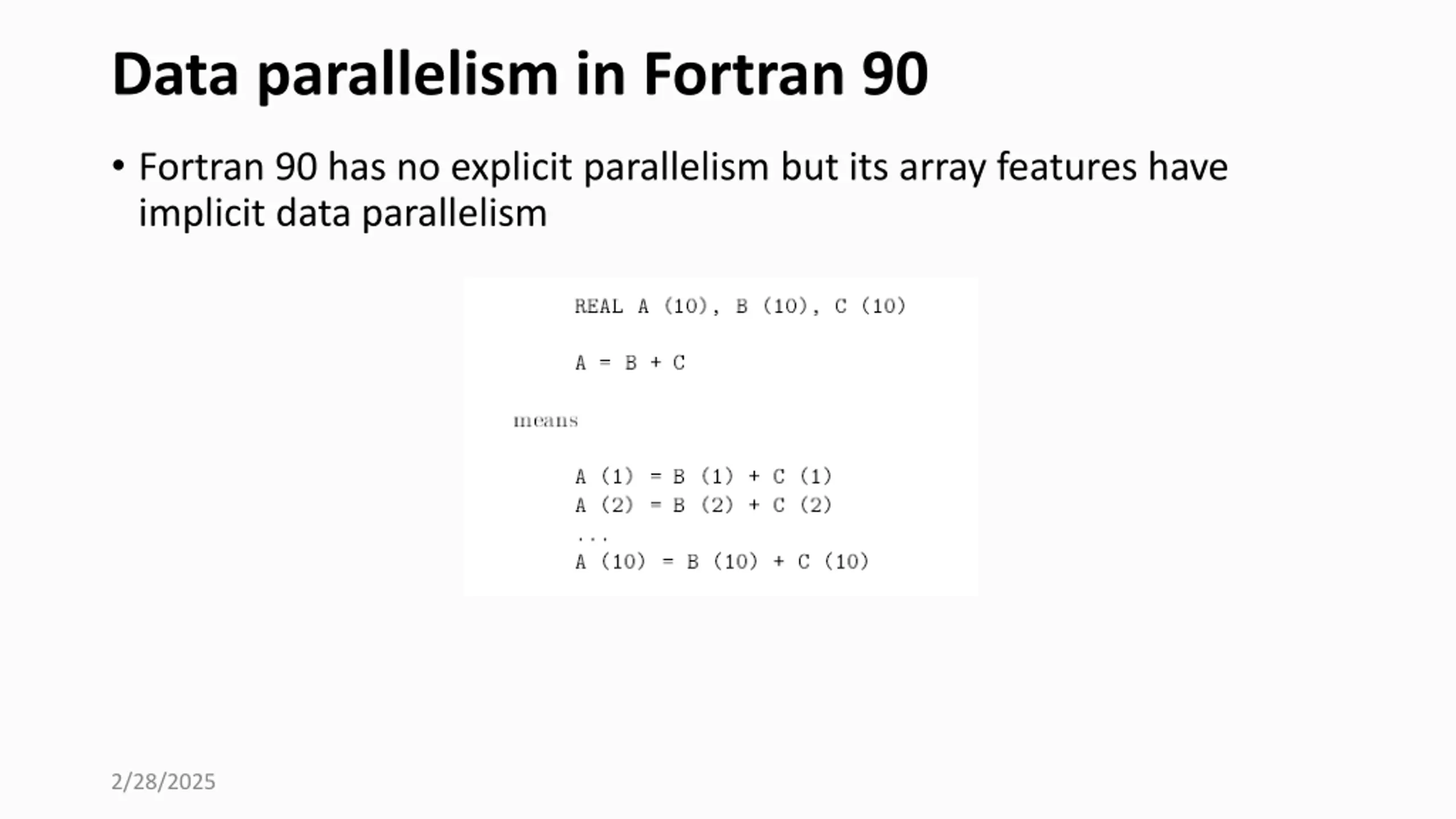

Data parallelism in Fortran 90 Fortran 90 has no explicit parallelism but its array features have implicit data parallelism 2/28/2025

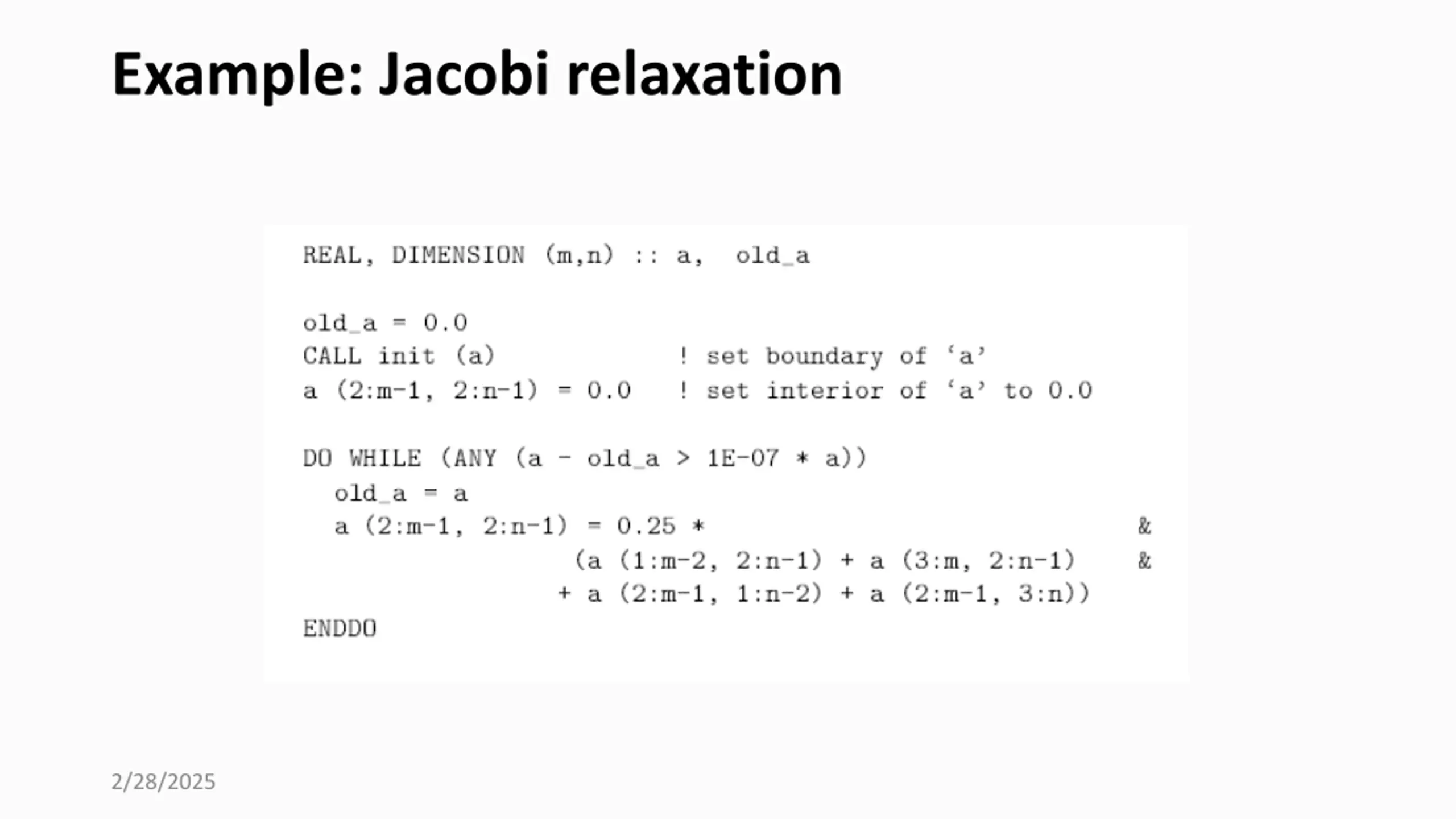

Example: Jacobi relaxation 2/28/2025

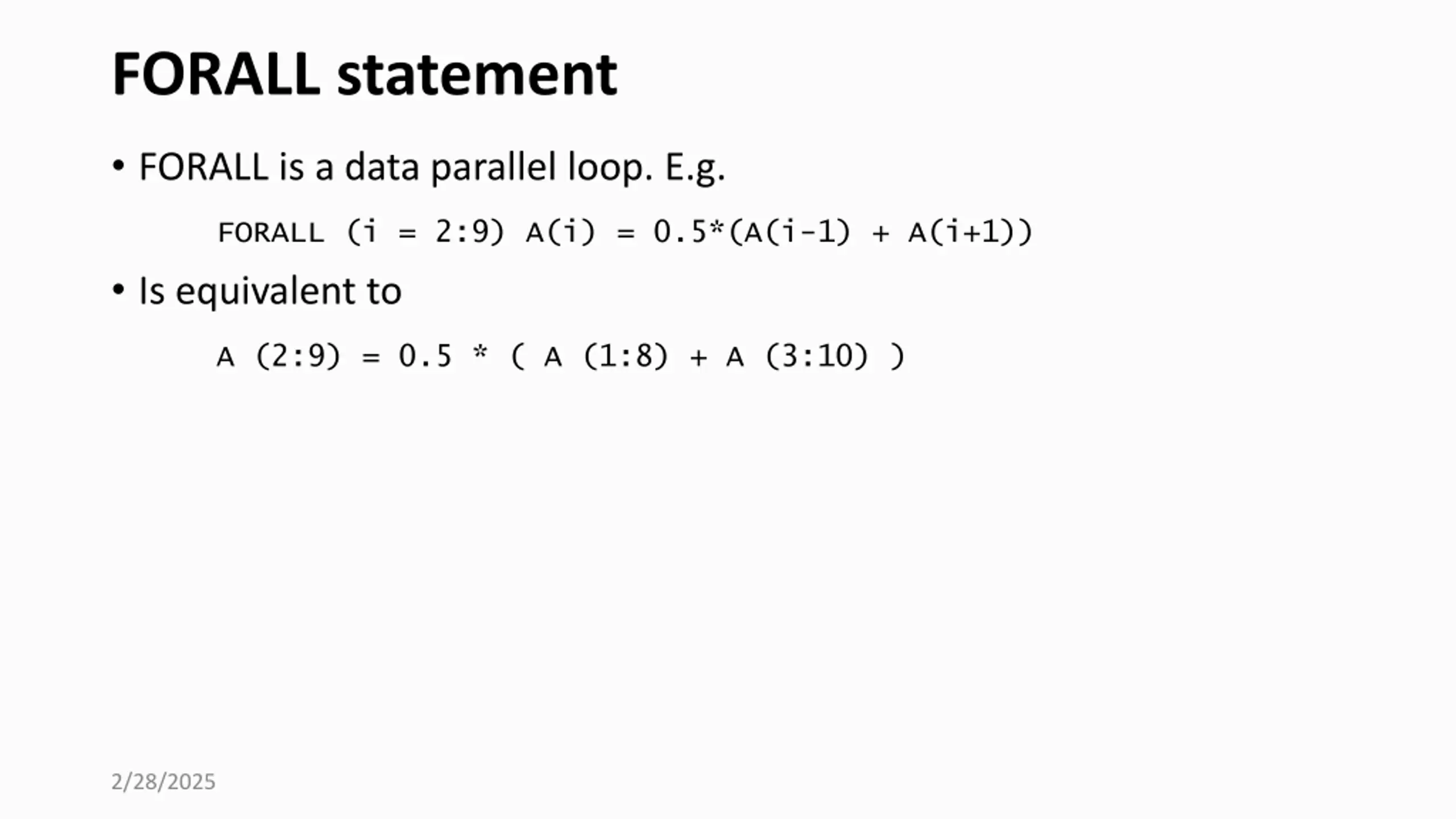

FORALL statement FORALL is a data parallel loop. E.g. FORALL (i = 2:9) A(i) = 0.5*(A(i-1) + A(i+1)) Is equivalent to A (2:9) = 0.5 * ( A (1:8) + A (3:10) ) 2/28/2025

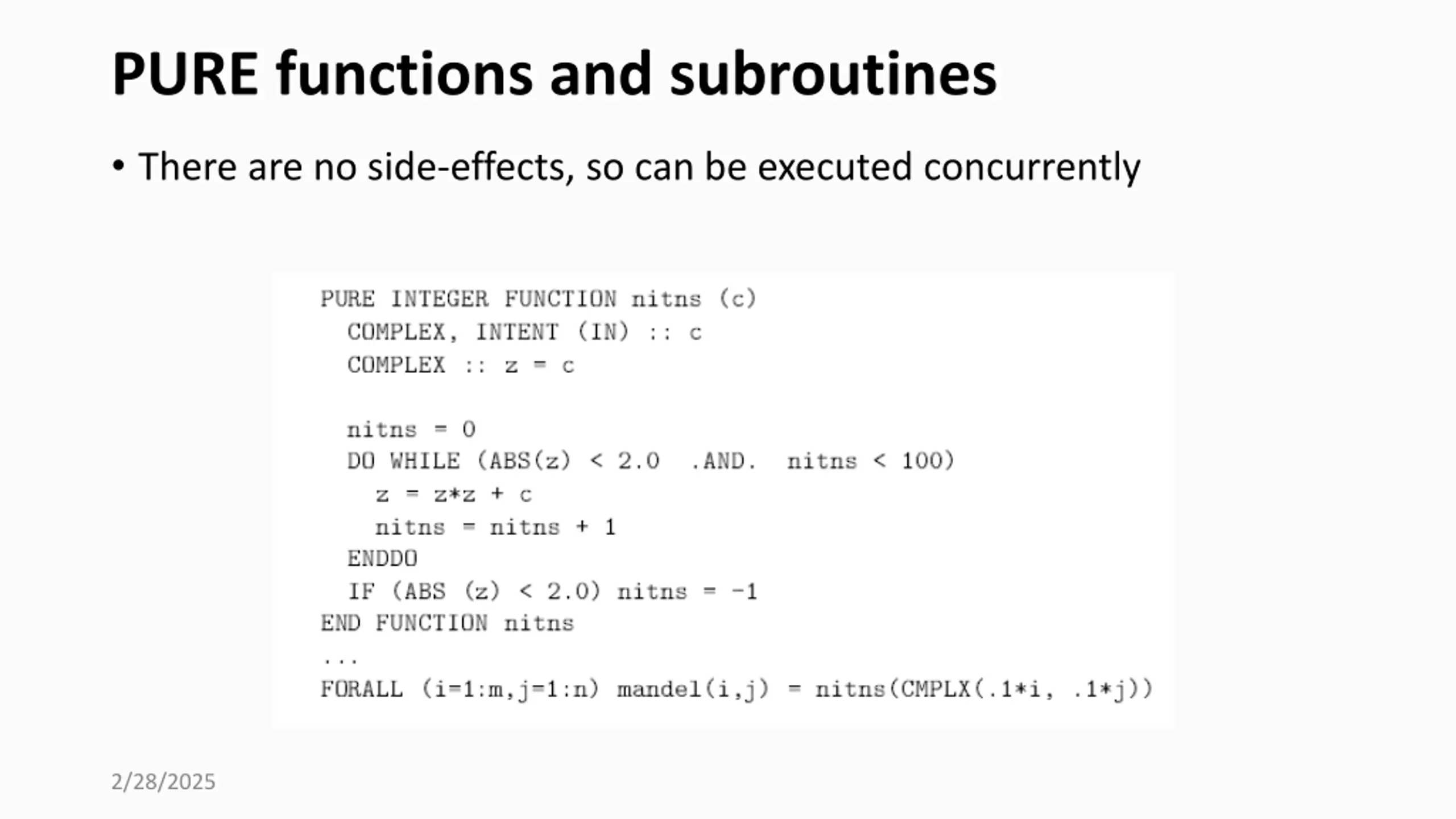

PURE functions and subroutines There are no side-effects, so can be executed concurrently 2/28/2025

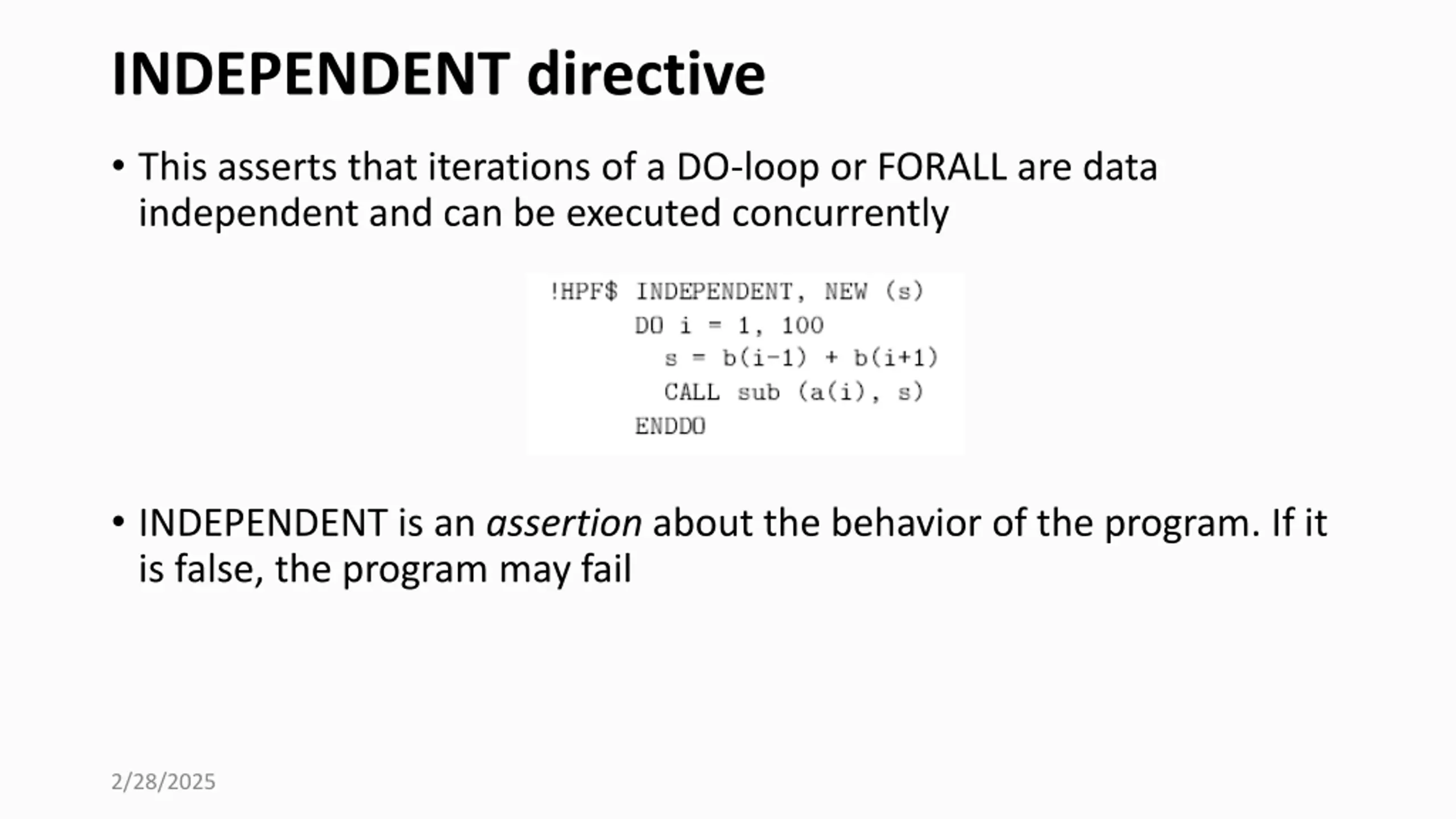

INDEPENDENT directive This asserts that iterations of a DO-loop or FORALL are data independent and can be executed concurrently INDEPENDENT is an assertion about the behavior of the program. If it is false, the program may fail 2/28/2025

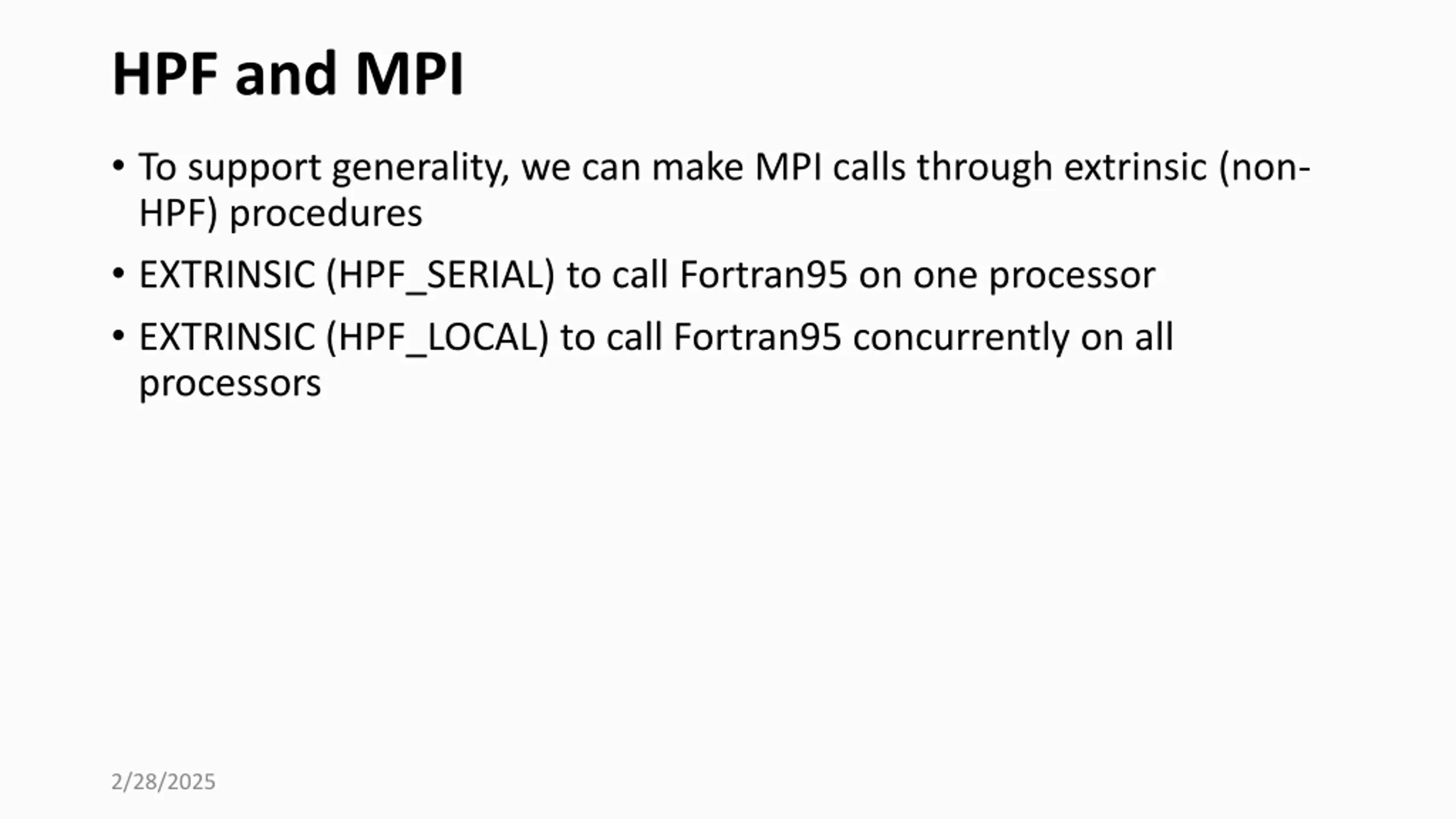

HPF and MPI To support generality, we can make MPI calls through extrinsic (non- HPF) procedures EXTRINSIC (HPF_SERIAL) to call Fortran95 on one processor EXTRINSIC (HPF_LOCAL) to call Fortran95 concurrently on all processors 2/28/2025

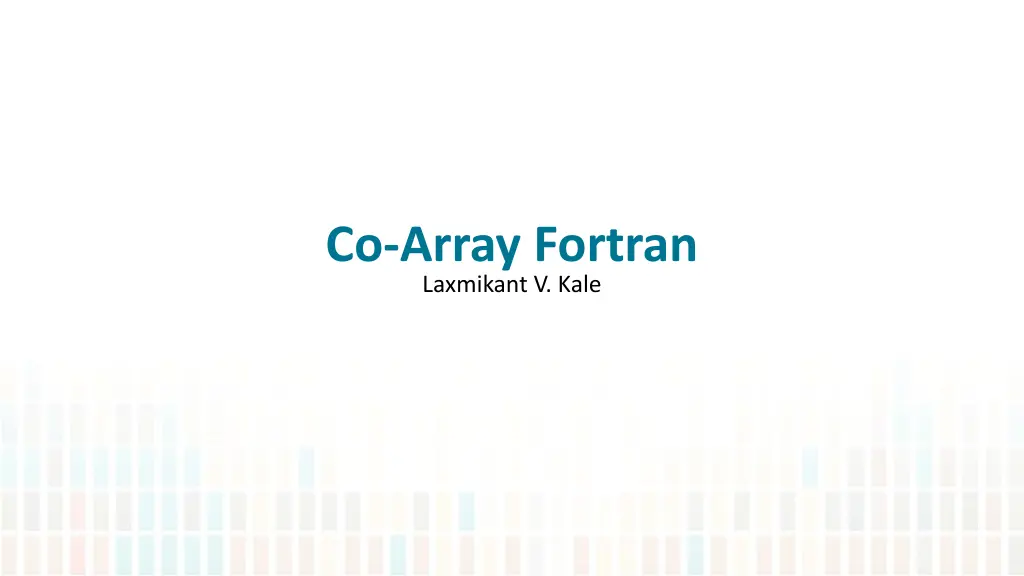

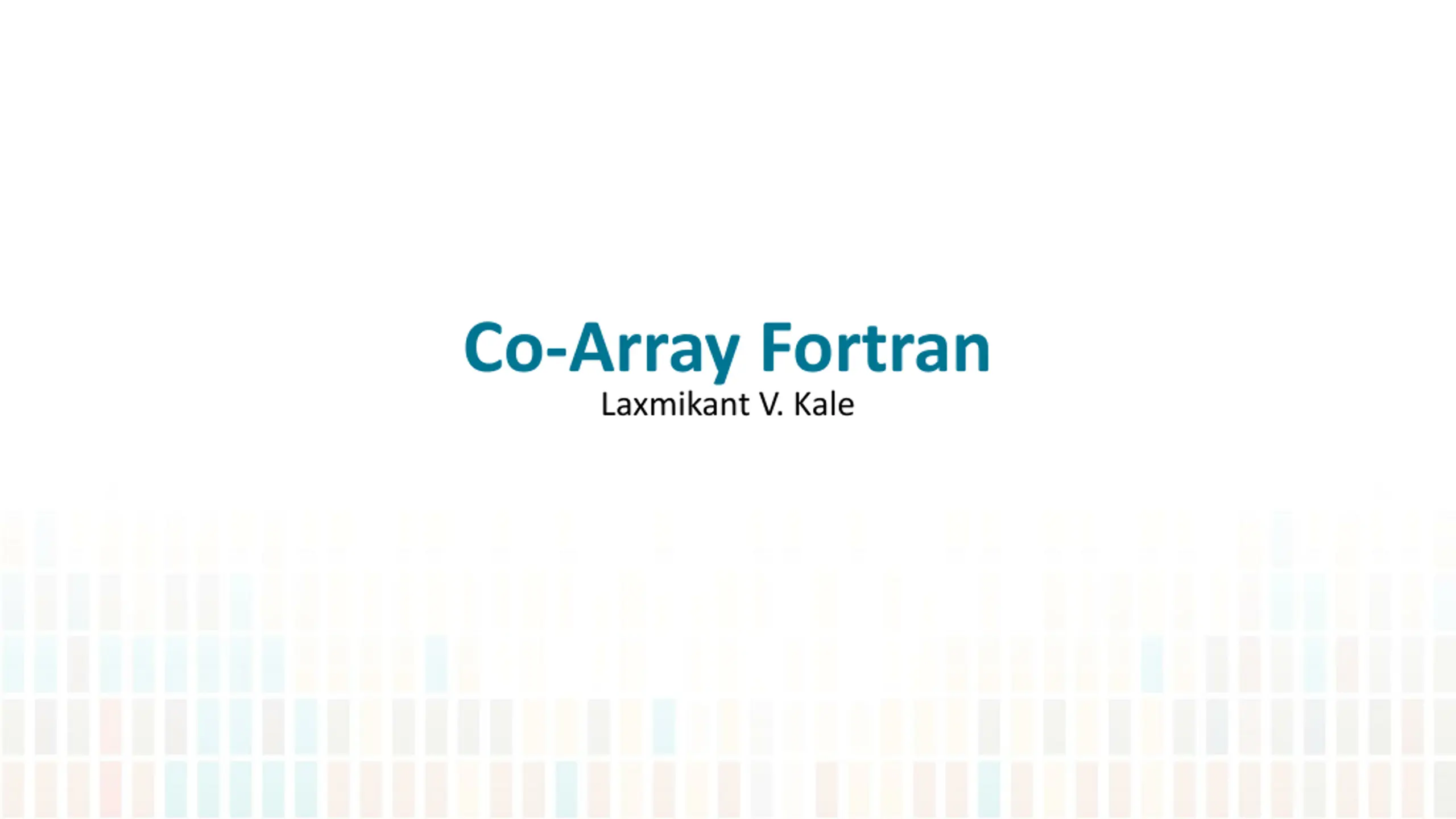

Co-Array Fortran Laxmikant V. Kale

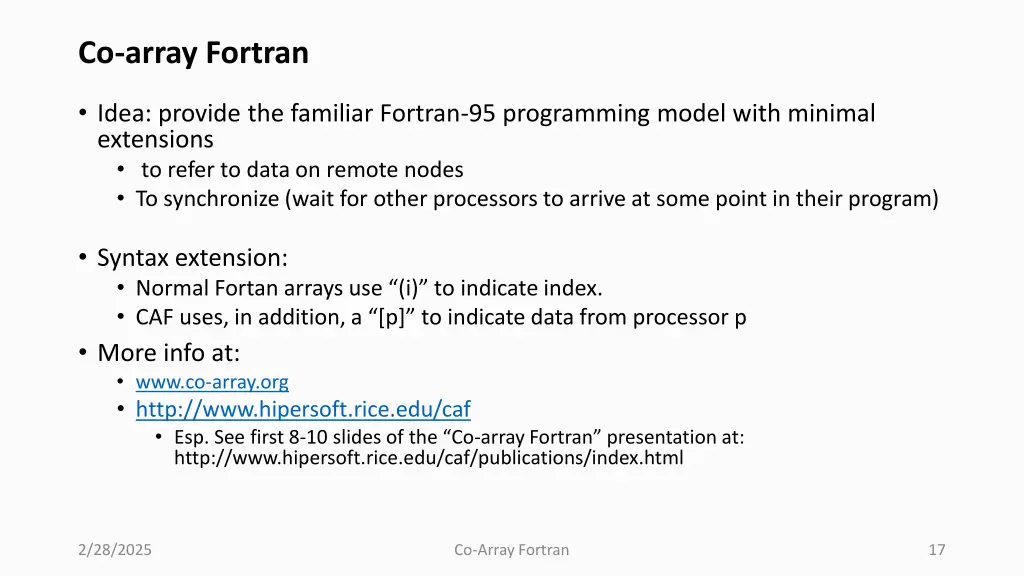

Co-array Fortran Idea: provide the familiar Fortran-95 programming model with minimal extensions to refer to data on remote nodes To synchronize (wait for other processors to arrive at some point in their program) Syntax extension: Normal Fortan arrays use (i) to indicate index. CAF uses, in addition, a [p] to indicate data from processor p More info at: www.co-array.org http://www.hipersoft.rice.edu/caf Esp. See first 8-10 slides of the Co-array Fortran presentation at: http://www.hipersoft.rice.edu/caf/publications/index.html 2/28/2025 Co-Array Fortran 17

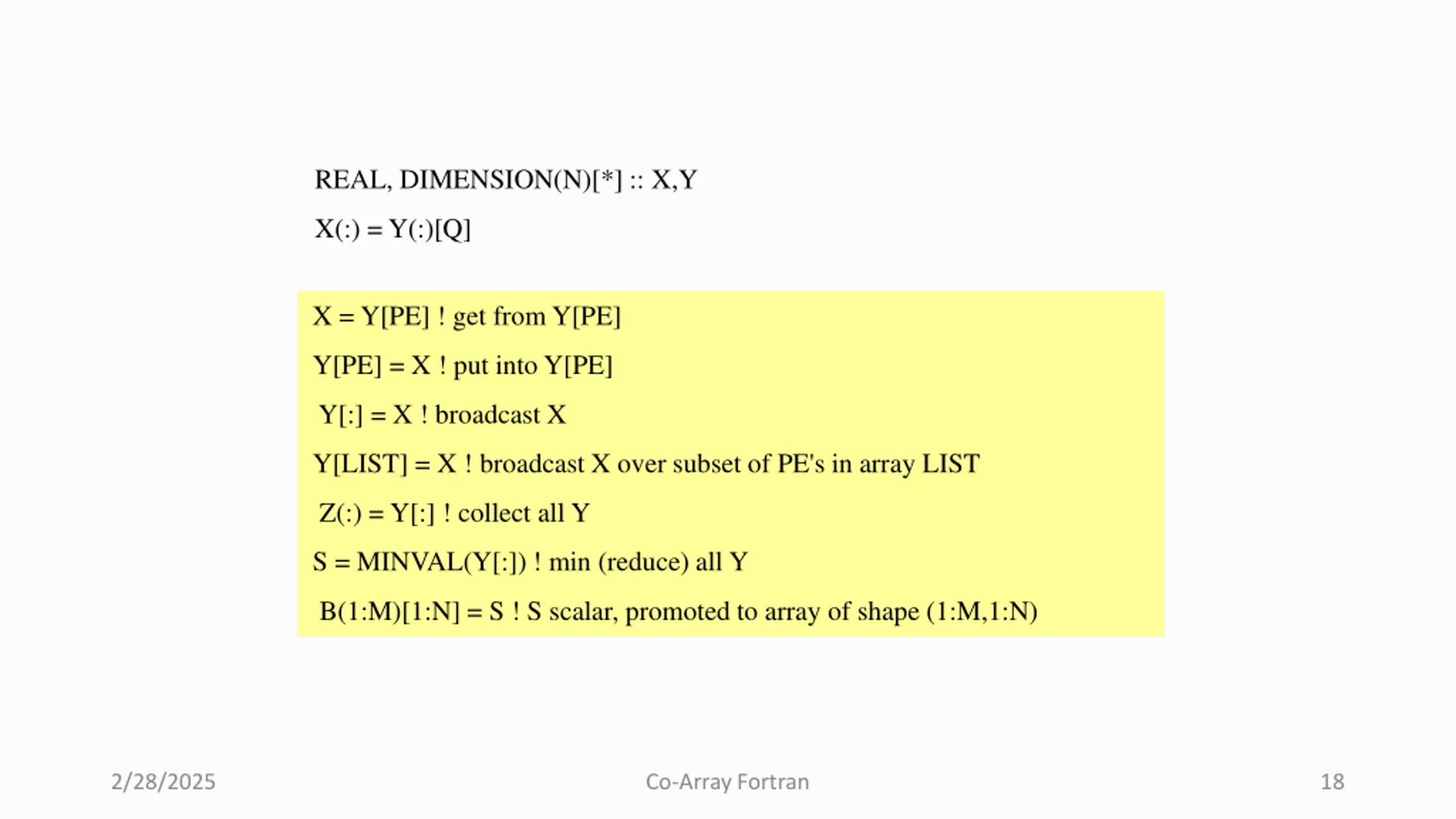

REAL, DIMENSION(N)[*] :: X,Y X(:) = Y(:)[Q] X = Y[PE] ! get from Y[PE] Y[PE] = X ! put into Y[PE] Y[:] = X ! broadcast X Y[LIST] = X ! broadcast X over subset of PE's in array LIST Z(:) = Y[:] ! collect all Y S = MINVAL(Y[:]) ! min (reduce) all Y B(1:M)[1:N] = S ! S scalar, promoted to array of shape (1:M,1:N) 2/28/2025 Co-Array Fortran 18

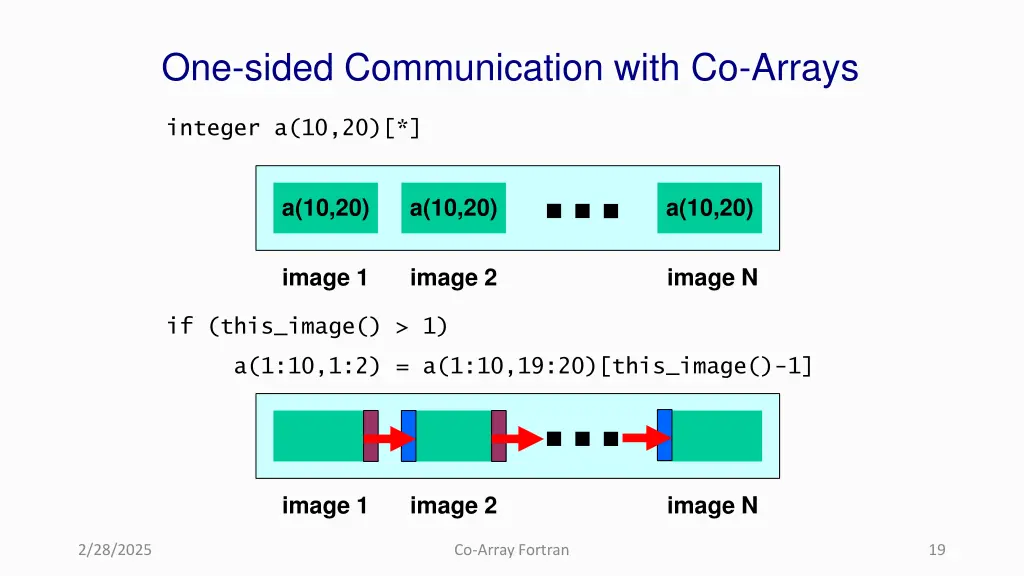

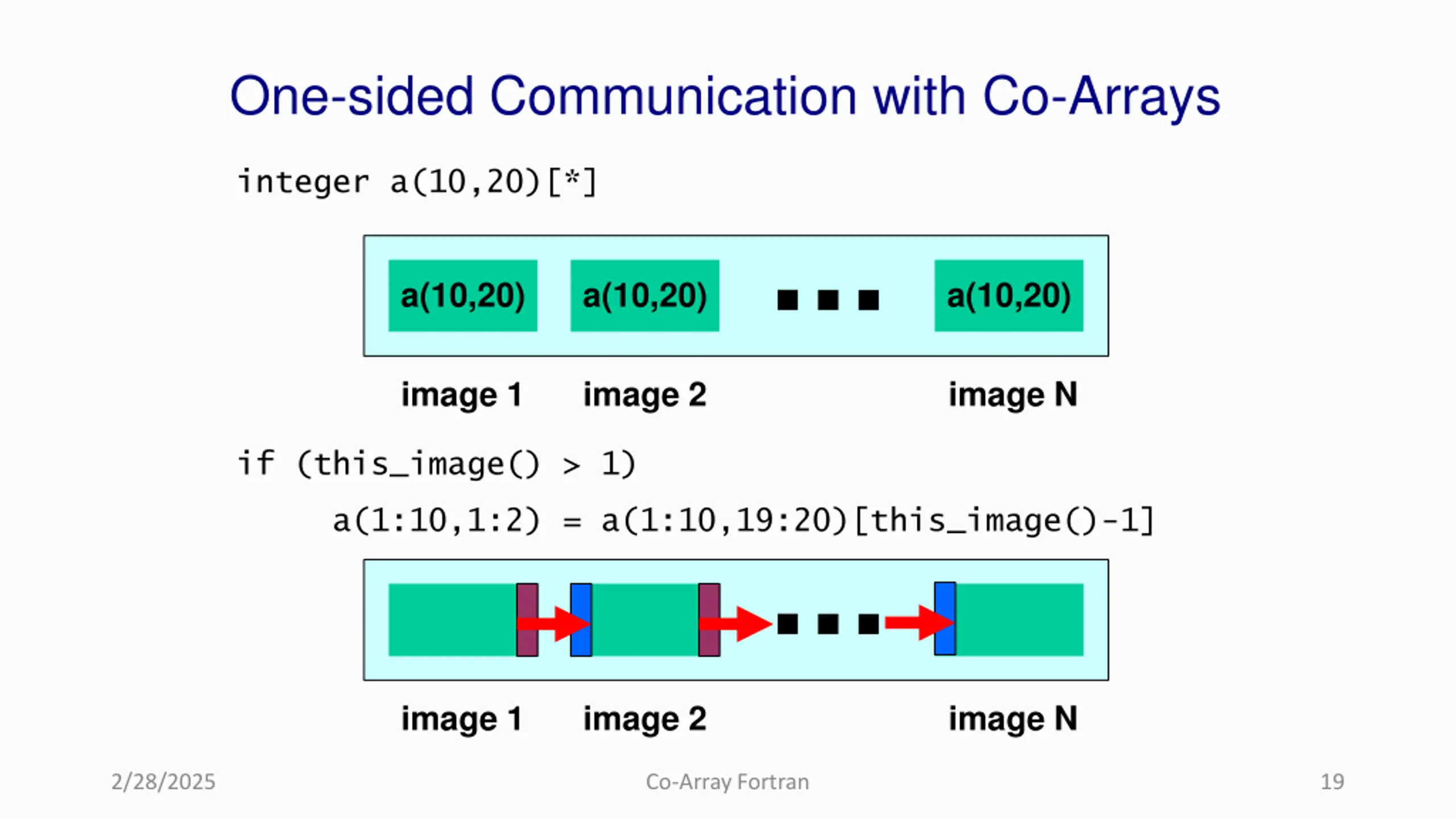

One-sided Communication with Co-Arrays integer a(10,20)[*] a(10,20) a(10,20) a(10,20) image 1 image 2 image N if (this_image() > 1) a(1:10,1:2) = a(1:10,19:20)[this_image()-1] image 1 image 2 image N 2/28/2025 Co-Array Fortran 19

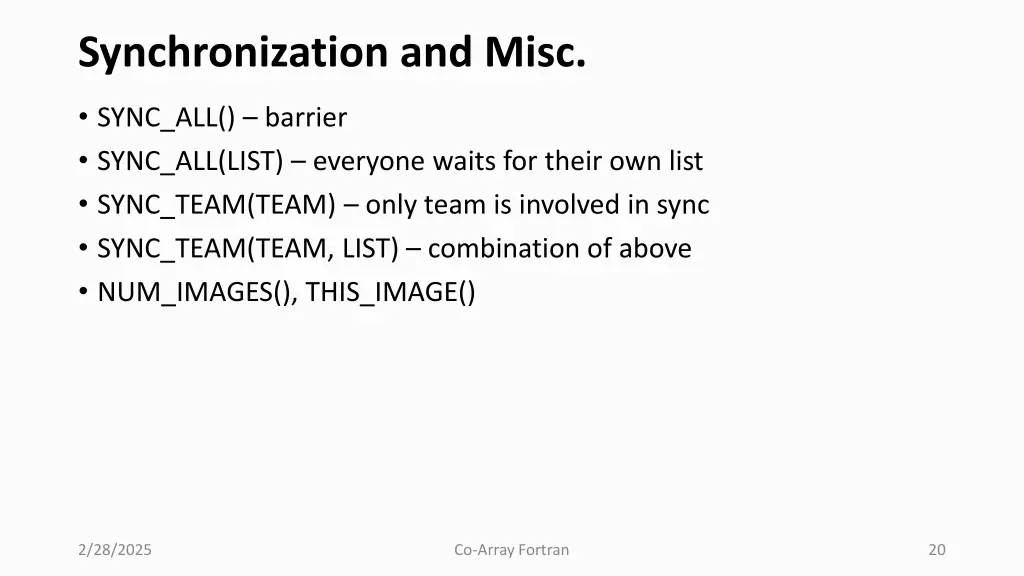

Synchronization and Misc. SYNC_ALL() barrier SYNC_ALL(LIST) everyone waits for their own list SYNC_TEAM(TEAM) only team is involved in sync SYNC_TEAM(TEAM, LIST) combination of above NUM_IMAGES(), THIS_IMAGE() 2/28/2025 Co-Array Fortran 20

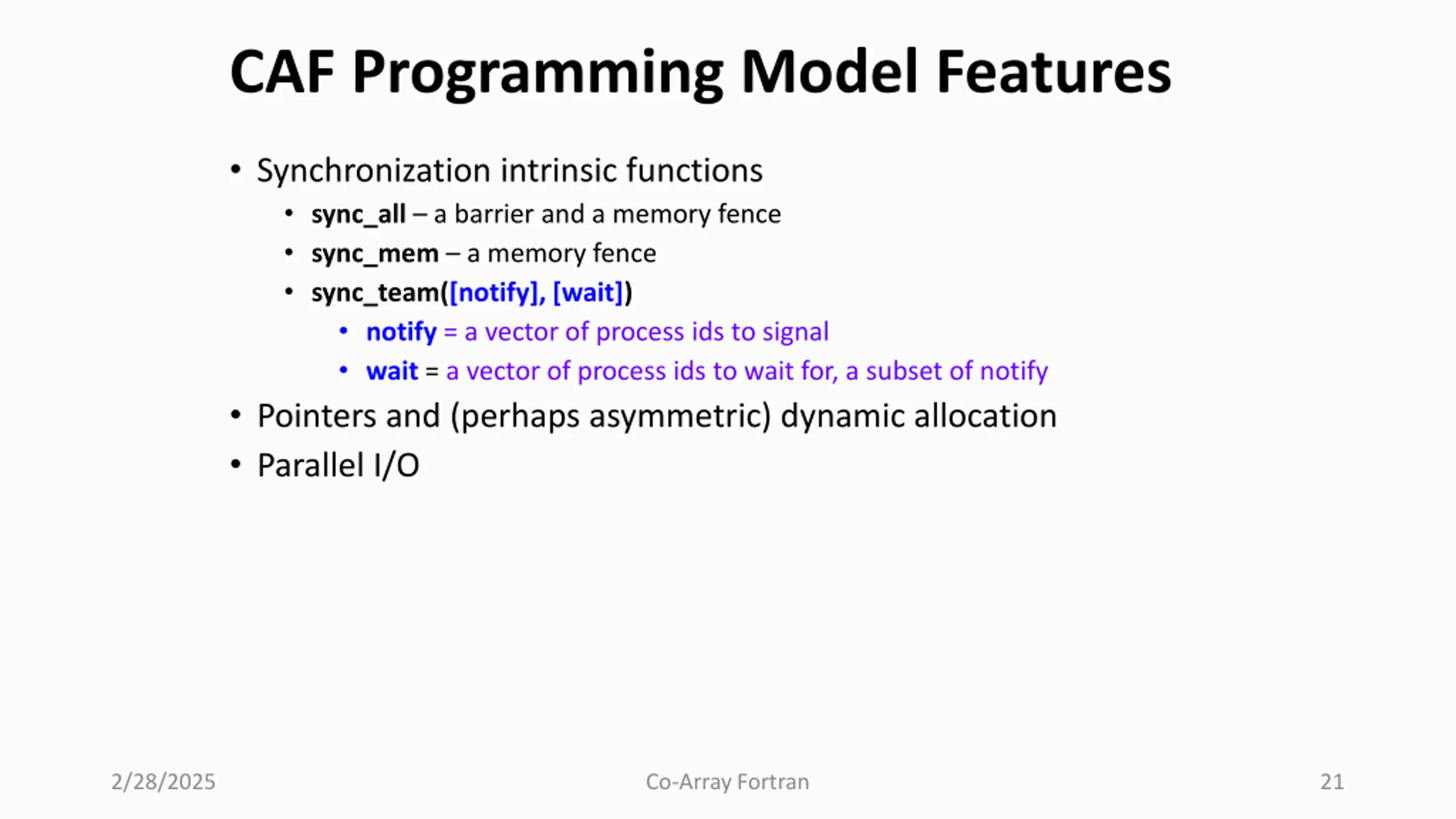

CAF Programming Model Features Synchronization intrinsic functions sync_all a barrier and a memory fence sync_mem a memory fence sync_team([notify], [wait]) notify = a vector of process ids to signal wait = a vector of process ids to wait for, a subset of notify Pointers and (perhaps asymmetric) dynamic allocation Parallel I/O 2/28/2025 Co-Array Fortran 21

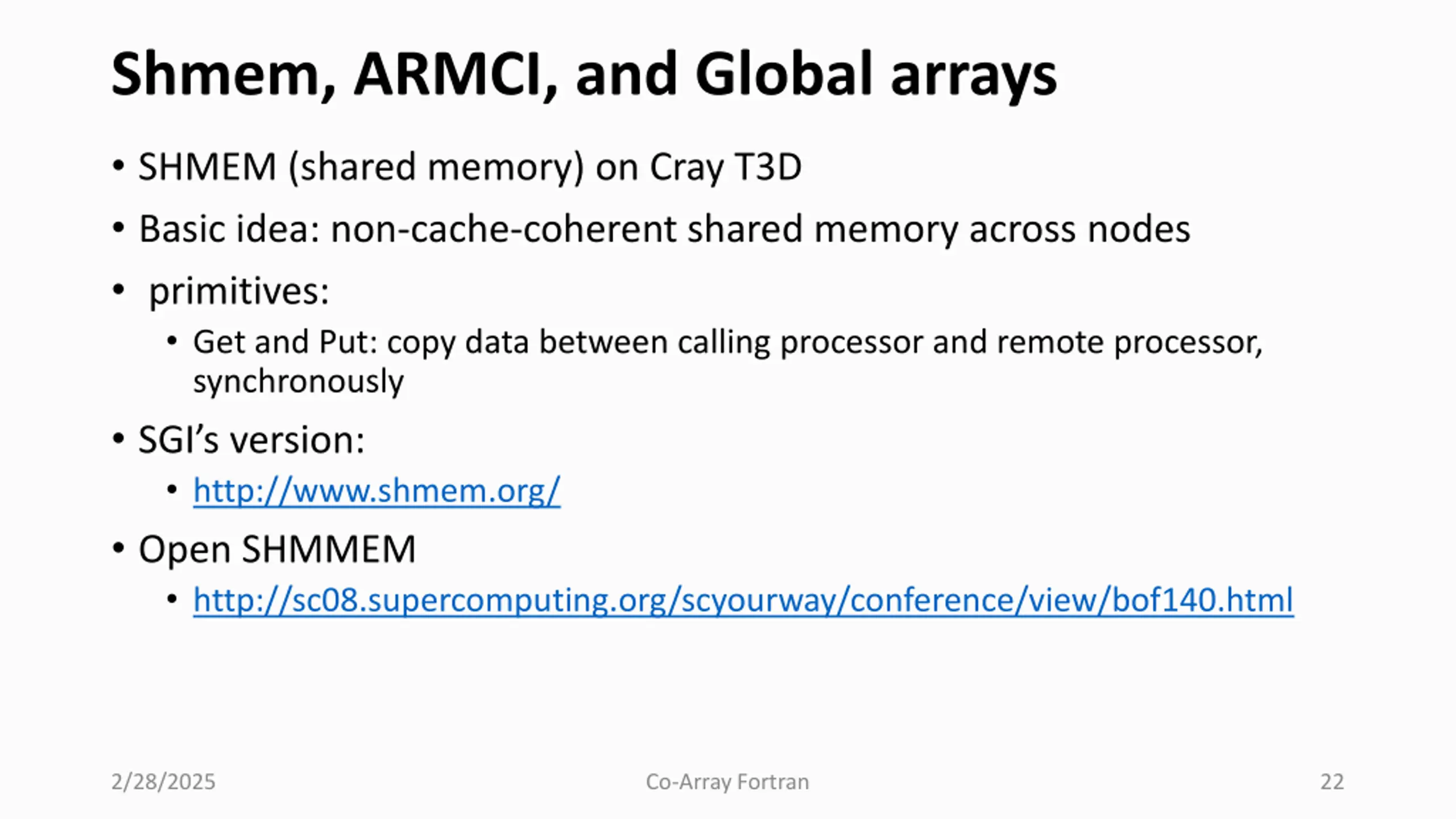

Shmem, ARMCI, and Global arrays SHMEM (shared memory) on Cray T3D Basic idea: non-cache-coherent shared memory across nodes primitives: Get and Put: copy data between calling processor and remote processor, synchronously SGI s version: http://www.shmem.org/ Open SHMMEM http://sc08.supercomputing.org/scyourway/conference/view/bof140.html 2/28/2025 Co-Array Fortran 22

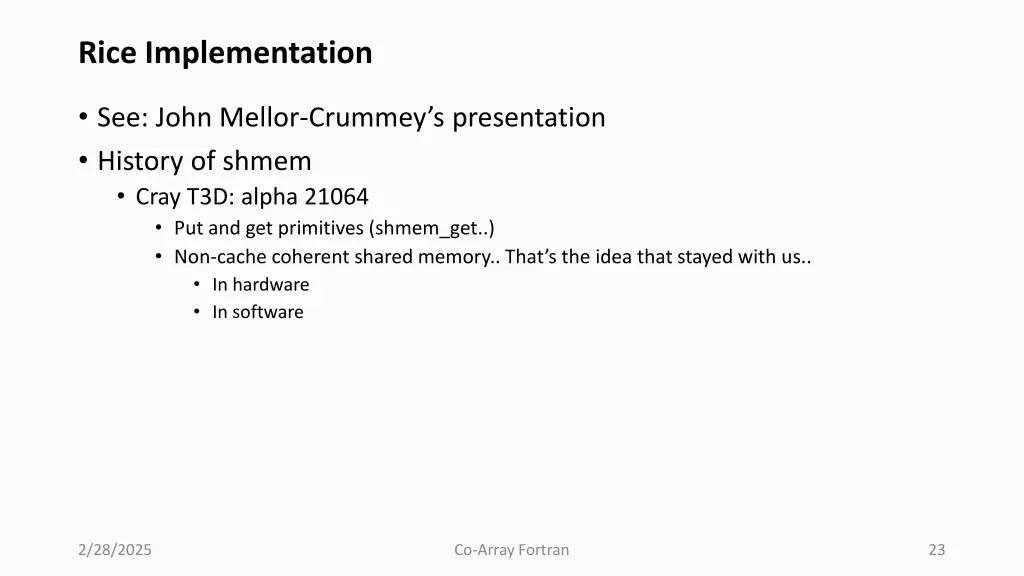

Rice Implementation See: John Mellor-Crummey s presentation History of shmem Cray T3D: alpha 21064 Put and get primitives (shmem_get..) Non-cache coherent shared memory.. That s the idea that stayed with us.. In hardware In software 2/28/2025 Co-Array Fortran 23

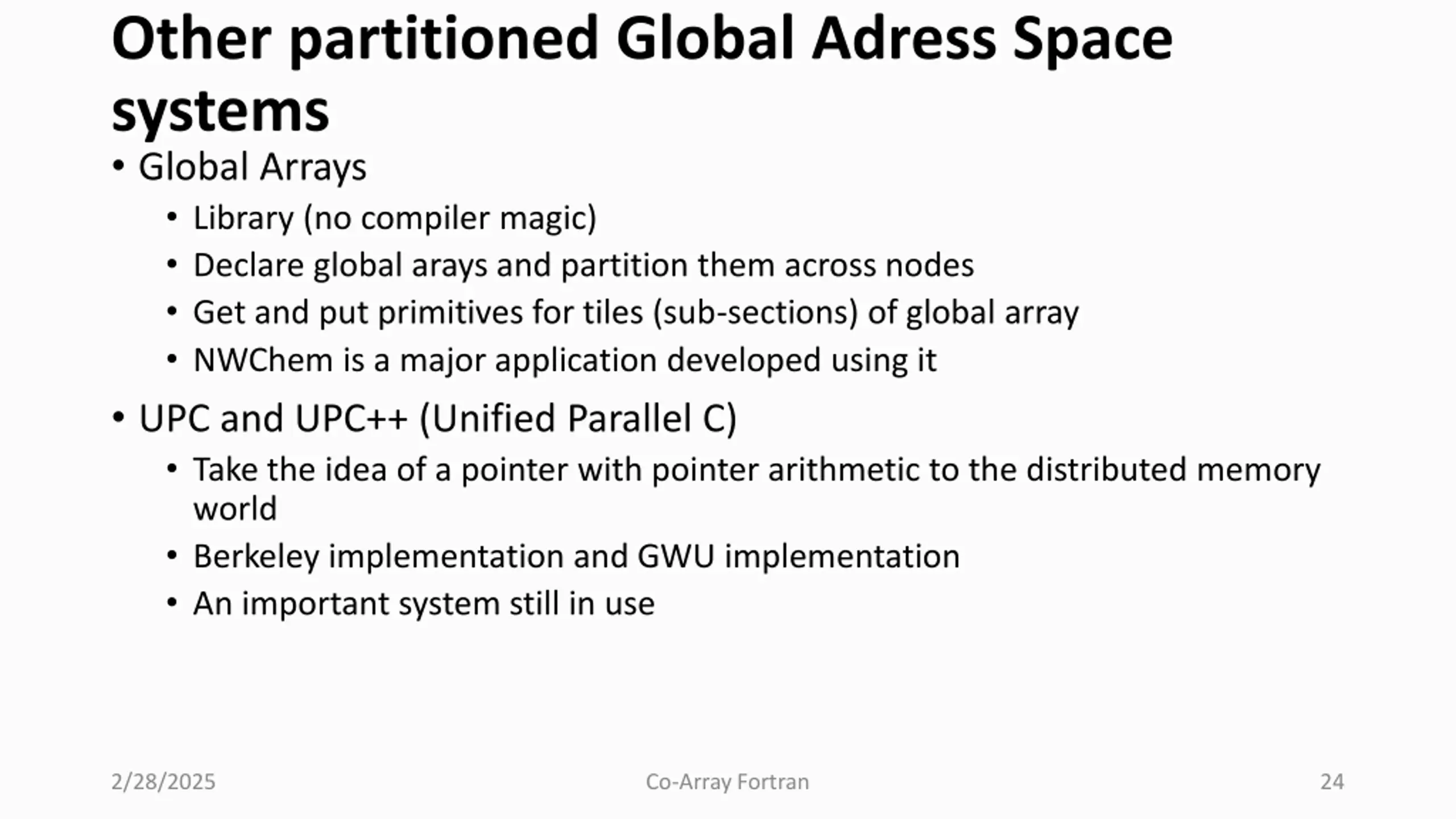

Other partitioned Global Adress Space systems Global Arrays Library (no compiler magic) Declare global arays and partition them across nodes Get and put primitives for tiles (sub-sections) of global array NWChem is a major application developed using it UPC and UPC++ (Unified Parallel C) Take the idea of a pointer with pointer arithmetic to the distributed memory world Berkeley implementation and GWU implementation An important system still in use 2/28/2025 Co-Array Fortran 24

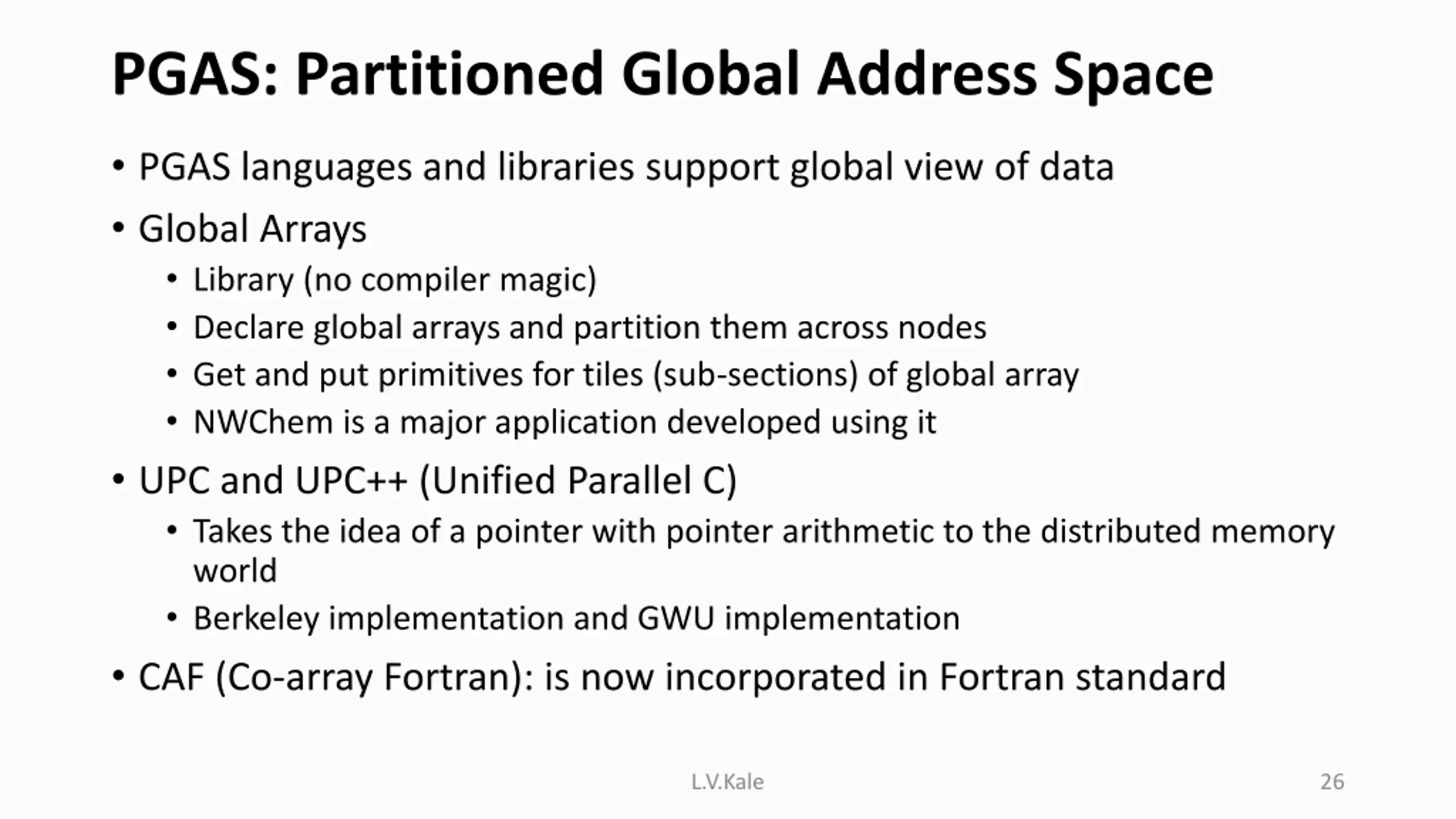

PGAS: Partitioned Global Address Space PGAS languages and libraries support global view of data Global Arrays Library (no compiler magic) Declare global arrays and partition them across nodes Get and put primitives for tiles (sub-sections) of global array NWChem is a major application developed using it UPC and UPC++ (Unified Parallel C) Takes the idea of a pointer with pointer arithmetic to the distributed memory world Berkeley implementation and GWU implementation CAF (Co-array Fortran): is now incorporated in Fortran standard L.V.Kale 26

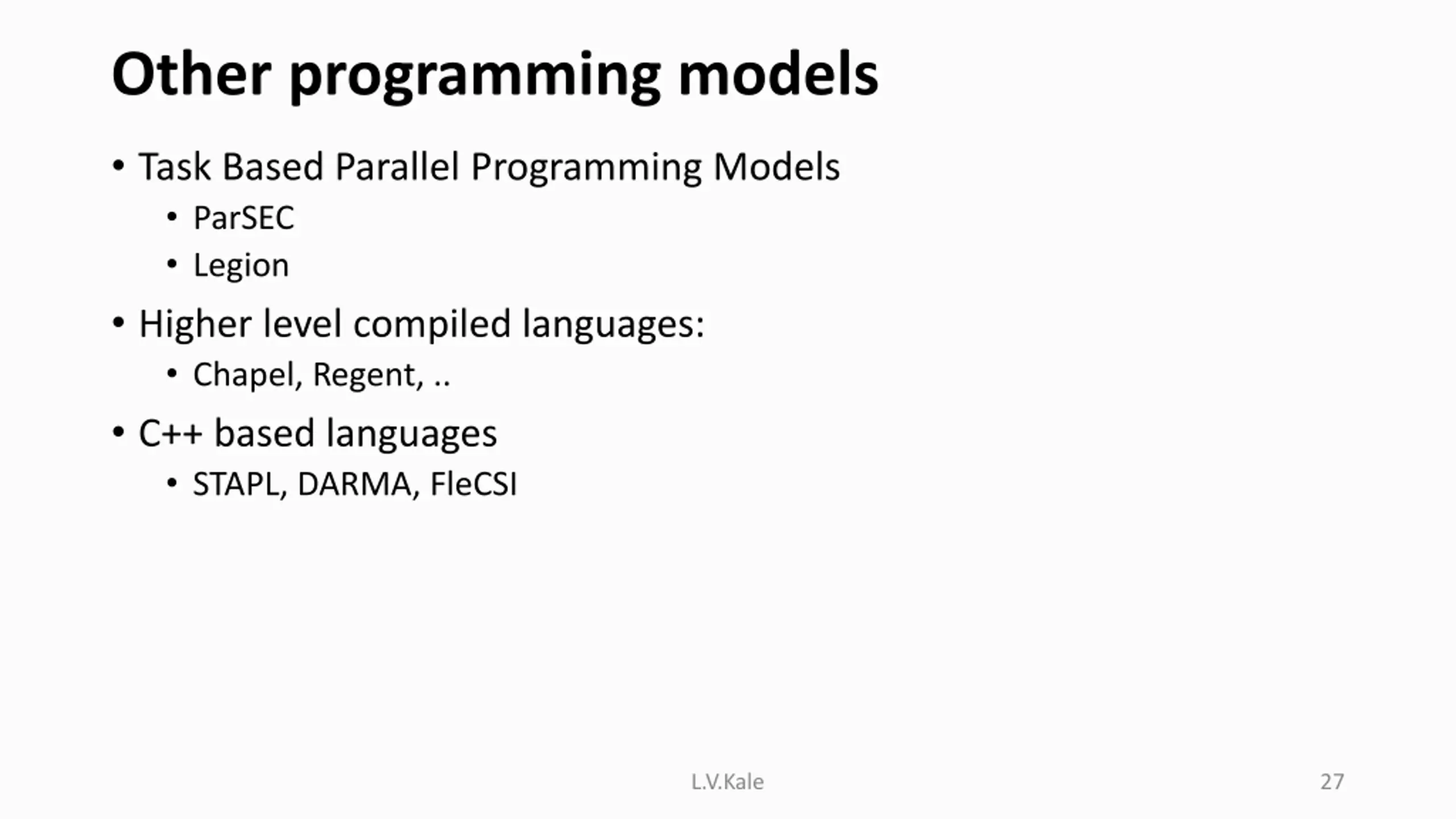

Other programming models Task Based Parallel Programming Models ParSEC Legion Higher level compiled languages: Chapel, Regent, .. C++ based languages STAPL, DARMA, FleCSI L.V.Kale 27
