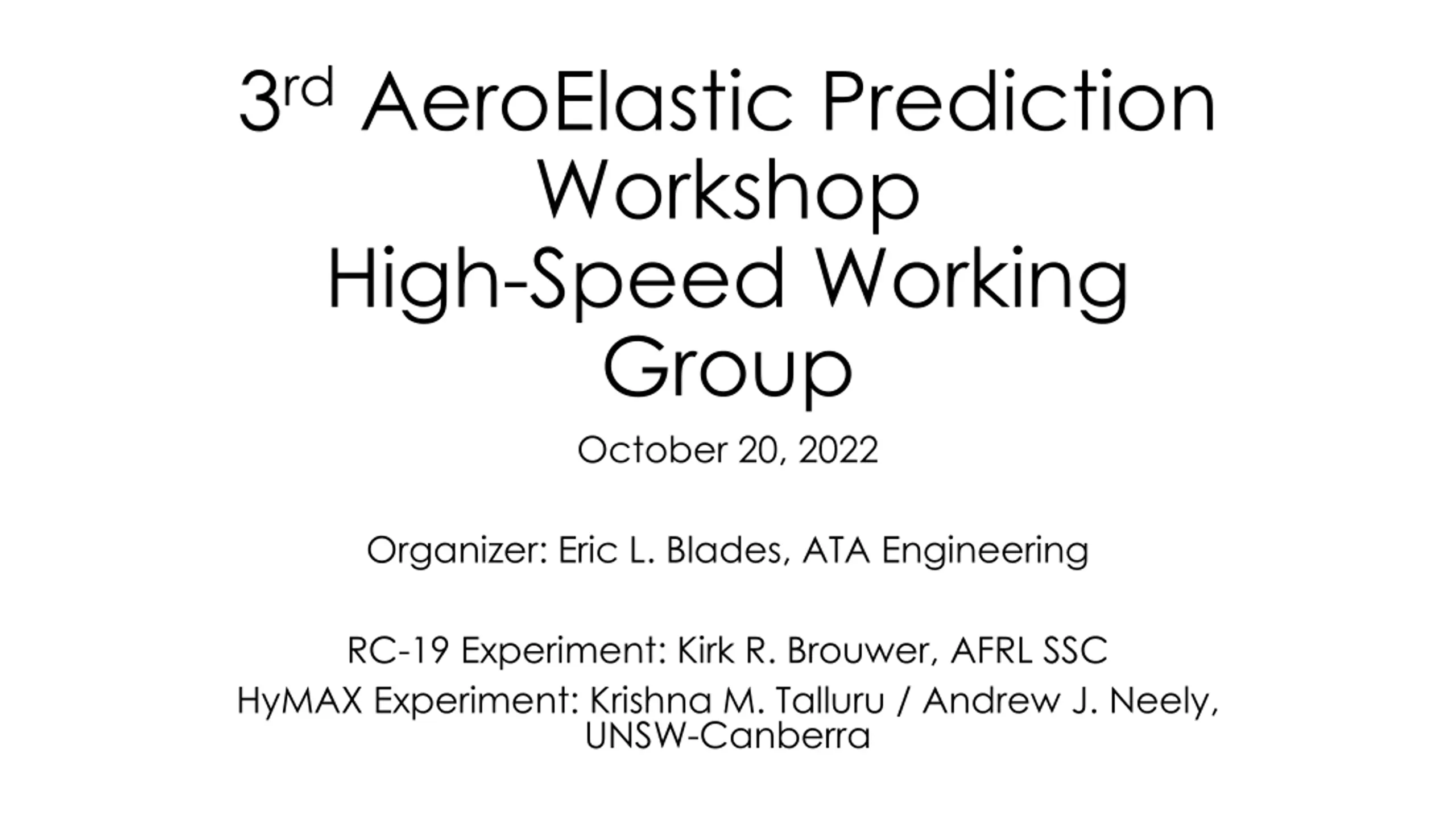

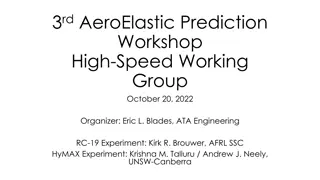

3rdAeroElastic Prediction Workshop High-Speed Working Group October 20, 2022 Organizer: Eric L. Blades, ATA Engineering RC-19 Experiment: Kirk R. Brouwer, AFRL SSC HyMAX Experiment: Krishna M. Talluru / Andrew J. Neely, UNSW-Canberra

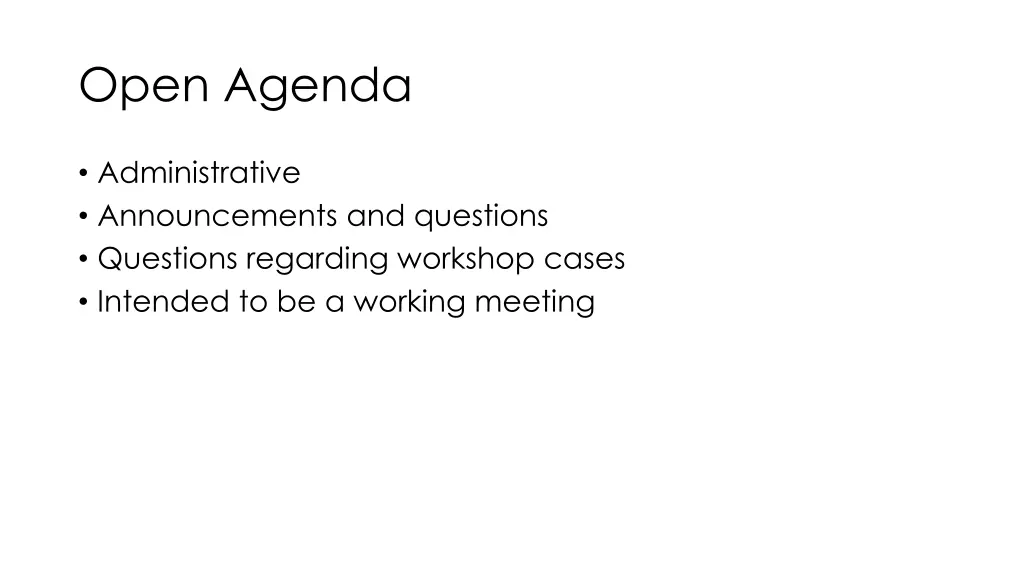

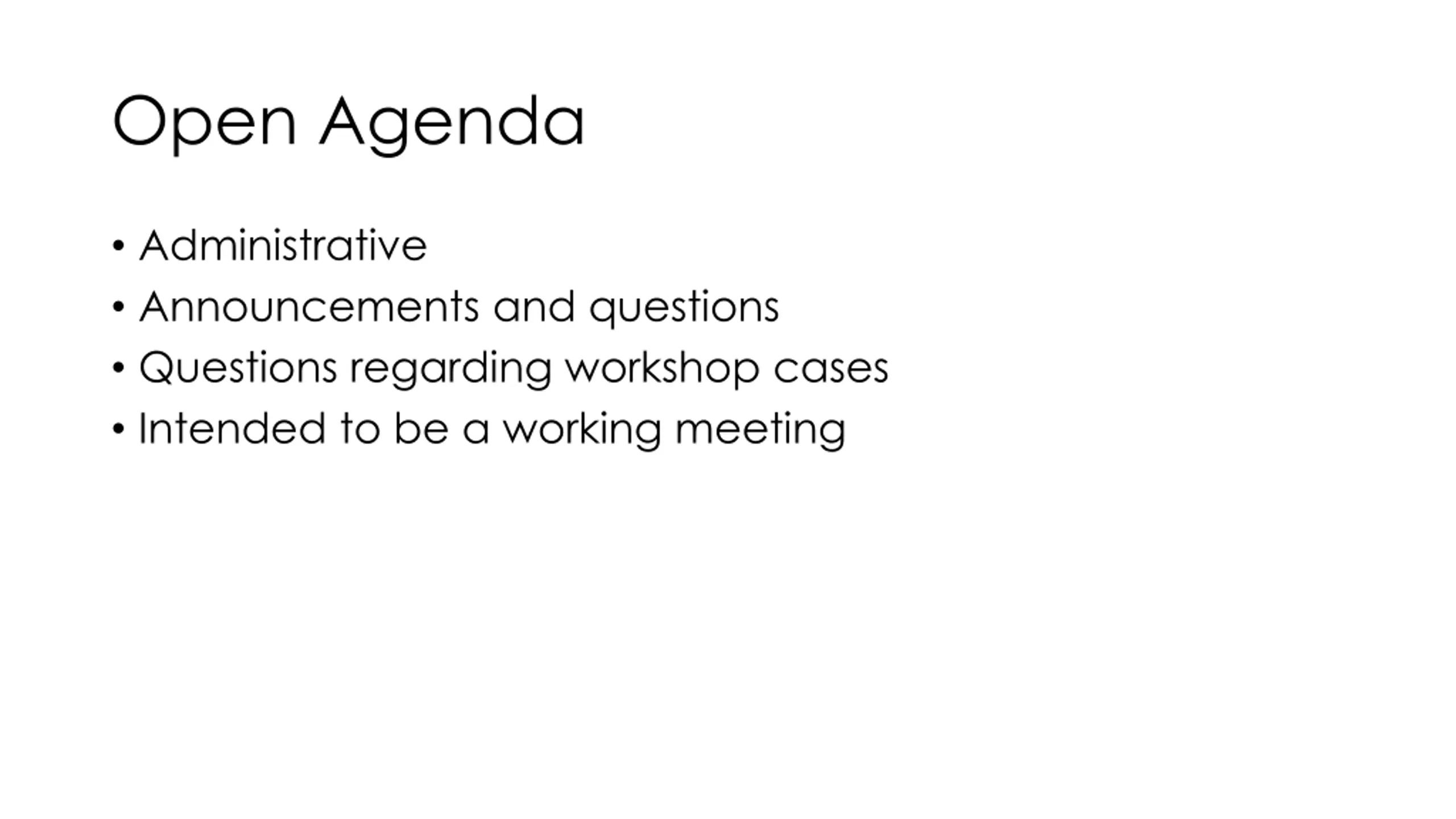

Open Agenda Administrative Announcements and questions Questions regarding workshop cases Intended to be a working meeting

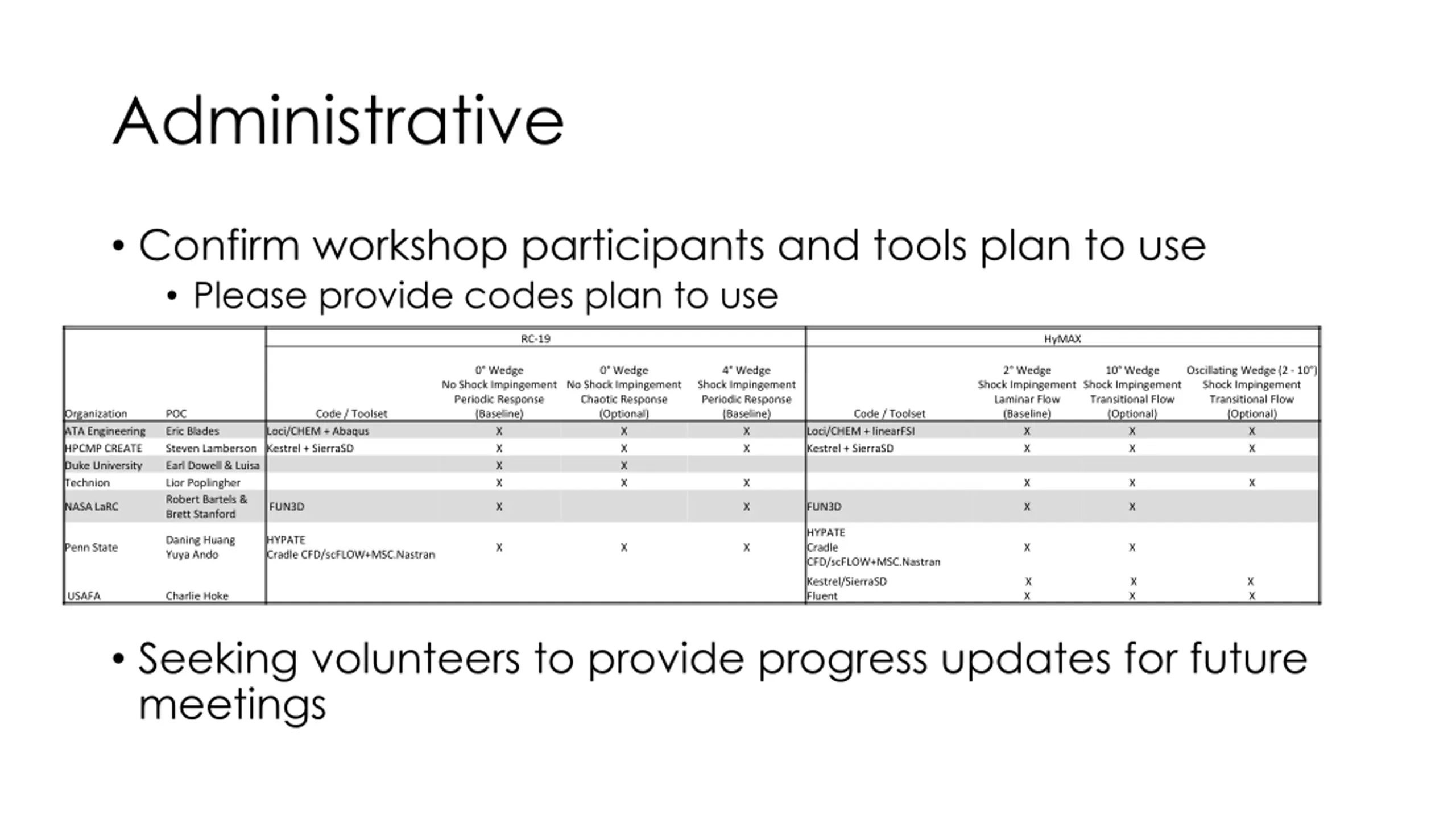

Administrative Confirm workshop participants and tools plan to use Please provide codes plan to use RC-19 HyMAX 0 Wedge 0 Wedge 4 Wedge 2 Wedge 10 Wedge Shock Impingement Transitional Flow (Optional) X X Oscillating Wedge (2 - 10 ) Shock Impingement Transitional Flow (Optional) X X No Shock Impingement Periodic Response (Baseline) X X X X No Shock Impingement Chaotic Response (Optional) X X X X Shock Impingement Periodic Response (Baseline) X X Shock Impingement Laminar Flow (Baseline) X X Organization ATA Engineering HPCMP CREATE Duke University Technion POC Eric Blades Steven Lamberson Kestrel + SierraSD Earl Dowell & Luisa Lior Poplingher Robert Bartels & Brett Stanford Code / Toolset Code / Toolset Loci/CHEM + Abaqus Loci/CHEM + linearFSI Kestrel + SierraSD X X X X NASA LaRC FUN3D X X FUN3D X X HYPATE Cradle CFD/scFLOW+MSC.Nastran Daning Huang Yuya Ando HYPATE Cradle CFD/scFLOW+MSC.Nastran Penn State X X X X X Kestrel/SierraSD Fluent X X X X X X USAFA Charlie Hoke Seeking volunteers to provide progress updates for future meetings

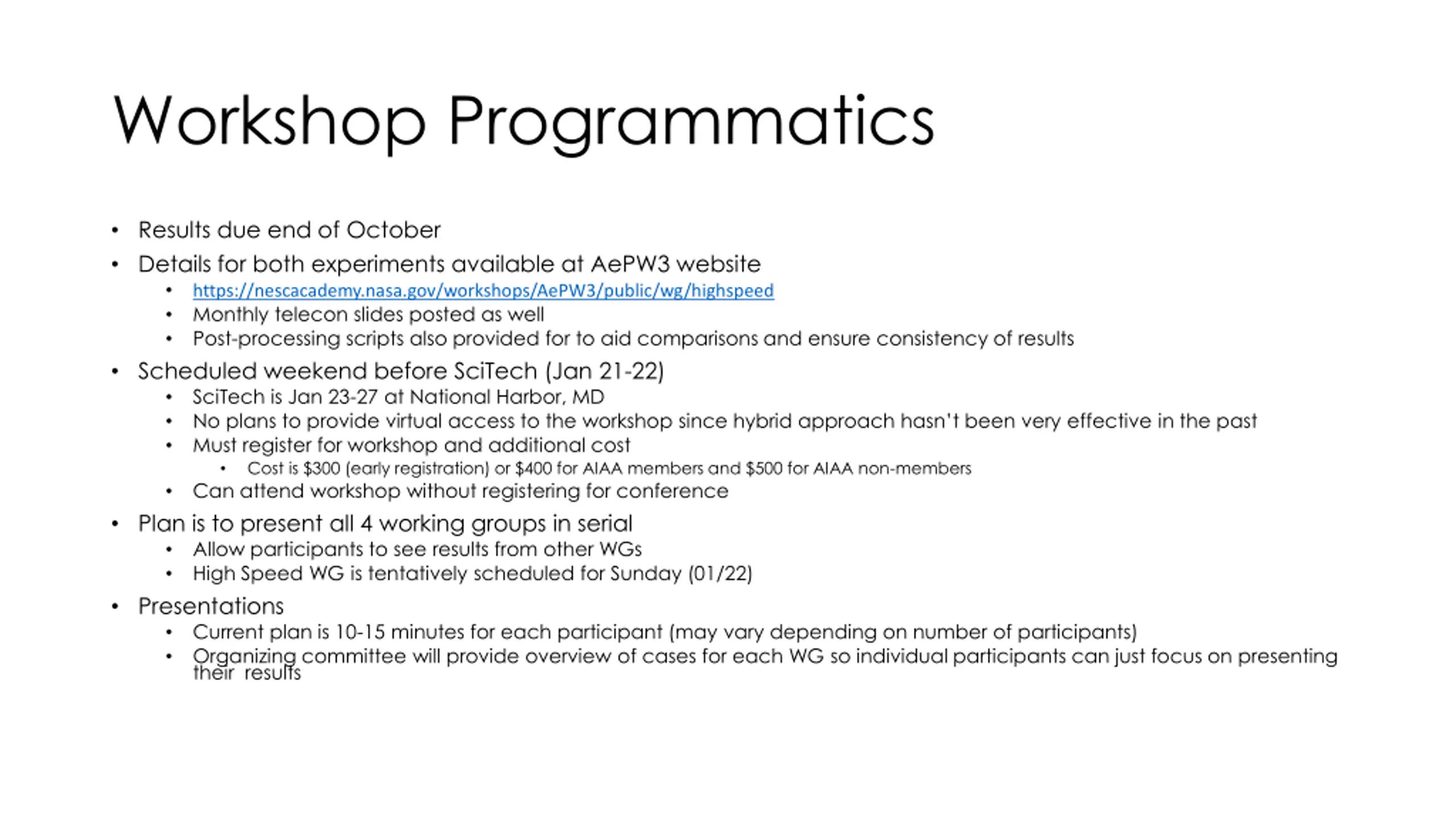

Workshop Programmatics Results due end of October Details for both experiments available at AePW3 website https://nescacademy.nasa.gov/workshops/AePW3/public/wg/highspeed Monthly telecon slides posted as well Post-processing scripts also provided for to aid comparisons and ensure consistency of results Scheduled weekend before SciTech (Jan 21-22) SciTech is Jan 23-27 at National Harbor, MD No plans to provide virtual access to the workshop since hybrid approach hasn t been very effective in the past Must register for workshop and additional cost Cost is $300 (early registration) or $400 for AIAA members and $500 for AIAA non-members Can attend workshop without registering for conference Plan is to present all 4 working groups in serial Allow participants to see results from other WGs High Speed WG is tentatively scheduled for Sunday (01/22) Presentations Current plan is 10-15 minutes for each participant (may vary depending on number of participants) Organizing committee will provide overview of cases for each WG so individual participants can just focus on presenting their results

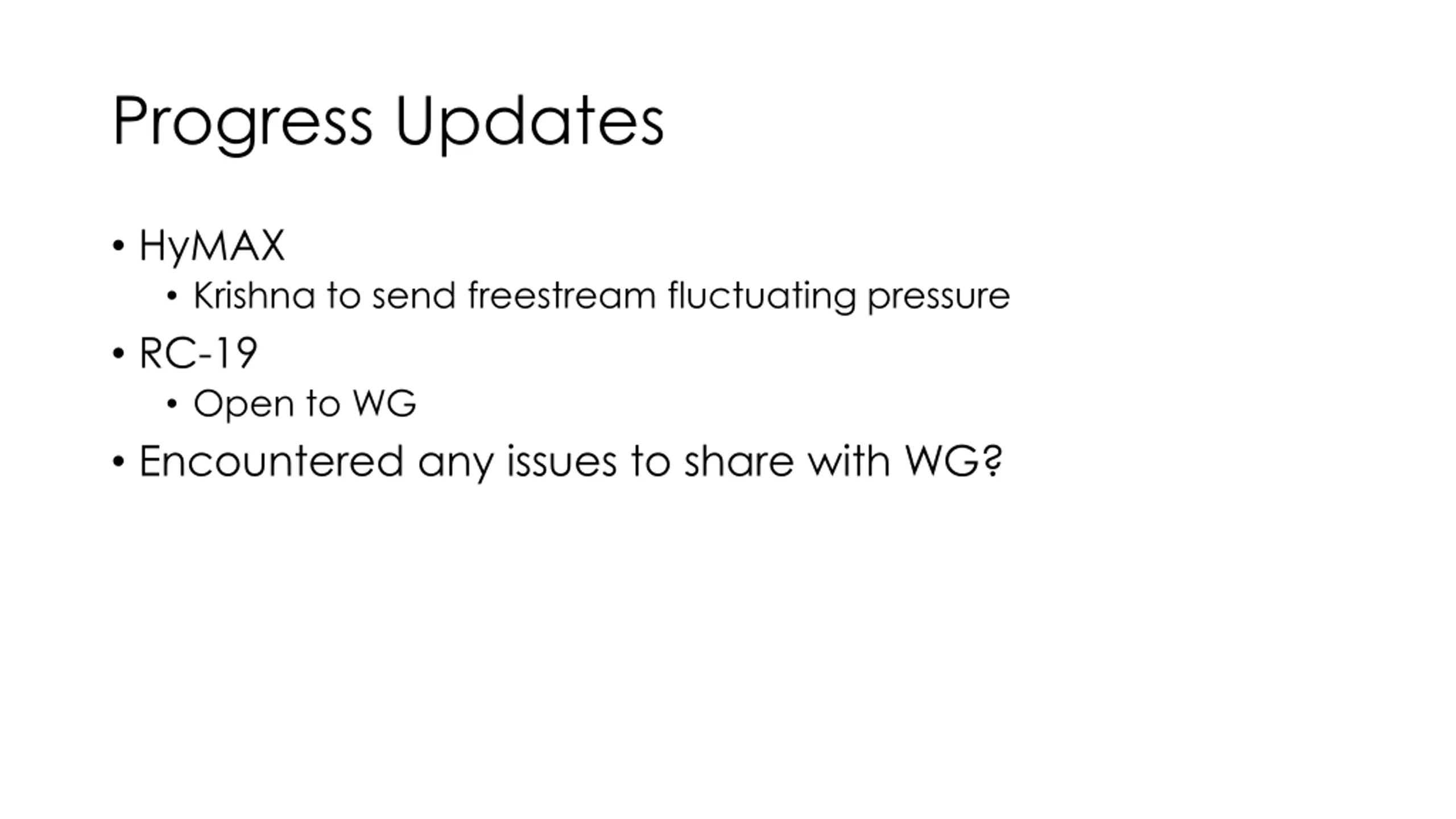

Progress Updates HyMAX Krishna to send freestream fluctuating pressure RC-19 Open to WG Encountered any issues to share with WG?

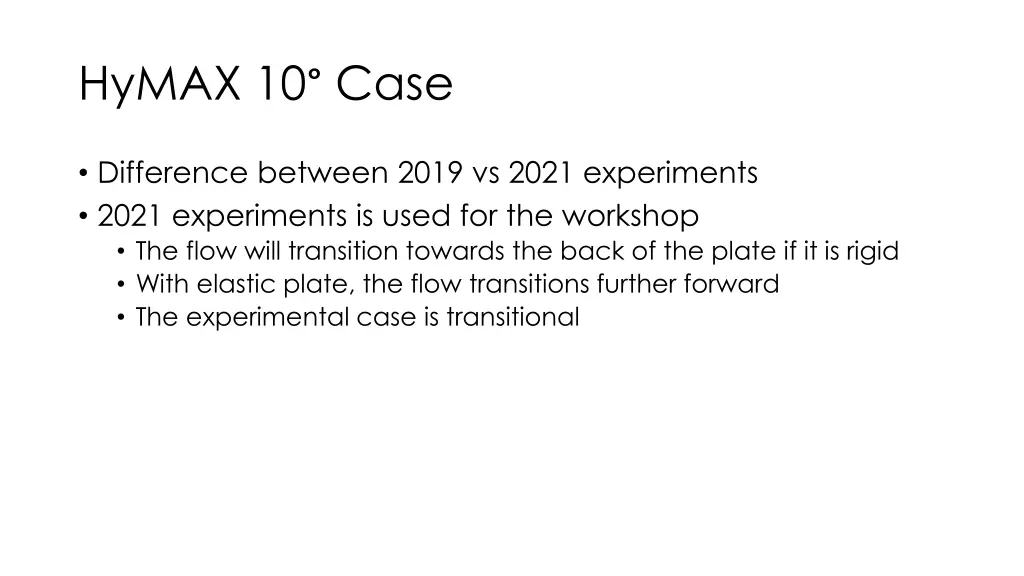

HyMAX 10 Case Difference between 2019 vs 2021 experiments 2021 experiments is used for the workshop The flow will transition towards the back of the plate if it is rigid With elastic plate, the flow transitions further forward The experimental case is transitional

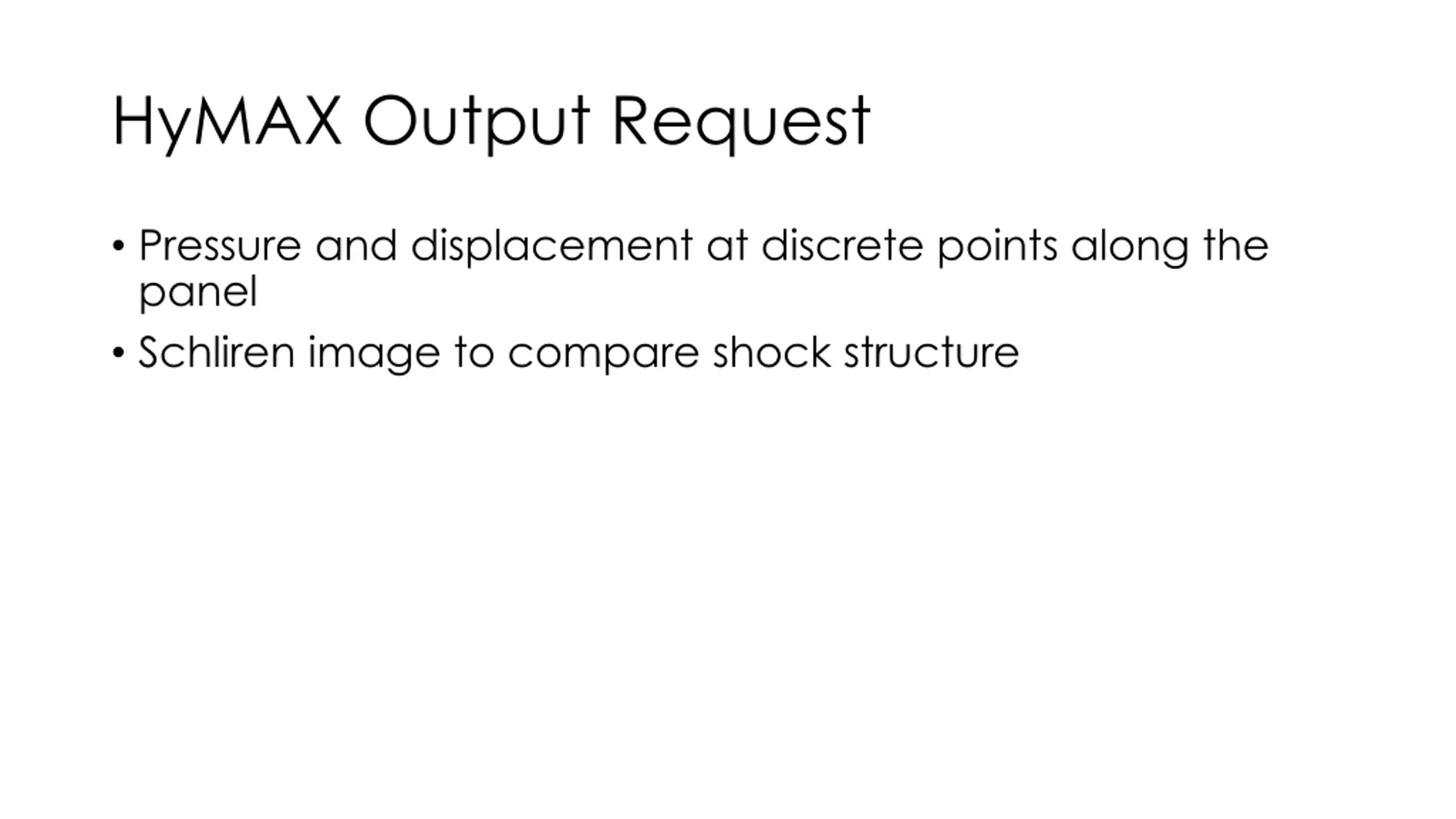

HyMAX Output Request Pressure and displacement at discrete points along the panel Schliren image to compare shock structure

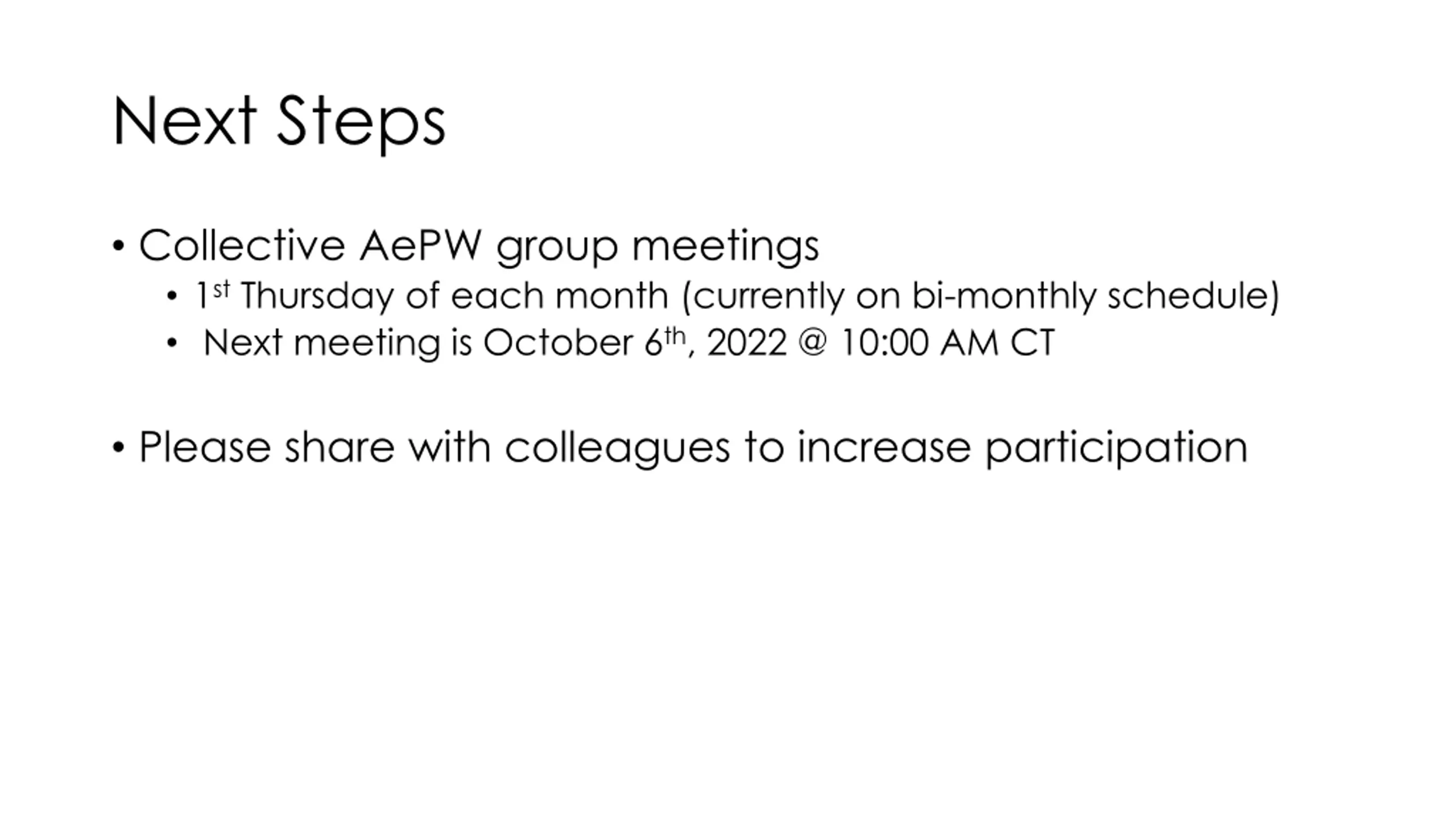

Next Steps Collective AePW group meetings 1stThursday of each month (currently on bi-monthly schedule) Next meeting is October 6th, 2022 @ 10:00 AM CT Please share with colleagues to increase participation

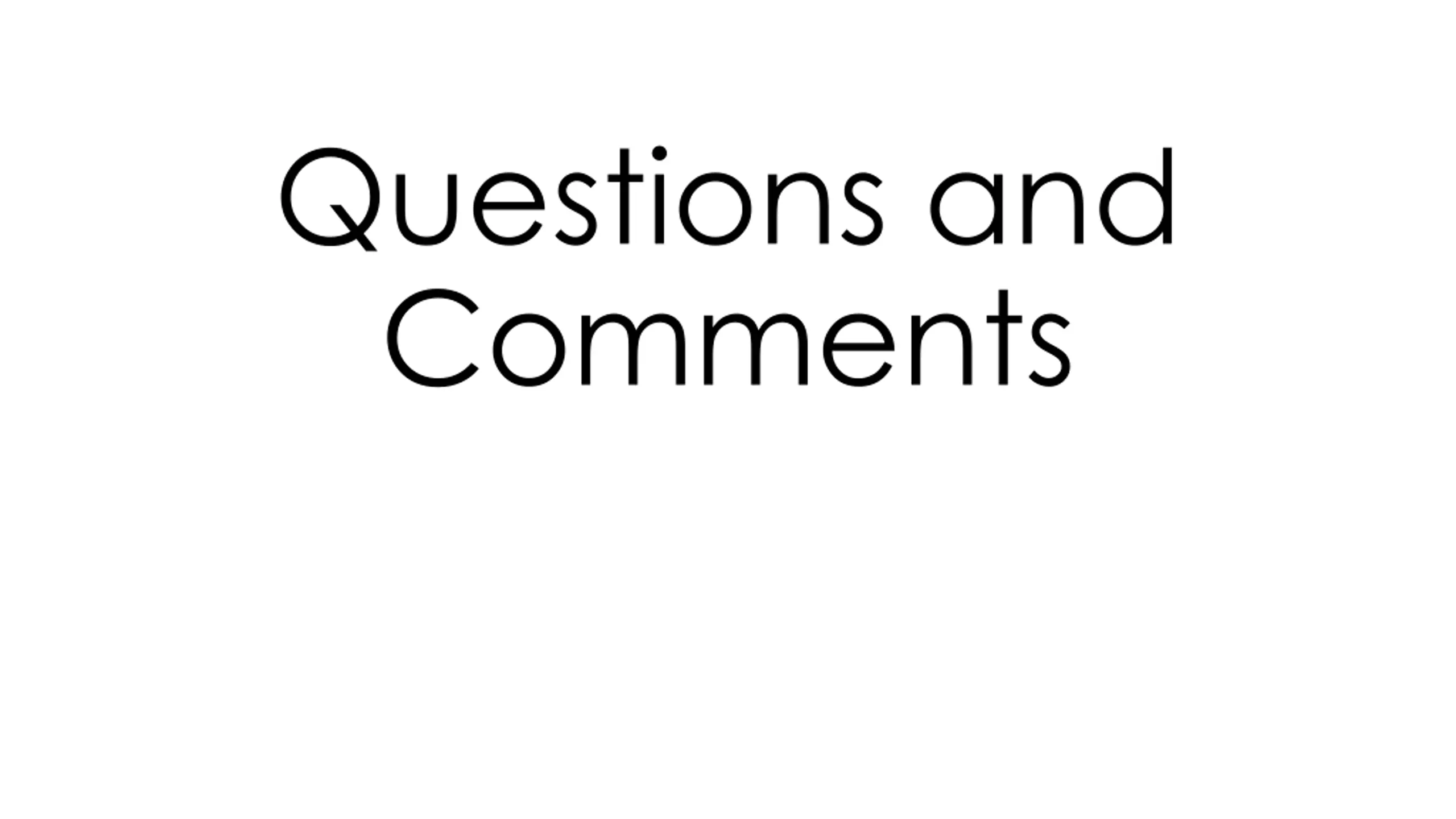

Questions and Comments
