1. Hit rate distribution Taebong Moon Yonsei Univ./RIKEN Mar. 13th. 2014 Rad Lab

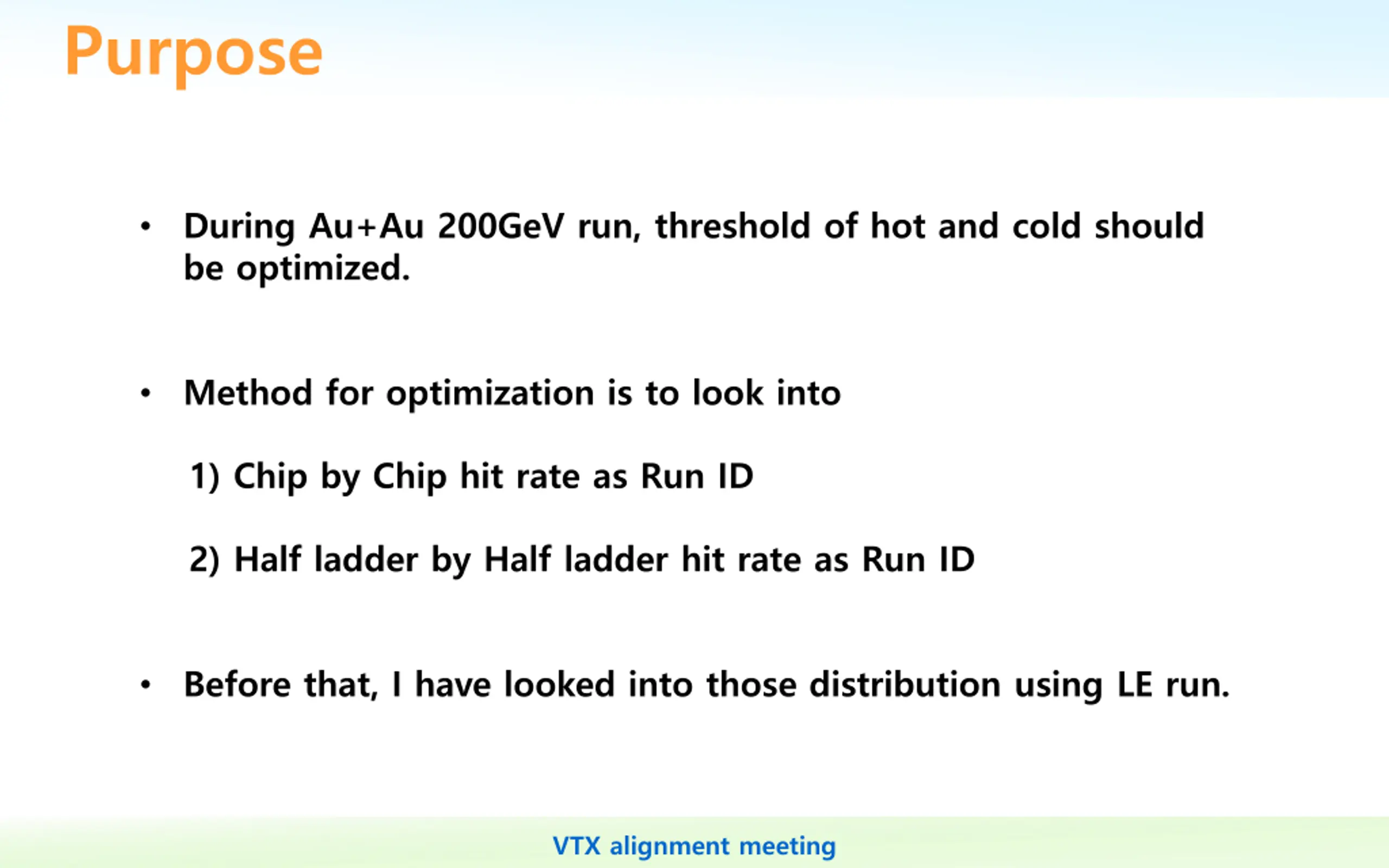

2. Purpose During Au+Au 200GeV run, threshold of hot and cold should be optimized. Method for optimization is to look into 1) Chip by Chip hit rate as Run ID 2) Half ladder by Half ladder hit rate as Run ID Before that, I have looked into those distribution using LE run. VTX alignment meeting

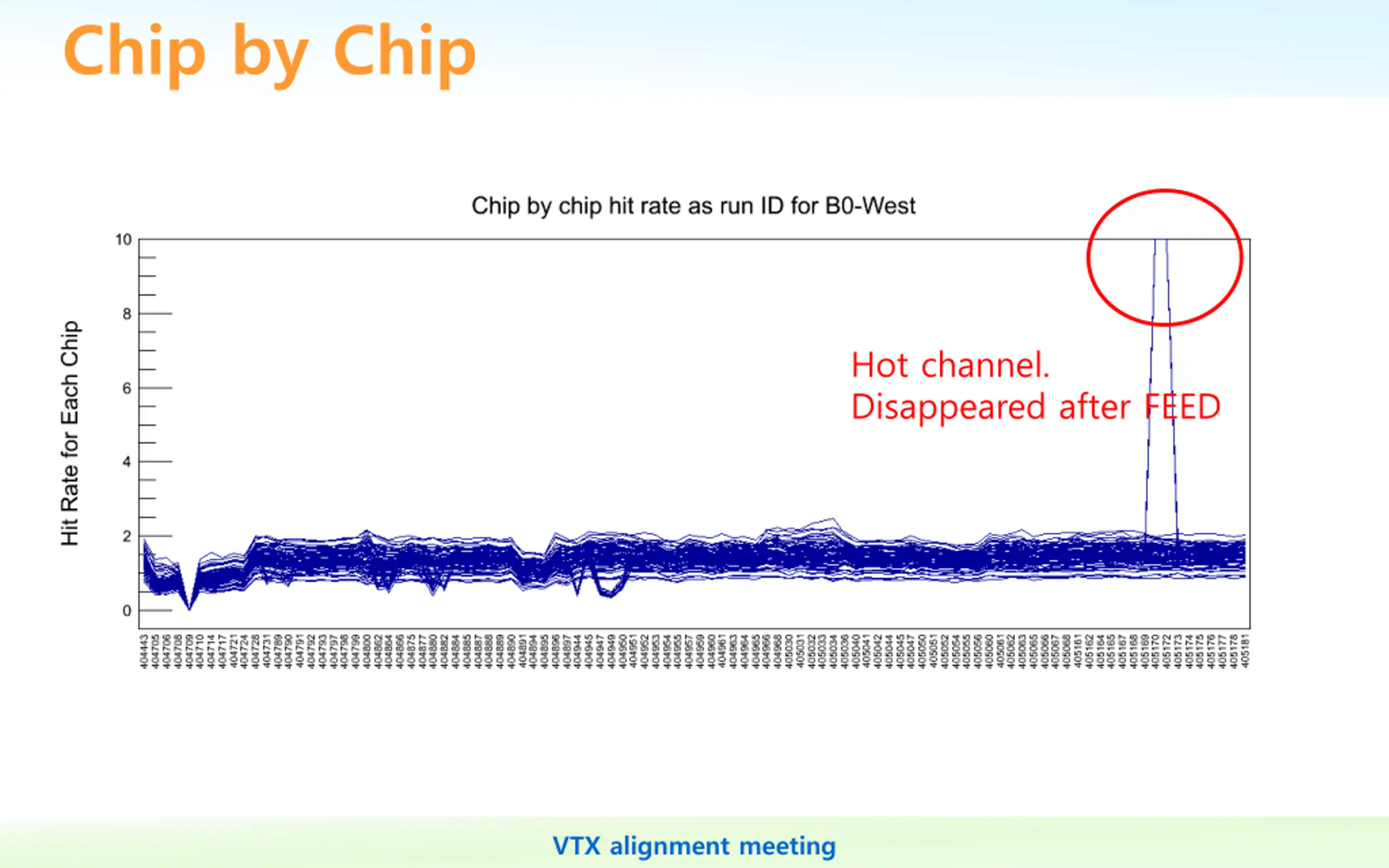

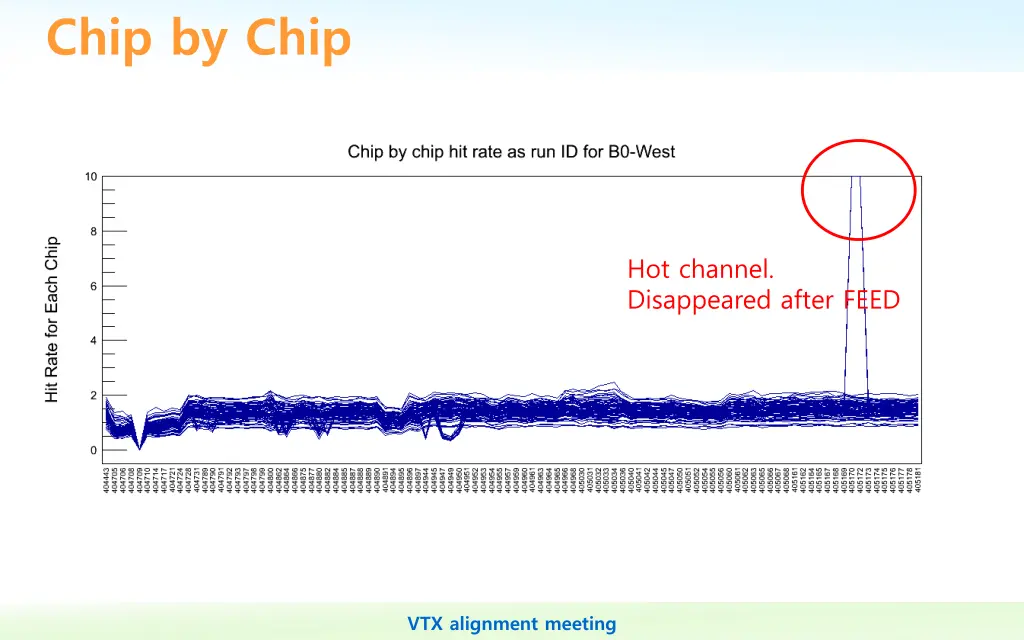

3. Chip by Chip Hot channel. Disappeared after FEED VTX alignment meeting

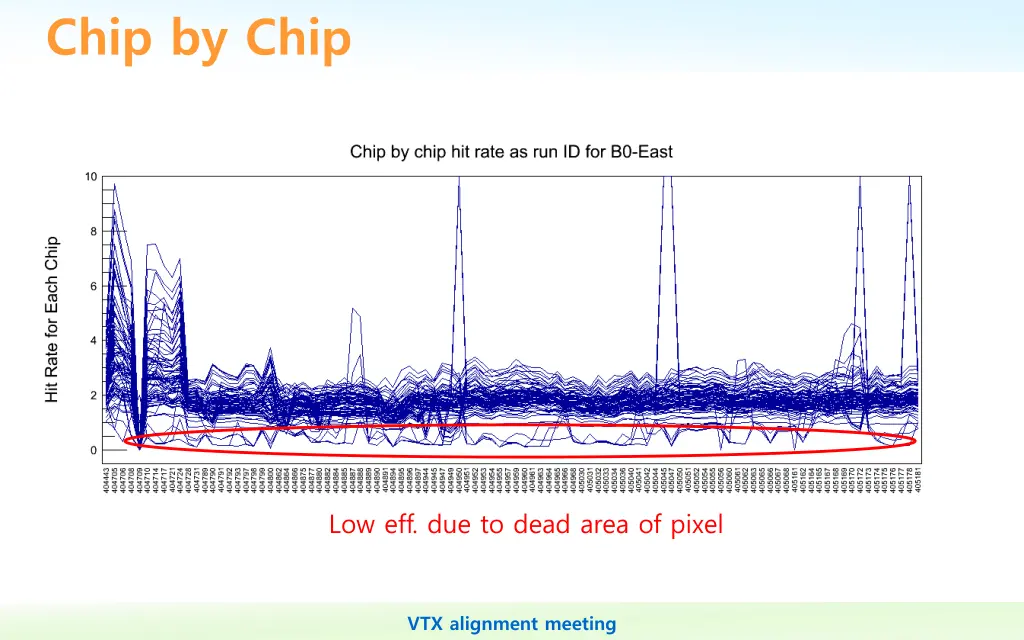

4. Chip by Chip Low eff. due to dead area of pixel VTX alignment meeting

5. Chip by Chip VTX alignment meeting

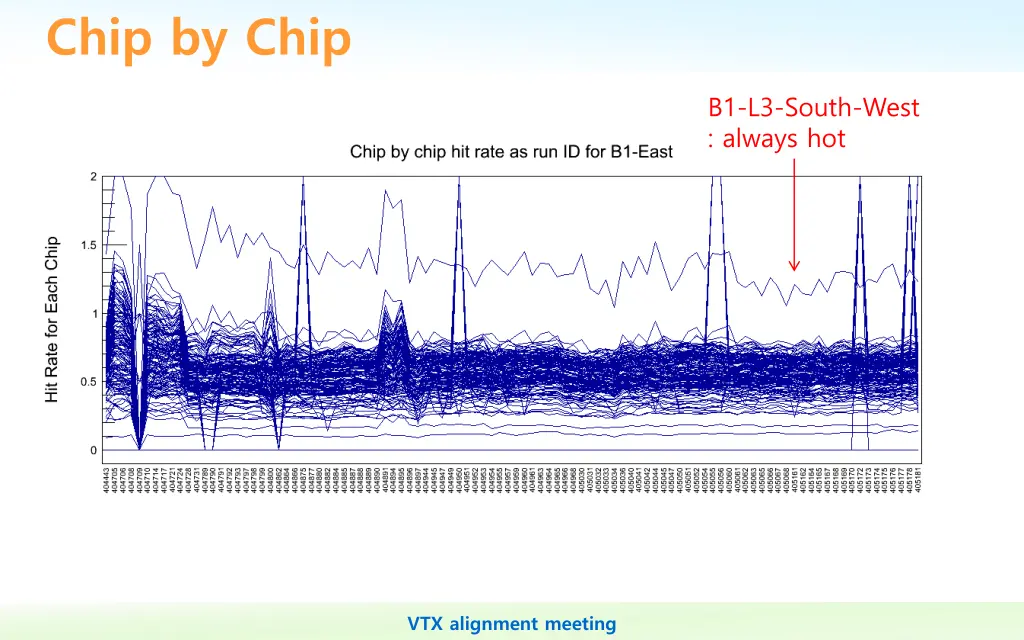

6. Chip by Chip B1-L3-South-West : always hot VTX alignment meeting

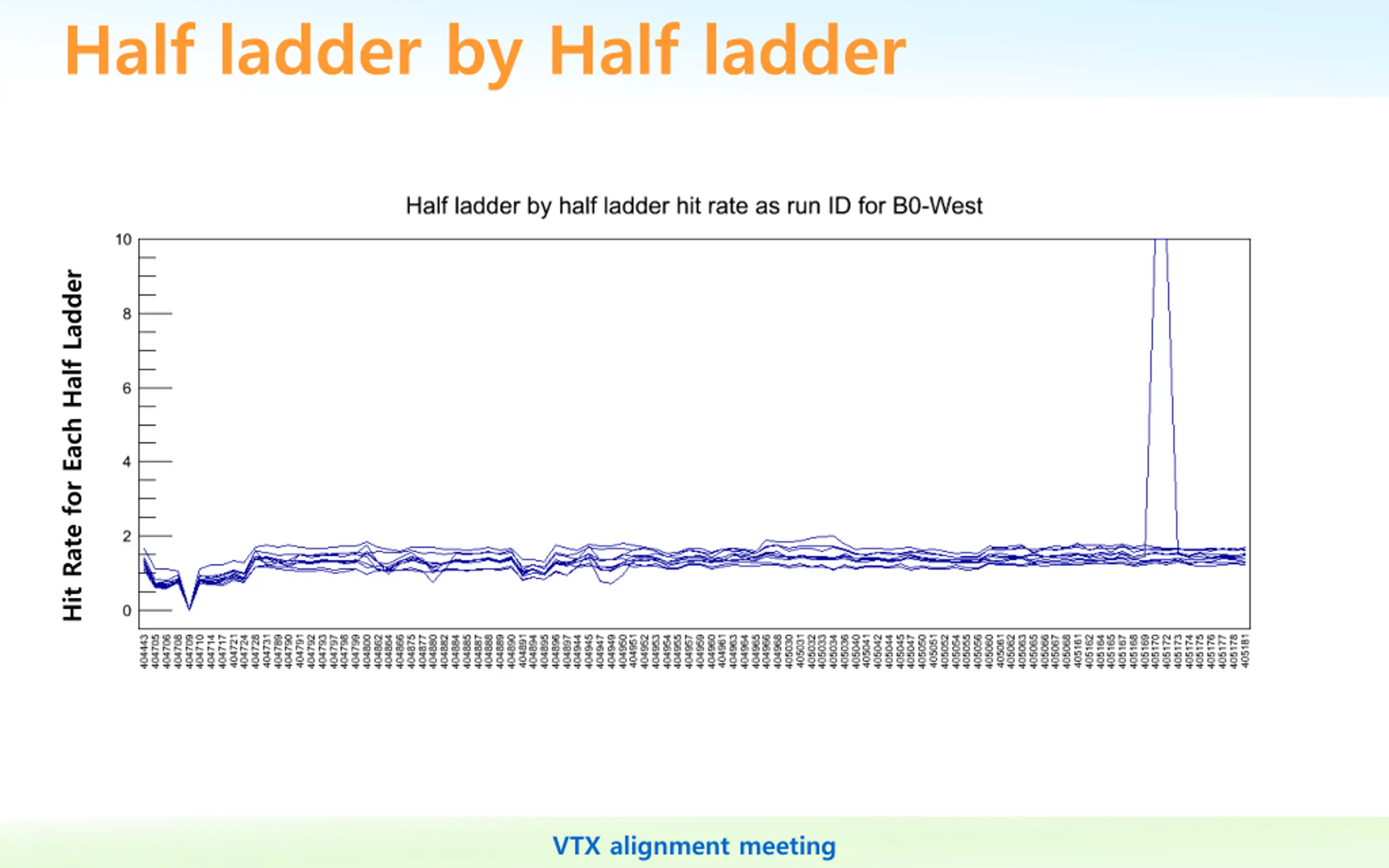

7. Half ladder by Half ladder Hit Rate for Each Half Ladder VTX alignment meeting

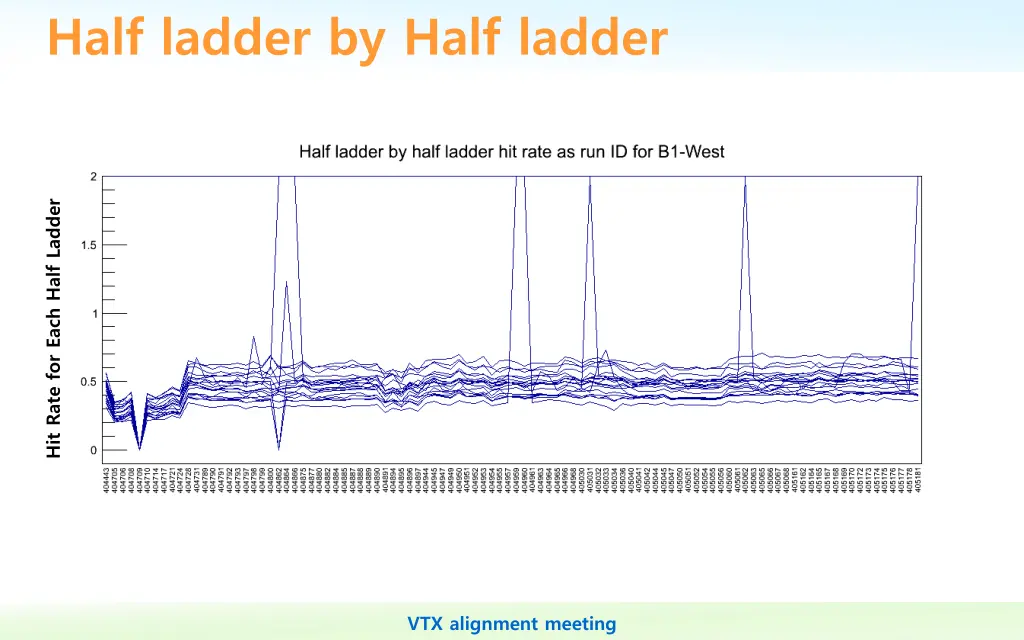

8. Half ladder by Half ladder Hit Rate for Each Half Ladder VTX alignment meeting

9. Half ladder by Half ladder Hit Rate for Each Half Ladder VTX alignment meeting

10. Half ladder by Half ladder Hit Rate for Each Half Ladder VTX alignment meeting

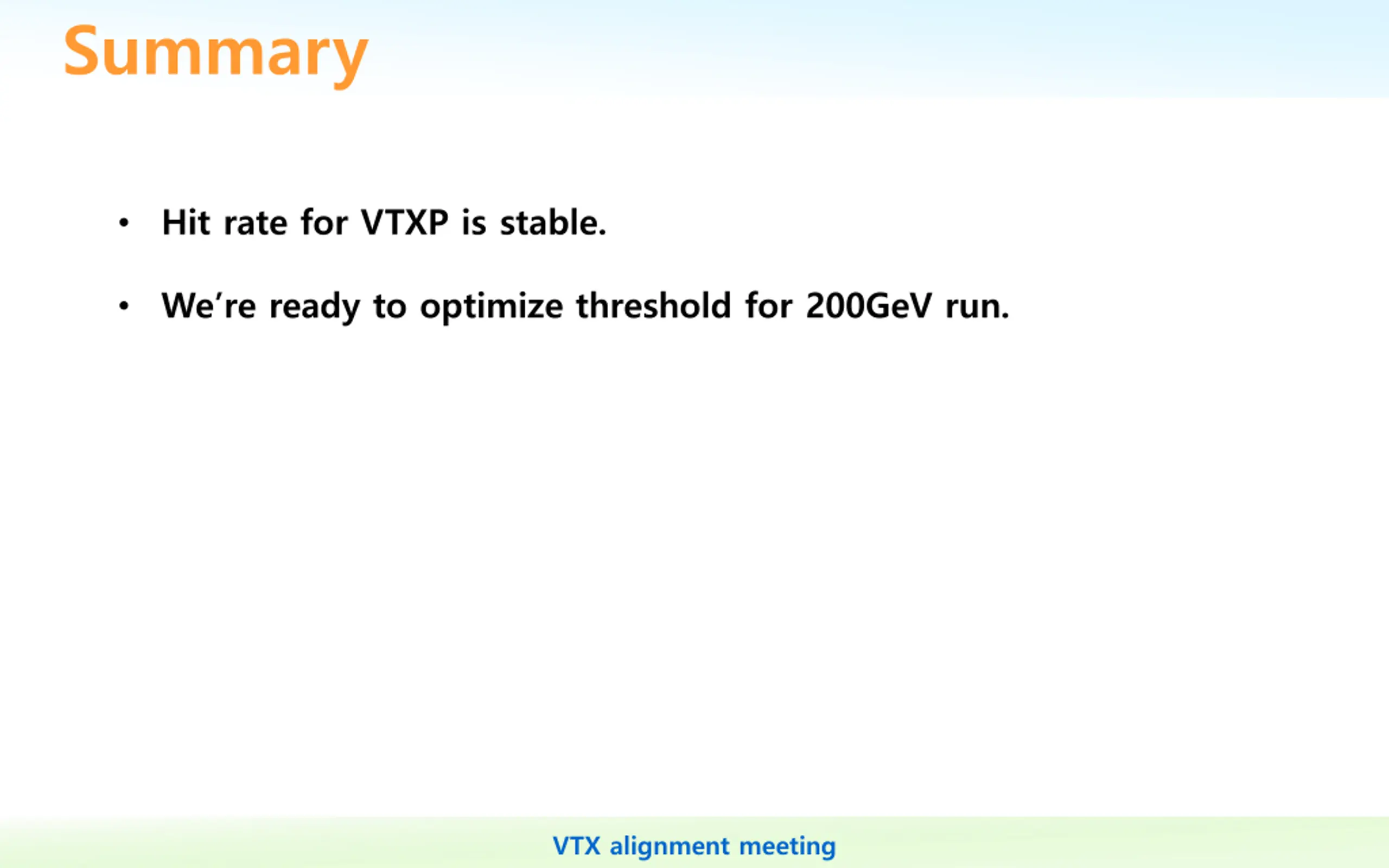

11. Summary Hit rate for VTXP is stable. We re ready to optimize threshold for 200GeV run. VTX alignment meeting
