Hooke's Law of Solid Material Properties
Explore the concept of Hooke's Law in solid materials, where strain is proportional to stress within the elasticity limit. Learn about the relationship between force and strain, the unit of k, and practical applications through examples and visuals.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

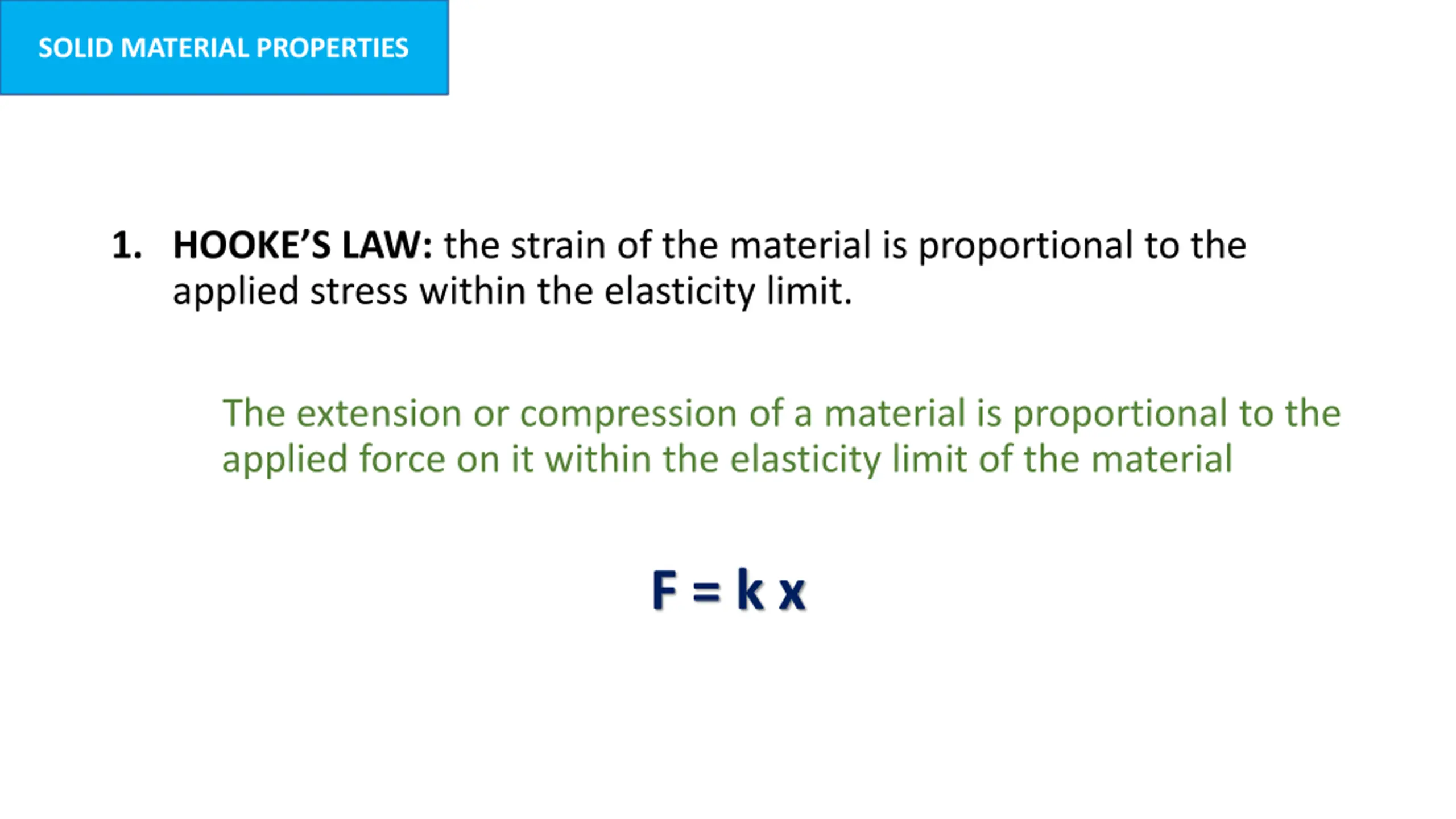

SOLID MATERIAL PROPERTIES 1. HOOKE S LAW: the strain of the material is proportional to the applied stress within the elasticity limit. The extension or compression of a material is proportional to the applied force on it within the elasticity limit of the material F = k x

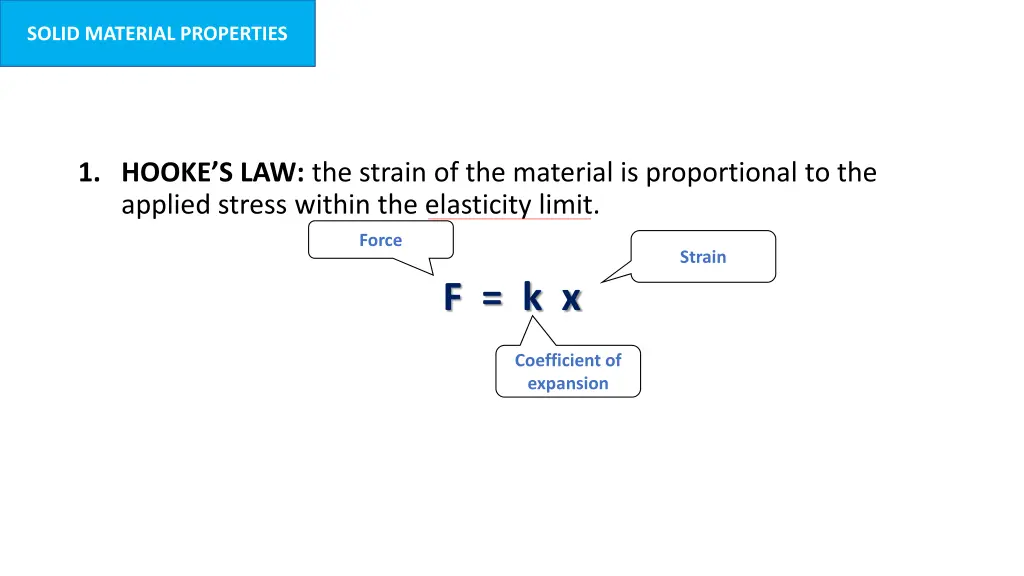

SOLID MATERIAL PROPERTIES 1. HOOKE S LAW: the strain of the material is proportional to the applied stress within the elasticity limit. F = k x Force Strain Coefficient of expansion

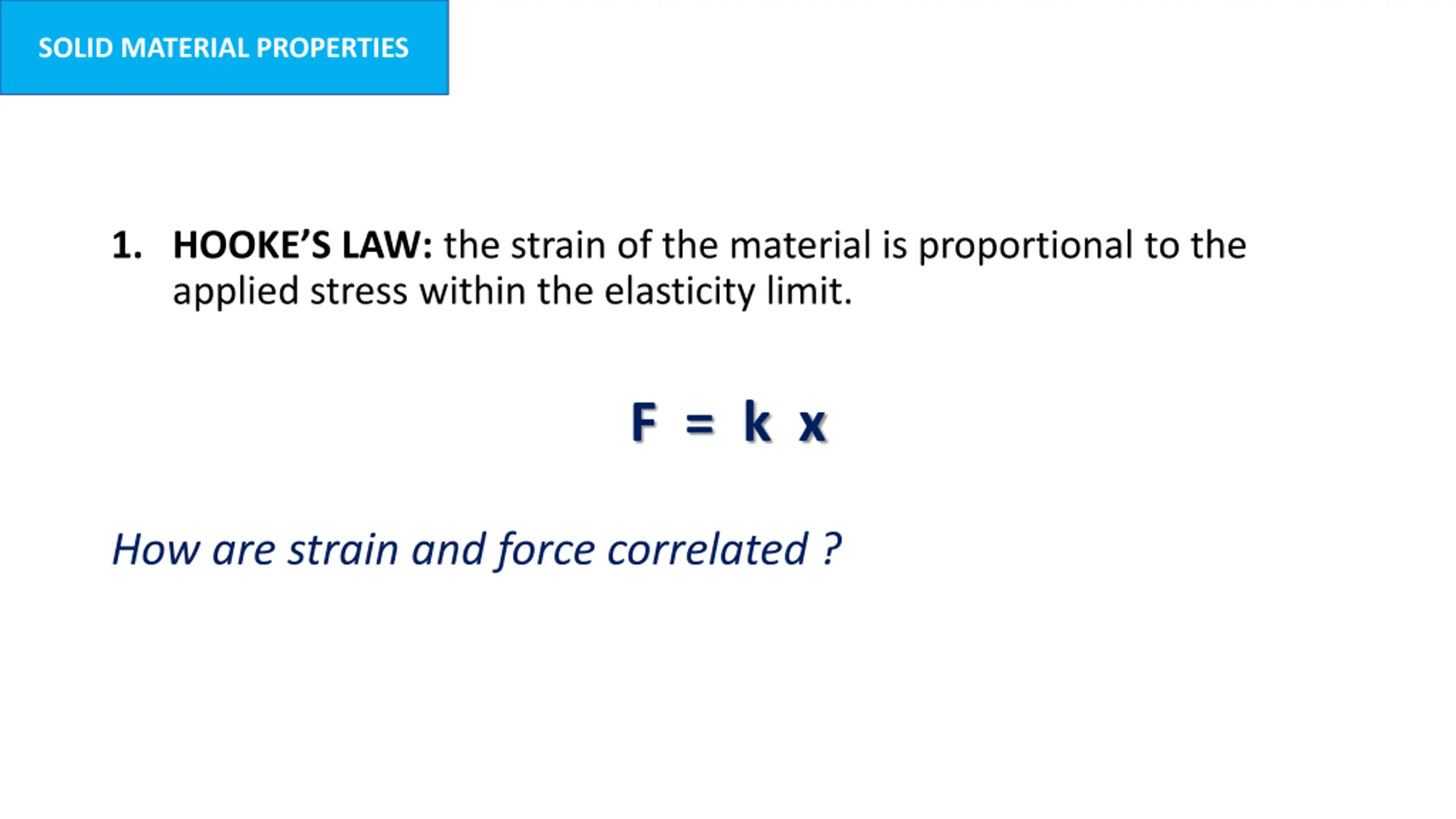

SOLID MATERIAL PROPERTIES 1. HOOKE S LAW: the strain of the material is proportional to the applied stress within the elasticity limit. F = k x How are strain and force correlated ?

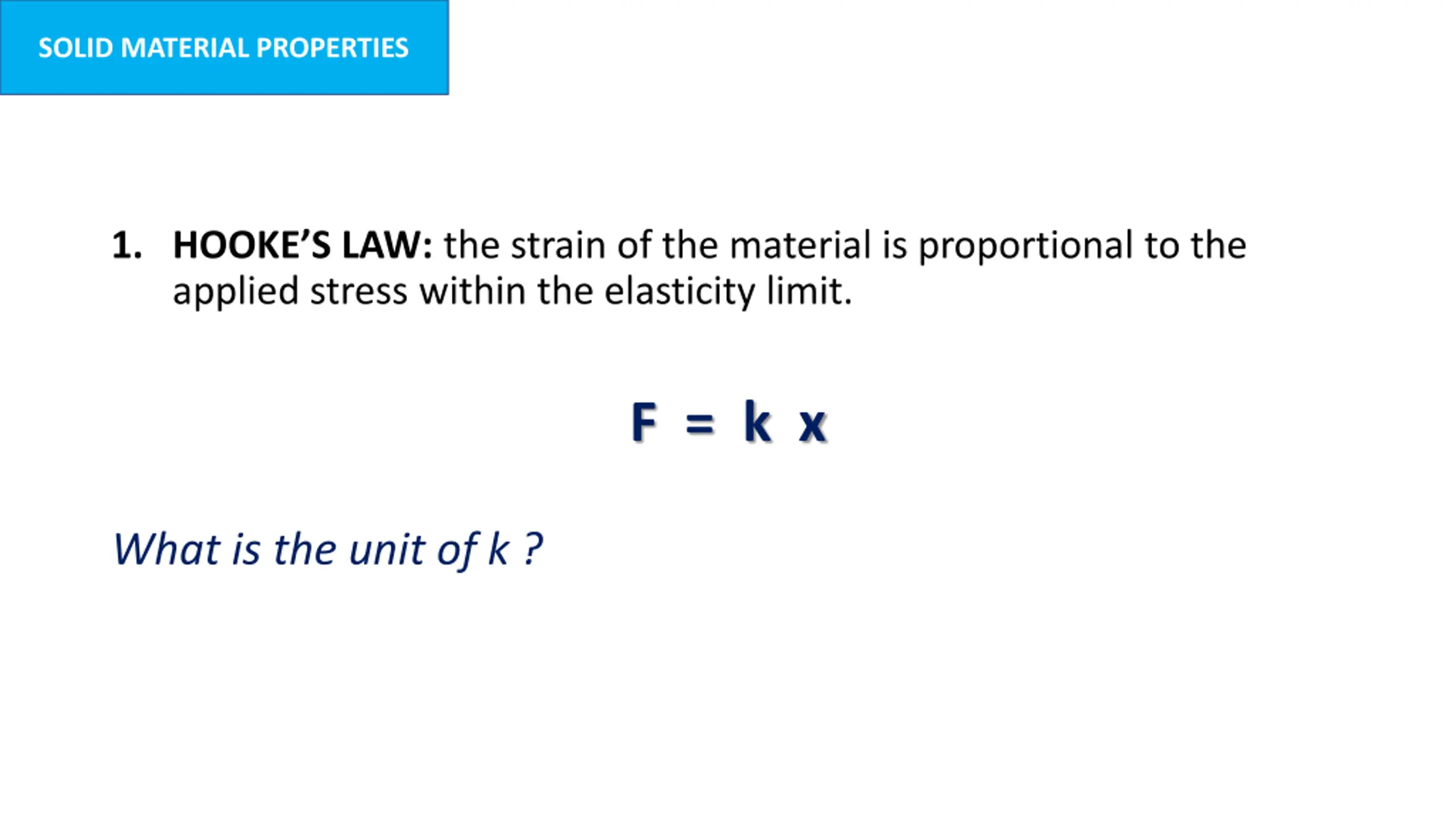

SOLID MATERIAL PROPERTIES 1. HOOKE S LAW: the strain of the material is proportional to the applied stress within the elasticity limit. F = k x What is the unit of k ?

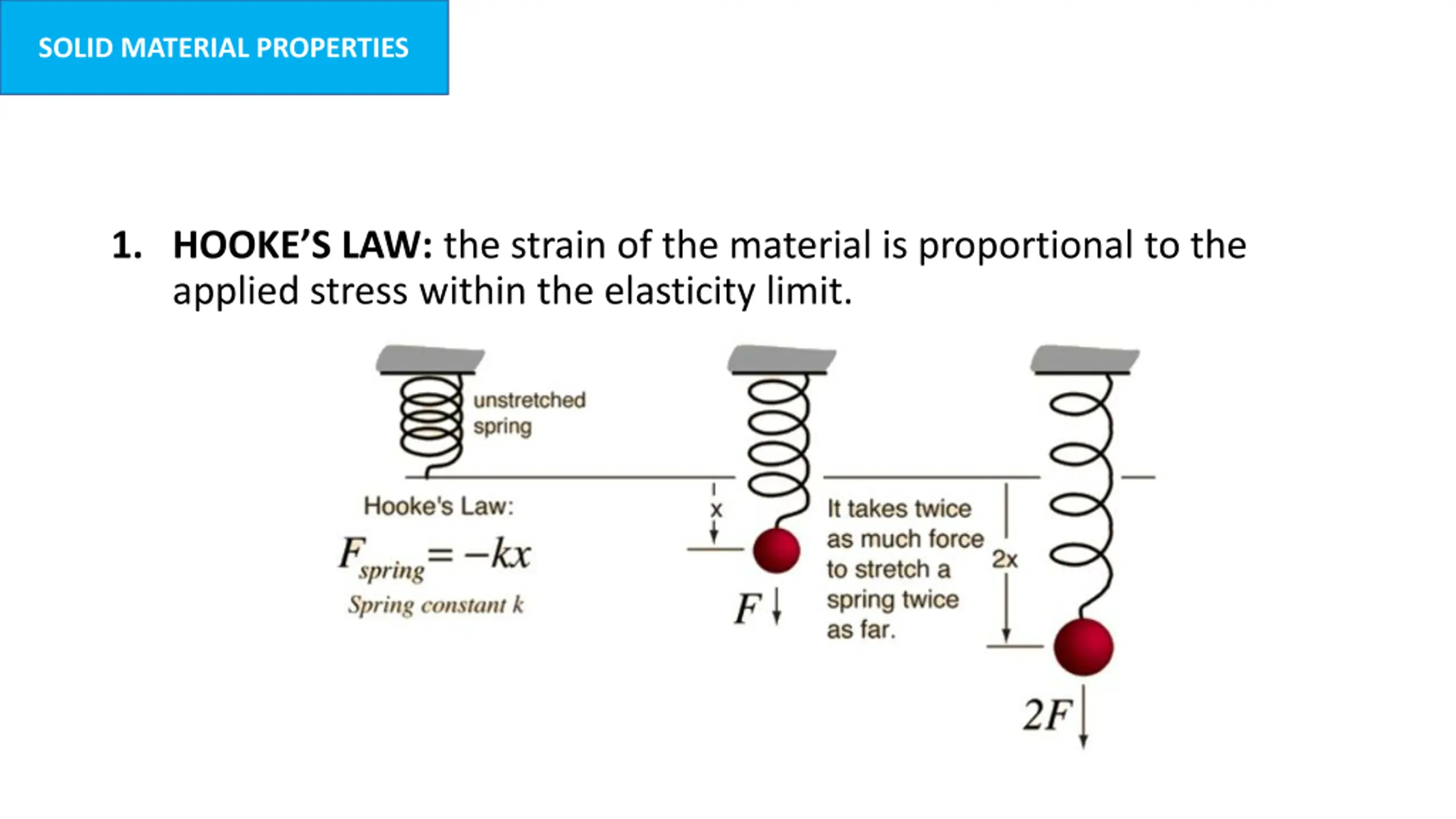

SOLID MATERIAL PROPERTIES 1. HOOKE S LAW: the strain of the material is proportional to the applied stress within the elasticity limit.
SOLID MATERIAL PROPERTIES 1. HOOKE S LAW: the strain of the material is proportional to the applied stress within the elasticity limit.

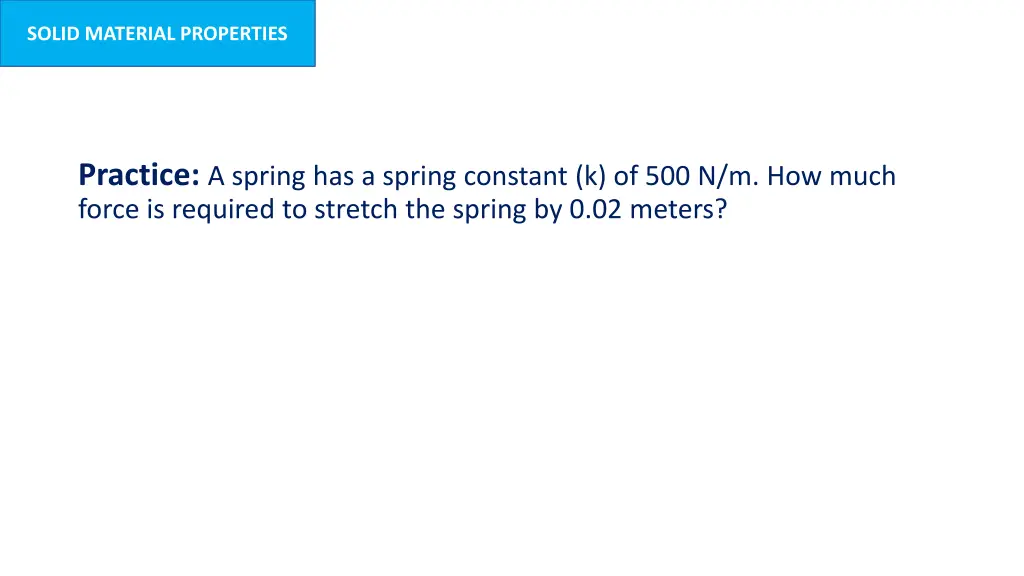

SOLID MATERIAL PROPERTIES Practice:A spring has a spring constant (k) of 500 N/m. How much force is required to stretch the spring by 0.02 meters?

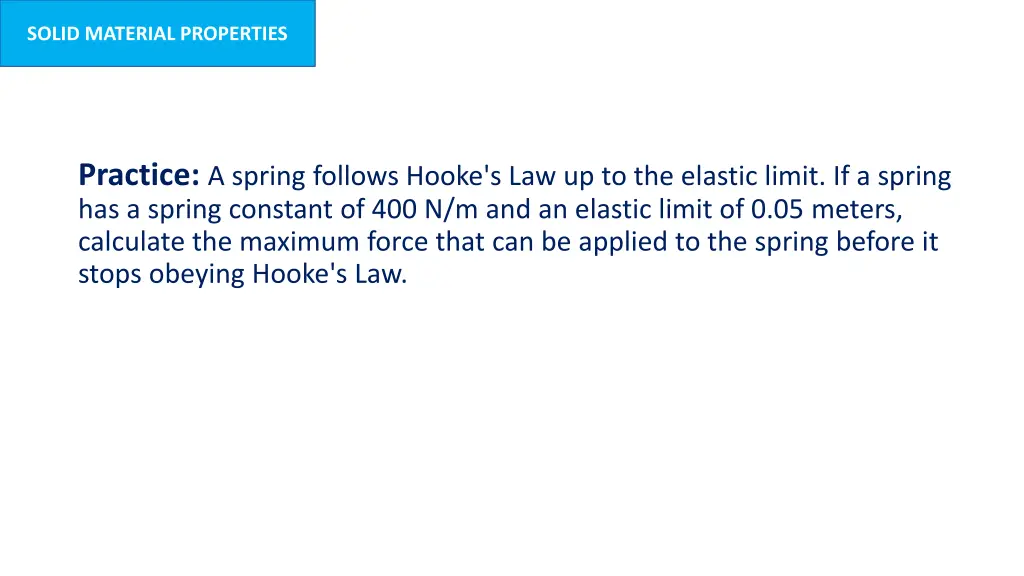

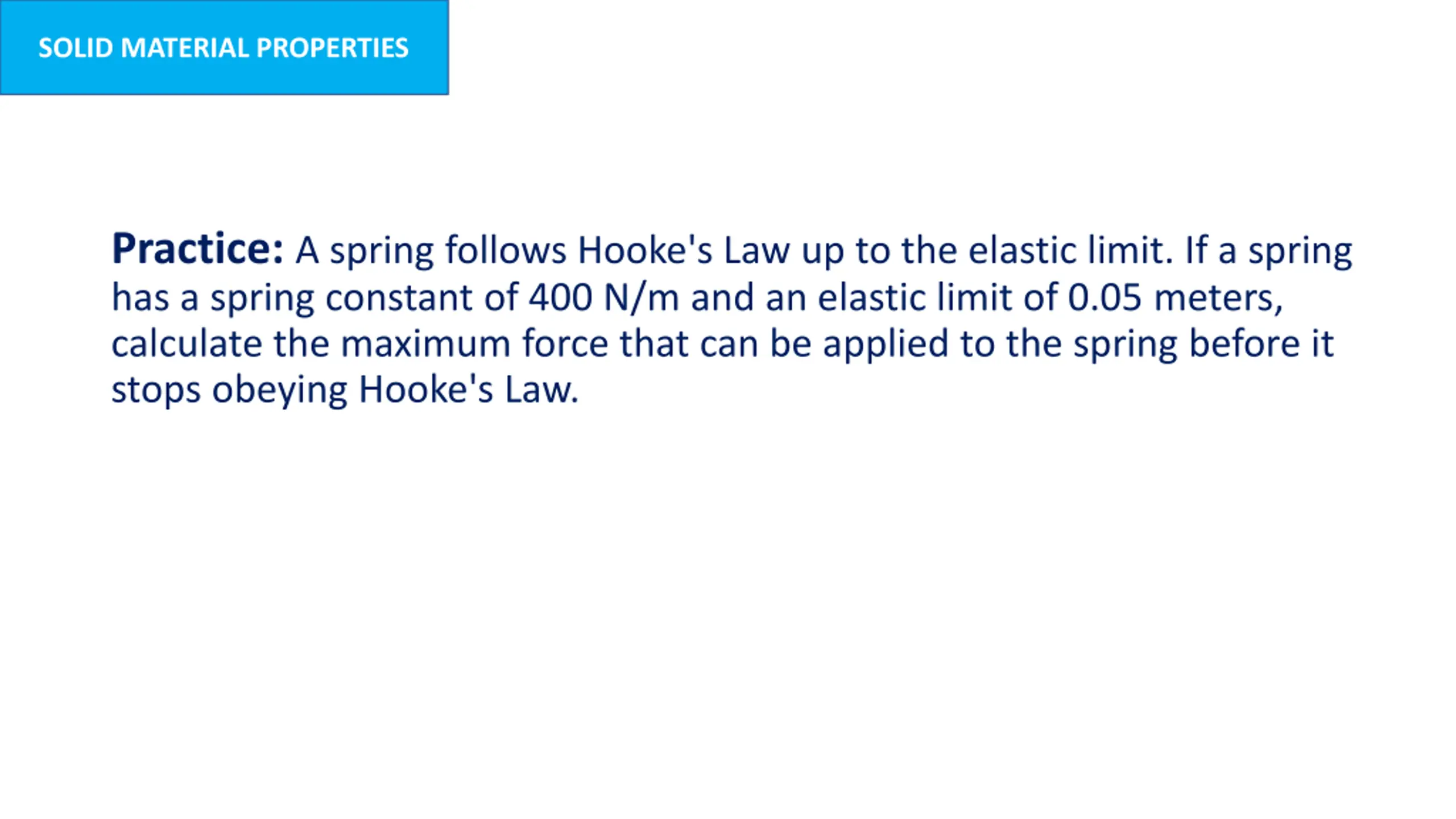

SOLID MATERIAL PROPERTIES Practice:A spring follows Hooke's Law up to the elastic limit. If a spring has a spring constant of 400 N/m and an elastic limit of 0.05 meters, calculate the maximum force that can be applied to the spring before it stops obeying Hooke's Law.

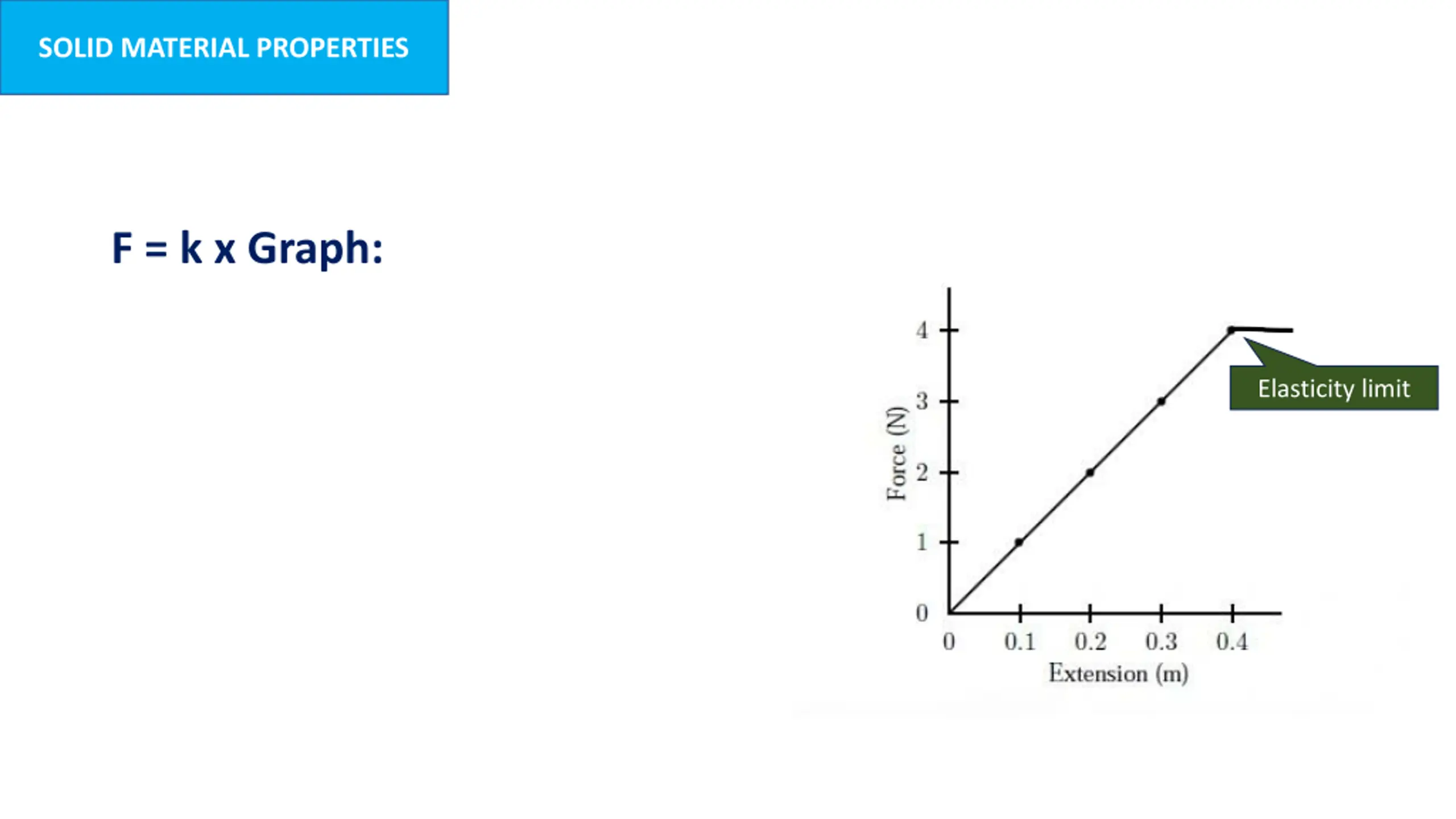

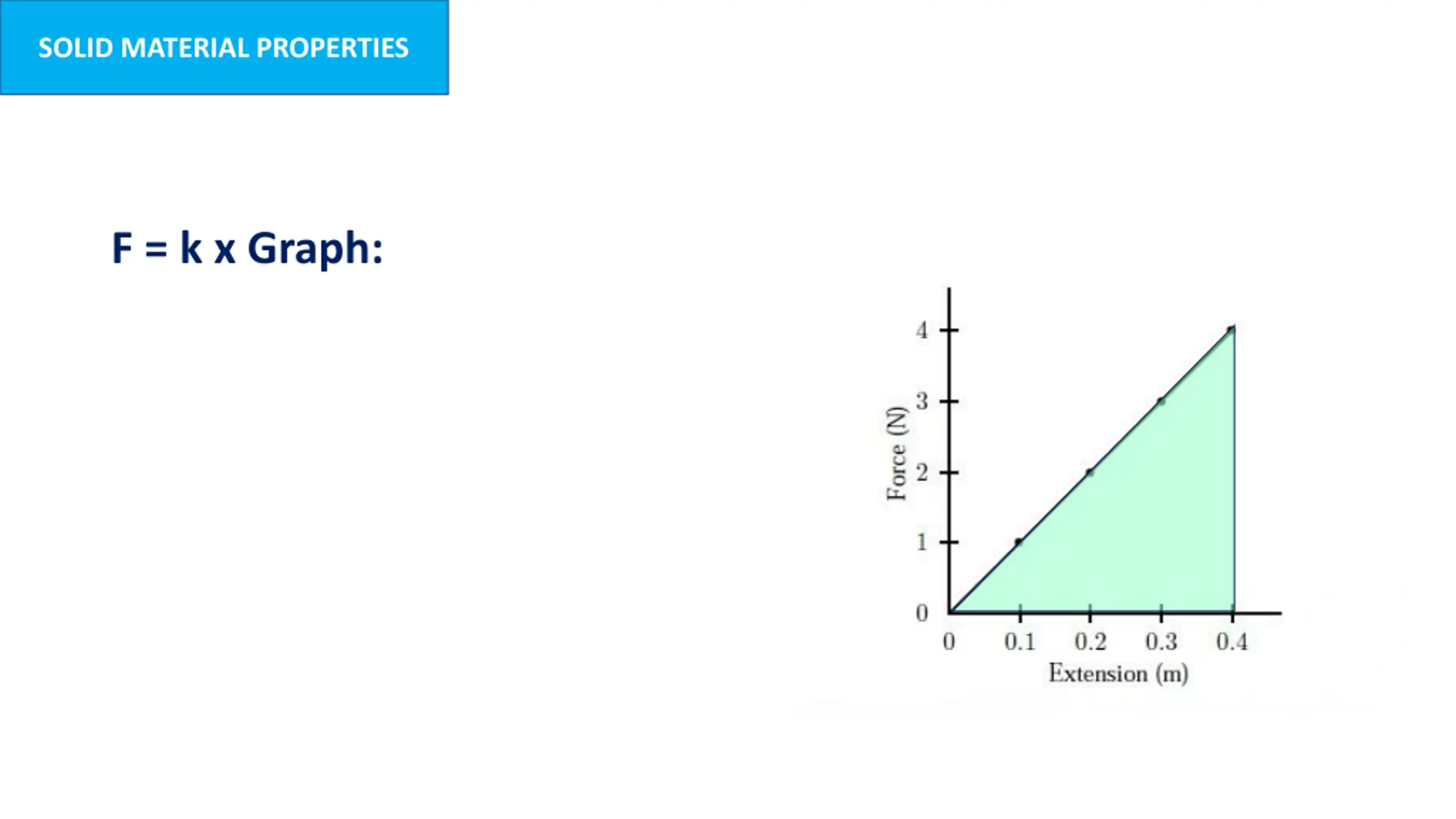

SOLID MATERIAL PROPERTIES F = k x Graph: Elasticity limit
SOLID MATERIAL PROPERTIES F = k x Graph:

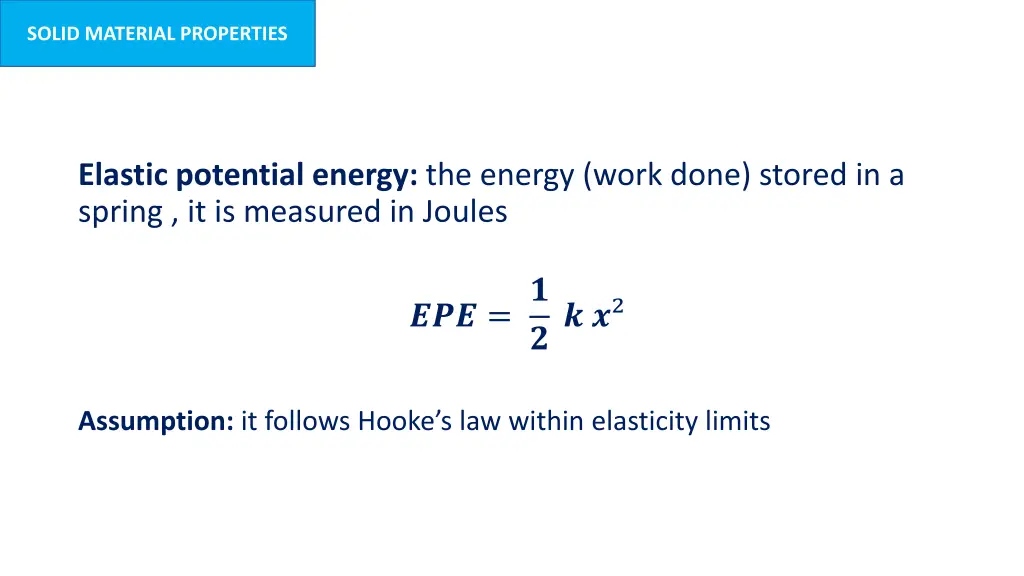

SOLID MATERIAL PROPERTIES Elastic potential energy: the energy (work done) stored in a spring , it is measured in Joules ? ? ? ? ??? = Assumption: it follows Hooke s law within elasticity limits
