How Motors, Speakers, Generators, Microphones, and Transformers Work
Learn how motors, speakers, generators, microphones, and transformers function through the principles of electromagnetism. Discover the intricate processes behind these essential electrical devices in this informative guide.
Uploaded on | 0 Views
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

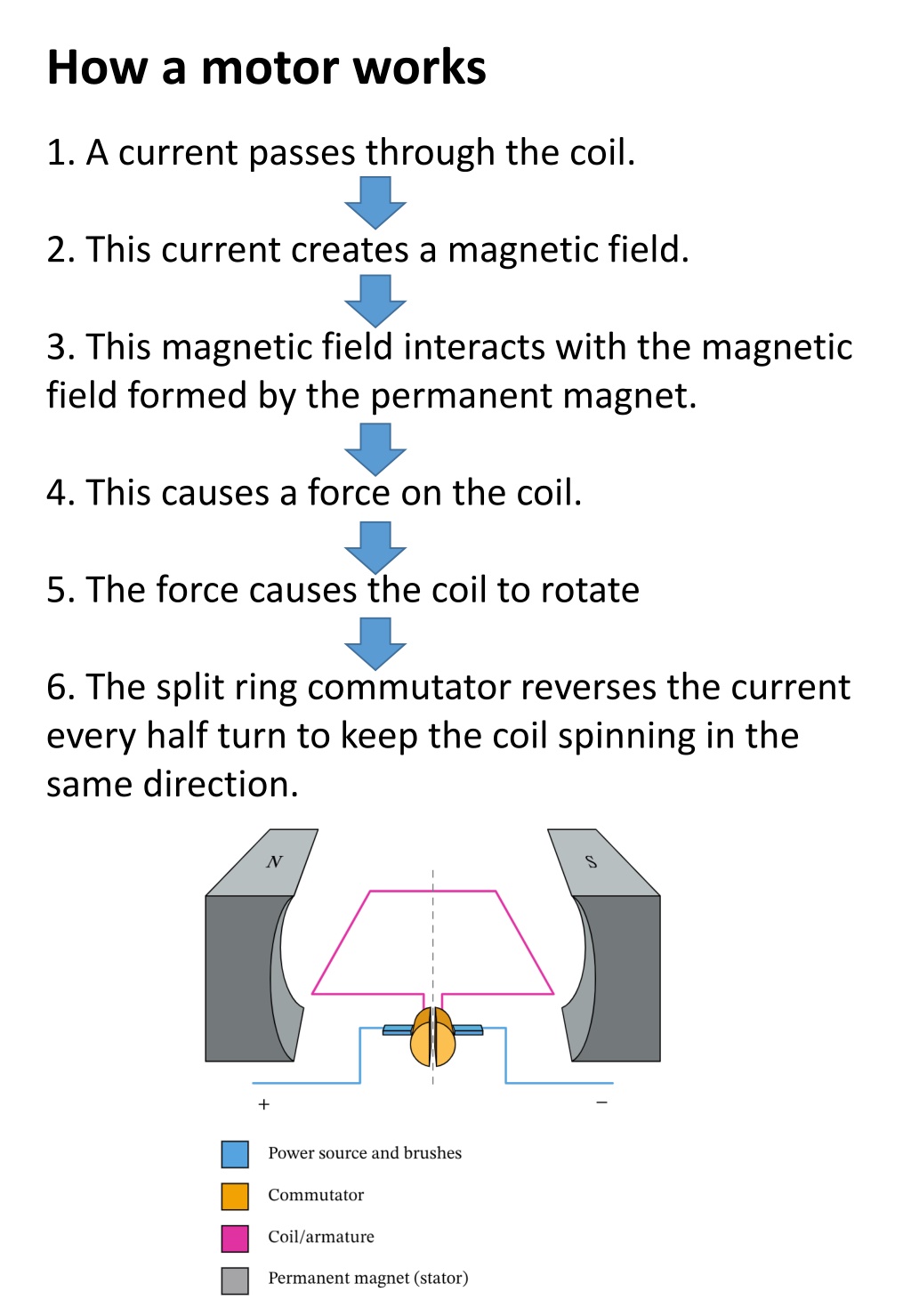

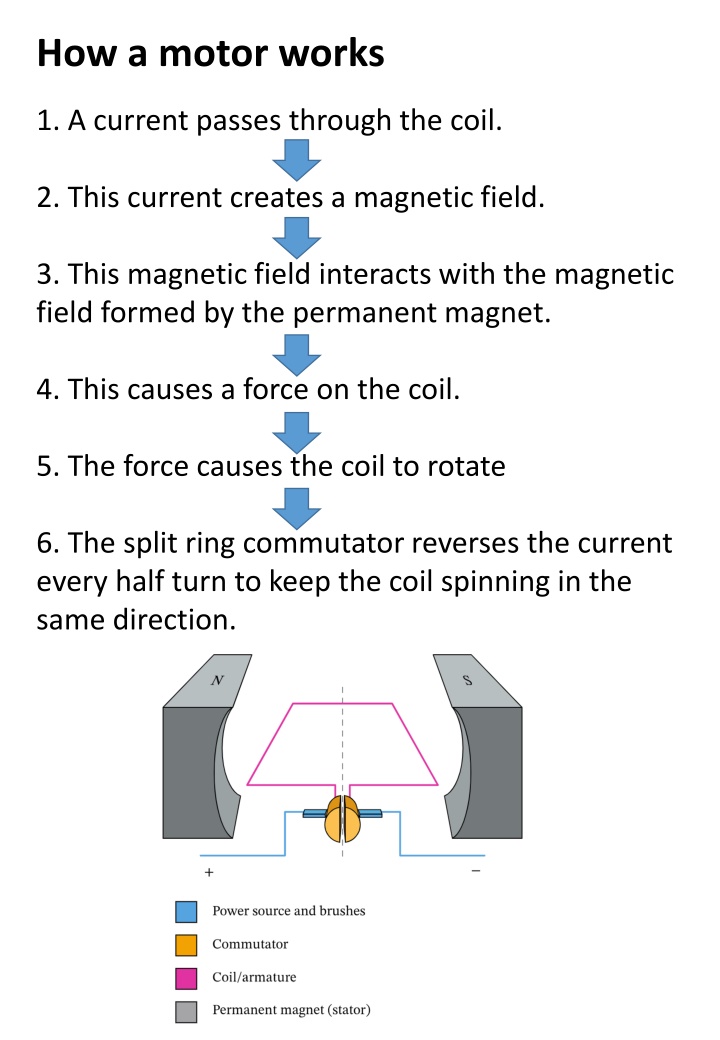

How a motor works 1. A current passes through the coil. 2. This current creates a magnetic field. 3. This magnetic field interacts with the magnetic field formed by the permanent magnet. 4. This causes a force on the coil. 5. The force causes the coil to rotate 6. The split ring commutator reverses the current every half turn to keep the coil spinning in the same direction.

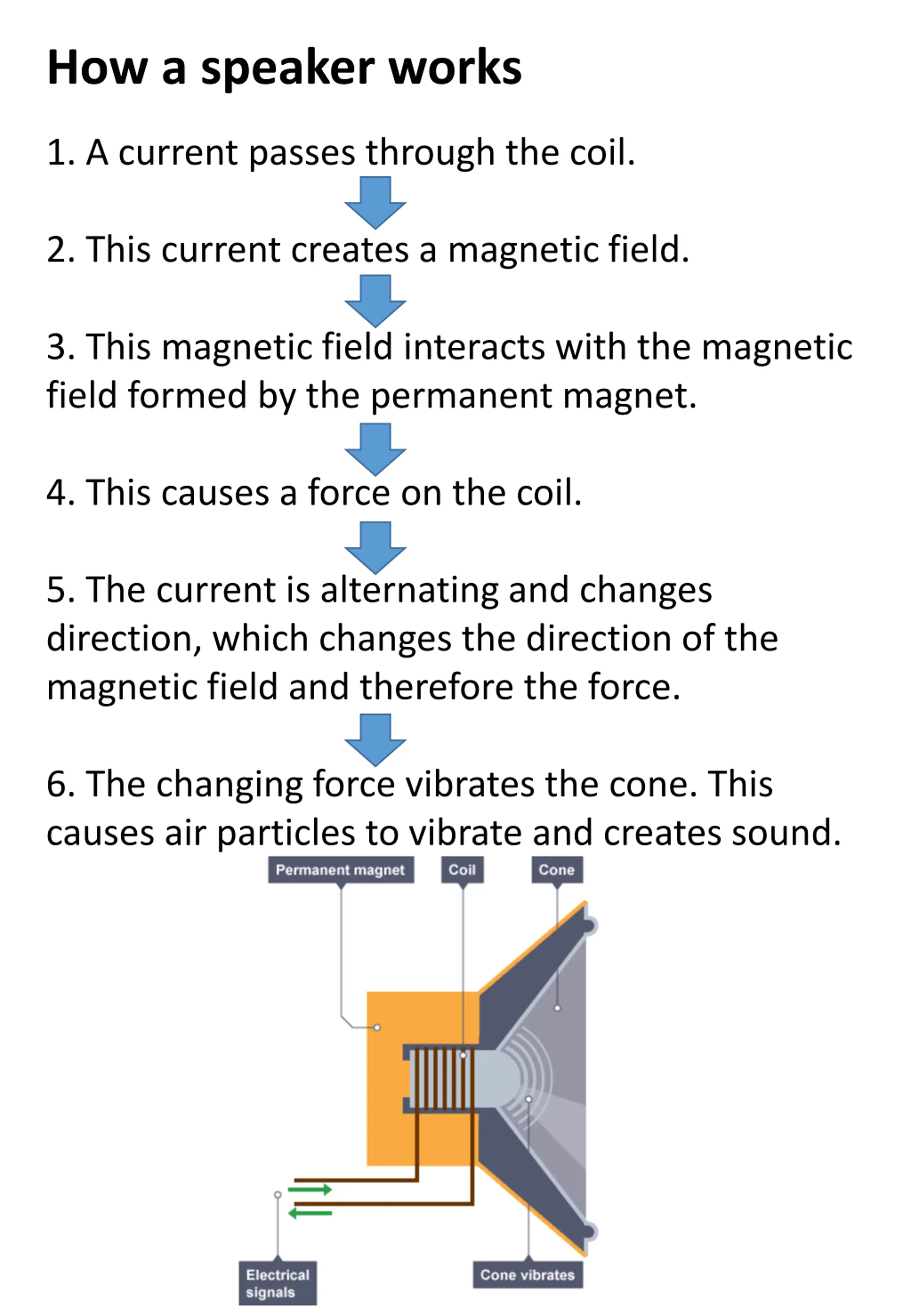

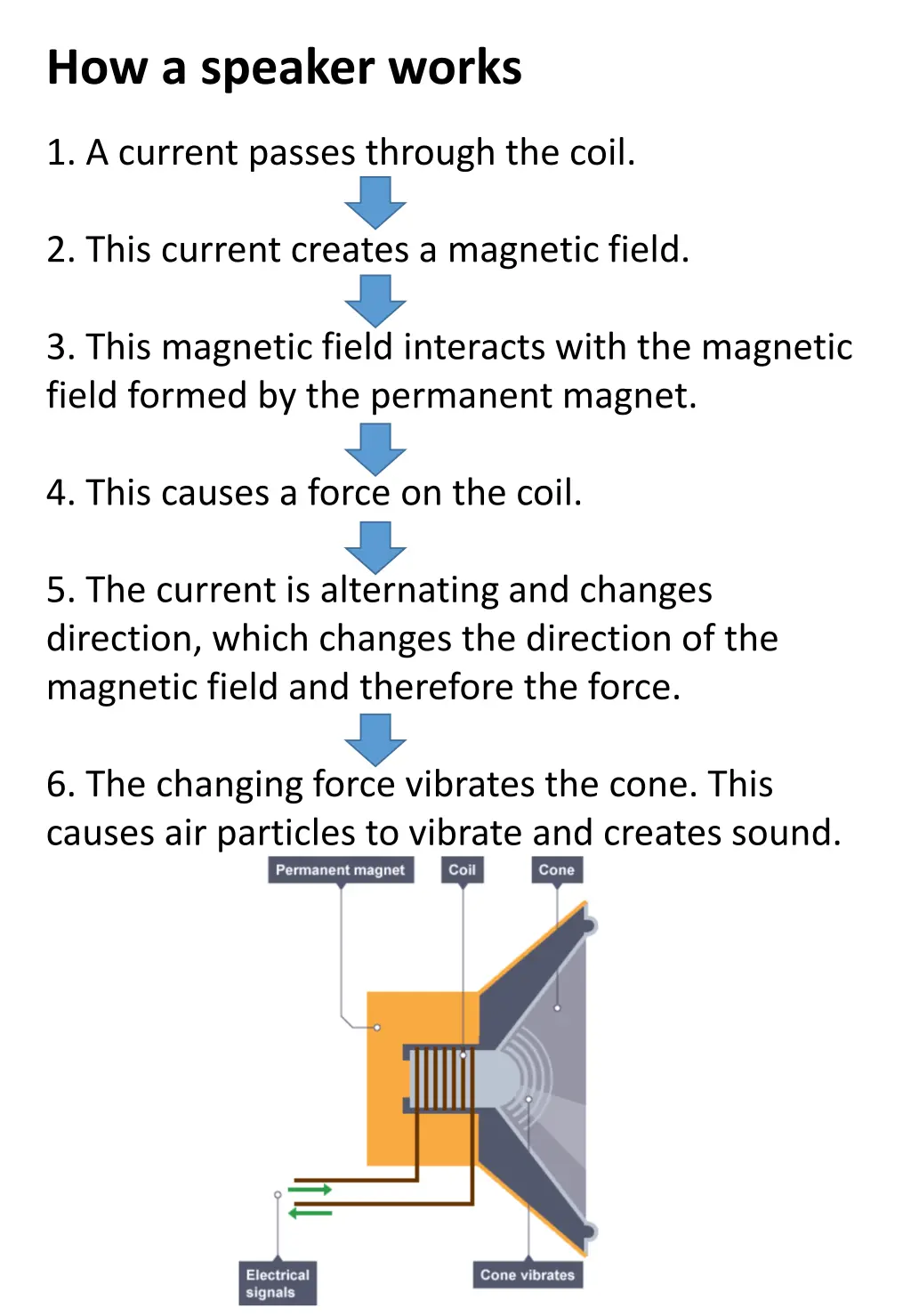

How a speaker works 1. A current passes through the coil. 2. This current creates a magnetic field. 3. This magnetic field interacts with the magnetic field formed by the permanent magnet. 4. This causes a force on the coil. 5. The current is alternating and changes direction, which changes the direction of the magnetic field and therefore the force. 6. The changing force vibrates the cone. This causes air particles to vibrate and creates sound.

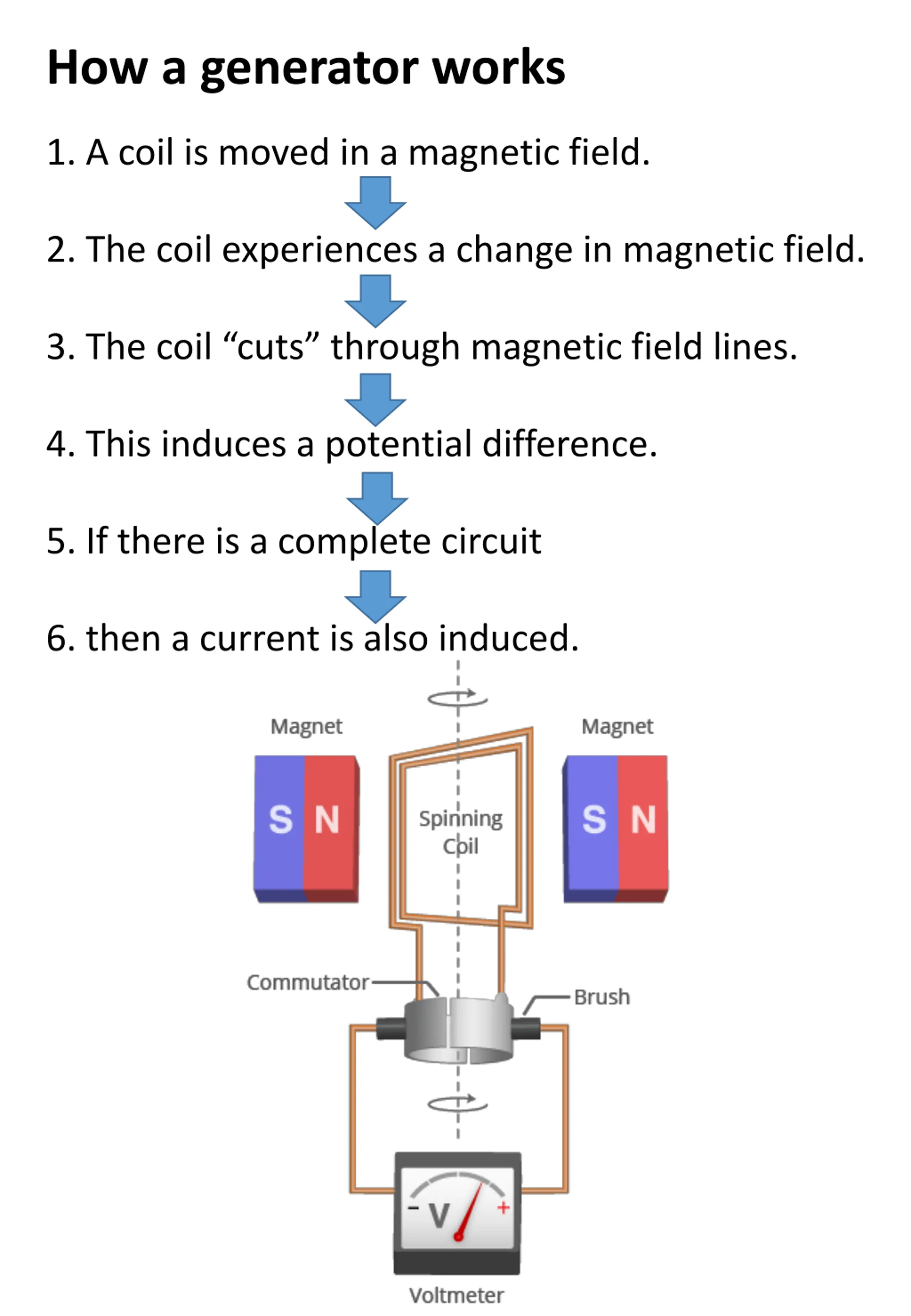

How a generator works 1. A coil is moved in a magnetic field. 2. The coil experiences a change in magnetic field. 3. The coil cuts through magnetic field lines. 4. This induces a potential difference. 5. If there is a complete circuit 6. then a current is also induced.

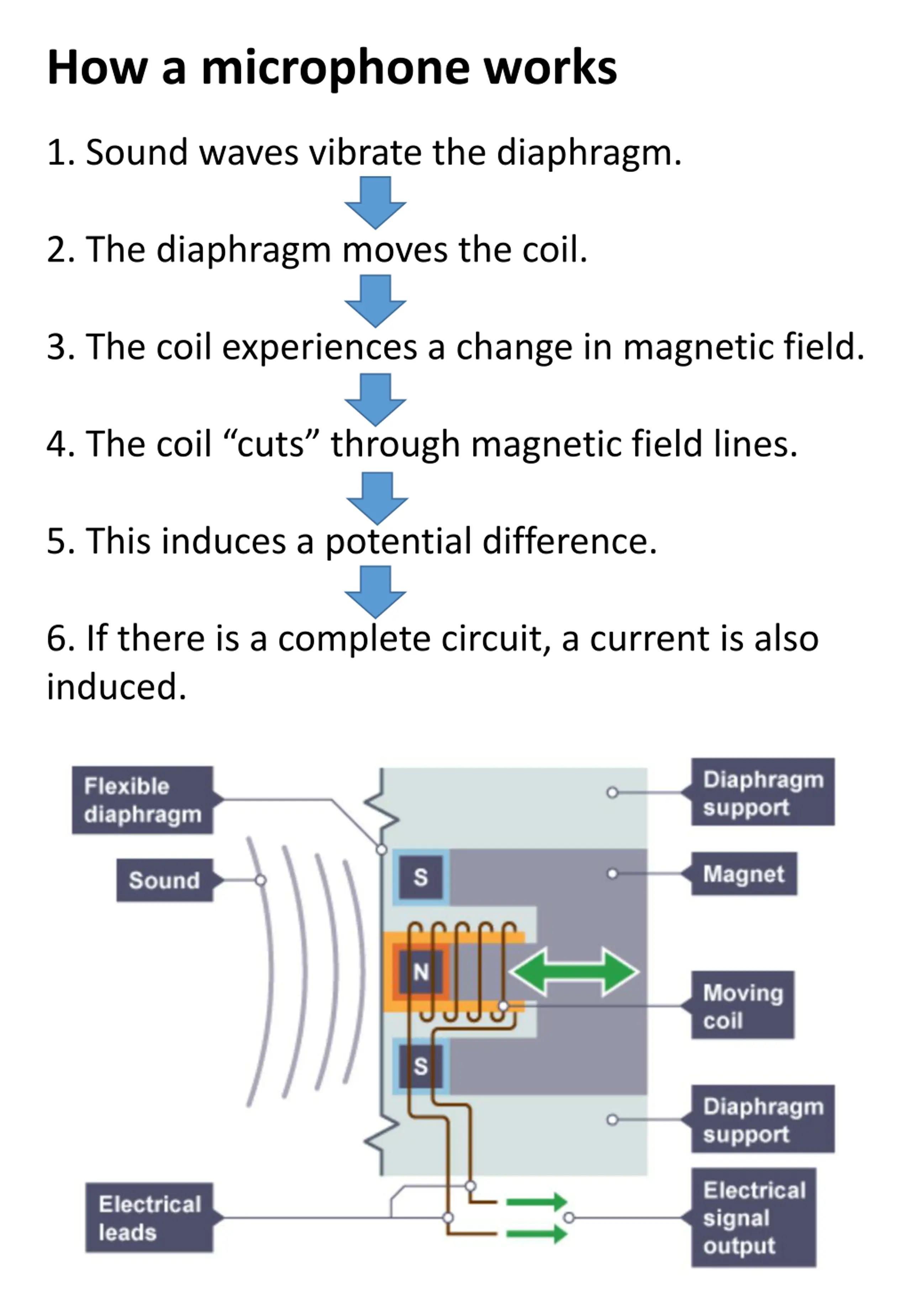

How a microphone works 1. Sound waves vibrate the diaphragm. 2. The diaphragm moves the coil. 3. The coil experiences a change in magnetic field. 4. The coil cuts through magnetic field lines. 5. This induces a potential difference. 6. If there is a complete circuit, a current is also induced.

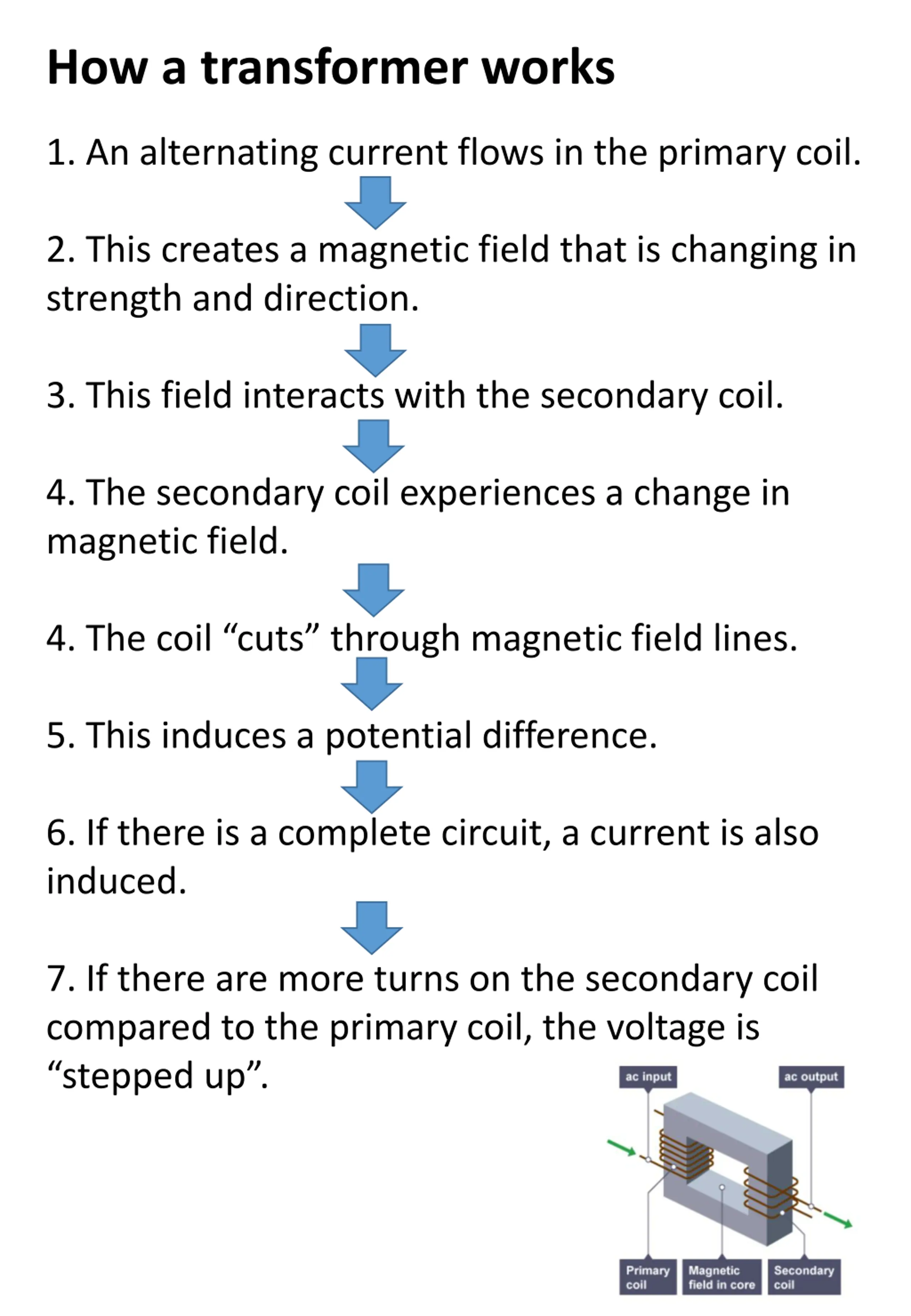

How a transformer works 1. An alternating current flows in the primary coil. 2. This creates a magnetic field that is changing in strength and direction. 3. This field interacts with the secondary coil. 4. The secondary coil experiences a change in magnetic field. 4. The coil cuts through magnetic field lines. 5. This induces a potential difference. 6. If there is a complete circuit, a current is also induced. 7. If there are more turns on the secondary coil compared to the primary coil, the voltage is stepped up .
