How to Troubleshoot Jeep Rubicon Sway Bar Disconnect Issues
When it comes to off- roading, there are few vehicles as capable as Jeep Rubicon Heavy-duty axles High ground clearance Specialized features like Sway Bar Disconnect enables this model to perform smoothly in challenging off-road conditions. Strong build quality
How the Sway Bar Disconnect System Works

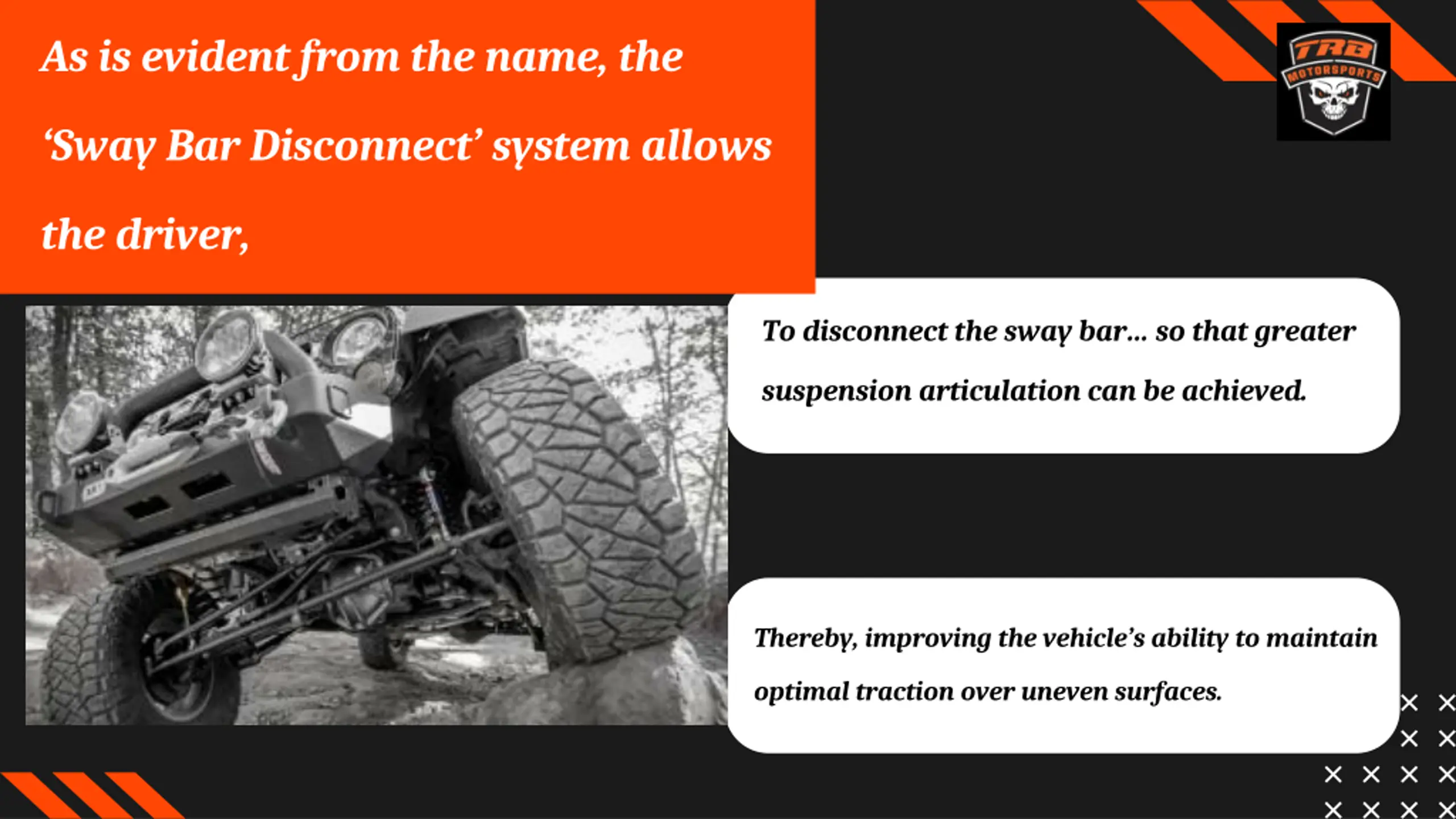

As is evident from the name, the Sway Bar Disconnect system allows the driver, To disconnect the sway bar so that greater suspension articulation can be achieved. Thereby, improving the vehicle s ability to maintain optimal traction over uneven surfaces.

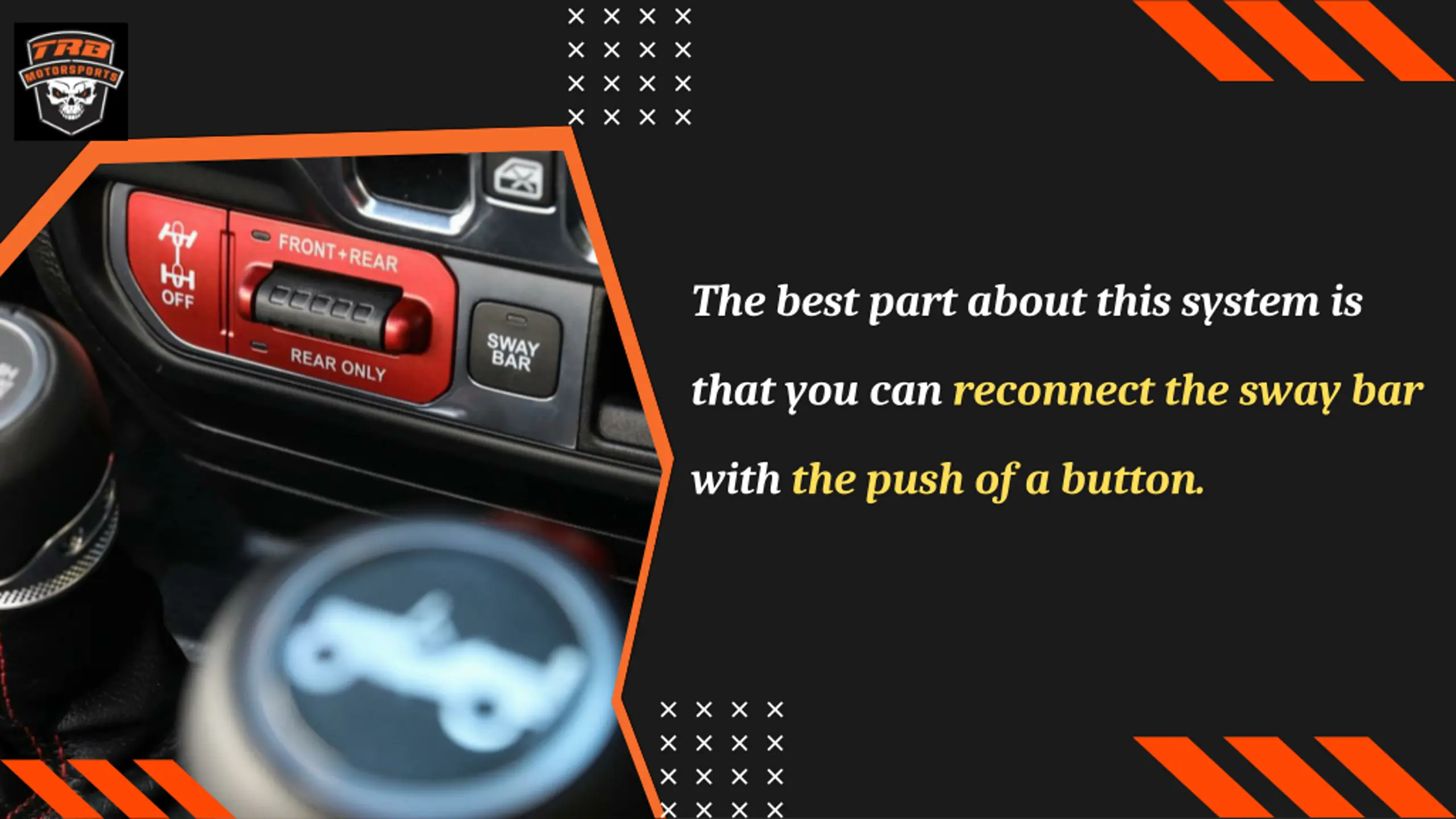

The best part about this system is that you can reconnect the sway bar with the push of a button.

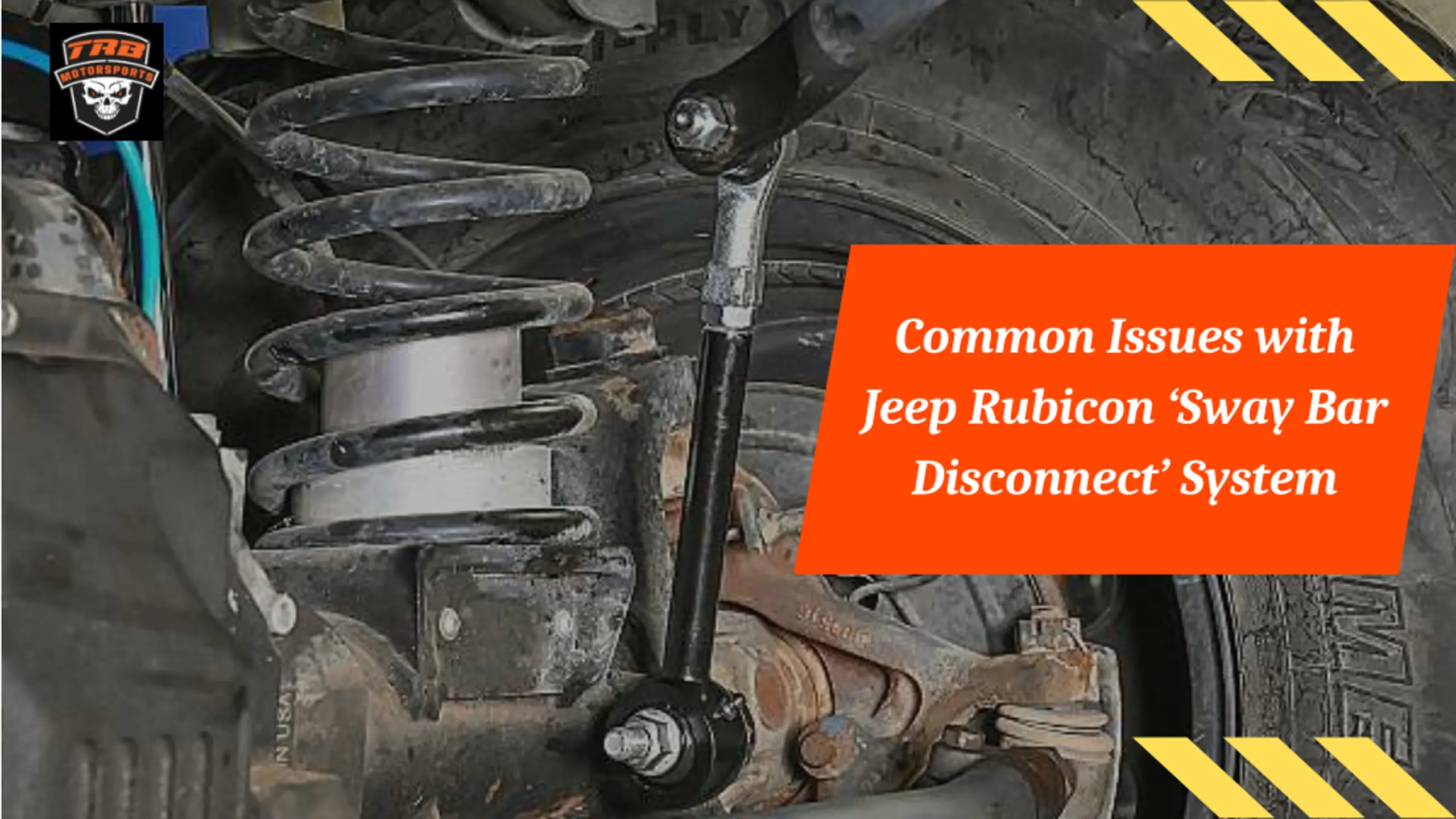

Common Issues with Jeep Rubicon Sway Bar Disconnect System

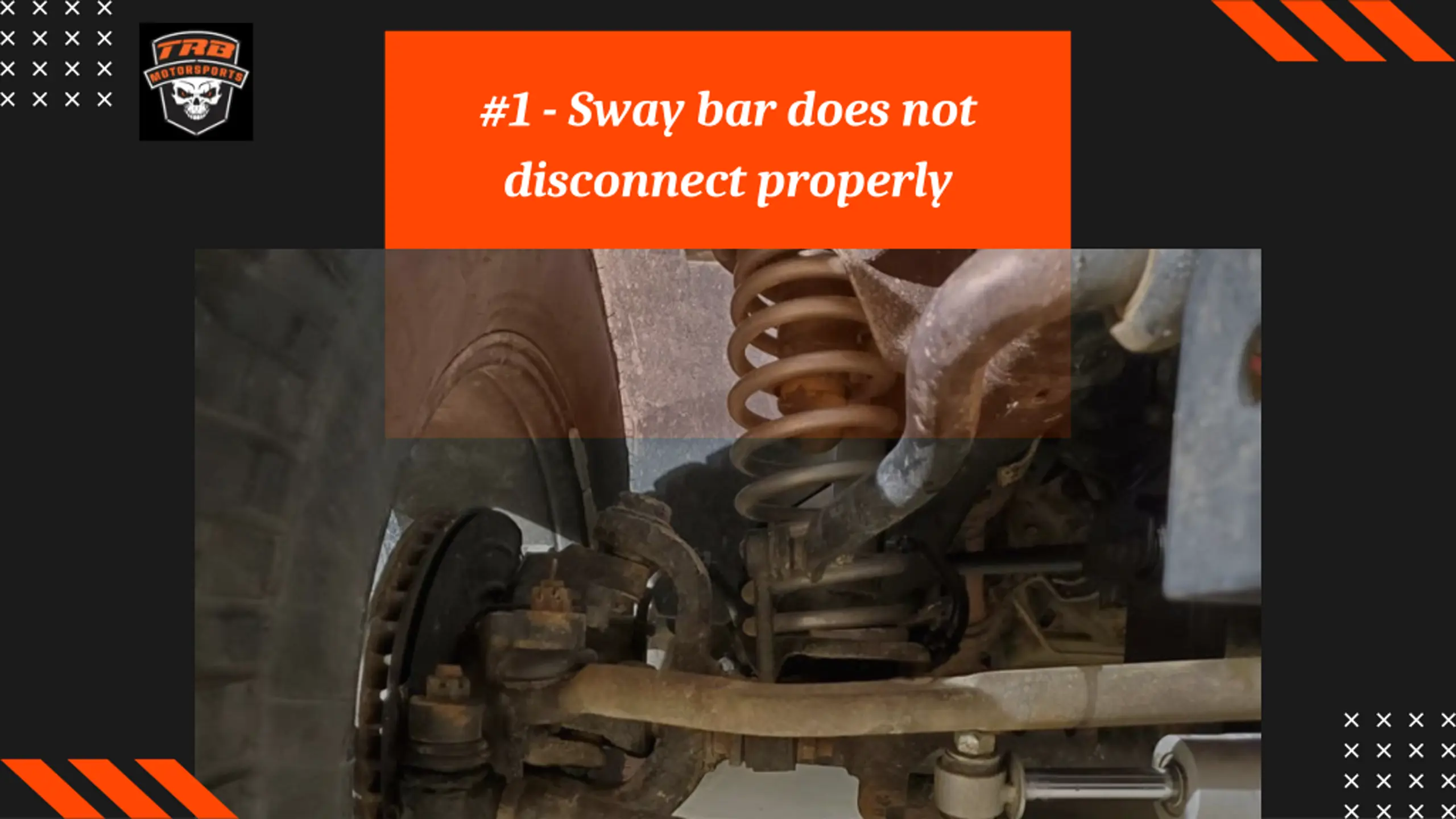

#1- Sway bar does not disconnect properly

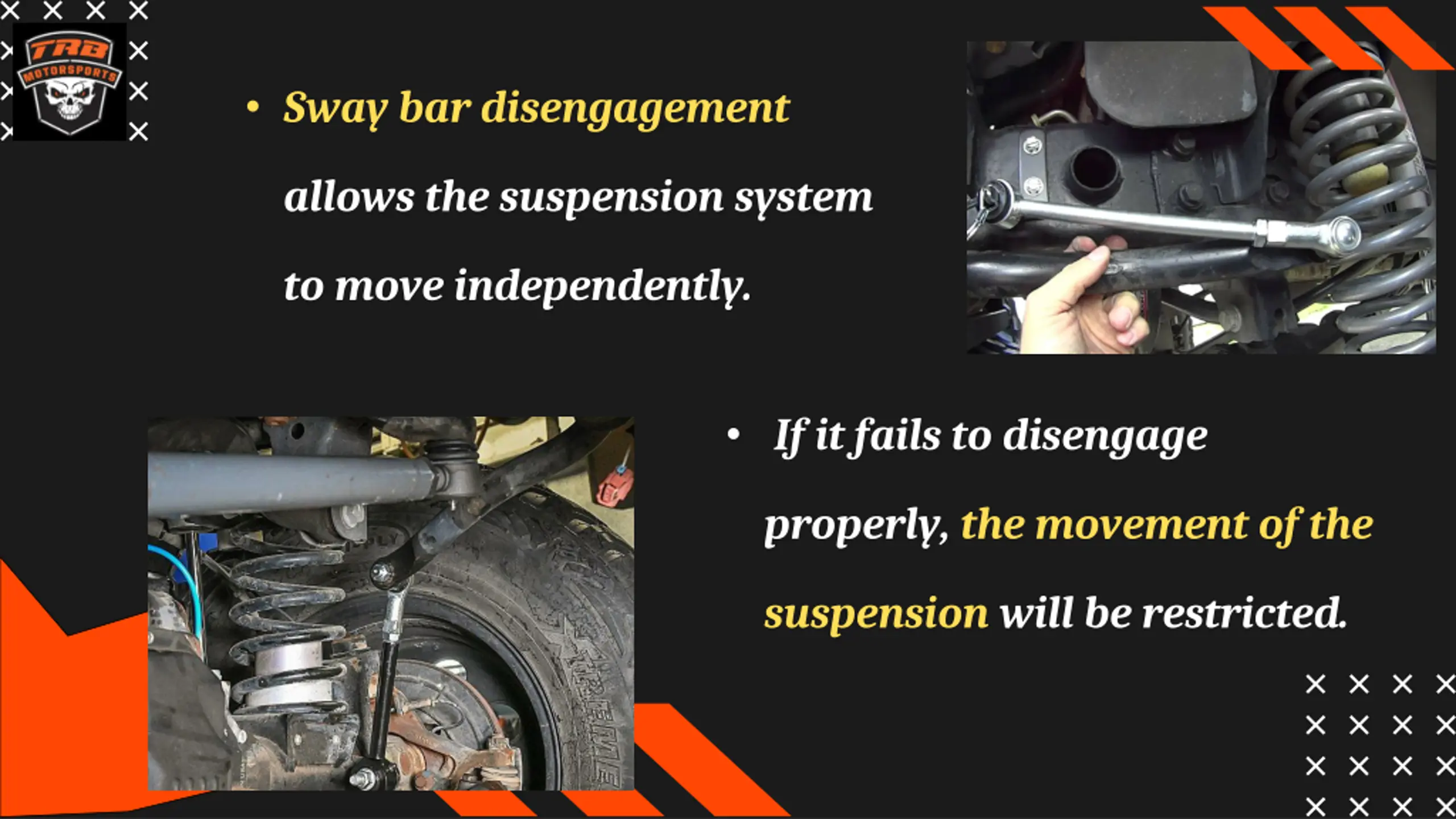

Sway bar disengagement allows the suspension system to move independently. If it fails to disengage properly, the movement of the suspension will be restricted.

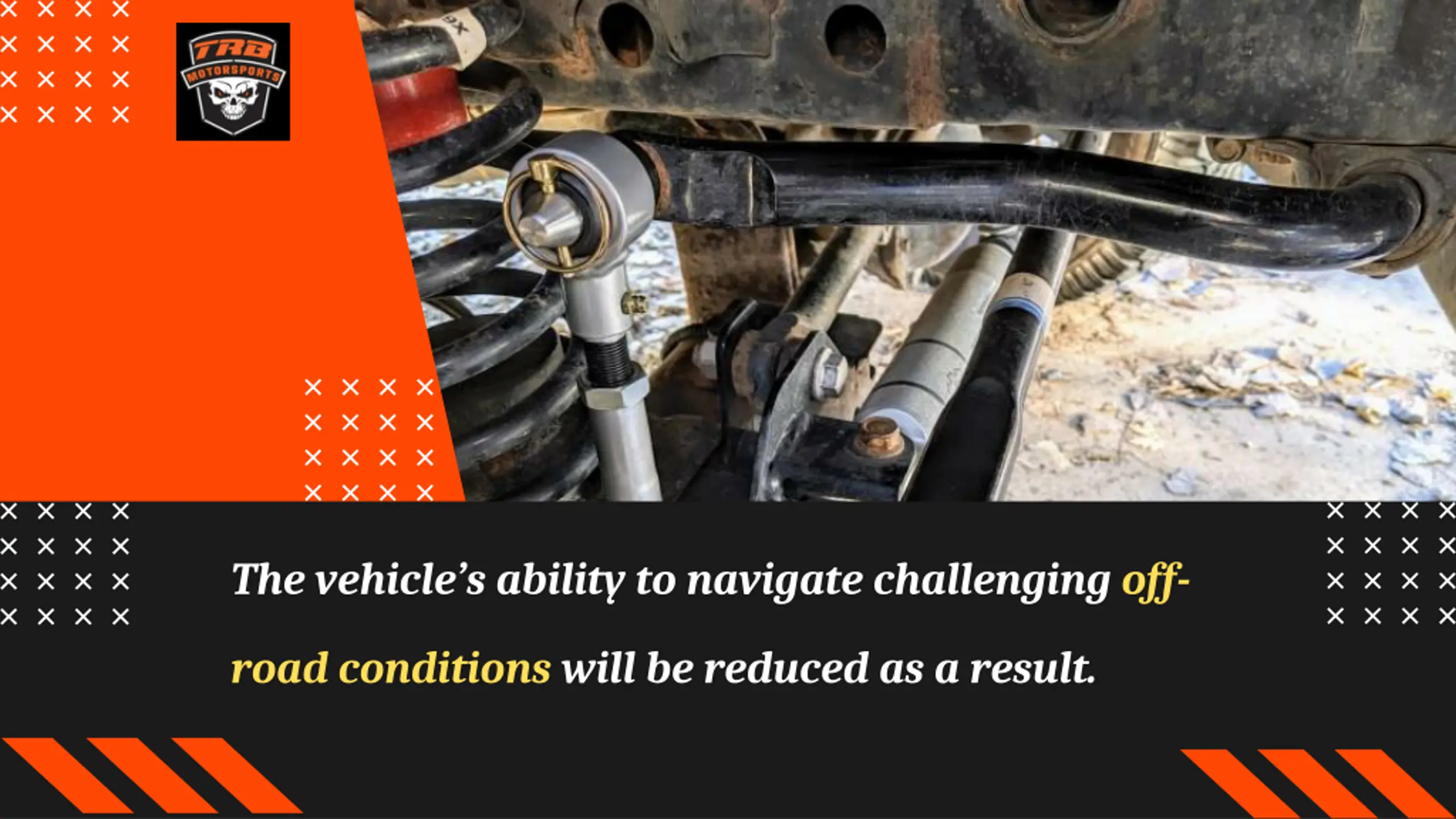

The vehicles ability to navigate challenging off- road conditions will be reduced as a result.
POSSIBLE REASONS: STICKING OR JAMMED LINKAGES ACTUATOR MALFUNCTI ON LOW FLUID LEVELS

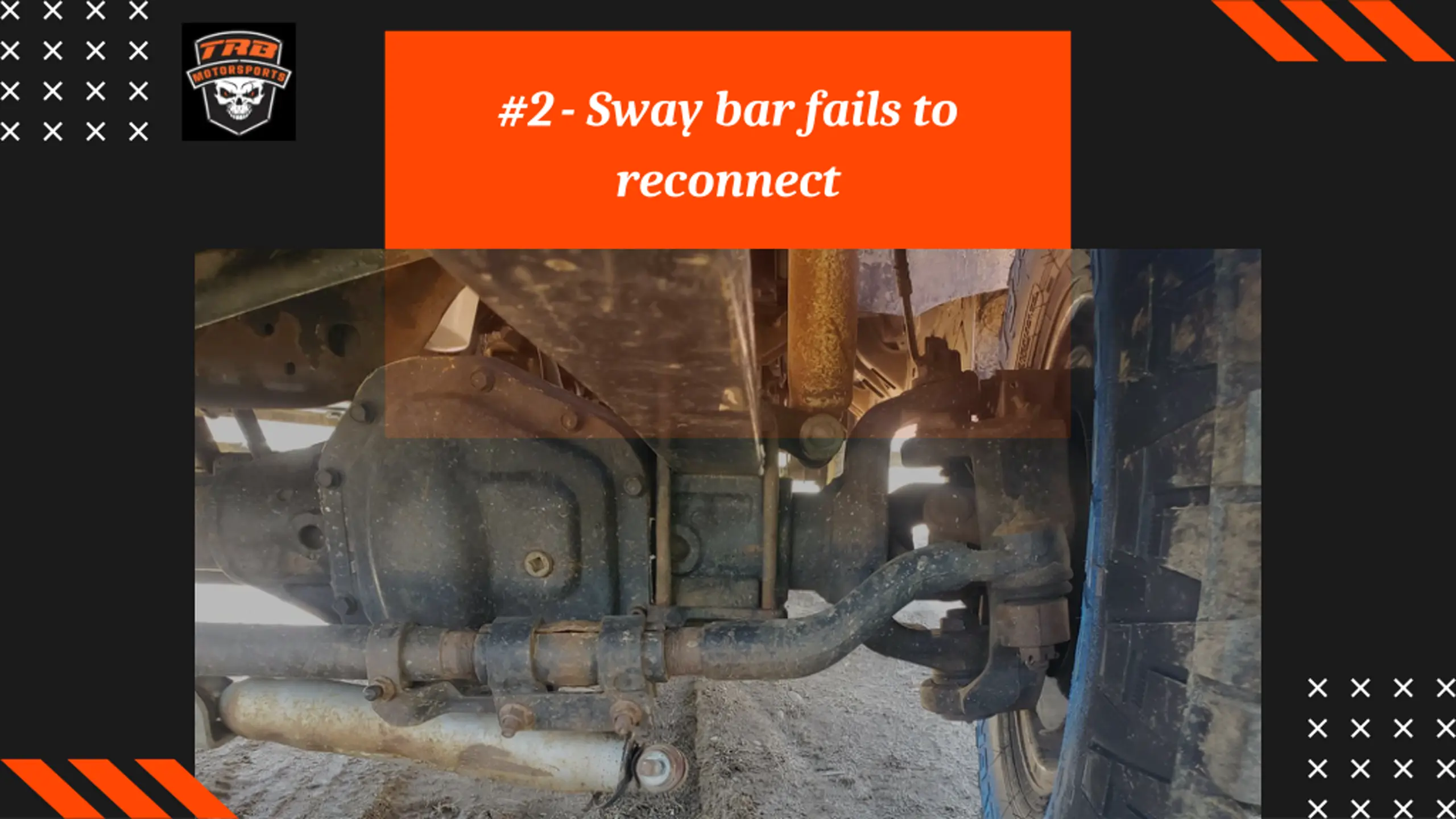

#2- Sway bar fails to reconnect

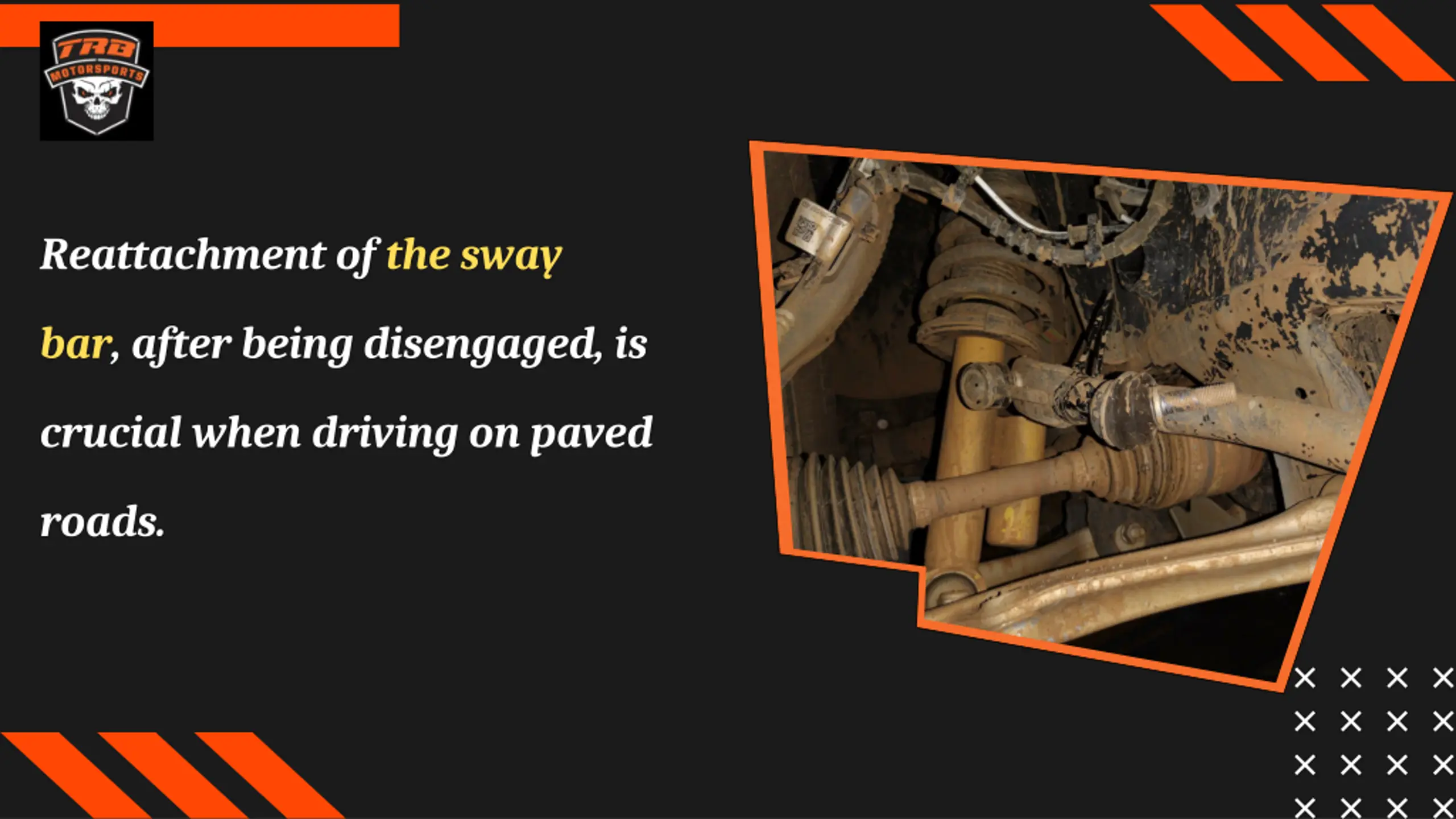

Reattachment of the sway bar, after being disengaged, is crucial when driving on paved roads.

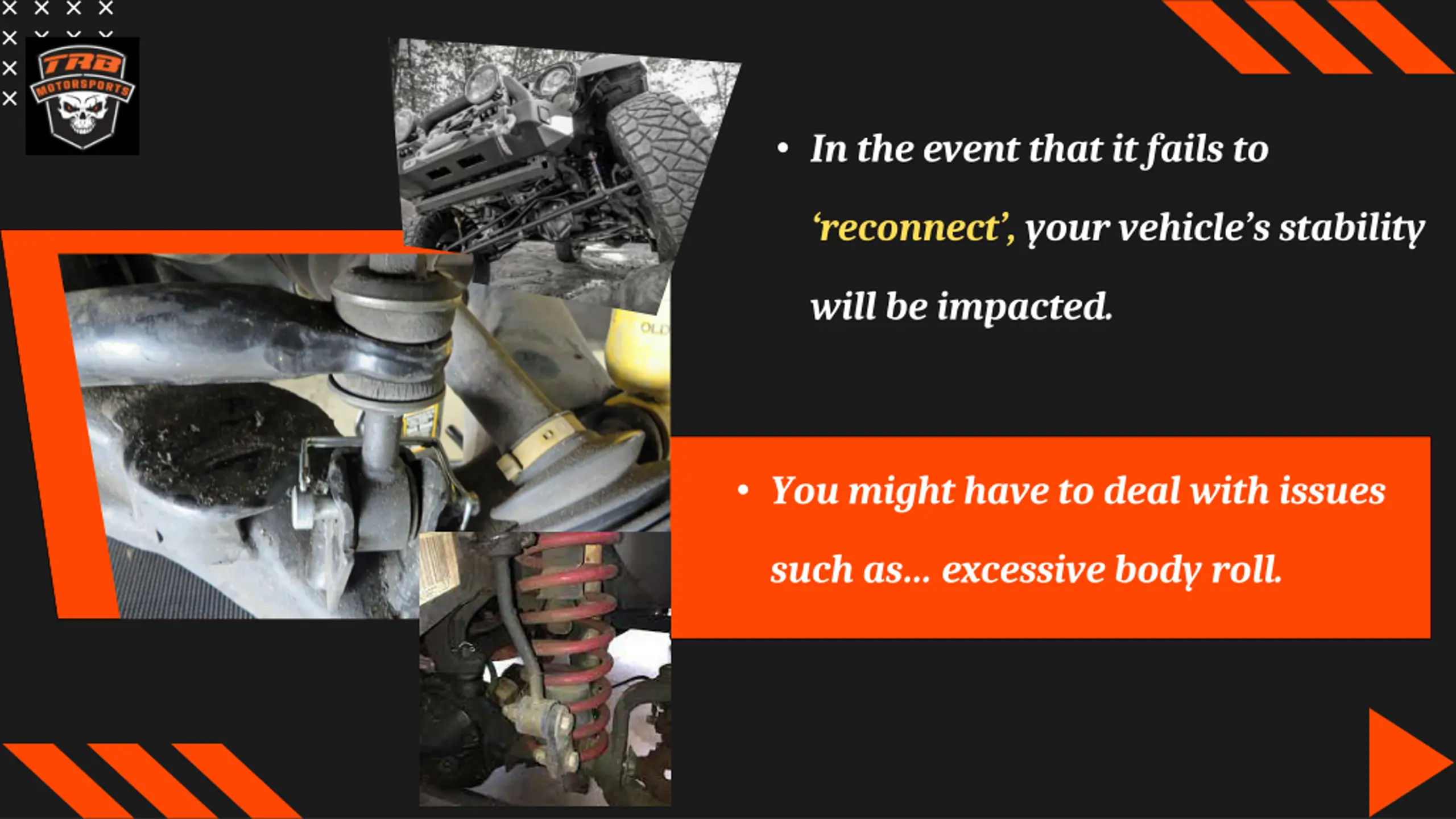

In the event that it fails to reconnect ,your vehicle s stability will be impacted. You might have to deal with issues such as excessive body roll.

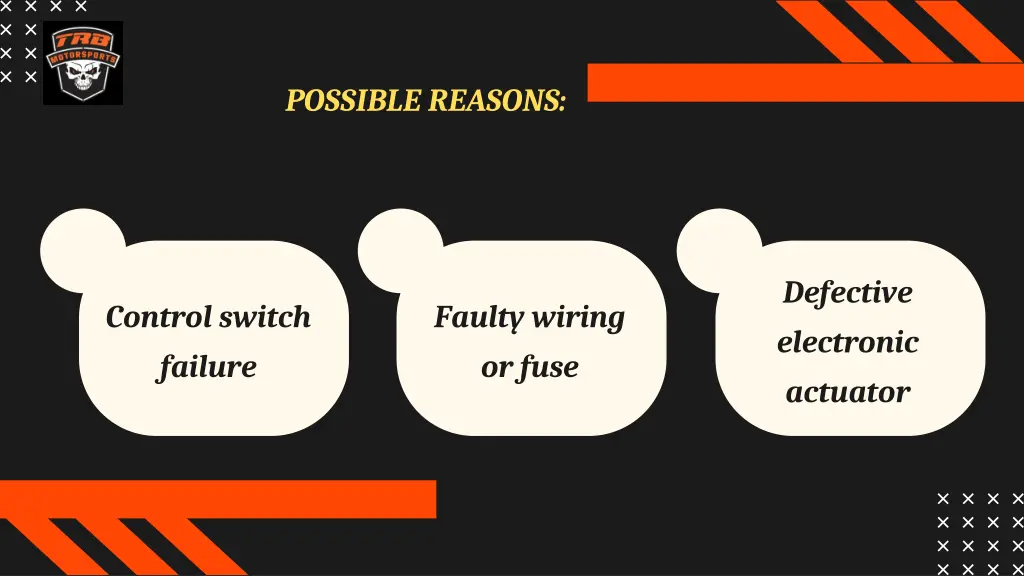

POSSIBLE REASONS: Defective electronic actuator Control switch failure Faulty wiring or fuse

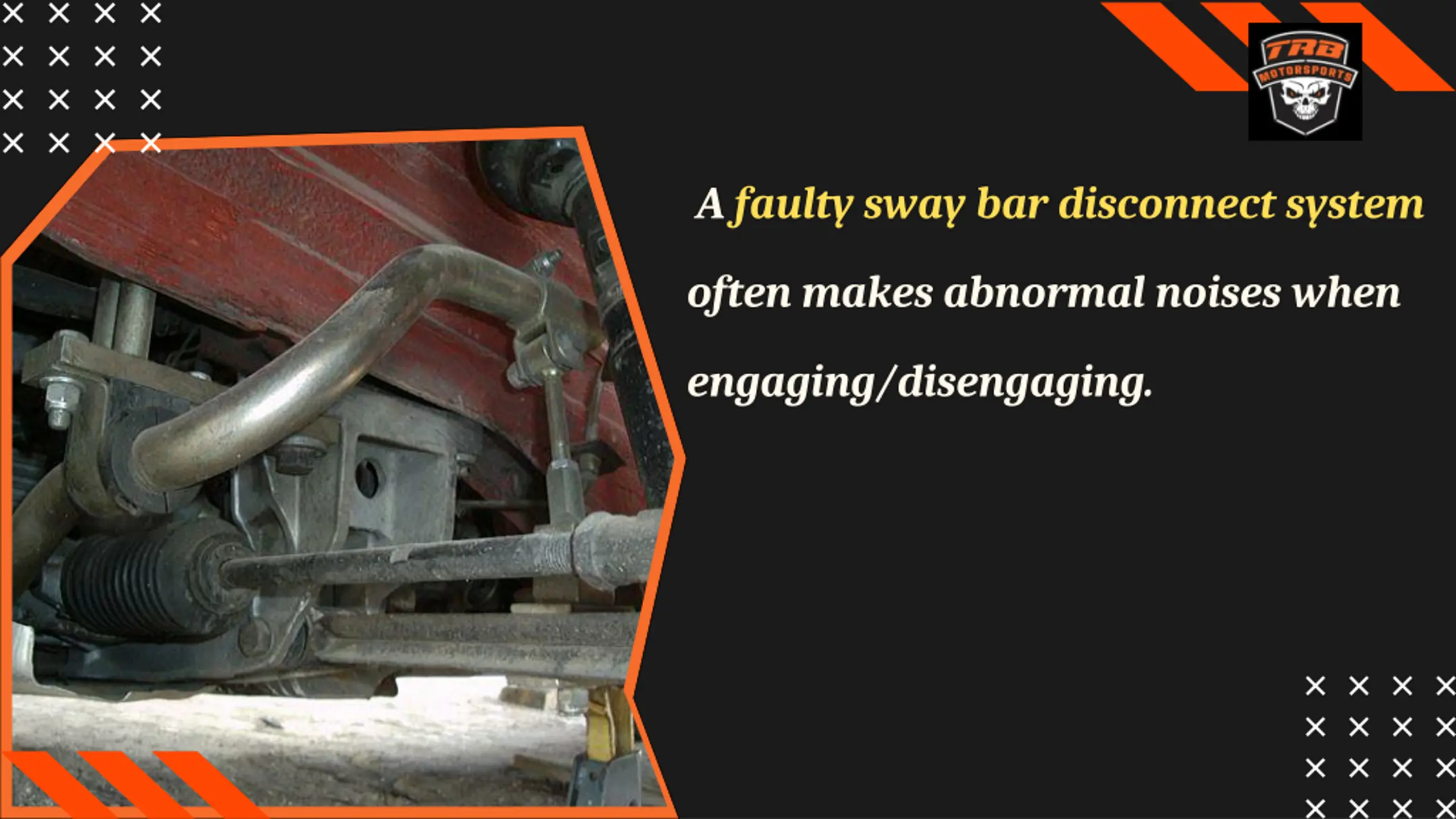

A faulty sway bar disconnect system often makes abnormal noises when engaging/disengaging.

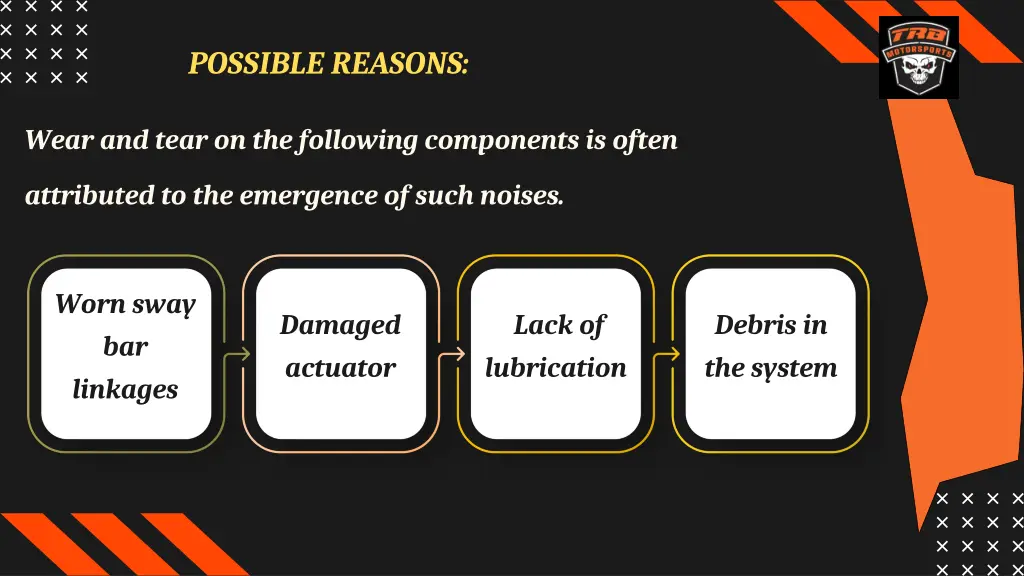

POSSIBLE REASONS: Wear and tear on the following components is often attributed to the emergence of such noises. Worn sway bar linkages Damaged actuator Lack of lubrication Debris in the system
#3- Noisy or grinding sounds
The sway bar disconnect system won t be able to do its job without a steady power supply.

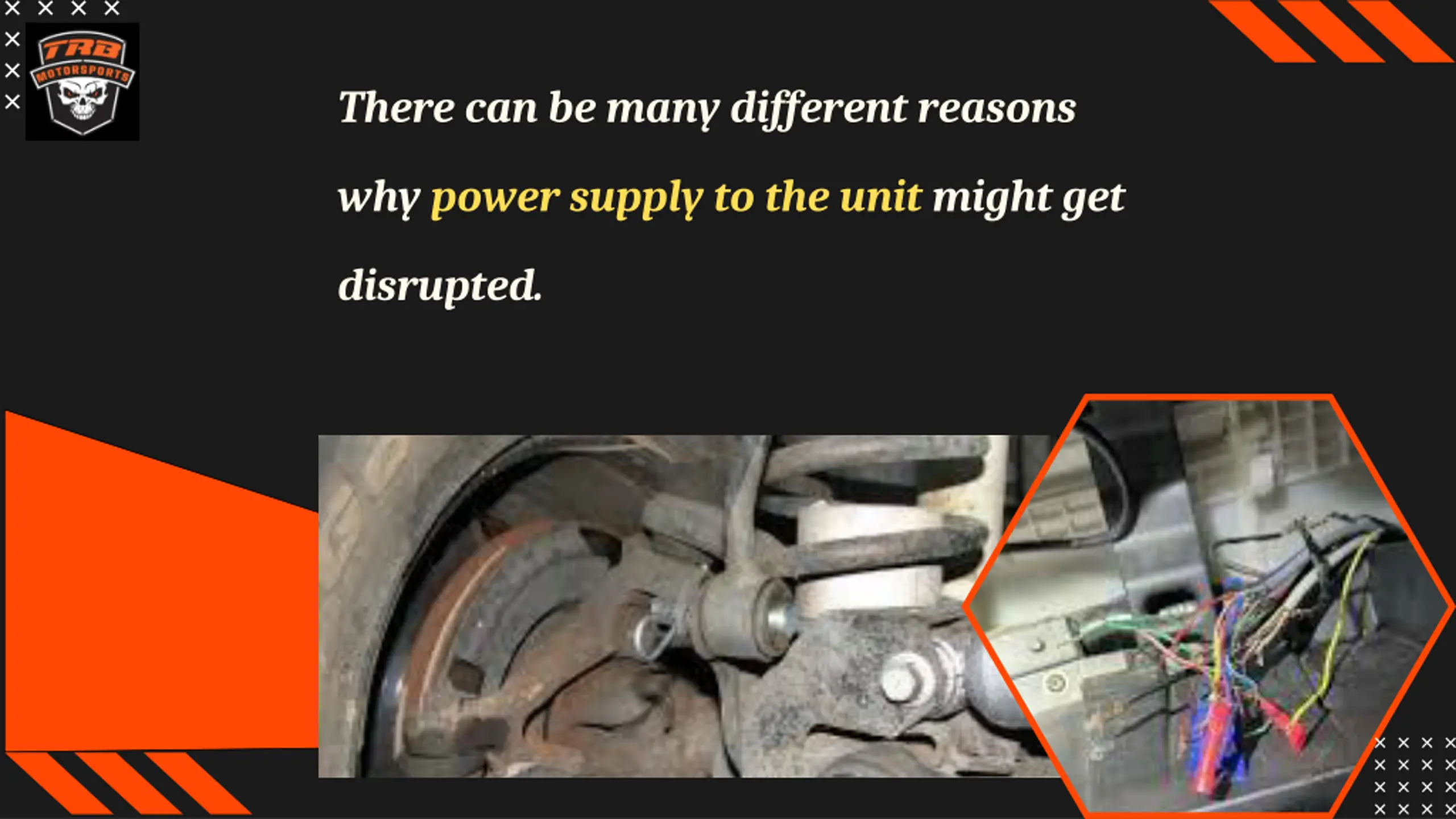

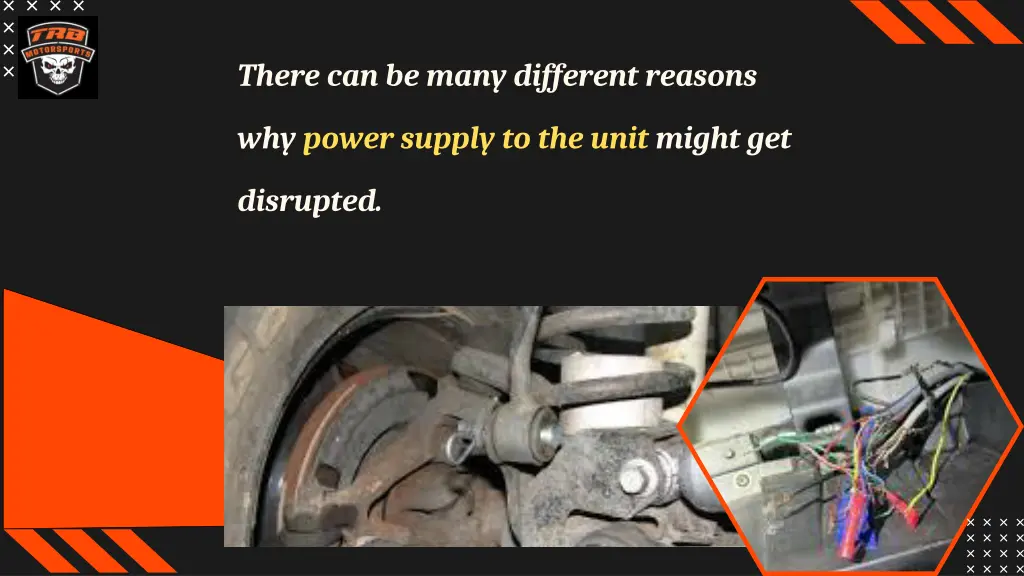

There can be many different reasons why power supply to the unit might get disrupted.

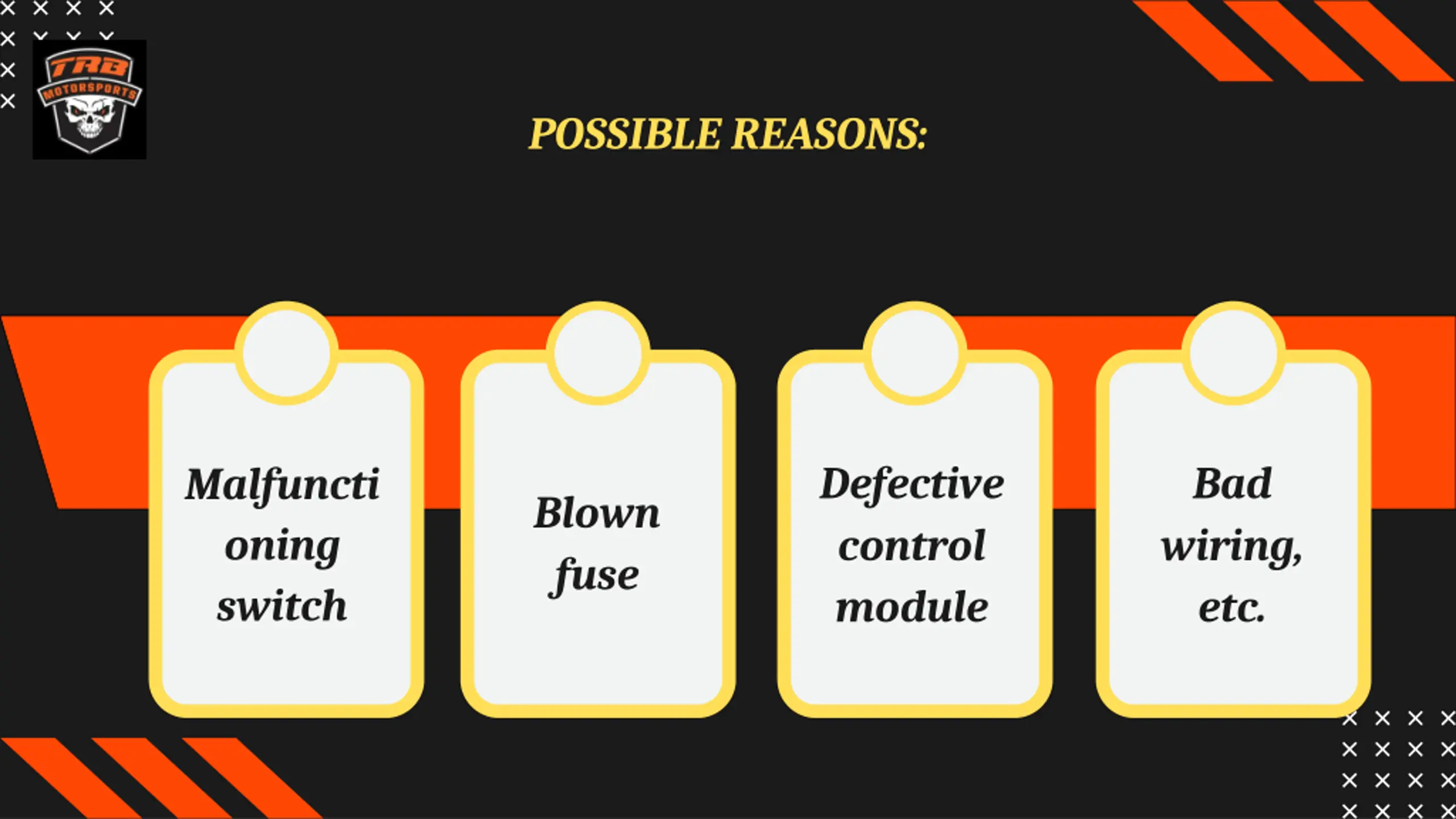

POSSIBLE REASONS: Defective control module Bad wiring, etc. Malfuncti oning switch Blown fuse

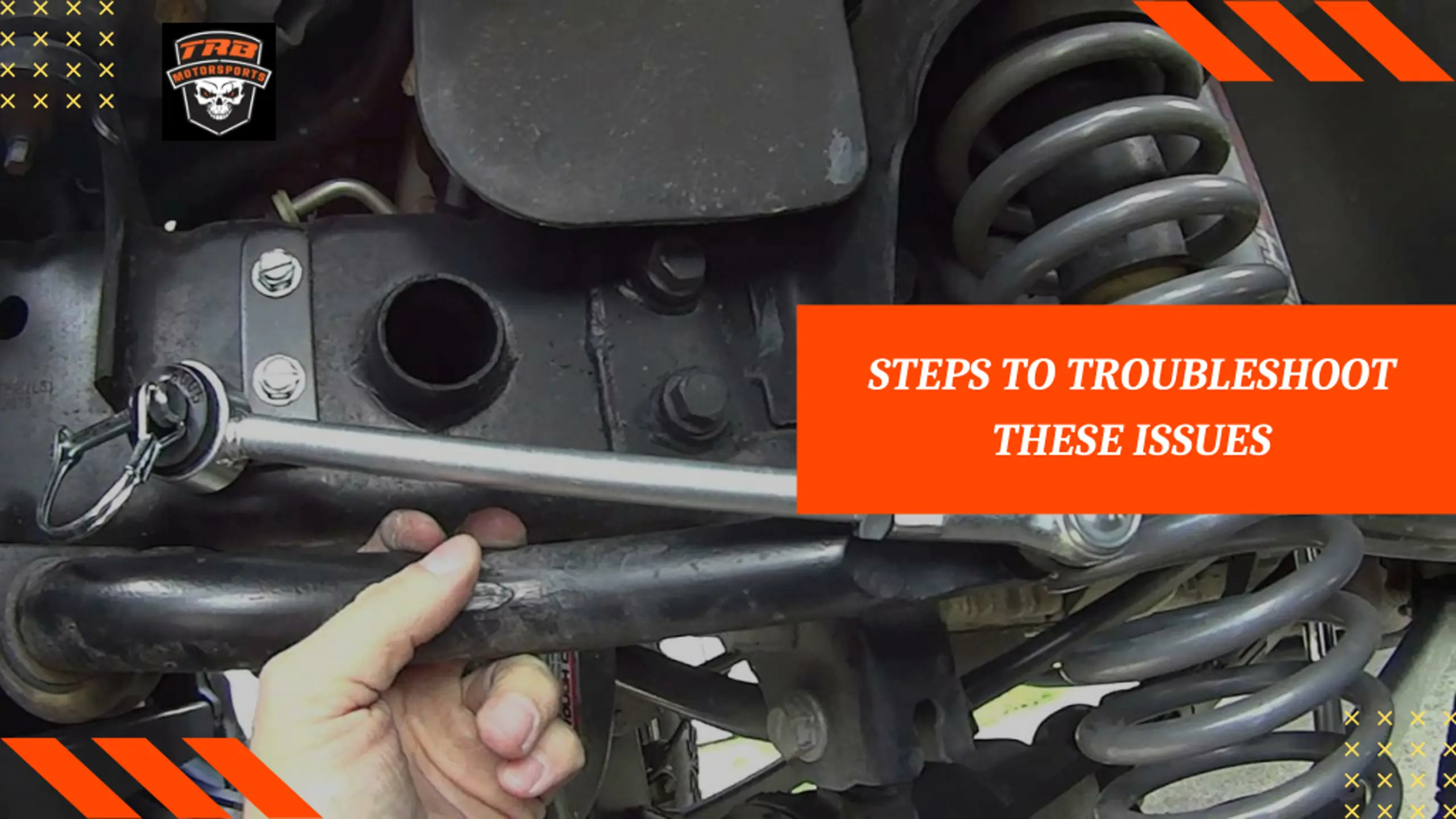

STEPS TO TROUBLESHOOT THESE ISSUES

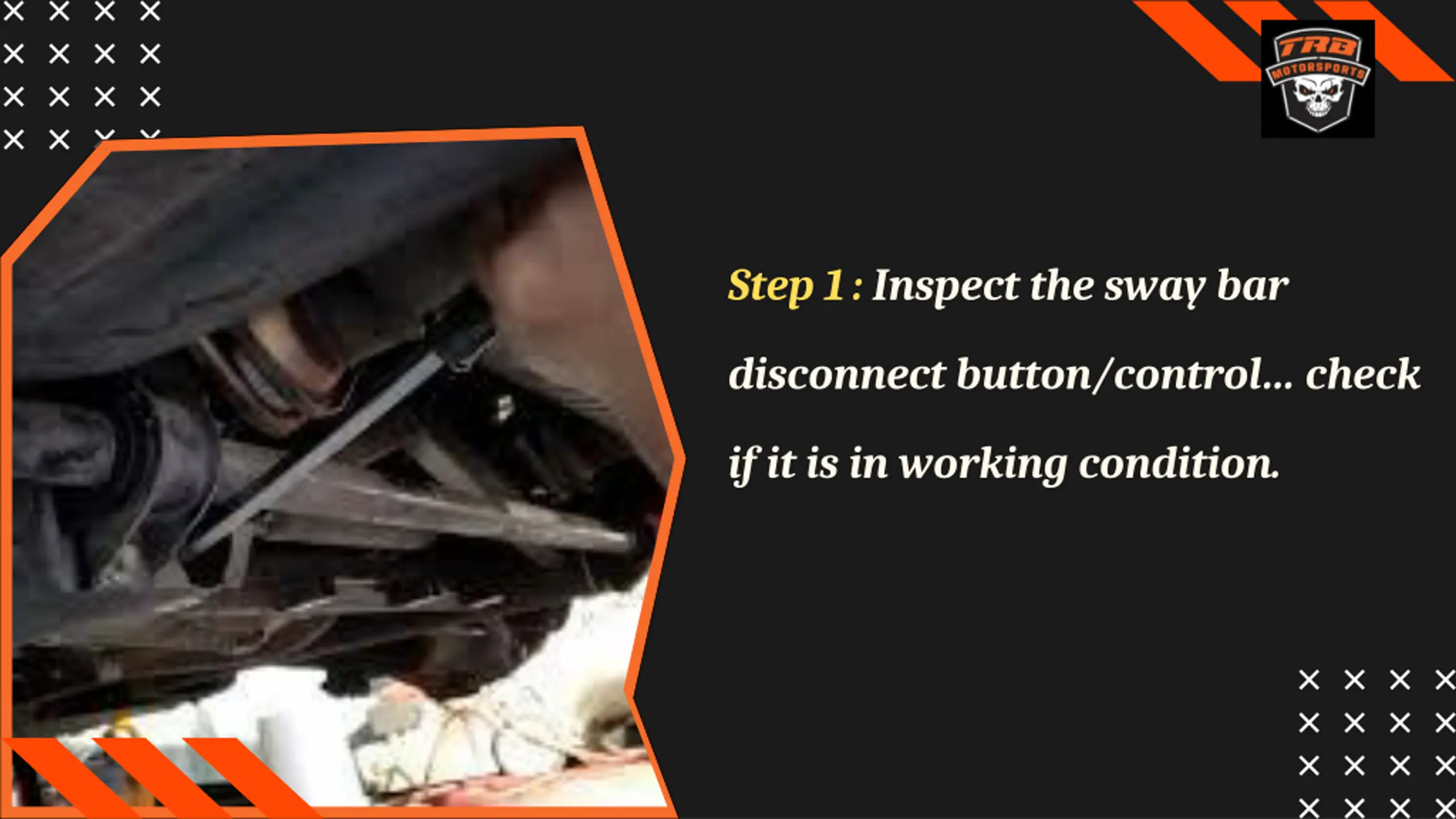

Step 1: Inspect the sway bar disconnect button/control check if it is in working condition.

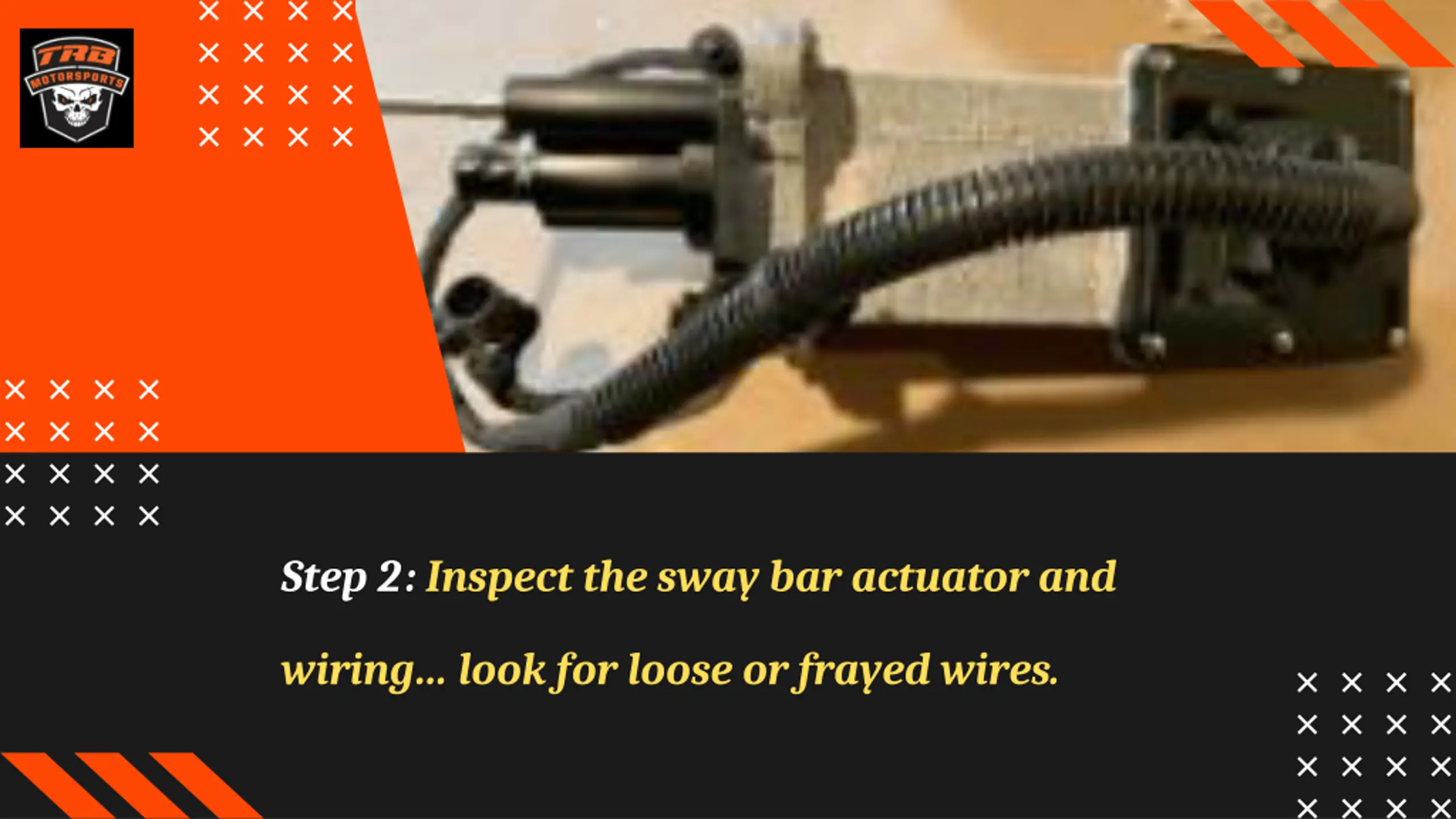

Step 2: Inspect the sway bar actuator and wiring look for loose or frayed wires.

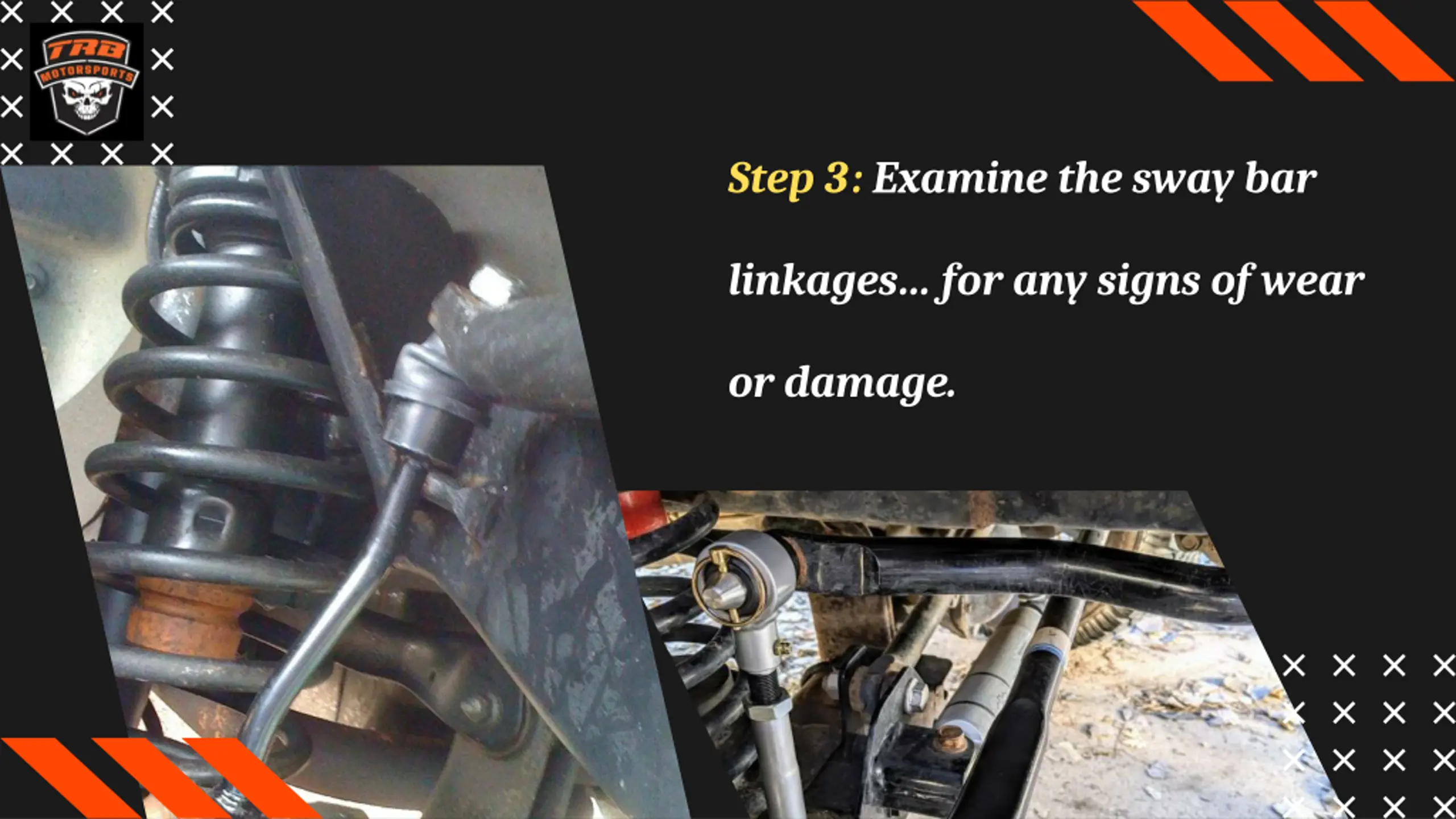

Step 3: Examine the sway bar linkages for any signs of wear or damage.
Step 4: Look for fluid leaks Step 5: Check for diagnostic trouble codes (DTCs)
To adapt to different driving conditions, your Jeep s Sway Bar Disconnect system must be in good condition. So, ensure its upkeep.
