Hydrostatic Drivetrain Efficiency Simulation Results and Recommendations
Hydrostatic drivetrain efficiency findings from Aachen simulations confirm peak hydraulic component efficiency at 86%, with an induction generator efficiency of about 95%. The nominal peak system efficiency stands at 82%, dropping to as low as 32% off-peak. Details on efficiency at different operating points and recommended oil specifications by Hagglunds are also provided. Explore the images for a more in-depth look into the proprietary data.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

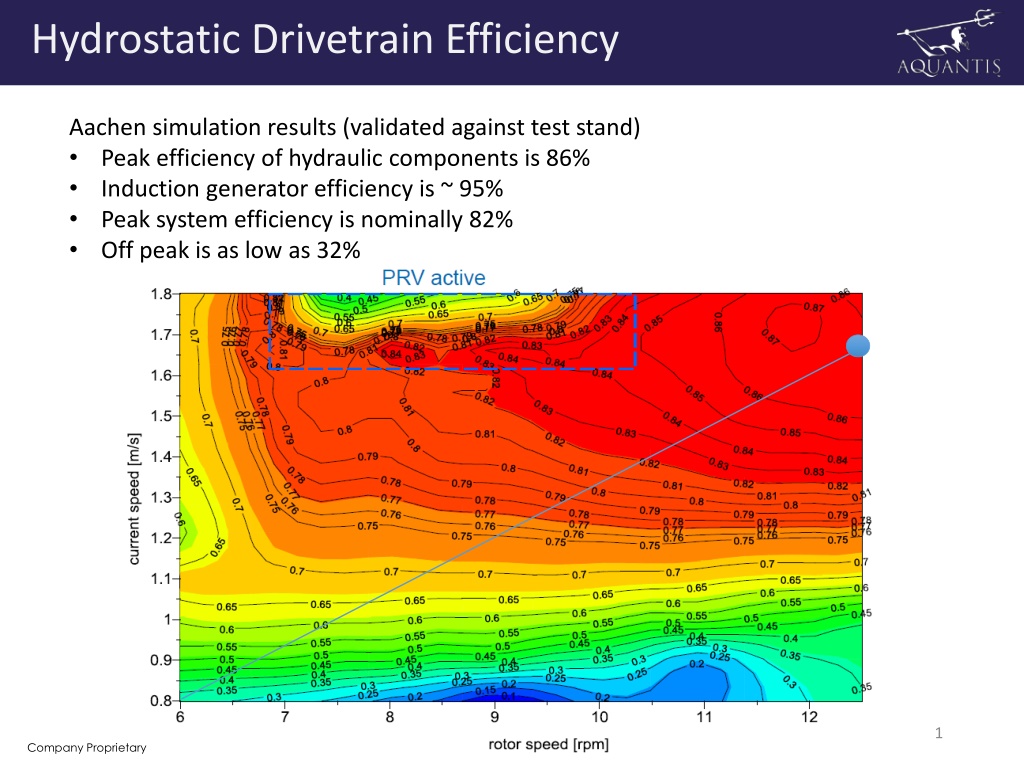

Hydrostatic Drivetrain Efficiency Aachen simulation results (validated against test stand) Peak efficiency of hydraulic components is 86% Induction generator efficiency is ~ 95% Peak system efficiency is nominally 82% Off peak is as low as 32% 1 Company Proprietary

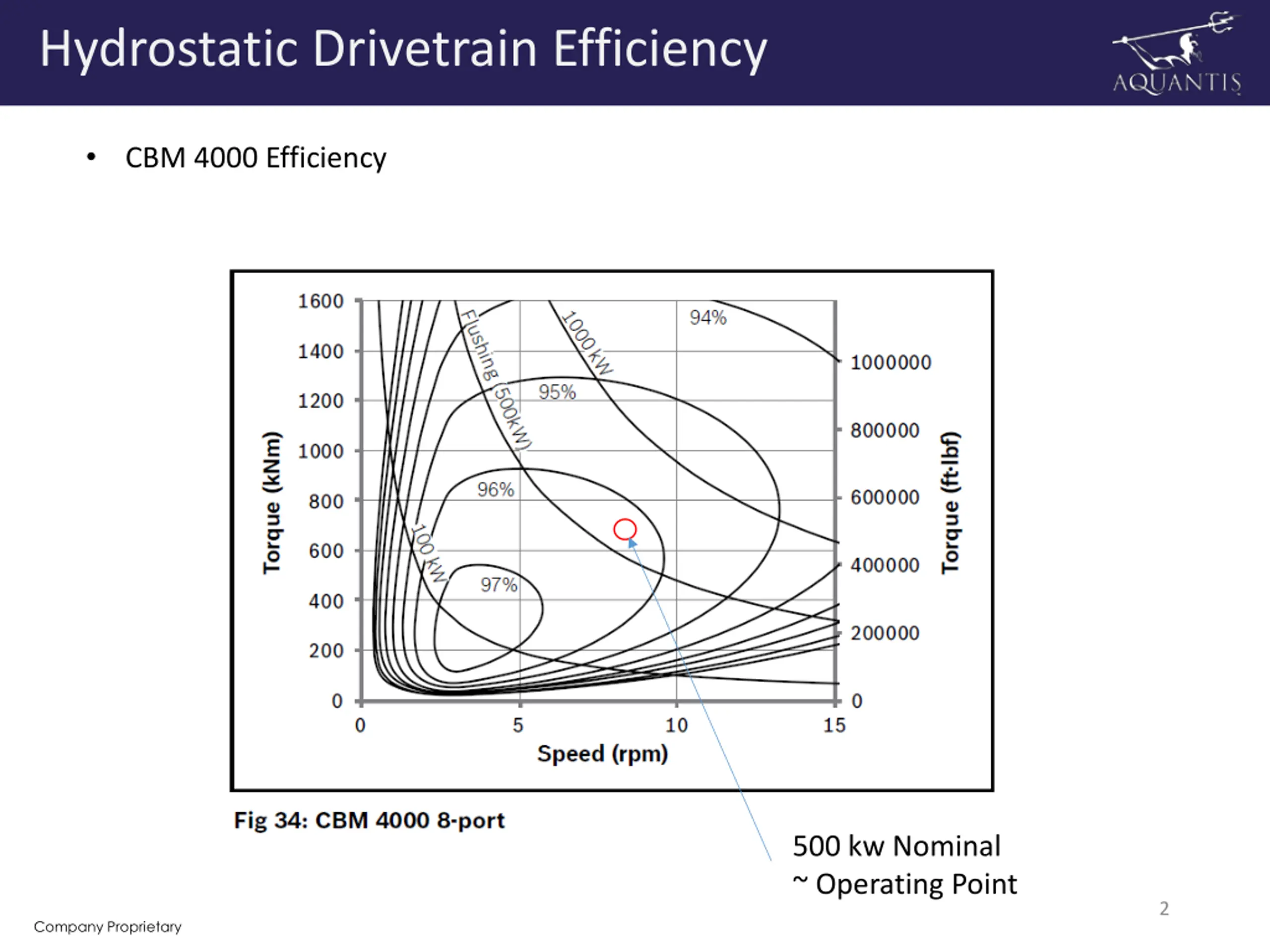

Hydrostatic Drivetrain Efficiency CBM 4000 Efficiency 500 kw Nominal ~ Operating Point 2 Company Proprietary

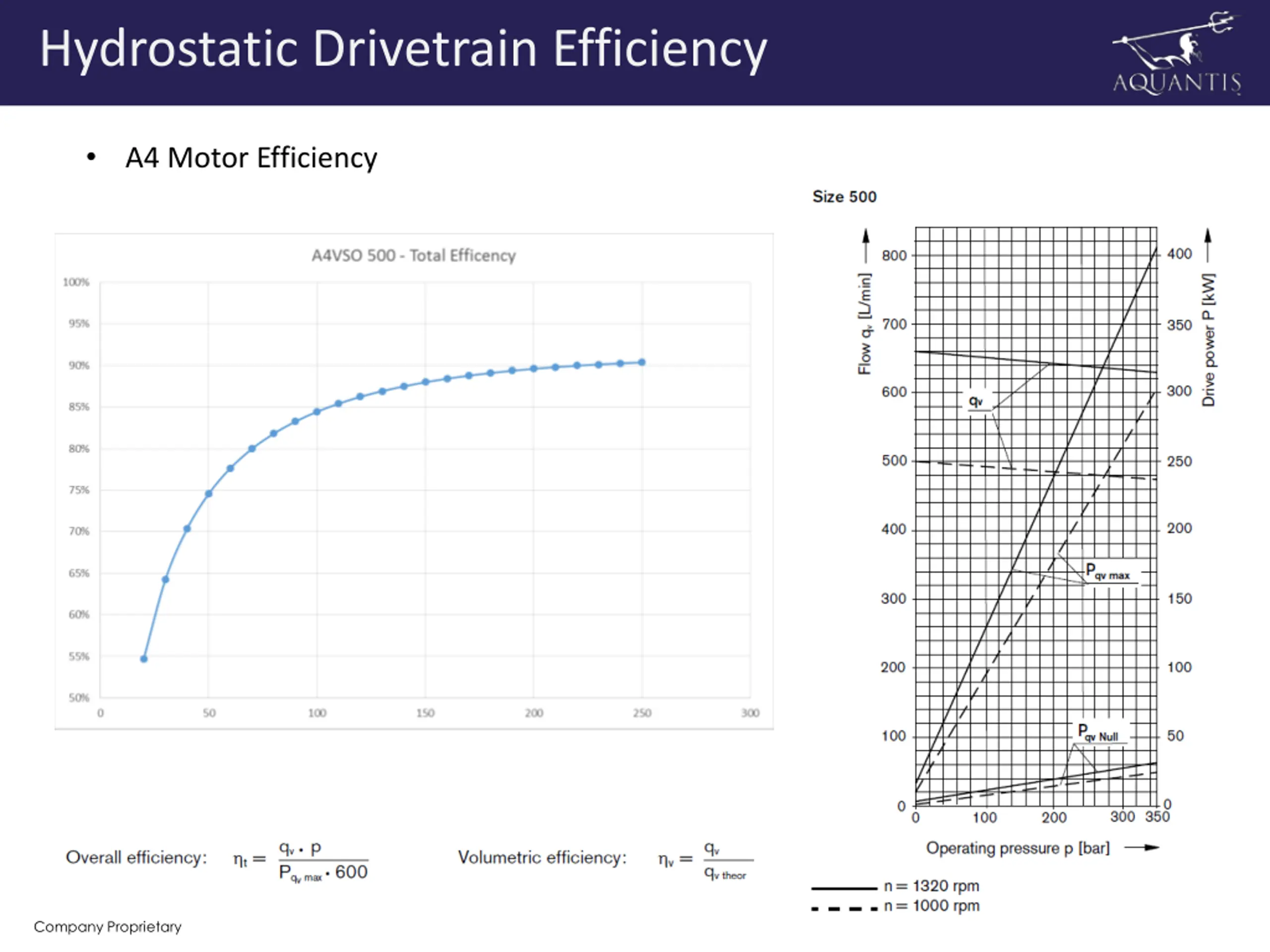

Hydrostatic Drivetrain Efficiency A4 Motor Efficiency 3 Company Proprietary

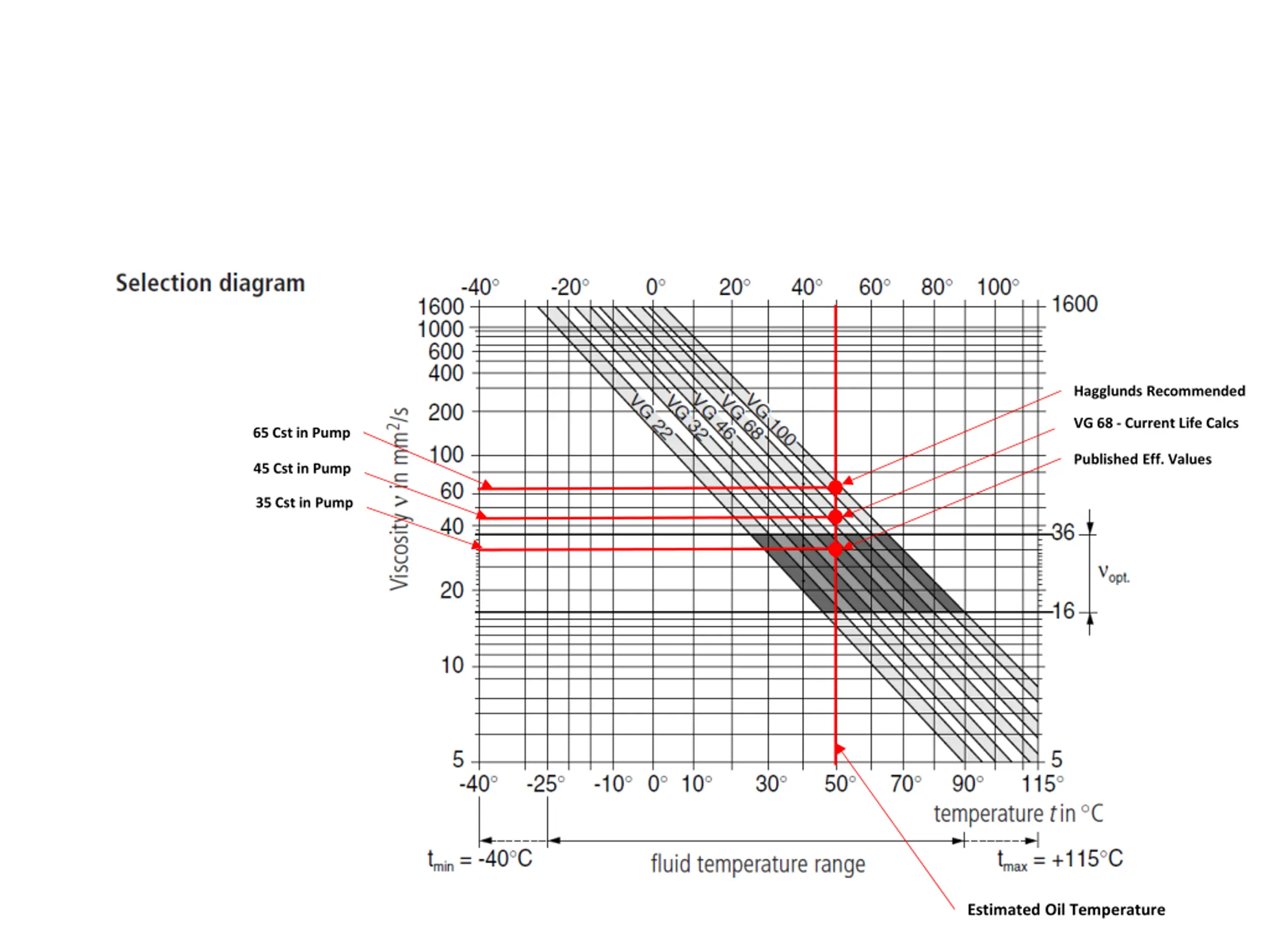

Hagglunds Recommended VG 68 - Current Life Calcs 65 Cst in Pump Published Eff. Values 45 Cst in Pump 35 Cst in Pump Estimated Oil Temperature
