Hypothesis Testing for Difference in Cuckoo Bird Egg Sizes

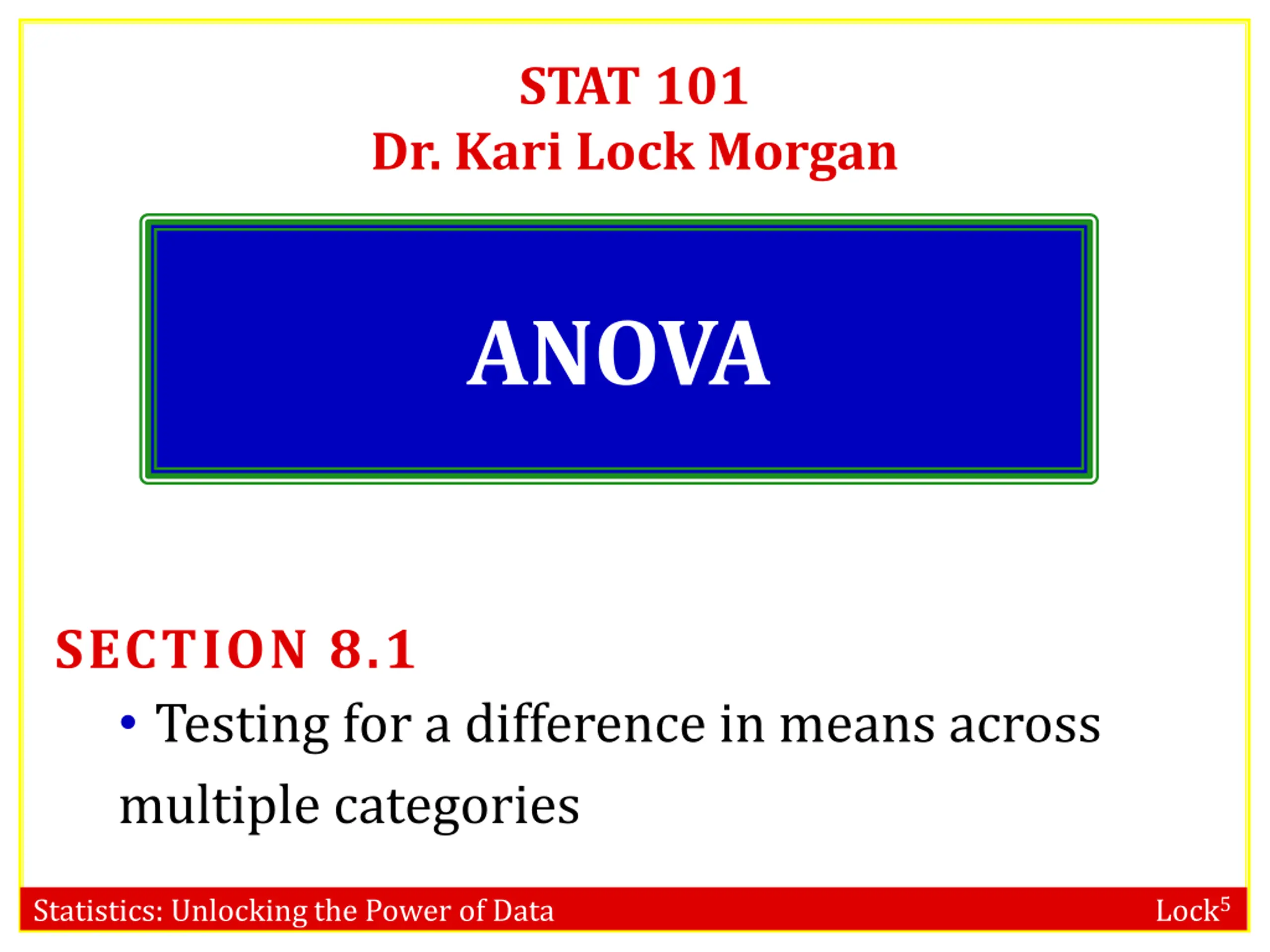

STAT 101 Dr. Kari Lock Morgan ANOVA SECTION 8.1 Testing for a difference in means across multiple categories Statistics: Unlocking the Power of Data Lock5

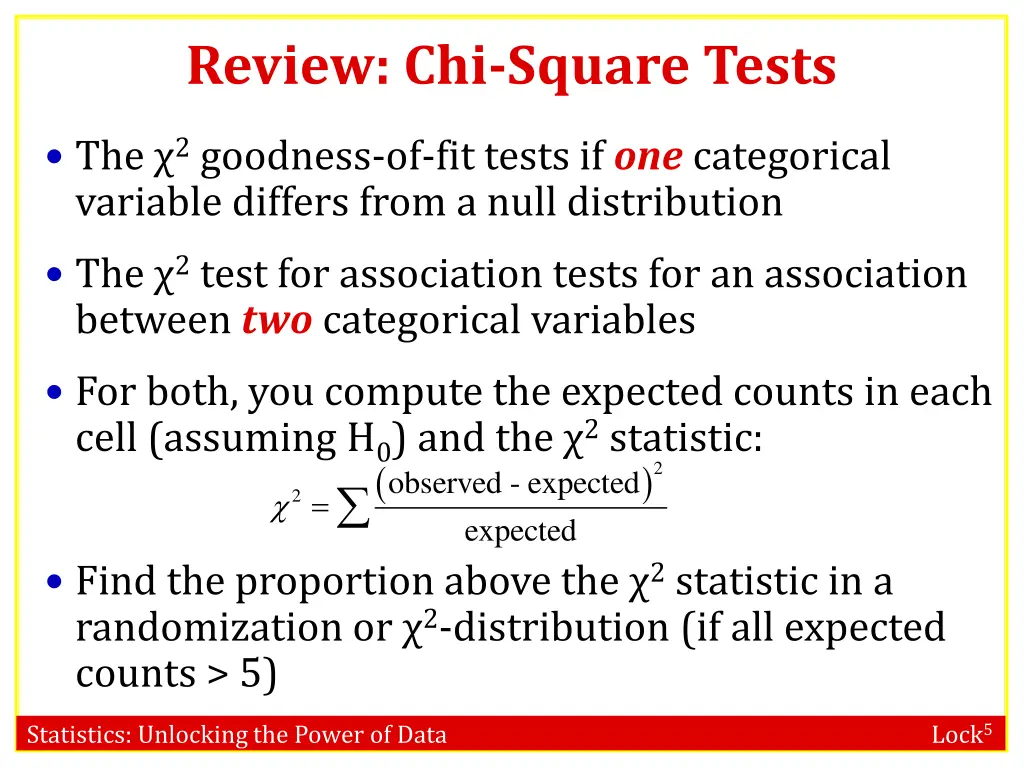

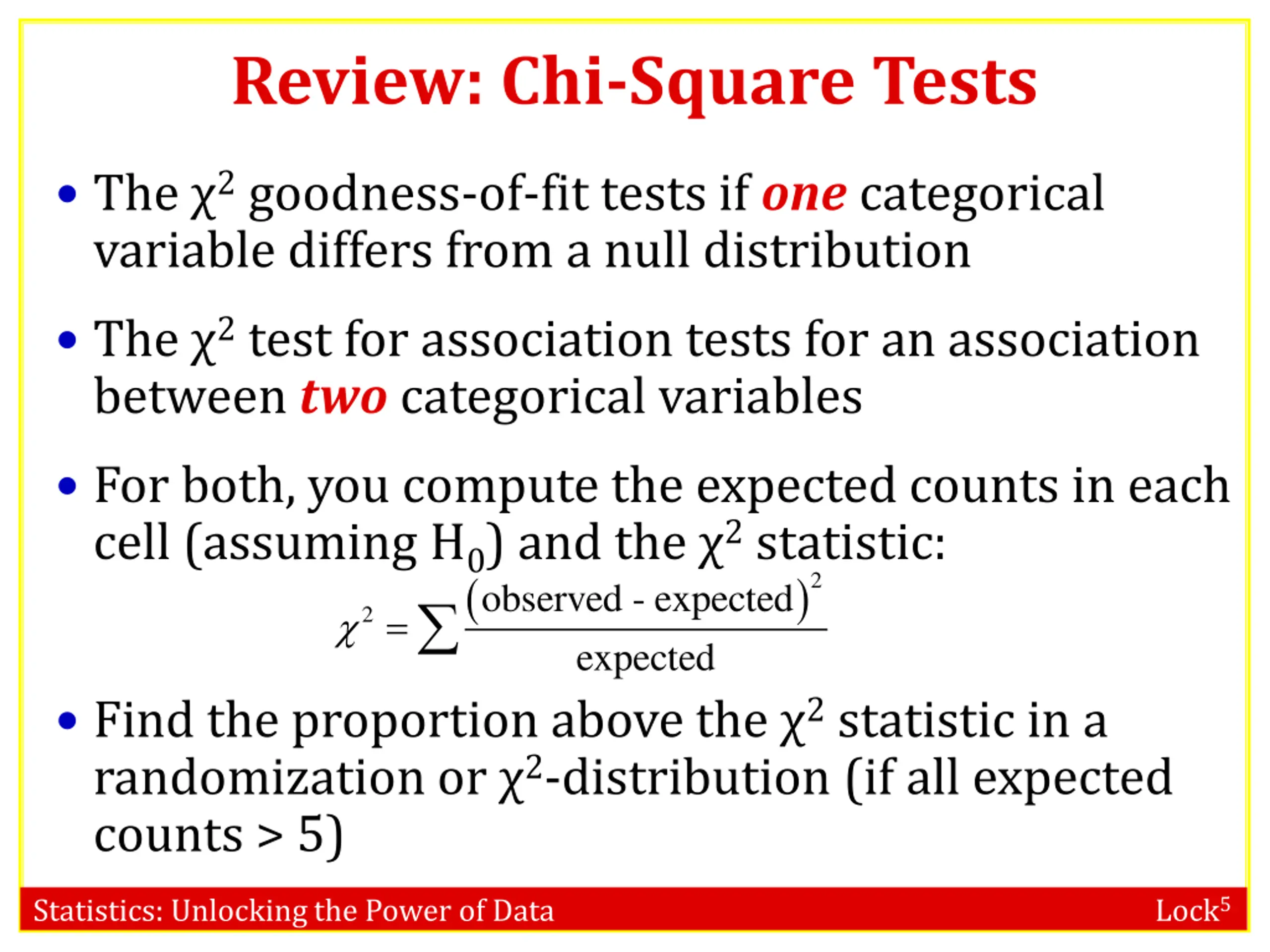

Review: Chi-Square Tests The 2 goodness-of-fit tests if one categorical variable differs from a null distribution The 2 test for association tests for an association between two categorical variables For both, you compute the expected counts in each cell (assuming H0) and the 2 statistic: ( 2 observed - expected expected ) 2 = Find the proportion above the 2 statistic in a randomization or 2-distribution (if all expected counts > 5) Statistics: Unlocking the Power of Data Lock5

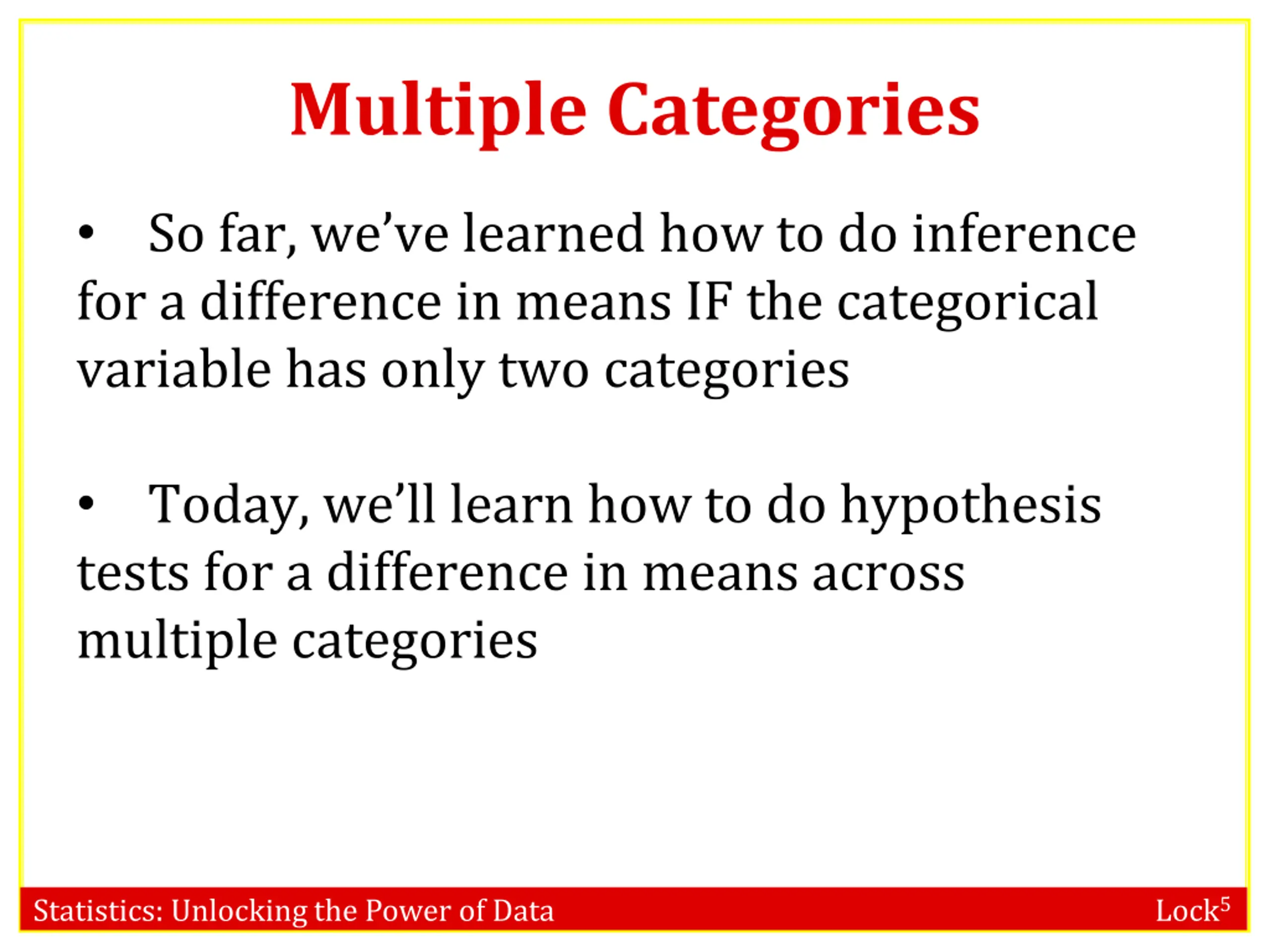

Multiple Categories So far, we ve learned how to do inference for a difference in means IF the categorical variable has only two categories Today, we ll learn how to do hypothesis tests for a difference in means across multiple categories Statistics: Unlocking the Power of Data Lock5

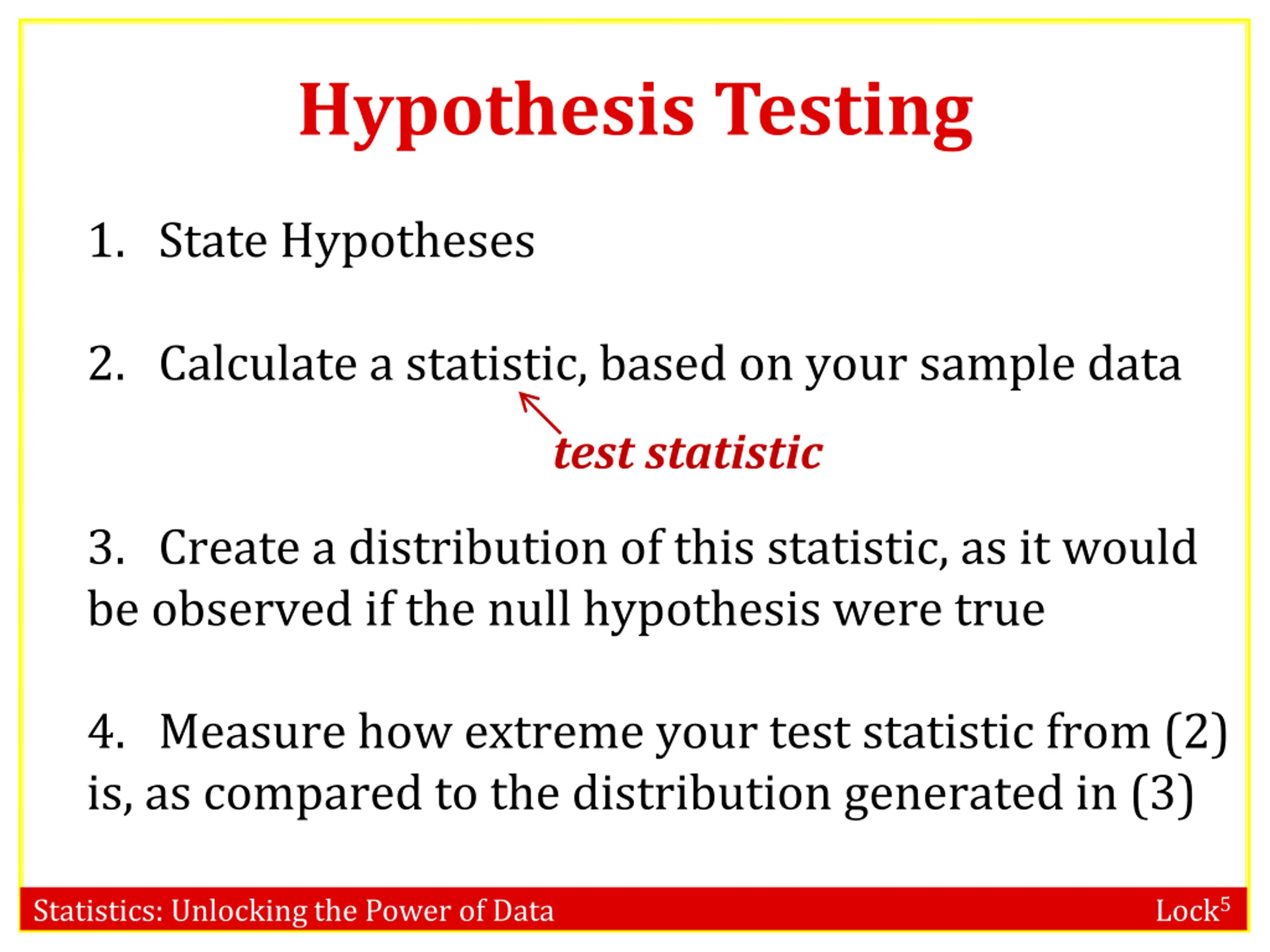

Hypothesis Testing 1. State Hypotheses 2. Calculate a statistic, based on your sample data test statistic 3. Create a distribution of this statistic, as it would be observed if the null hypothesis were true 4. Measure how extreme your test statistic from (2) is, as compared to the distribution generated in (3) Statistics: Unlocking the Power of Data Lock5

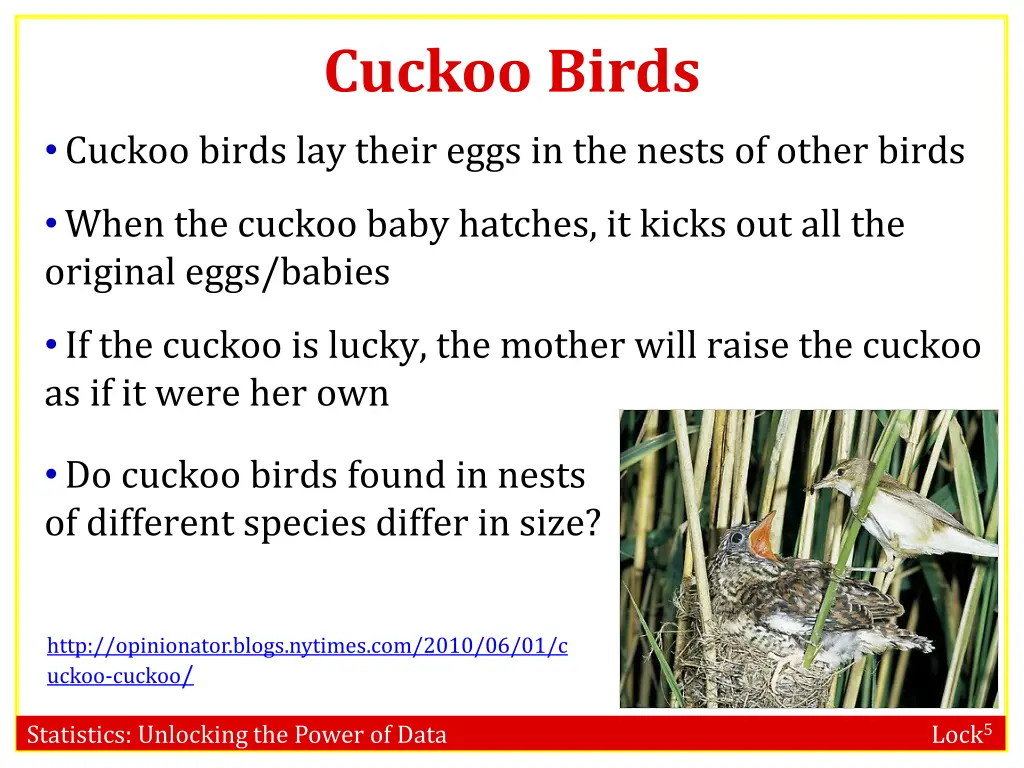

Cuckoo Birds Cuckoo birds lay their eggs in the nests of other birds When the cuckoo baby hatches, it kicks out all the original eggs/babies If the cuckoo is lucky, the mother will raise the cuckoo as if it were her own Do cuckoo birds found in nests of different species differ in size? http://opinionator.blogs.nytimes.com/2010/06/01/c uckoo-cuckoo/ Statistics: Unlocking the Power of Data Lock5

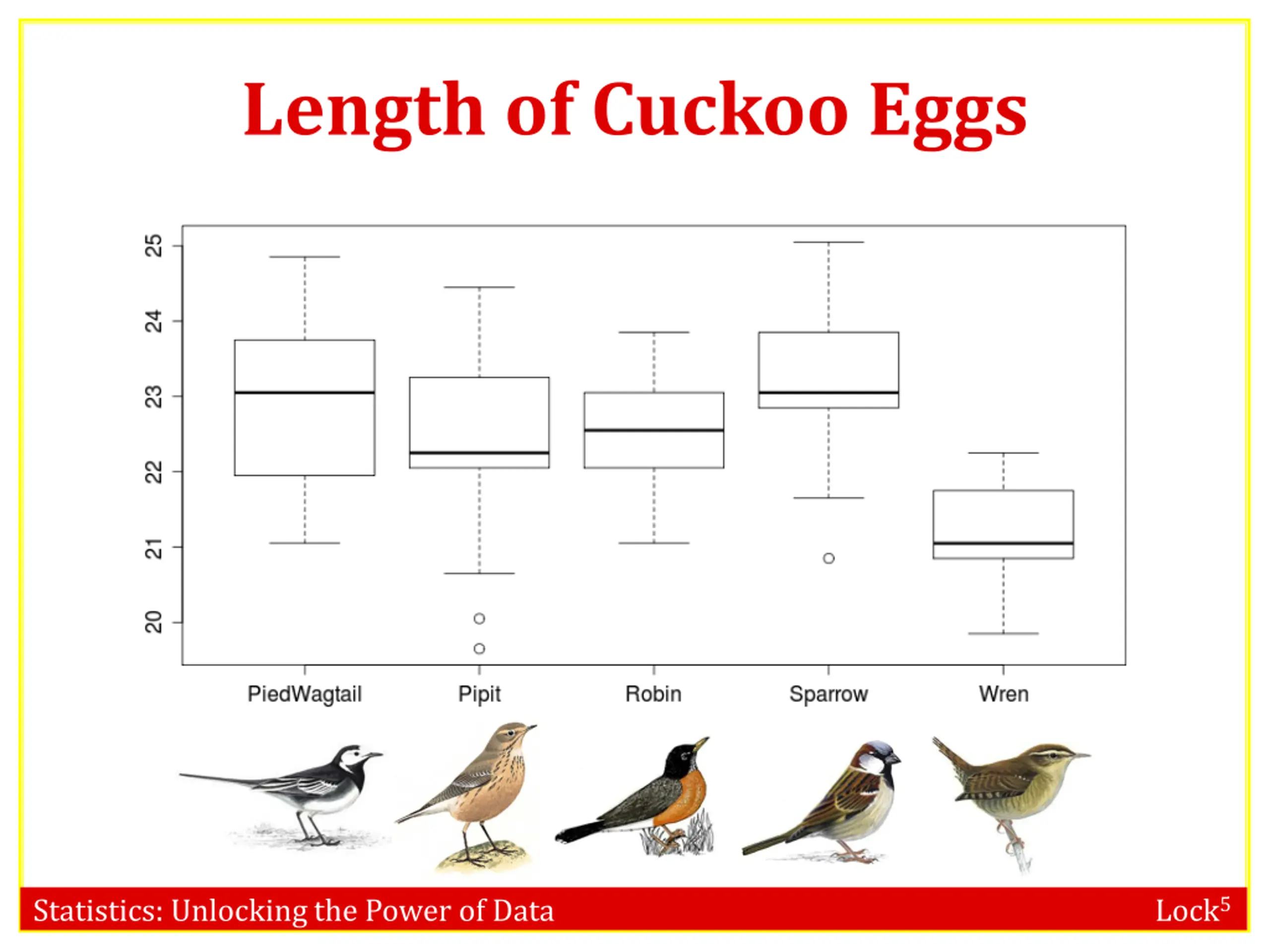

Length of Cuckoo Eggs Statistics: Unlocking the Power of Data Lock5

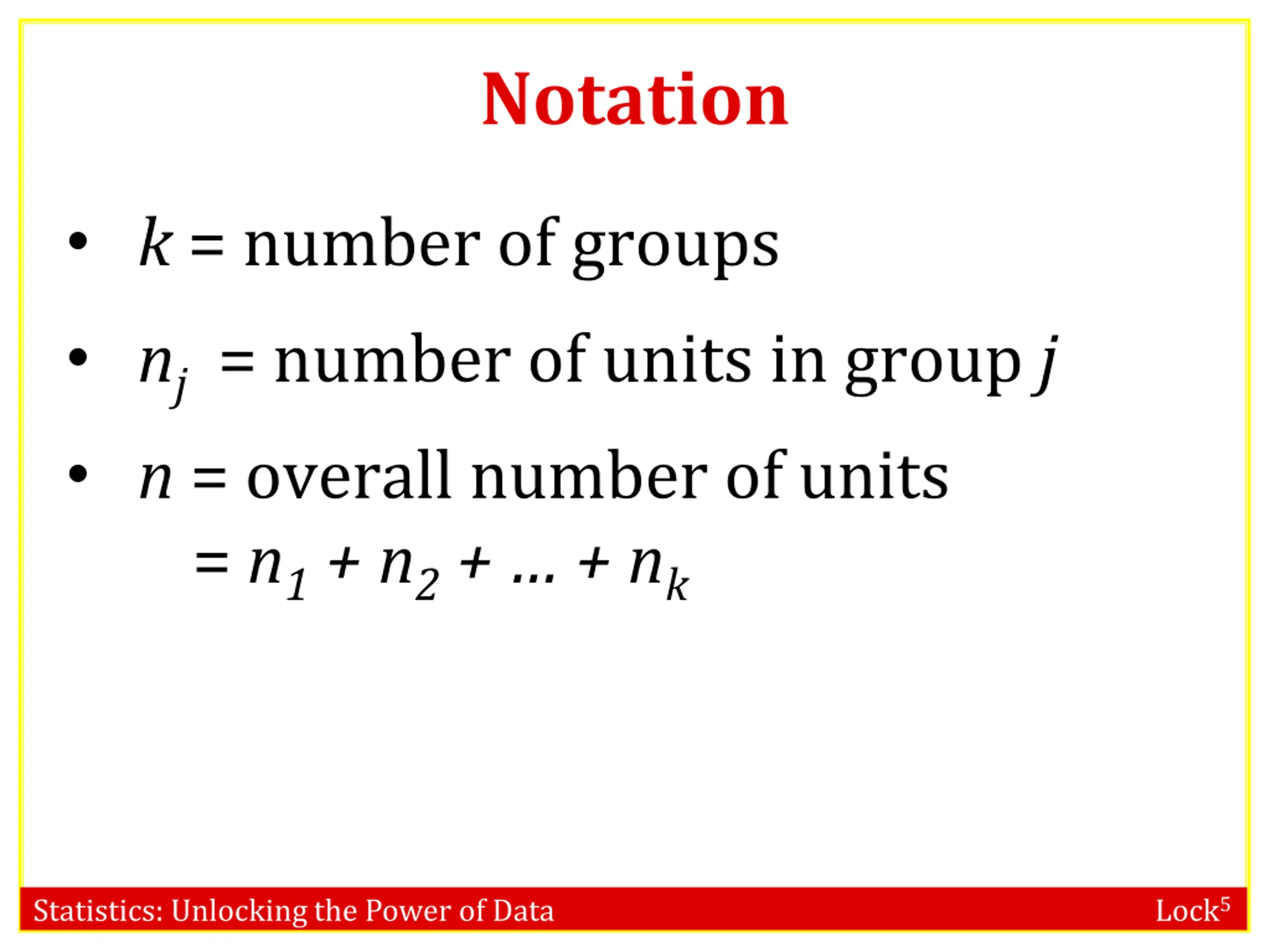

Notation k = number of groups nj= number of units in group j n = overall number of units = n1 + n2+ + nk Statistics: Unlocking the Power of Data Lock5

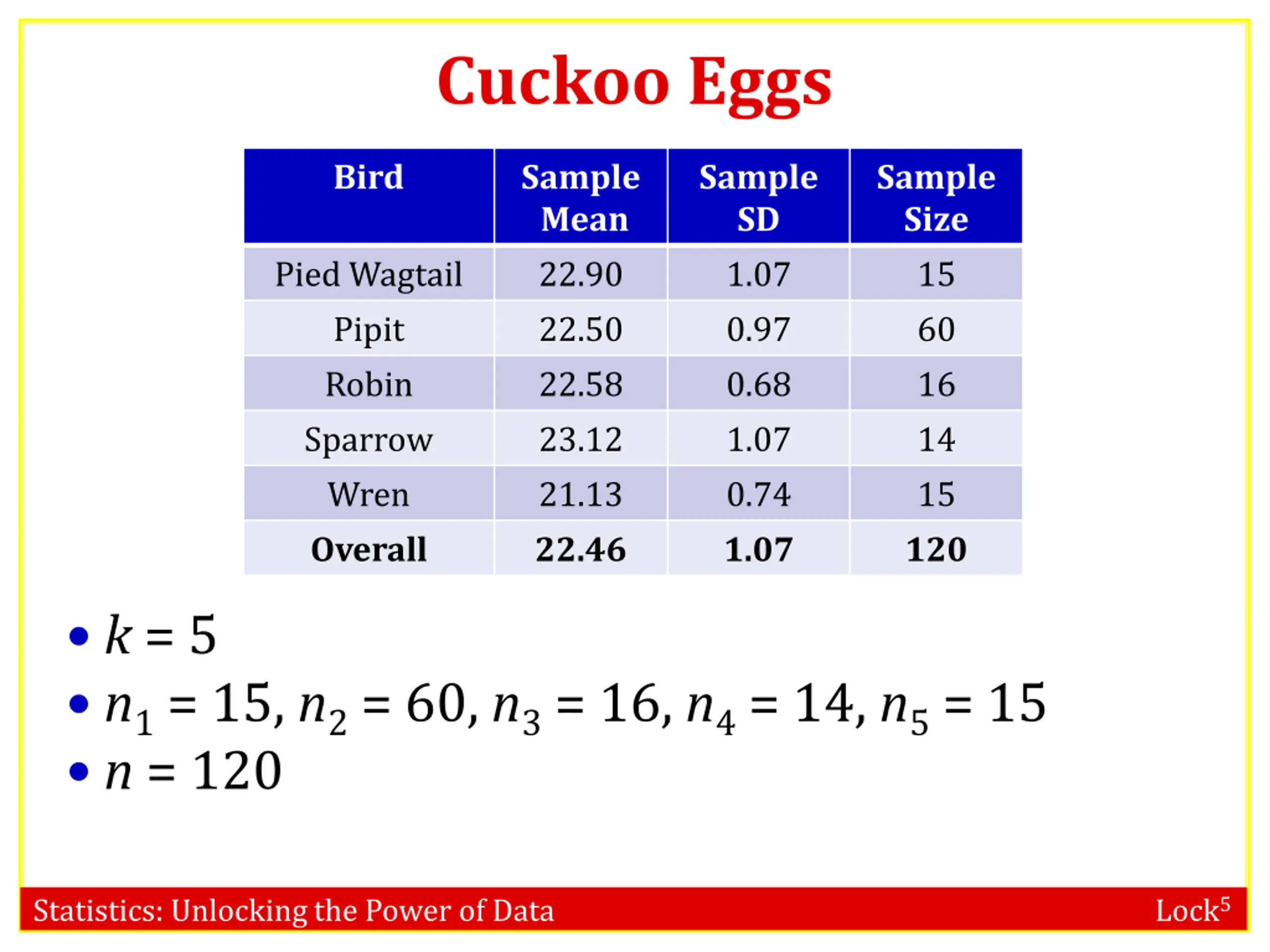

Cuckoo Eggs Bird Sample Mean 22.90 22.50 22.58 23.12 21.13 22.46 Sample SD 1.07 0.97 0.68 1.07 0.74 1.07 Sample Size 15 60 16 14 15 120 Pied Wagtail Pipit Robin Sparrow Wren Overall k = 5 n1 = 15, n2 = 60, n3 = 16, n4 = 14, n5 = 15 n = 120 Statistics: Unlocking the Power of Data Lock5

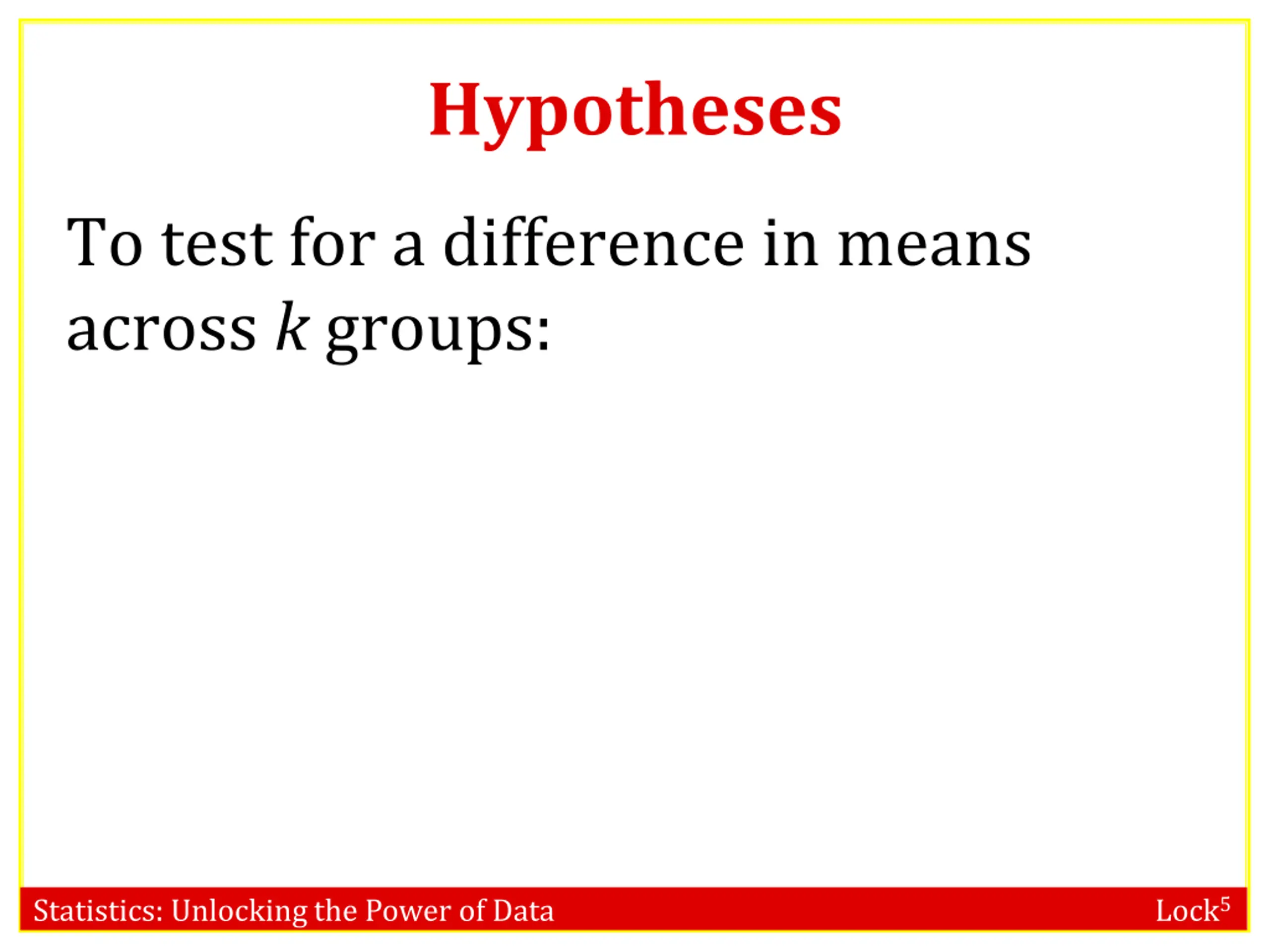

Hypotheses To test for a difference in means across k groups: Statistics: Unlocking the Power of Data Lock5

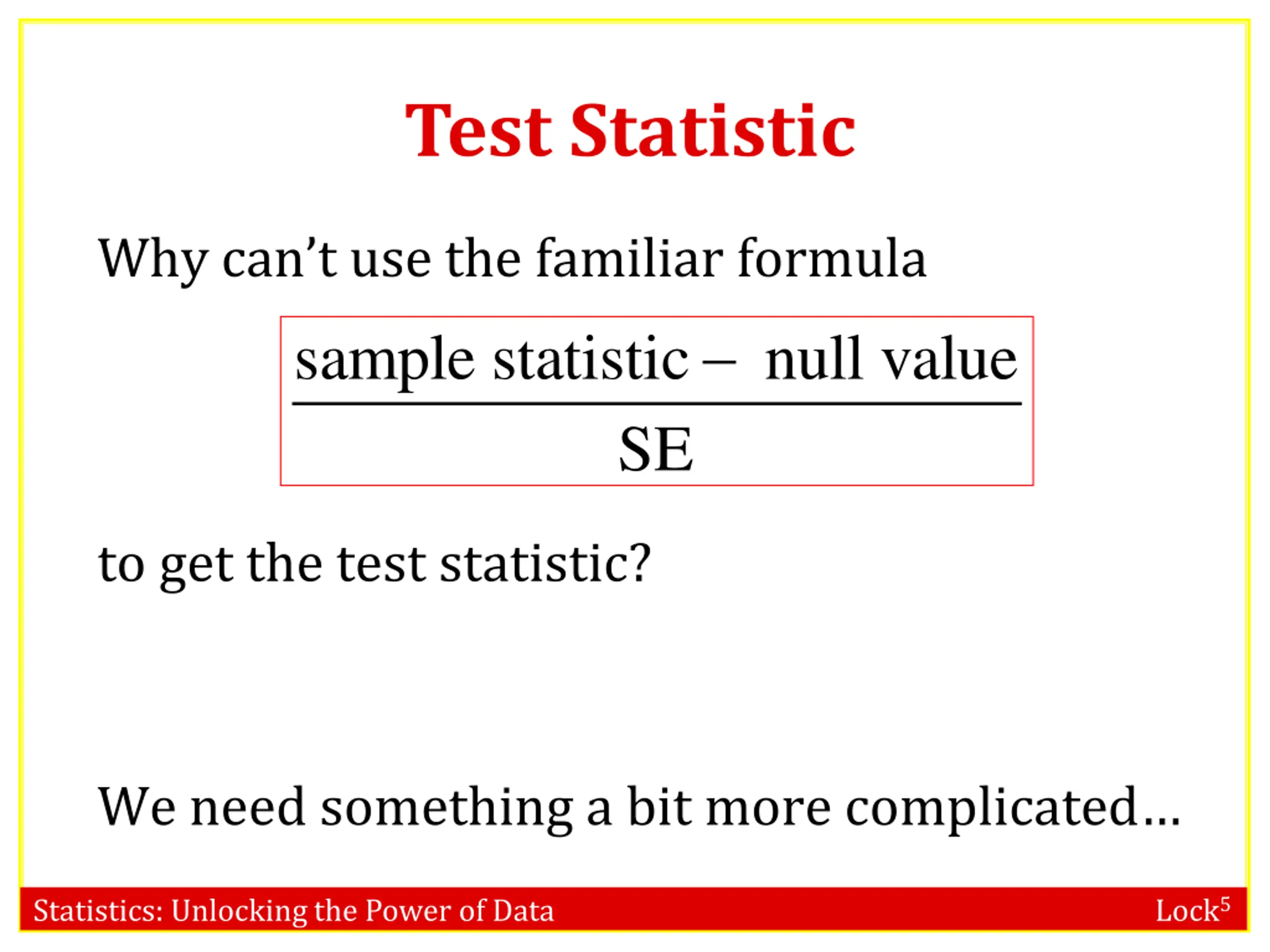

Test Statistic Why can t use the familiar formula sample statistic null value SE to get the test statistic? We need something a bit more complicated Statistics: Unlocking the Power of Data Lock5

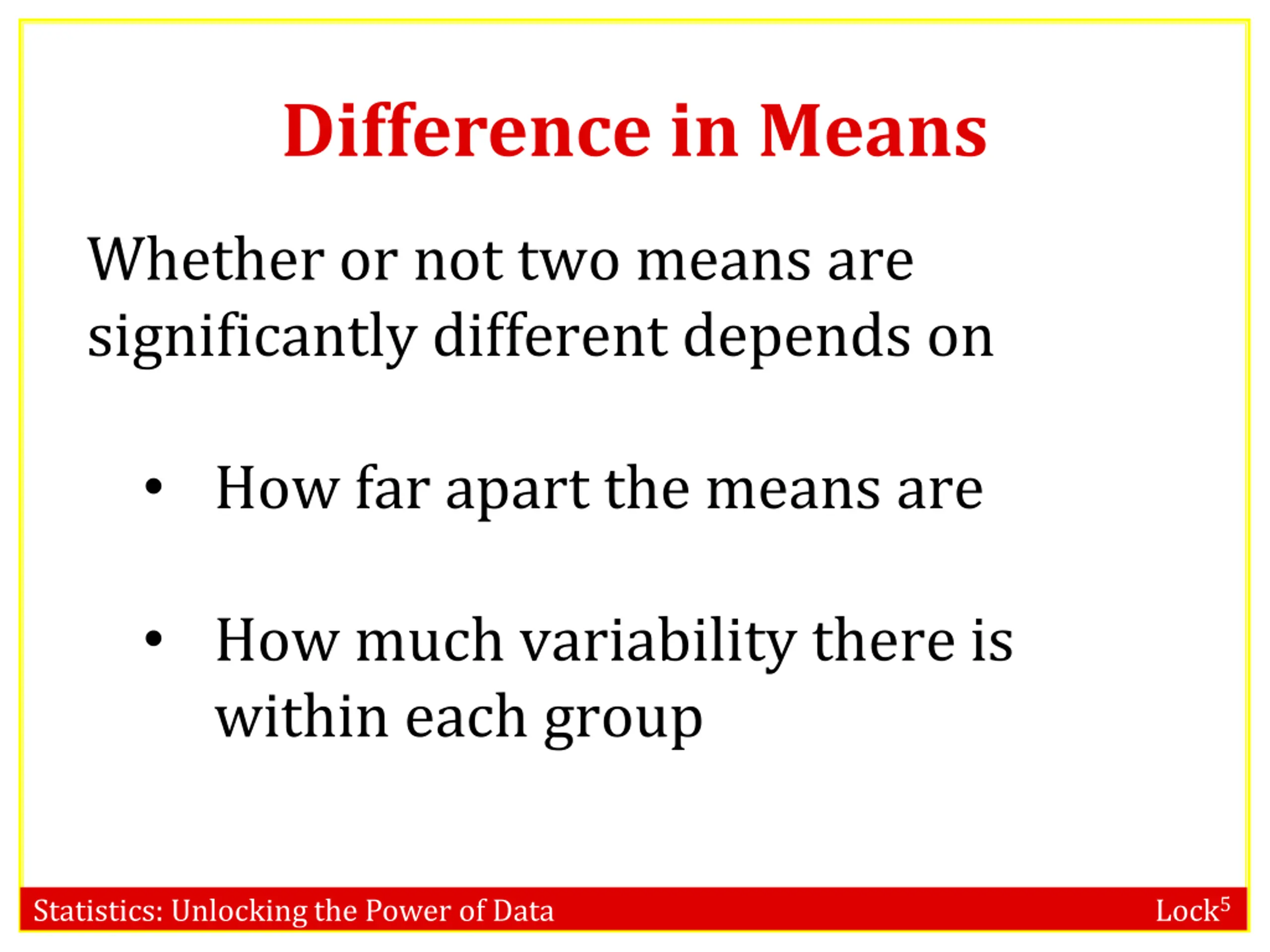

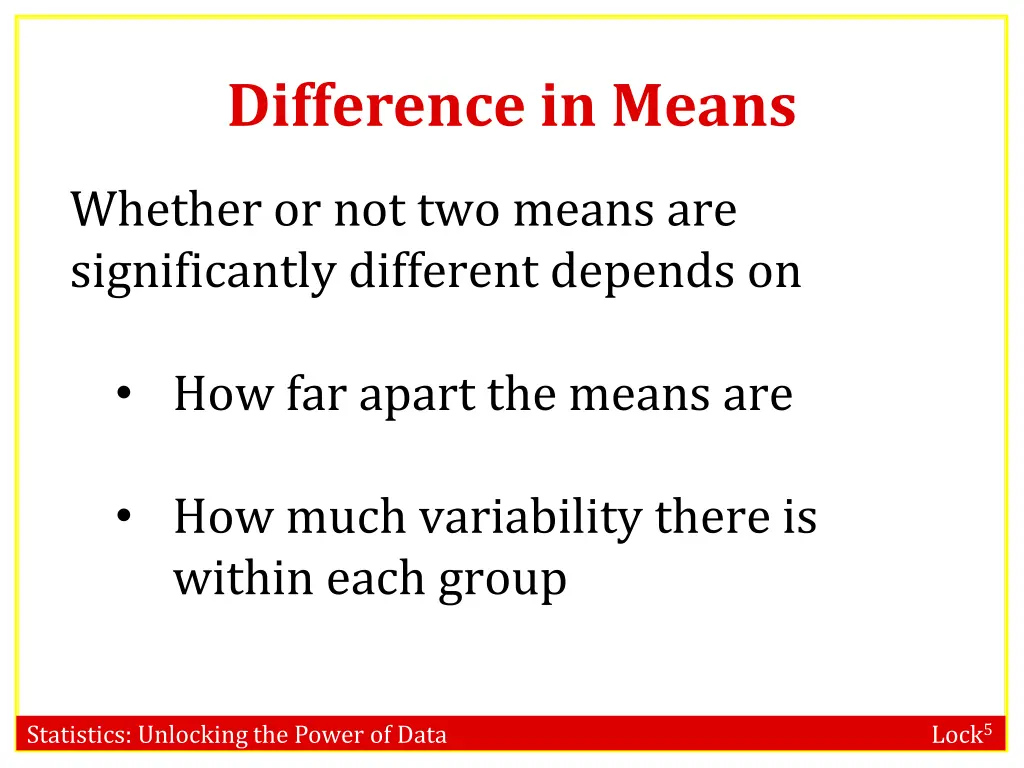

Difference in Means Whether or not two means are significantly different depends on How far apart the means are How much variability there is within each group Statistics: Unlocking the Power of Data Lock5

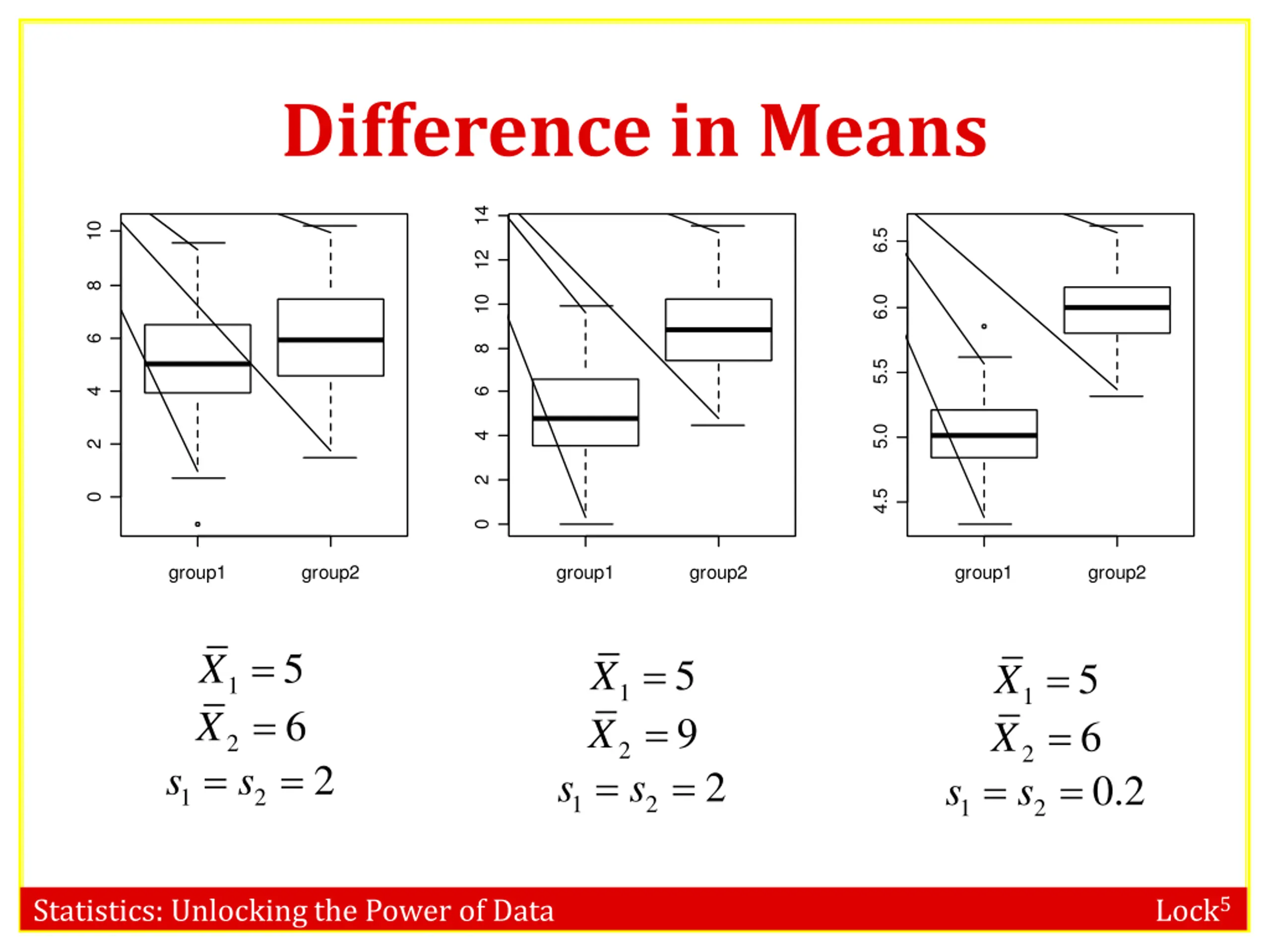

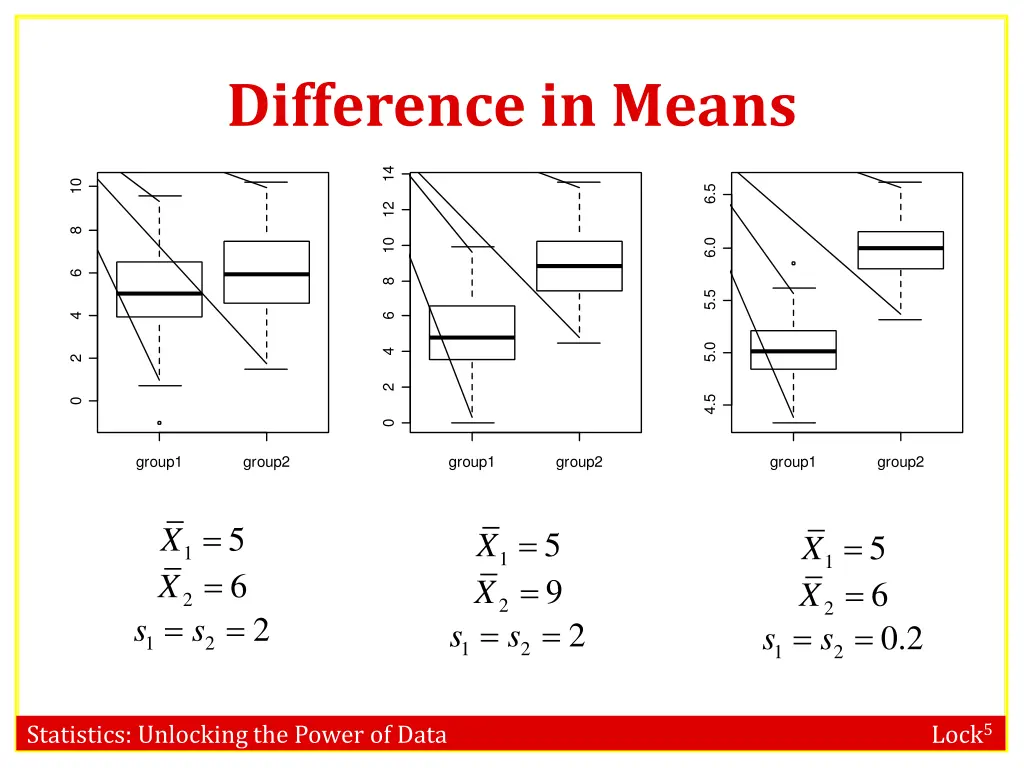

Difference in Means 14 14 14 10 10 10 6.5 6.5 6.5 12 12 12 8 8 8 10 10 10 6.0 6.0 6.0 6 6 6 8 8 8 5.5 5.5 5.5 4 4 4 6 6 6 5.0 5.0 5.0 4 4 4 2 2 2 2 2 2 4.5 4.5 4.5 0 0 0 0 0 0 group1 group1 group1 group2 group2 group2 group1 group1 group1 group2 group2 group2 group1 group1 group1 group2 group2 group2 = = 5 X X = = = = 5 X X = 5 6 X X = 1 1 1 6 = = 9 = 2 2 2 s 2 s s = 2 s s 0. 2 s 1 2 1 2 1 2 Statistics: Unlocking the Power of Data Lock5

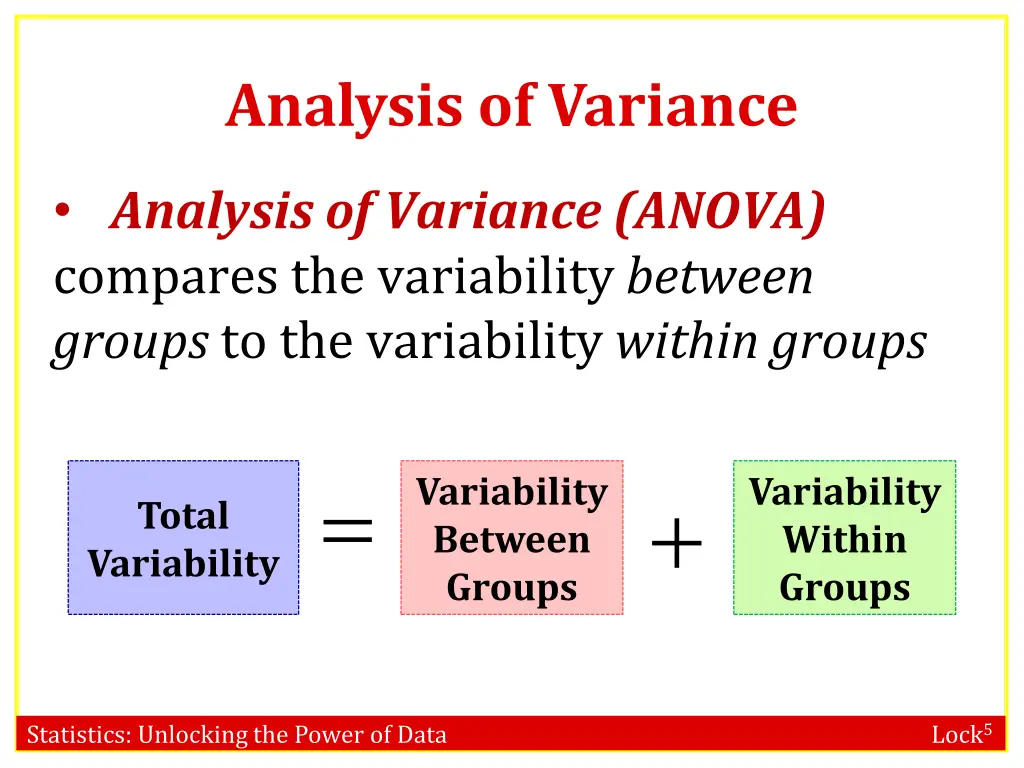

Analysis of Variance Analysis of Variance (ANOVA) compares the variability between groupsto the variability within groups = Variability Between Groups Variability Within Groups + Total Variability Statistics: Unlocking the Power of Data Lock5

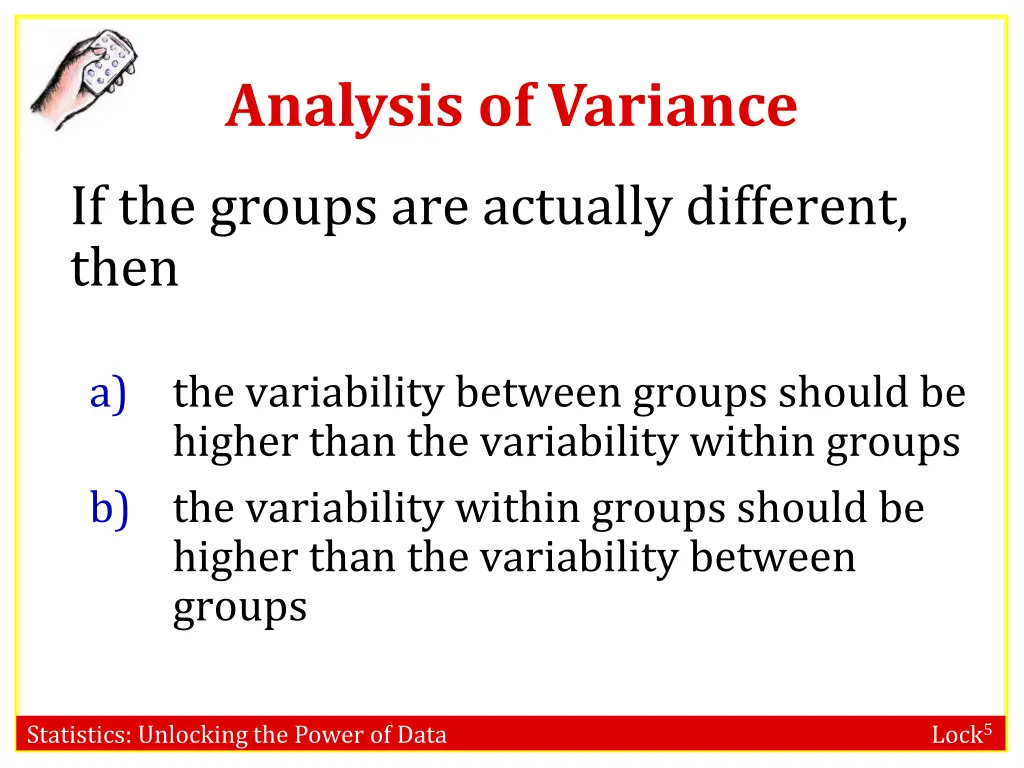

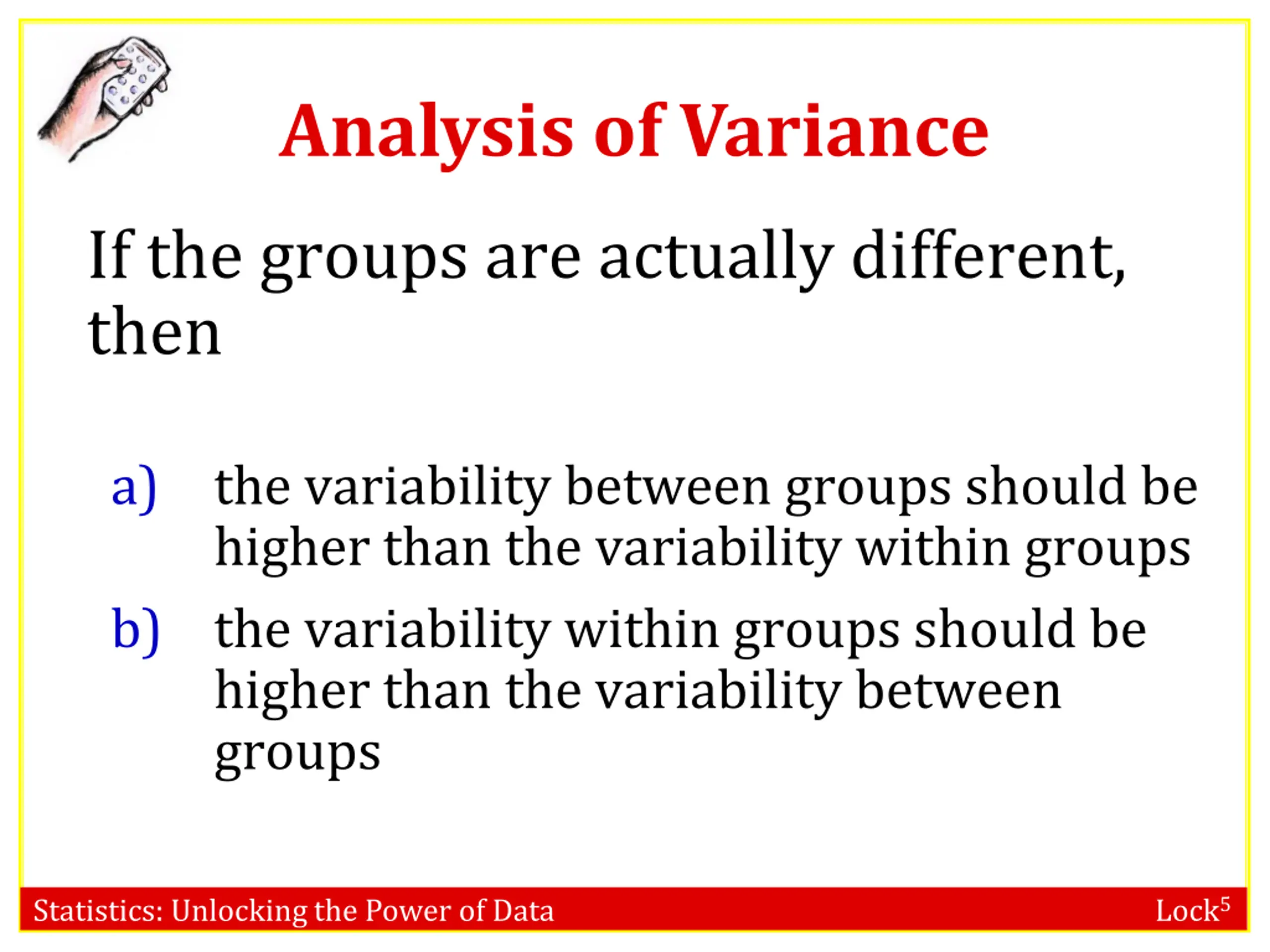

Analysis of Variance If the groups are actually different, then a) the variability between groups should be higher than the variability within groups b) the variability within groups should be higher than the variability between groups Statistics: Unlocking the Power of Data Lock5

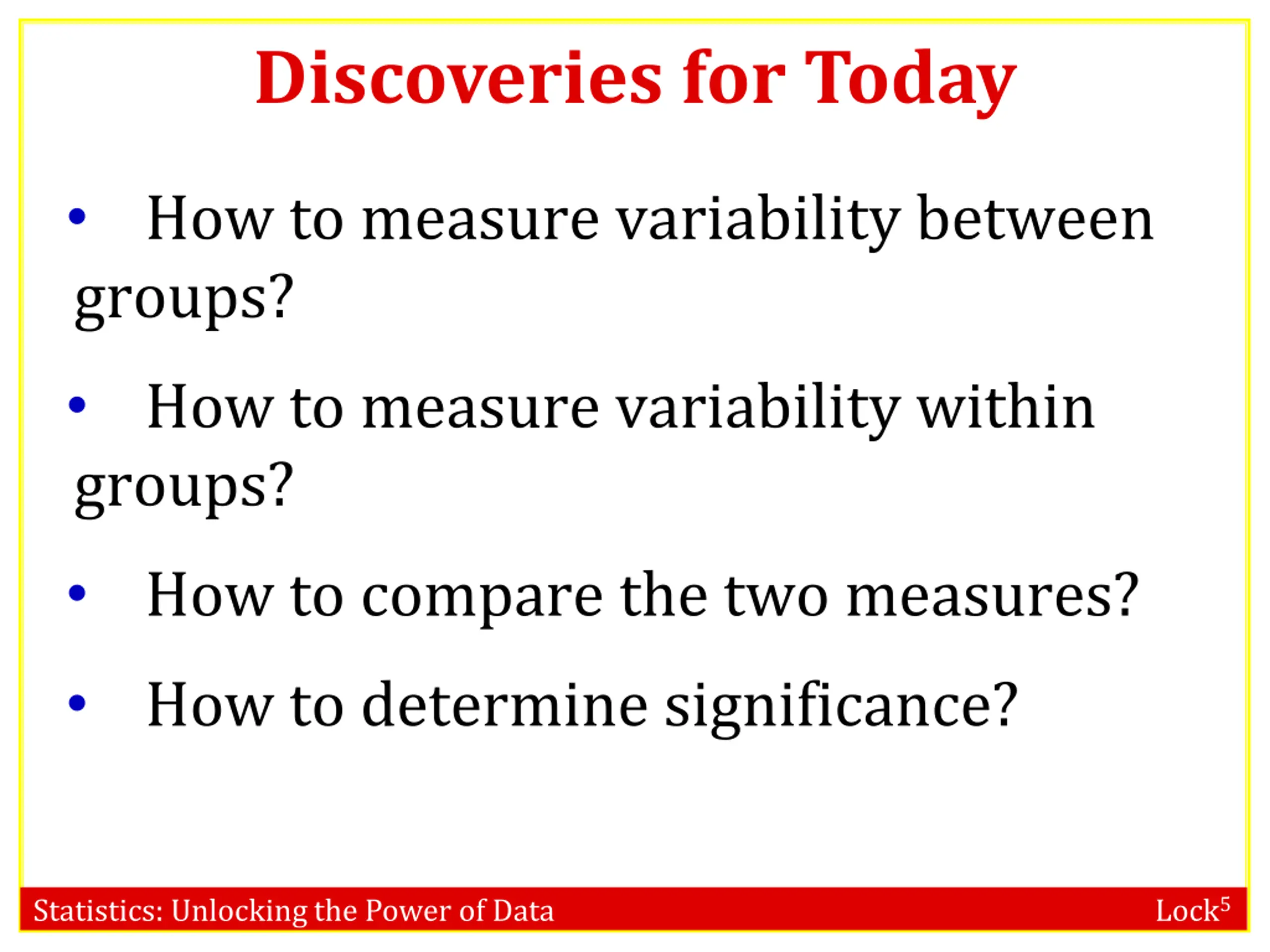

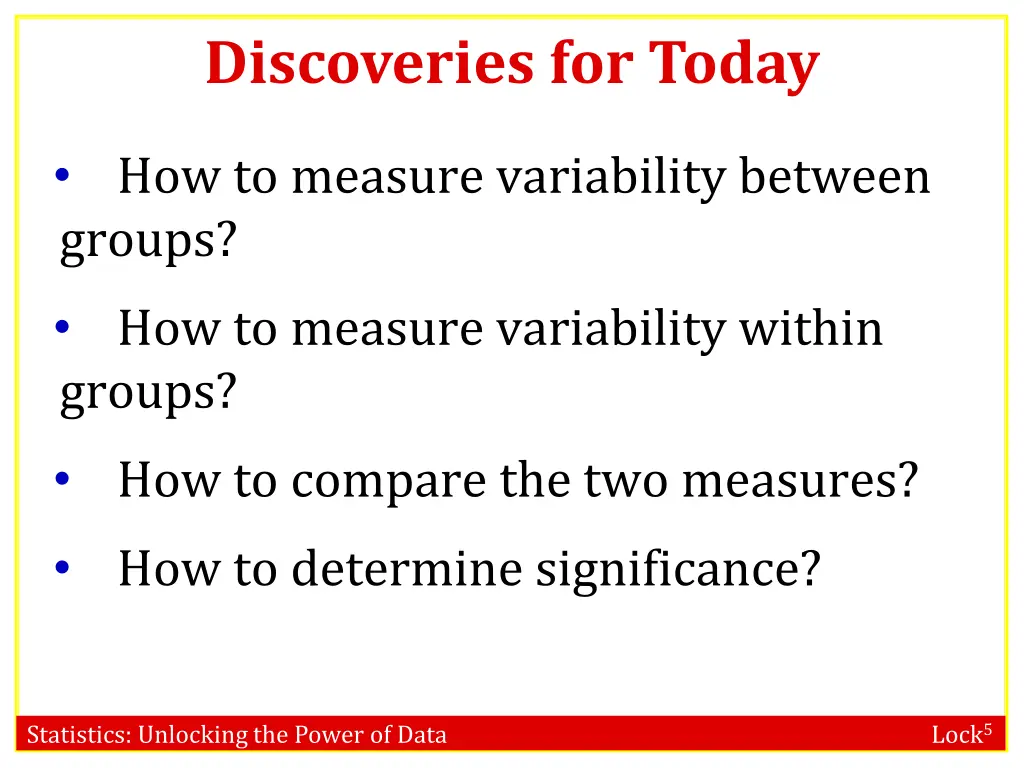

Discoveries for Today How to measure variability between groups? How to measure variability within groups? How to compare the two measures? How to determine significance? Statistics: Unlocking the Power of Data Lock5

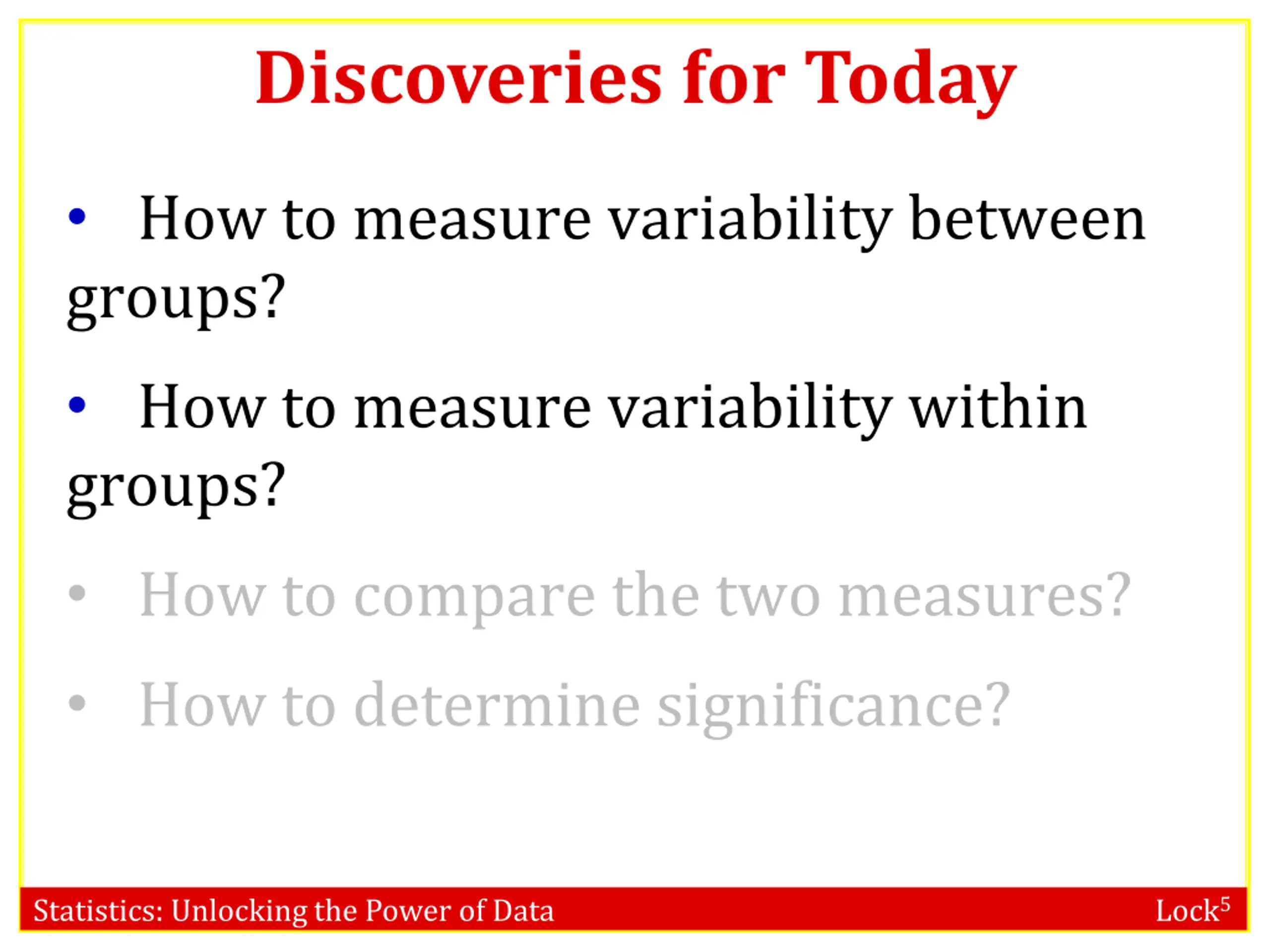

Discoveries for Today How to measure variability between groups? How to measure variability within groups? How to compare the two measures? How to determine significance? Statistics: Unlocking the Power of Data Lock5

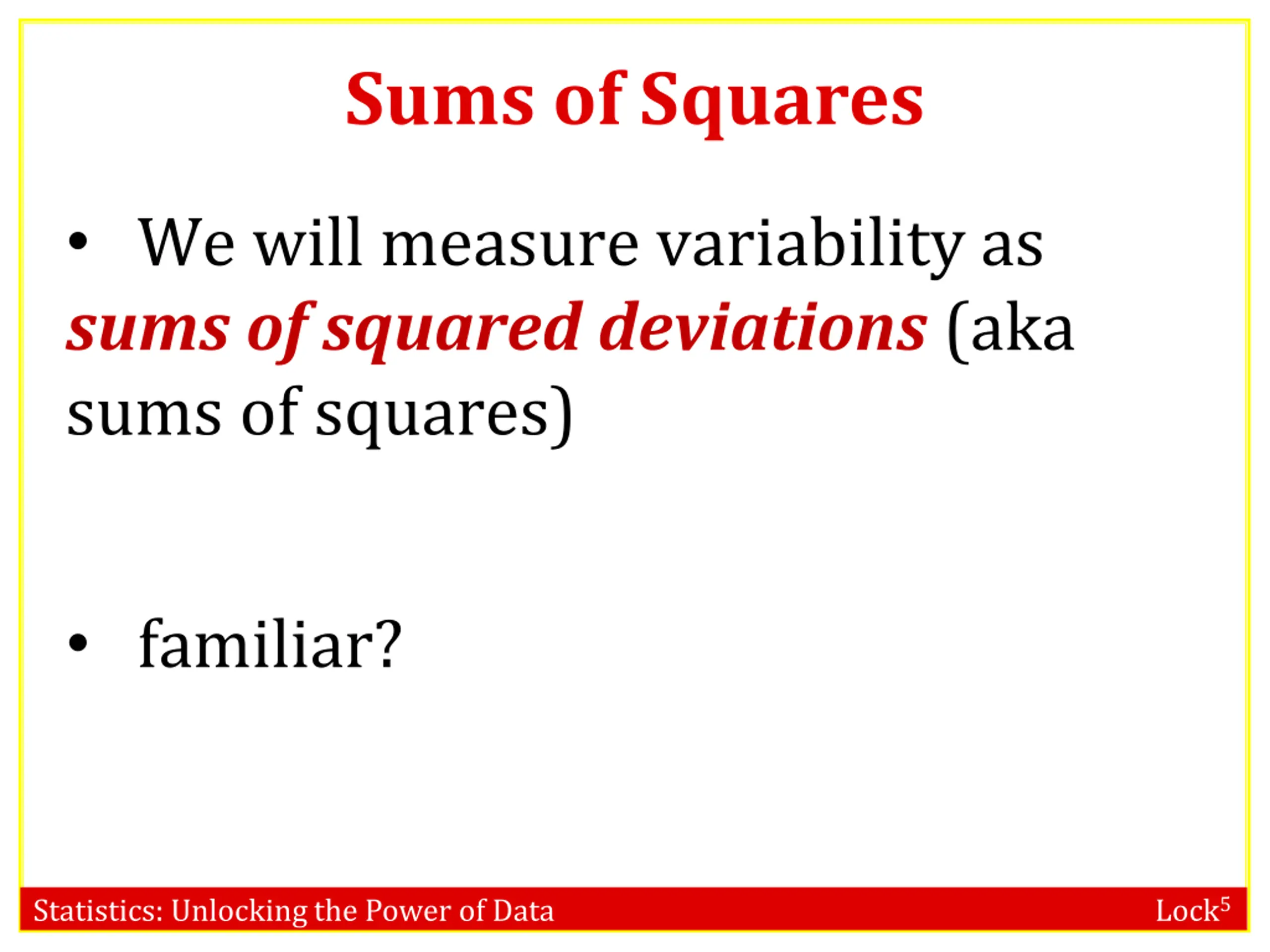

Sums of Squares We will measure variability as sums of squared deviations (aka sums of squares) familiar? Statistics: Unlocking the Power of Data Lock5

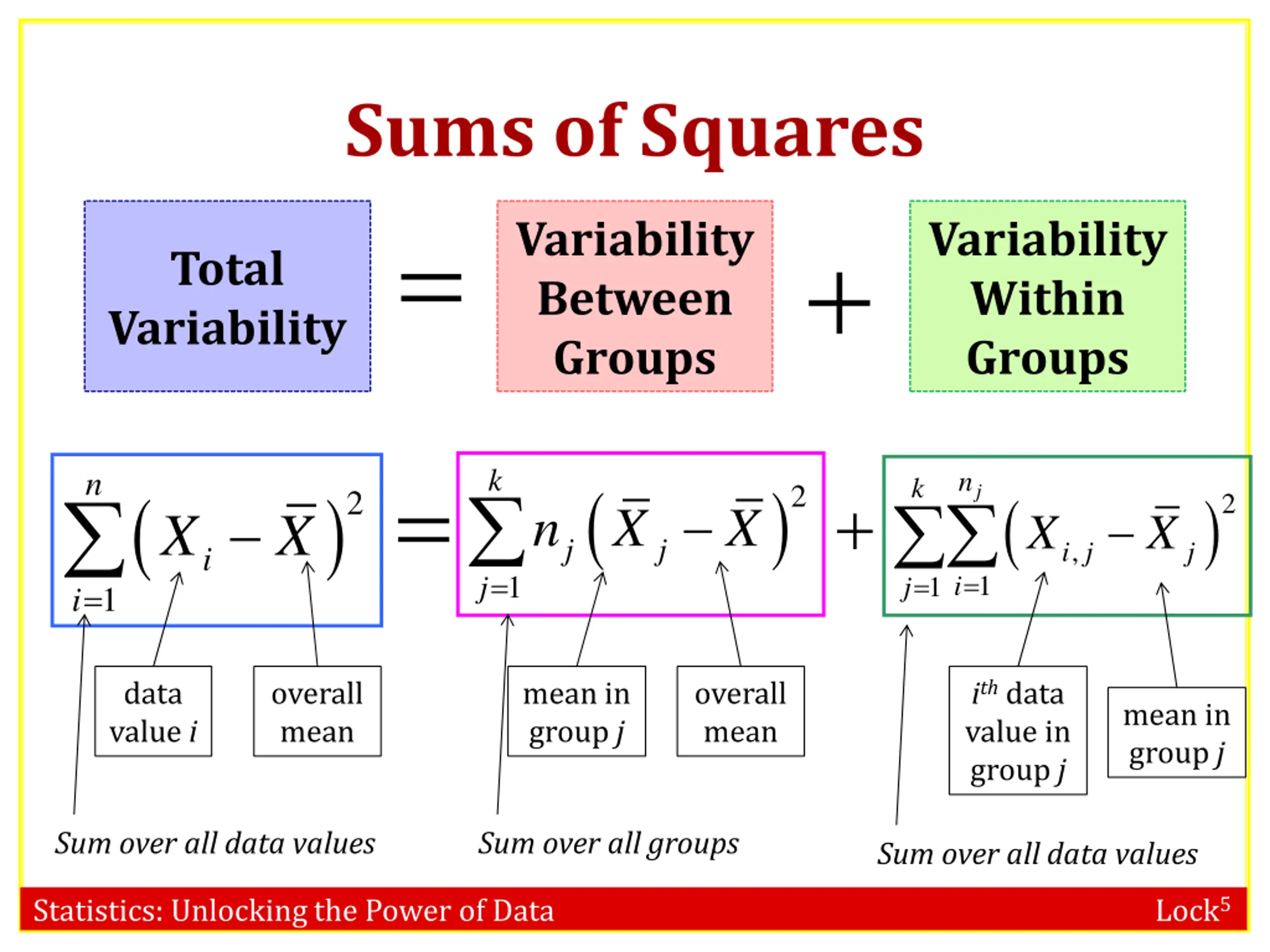

Sums of Squares = Variability Between Groups Variability Within Groups + Total Variability = k n j n ( ) ( ) k ( ) 2 + 2 2 n X X X X X X j j , i j j i = = = 1 j 1 i 1 j = 1 i data value i overall mean mean in group j overall mean ithdata value in group j mean in group j Sum over all data values Sum over all groups Sum over all data values Statistics: Unlocking the Power of Data Lock5

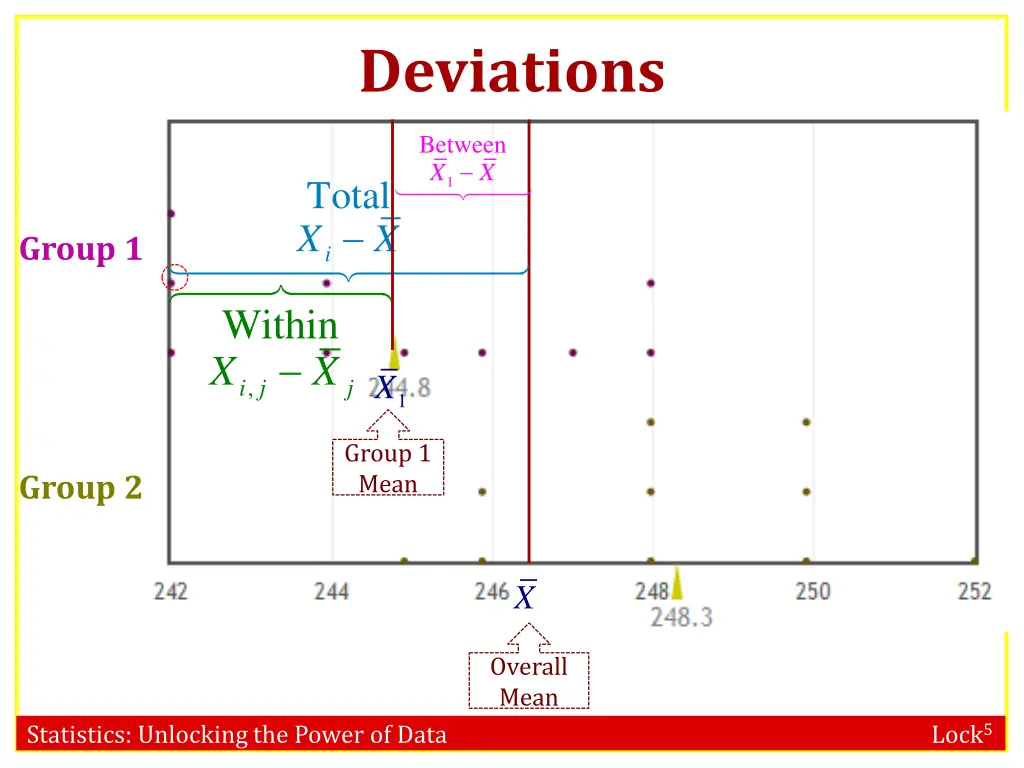

Deviations Between X X Total X 1 X Group 1 i Within X X X , i j j 1 Group 1 Mean Group 2 X Overall Mean Statistics: Unlocking the Power of Data Lock5

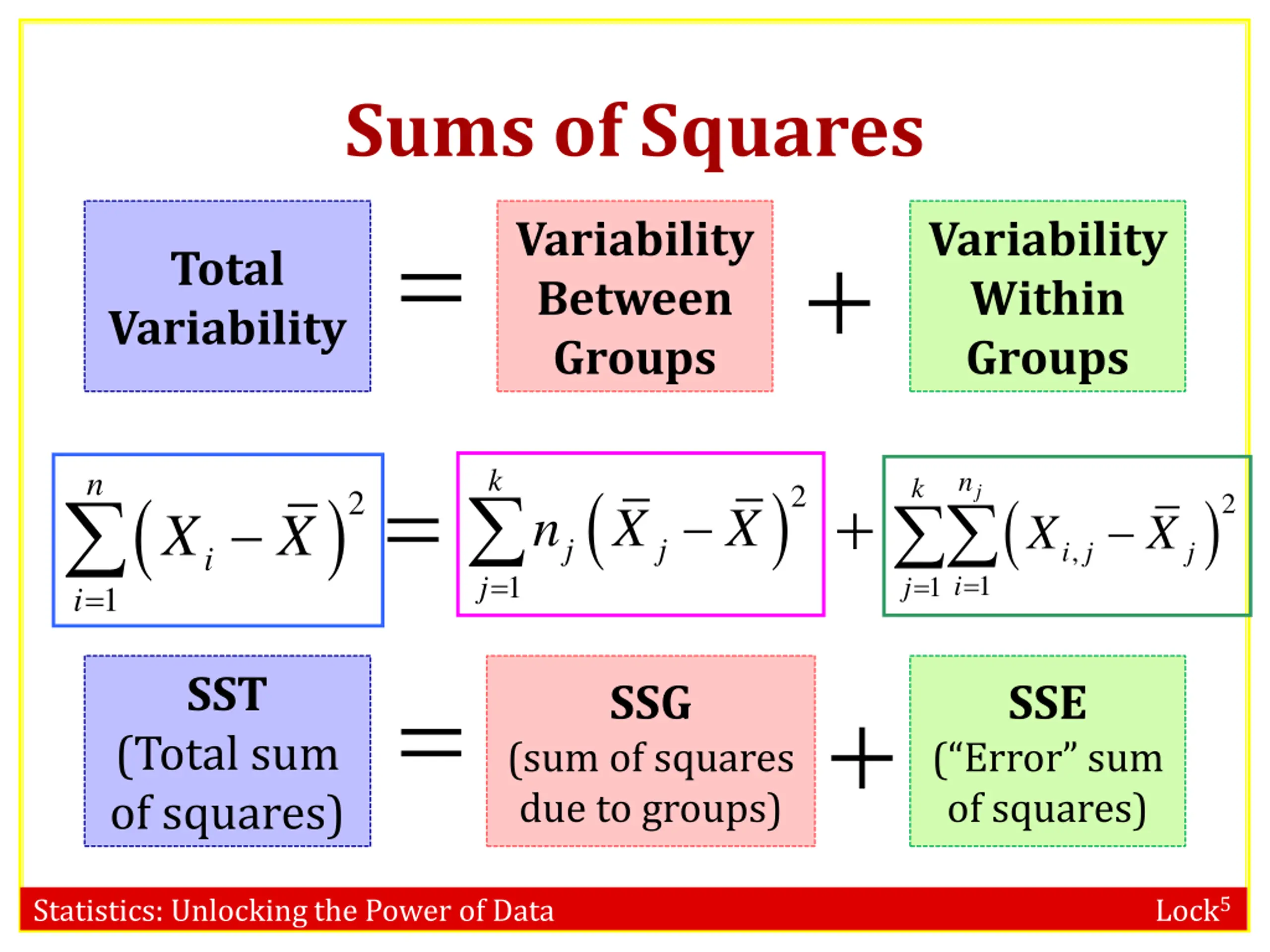

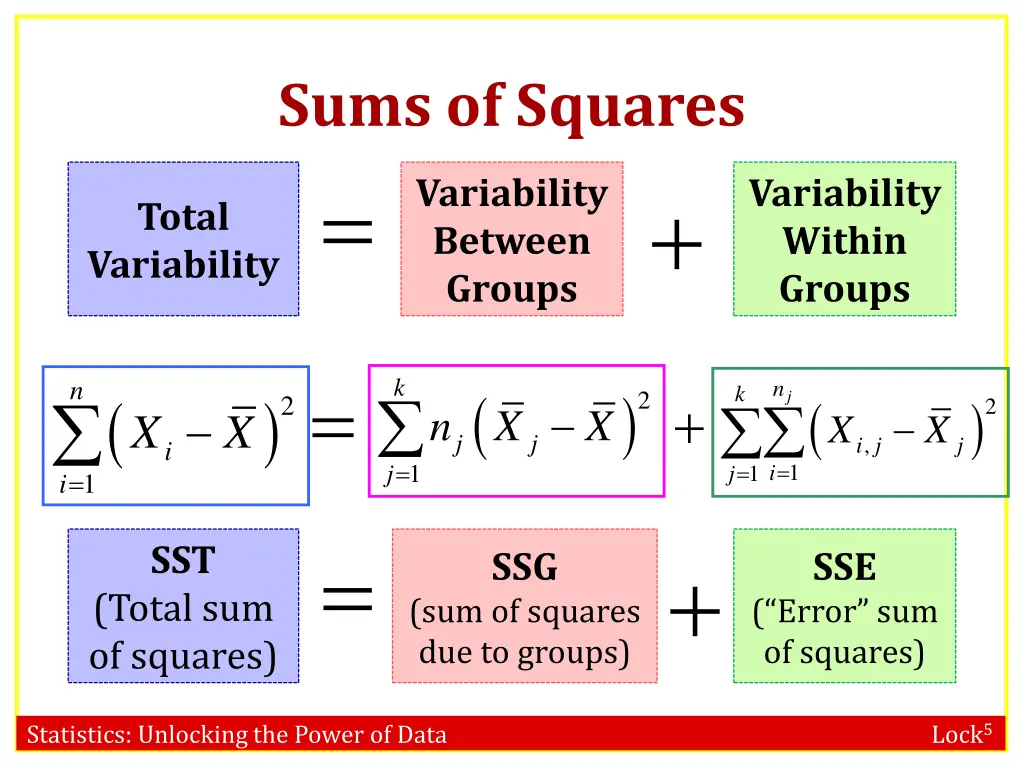

Sums of Squares = Variability Between Groups Variability Within Groups + Total Variability = k n j n ( ) ( ) k ( ) 2 + 2 2 n X X X X X X j j , i j j i = = = 1 j 1 i 1 j = 1 i = SST + SSG SSE (Total sum of squares) (sum of squares due to groups) ( Error sum of squares) Statistics: Unlocking the Power of Data Lock5

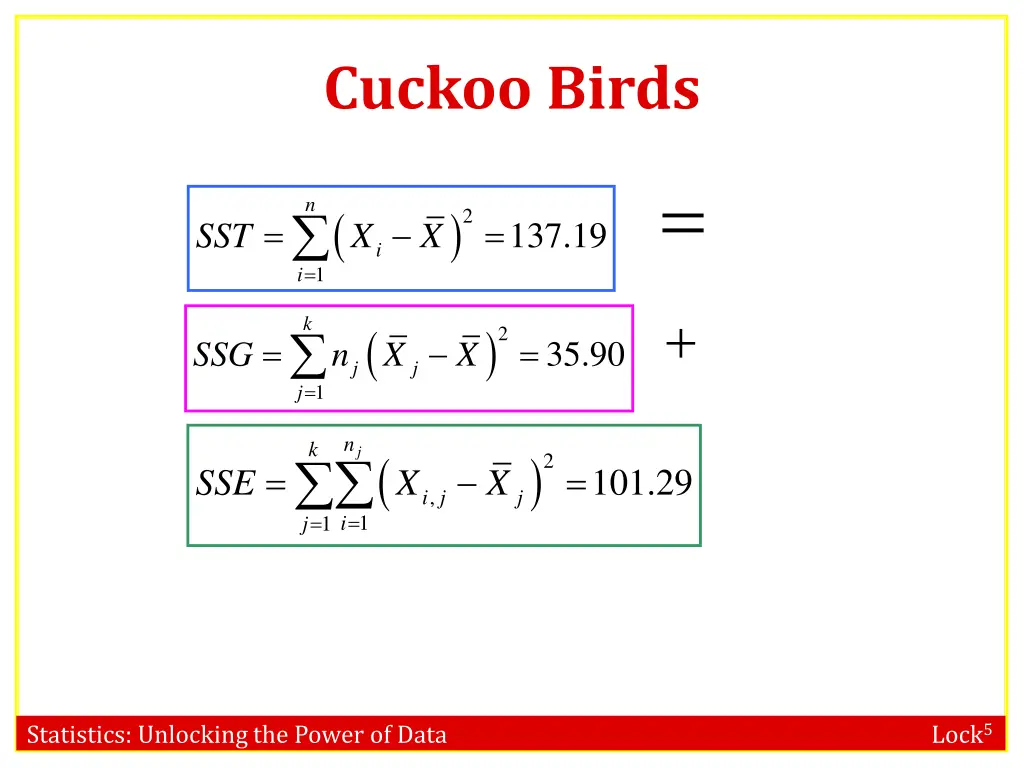

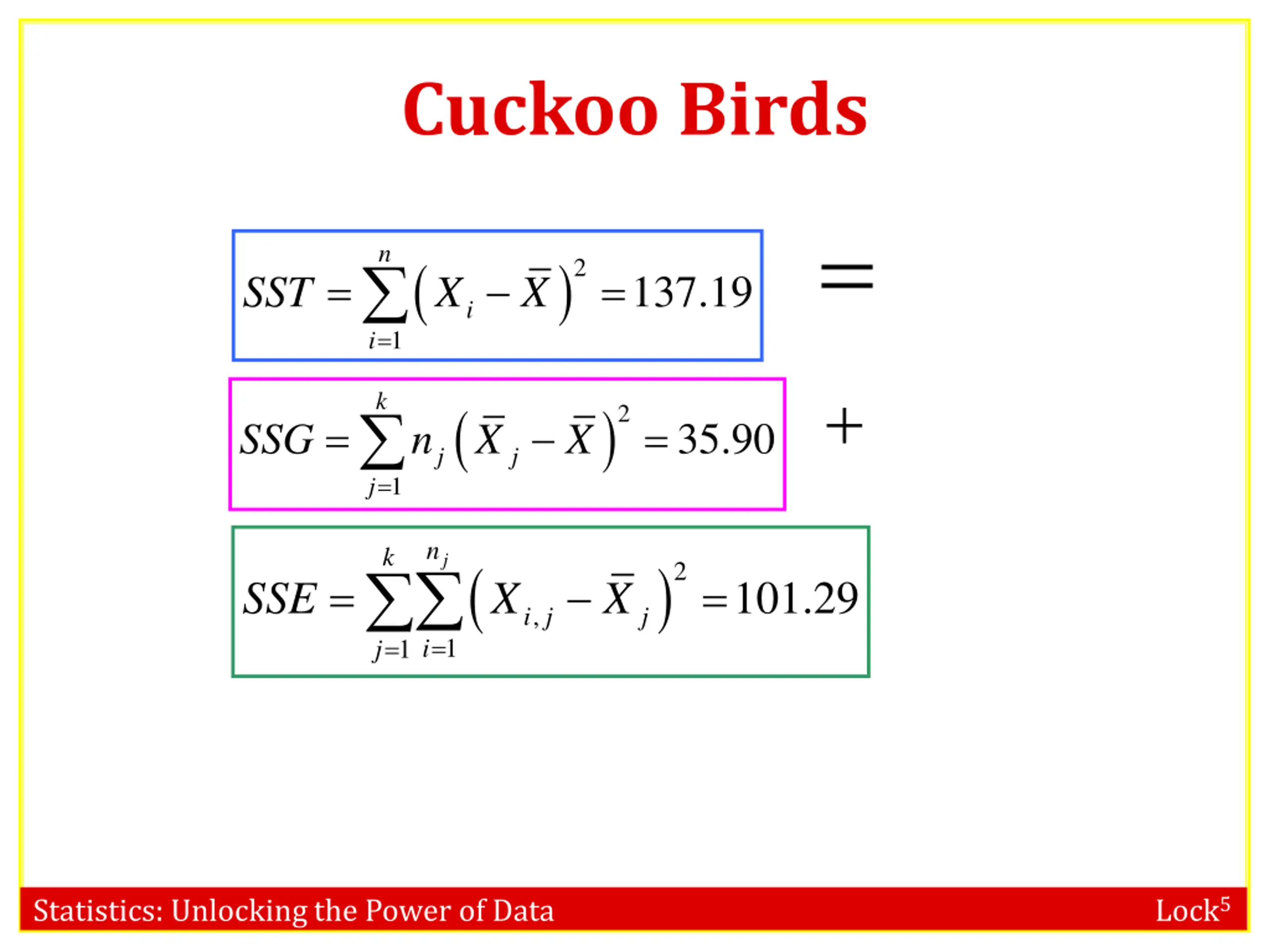

Cuckoo Birds = n ( ) 2 = = 137.19 SST X X i = 1 i + k ( ) 2 = = 35.90 SSG n X X j j = 1 j j n k ( ) = 2 = 101.29 SSE X X , i j j = = 1 i 1 j Statistics: Unlocking the Power of Data Lock5

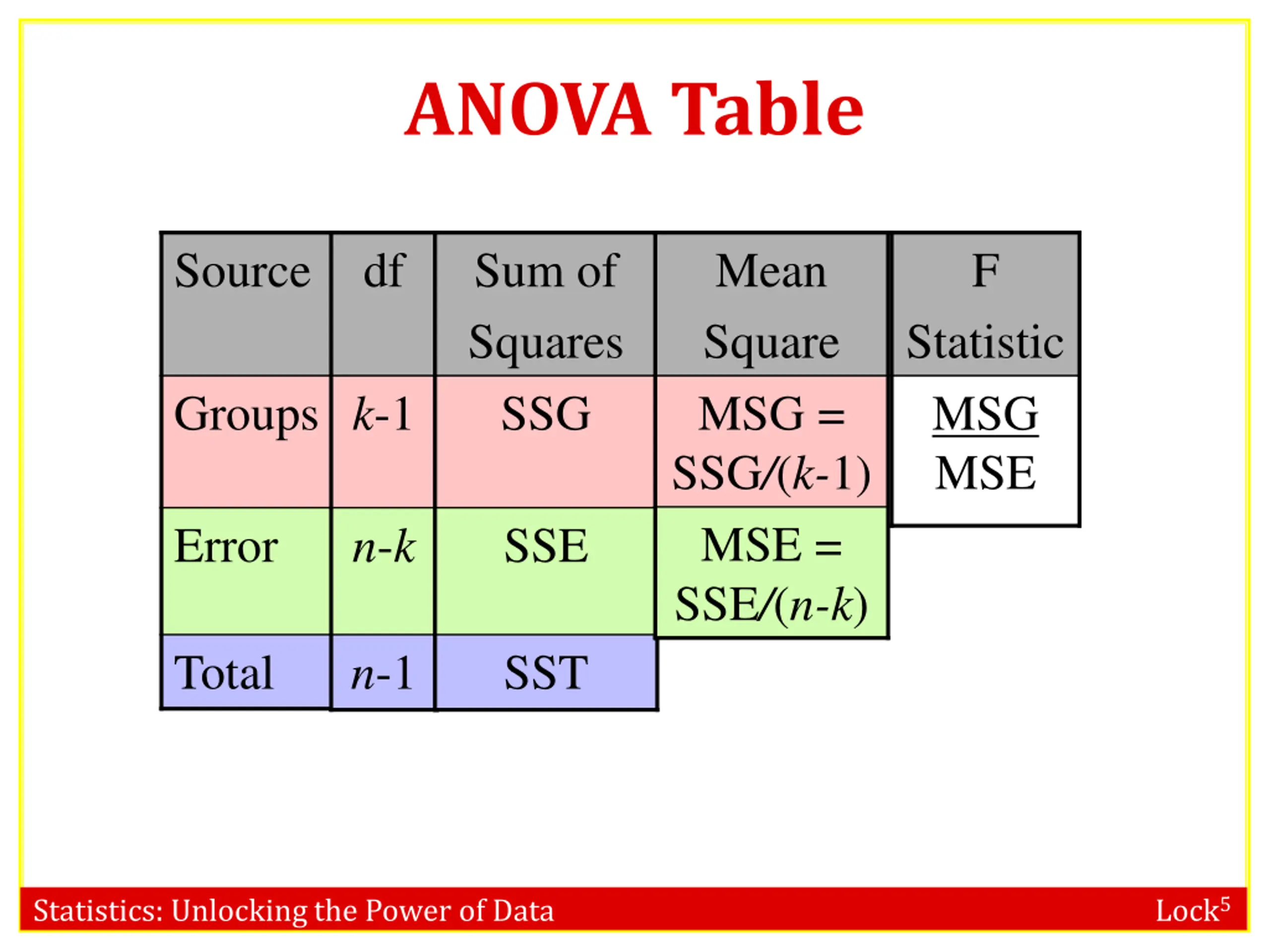

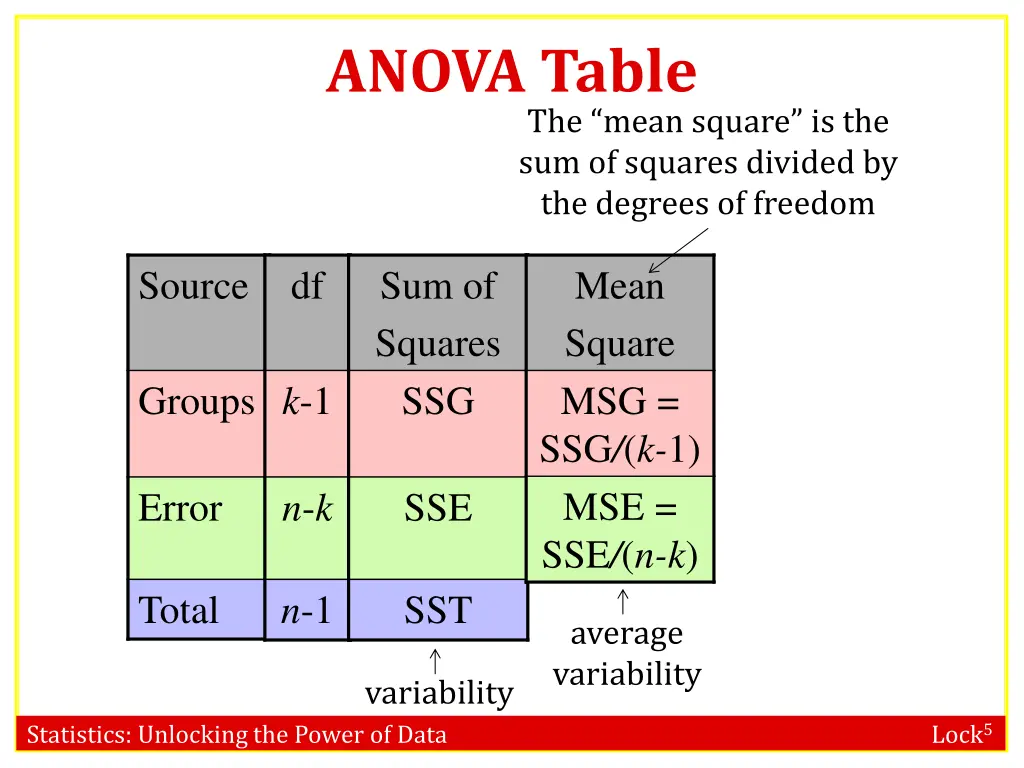

ANOVA Table The mean square is the sum of squares divided by the degrees of freedom Source df Sum of Squares SSG Mean Square MSG = SSG/(k-1) MSE = SSE/(n-k) Groups k-1 Error n-k SSE Total n-1 SST average variability variability Statistics: Unlocking the Power of Data Lock5

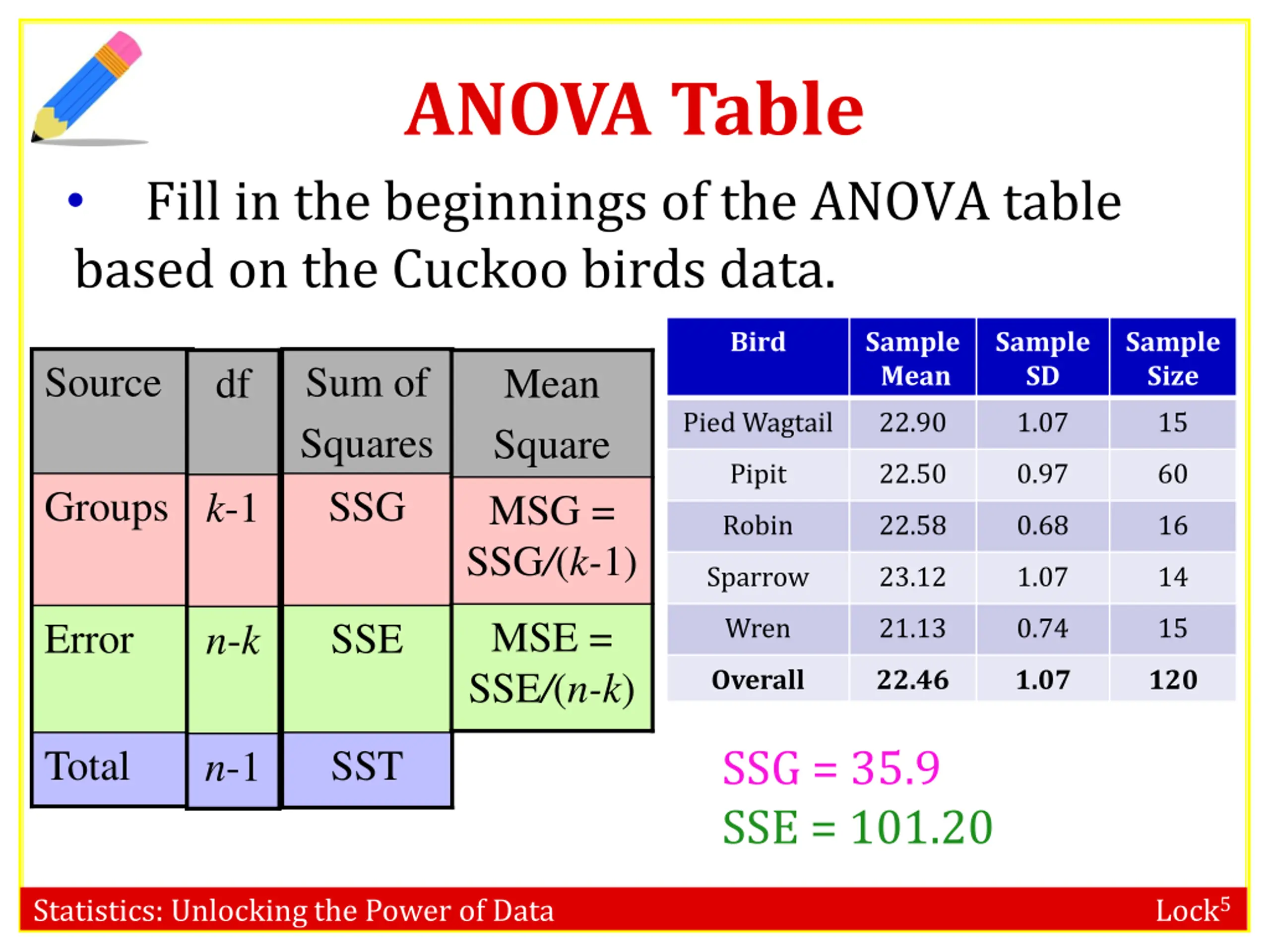

ANOVA Table Fill in the beginnings of the ANOVA table based on the Cuckoo birds data. Bird Sample Mean 22.90 Sample SD 1.07 Sample Size 15 Source Sum of Squares SSG df Mean Square MSG = SSG/(k-1) Pied Wagtail Pipit 22.50 0.97 60 Groups k-1 Robin 22.58 0.68 16 Sparrow 23.12 1.07 14 Wren 21.13 0.74 15 MSE = SSE/(n-k) Error SSE n-k Overall 22.46 1.07 120 SSG = 35.9 SSE = 101.20 Total SST n-1 Statistics: Unlocking the Power of Data Lock5

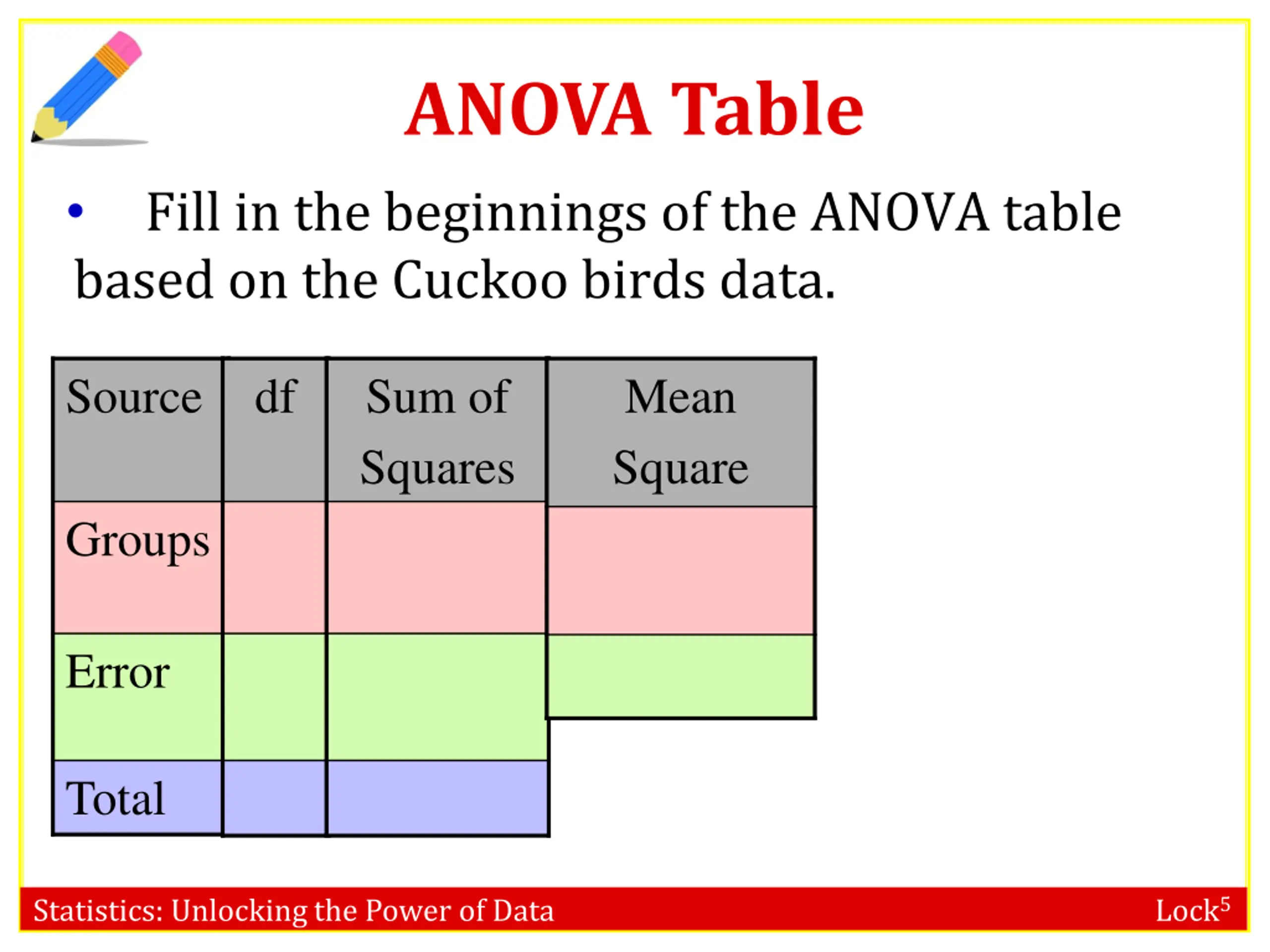

ANOVA Table Fill in the beginnings of the ANOVA table based on the Cuckoo birds data. Source df Sum of Squares Mean Square Groups Error Total Statistics: Unlocking the Power of Data Lock5

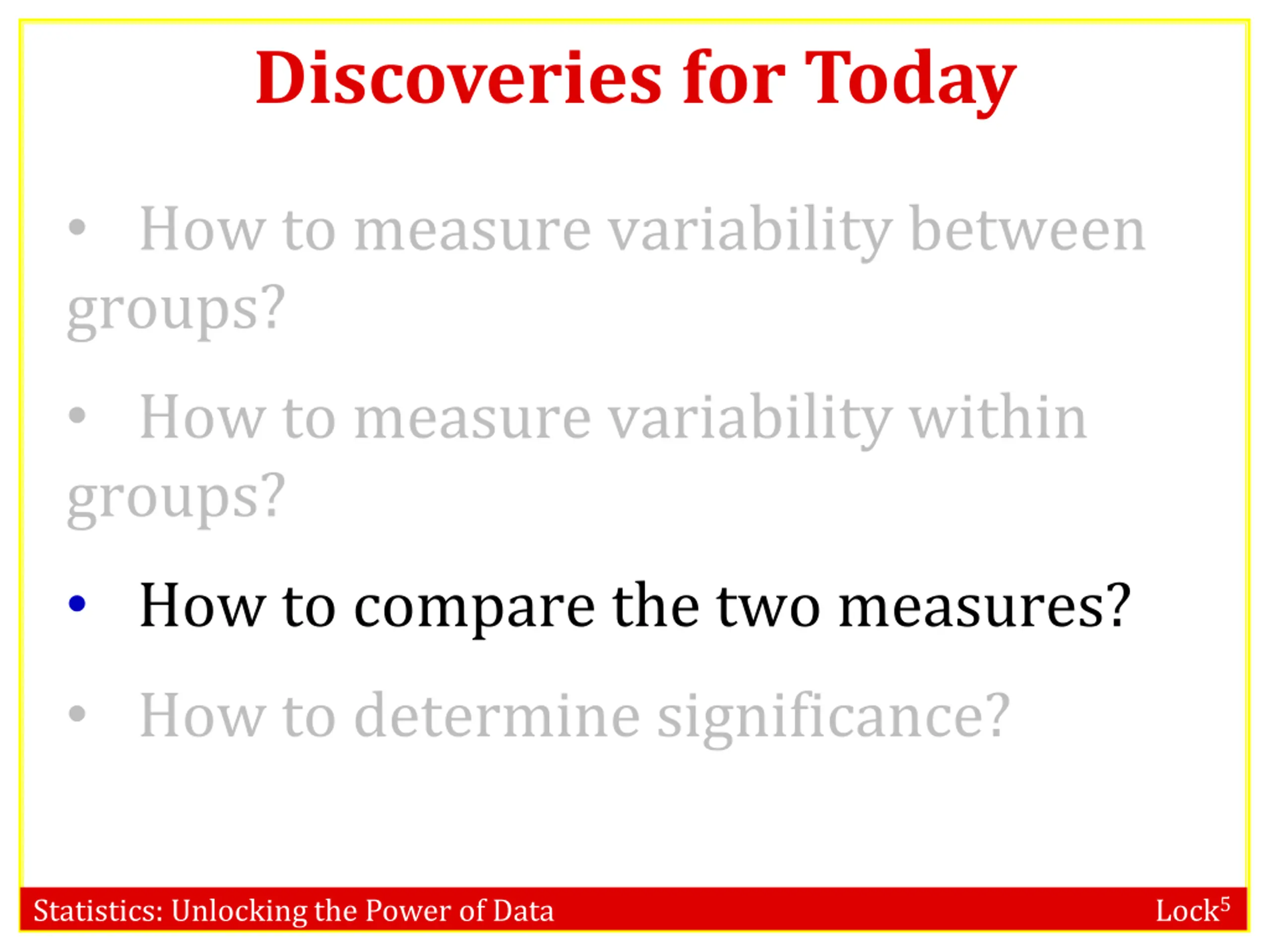

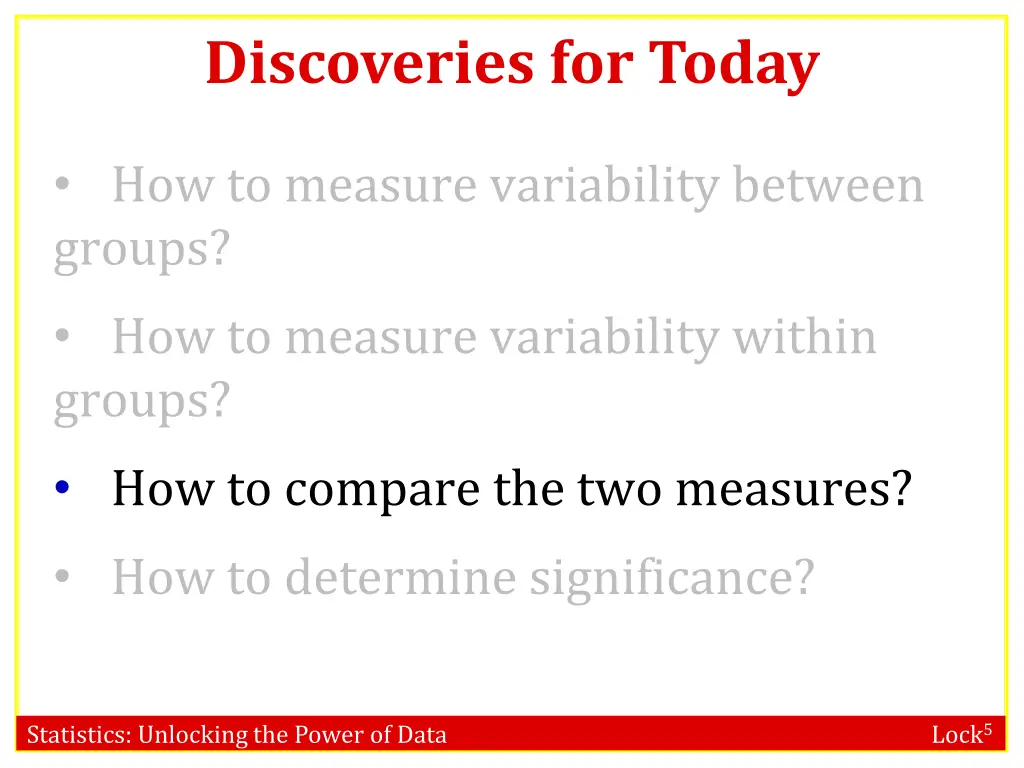

Discoveries for Today How to measure variability between groups? How to measure variability within groups? How to compare the two measures? How to determine significance? Statistics: Unlocking the Power of Data Lock5

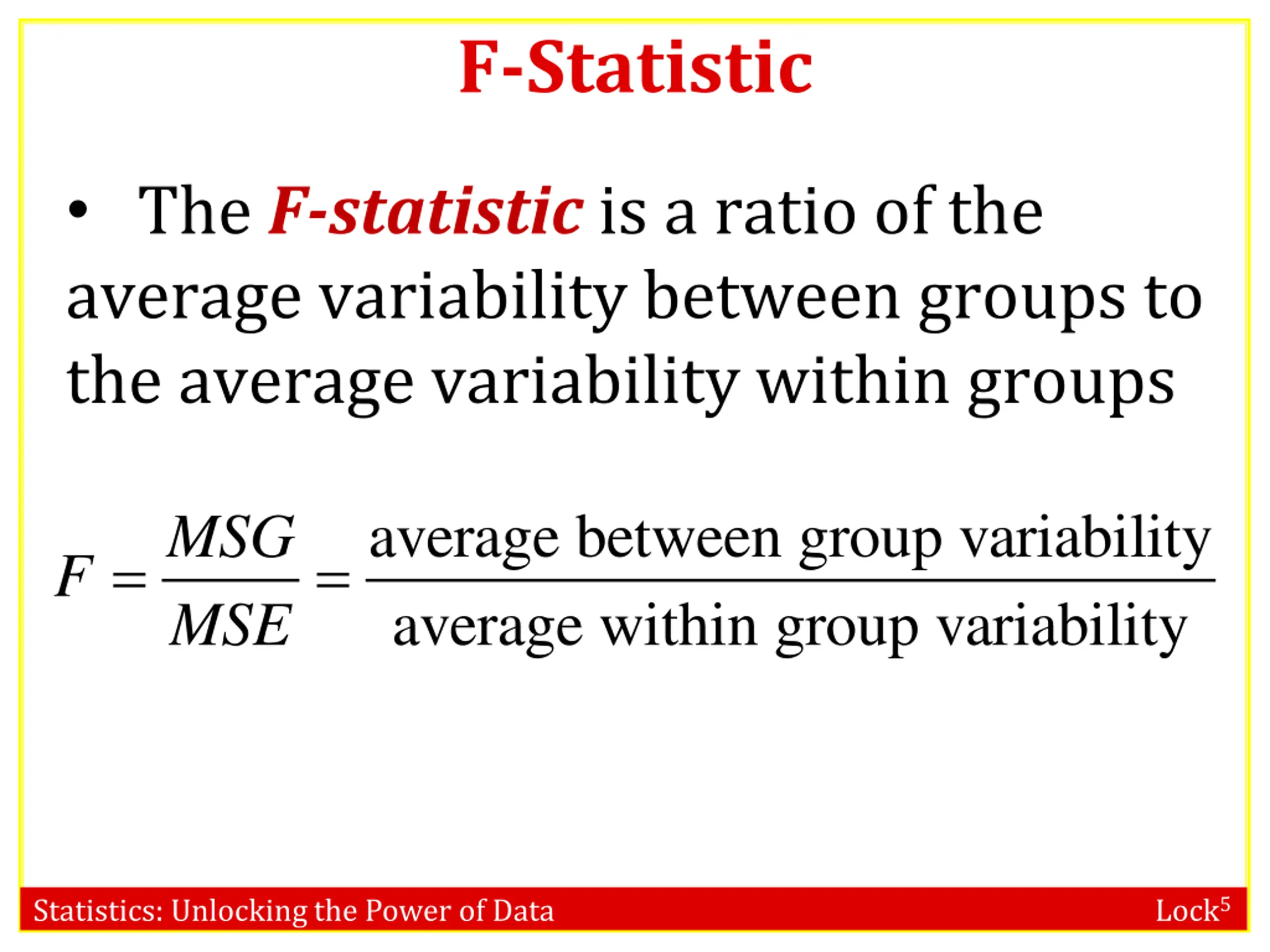

F-Statistic The F-statistic is a ratio of the average variability between groups to the average variability within groups average between group variability average within group variability MSG MSE = = F Statistics: Unlocking the Power of Data Lock5

ANOVA Table Source df Sum of Squares SSG Mean Square MSG = SSG/(k-1) MSE = SSE/(n-k) F Statistic MSG MSE Groups k-1 Error n-k SSE Total n-1 SST Statistics: Unlocking the Power of Data Lock5

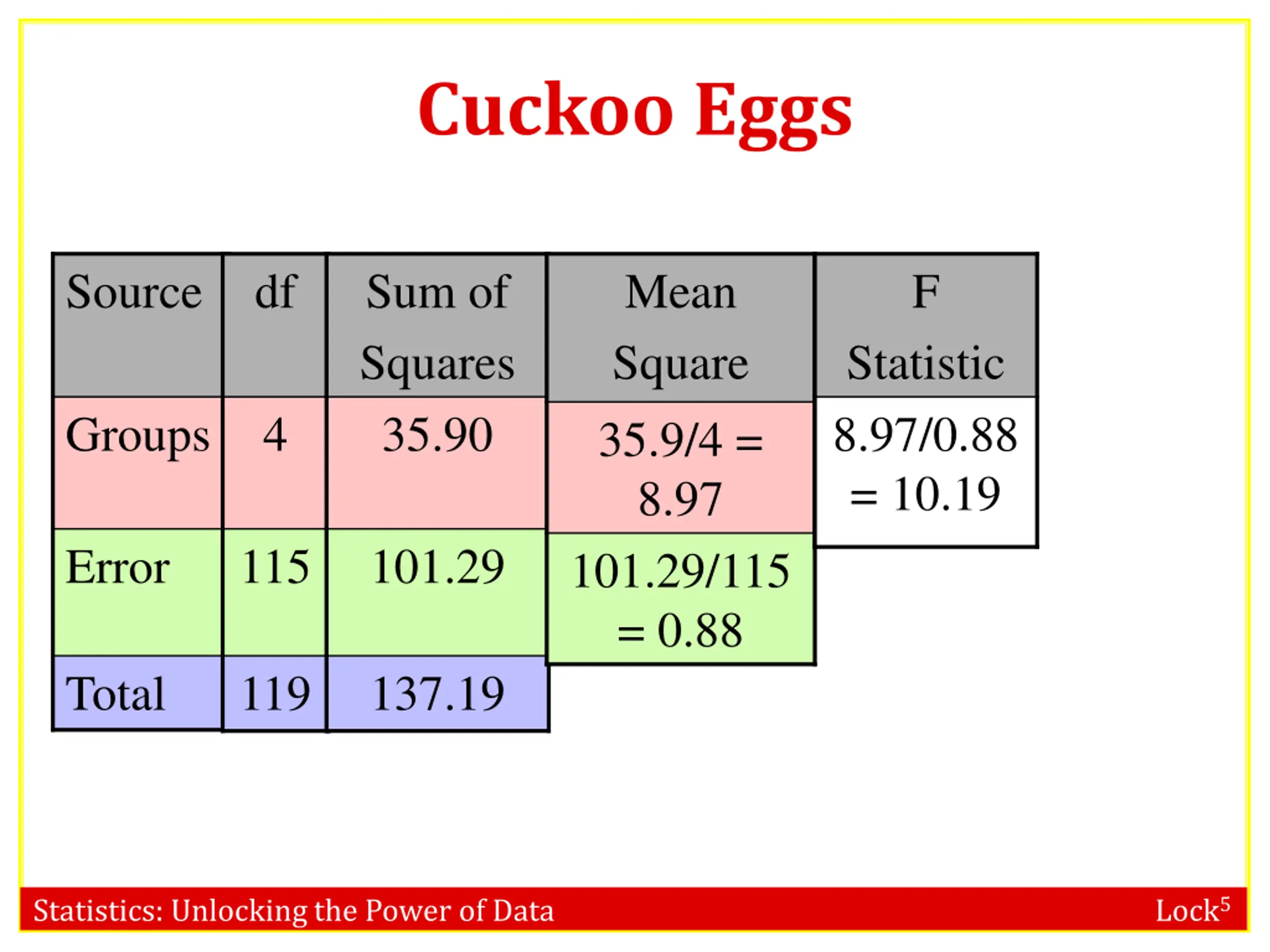

Cuckoo Eggs Source df Sum of Squares 35.90 Mean Square 35.9/4 = 8.97 101.29/115 = 0.88 F Statistic 8.97/0.88 = 10.19 Groups 4 Error 115 101.29 Total 119 137.19 Statistics: Unlocking the Power of Data Lock5

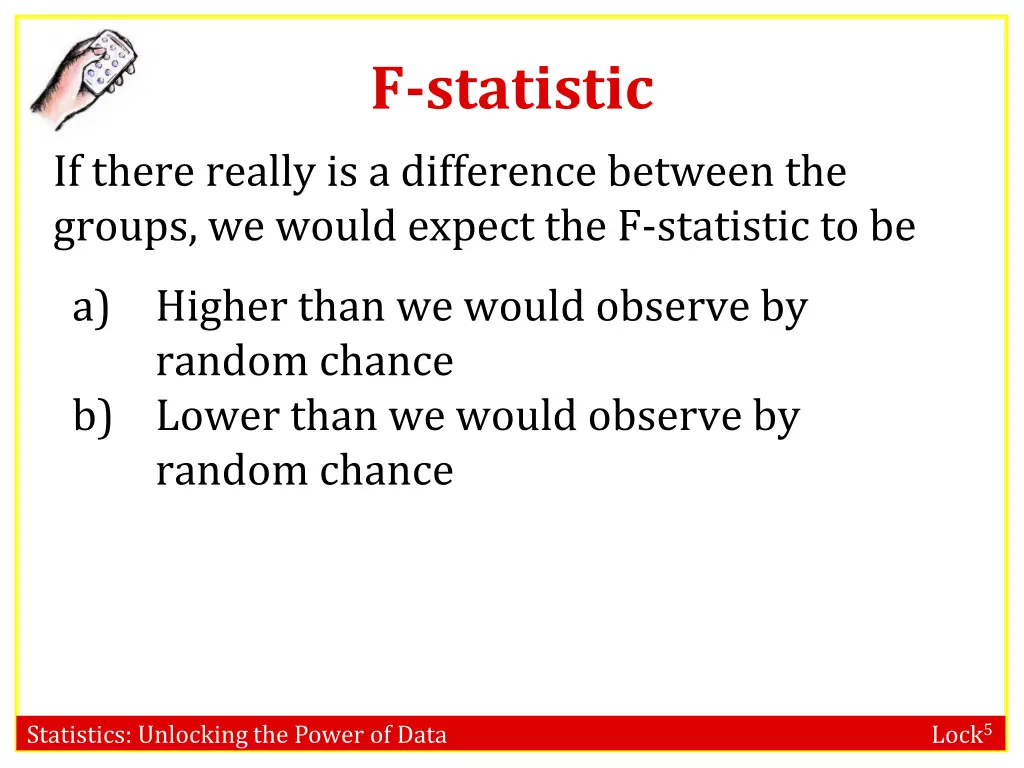

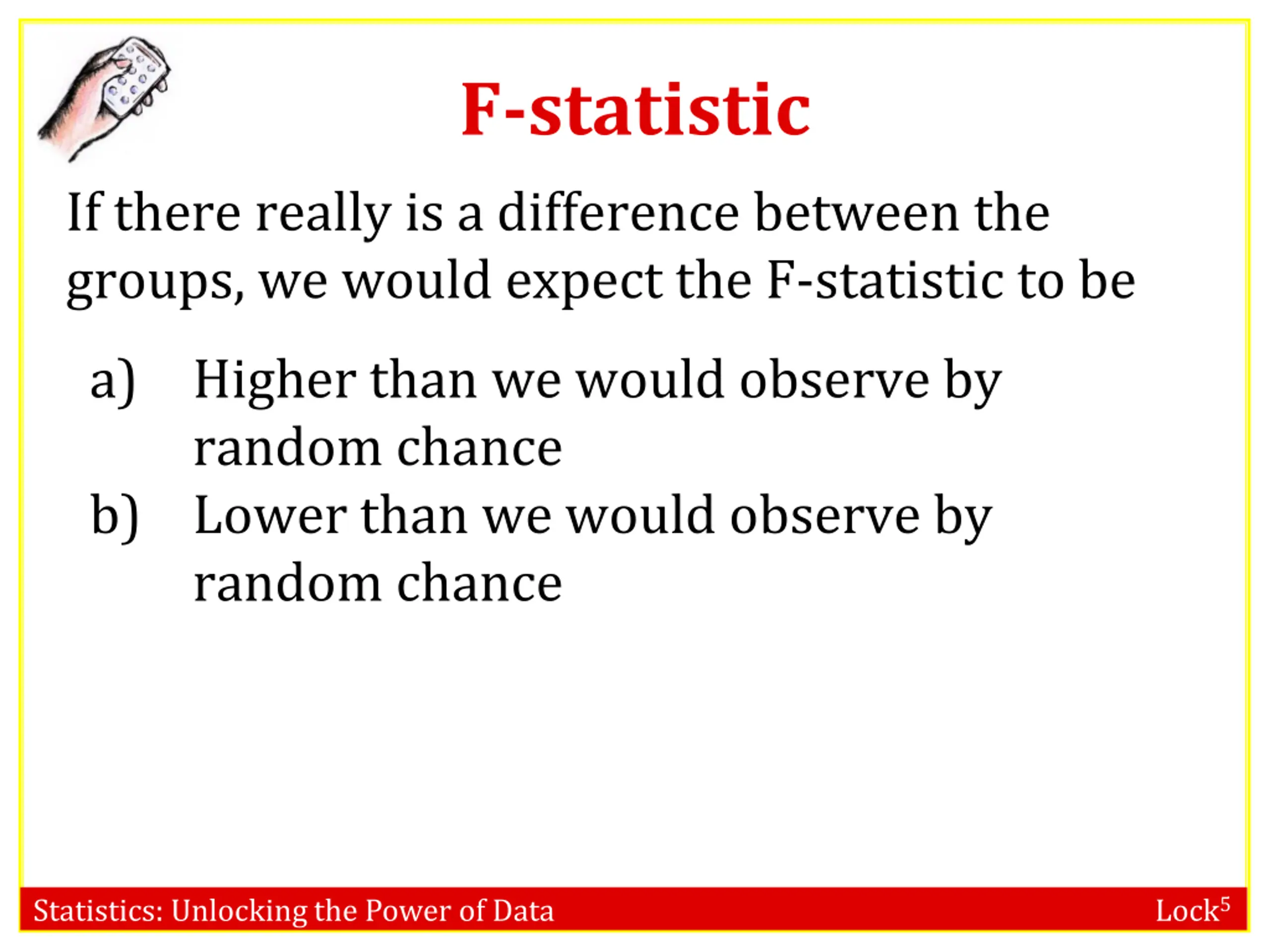

F-statistic If there really is a difference between the groups, we would expect the F-statistic to be a) Higher than we would observe by random chance b) Lower than we would observe by random chance Statistics: Unlocking the Power of Data Lock5

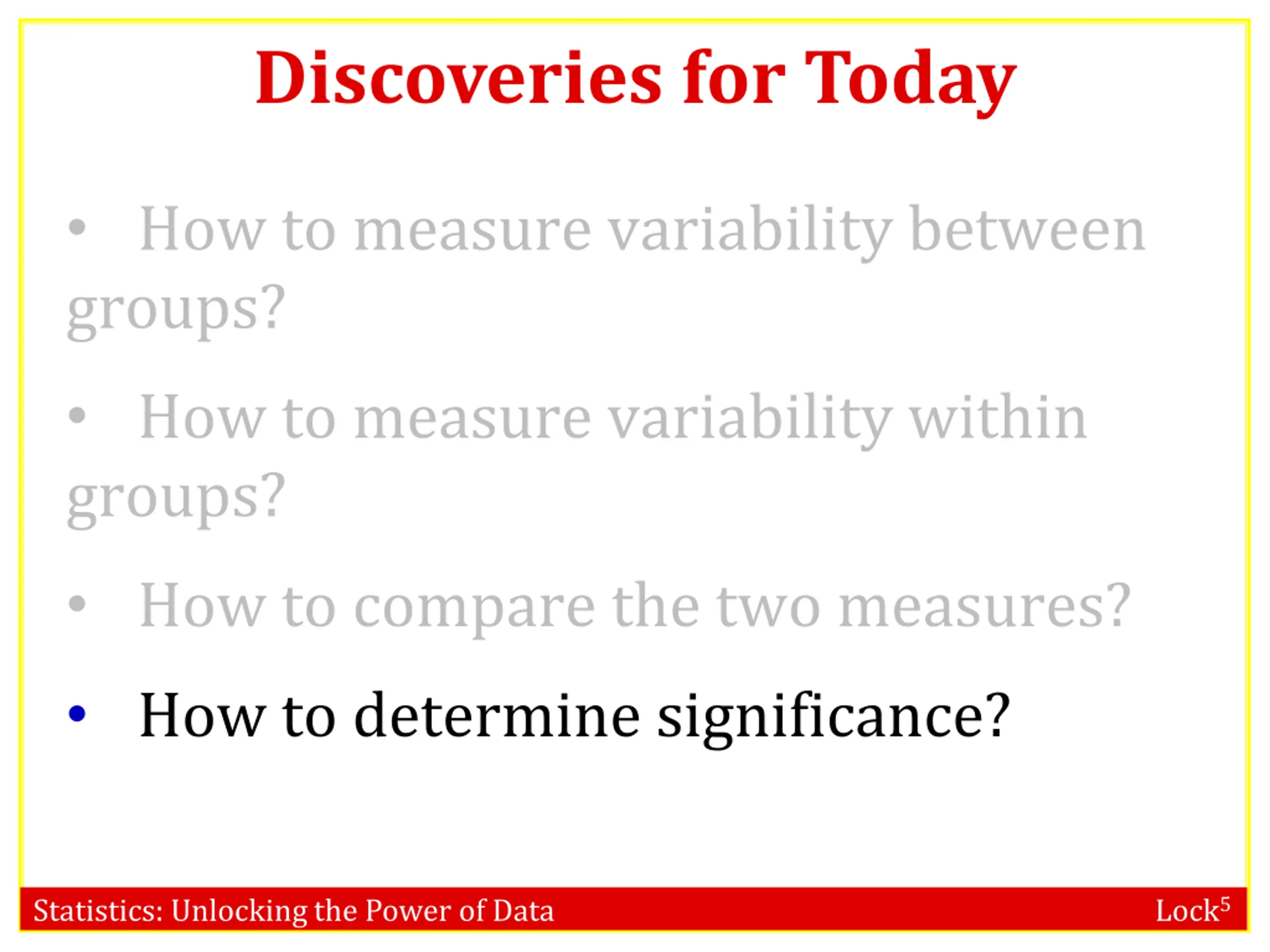

Discoveries for Today How to measure variability between groups? How to measure variability within groups? How to compare the two measures? How to determine significance? Statistics: Unlocking the Power of Data Lock5

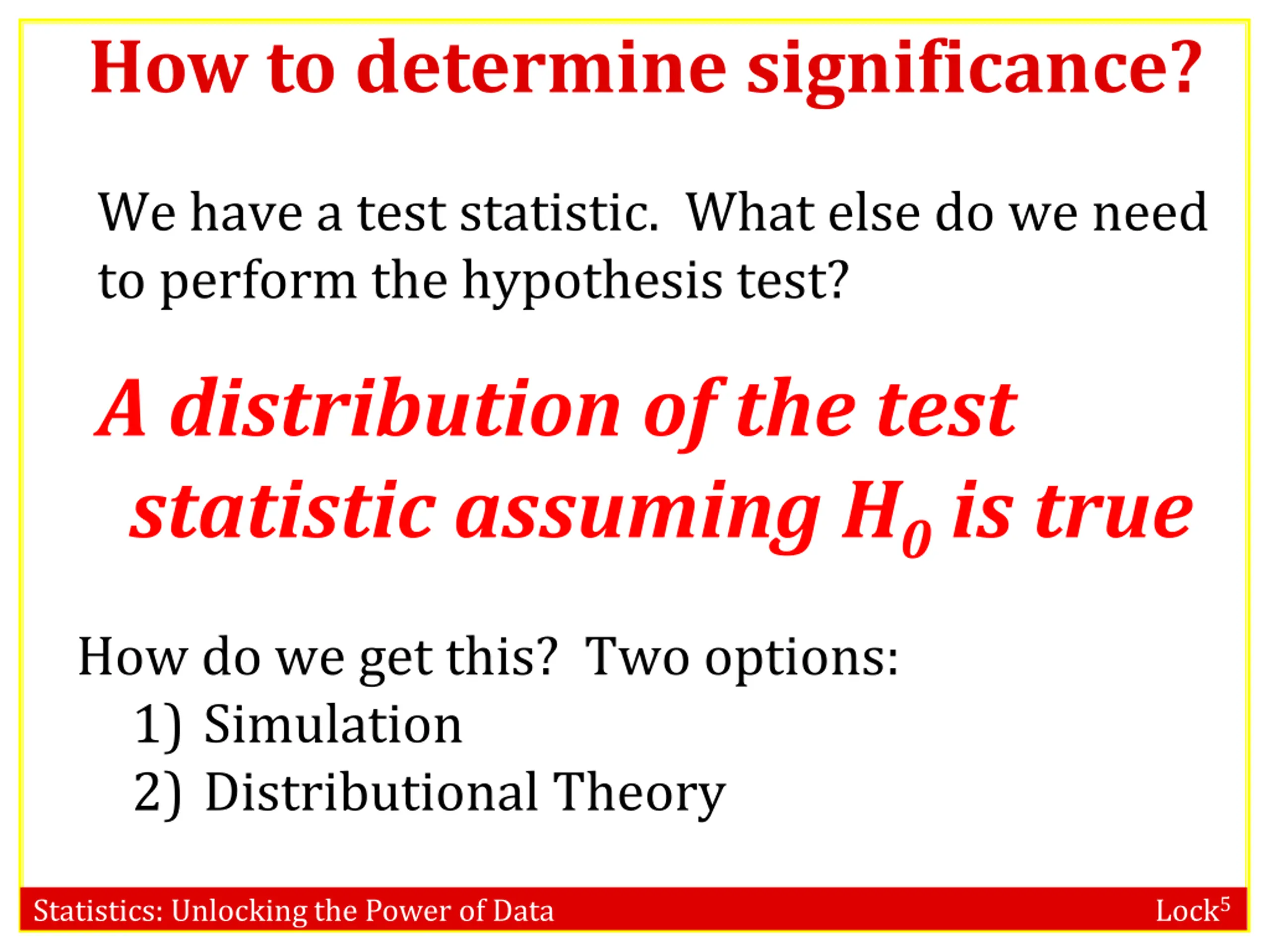

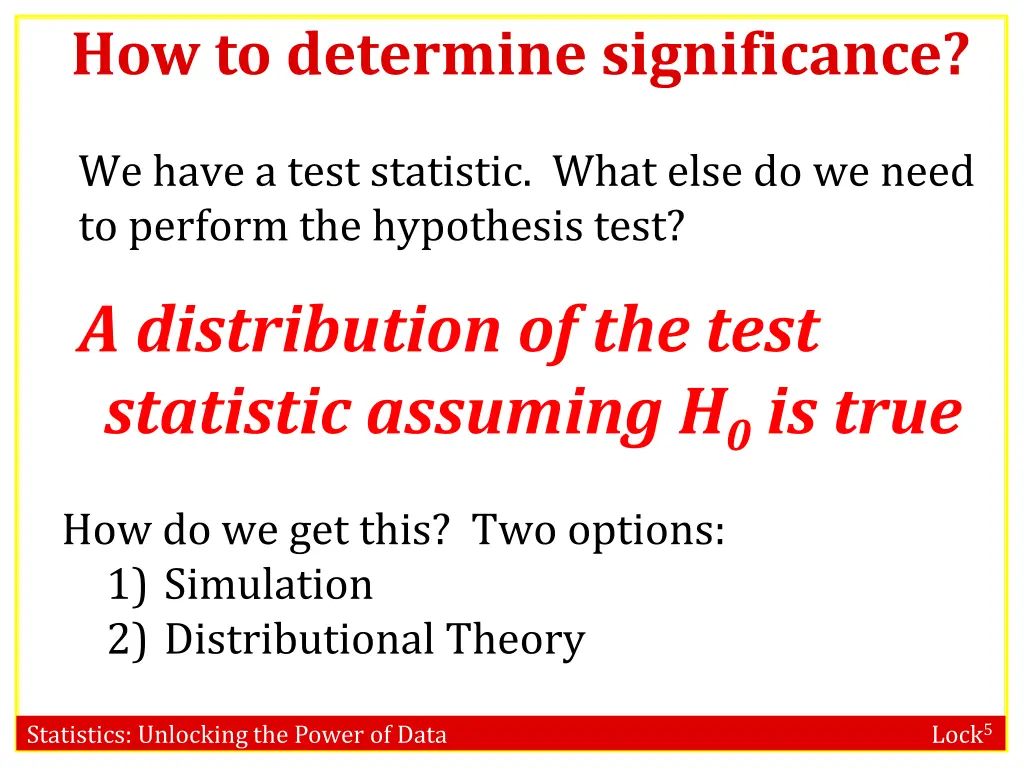

How to determine significance? We have a test statistic. What else do we need to perform the hypothesis test? A distribution of the test statistic assuming H0 is true How do we get this? Two options: 1) Simulation 2) Distributional Theory Statistics: Unlocking the Power of Data Lock5

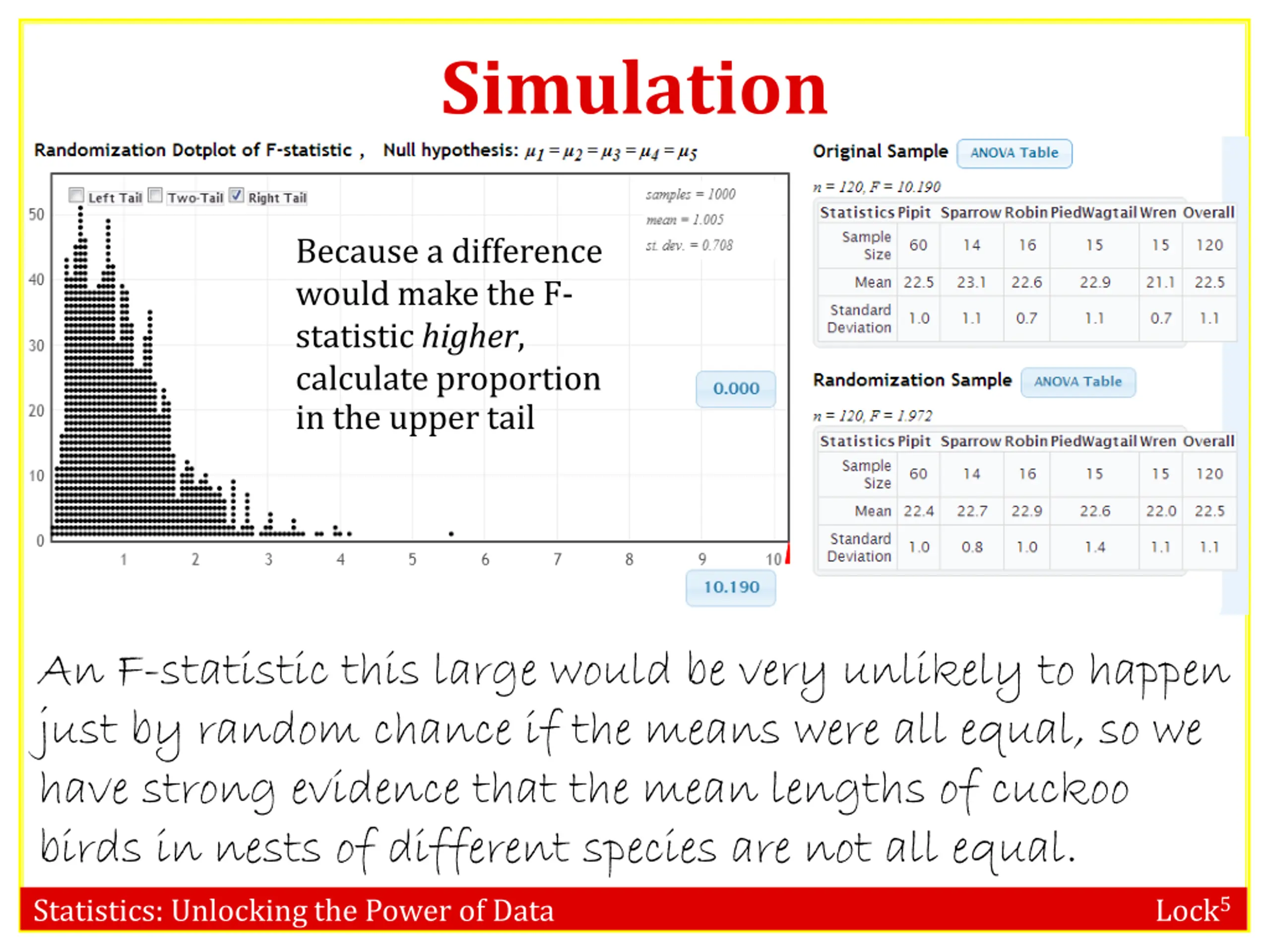

Simulation www.lock5stat.com/statkey Because a difference would make the F- statistic higher, calculate proportion in the upper tail An F-statistic this large would be very unlikely to happen just by random chance if the means were all equal, so we have strong evidence that the mean lengths of cuckoo birds in nests of different species are not all equal. Statistics: Unlocking the Power of Data Lock5

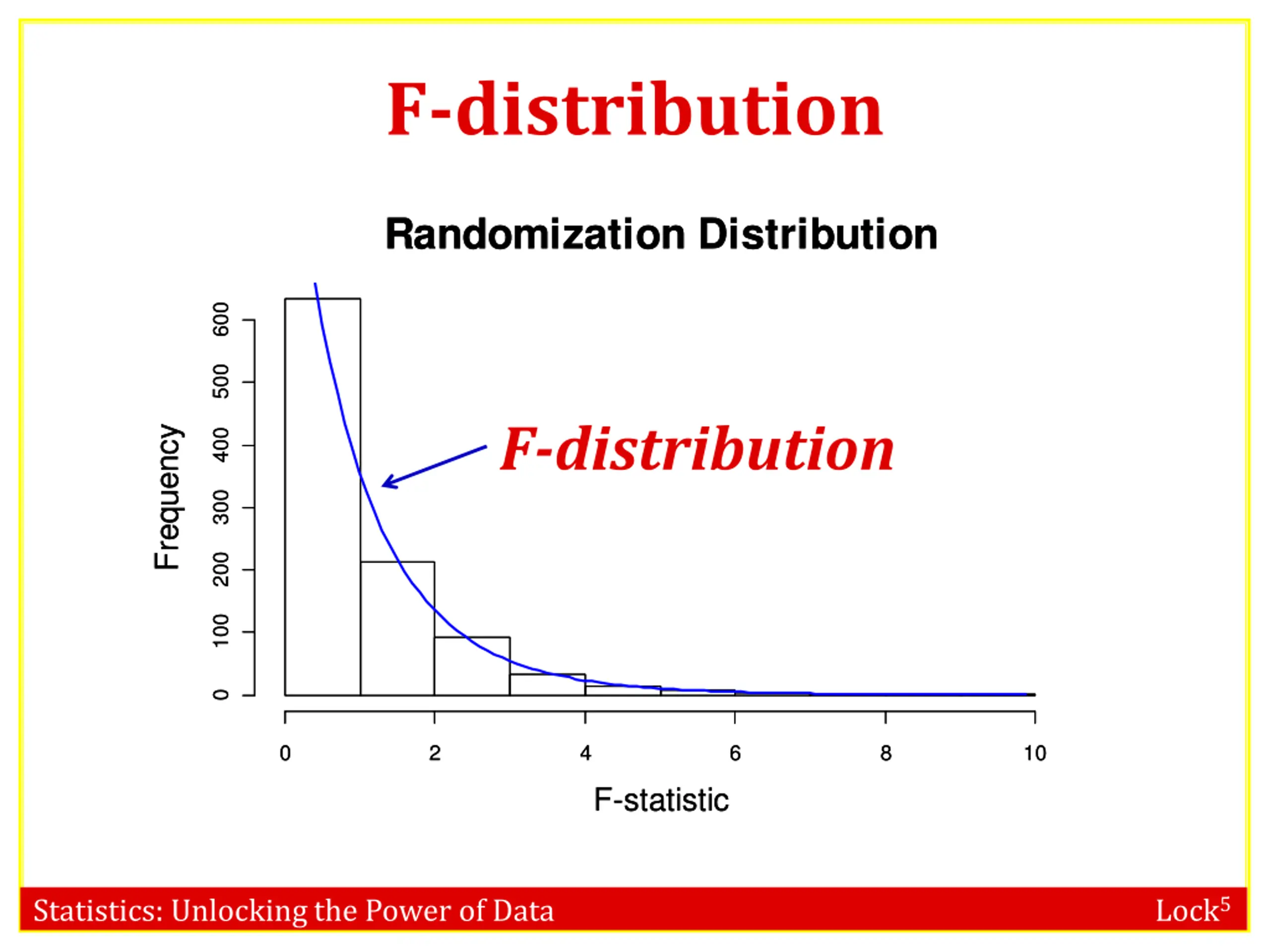

F-distribution Randomization Distribution Randomization Distribution 600 600 500 500 F-distribution Frequency Frequency 400 400 300 300 200 200 100 100 0 0 0 0 2 2 4 4 6 6 8 8 10 10 F-statistic F-statistic Statistics: Unlocking the Power of Data Lock5

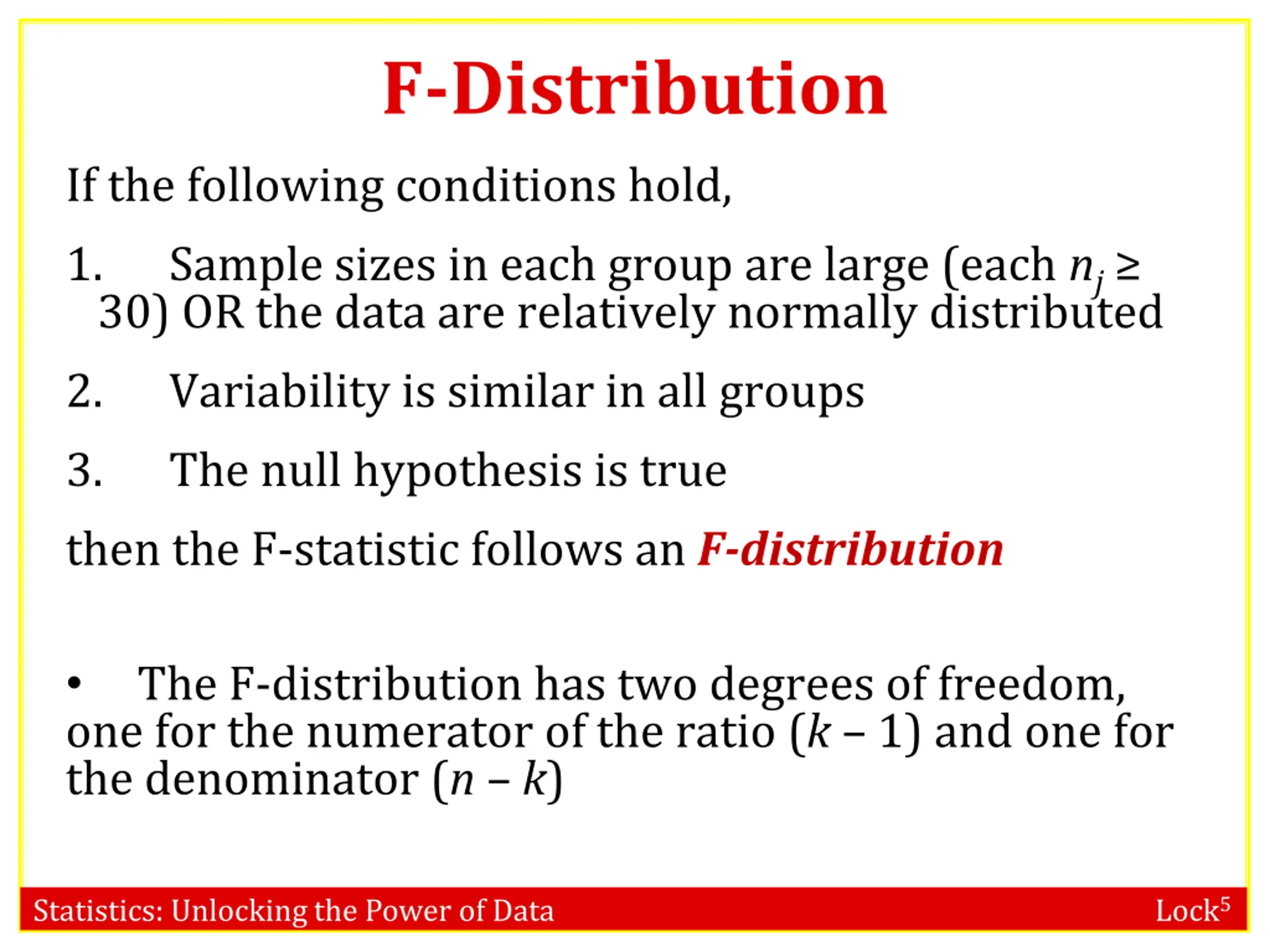

F-Distribution If the following conditions hold, 1. Sample sizes in each group are large (each nj 30) OR the data are relatively normally distributed 2. Variability is similar in all groups 3. The null hypothesis is true then the F-statistic follows an F-distribution The F-distribution has two degrees of freedom, one for the numerator of the ratio (k 1) and one for the denominator (n k) Statistics: Unlocking the Power of Data Lock5

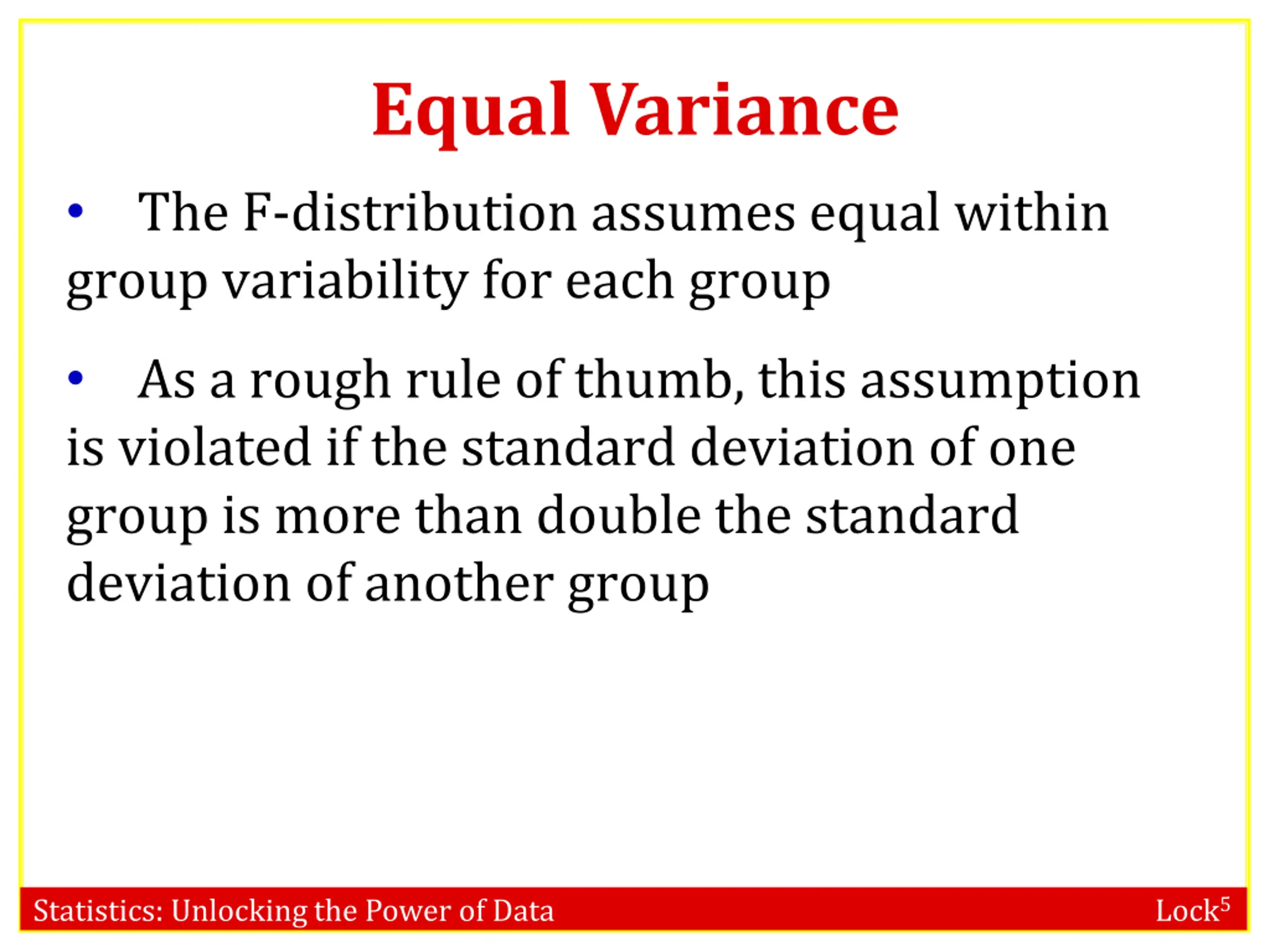

Equal Variance The F-distribution assumes equal within group variability for each group As a rough rule of thumb, this assumption is violated if the standard deviation of one group is more than double the standard deviation of another group Statistics: Unlocking the Power of Data Lock5

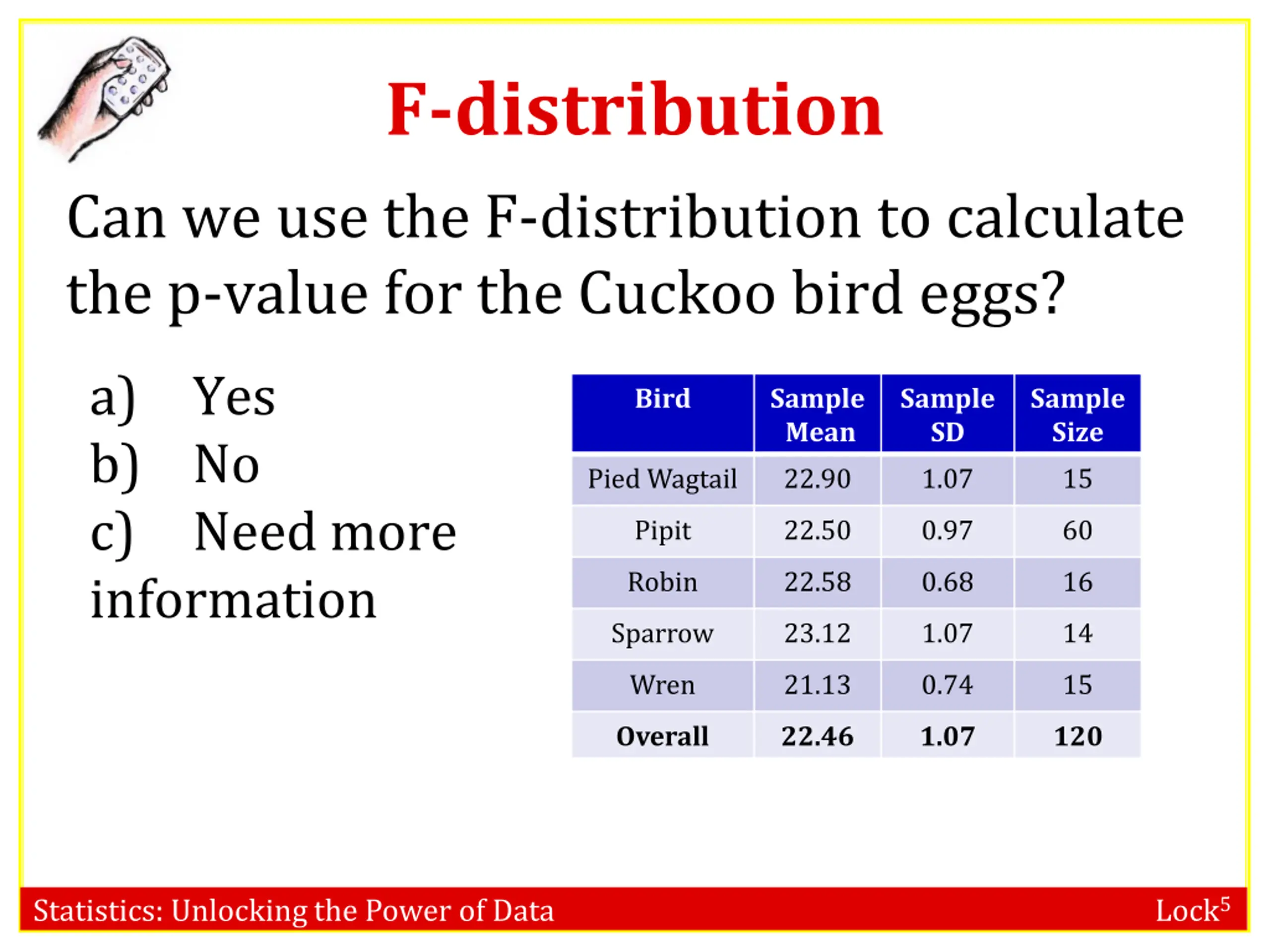

F-distribution Can we use the F-distribution to calculate the p-value for the Cuckoo bird eggs? a) b) No c) information Yes Bird Sample Mean 22.90 Sample SD 1.07 Sample Size 15 Pied Wagtail Need more Pipit 22.50 0.97 60 Robin 22.58 0.68 16 Sparrow 23.12 1.07 14 Wren 21.13 0.74 15 Overall 22.46 1.07 120 Statistics: Unlocking the Power of Data Lock5

Length of Cuckoo Eggs Statistics: Unlocking the Power of Data Lock5

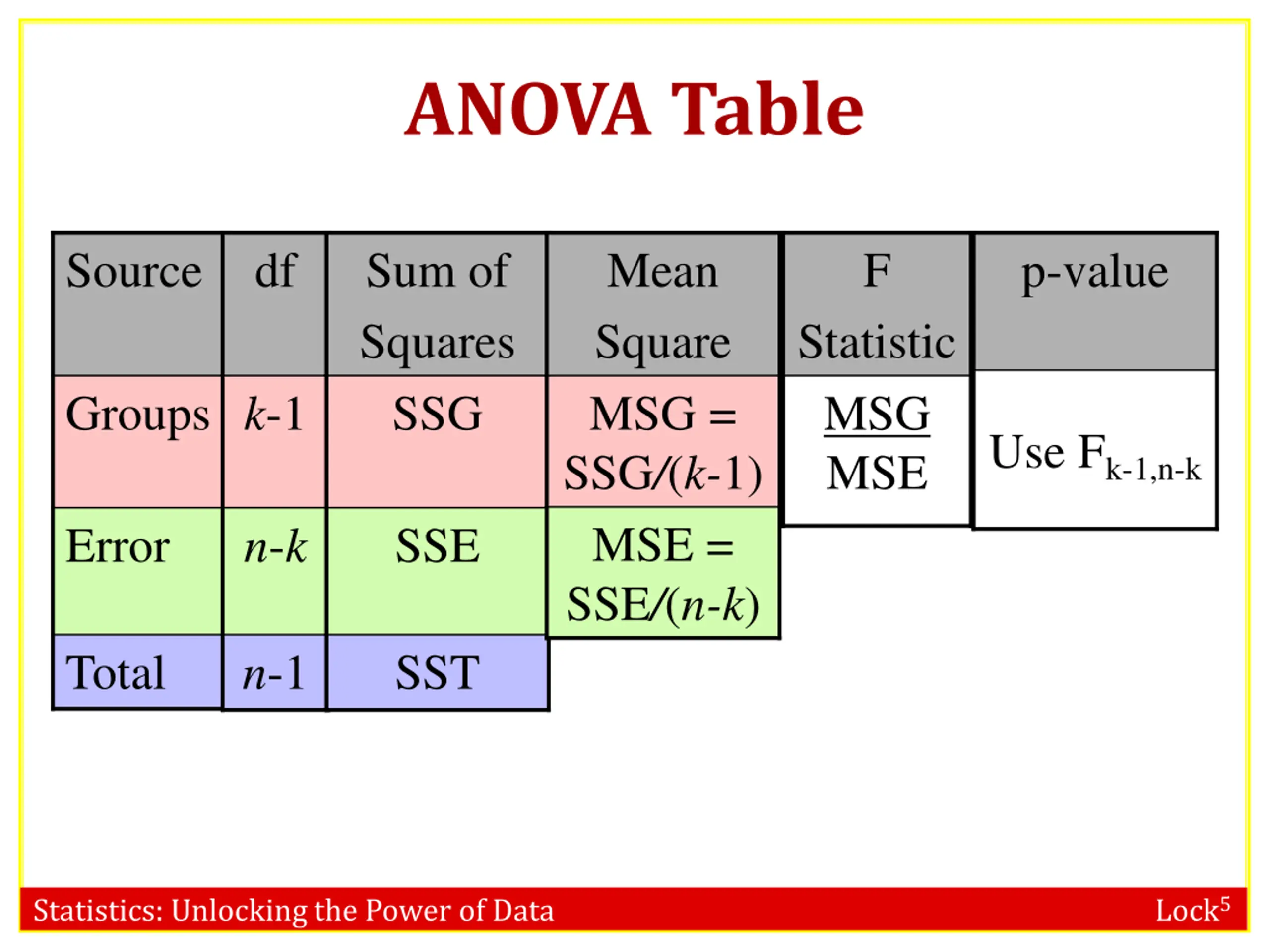

ANOVA Table Source df Sum of Squares SSG Mean Square MSG = SSG/(k-1) MSE = SSE/(n-k) F p-value Statistic MSG MSE Groups k-1 Use Fk-1,n-k Error n-k SSE Total n-1 SST Statistics: Unlocking the Power of Data Lock5

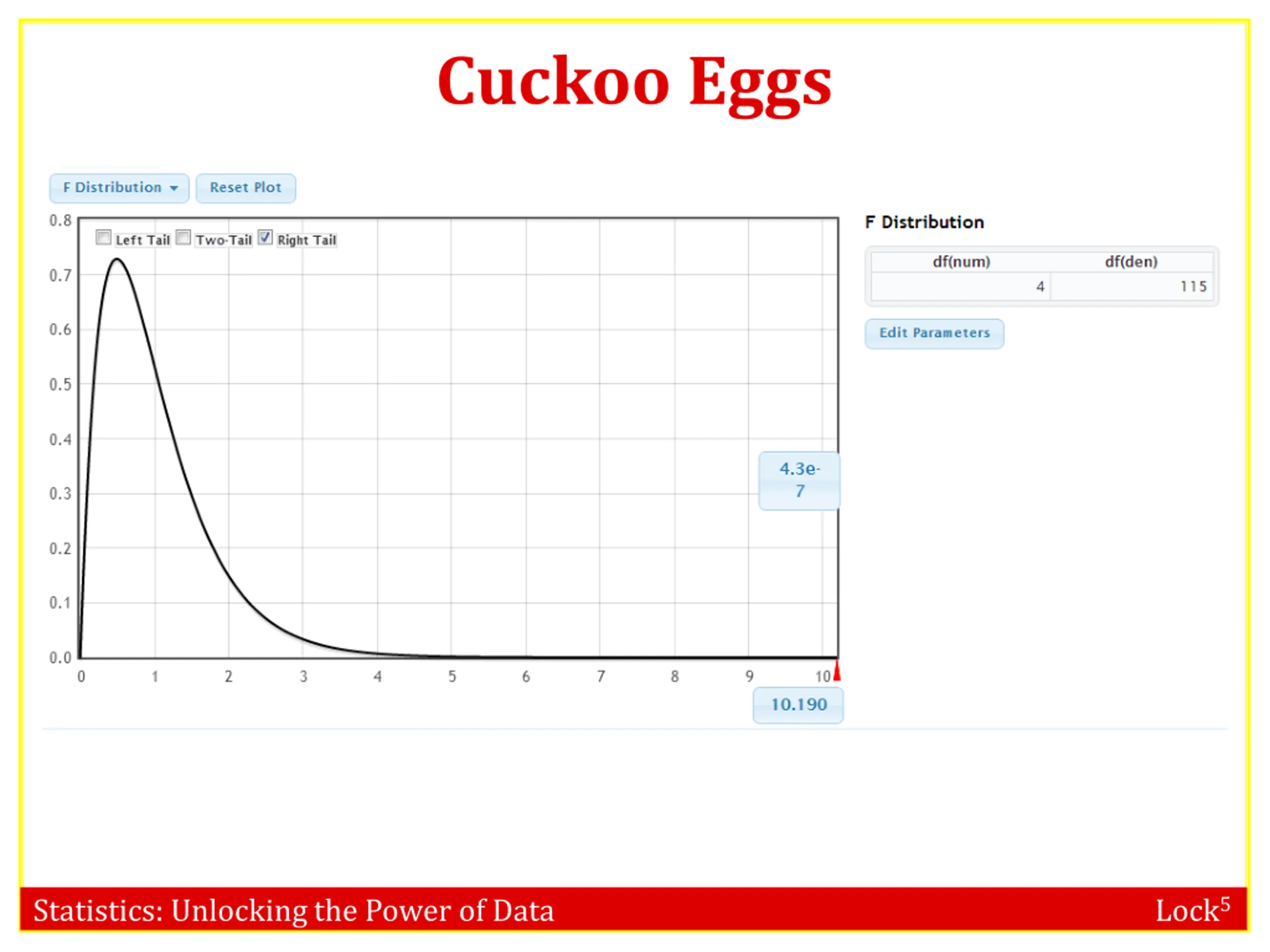

Cuckoo Eggs Statistics: Unlocking the Power of Data Lock5

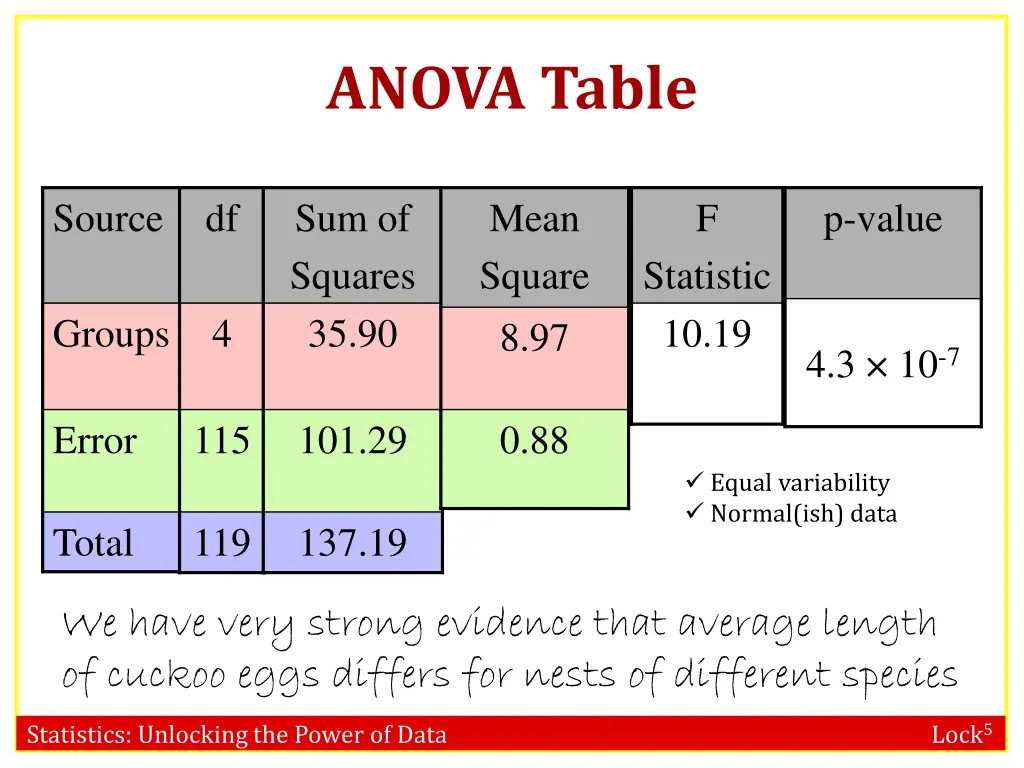

ANOVA Table Source df Sum of Squares 35.90 Mean Square 8.97 F p-value Statistic 10.19 Groups 4 4.3 10-7 Error 115 101.29 0.88 Equal variability Normal(ish) data Total 119 137.19 We have very strong evidence that average length of cuckoo eggs differs for nests of different species Statistics: Unlocking the Power of Data Lock5

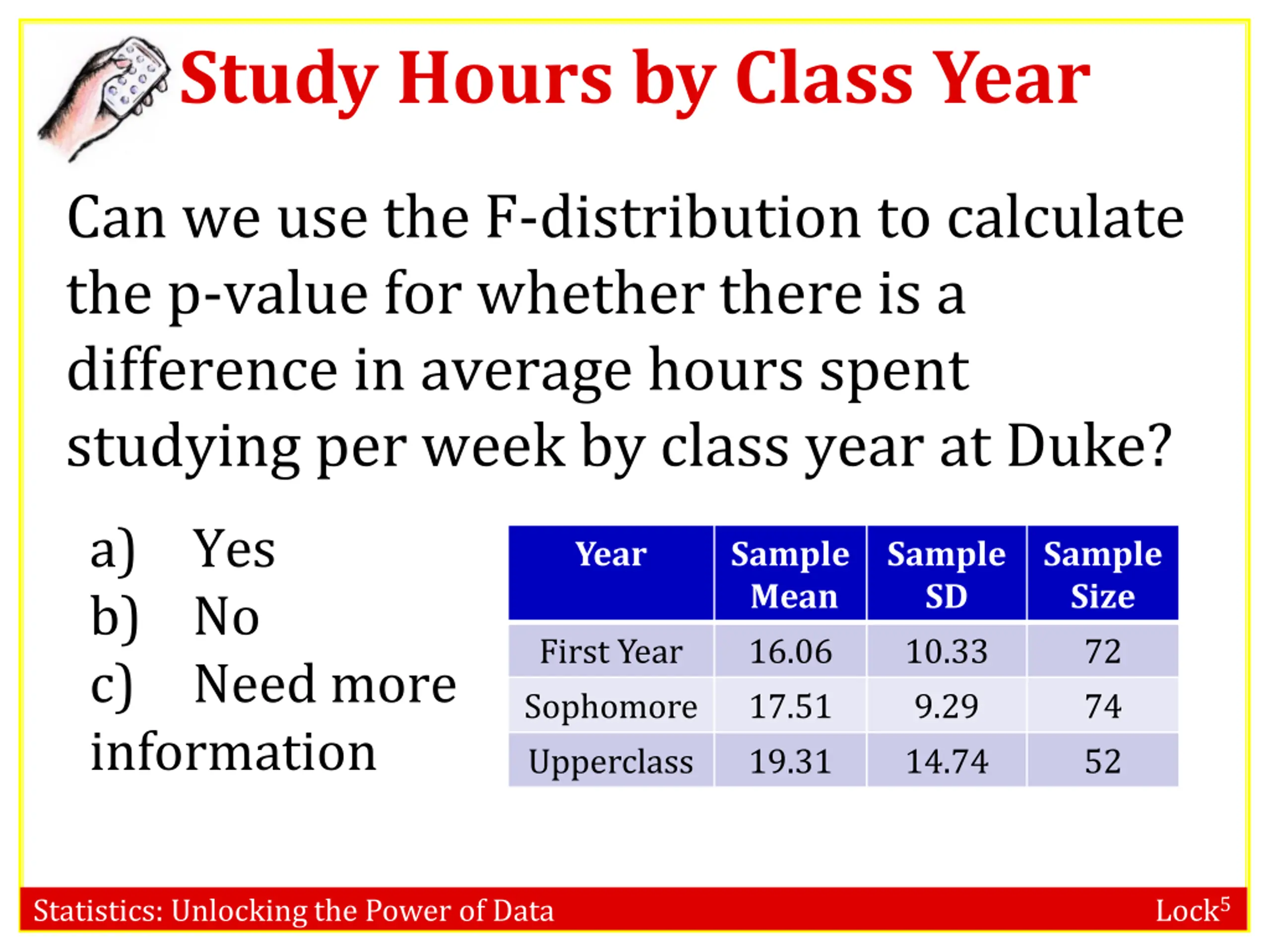

Study Hours by Class Year Can we use the F-distribution to calculate the p-value for whether there is a difference in average hours spent studying per week by class year at Duke? a) b) No c) information Yes Year Sample Mean 16.06 17.51 19.31 Sample SD 10.33 9.29 14.74 Sample Size 72 74 52 First Year Sophomore Upperclass Need more Statistics: Unlocking the Power of Data Lock5

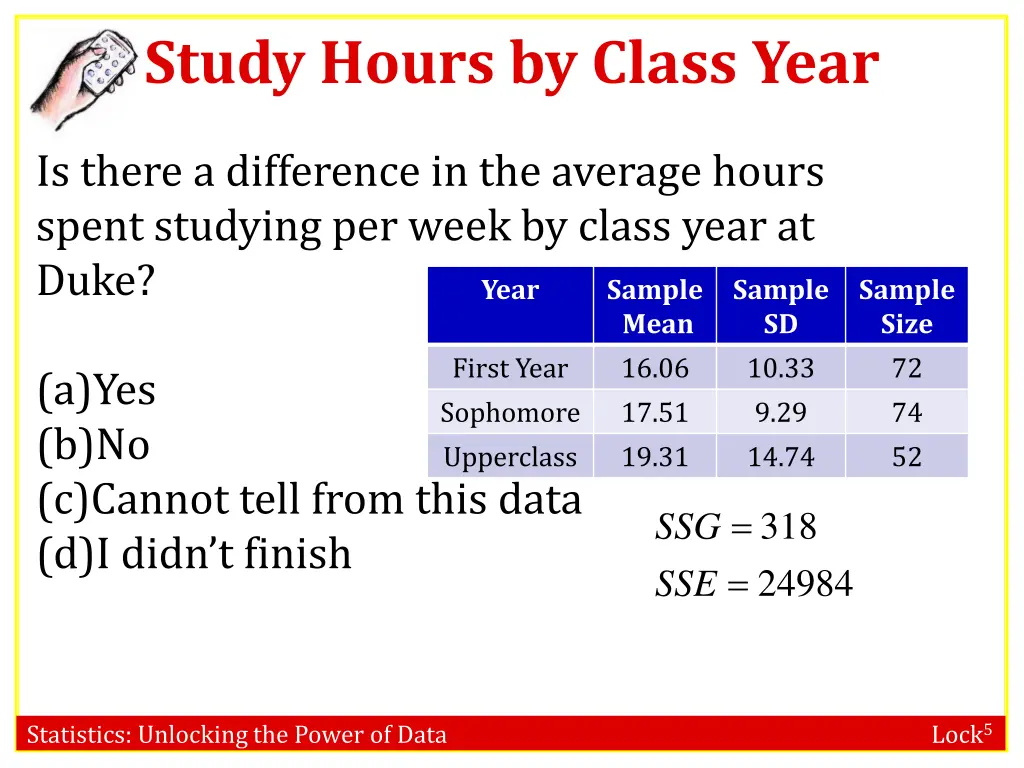

Study Hours by Class Year Is there a difference in the average hours spent studying per week by class year at Duke? Year Sample Mean 16.06 17.51 19.31 Sample SD 10.33 9.29 14.74 Sample Size 72 74 52 First Year Sophomore Upperclass (a)Yes (b)No (c)Cannot tell from this data (d)I didn t finish = = 318 24984 SSG SSE Statistics: Unlocking the Power of Data Lock5

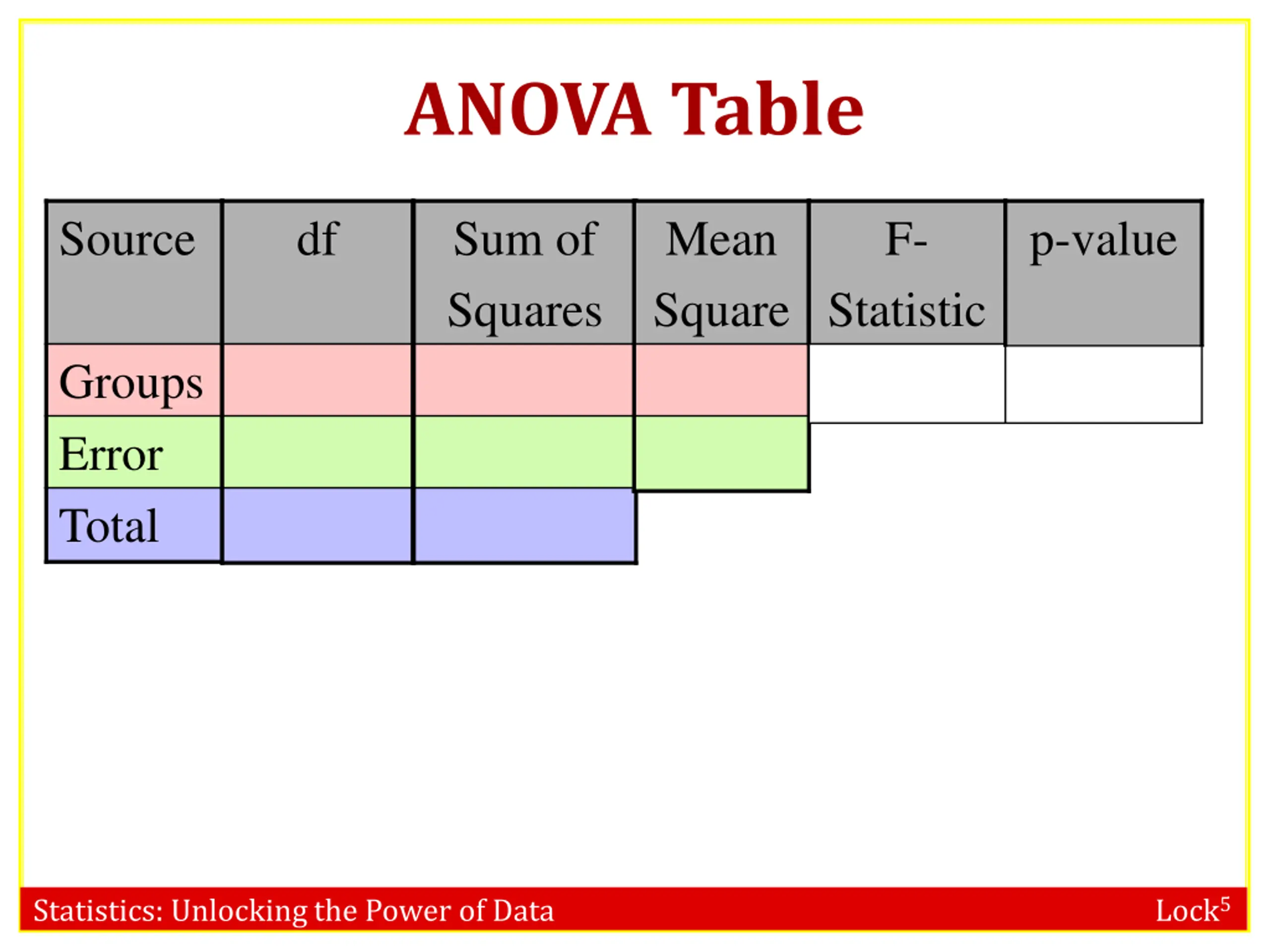

ANOVA Table Source df Sum of Squares Mean Square F- p-value Statistic Groups Error Total Statistics: Unlocking the Power of Data Lock5

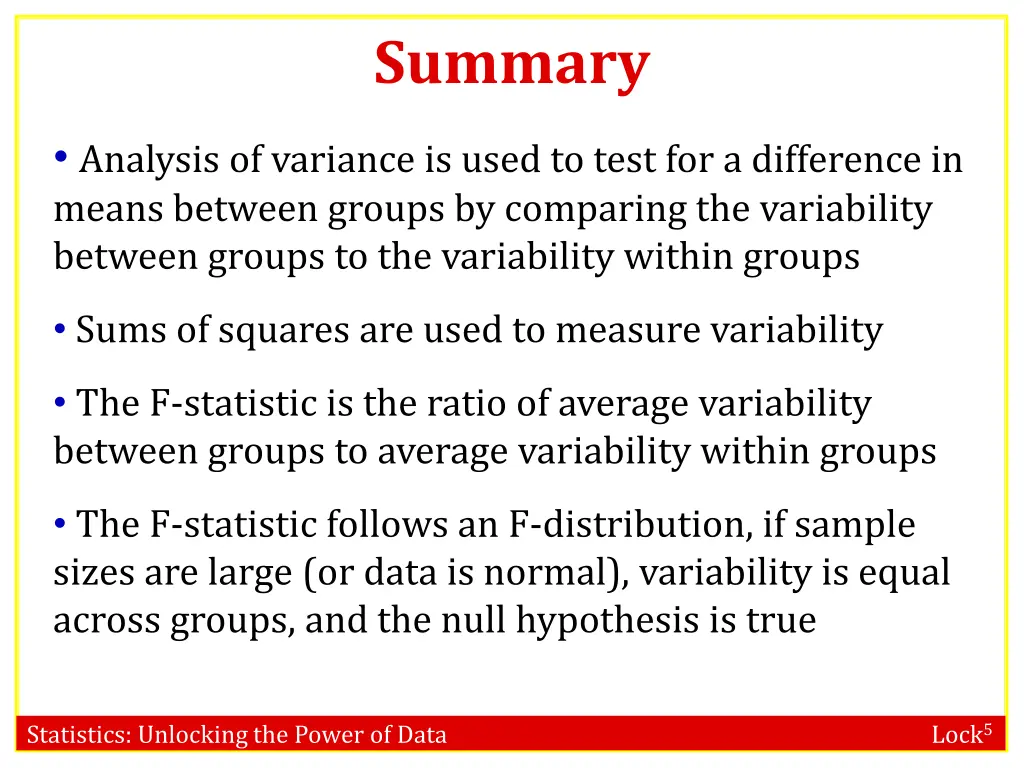

Summary Analysis of variance is used to test for a difference in means between groups by comparing the variability between groups to the variability within groups Sums of squares are used to measure variability The F-statistic is the ratio of average variability between groups to average variability within groups The F-statistic follows an F-distribution, if sample sizes are large (or data is normal), variability is equal across groups, and the null hypothesis is true Statistics: Unlocking the Power of Data Lock5

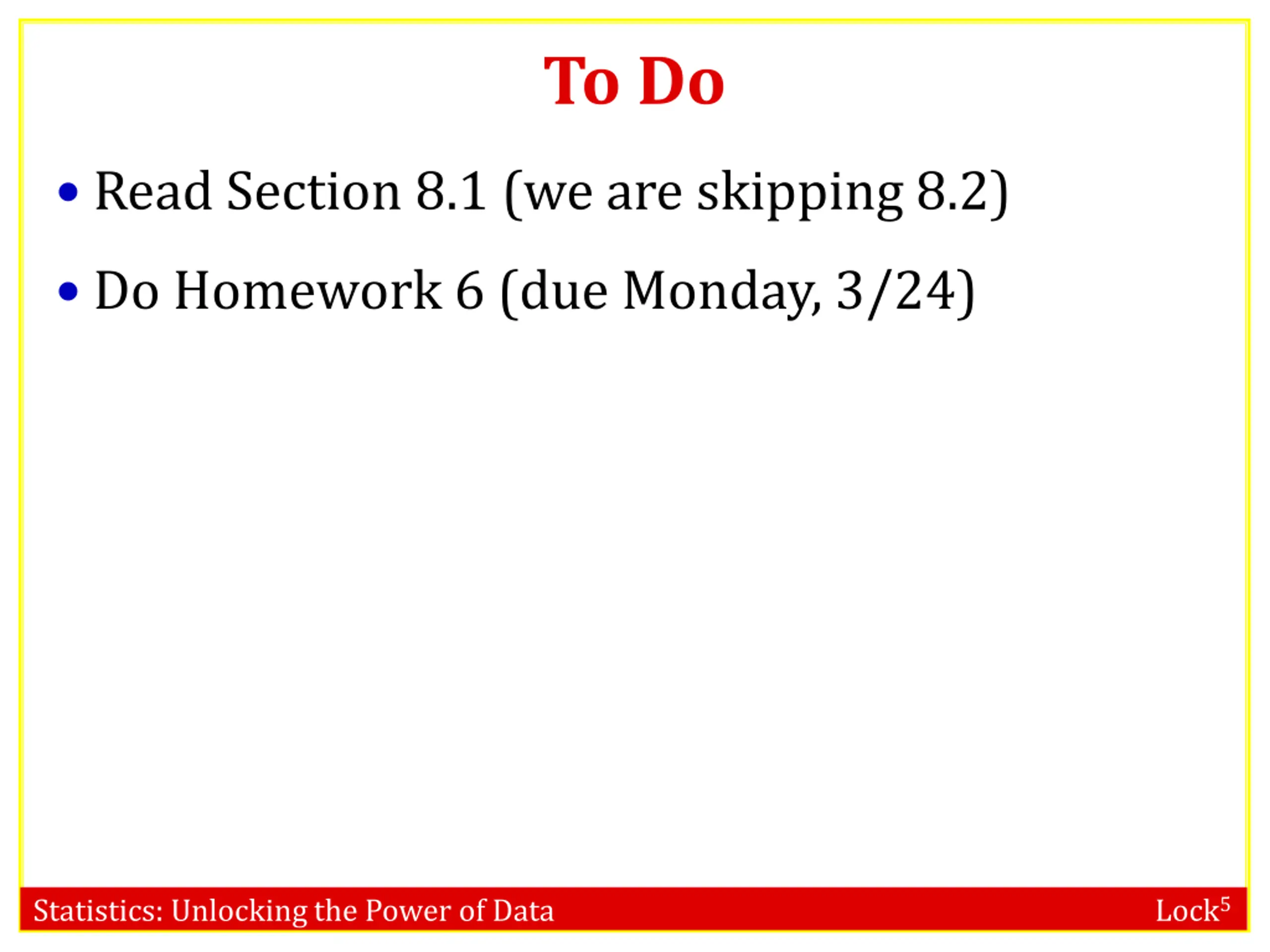

To Do Read Section 8.1 (we are skipping 8.2) Do Homework 6 (due Monday, 3/24) Statistics: Unlocking the Power of Data Lock5
