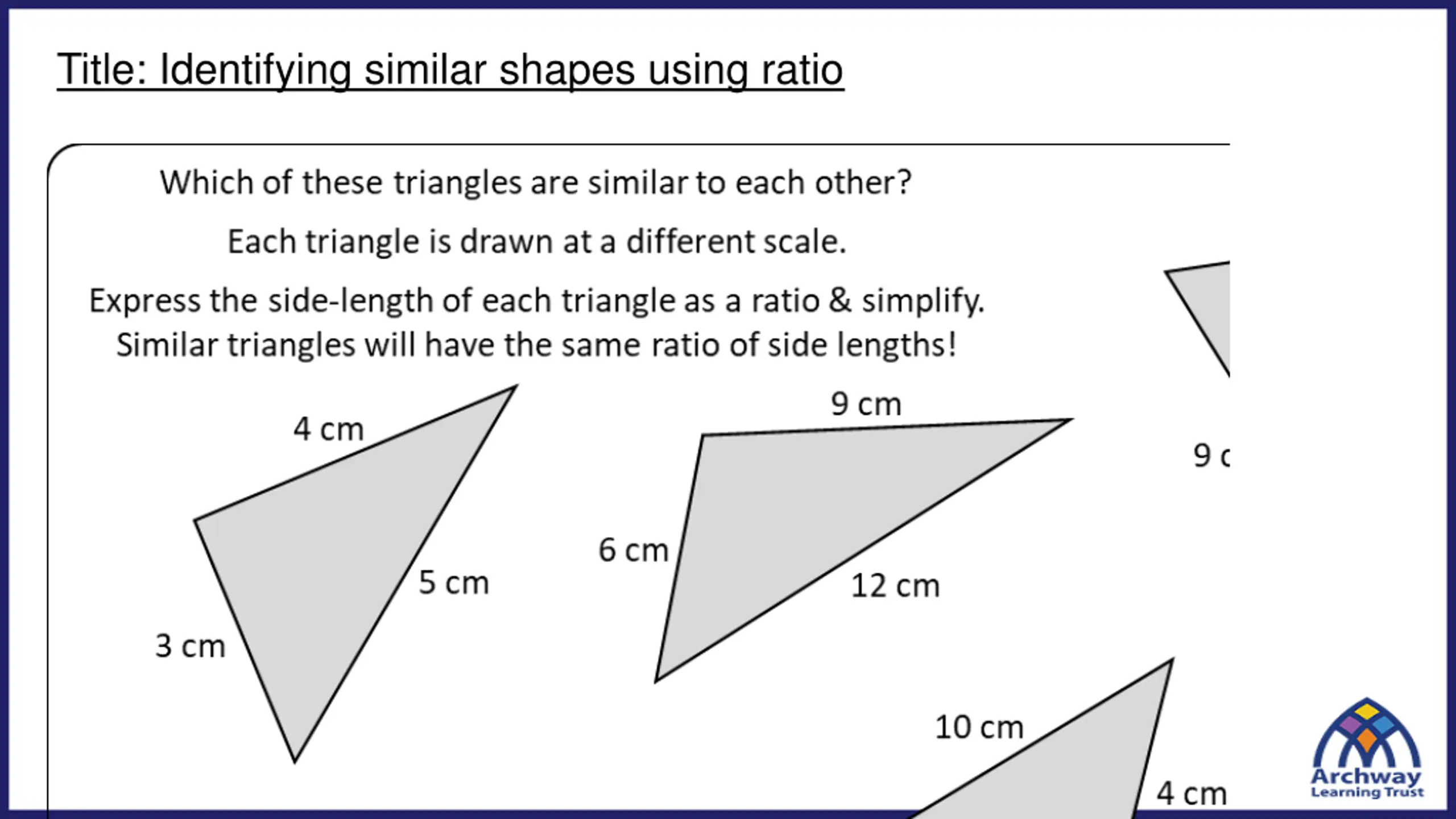

Identifying Similar Shapes using Ratios
Discover how to determine if shapes are similar based on ratios of their side lengths. Explore various pairs of shapes and triangles to understand the concept of similarity.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

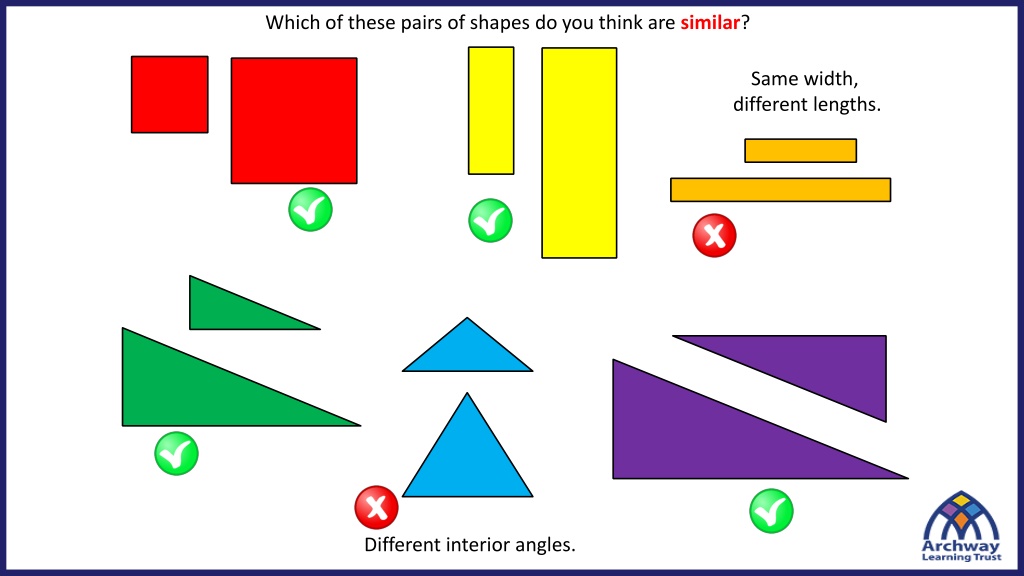

Which of these pairs of shapes do you think are similar? Same width, different lengths. Different interior angles.

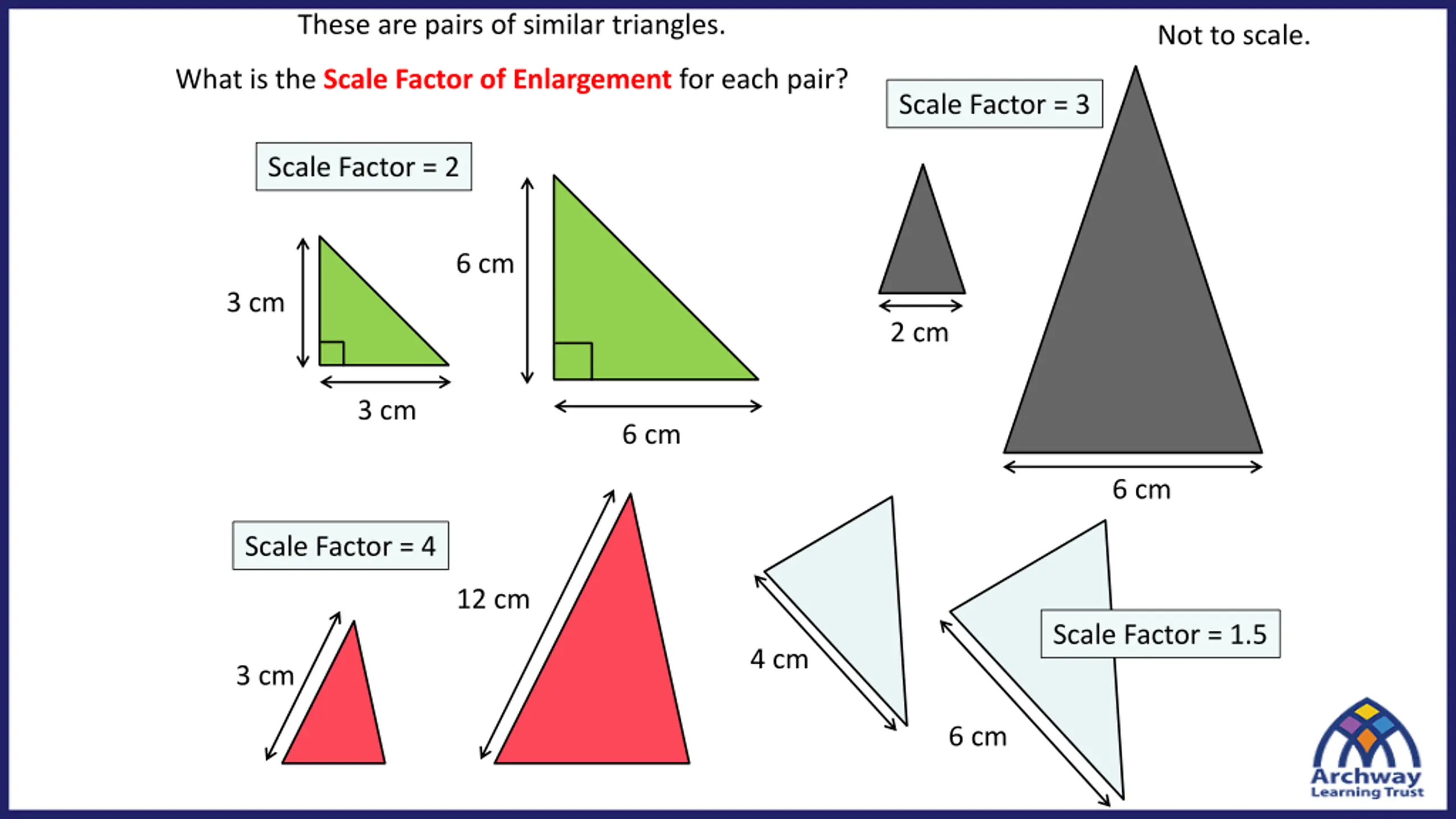

These are pairs of similar triangles. Not to scale. What is the Scale Factor of Enlargement for each pair? Scale Factor = 3 Scale Factor = 2 6 cm 3 cm 2 cm 3 cm 6 cm 6 cm Scale Factor = 4 12 cm Scale Factor = 1.5 4 cm 3 cm 6 cm

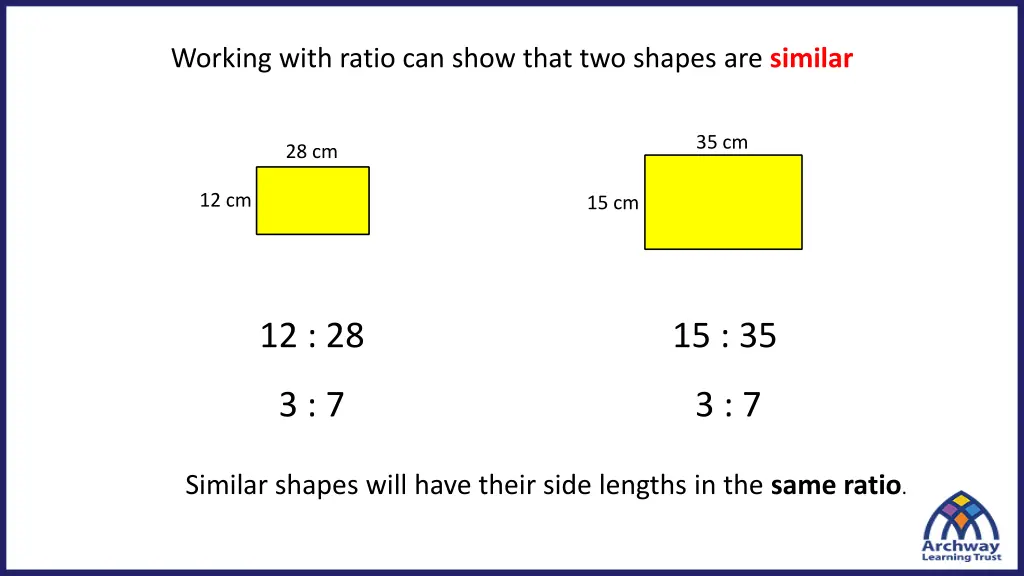

Working with ratio can show that two shapes are similar 35 cm 28 cm 12 cm 15 cm 12 : 28 15 : 35 3 : 7 3 : 7 Similar shapes will have their side lengths in the same ratio.

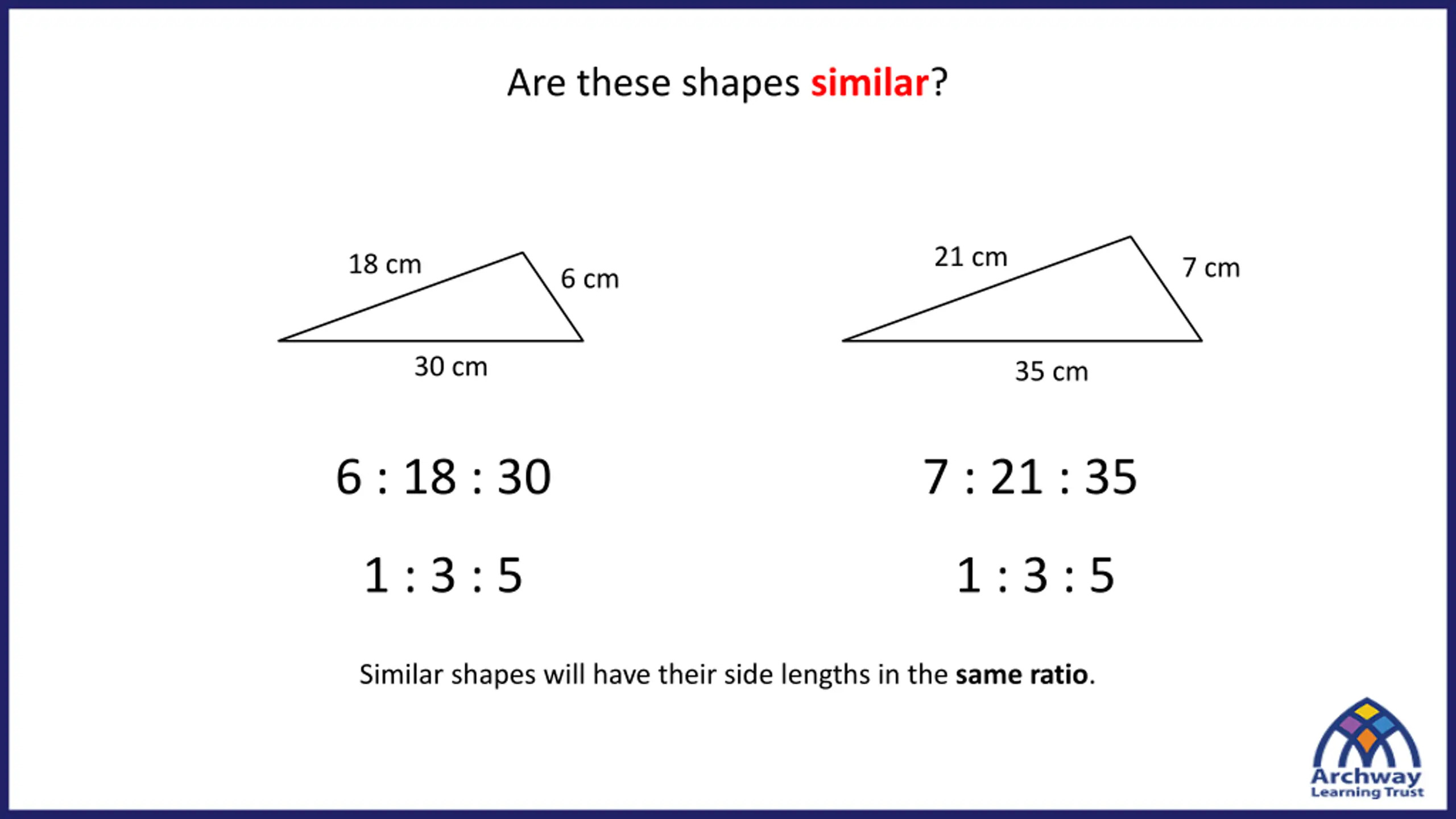

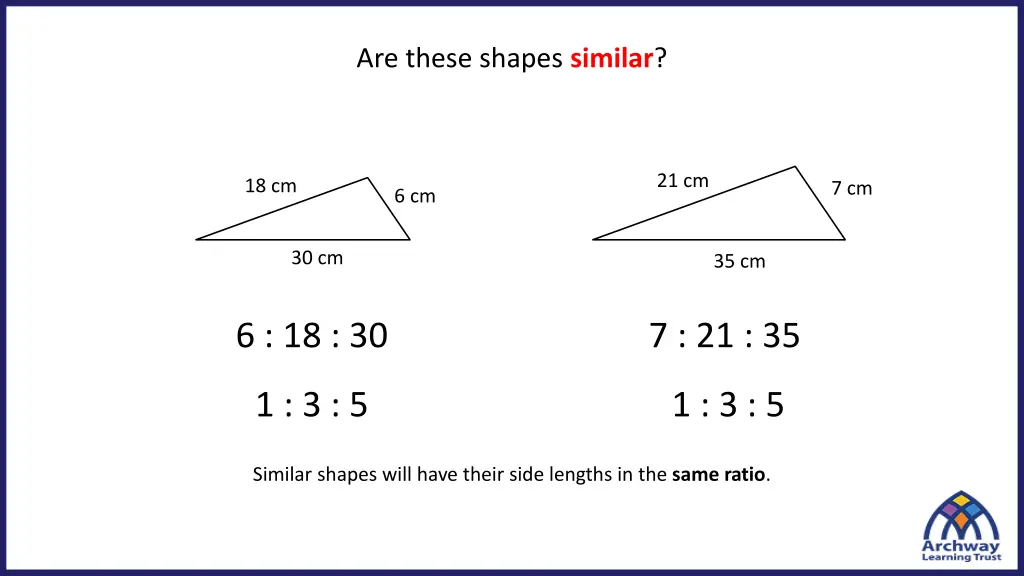

Are these shapes similar? 21 cm 18 cm 7 cm 6 cm 30 cm 35 cm 6 : 18 : 30 7 : 21 : 35 1 : 3 : 5 1 : 3 : 5 Similar shapes will have their side lengths in the same ratio.

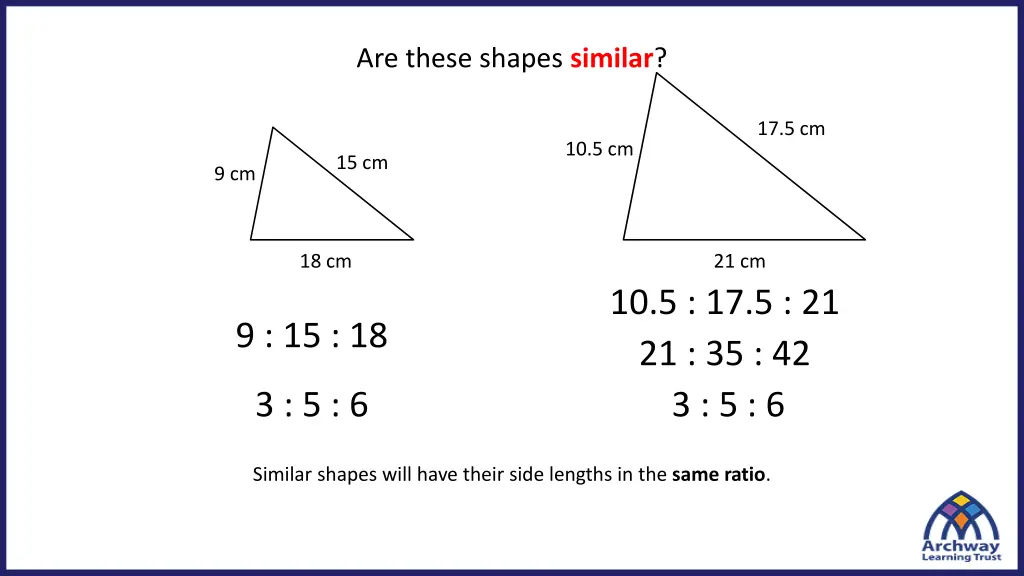

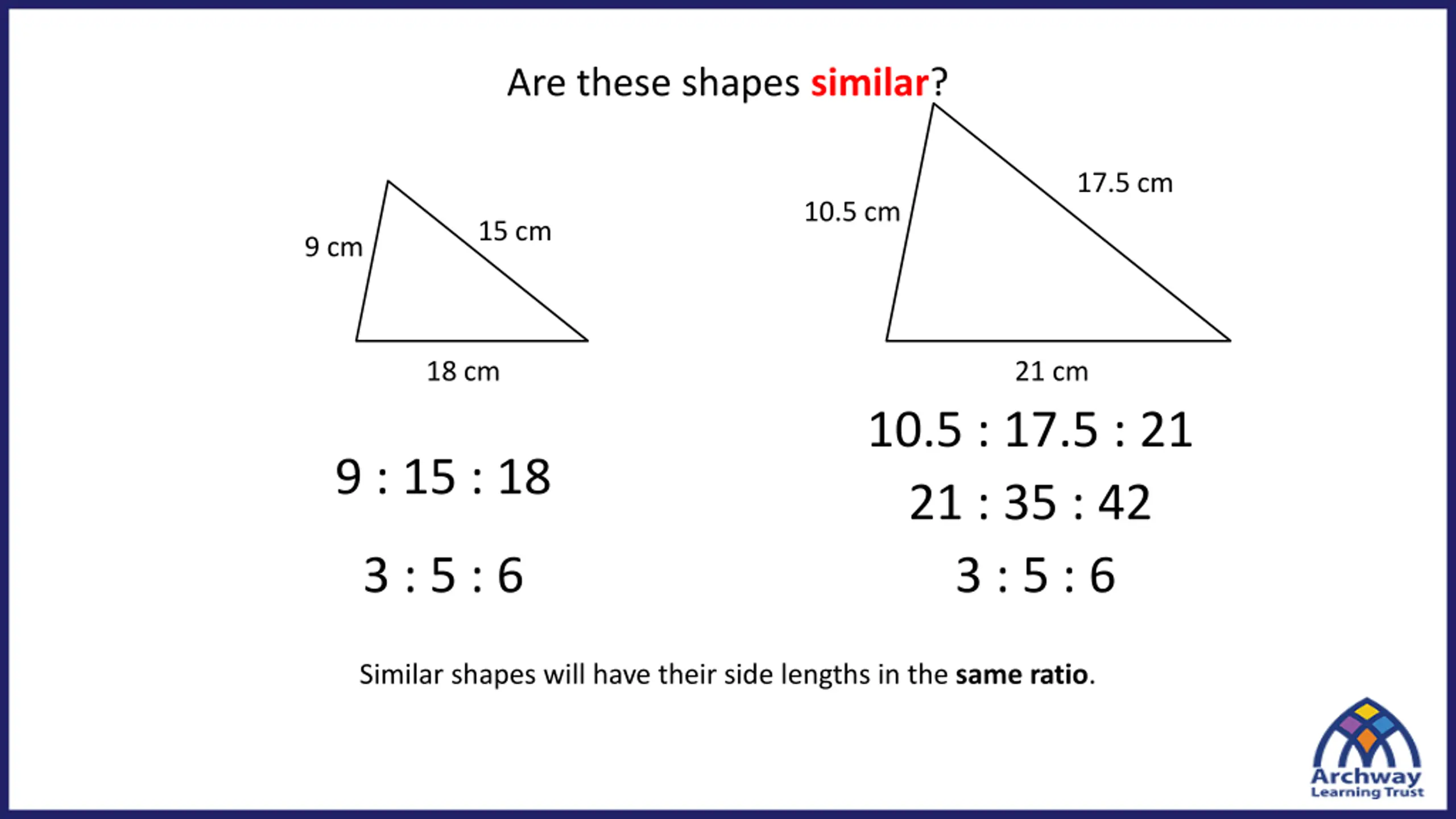

Are these shapes similar? 17.5 cm 10.5 cm 15 cm 9 cm 18 cm 21 cm 10.5 : 17.5 : 21 21 : 35 : 42 9 : 15 : 18 3 : 5 : 6 3 : 5 : 6 Similar shapes will have their side lengths in the same ratio.

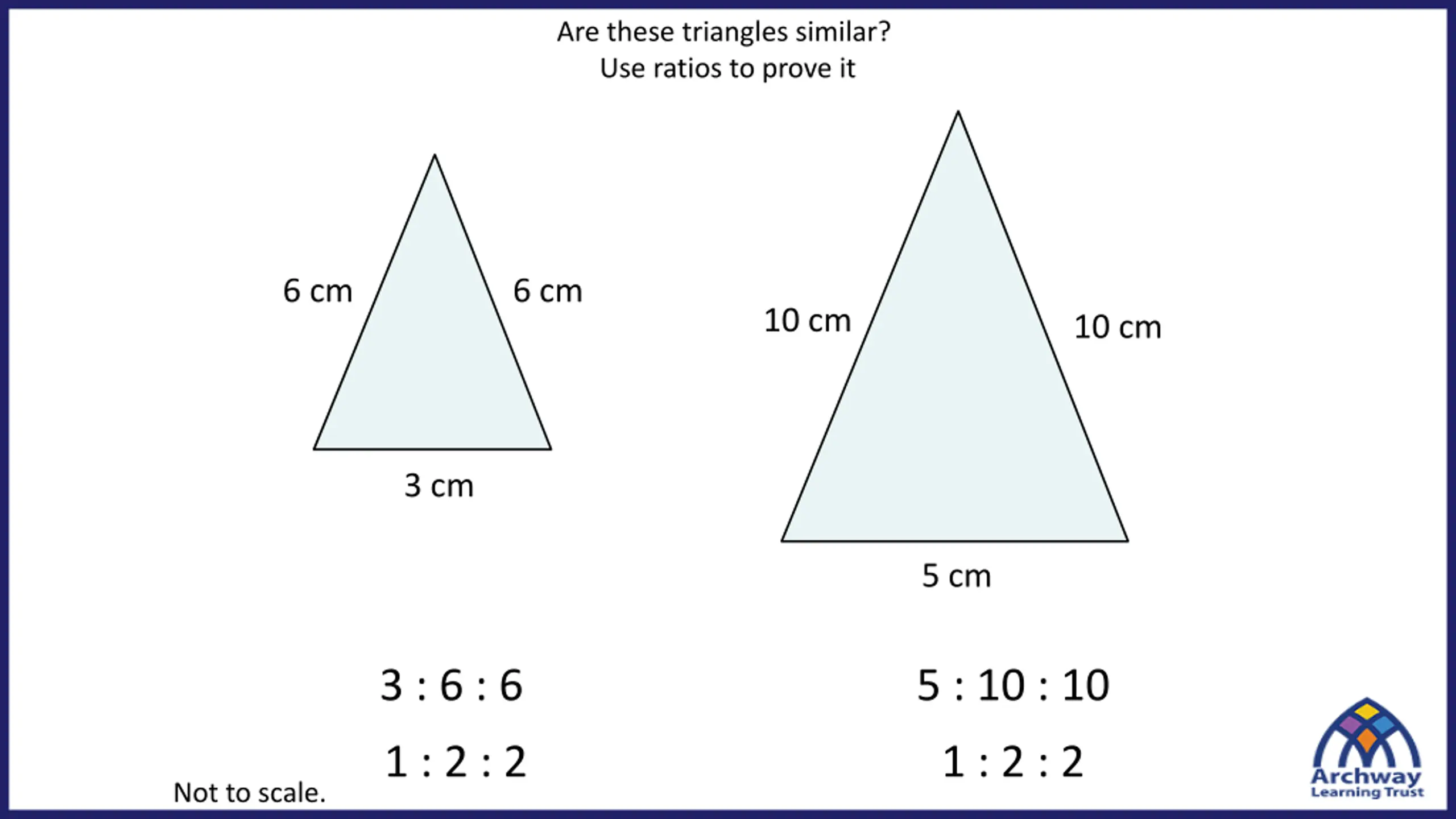

Are these triangles similar? Use ratios to prove it 6 cm 6 cm 10 cm 10 cm 3 cm 5 cm 3 : 6 : 6 5 : 10 : 10 1 : 2 : 2 1 : 2 : 2 Not to scale.

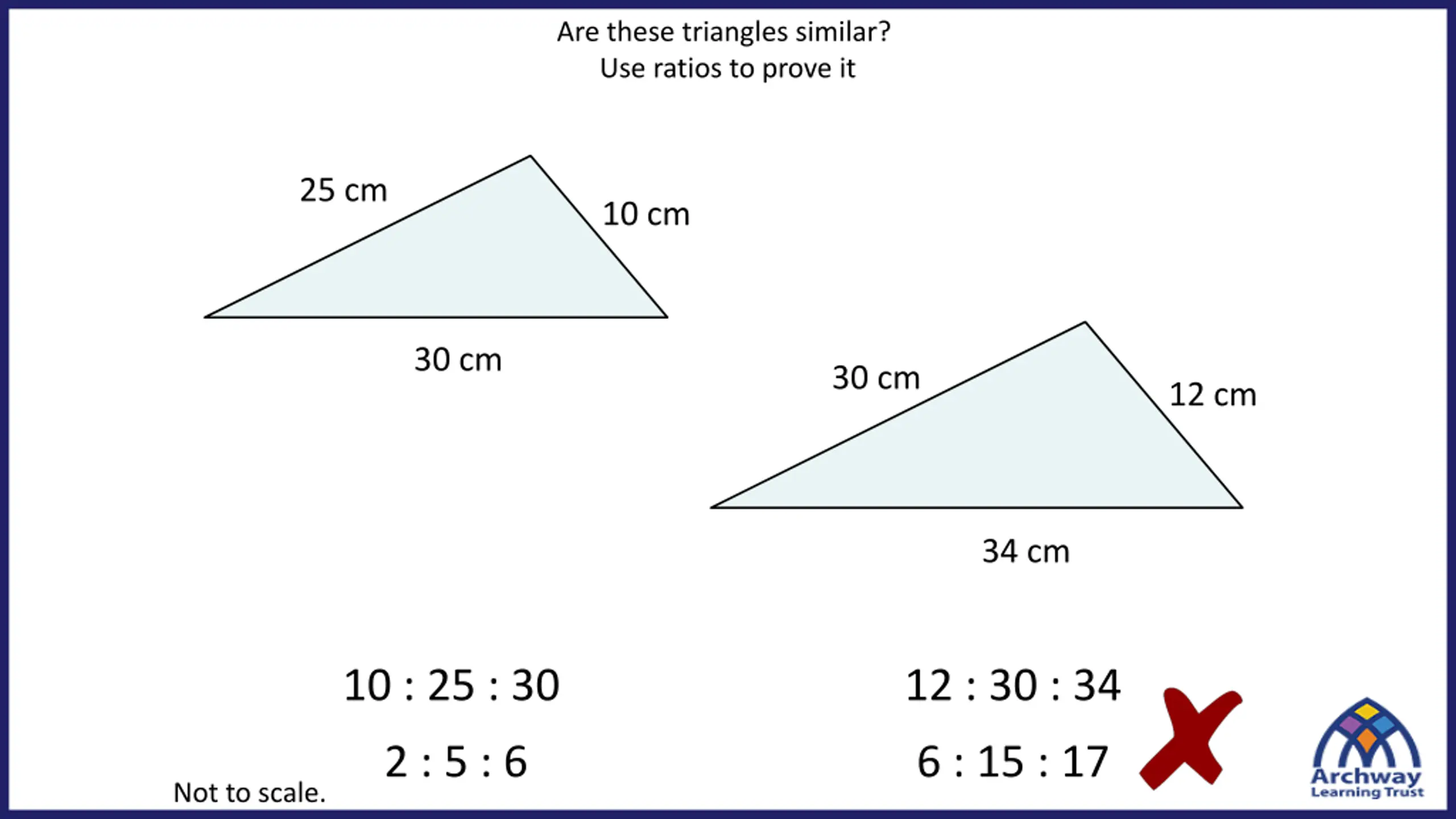

Are these triangles similar? Use ratios to prove it 25 cm 10 cm 30 cm 30 cm 12 cm 34 cm 10 : 25 : 30 12 : 30 : 34 2 : 5 : 6 6 : 15 : 17 Not to scale.

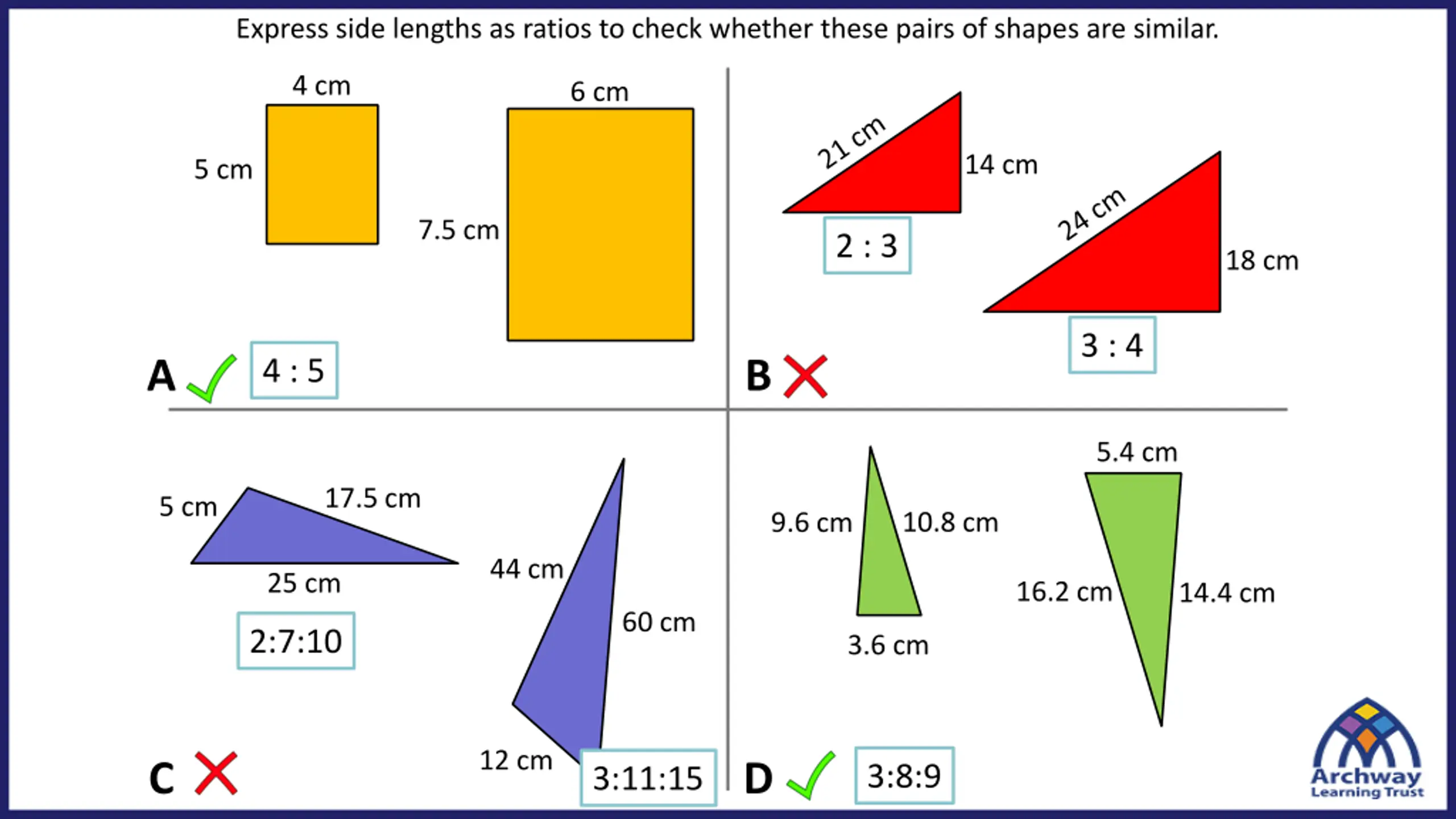

Express side lengths as ratios to check whether these pairs of shapes are similar. 4 cm 6 cm 14 cm 5 cm 7.5 cm 2 : 3 18 cm 3 : 4 A B 4 : 5 5.4 cm 17.5 cm 5 cm 10.8 cm 9.6 cm 44 cm 25 cm 16.2 cm 14.4 cm 60 cm 2:7:10 3.6 cm 12 cm C D 3:8:9 3:11:15

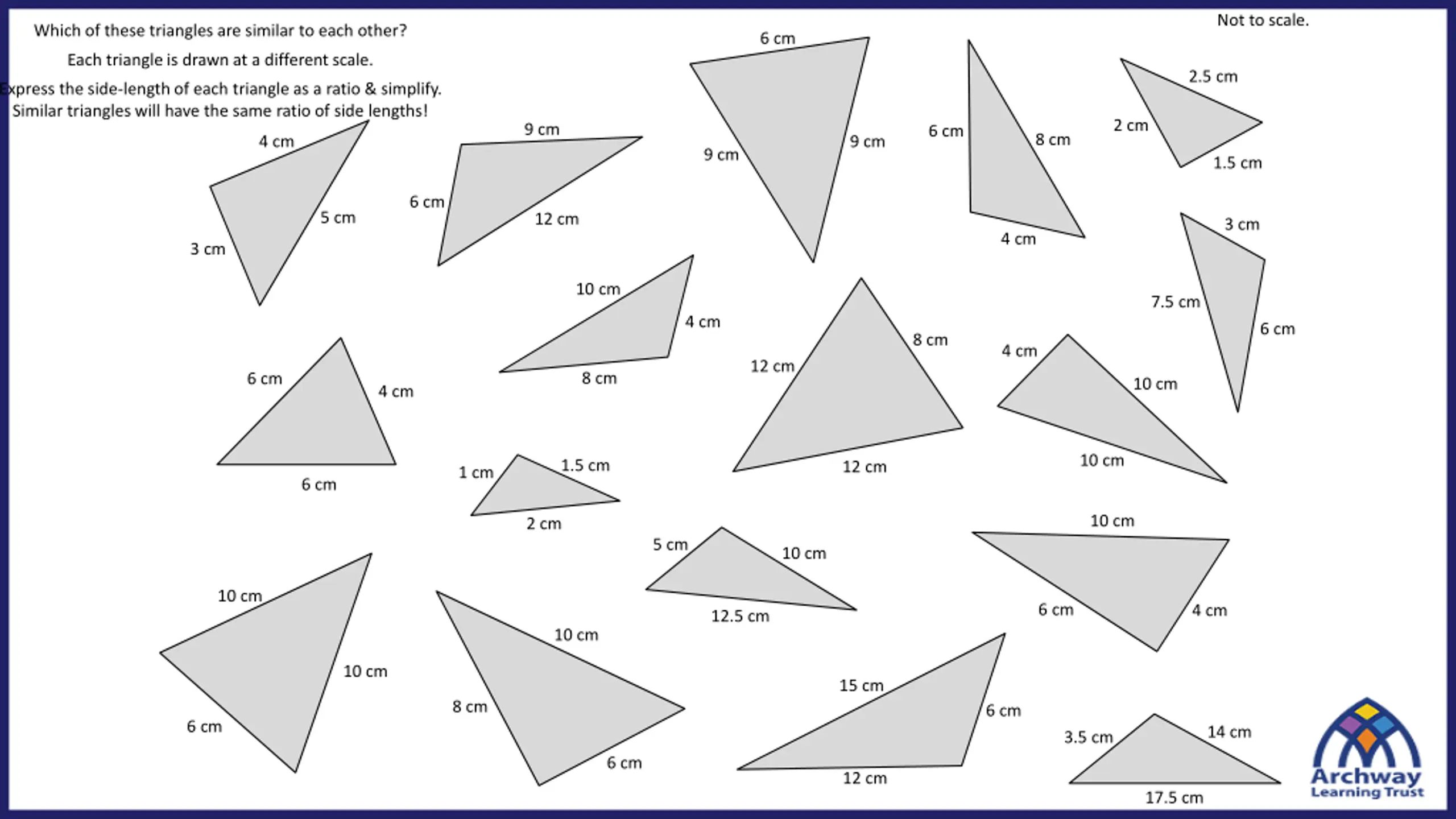

Not to scale. Which of these triangles are similar to each other? 6 cm Each triangle is drawn at a different scale. 2.5 cm Express the side-length of each triangle as a ratio & simplify. Similar triangles will have the same ratio of side lengths! 2 cm 9 cm 6 cm 8 cm 4 cm 9 cm 9 cm 1.5 cm 6 cm 5 cm 12 cm 3 cm 4 cm 3 cm 10 cm 7.5 cm 4 cm 6 cm 8 cm 4 cm 12 cm 8 cm 6 cm 10 cm 4 cm 10 cm 1.5 cm 12 cm 1 cm 6 cm 10 cm 2 cm 5 cm 10 cm 10 cm 6 cm 4 cm 12.5 cm 10 cm 10 cm 15 cm 8 cm 6 cm 6 cm 14 cm 3.5 cm 6 cm 12 cm 17.5 cm

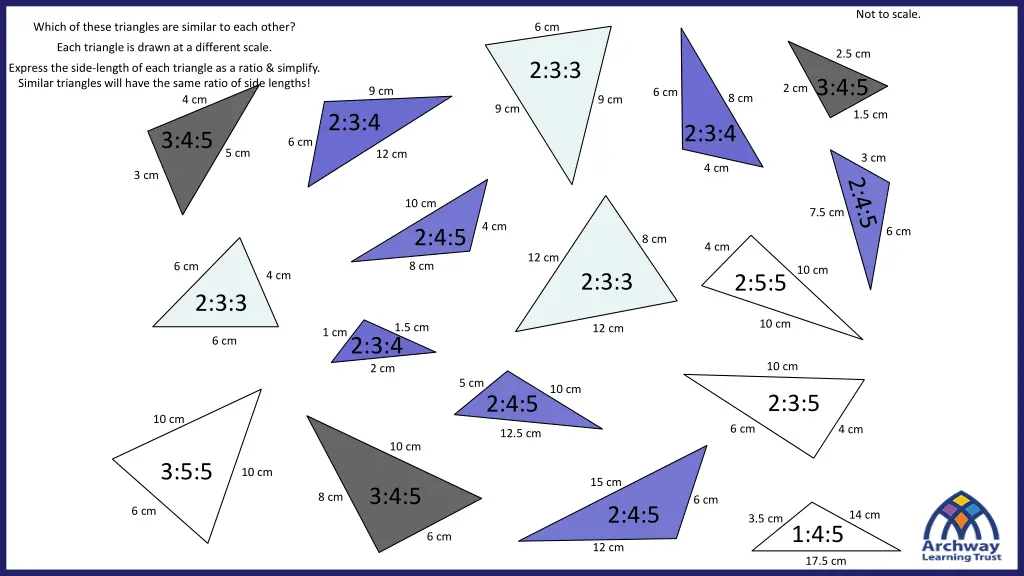

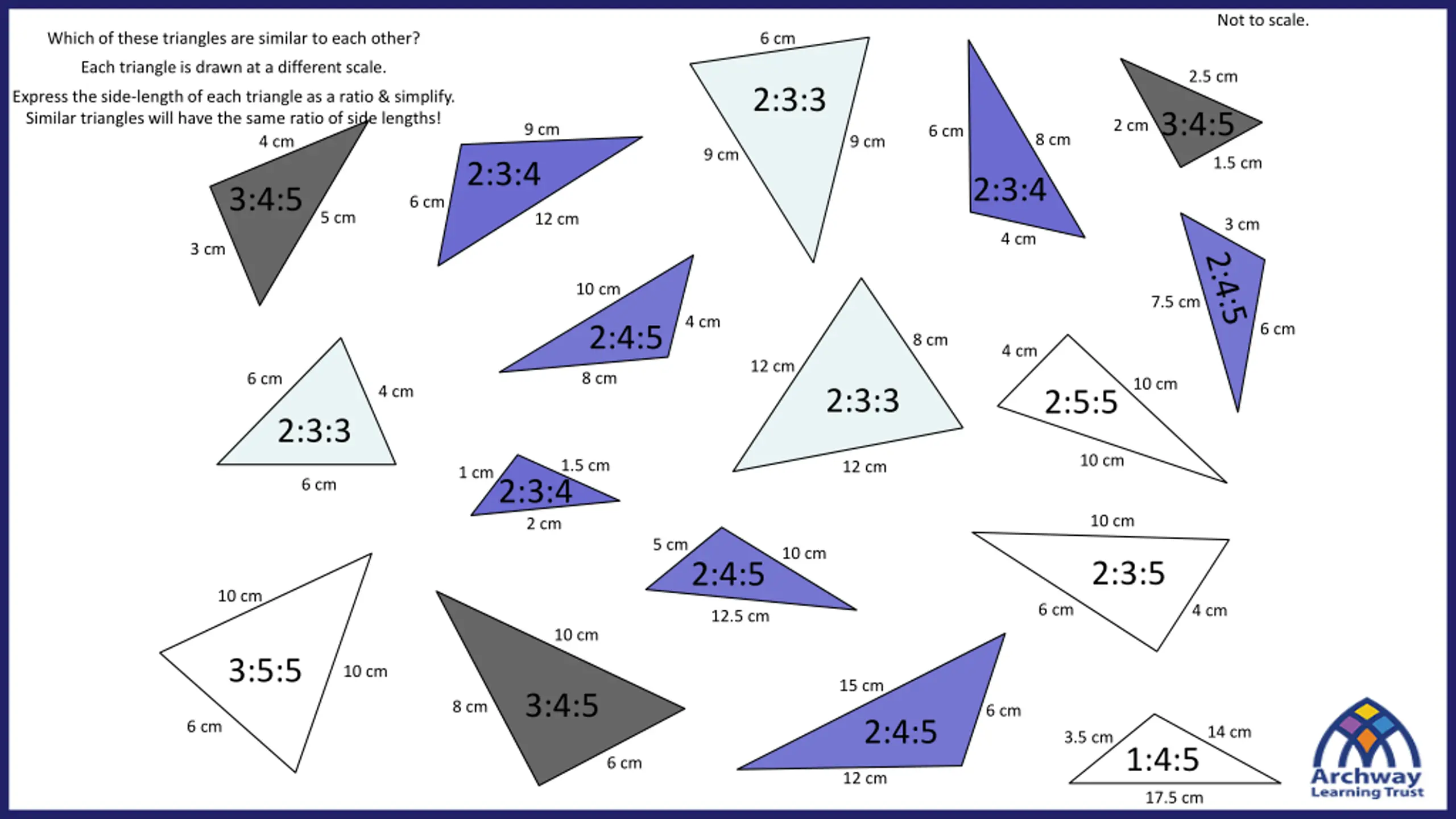

Not to scale. Which of these triangles are similar to each other? 6 cm Each triangle is drawn at a different scale. 2.5 cm 2:3:3 Express the side-length of each triangle as a ratio & simplify. Similar triangles will have the same ratio of side lengths! 3:4:5 2 cm 9 cm 6 cm 8 cm 4 cm 9 cm 9 cm 1.5 cm 2:3:4 2:3:4 3:4:5 6 cm 5 cm 12 cm 3 cm 4 cm 3 cm 10 cm 7.5 cm 4 cm 6 cm 2:4:5 8 cm 4 cm 12 cm 8 cm 6 cm 10 cm 4 cm 2:3:3 2:5:5 2:3:3 10 cm 1.5 cm 12 cm 1 cm 2:3:4 6 cm 10 cm 2 cm 5 cm 10 cm 2:3:5 2:4:5 10 cm 6 cm 4 cm 12.5 cm 10 cm 3:5:5 10 cm 15 cm 3:4:5 8 cm 6 cm 2:4:5 6 cm 14 cm 3.5 cm 1:4:5 6 cm 12 cm 17.5 cm
Show me Three similar right angled triangles with perpendicular lengths in the ratio 1 : 2.5
