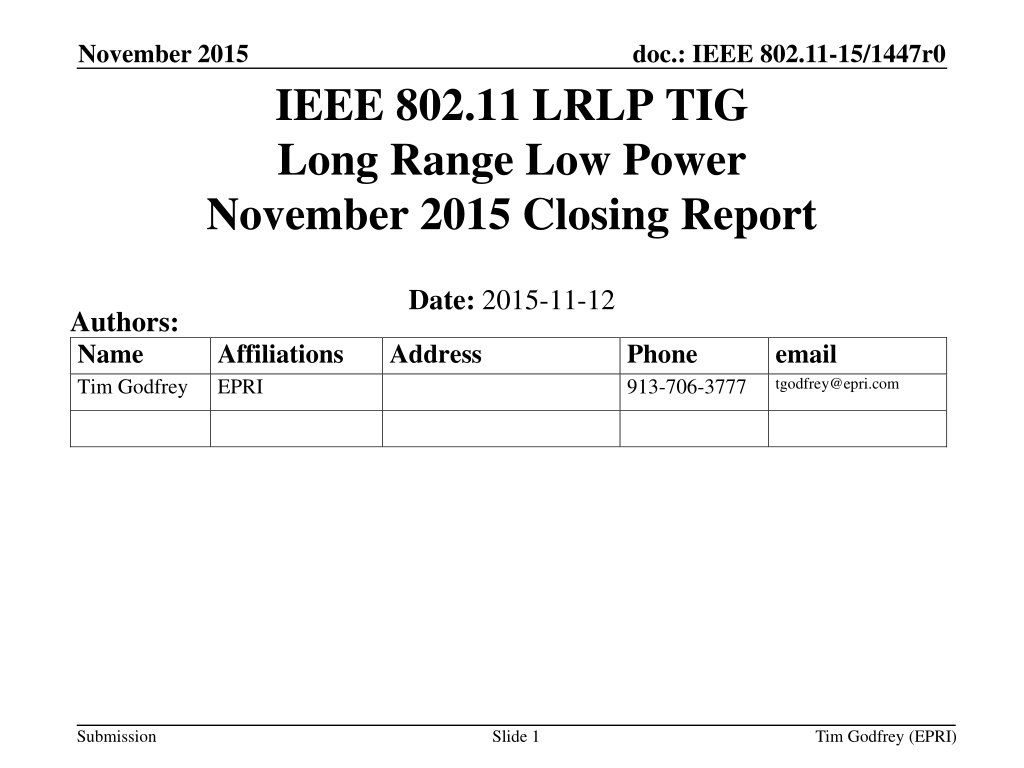

November 2015 doc.: IEEE 802.11-15/1447r0 IEEE 802.11 LRLP TIG Long Range Low Power November 2015 Closing Report Date: 2015-11-12 Authors: Name Tim Godfrey Affiliations EPRI Address Phone 913-706-3777 email tgodfrey@epri.com Submission Slide 1 Tim Godfrey (EPRI)

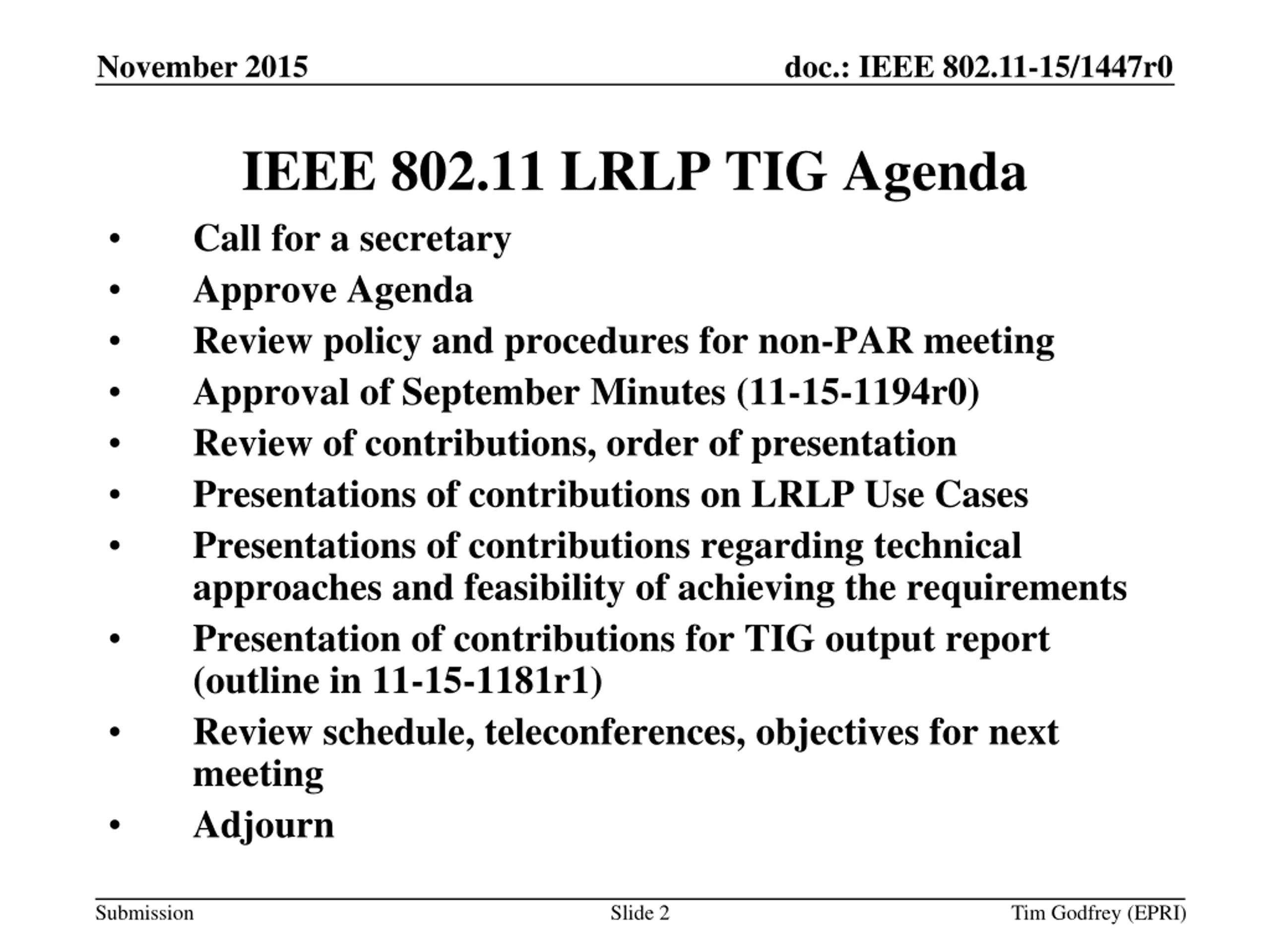

November 2015 doc.: IEEE 802.11-15/1447r0 IEEE 802.11 LRLP TIG Agenda Call for a secretary Approve Agenda Review policy and procedures for non-PAR meeting Approval of September Minutes (11-15-1194r0) Review of contributions, order of presentation Presentations of contributions on LRLP Use Cases Presentations of contributions regarding technical approaches and feasibility of achieving the requirements Presentation of contributions for TIG output report (outline in 11-15-1181r1) Review schedule, teleconferences, objectives for next meeting Adjourn Submission Slide 2 Tim Godfrey (EPRI)

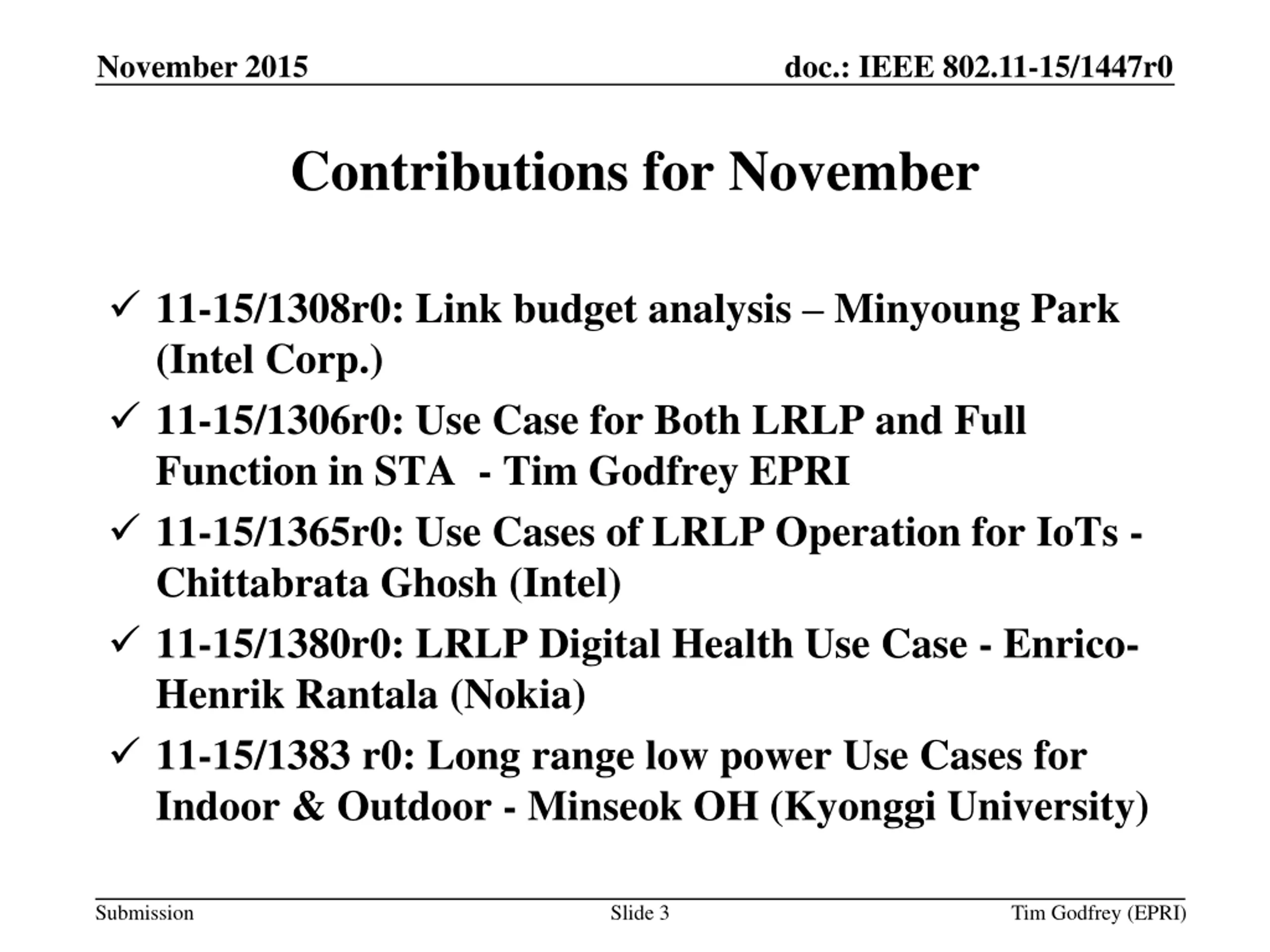

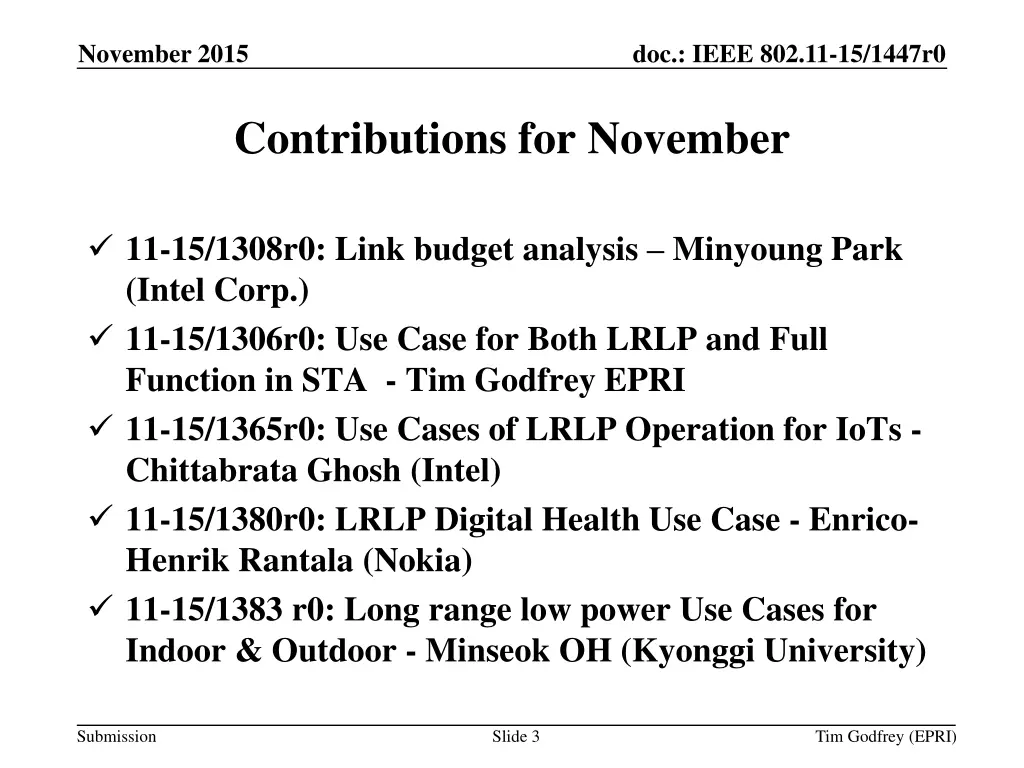

November 2015 doc.: IEEE 802.11-15/1447r0 Contributions for November 11-15/1308r0: Link budget analysis Minyoung Park (Intel Corp.) 11-15/1306r0: Use Case for Both LRLP and Full Function in STA - Tim Godfrey EPRI 11-15/1365r0: Use Cases of LRLP Operation for IoTs - Chittabrata Ghosh (Intel) 11-15/1380r0: LRLP Digital Health Use Case - Enrico- Henrik Rantala (Nokia) 11-15/1383 r0: Long range low power Use Cases for Indoor & Outdoor - Minseok OH (Kyonggi University) Submission Slide 3 Tim Godfrey (EPRI)

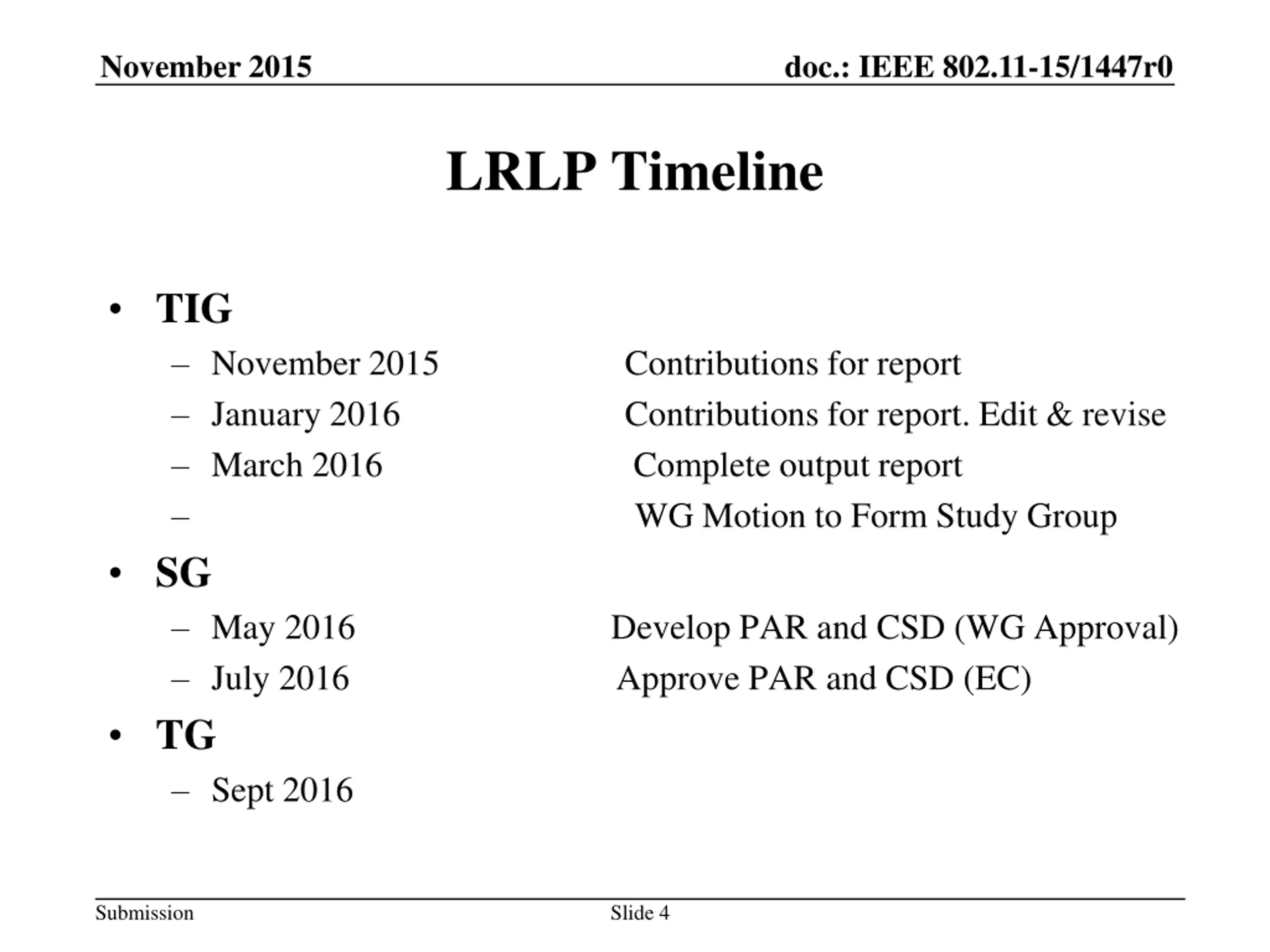

November 2015 doc.: IEEE 802.11-15/1447r0 LRLP Timeline TIG November 2015 January 2016 March 2016 WG Motion to Form Study Group SG May 2016 Develop PAR and CSD (WG Approval) July 2016 Approve PAR and CSD (EC) TG Sept 2016 Contributions for report Contributions for report. Edit & revise Complete output report Submission Slide 4

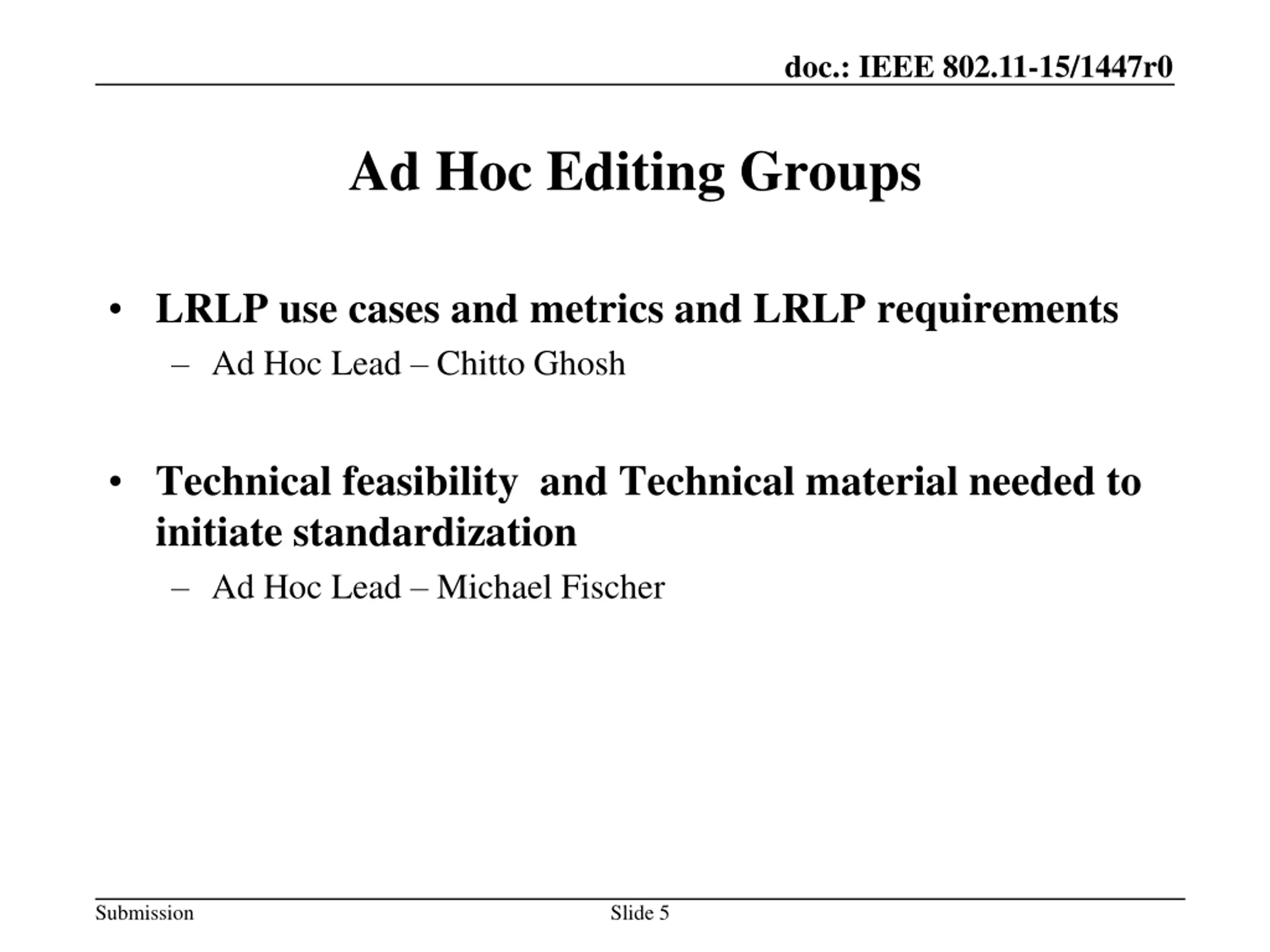

doc.: IEEE 802.11-15/1447r0 Ad Hoc Editing Groups LRLP use cases and metrics and LRLP requirements Ad Hoc Lead Chitto Ghosh Technical feasibility and Technical material needed to initiate standardization Ad Hoc Lead Michael Fischer Submission Slide 5

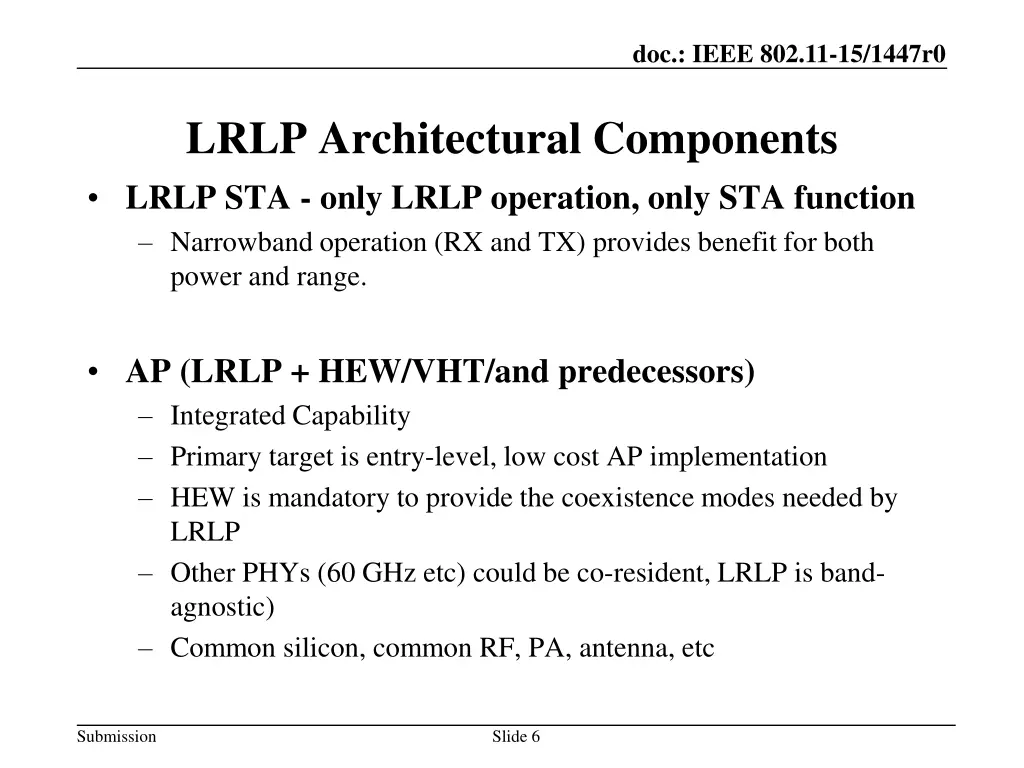

doc.: IEEE 802.11-15/1447r0 LRLP Architectural Components LRLP STA - only LRLP operation, only STA function Narrowband operation (RX and TX) provides benefit for both power and range. AP (LRLP + HEW/VHT/and predecessors) Integrated Capability Primary target is entry-level, low cost AP implementation HEW is mandatory to provide the coexistence modes needed by LRLP Other PHYs (60 GHz etc) could be co-resident, LRLP is band- agnostic) Common silicon, common RF, PA, antenna, etc Submission Slide 6

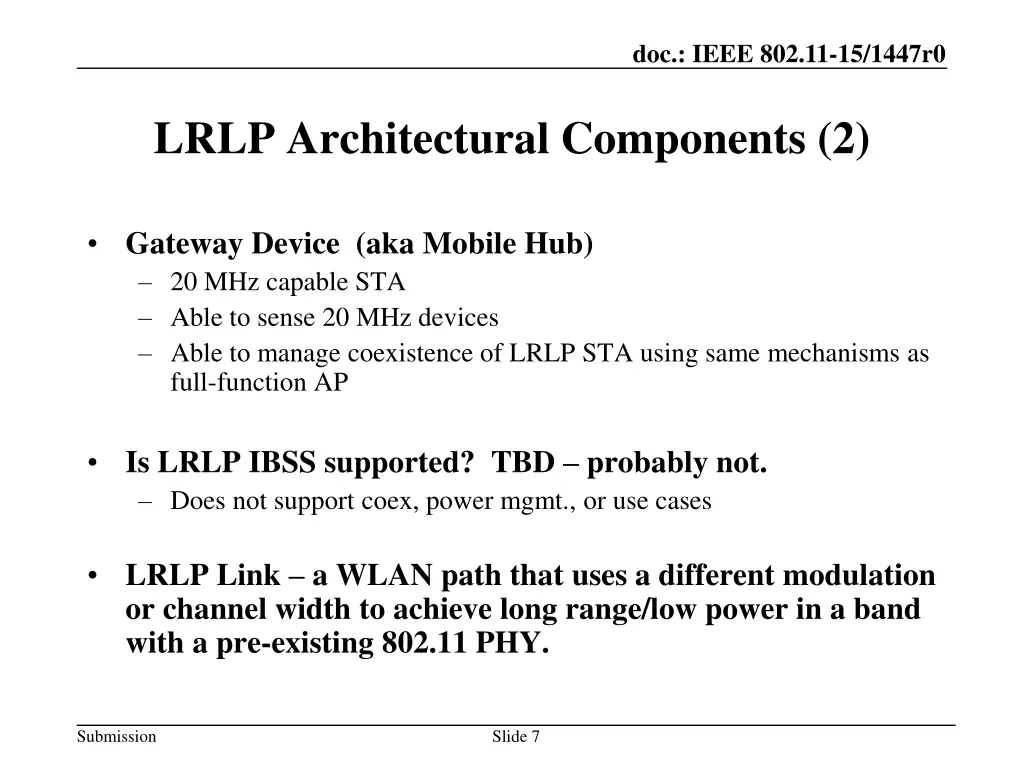

doc.: IEEE 802.11-15/1447r0 LRLP Architectural Components (2) Gateway Device (aka Mobile Hub) 20 MHz capable STA Able to sense 20 MHz devices Able to manage coexistence of LRLP STA using same mechanisms as full-function AP Is LRLP IBSS supported? TBD probably not. Does not support coex, power mgmt., or use cases LRLP Link a WLAN path that uses a different modulation or channel width to achieve long range/low power in a band with a pre-existing 802.11 PHY. Submission Slide 7

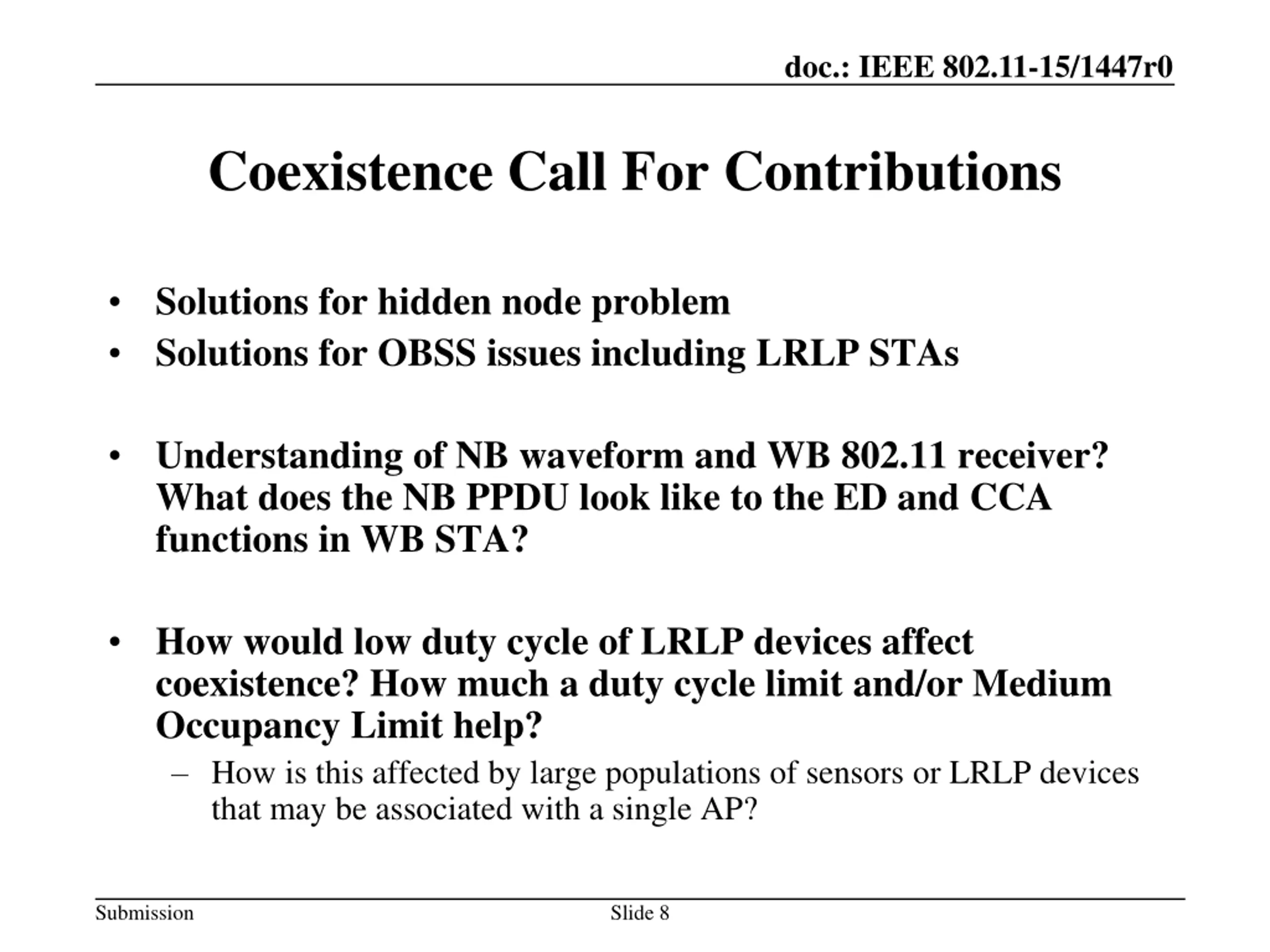

doc.: IEEE 802.11-15/1447r0 Coexistence Call For Contributions Solutions for hidden node problem Solutions for OBSS issues including LRLP STAs Understanding of NB waveform and WB 802.11 receiver? What does the NB PPDU look like to the ED and CCA functions in WB STA? How would low duty cycle of LRLP devices affect coexistence? How much a duty cycle limit and/or Medium Occupancy Limit help? How is this affected by large populations of sensors or LRLP devices that may be associated with a single AP? Submission Slide 8

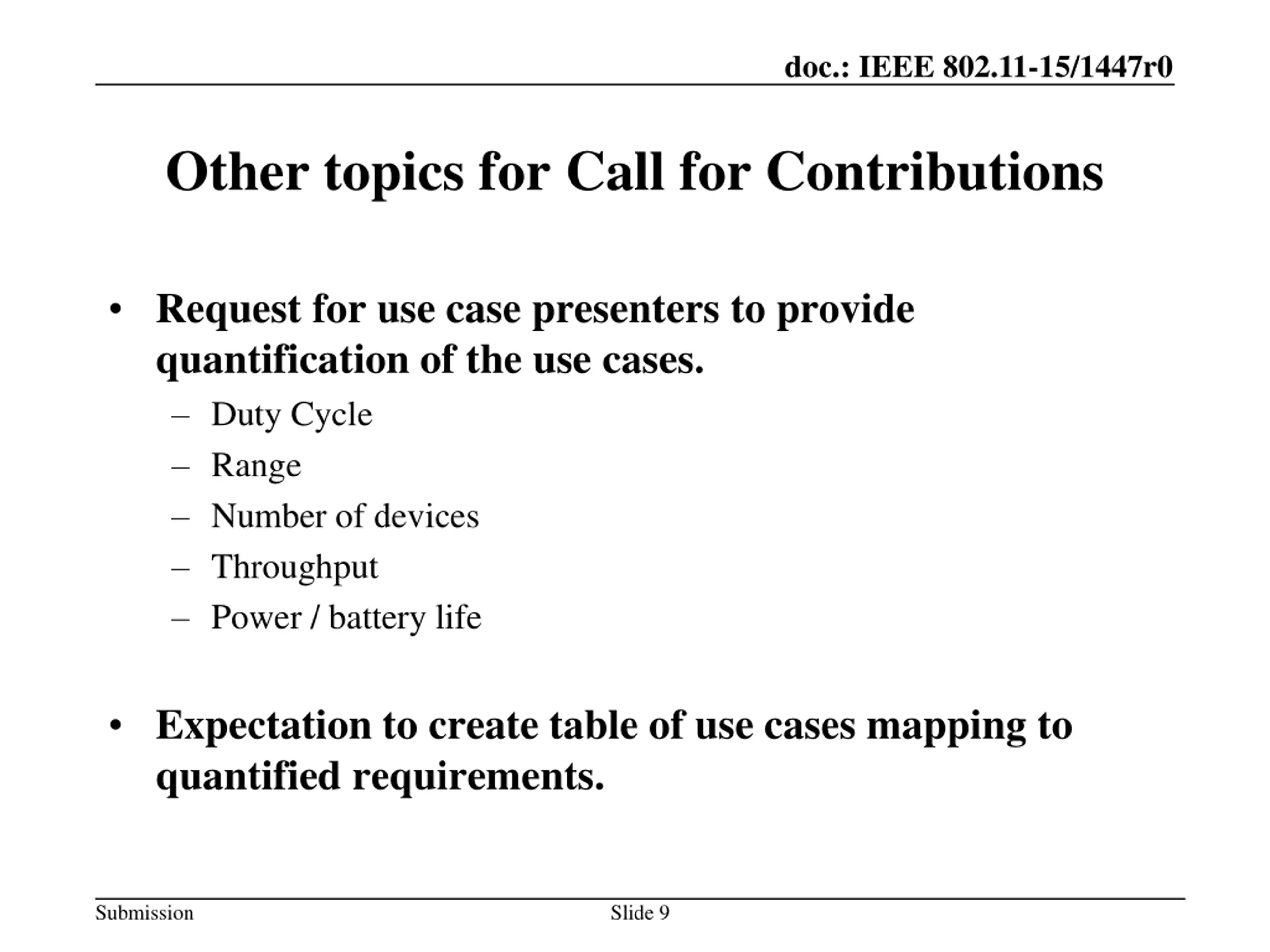

doc.: IEEE 802.11-15/1447r0 Other topics for Call for Contributions Request for use case presenters to provide quantification of the use cases. Duty Cycle Range Number of devices Throughput Power / battery life Expectation to create table of use cases mapping to quantified requirements. Submission Slide 9

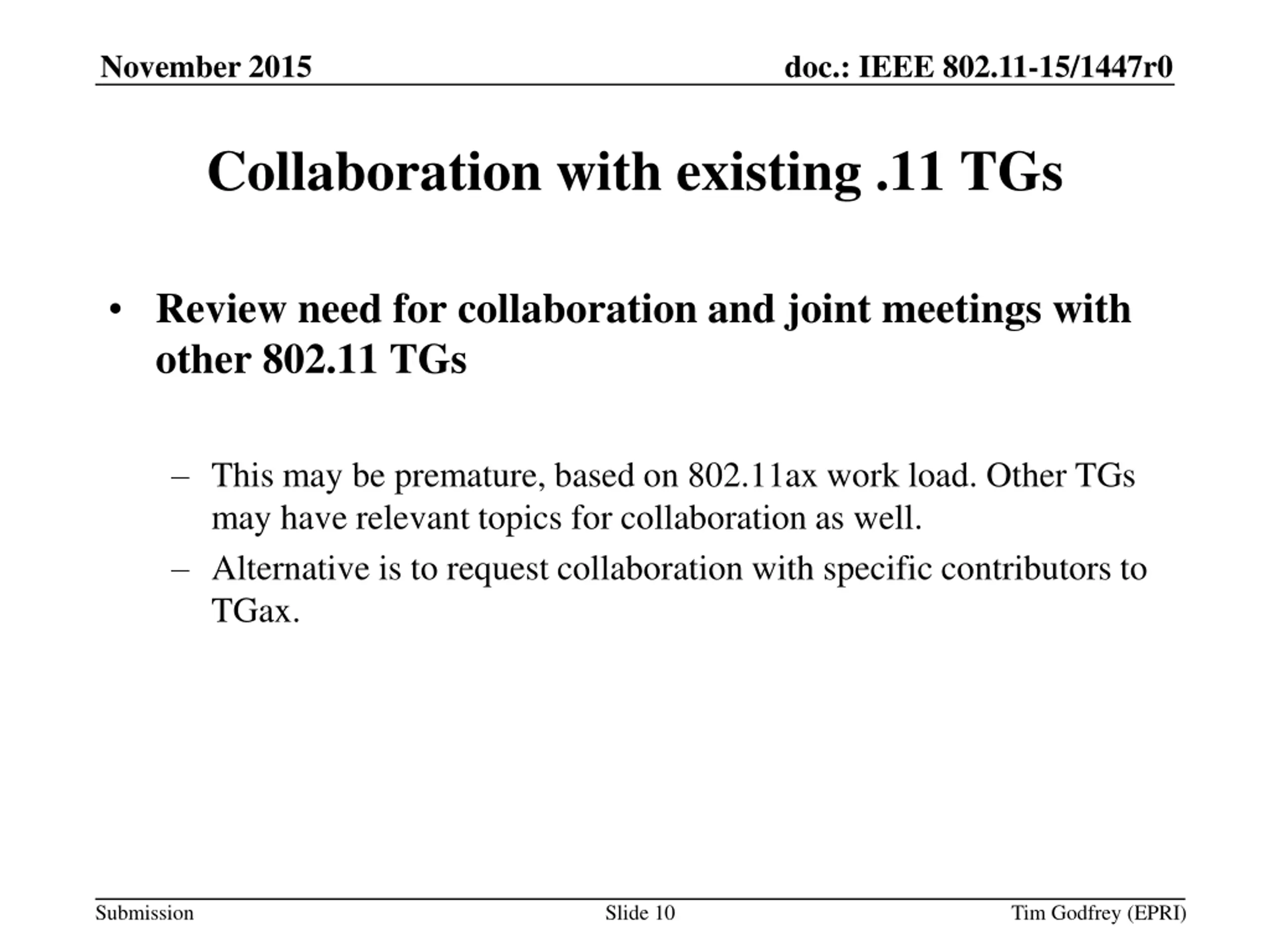

November 2015 doc.: IEEE 802.11-15/1447r0 Collaboration with existing .11 TGs Review need for collaboration and joint meetings with other 802.11 TGs This may be premature, based on 802.11ax work load. Other TGs may have relevant topics for collaboration as well. Alternative is to request collaboration with specific contributors to TGax. Submission Slide 10 Tim Godfrey (EPRI)

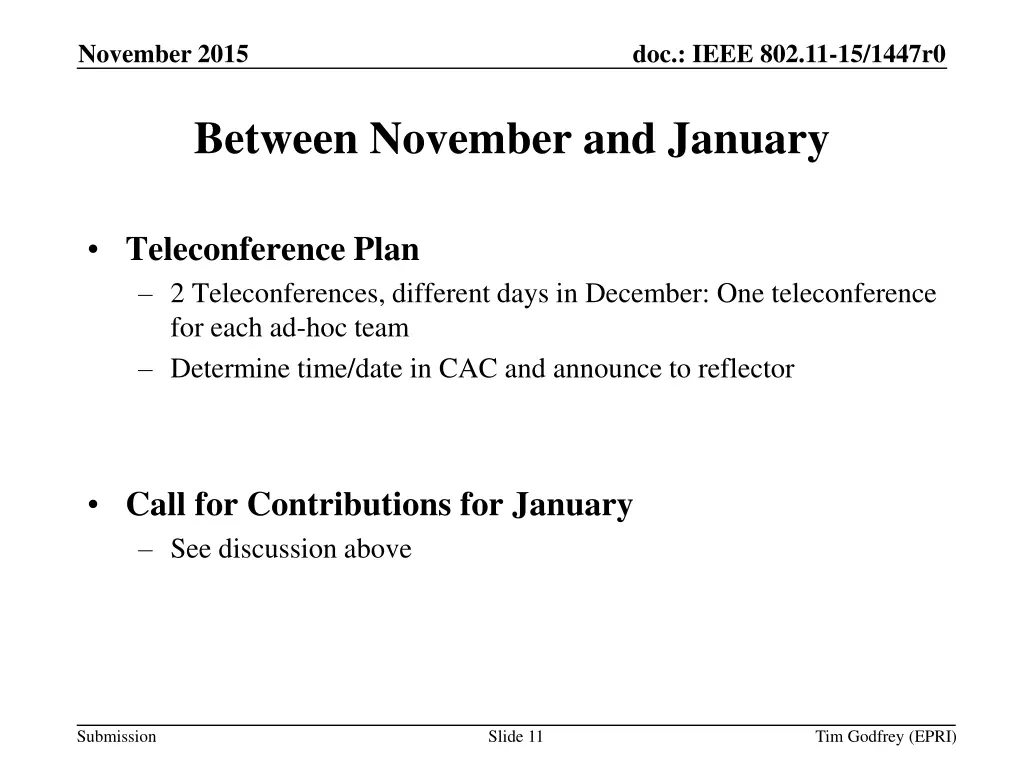

November 2015 doc.: IEEE 802.11-15/1447r0 Between November and January Teleconference Plan 2 Teleconferences, different days in December: One teleconference for each ad-hoc team Determine time/date in CAC and announce to reflector Call for Contributions for January See discussion above Submission Slide 11 Tim Godfrey (EPRI)

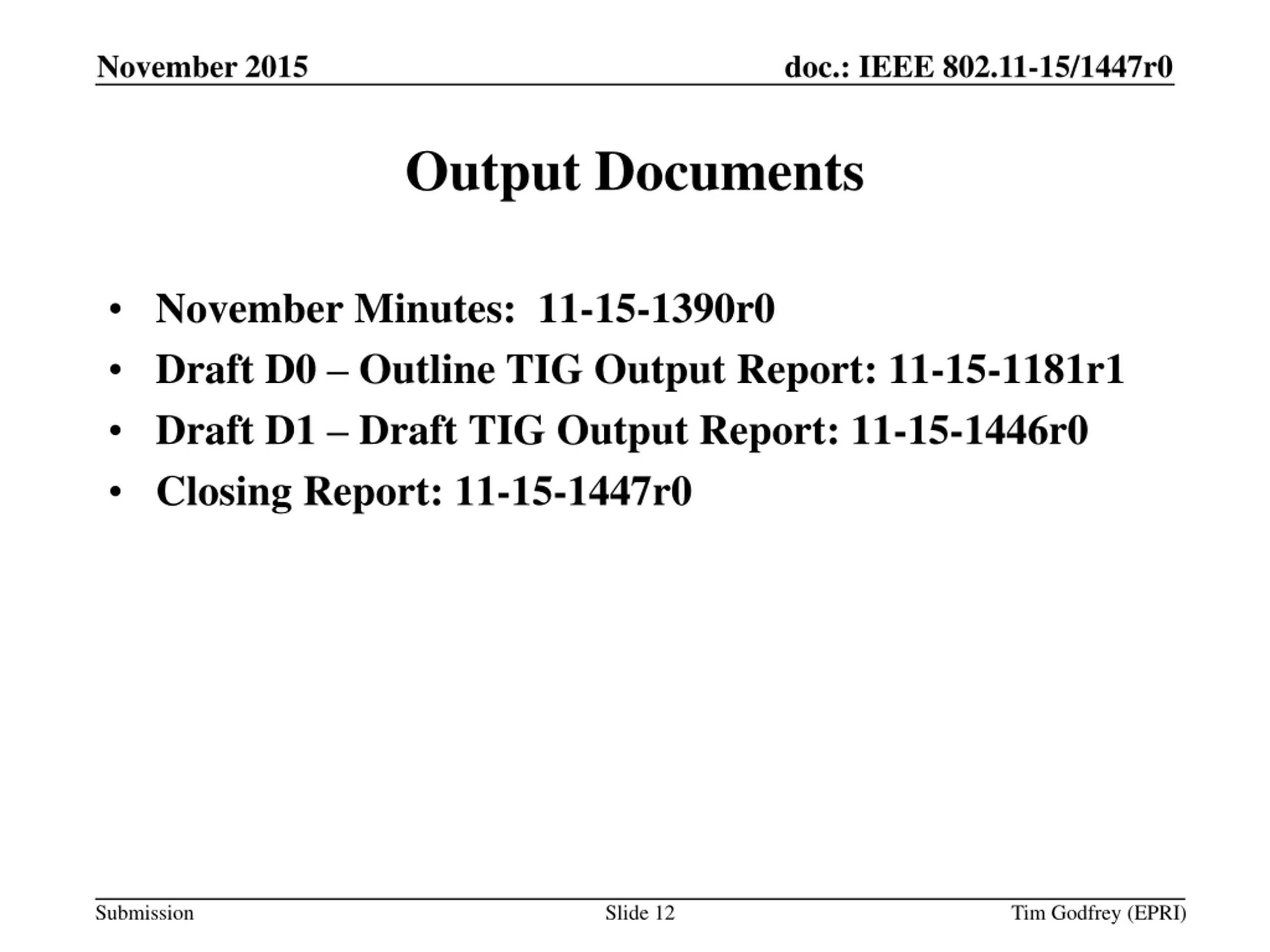

November 2015 doc.: IEEE 802.11-15/1447r0 Output Documents November Minutes: 11-15-1390r0 Draft D0 Outline TIG Output Report: 11-15-1181r1 Draft D1 Draft TIG Output Report: 11-15-1446r0 Closing Report: 11-15-1447r0 Submission Slide 12 Tim Godfrey (EPRI)
