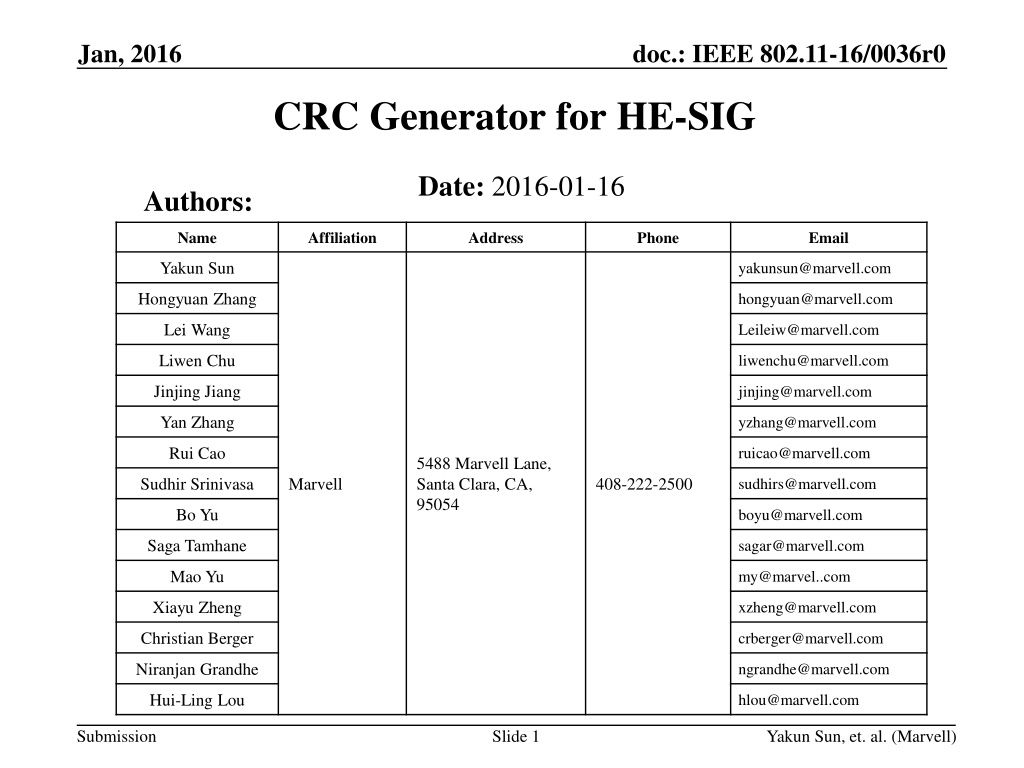

Jan, 2016 doc.: IEEE 802.11-16/0036r0 CRC Generator for HE-SIG Date: 2016-01-16 Authors: Name Affiliation Address Phone Email Yakun Sun yakunsun@marvell.com Hongyuan Zhang hongyuan@marvell.com Lei Wang Leileiw@marvell.com Liwen Chu liwenchu@marvell.com Jinjing Jiang jinjing@marvell.com Yan Zhang yzhang@marvell.com Rui Cao ruicao@marvell.com 5488 Marvell Lane, Santa Clara, CA, 95054 Sudhir Srinivasa Marvell 408-222-2500 sudhirs@marvell.com Bo Yu boyu@marvell.com Saga Tamhane sagar@marvell.com Mao Yu my@marvel..com Xiayu Zheng xzheng@marvell.com Christian Berger crberger@marvell.com Niranjan Grandhe ngrandhe@marvell.com Hui-Ling Lou hlou@marvell.com Submission Slide 1 Yakun Sun, et. al. (Marvell)

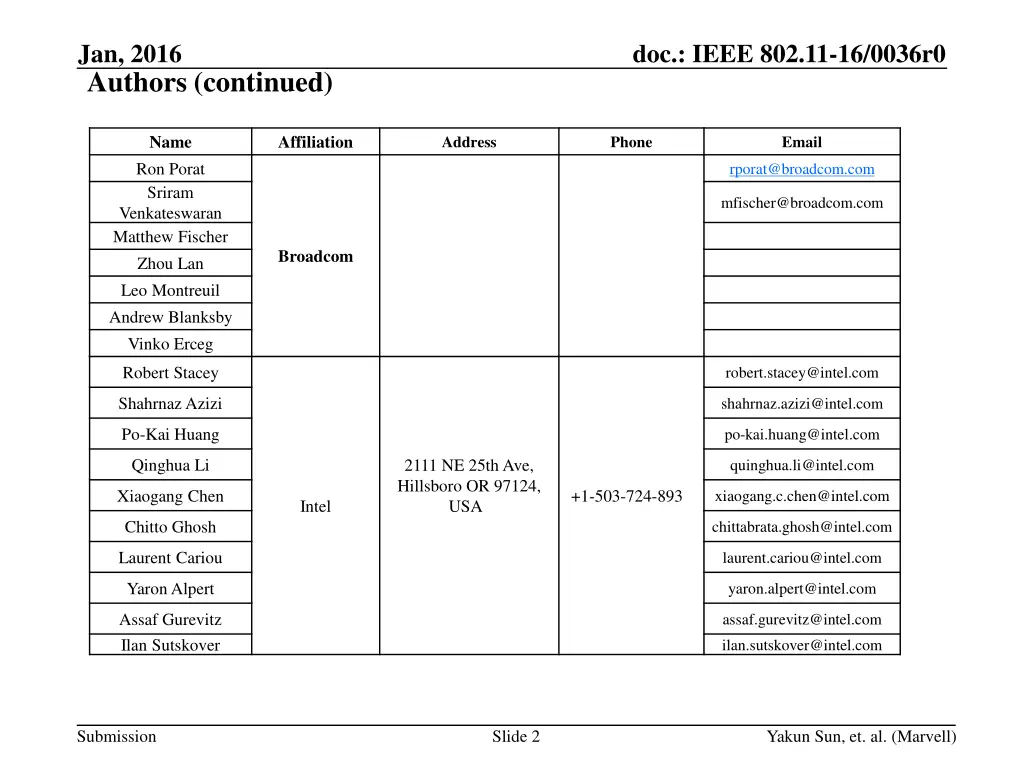

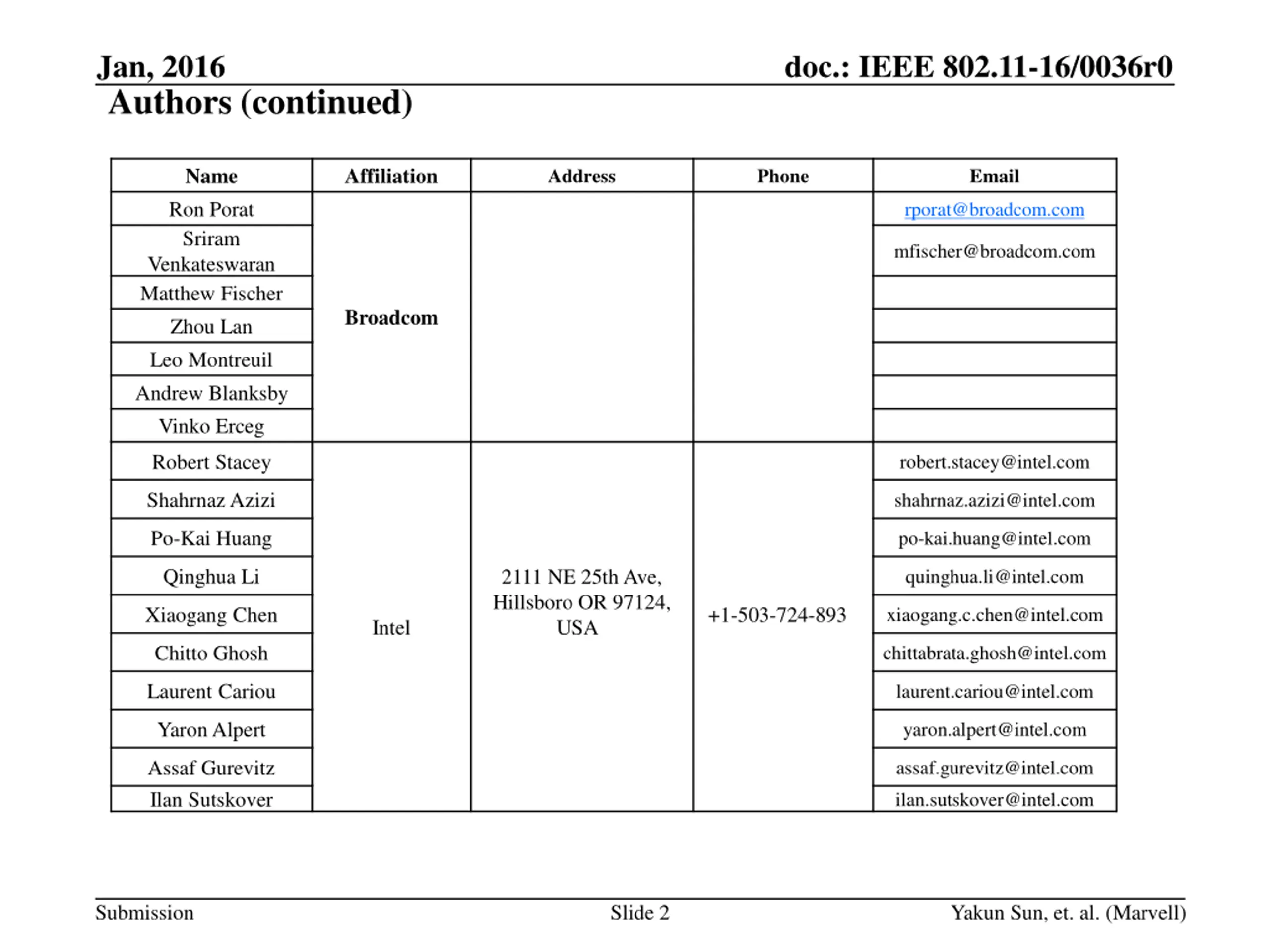

Jan, 2016 doc.: IEEE 802.11-16/0036r0 Authors (continued) Name Ron Porat Sriram Venkateswaran Matthew Fischer Zhou Lan Leo Montreuil Andrew Blanksby Vinko Erceg Affiliation Address Phone Email rporat@broadcom.com mfischer@broadcom.com Broadcom Robert Stacey robert.stacey@intel.com Shahrnaz Azizi shahrnaz.azizi@intel.com Po-Kai Huang po-kai.huang@intel.com Qinghua Li 2111 NE 25th Ave, Hillsboro OR 97124, USA quinghua.li@intel.com Xiaogang Chen +1-503-724-893 xiaogang.c.chen@intel.com Intel Chitto Ghosh chittabrata.ghosh@intel.com Laurent Cariou laurent.cariou@intel.com Yaron Alpert yaron.alpert@intel.com Assaf Gurevitz Ilan Sutskover assaf.gurevitz@intel.com ilan.sutskover@intel.com Submission Slide 2 Yakun Sun, et. al. (Marvell)

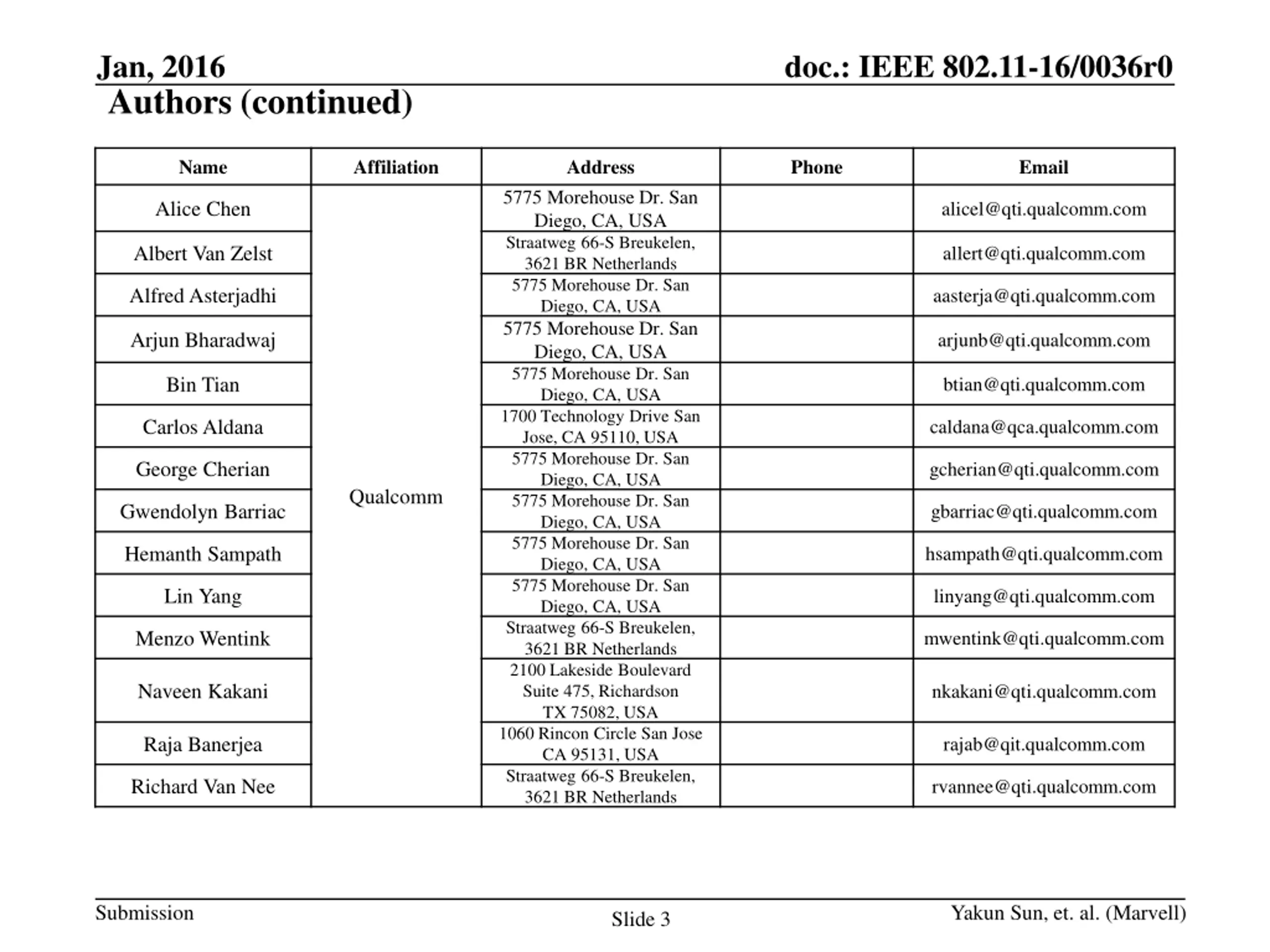

Jan, 2016 doc.: IEEE 802.11-16/0036r0 Authors (continued) Name Affiliation Address Phone Email 5775 Morehouse Dr. San Diego, CA, USA Straatweg 66-S Breukelen, 3621 BR Netherlands 5775 Morehouse Dr. San Diego, CA, USA 5775 Morehouse Dr. San Diego, CA, USA 5775 Morehouse Dr. San Diego, CA, USA 1700 Technology Drive San Jose, CA 95110, USA 5775 Morehouse Dr. San Diego, CA, USA 5775 Morehouse Dr. San Diego, CA, USA 5775 Morehouse Dr. San Diego, CA, USA 5775 Morehouse Dr. San Diego, CA, USA Straatweg 66-S Breukelen, 3621 BR Netherlands 2100 Lakeside Boulevard Suite 475, Richardson TX 75082, USA 1060 Rincon Circle San Jose CA 95131, USA Straatweg 66-S Breukelen, 3621 BR Netherlands Alice Chen alicel@qti.qualcomm.com Albert Van Zelst allert@qti.qualcomm.com Alfred Asterjadhi aasterja@qti.qualcomm.com Arjun Bharadwaj arjunb@qti.qualcomm.com Bin Tian btian@qti.qualcomm.com Carlos Aldana caldana@qca.qualcomm.com George Cherian gcherian@qti.qualcomm.com Qualcomm Gwendolyn Barriac gbarriac@qti.qualcomm.com Hemanth Sampath hsampath@qti.qualcomm.com Lin Yang linyang@qti.qualcomm.com Menzo Wentink mwentink@qti.qualcomm.com Naveen Kakani nkakani@qti.qualcomm.com Raja Banerjea rajab@qit.qualcomm.com Richard Van Nee rvannee@qti.qualcomm.com Submission Yakun Sun, et. al. (Marvell) Slide 3

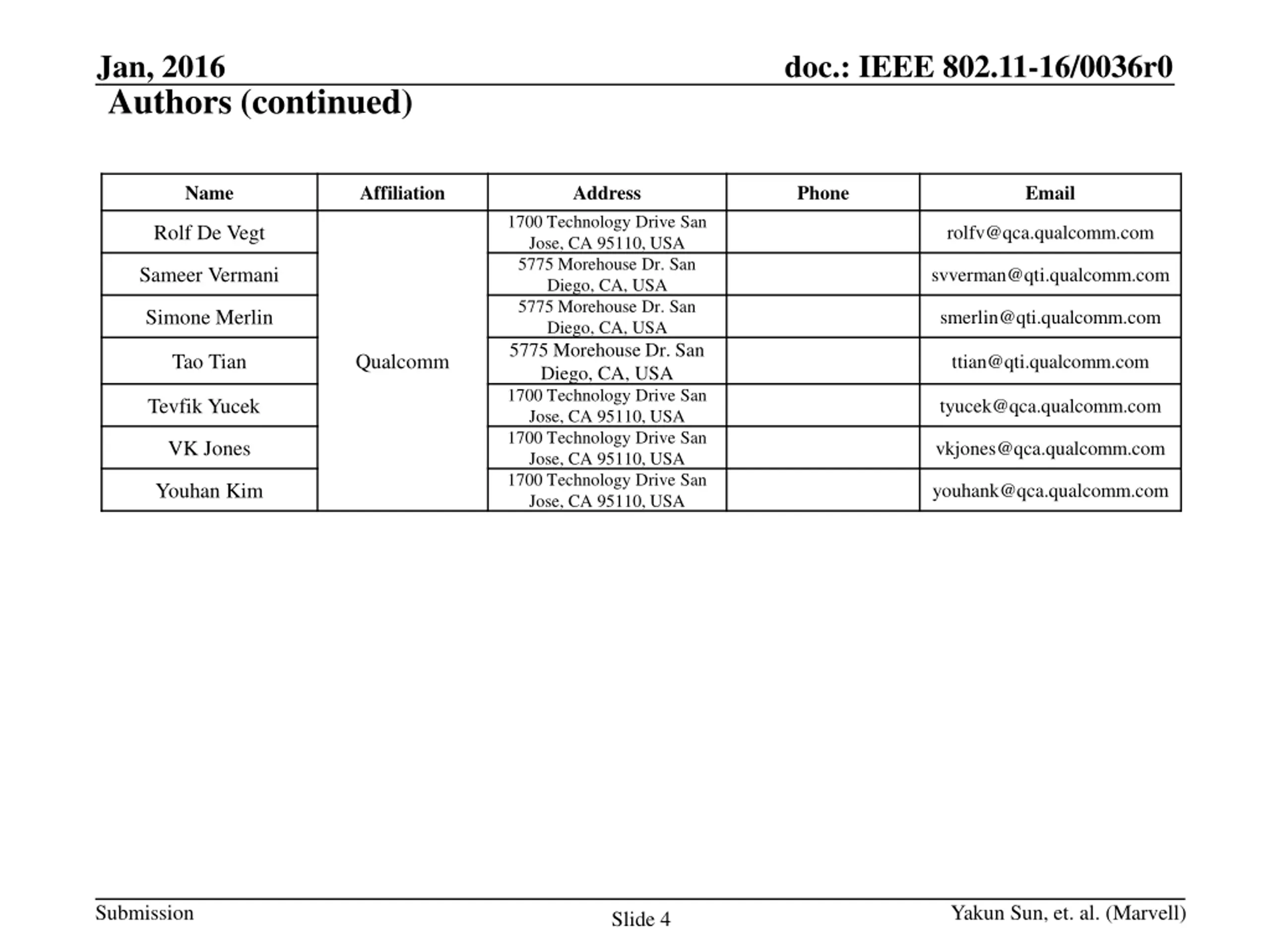

Jan, 2016 doc.: IEEE 802.11-16/0036r0 Authors (continued) Name Affiliation Address Phone Email 1700 Technology Drive San Jose, CA 95110, USA 5775 Morehouse Dr. San Diego, CA, USA 5775 Morehouse Dr. San Diego, CA, USA 5775 Morehouse Dr. San Diego, CA, USA 1700 Technology Drive San Jose, CA 95110, USA 1700 Technology Drive San Jose, CA 95110, USA 1700 Technology Drive San Jose, CA 95110, USA Rolf De Vegt rolfv@qca.qualcomm.com Sameer Vermani svverman@qti.qualcomm.com Simone Merlin smerlin@qti.qualcomm.com Tao Tian Qualcomm ttian@qti.qualcomm.com Tevfik Yucek tyucek@qca.qualcomm.com VK Jones vkjones@qca.qualcomm.com Youhan Kim youhank@qca.qualcomm.com Submission Yakun Sun, et. al. (Marvell) Slide 4

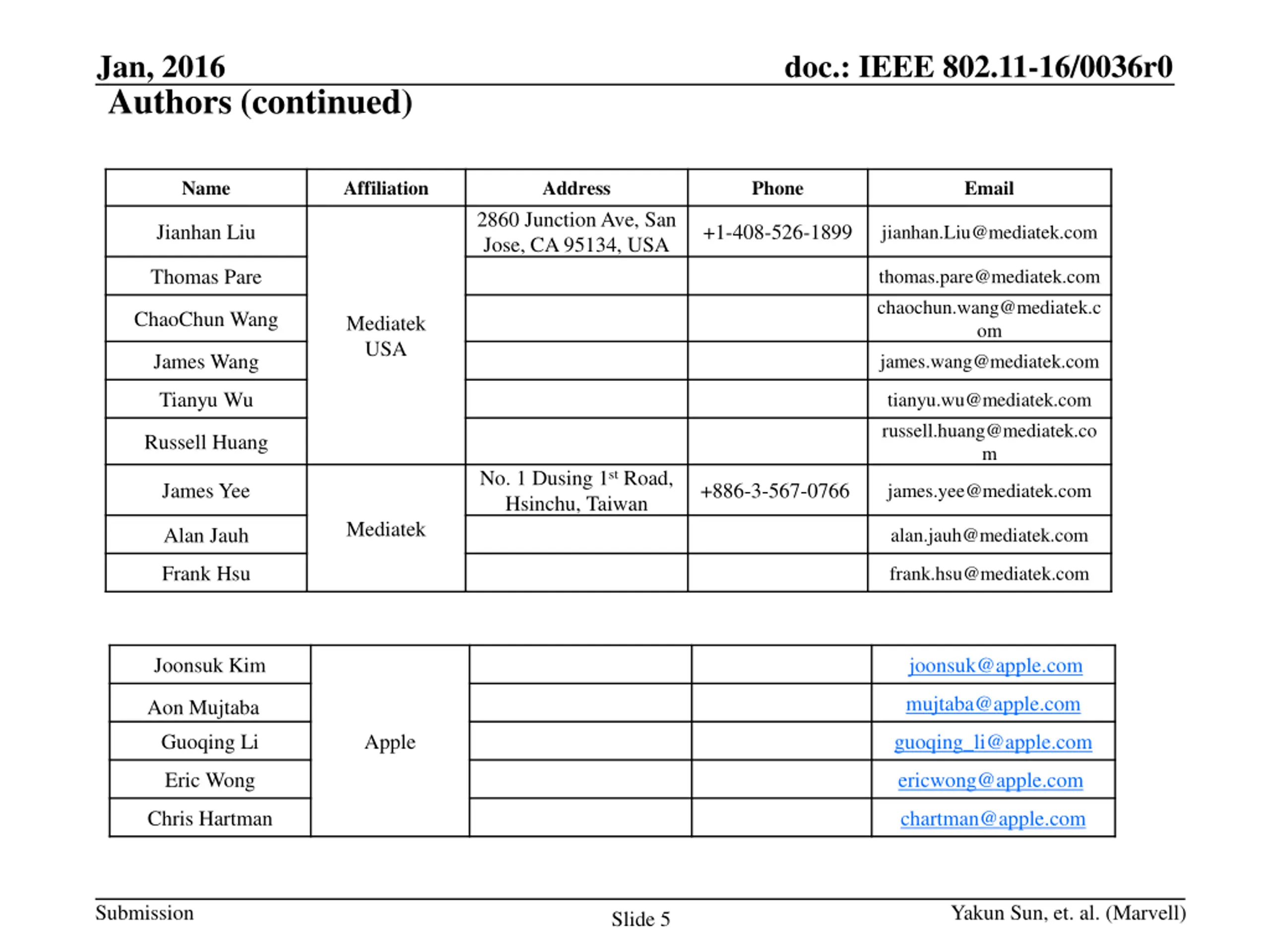

Jan, 2016 doc.: IEEE 802.11-16/0036r0 Authors (continued) Name Affiliation Address Phone Email 2860 Junction Ave, San Jose, CA 95134, USA Jianhan Liu +1-408-526-1899 jianhan.Liu@mediatek.com Thomas Pare thomas.pare@mediatek.com chaochun.wang@mediatek.c om james.wang@mediatek.com ChaoChun Wang Mediatek USA James Wang Tianyu Wu tianyu.wu@mediatek.com russell.huang@mediatek.co m Russell Huang No. 1 Dusing 1st Road, Hsinchu, Taiwan James Yee +886-3-567-0766 james.yee@mediatek.com Mediatek Alan Jauh alan.jauh@mediatek.com Frank Hsu frank.hsu@mediatek.com Joonsuk Kim joonsuk@apple.com mujtaba@apple.com Aon Mujtaba Guoqing Li Apple guoqing_li@apple.com Eric Wong ericwong@apple.com Chris Hartman chartman@apple.com Submission Yakun Sun, et. al. (Marvell) Slide 5

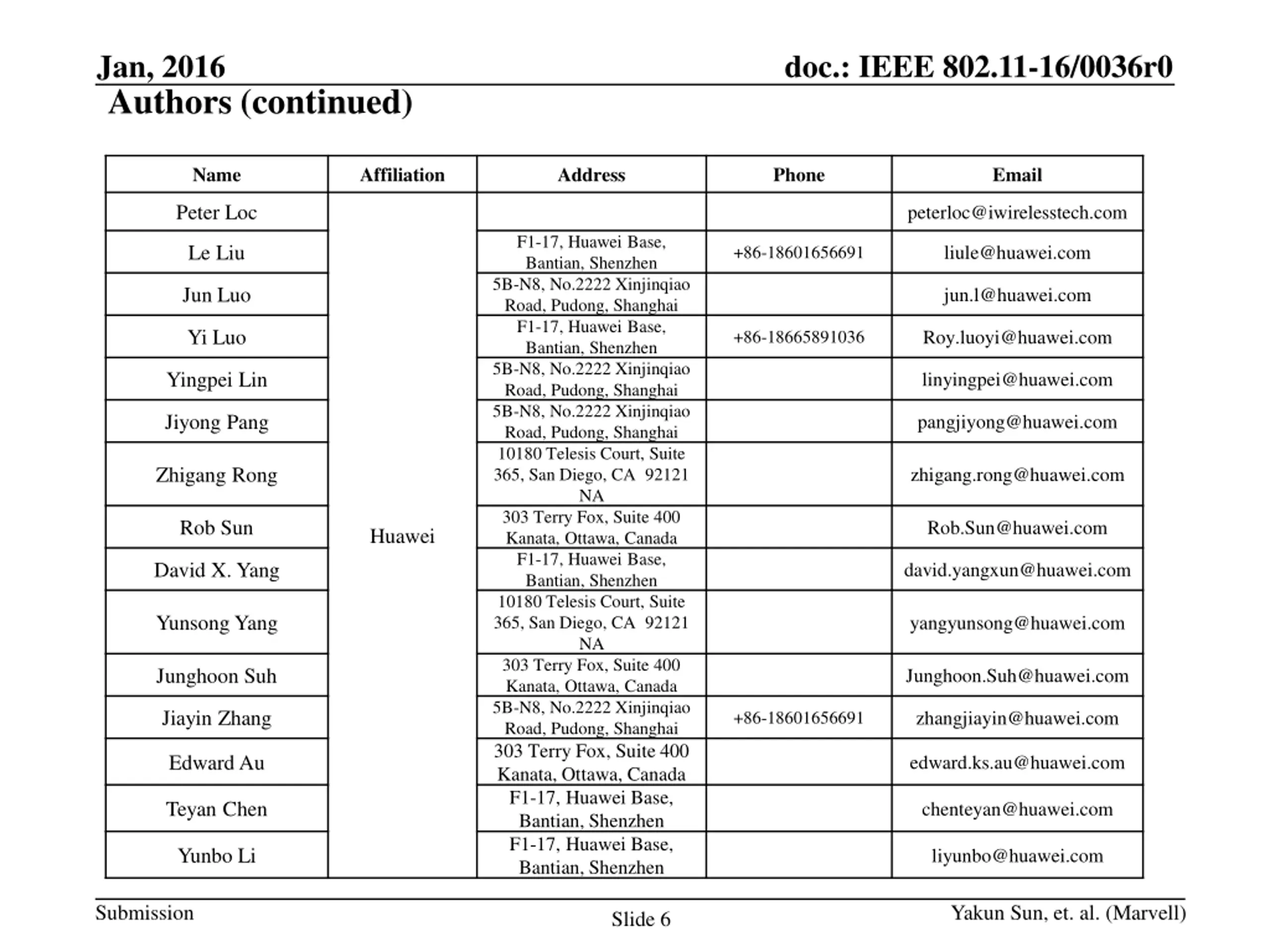

Jan, 2016 doc.: IEEE 802.11-16/0036r0 Authors (continued) Name Affiliation Address Phone Email Peter Loc peterloc@iwirelesstech.com F1-17, Huawei Base, Bantian, Shenzhen 5B-N8, No.2222 Xinjinqiao Road, Pudong, Shanghai F1-17, Huawei Base, Bantian, Shenzhen 5B-N8, No.2222 Xinjinqiao Road, Pudong, Shanghai 5B-N8, No.2222 Xinjinqiao Road, Pudong, Shanghai 10180 Telesis Court, Suite 365, San Diego, CA 92121 NA 303 Terry Fox, Suite 400 Kanata, Ottawa, Canada F1-17, Huawei Base, Bantian, Shenzhen 10180 Telesis Court, Suite 365, San Diego, CA 92121 NA 303 Terry Fox, Suite 400 Kanata, Ottawa, Canada 5B-N8, No.2222 Xinjinqiao Road, Pudong, Shanghai 303 Terry Fox, Suite 400 Kanata, Ottawa, Canada F1-17, Huawei Base, Bantian, Shenzhen F1-17, Huawei Base, Bantian, Shenzhen Le Liu liule@huawei.com +86-18601656691 Jun Luo jun.l@huawei.com Yi Luo Roy.luoyi@huawei.com +86-18665891036 Yingpei Lin linyingpei@huawei.com Jiyong Pang pangjiyong@huawei.com Zhigang Rong zhigang.rong@huawei.com Rob Sun Rob.Sun@huawei.com Huawei David X. Yang david.yangxun@huawei.com Yunsong Yang yangyunsong@huawei.com Junghoon Suh Junghoon.Suh@huawei.com Jiayin Zhang zhangjiayin@huawei.com +86-18601656691 Edward Au edward.ks.au@huawei.com Teyan Chen chenteyan@huawei.com Yunbo Li liyunbo@huawei.com Submission Yakun Sun, et. al. (Marvell) Slide 6

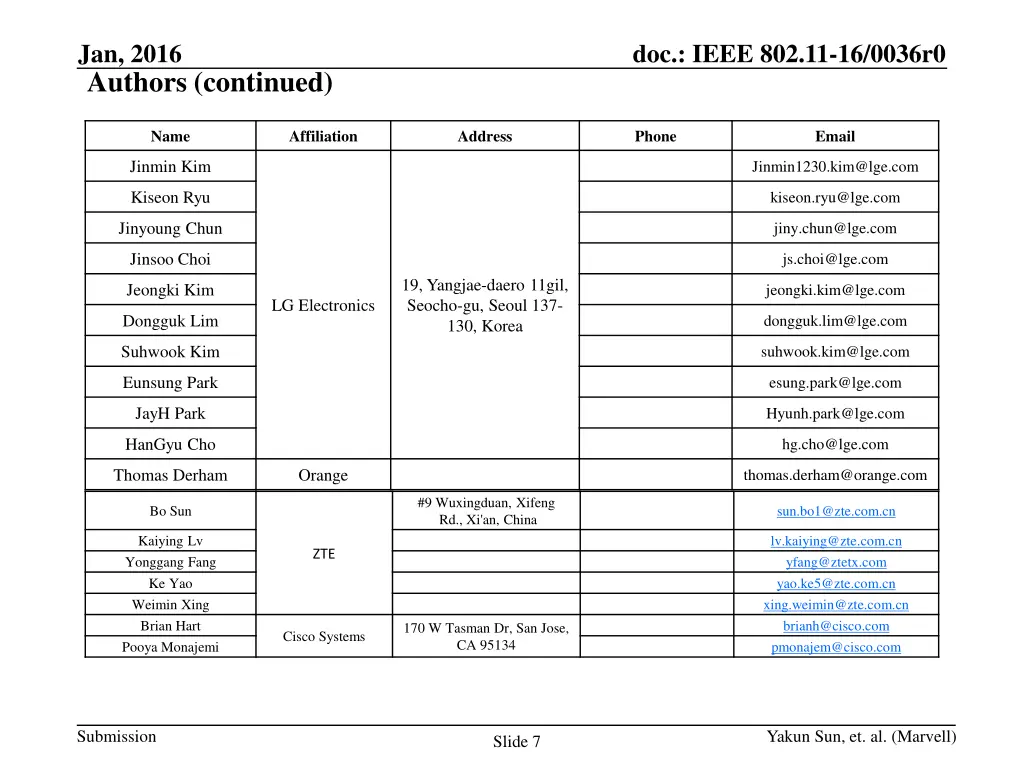

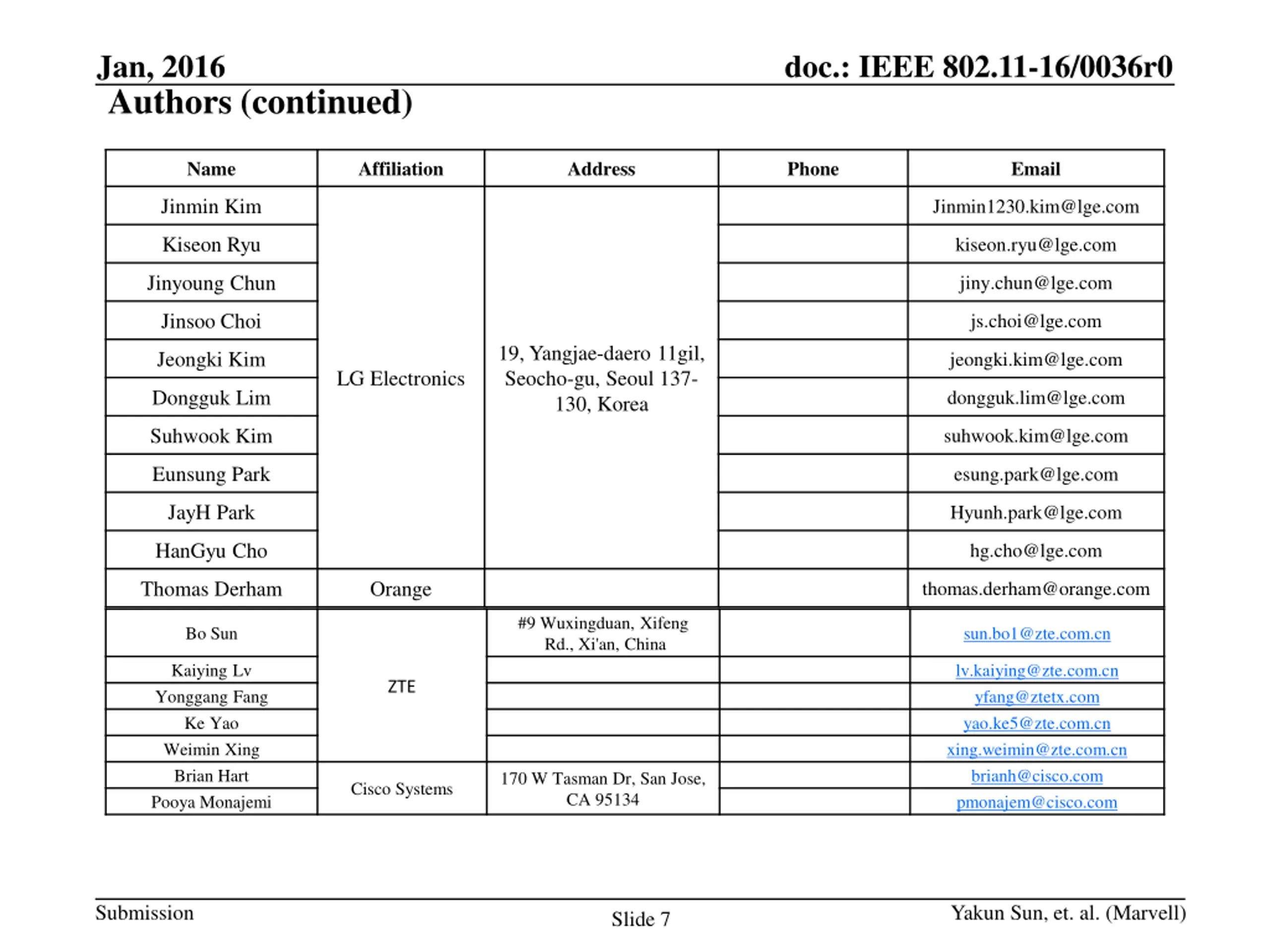

Jan, 2016 doc.: IEEE 802.11-16/0036r0 Authors (continued) Name Affiliation Address Phone Email Jinmin Kim Jinmin1230.kim@lge.com Kiseon Ryu kiseon.ryu@lge.com Jinyoung Chun jiny.chun@lge.com Jinsoo Choi js.choi@lge.com 19, Yangjae-daero 11gil, Seocho-gu, Seoul 137- 130, Korea Jeongki Kim jeongki.kim@lge.com LG Electronics Dongguk Lim dongguk.lim@lge.com Suhwook Kim suhwook.kim@lge.com Eunsung Park esung.park@lge.com JayH Park Hyunh.park@lge.com HanGyu Cho hg.cho@lge.com Thomas Derham Orange thomas.derham@orange.com #9 Wuxingduan, Xifeng Rd., Xi'an, China Bo Sun sun.bo1@zte.com.cn Kaiying Lv Yonggang Fang Ke Yao Weimin Xing Brian Hart Pooya Monajemi lv.kaiying@zte.com.cn yfang@ztetx.com yao.ke5@zte.com.cn xing.weimin@zte.com.cn brianh@cisco.com pmonajem@cisco.com ZTE 170 W Tasman Dr, San Jose, CA 95134 Cisco Systems Submission Yakun Sun, et. al. (Marvell) Slide 7

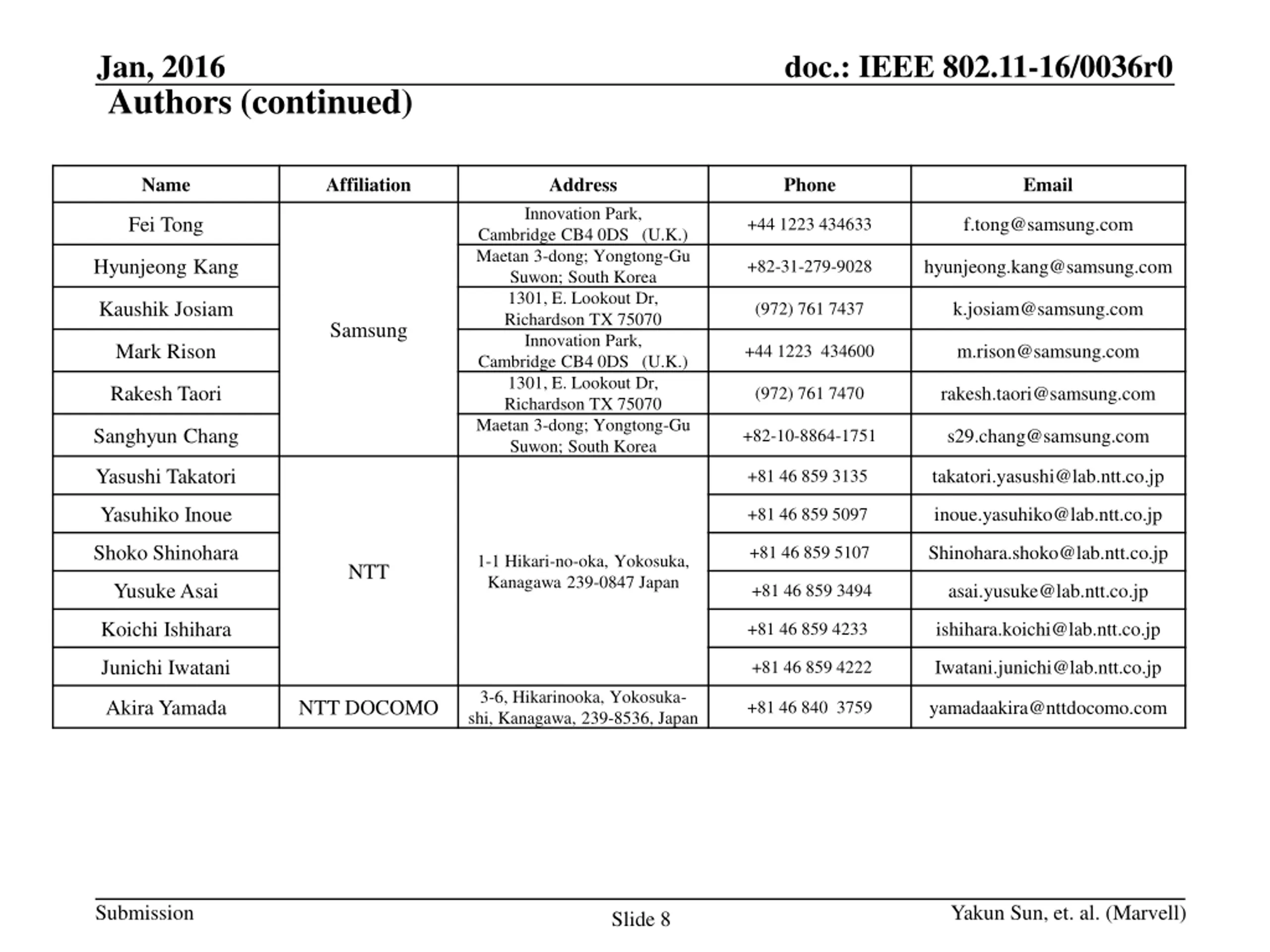

Jan, 2016 doc.: IEEE 802.11-16/0036r0 Authors (continued) Name Affiliation Address Innovation Park, Cambridge CB4 0DS (U.K.) Maetan 3-dong; Yongtong-Gu Suwon; South Korea 1301, E. Lookout Dr, Richardson TX 75070 Innovation Park, Cambridge CB4 0DS (U.K.) 1301, E. Lookout Dr, Richardson TX 75070 Maetan 3-dong; Yongtong-Gu Suwon; South Korea Phone Email Fei Tong f.tong@samsung.com +44 1223 434633 Hyunjeong Kang hyunjeong.kang@samsung.com +82-31-279-9028 Kaushik Josiam k.josiam@samsung.com (972) 761 7437 Samsung Mark Rison m.rison@samsung.com +44 1223 434600 Rakesh Taori rakesh.taori@samsung.com (972) 761 7470 Sanghyun Chang s29.chang@samsung.com +82-10-8864-1751 Yasushi Takatori takatori.yasushi@lab.ntt.co.jp +81 46 859 3135 Yasuhiko Inoue inoue.yasuhiko@lab.ntt.co.jp +81 46 859 5097 Shoko Shinohara Shinohara.shoko@lab.ntt.co.jp +81 46 859 5107 1-1 Hikari-no-oka, Yokosuka, Kanagawa 239-0847 Japan NTT Yusuke Asai asai.yusuke@lab.ntt.co.jp +81 46 859 3494 Koichi Ishihara ishihara.koichi@lab.ntt.co.jp +81 46 859 4233 Junichi Iwatani Iwatani.junichi@lab.ntt.co.jp +81 46 859 4222 3-6, Hikarinooka, Yokosuka- shi, Kanagawa, 239-8536, Japan Akira Yamada NTT DOCOMO yamadaakira@nttdocomo.com +81 46 840 3759 Submission Yakun Sun, et. al. (Marvell) Slide 8

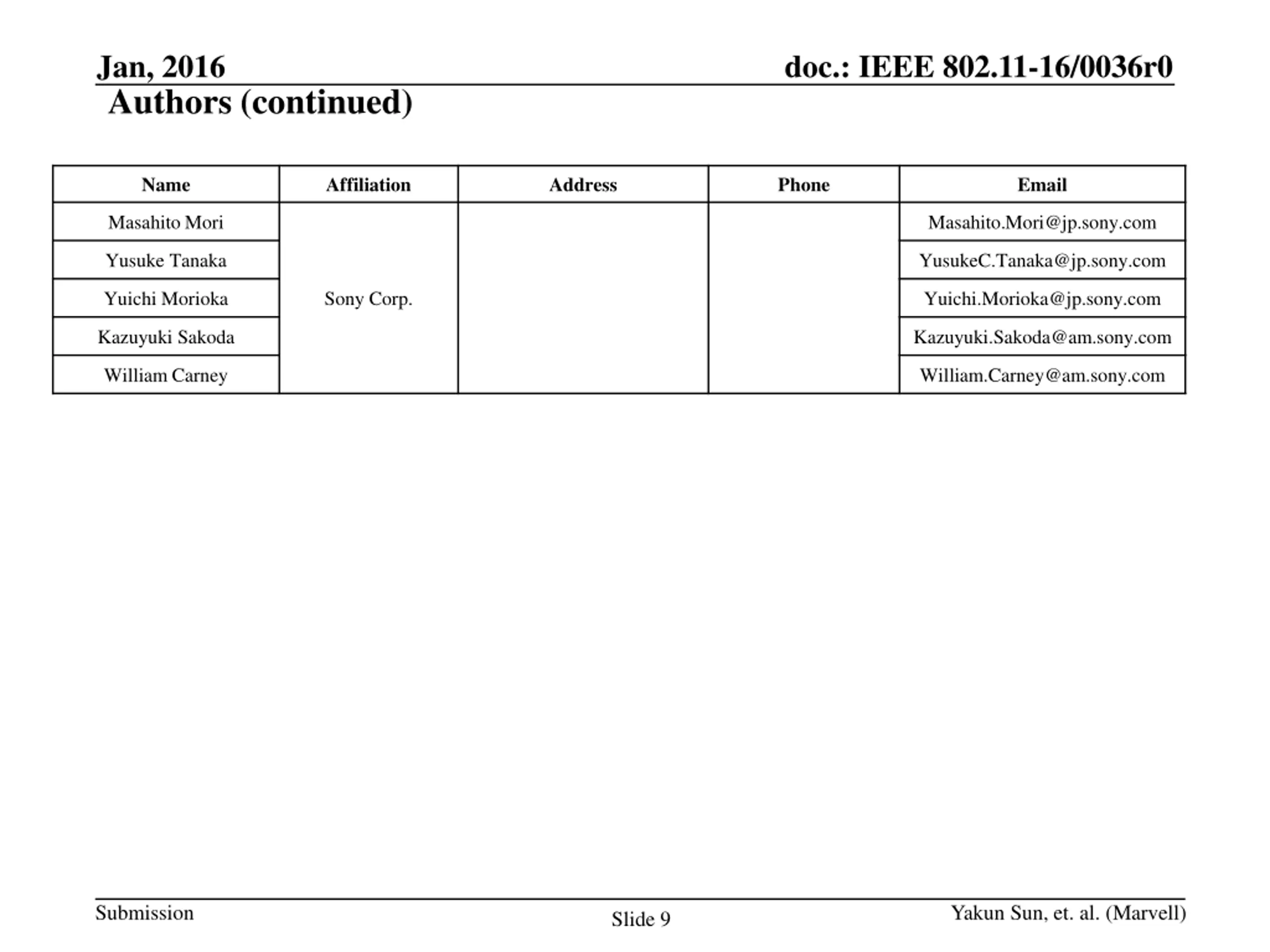

Jan, 2016 doc.: IEEE 802.11-16/0036r0 Authors (continued) Name Affiliation Address Phone Email Masahito Mori Masahito.Mori@jp.sony.com Yusuke Tanaka YusukeC.Tanaka@jp.sony.com Yuichi Morioka Sony Corp. Yuichi.Morioka@jp.sony.com Kazuyuki Sakoda Kazuyuki.Sakoda@am.sony.com William Carney William.Carney@am.sony.com Submission Yakun Sun, et. al. (Marvell) Slide 9

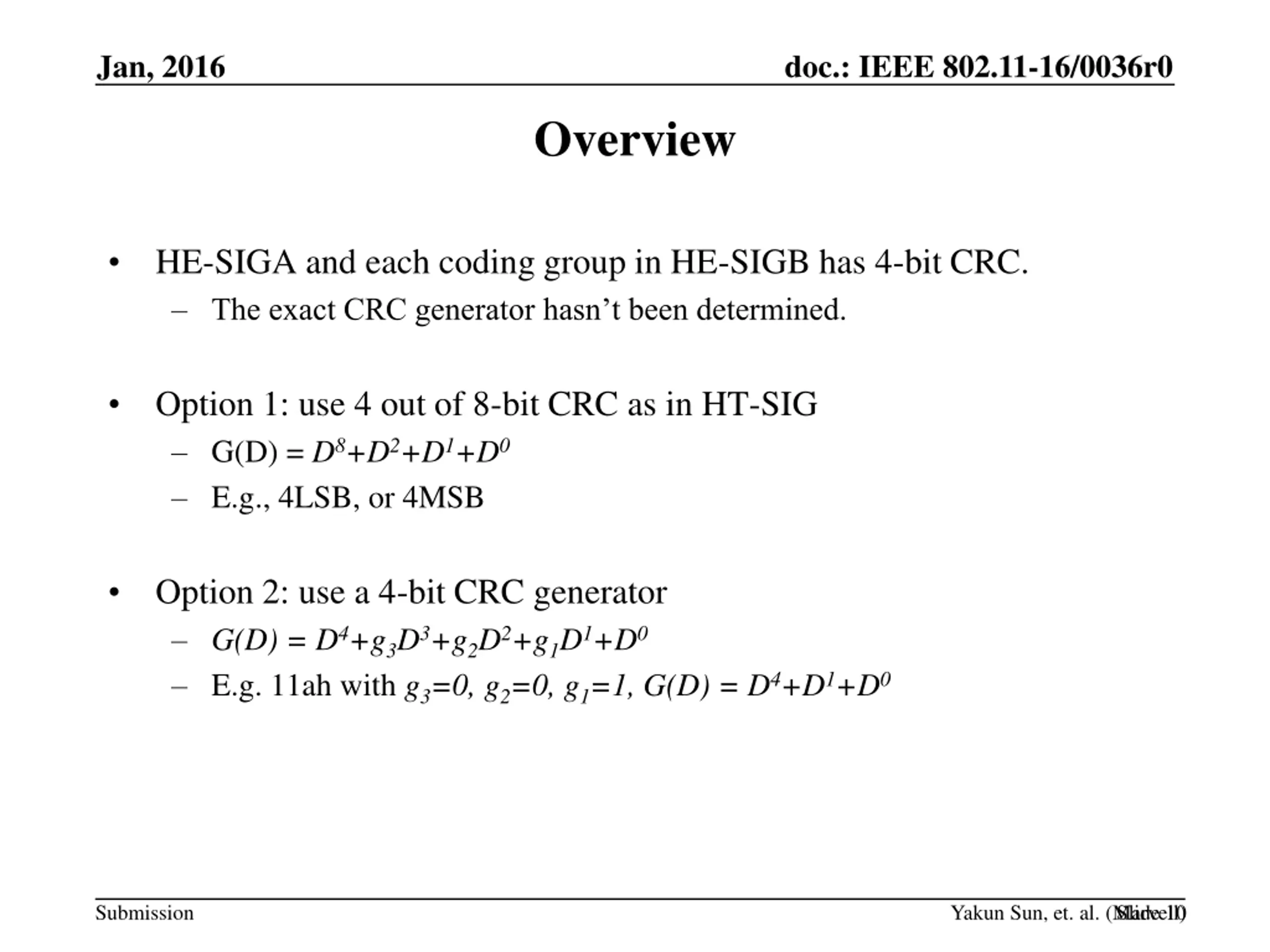

Jan, 2016 doc.: IEEE 802.11-16/0036r0 Overview HE-SIGA and each coding group in HE-SIGB has 4-bit CRC. The exact CRC generator hasn t been determined. Option 1: use 4 out of 8-bit CRC as in HT-SIG G(D) = D8+D2+D1+D0 E.g., 4LSB, or 4MSB Option 2: use a 4-bit CRC generator G(D) = D4+g3D3+g2D2+g1D1+D0 E.g. 11ah with g3=0, g2=0, g1=1, G(D) = D4+D1+D0 Submission Yakun Sun, et. al. (Marvell) Slide 10

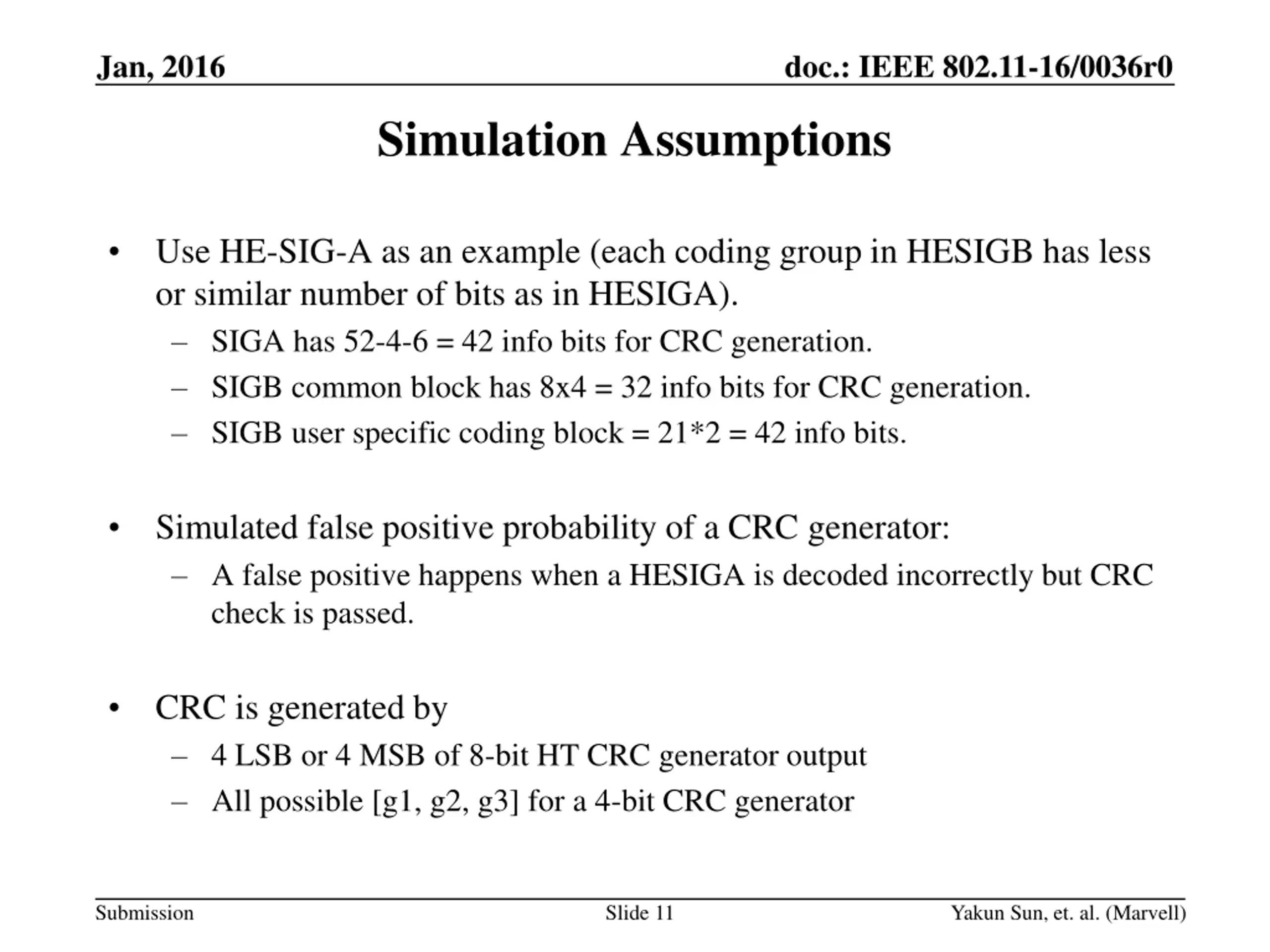

Jan, 2016 doc.: IEEE 802.11-16/0036r0 Simulation Assumptions Use HE-SIG-A as an example (each coding group in HESIGB has less or similar number of bits as in HESIGA). SIGA has 52-4-6 = 42 info bits for CRC generation. SIGB common block has 8x4 = 32 info bits for CRC generation. SIGB user specific coding block = 21*2 = 42 info bits. Simulated false positive probability of a CRC generator: A false positive happens when a HESIGA is decoded incorrectly but CRC check is passed. CRC is generated by 4 LSB or 4 MSB of 8-bit HT CRC generator output All possible [g1, g2, g3] for a 4-bit CRC generator Submission Slide 11 Yakun Sun, et. al. (Marvell)

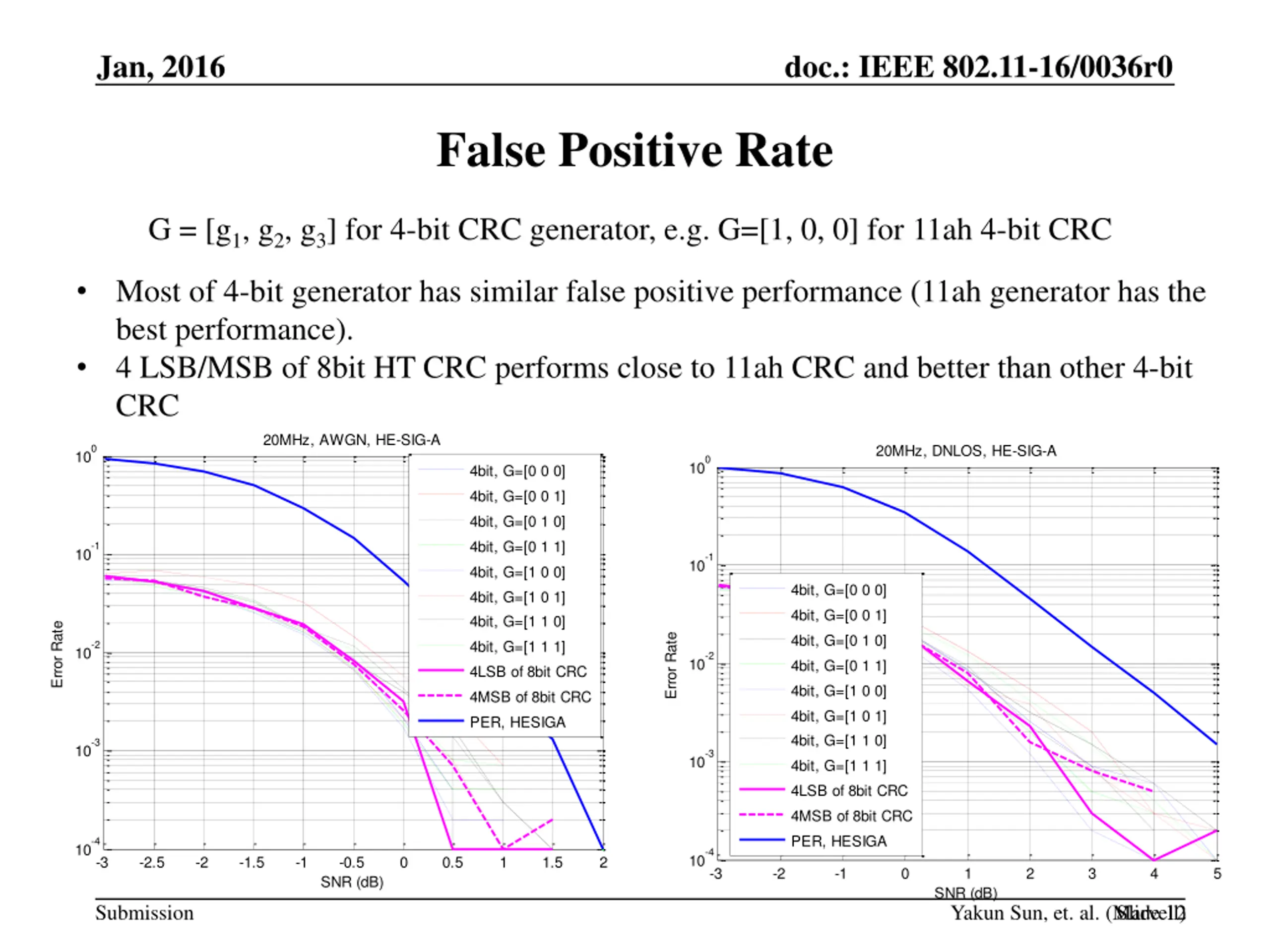

Jan, 2016 doc.: IEEE 802.11-16/0036r0 False Positive Rate G = [g1, g2, g3] for 4-bit CRC generator, e.g. G=[1, 0, 0] for 11ah 4-bit CRC Most of 4-bit generator has similar false positive performance (11ah generator has the best performance). 4 LSB/MSB of 8bit HT CRC performs close to 11ah CRC and better than other 4-bit CRC 20MHz, AWGN, HE-SIG-A 20MHz, DNLOS, HE-SIG-A 0 10 0 10 4bit, G=[0 0 0] 4bit, G=[0 0 1] 4bit, G=[0 1 0] 4bit, G=[0 1 1] -1 10 -1 10 4bit, G=[1 0 0] 4bit, G=[0 0 0] 4bit, G=[1 0 1] 4bit, G=[1 1 0] 4bit, G=[0 0 1] Error Rate 4bit, G=[0 1 0] Error Rate 4bit, G=[1 1 1] -2 10 -2 10 4bit, G=[0 1 1] 4LSB of 8bit CRC 4bit, G=[1 0 0] 4MSB of 8bit CRC 4bit, G=[1 0 1] 4bit, G=[1 1 0] PER, HESIGA -3 10 -3 10 4bit, G=[1 1 1] 4LSB of 8bit CRC 4MSB of 8bit CRC PER, HESIGA -4 10 -4 10 -3 -2.5 -2 -1.5 -1 -0.5 0 0.5 1 1.5 2 -3 -2 -1 0 1 2 3 4 5 SNR (dB) SNR (dB) Yakun Sun, et. al. (Marvell) Submission Slide 12

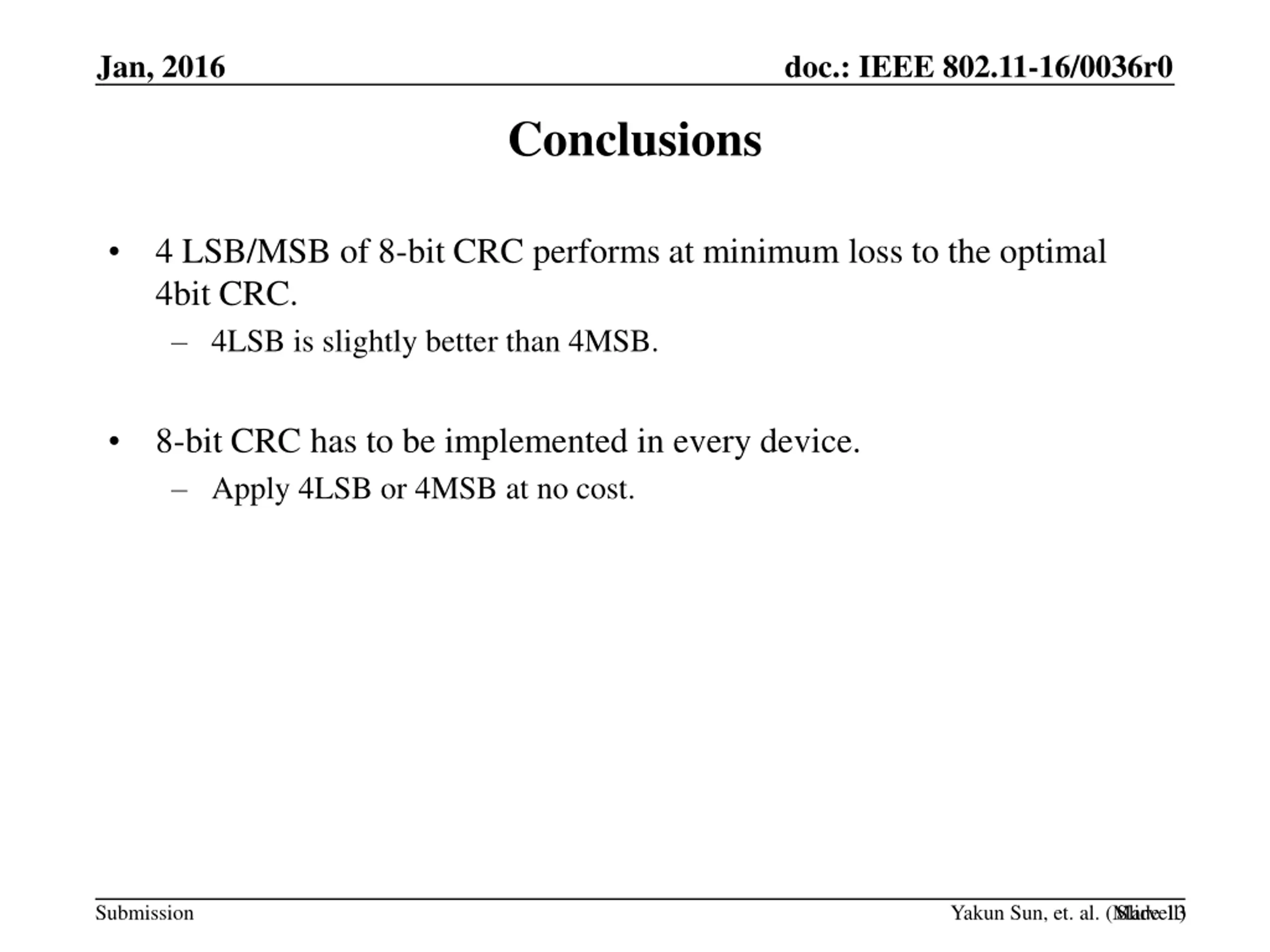

Jan, 2016 doc.: IEEE 802.11-16/0036r0 Conclusions 4 LSB/MSB of 8-bit CRC performs at minimum loss to the optimal 4bit CRC. 4LSB is slightly better than 4MSB. 8-bit CRC has to be implemented in every device. Apply 4LSB or 4MSB at no cost. Submission Yakun Sun, et. al. (Marvell) Slide 13

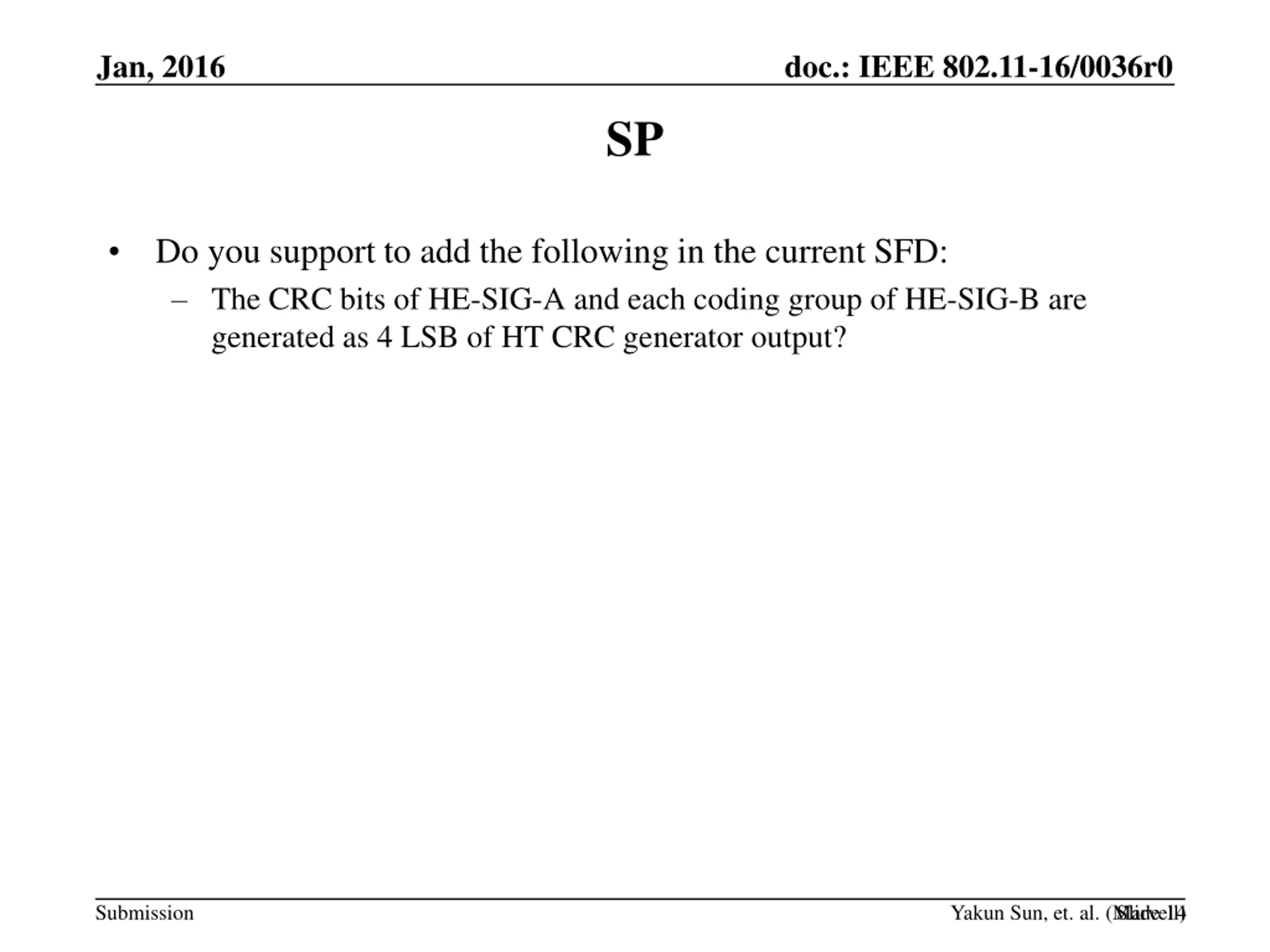

Jan, 2016 doc.: IEEE 802.11-16/0036r0 SP Do you support to add the following in the current SFD: The CRC bits of HE-SIG-A and each coding group of HE-SIG-B are generated as 4 LSB of HT CRC generator output? Submission Yakun Sun, et. al. (Marvell) Slide 14
