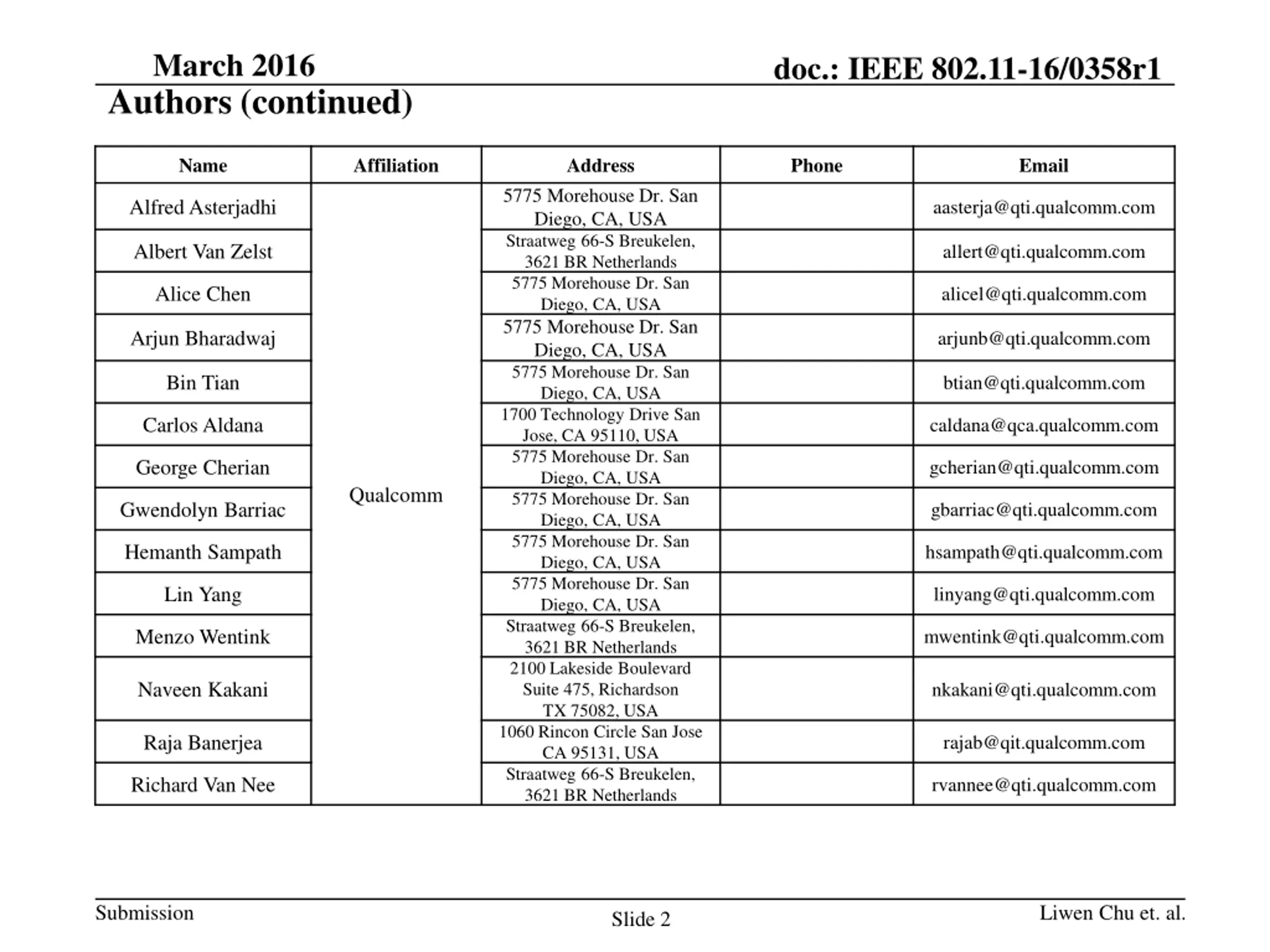

March 2016 Authors (continued) doc.: IEEE 802.11-16/0358r1 Name Affiliation Address Phone Email 5775 Morehouse Dr. San Diego, CA, USA Straatweg 66-S Breukelen, 3621 BR Netherlands 5775 Morehouse Dr. San Diego, CA, USA 5775 Morehouse Dr. San Diego, CA, USA 5775 Morehouse Dr. San Diego, CA, USA 1700 Technology Drive San Jose, CA 95110, USA 5775 Morehouse Dr. San Diego, CA, USA 5775 Morehouse Dr. San Diego, CA, USA 5775 Morehouse Dr. San Diego, CA, USA 5775 Morehouse Dr. San Diego, CA, USA Straatweg 66-S Breukelen, 3621 BR Netherlands 2100 Lakeside Boulevard Suite 475, Richardson TX 75082, USA 1060 Rincon Circle San Jose CA 95131, USA Straatweg 66-S Breukelen, 3621 BR Netherlands Alfred Asterjadhi aasterja@qti.qualcomm.com Albert Van Zelst allert@qti.qualcomm.com Alice Chen alicel@qti.qualcomm.com Arjun Bharadwaj arjunb@qti.qualcomm.com Bin Tian btian@qti.qualcomm.com Carlos Aldana caldana@qca.qualcomm.com George Cherian gcherian@qti.qualcomm.com Qualcomm Gwendolyn Barriac gbarriac@qti.qualcomm.com Hemanth Sampath hsampath@qti.qualcomm.com Lin Yang linyang@qti.qualcomm.com Menzo Wentink mwentink@qti.qualcomm.com Naveen Kakani nkakani@qti.qualcomm.com Raja Banerjea rajab@qit.qualcomm.com Richard Van Nee rvannee@qti.qualcomm.com Submission Liwen Chu et. al. Slide 2
March 2016 Authors (continued) doc.: IEEE 802.11-16/0358r1 Name Affiliation Address Phone Email 1700 Technology Drive San Jose, CA 95110, USA 5775 Morehouse Dr. San Diego, CA, USA 5775 Morehouse Dr. San Diego, CA, USA 5775 Morehouse Dr. San Diego, CA, USA 1700 Technology Drive San Jose, CA 95110, USA 1700 Technology Drive San Jose, CA 95110, USA 1700 Technology Drive San Jose, CA 95110, USA Rolf De Vegt rolfv@qca.qualcomm.com Sameer Vermani svverman@qti.qualcomm.com Simone Merlin smerlin@qti.qualcomm.com Tao Tian Qualcomm ttian@qti.qualcomm.com Tevfik Yucek tyucek@qca.qualcomm.com VK Jones vkjones@qca.qualcomm.com Youhan Kim youhank@qca.qualcomm.com Robert Stacey robert.stacey@intel.com Shahrnaz Azizi shahrnaz.azizi@intel.com Po-Kai Huang po-kai.huang@intel.com Qinghua Li 2111 NE 25th Ave, Hillsboro OR 97124, USA quinghua.li@intel.com Xiaogang Chen +1-503-724-893 xiaogang.c.chen@intel.com Intel Chitto Ghosh chittabrata.ghosh@intel.com Laurent Cariou laurent.cariou@intel.com Yaron Alpert yaron.alpert@intel.com Assaf Gurevitz Ilan Sutskover assaf.gurevitz@intel.com ilan.sutskover@intel.com Submission Liwen Chu et. al. Slide 3
March 2016 doc.: IEEE 802.11-16/0358r1 Name Affiliation Address Phone Email No. 1 Dusing 1st Road, Hsinchu, Taiwan James Yee +886-3-567-0766 james.yee@mediatek.com Alan Jauh alan.jauh@mediatek.com chinghwa.yu@mediatek.co m frank.hsu@mediatek.com Mediatek Chingwa Hu Frank Hsu 2860 Junction Ave, San Jose, CA 95134, USA Thomas Pare +1-408-526-1899 thomas.pare@mediatek.com chaochun.wang@mediatek.c om james.wang@mediatek.com ChaoChun Wang James Wang Mediatek USA Jianhan Liu Jianhan.Liu@mediatek.com Tianyu Wu tianyu.wu@mediatek.com Zhou Lan Zhou.lan@mediaTek.com russell.huang@mediatek.co m Russell Huang Joonsuk Kim joonsuk@apple.com mujtaba@apple.com Aon Mujtaba Guoqing Li Apple guoqing_li@apple.com Eric Wong ericwong@apple.com Chris Hartman chartman@apple.com Submission Slide 4 Liwen Chu et. al.

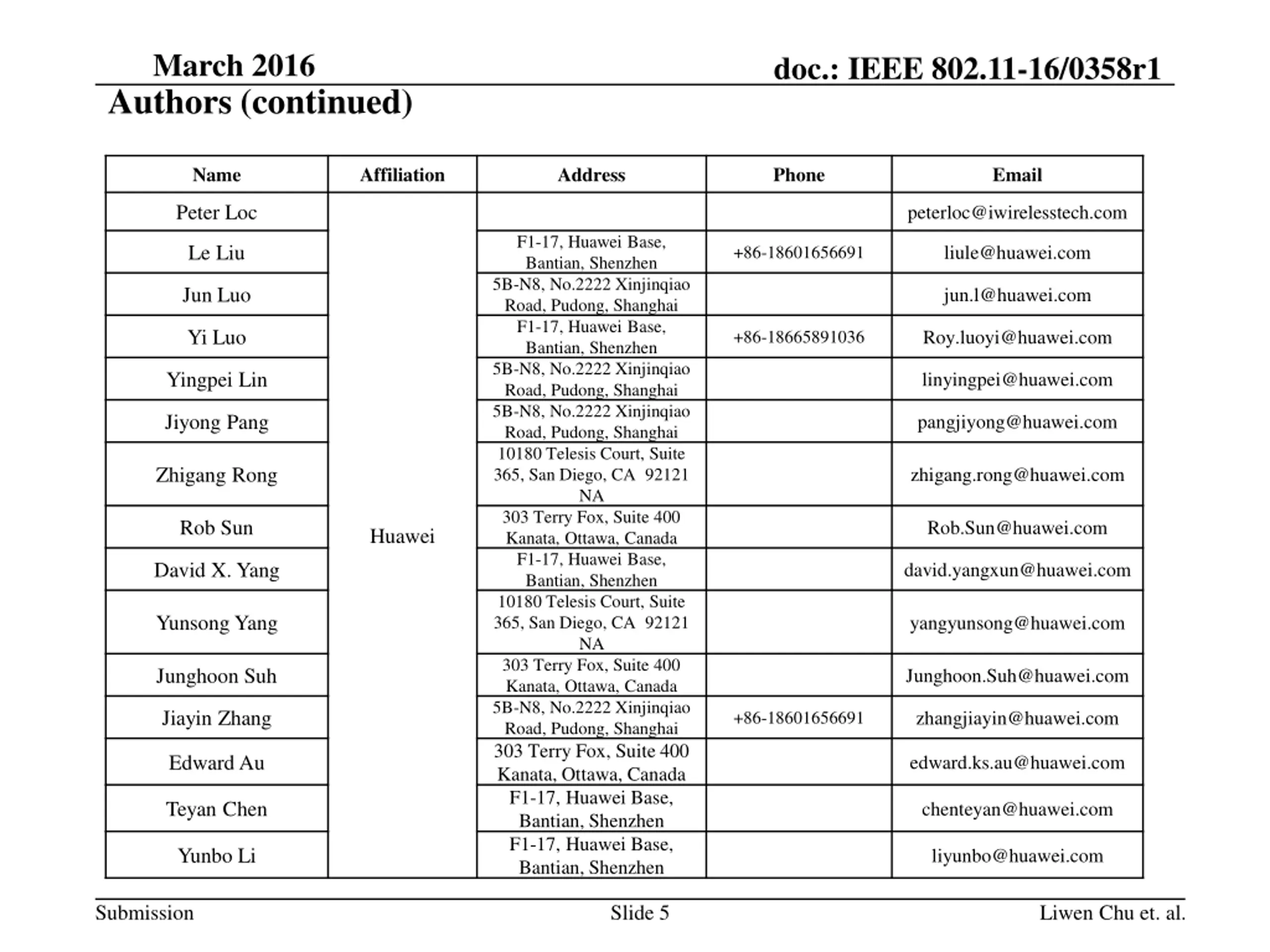

March 2016 Authors (continued) doc.: IEEE 802.11-16/0358r1 Name Affiliation Address Phone Email Peter Loc peterloc@iwirelesstech.com F1-17, Huawei Base, Bantian, Shenzhen 5B-N8, No.2222 Xinjinqiao Road, Pudong, Shanghai F1-17, Huawei Base, Bantian, Shenzhen 5B-N8, No.2222 Xinjinqiao Road, Pudong, Shanghai 5B-N8, No.2222 Xinjinqiao Road, Pudong, Shanghai 10180 Telesis Court, Suite 365, San Diego, CA 92121 NA 303 Terry Fox, Suite 400 Kanata, Ottawa, Canada F1-17, Huawei Base, Bantian, Shenzhen 10180 Telesis Court, Suite 365, San Diego, CA 92121 NA 303 Terry Fox, Suite 400 Kanata, Ottawa, Canada 5B-N8, No.2222 Xinjinqiao Road, Pudong, Shanghai 303 Terry Fox, Suite 400 Kanata, Ottawa, Canada F1-17, Huawei Base, Bantian, Shenzhen F1-17, Huawei Base, Bantian, Shenzhen Le Liu liule@huawei.com +86-18601656691 Jun Luo jun.l@huawei.com Yi Luo Roy.luoyi@huawei.com +86-18665891036 Yingpei Lin linyingpei@huawei.com Jiyong Pang pangjiyong@huawei.com Zhigang Rong zhigang.rong@huawei.com Rob Sun Rob.Sun@huawei.com Huawei David X. Yang david.yangxun@huawei.com Yunsong Yang yangyunsong@huawei.com Junghoon Suh Junghoon.Suh@huawei.com Jiayin Zhang zhangjiayin@huawei.com +86-18601656691 Edward Au edward.ks.au@huawei.com Teyan Chen chenteyan@huawei.com Yunbo Li liyunbo@huawei.com Submission Slide 5 Liwen Chu et. al.
March 2016 Authors (continued) doc.: IEEE 802.11-16/0358r1 Name Affiliation Address Phone Email Jinmin Kim Jinmin1230.kim@lge.com Kiseon Ryu kiseon.ryu@lge.com Jinyoung Chun jiny.chun@lge.com Jinsoo Choi js.choi@lge.com 19, Yangjae-daero 11gil, Seocho-gu, Seoul 137- 130, Korea Jeongki Kim jeongki.kim@lge.com LG Electronics Dongguk Lim dongguk.lim@lge.com Suhwook Kim suhwook.kim@lge.com Eunsung Park esung.park@lge.com JayH Park Hyunh.park@lge.com HanGyu Cho hg.cho@lge.com #9 Wuxingduan, Xifeng Rd., Xi'an, China Bo Sun sun.bo1@zte.com.cn Kaiying Lv Yonggang Fang Ke Yao Weimin Xing Brian Hart Pooya Monajemi lv.kaiying@zte.com.cn yfang@ztetx.com yao.ke5@zte.com.cn xing.weimin@zte.com.cn brianh@cisco.com pmonajem@cisco.com ZTE 170 W Tasman Dr, San Jose, CA 95134 Cisco Systems Submission Slide 6 Liwen Chu et. al.
March 2016 Authors (continued) doc.: IEEE 802.11-16/0358r1 Name Affiliation Address Innovation Park, Cambridge CB4 0DS (U.K.) Maetan 3-dong; Yongtong-Gu Suwon; South Korea 1301, E. Lookout Dr, Richardson TX 75070 Innovation Park, Cambridge CB4 0DS (U.K.) 1301, E. Lookout Dr, Richardson TX 75070 Maetan 3-dong; Yongtong-Gu Suwon; South Korea Phone Email Fei Tong f.tong@samsung.com +44 1223 434633 Hyunjeong Kang hyunjeong.kang@samsung.com +82-31-279-9028 Kaushik Josiam k.josiam@samsung.com (972) 761 7437 Samsung Mark Rison m.rison@samsung.com +44 1223 434600 Rakesh Taori rakesh.taori@samsung.com (972) 761 7470 Sanghyun Chang s29.chang@samsung.com +82-10-8864-1751 Yasushi Takatori takatori.yasushi@lab.ntt.co.jp Yasuhiko Inoue inoue.yasuhiko@lab.ntt.co.jp Shoko Shinohara Shinohara.shoko@lab.ntt.co.jp 1-1 Hikari-no-oka, Yokosuka, Kanagawa 239-0847 Japan NTT Yusuke Asai asai.yusuke@lab.ntt.co.jp Koichi Ishihara ishihara.koichi@lab.ntt.co.jp Junichi Iwatani Iwatani.junichi@lab.ntt.co.jp 3-6, Hikarinooka, Yokosuka- shi, Kanagawa, 239-8536, Japan Akira Yamada yamadaakira@nttdocomo.com watanabe@docomoinnovations. com hpapadopoulos@docomoinnova tions.com Fujio Watanabe NTT DOCOMO 3240 Hillview Ave, Palo Alto, CA 94304 Haralabos Papadopoulos Submission Slide 7 Liwen Chu et. al.

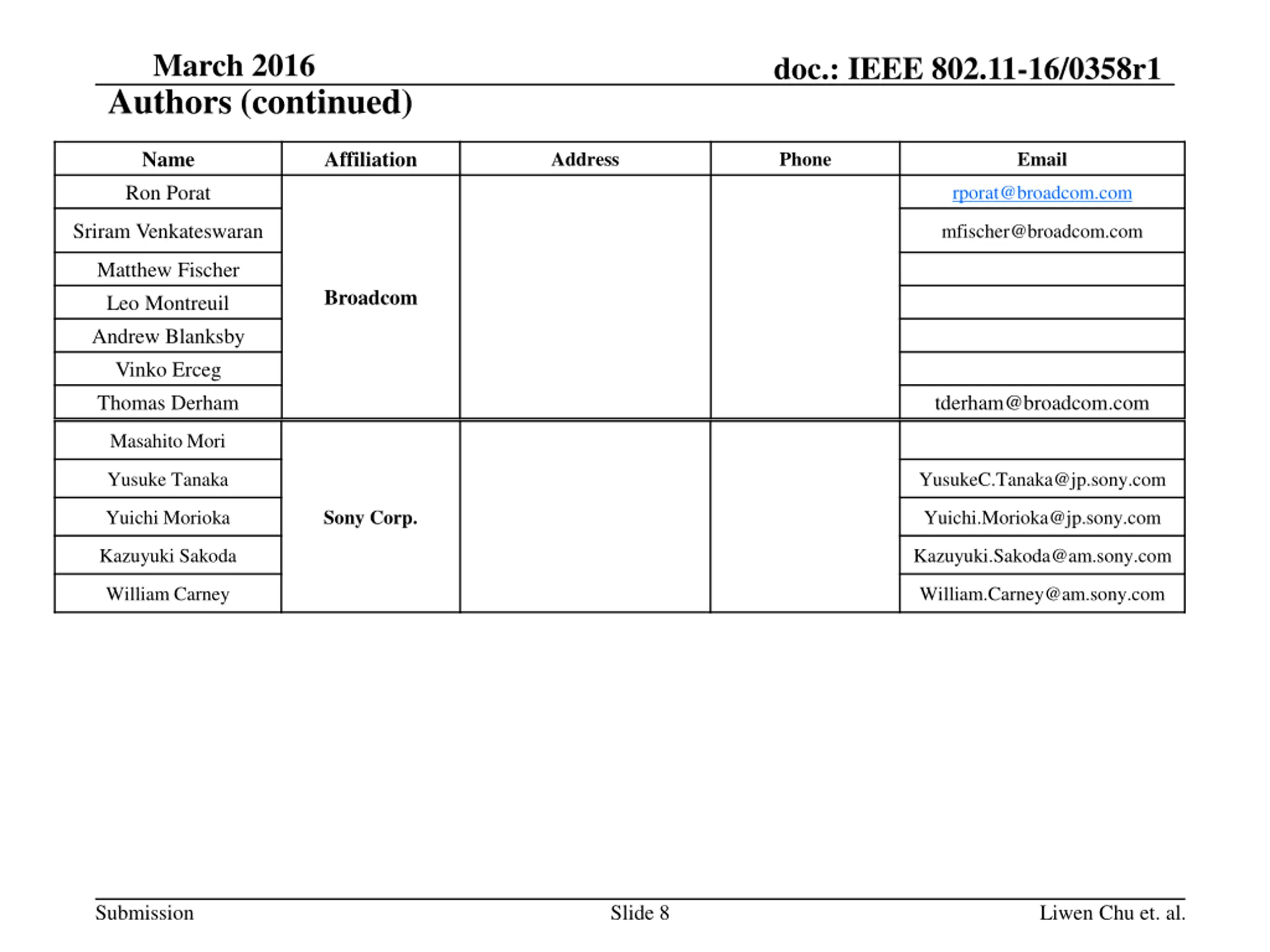

March 2016 Authors (continued) doc.: IEEE 802.11-16/0358r1 Name Ron Porat Affiliation Address Phone Email rporat@broadcom.com Sriram Venkateswaran mfischer@broadcom.com Matthew Fischer Leo Montreuil Andrew Blanksby Vinko Erceg Thomas Derham Broadcom tderham@broadcom.com Masahito.Mori@jp.sony.com Masahito Mori Yusuke Tanaka YusukeC.Tanaka@jp.sony.com Sony Corp. Yuichi Morioka Yuichi.Morioka@jp.sony.com Kazuyuki Sakoda Kazuyuki.Sakoda@am.sony.com William Carney William.Carney@am.sony.com Submission Slide 8 Liwen Chu et. al.

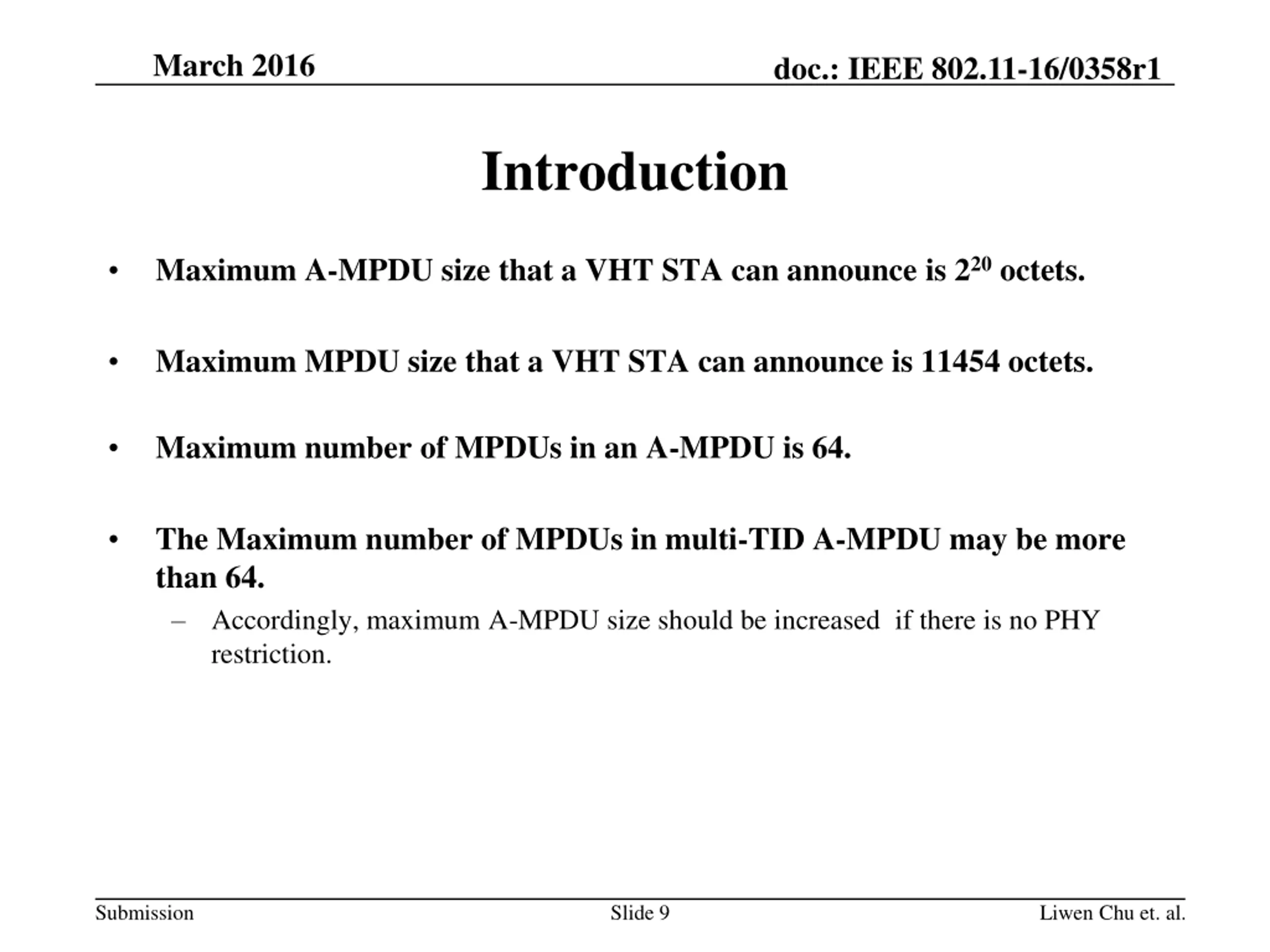

March 2016 doc.: IEEE 802.11-16/0358r1 Introduction Maximum A-MPDU size that a VHT STA can announce is 220 octets. Maximum MPDU size that a VHT STA can announce is 11454 octets. Maximum number of MPDUs in an A-MPDU is 64. The Maximum number of MPDUs in multi-TID A-MPDU may be more than 64. Accordingly, maximum A-MPDU size should be increased if there is no PHY restriction. Submission Slide 9 Liwen Chu et. al.

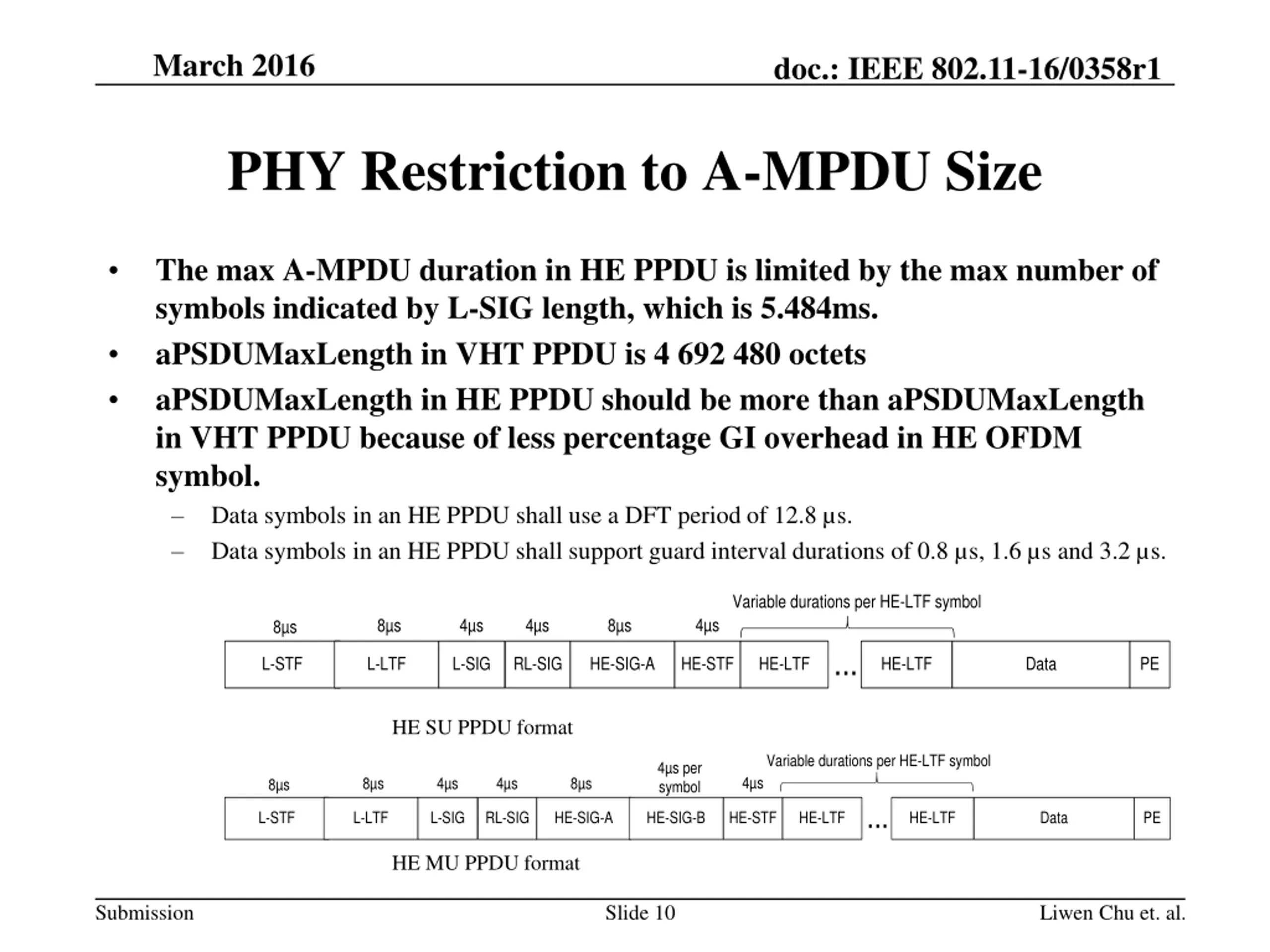

March 2016 doc.: IEEE 802.11-16/0358r1 PHY Restriction to A-MPDU Size The max A-MPDU duration in HE PPDU is limited by the max number of symbols indicated by L-SIG length, which is 5.484ms. aPSDUMaxLength in VHT PPDU is 4 692 480 octets aPSDUMaxLength in HE PPDU should be more than aPSDUMaxLength in VHT PPDU because of less percentage GI overhead in HE OFDM symbol. Data symbols in an HE PPDU shall use a DFT period of 12.8 s. Data symbols in an HE PPDU shall support guard interval durations of 0.8 s, 1.6 s and 3.2 s. Variable durations per HE-LTF symbol 4 s 8 s 4 s 4 s 8 s 8 s ... L-STF L-LTF L-SIG RL-SIG HE-SIG-A HE-STF HE-LTF HE-LTF Data PE HE SU PPDU format Variable durations per HE-LTF symbol 4 s per symbol 4 s 8 s 4 s 4 s 8 s 8 s ... L-STF L-LTF L-SIG RL-SIG HE-SIG-A HE-SIG-B HE-STF HE-LTF HE-LTF Data PE HE MU PPDU format Submission Slide 10 Liwen Chu et. al.

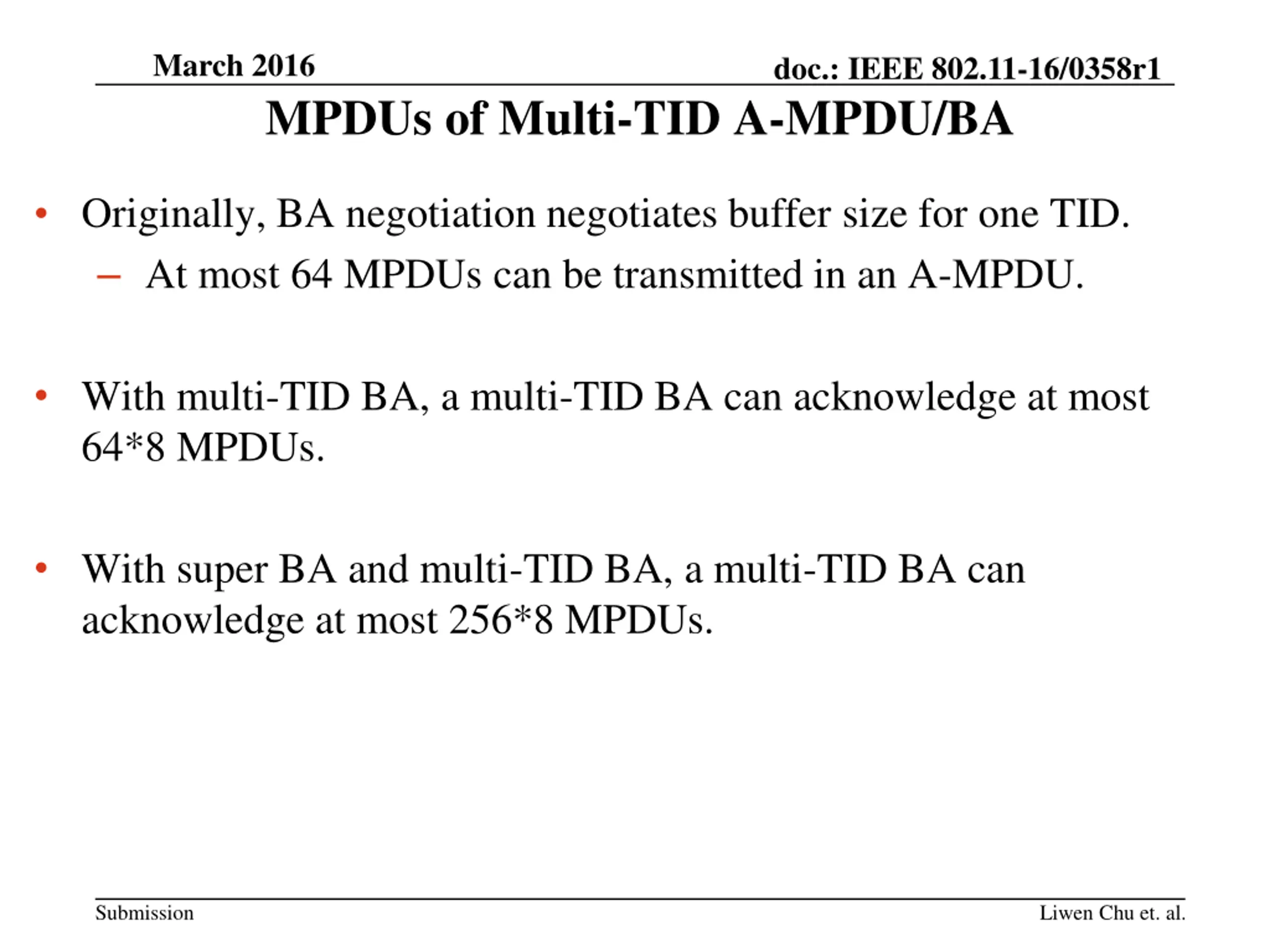

March 2016 doc.: IEEE 802.11-16/0358r1 MPDUs of Multi-TID A-MPDU/BA Originally, BA negotiation negotiates buffer size for one TID. At most 64 MPDUs can be transmitted in an A-MPDU. With multi-TID BA, a multi-TID BA can acknowledge at most 64*8 MPDUs. With super BA and multi-TID BA, a multi-TID BA can acknowledge at most 256*8 MPDUs. Submission Liwen Chu et. al.

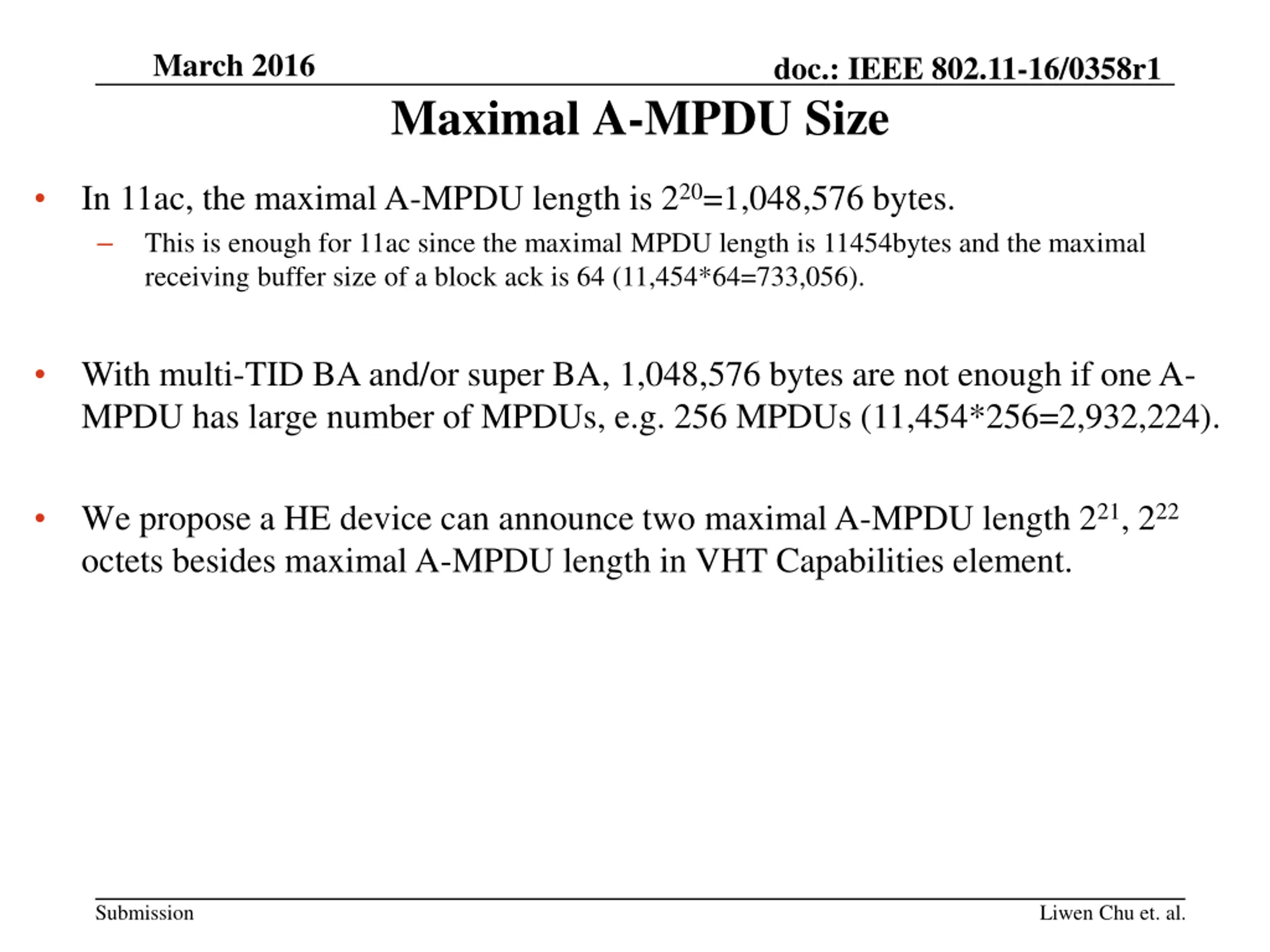

March 2016 doc.: IEEE 802.11-16/0358r1 Maximal A-MPDU Size In 11ac, the maximal A-MPDU length is 220=1,048,576 bytes. This is enough for 11ac since the maximal MPDU length is 11454bytes and the maximal receiving buffer size of a block ack is 64 (11,454*64=733,056). With multi-TID BA and/or super BA, 1,048,576 bytes are not enough if one A- MPDU has large number of MPDUs, e.g. 256 MPDUs (11,454*256=2,932,224). We propose a HE device can announce two maximal A-MPDU length 221, 222 octets besides maximal A-MPDU length in VHT Capabilities element. Submission Liwen Chu et. al.

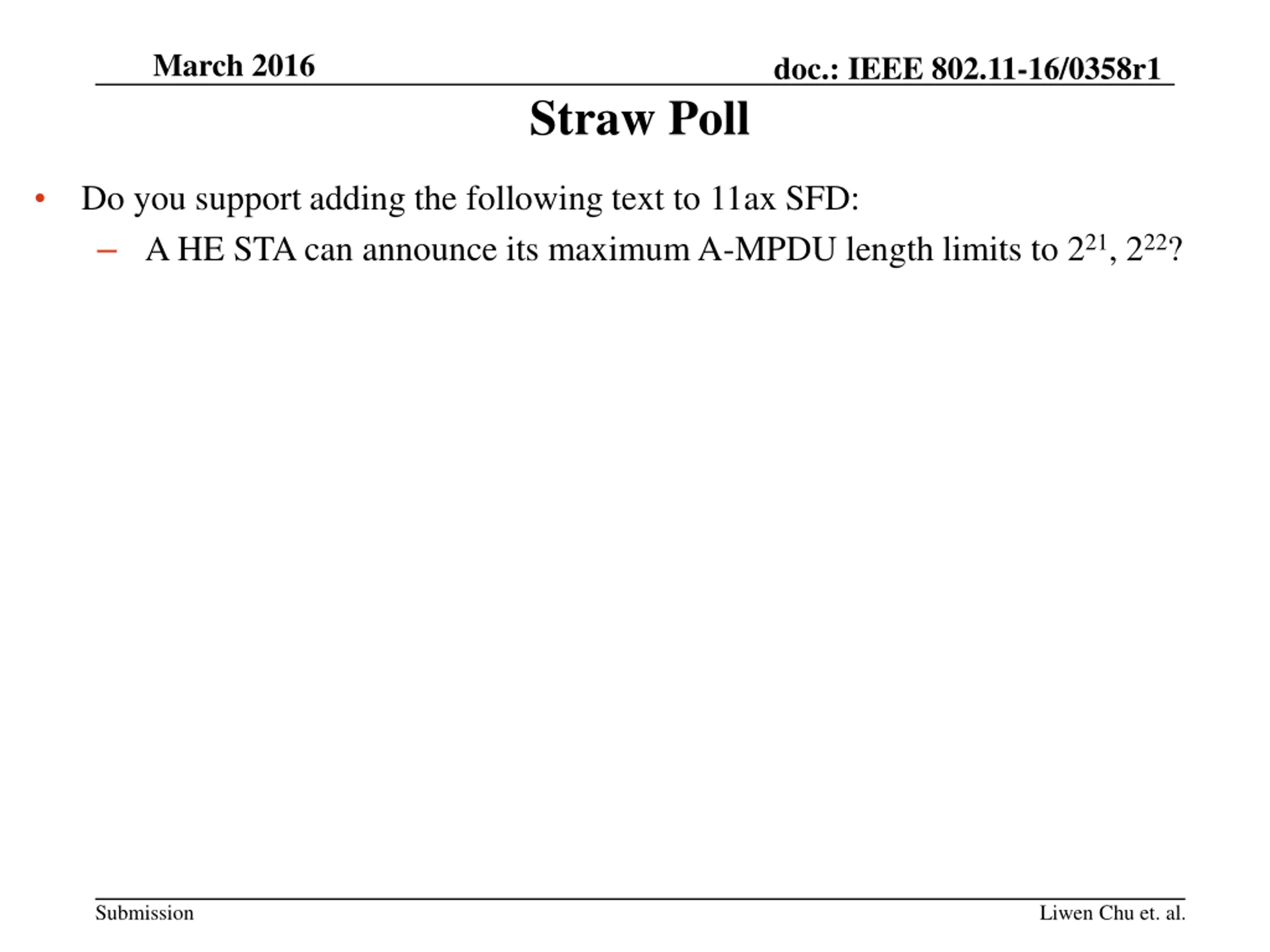

March 2016 doc.: IEEE 802.11-16/0358r1 Straw Poll Do you support adding the following text to 11ax SFD: A HE STA can announce its maximum A-MPDU length limits to 221, 222? Submission Liwen Chu et. al.
