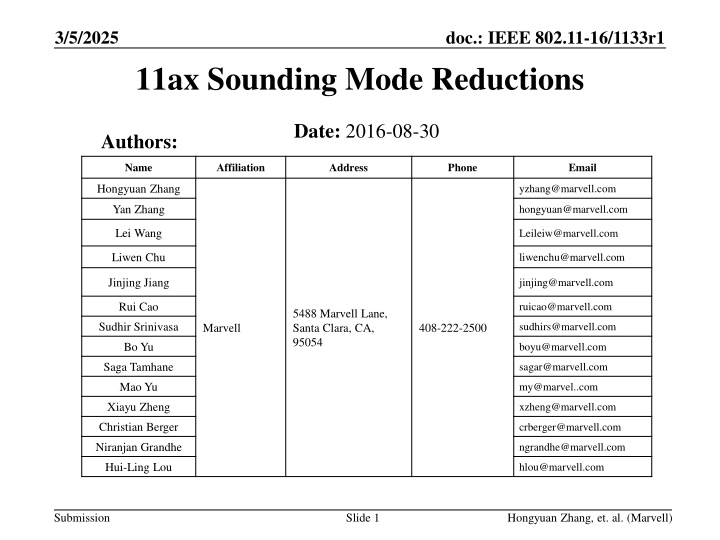

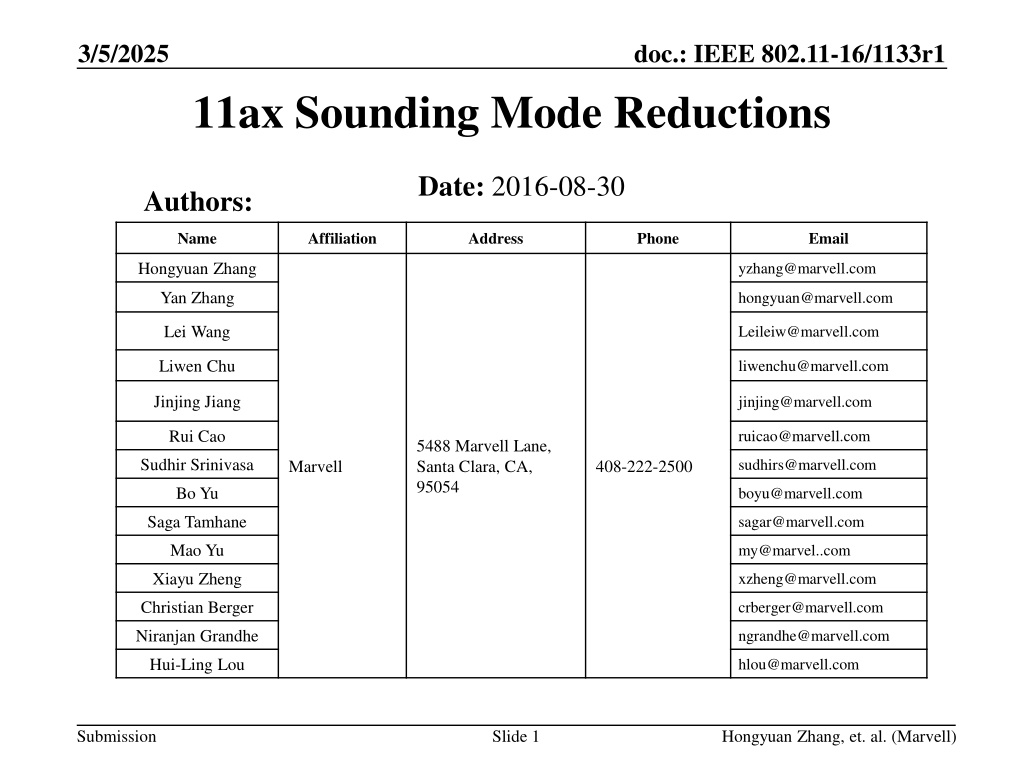

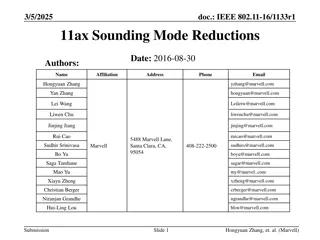

3/5/2025 doc.: IEEE 802.11-16/1133r1 11ax Sounding Mode Reductions Date: 2016-08-30 Authors: Name Affiliation Address Phone Email Hongyuan Zhang yzhang@marvell.com Yan Zhang hongyuan@marvell.com Lei Wang Leileiw@marvell.com Liwen Chu liwenchu@marvell.com Jinjing Jiang jinjing@marvell.com Rui Cao ruicao@marvell.com 5488 Marvell Lane, Santa Clara, CA, 95054 Sudhir Srinivasa sudhirs@marvell.com Marvell 408-222-2500 Bo Yu boyu@marvell.com Saga Tamhane sagar@marvell.com Mao Yu my@marvel..com Xiayu Zheng xzheng@marvell.com Christian Berger crberger@marvell.com Niranjan Grandhe ngrandhe@marvell.com Hui-Ling Lou hlou@marvell.com Submission Slide 1 Hongyuan Zhang, et. al. (Marvell)

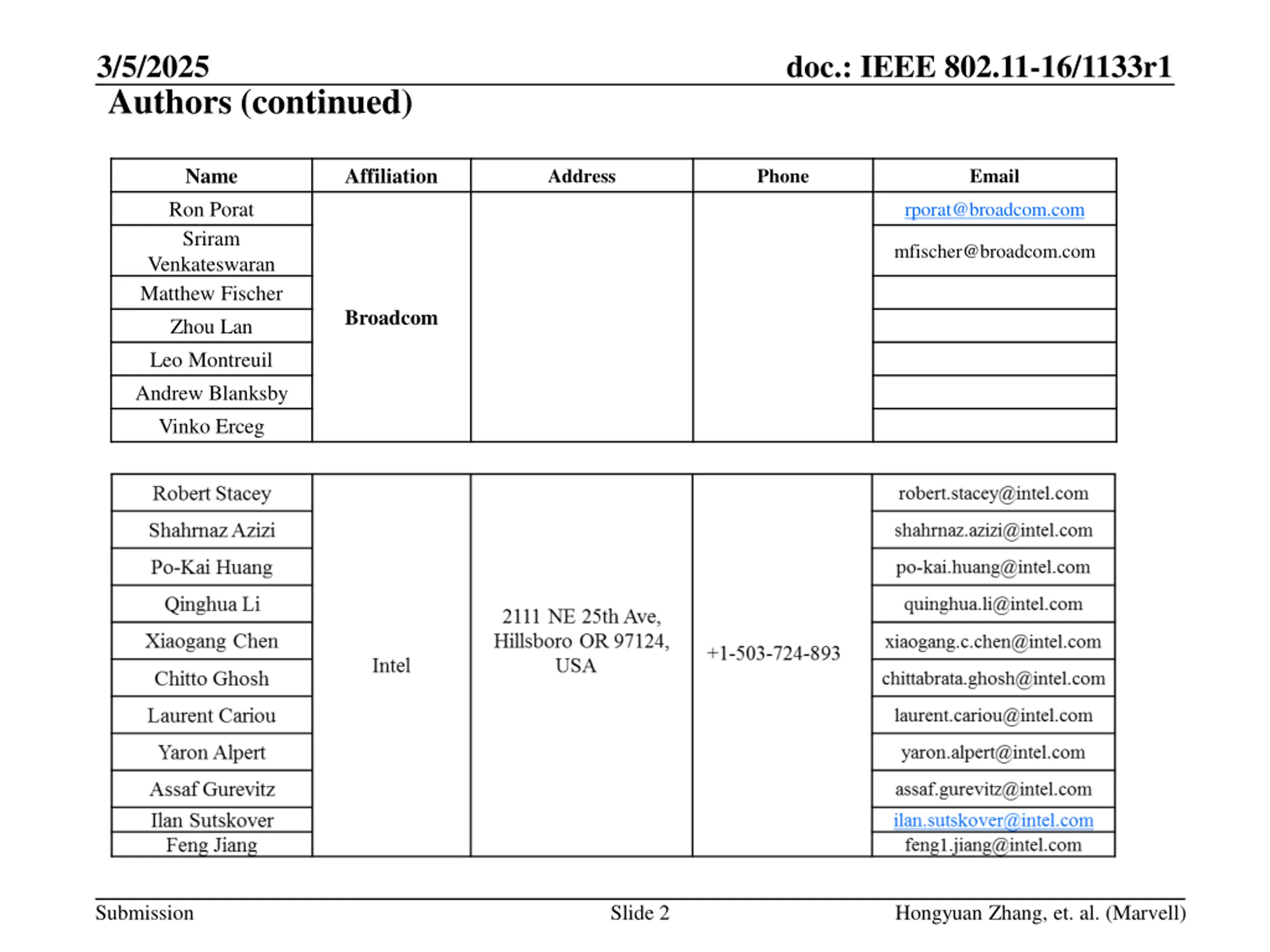

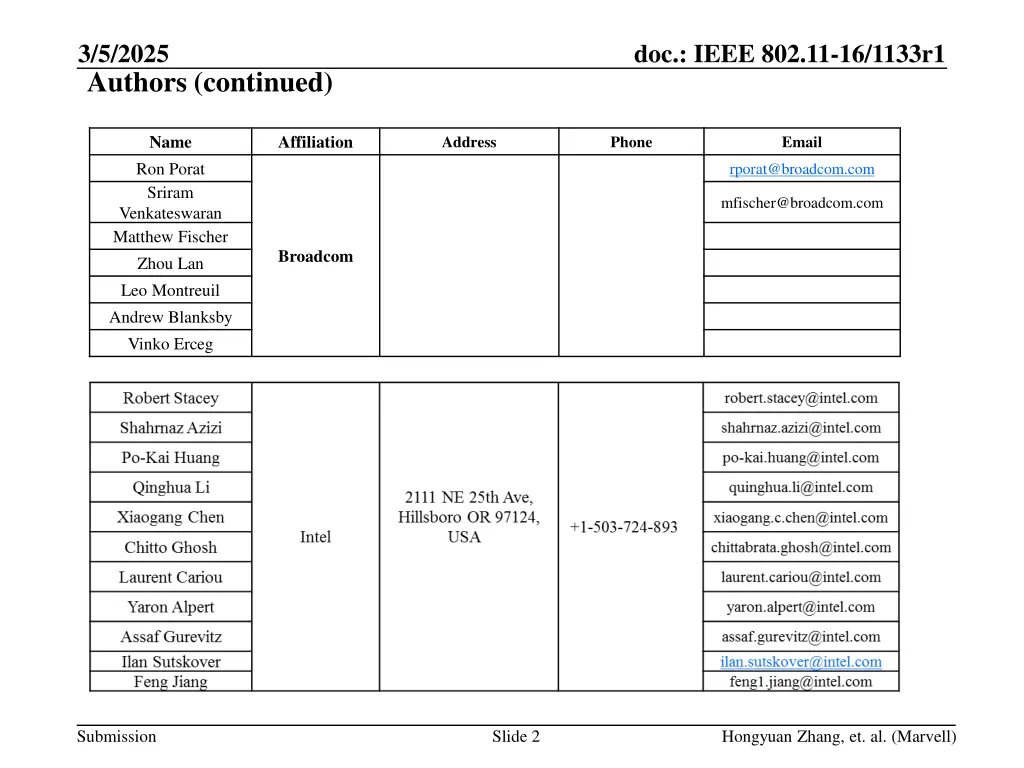

3/5/2025 doc.: IEEE 802.11-16/1133r1 Authors (continued) Name Ron Porat Sriram Venkateswaran Matthew Fischer Zhou Lan Leo Montreuil Andrew Blanksby Vinko Erceg Affiliation Address Phone Email rporat@broadcom.com mfischer@broadcom.com Broadcom Submission Slide 2 Hongyuan Zhang, et. al. (Marvell)

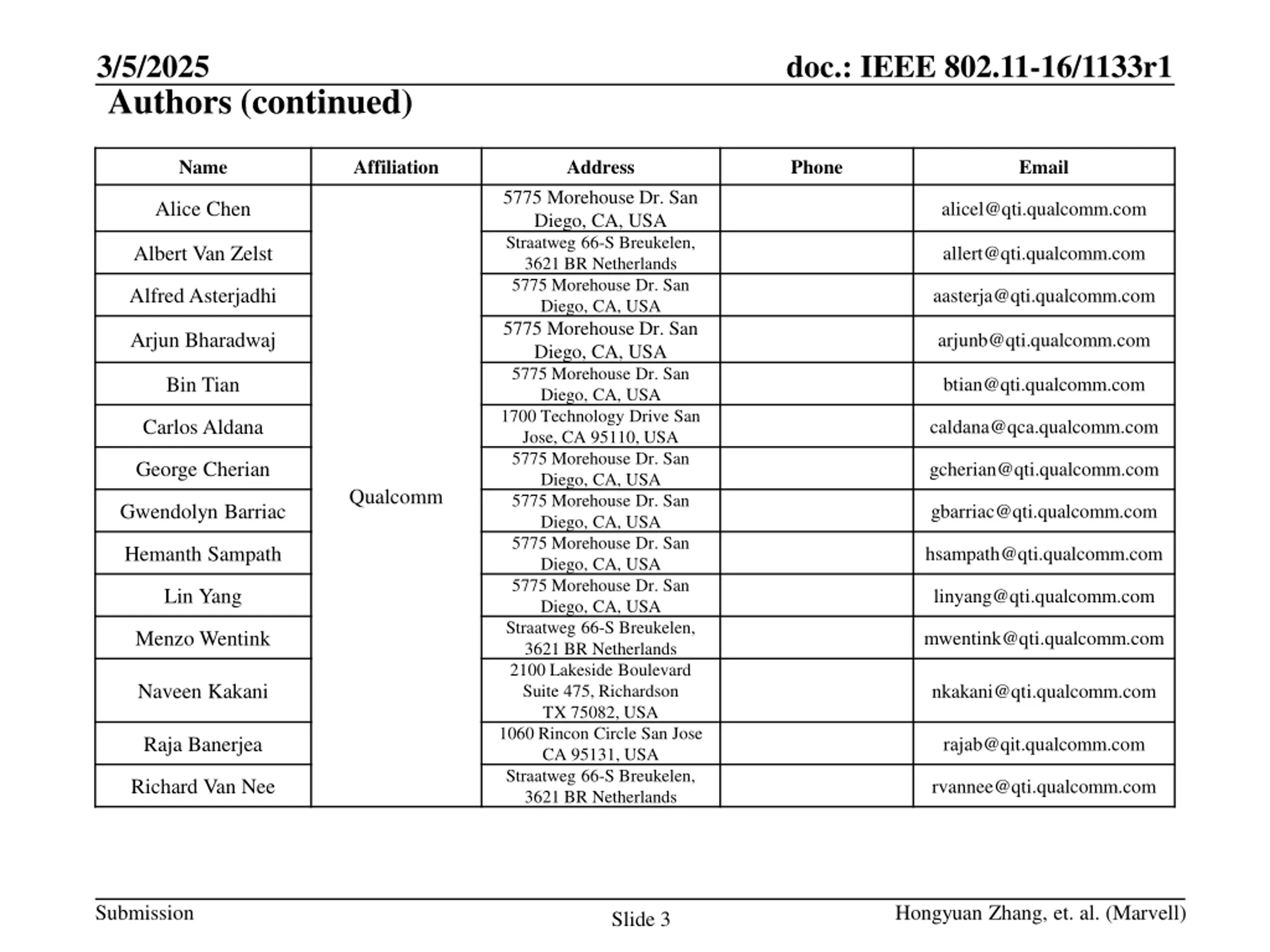

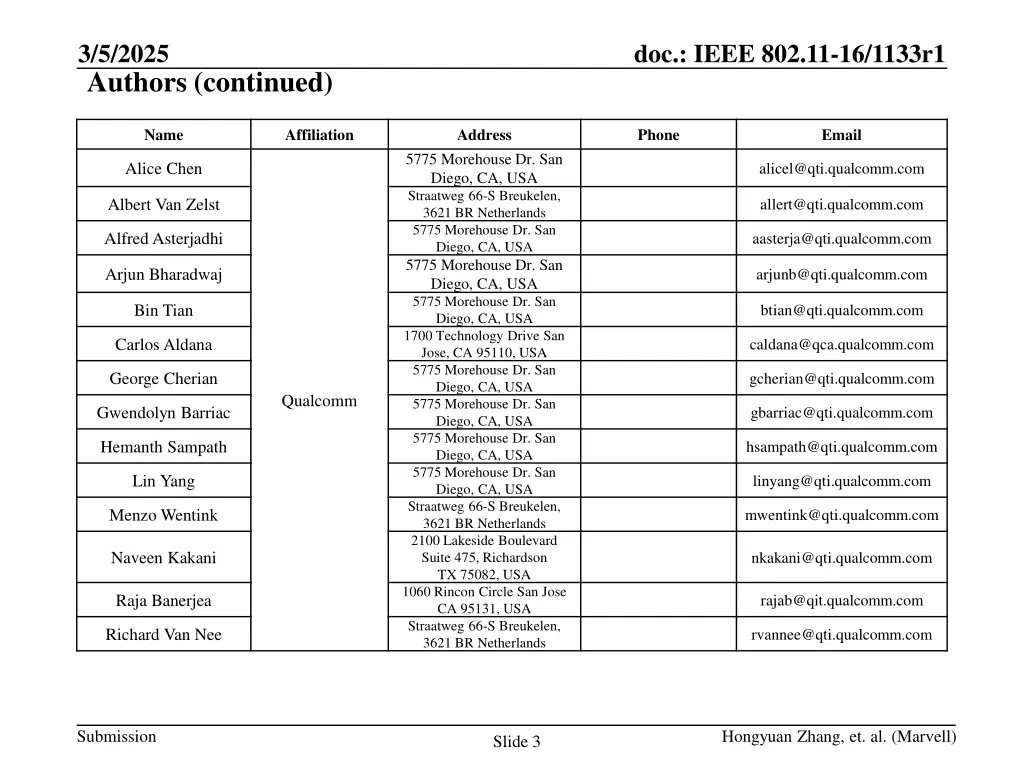

3/5/2025 doc.: IEEE 802.11-16/1133r1 Authors (continued) Name Affiliation Address Phone Email 5775 Morehouse Dr. San Diego, CA, USA Straatweg 66-S Breukelen, 3621 BR Netherlands 5775 Morehouse Dr. San Diego, CA, USA 5775 Morehouse Dr. San Diego, CA, USA 5775 Morehouse Dr. San Diego, CA, USA 1700 Technology Drive San Jose, CA 95110, USA 5775 Morehouse Dr. San Diego, CA, USA 5775 Morehouse Dr. San Diego, CA, USA 5775 Morehouse Dr. San Diego, CA, USA 5775 Morehouse Dr. San Diego, CA, USA Straatweg 66-S Breukelen, 3621 BR Netherlands 2100 Lakeside Boulevard Suite 475, Richardson TX 75082, USA 1060 Rincon Circle San Jose CA 95131, USA Straatweg 66-S Breukelen, 3621 BR Netherlands Alice Chen alicel@qti.qualcomm.com Albert Van Zelst allert@qti.qualcomm.com Alfred Asterjadhi aasterja@qti.qualcomm.com Arjun Bharadwaj arjunb@qti.qualcomm.com Bin Tian btian@qti.qualcomm.com Carlos Aldana caldana@qca.qualcomm.com George Cherian gcherian@qti.qualcomm.com Qualcomm Gwendolyn Barriac gbarriac@qti.qualcomm.com Hemanth Sampath hsampath@qti.qualcomm.com Lin Yang linyang@qti.qualcomm.com Menzo Wentink mwentink@qti.qualcomm.com Naveen Kakani nkakani@qti.qualcomm.com Raja Banerjea rajab@qit.qualcomm.com Richard Van Nee rvannee@qti.qualcomm.com Submission Hongyuan Zhang, et. al. (Marvell) Slide 3

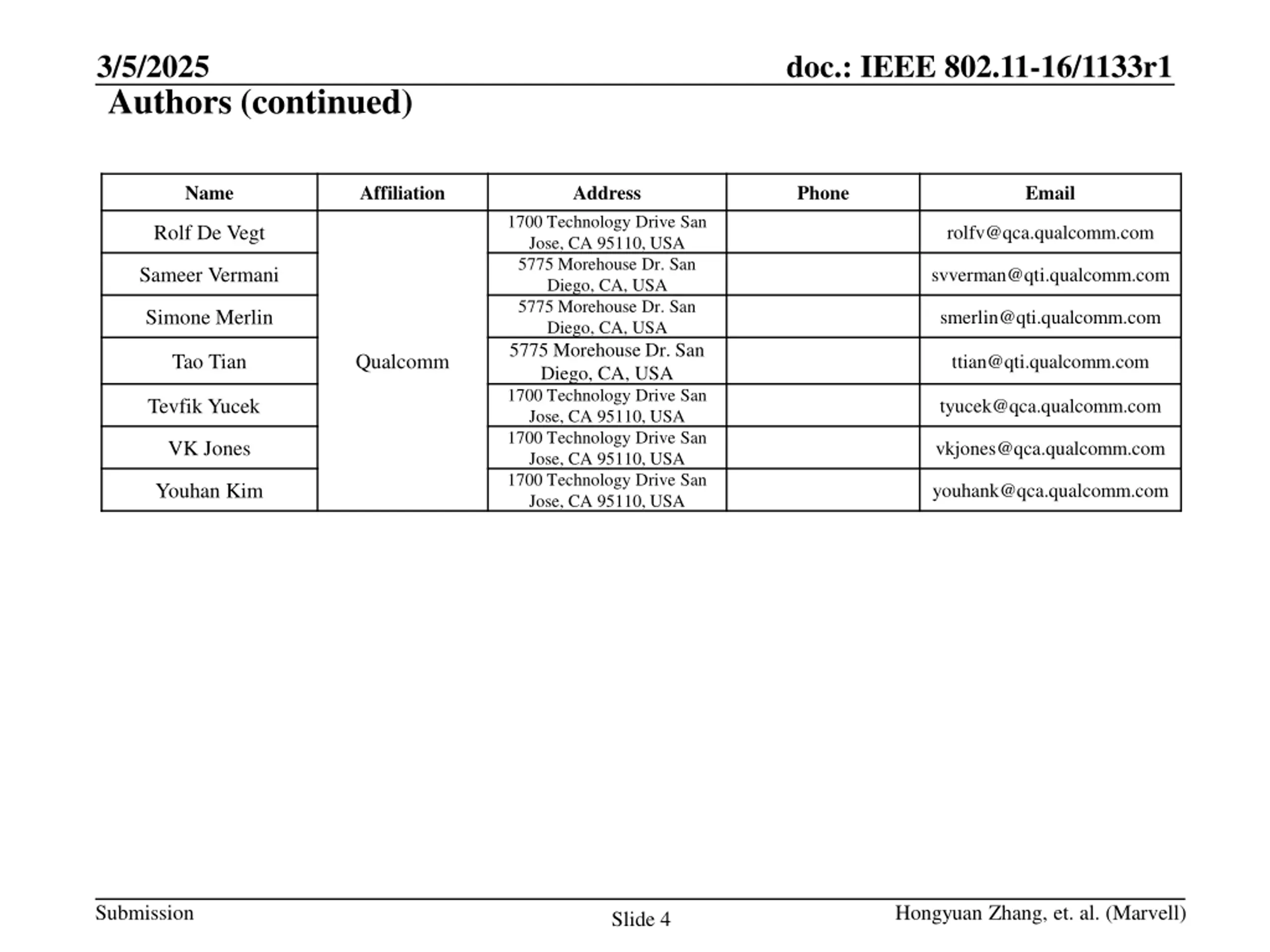

3/5/2025 doc.: IEEE 802.11-16/1133r1 Authors (continued) Name Affiliation Address Phone Email 1700 Technology Drive San Jose, CA 95110, USA 5775 Morehouse Dr. San Diego, CA, USA 5775 Morehouse Dr. San Diego, CA, USA 5775 Morehouse Dr. San Diego, CA, USA 1700 Technology Drive San Jose, CA 95110, USA 1700 Technology Drive San Jose, CA 95110, USA 1700 Technology Drive San Jose, CA 95110, USA Rolf De Vegt rolfv@qca.qualcomm.com Sameer Vermani svverman@qti.qualcomm.com Simone Merlin smerlin@qti.qualcomm.com Tao Tian Qualcomm ttian@qti.qualcomm.com Tevfik Yucek tyucek@qca.qualcomm.com VK Jones vkjones@qca.qualcomm.com Youhan Kim youhank@qca.qualcomm.com Submission Hongyuan Zhang, et. al. (Marvell) Slide 4

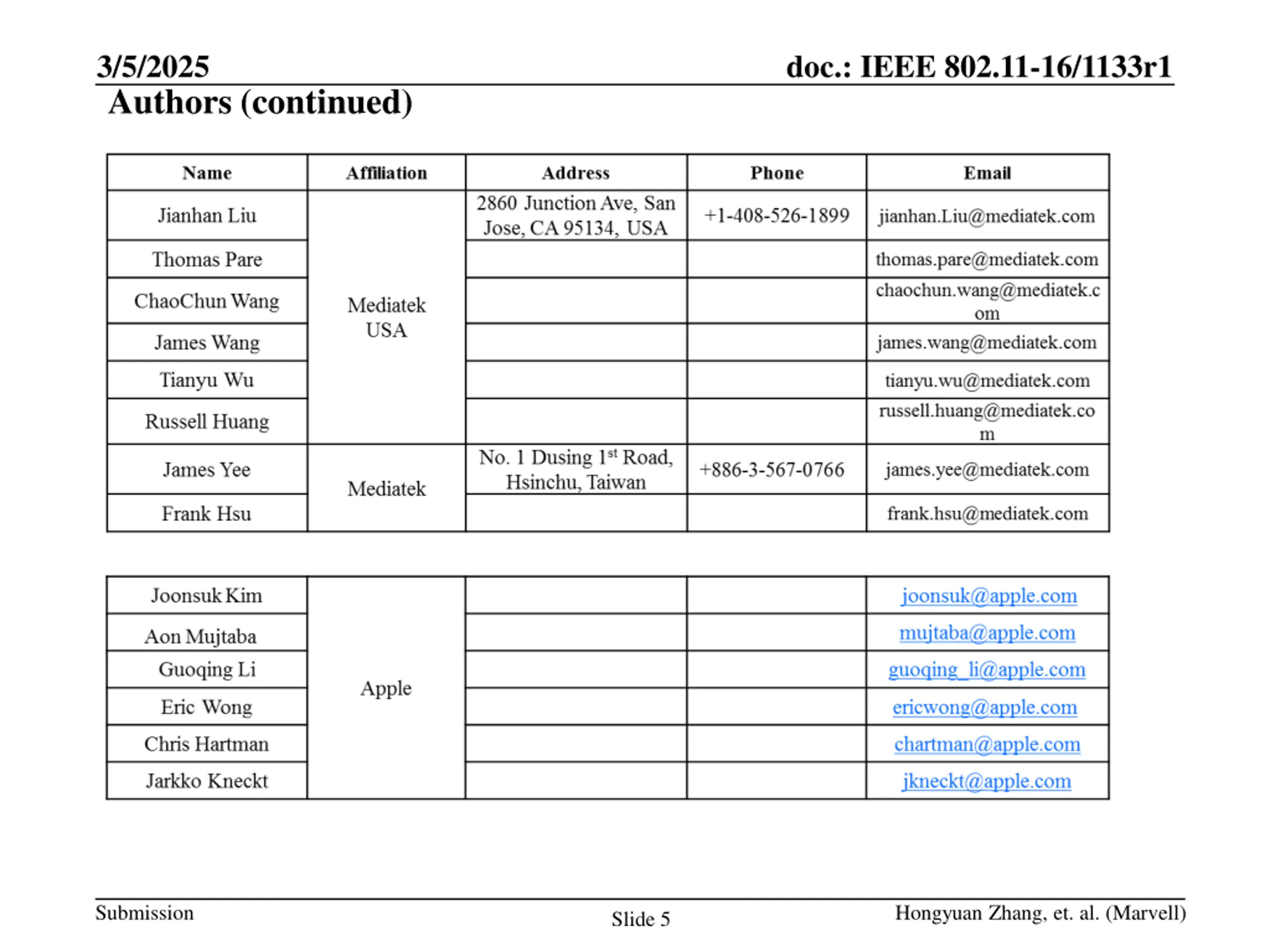

3/5/2025 doc.: IEEE 802.11-16/1133r1 Authors (continued) Submission Hongyuan Zhang, et. al. (Marvell) Slide 5

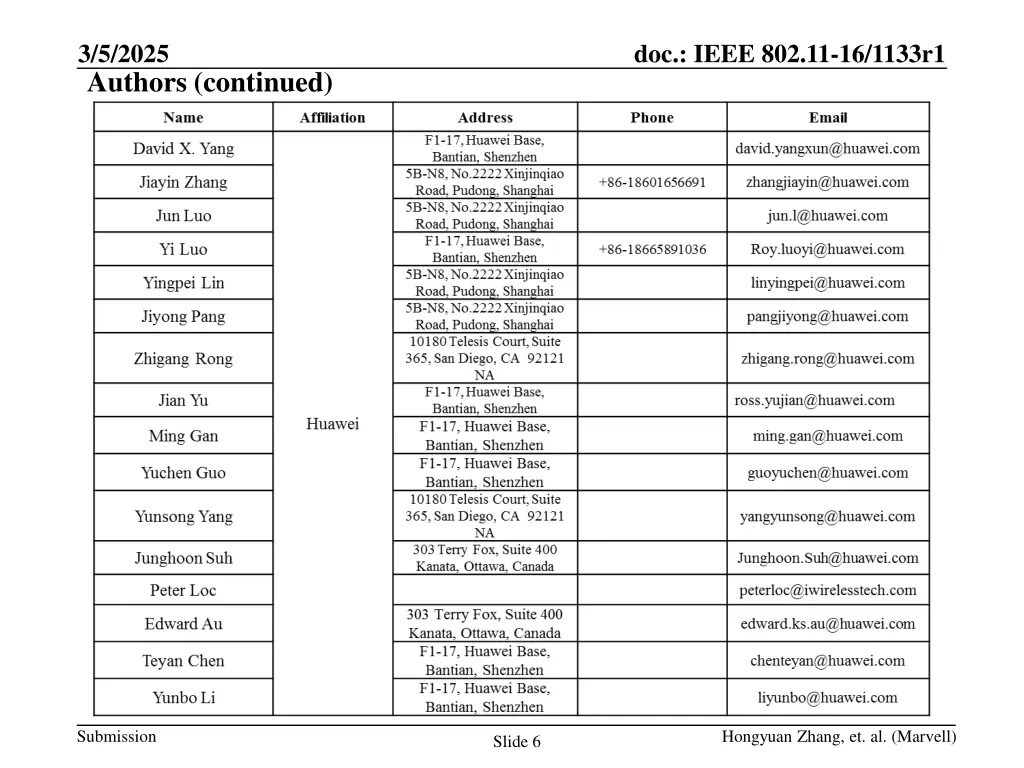

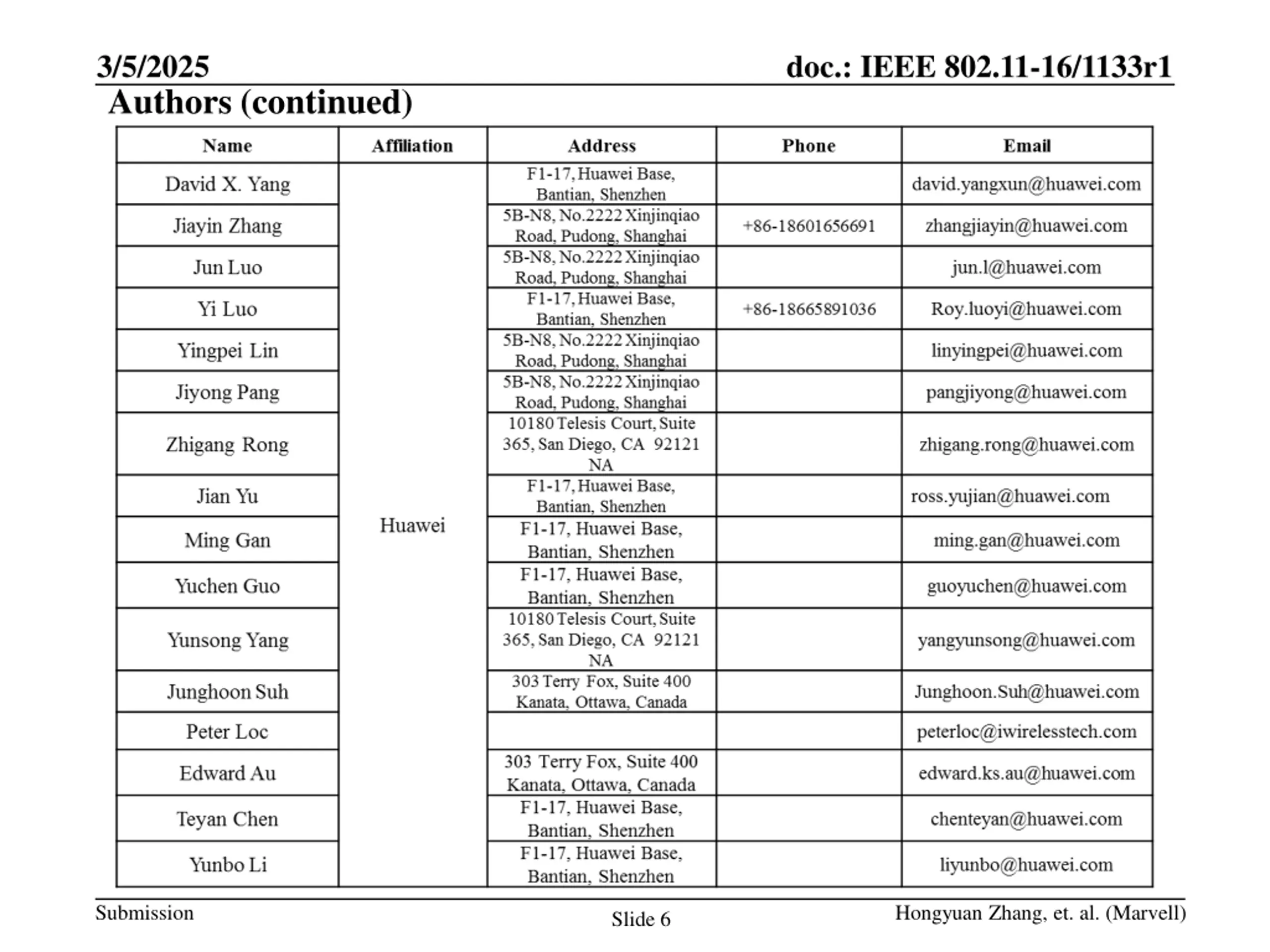

3/5/2025 doc.: IEEE 802.11-16/1133r1 Authors (continued) Submission Hongyuan Zhang, et. al. (Marvell) Slide 6

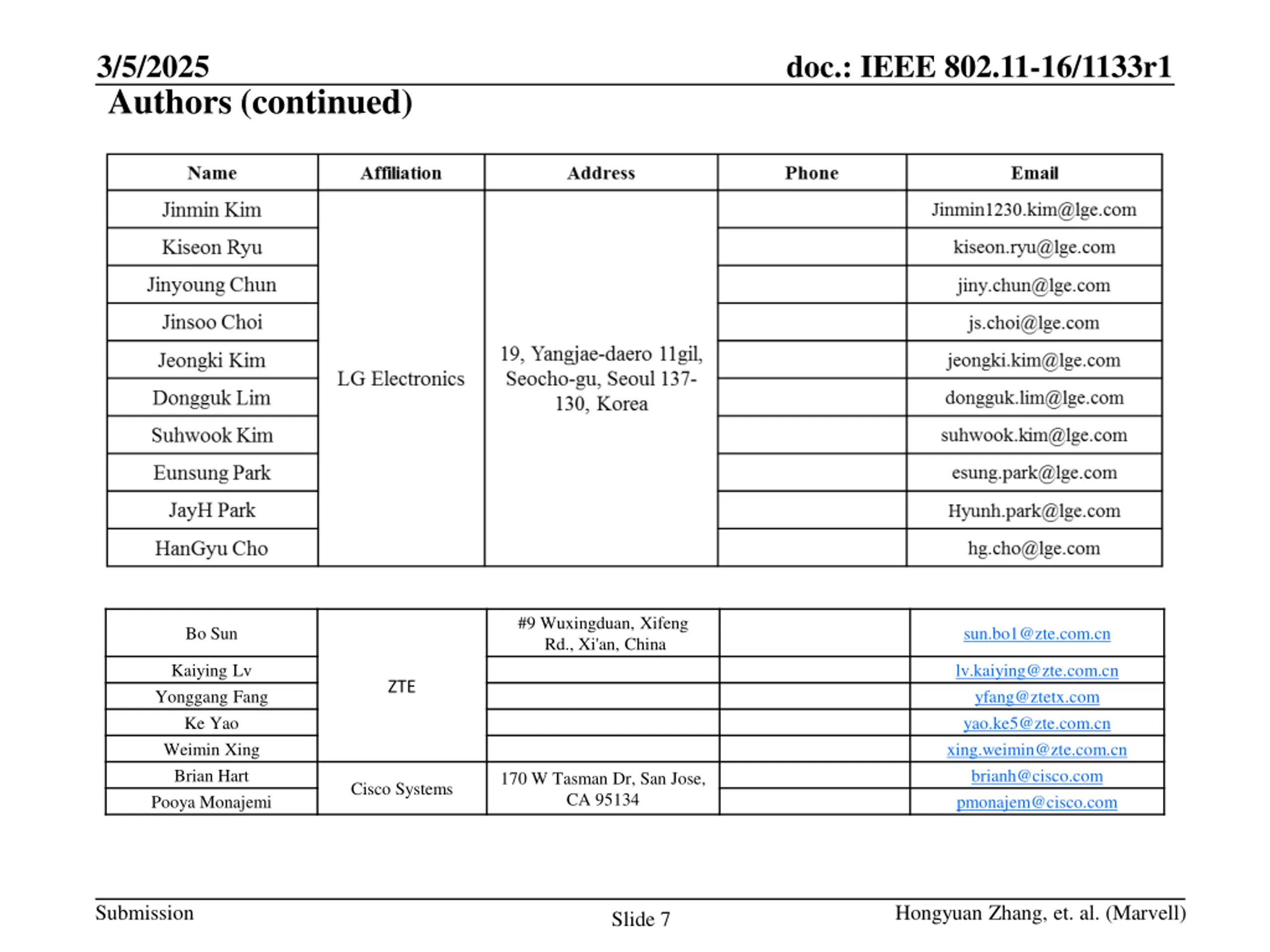

3/5/2025 doc.: IEEE 802.11-16/1133r1 Authors (continued) #9 Wuxingduan, Xifeng Rd., Xi'an, China Bo Sun sun.bo1@zte.com.cn Kaiying Lv Yonggang Fang Ke Yao Weimin Xing Brian Hart Pooya Monajemi lv.kaiying@zte.com.cn yfang@ztetx.com yao.ke5@zte.com.cn xing.weimin@zte.com.cn brianh@cisco.com pmonajem@cisco.com ZTE 170 W Tasman Dr, San Jose, CA 95134 Cisco Systems Submission Hongyuan Zhang, et. al. (Marvell) Slide 7

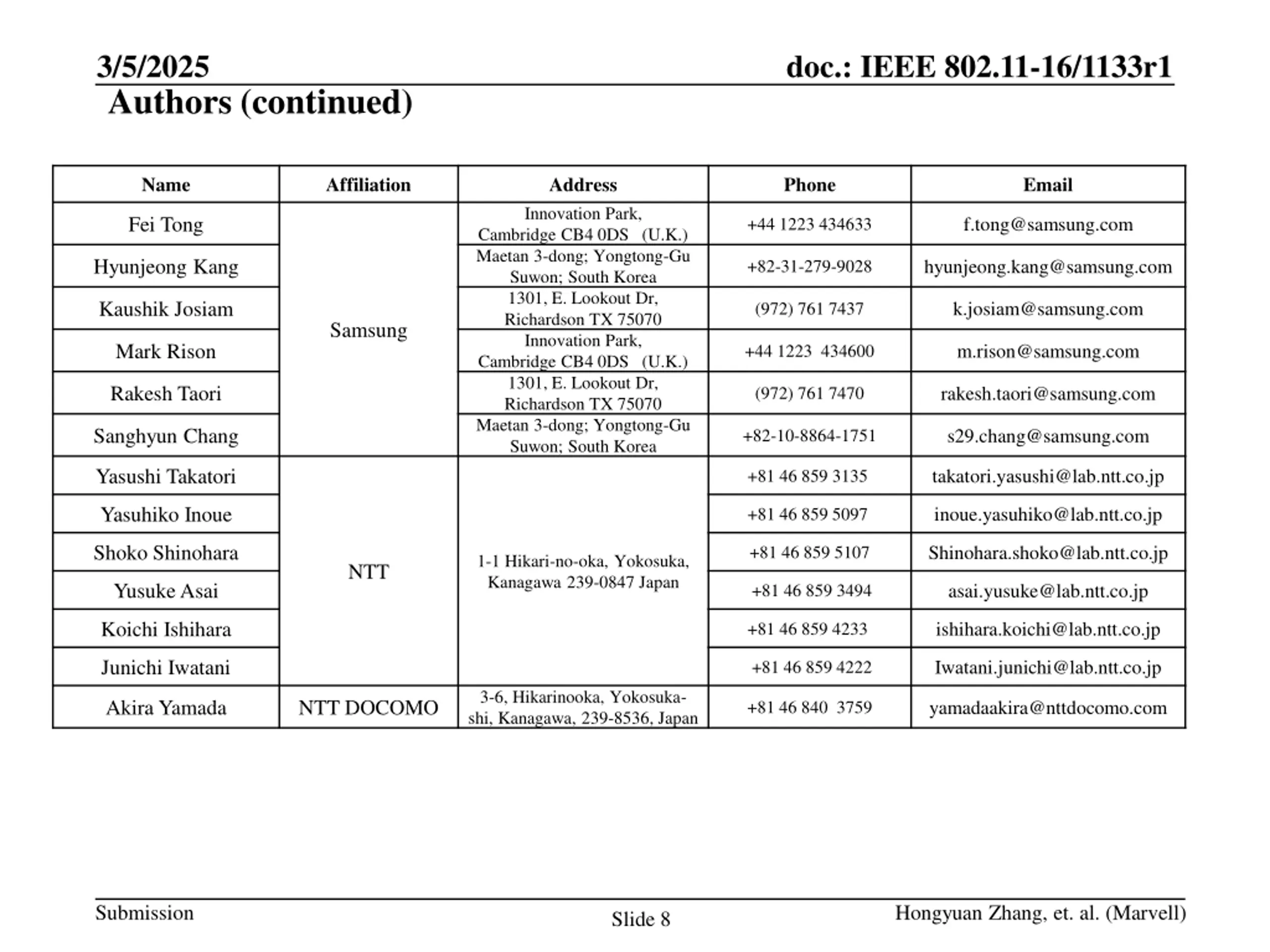

3/5/2025 doc.: IEEE 802.11-16/1133r1 Authors (continued) Name Affiliation Address Innovation Park, Cambridge CB4 0DS (U.K.) Maetan 3-dong; Yongtong-Gu Suwon; South Korea 1301, E. Lookout Dr, Richardson TX 75070 Innovation Park, Cambridge CB4 0DS (U.K.) 1301, E. Lookout Dr, Richardson TX 75070 Maetan 3-dong; Yongtong-Gu Suwon; South Korea Phone Email Fei Tong f.tong@samsung.com +44 1223 434633 Hyunjeong Kang hyunjeong.kang@samsung.com +82-31-279-9028 Kaushik Josiam k.josiam@samsung.com (972) 761 7437 Samsung Mark Rison m.rison@samsung.com +44 1223 434600 Rakesh Taori rakesh.taori@samsung.com (972) 761 7470 Sanghyun Chang s29.chang@samsung.com +82-10-8864-1751 Yasushi Takatori takatori.yasushi@lab.ntt.co.jp +81 46 859 3135 Yasuhiko Inoue inoue.yasuhiko@lab.ntt.co.jp +81 46 859 5097 Shoko Shinohara Shinohara.shoko@lab.ntt.co.jp +81 46 859 5107 1-1 Hikari-no-oka, Yokosuka, Kanagawa 239-0847 Japan NTT Yusuke Asai asai.yusuke@lab.ntt.co.jp +81 46 859 3494 Koichi Ishihara ishihara.koichi@lab.ntt.co.jp +81 46 859 4233 Junichi Iwatani Iwatani.junichi@lab.ntt.co.jp +81 46 859 4222 3-6, Hikarinooka, Yokosuka- shi, Kanagawa, 239-8536, Japan Akira Yamada NTT DOCOMO yamadaakira@nttdocomo.com +81 46 840 3759 Submission Hongyuan Zhang, et. al. (Marvell) Slide 8

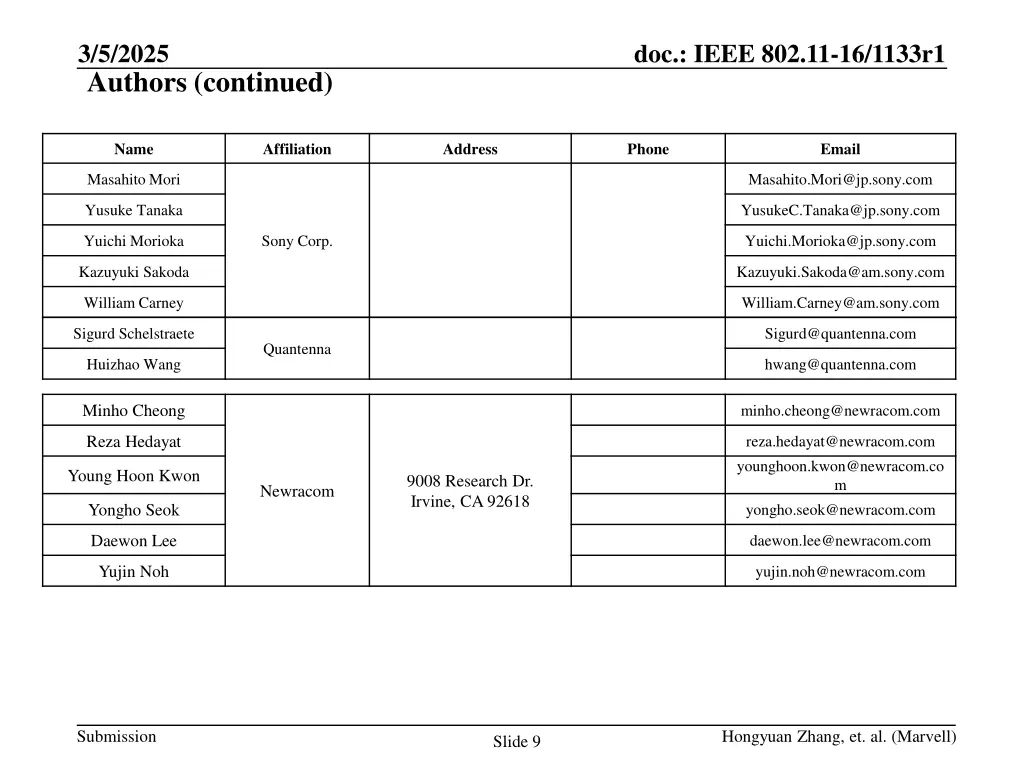

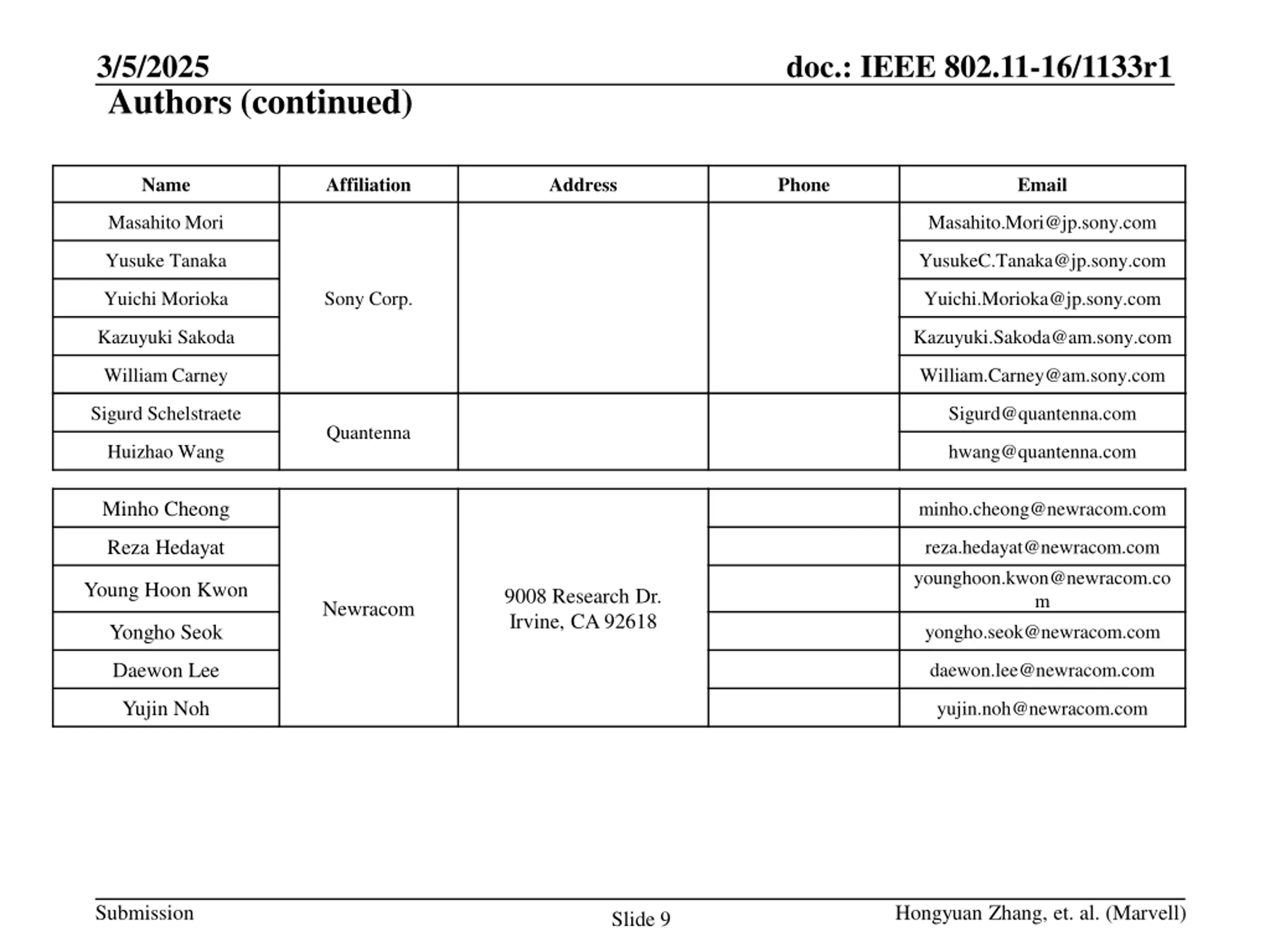

3/5/2025 doc.: IEEE 802.11-16/1133r1 Authors (continued) Name Affiliation Address Phone Email Masahito Mori Masahito.Mori@jp.sony.com Yusuke Tanaka YusukeC.Tanaka@jp.sony.com Yuichi Morioka Sony Corp. Yuichi.Morioka@jp.sony.com Kazuyuki Sakoda Kazuyuki.Sakoda@am.sony.com William Carney William.Carney@am.sony.com Sigurd Schelstraete Sigurd@quantenna.com Quantenna Huizhao Wang hwang@quantenna.com Minho Cheong minho.cheong@newracom.com Reza Hedayat reza.hedayat@newracom.com younghoon.kwon@newracom.co m yongho.seok@newracom.com Young Hoon Kwon 9008 Research Dr. Irvine, CA 92618 Newracom Yongho Seok Daewon Lee daewon.lee@newracom.com Yujin Noh yujin.noh@newracom.com Submission Hongyuan Zhang, et. al. (Marvell) Slide 9

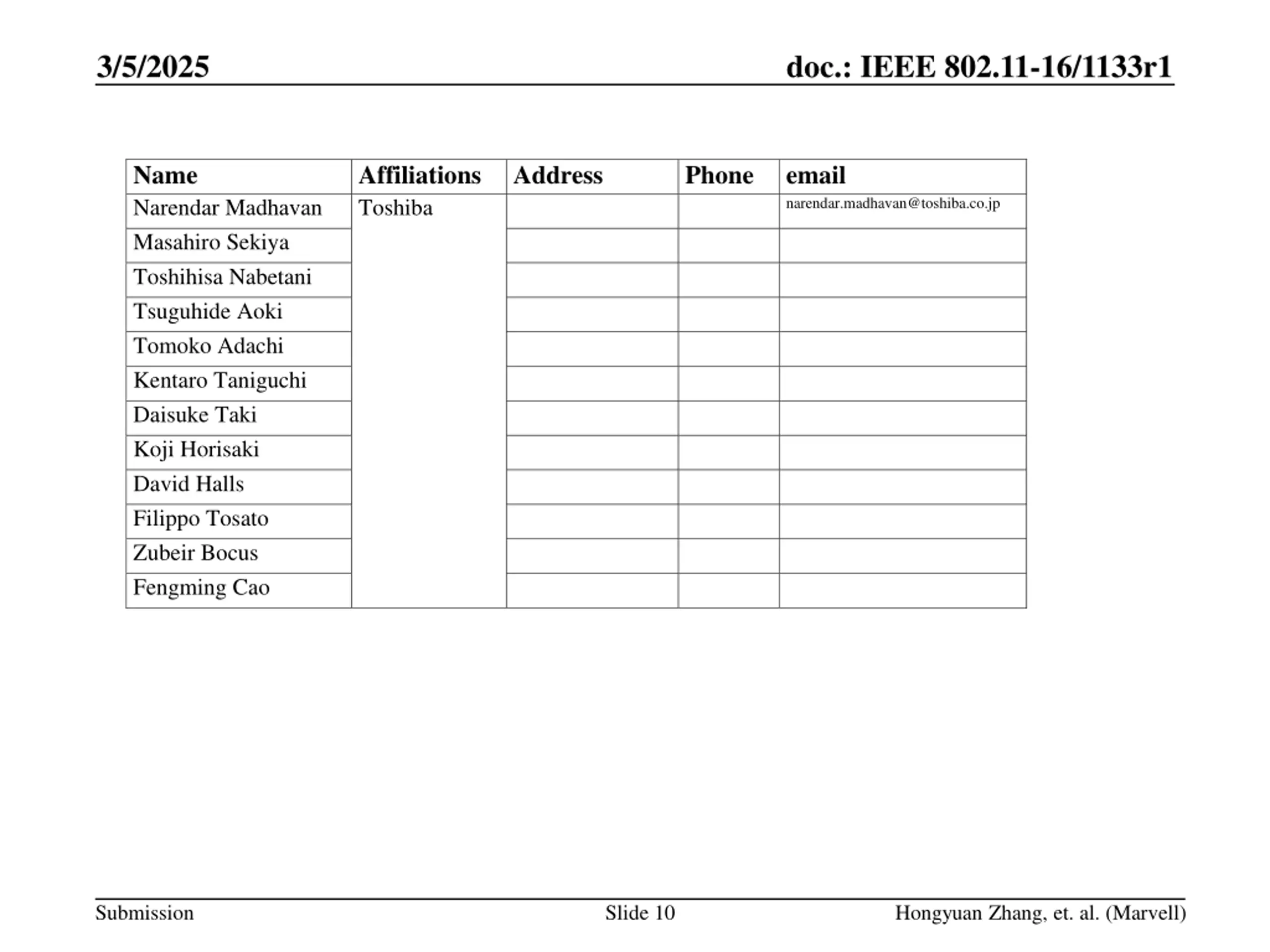

3/5/2025 doc.: IEEE 802.11-16/1133r1 Name Narendar Madhavan Masahiro Sekiya Toshihisa Nabetani Tsuguhide Aoki Tomoko Adachi Kentaro Taniguchi Daisuke Taki Koji Horisaki David Halls Filippo Tosato Zubeir Bocus Fengming Cao Affiliations Toshiba Address Phone email narendar.madhavan@toshiba.co.jp Submission Slide 10 Hongyuan Zhang, et. al. (Marvell)

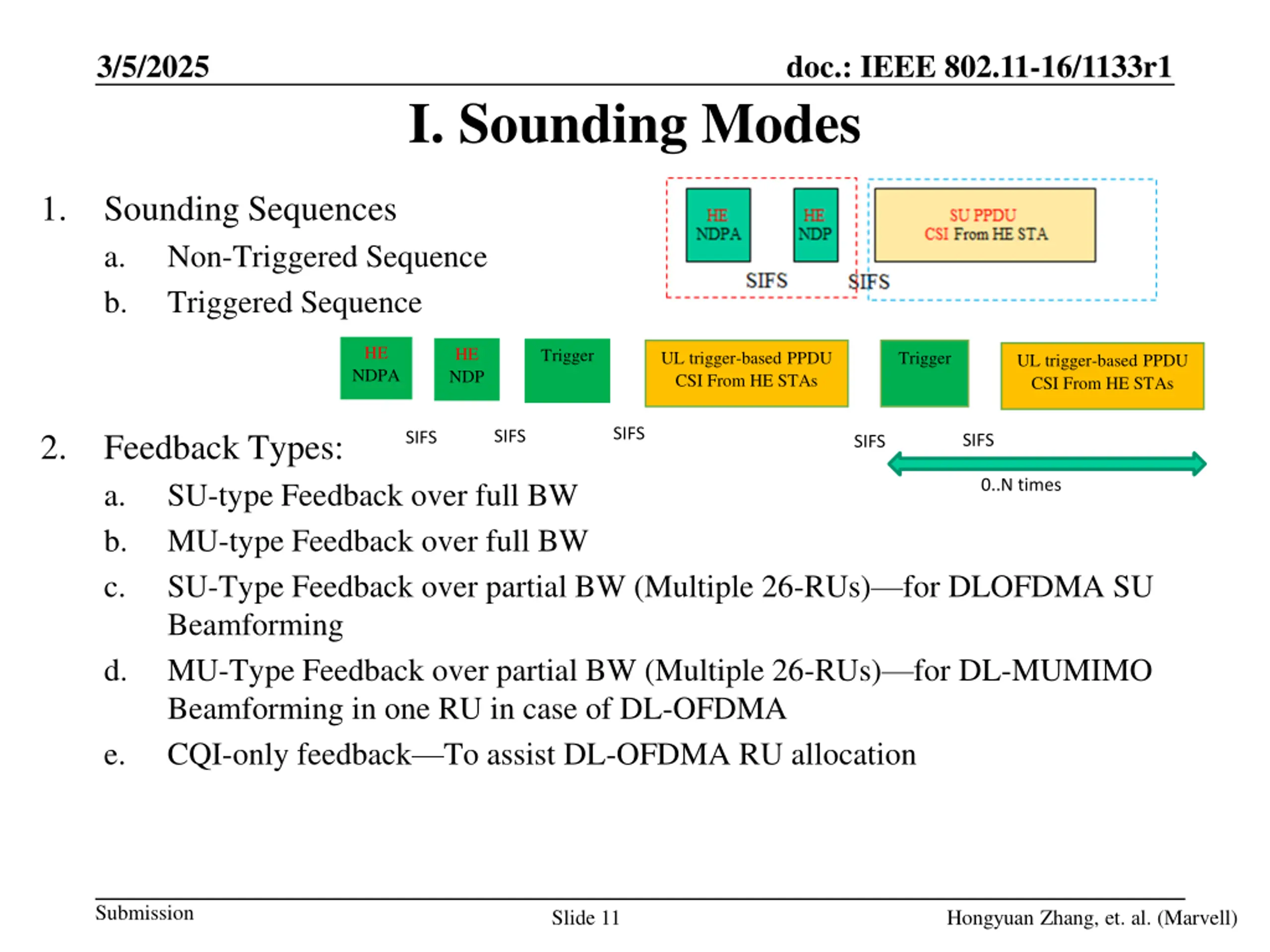

3/5/2025 doc.: IEEE 802.11-16/1133r1 I. Sounding Modes 1. Sounding Sequences a. Non-Triggered Sequence b. Triggered Sequence HE NDPA HE NDP Trigger UL trigger-based PPDU CSI From HE STAs Trigger UL trigger-based PPDU CSI From HE STAs SIFS 2. Feedback Types: a. SU-type Feedback over full BW b. MU-type Feedback over full BW c. SU-Type Feedback over partial BW (Multiple 26-RUs) for DLOFDMA SU Beamforming d. MU-Type Feedback over partial BW (Multiple 26-RUs) for DL-MUMIMO Beamforming in one RU in case of DL-OFDMA e. CQI-only feedback To assist DL-OFDMA RU allocation SIFS SIFS SIFS SIFS 0..N times Submission Slide 11 Hongyuan Zhang, et. al. (Marvell)

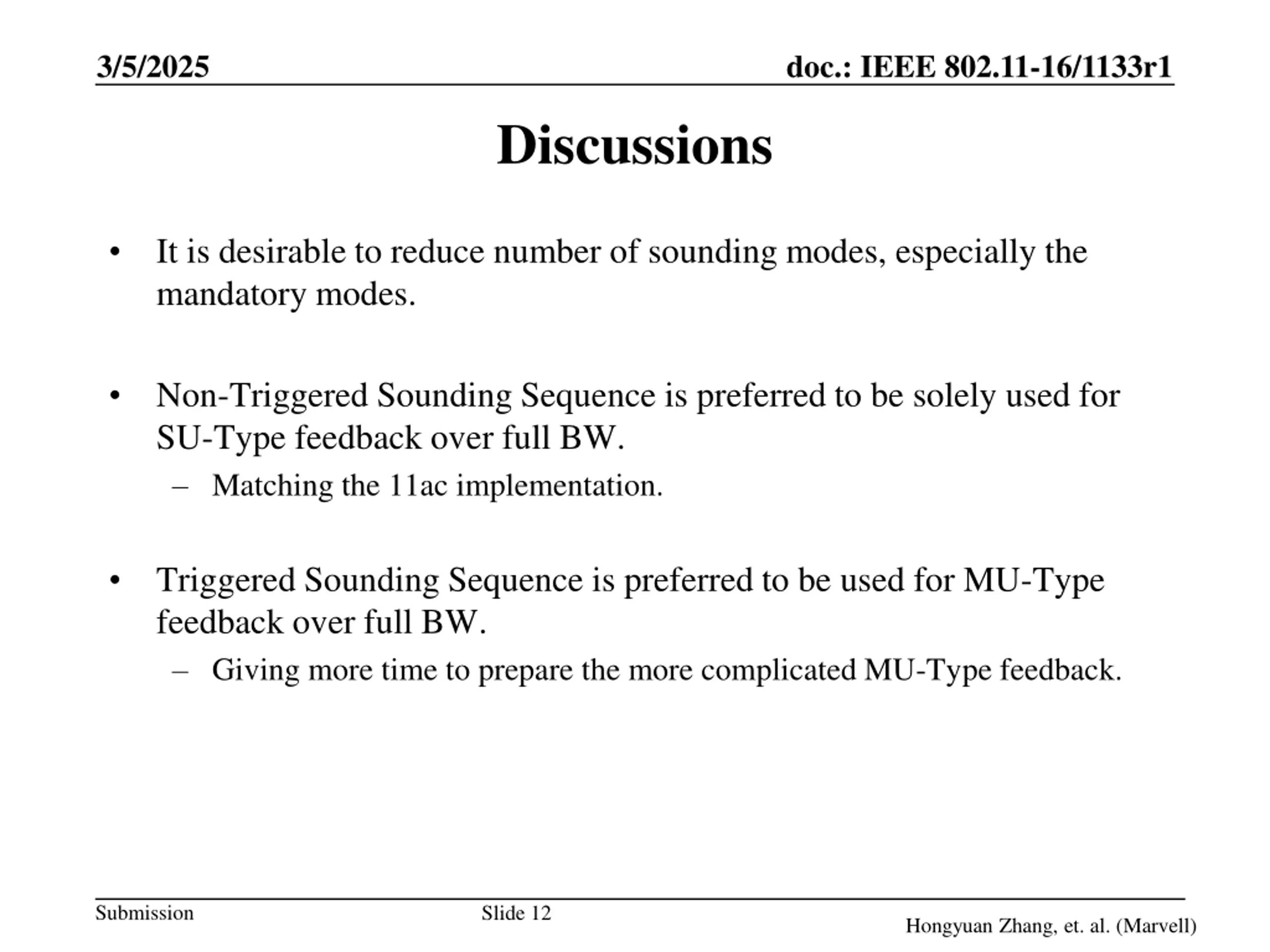

3/5/2025 doc.: IEEE 802.11-16/1133r1 Discussions It is desirable to reduce number of sounding modes, especially the mandatory modes. Non-Triggered Sounding Sequence is preferred to be solely used for SU-Type feedback over full BW. Matching the 11ac implementation. Triggered Sounding Sequence is preferred to be used for MU-Type feedback over full BW. Giving more time to prepare the more complicated MU-Type feedback. Submission Slide 12 Hongyuan Zhang, et. al. (Marvell)

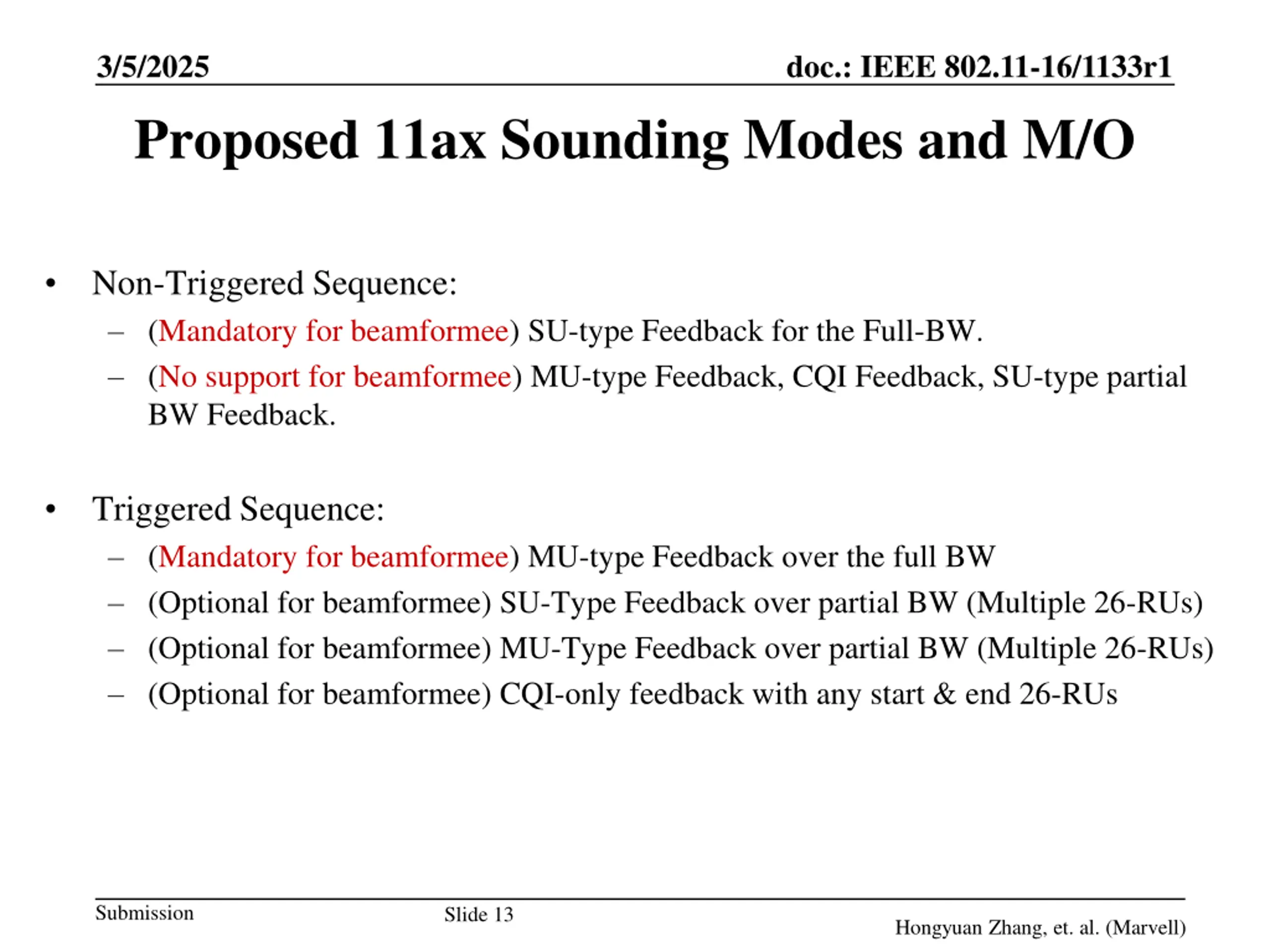

3/5/2025 doc.: IEEE 802.11-16/1133r1 Proposed 11ax Sounding Modes and M/O Non-Triggered Sequence: (Mandatory for beamformee) SU-type Feedback for the Full-BW. (No support for beamformee) MU-type Feedback, CQI Feedback, SU-type partial BW Feedback. Triggered Sequence: (Mandatory for beamformee) MU-type Feedback over the full BW (Optional for beamformee) SU-Type Feedback over partial BW (Multiple 26-RUs) (Optional for beamformee) MU-Type Feedback over partial BW (Multiple 26-RUs) (Optional for beamformee) CQI-only feedback with any start & end 26-RUs Submission Slide 13 Hongyuan Zhang, et. al. (Marvell)

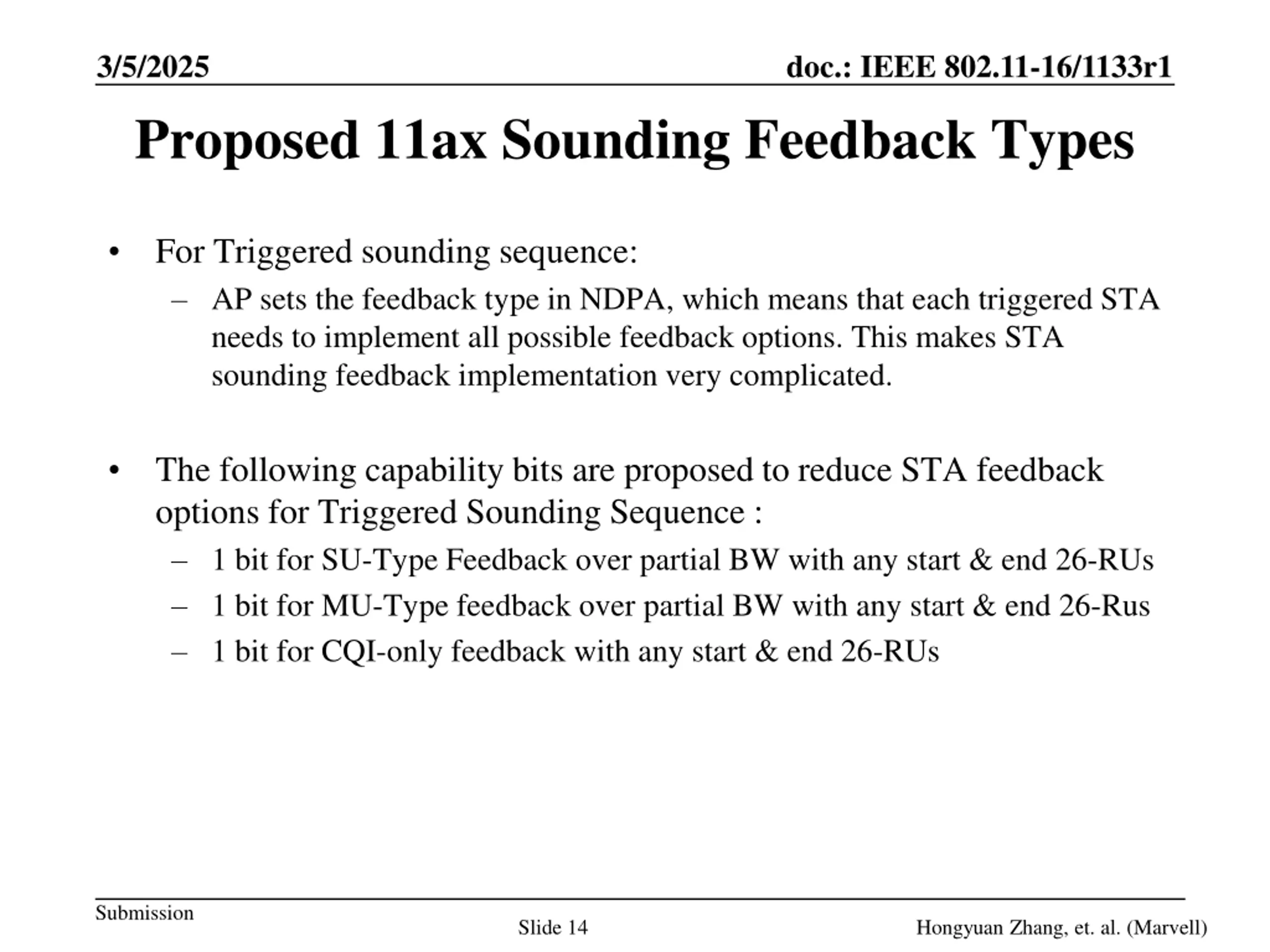

3/5/2025 doc.: IEEE 802.11-16/1133r1 Proposed 11ax Sounding Feedback Types For Triggered sounding sequence: AP sets the feedback type in NDPA, which means that each triggered STA needs to implement all possible feedback options. This makes STA sounding feedback implementation very complicated. The following capability bits are proposed to reduce STA feedback options for Triggered Sounding Sequence : 1 bit for SU-Type Feedback over partial BW with any start & end 26-RUs 1 bit for MU-Type feedback over partial BW with any start & end 26-Rus 1 bit for CQI-only feedback with any start & end 26-RUs Submission Slide 14 Hongyuan Zhang, et. al. (Marvell)

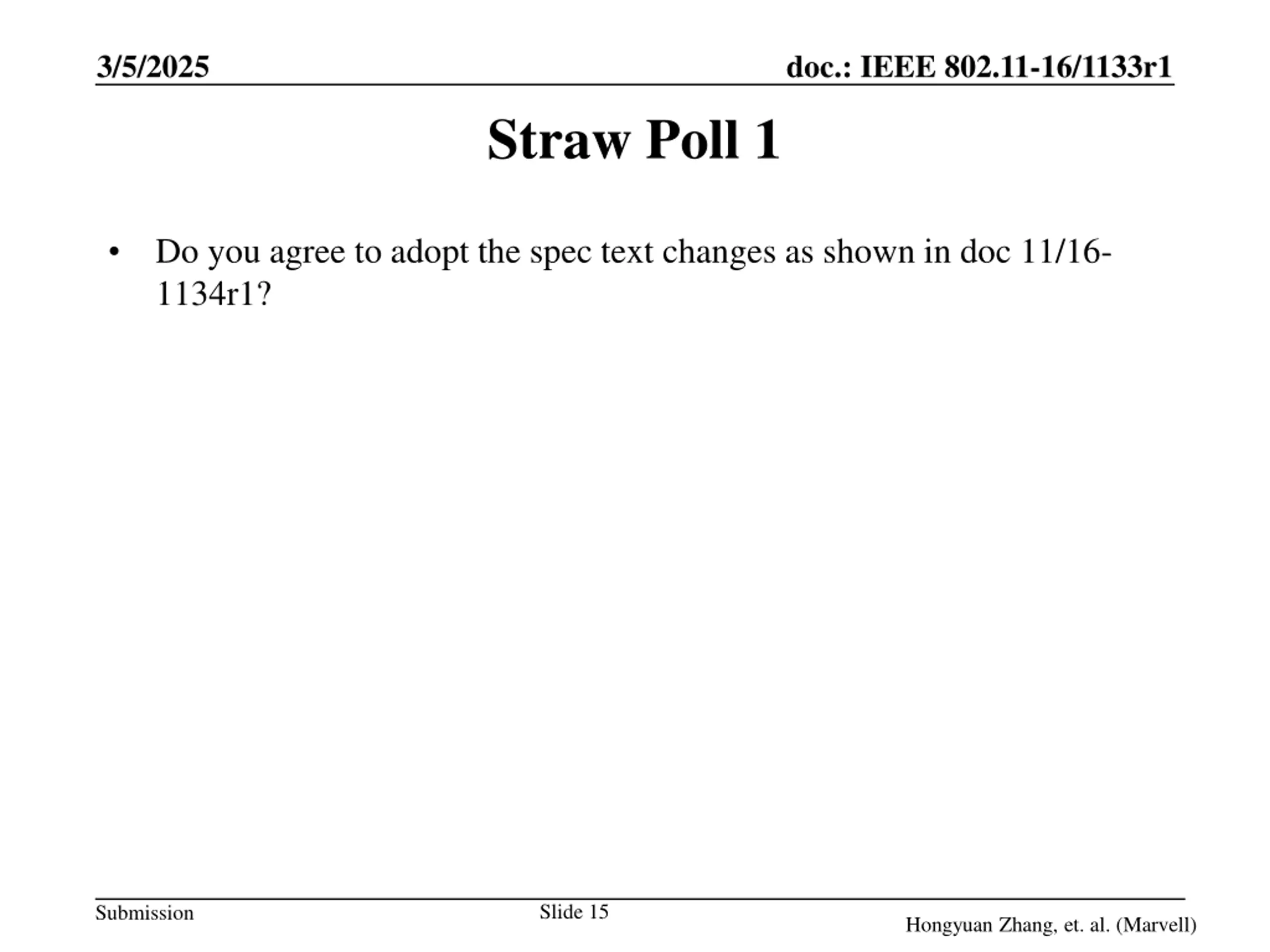

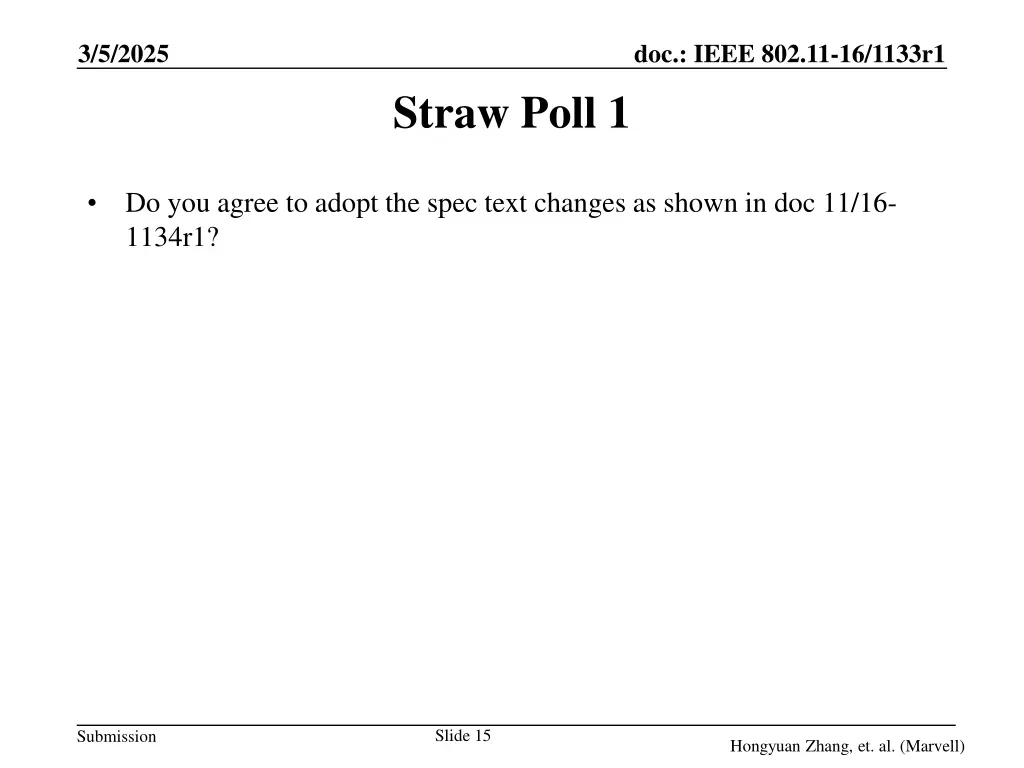

3/5/2025 doc.: IEEE 802.11-16/1133r1 Straw Poll 1 Do you agree to adopt the spec text changes as shown in doc 11/16- 1134r1? Slide 15 Submission Hongyuan Zhang, et. al. (Marvell)
