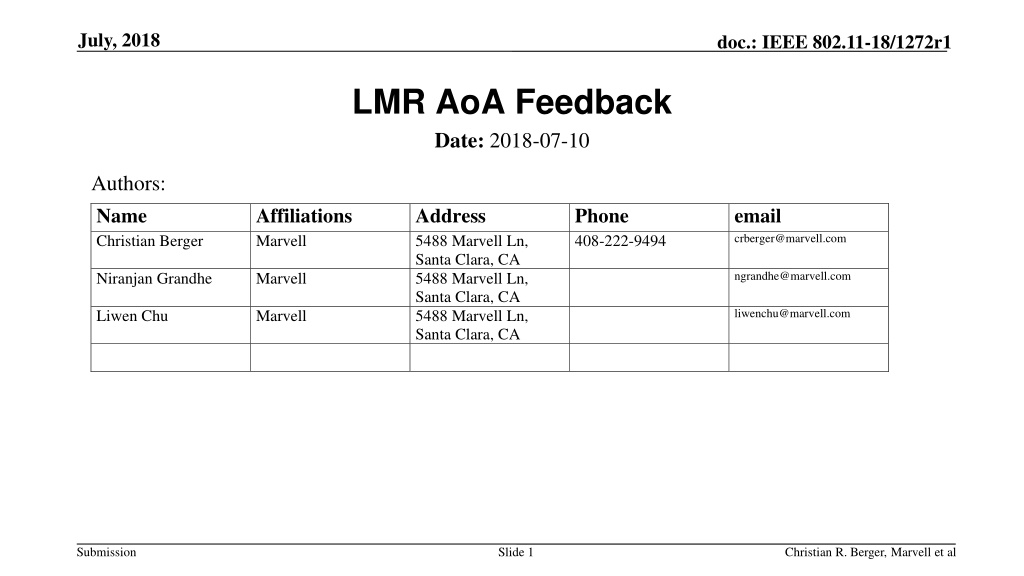

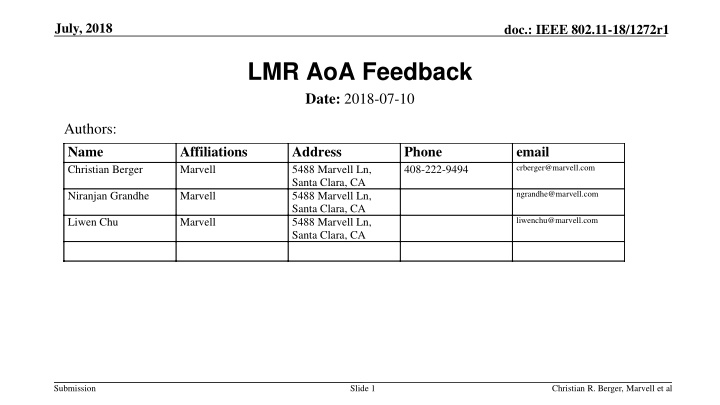

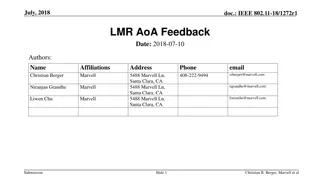

July, 2018 doc.: IEEE 802.11-18/1272r1 LMR AoA Feedback Date: 2018-07-10 Authors: Name Christian Berger Affiliations Marvell Address 5488 Marvell Ln, Santa Clara, CA 5488 Marvell Ln, Santa Clara, CA 5488 Marvell Ln, Santa Clara, CA Phone 408-222-9494 email crberger@marvell.com ngrandhe@marvell.com Niranjan Grandhe Marvell liwenchu@marvell.com Liwen Chu Marvell Submission Slide 1 Christian R. Berger, Marvell et al

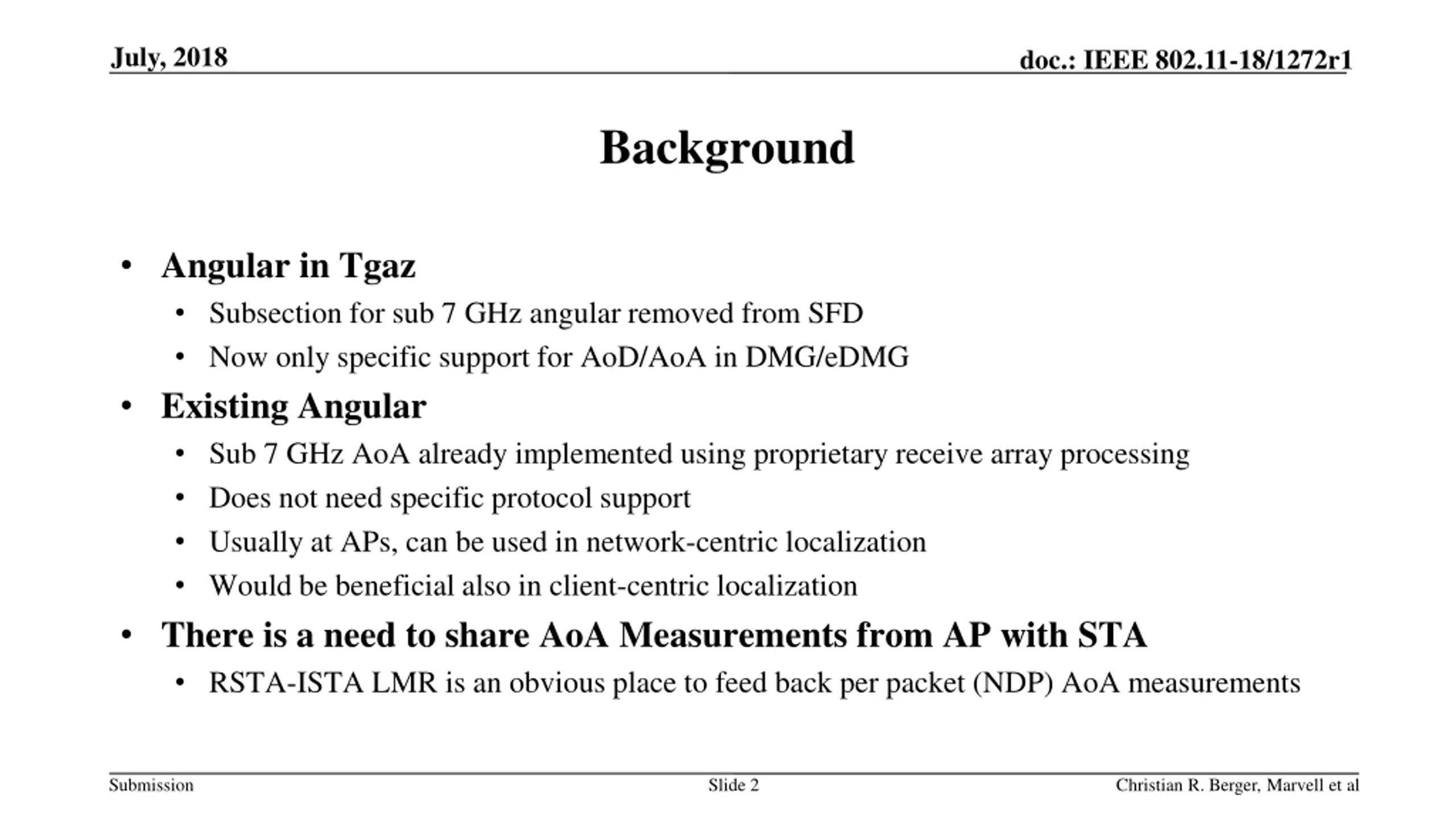

July, 2018 doc.: IEEE 802.11-18/1272r1 Background Angular in Tgaz Subsection for sub 7 GHz angular removed from SFD Now only specific support for AoD/AoA in DMG/eDMG Existing Angular Sub 7 GHz AoA already implemented using proprietary receive array processing Does not need specific protocol support Usually at APs, can be used in network-centric localization Would be beneficial also in client-centric localization There is a need to share AoA Measurements from AP with STA RSTA-ISTA LMR is an obvious place to feed back per packet (NDP) AoA measurements Submission Slide 2 Christian R. Berger, Marvell et al

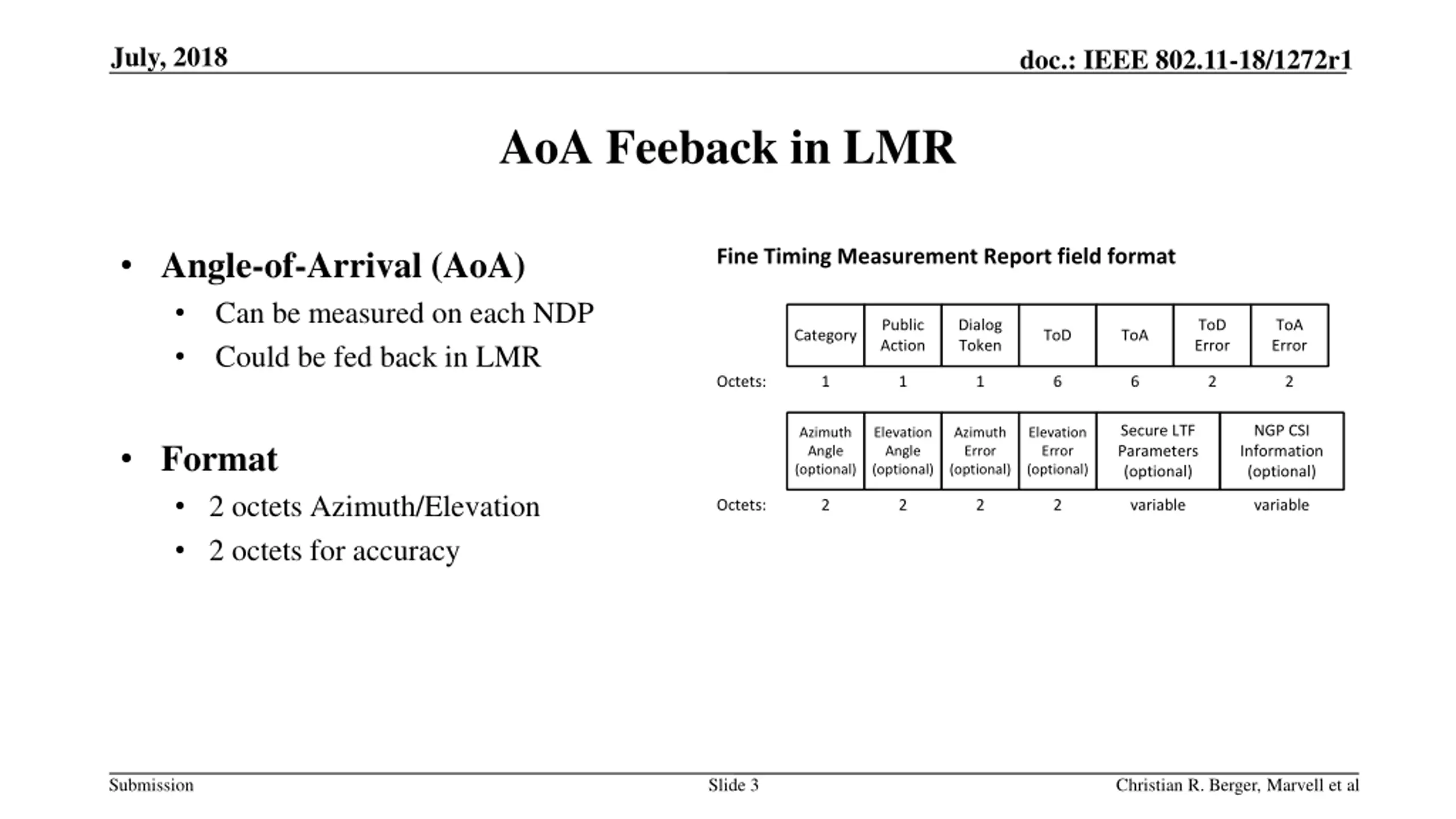

July, 2018 doc.: IEEE 802.11-18/1272r1 AoA Feeback in LMR Angle-of-Arrival (AoA) Can be measured on each NDP Could be fed back in LMR Fine Timing Measurement Report field format Public Action Dialog Token ToD Error ToA Error Category ToD ToA Octets: 1 1 1 6 6 2 2 Secure LTF Parameters (optional) NGP CSI Information (optional) Azimuth Angle (optional) Elevation Angle (optional) Azimuth Error (optional) Elevation Error (optional) Format 2 octets Azimuth/Elevation 2 octets for accuracy Octets: 2 2 2 2 variable variable Submission Slide 3 Christian R. Berger, Marvell et al

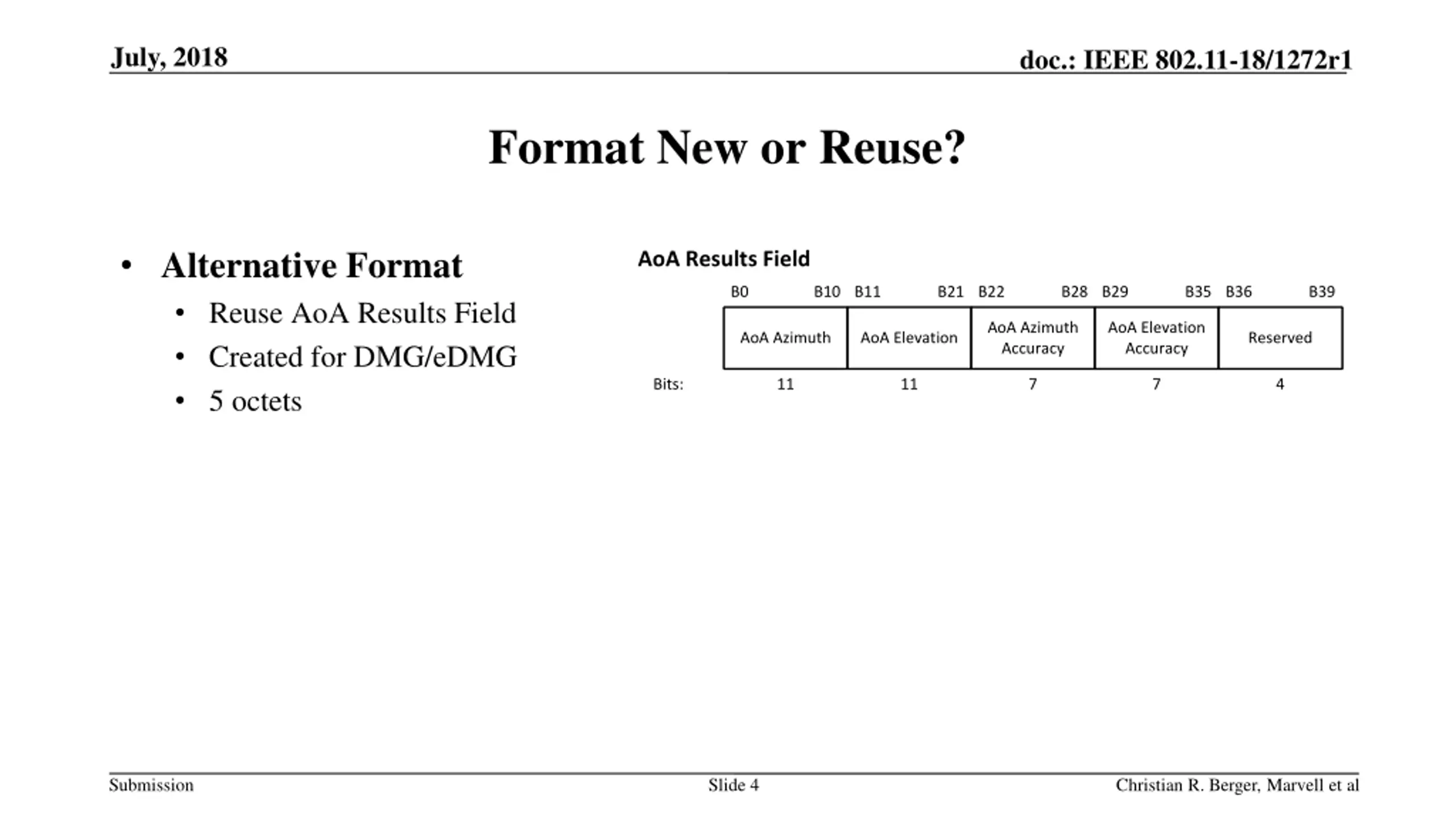

July, 2018 doc.: IEEE 802.11-18/1272r1 Format New or Reuse? Alternative Format Reuse AoA Results Field Created for DMG/eDMG 5 octets AoA Results Field B0 B10 B11 B21 B22 B28 B29 B35 B36 B39 AoA Azimuth Accuracy AoA Elevation Accuracy AoA Azimuth AoA Elevation Reserved Bits: 11 11 7 7 4 Submission Slide 4 Christian R. Berger, Marvell et al

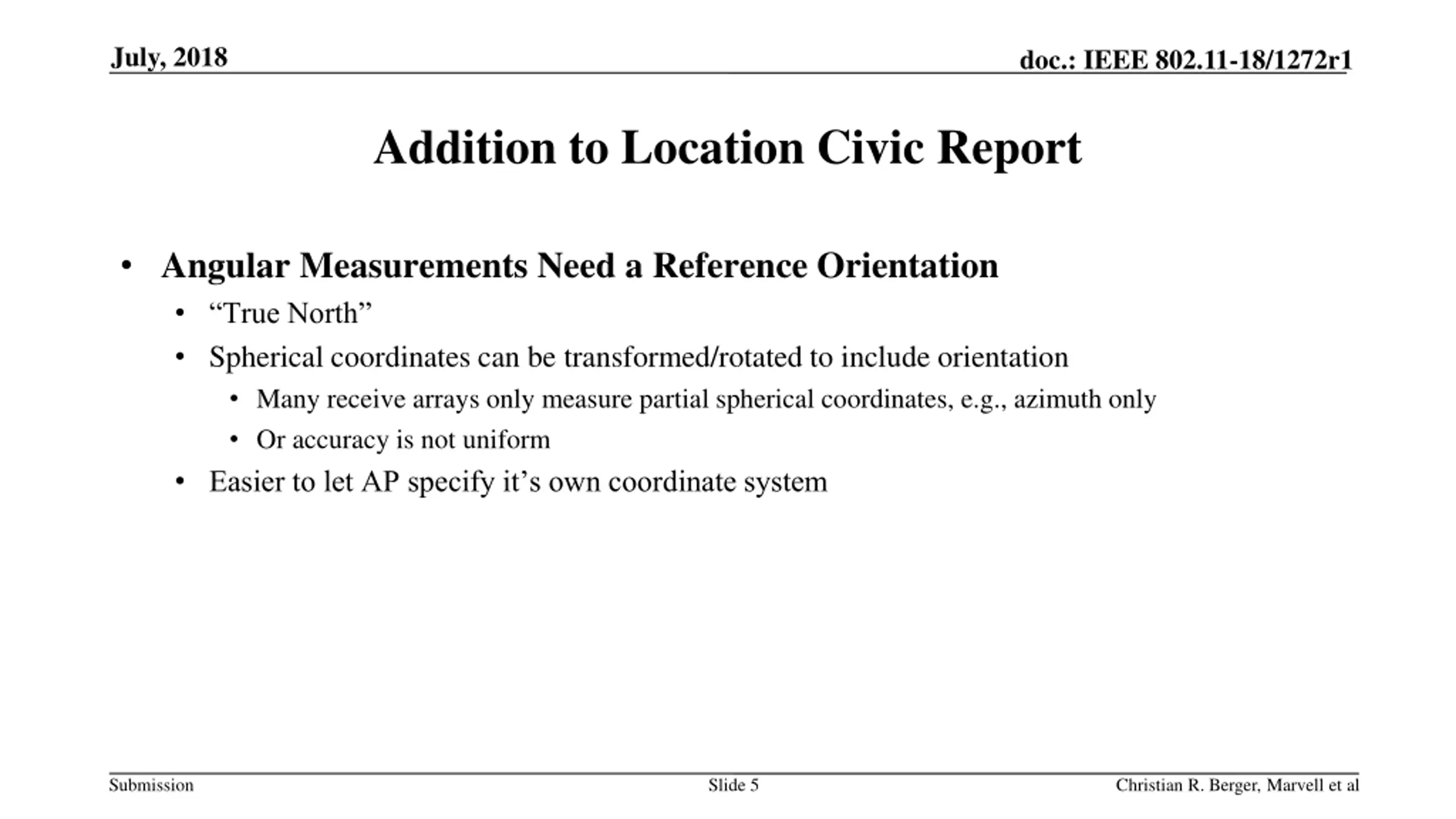

July, 2018 doc.: IEEE 802.11-18/1272r1 Addition to Location Civic Report Angular Measurements Need a Reference Orientation True North Spherical coordinates can be transformed/rotated to include orientation Many receive arrays only measure partial spherical coordinates, e.g., azimuth only Or accuracy is not uniform Easier to let AP specify it s own coordinate system Submission Slide 5 Christian R. Berger, Marvell et al

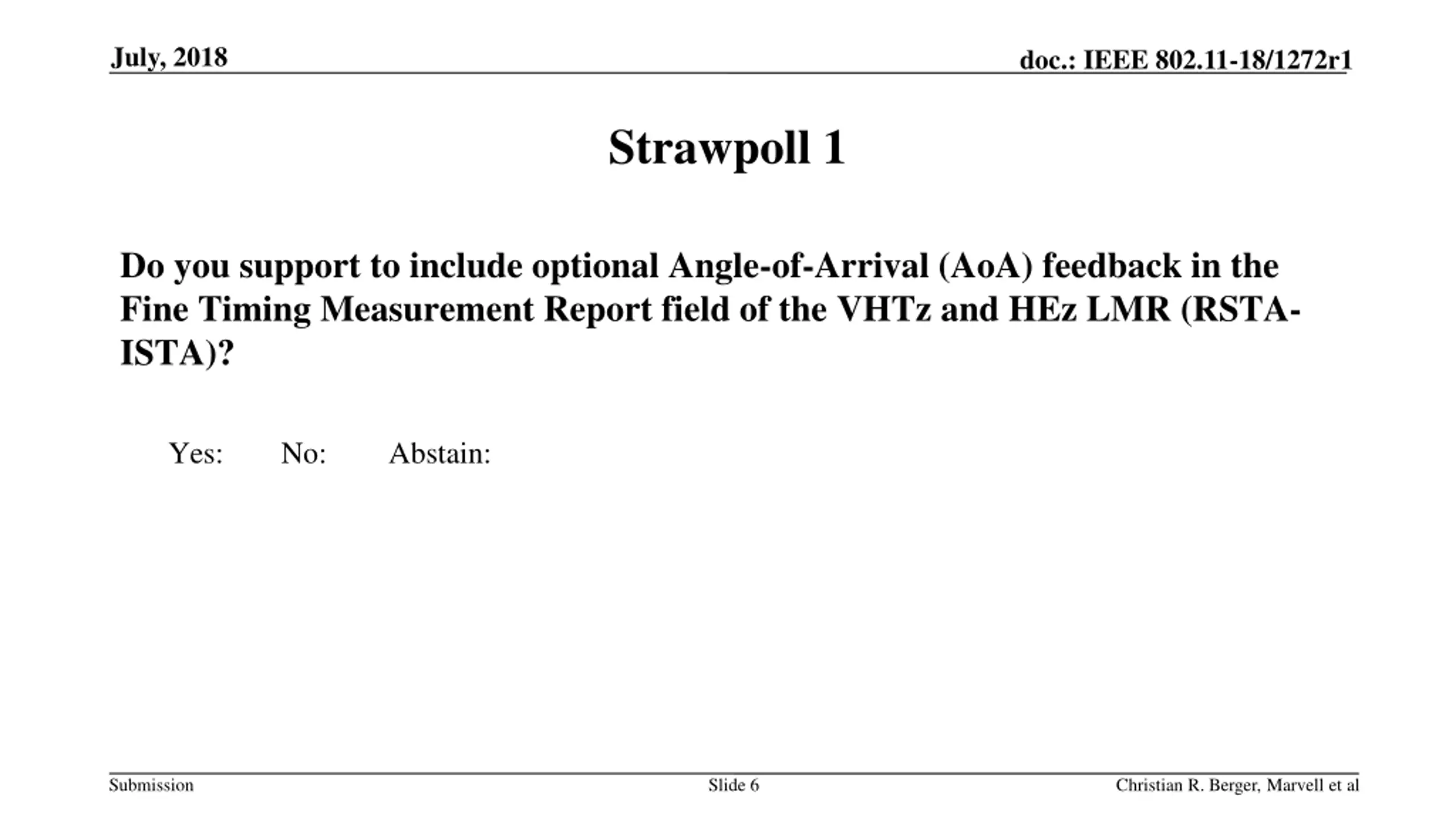

July, 2018 doc.: IEEE 802.11-18/1272r1 Strawpoll 1 Do you support to include optional Angle-of-Arrival (AoA) feedback in the Fine Timing Measurement Report field of the VHTz and HEz LMR (RSTA- ISTA)? Yes: No: Abstain: Submission Slide 6 Christian R. Berger, Marvell et al

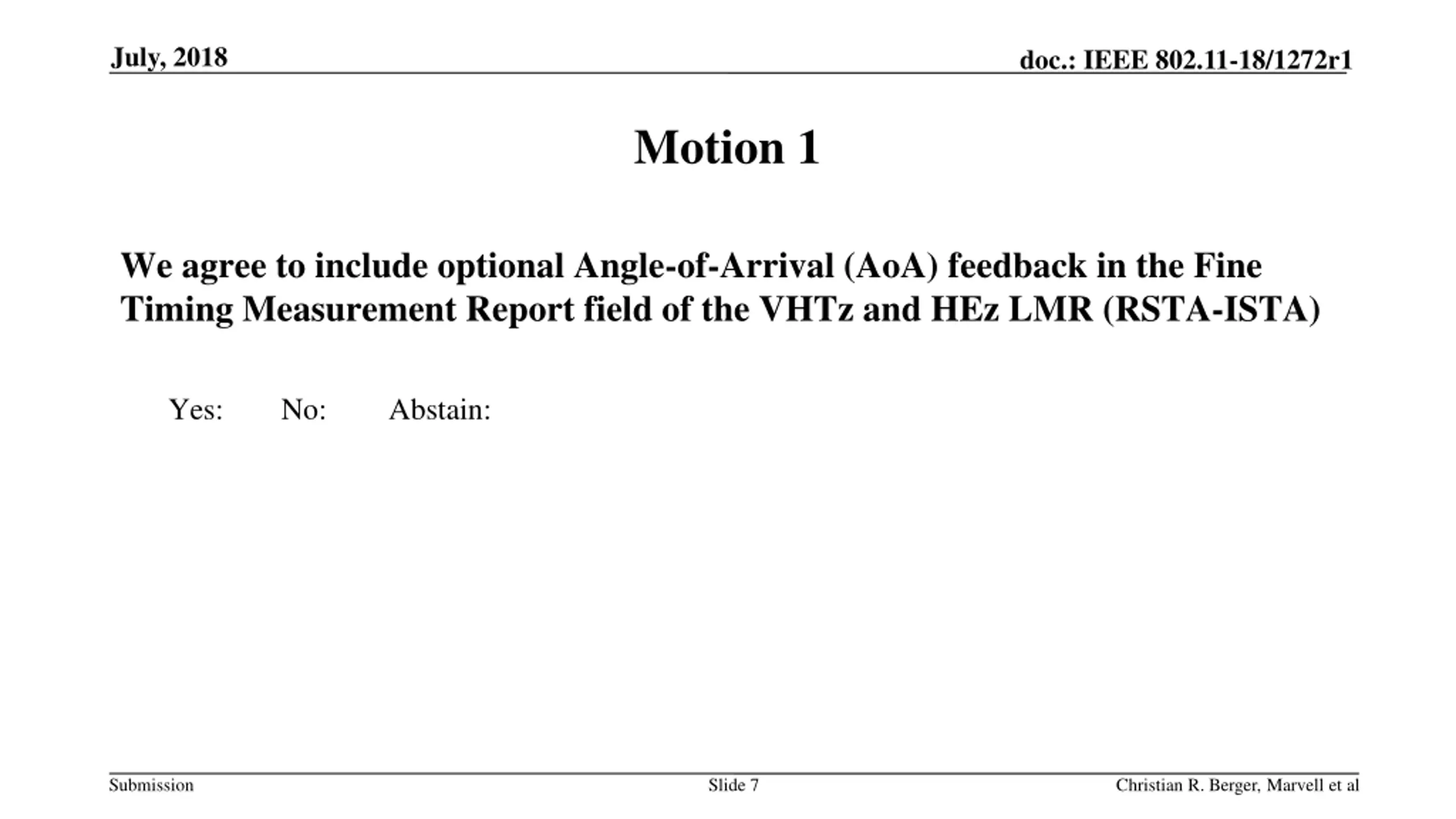

July, 2018 doc.: IEEE 802.11-18/1272r1 Motion 1 We agree to include optional Angle-of-Arrival (AoA) feedback in the Fine Timing Measurement Report field of the VHTz and HEz LMR (RSTA-ISTA) Yes: No: Abstain: Submission Slide 7 Christian R. Berger, Marvell et al
