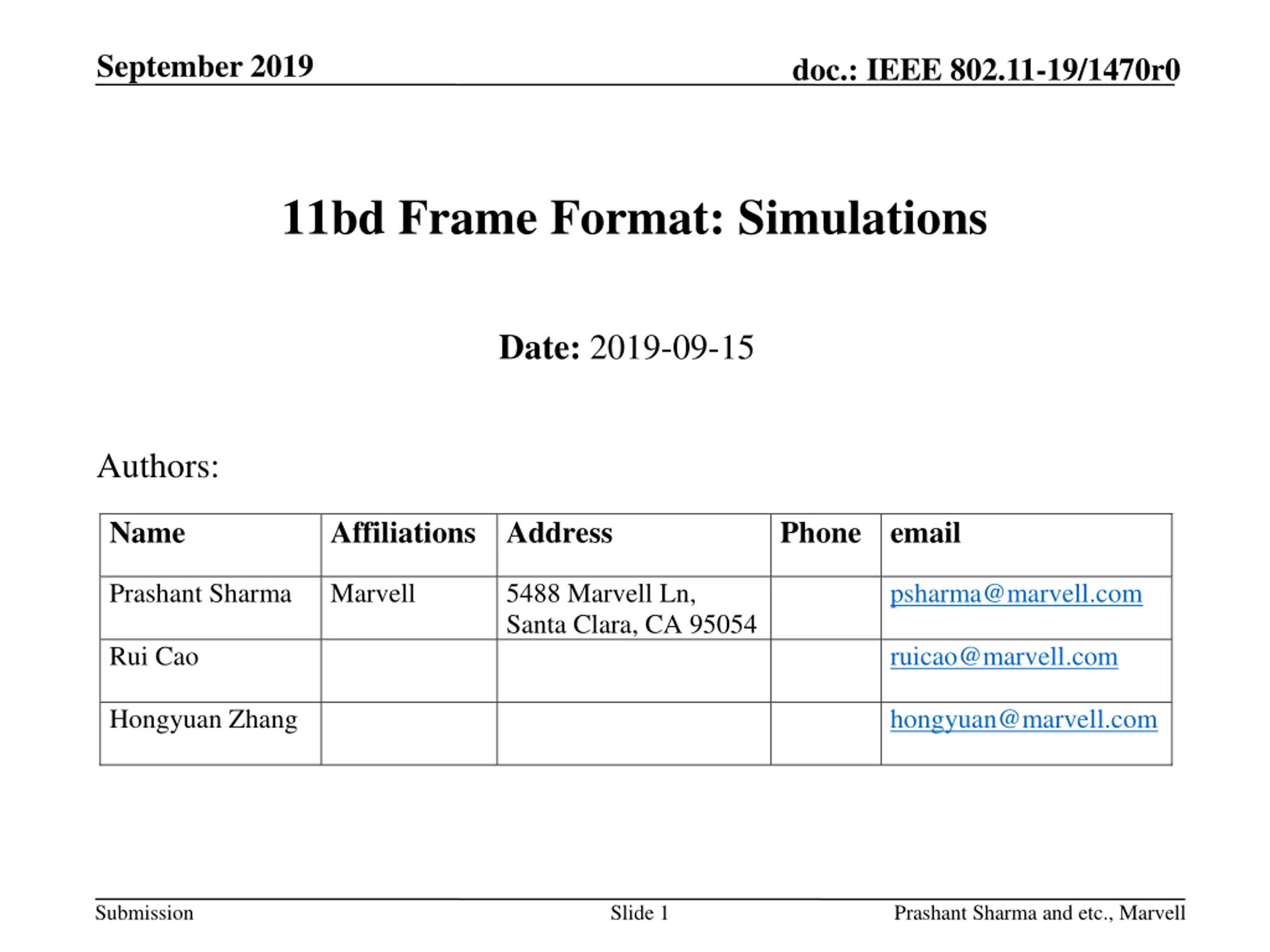

September 2019 doc.: IEEE 802.11-19/1470r0 11bd Frame Format: Simulations Date: 2019-09-15 Authors: Name Affiliations Address Phone email Prashant Sharma Marvell 5488 Marvell Ln, Santa Clara, CA 95054 psharma@marvell.com Rui Cao ruicao@marvell.com Hongyuan Zhang hongyuan@marvell.com Submission Slide 1 Prashant Sharma and etc., Marvell

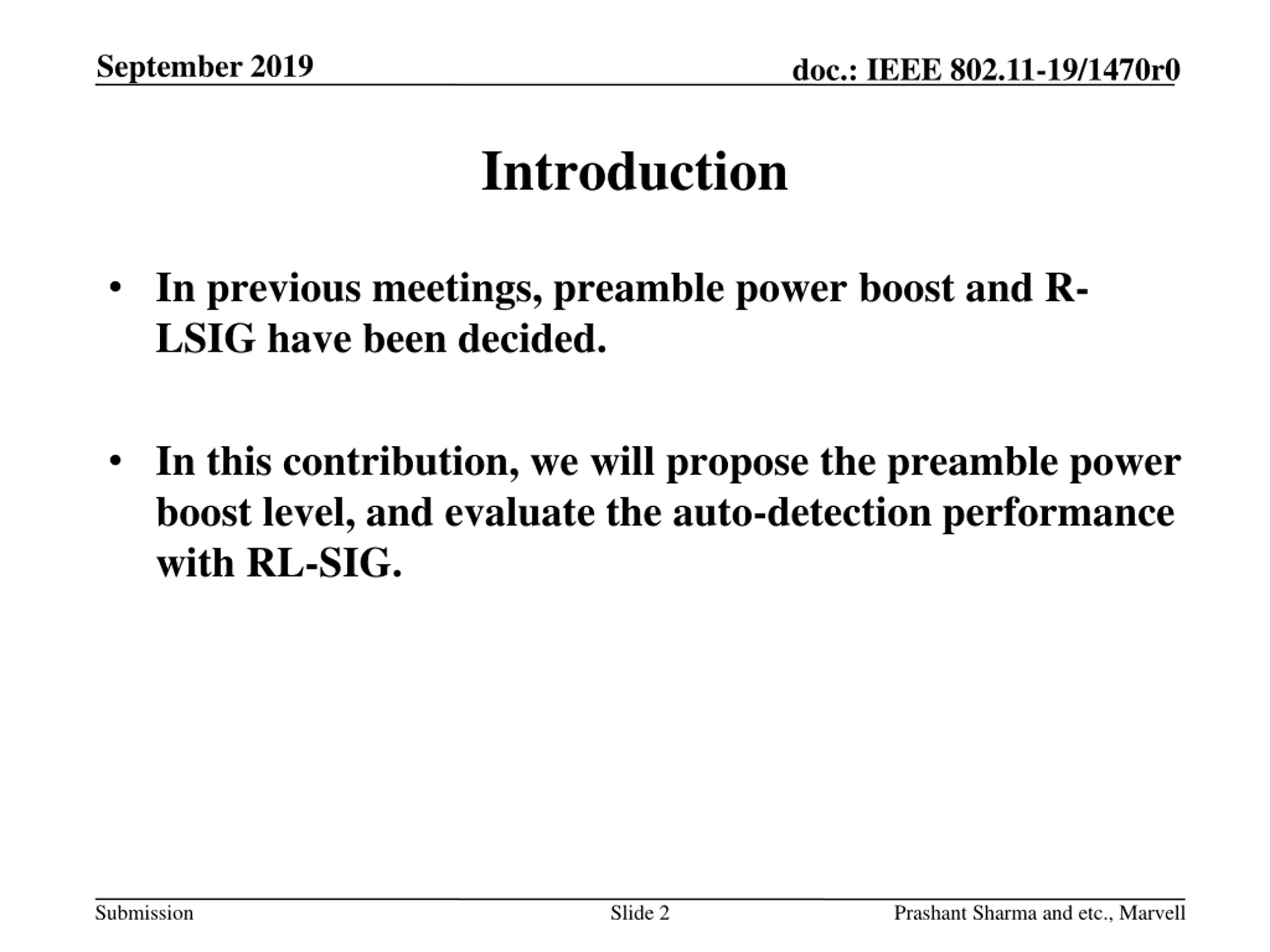

September 2019 doc.: IEEE 802.11-19/1470r0 Introduction In previous meetings, preamble power boost and R- LSIG have been decided. In this contribution, we will propose the preamble power boost level, and evaluate the auto-detection performance with RL-SIG. Submission Slide 2 Prashant Sharma and etc., Marvell

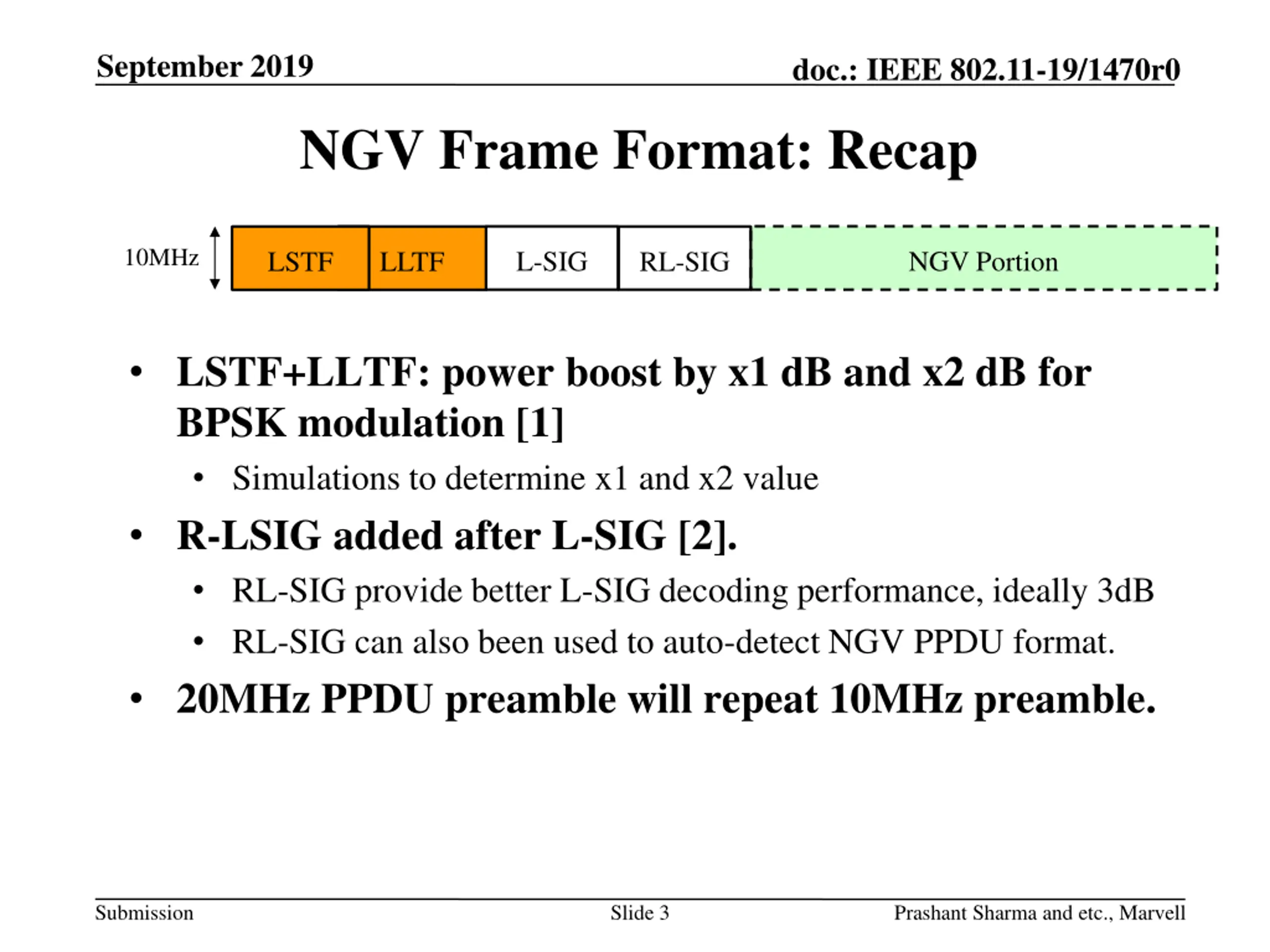

September 2019 doc.: IEEE 802.11-19/1470r0 NGV Frame Format: Recap 10MHz NGV Portion L-SIG RL-SIG LSTF LLTF LSTF+LLTF: power boost by x1 dB and x2 dB for BPSK modulation [1] Simulations to determine x1 and x2 value R-LSIG added after L-SIG [2]. RL-SIG provide better L-SIG decoding performance, ideally 3dB RL-SIG can also been used to auto-detect NGV PPDU format. 20MHz PPDU preamble will repeat 10MHz preamble. Submission Slide 3 Prashant Sharma and etc., Marvell

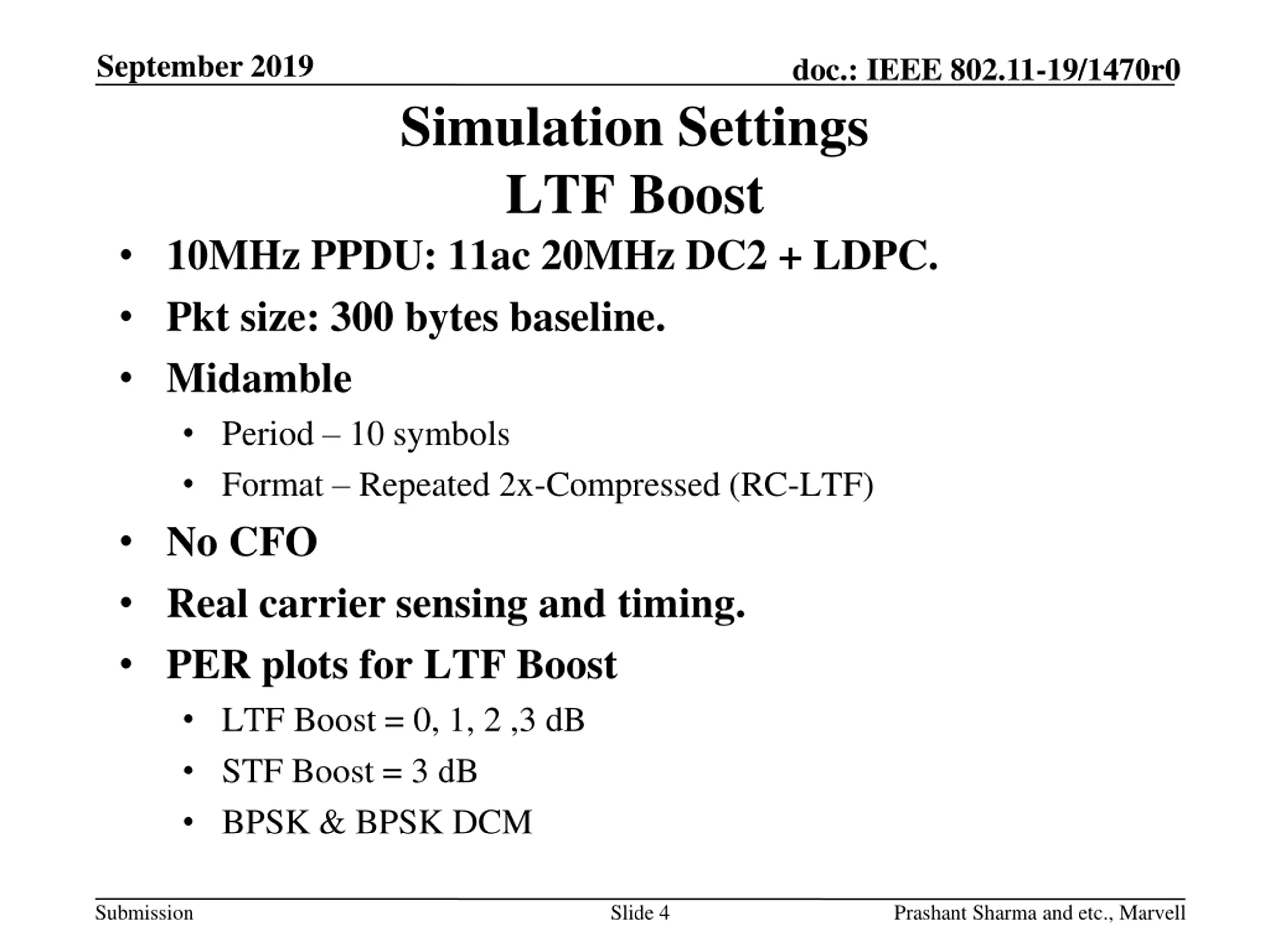

September 2019 doc.: IEEE 802.11-19/1470r0 Simulation Settings LTF Boost 10MHz PPDU: 11ac 20MHz DC2 + LDPC. Pkt size: 300 bytes baseline. Midamble Period 10 symbols Format Repeated 2x-Compressed (RC-LTF) No CFO Real carrier sensing and timing. PER plots for LTF Boost LTF Boost = 0, 1, 2 ,3 dB STF Boost = 3 dB BPSK & BPSK DCM Submission Slide 4 Prashant Sharma and etc., Marvell

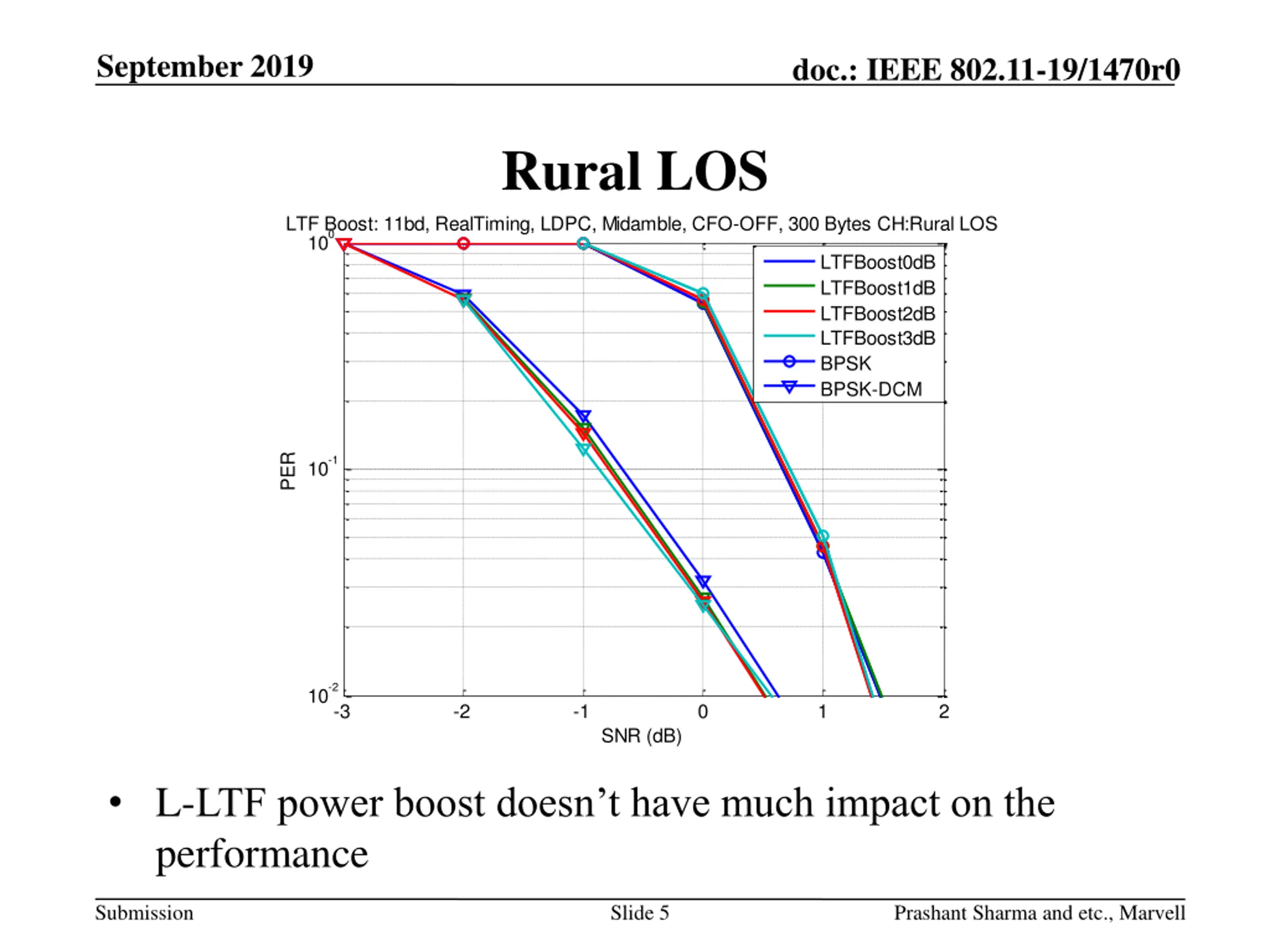

September 2019 doc.: IEEE 802.11-19/1470r0 Rural LOS LTF Boost: 11bd, RealTiming, LDPC, Midamble, CFO-OFF, 300 Bytes CH:Rural LOS 0 10 LTFBoost0dB LTFBoost1dB LTFBoost2dB LTFBoost3dB BPSK BPSK-DCM PER -1 10 -2 10 -3 -2 -1 0 1 2 SNR (dB) L-LTF power boost doesn t have much impact on the performance Submission Slide 5 Prashant Sharma and etc., Marvell

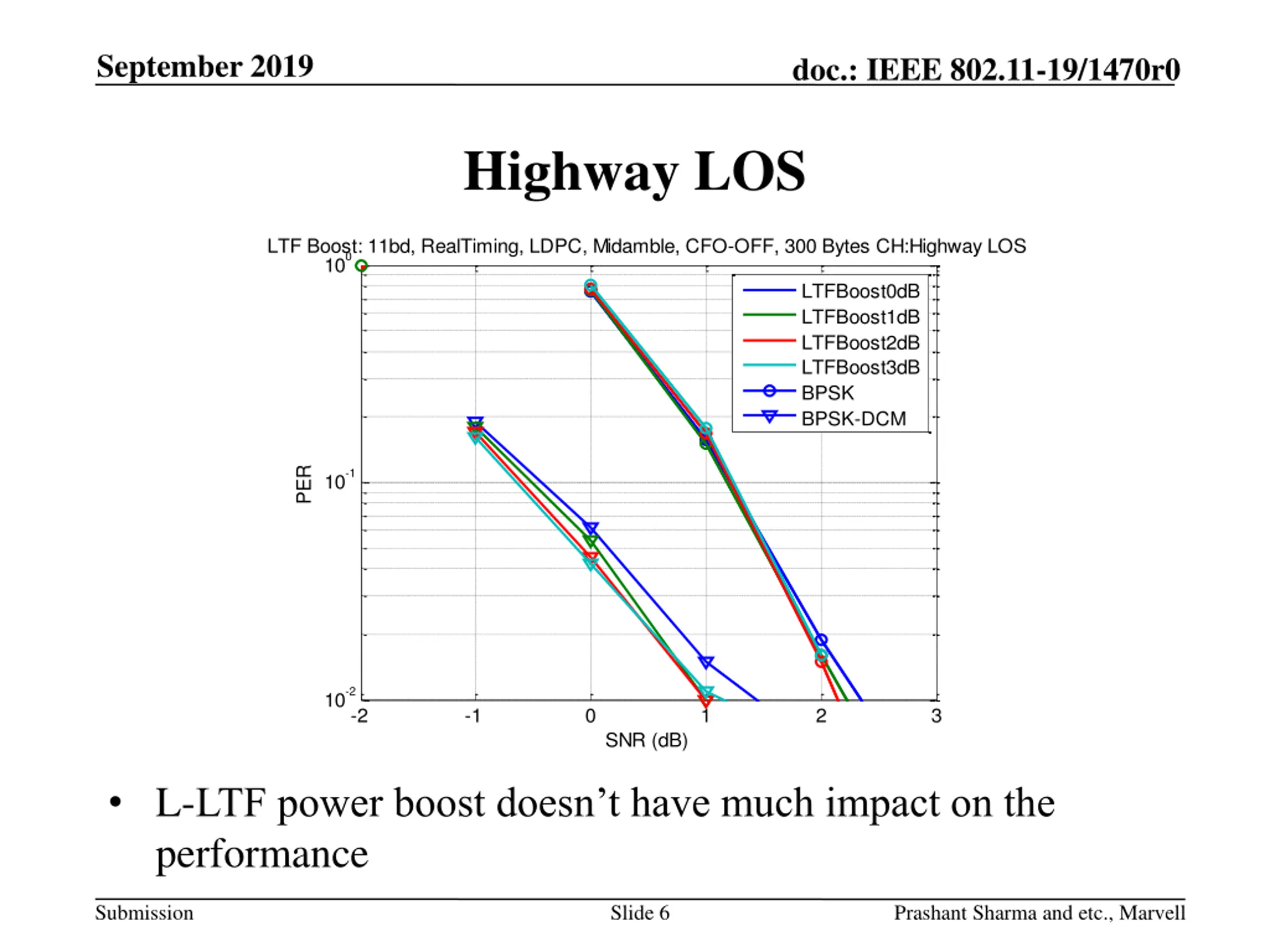

September 2019 doc.: IEEE 802.11-19/1470r0 Highway LOS LTF Boost: 11bd, RealTiming, LDPC, Midamble, CFO-OFF, 300 Bytes CH:Highway LOS 0 10 LTFBoost0dB LTFBoost1dB LTFBoost2dB LTFBoost3dB BPSK BPSK-DCM PER -1 10 -2 10 -2 -1 0 1 2 3 SNR (dB) L-LTF power boost doesn t have much impact on the performance Submission Slide 6 Prashant Sharma and etc., Marvell

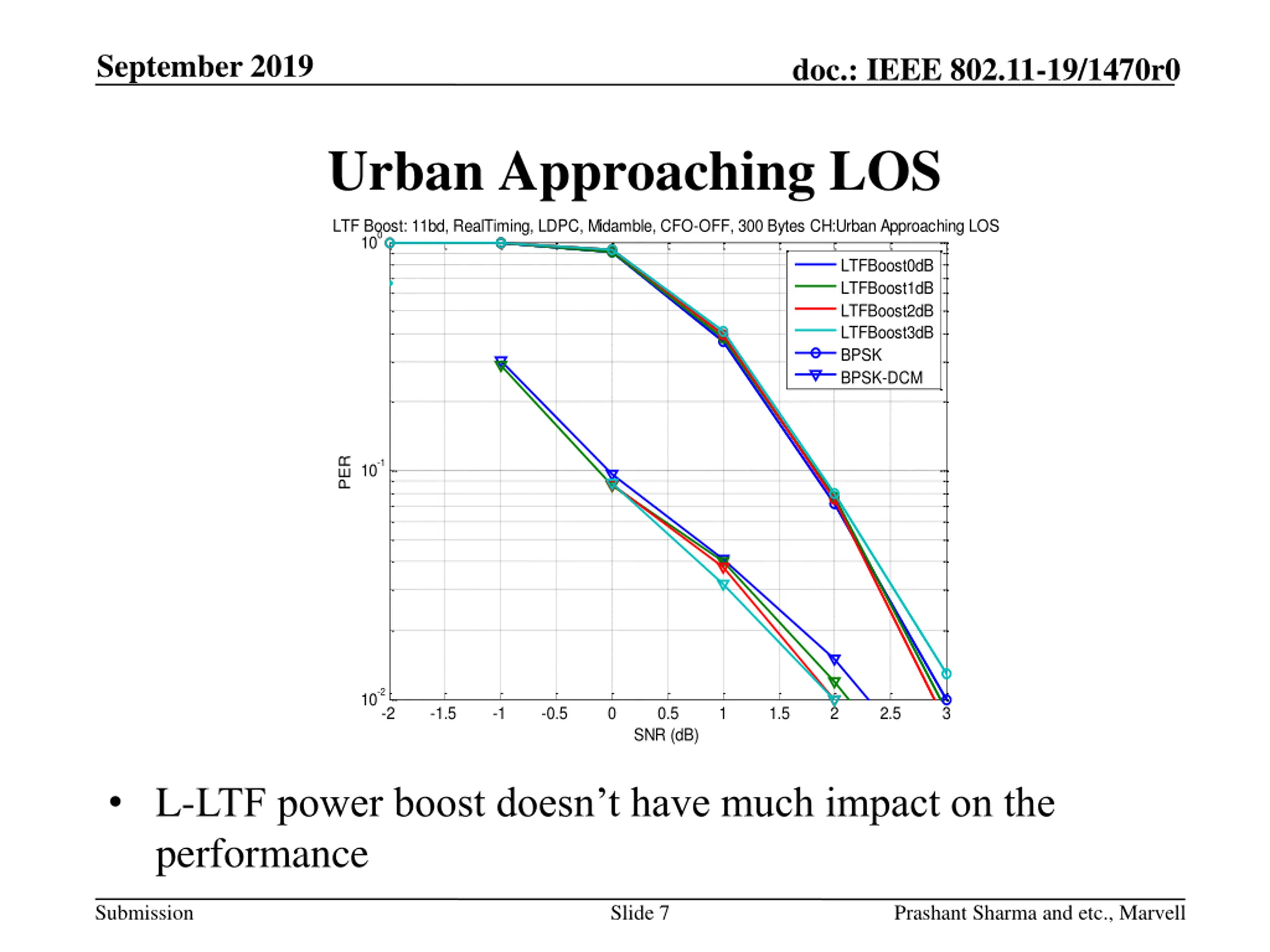

September 2019 doc.: IEEE 802.11-19/1470r0 Urban Approaching LOS LTF Boost: 11bd, RealTiming, LDPC, Midamble, CFO-OFF, 300 Bytes CH:Urban Approaching LOS 0 10 LTFBoost0dB LTFBoost1dB LTFBoost2dB LTFBoost3dB BPSK BPSK-DCM PER -1 10 -2 10 -2 -1.5 -1 -0.5 0 0.5 1 1.5 2 2.5 3 SNR (dB) L-LTF power boost doesn t have much impact on the performance Submission Slide 7 Prashant Sharma and etc., Marvell

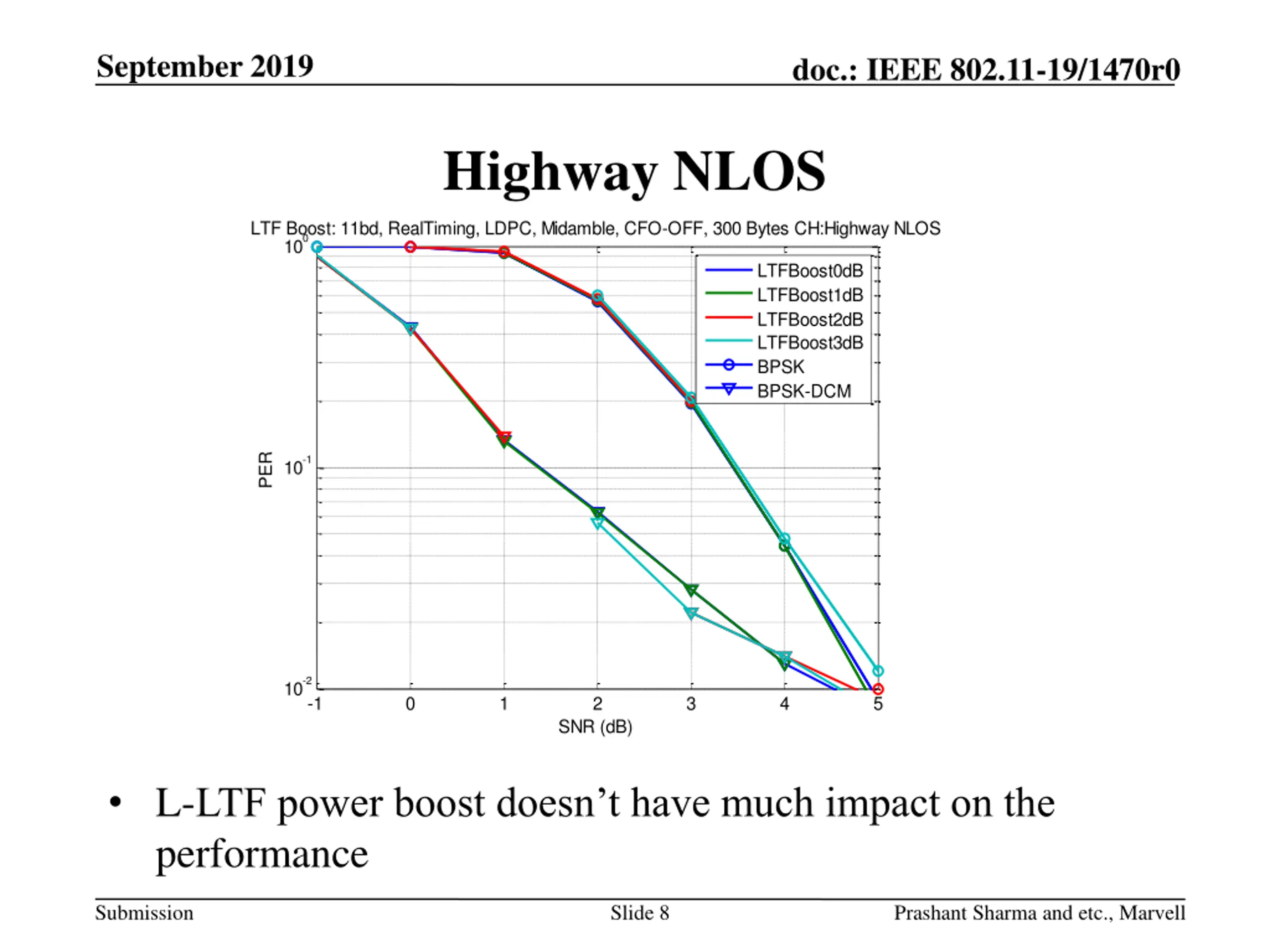

September 2019 doc.: IEEE 802.11-19/1470r0 Highway NLOS LTF Boost: 11bd, RealTiming, LDPC, Midamble, CFO-OFF, 300 Bytes CH:Highway NLOS 0 10 LTFBoost0dB LTFBoost1dB LTFBoost2dB LTFBoost3dB BPSK BPSK-DCM PER -1 10 -2 10 -1 0 1 2 3 4 5 SNR (dB) L-LTF power boost doesn t have much impact on the performance Submission Slide 8 Prashant Sharma and etc., Marvell

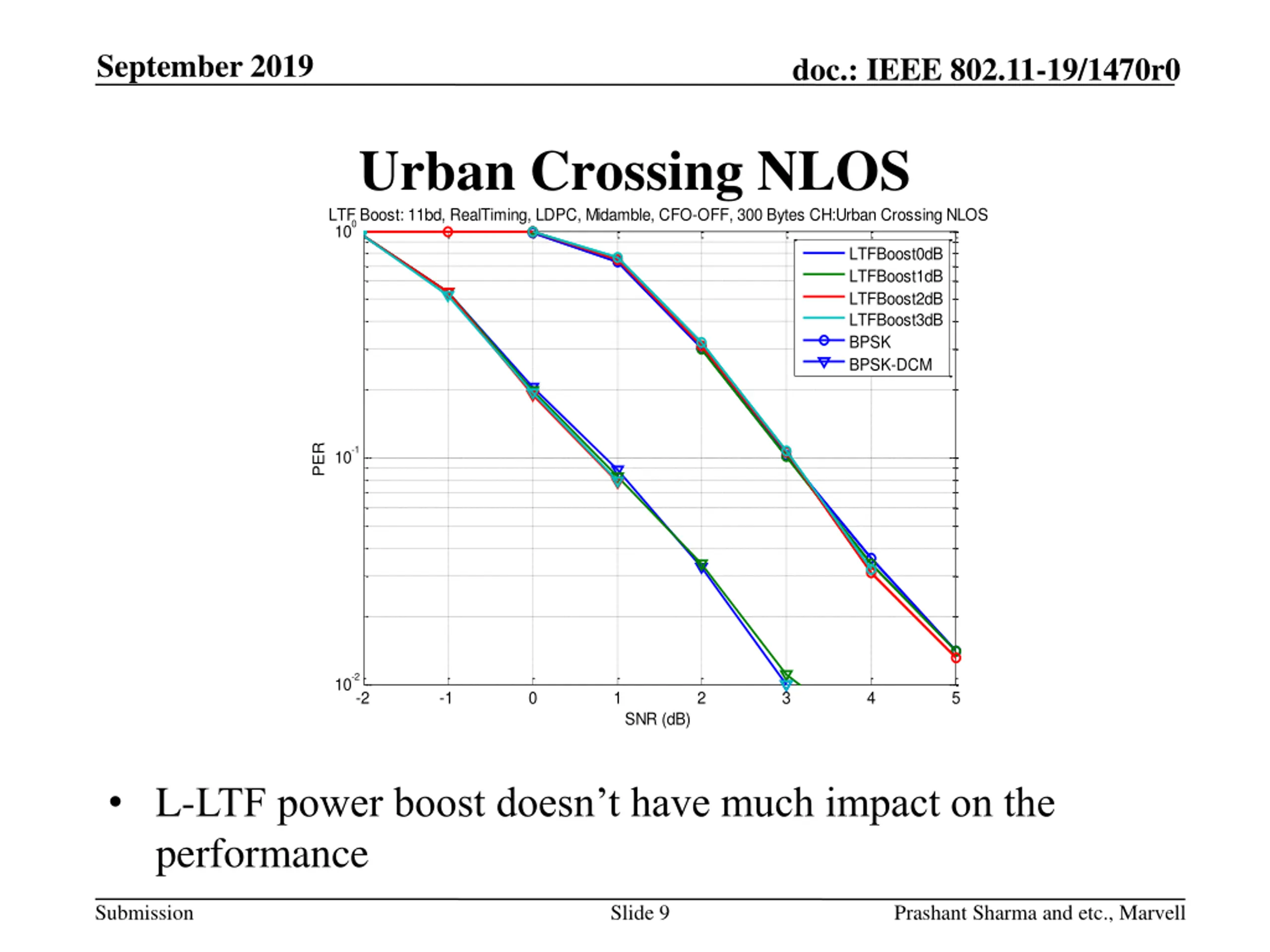

September 2019 doc.: IEEE 802.11-19/1470r0 Urban Crossing NLOS LTF Boost: 11bd, RealTiming, LDPC, Midamble, CFO-OFF, 300 Bytes CH:Urban Crossing NLOS 0 10 LTFBoost0dB LTFBoost1dB LTFBoost2dB LTFBoost3dB BPSK BPSK-DCM PER -1 10 -2 10 -2 -1 0 1 2 3 4 5 SNR (dB) L-LTF power boost doesn t have much impact on the performance Submission Slide 9 Prashant Sharma and etc., Marvell

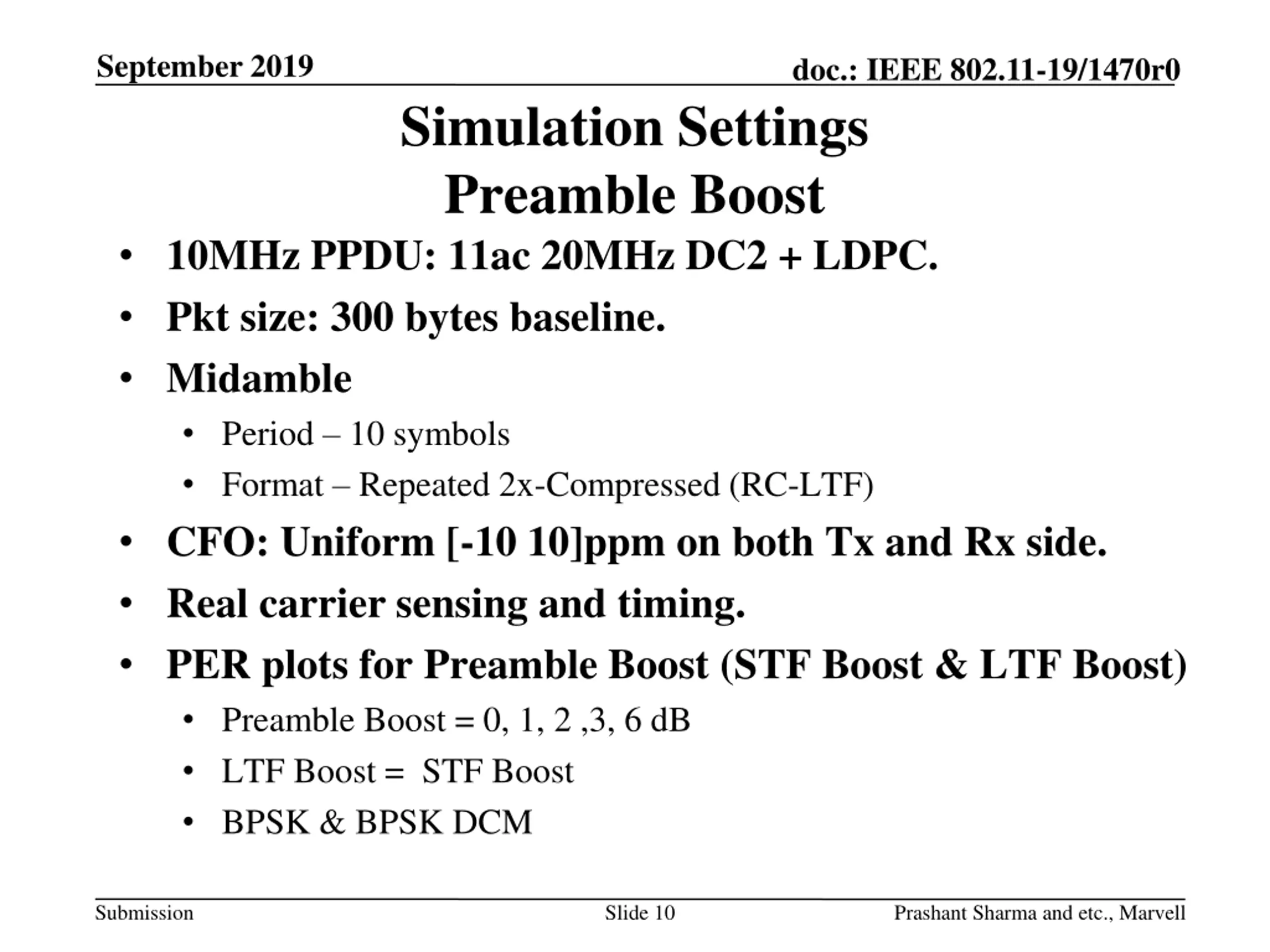

September 2019 doc.: IEEE 802.11-19/1470r0 Simulation Settings Preamble Boost 10MHz PPDU: 11ac 20MHz DC2 + LDPC. Pkt size: 300 bytes baseline. Midamble Period 10 symbols Format Repeated 2x-Compressed (RC-LTF) CFO: Uniform [-10 10]ppm on both Tx and Rx side. Real carrier sensing and timing. PER plots for Preamble Boost (STF Boost & LTF Boost) Preamble Boost = 0, 1, 2 ,3, 6 dB LTF Boost = STF Boost BPSK & BPSK DCM Submission Slide 10 Prashant Sharma and etc., Marvell

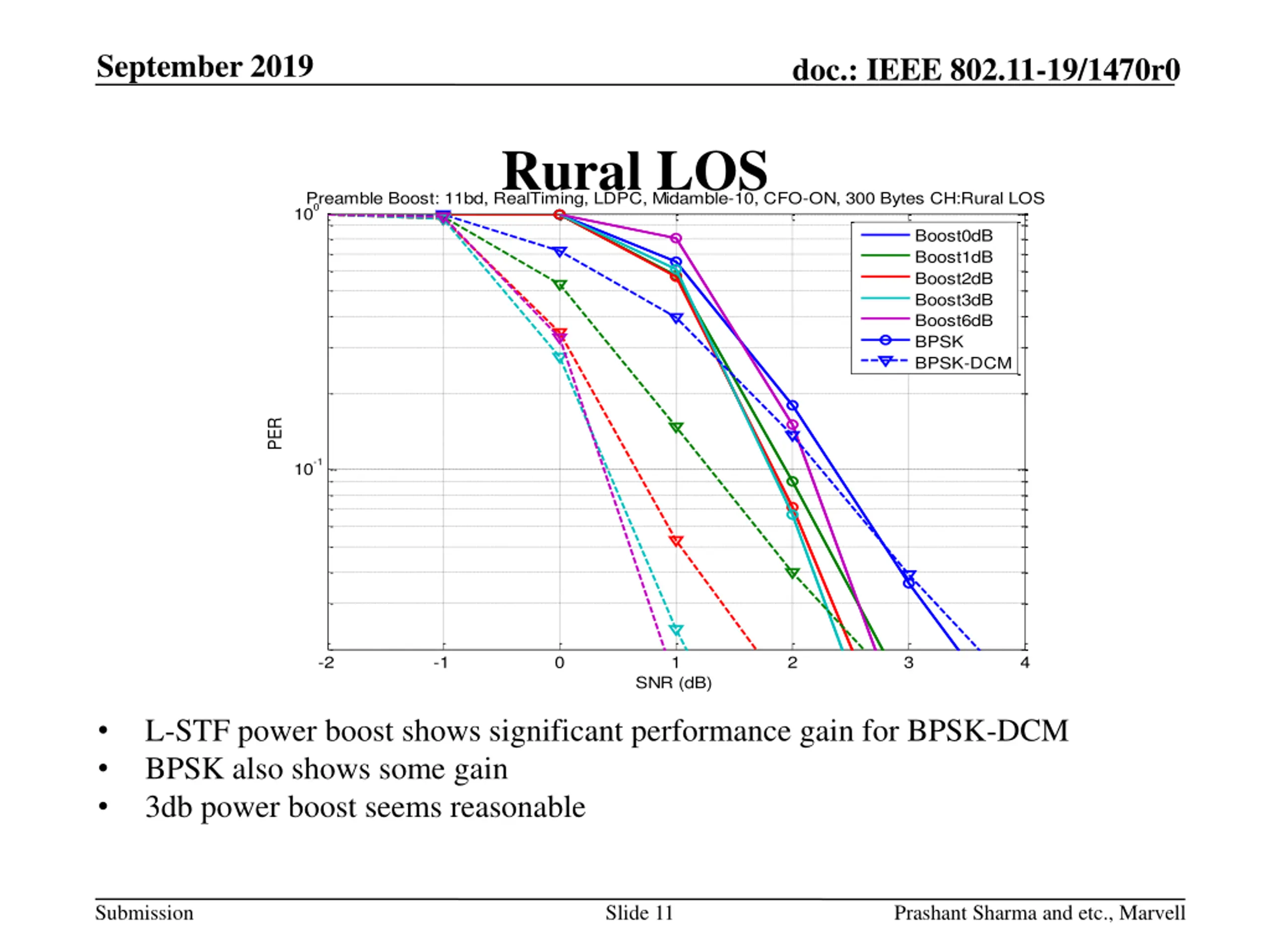

September 2019 doc.: IEEE 802.11-19/1470r0 Rural LOS Preamble Boost: 11bd, RealTiming, LDPC, Midamble-10, CFO-ON, 300 Bytes CH:Rural LOS 0 10 Boost0dB Boost1dB Boost2dB Boost3dB Boost6dB BPSK BPSK-DCM PER -1 10 -2 -1 0 1 2 3 4 SNR (dB) L-STF power boost shows significant performance gain for BPSK-DCM BPSK also shows some gain 3db power boost seems reasonable Submission Slide 11 Prashant Sharma and etc., Marvell

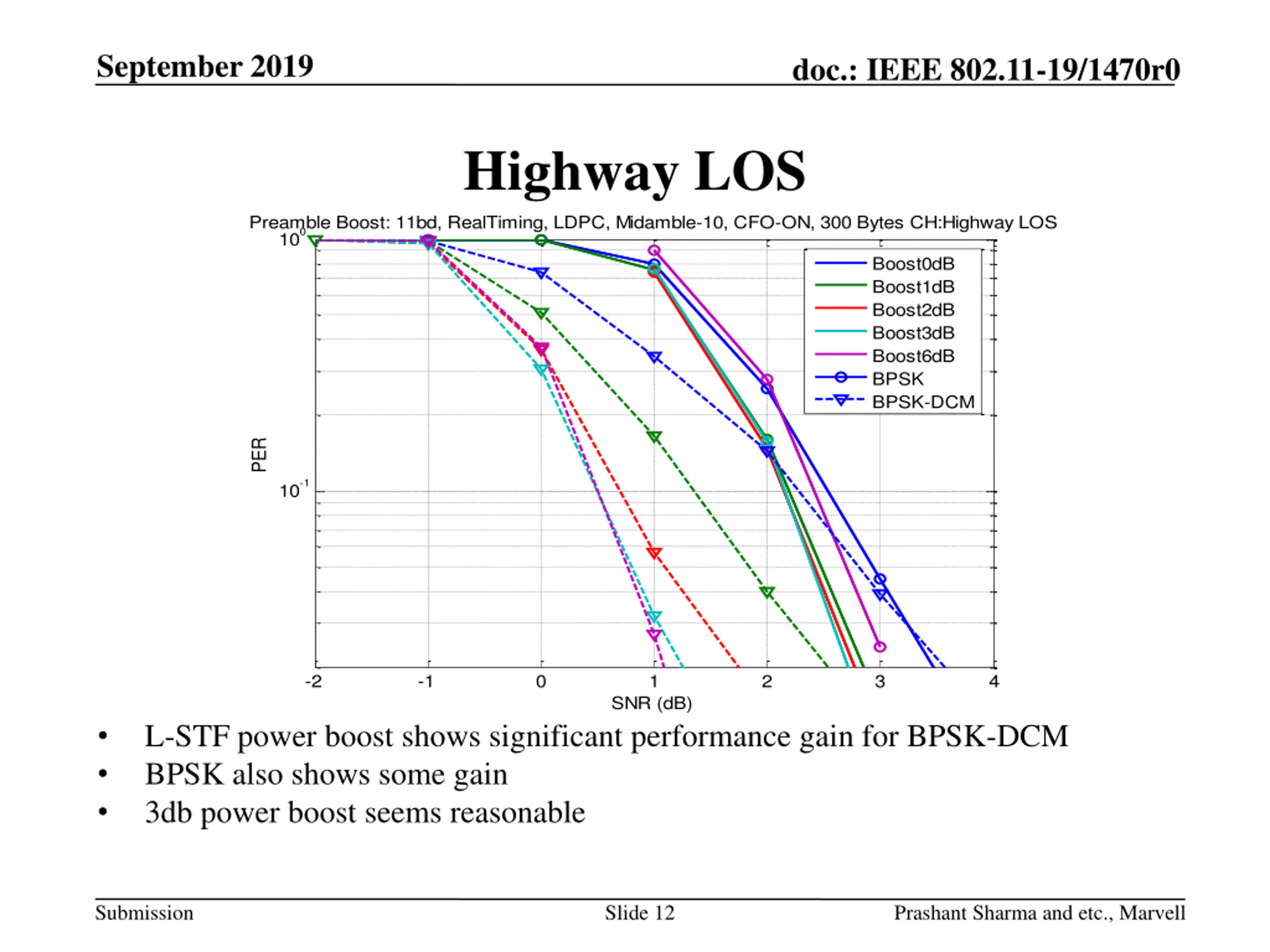

September 2019 doc.: IEEE 802.11-19/1470r0 Highway LOS Preamble Boost: 11bd, RealTiming, LDPC, Midamble-10, CFO-ON, 300 Bytes CH:Highway LOS 0 10 Boost0dB Boost1dB Boost2dB Boost3dB Boost6dB BPSK BPSK-DCM PER -1 10 -2 -1 0 1 2 3 4 SNR (dB) L-STF power boost shows significant performance gain for BPSK-DCM BPSK also shows some gain 3db power boost seems reasonable Submission Slide 12 Prashant Sharma and etc., Marvell

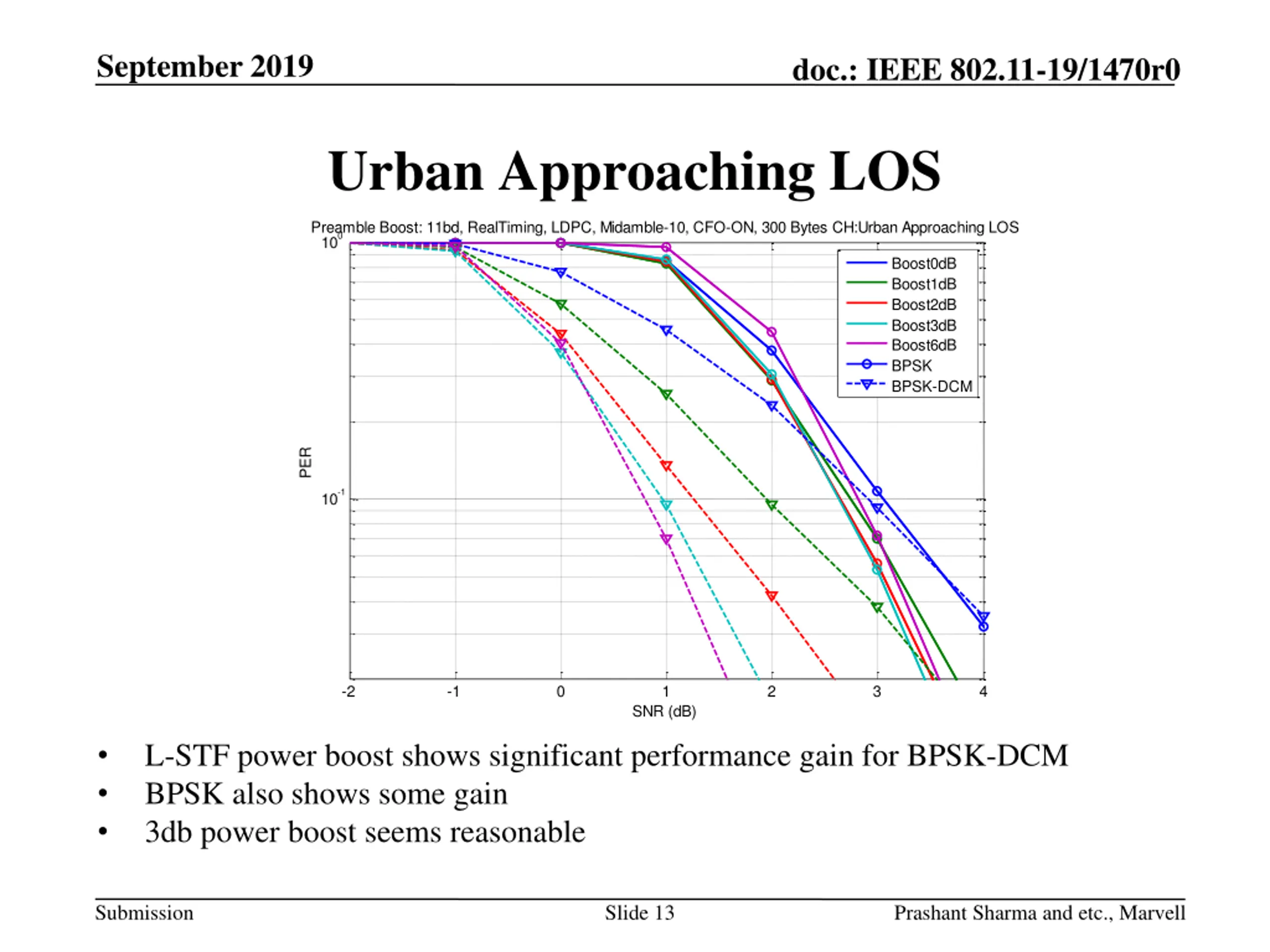

September 2019 doc.: IEEE 802.11-19/1470r0 Urban Approaching LOS Preamble Boost: 11bd, RealTiming, LDPC, Midamble-10, CFO-ON, 300 Bytes CH:Urban Approaching LOS 0 10 Boost0dB Boost1dB Boost2dB Boost3dB Boost6dB BPSK BPSK-DCM PER -1 10 -2 -1 0 1 2 3 4 SNR (dB) L-STF power boost shows significant performance gain for BPSK-DCM BPSK also shows some gain 3db power boost seems reasonable Submission Slide 13 Prashant Sharma and etc., Marvell

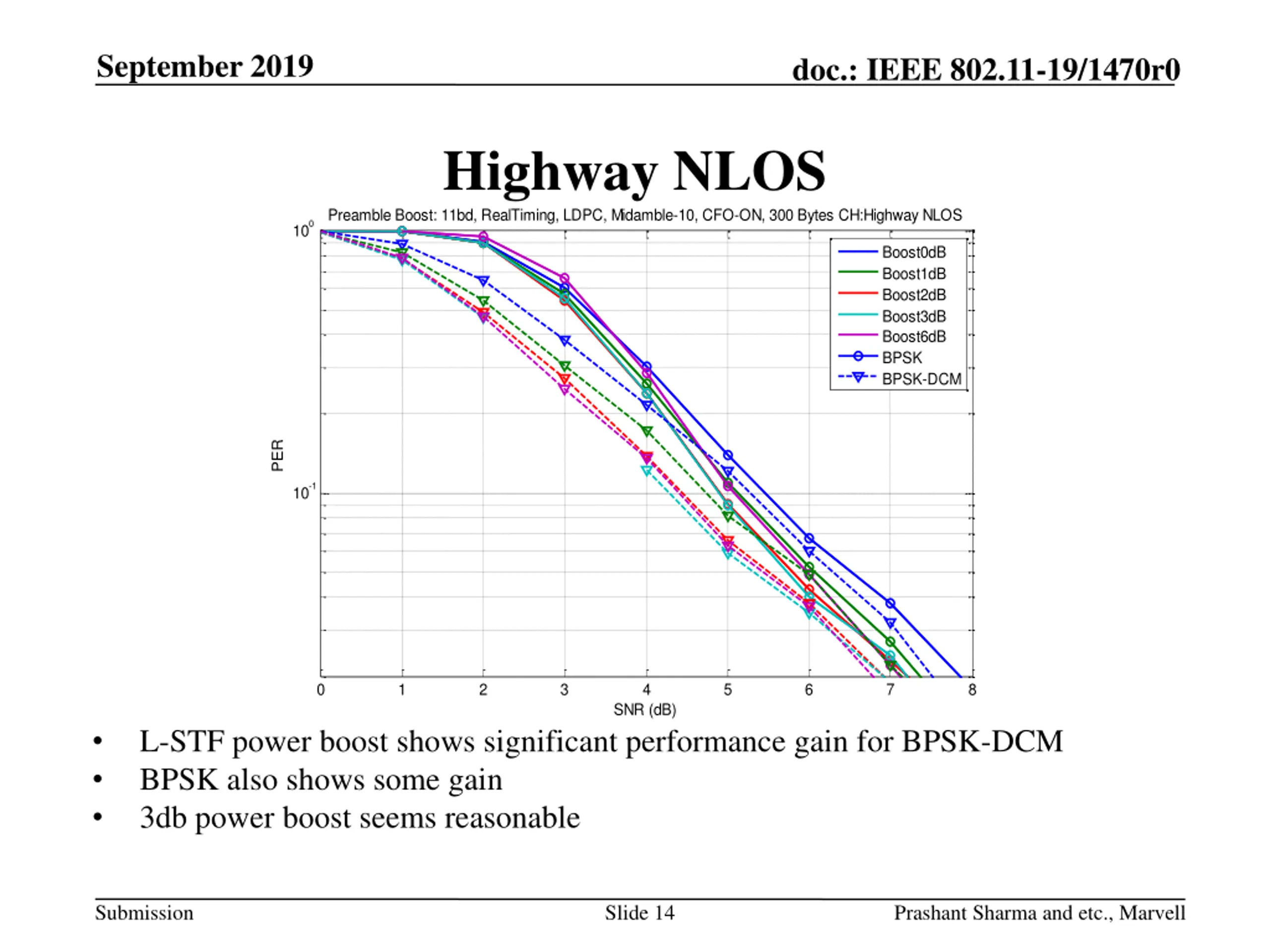

September 2019 doc.: IEEE 802.11-19/1470r0 Highway NLOS Preamble Boost: 11bd, RealTiming, LDPC, Midamble-10, CFO-ON, 300 Bytes CH:Highway NLOS 0 10 Boost0dB Boost1dB Boost2dB Boost3dB Boost6dB BPSK BPSK-DCM PER -1 10 0 1 2 3 4 5 6 7 8 SNR (dB) L-STF power boost shows significant performance gain for BPSK-DCM BPSK also shows some gain 3db power boost seems reasonable Submission Slide 14 Prashant Sharma and etc., Marvell

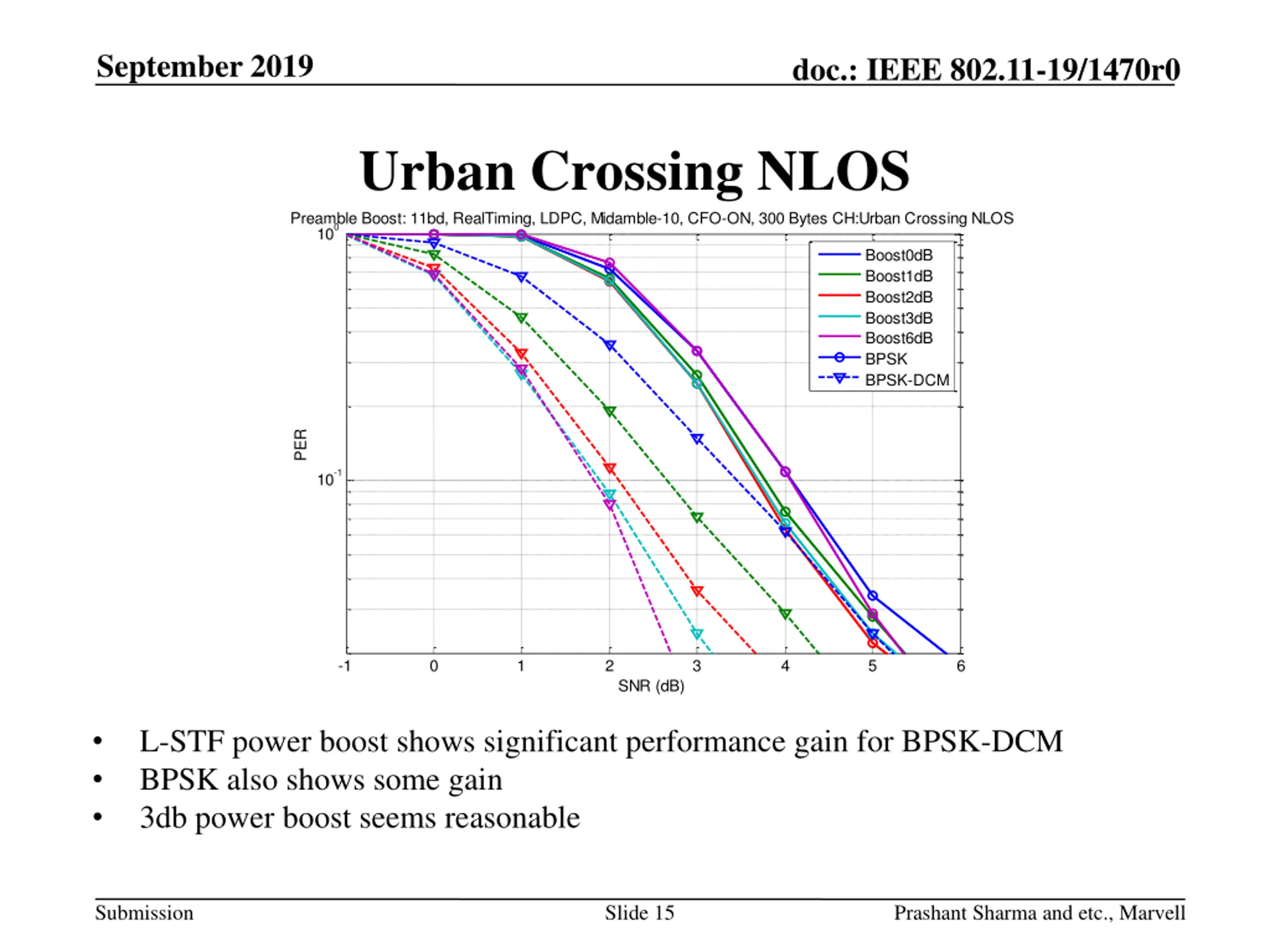

September 2019 doc.: IEEE 802.11-19/1470r0 Urban Crossing NLOS Preamble Boost: 11bd, RealTiming, LDPC, Midamble-10, CFO-ON, 300 Bytes CH:Urban Crossing NLOS 0 10 Boost0dB Boost1dB Boost2dB Boost3dB Boost6dB BPSK BPSK-DCM PER -1 10 -1 0 1 2 3 4 5 6 SNR (dB) L-STF power boost shows significant performance gain for BPSK-DCM BPSK also shows some gain 3db power boost seems reasonable Submission Slide 15 Prashant Sharma and etc., Marvell

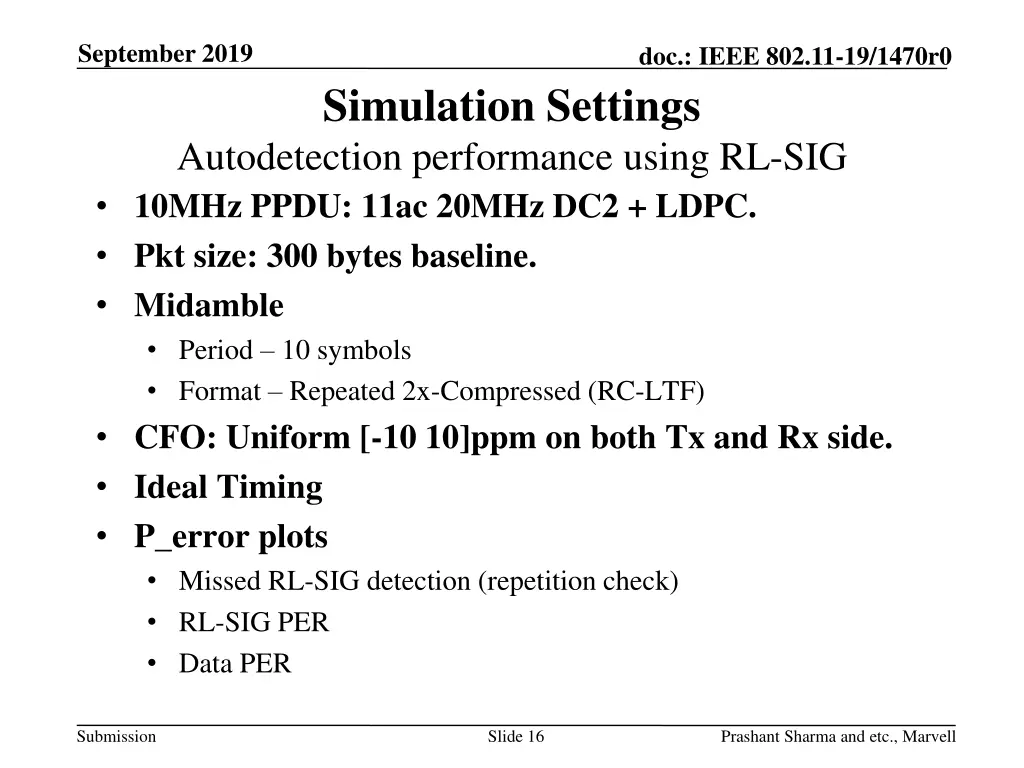

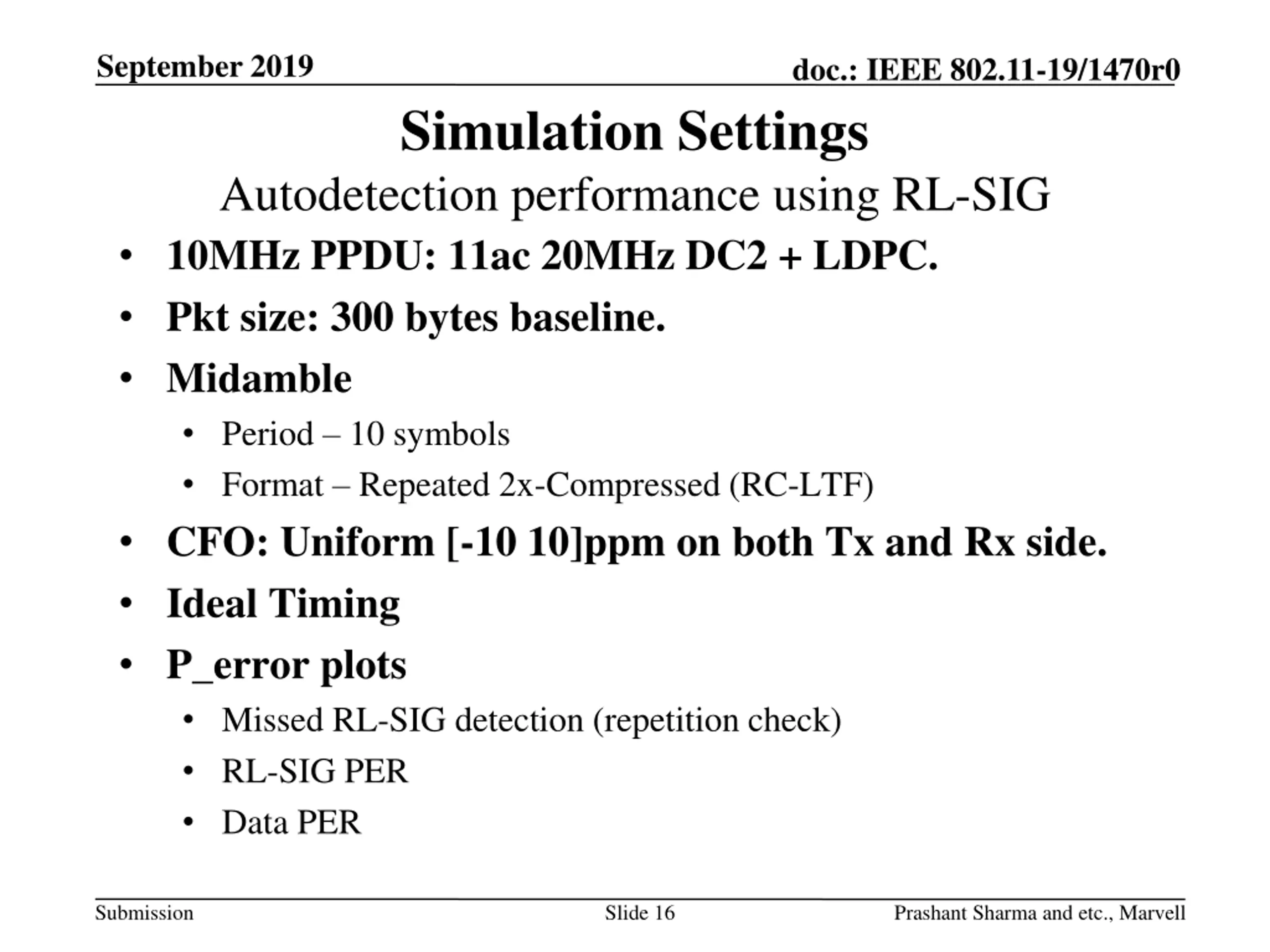

September 2019 doc.: IEEE 802.11-19/1470r0 Simulation Settings Autodetection performance using RL-SIG 10MHz PPDU: 11ac 20MHz DC2 + LDPC. Pkt size: 300 bytes baseline. Midamble Period 10 symbols Format Repeated 2x-Compressed (RC-LTF) CFO: Uniform [-10 10]ppm on both Tx and Rx side. Ideal Timing P_error plots Missed RL-SIG detection (repetition check) RL-SIG PER Data PER Submission Slide 16 Prashant Sharma and etc., Marvell

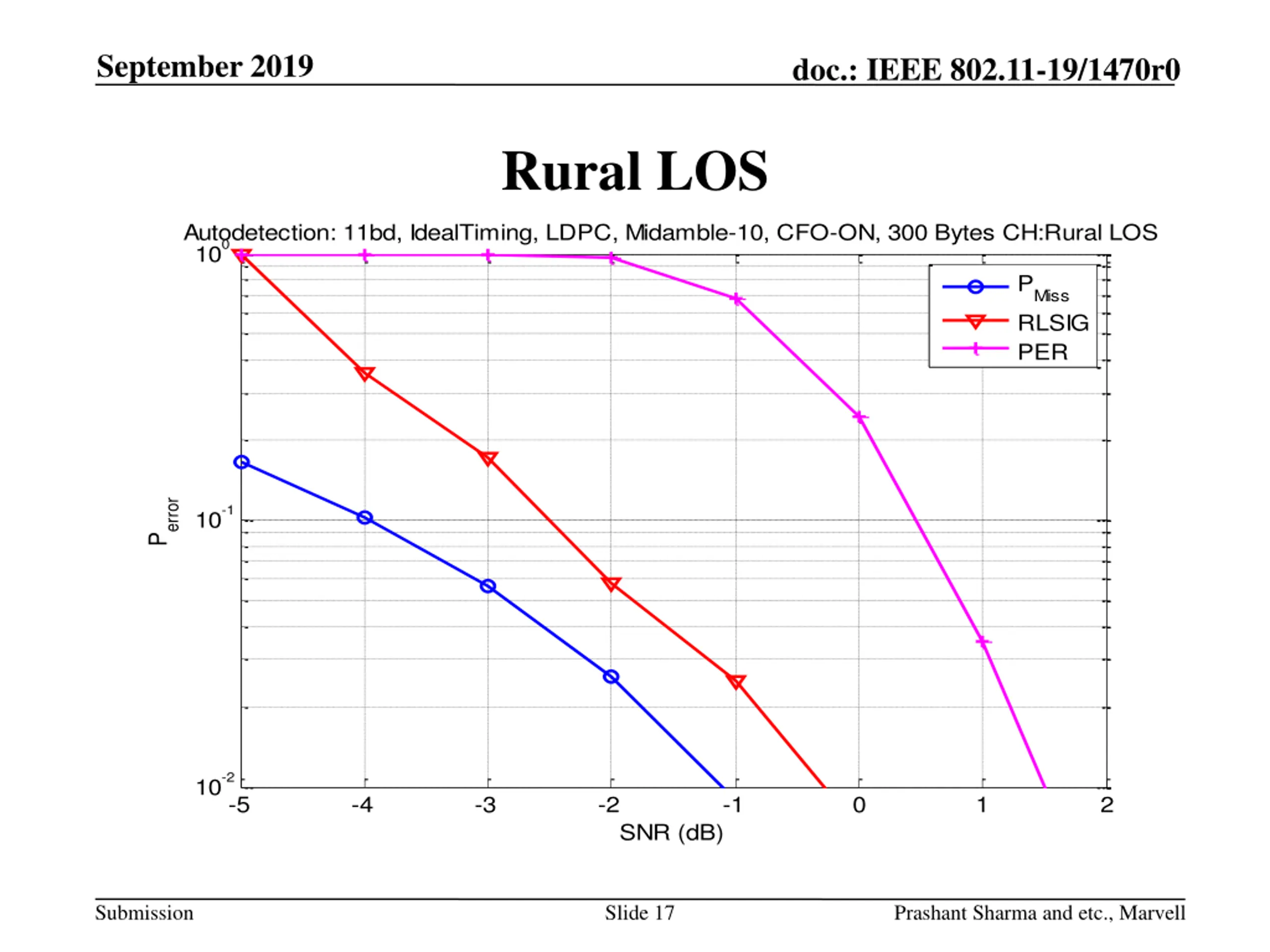

September 2019 doc.: IEEE 802.11-19/1470r0 Rural LOS Autodetection: 11bd, IdealTiming, LDPC, Midamble-10, CFO-ON, 300 Bytes CH:Rural LOS 0 10 PMiss RLSIG PER Perror -1 10 -2 10 -5 -4 -3 -2 -1 0 1 2 SNR (dB) Submission Slide 17 Prashant Sharma and etc., Marvell

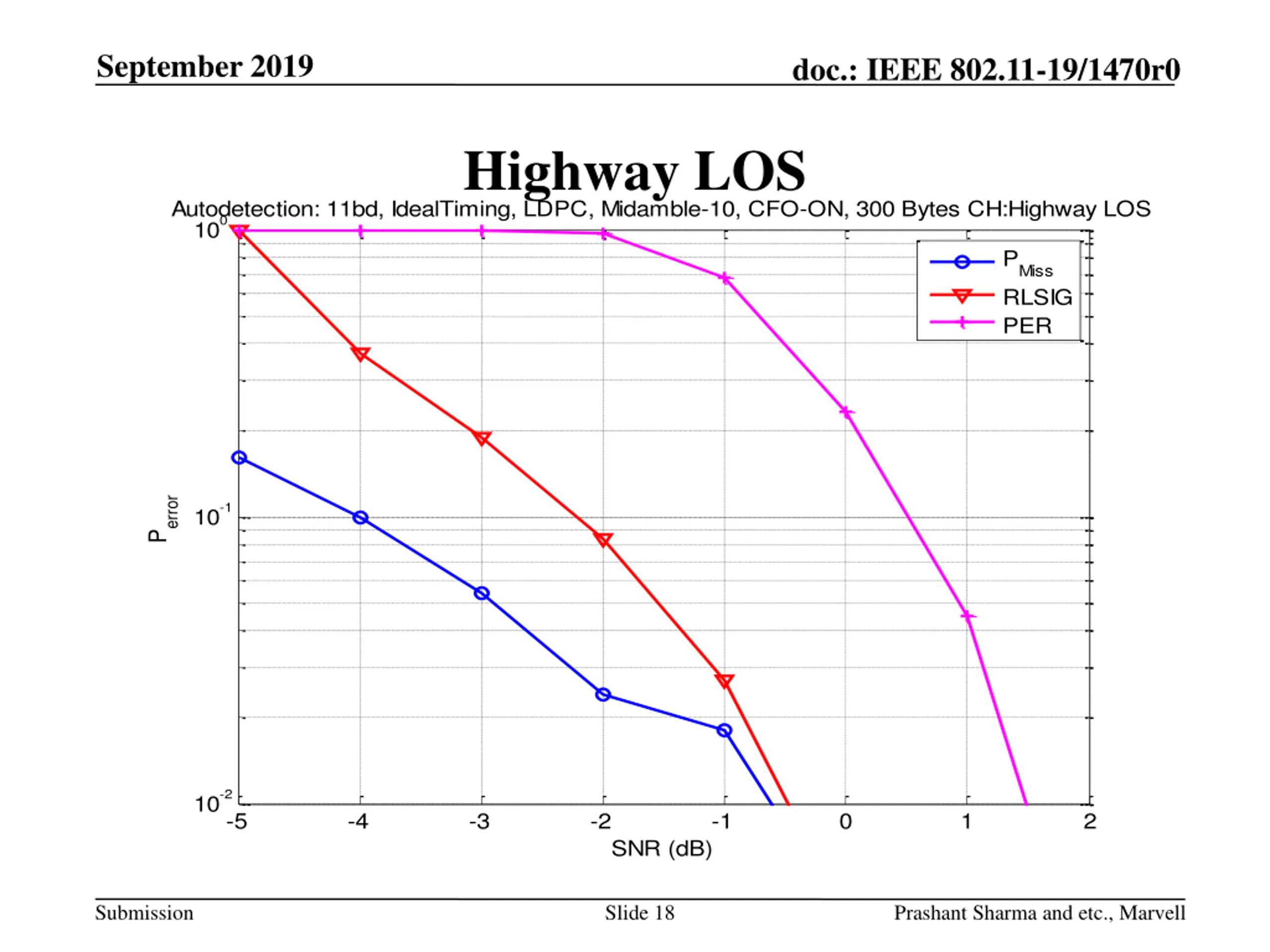

September 2019 doc.: IEEE 802.11-19/1470r0 Highway LOS Autodetection: 11bd, IdealTiming, LDPC, Midamble-10, CFO-ON, 300 Bytes CH:Highway LOS 0 10 PMiss RLSIG PER Perror -1 10 -2 10 -5 -4 -3 -2 -1 0 1 2 SNR (dB) Submission Slide 18 Prashant Sharma and etc., Marvell

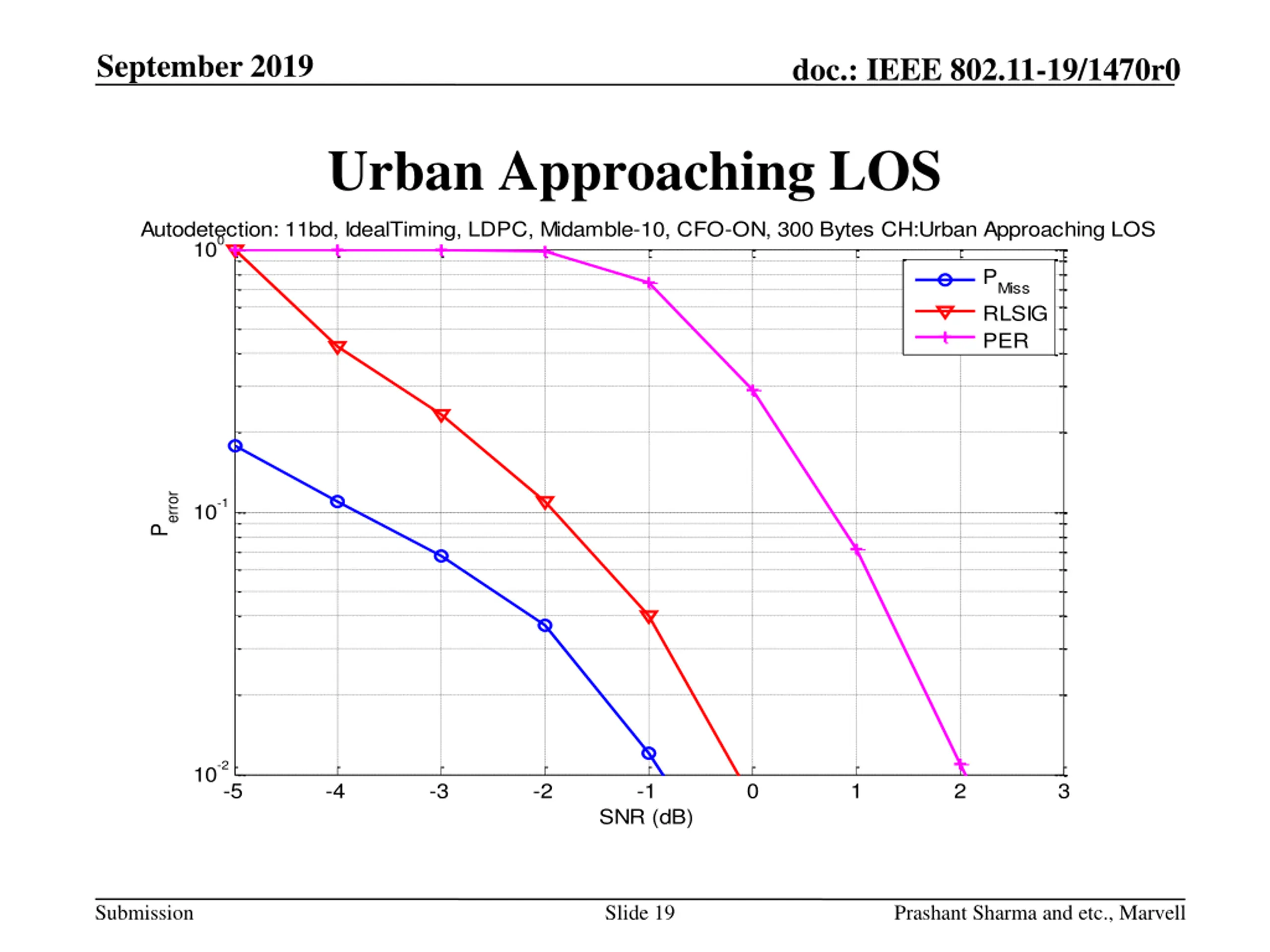

September 2019 doc.: IEEE 802.11-19/1470r0 Urban Approaching LOS Autodetection: 11bd, IdealTiming, LDPC, Midamble-10, CFO-ON, 300 Bytes CH:Urban Approaching LOS 0 10 PMiss RLSIG PER Perror -1 10 -2 10 -5 -4 -3 -2 -1 0 1 2 3 SNR (dB) Submission Slide 19 Prashant Sharma and etc., Marvell

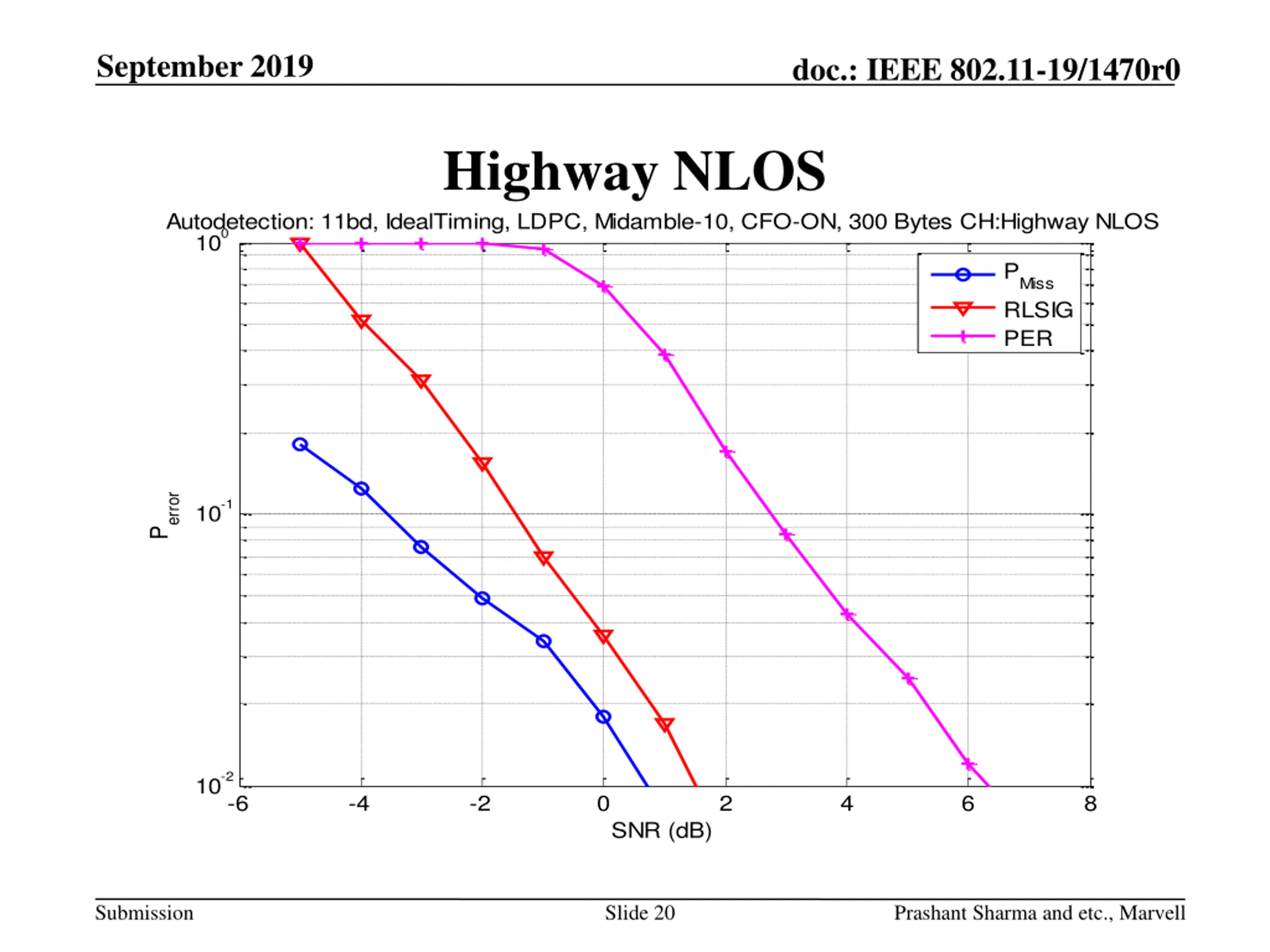

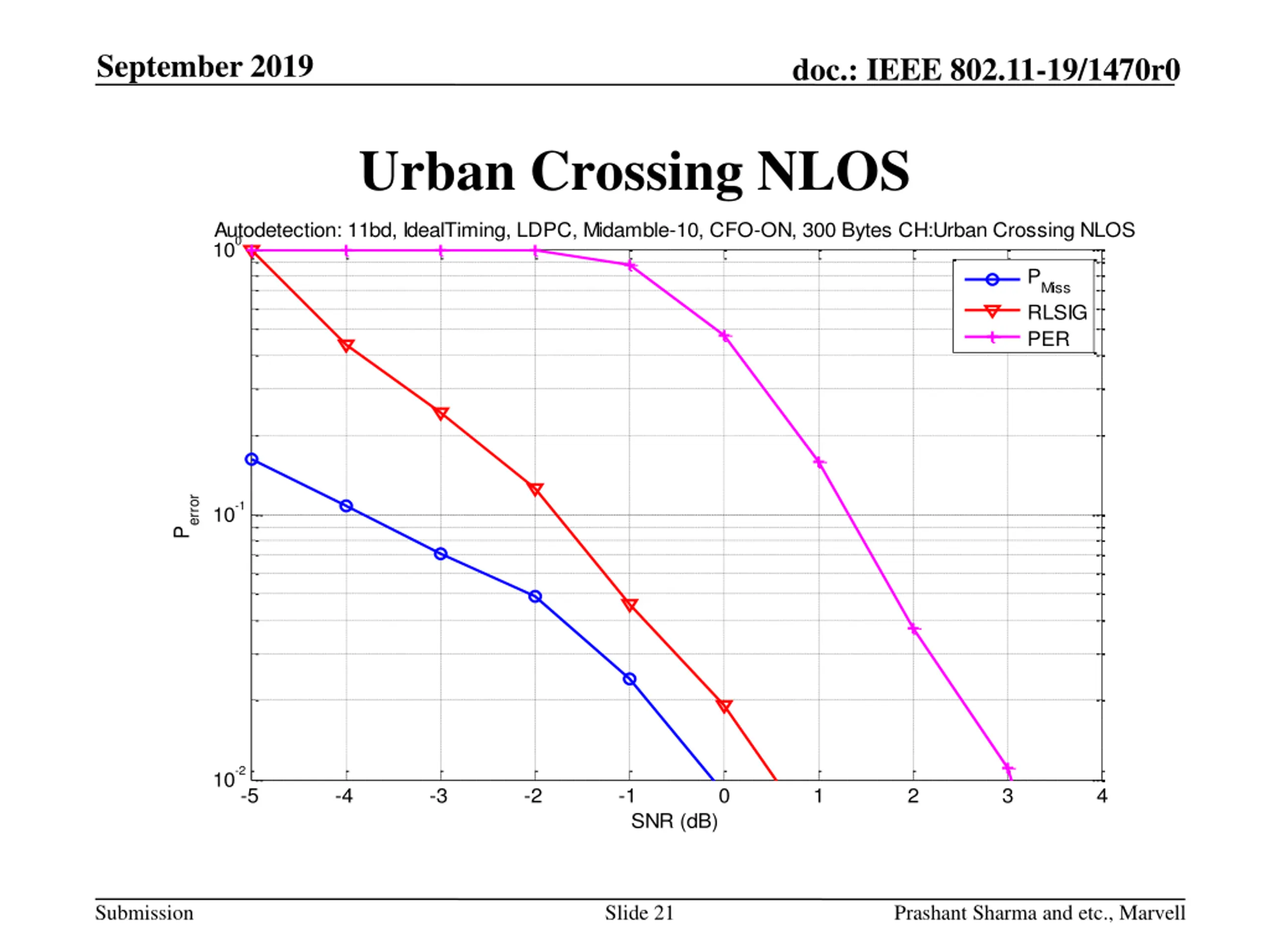

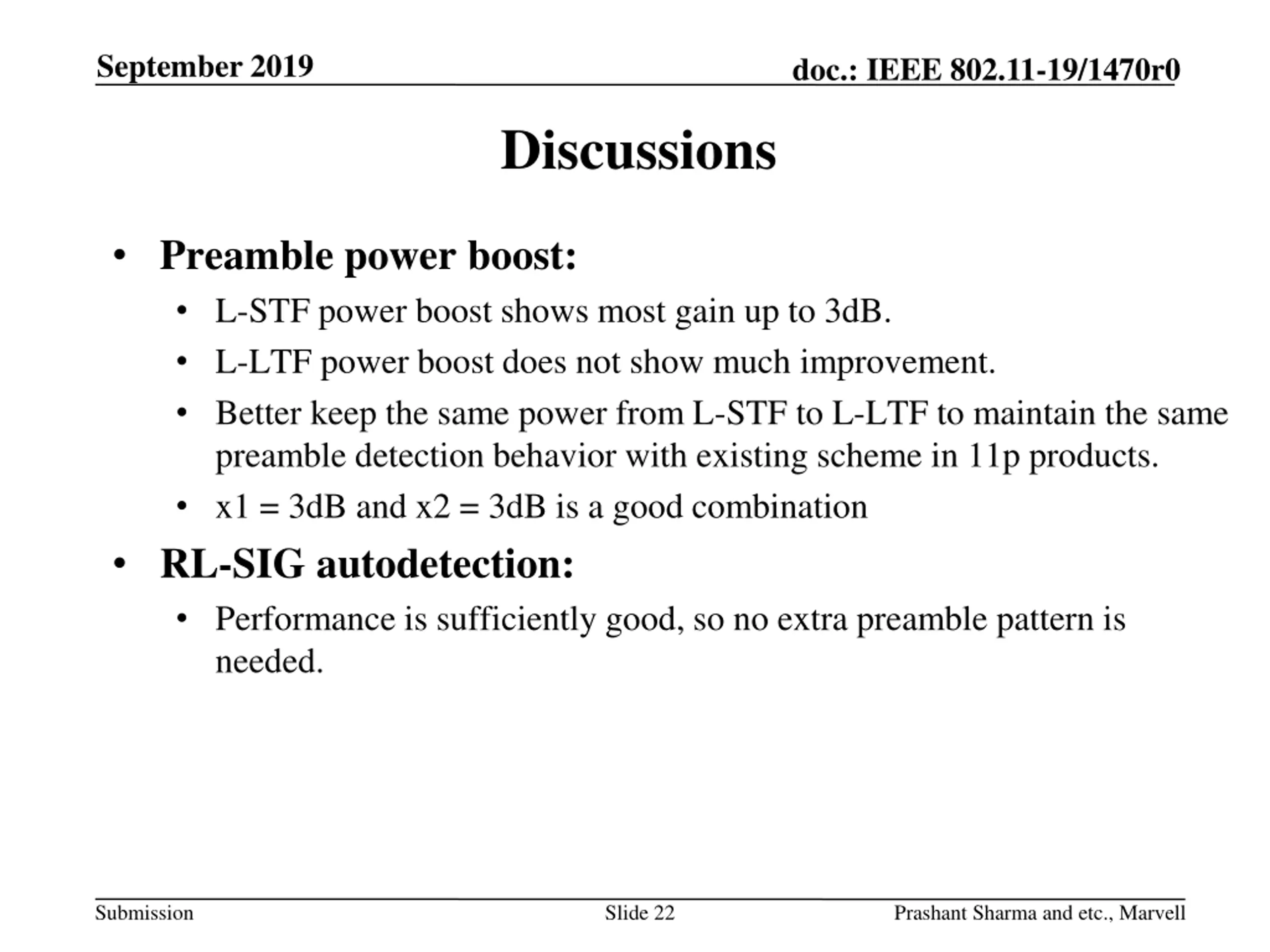

September 2019 doc.: IEEE 802.11-19/1470r0 Discussions Preamble power boost: L-STF power boost shows most gain up to 3dB. L-LTF power boost does not show much improvement. Better keep the same power from L-STF to L-LTF to maintain the same preamble detection behavior with existing scheme in 11p products. x1 = 3dB and x2 = 3dB is a good combination RL-SIG autodetection: Performance is sufficiently good, so no extra preamble pattern is needed. Submission Slide 22 Prashant Sharma and etc., Marvell

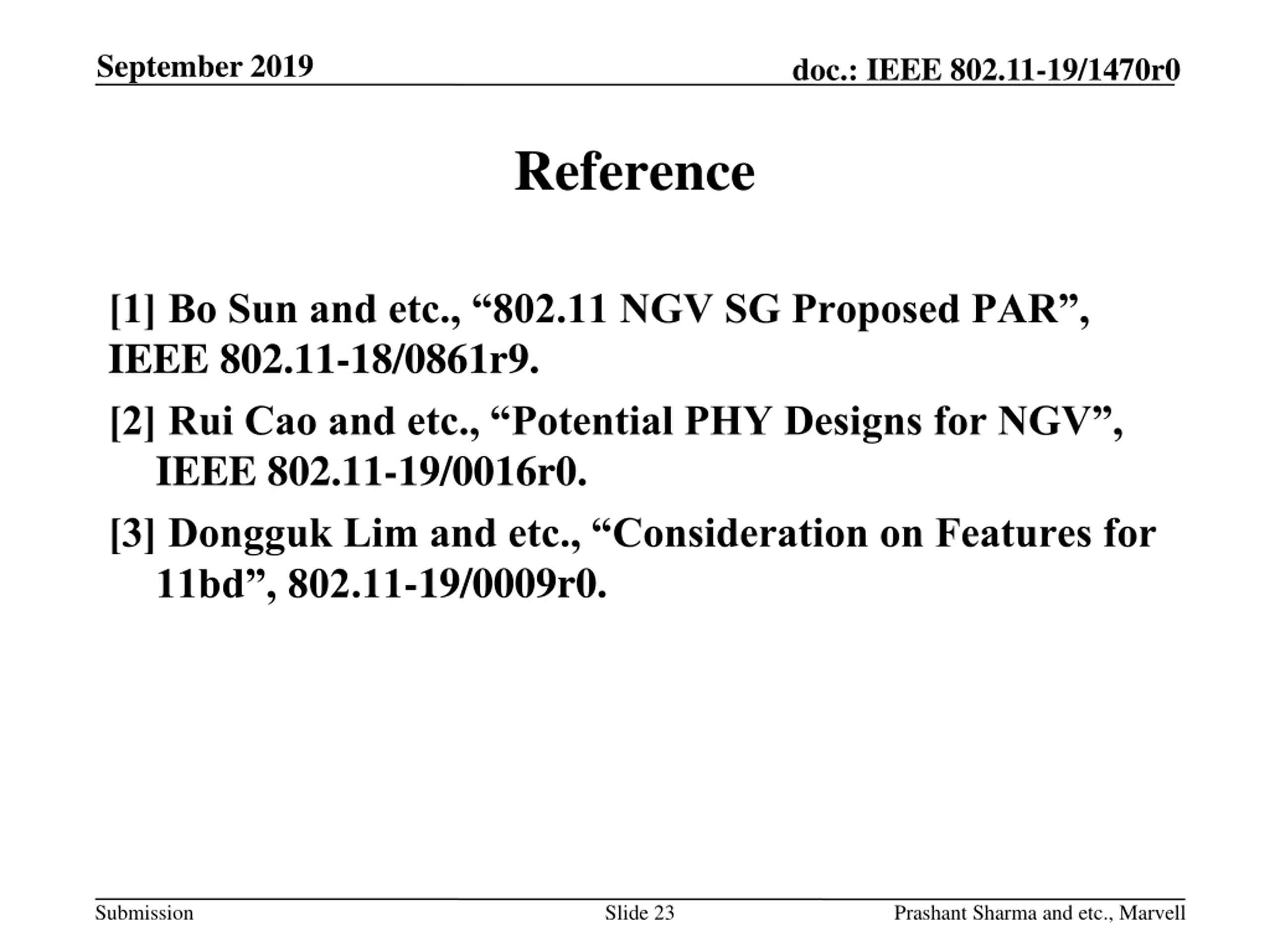

September 2019 doc.: IEEE 802.11-19/1470r0 Reference [1] Bo Sun and etc., 802.11 NGV SG Proposed PAR , IEEE 802.11-18/0861r9. [2] Rui Cao and etc., Potential PHY Designs for NGV , IEEE 802.11-19/0016r0. [3] Dongguk Lim and etc., Consideration on Features for 11bd , 802.11-19/0009r0. Submission Slide 23 Prashant Sharma and etc., Marvell

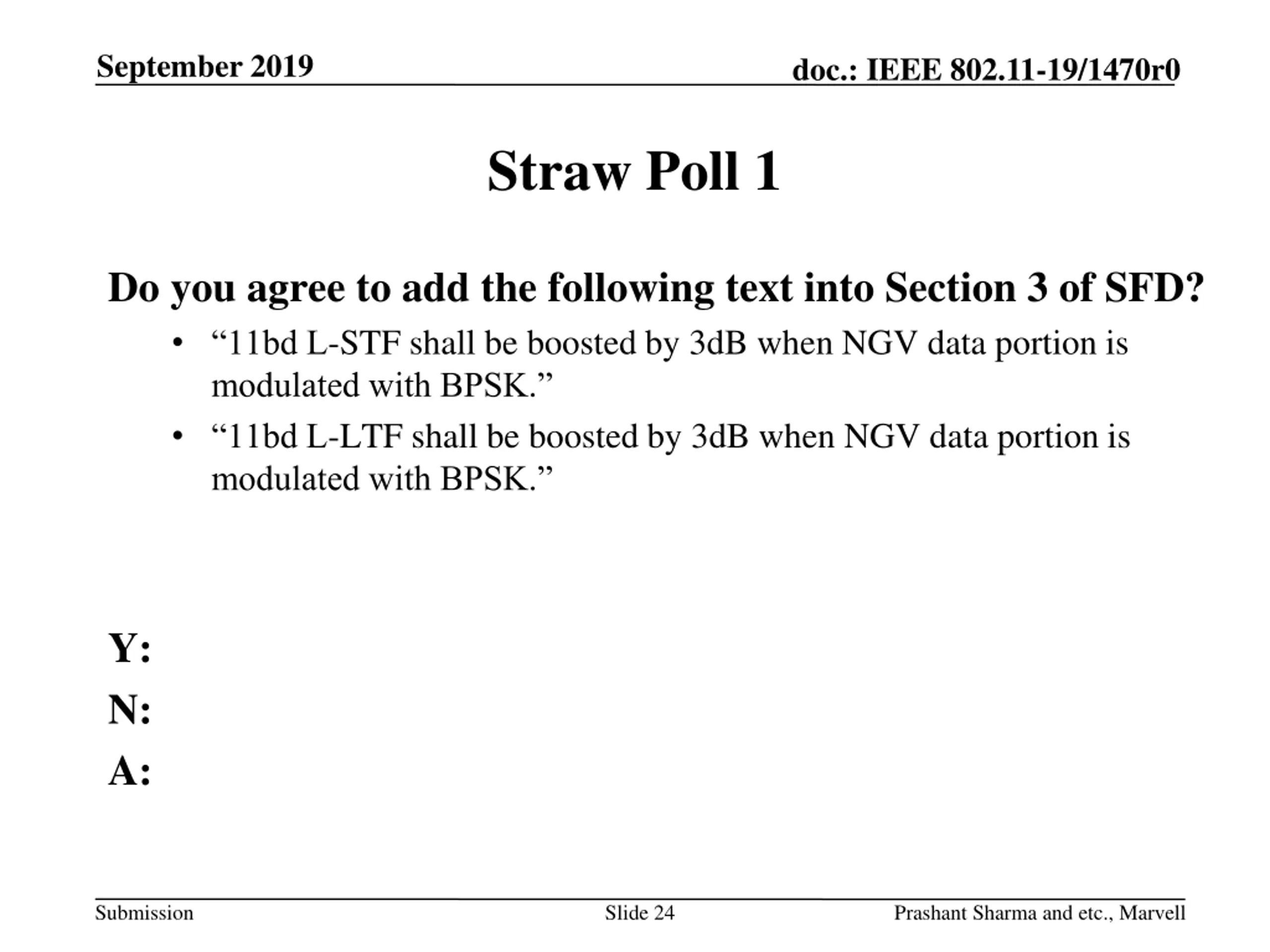

September 2019 doc.: IEEE 802.11-19/1470r0 Straw Poll 1 Do you agree to add the following text into Section 3 of SFD? 11bd L-STF shall be boosted by 3dB when NGV data portion is modulated with BPSK. 11bd L-LTF shall be boosted by 3dB when NGV data portion is modulated with BPSK. Y: N: A: Submission Slide 24 Prashant Sharma and etc., Marvell
