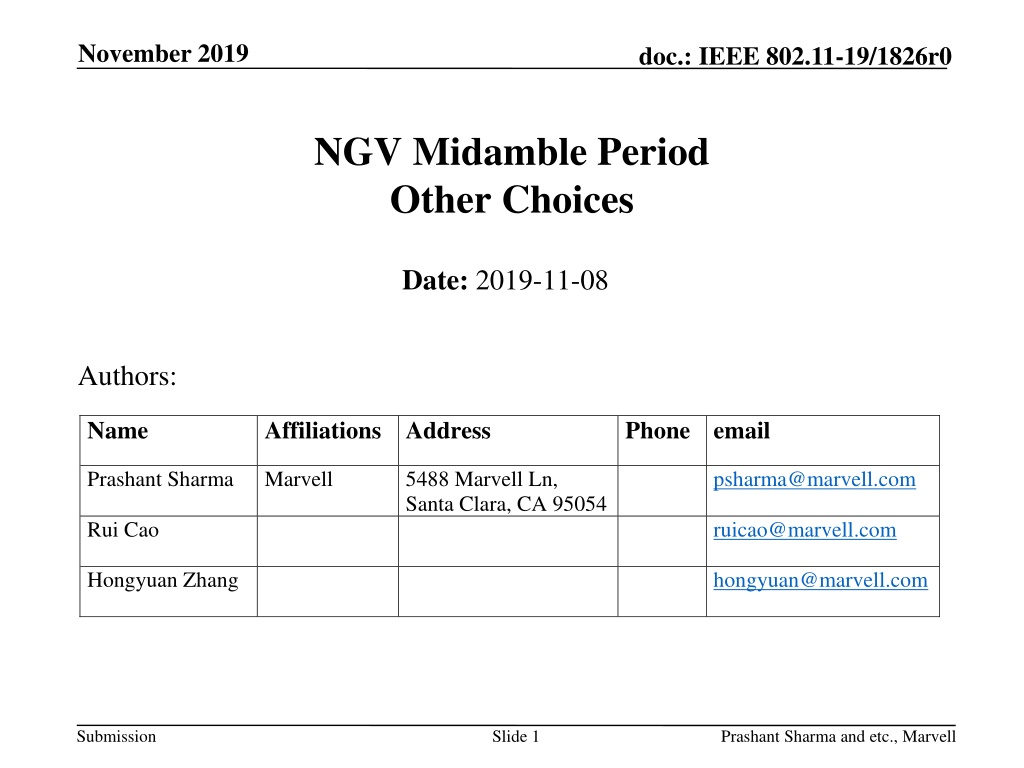

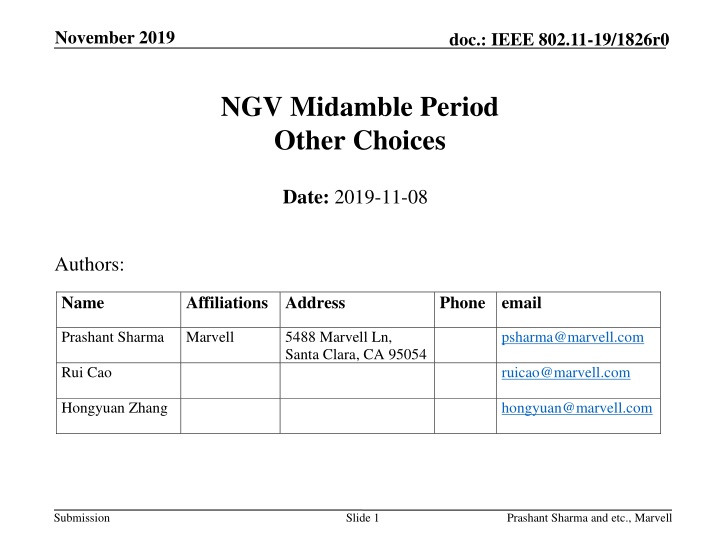

November 2019 doc.: IEEE 802.11-19/1826r0 NGV Midamble Period Other Choices Date: 2019-11-08 Authors: Name Affiliations Address Phone email Prashant Sharma Marvell 5488 Marvell Ln, Santa Clara, CA 95054 psharma@marvell.com Rui Cao ruicao@marvell.com Hongyuan Zhang hongyuan@marvell.com Submission Slide 1 Prashant Sharma and etc., Marvell

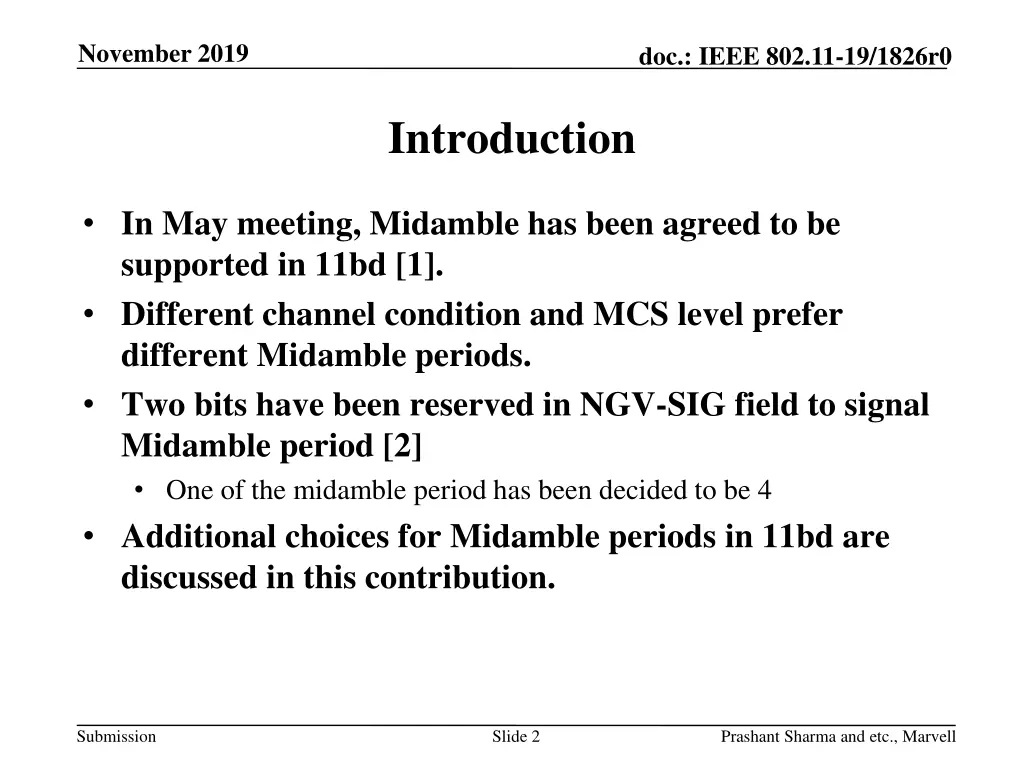

November 2019 doc.: IEEE 802.11-19/1826r0 Introduction In May meeting, Midamble has been agreed to be supported in 11bd [1]. Different channel condition and MCS level prefer different Midamble periods. Two bits have been reserved in NGV-SIG field to signal Midamble period [2] One of the midamble period has been decided to be 4 Additional choices for Midamble periods in 11bd are discussed in this contribution. Submission Slide 2 Prashant Sharma and etc., Marvell

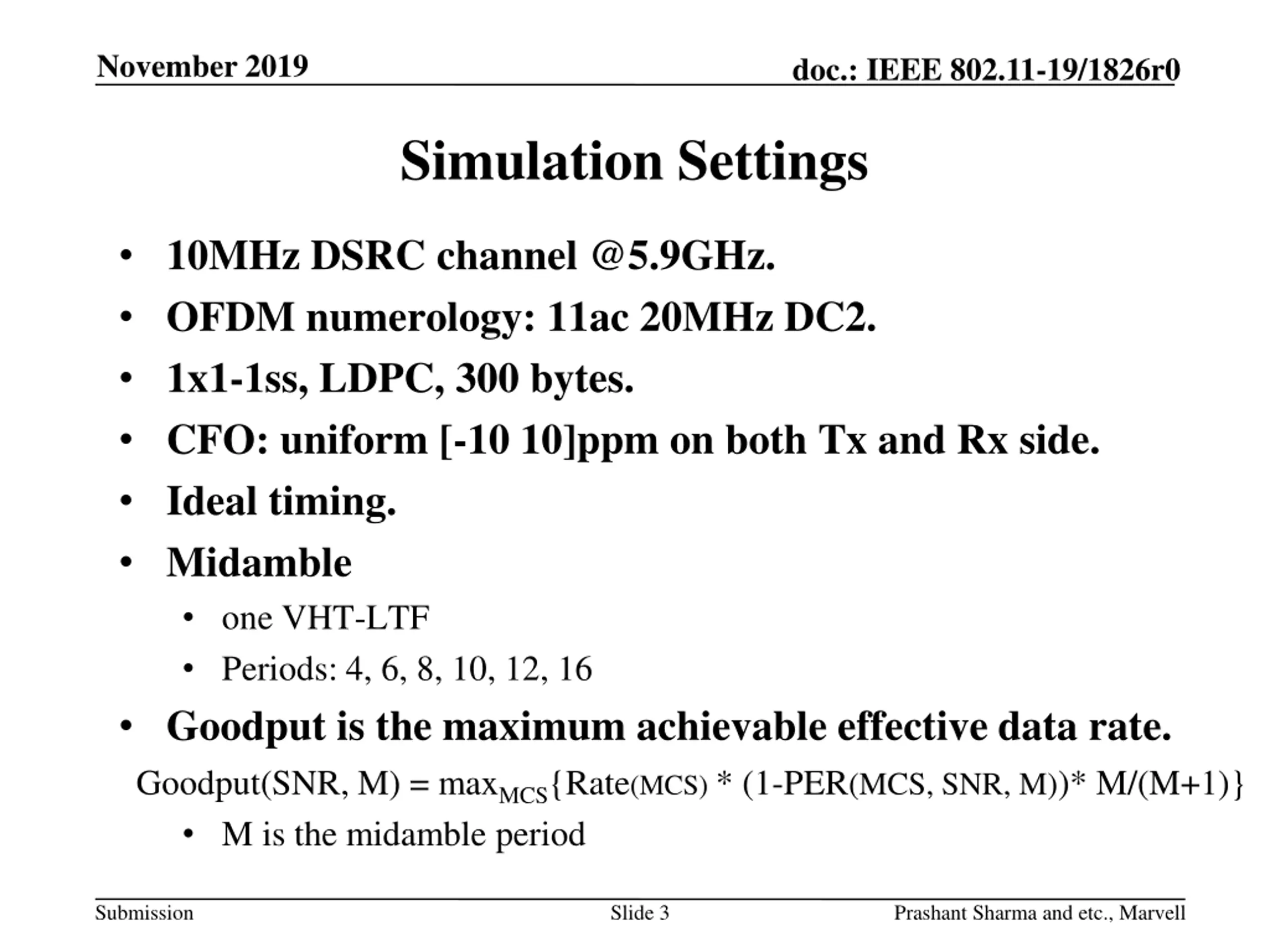

November 2019 doc.: IEEE 802.11-19/1826r0 Simulation Settings 10MHz DSRC channel @5.9GHz. OFDM numerology: 11ac 20MHz DC2. 1x1-1ss, LDPC, 300 bytes. CFO: uniform [-10 10]ppm on both Tx and Rx side. Ideal timing. Midamble one VHT-LTF Periods: 4, 6, 8, 10, 12, 16 Goodput is the maximum achievable effective data rate. Goodput(SNR, M) = maxMCS{Rate(MCS) * (1-PER(MCS, SNR, M))* M/(M+1)} M is the midamble period Submission Slide 3 Prashant Sharma and etc., Marvell

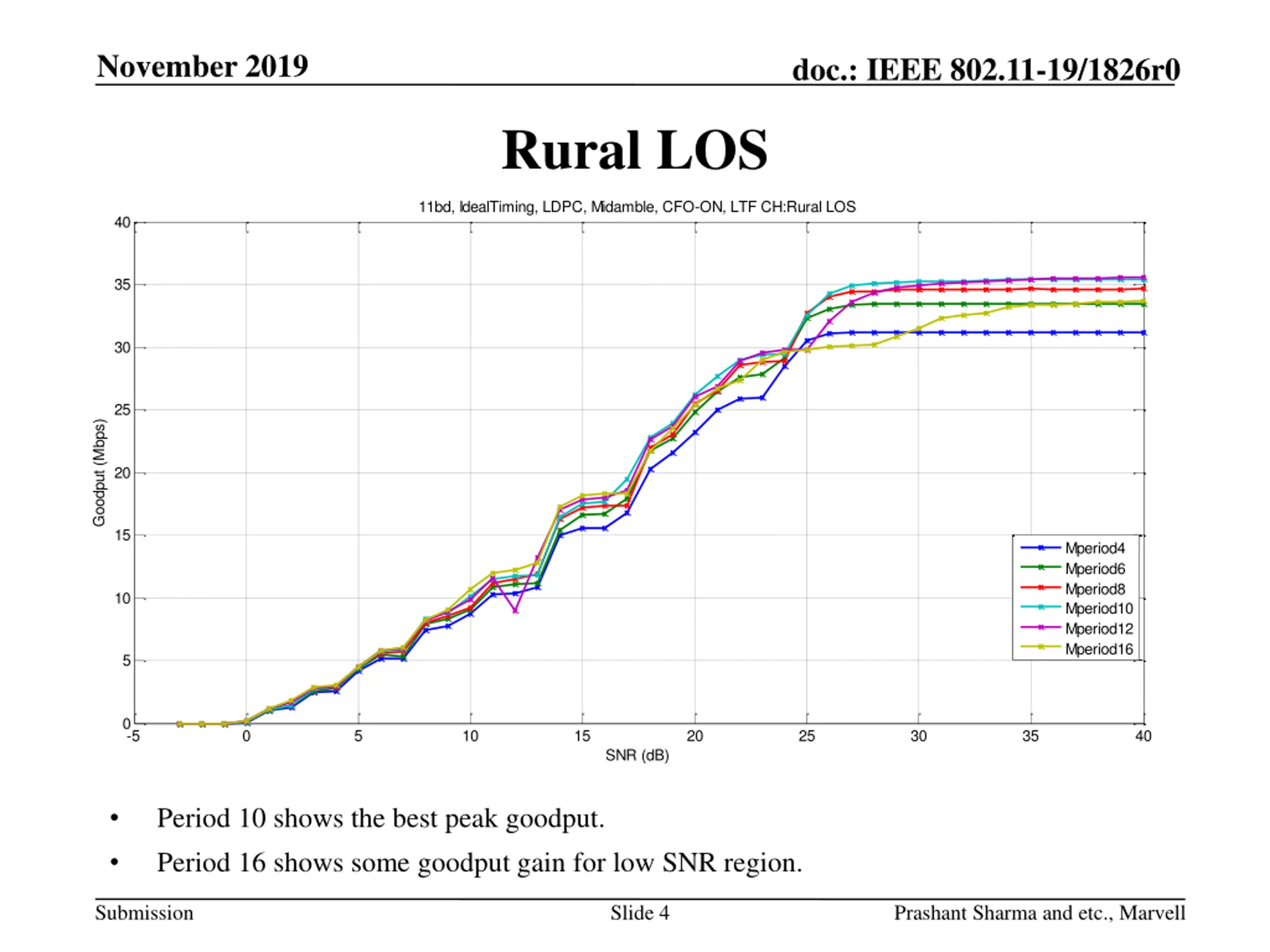

November 2019 doc.: IEEE 802.11-19/1826r0 Rural LOS 11bd, IdealTiming, LDPC, Midamble, CFO-ON, LTF CH:Rural LOS 40 35 30 25 Goodput (Mbps) 20 15 Mperiod4 Mperiod6 Mperiod8 Mperiod10 Mperiod12 Mperiod16 10 5 0 -5 0 5 10 15 20 25 30 35 40 SNR (dB) Period 10 shows the best peak goodput. Period 16 shows some goodput gain for low SNR region. Submission Slide 4 Prashant Sharma and etc., Marvell

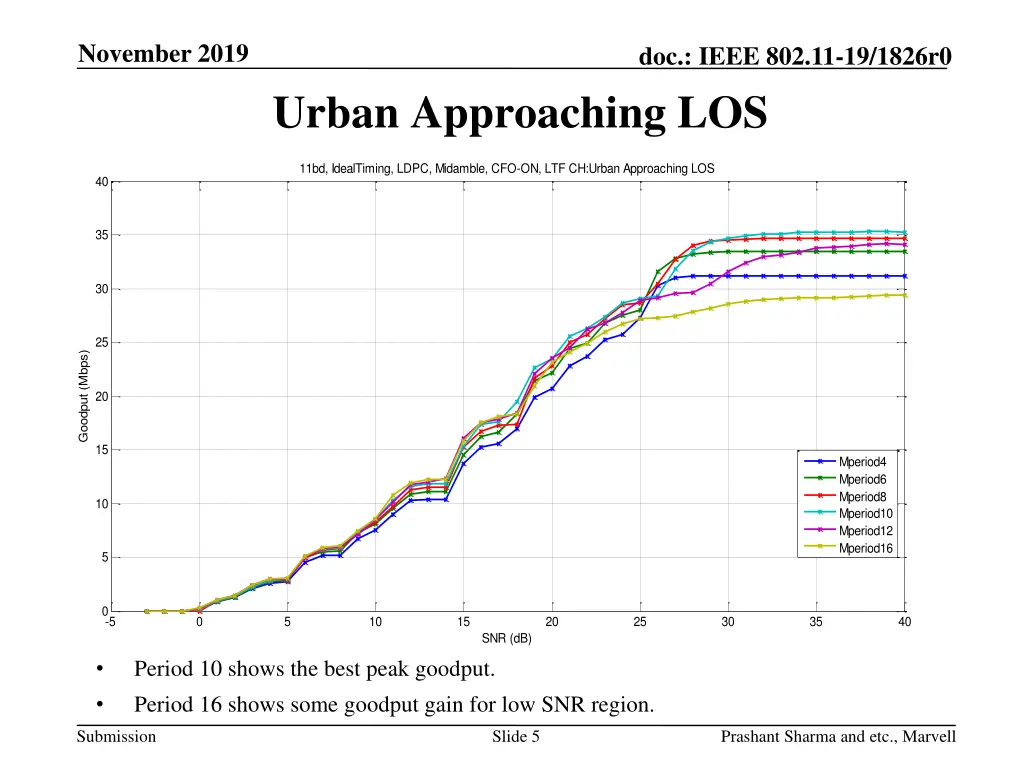

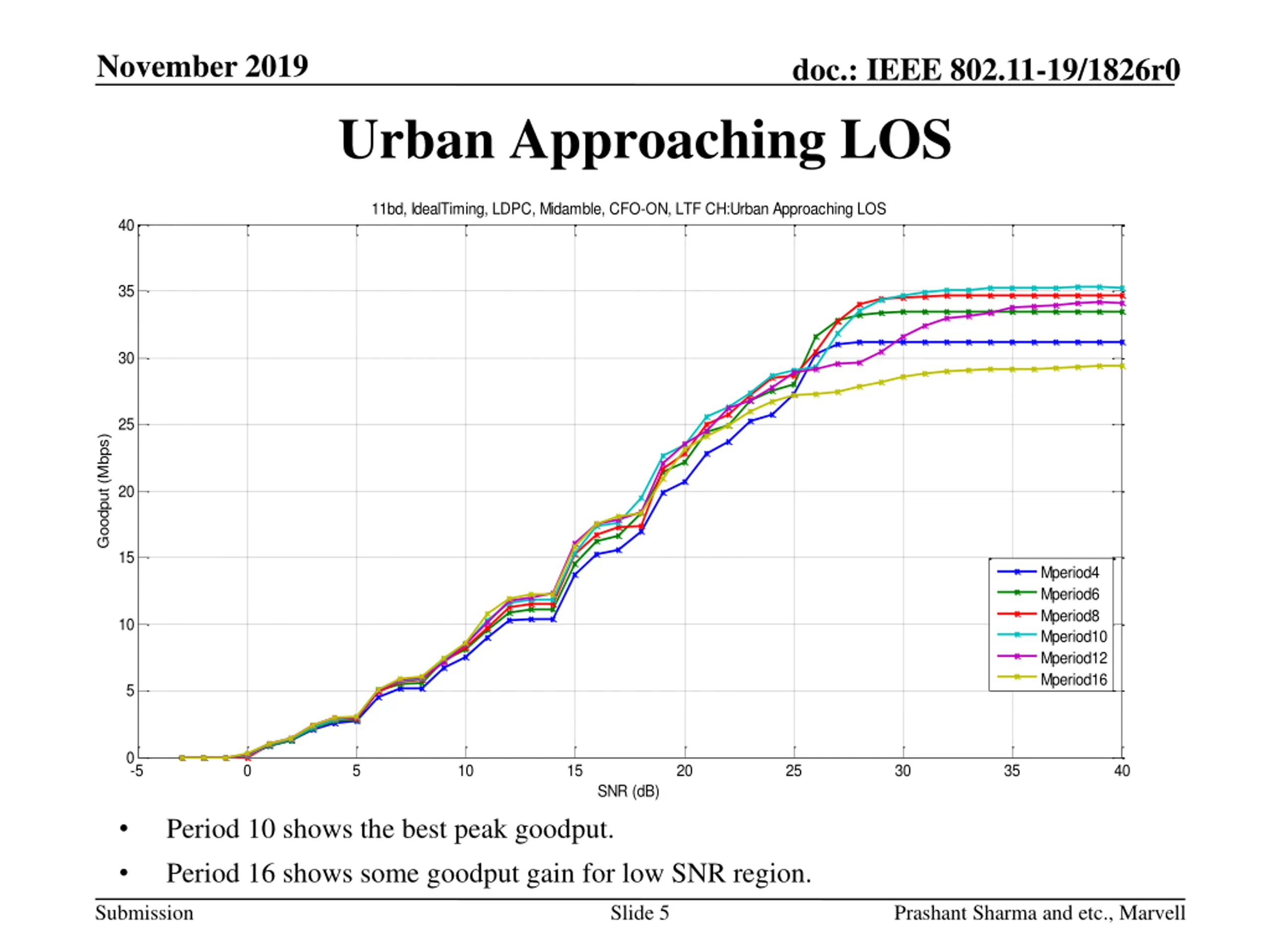

November 2019 doc.: IEEE 802.11-19/1826r0 Urban Approaching LOS 11bd, IdealTiming, LDPC, Midamble, CFO-ON, LTF CH:Urban Approaching LOS 40 35 30 25 Goodput (Mbps) 20 15 Mperiod4 Mperiod6 Mperiod8 Mperiod10 Mperiod12 Mperiod16 10 5 0 -5 0 5 10 15 20 25 30 35 40 SNR (dB) Period 10 shows the best peak goodput. Period 16 shows some goodput gain for low SNR region. Submission Slide 5 Prashant Sharma and etc., Marvell

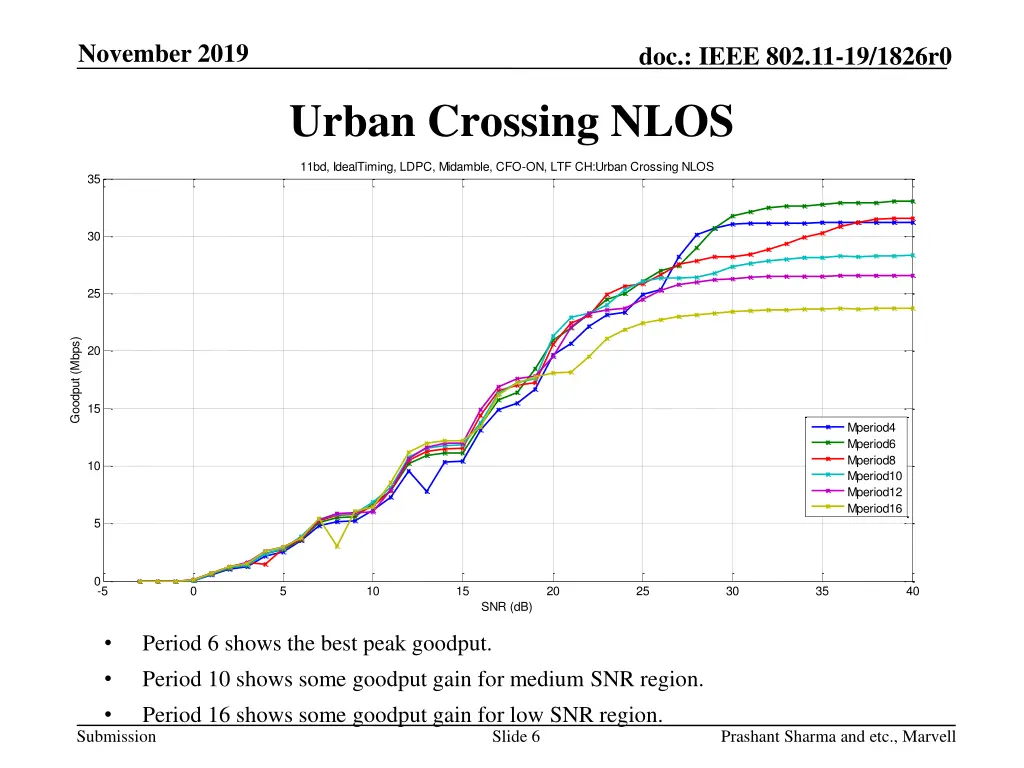

November 2019 doc.: IEEE 802.11-19/1826r0 Urban Crossing NLOS 11bd, IdealTiming, LDPC, Midamble, CFO-ON, LTF CH:Urban Crossing NLOS 35 30 25 Goodput (Mbps) 20 15 Mperiod4 Mperiod6 Mperiod8 Mperiod10 Mperiod12 Mperiod16 10 5 0 -5 0 5 10 15 20 25 30 35 40 SNR (dB) Period 6 shows the best peak goodput. Period 10 shows some goodput gain for medium SNR region. Period 16 shows some goodput gain for low SNR region. Submission Slide 6 Prashant Sharma and etc., Marvell

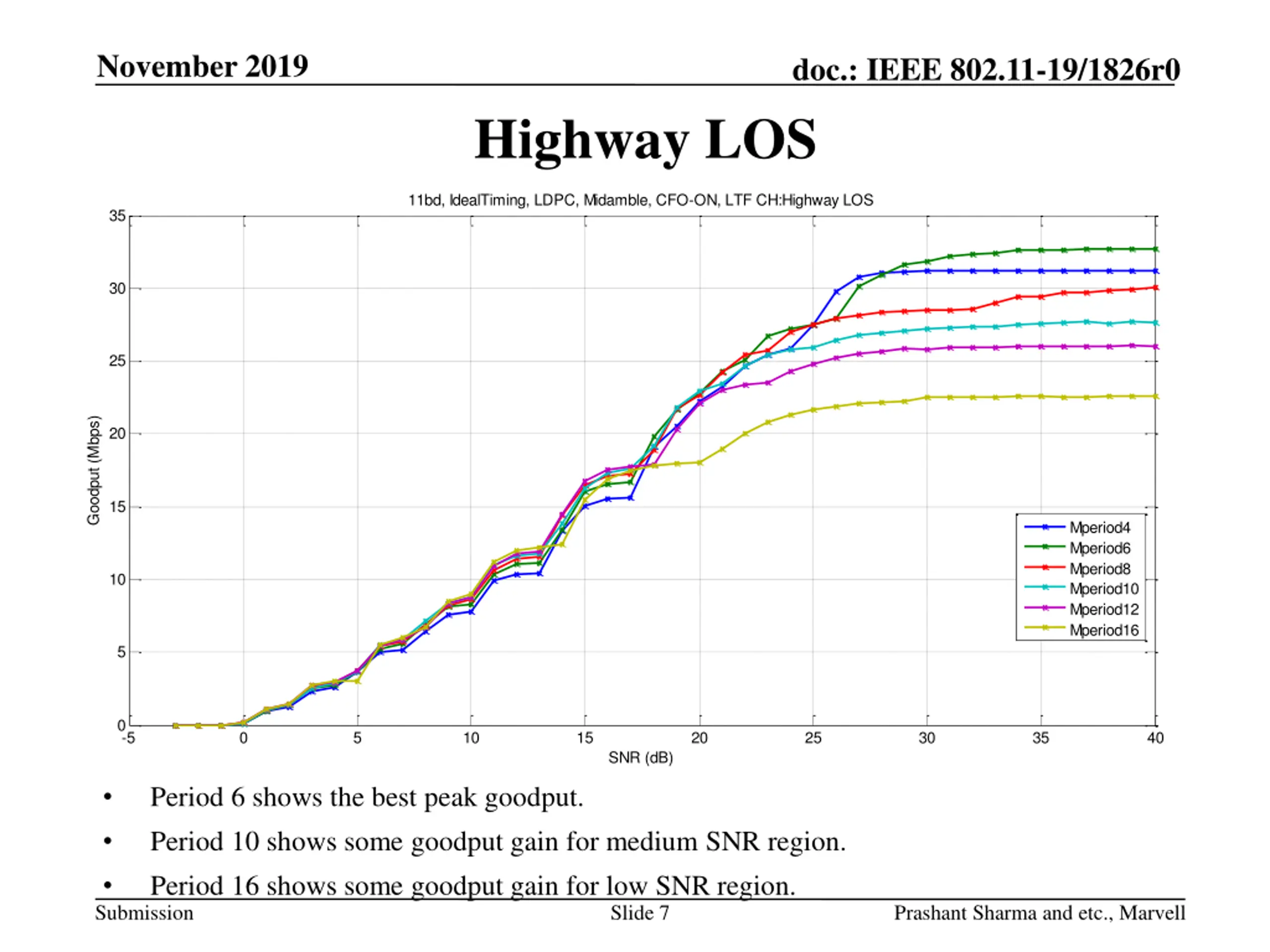

November 2019 doc.: IEEE 802.11-19/1826r0 Highway LOS 11bd, IdealTiming, LDPC, Midamble, CFO-ON, LTF CH:Highway LOS 35 30 25 Goodput (Mbps) 20 15 Mperiod4 Mperiod6 Mperiod8 Mperiod10 Mperiod12 Mperiod16 10 5 0 -5 0 5 10 15 20 25 30 35 40 SNR (dB) Period 6 shows the best peak goodput. Period 10 shows some goodput gain for medium SNR region. Period 16 shows some goodput gain for low SNR region. Submission Slide 7 Prashant Sharma and etc., Marvell

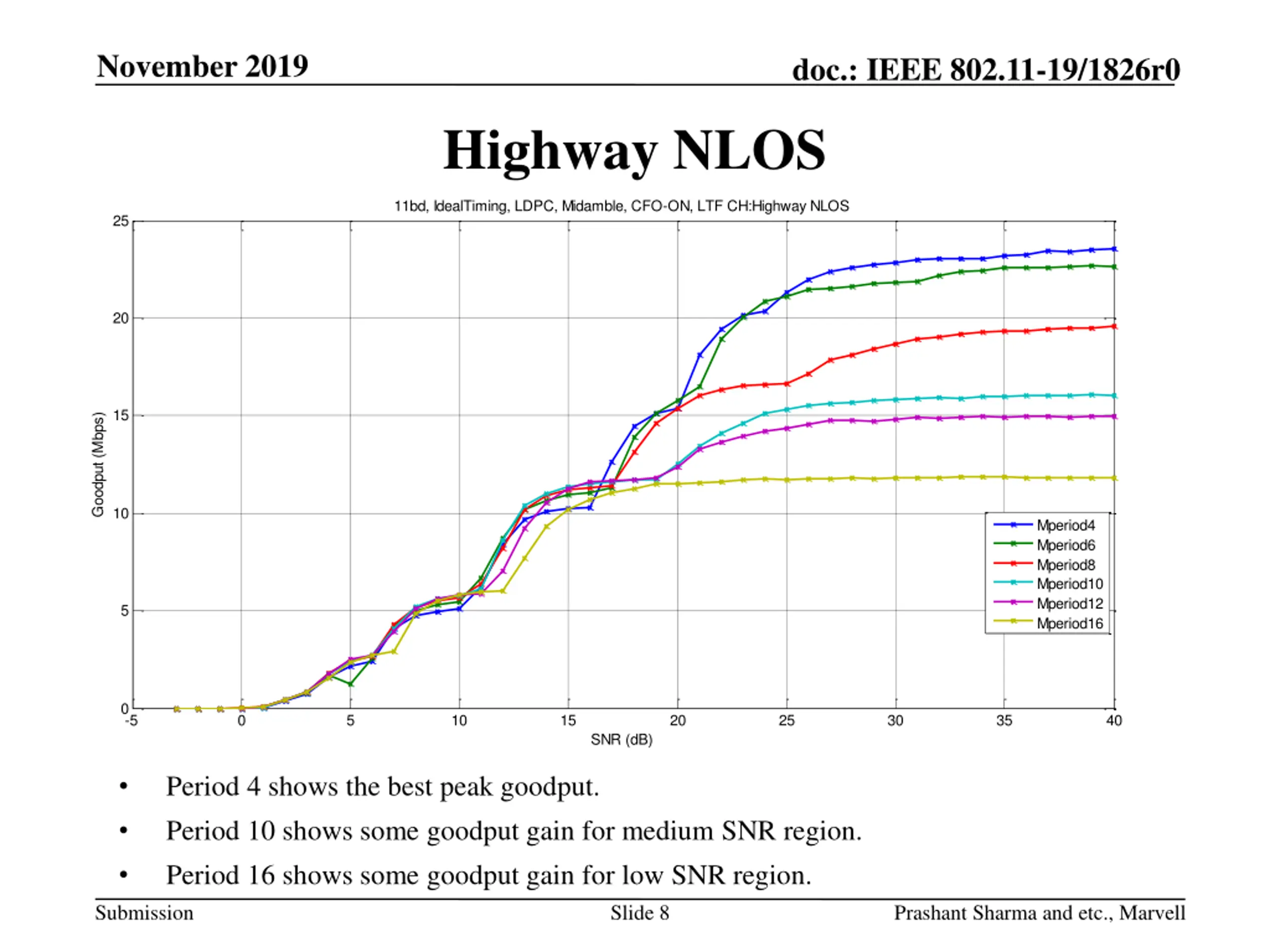

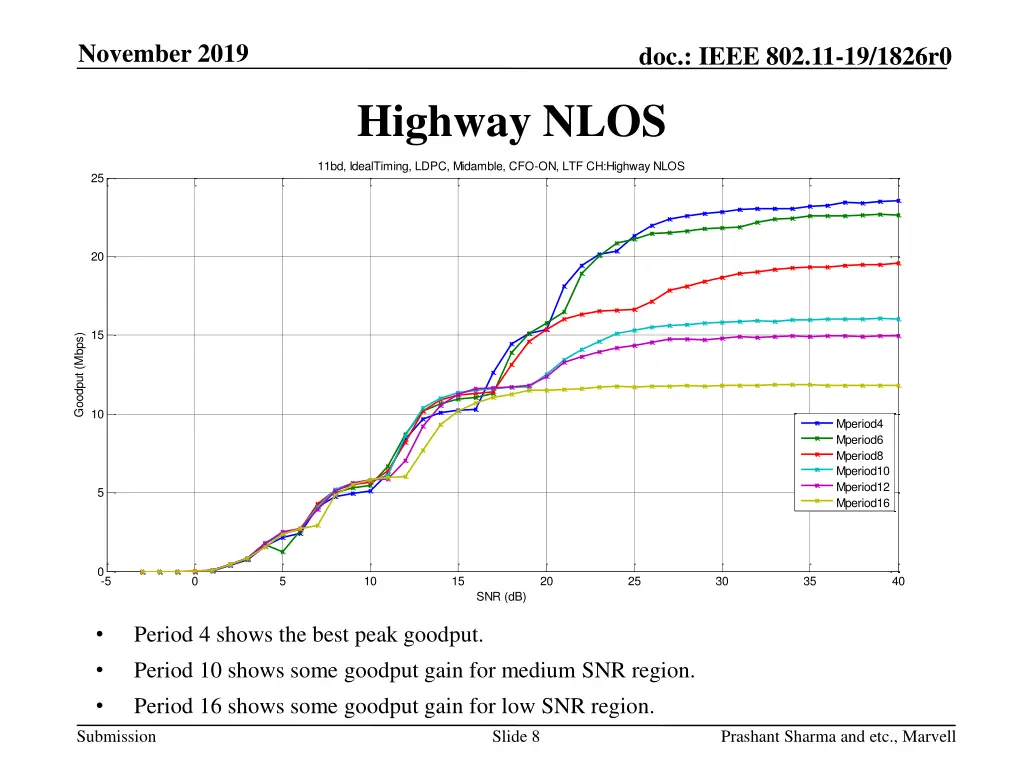

November 2019 doc.: IEEE 802.11-19/1826r0 Highway NLOS 11bd, IdealTiming, LDPC, Midamble, CFO-ON, LTF CH:Highway NLOS 25 20 15 Goodput (Mbps) 10 Mperiod4 Mperiod6 Mperiod8 Mperiod10 Mperiod12 Mperiod16 5 0 -5 0 5 10 15 20 25 30 35 40 SNR (dB) Period 4 shows the best peak goodput. Period 10 shows some goodput gain for medium SNR region. Period 16 shows some goodput gain for low SNR region. Submission Slide 8 Prashant Sharma and etc., Marvell

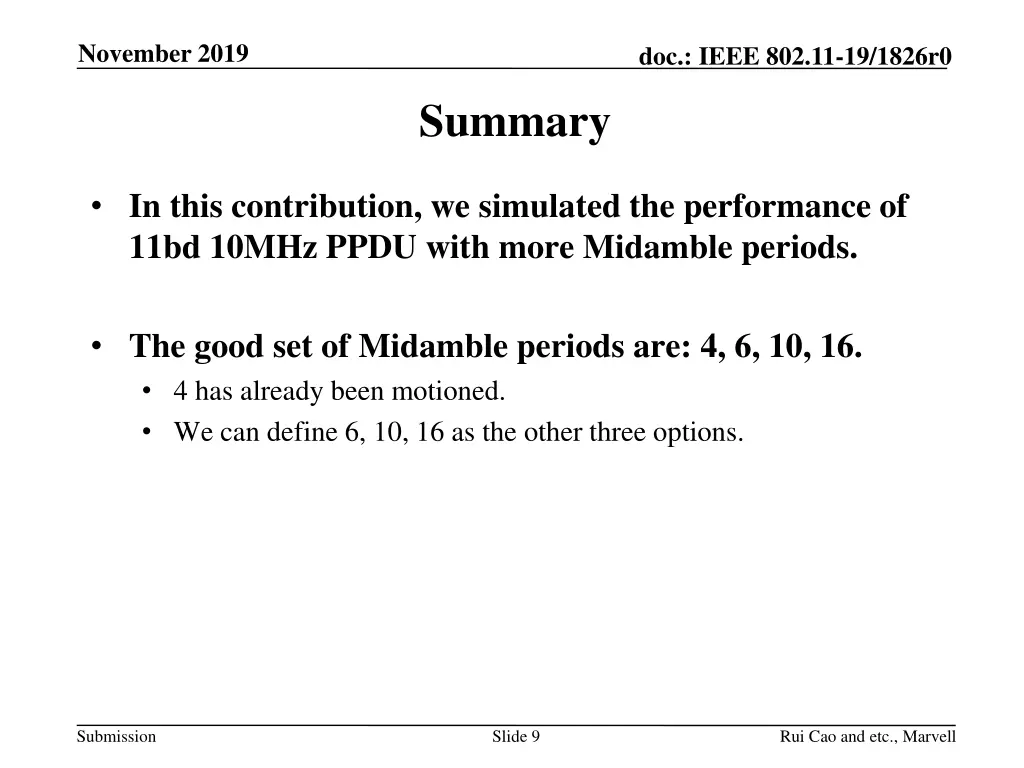

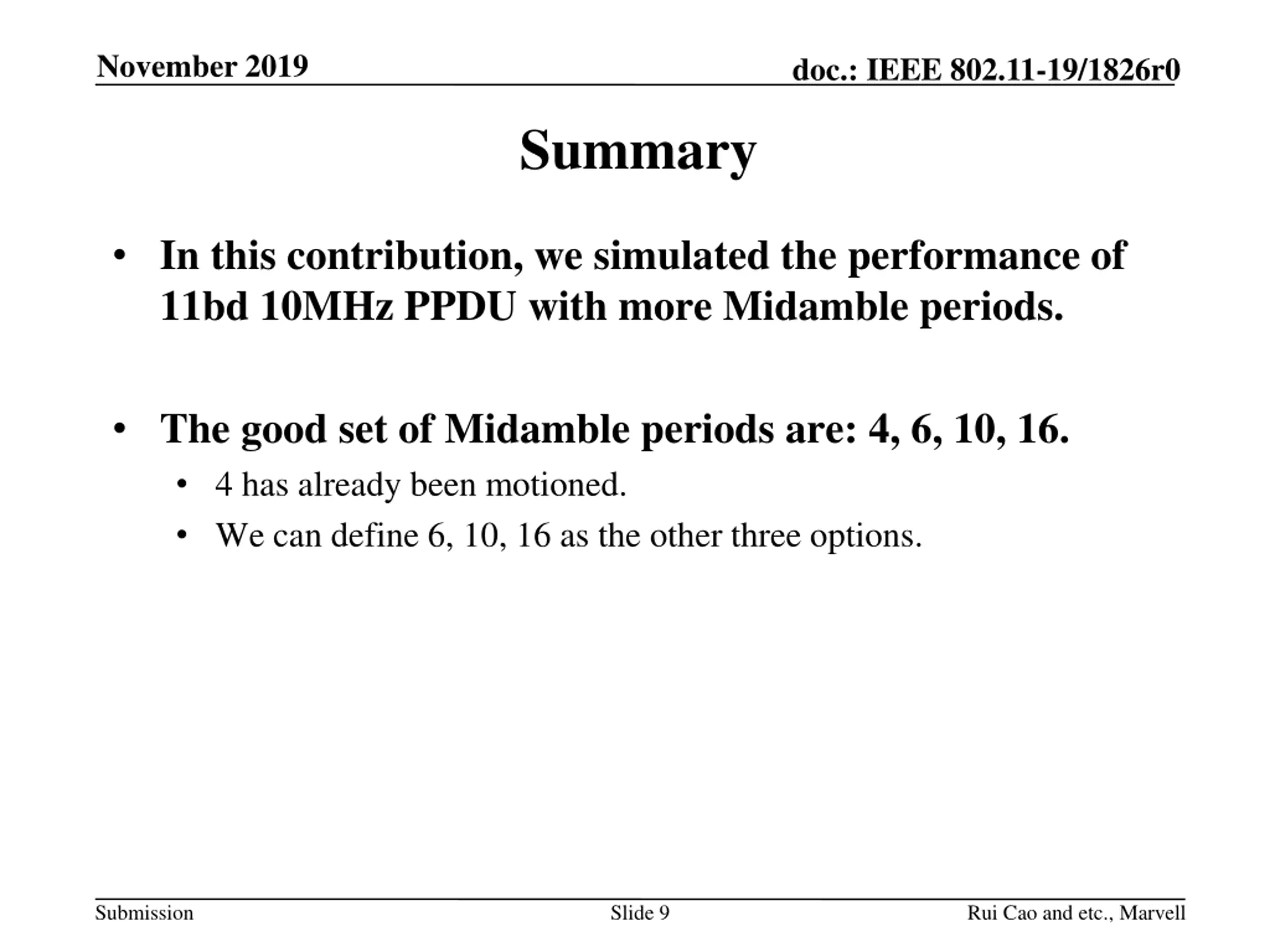

November 2019 doc.: IEEE 802.11-19/1826r0 Summary In this contribution, we simulated the performance of 11bd 10MHz PPDU with more Midamble periods. The good set of Midamble periods are: 4, 6, 10, 16. 4 has already been motioned. We can define 6, 10, 16 as the other three options. Submission Slide 9 Rui Cao and etc., Marvell
November 2019 doc.: IEEE 802.11-19/1826r0 Reference [1] IEEE 802.11-19/0740. [2] IEEE 802.11-19/1472r1. Submission Slide 10 Rui Cao and etc., Marvell

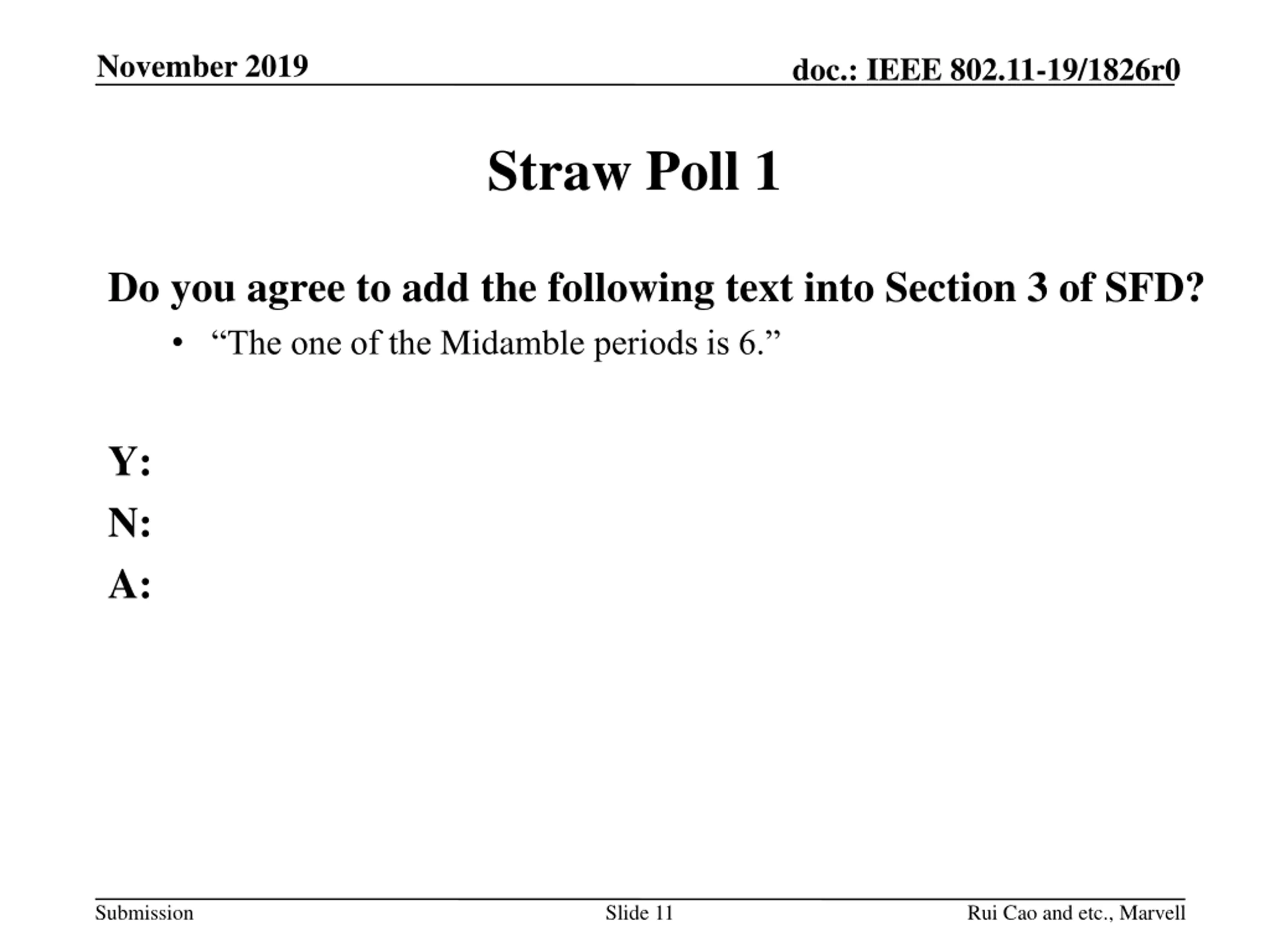

November 2019 doc.: IEEE 802.11-19/1826r0 Straw Poll 1 Do you agree to add the following text into Section 3 of SFD? The one of the Midamble periods is 6. Y: N: A: Submission Slide 11 Rui Cao and etc., Marvell
November 2019 doc.: IEEE 802.11-19/1826r0 Straw Poll 2 Do you agree to add the following text into Section 3 of SFD? The one of the Midamble periods is 10. Y: N: A: Submission Slide 12 Rui Cao and etc., Marvell
November 2019 doc.: IEEE 802.11-19/1826r0 Straw Poll 3 Do you agree to add the following text into Section 3 of SFD? The one of the Midamble periods is 16. Y: N: A: Submission Slide 13 Rui Cao and etc., Marvell
