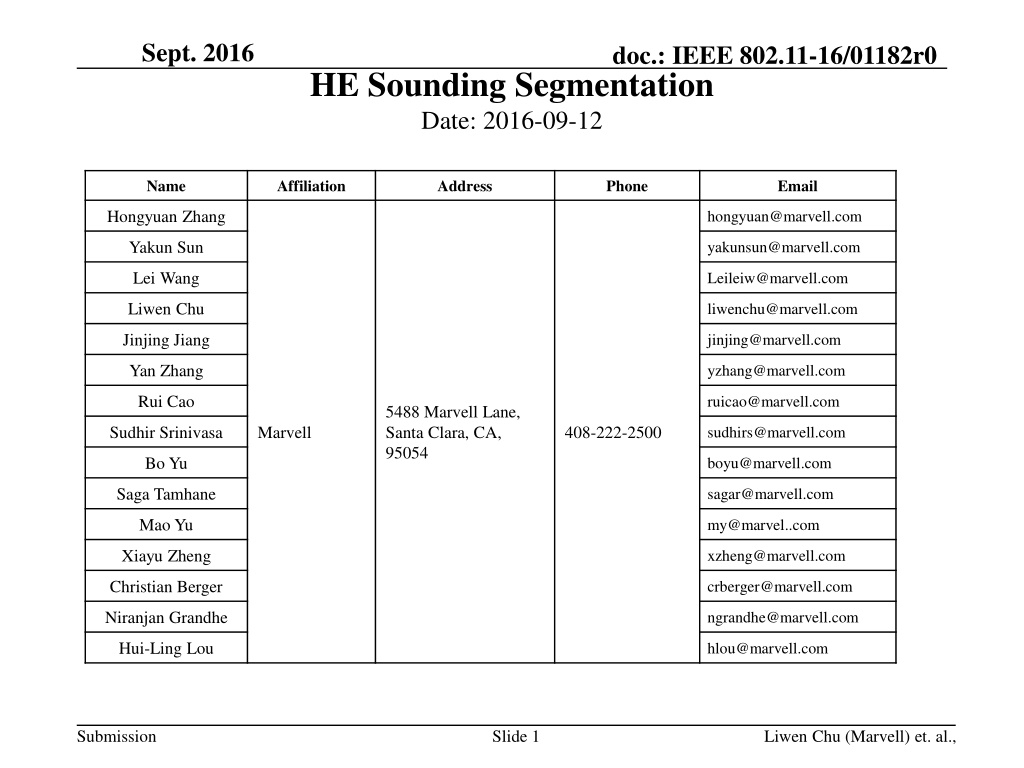

Sept. 2016 doc.: IEEE 802.11-16/01182r0 HE Sounding Segmentation Date: 2016-09-12 Name Affiliation Address Phone Email Hongyuan Zhang hongyuan@marvell.com Yakun Sun yakunsun@marvell.com Lei Wang Leileiw@marvell.com Liwen Chu liwenchu@marvell.com Jinjing Jiang jinjing@marvell.com Yan Zhang yzhang@marvell.com Rui Cao ruicao@marvell.com 5488 Marvell Lane, Santa Clara, CA, 95054 Sudhir Srinivasa Marvell 408-222-2500 sudhirs@marvell.com Bo Yu boyu@marvell.com Saga Tamhane sagar@marvell.com Mao Yu my@marvel..com Xiayu Zheng xzheng@marvell.com Christian Berger crberger@marvell.com Niranjan Grandhe ngrandhe@marvell.com Hui-Ling Lou hlou@marvell.com Submission Slide 1 Liwen Chu (Marvell) et. al.,

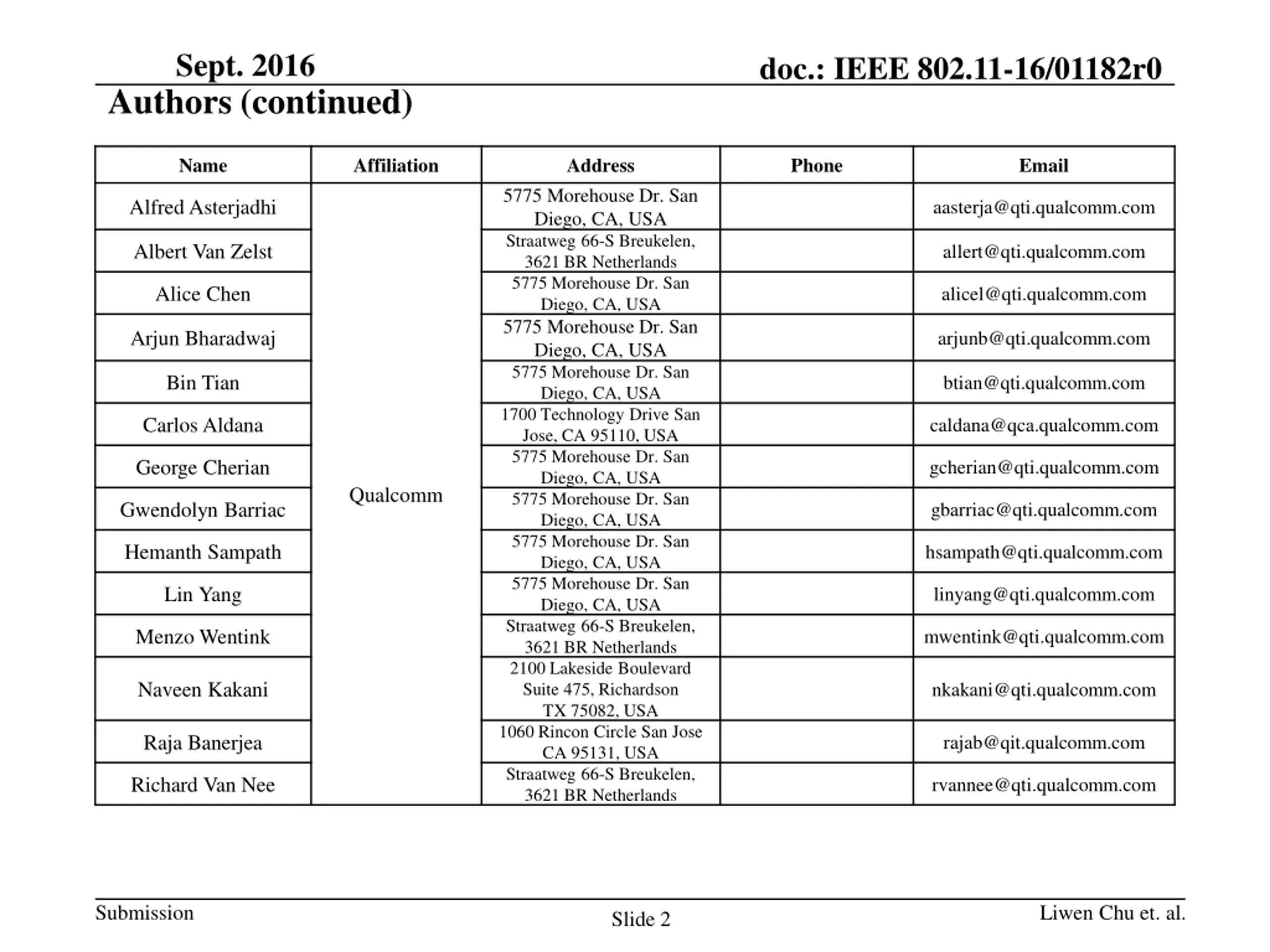

Sept. 2016 Authors (continued) doc.: IEEE 802.11-16/01182r0 Name Affiliation Address Phone Email 5775 Morehouse Dr. San Diego, CA, USA Straatweg 66-S Breukelen, 3621 BR Netherlands 5775 Morehouse Dr. San Diego, CA, USA 5775 Morehouse Dr. San Diego, CA, USA 5775 Morehouse Dr. San Diego, CA, USA 1700 Technology Drive San Jose, CA 95110, USA 5775 Morehouse Dr. San Diego, CA, USA 5775 Morehouse Dr. San Diego, CA, USA 5775 Morehouse Dr. San Diego, CA, USA 5775 Morehouse Dr. San Diego, CA, USA Straatweg 66-S Breukelen, 3621 BR Netherlands 2100 Lakeside Boulevard Suite 475, Richardson TX 75082, USA 1060 Rincon Circle San Jose CA 95131, USA Straatweg 66-S Breukelen, 3621 BR Netherlands Alfred Asterjadhi aasterja@qti.qualcomm.com Albert Van Zelst allert@qti.qualcomm.com Alice Chen alicel@qti.qualcomm.com Arjun Bharadwaj arjunb@qti.qualcomm.com Bin Tian btian@qti.qualcomm.com Carlos Aldana caldana@qca.qualcomm.com George Cherian gcherian@qti.qualcomm.com Qualcomm Gwendolyn Barriac gbarriac@qti.qualcomm.com Hemanth Sampath hsampath@qti.qualcomm.com Lin Yang linyang@qti.qualcomm.com Menzo Wentink mwentink@qti.qualcomm.com Naveen Kakani nkakani@qti.qualcomm.com Raja Banerjea rajab@qit.qualcomm.com Richard Van Nee rvannee@qti.qualcomm.com Submission Liwen Chu et. al. Slide 2

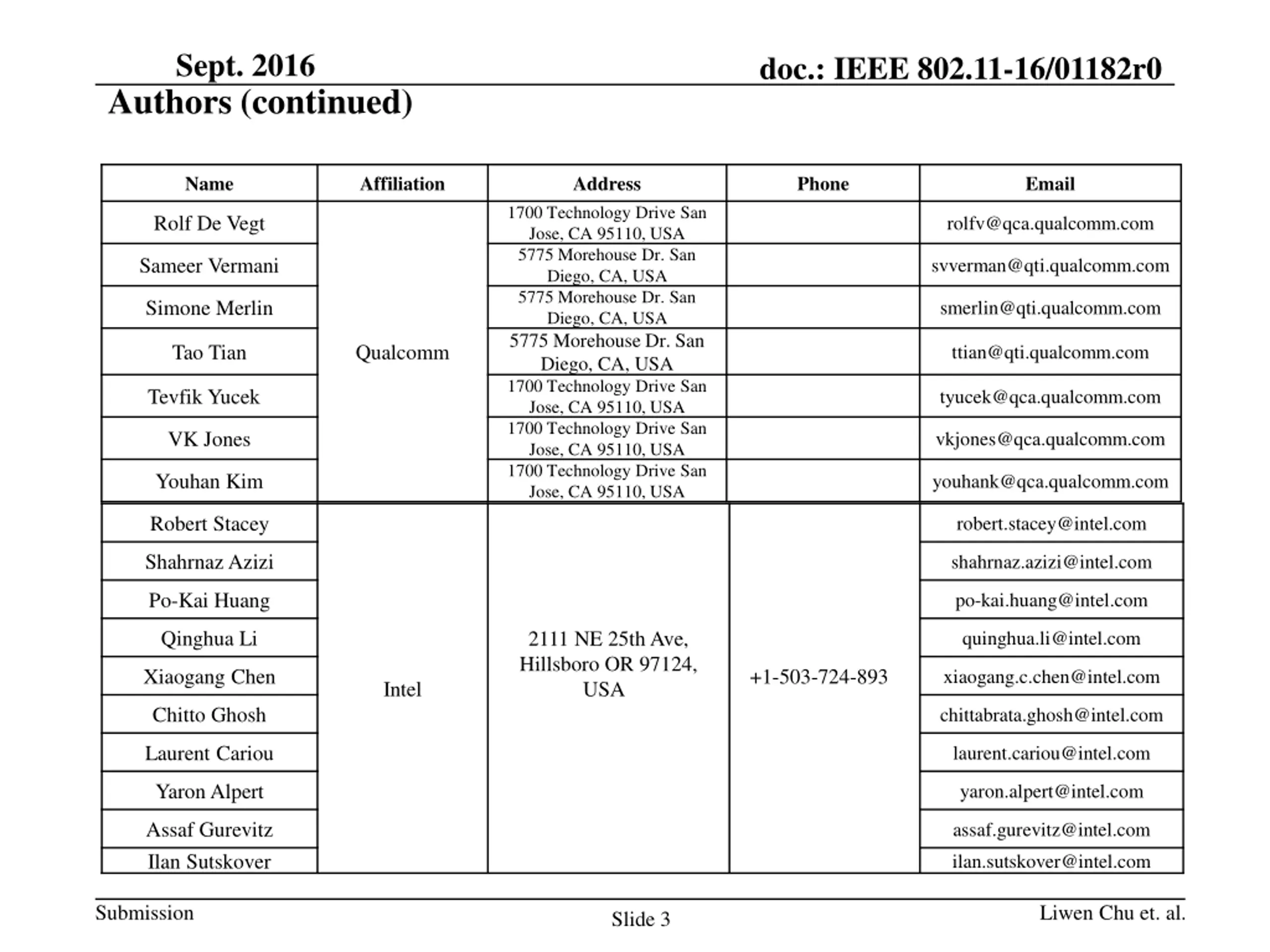

Sept. 2016 Authors (continued) doc.: IEEE 802.11-16/01182r0 Name Affiliation Address Phone Email 1700 Technology Drive San Jose, CA 95110, USA 5775 Morehouse Dr. San Diego, CA, USA 5775 Morehouse Dr. San Diego, CA, USA 5775 Morehouse Dr. San Diego, CA, USA 1700 Technology Drive San Jose, CA 95110, USA 1700 Technology Drive San Jose, CA 95110, USA 1700 Technology Drive San Jose, CA 95110, USA Rolf De Vegt rolfv@qca.qualcomm.com Sameer Vermani svverman@qti.qualcomm.com Simone Merlin smerlin@qti.qualcomm.com Tao Tian Qualcomm ttian@qti.qualcomm.com Tevfik Yucek tyucek@qca.qualcomm.com VK Jones vkjones@qca.qualcomm.com Youhan Kim youhank@qca.qualcomm.com Robert Stacey robert.stacey@intel.com Shahrnaz Azizi shahrnaz.azizi@intel.com Po-Kai Huang po-kai.huang@intel.com Qinghua Li 2111 NE 25th Ave, Hillsboro OR 97124, USA quinghua.li@intel.com Xiaogang Chen +1-503-724-893 xiaogang.c.chen@intel.com Intel Chitto Ghosh chittabrata.ghosh@intel.com Laurent Cariou laurent.cariou@intel.com Yaron Alpert yaron.alpert@intel.com Assaf Gurevitz Ilan Sutskover assaf.gurevitz@intel.com ilan.sutskover@intel.com Submission Liwen Chu et. al. Slide 3

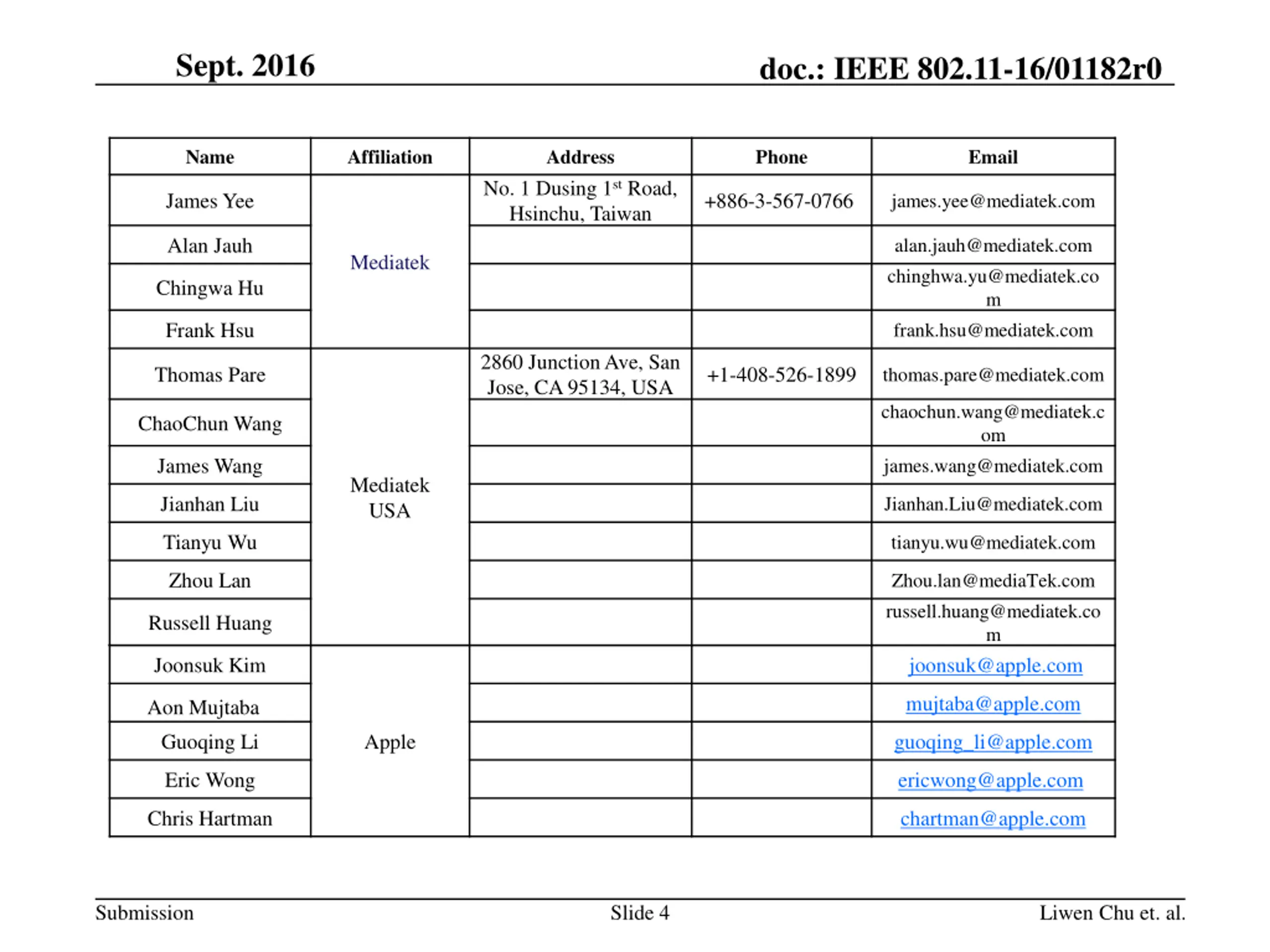

Sept. 2016 doc.: IEEE 802.11-16/01182r0 Name Affiliation Address Phone Email No. 1 Dusing 1st Road, Hsinchu, Taiwan James Yee +886-3-567-0766 james.yee@mediatek.com Alan Jauh alan.jauh@mediatek.com chinghwa.yu@mediatek.co m frank.hsu@mediatek.com Mediatek Chingwa Hu Frank Hsu 2860 Junction Ave, San Jose, CA 95134, USA Thomas Pare +1-408-526-1899 thomas.pare@mediatek.com chaochun.wang@mediatek.c om james.wang@mediatek.com ChaoChun Wang James Wang Mediatek USA Jianhan Liu Jianhan.Liu@mediatek.com Tianyu Wu tianyu.wu@mediatek.com Zhou Lan Zhou.lan@mediaTek.com russell.huang@mediatek.co m Russell Huang Joonsuk Kim joonsuk@apple.com mujtaba@apple.com Aon Mujtaba Guoqing Li Apple guoqing_li@apple.com Eric Wong ericwong@apple.com Chris Hartman chartman@apple.com Submission Slide 4 Liwen Chu et. al.

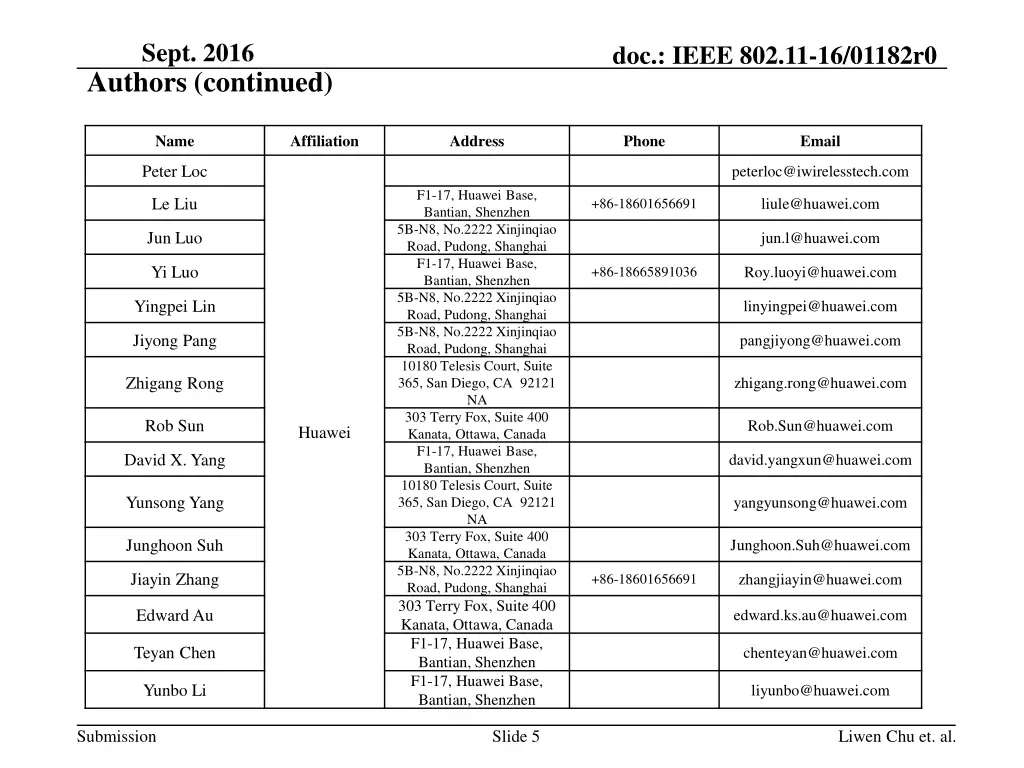

Sept. 2016 Authors (continued) doc.: IEEE 802.11-16/01182r0 Name Affiliation Address Phone Email Peter Loc peterloc@iwirelesstech.com F1-17, Huawei Base, Bantian, Shenzhen 5B-N8, No.2222 Xinjinqiao Road, Pudong, Shanghai F1-17, Huawei Base, Bantian, Shenzhen 5B-N8, No.2222 Xinjinqiao Road, Pudong, Shanghai 5B-N8, No.2222 Xinjinqiao Road, Pudong, Shanghai 10180 Telesis Court, Suite 365, San Diego, CA 92121 NA 303 Terry Fox, Suite 400 Kanata, Ottawa, Canada F1-17, Huawei Base, Bantian, Shenzhen 10180 Telesis Court, Suite 365, San Diego, CA 92121 NA 303 Terry Fox, Suite 400 Kanata, Ottawa, Canada 5B-N8, No.2222 Xinjinqiao Road, Pudong, Shanghai 303 Terry Fox, Suite 400 Kanata, Ottawa, Canada F1-17, Huawei Base, Bantian, Shenzhen F1-17, Huawei Base, Bantian, Shenzhen Le Liu liule@huawei.com +86-18601656691 Jun Luo jun.l@huawei.com Yi Luo Roy.luoyi@huawei.com +86-18665891036 Yingpei Lin linyingpei@huawei.com Jiyong Pang pangjiyong@huawei.com Zhigang Rong zhigang.rong@huawei.com Rob Sun Rob.Sun@huawei.com Huawei David X. Yang david.yangxun@huawei.com Yunsong Yang yangyunsong@huawei.com Junghoon Suh Junghoon.Suh@huawei.com Jiayin Zhang zhangjiayin@huawei.com +86-18601656691 Edward Au edward.ks.au@huawei.com Teyan Chen chenteyan@huawei.com Yunbo Li liyunbo@huawei.com Submission Slide 5 Liwen Chu et. al.

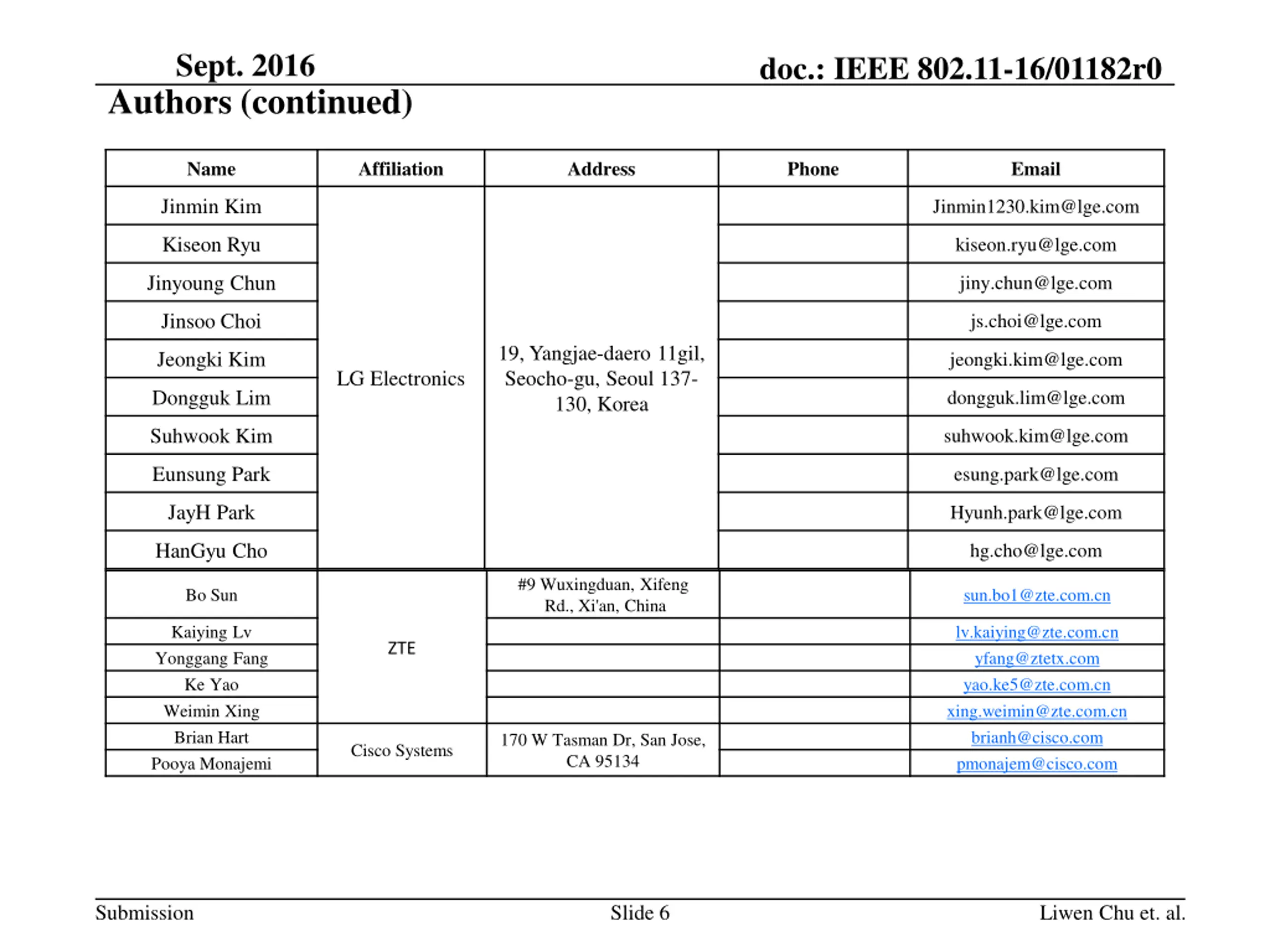

Sept. 2016 Authors (continued) doc.: IEEE 802.11-16/01182r0 Name Affiliation Address Phone Email Jinmin Kim Jinmin1230.kim@lge.com Kiseon Ryu kiseon.ryu@lge.com Jinyoung Chun jiny.chun@lge.com Jinsoo Choi js.choi@lge.com 19, Yangjae-daero 11gil, Seocho-gu, Seoul 137- 130, Korea Jeongki Kim jeongki.kim@lge.com LG Electronics Dongguk Lim dongguk.lim@lge.com Suhwook Kim suhwook.kim@lge.com Eunsung Park esung.park@lge.com JayH Park Hyunh.park@lge.com HanGyu Cho hg.cho@lge.com #9 Wuxingduan, Xifeng Rd., Xi'an, China Bo Sun sun.bo1@zte.com.cn Kaiying Lv Yonggang Fang Ke Yao Weimin Xing Brian Hart Pooya Monajemi lv.kaiying@zte.com.cn yfang@ztetx.com yao.ke5@zte.com.cn xing.weimin@zte.com.cn brianh@cisco.com pmonajem@cisco.com ZTE 170 W Tasman Dr, San Jose, CA 95134 Cisco Systems Submission Slide 6 Liwen Chu et. al.

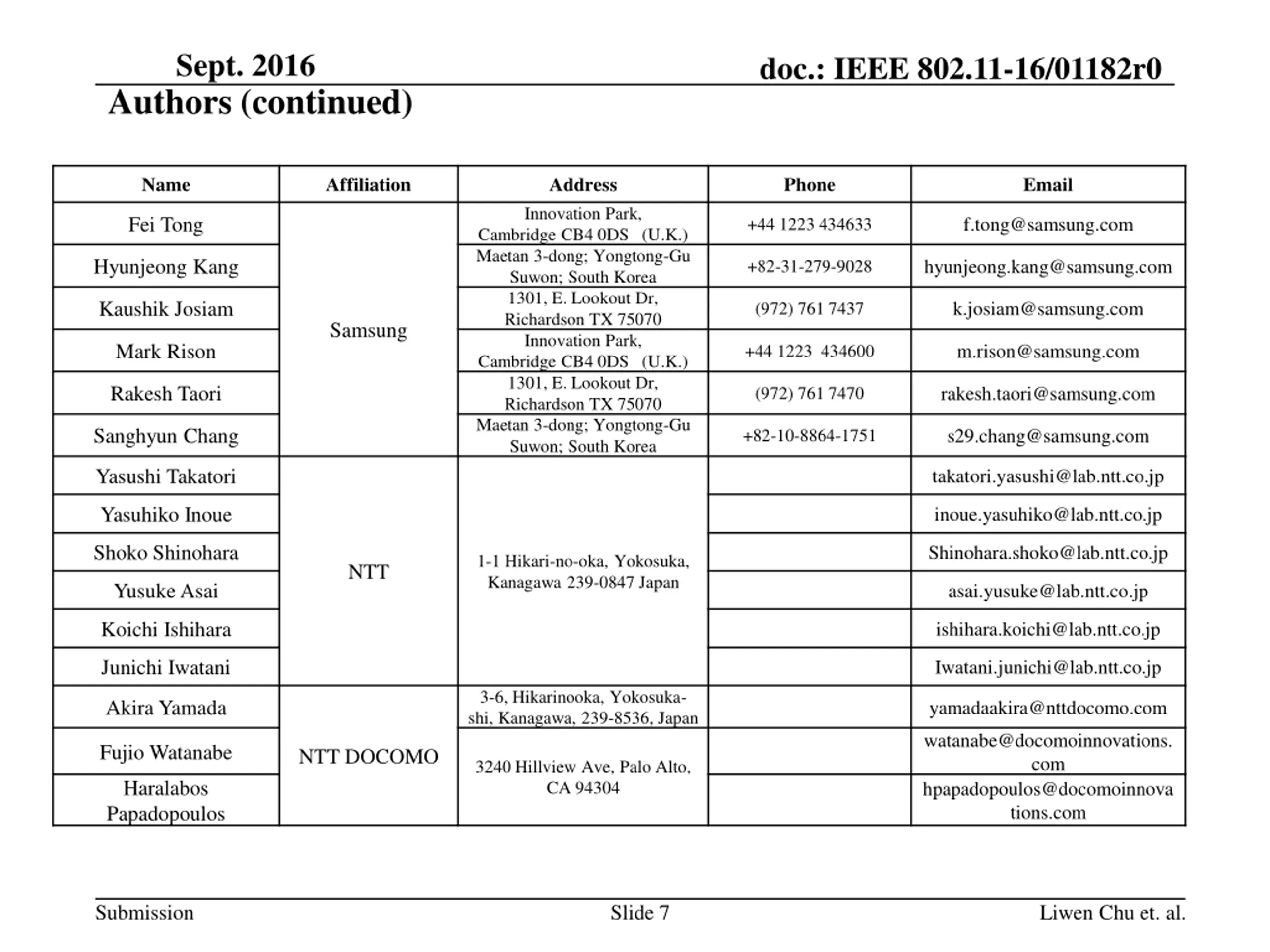

Sept. 2016 Authors (continued) doc.: IEEE 802.11-16/01182r0 Name Affiliation Address Innovation Park, Cambridge CB4 0DS (U.K.) Maetan 3-dong; Yongtong-Gu Suwon; South Korea 1301, E. Lookout Dr, Richardson TX 75070 Innovation Park, Cambridge CB4 0DS (U.K.) 1301, E. Lookout Dr, Richardson TX 75070 Maetan 3-dong; Yongtong-Gu Suwon; South Korea Phone Email Fei Tong f.tong@samsung.com +44 1223 434633 Hyunjeong Kang hyunjeong.kang@samsung.com +82-31-279-9028 Kaushik Josiam k.josiam@samsung.com (972) 761 7437 Samsung Mark Rison m.rison@samsung.com +44 1223 434600 Rakesh Taori rakesh.taori@samsung.com (972) 761 7470 Sanghyun Chang s29.chang@samsung.com +82-10-8864-1751 Yasushi Takatori takatori.yasushi@lab.ntt.co.jp Yasuhiko Inoue inoue.yasuhiko@lab.ntt.co.jp Shoko Shinohara Shinohara.shoko@lab.ntt.co.jp 1-1 Hikari-no-oka, Yokosuka, Kanagawa 239-0847 Japan NTT Yusuke Asai asai.yusuke@lab.ntt.co.jp Koichi Ishihara ishihara.koichi@lab.ntt.co.jp Junichi Iwatani Iwatani.junichi@lab.ntt.co.jp 3-6, Hikarinooka, Yokosuka- shi, Kanagawa, 239-8536, Japan Akira Yamada yamadaakira@nttdocomo.com watanabe@docomoinnovations. com hpapadopoulos@docomoinnova tions.com Fujio Watanabe NTT DOCOMO 3240 Hillview Ave, Palo Alto, CA 94304 Haralabos Papadopoulos Submission Slide 7 Liwen Chu et. al.

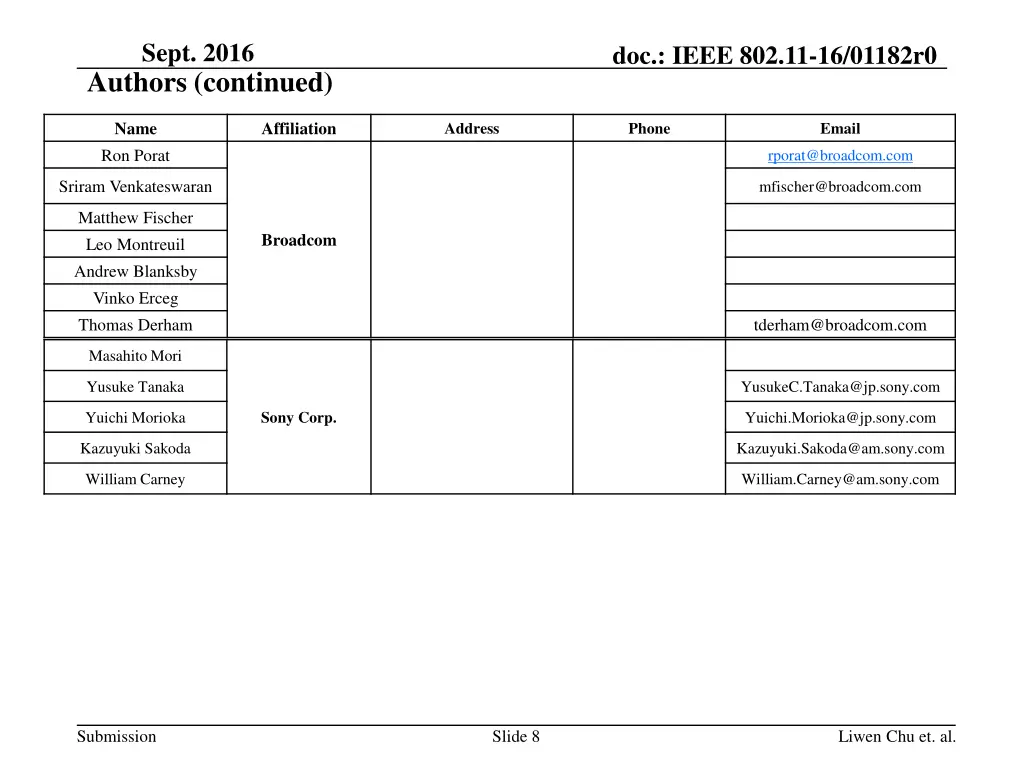

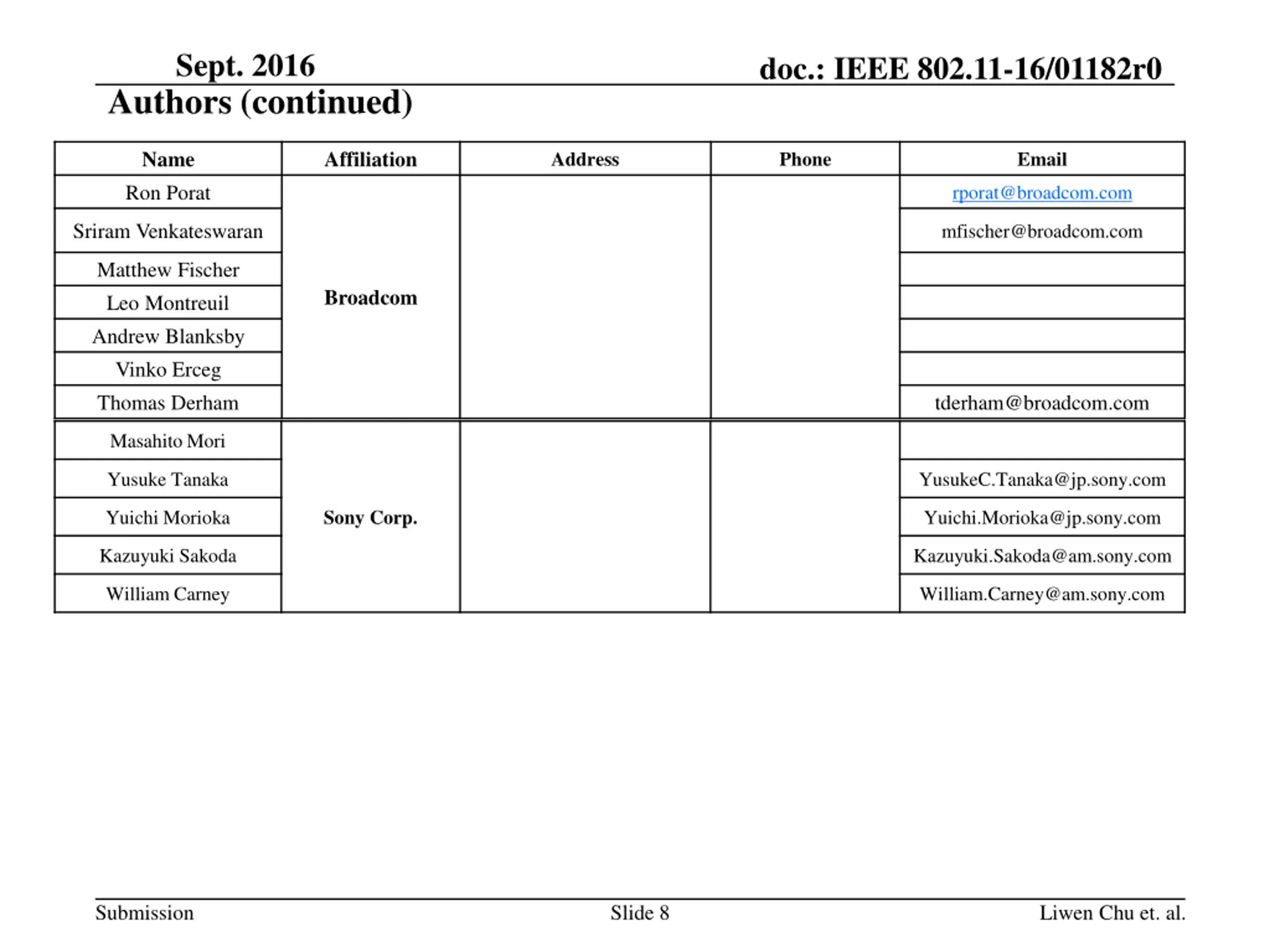

Sept. 2016 Authors (continued) doc.: IEEE 802.11-16/01182r0 Name Ron Porat Affiliation Address Phone Email rporat@broadcom.com Sriram Venkateswaran mfischer@broadcom.com Matthew Fischer Leo Montreuil Andrew Blanksby Vinko Erceg Thomas Derham Broadcom tderham@broadcom.com Masahito.Mori@jp.sony.com Masahito Mori Yusuke Tanaka YusukeC.Tanaka@jp.sony.com Sony Corp. Yuichi Morioka Yuichi.Morioka@jp.sony.com Kazuyuki Sakoda Kazuyuki.Sakoda@am.sony.com William Carney William.Carney@am.sony.com Submission Slide 8 Liwen Chu et. al.

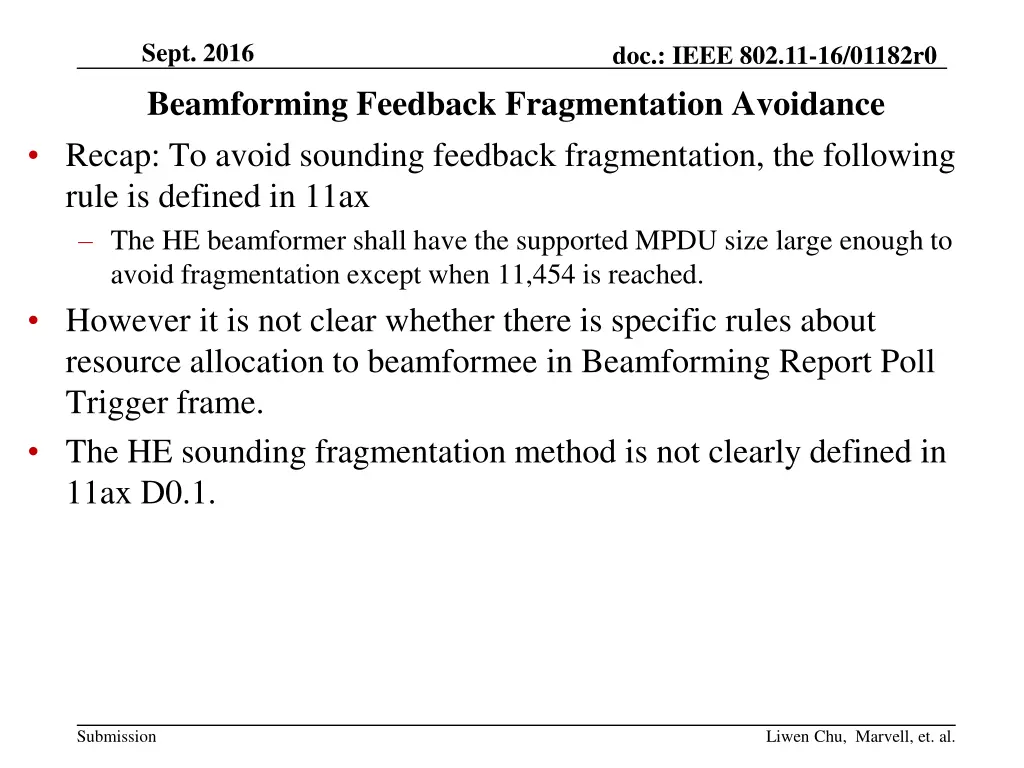

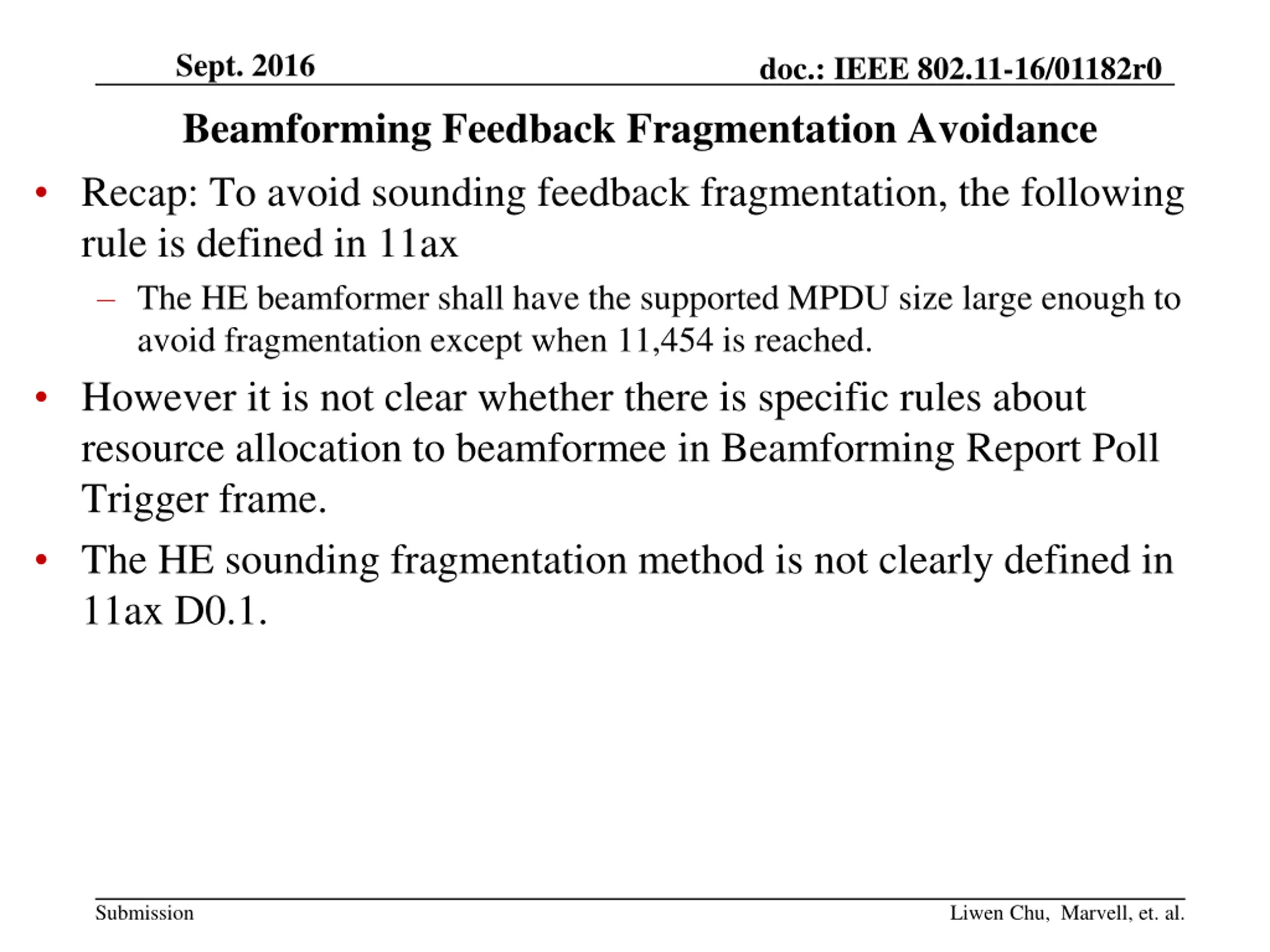

Sept. 2016 Beamforming Feedback Fragmentation Avoidance Recap: To avoid sounding feedback fragmentation, the following rule is defined in 11ax The HE beamformer shall have the supported MPDU size large enough to avoid fragmentation except when 11,454 is reached. However it is not clear whether there is specific rules about resource allocation to beamformee in Beamforming Report Poll Trigger frame. The HE sounding fragmentation method is not clearly defined in 11ax D0.1. doc.: IEEE 802.11-16/01182r0 Submission Liwen Chu, Marvell, et. al.

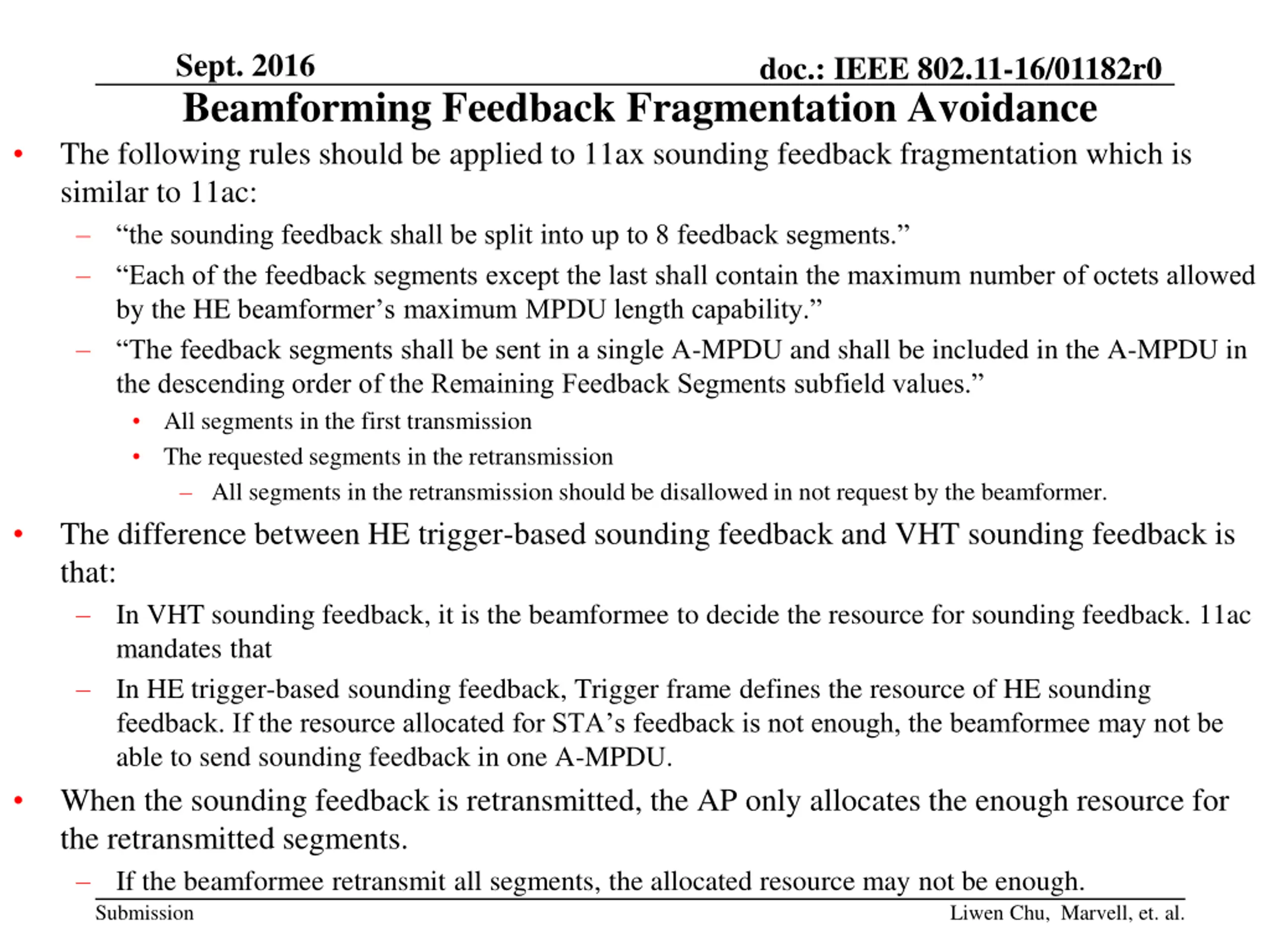

Sept. 2016 Beamforming Feedback Fragmentation Avoidance The following rules should be applied to 11ax sounding feedback fragmentation which is similar to 11ac: the sounding feedback shall be split into up to 8 feedback segments. Each of the feedback segments except the last shall contain the maximum number of octets allowed by the HE beamformer smaximum MPDU length capability. The feedback segments shall be sent in a single A-MPDU and shall be included in the A-MPDU in the descending order of the Remaining Feedback Segments subfield values. All segments in the first transmission The requested segments in the retransmission All segments in the retransmission should be disallowed in not request by the beamformer. The difference between HE trigger-based sounding feedback and VHT sounding feedback is that: In VHT sounding feedback, it is the beamformee to decide the resource for sounding feedback. 11ac mandates that In HE trigger-based sounding feedback, Trigger frame defines the resource of HE sounding feedback. If the resource allocated for STA s feedback is not enough, the beamformee may not be able to send sounding feedback in one A-MPDU. When the sounding feedback is retransmitted, the AP only allocates the enough resource for the retransmitted segments. If the beamformee retransmit all segments, the allocated resource may not be enough. doc.: IEEE 802.11-16/01182r0 Submission Liwen Chu, Marvell, et. al.

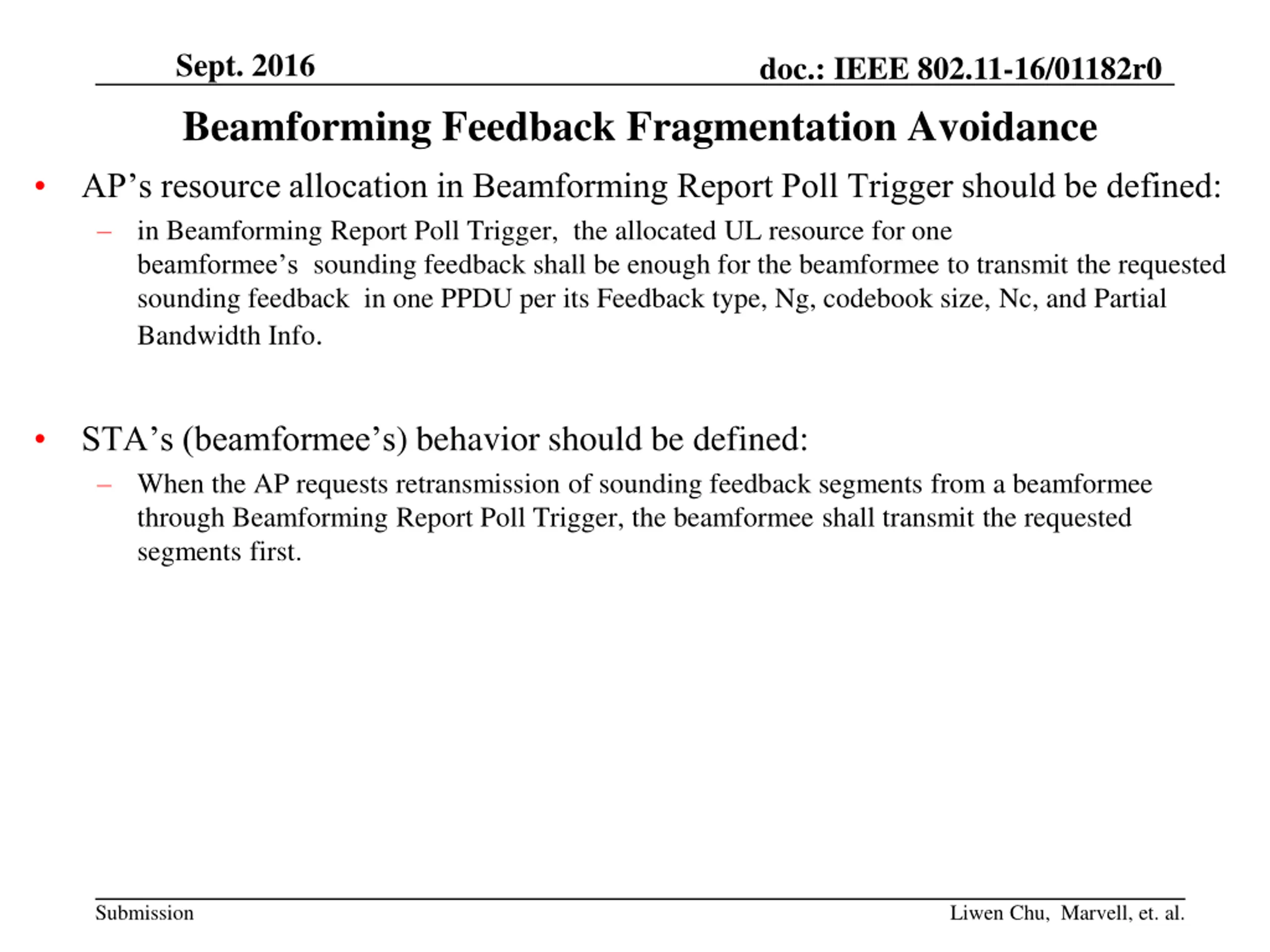

Sept. 2016 Beamforming Feedback Fragmentation Avoidance AP s resource allocation in Beamforming Report Poll Trigger should be defined: in Beamforming Report Poll Trigger, the allocated UL resource for one beamformee s sounding feedback shall be enough for the beamformee to transmit the requested sounding feedback in one PPDU per its Feedback type, Ng, codebook size, Nc, and Partial Bandwidth Info. doc.: IEEE 802.11-16/01182r0 STA s (beamformee s) behavior should be defined: When the AP requests retransmission of sounding feedback segments from a beamformee through Beamforming Report Poll Trigger, the beamformee shall transmit the requested segments first. Submission Liwen Chu, Marvell, et. al.

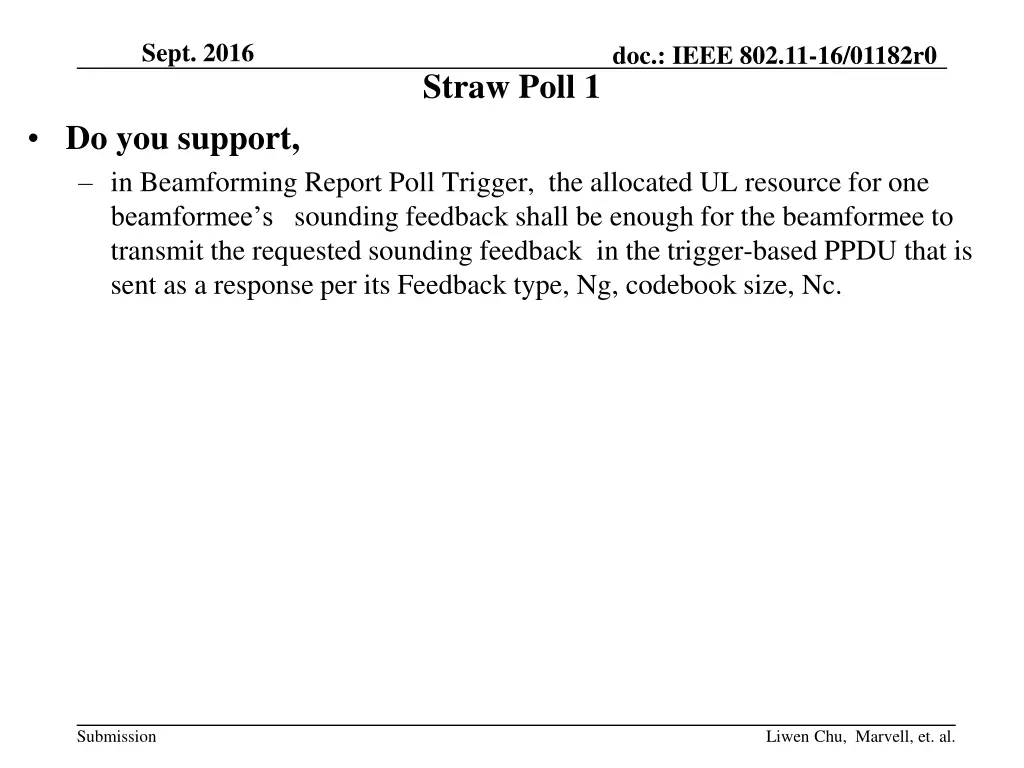

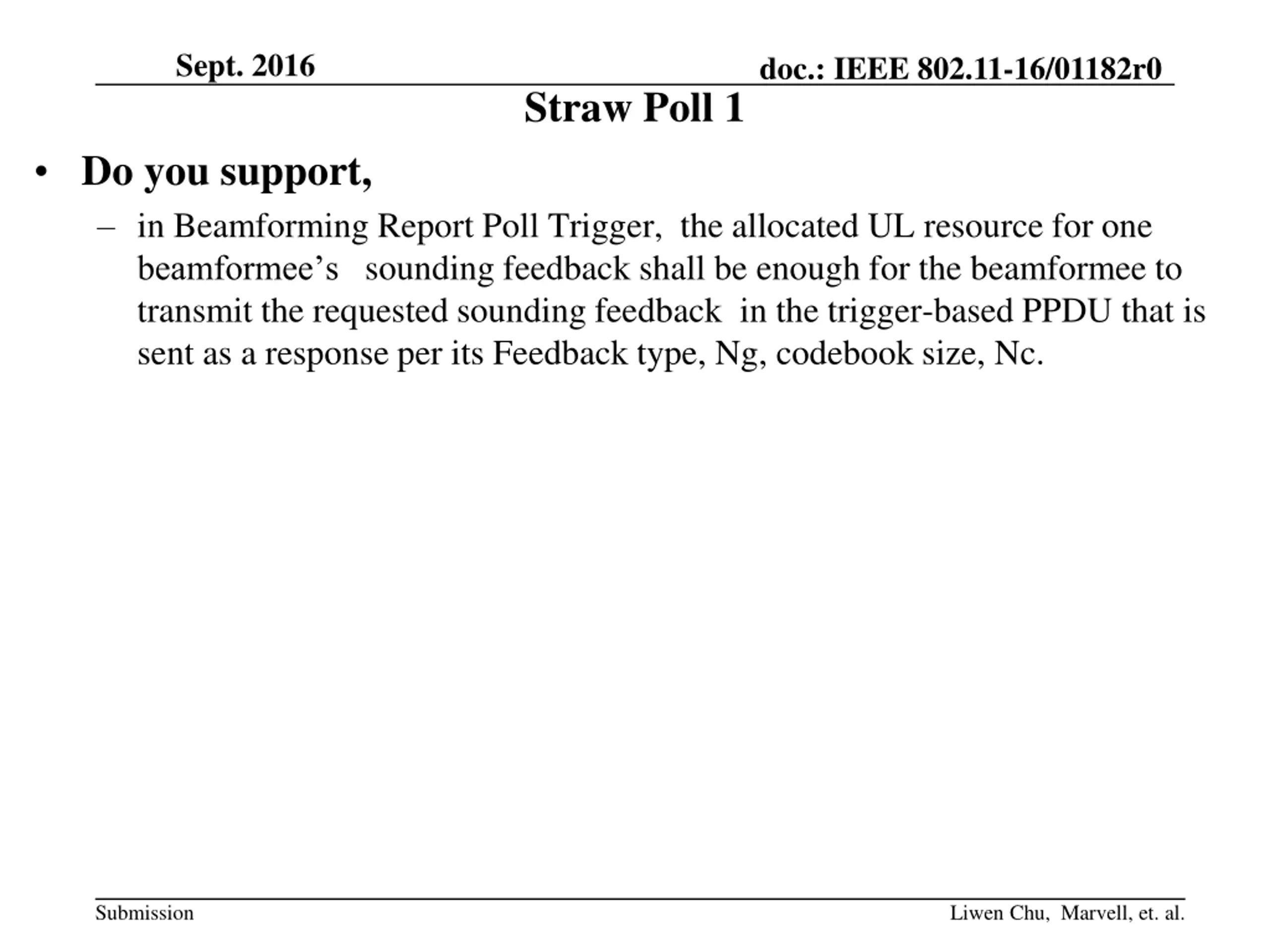

Sept. 2016 doc.: IEEE 802.11-16/01182r0 Straw Poll 1 Do you support, in Beamforming Report Poll Trigger, the allocated UL resource for one beamformee s sounding feedback shall be enough for the beamformee to transmit the requested sounding feedback in the trigger-based PPDU that is sent as a response per its Feedback type, Ng, codebook size, Nc. Submission Liwen Chu, Marvell, et. al.

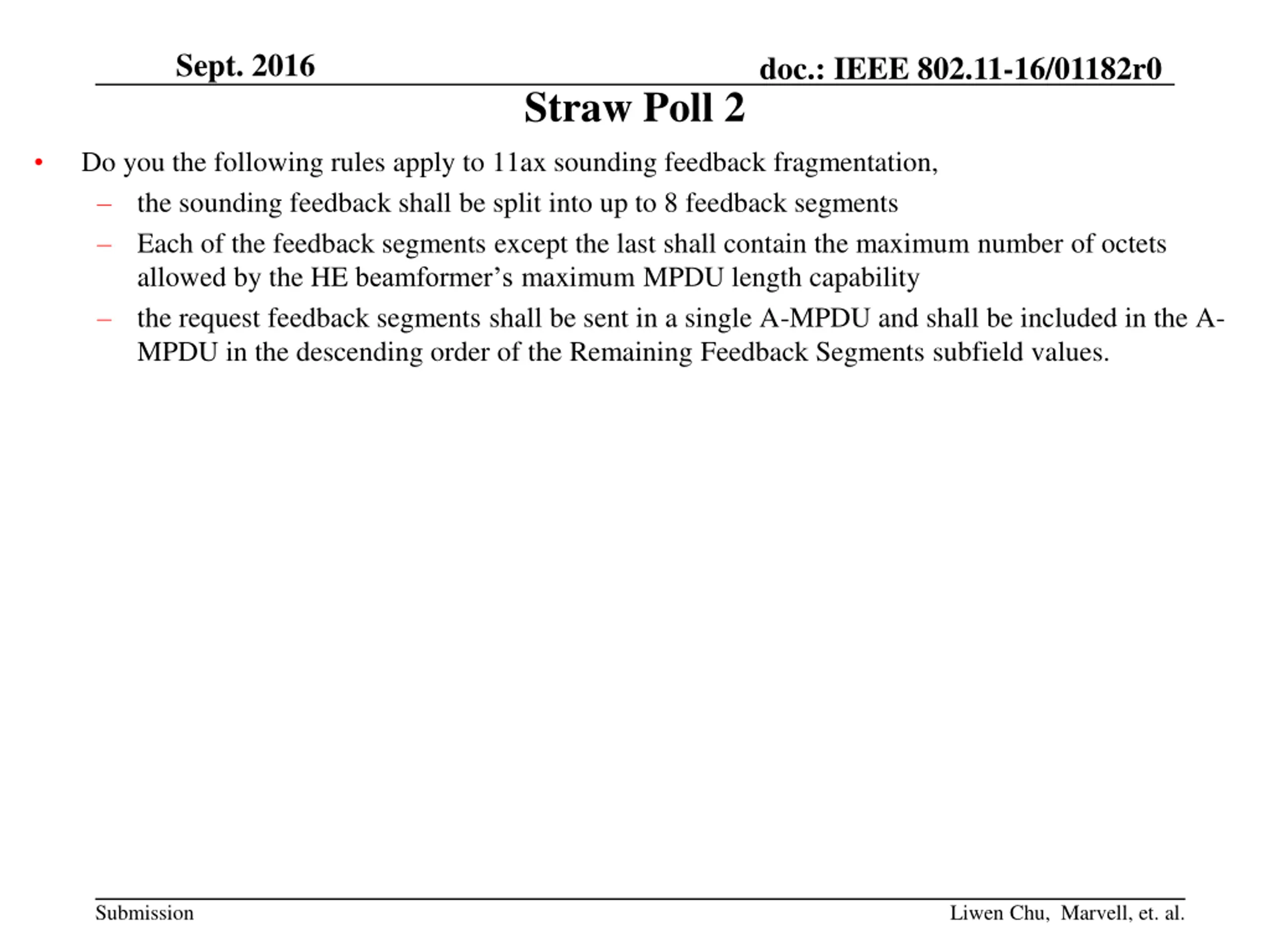

Sept. 2016 doc.: IEEE 802.11-16/01182r0 Straw Poll 2 Do you the following rules apply to 11ax sounding feedback fragmentation, the sounding feedback shall be split into up to 8 feedback segments Each of the feedback segments except the last shall contain the maximum number of octets allowed by the HE beamformer s maximum MPDU length capability the request feedback segments shall be sent in a single A-MPDU and shall be included in the A- MPDU in the descending order of the Remaining Feedback Segments subfield values. Submission Liwen Chu, Marvell, et. al.
