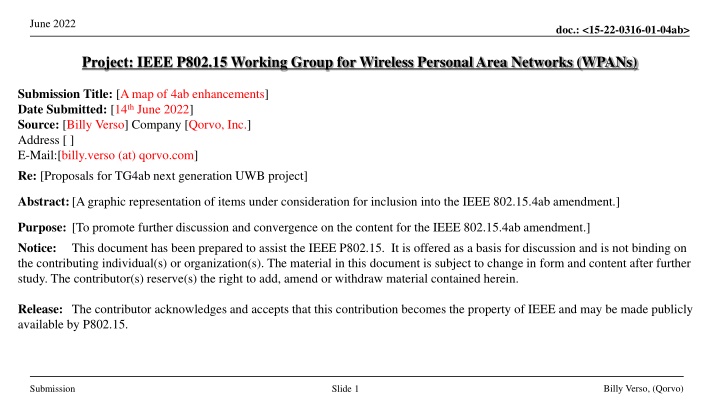

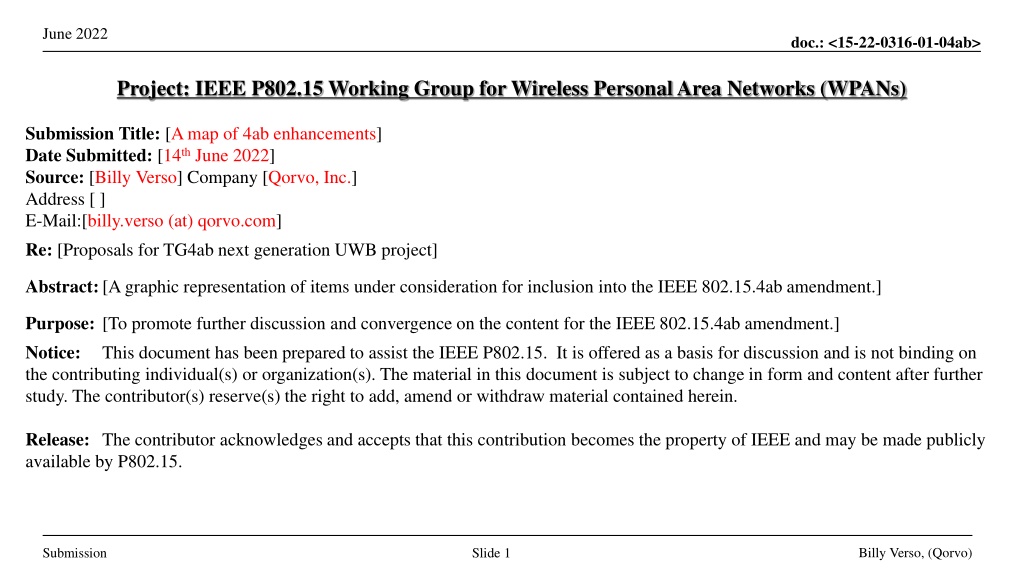

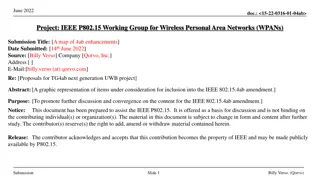

June 2022 doc.: <15-22-0316-01-04ab> Project: IEEE P802.15 Working Group for Wireless Personal Area Networks (WPANs) Submission Title: [A map of 4ab enhancements] Date Submitted: [14th June 2022] Source: [Billy Verso] Company [Qorvo, Inc.] Address [ ] E-Mail:[billy.verso (at) qorvo.com] Re: [Proposals for TG4ab next generation UWB project] Abstract: [A graphic representation of items under consideration for inclusion into the IEEE 802.15.4ab amendment.] Purpose: [To promote further discussion and convergence on the content for the IEEE 802.15.4ab amendment.] Notice: This document has been prepared to assist the IEEE P802.15. It is offered as a basis for discussion and is not binding on the contributing individual(s) or organization(s). The material in this document is subject to change in form and content after further study. The contributor(s) reserve(s) the right to add, amend or withdraw material contained herein. Release: The contributor acknowledges and accepts that this contribution becomes the property of IEEE and may be made publicly available by P802.15. Billy Verso, (Qorvo) Submission Slide 1

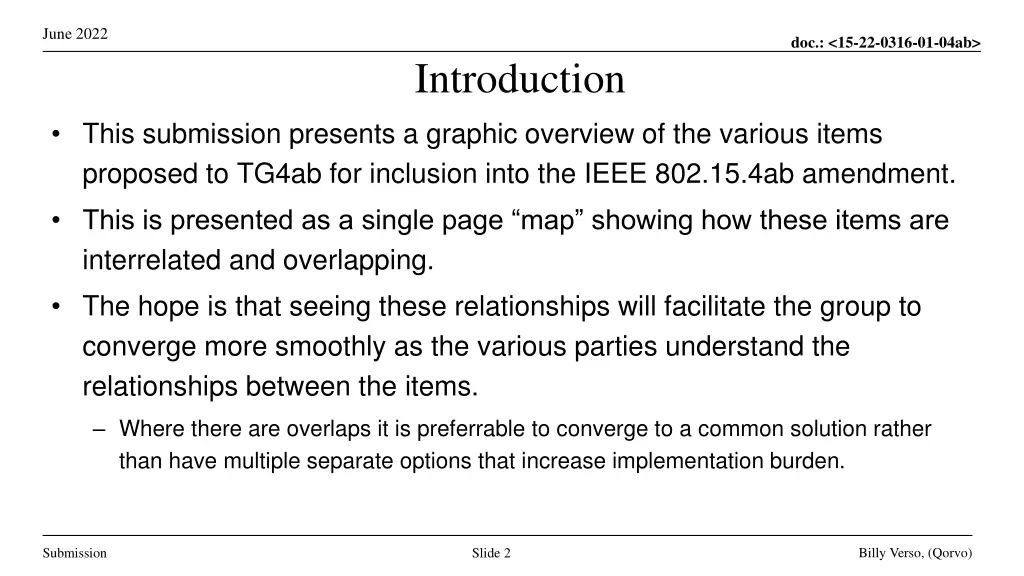

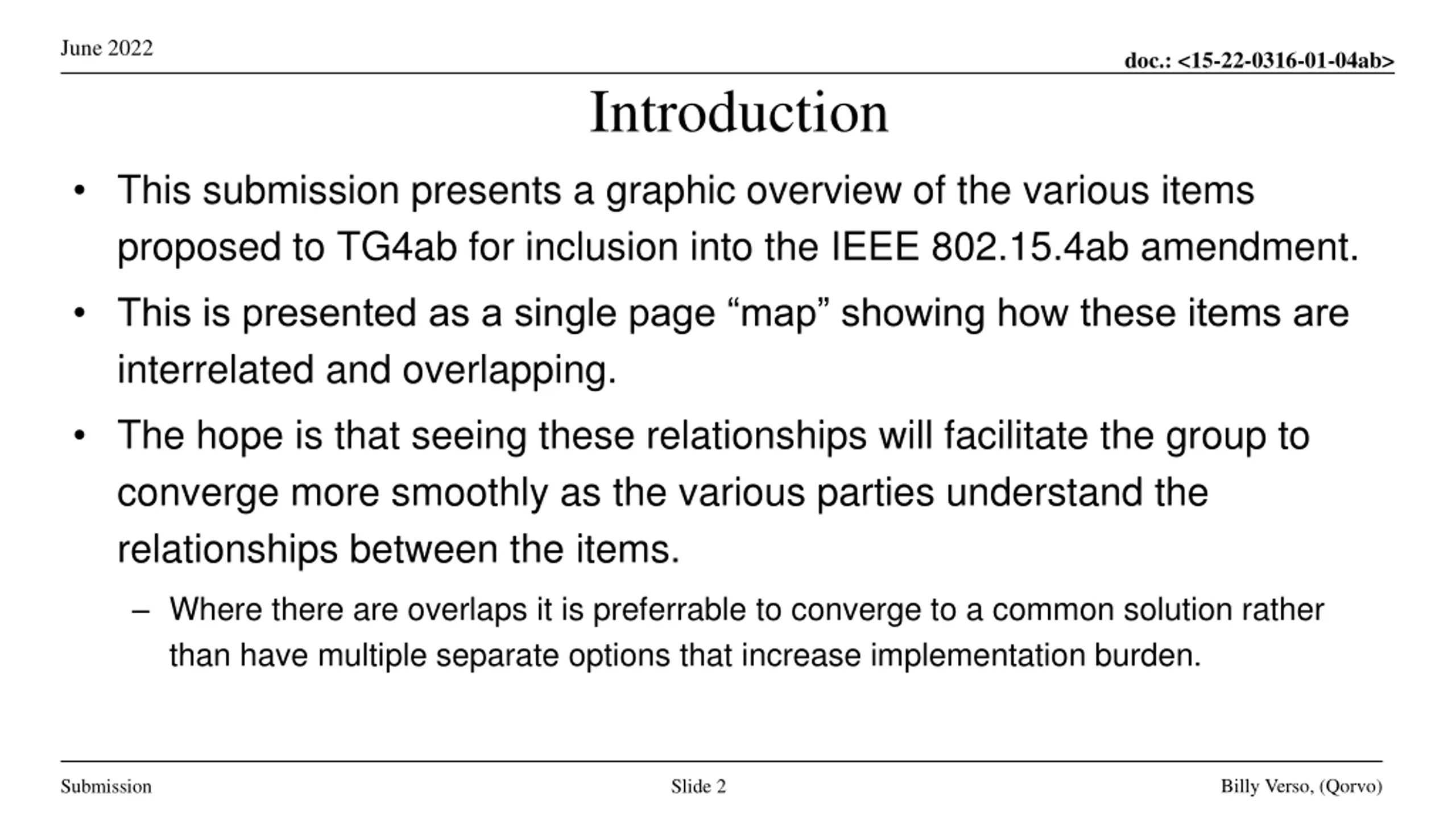

June 2022 doc.: <15-22-0316-01-04ab> Introduction This submission presents a graphic overview of the various items proposed to TG4ab for inclusion into the IEEE 802.15.4ab amendment. This is presented as a single page map showing how these items are interrelated and overlapping. The hope is that seeing these relationships will facilitate the group to converge more smoothly as the various parties understand the relationships between the items. Where there are overlaps it is preferrable to converge to a common solution rather than have multiple separate options that increase implementation burden. Billy Verso, (Qorvo) Submission Slide 2

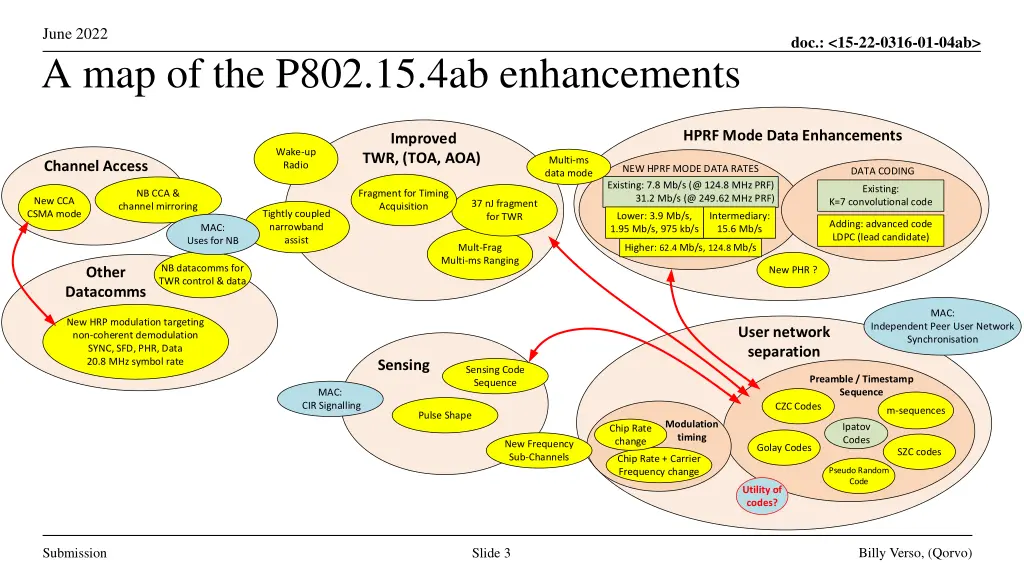

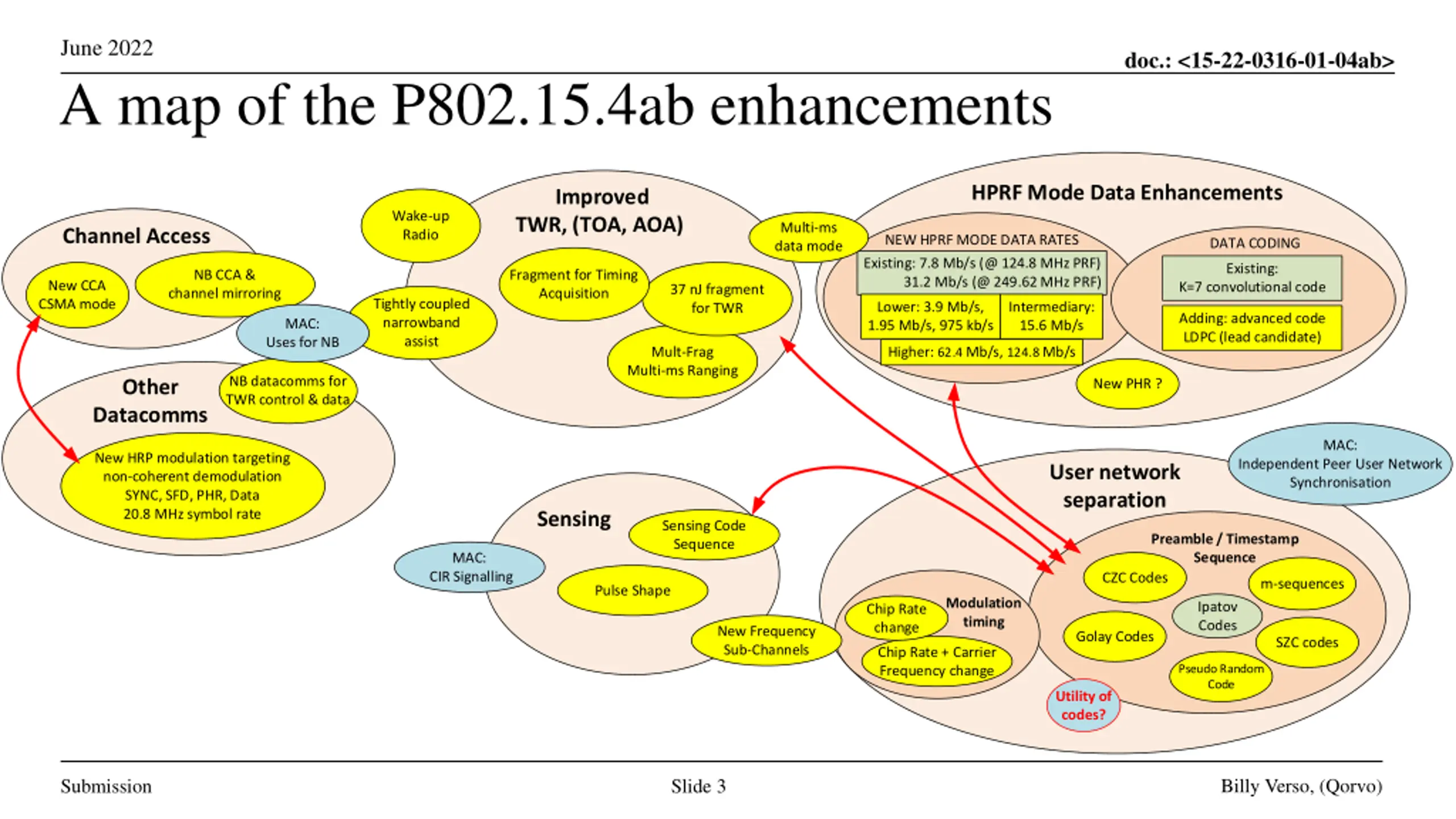

June 2022 A map of the P802.15.4ab enhancements doc.: <15-22-0316-01-04ab> HPRF Mode Data Enhancements Improved TWR, (TOA, AOA) Wake-up Radio Multi-ms data mode Channel Access NEW HPRF MODE DATA RATES DATA CODING Existing: 7.8 Mb/s (@ 124.8 MHz PRF) 31.2 Mb/s (@ 249.62 MHz PRF) Existing: NB CCA & channel mirroring Fragment for Timing Acquisition New CCA CSMA mode K=7 convolutional code 37 nJ fragment for TWR Tightly coupled narrowband assist Lower: 3.9 Mb/s, 1.95 Mb/s, 975 kb/s Intermediary: 15.6 Mb/s Adding: advanced code LDPC (lead candidate) MAC: Uses for NB Mult-Frag Multi-ms Ranging Higher: 62.4 Mb/s, 124.8 Mb/s NB datacomms for TWR control & data Other Datacomms New PHR ? MAC: New HRP modulation targeting non-coherent demodulation SYNC, SFD, PHR, Data 20.8 MHz symbol rate Independent Peer User Network Synchronisation User network separation Sensing Sensing Code Sequence Preamble / Timestamp Sequence CZC Codes MAC: CIR Signalling m-sequences Pulse Shape Modulation timing Ipatov Codes Chip Rate change New Frequency Sub-Channels Golay Codes SZC codes Chip Rate + Carrier Frequency change Pseudo Random Code Utility of codes? Billy Verso, (Qorvo) Submission Slide 3
June 2022 doc.: <15-22-0316-01-04ab> Conclusion This submission presented a single page graphic overview of the elements TG4ab is considering for the standard and shows how these are interrelated. To reduce the drafting workload, the author recommends that the group progresses convergence of the various proposals before text generation. Converging / merging proposals as much as possible to limit the number of options will help interworking and reduce the implementation / testing burden. Billy Verso, (Qorvo) Submission Slide 4

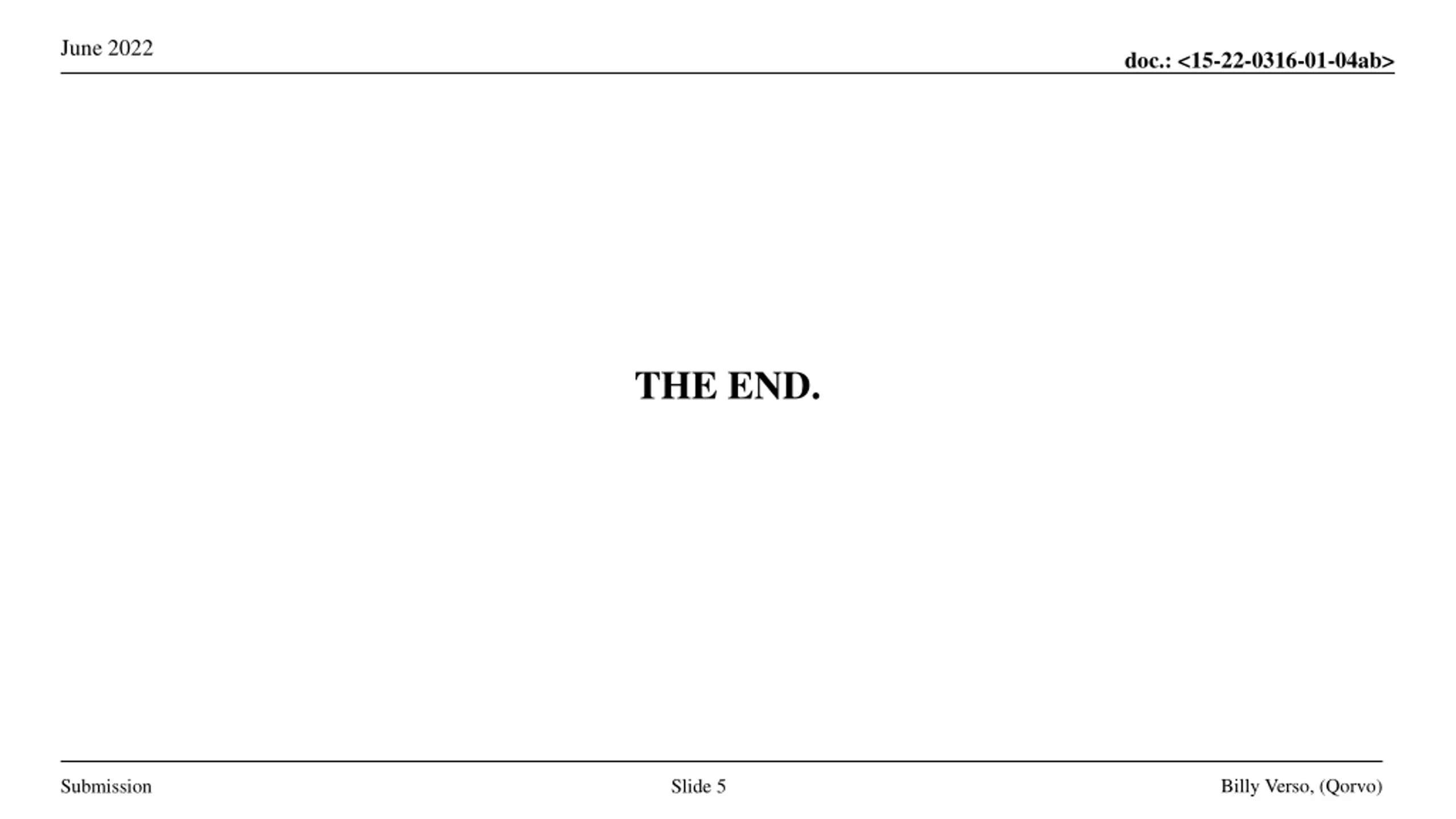

June 2022 doc.: <15-22-0316-01-04ab> THE END. Billy Verso, (Qorvo) Submission Slide 5
