News from IHEP Rui Qiao; Wenxi Peng; Ke Gong
Outline Power design Data transportation (preliminary) Scientific data Housekeeping data trigger for BT2022

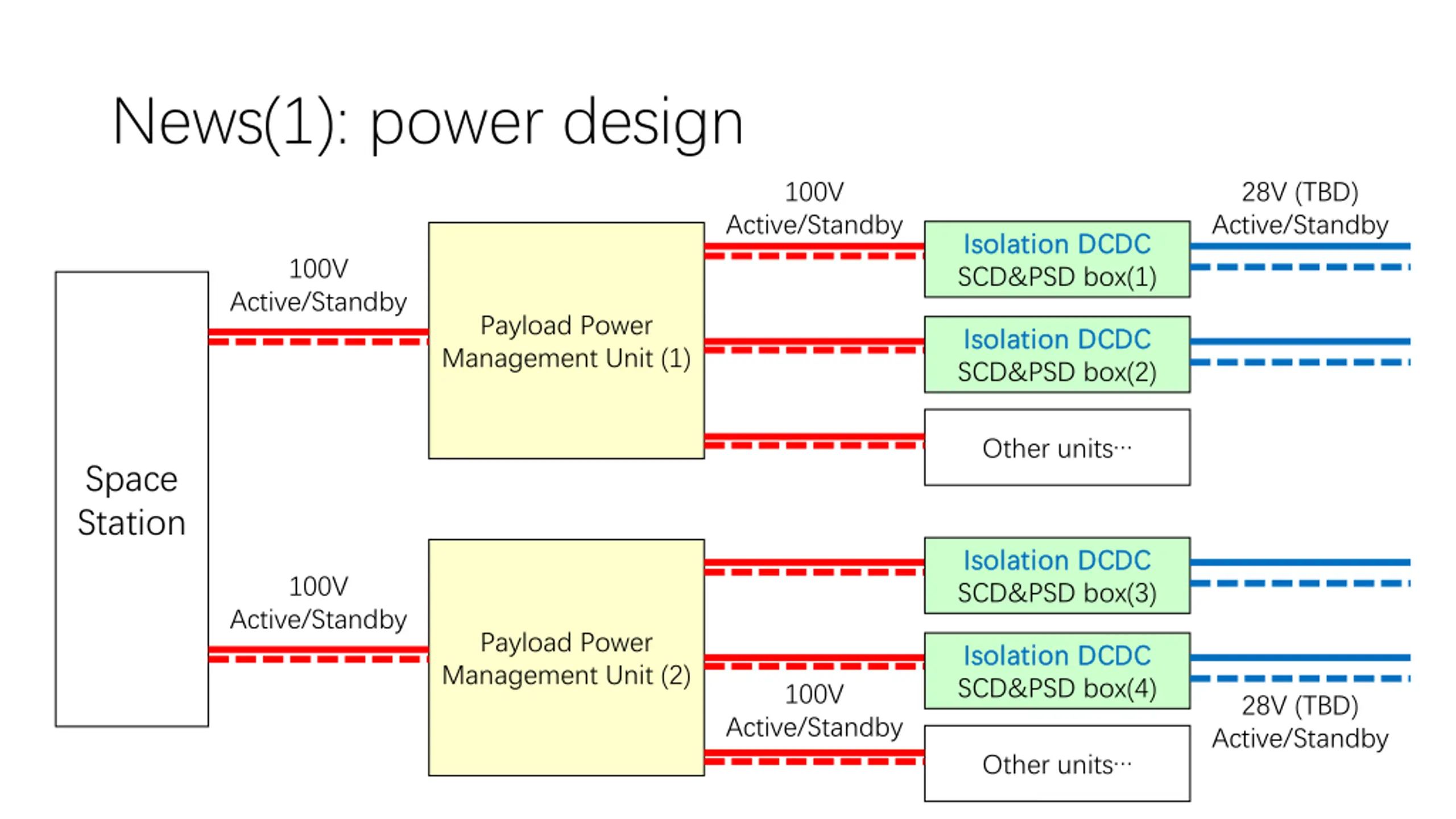

News(1): power design 100V 28V (TBD) Active/Standby Active/Standby Isolation DCDC Isolation DCDC SCD&PSD box(1) 100V Active/Standby Payload Power Management Unit (1) Isolation DCDC Isolation DCDC SCD&PSD box(2) Other units Space Station Isolation DCDC Isolation DCDC SCD&PSD box(3) 100V Active/Standby Payload Power Management Unit (2) Isolation DCDC Isolation DCDC SCD&PSD box(4) 100V 28V (TBD) Active/Standby Active/Standby Other units

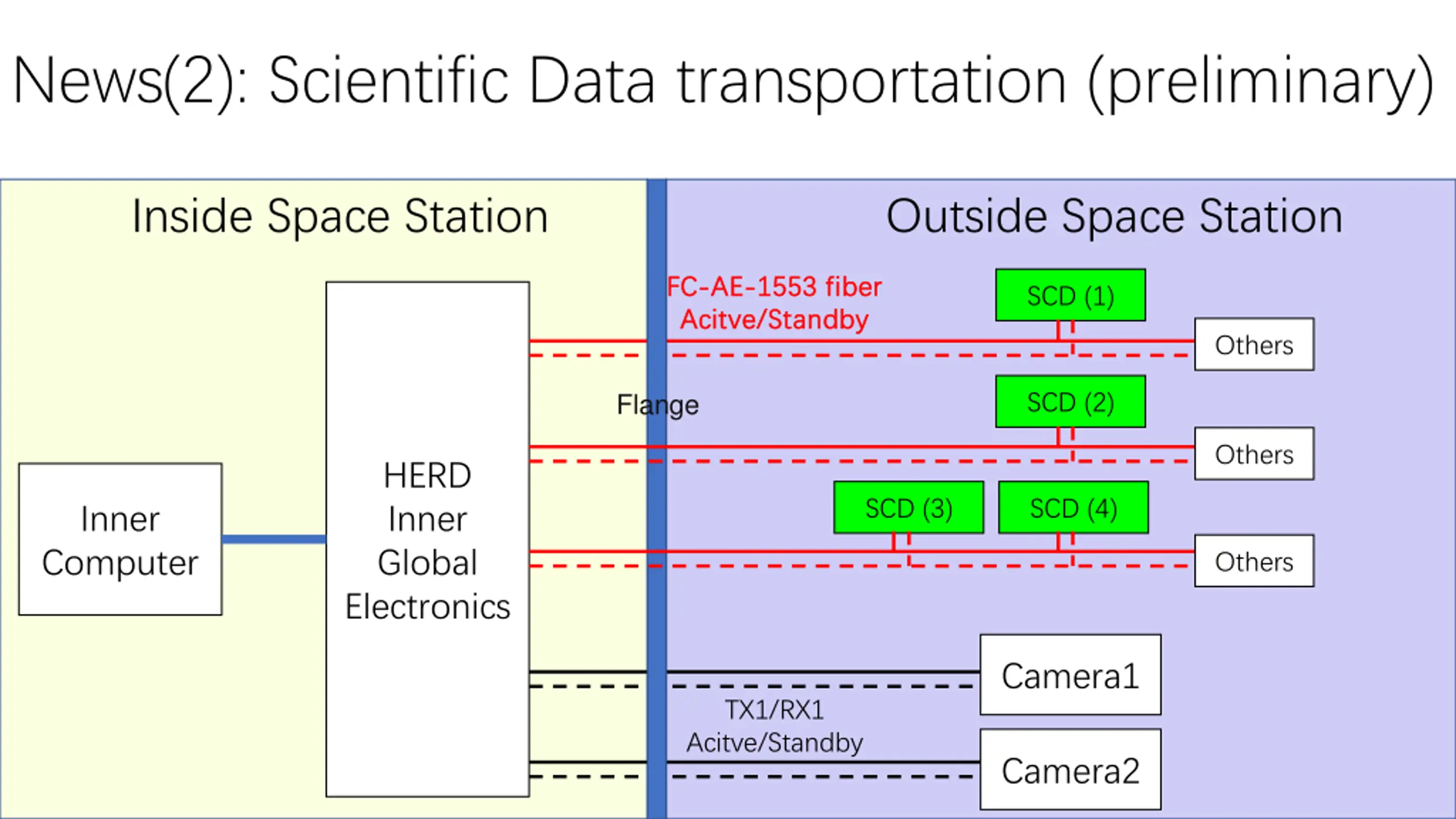

News(2): Scientific Data transportation (preliminary) Inside Space Station Outside Space Station FC FC- -AE Acitve Acitve/Standby /Standby AE- -1553 1553 fiber fiber SCD (1) Others Flange SCD (2) Others HERD Inner Global Electronics SCD (3) SCD (4) Inner Computer Others Camera1 TX1/RX1 Acitve/Standby Camera2

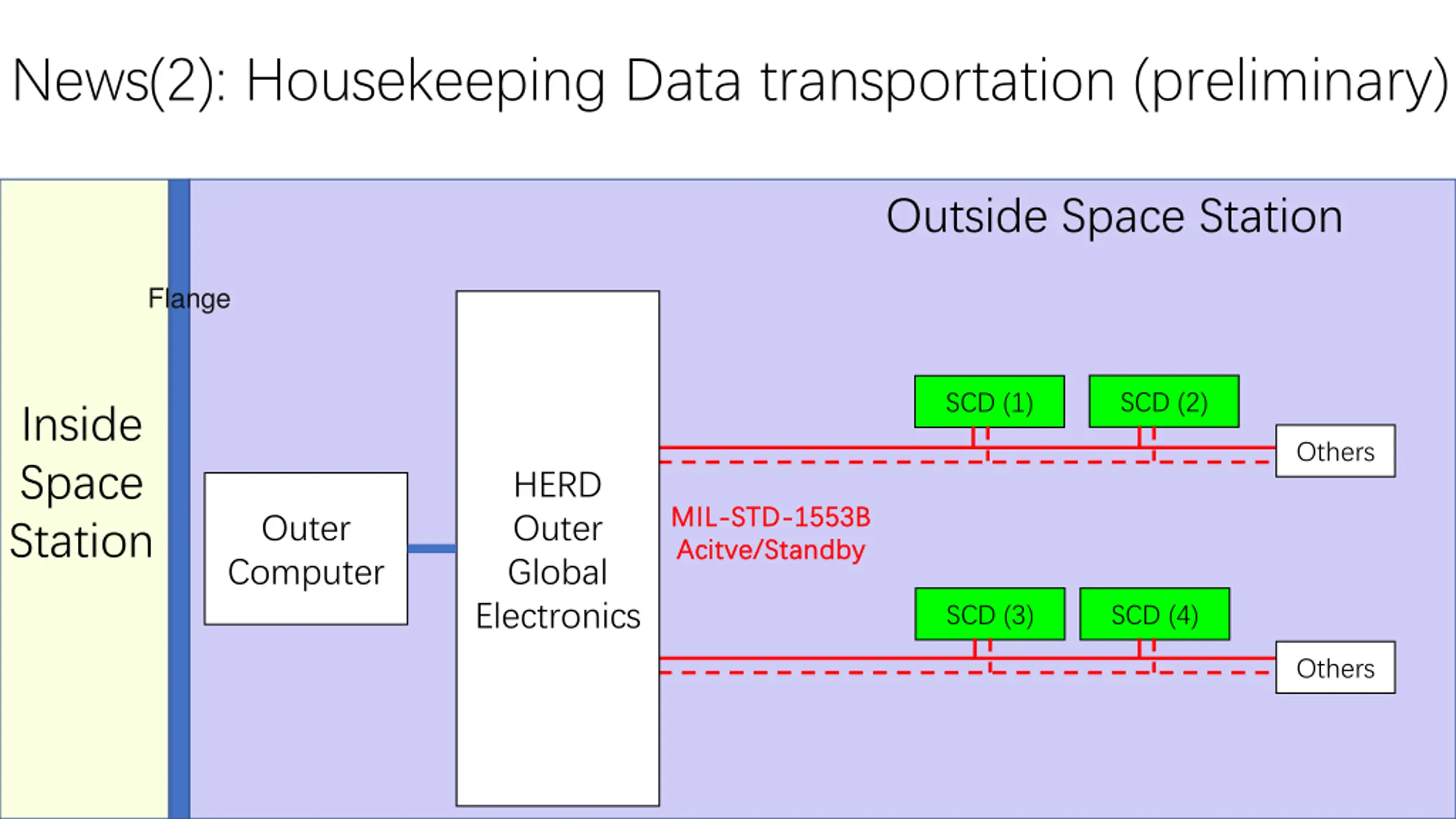

News(2): Housekeeping Data transportation (preliminary) Outside Space Station Flange SCD (2) SCD (1) Inside Space Station Others HERD Outer Global Electronics MIL MIL- -STD Acitve Acitve/Standby /Standby STD- -1553B 1553B Outer Computer SCD (3) SCD (4) Others

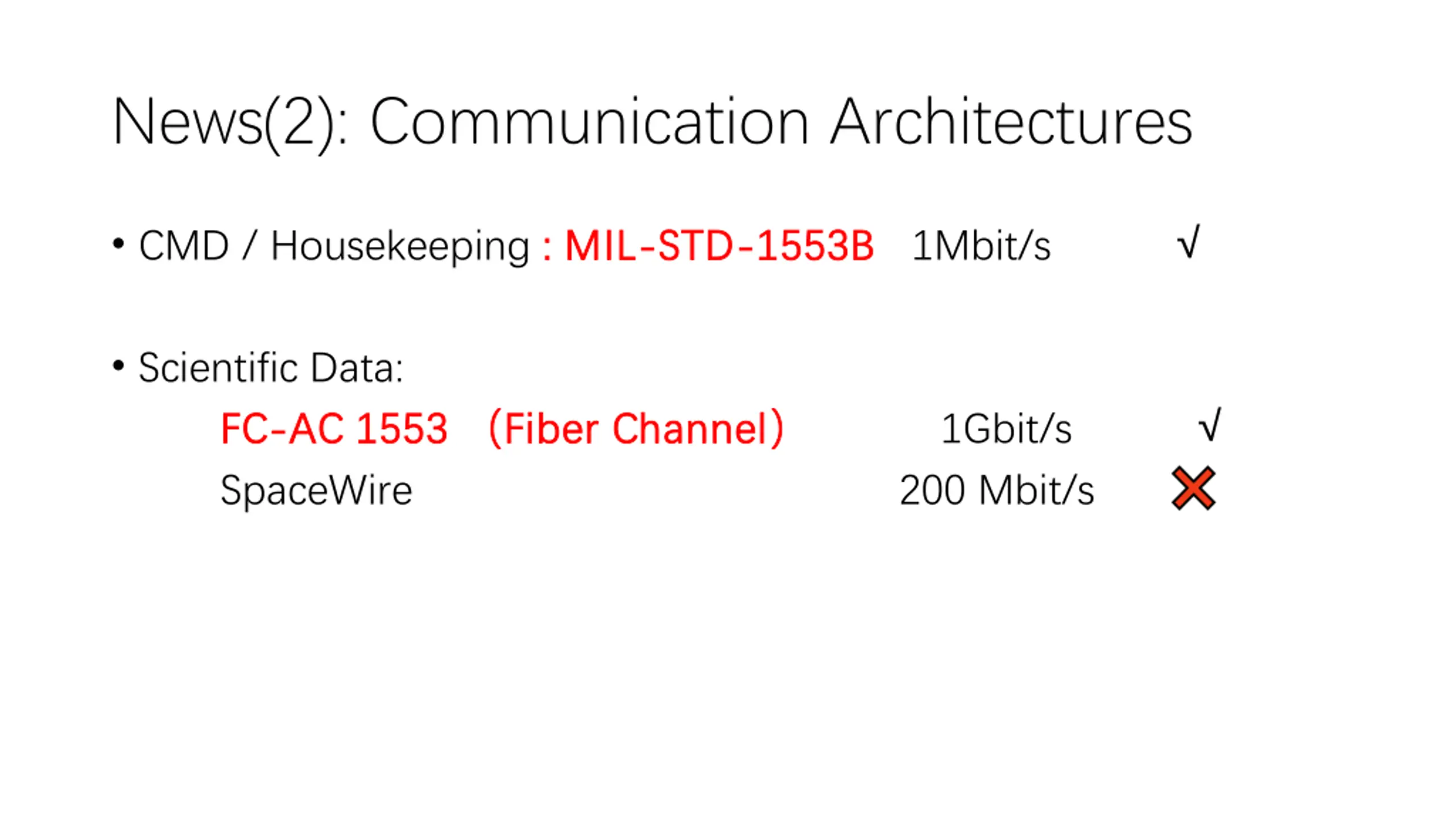

News(2): Communication Architectures CMD / Housekeeping : MIL : MIL- -STD STD- -1553B 1553B 1Mbit/s Scientific Data: FC FC- -AC 1553 SpaceWire AC 1553 Fiber Channel Fiber Channel 1Gbit/s 200 Mbit/s

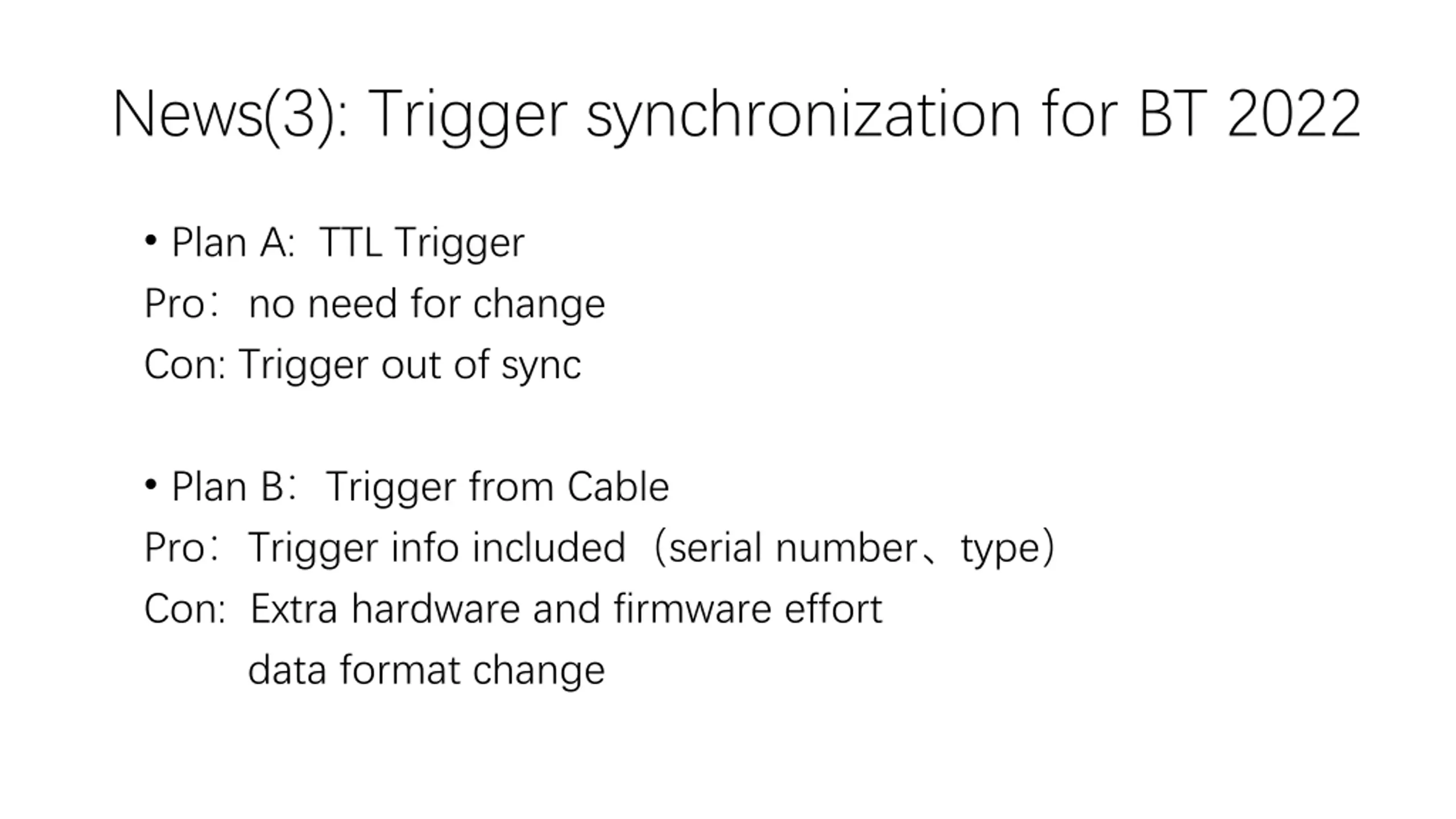

News(3): Trigger synchronization for BT 2022 Plan A: TTL Trigger Pro no need for change Con: Trigger out of sync Plan B Trigger from Cable Pro Trigger info included serial number type Con: Extra hardware and firmware effort data format change
